The Self Winding Swiss Watch

  1. Duracuir1 Never Used A Kodak Jul 21, 2021

    Posts
    2,695
    Likes
    28,507

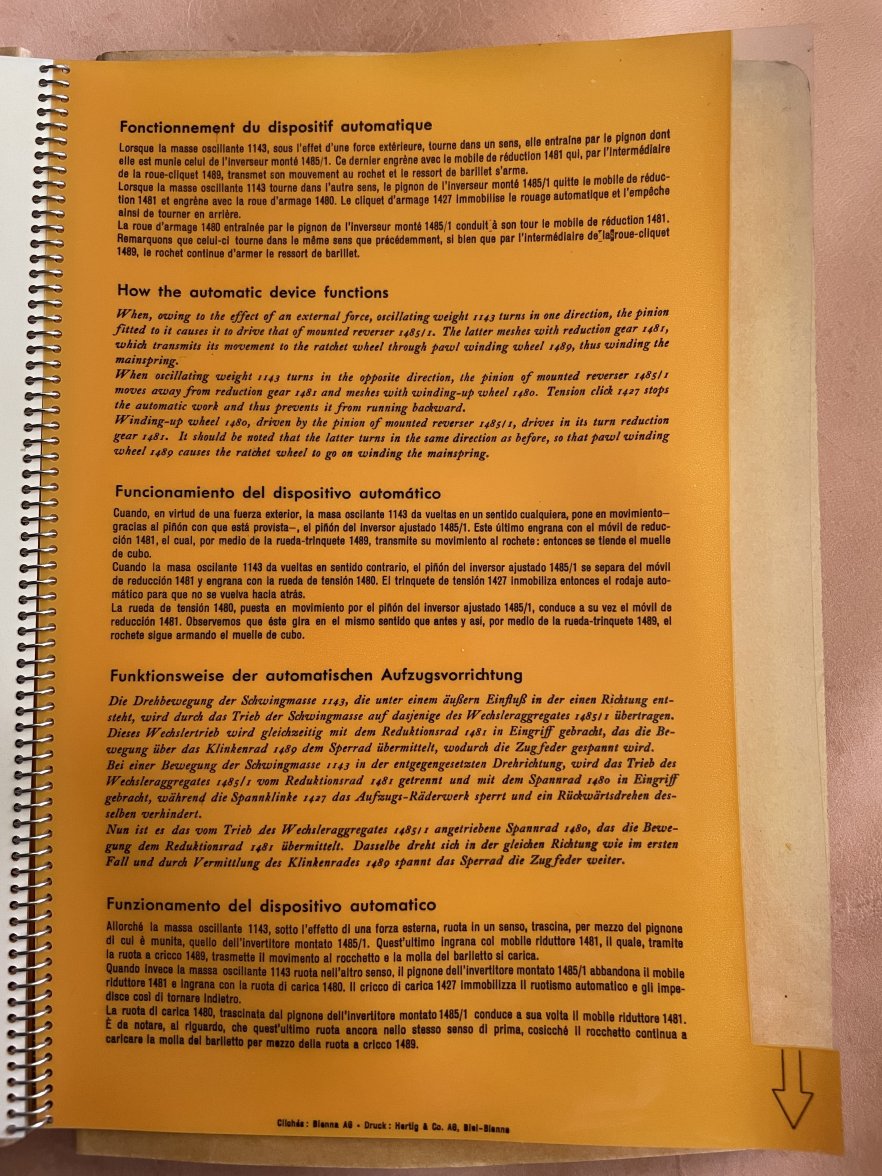

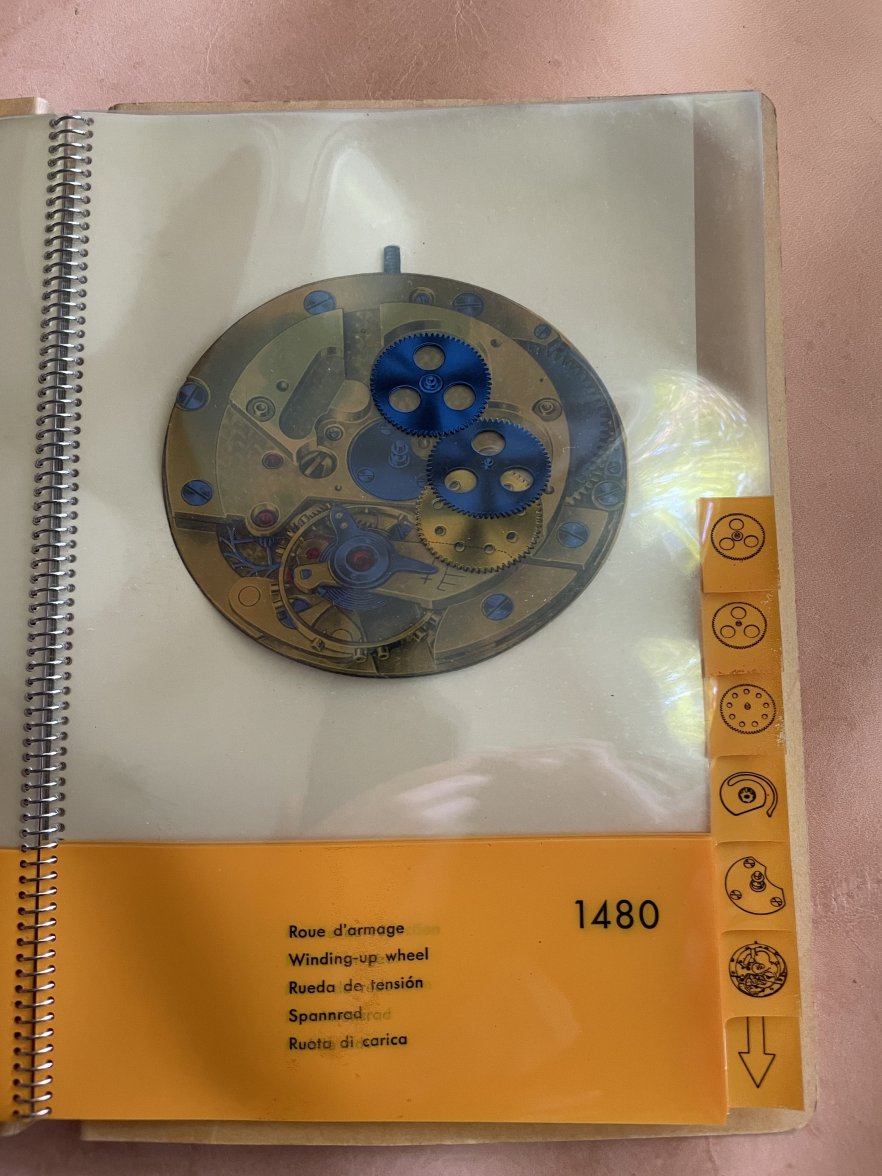

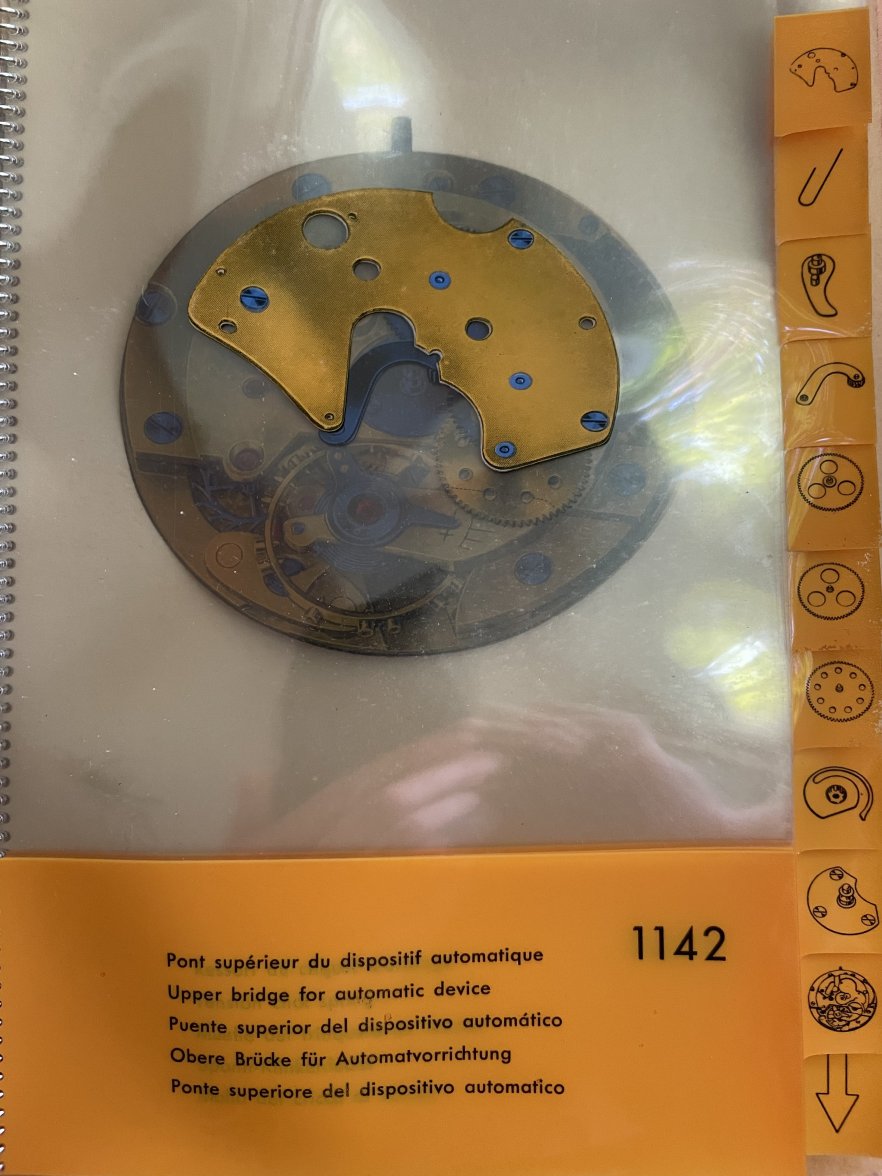

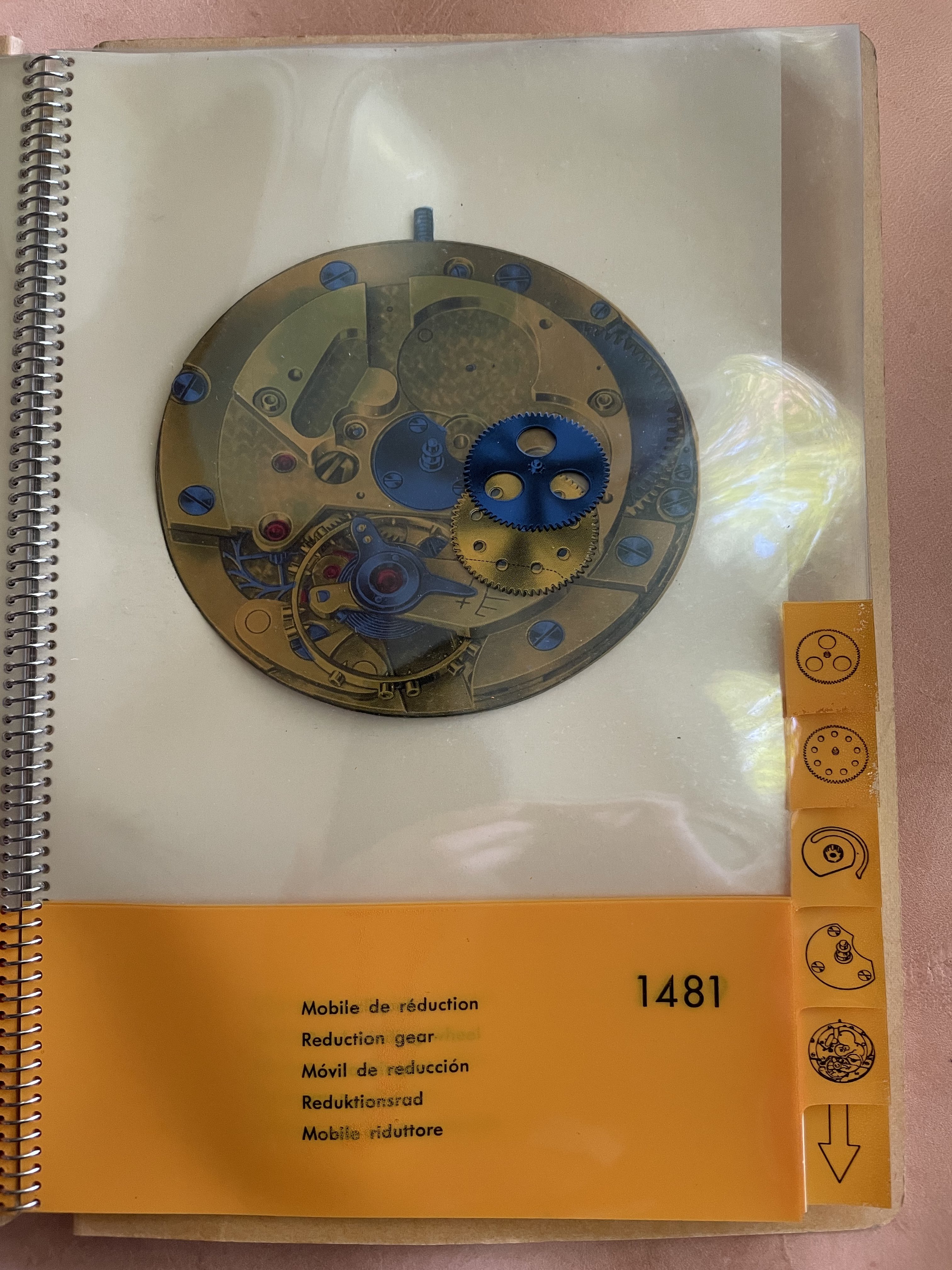

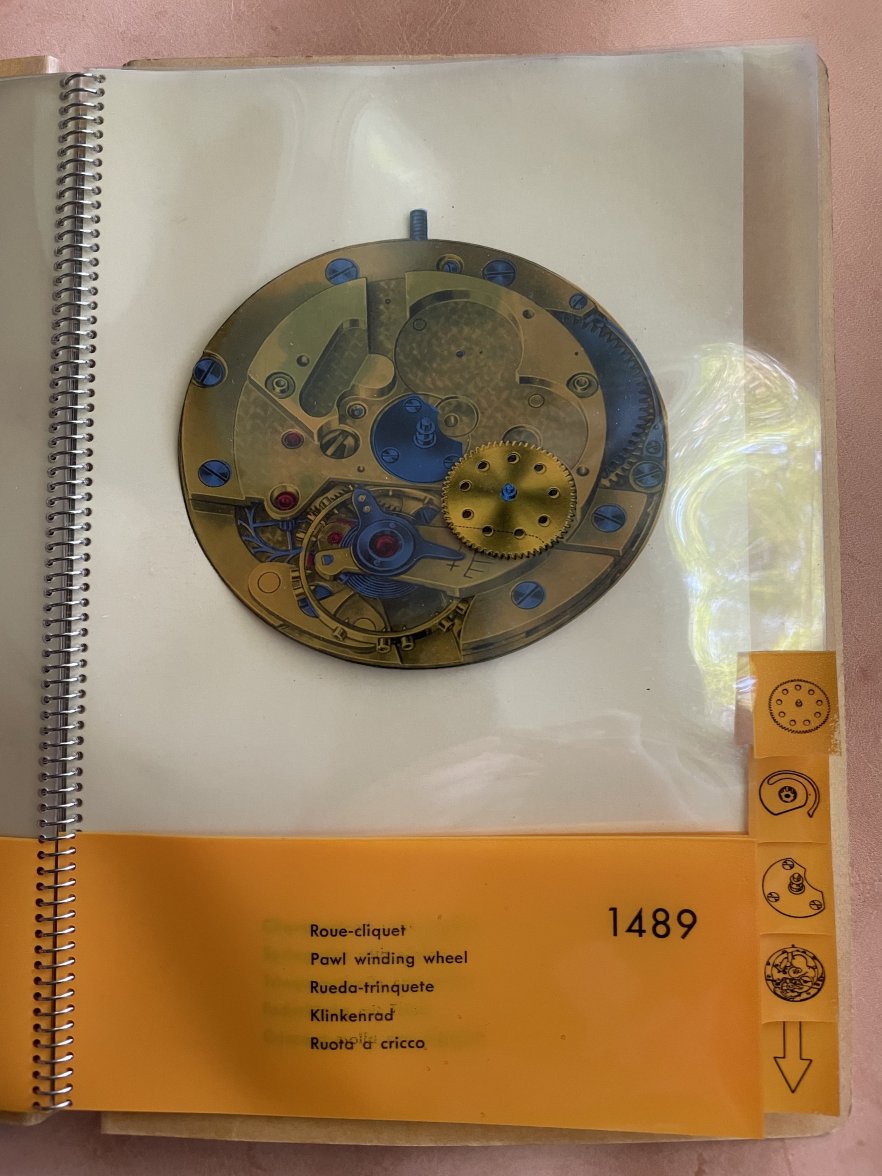

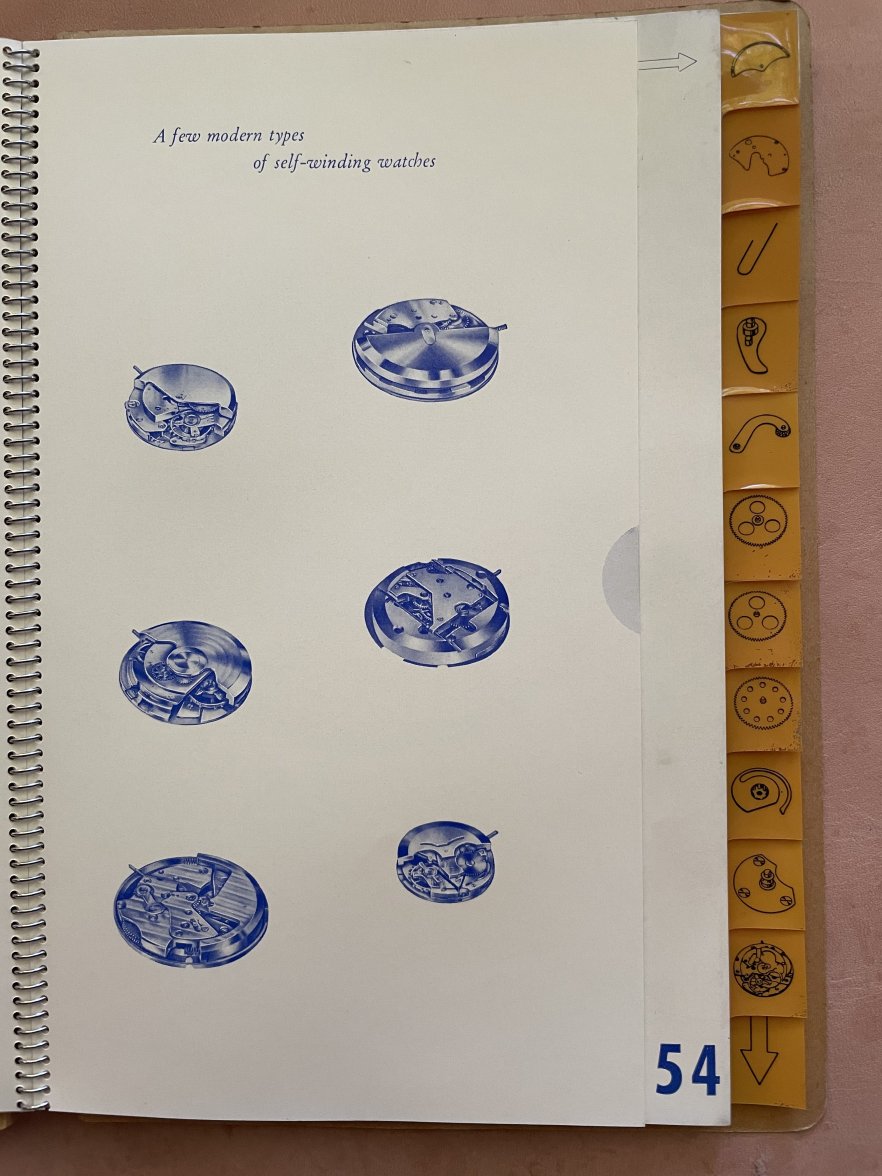

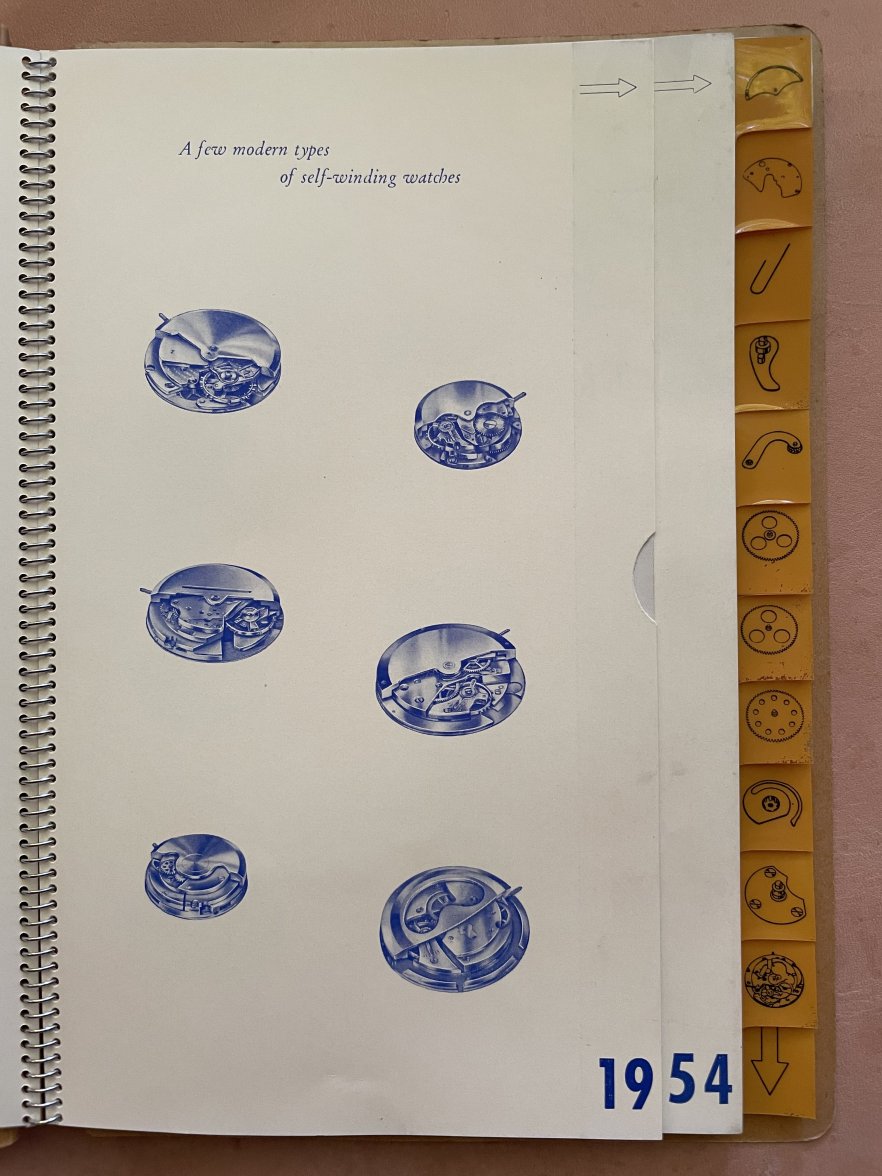

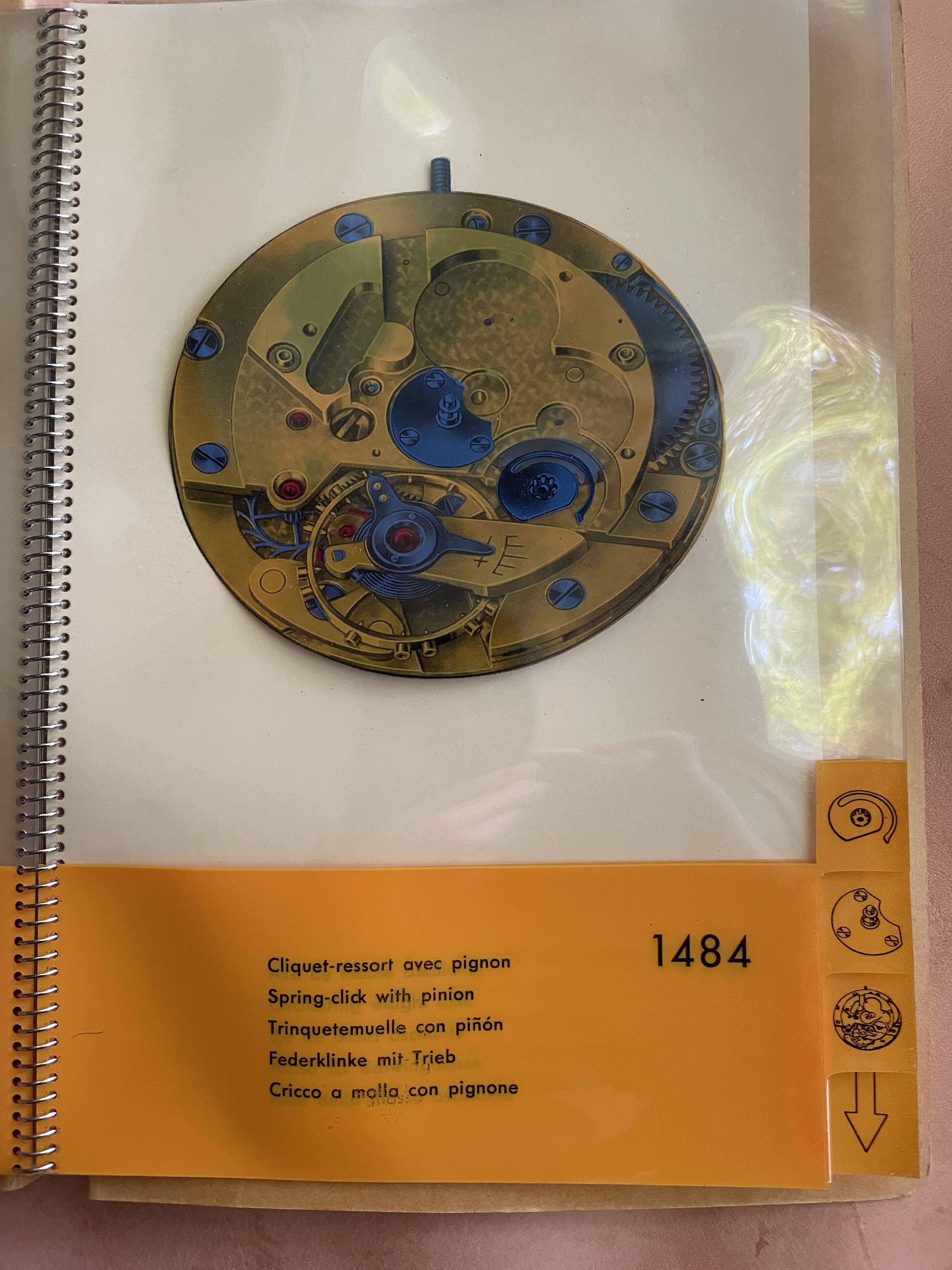

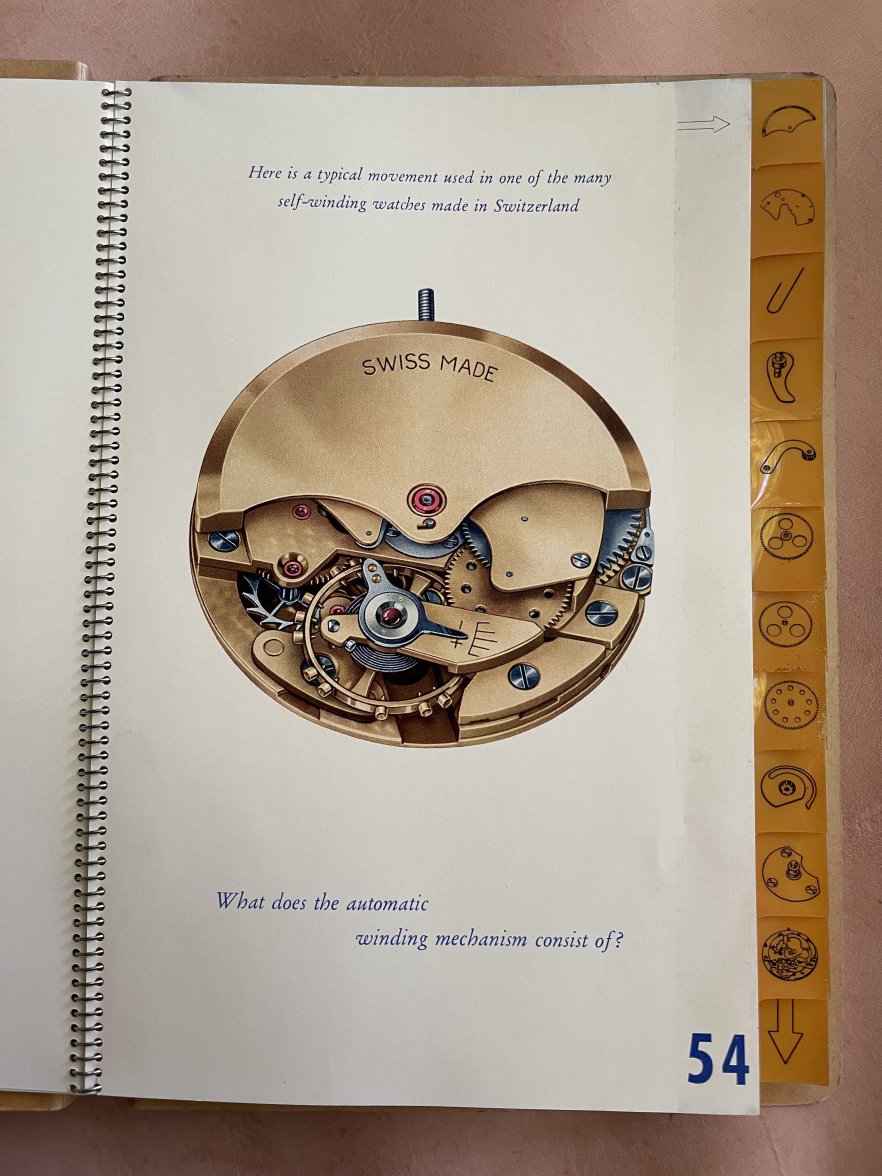

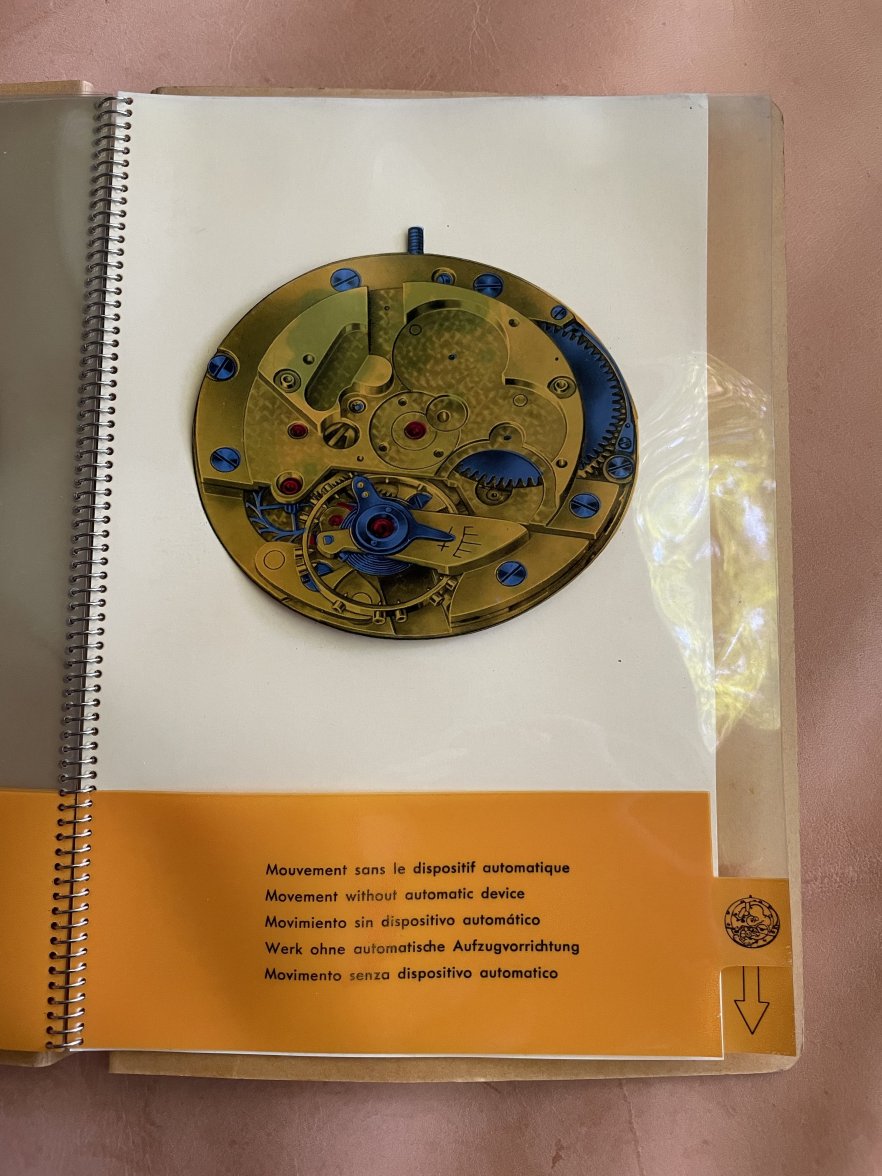

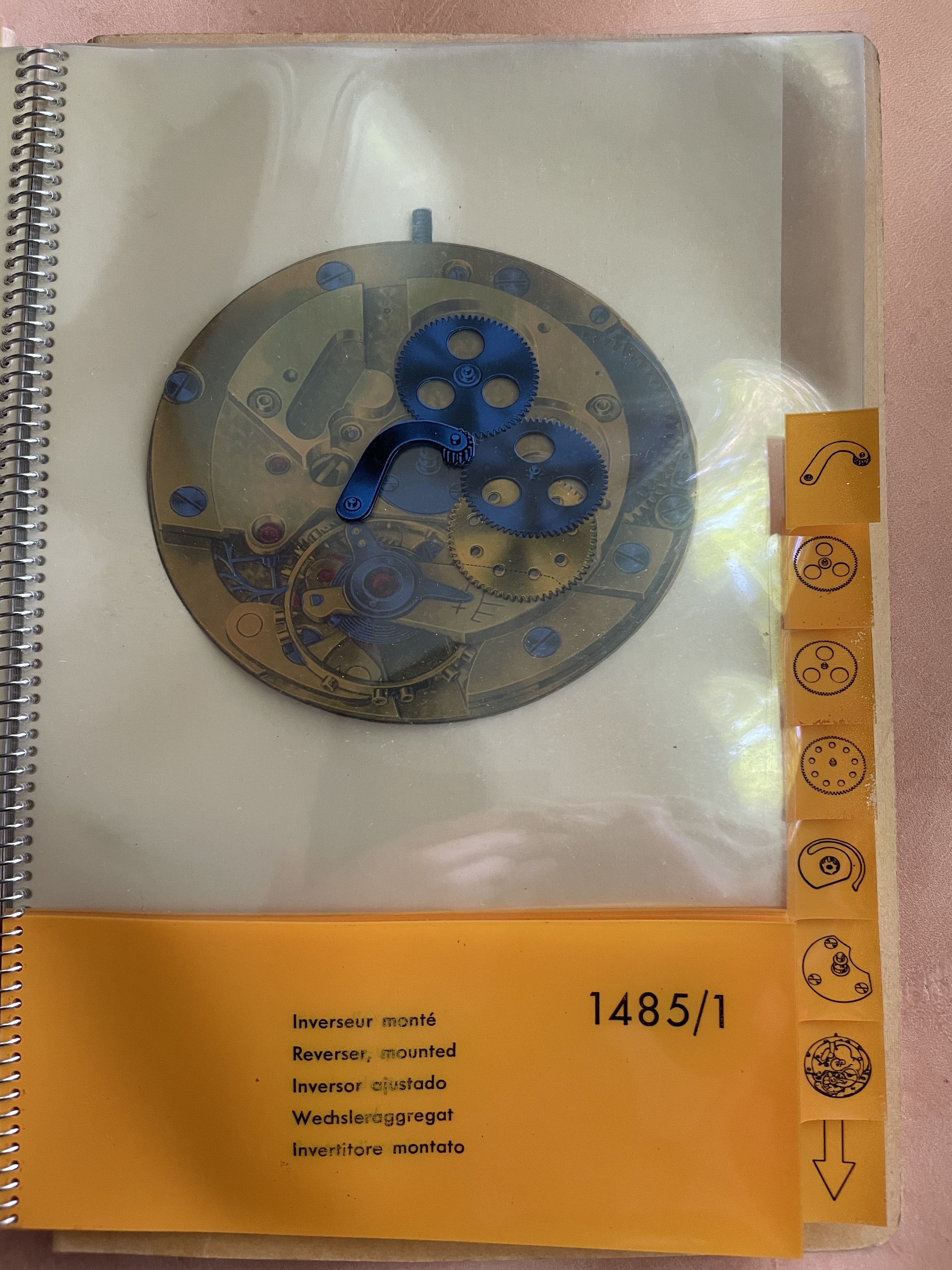

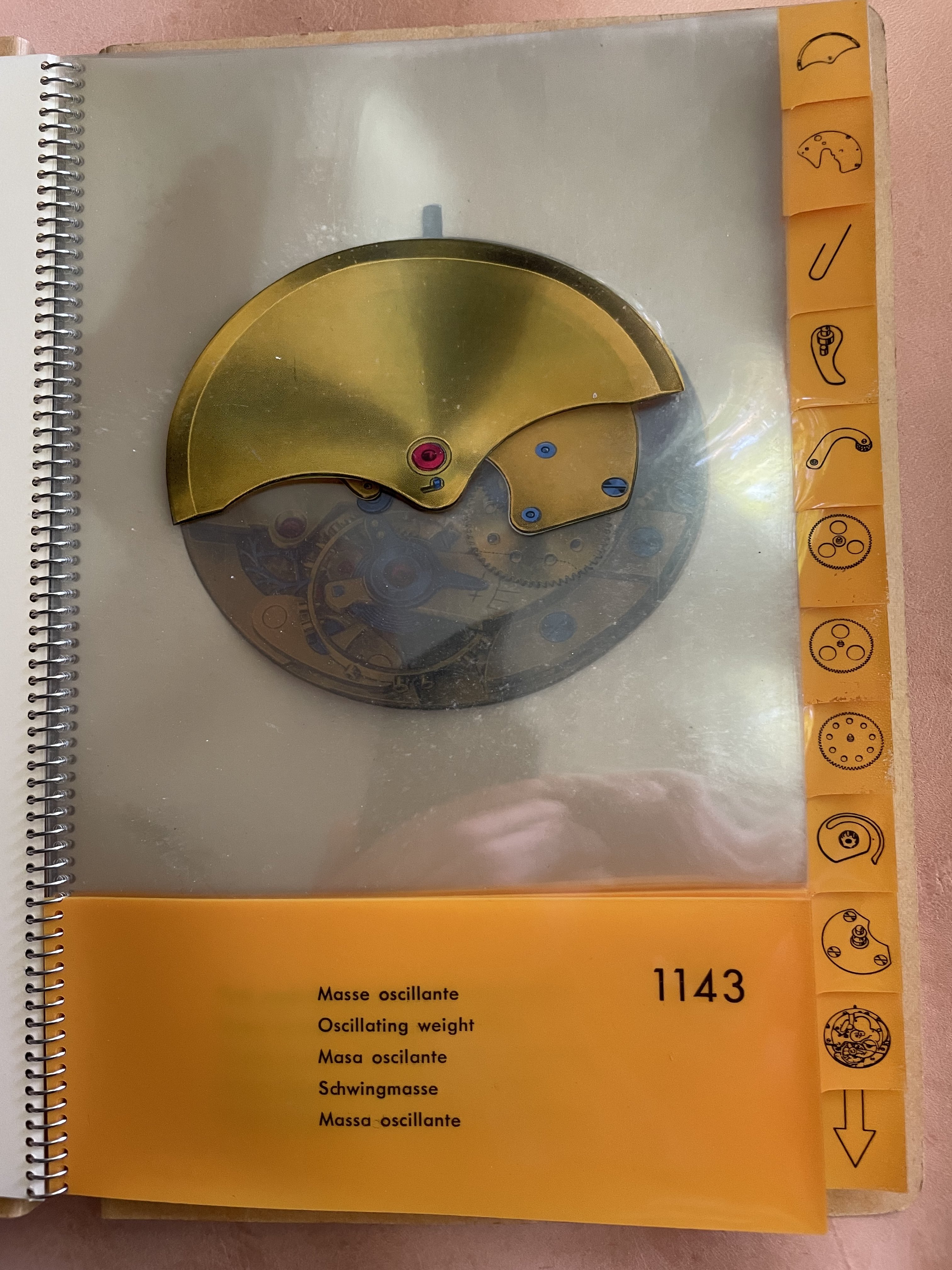

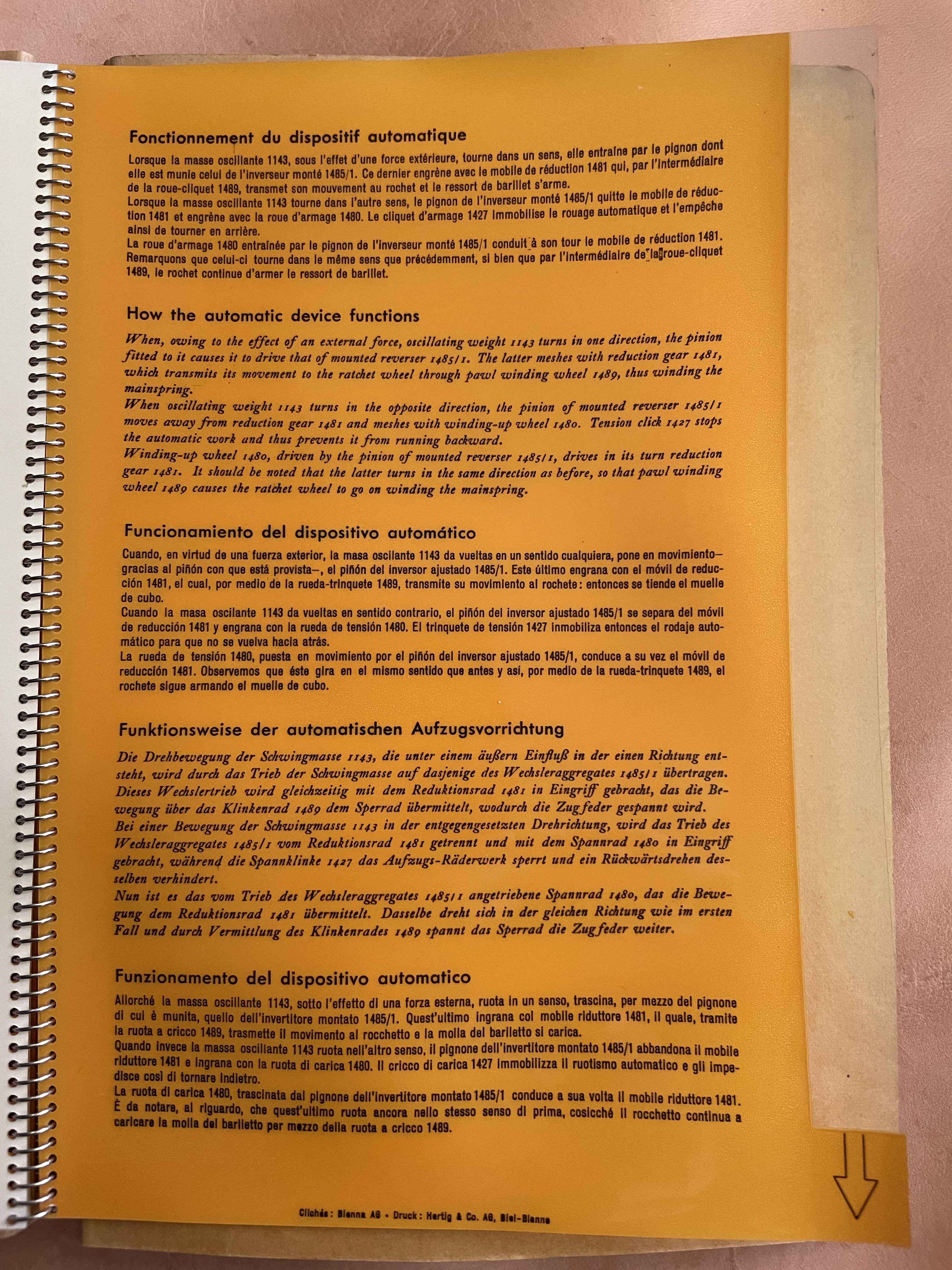

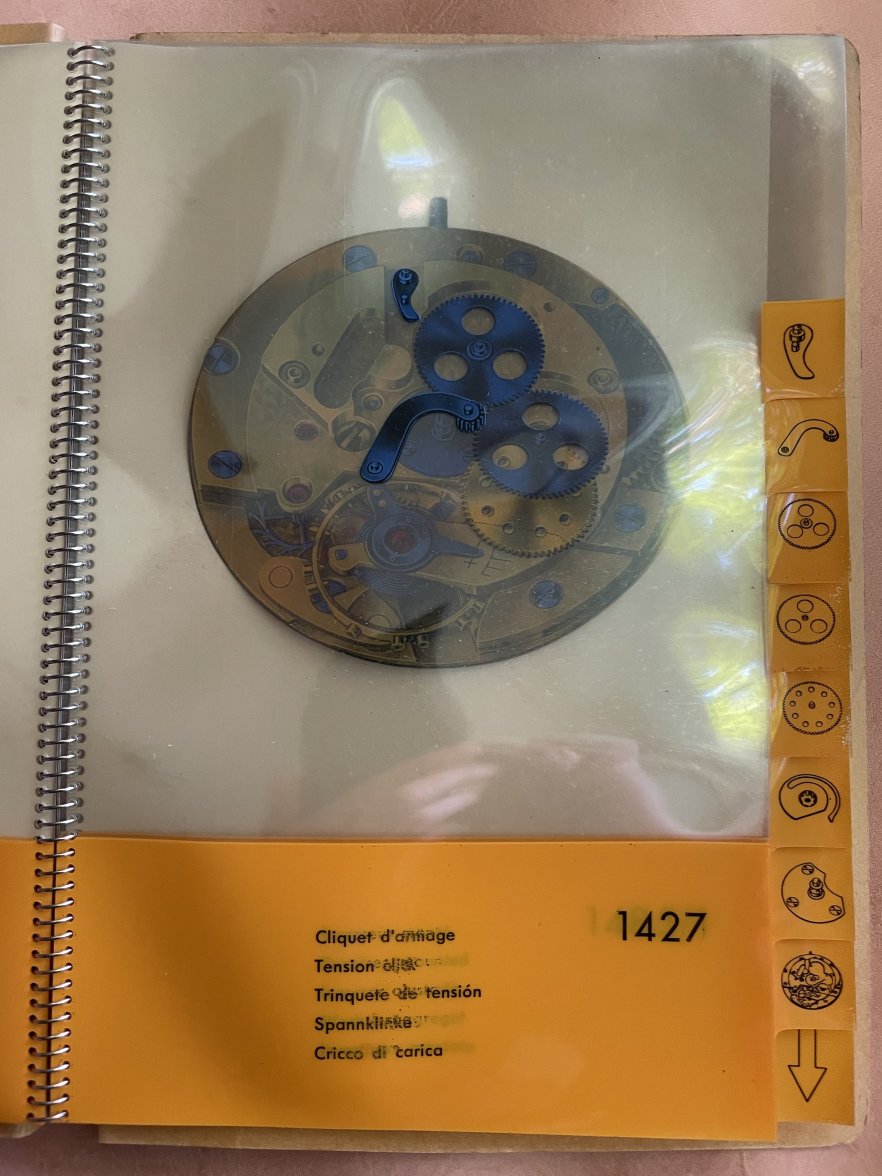

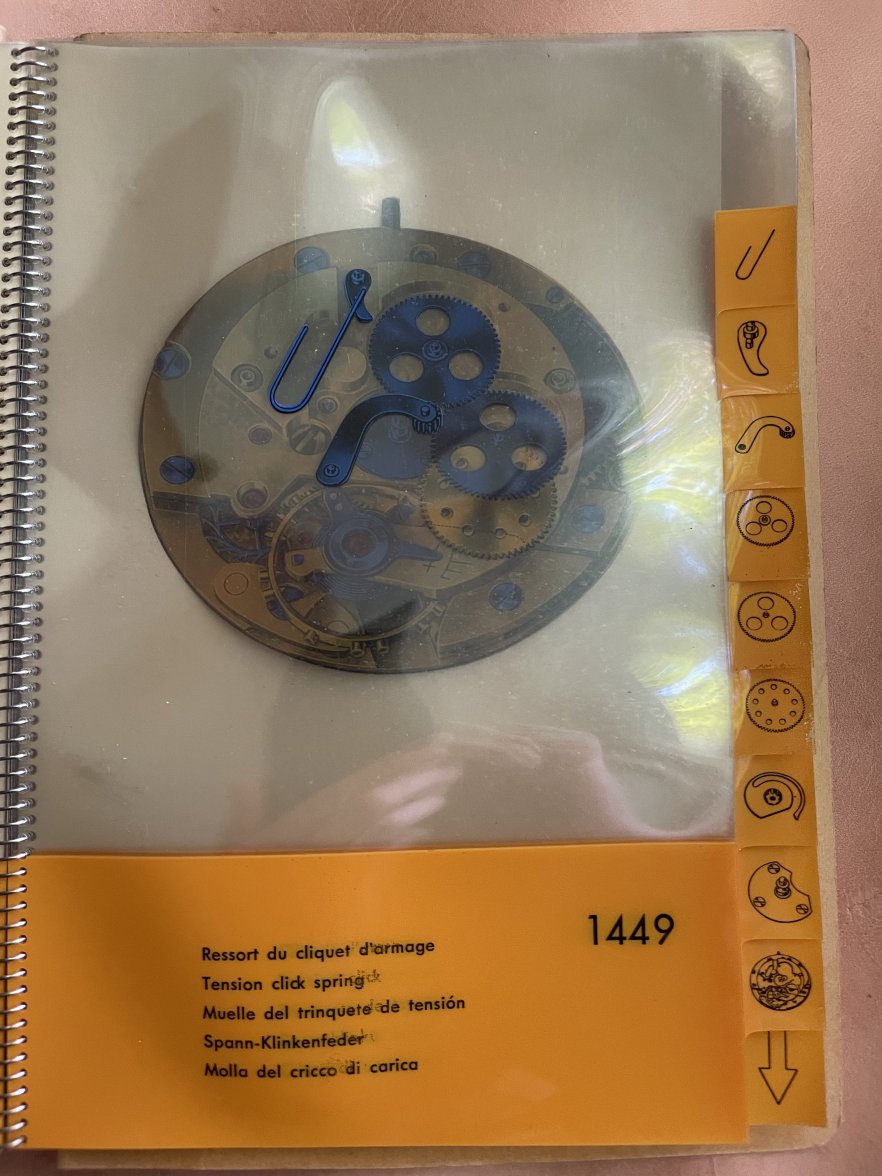

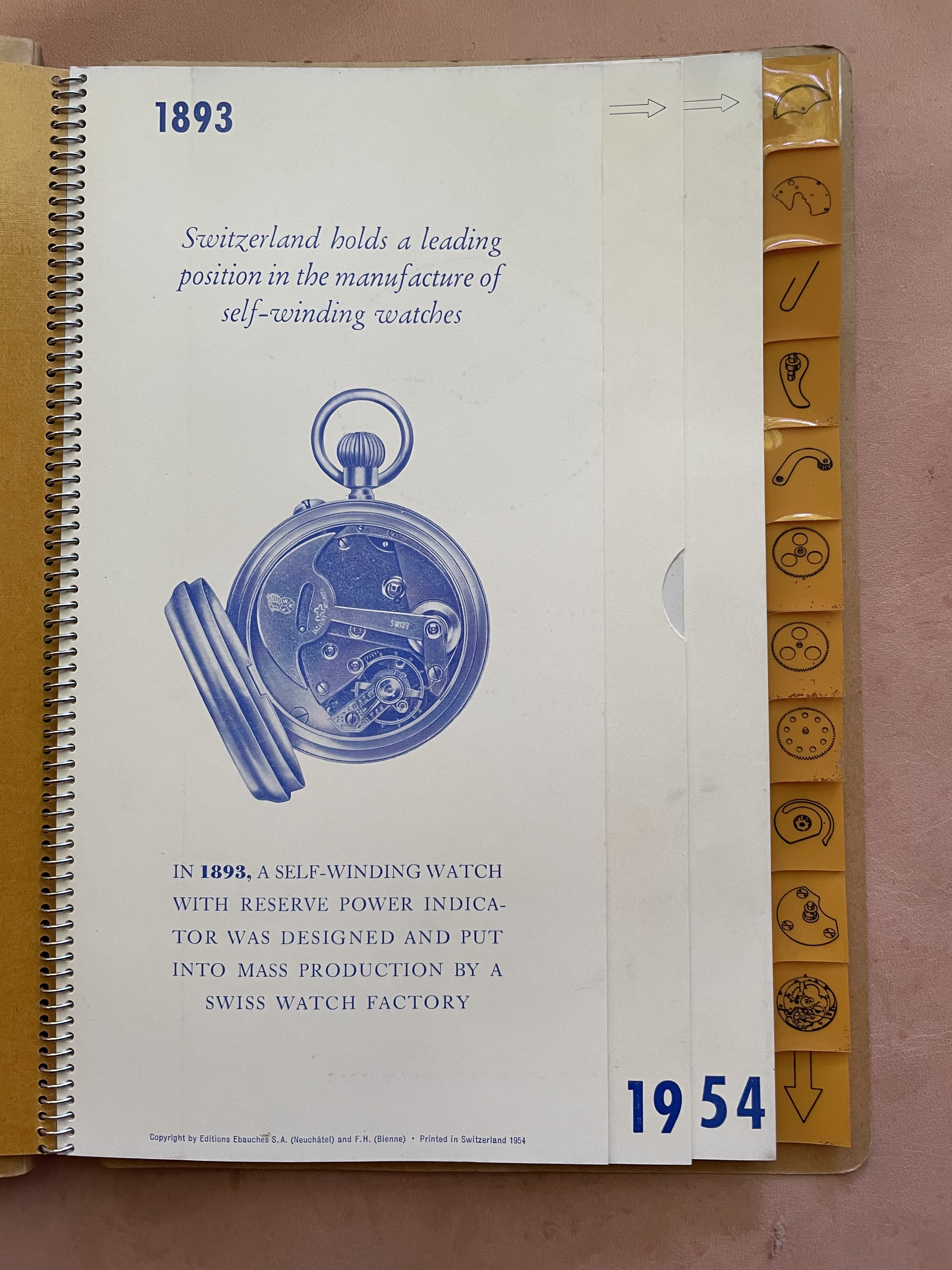

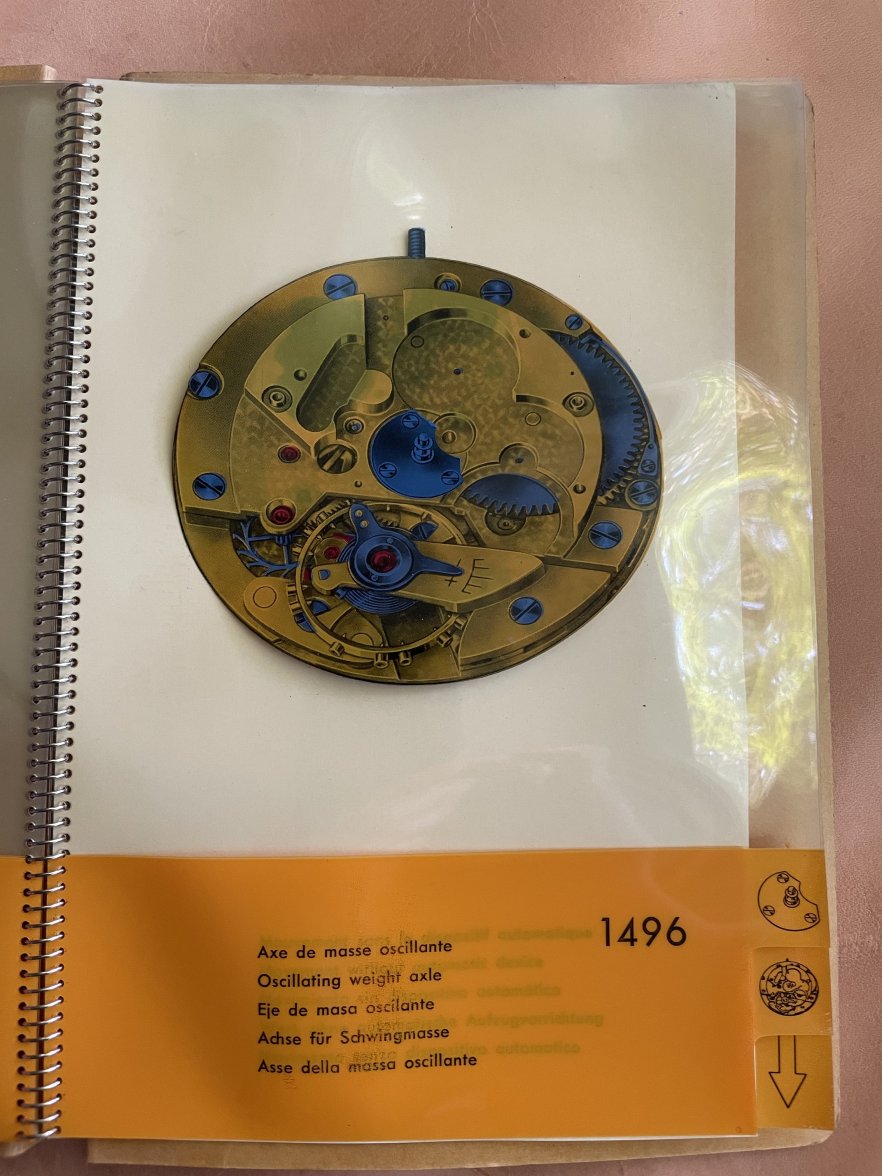

    Hi. Here are photos from the above titled 1954 booklet. The yellow tabs correspond to the part that is shown on the otherwise see-through page. Each part overlaps the next. I think that with this book, a screwdriver or two, an anvil and maybe some type of impact tool, I can now consider myself a watchmaker. Who wants me to fix their watch? Please note that I will only be able to fix four of five per day, so don’t overwhelm me with requests.

    2D931841-D133-48A5-BED6-258D0C28100B.jpeg 5FA421C6-8AE2-47B6-95A8-2E34B1E8E44B.jpeg 4098748D-F30D-4CEF-8CC0-0A9E0A74D8EF.jpeg AFDEC84D-E341-4877-9AB8-2EF9AAFBD360.jpeg B56D1992-5E16-4CF0-8529-A99A1A10DA46.jpeg F66361A2-2F97-44F8-98B6-BAC3C4F371FA.jpeg 344E1643-F86A-491E-A63C-6E2EEE9329CA.jpeg 0DF34C8D-2729-47F7-870D-4942247D8E9D.jpeg 19F4892F-4C94-4C4A-B215-975FA4D09D5B.jpeg B2F35872-EA1B-4748-94CF-22DE30397171.jpeg 15055E20-71F9-4D5C-B74D-0F2E0667B756.jpeg 2D59BFE4-C6F2-486C-B654-758357DECB16.jpeg D0D527DE-165C-427F-A0D7-D3D797004DC1.jpeg 56FC2DE6-A1D1-481B-AA17-02A08CC4D2D3.jpeg D01140DE-652A-415E-93D8-D39EA8B5AB25.jpeg 35B8EB61-480A-4BB3-BF4F-67FBDDBE6FD3.jpeg 40F06759-57D3-402B-92B5-C6C6D61C6329.jpeg 6149CE30-26DB-447A-A723-5B5335958E48.jpeg 3F72F3D6-5C5B-4257-9011-5D3B9A374618.jpeg

  2. Canuck Jul 21, 2021

    Posts
    13,376
    Likes
    37,536
    Suggest you stick to leather work! :D I have that same booklet. It shows a Felsa 690 (or 1560) calibre movement which was a major leap forward it full rotor, reversible auto wind system, back in the early 1950s.

  3. DaveK Yoda of Yodelers Jul 21, 2021

    Posts
    4,118
    Likes
    11,577
    Last time we played a game like this I woke up in Sault Ste Marie missing a kidney :cautious:

    Archer and Duracuir1 like this.
  4. Foo2rama Keeps his worms in a ball instead of a can. Jul 21, 2021

    Posts
    17,045
    Likes
    25,211
    Duracuir1 likes this.
  5. Canuck Jul 21, 2021

    Posts
    13,376
    Likes
    37,536
    The subject Felsa movement was an early FULL 360° rotor watch movement with a rotor that wound both ways. I don’t know of an earlier example of such a movement. Certainly, other makers produced automatics earlier, but these were mostly “bumper” types, or full 360° rotors that only wound one way (i. e. Rolex).

    Evitzee, Duracuir1 and Foo2rama like this.
  6. LuckyLes Jul 22, 2021

    Posts
    192
    Likes
    177
    You forgot the vice, how are you going to grip the movemnt and not get sweaty finger prints all over it?

    Waltesefalcon and Duracuir1 like this.
  7. Evitzee Jul 22, 2021

    Posts
    6,250
    Likes
    11,556
    It is widely accepted that the Felsa 6xx was the first successful movement to come to market with a 360° rotor that wound in both directions.

    Canuck and Duracuir1 like this.
