Spring bar shoulder puzzlement…

Posts

7,177

Likes

23,253

M'Bob

·Nov 10, 2025

When I look into the use of spring bars with shoulders vs flanges, most sources and forums say spring bars with shoulders are used for lugs that are pierced.

If we assume that this is accurate, how does one decide whether to use the single, or double shoulder variety? After all, if you’re removing them by poking them out from the outside of the lug, what difference does it make? And, with installation, on a strap, only the tips would besti king out anyway. And on a bracelet, one would probably opt for flanges. Thanks for any insights.



Posts

15,477

Likes

45,828

Canuck

·Nov 10, 2025

I only use the stainless steel double flange spring bars, myself. Regardless of the lugs on the watch.



Posts

24,248

Likes

53,995

Dan S

·Nov 10, 2025

I try to avoid those telescoping double shoulder spring-bars, the ends are pretty weak. And so far, I haven't run into a watch where they are really necessary.



Posts

15,477

Likes

45,828

Canuck

·Nov 10, 2025

I haven’t found that to be a problem.

Dan S

I try to avoid those telescoping double shoulder spring-bars, the ends are pretty weak. And so far, I haven't run into a watch where they are really necessary.



Posts

24,248

Likes

53,995

Dan S

·Nov 10, 2025

Canuck

I haven’t found that to be a problem.

I thought you used the flanged spring-bars, which are obviously fine, since we use them on all watches without lug holes. I was referring to the double-shoulder spring-bars without flanges. I've received a number of watches with the double-shoulder spring-bars installed, and they are often floppy and falling apart.



Posts

15,477

Likes

45,828

Canuck

·Nov 10, 2025

Dan S

I thought you used the flanged spring-bars. I was referring to the double-shoulder spring-bars without flanges.

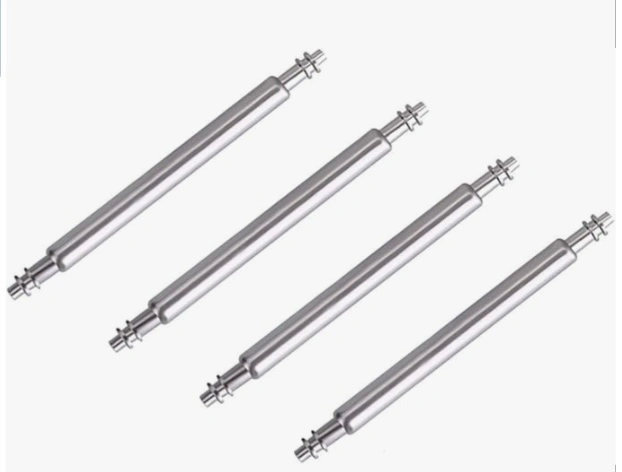

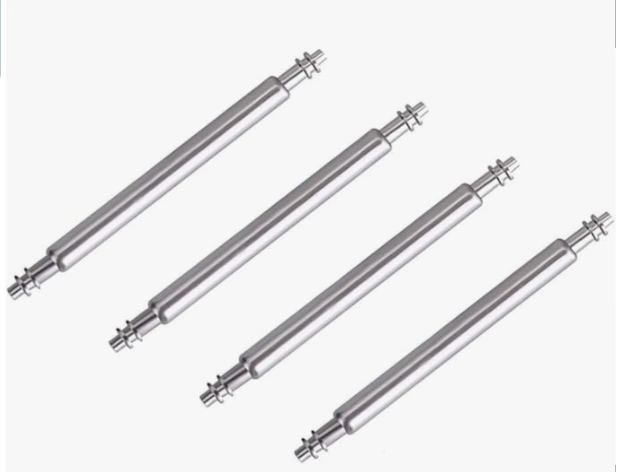

These are what I use. Flanged? Double shoulder? Semantics. Continue to use what works for you!



Posts

24,248

Likes

53,995

Dan S

·Nov 10, 2025

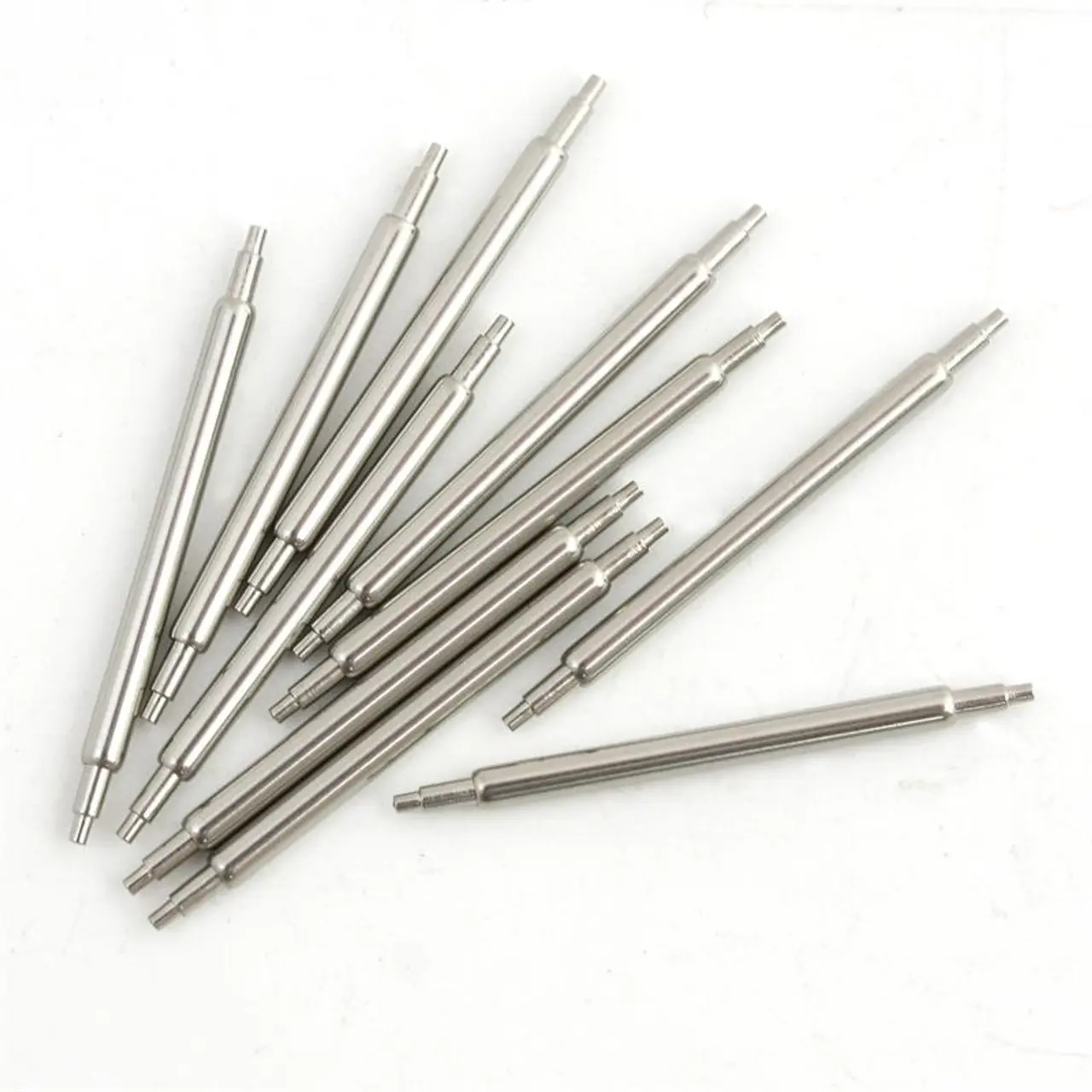

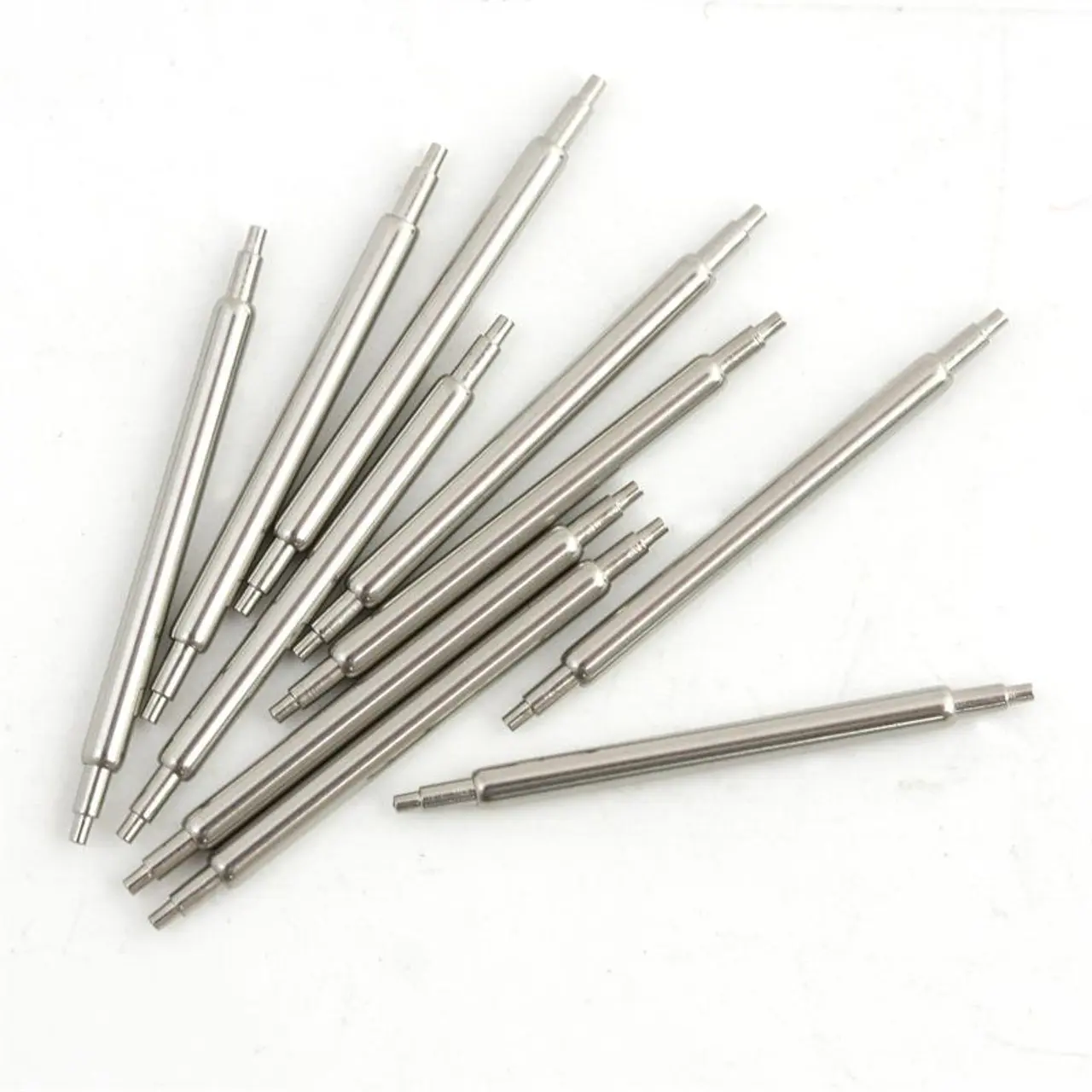

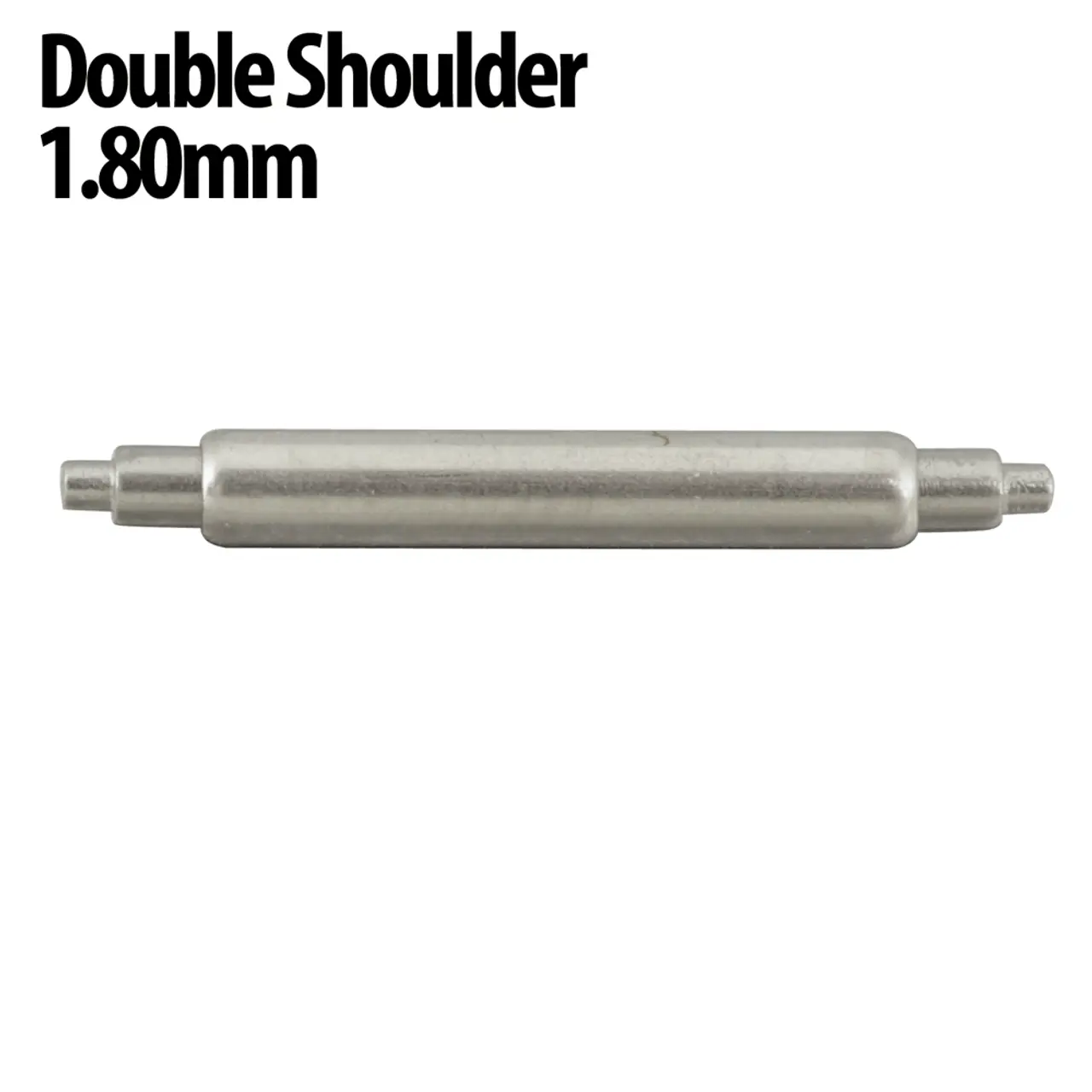

Those are flanged. Here is what the OP is referring to as double-shoulder. They are totally different, it's not semantics.



Posts

7,177

Likes

23,253

M'Bob

·Nov 10, 2025

Dan S

Those are flanged. Here is what the OP is referring to as double-shoulder. They are totally different, it's not semantics.

This is my understanding as well.



Posts

15,477

Likes

45,828

Canuck

·Nov 10, 2025

Dan S

Those are flanged. Here is what the OP is referring to as double-shoulder. They are totally different, it's not semantics.

I’ve never heard that style of spring bar called “double shoulder”!



Posts

24,248

Likes

53,995

Dan S

·Nov 10, 2025

Canuck

I’ve never heard that style of spring bar called “double shoulder”!

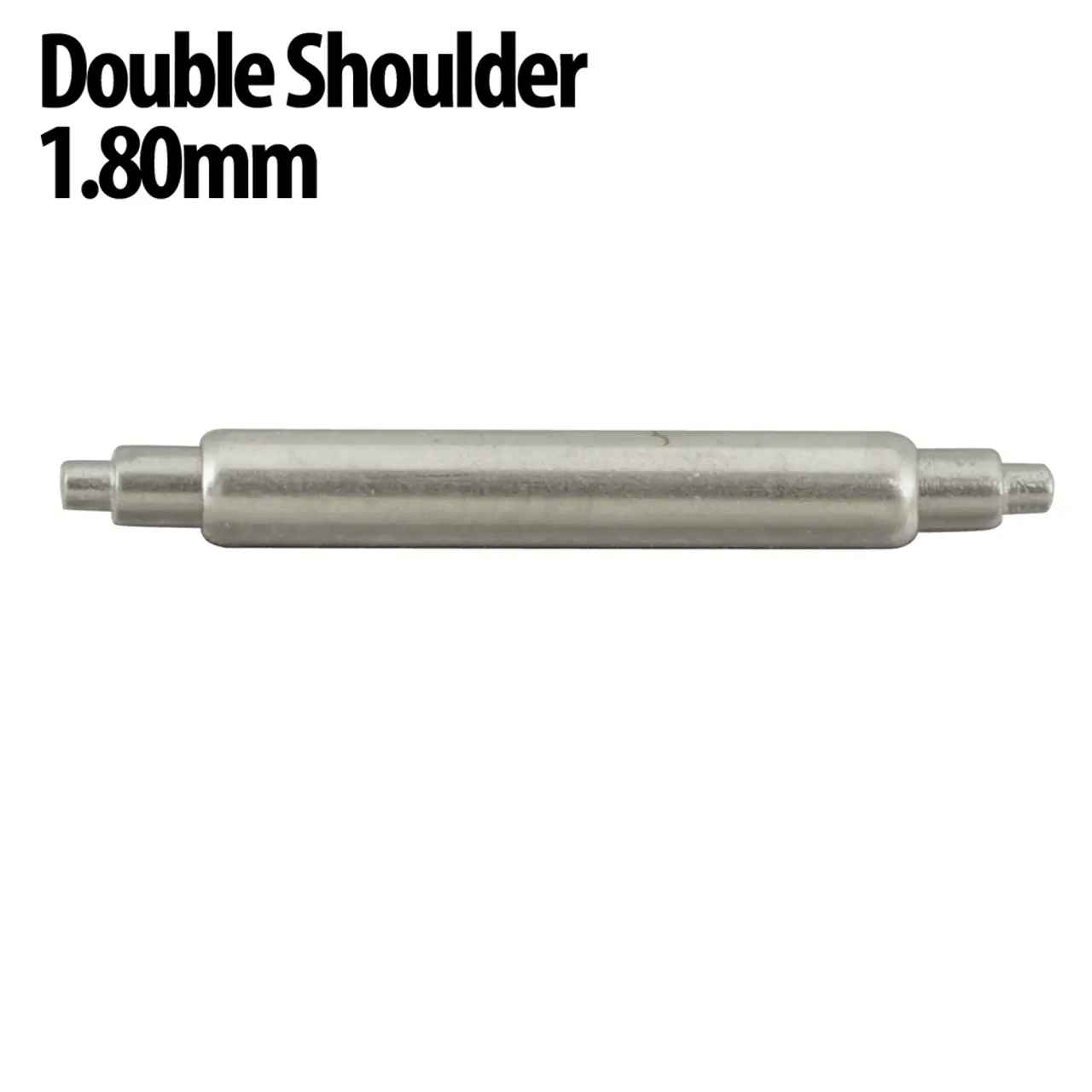

I know, they seem pointless and I don't like them. This photo is from the Esslinger site, so it's the actual name.



Posts

15,477

Likes

45,828

Canuck

·Nov 10, 2025

🥱



Posts

7,177

Likes

23,253

M'Bob

·Nov 10, 2025

So, OEM Omega bars: single, or double flange?



Posts

24,248

Likes

53,995

Dan S

·Nov 10, 2025

Canuck

🥱

Haha, well I never claimed it was an interesting topic.



Posts

17,939

Likes

37,515

JimInOz

·Nov 10, 2025·Melbourne Australia

Canuck

I only use the stainless steel double flange spring bars, myself. Regardless of the lugs on the watch.

Another user here, I hate finding a watch with these and blind holes in the lugs and replace them with double flange.

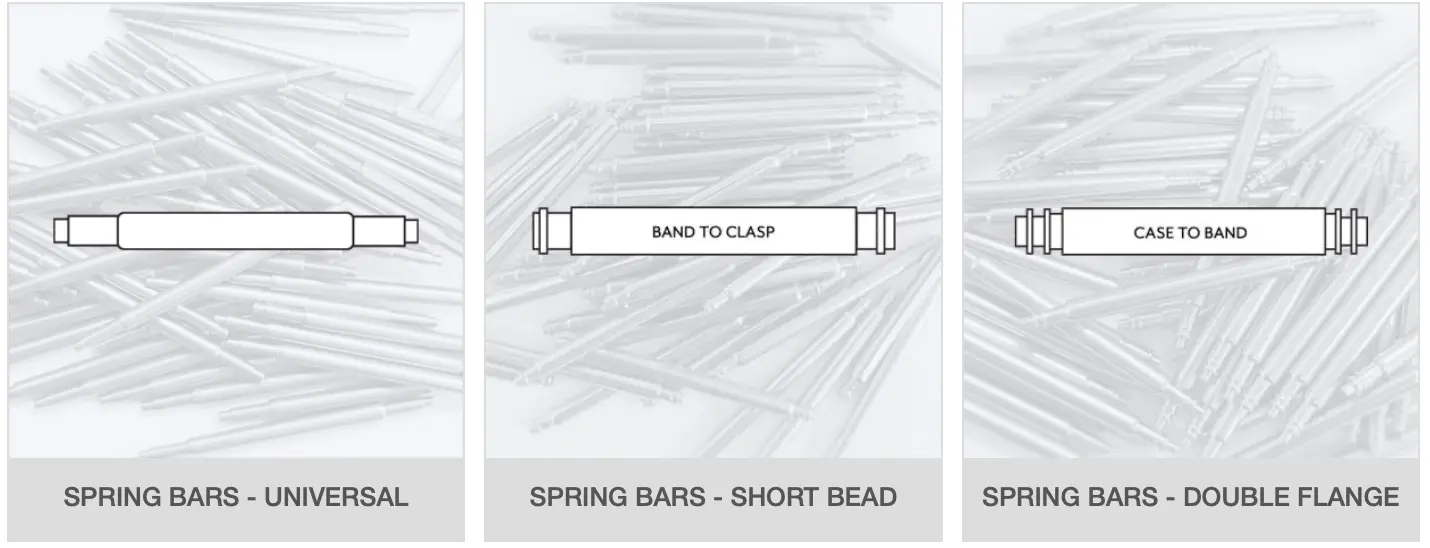

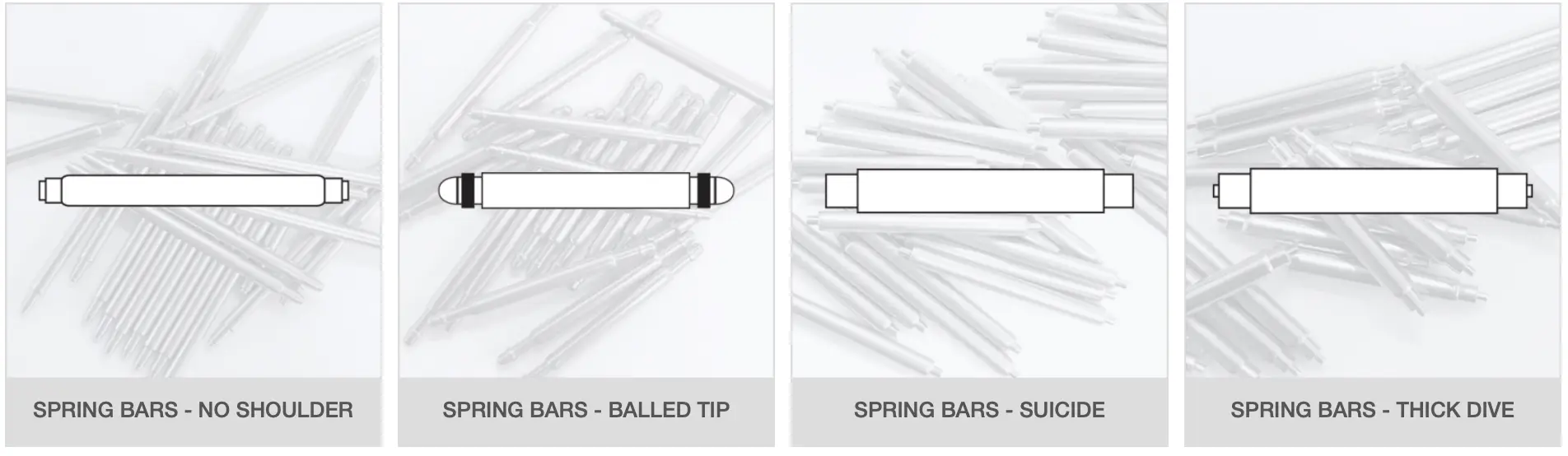

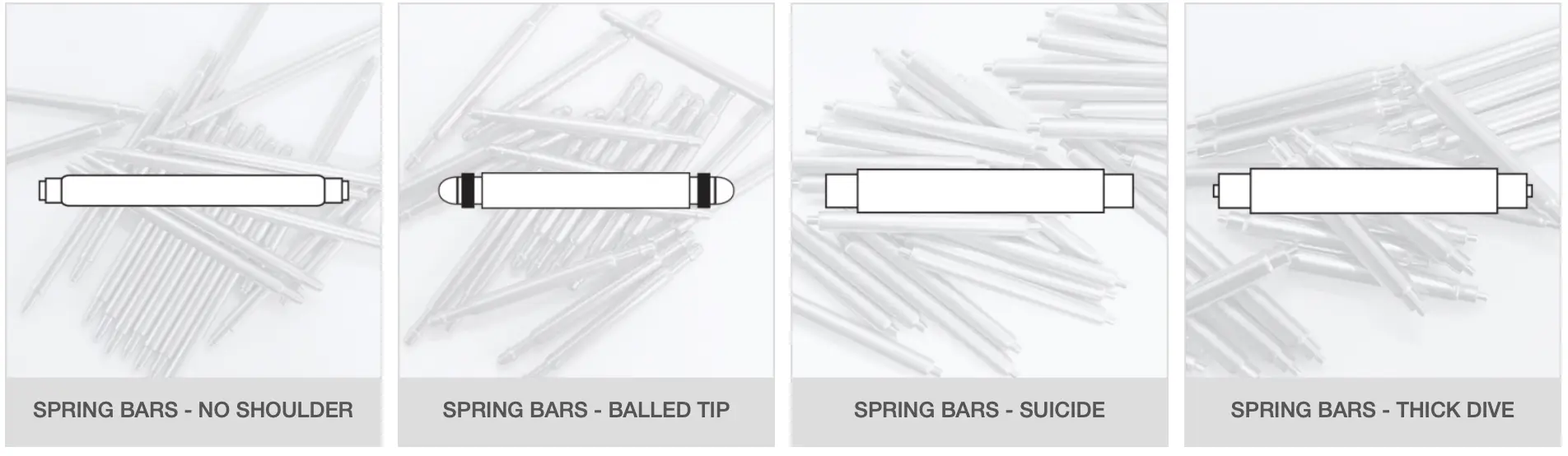

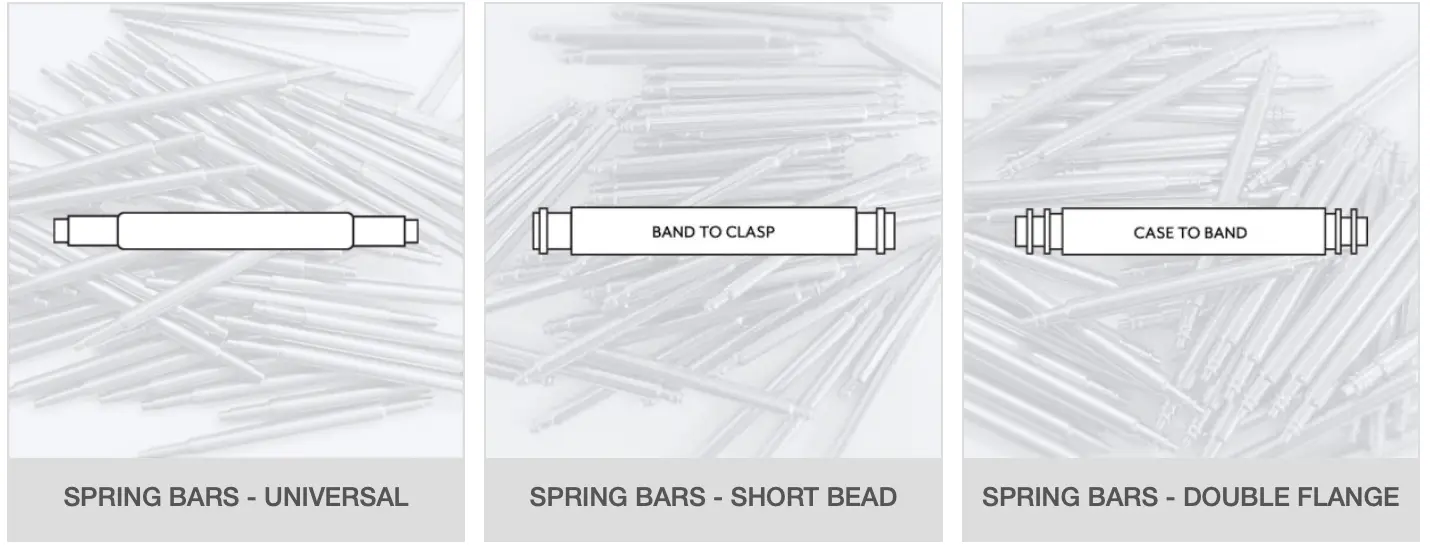

And as to nomenclature, this is what they're called in Oz.



Posts

4,741

Likes

47,654

ghce

·Nov 10, 2025

I always use the double flange variety if I can.

Edited: Nov 11, 2025



Posts

7,680

Likes

14,204

Evitzee

·Nov 10, 2025

As long as I can use a spring bar tool to compress the bar for removal I'll use it. Too many of those pictured will be impossible to use unless you have drilled lugs, stay away from them.
