Hi all

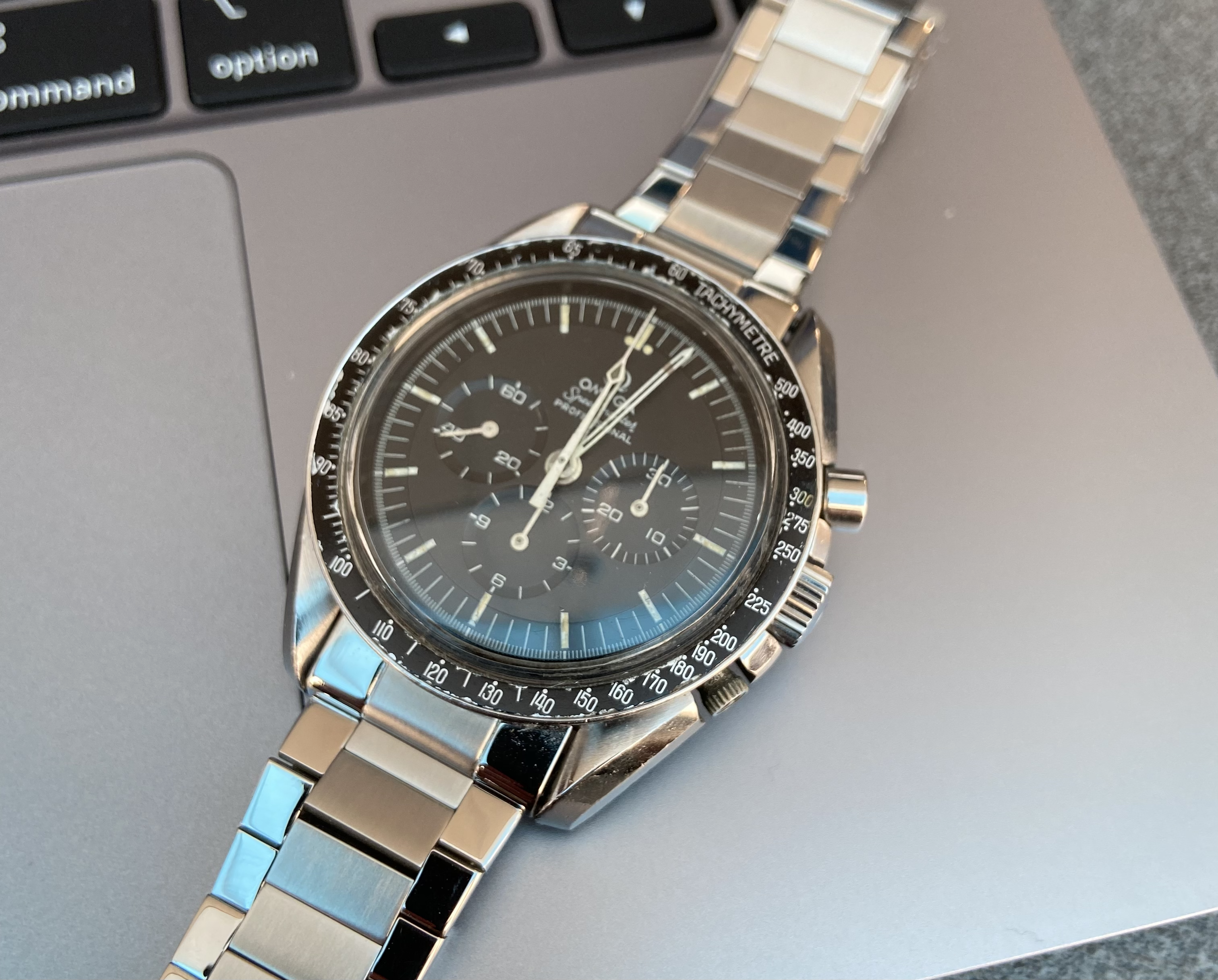

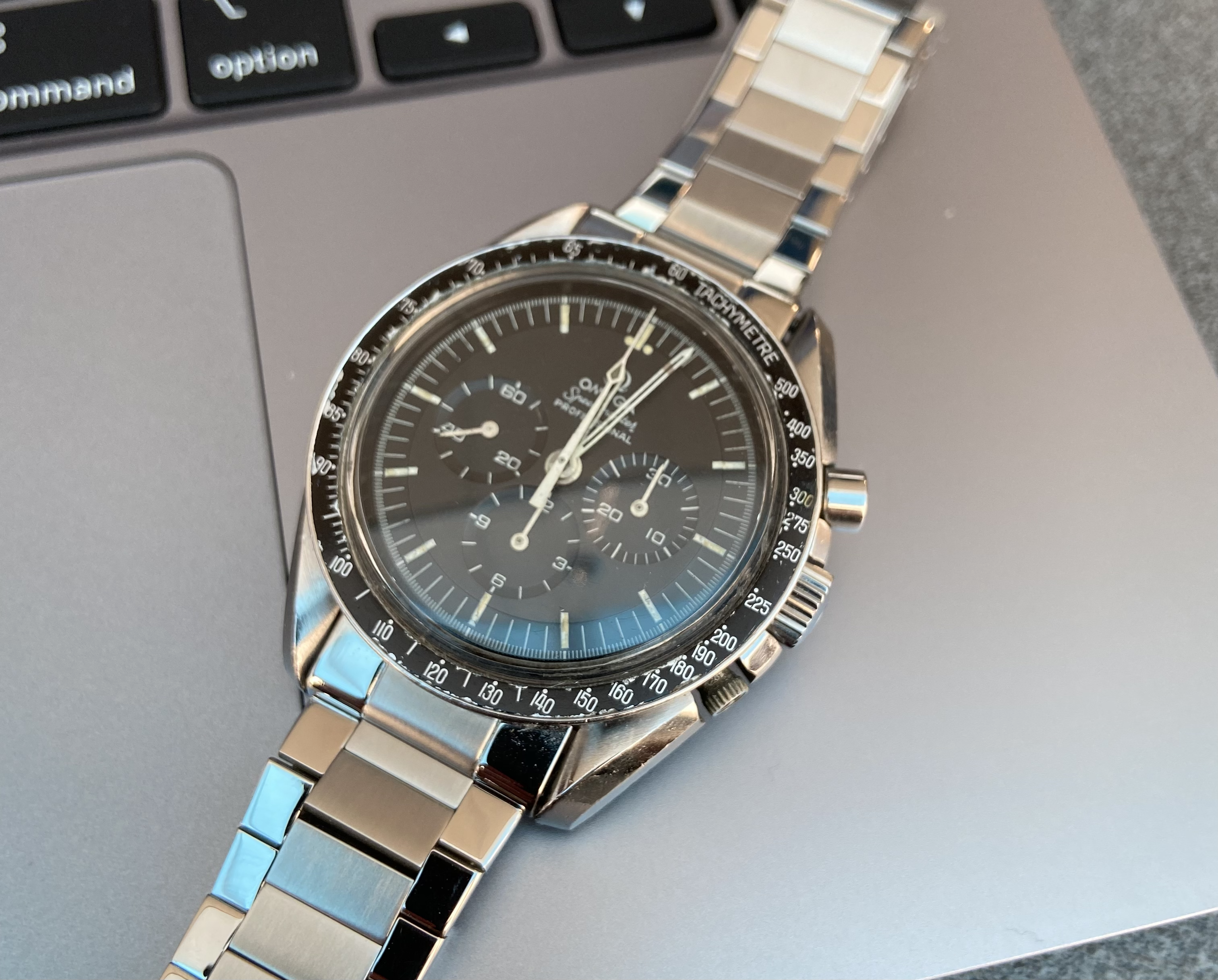

I've lost the button from one of my pushers and wondered how difficult these are to replace. I'm sure the entire pusher should be replaced, but I've been unable to find a good explanation of the method. I know they screw in on a 69, but do you need a special tool? I'll take it to a pro if this is way beyond a novice. I would be very grateful of any advice.

Those with sharp eyes will notice this has a sapphire crystal fitted (as I bought it).

Thanks
Jim


Posts
2,704
Likes
3,601
I’m no expert, but I think you have to uncase the movement in order to replace the pushers. If I’m wrong, I’m sure I’ll be corrected.

Posts
567
Likes
1,112
I’m no expert, but I think you have to uncase the movement in order to replace the pushers. If I’m wrong, I’m sure I’ll be corrected.

Thanks. Yes, I think you unscrew part of it from inside the case. Not sure how you safely unscrew the tube part from the outside of the case. Perhaps there is a special tool that grips the head? Looks like it would be easy to damage the case with the wrong method.

Posts
1,669
Likes
5,911
You need a special tool to replace the part that is screwed into the case. However, you dont necessarily need to replace that part at this stage. The pusher cap is held in with a long screw which goes through the middle of the pusher (the part screwed into the case).
The screw will still be inside the case, so in theory you just need to replace the pusher cap, but of course things are not always that simple and some pushers seem to have slightly different teeth etc. Ideally you would want to buy a complete new pusher but you could just buy a used one or the cap

To replace either part of the pusher you need to open the case and take out the movement. Although not difficult, the potential for disaster is high. So unless you are experienced in watch repairs, then i would not attempt it yourself.
Once the movement is removed, then its just a case of screwing a new/old pusher cap on, or replacing the complete pusher if the person doing the work has the necessary tool - I think the spline tool is about £50

Posts
24,263
Likes
54,031
As noted, you may be able to replace just the cap by removing the movement and screwing it onto the pusher screw that you can see inside the tube, assuming it's not damaged. The end of the screw inside the case usually has a slot for a small screwdriver. In the future, when you see the pusher cap backing off so that the knurled end of the tube is visible, remove the movement and tighten the screw before you lose the cap. It's usually obvious to see when it is becoming loose.

Posts
567
Likes
1,112
You need a special tool to replace the part that is screwed into the case. However, you dont necessarily need to replace that part at this stage. The pusher cap is held in with a long screw which goes through the middle of the pusher (the part screwed into the case).
The screw will still be inside the case, so in theory you just need to replace the pusher cap, but of course things are not always that simple and some pushers seem to have slightly different teeth etc. Ideally you would want to buy a complete new pusher but you could just buy a used one or the cap

To replace either part of the pusher you need to open the case and take out the movement. Although not difficult, the potential for disaster is high. So unless you are experienced in watch repairs, then i would not attempt it yourself.
Once the movement is removed, then its just a case of screwing a new/old pusher cap on, or replacing the complete pusher if the person doing the work has the necessary tool - I think the spline tool is about £50

Brilliant! Thanks for explaining, I understand how it goes together now. I've just found the tool on one of Archer's posts. Bergeon 5901-P27

I have done a few minor watch repairs. I think this will be ok. I think I'll replace the entire pusher.

Posts
567
Likes
1,112
As noted, you may be able to replace just the cap by removing the movement and screwing it onto the pusher screw that you can see inside the tube, assuming it's not damaged. The end of the screw inside the case usually has a slot for a small screwdriver. In the future, when you see the pusher cap backing off so that the knurled end of the tube is visible, remove the movement and tighten the screw before you lose the cap. It's usually obvious to see when it is becoming loose.

Thanks for the advice. I guess the spring pops out if the cap come off?

Last question, is there any reverse threads involved?

Posts
29,675
Likes
76,836
Replacing pushers is pretty easy...movement must be removed to access the pusher cap screws from the inside:





Once the caps are moved, the tubes can be unscrewed using the proper tool:



New pushers:



They are disassembled for installation:



Loctite applied to the threads of the pusher tubes:



Tube installed:



Then pusher is assembled again:



Repeat for other pusher:



There are no left handed threads involved, and you will want to add a dab of Loctite to the threads of the pusher cap screw as well.

Cheers, Al

Posts
567
Likes
1,112
Thanks @Archer for the guidance and pictures, they will be a great help. I wouldn’t of thought of the loctite.
