Speedmaster 3861 - correct OEM spring bars

Posts

15

Likes

1

nm366151

·Jul 27, 2025

Hi everyone,

I have some questions regarding the correct OEM spring bars for my Speedmaster Professional Moonwatch 3861.

As I read in the forum, Omega uses:

• 19 mm spring bars for the steel bracelet (068ST2207)
• 20 mm spring bars for leather/rubber/NATO straps (068ST2208)

I contacted my local Omega Boutique and received two types of spring bars, but I’m confused about what I got:

• 068ST2208 - these are 20 mm long and straight. As far as I know, this is the correct part for straps.
• 068ST2207 - this should be the correct part for the bracelet, but what I received were curved spring bars, which surprised me.

So my questions are:

1. Is it correct that 068ST2207 refers to straight 19 mm spring bars or is this the part number for the curved spring bar?
2. What exactly are the curved spring bars used for? I tried it with my Nato Strap and I quite liked the slightly different look.
3. Can anyone confirm the official Omega part numbers for:
   • 19 mm straight spring bars (for the bracelet)
   • 20 mm straight spring bars (for straps)
   • Curved spring bars (if applicable)

Thanks in advance for your help!



Posts

5,980

Likes

28,597

YY77

·Jul 27, 2025

Yes 2207 is a straight springbar (22,428mm) for 20mm bracelet and 2208 is also a straight springbar (23,317mm) for 20mm straps.

2206 is for 19mm bracelets.



Posts

15

Likes

1

nm366151

·Jul 27, 2025

Okay, thank you very much!
Then I think the OB must have mixed something up as I received a "curved" spring bar instead of the straight 2207 for the 20 mm bracelet.

Do you also know the number of the curved spring bar for 20 mm straps?



Posts

5,980

Likes

28,597

YY77

·Jul 27, 2025

068ST9963

https://www.swisswatchspares.com/pr...nuine-1-8mm-curved-spring-bar-for-20mm-straps

Edited: Jul 27, 2025



Posts

15

Likes

1

nm366151

·Jul 27, 2025

Thank you!



Posts

187

Likes

560

Lu..

·Feb 10, 2026

YY77

Yes 2207 is a straight springbar (22,428mm) for 20mm bracelet and 2208 is also a straight springbar (23,317mm) for 20mm straps.

2206 is for 19mm bracelets.

thanks for the info on the differences on these 2 spring bars as I want to order spares. Looks like both of these are 1.8mm thick.

Do you have the part number for the 16mm Omega deployant clasp that is used on the 3861 rubber straps?



Posts

5,980

Likes

28,597

YY77

·Feb 10, 2026

Lu..

thanks for the info on the differences on these 2 spring bars as I want to order spares. Looks like both of these are 1.8mm thick.

Do you have the part number for the 16mm Omega deployant clasp that is used on the 3861 rubber straps?

025STZ007387



Posts

187

Likes

560

Lu..

·Feb 10, 2026

YY77

025STZ007387

Thanks, I have that clasp, but lost the 16mm spring bar when I was swapping out my red leather band for the OEM black rubber strap. Just want to order one and actually a few from the AD. Sometimes, the AD is clueless unless I give them the P/N.



Posts

187

Likes

560

Lu..

·Feb 10, 2026

after much googling, I found this, but can't make out the entire Part Number...068ST2##1....

https://www.swisswatchspares.com/product-page/omega-genuine-spring-bar-for-16mm-94521613-94521633



Posts

5,980

Likes

28,597

YY77

·Feb 10, 2026

Lu..

after much googling, I found this, but can't make out the entire Part Number...068ST2##1....

https://www.swisswatchspares.com/product-page/omega-genuine-spring-bar-for-16mm-94521613-94521633

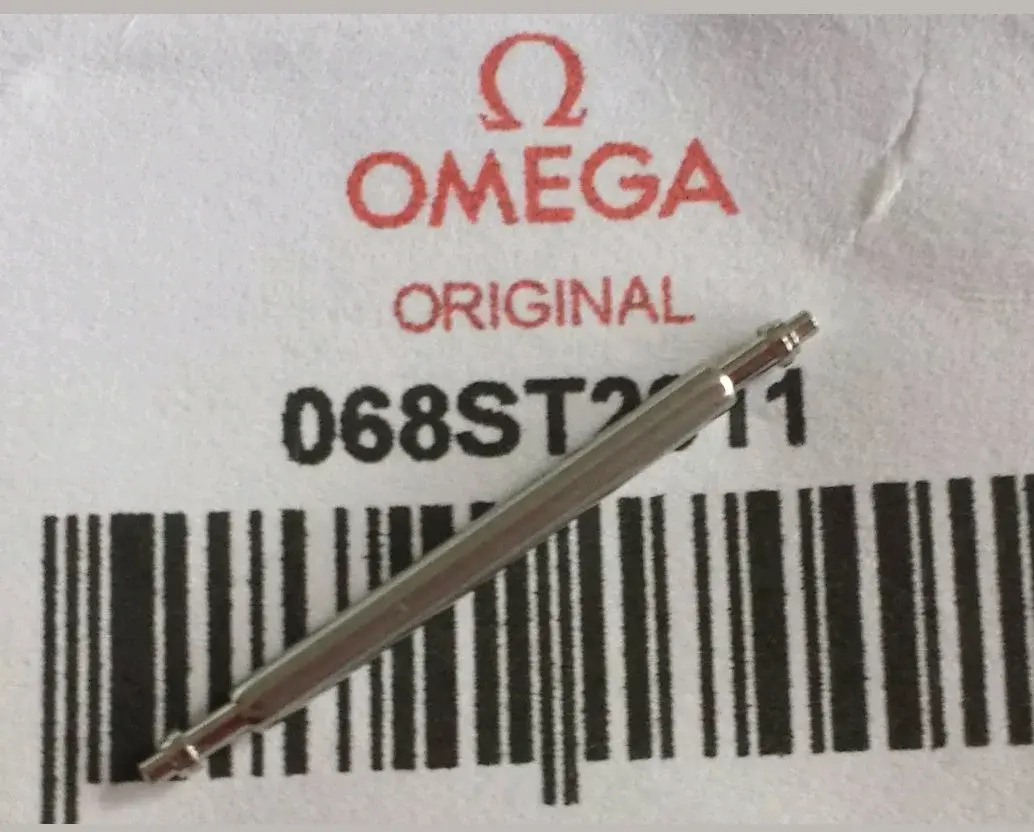

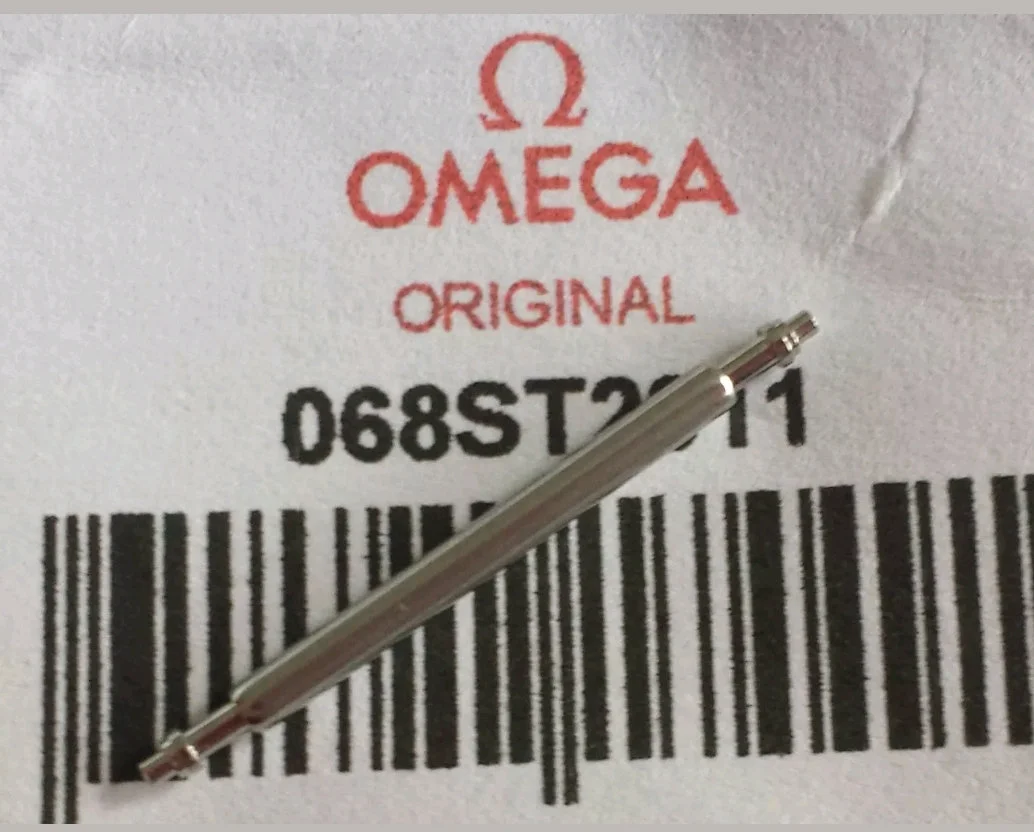

https://omegaforums.net/posts/1493019/

Archer · Apr 24, 2020

068ST2011



Posts

187

Likes

560

Lu..

·Feb 10, 2026

thanks....the thread where Archer replied with the P/N is for the 18mm deployant....don't know if it will work for the 16mm?

Edited: Feb 10, 2026



Posts

5,980

Likes

28,597

YY77

·Feb 10, 2026

Lu..

thanks....the thread where Archer replied with the P/N is for the 18mm deployant....don't know if it will work for the 16mm?

Partsno on the packaging looks spot on to this number. Your AD should have access to the Omega intranet so ordering the correct springbar shouldn't really be a problem.



Posts

187

Likes

560

Lu..

·Feb 11, 2026

PM'd Archer and he got me the P/N for the 16mm spring bar.....it's 068ST2009 😎👍👍



Posts

7,175

Likes

23,246

M'Bob

·Feb 11, 2026

2009 for 16mm? Is that right? I have 2006 for 18mm, 2007 for 19mm, 2008 from 20mm. I’m sure it’s right but would have thought 2009 was for 20mm. (Understanding that strap/bracelet crossover applications exist).



Posts

5,980

Likes

28,597

YY77

·Feb 11, 2026

M'Bob

2009 for 16mm? Is that right? I have 2006 for 18mm, 2007 for 19mm, 2008 from 20mm. I’m sure it’s right but would have thought 2009 was for 20mm. (Understanding that strap/bracelet crossover applications exist).

Are you talking about the springbar for the deployant clasp or for the lugs, it seems the partsno. for the clasp doesn't follow the same logic as for the lugs?



Posts

187

Likes

560

Lu..

·Feb 11, 2026

M'Bob

2009 for 16mm? Is that right? I have 2006 for 18mm, 2007 for 19mm, 2008 from 20mm. I’m sure it’s right but would have thought 2009 was for 20mm. (Understanding that strap/bracelet crossover applications exist).

068ST2009 is the 16mm springbar for the deployant clasp 025STZ007387, sent the info to the AD so should know in a week or 2.
