SMP 300 Spring Bars

S

Posts

4

Likes

0

SevM91

·Nov 17, 2022

Maybe a stupid question, but I just picked up the OE CVZ010126 rubber strap and was wondering if the spring bars from the SS bracelet would work with the new rubber strap?



T

Posts

106

Likes

145

Time2WatchOut

·Nov 17, 2022

Can you share a image of your factory spring bars?



M

Posts

13

Likes

10

Mirdis

·Nov 18, 2022

not really,
as it can be used, but officially:

Spring bar - 068ST2208 (20mm, 1.8mm) - these would be used on straps with 20mm lugs
Spring bar - 068ST2207 (19mm, 1.8mm) - these would be used on bracelets with 20mm lugs or straps with 19mm lugs



Posts

5,992

Likes

28,677

YY77

·Nov 18, 2022

M Mirdis

not really,
as it can be used, but officially:

Spring bar - 068ST2208 (20mm, 1.8mm) - these would be used on straps with 20mm lugs
Spring bar - 068ST2207 (19mm, 1.8mm) - these would be used on bracelets with 20mm lugs or straps with 19mm lugs

I know for a fact the AT 150m with 20mm lugs on the OEM rubber strap comes with the 2207 springbars.



T

Posts

106

Likes

145

Time2WatchOut

·Nov 18, 2022

Please someone
Photos



Posts

5,992

Likes

28,677

YY77

·Nov 18, 2022

T Time2WatchOut

Please someone
Photos

https://omegaforums.net/threads/psa-springtime-for-springbars.56537/#post-697812

Edited: Nov 18, 2022



Posts

318

Likes

1,968

watchthinker

·Nov 18, 2022

Wow! I have a super basic question on this - Is there an advantage to keep using the Omega spring bars for my 300M? I've had speedy for decades, but I never actually took them off bracelet, so I've never really thought about it.



Posts

5,992

Likes

28,677

YY77

·Nov 18, 2022

watchthinker

Wow! I have a super basic question on this - Is there an advantage to keep using the Omega spring bars for my 300M? I've had speedy for decades, but I never actually took them off bracelet, so I've never really thought about it.



T

Posts

106

Likes

145

Time2WatchOut

·Nov 18, 2022

Are those 2,5mm



Posts

318

Likes

1,968

watchthinker

·Nov 18, 2022

YY77

I'm sorry - I might not have been super clear - should I keep using Omega BRAND springbars versus [ insert random brand here ] 20mm spring bar.



Posts

5,992

Likes

28,677

YY77

·Nov 18, 2022

T Time2WatchOut

Are those 2,5mm

the 2207's are 1.8mm.



Posts

5,992

Likes

28,677

YY77

·Nov 18, 2022

watchthinker

I'm sorry - I might not have been super clear - should I keep using Omega BRAND springbars versus [ insert random brand here ] 20mm spring bar.

Why not, these aren't expensive so no need to go after market.



Posts

318

Likes

1,968

watchthinker

·Nov 18, 2022

YY77

Why not, these aren't expensive so no need to go after market.

Are they actually better?



Posts

5,992

Likes

28,677

YY77

·Nov 18, 2022

watchthinker

Are they actually better?

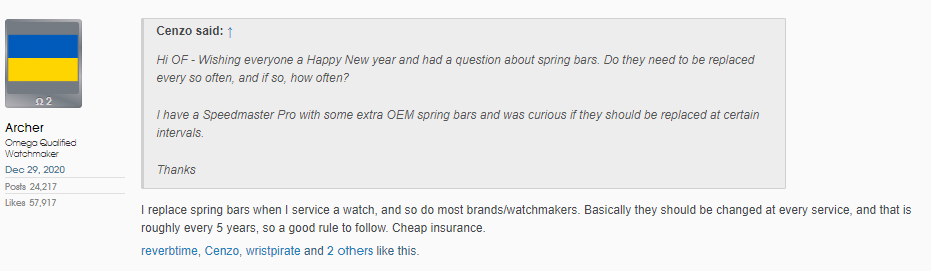

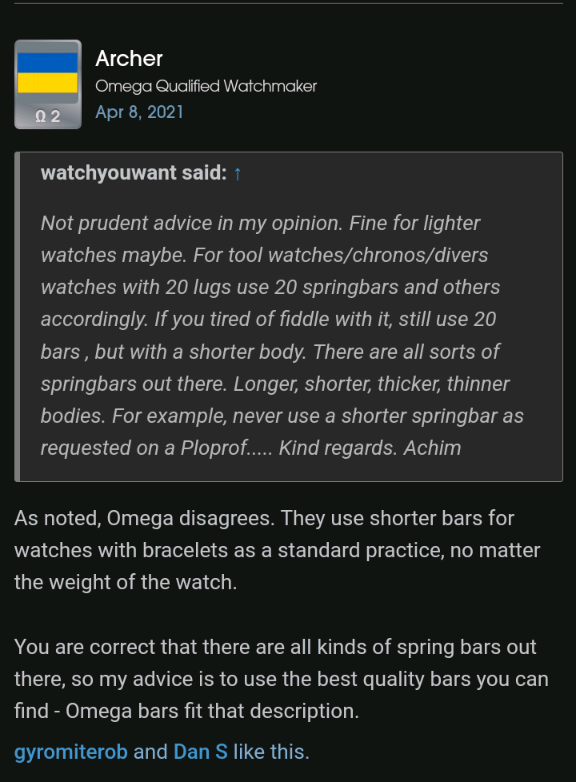

According to an Omega qualified watchmaker yes;



T

Posts

106

Likes

145

Time2WatchOut

·Nov 18, 2022

I my opinion… get the most robust and thickest spring bars available…. Then put it on a nato

A concrete rash will hurt the soul



S

Posts

4

Likes

0

SevM91

·Nov 18, 2022

Thanks for all the responses. Unfortunately my SMP is still on the SS bracelet, so I can't exactly take photos of the spring bars. However, I watched a few videos of people swapping straps and it seems the OEM spring bars should just slot into the OEM rubber strap. I hope? 😀



Posts

7,684

Likes

14,208

Evitzee

·Nov 18, 2022

The free length of a 068ST2207 springbar which Omega uses on bracelets for a 20mm lug width is 22.428mm. If you use a strap on a 20mm lug Omega recommends a 068ST2208 springbar which has a free length of 23.317mm, so about 0.9mm longer for added security. (Omega uses a slightly shorter springbar on the bracelet because of reduced access to the springbar on a metal bracelet.) You'd probably be ok using the shorter springbar with a strap but I'd feel better with the longer springbar. There was a reason Omega provided the longer spring bars in the previous Speedmaster suitcase when they included NATO straps as an extra.

Edited: Nov 18, 2022



M

Posts

13

Likes

10

Mirdis

·Nov 18, 2022

S SevM91

Thanks for all the responses. Unfortunately my SMP is still on the SS bracelet, so I can't exactly take photos of the spring bars. However, I watched a few videos of people swapping straps and it seems the OEM spring bars should just slot into the OEM rubber strap. I hope? 😀

2x 068ST2208 will arrive in a week and I will change the bracelet on smp 300 for a oem rubber strap from Omega, so I will let you know

Evitzee 👍



S

Posts

4

Likes

0

SevM91

·Nov 18, 2022

Evitzee

The free length of a 068ST2207 springbar which Omega uses on bracelets for a 20mm lug width is 22.428mm. If you use a strap on a 20mm lug Omega recommends a 068ST2208 springbar which has a free length of 23.317mm, so about 0.9mm longer for added security. (Omega uses a slightly shorter springbar on the bracelet because of reduced access to the springbar on a metal bracelet.) You'd probably be ok using the shorter springbar with a strap but I'd feel better with the longer springbar. There was a reason Omega provided the longer spring bars in the previous Speedmaster suitcase when they included NATO straps as an extra.

Great response. Might just order the longer spring bars then to be safe.



Posts

192

Likes

326

4011021

·Nov 18, 2022

My green SMP 300M in rubber strap came with the shorter 068ST2207 spring bar. I speculate that this might be because the rubber strap fits the watch like a bracelet, unlike a regular leather strap.
