Hi all,

I've been wondering about the black dials on Polerouters. Some seem to have their text in white print (on top of the black dial) others seem to be gilt (note: I refer to the galvanic process where basically the text is actually just the absence of black -- in other words: no print at all).

At least on my own Polerouter H 20217-1, I'm convinced that it's a "true" gilt dial (not just golden-ish print). Under the microscope, I'm pretty sure that the text is not printed, but the metal dial surrounded by black.

But I've also looked at other 20217's and some seem to have their text printed.

Can anyone enlighten me? Did UG produce dials with identical designs in two different methods at the same time (i.e. 20217 production period)? Or am I making this up and they're always gilt? Or when did they change from gilt to print?

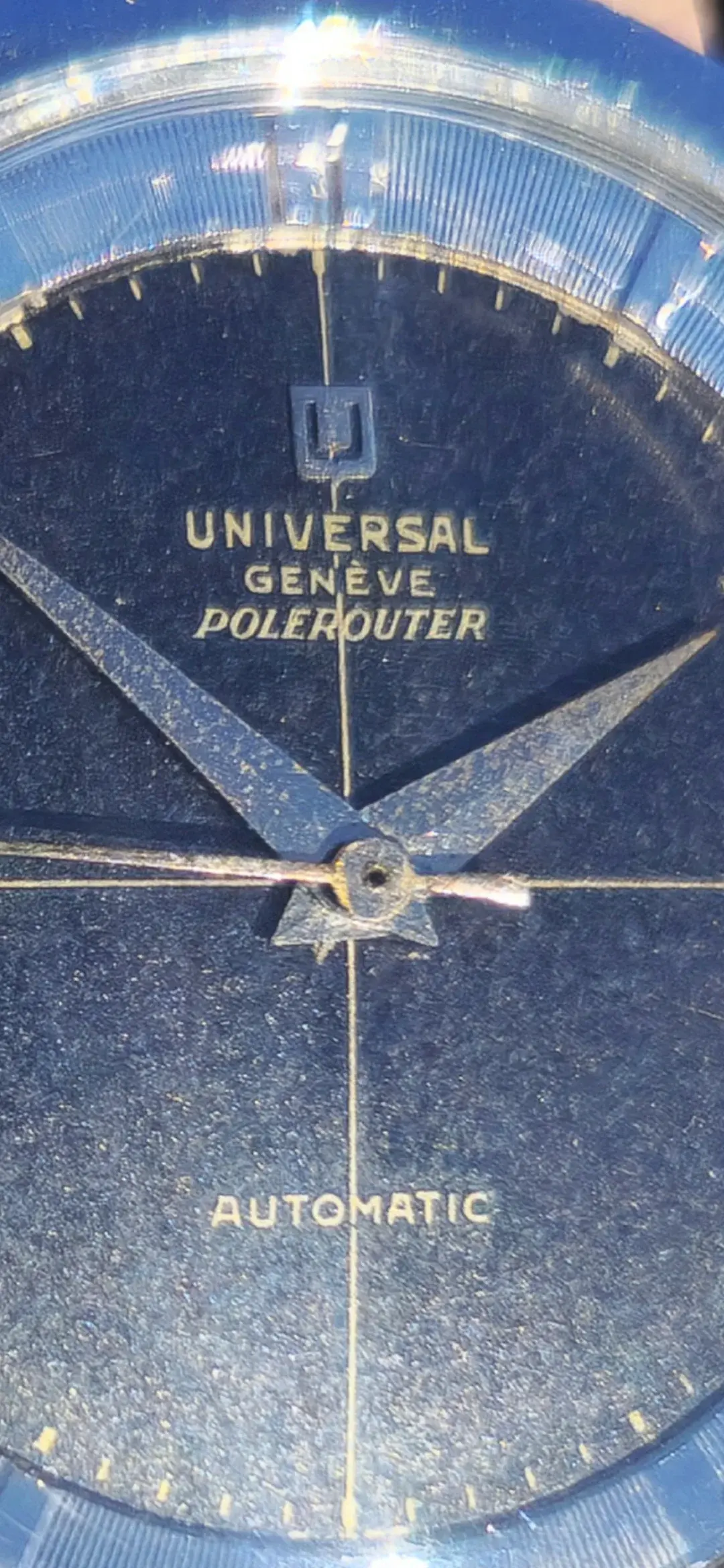

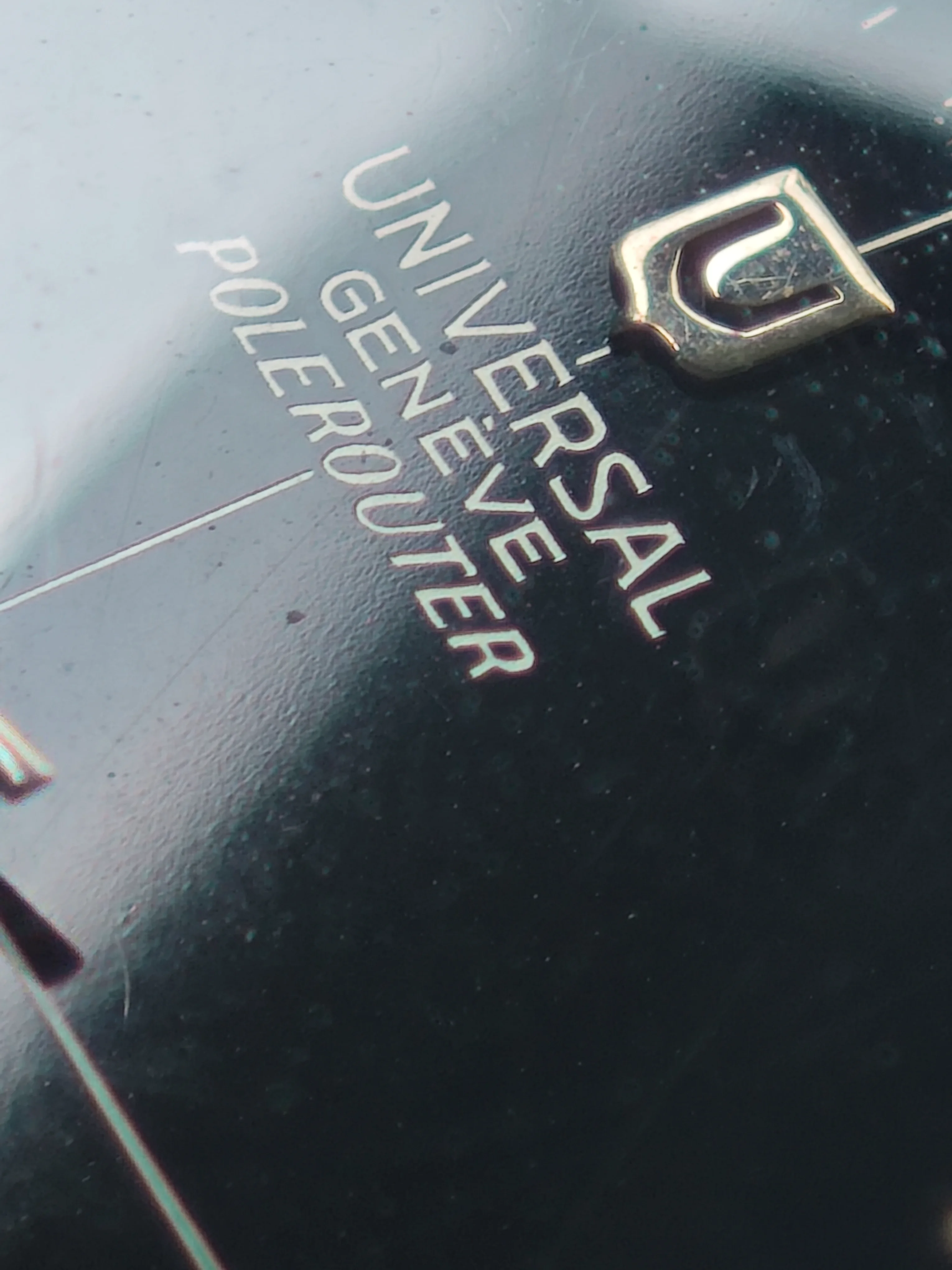

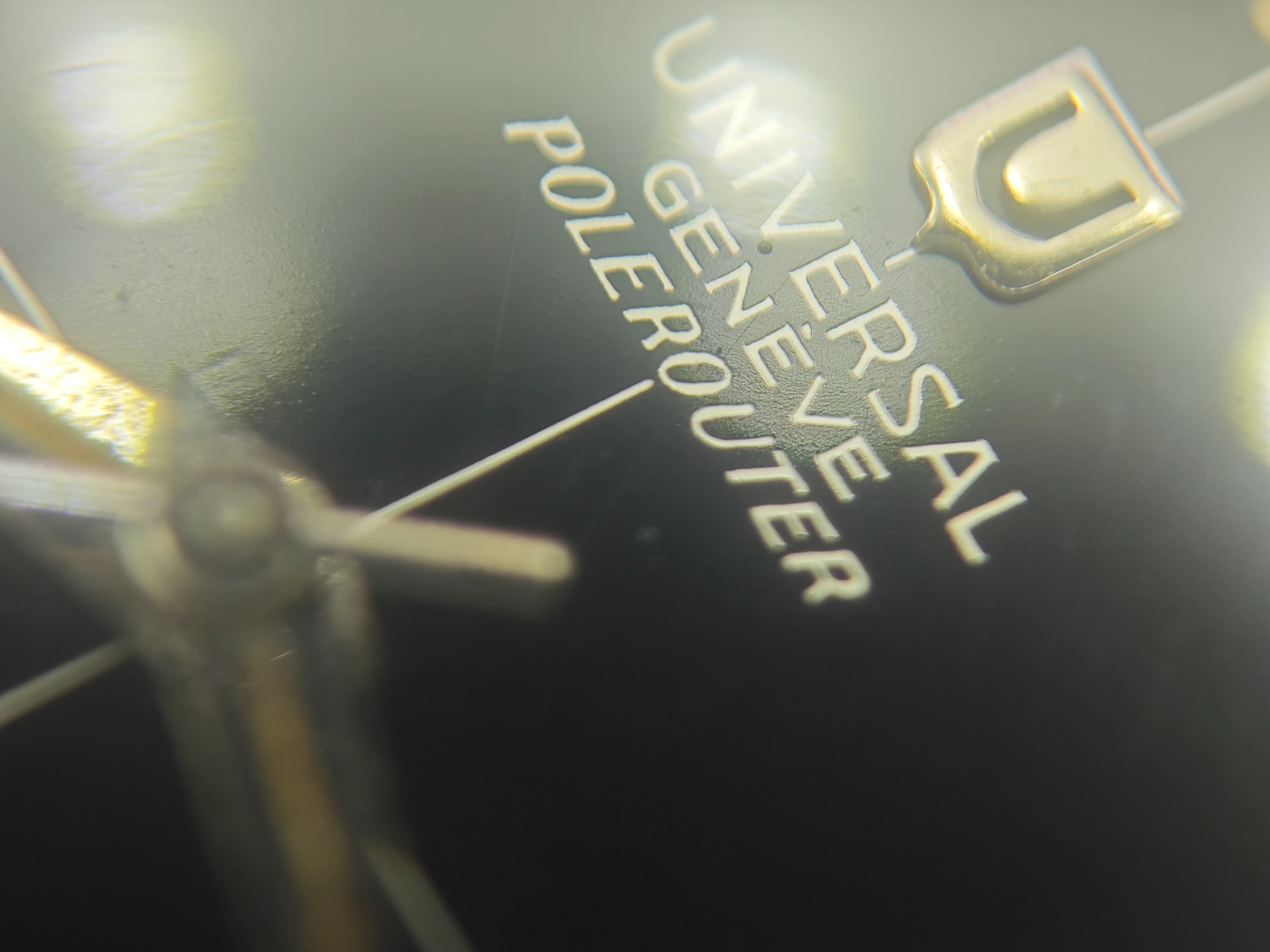

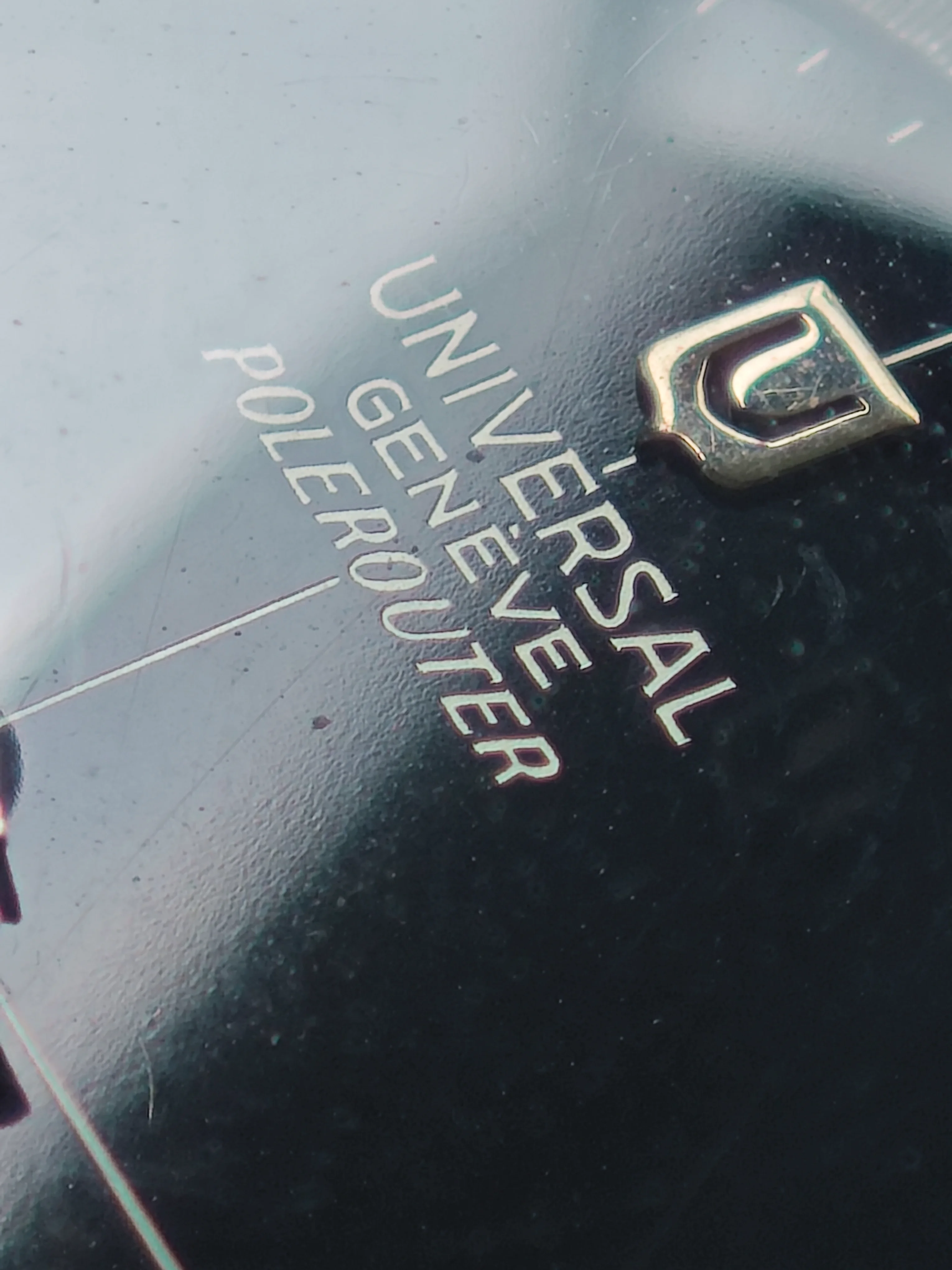

My gilt dial

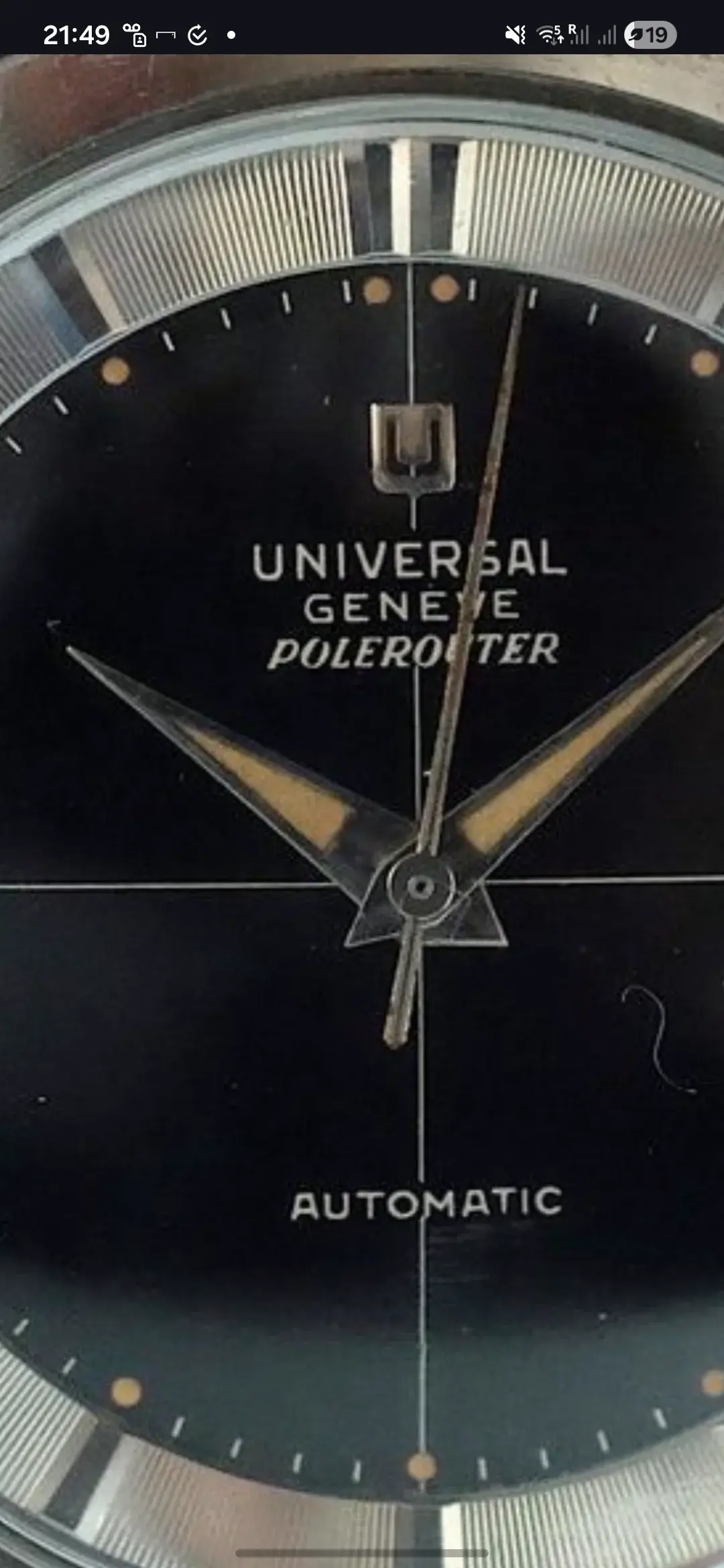

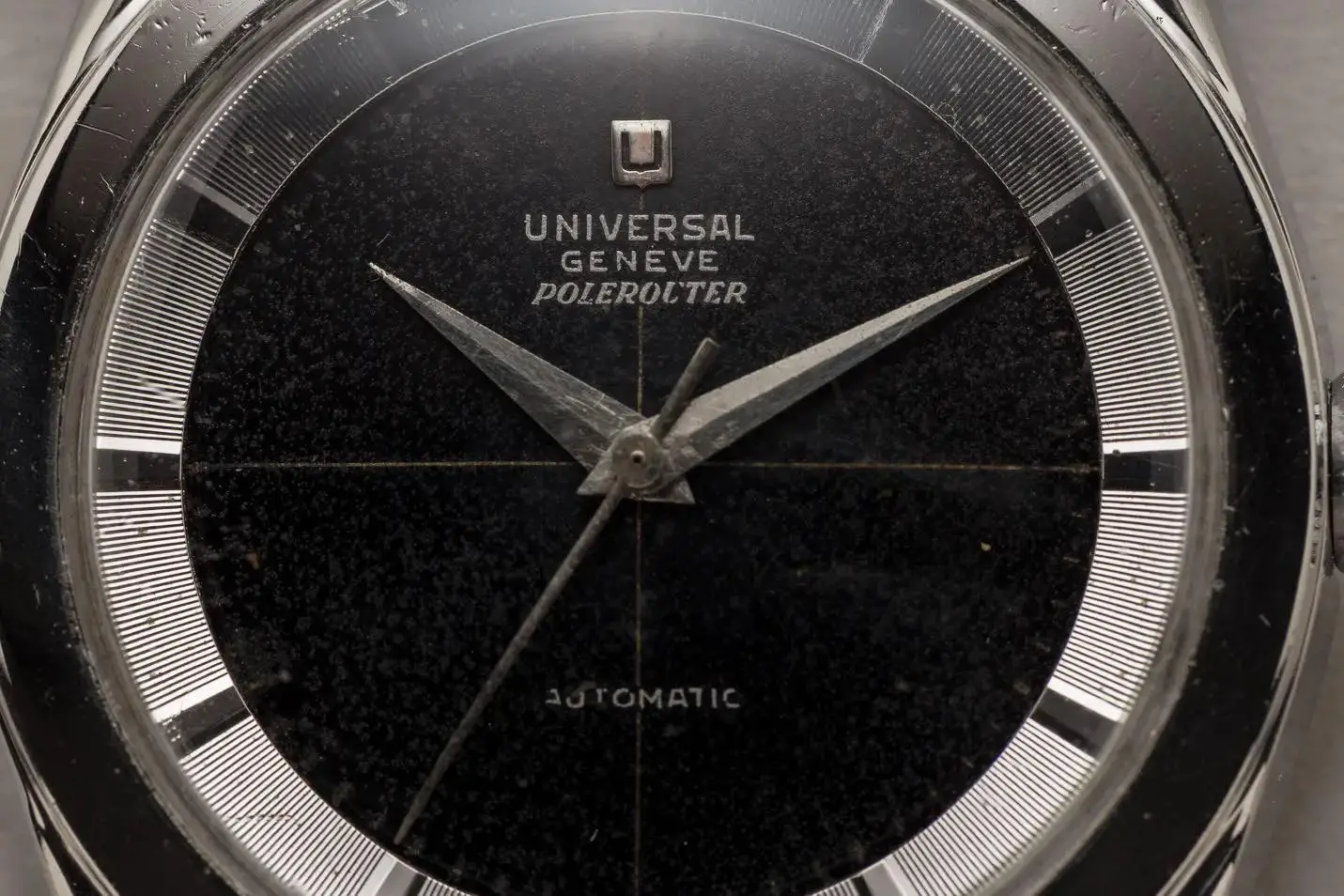

A white printed dial? Or am I wrong?

Posts
239
Likes
589
Seems like a question for @CafeRacer

I've seen both, however most steel polerouters I've seen had white print which leads me to suspect that the gilt dials belong to gold cases and the dial had been swapped at some point. Total speculation though

Posts
225
Likes
934
I recently received and am enjoying the Polerouter book. That's my recommended starting point for a question like this.

Posts
271
Likes
439
I recently received and am enjoying the Polerouter book. That's my recommended starting point for a question like this.

Oh I'd love to have that book!

If you see the answer, it would be kind of you to share it here.

Seems like a question for @CafeRacer

I've seen both, however most steel polerouters I've seen had white print which leads me to suspect that the gilt dials belong to gold cases and the dial had been swapped at some point. Total speculation though

I hope that's not the case :-/

Posts
1,086
Likes
3,877
It's simply the aging of the transparent protective layer, in some cases it "tropicalizes" giving the overall look a "gold" effect.

Posts
2,251
Likes
15,687
My understanding is that they are all printed and not true "gilt", but some examples definitely looks like it so Im not 100% convinced they are all the same. Are you able to take better macro photos of your dial? Closer up and better quality?

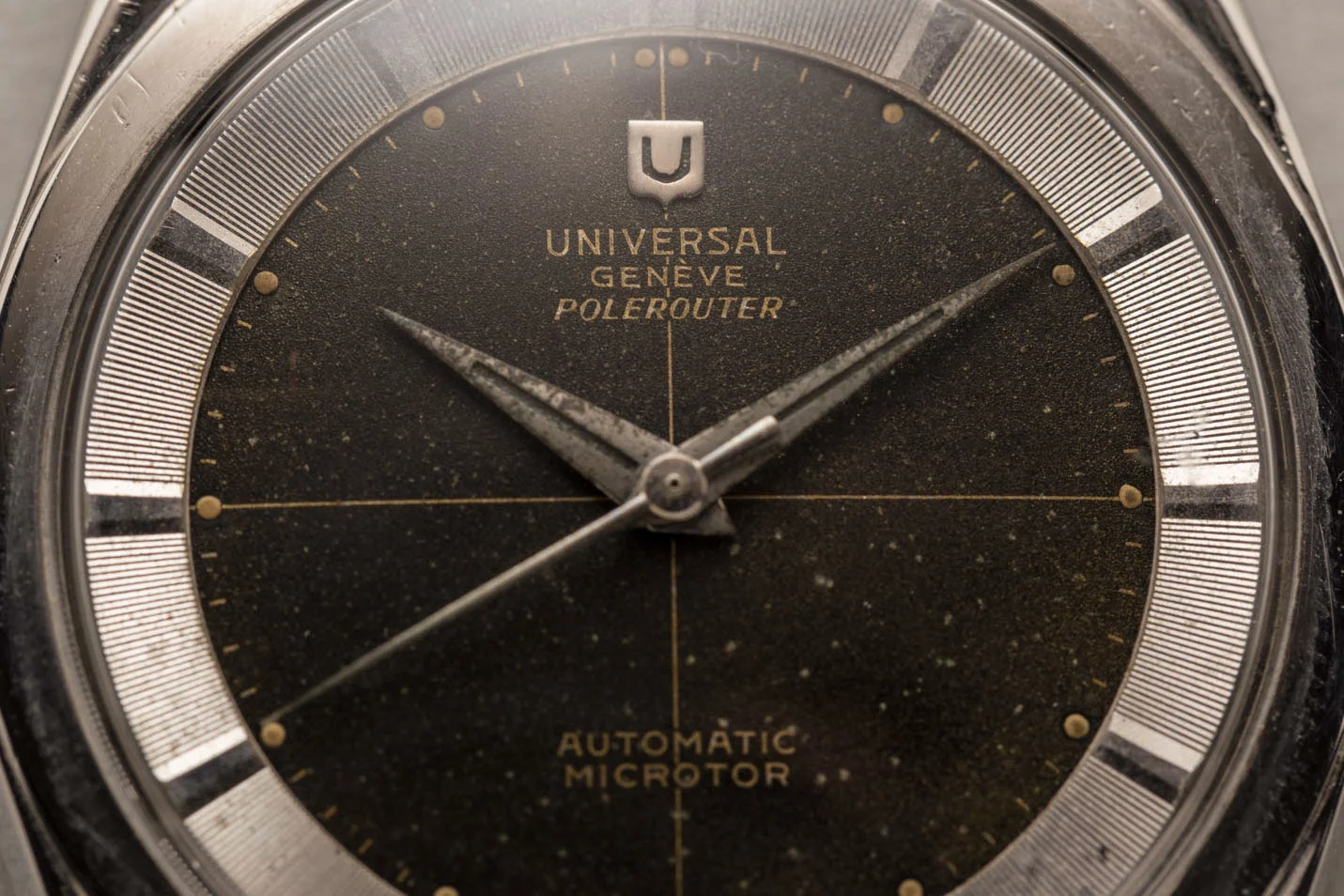

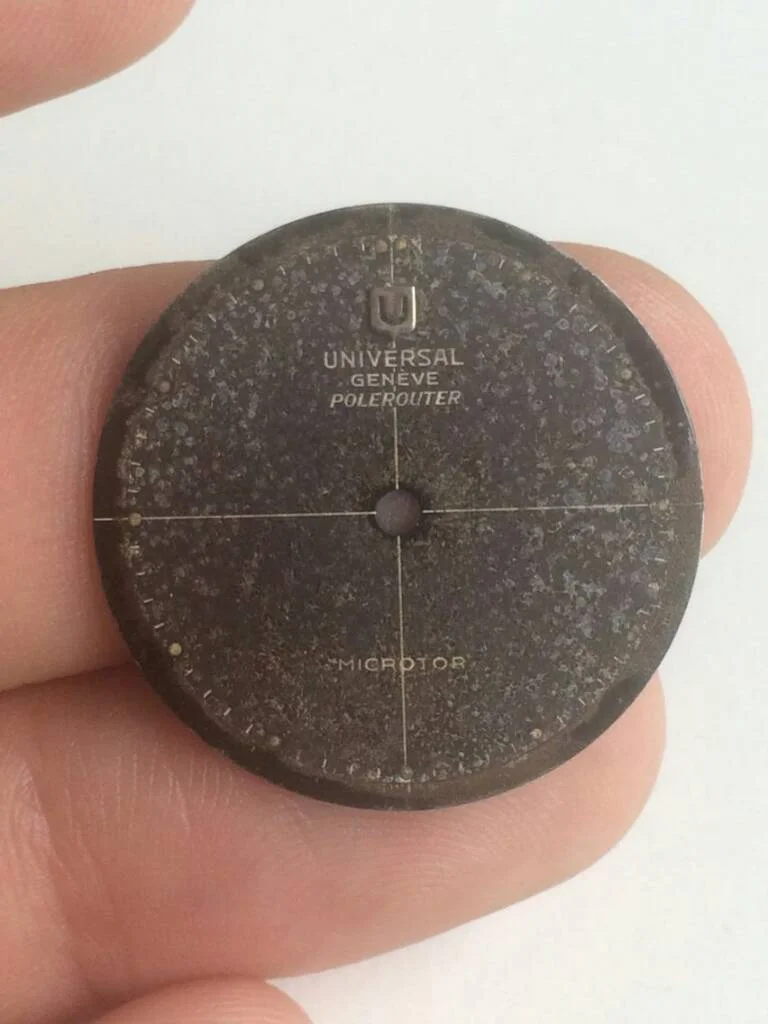

This example definitely looks like it:

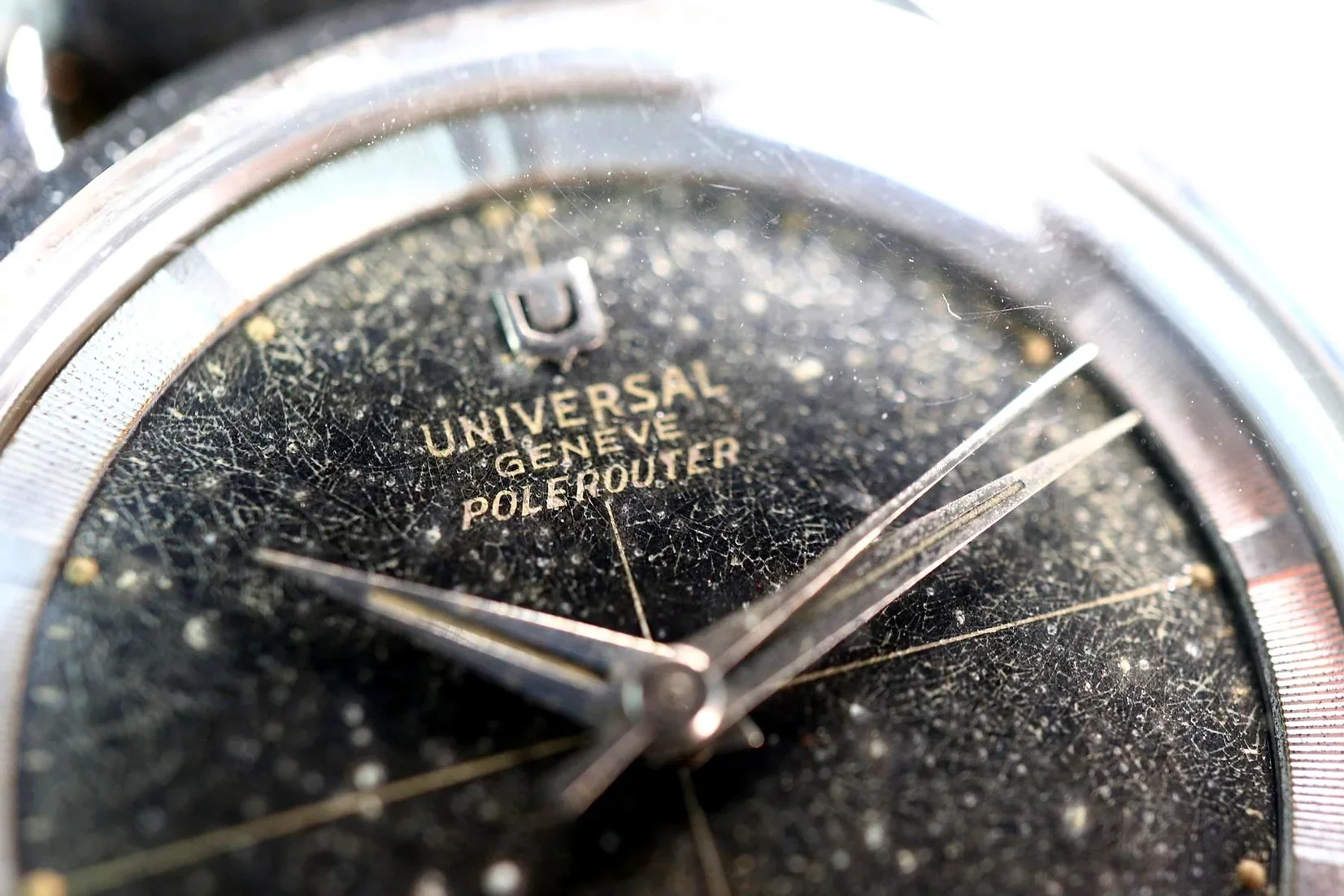

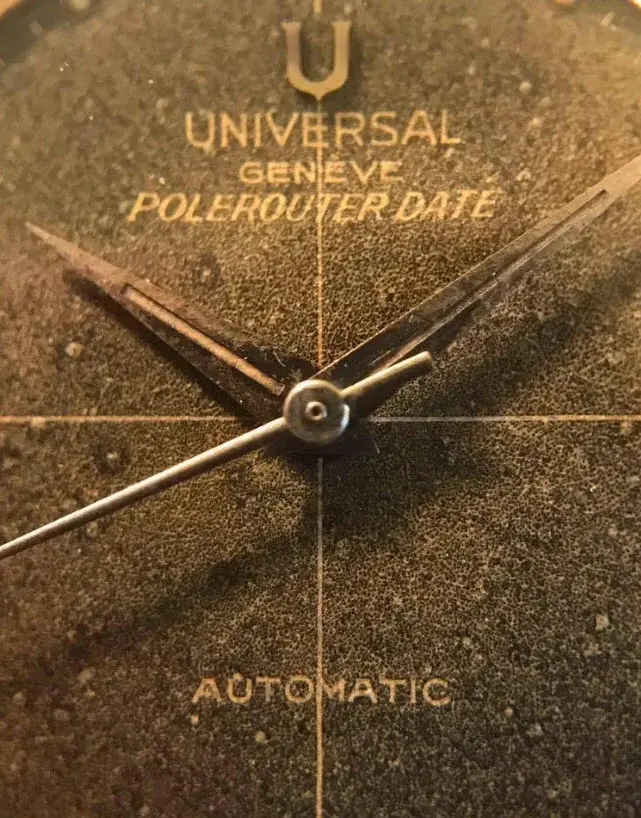

and are some other examples I saved when looking at it a few years ago (not just 20217)

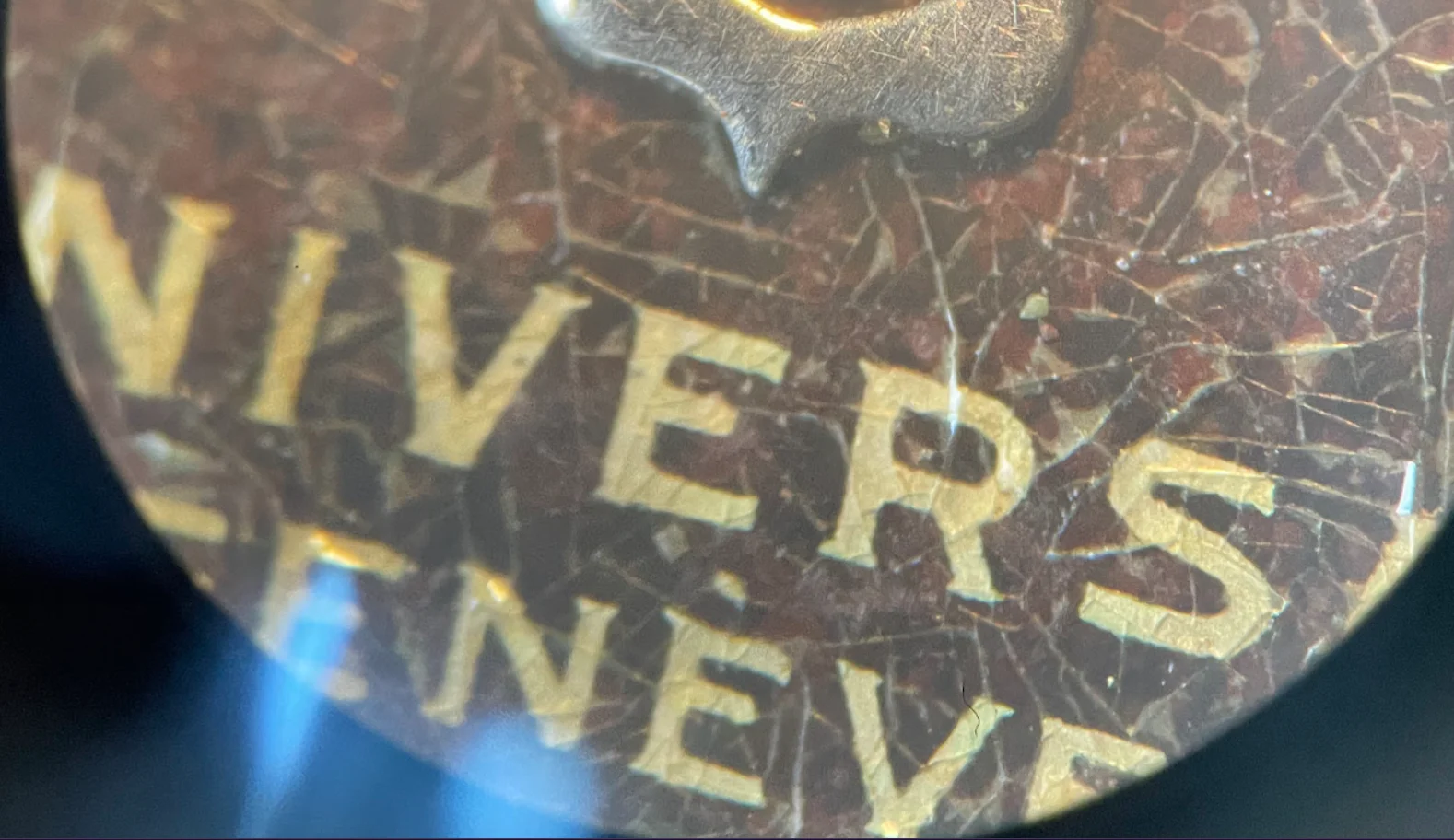

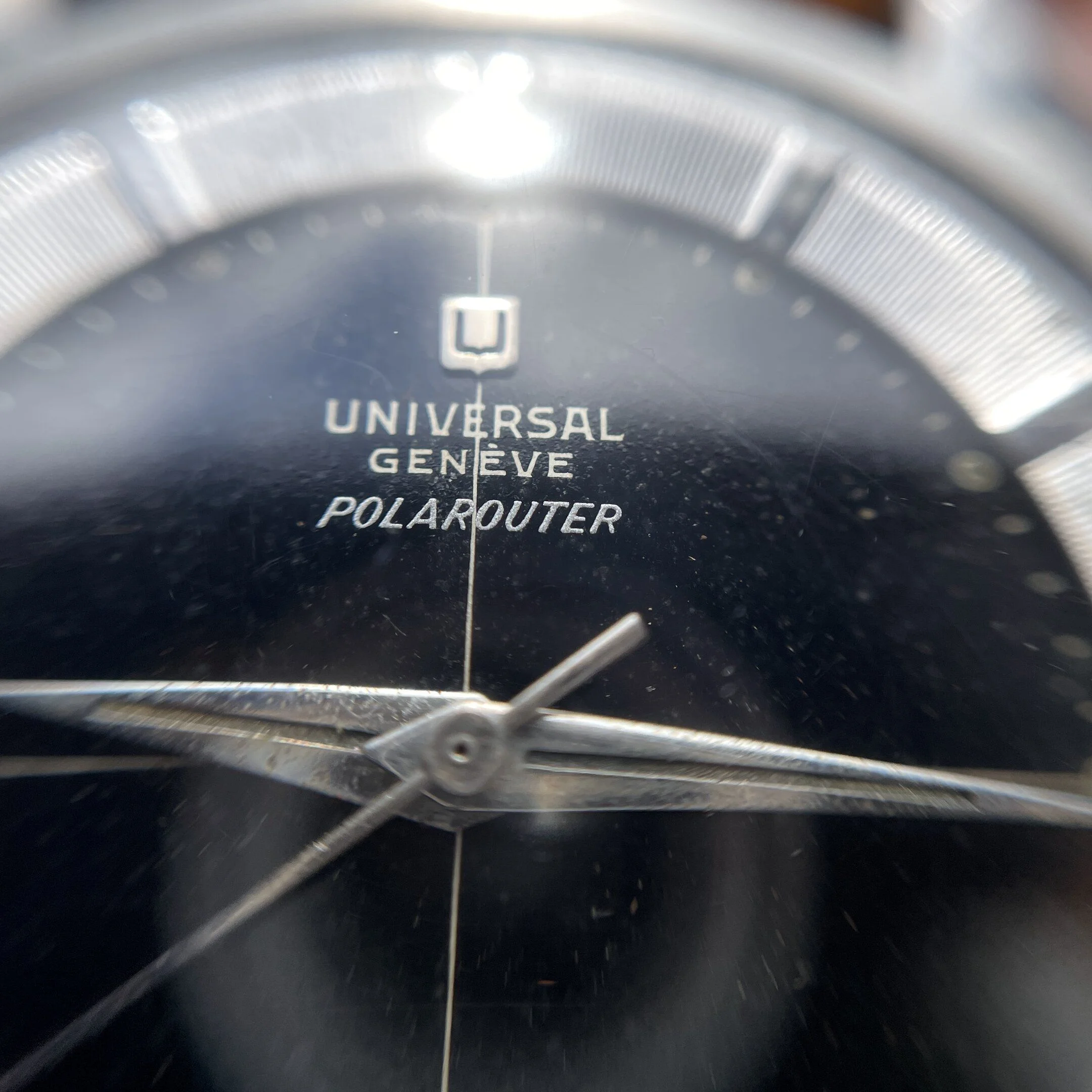

And my old Polarouter that made me think about it in the first place where it looks like Universal Geneve is sunken and Polarouter printed on top.

Posts
225
Likes
934
Oh I'd love to have that book!

If you see the answer, it would be kind of you to share it here.



I hope that's not the case :-/
Will take a look, book is here (I picked it up about a month ago and it was at my door, half way around the world, in 5 days); https://www.thepolerouter.com/


Posts
225
Likes
934

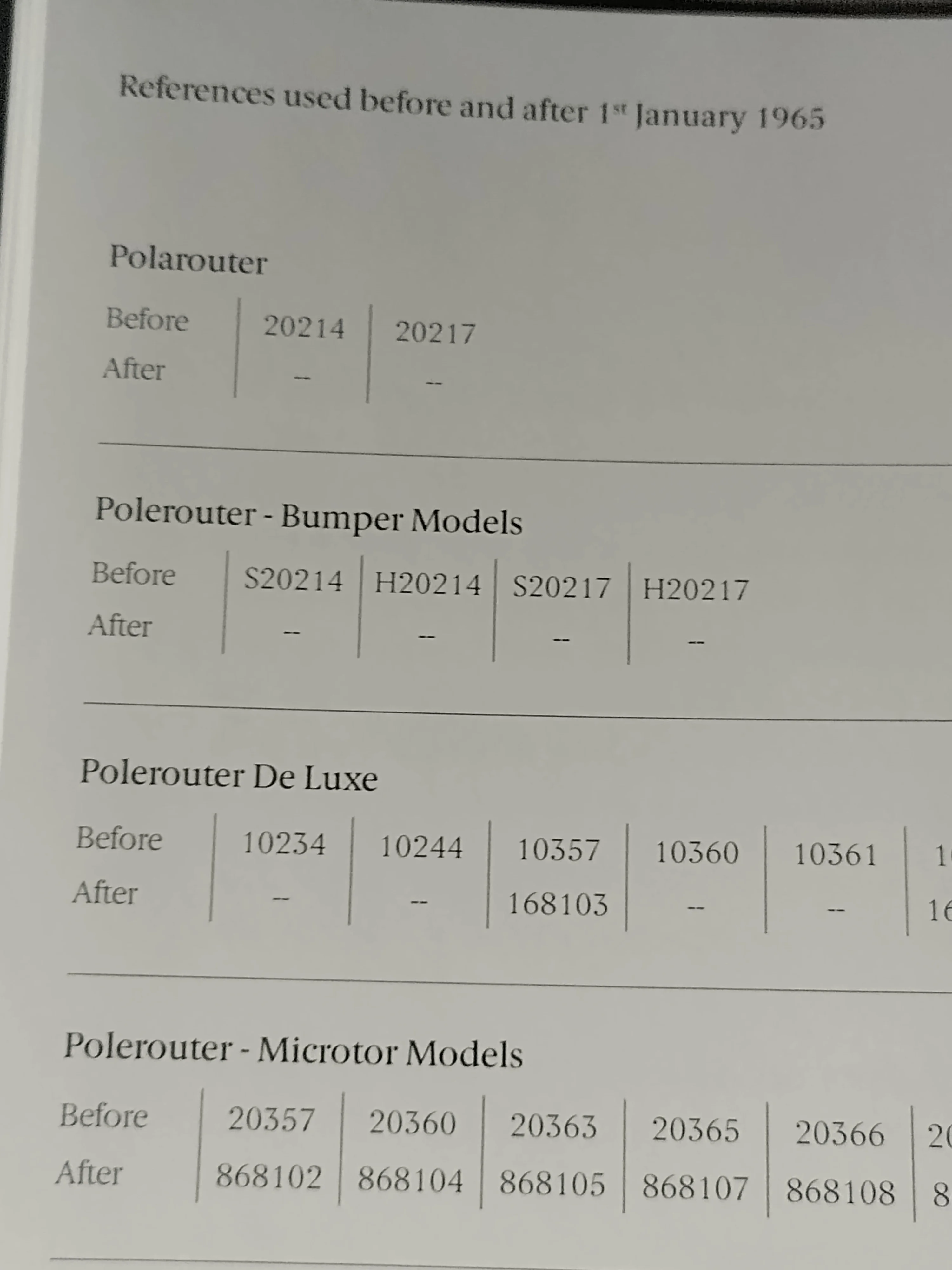

@Knebo - The book is fascinating and beautiful and full of all sorts of info from UGs archives.

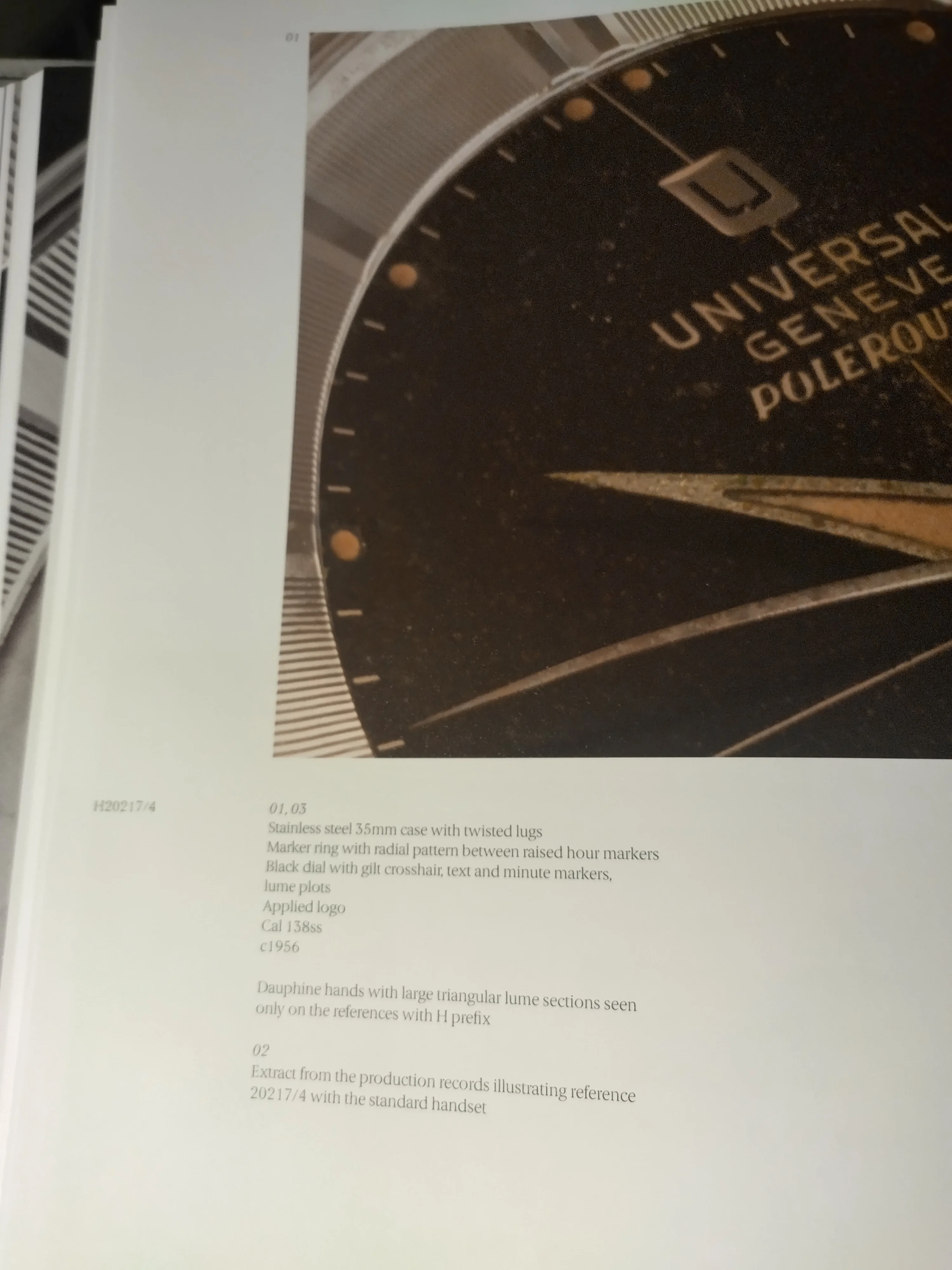

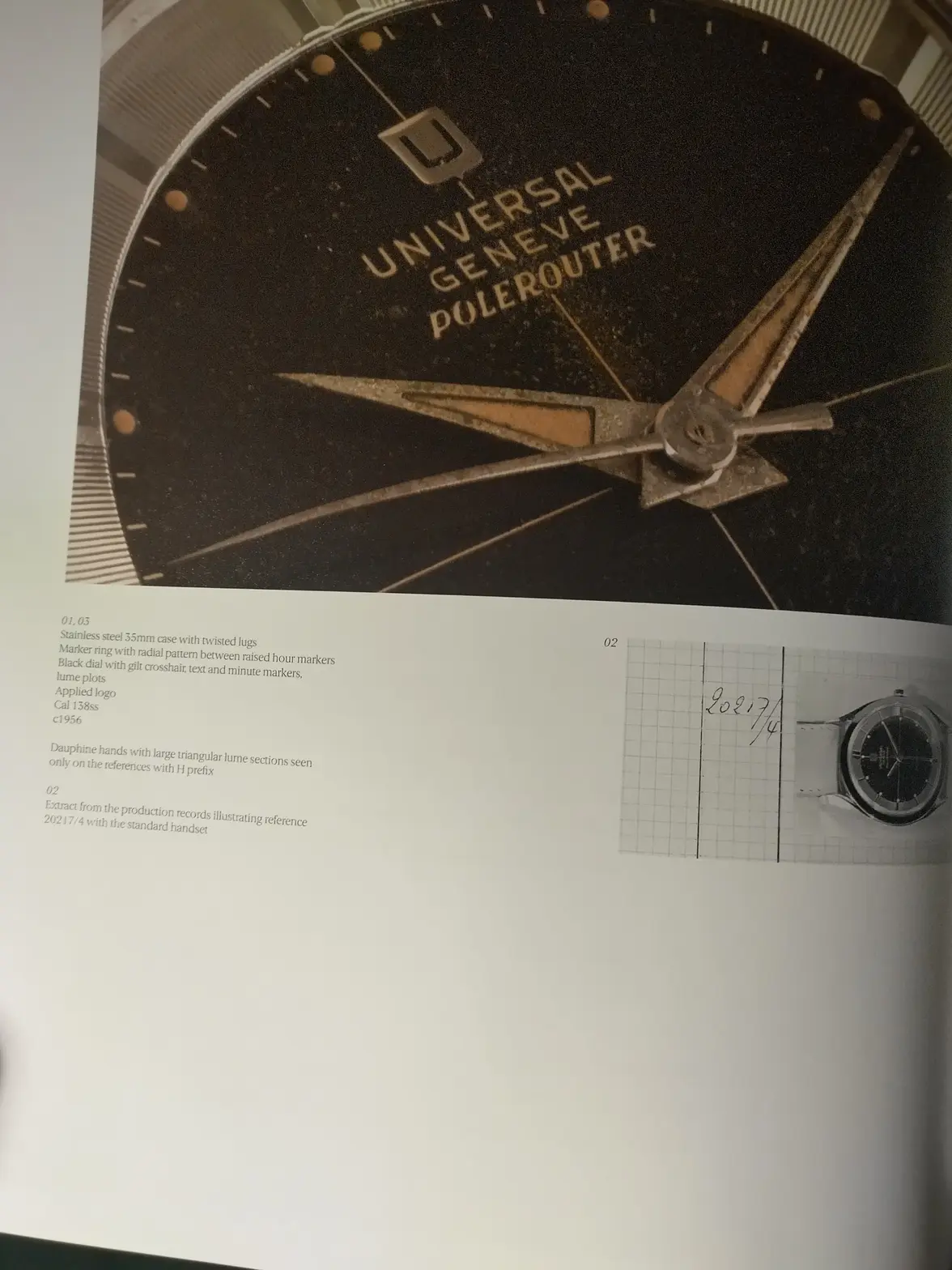

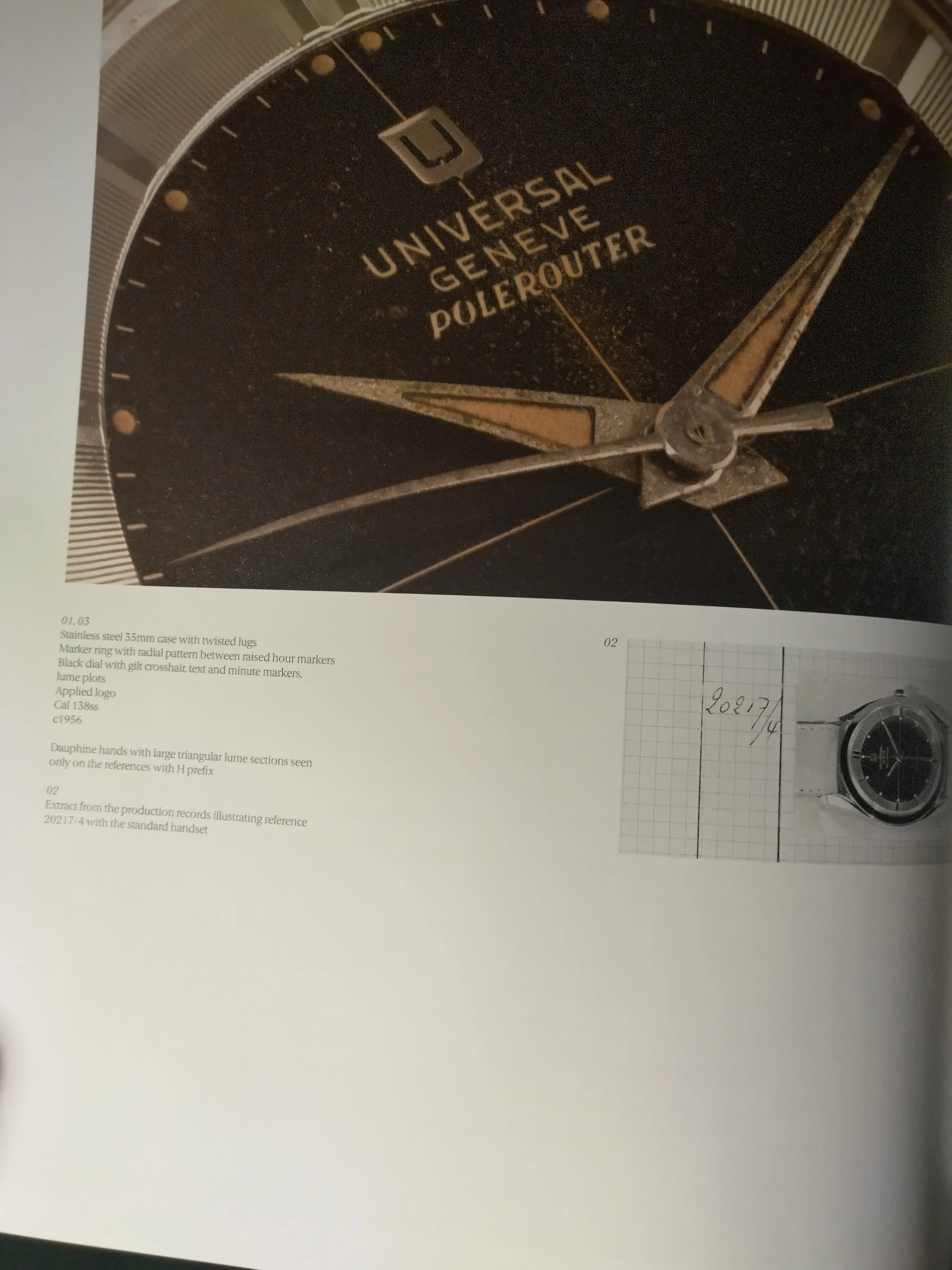

From the chapter on Bumper Polerouters at pp84-86, H20217/4 described as "gilt crosshair, text and minute markers". The extract from the production records (which this book is full of, pure gold) notes your handset.

Hope this assists!

Posts
271
Likes
439
Thank you all for your responses!

@G___ thanks a lot for looking that up. I still wonder, though if "gilt" is used simply as in "golden" or truly with respect to the galvanic process.

I will eventually service my Polerouter. Maybe still this month otherwise in April. When the dial is under my microscope, and not under the crystal, I'll be able to tell for sure and will share here, of course.

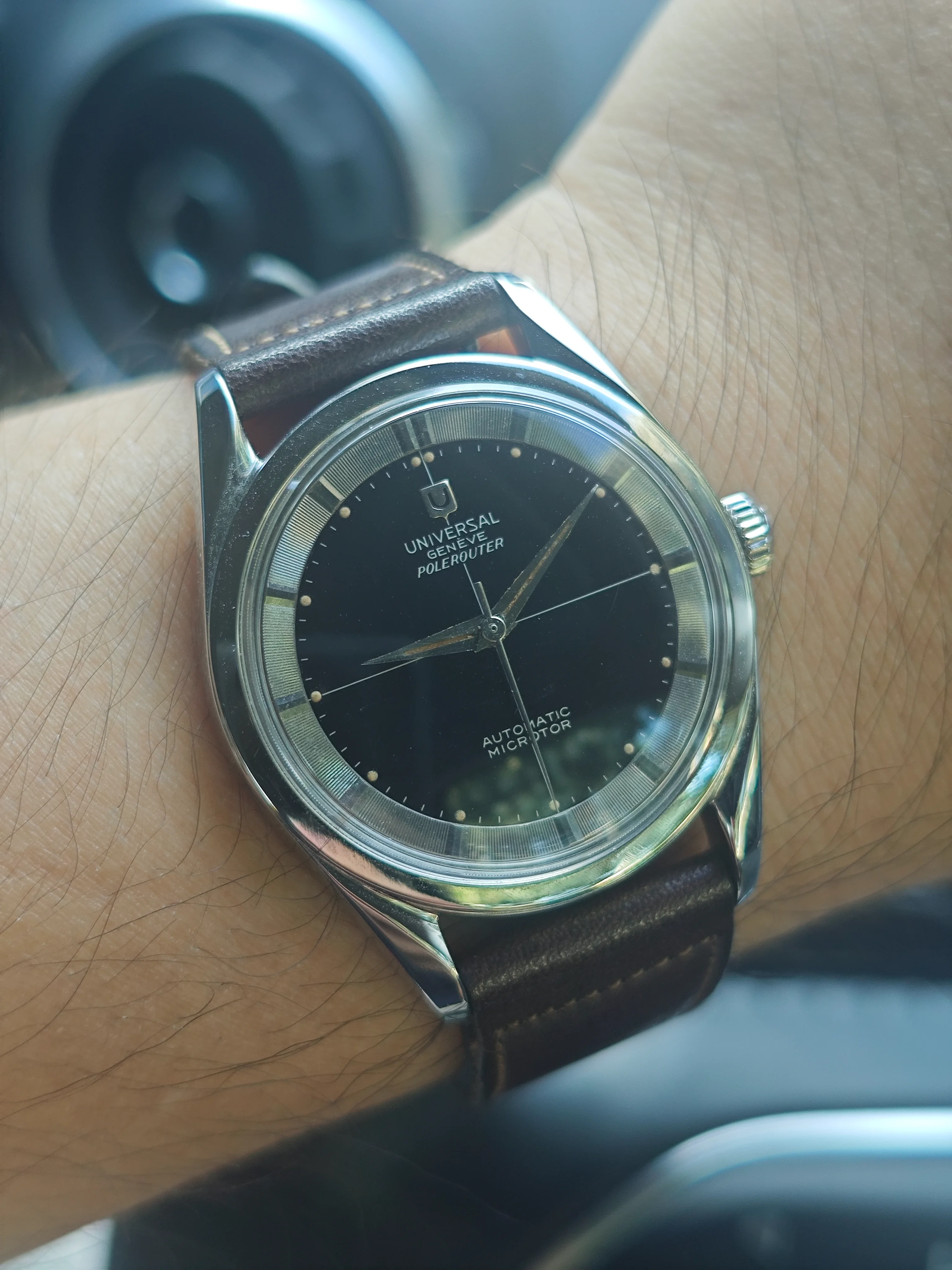

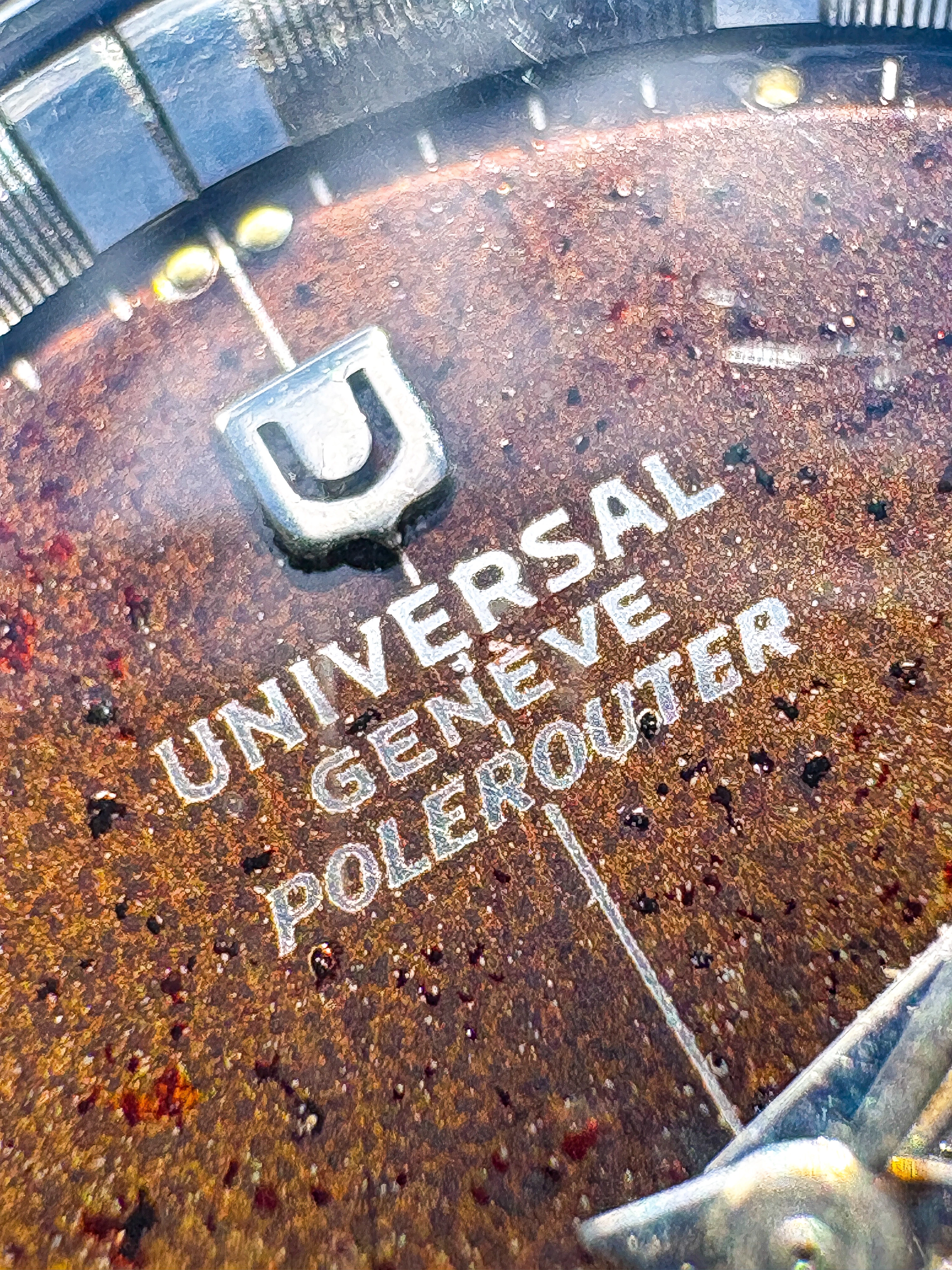

Galvanized

Interesting! And very beautiful patina. Which reference is that?

Are you able to take better macro photos of your dial? Closer up and better quality?
Soon!

Posts
33
Likes
54

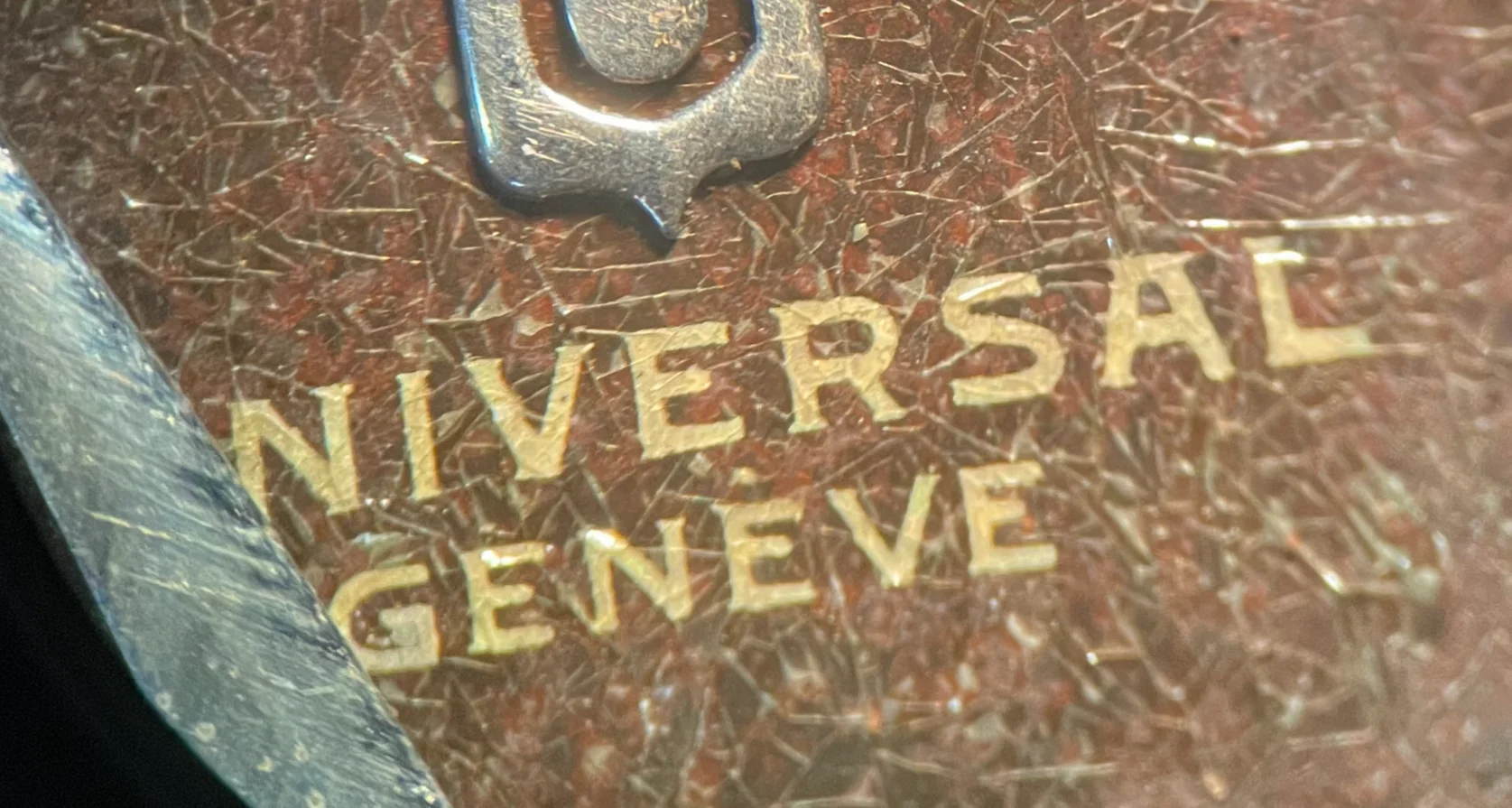

Interesting topic. I own a heavily patinized version of the 206515 "pre-polerouter".
I always assumed that the yellow text was painted on top, but now I'm not so sure anymore. Could just as well be yellowed lacquer and "transparent" text like Vujen describes.


Posts
225
Likes
934
I will eventually service my Polerouter. Maybe still this month otherwise in April. When the dial is under my microscope, and not under the crystal, I'll be able to tell for sure and will share here, of course.
Very cool, we'll look forward to that update in due course.

(Making me jealous of the watchmaking microscope ... Just need to find the space)
