On The Bench; Benrus MIL-W-3818B Vietnam Era Service Watch

  1. WestCoastTime Sep 10, 2022

    Posts
    283
    Likes
    1,038

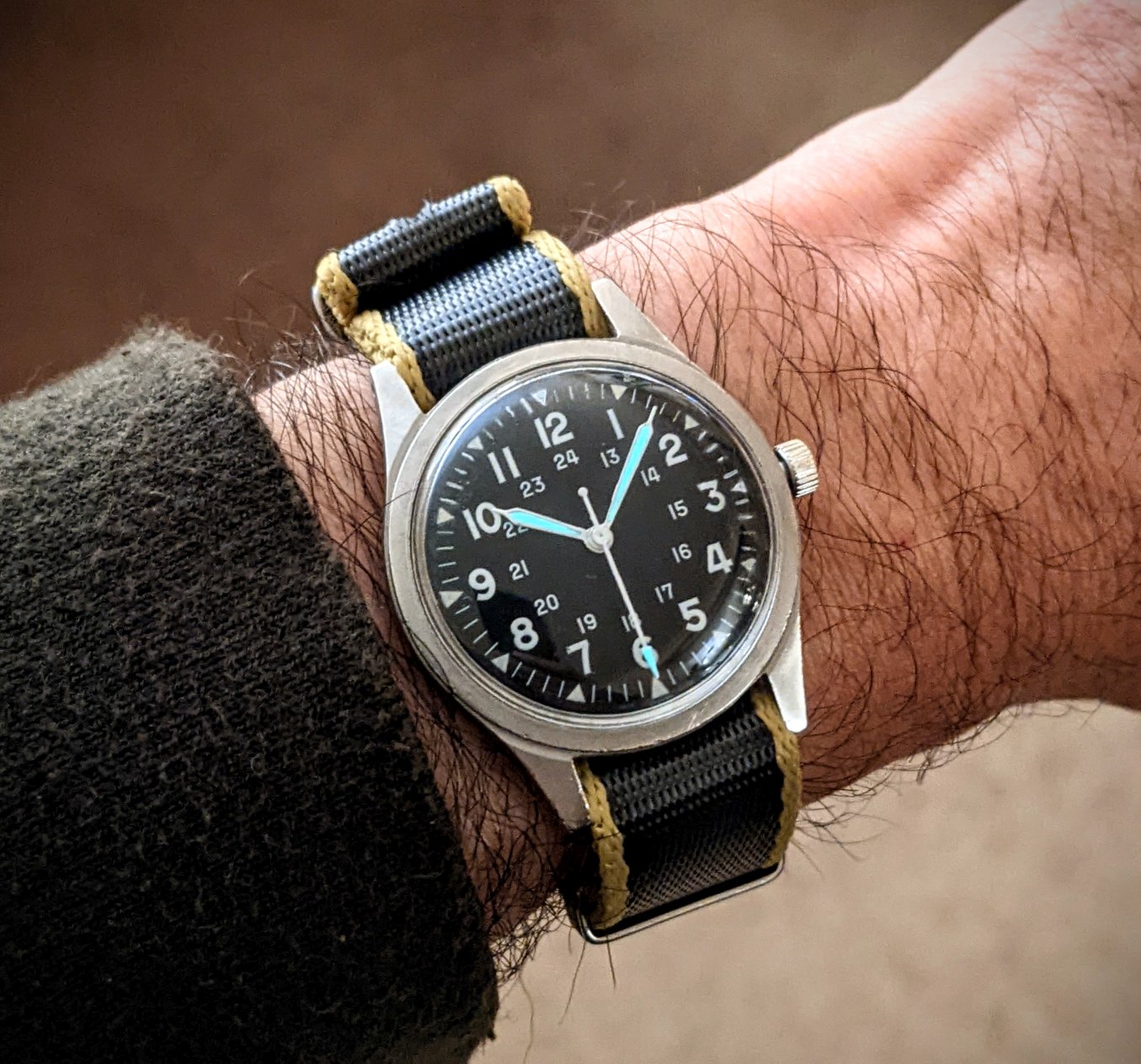

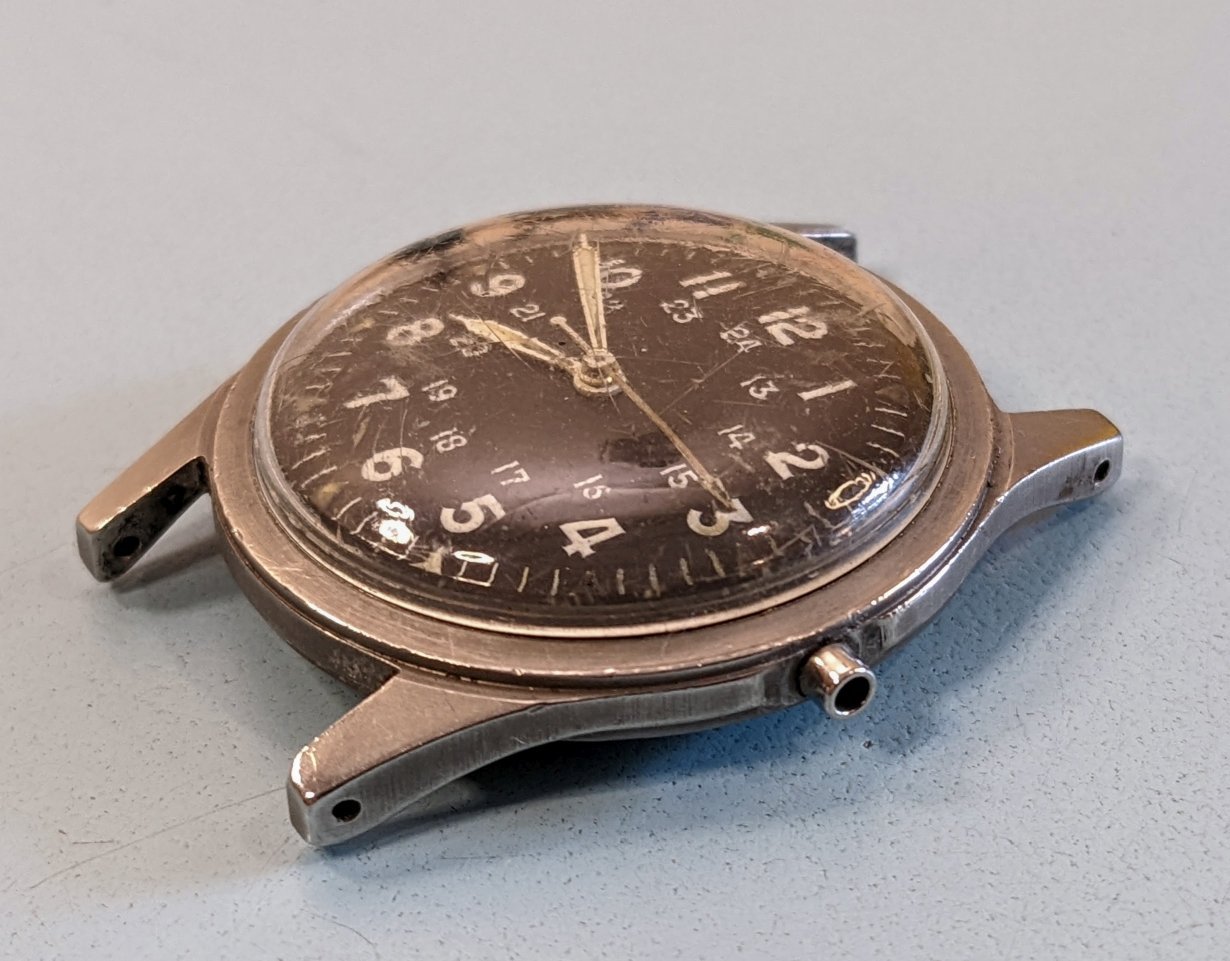

    Acquired out of an estate sale for an old vet, Benrus DR 2F2 MIL-W-3818B service watch.

    Crown & male half of the split stem missing, hands not advancing at all in response to jiggling, lifetime of not-too-gentle use.

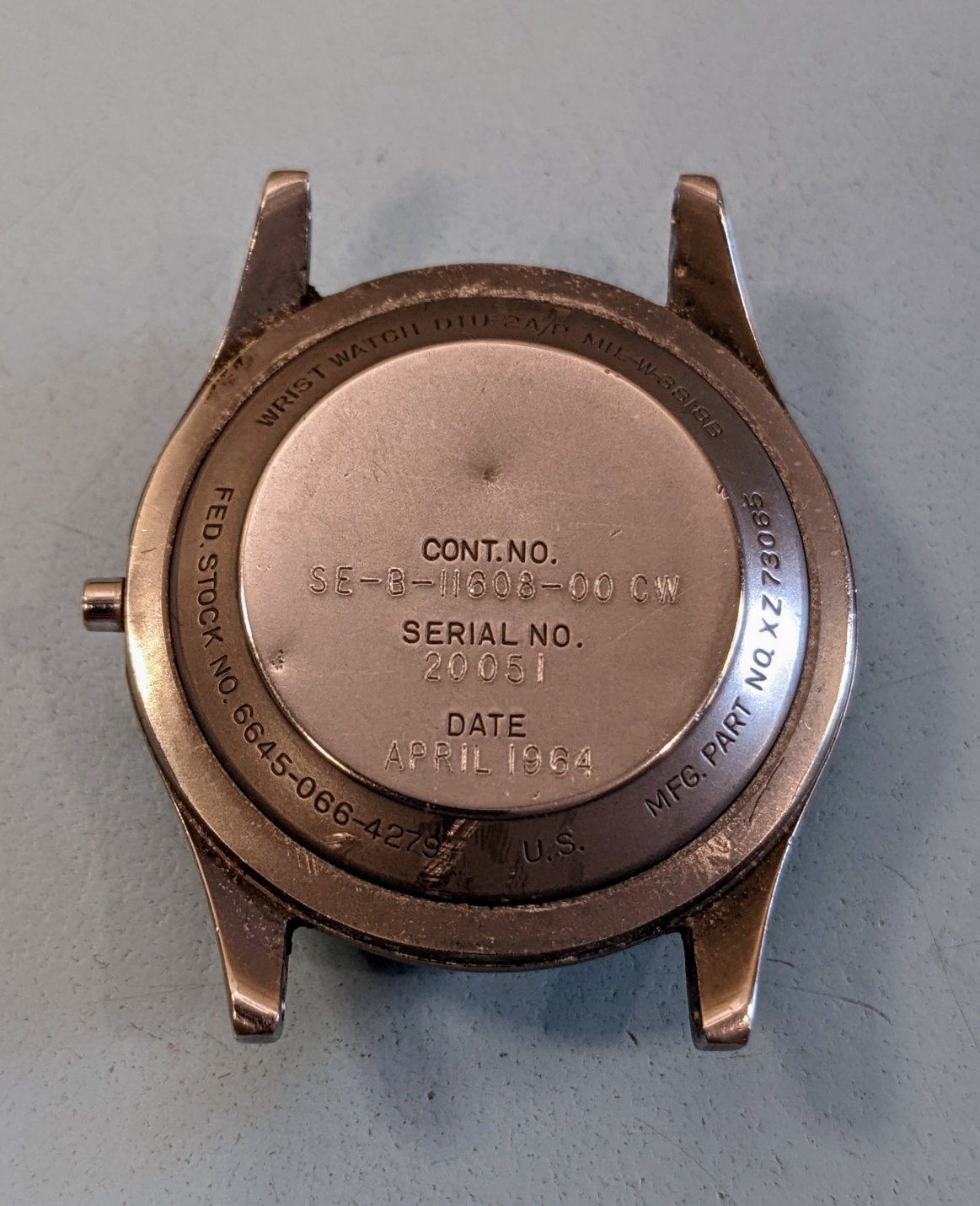

    1964 service date. Don't have any way of knowing if this piece was on tour in Vietnam, but the calendar lines up.

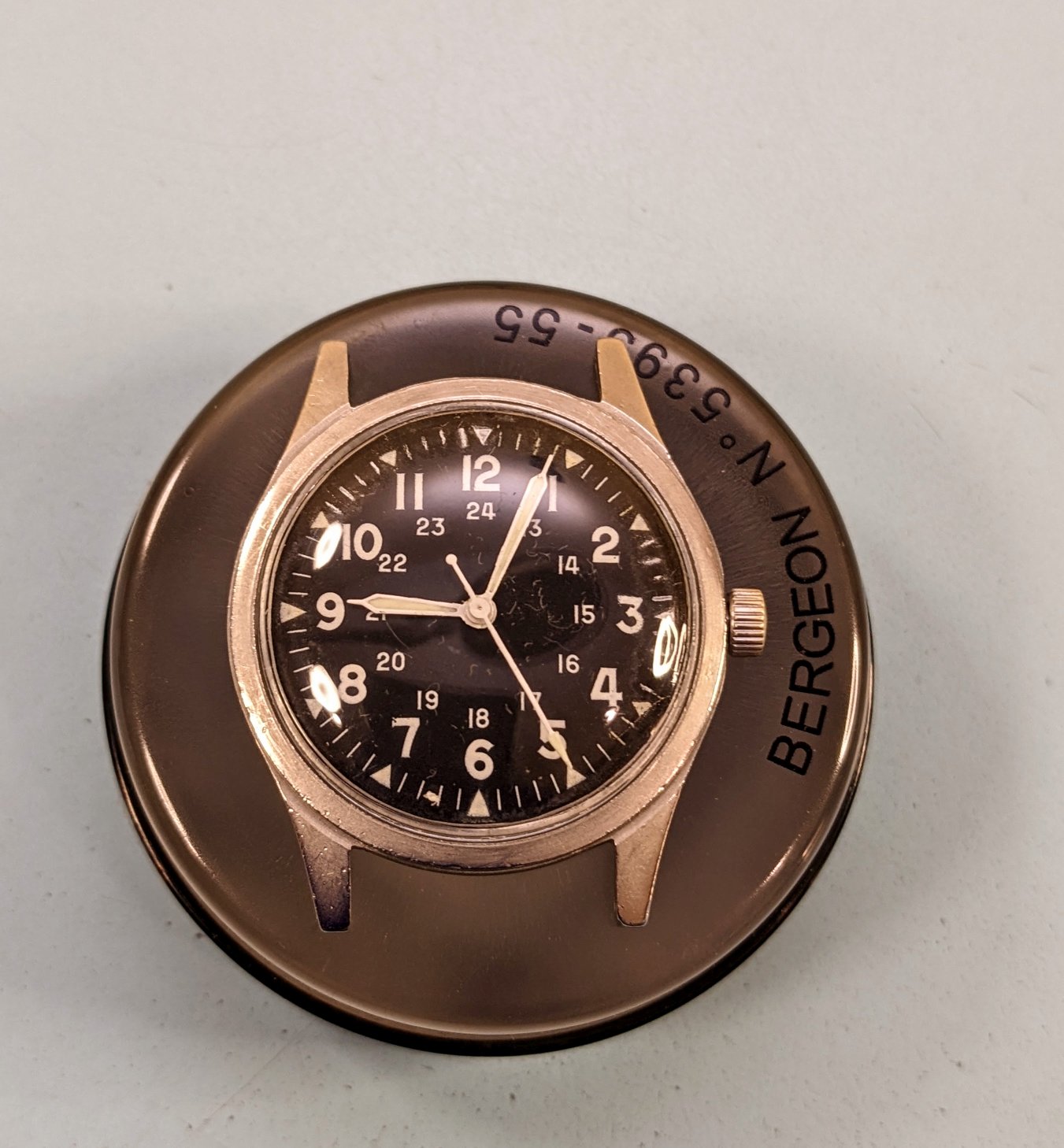

    With the crystal off, the watch actually starts running, seconds hand was fouling on the underside of the crystal.

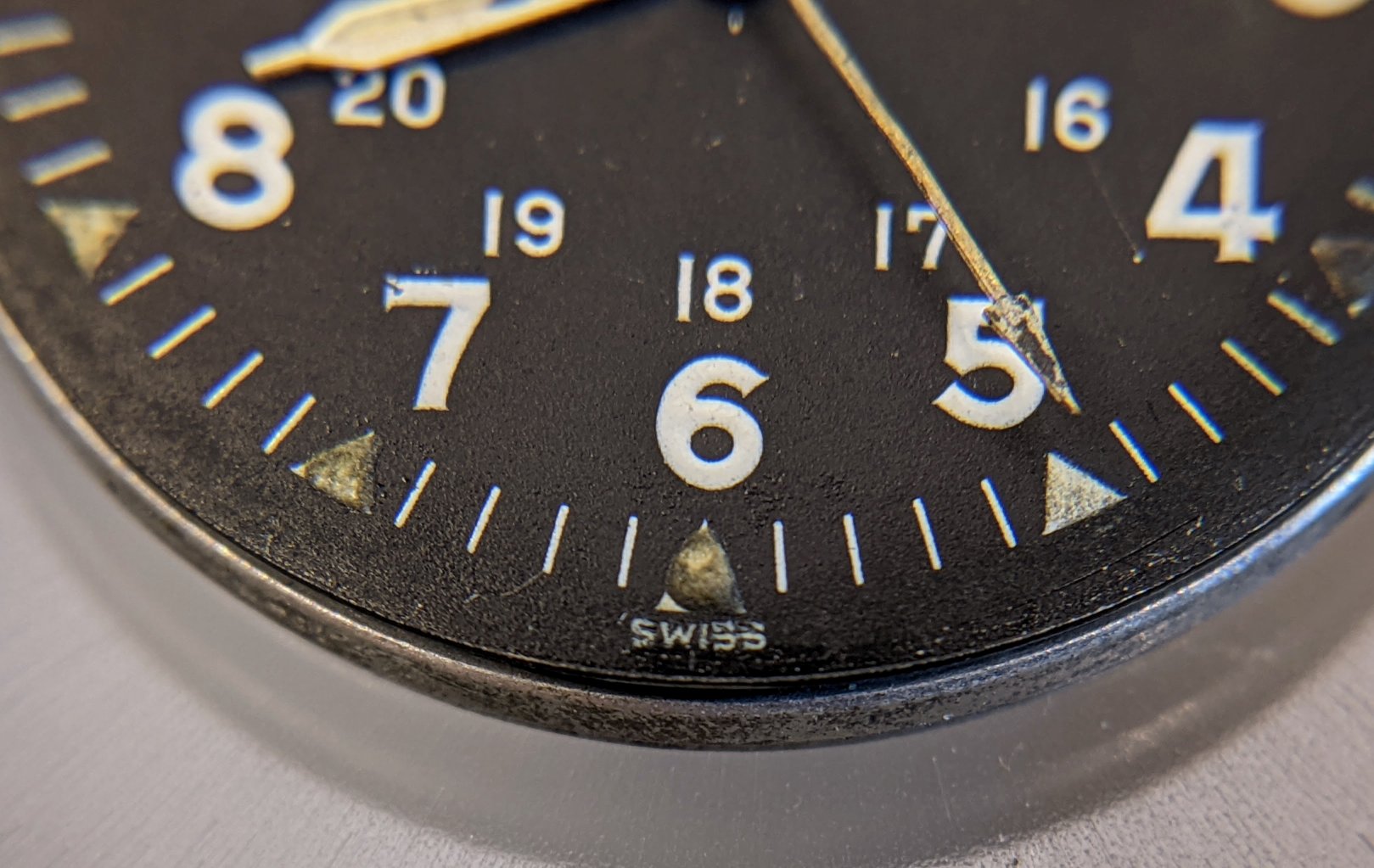

    From the factory, the hands were lumed but the dial was not, but then at some point in its past the watch had lume added to the dial. See this a lot in this vintage of service watch, & looks like a pretty amateur application in this example, 6 gets a double helping & 5 gets nothing...


    Now I have to make a decision about what level of restoration to apply on this project. Normally I would prefer to do a sympathetic restoration; try not to add anything, try not to remove anything. But, some other guy beat me to it this time, so now need to figure out what it means to unbastardise this piece...

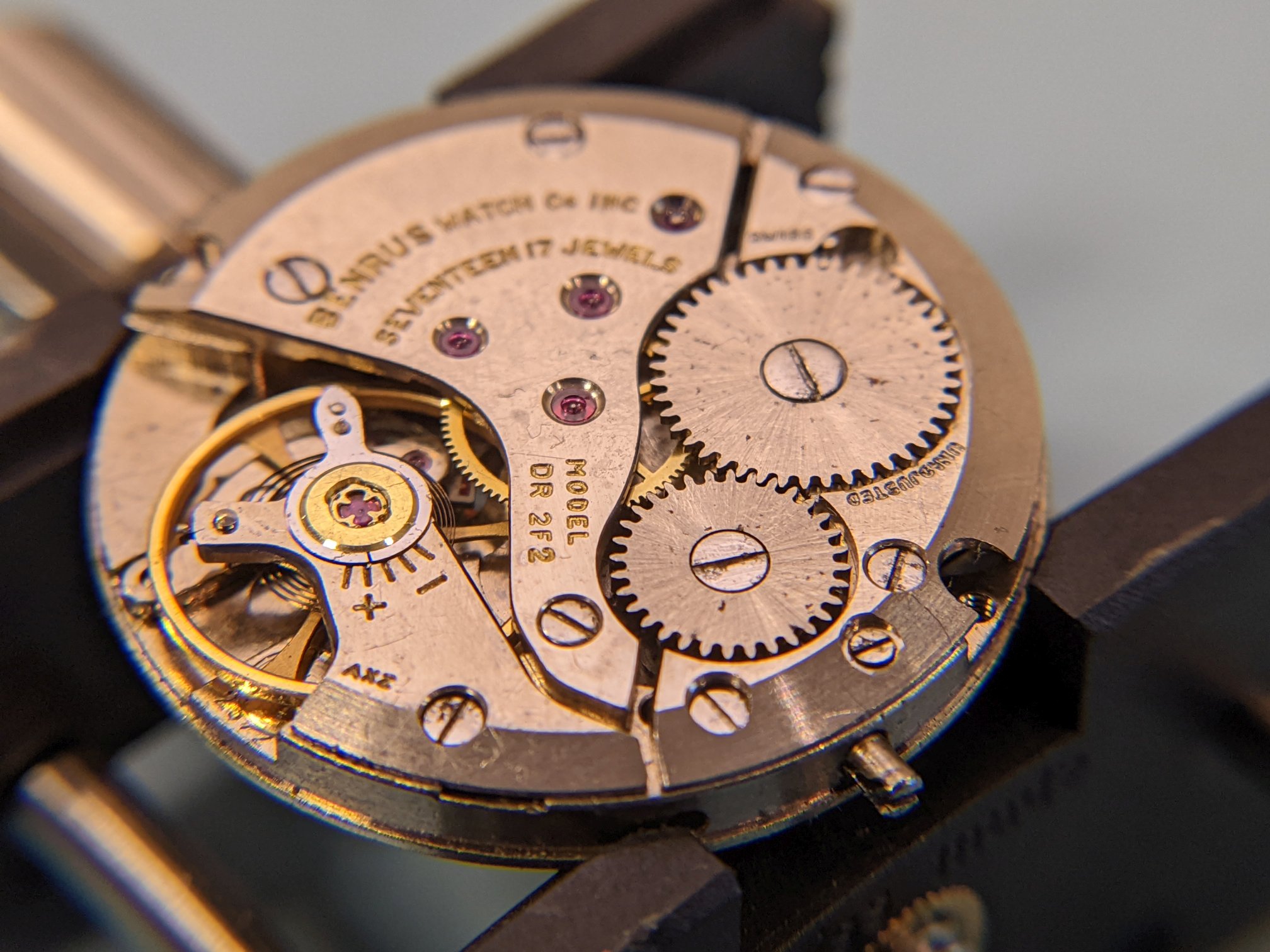

    ETA 2372 base movement with hacking added in the conversion to the DR 2F2. Little bit grimy, but running & looks complete (but for the crown & stem :-p).

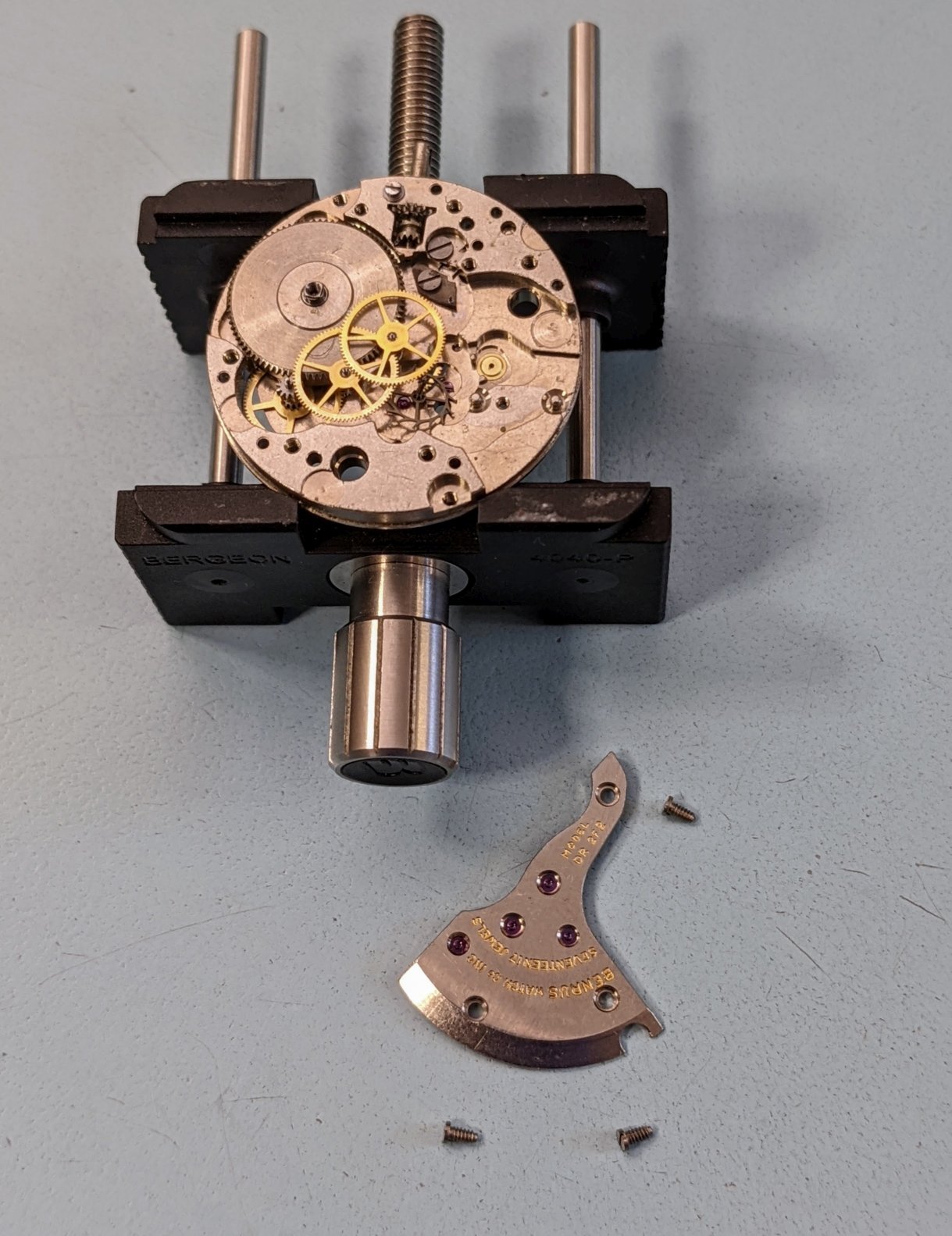

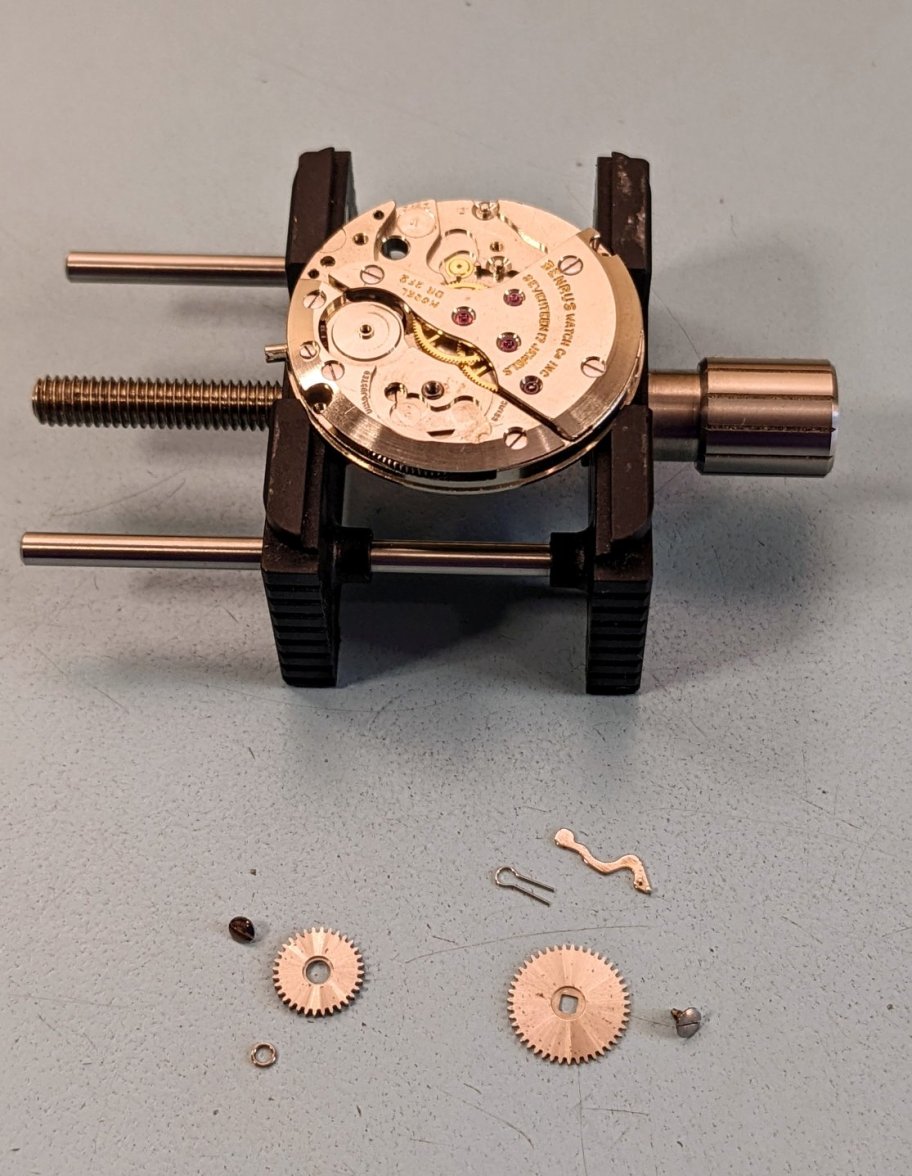

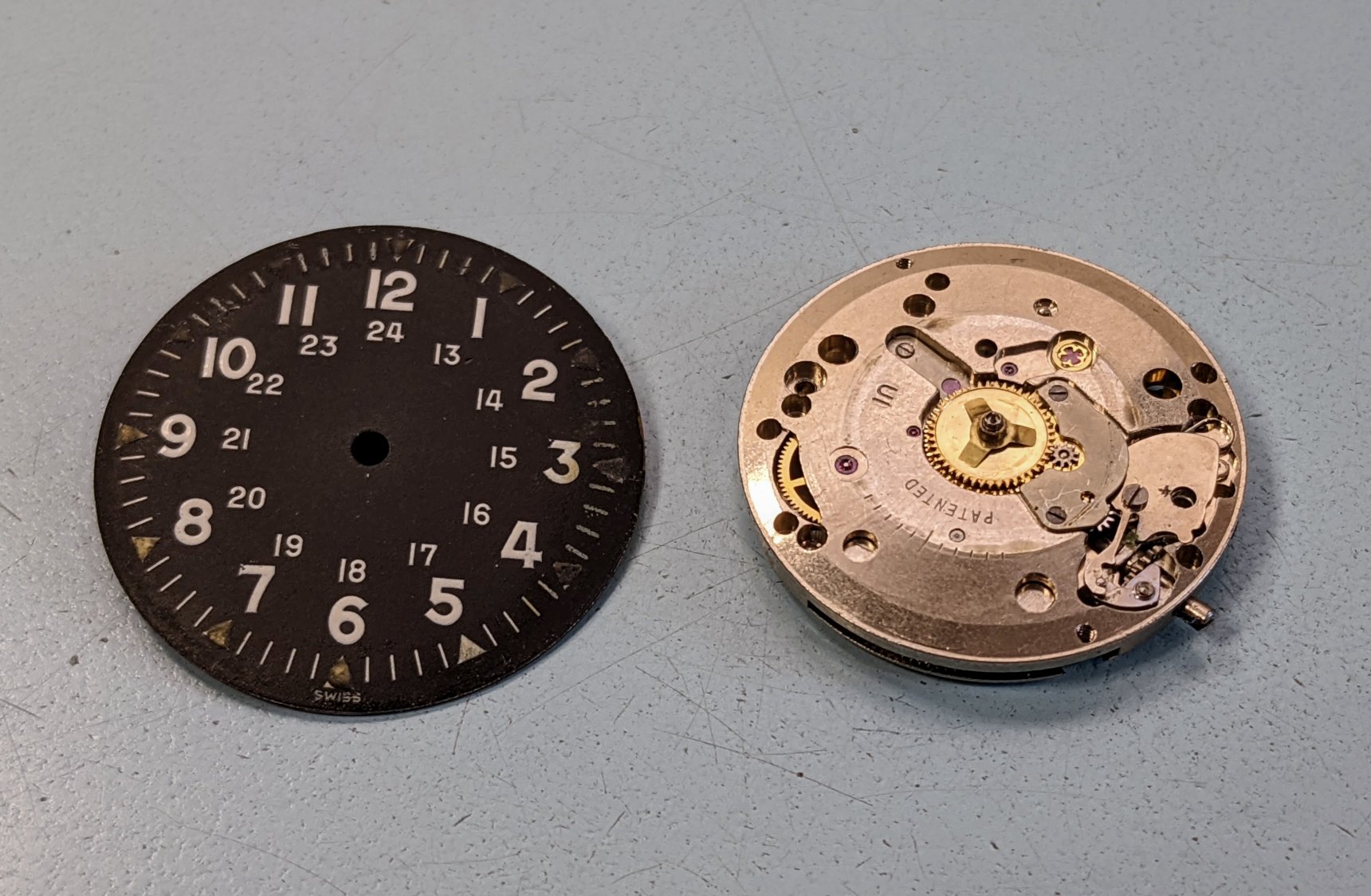

    Getting it broken down for cleaning.

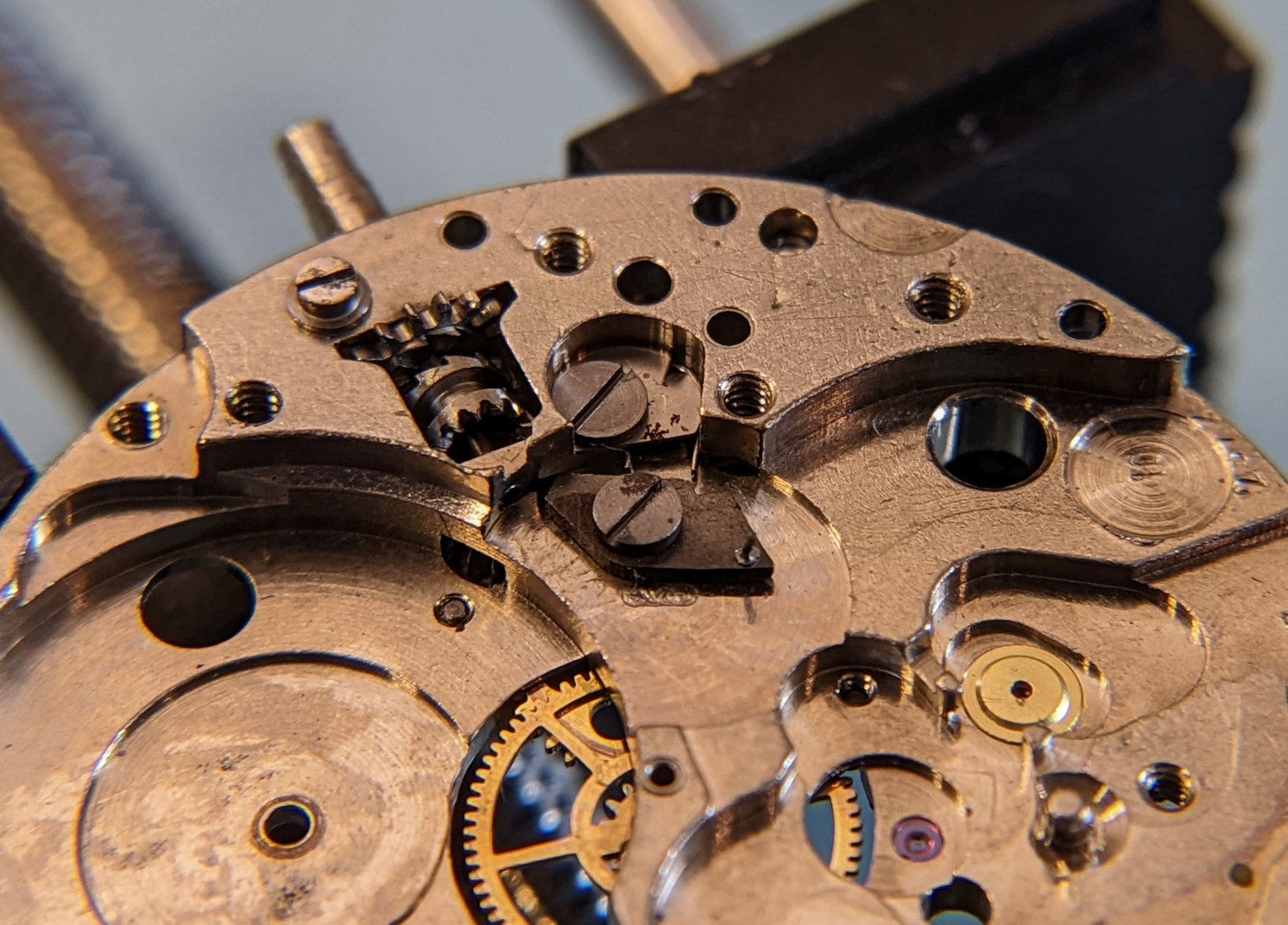

    The DR 2F2 hacking lever. When the stem is pulled out to setting position the hacking lever rotates & presses the hacking pin into the side of the balance wheel (looks pretty crude, compared to the crafting & finishing of the rest of the components...)

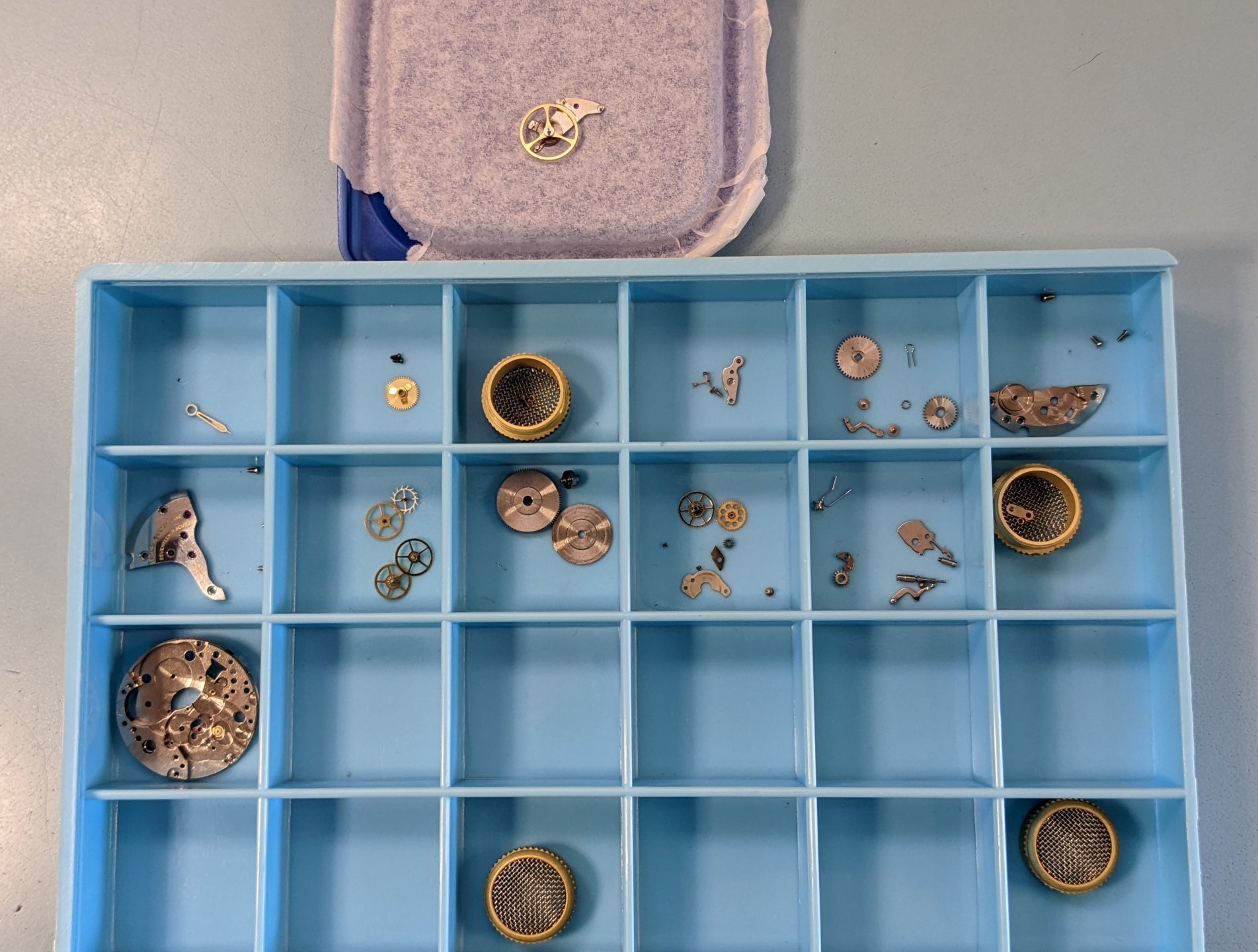

    Fundamentally it's a pretty basic watch, 3 hands, hacking, & that's it. Doesn't fill up very many cubbies in the parts tray. Off to the cleaner.


    Now to deal with the cosmetics for the dial & hands. Not something I have much expertise in, but ready to try something new & learn as we go...

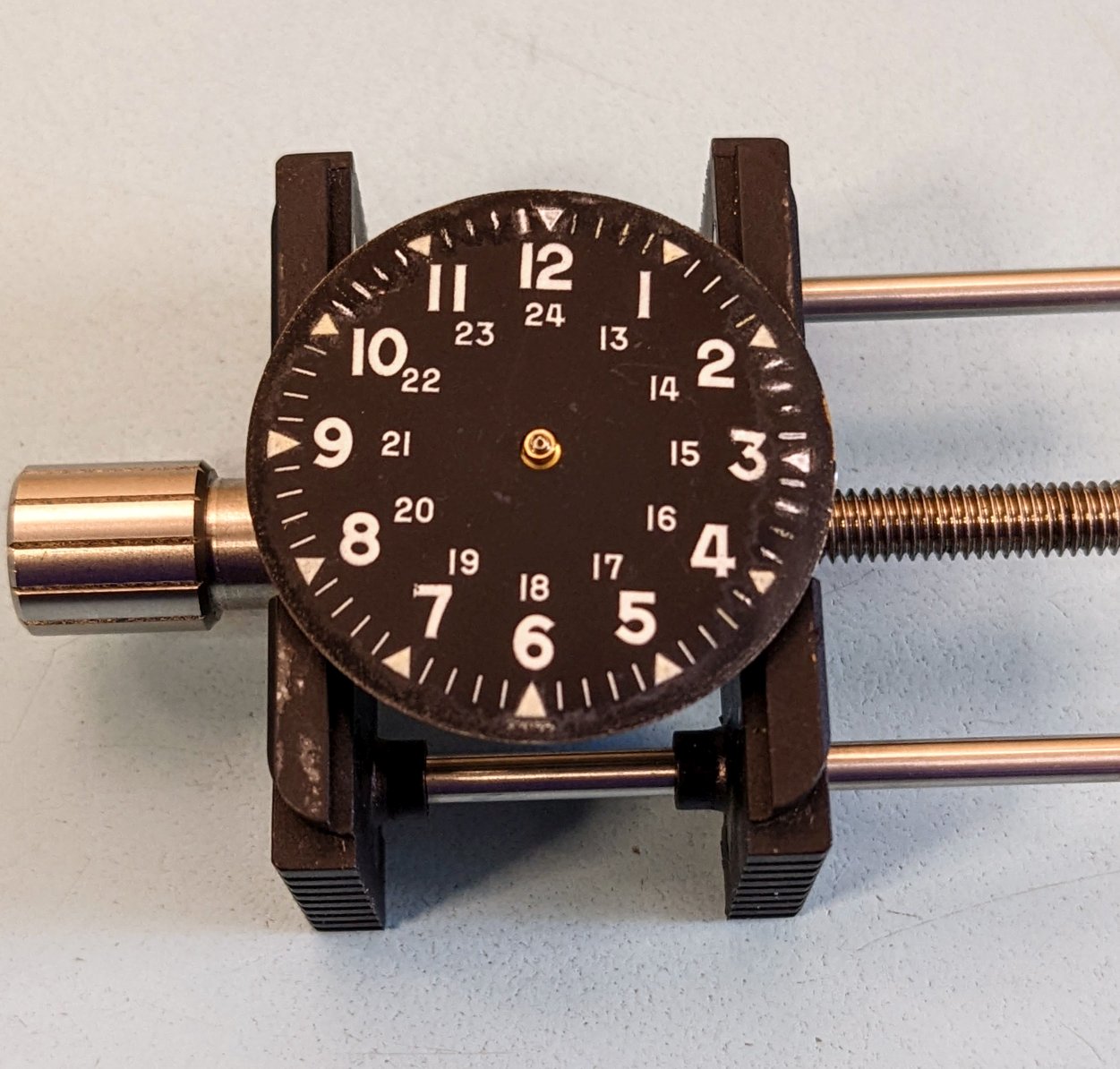

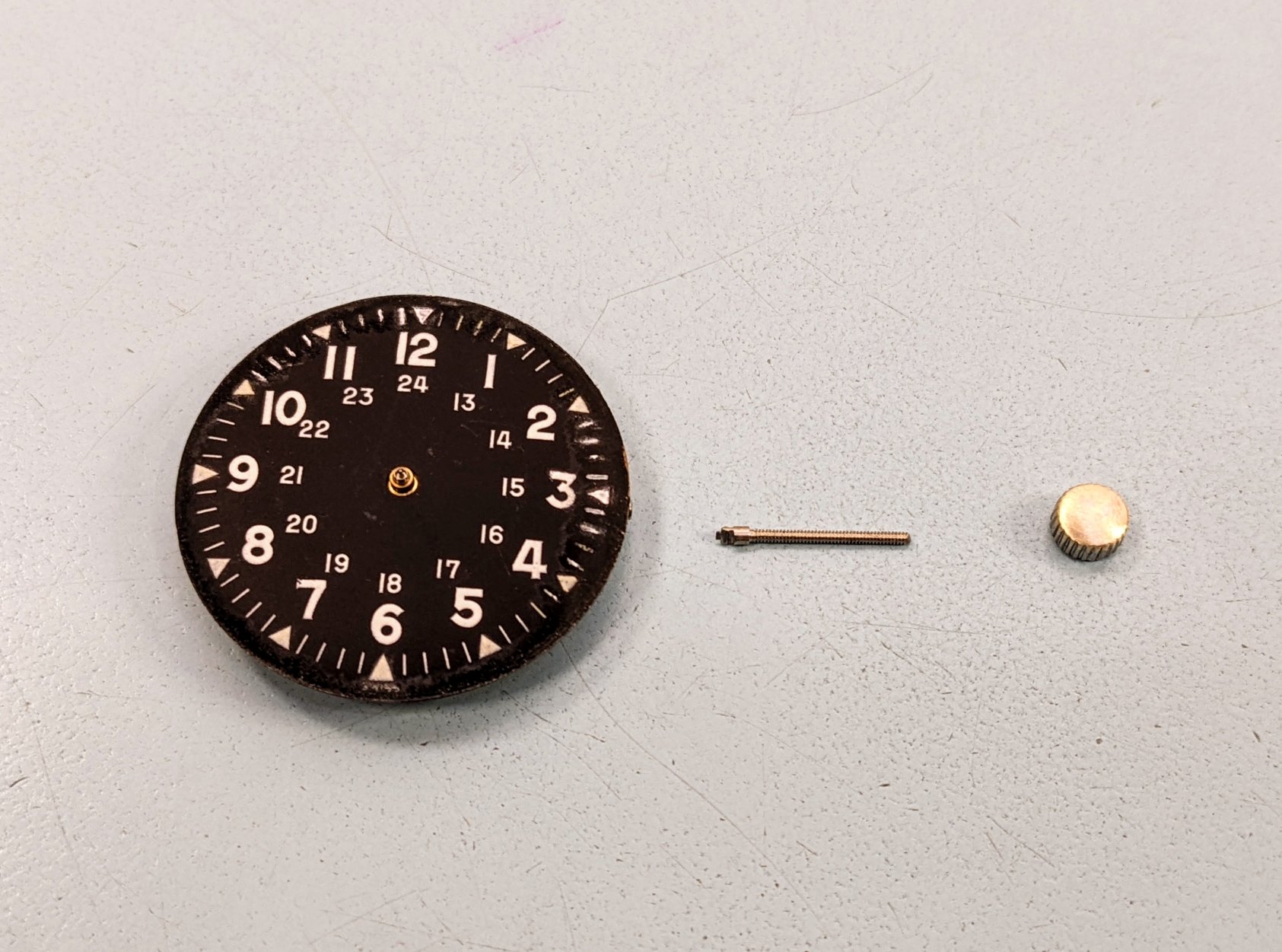

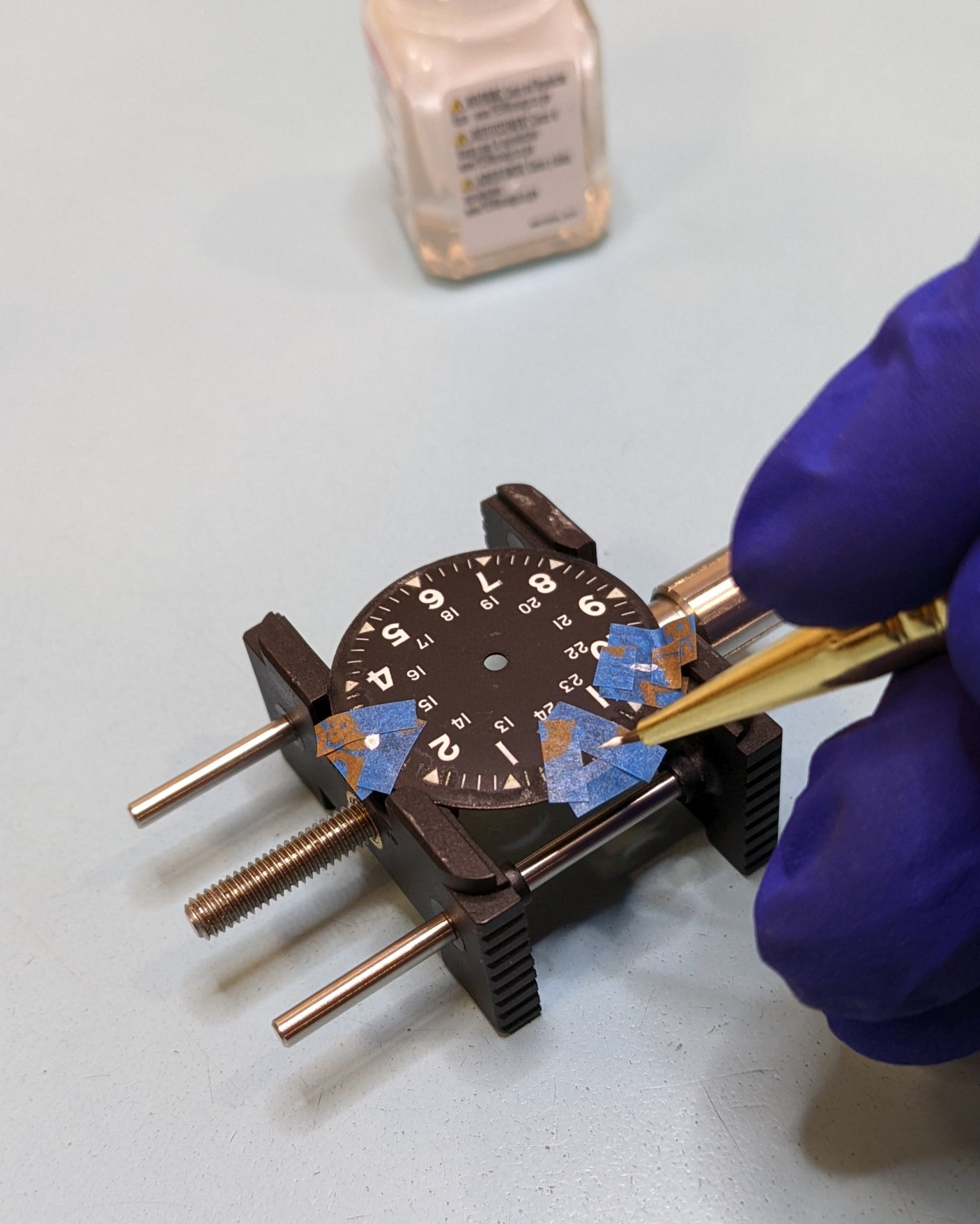

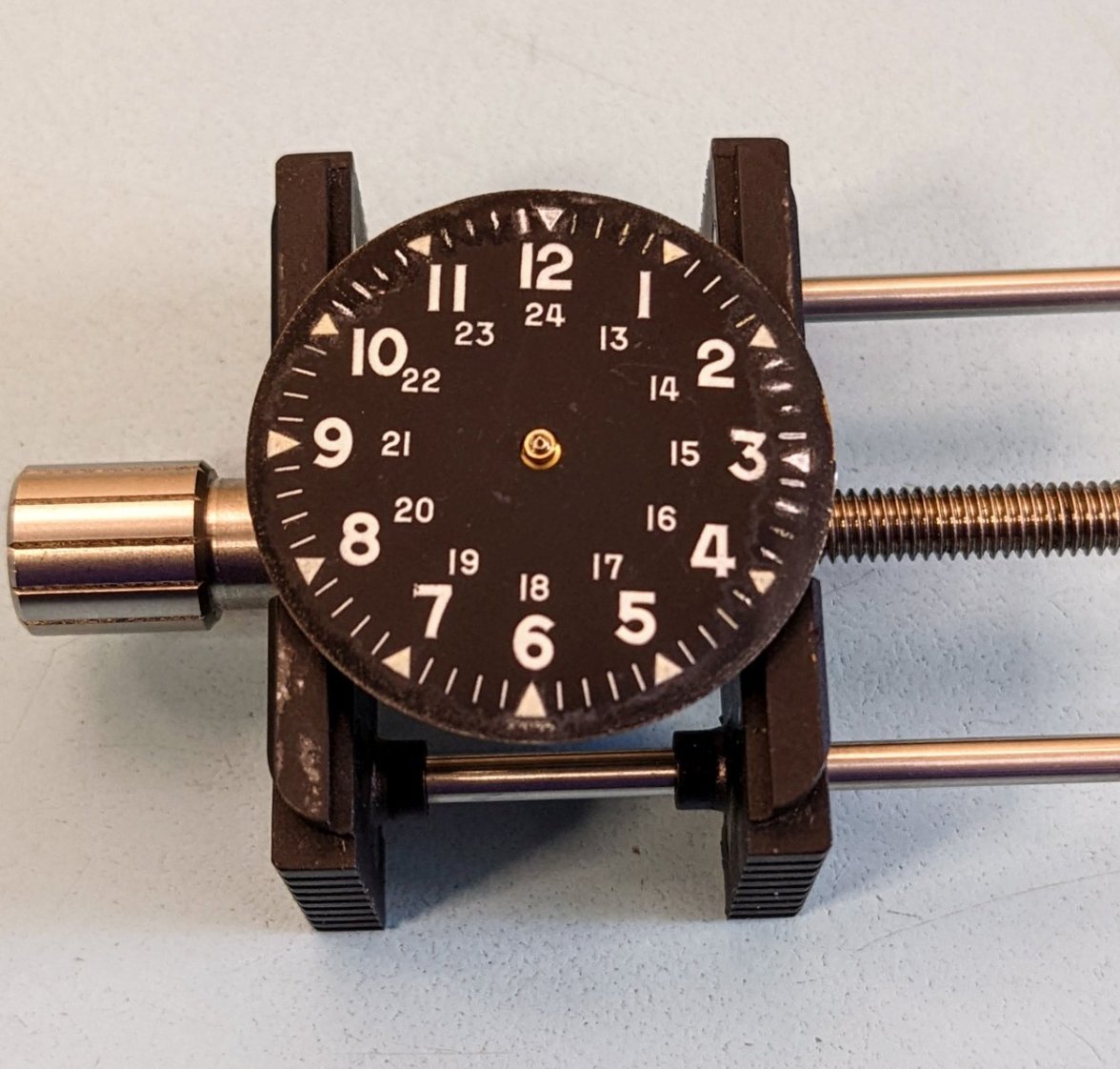

    The Geiger Counter was quiet for the dial & hands, so whatever was applied before was not Radium. Gently scraped off the grotty looking old lume, but that still took off the paint for the hour index underneath. So, let's see how some flat white acrylic model paint looks.

    It's not perfect & it never will be, but looks like an improvement to me at least.

    More to follow...

    Aroxx, UncleBuck, SC1 and 11 others like this.
  2. JimInOz Melbourne Australia Sep 10, 2022

    Posts
    15,404
    Likes
    32,168
    Should scrub up nicely :thumbsup:.

    WestCoastTime likes this.
  3. Archer Omega Qualified Watchmaker Sep 10, 2022

    Posts
    26,343
    Likes
    65,051
    Brave putting tape on a vintage dial...

    WestCoastTime likes this.
  4. SkunkPrince Sep 10, 2022

    Posts
    5,636
    Likes
    5,737
    Indeed so but this blue 3M painter's tape is some pretty special stuff. Its tack is very low, because it's designed to not pull up whatever it's stuck to, whereas traditional "masking tape" has a much higher tack and gets permanent over time.

    I think the only adhesive with lower tack is a Post-It note.

    I use this blue tape for a lot of things that are intended to be temporary because you don't have to worry about leaving adhesive behind.

    WestCoastTime likes this.
  5. Archer Omega Qualified Watchmaker Sep 10, 2022

    Posts
    26,343
    Likes
    65,051
    I've seen lots of dials that if you breathed on them the finish would come off, but in this case it seems to have worked out fine. :thumbsup:

    This doesn't appear to be a customer's watch, so if it goes wrong at least you aren't left trying to explain what happened to an angry collector!

  6. WestCoastTime Sep 10, 2022

    Posts
    283
    Likes
    1,038
    Correct, I am a hobbyist with a few years experience tinkering with movement restoration. All the watches on my workbench including this Benrus are my own.

    Duracuir1, wsfarrell and Archer like this.
  7. WestCoastTime Sep 10, 2022

    Posts
    283
    Likes
    1,038
    ... and on to the hands.

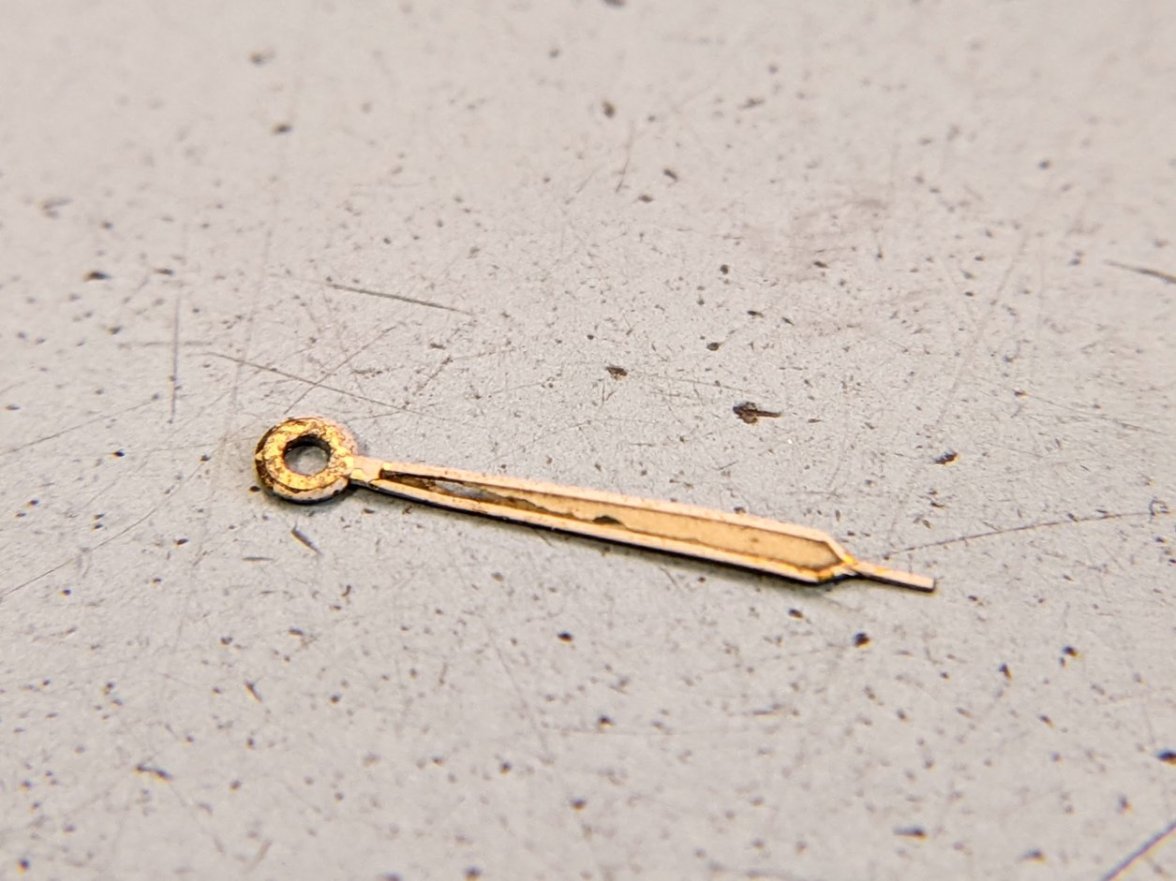

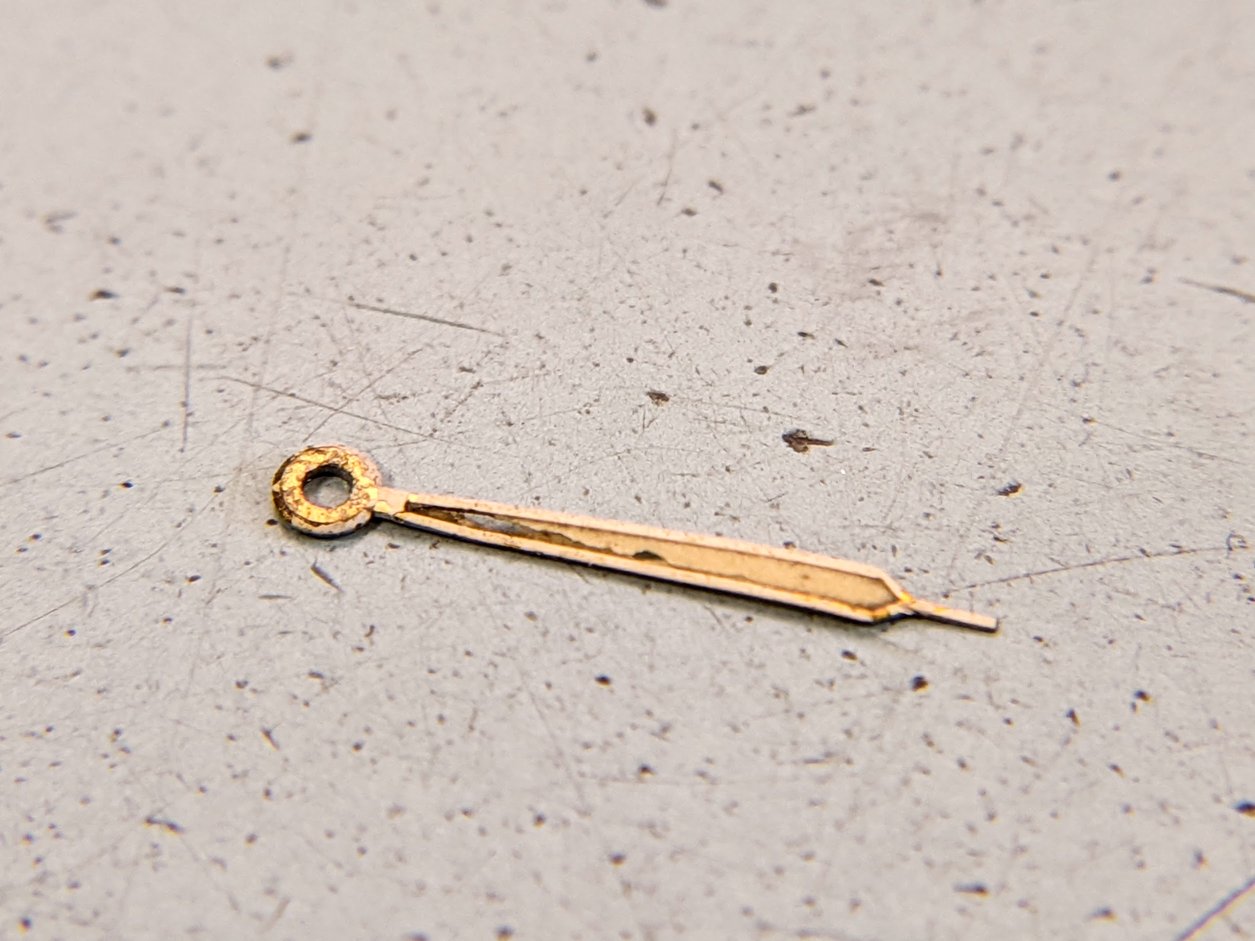

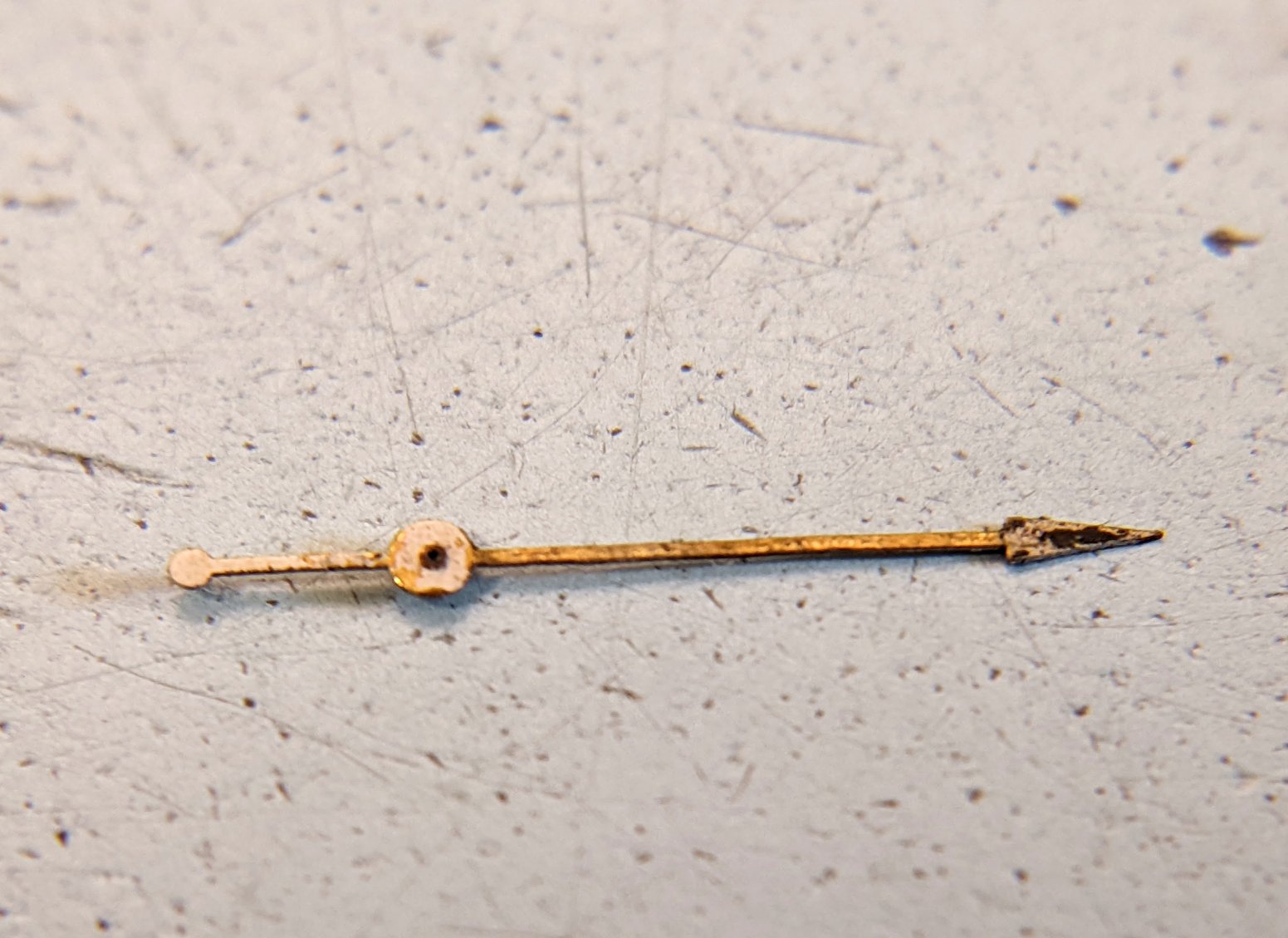

    None of them look great. Kinked, corroded, & an odd assortment of previous coatings.

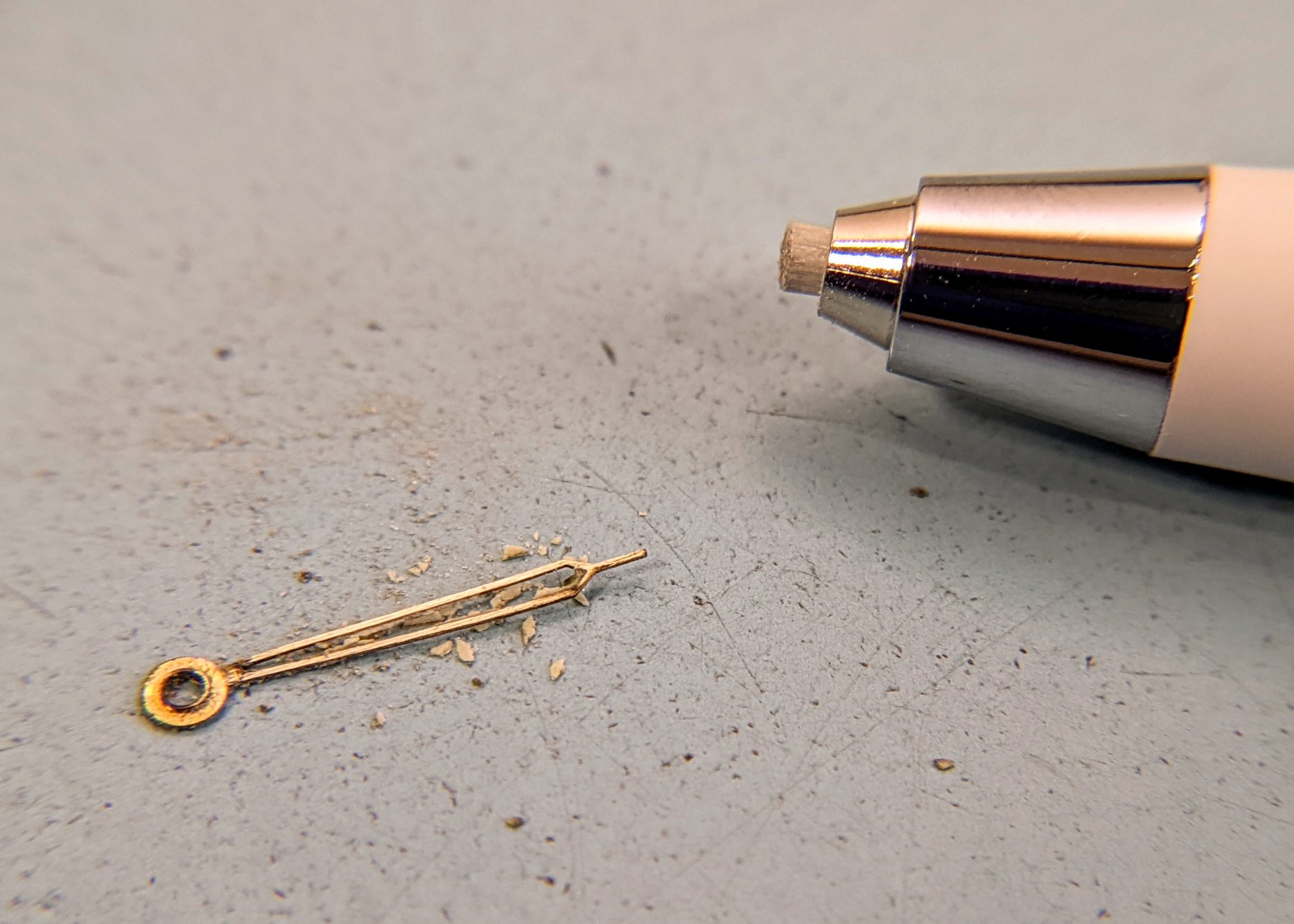

    Some fiber pen to scrub out the old lume & gentle sanding with some 2000 grit to get most of the way down to bare metal.

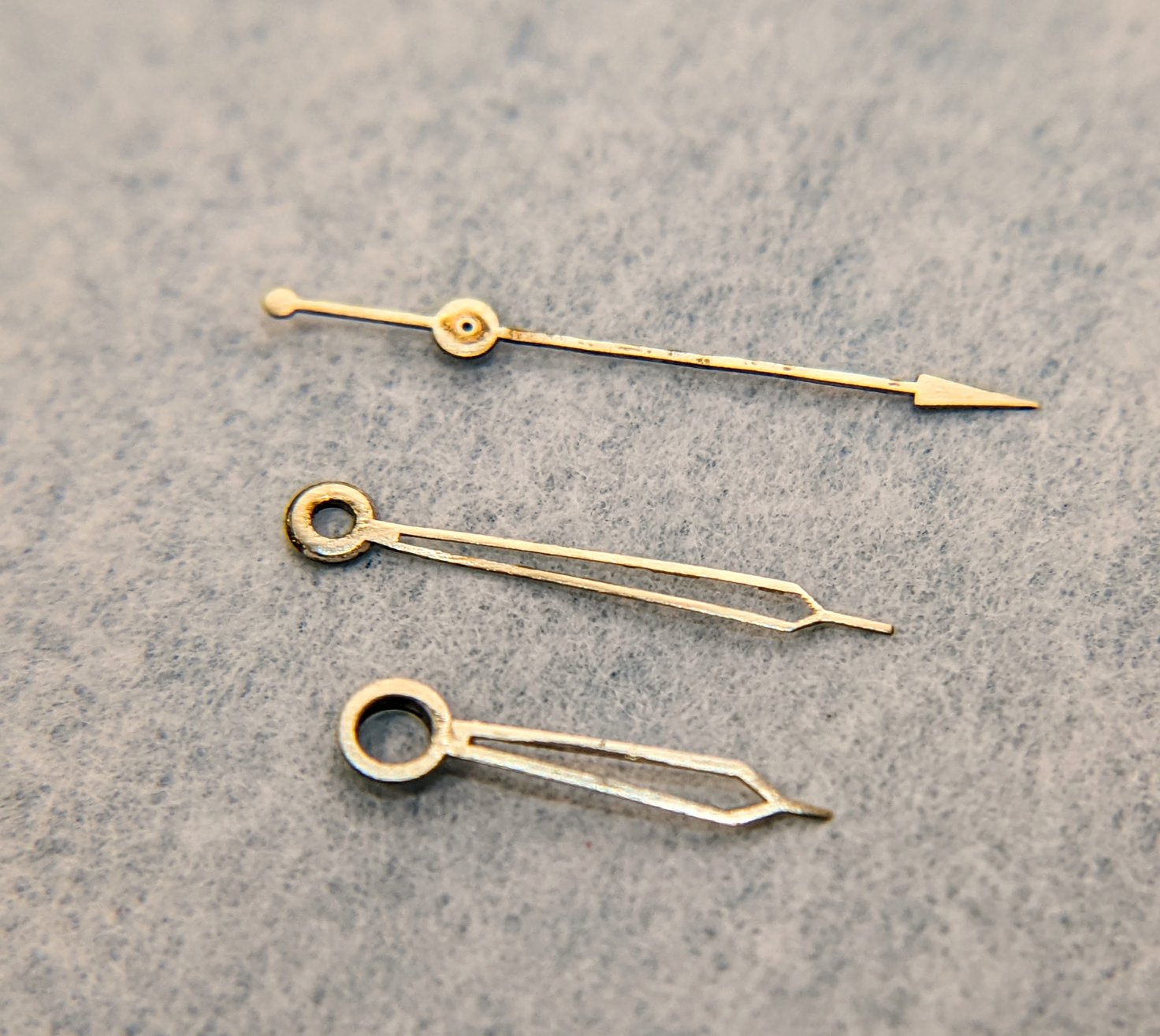

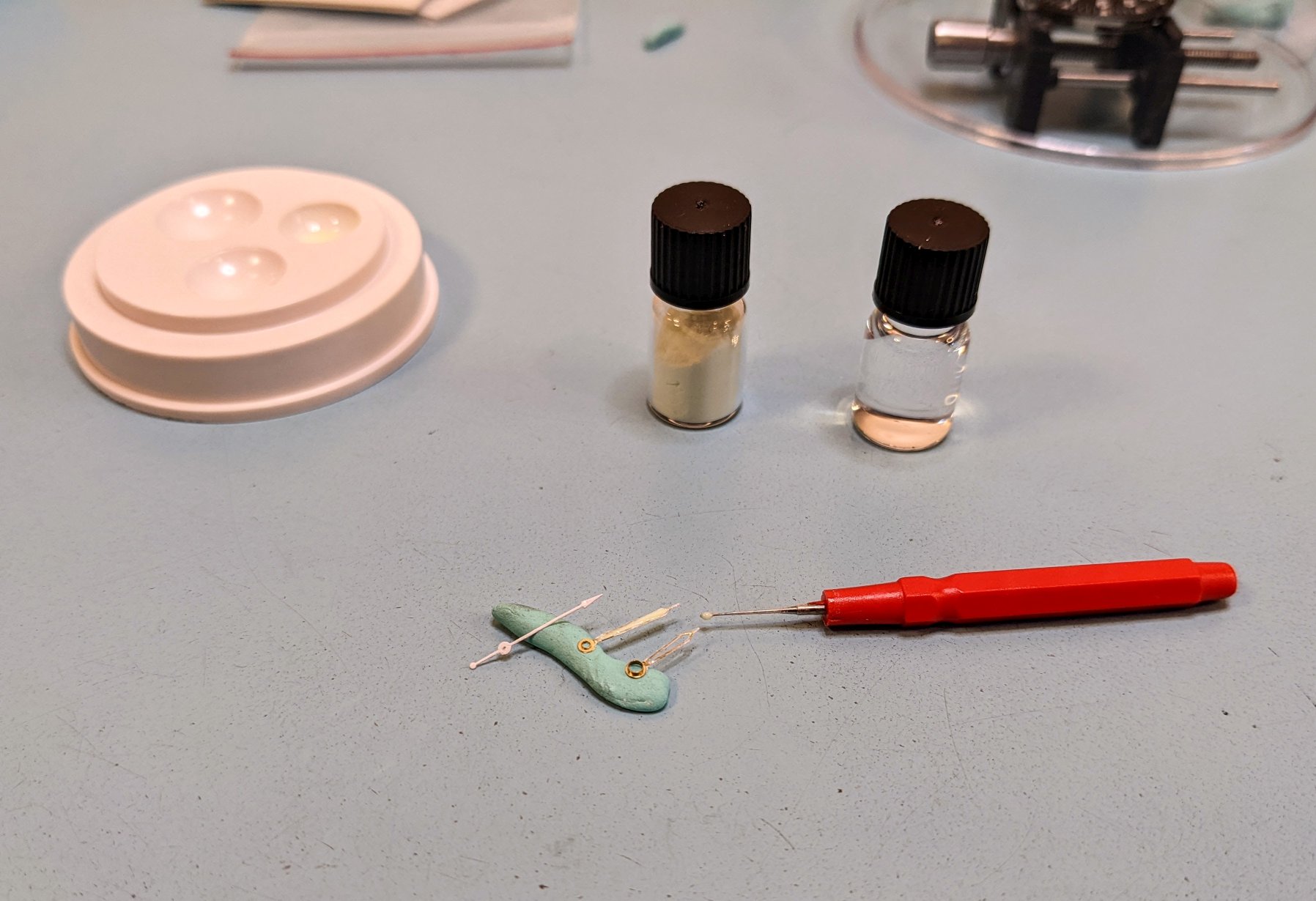

    Straightened out & ready for a thin coat of paint & fresh lume. Don't exactly know how the hands were finished when new, but most of the pictures I have seen of other MIL-W-3818B watches have the hands painted white.



    On to the reassembly.

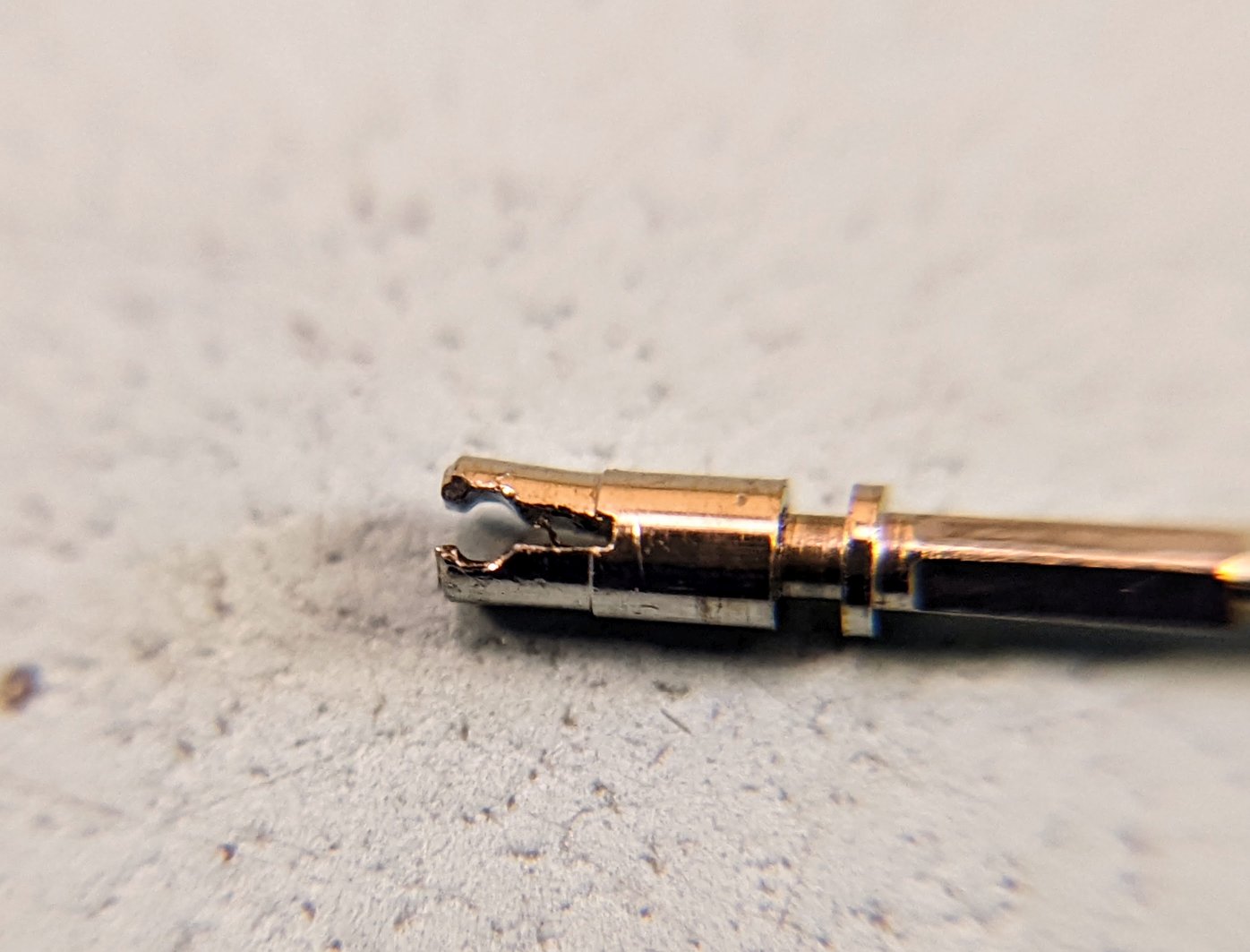

    The female (movement side) of the split stem appears bent out of shape. Likely contributed to the male half & crown being lost. PXL_20220618_175149881.jpg

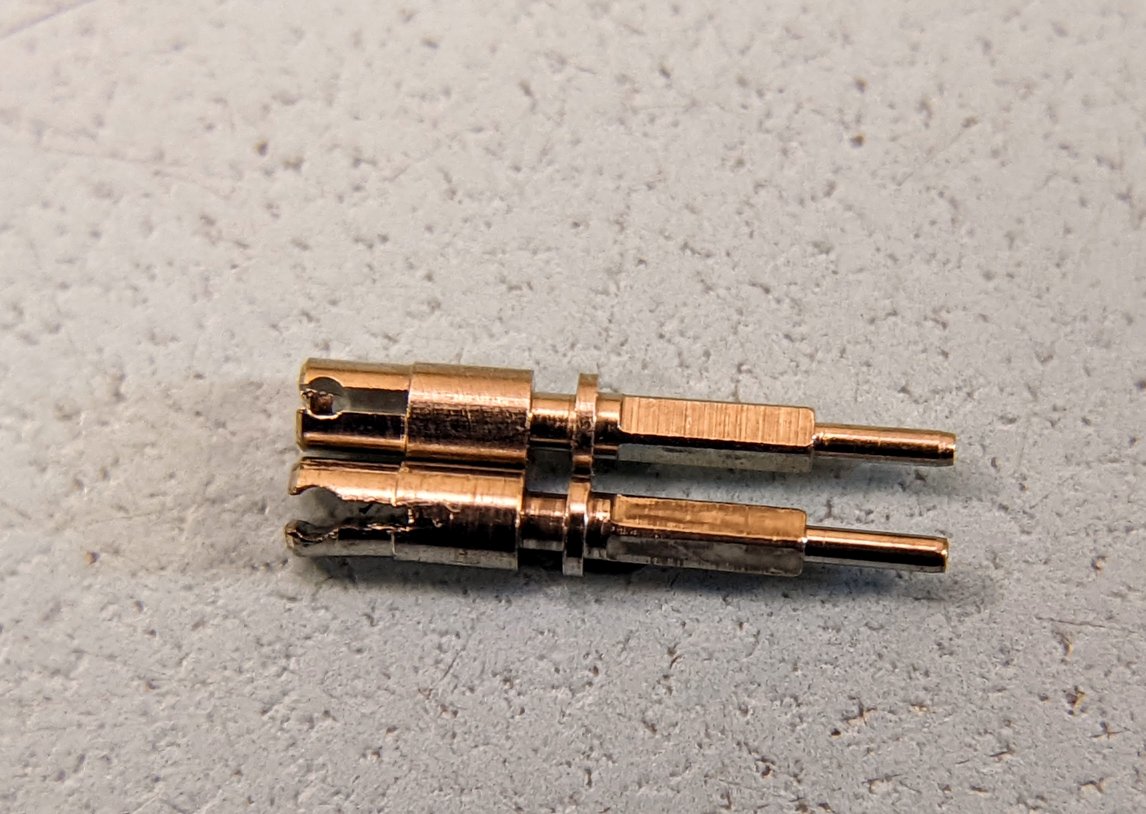

    This part can be replaced with NOS ETA 2372, & these are fairly easy to find. PXL_20220618_175335055.jpg

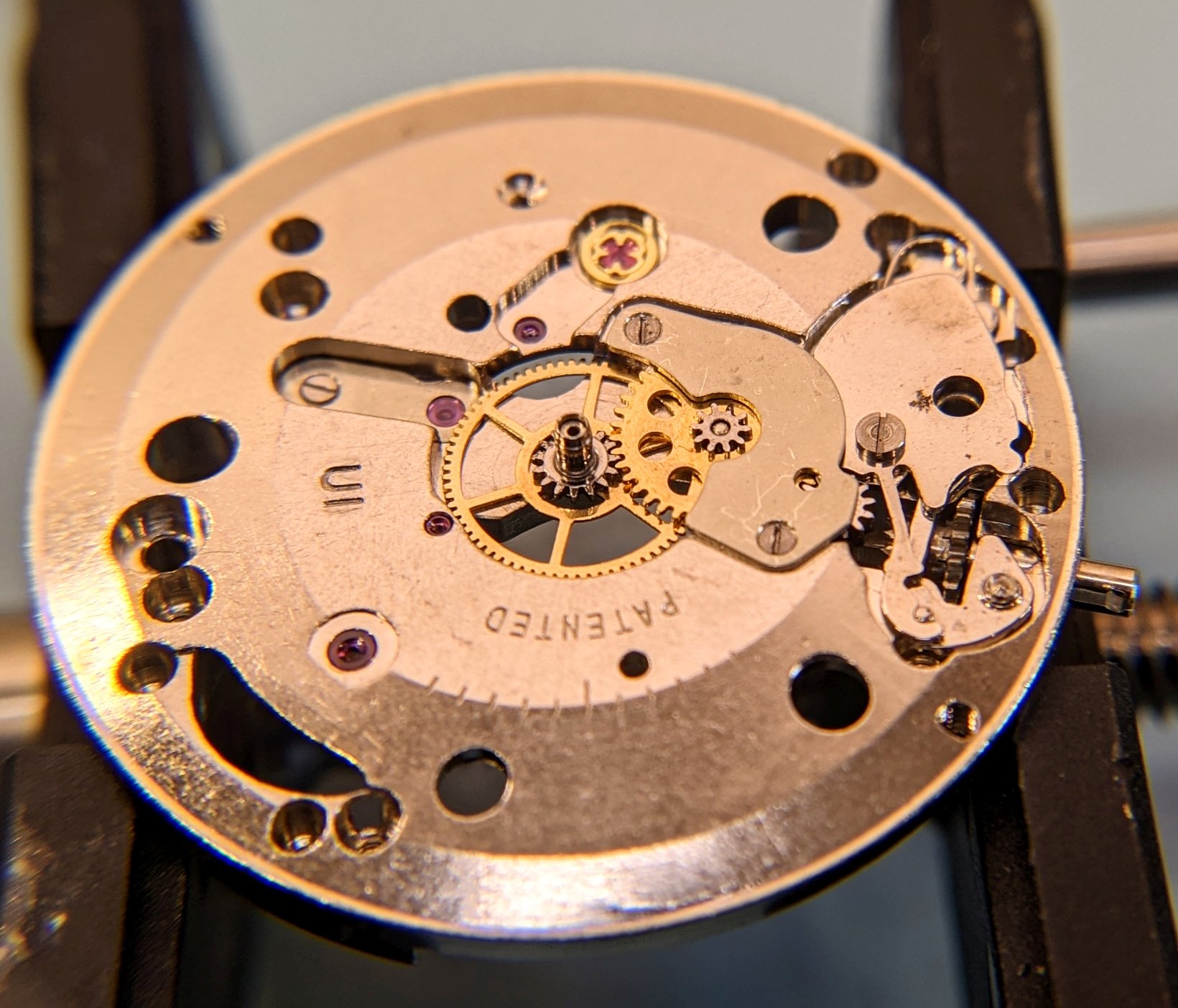

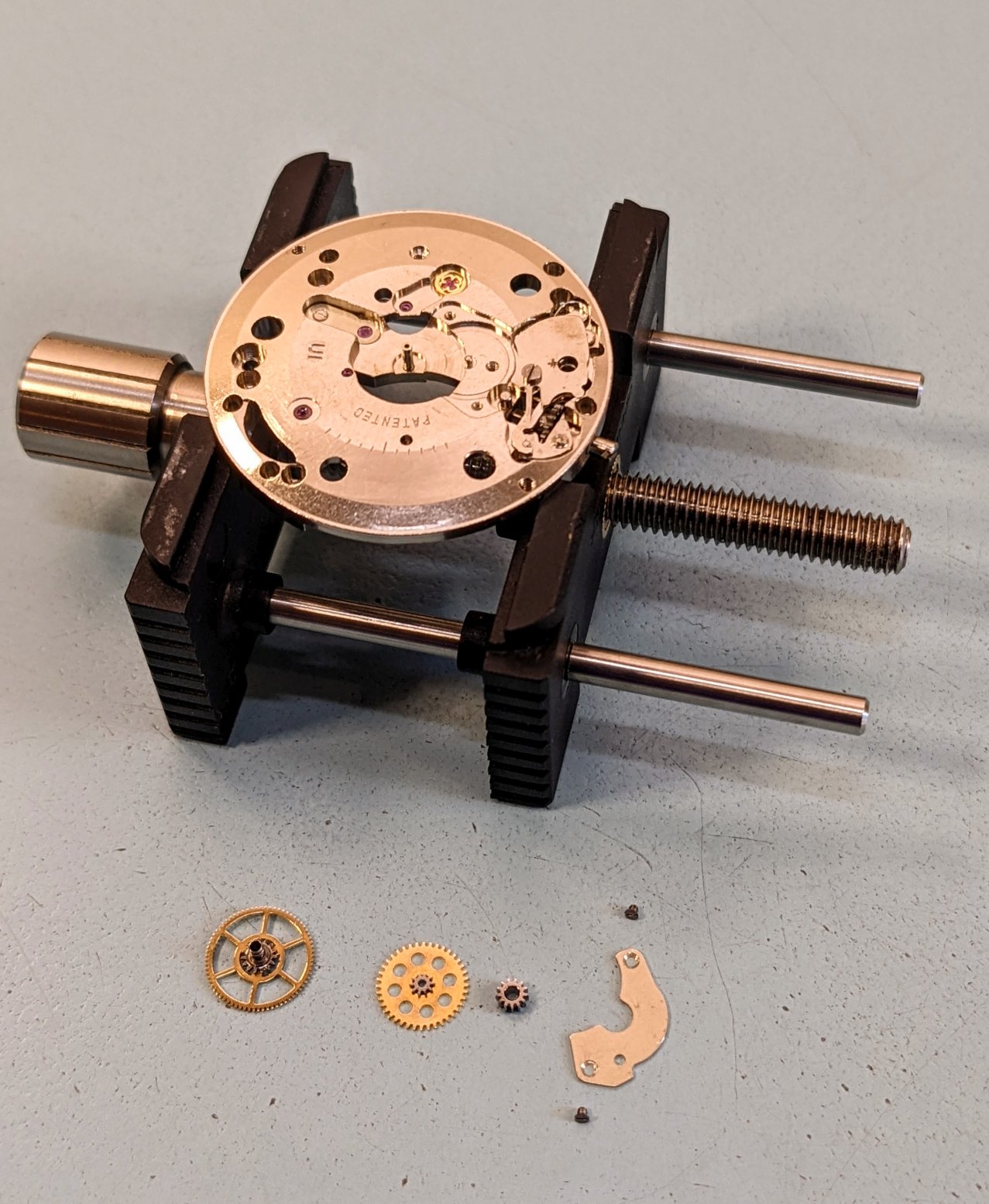

    Keyless works

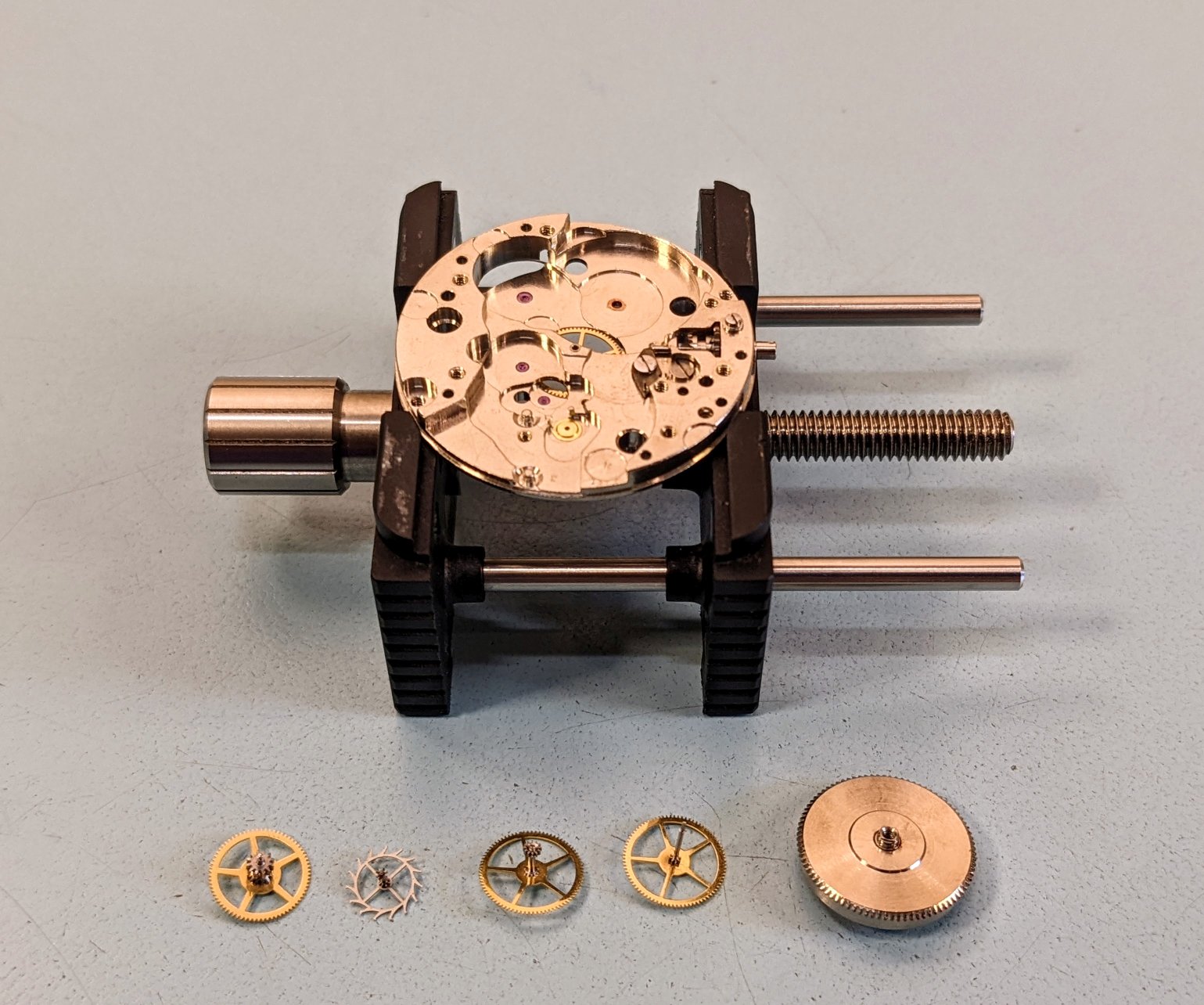

    Going train

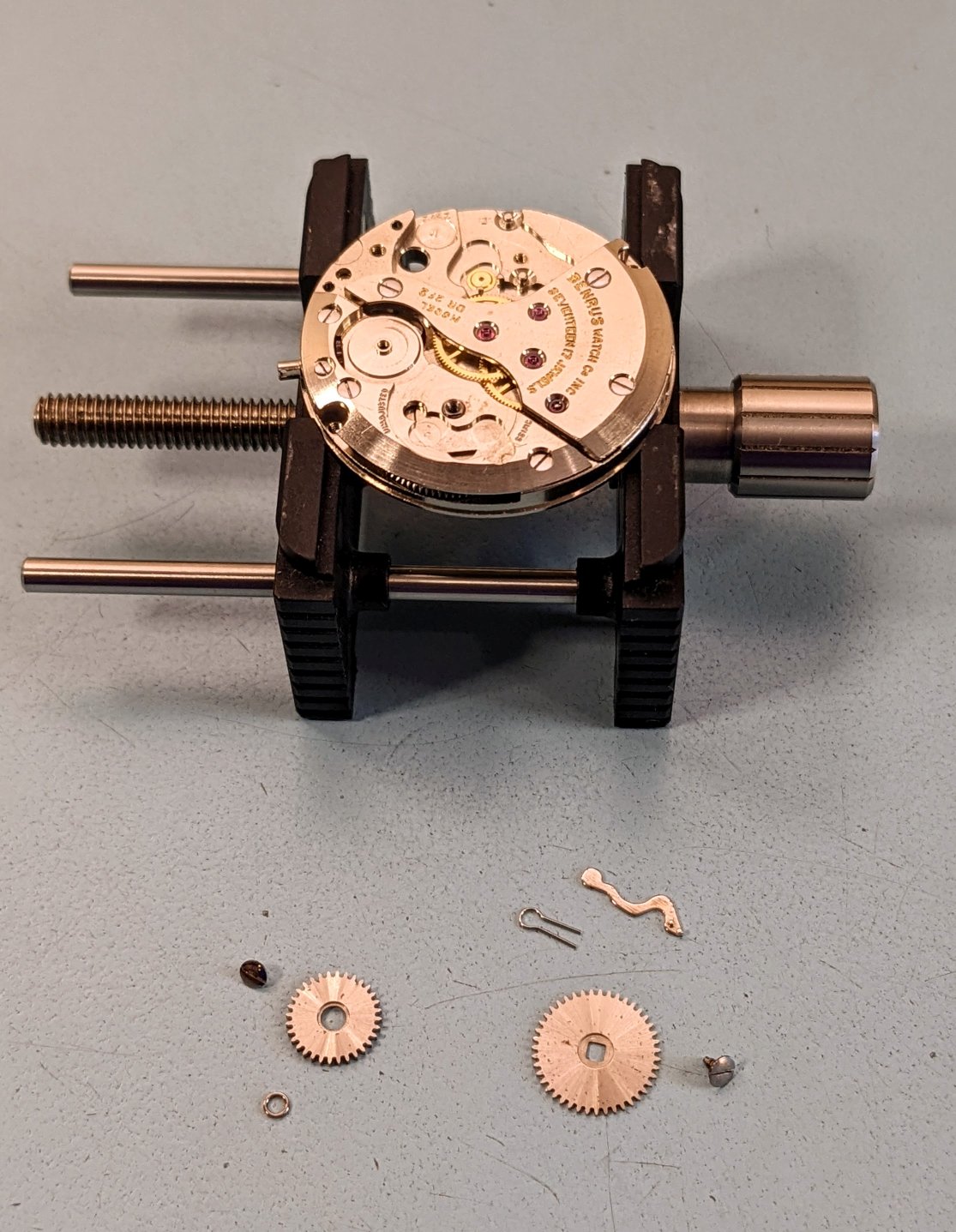

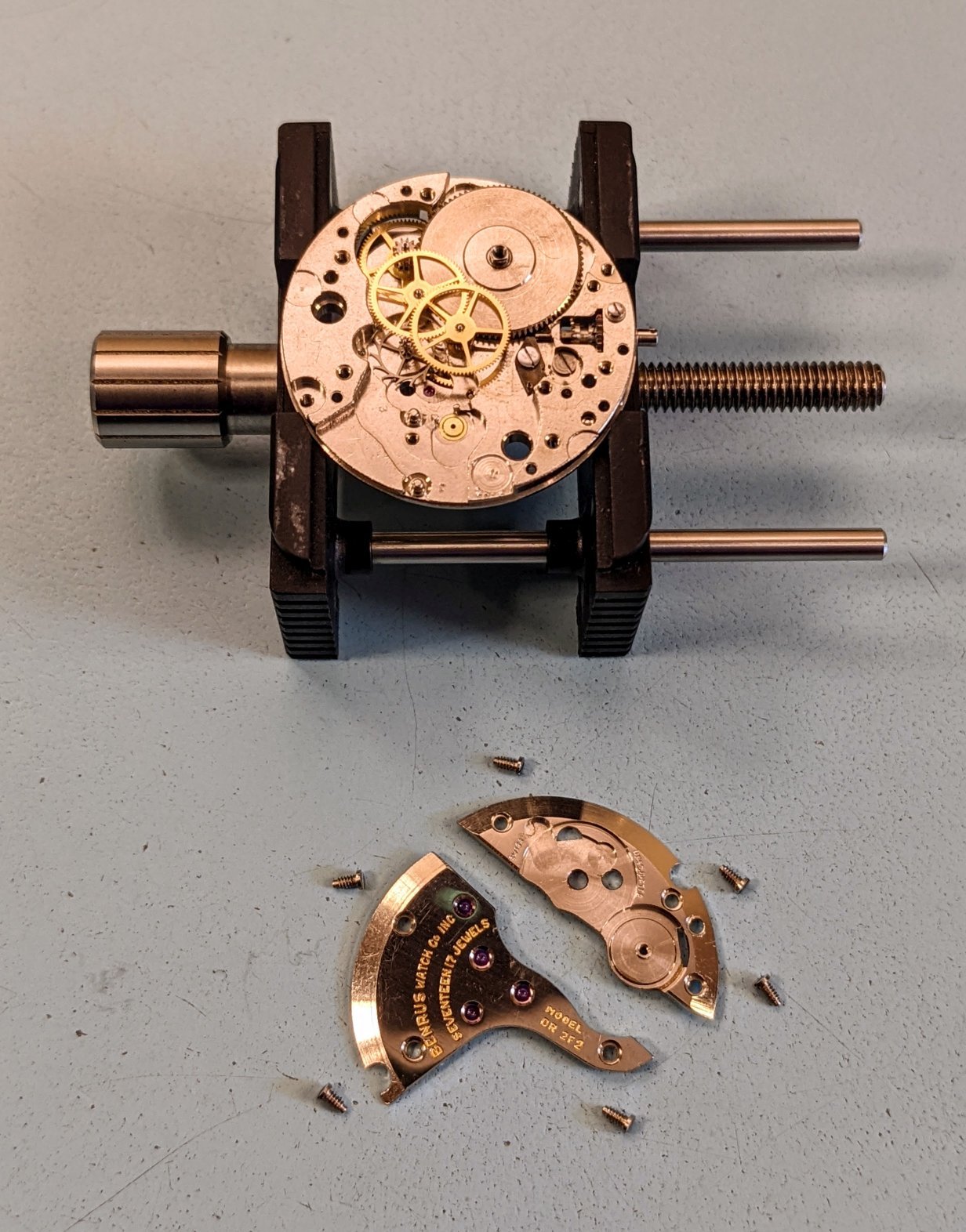

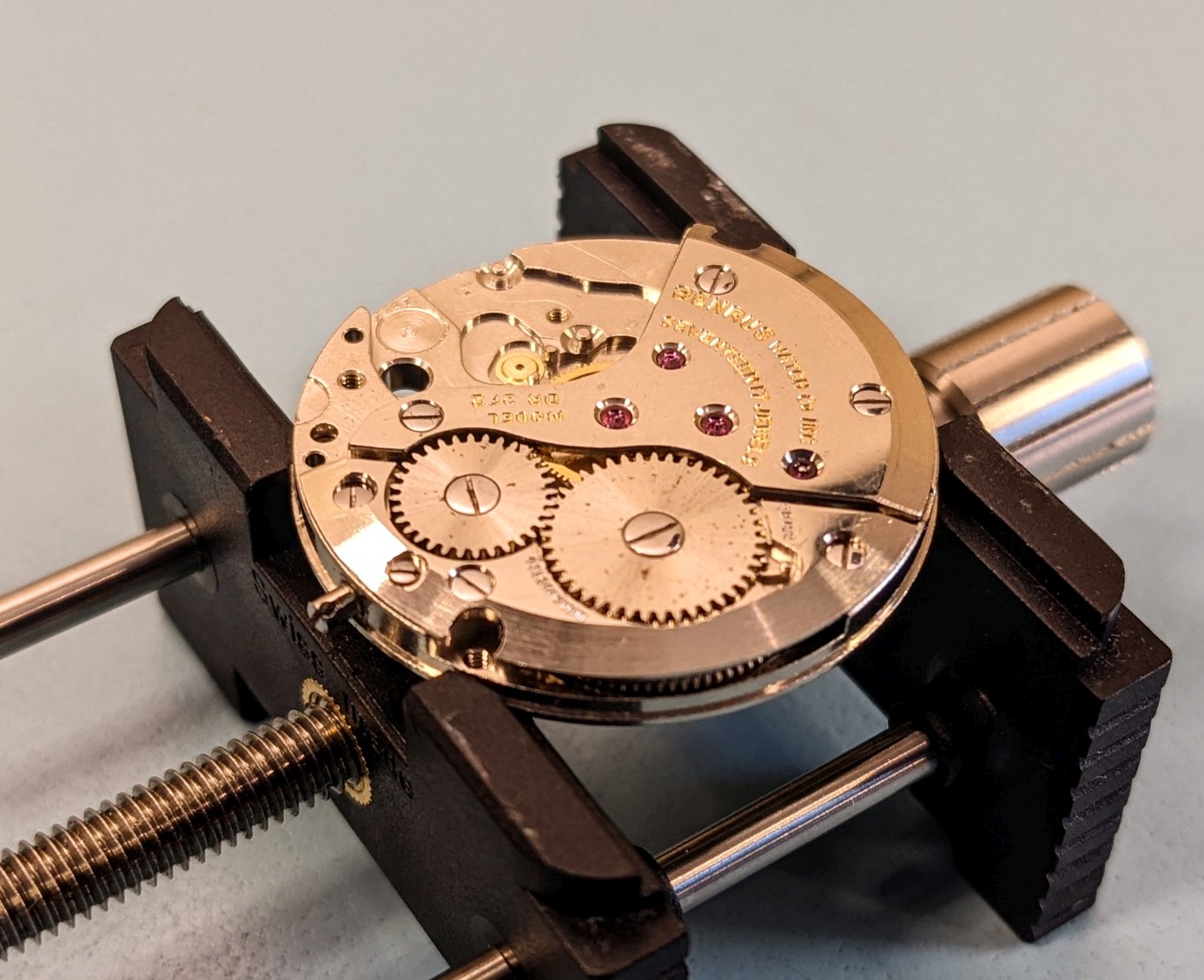

    Crown & ratchet wheels

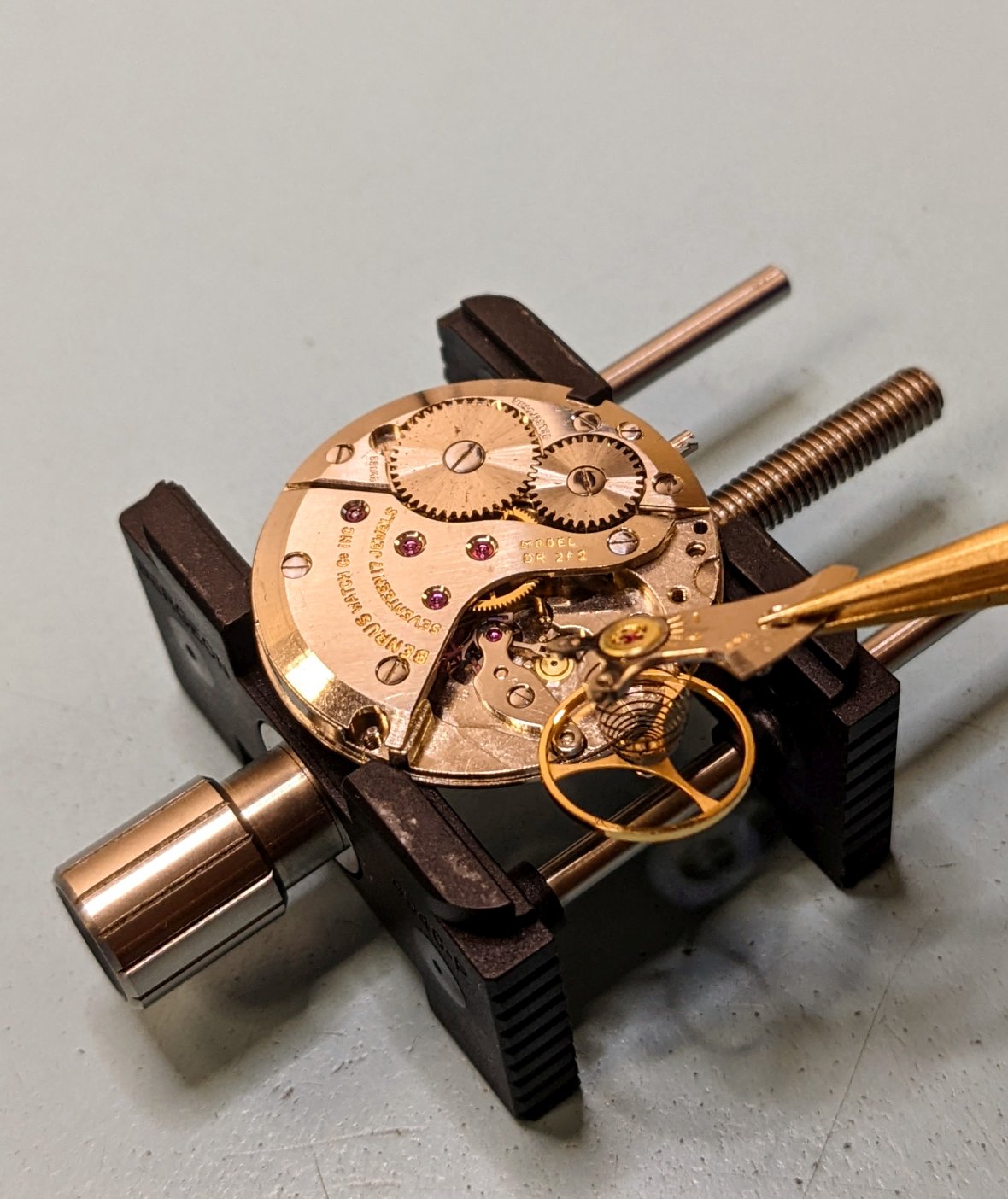

    Moment of truth...


    And off she goes...


    This is always a good feeling.

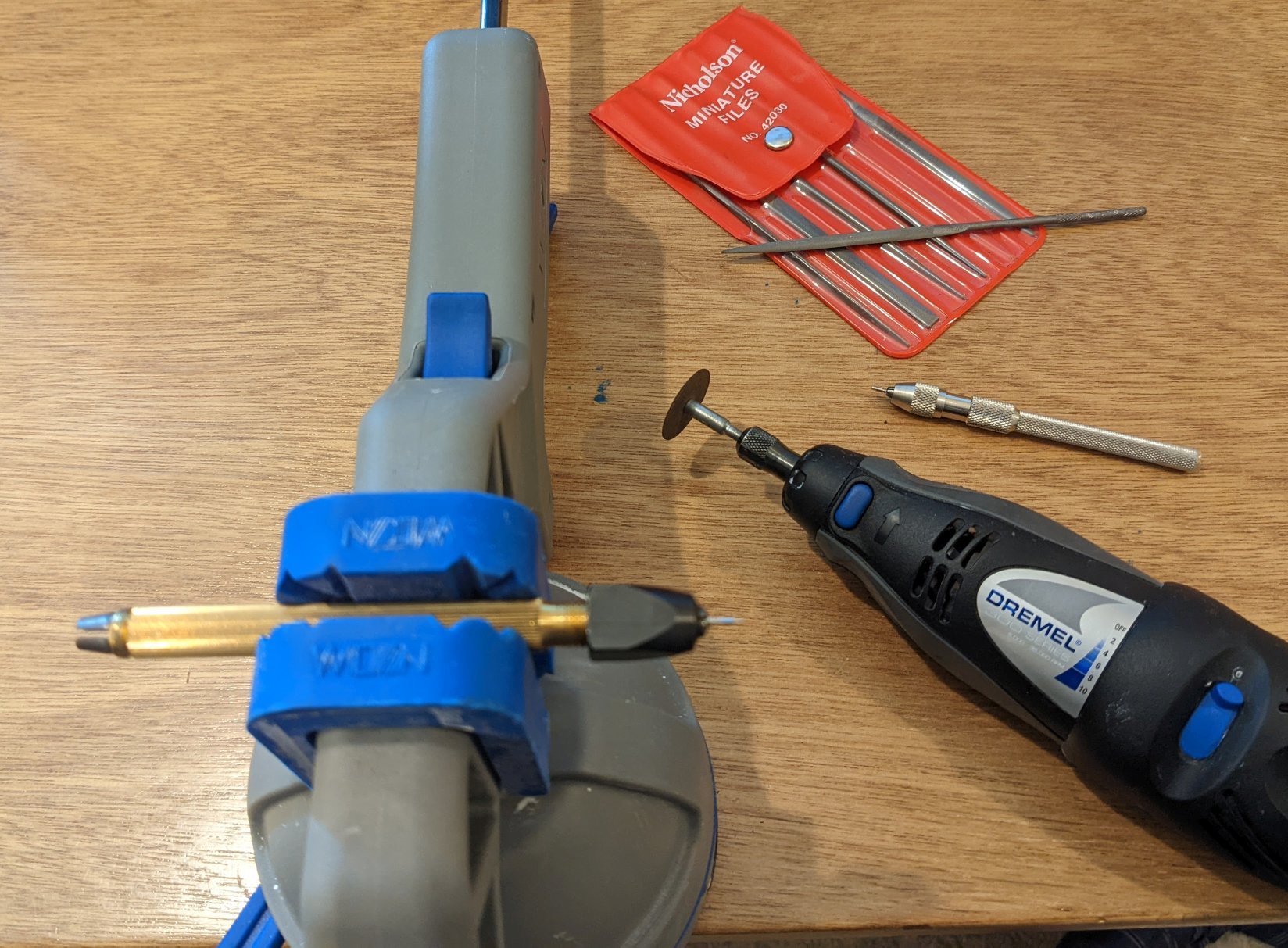

    Before we can do the final assembly, need to acquire a replacement for the missing half of the split stem. Since these are the pieces that commonly go missing they are also the pieces that have long since run out of replacement supply. Time to improvise...

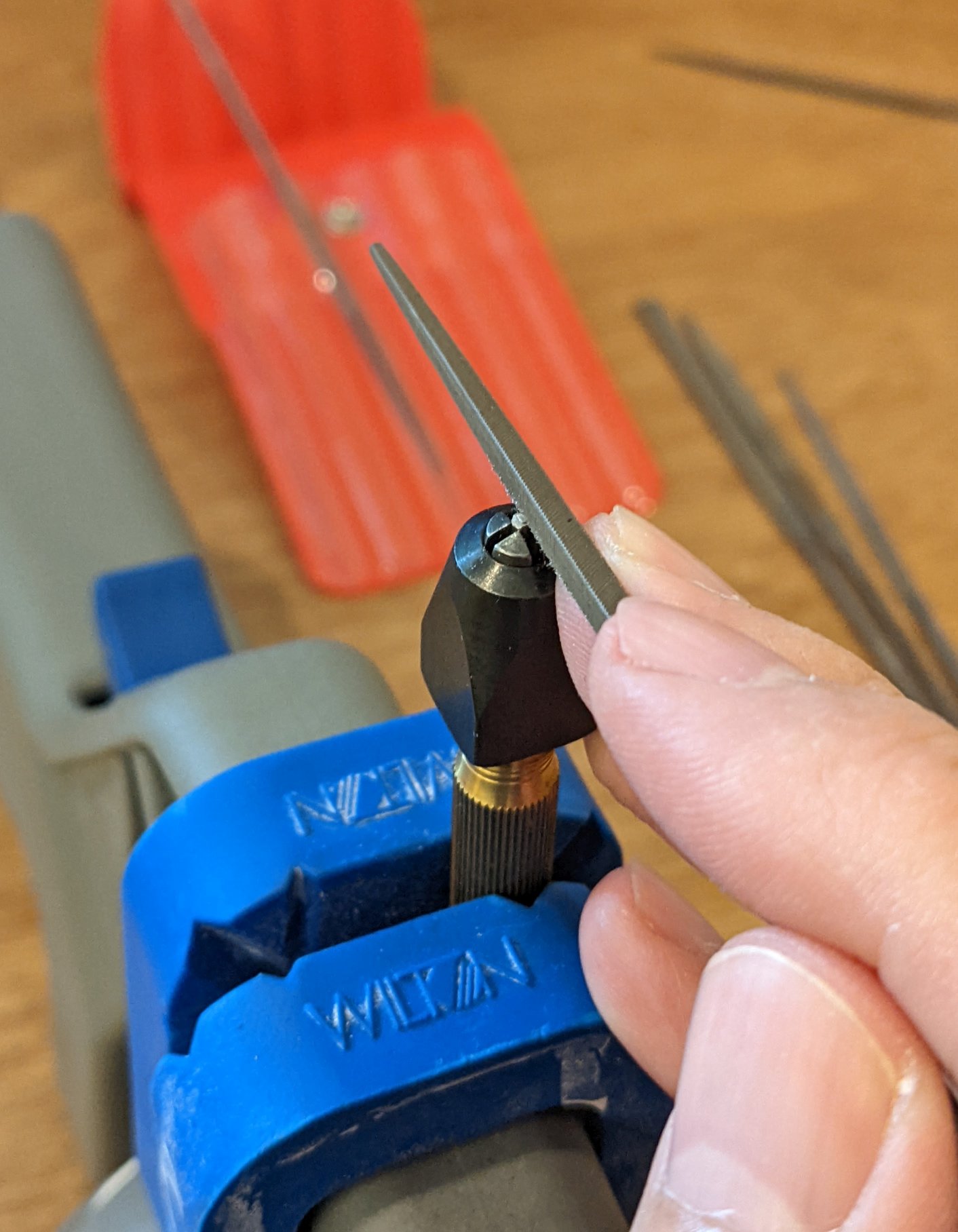

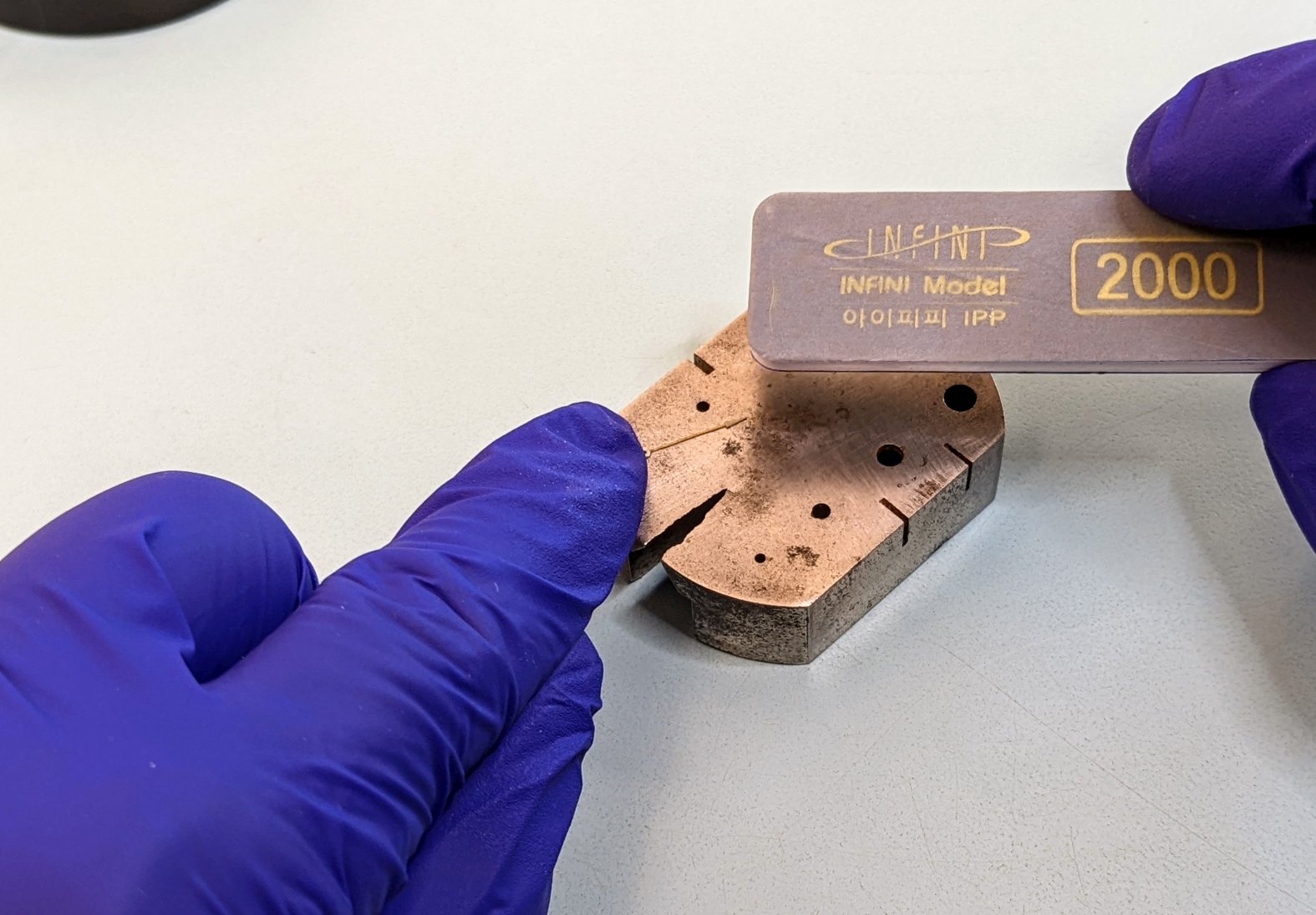

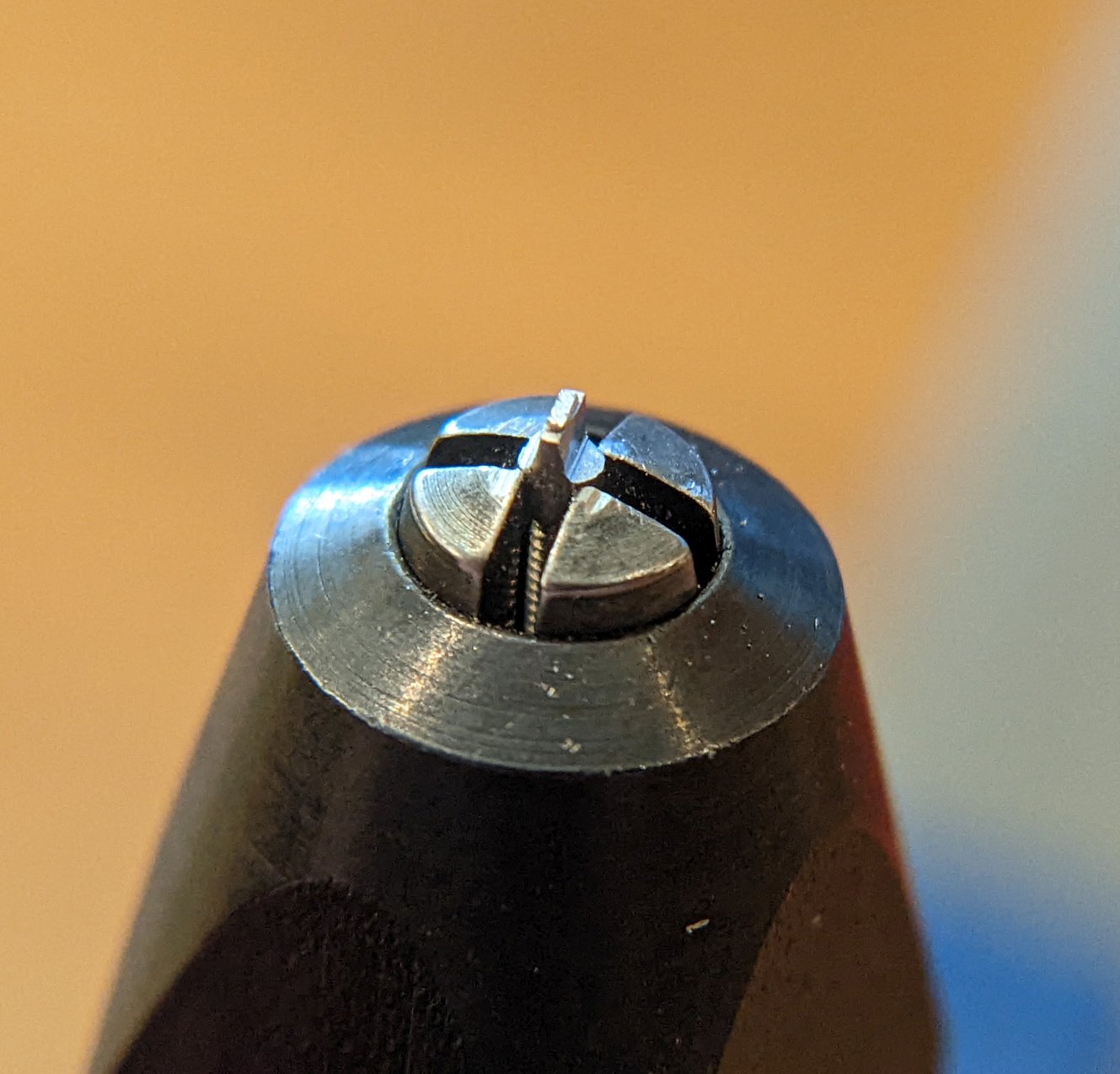

    And many iterative cycles of this kind of fiddling...

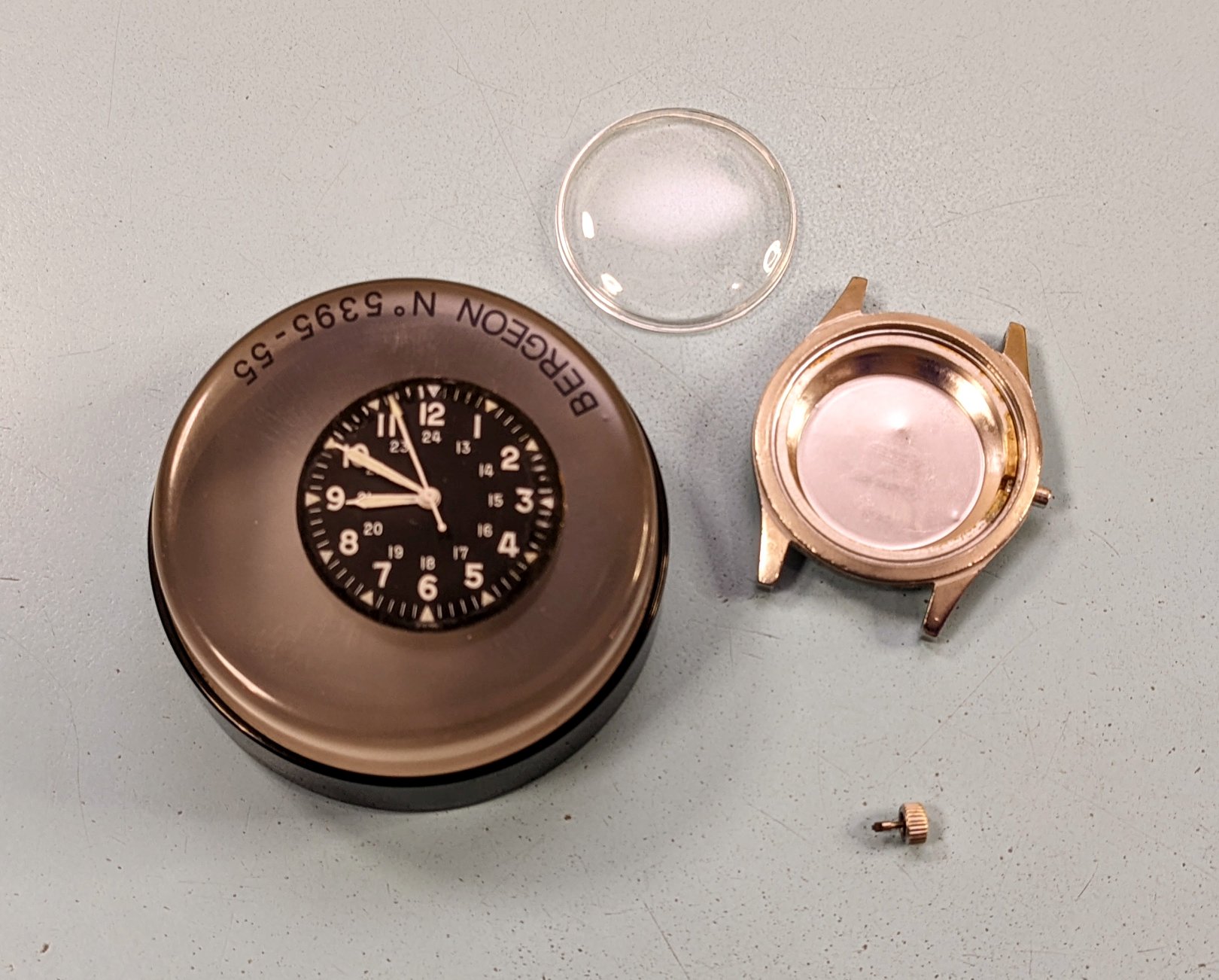

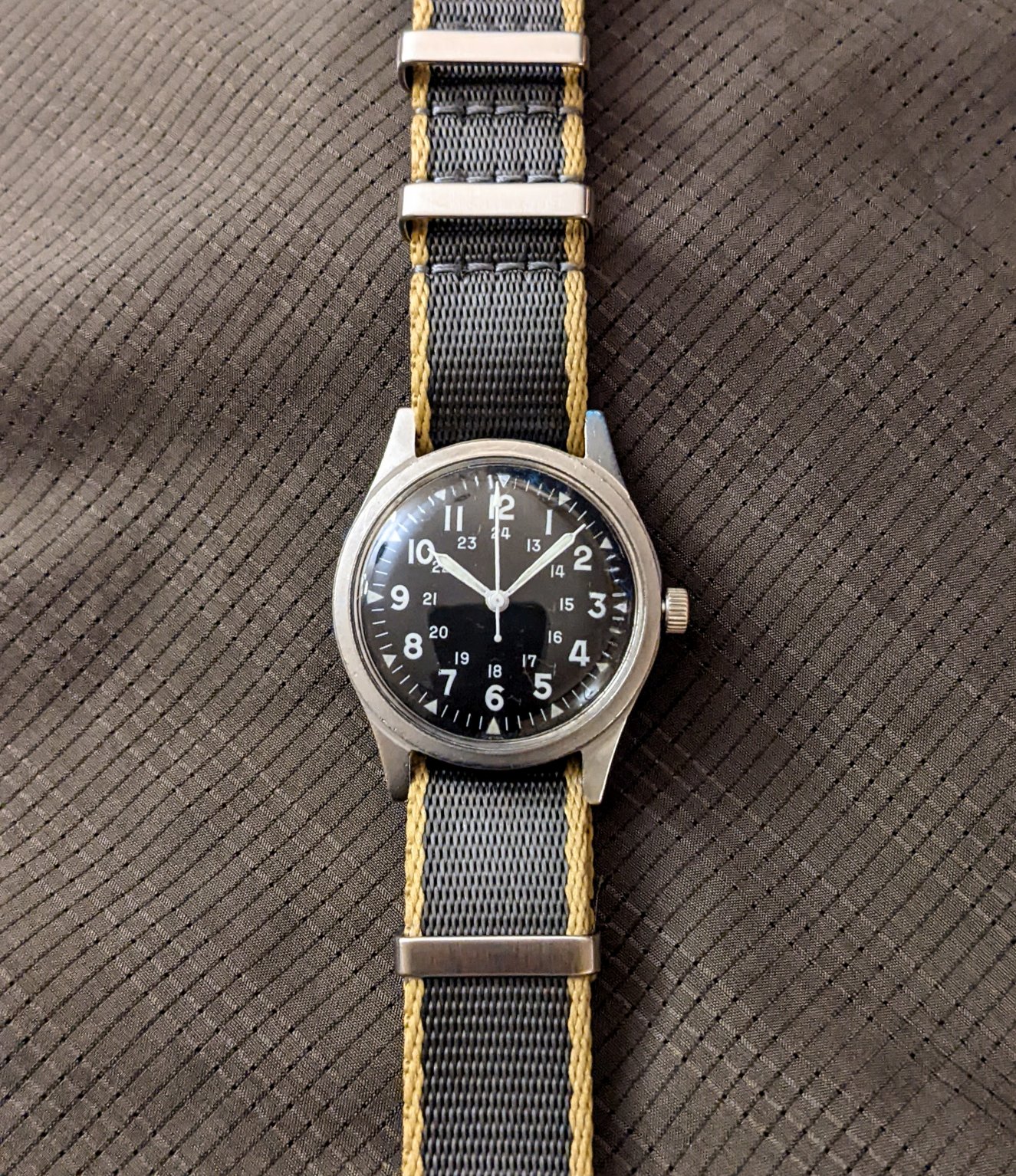

    Stem trimmed up & ready to turn this thing back into a watch.





    Thanks to all the vets, young & old, & to the folks who love them & miss them when they are far away from home.

    mcemeren, Pip, Geme81 and 14 others like this.
  8. MDubs Sep 10, 2022

    Posts
    601
    Likes
    11,366
    Thank you for posting this; super cool! And nice watch!!

    WestCoastTime likes this.
  9. RLF13430 Sep 11, 2022

    Posts
    221
    Likes
    1,374
    Fascinating to see your process and your message. Thank you

    WestCoastTime likes this.
  10. KarlB Oct 24, 2022

    Posts
    2
    Likes
    2
    Nice job!

    WestCoastTime likes this.
  11. UncleBuck understands the decision making hierarchy Oct 24, 2022

    Posts
    3,417
    Likes
    7,734
    As a Viet Nam era vet, I was totally mind-schwazzed by your work!
    Maybe not exactly per horologic traditions but a very typical "let's go with what works" approach.
    I collect service watches and would be honored to "dibs" if you ever....

  12. UncleBuck understands the decision making hierarchy Oct 24, 2022

    Posts
    3,417
    Likes
    7,734
    Not to bitch, but that bright blue lume seems weird for the time. (Unless seen under a blacklight)

    WestCoastTime likes this.
  13. SkunkPrince Oct 24, 2022

    Posts
    5,636
    Likes
    5,737
    I so do hate a US service watch on some Commonwealth trash strap. :D

    WestCoastTime likes this.
  14. Duracuir1 Never Used A Kodak Oct 24, 2022

    Posts
    2,695
    Likes
    28,507
    Had the Canadian invasion of the US been successful in the mid 90s you would be part of the Commonwealth…::bleh::

    755F5D91-A944-4374-852E-DFB05B8F8CD4.jpeg 7CEC092A-77EA-4A19-9ADB-179E7A7615B1.jpeg 132FA0D1-D85A-450B-BD7F-5175FF0A2AAF.jpeg Damn that guy looks like @UncleBuck

    Geme81, WestCoastTime, Archer and 2 others like this.
  15. WestCoastTime Oct 25, 2022

    Posts
    283
    Likes
    1,038

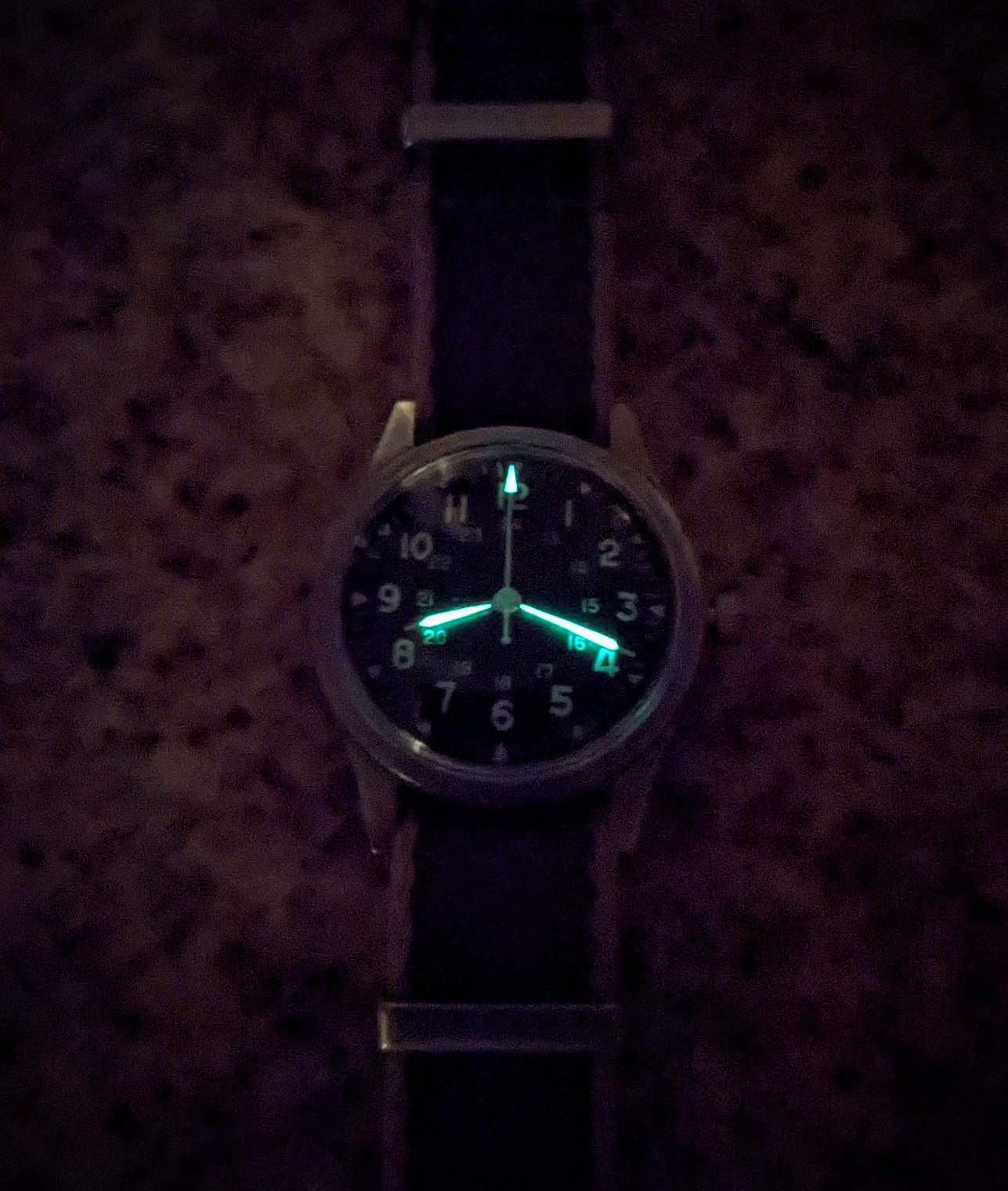

    The dim lighting & the digital camera image processing combine to show the blue tint in the original photo. In real life the fresh lume glows distinctly green (just hard to get a photo that's true to colour...)


    Duracuir1 likes this.
  16. Fallout Boy Oct 25, 2022

    Posts
    1,769
    Likes
    3,919

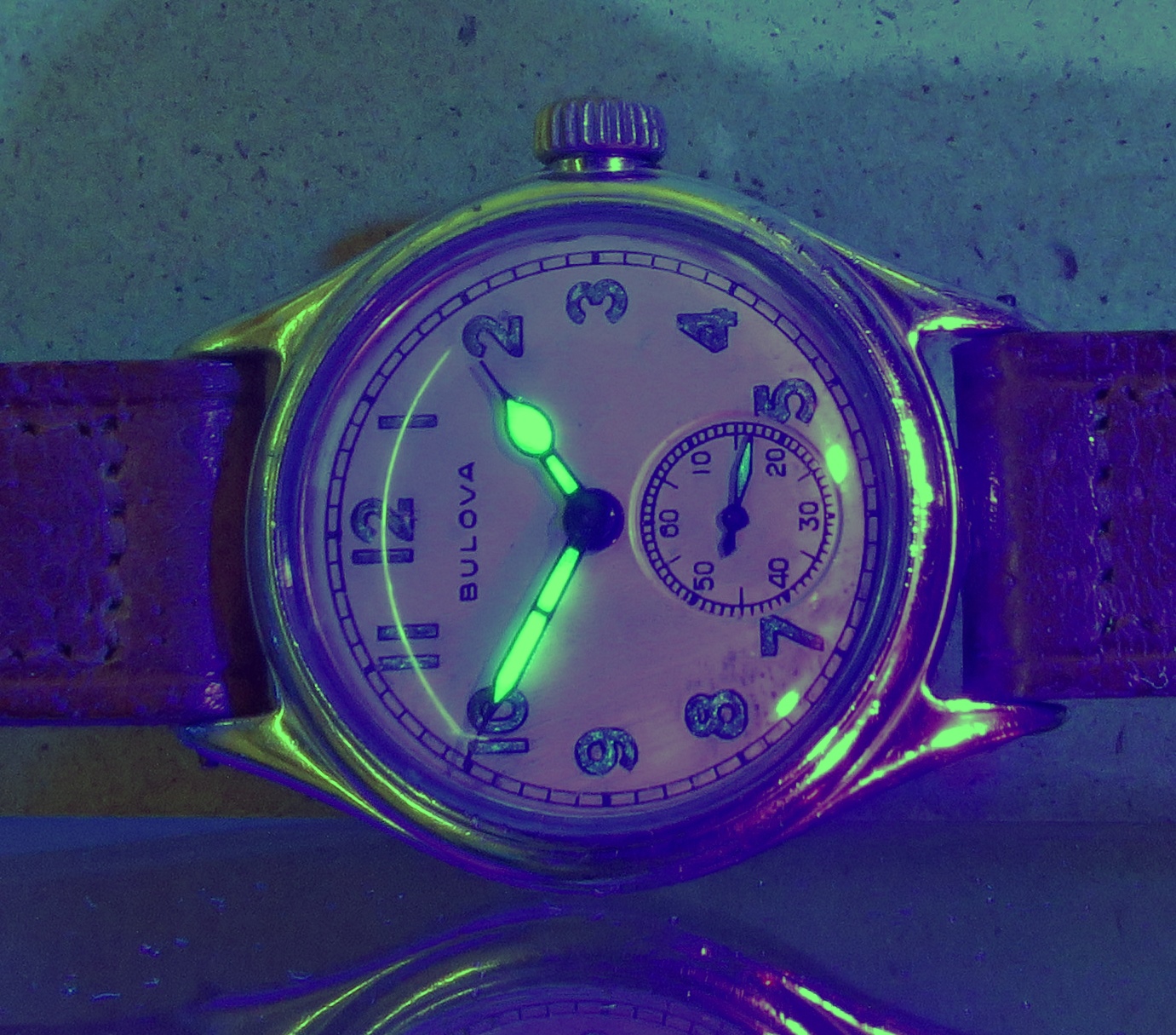

    same same: BULOVA (relumed) UV-light

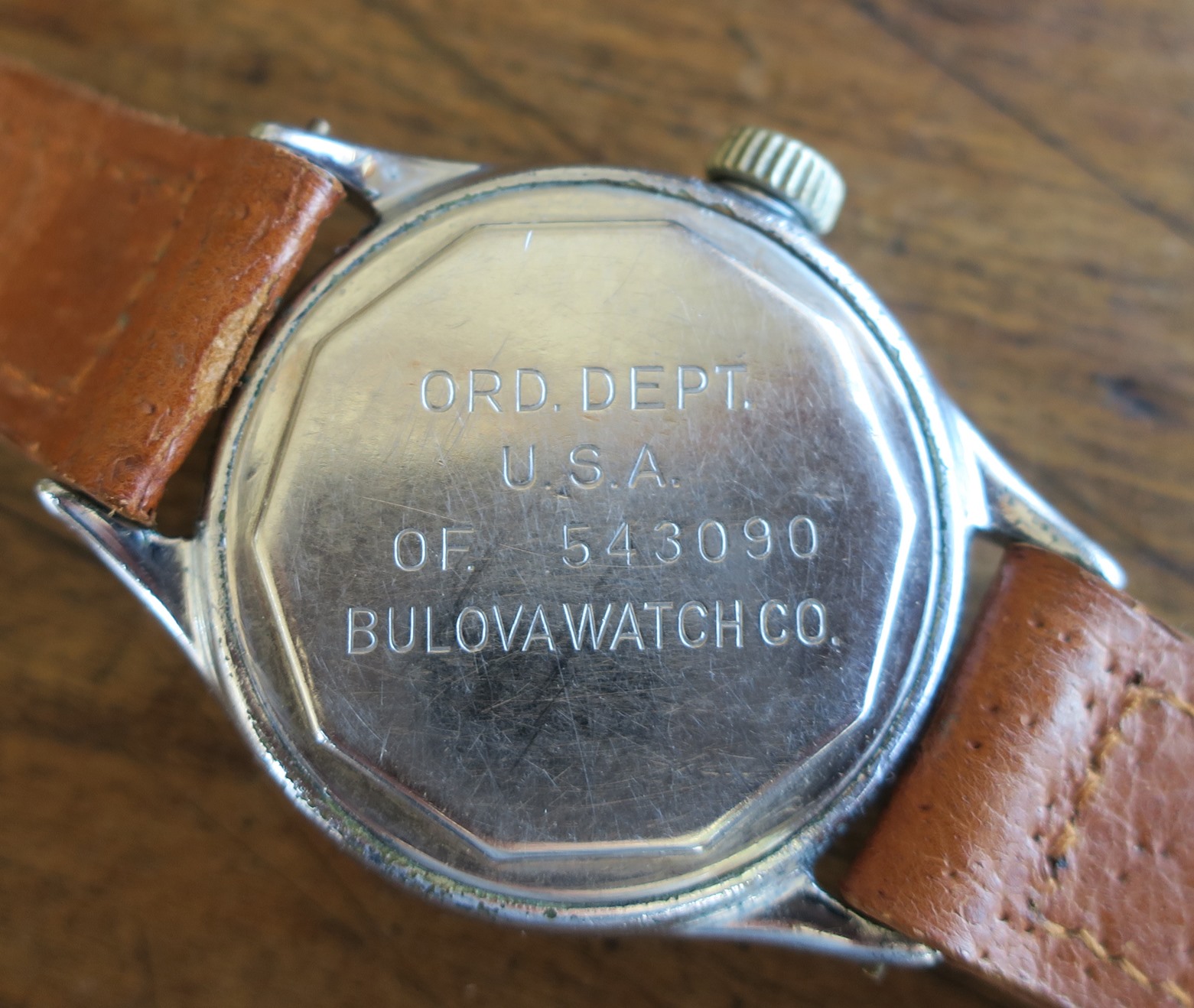

    edit: case back:

    Bulova RSm.JPG

    Edited Oct 25, 2022
    Duracuir1 and WestCoastTime like this.
  17. WestCoastTime Oct 25, 2022

    Posts
    283
    Likes
    1,038
  18. t268 Oct 25, 2022

    Posts
    128
    Likes
    58

    Blue painter's tape just keeps surprising me with it usefulness. It seems I just keep finding more every couple of days.

  19. Fallout Boy Oct 26, 2022

    Posts
    1,769
    Likes
    3,919

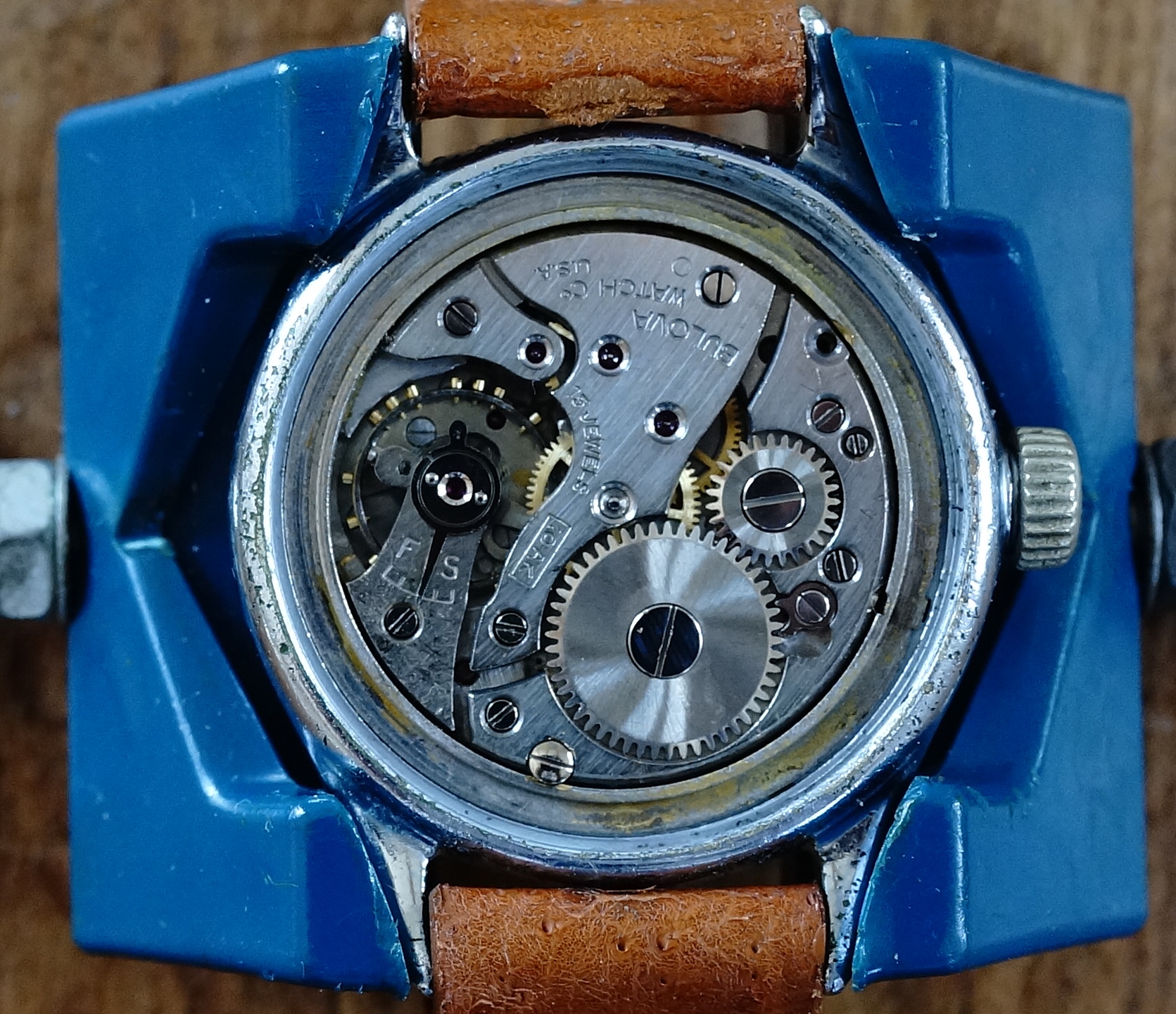

    voilà ;)
