Omega Seamaster 166.002 movement holder question

alexei.joukovski · Aug 18, 2021

Hey guys,
Found a Beat up Seamaster 166.002 on ebay the other day,

It needs so far: Crown, stem, crystal, gasket, mainspring.

Does this reference case have a movement holding ring? I have a dial + movement + case, but it is hard to see if there is a ring like the 166.020.

Does the movement just lock into the case with case clamps and screws? I have one (looks like missing the other).
Cheers for help in advance.

Archer · Aug 20, 2021

No enlargement ring, just case clamps and screws.

sonicosa · Aug 20, 2021

The dial for this reference wraps around the side of the movement, sort of creating a bit of a movement holder / enlargement ring. You can see the edge of the dial between the movement and case in the pics below. Sections of the sides are cut-out to leave room for the clamps and stem.

Screen Shot 2021-08-20 at 12.58.17 PM.png

Screen Shot 2021-08-20 at 1.01.11 PM.png

Screen Shot 2021-08-20 at 1.02.33 PM.png

CjJEEP · Jul 11, 2022

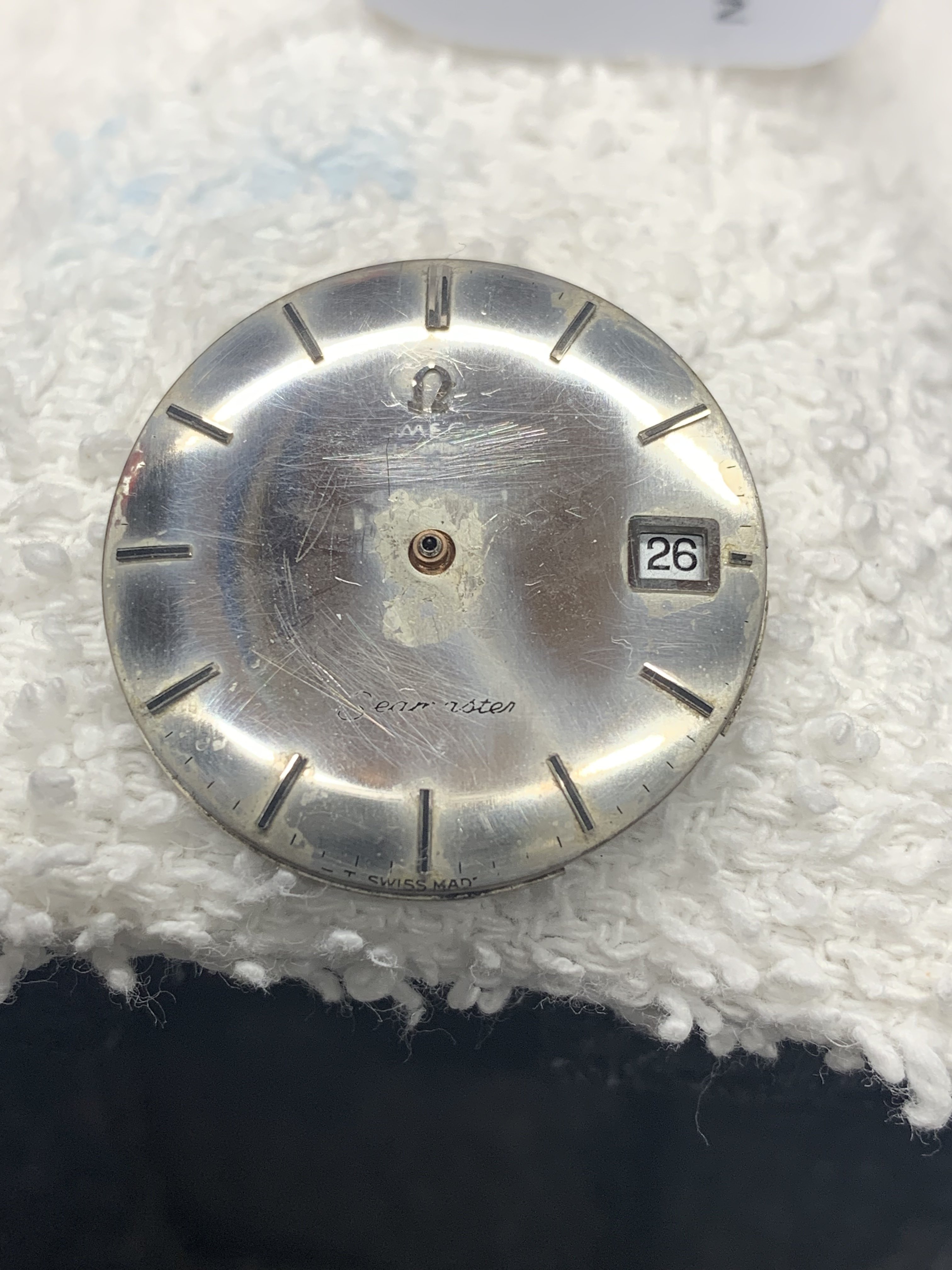

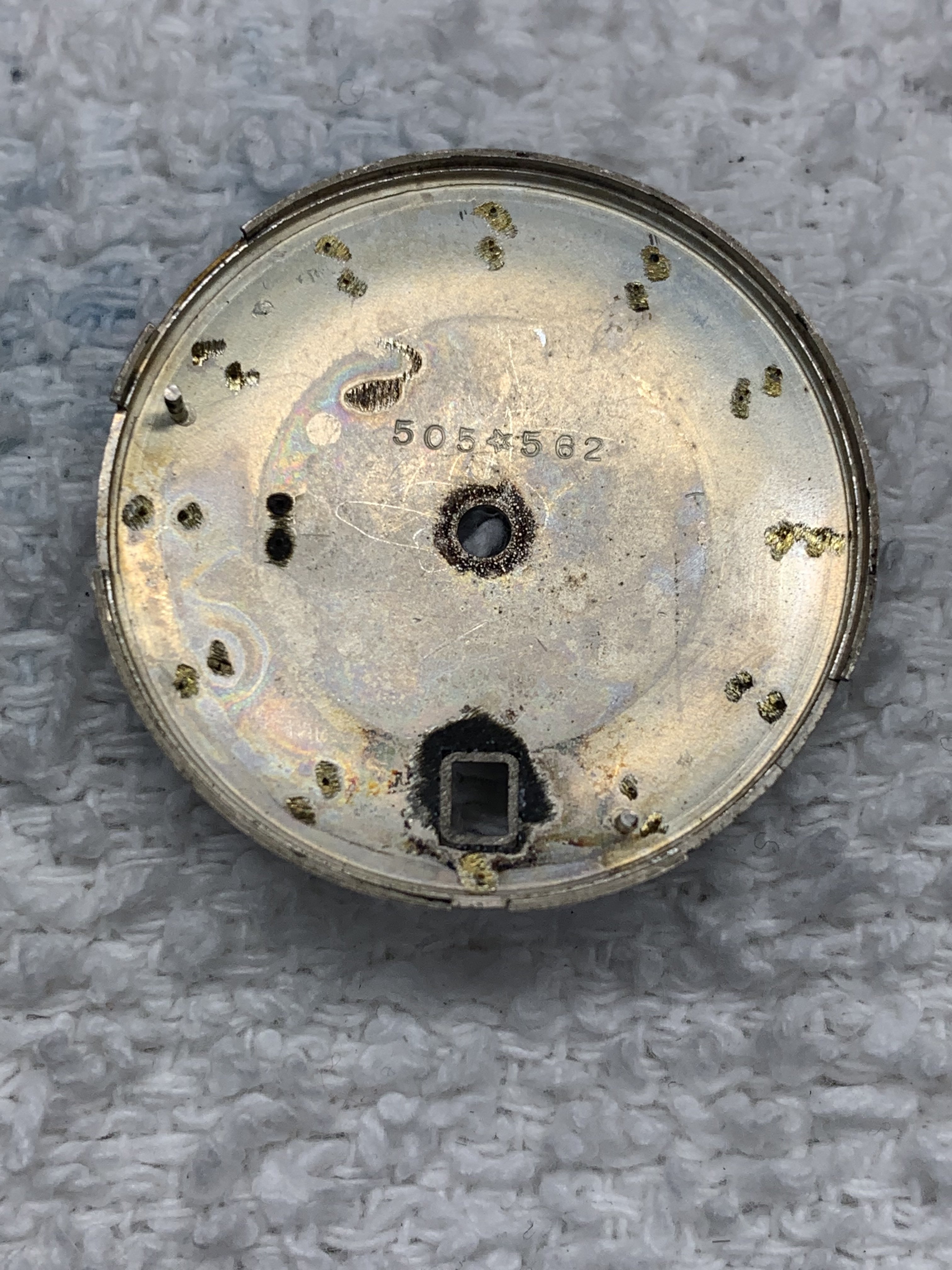

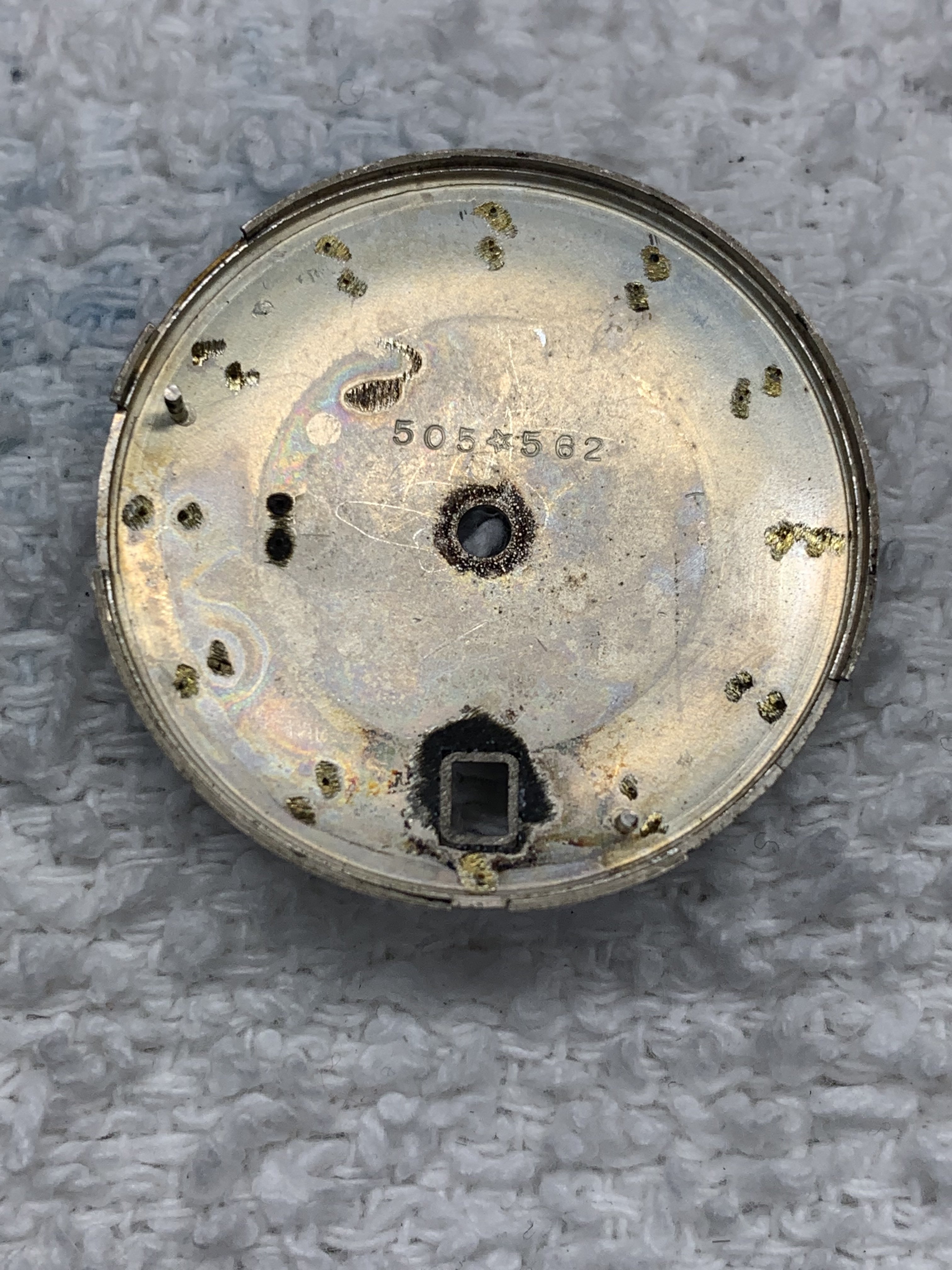

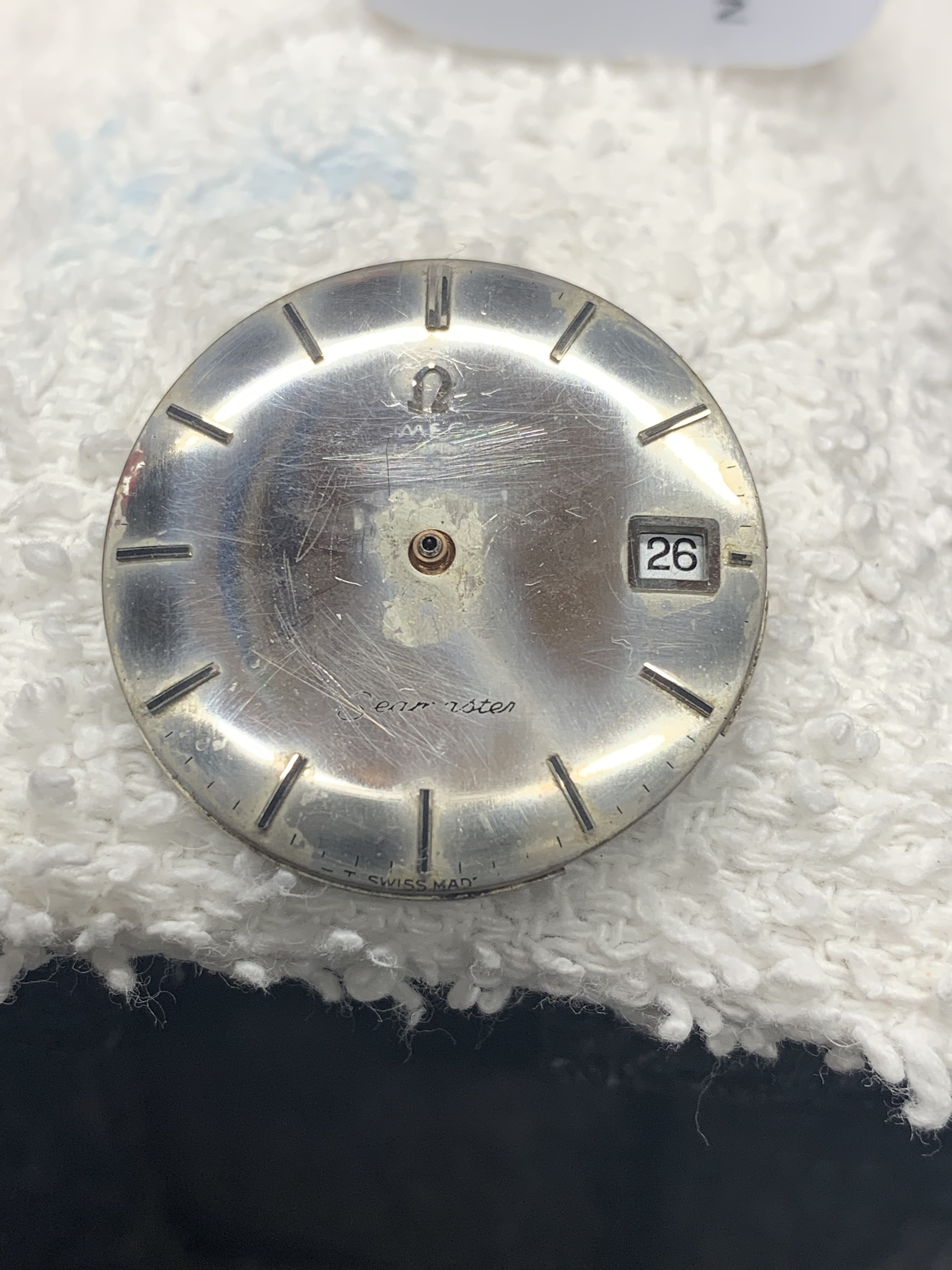

You could have a seamaster with a special dial with cutouts (see attached picture of my old dial) that helps lock in the movement to the dial and then uses conventional case clamps. I am sure this type of dial has a “name” if any of the seamaster experts care to share the “actual name” that would be appreciated by everyone.
