terokoo
·hello. Do you know what is omega part number for omega ploprof dial spacer? Red plastic ring between dial and movement. Caliber is 1002. Or Any idea where to buy?
Omega ploprof dial spacer
- Posts
- 2,710
- Likes
- 17,411
jaguar11
·Please and thank you is considered to be polite.....
- Posts
- 8
- Likes
- 0
terokoo
·Please and thank you
- Posts
- 5,598
- Likes
- 9,426
watchyouwant
·Try the Omega factory to buy. No idea about the number..... the Factory will know.
- Posts
- 3,397
- Likes
- 8,977
- Posts
- 8
- Likes
- 0
terokoo
·Here in Finland you cant buy any parts in factory. i am a watchmaker but not omega service center so i dont get Any parts from omega. I buy parts in cousin, boley and eBay and I have used watch and i take parts from those.
i can make that ring if I had to but i really like to buy it
i can make that ring if I had to but i really like to buy it
- Posts
- 5,598
- Likes
- 9,426
watchyouwant
·Search for 076LR0081......
- Posts
- 8
- Likes
- 0
terokoo
·Are you sure? Black flange is 076LR0018. Almost same number. It is different part and I allready ordered it because old was bad. It comes top of the dial. Part i need is under the dial
- Posts
- 29,753
- Likes
- 77,015
Archer
··Omega Qualified Watchmaker077MA100015451R | DIAL SUPPORT RING - RED
Cheers, Al
Cheers, Al
- Posts
- 8
- Likes
- 0
terokoo
·Thank you Al. I hoped that you notice my question.
I found this from cousin
077.1000.1545.01R Omega 1000/10/30 Dial Support Ring
i guess it is probably same part. Cost about 10€ so I will try it.
I found this from cousin
077.1000.1545.01R Omega 1000/10/30 Dial Support Ring
i guess it is probably same part. Cost about 10€ so I will try it.
- Posts
- 614
- Likes
- 836
- Posts
- 5,598
- Likes
- 9,426
- Posts
- 8
- Likes
- 0
terokoo

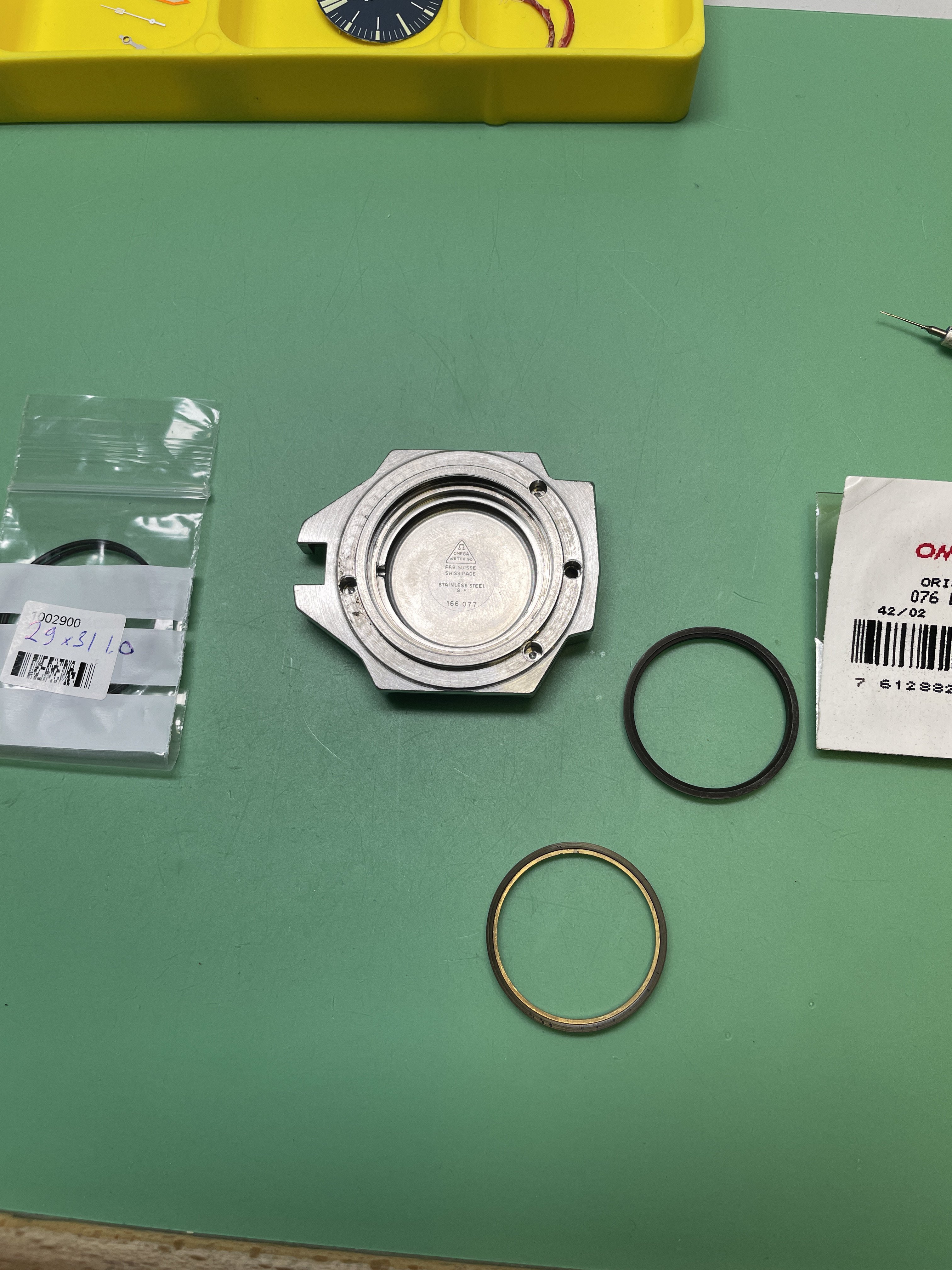

·Hello. i also have a few Problems. Because all rubber seal where total spoiled i dodnt know how those Are in case. Can somebody tell me order of assembly? First movement then rubber segment? Where comes gasket to glass? Between flange and case? I guess it is 29x31x1.0 o-ring?
is rubber segment just cutted o-ring? Does anybody know it size?
is rubber segment just cutted o-ring? Does anybody know it size?
- Posts
- 8
- Likes
- 0
terokoo
·Anyone? Normaylly it is quite easy find out pictures and videos of case assembly but not now.

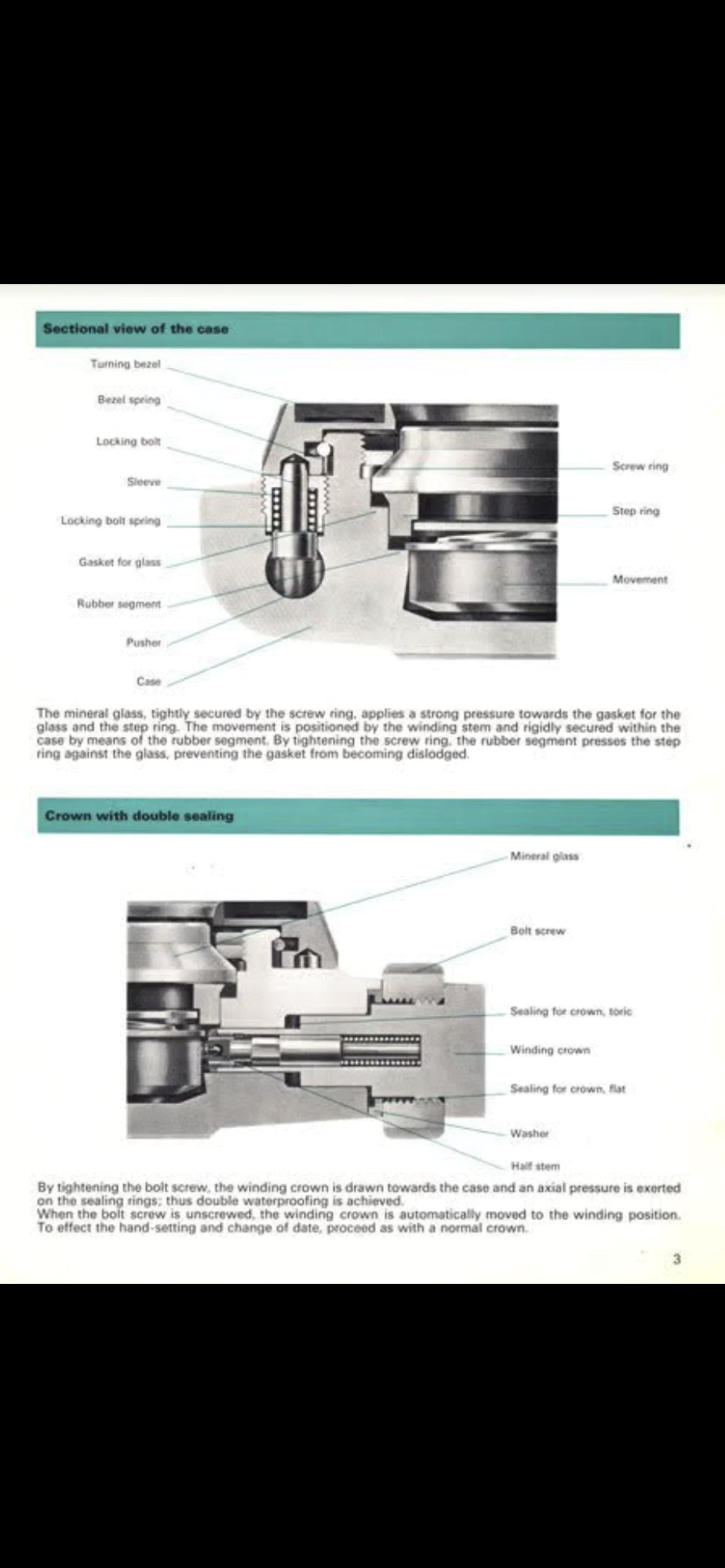

i find this picture. Does it kook right? Glass gasket is coming under the step ring lip? I think if I instal it like that it have to squeze quite much until it selaa everything.
i also think that 1mm o ring is too big if I use it as rubber segment. Does somebody know right size for rubber segment? Or omega part number. I cant get skrew ring in place so things under it Are too height.
i try movement first. Then rubber segment to side of dial. Then step ring and i put glass gasket under step ring lip and between step ring and case.
sorry my bad English.
i find this picture. Does it kook right? Glass gasket is coming under the step ring lip? I think if I instal it like that it have to squeze quite much until it selaa everything.
i also think that 1mm o ring is too big if I use it as rubber segment. Does somebody know right size for rubber segment? Or omega part number. I cant get skrew ring in place so things under it Are too height.
i try movement first. Then rubber segment to side of dial. Then step ring and i put glass gasket under step ring lip and between step ring and case.
sorry my bad English.
