Omega 6B/159 56 30T2SC Acrylic Crystal question

Oragnarek
Posts
29
Likes
11
Hello,
I'm new in this superb forum, and I first want to thank you for permitting me to post my question.
I recently had the chance to get a wonderful Omega AM 6B/159 56. Which is in my opinion one of the beautifulest military watch.

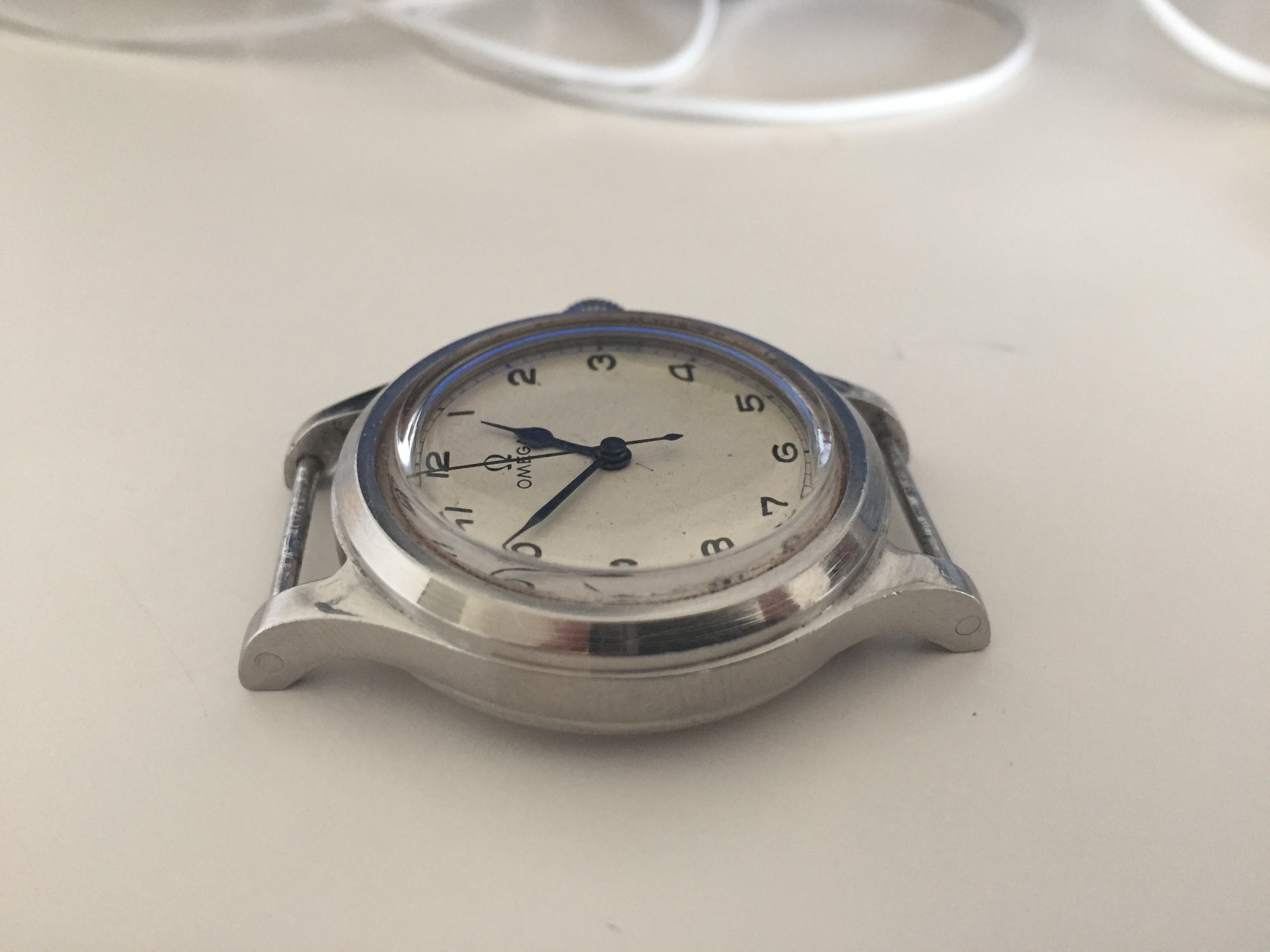

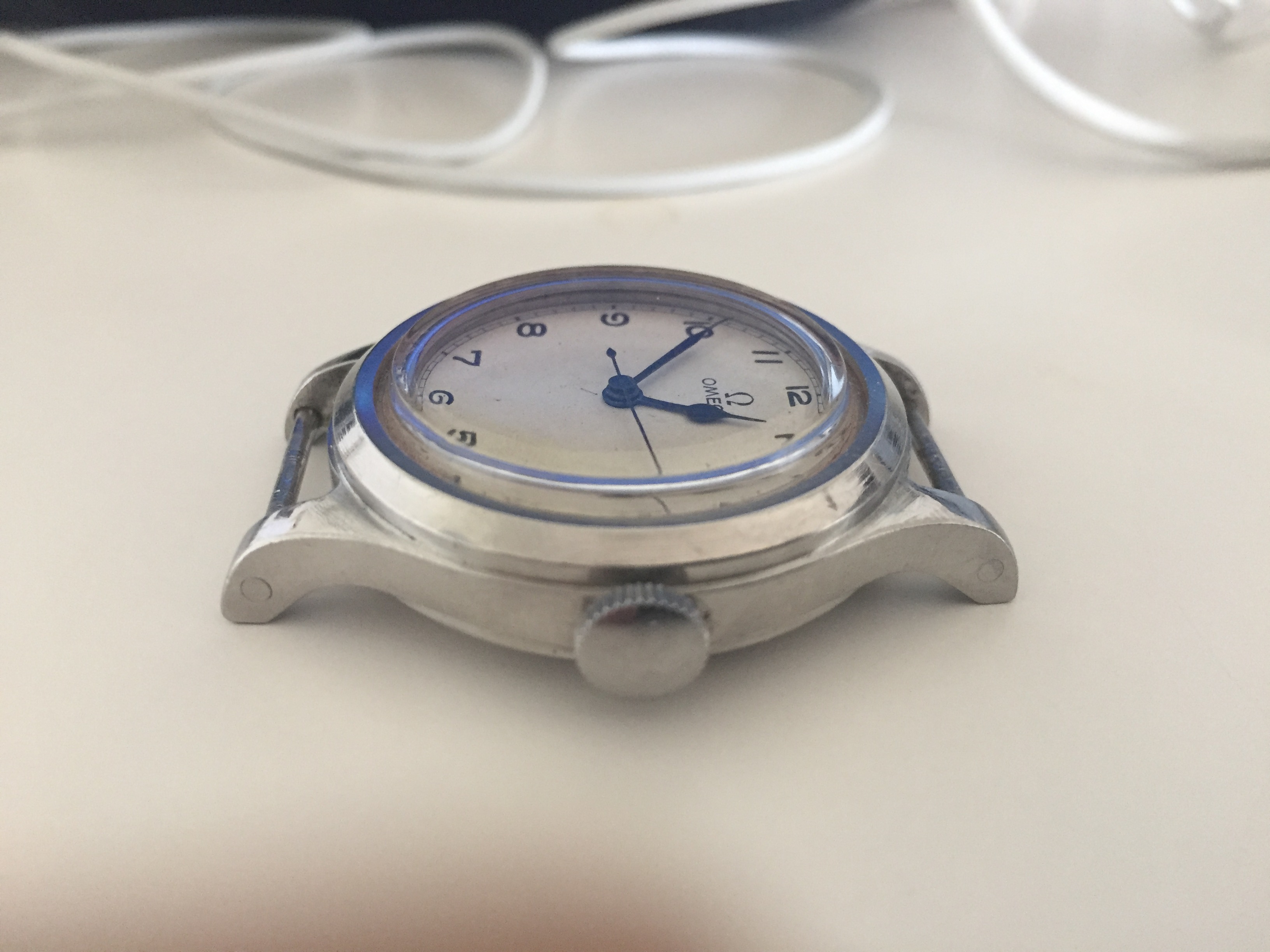

It's a gorgeous watch... but I need to change the crystal, because the one fitted now is not appropriate : it seems that the previous watchmaker who overhauled it didn't find the proper crystal and put a solid one, but not very beautiful (it's a non-dome version).

I read that it is a special acrylic crystal, with a horizontal lip 'underlayed' inside the case.

Could you give me some informations about this ? I think it could be something like this :

https://www.cousinsuk.com/product/seal-domed-bcl

As I'm not sure, I prefer to ask to you, Omega specialists :

which underlayed acrylic crystal would better fit this watch ?

If you know the size of it, it would be also great !

Thank you very Much
Edited:

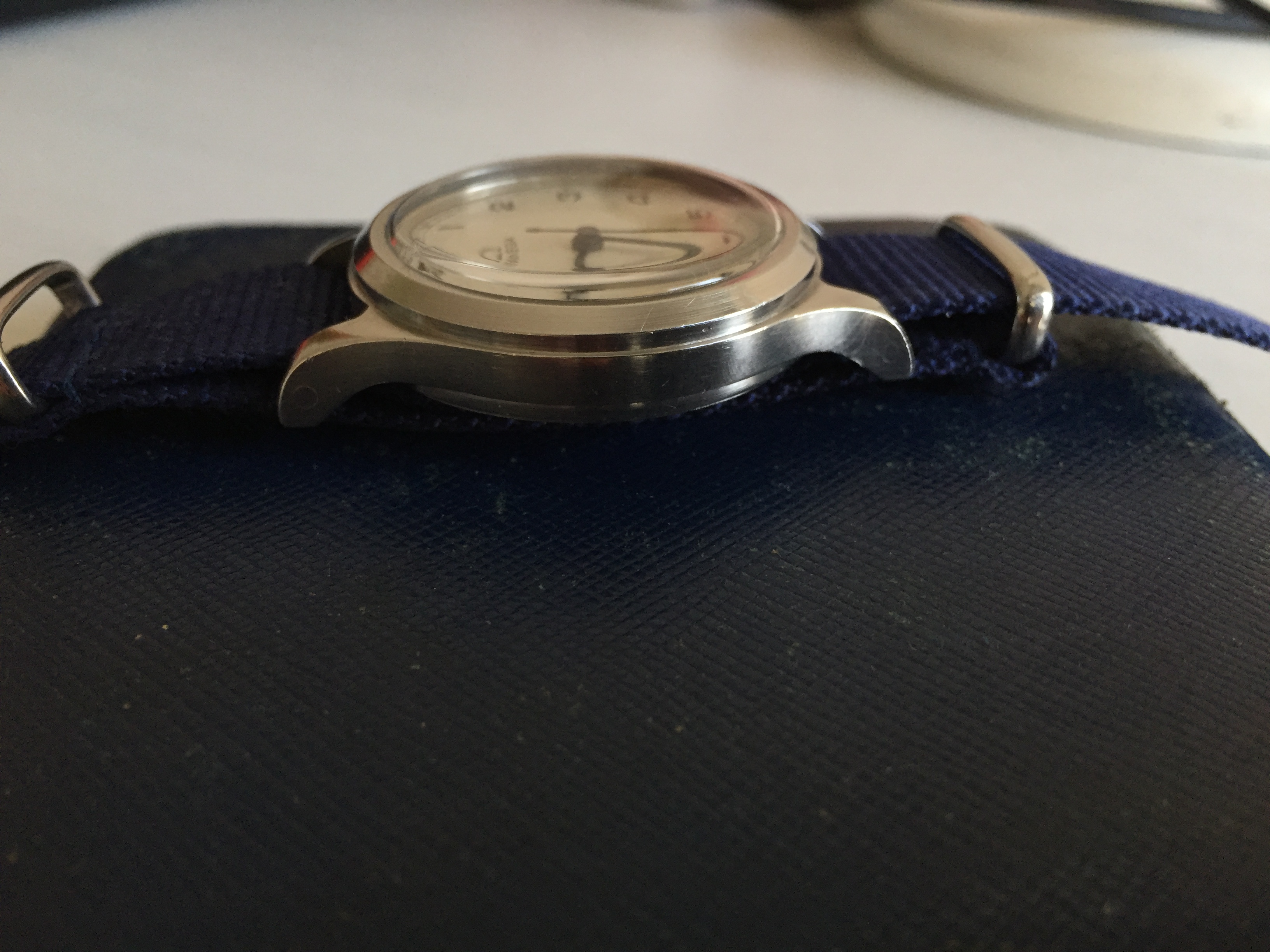

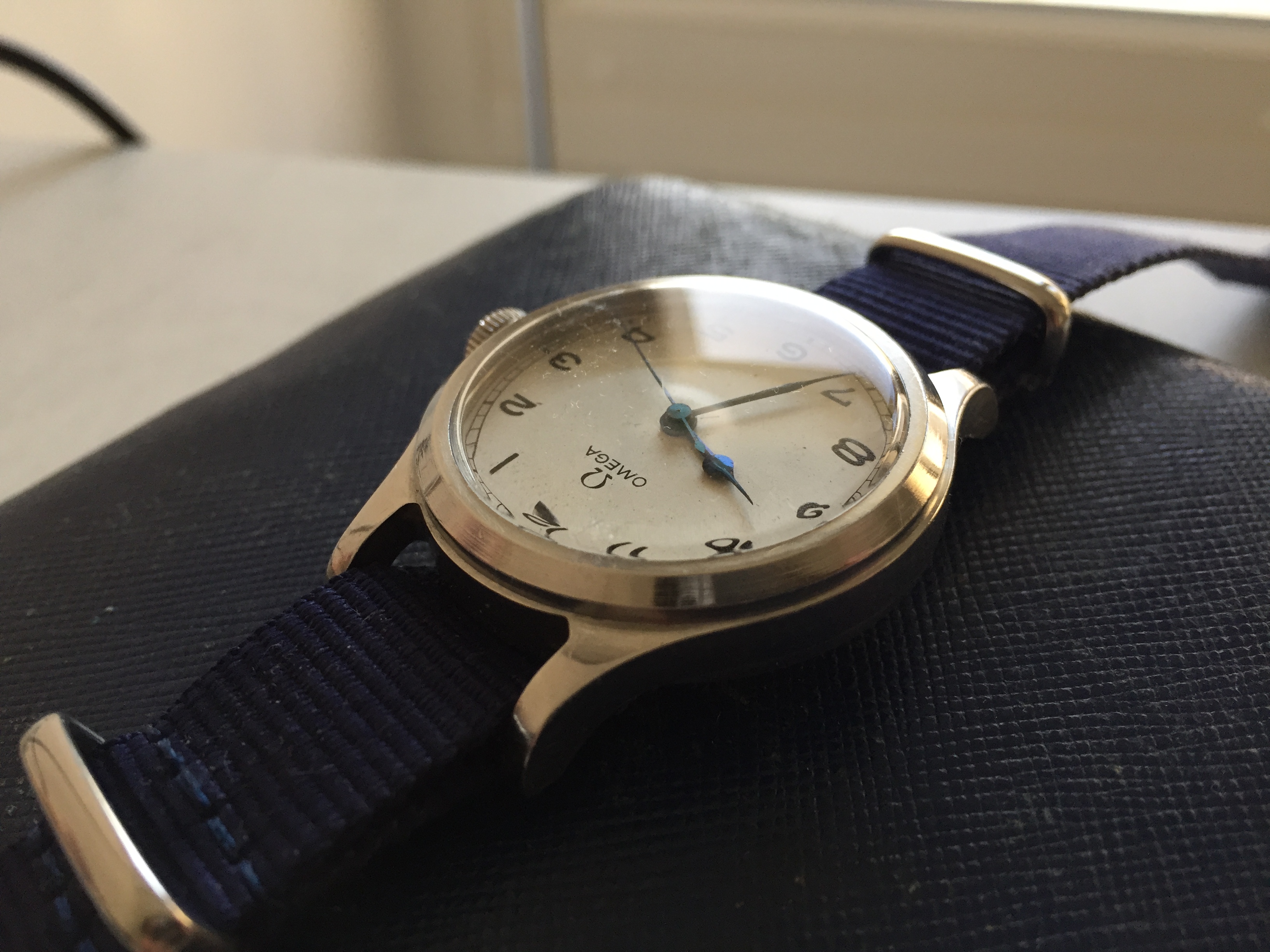

IMG_3228.JPG IMG_3229.JPG
VetPsychWars
Posts
2,326
Likes
1,884
I'm guessing a Sternkreuz dome, high or low as appropriate, might work. My watchmaker likes those and I do too on the watches that have them.

Tom

Oragnarek
Posts
29
Likes
11
VetPsychWars VetPsychWars
I'm guessing a Sternkreuz dome, high or low as appropriate, might work. My watchmaker likes those and I do too on the watches that have them.

Tom

thank you for your answer; do you know the size I have to order ?
Best regards

Oragnarek
Posts
29
Likes
11
VetPsychWars VetPsychWars

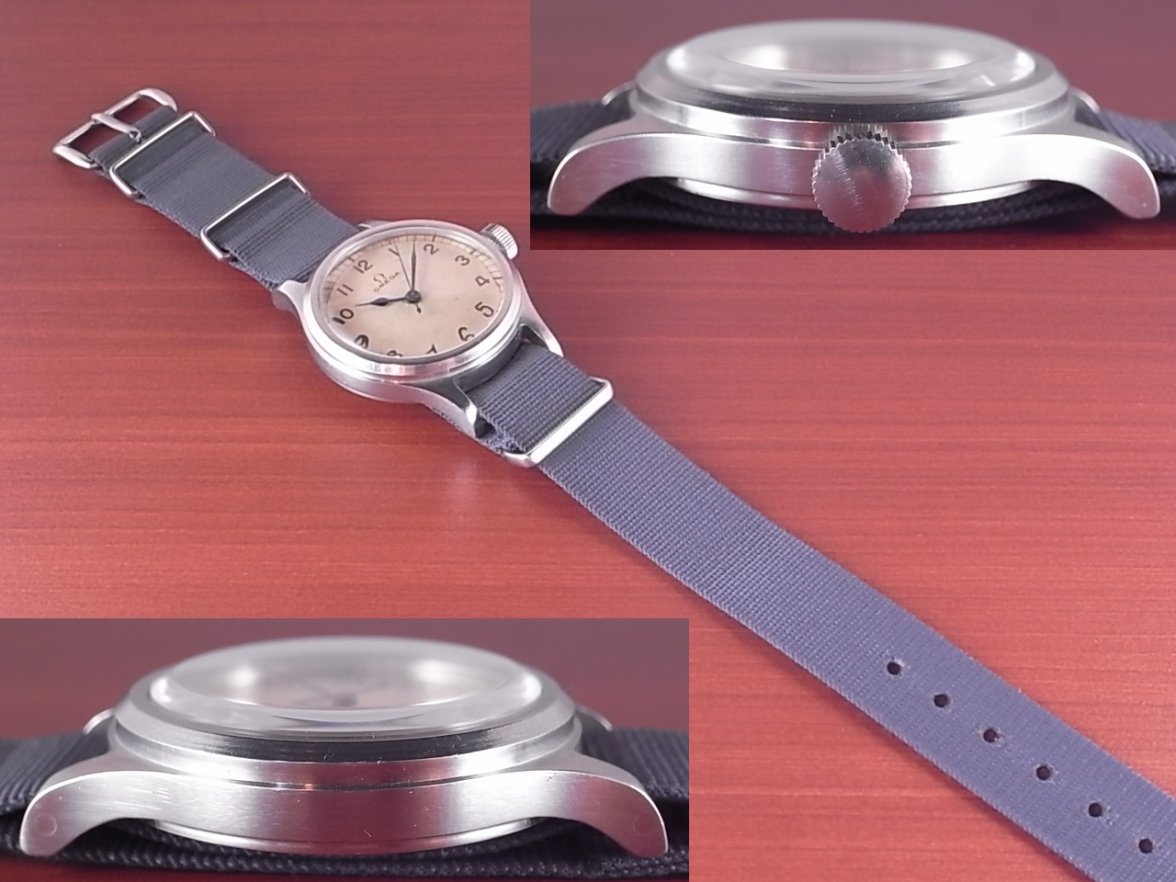

I found this online, it might help you choose?


It's exactly what I'm looking for.
By the way, this one has been overpolished in my opinion.

VetPsychWars
Posts
2,326
Likes
1,884
Oragnarek Oragnarek
thank you for your answer; do you know the size I have to order ?
Best regards

Your watchmaker is the person to make these ultimate decisions (with your approval).

Tom

Oragnarek
Posts
29
Likes
11
I opened the watch in order to discover how the acrylic crystal is fitted.
There is an internal tightening screwed ring in the case, which holds the underlayed crystal by the inside.
I had never seen such a system before. This Dennison case is very well thought out, with a beautiful solid stainless steel !
As I don't have the tool to remove this internal ring, I dropped my 6B/159 56 at my watchmaker's.
I will let you know when the crystal will be swapped.
I cannot wait to get it back!
Thank you

Oragnarek
Posts
29
Likes
11

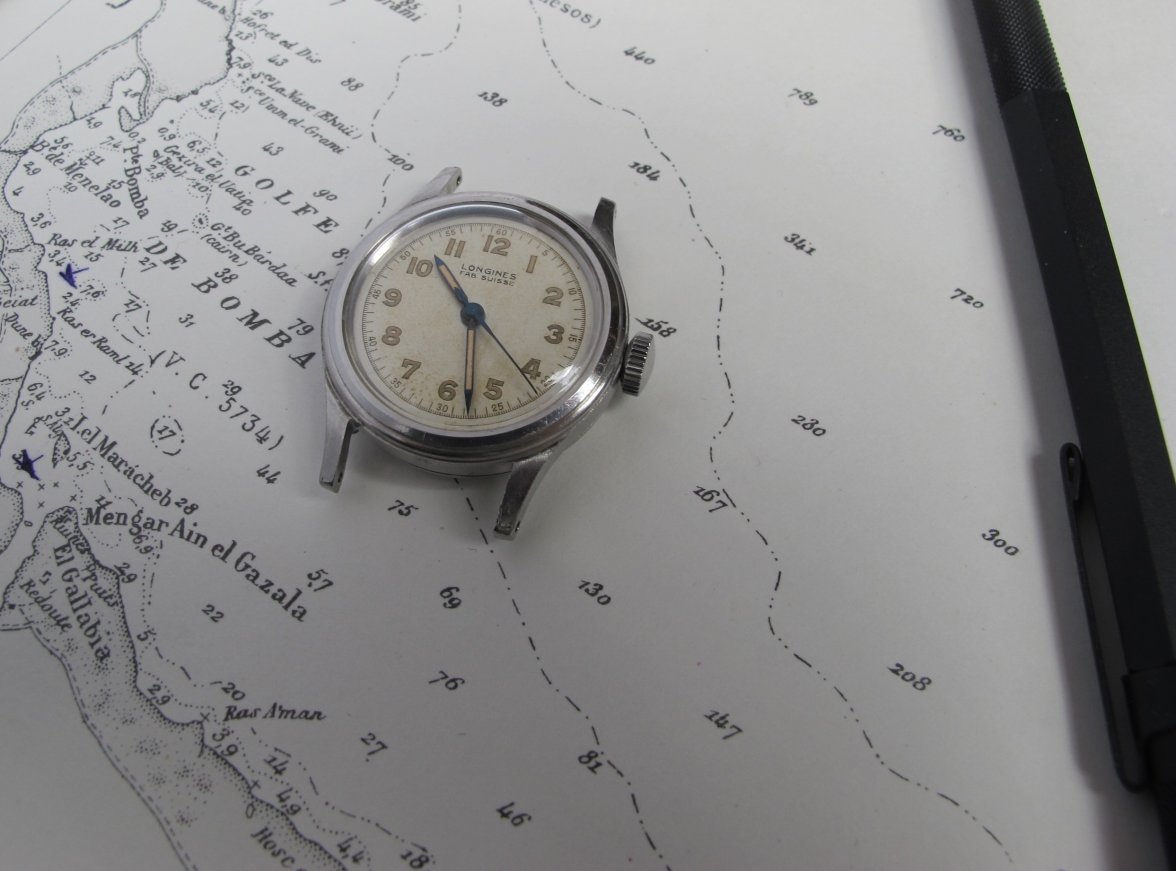

Fortunately, I have this Longines Marine Nationale that compensates for the absence of my Omega ...

Longines 1.JPG

Archer
Posts
29,672
Likes
76,830
Oragnarek Oragnarek
I opened the watch in order to discover how the acrylic crystal is fitted.
There is an internal tightening screwed ring in the case, which holds the underlayed crystal by the inside.
I had never seen such a system before. This Dennison case is very well thought out, with a beautiful solid stainless steel !
As I don't have the tool to remove this internal ring, I dropped my 6B/159 56 at my watchmaker's.
I will let you know when the crystal will be swapped.
I cannot wait to get it back!
Thank you

Not uncommon at all for watches of this type and era. For example this IWC Mk. XI:



I modified the pins for the Bergeon 5700 case opener, in order to provide the required clearance on the inside of the case, to get deep enough to get to the threaded ring:





Then it's just a matter of carefully unscrewing the ring:







My Vertex WWW had the same system...and I think other variations of the WWW likely had the same.

Cheers, Al

Oragnarek
Posts
29
Likes
11
Archer Archer
Not uncommon at all for watches of this type and era. For example this IWC Mk. XI:



I modified the pins for the Bergeon 5700 case opener, in order to provide the required clearance on the inside of the case, to get deep enough to get to the threaded ring:

My Vertex WWW had the same system...and I think other variations of the WWW likely had the same.

Cheers, Al
Dear Al Archer, Thank you very much for that explanation and these pictures ! Could you indicate me a link where I can buy the proper glass that could fit my watch ? Unfortunately, my watchmaker is unable to find it ! Best Regards

watchyouwant
Posts
5,598
Likes
9,422
Ask Ian Wilkinson in the UK. He will have them. Search for him on the Bay.....good luck ! Kind regards. Achim

Oragnarek
Posts
29
Likes
11
watchyouwant watchyouwant
Ask Ian Wilkinson in the UK. He will have them. Search for him on the Bay.....good luck ! Kind regards. Achim
I sent him an email, I hope he will answer my question.
Thank you very much. Kind regards

Oragnarek
Posts
29
Likes
11

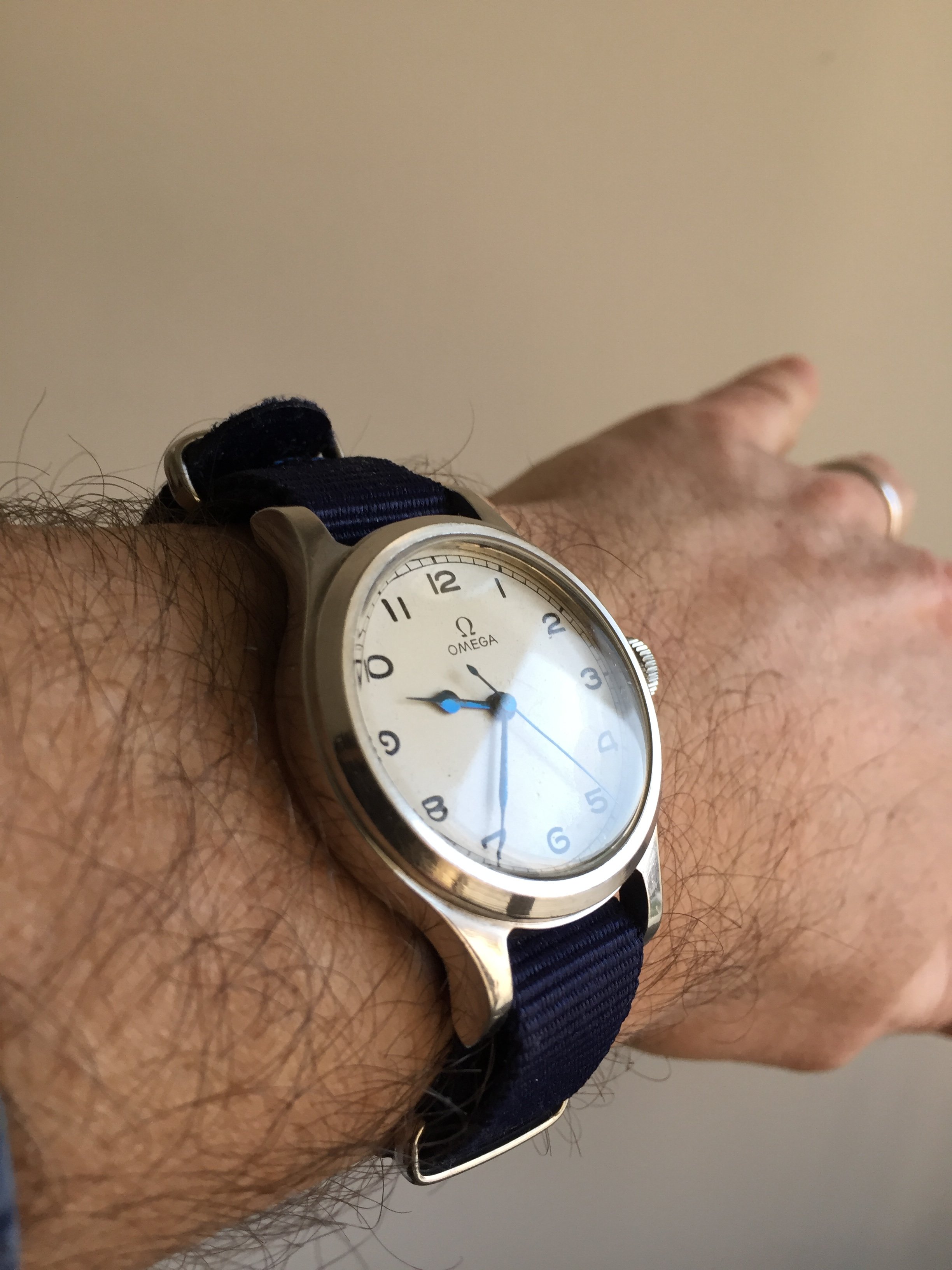

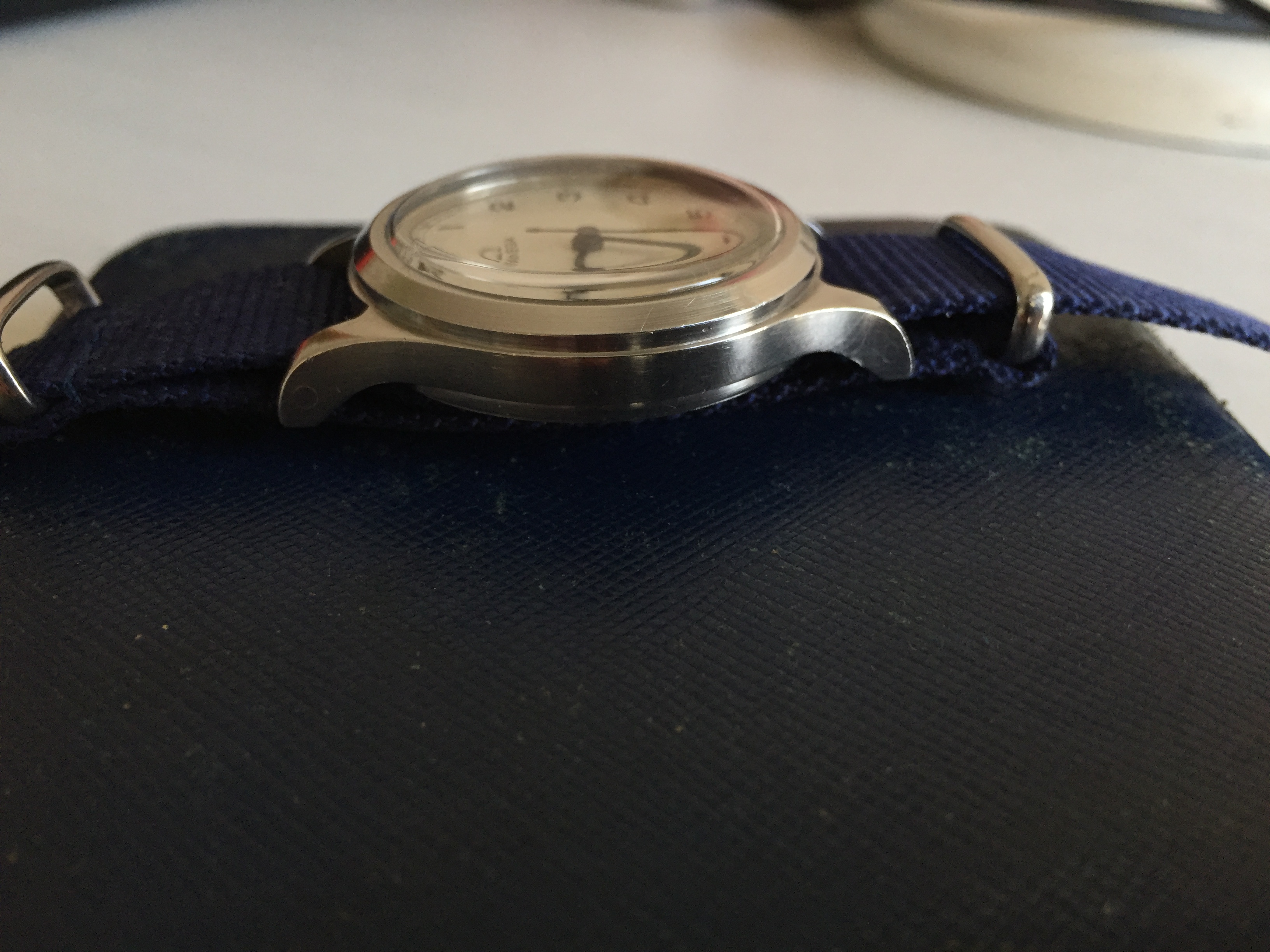

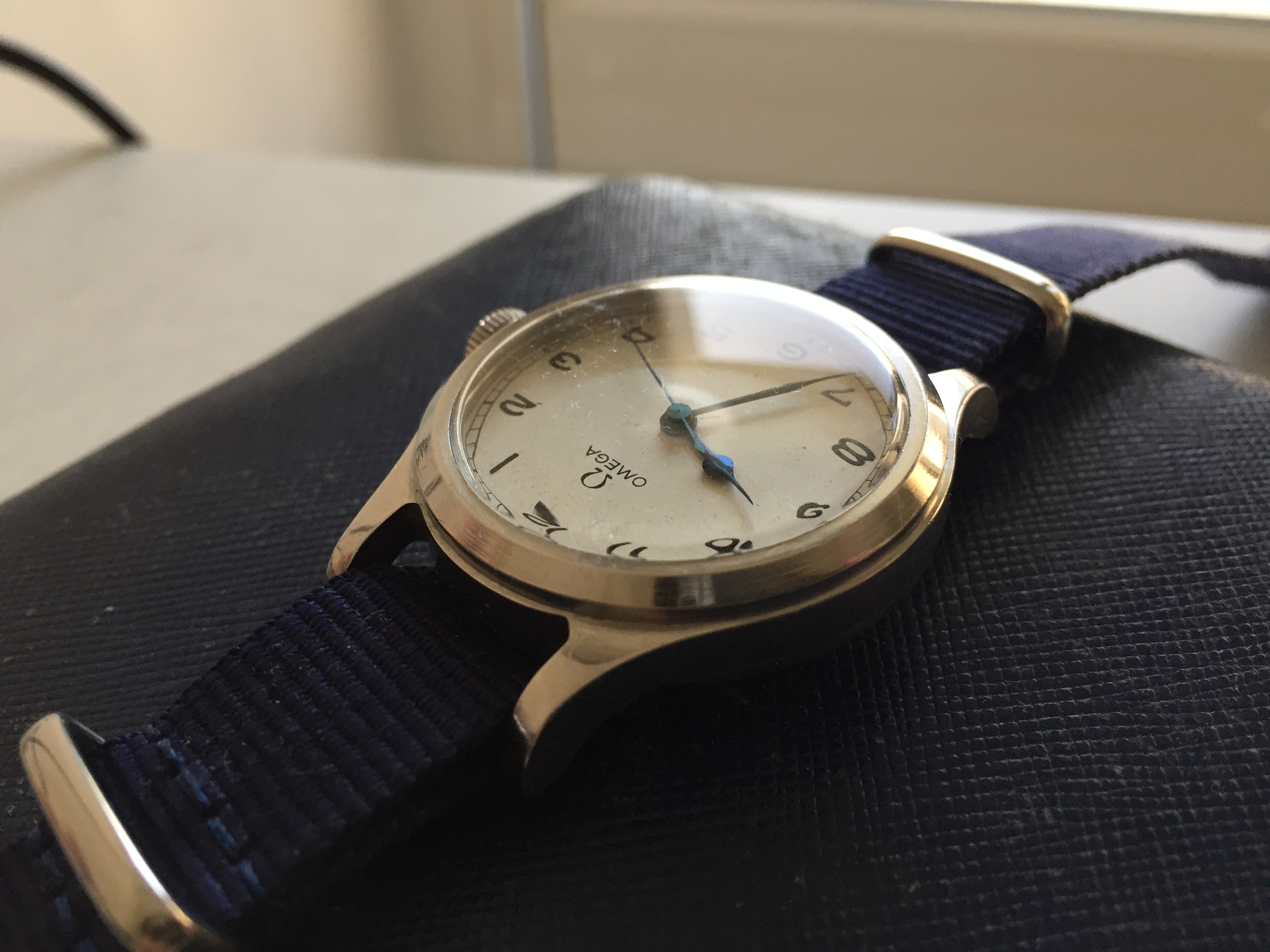

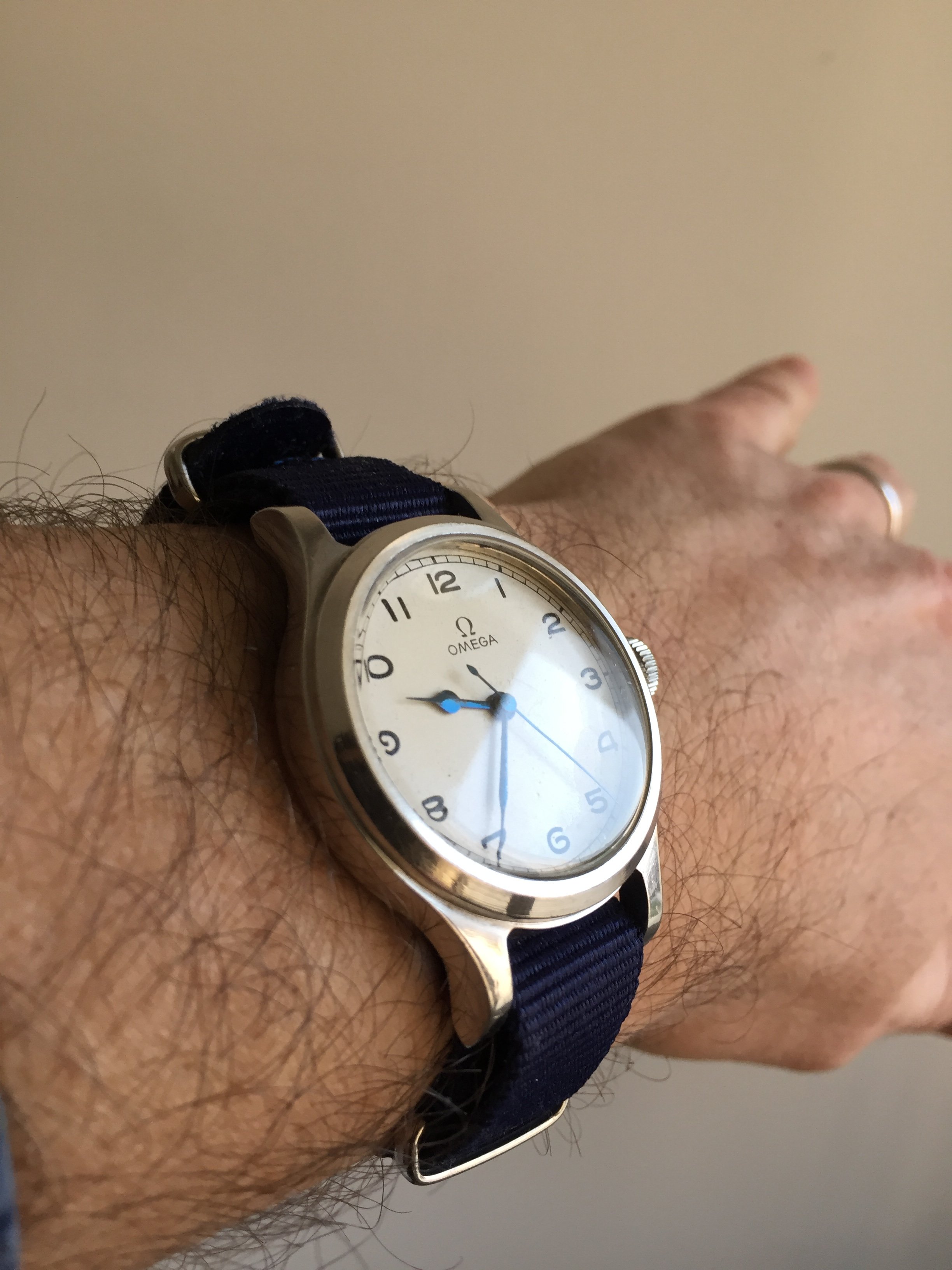

Thank you a lot for all your advices, I finally found a proper crystal and succeeded in install it (by myself, following Archer's advices) !
Best regards,
Edited:

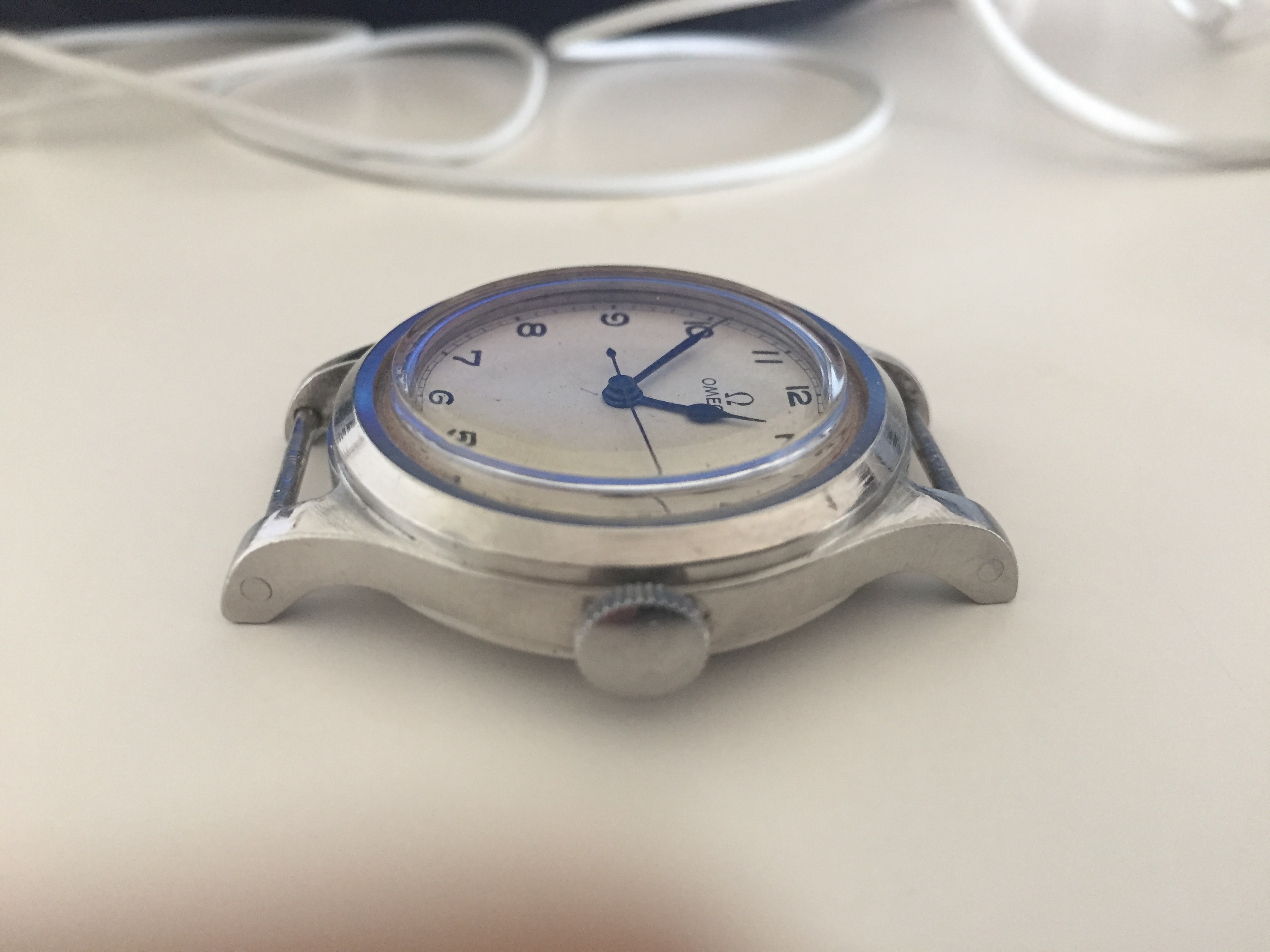

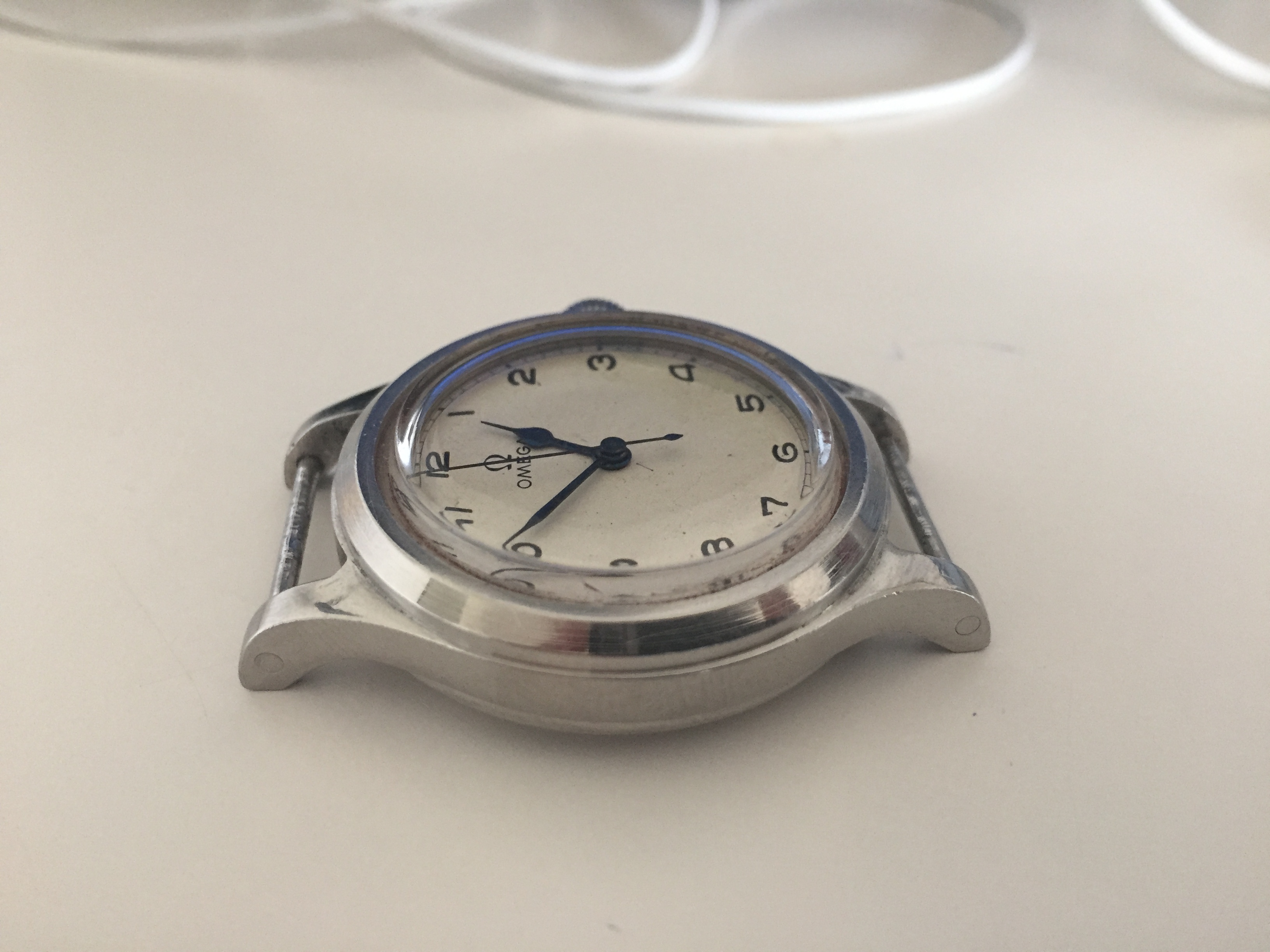

IMG_3766.JPG IMG_3765.JPG IMG_3764.JPG
H
Posts
1
Likes
0
Oragnarek Oragnarek
Thank you a lot for all your advices, I finally found a proper crystal and succeeded in install it (by myself, following Archer's advices) !
Best regards,

Hello, sir.

I'm curious where you got the crystal.

I have the same model, but the glass is broken and needs to be replaced.

Oragnarek
Posts
29
Likes
11
H HanBumBoo
Hello, sir.

I'm curious where you got the crystal.

I have the same model, but the glass is broken and needs to be replaced.
Hello,
I contacted Ian Wilkinson in the UK, and bought him this crystal (exactly the good size);
After that, in order to install it, I modified the pins of a case opener, to tighten the threaded ring (as Archer indicated), and it worked very well.
Can you send us some pictures of your watch ?
regards
