Movement identification and sourcing spares

Posts

188

Likes

167

Yo32Leigh

·Apr 30, 2022

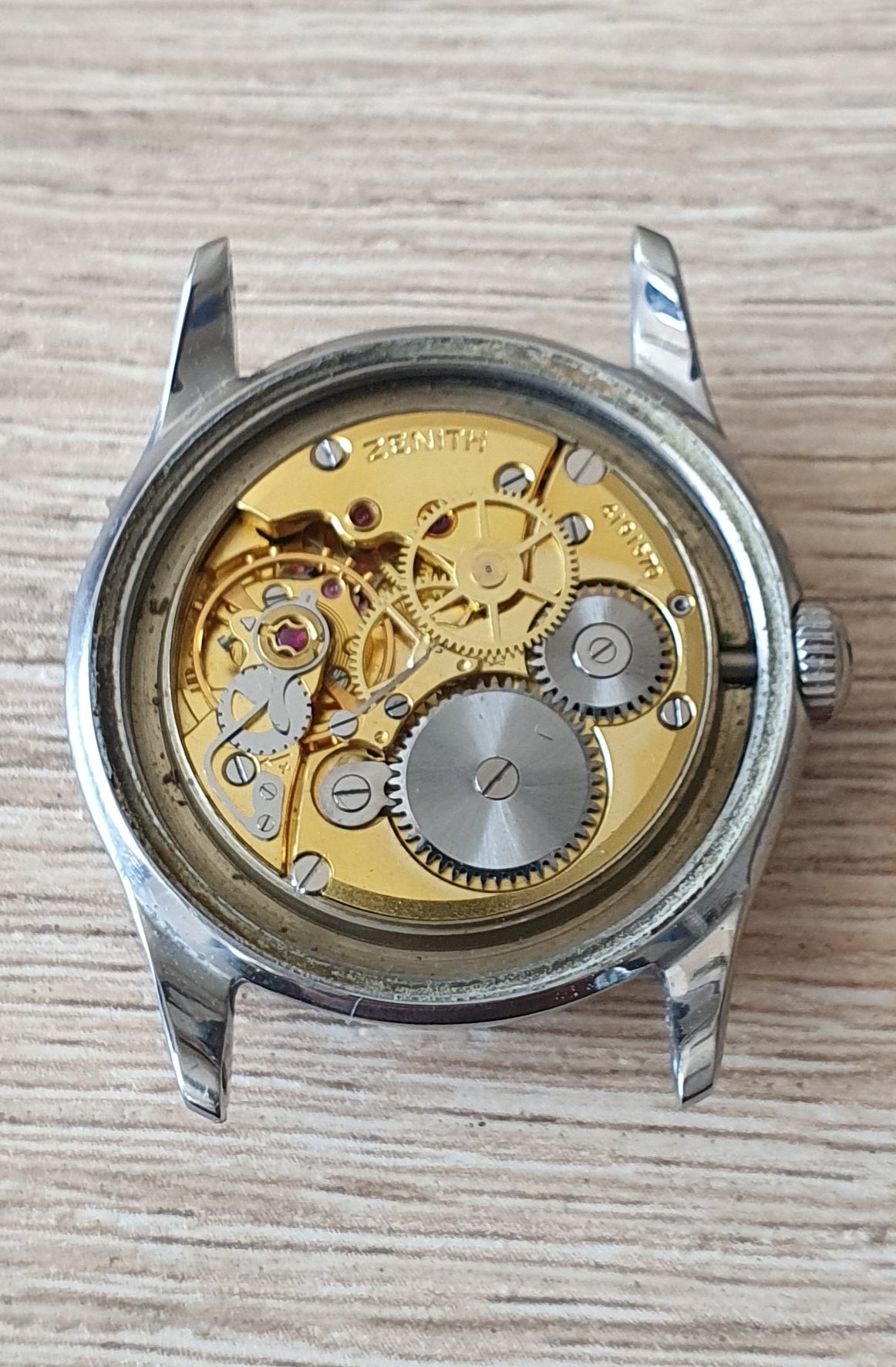

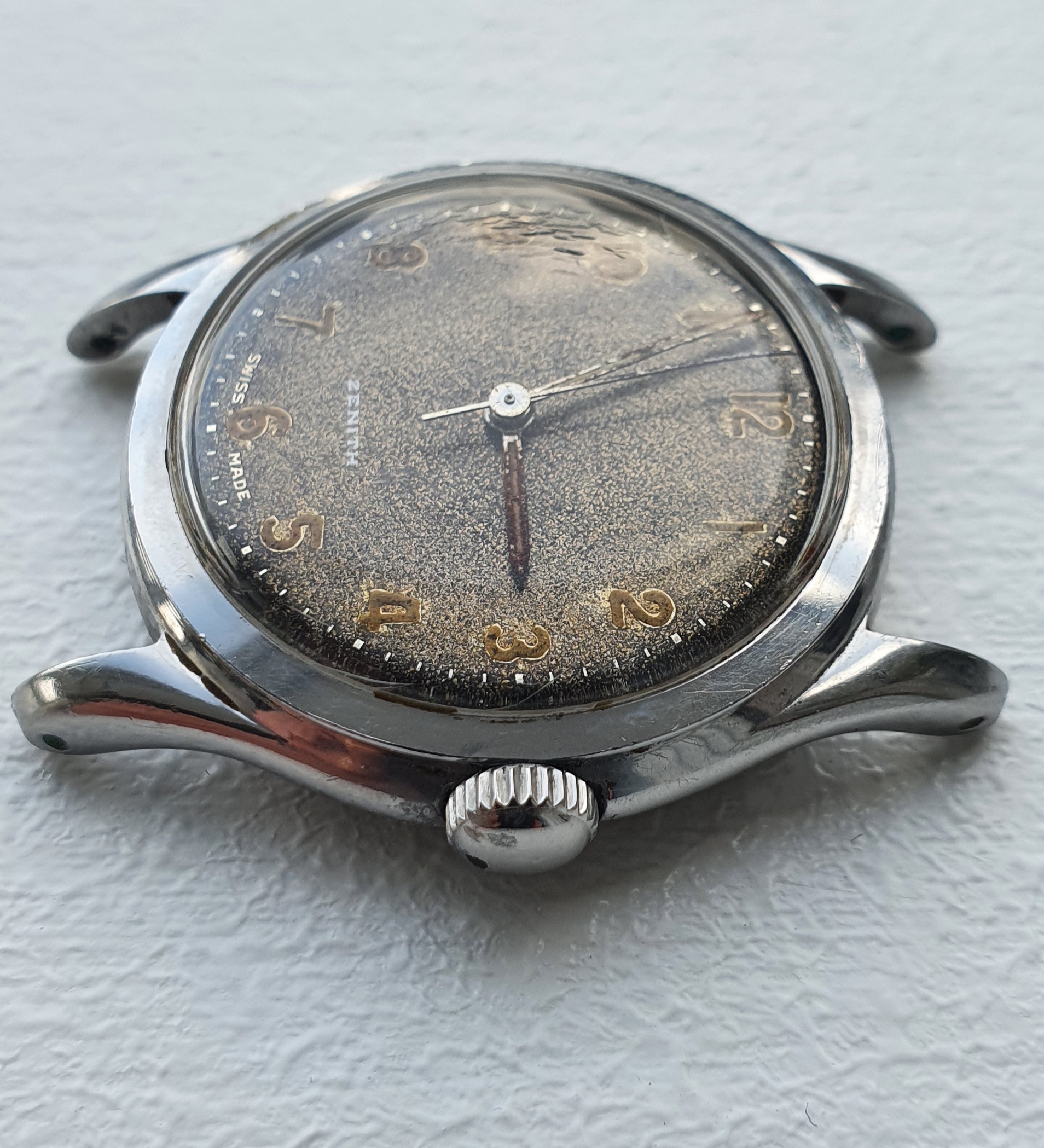

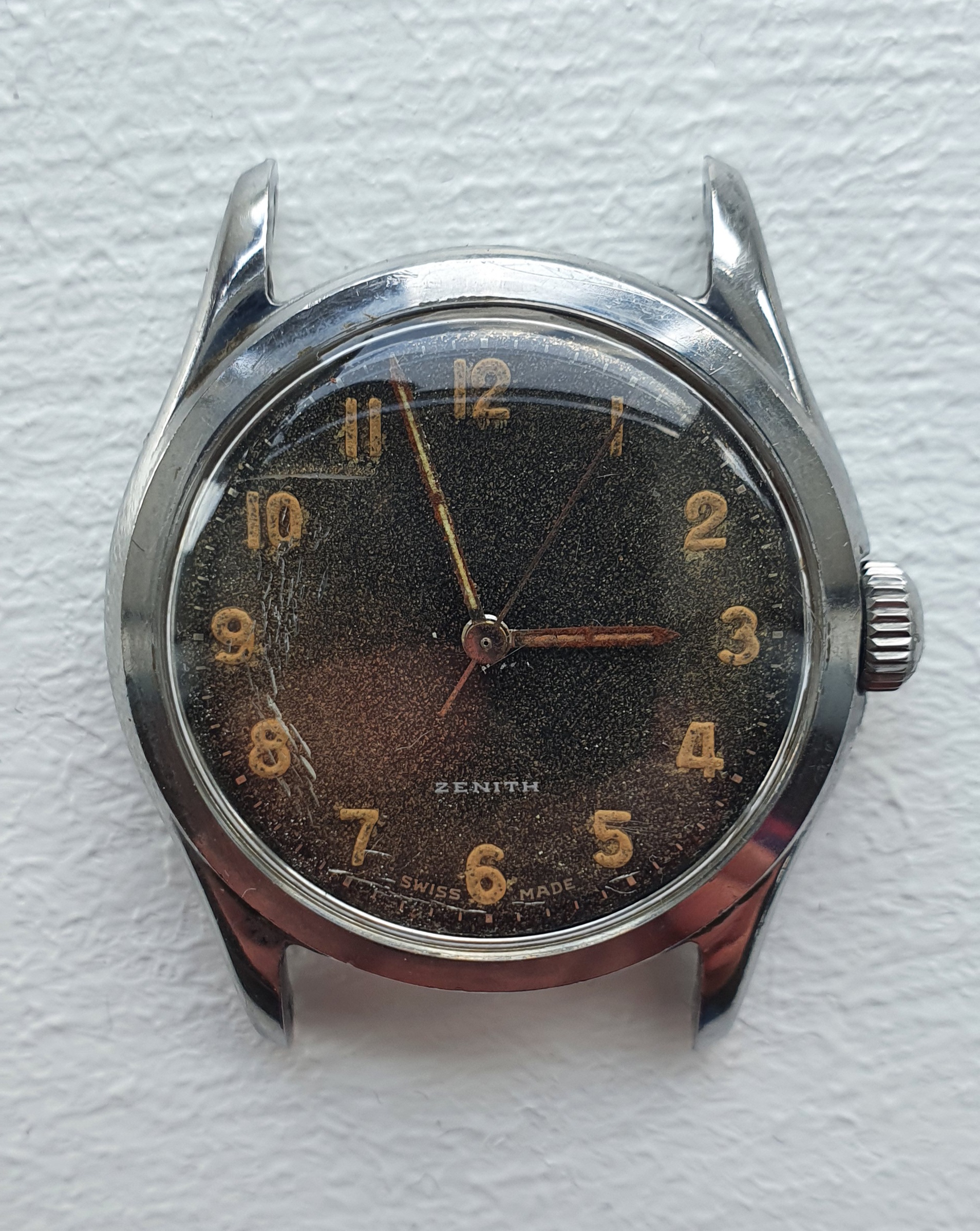

Can anyone help identify the movement in this Zenith 'military style' timepiece dated from 1953?

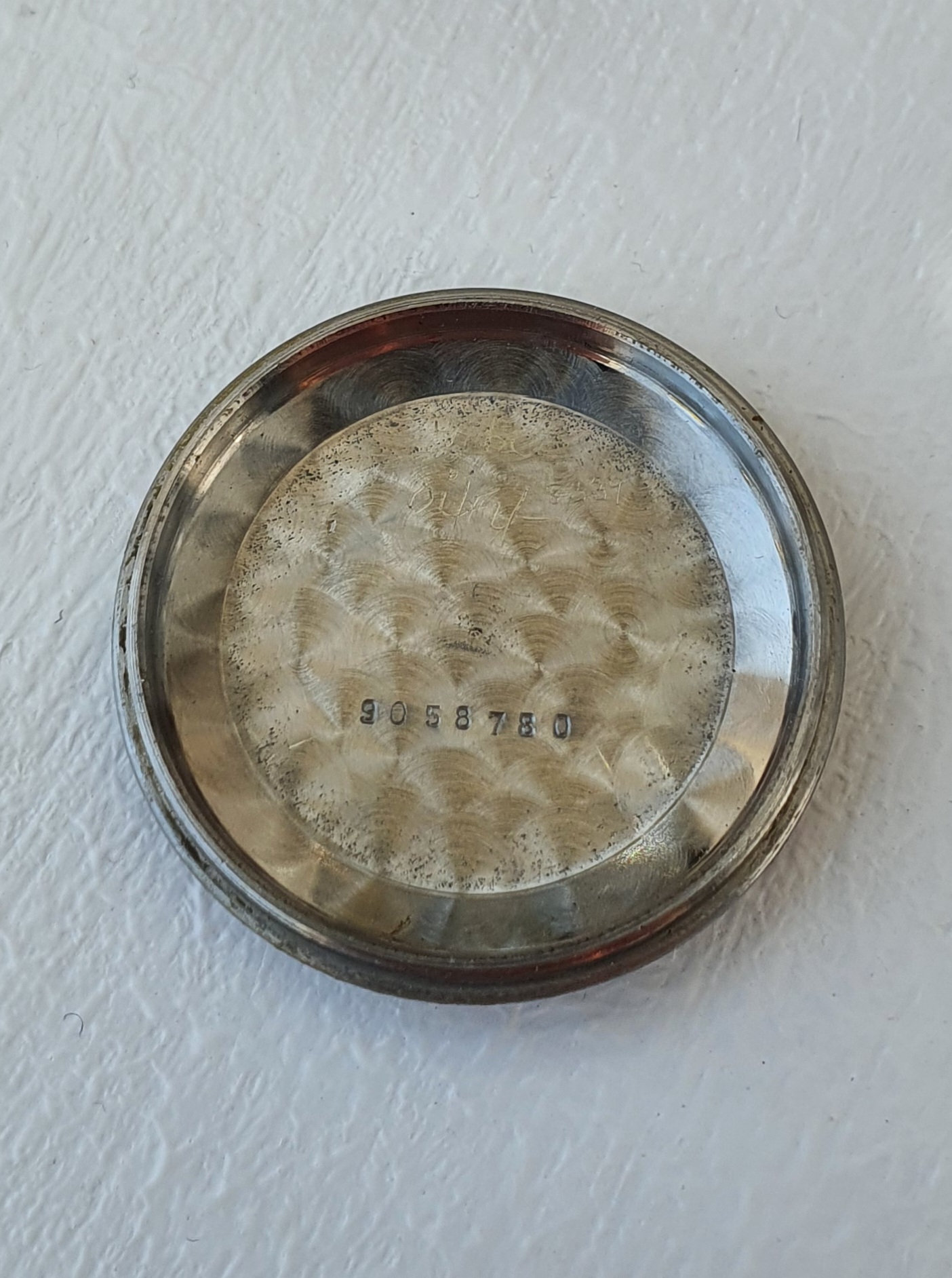

I can't find any Cal identifying marks on the movement and the case back number didn't appear to refer to anything specific?

Let know if any further more detailed pics may help?

Thanks for any input 👍



Posts

17,508

Likes

26,438

Foo2rama

·Apr 30, 2022·Keeps his worms in a ball instead of a can.

Please google watch movement database.

Ranft 😉



Posts

188

Likes

167

Yo32Leigh

·Apr 30, 2022

Foo2rama

Please google watch movement database.

Ranft 😉

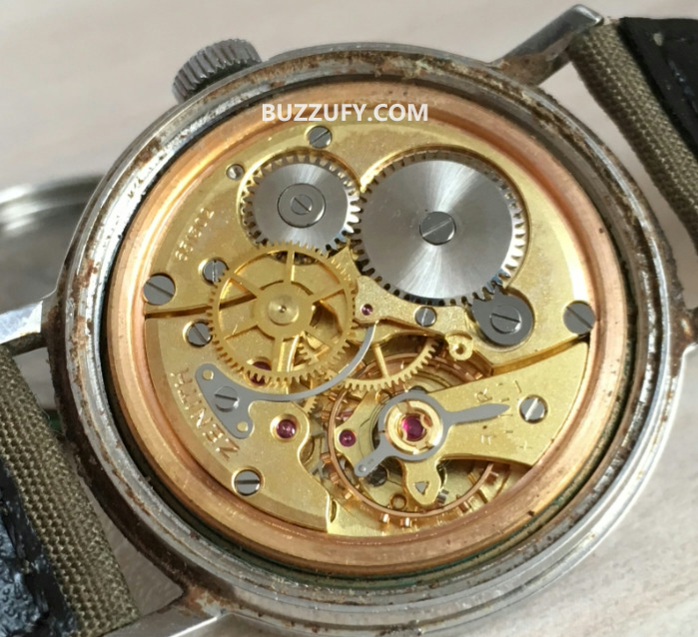

The best I can find using our old friend Google is a Cal 106. Although not identical in assuming it's a variant?

http://www.ranfft.de/cgi-bin/bidfun-db.cgi?00&ranfft&0&2uswk&Zenith_106_4

World you concur?



Posts

188

Likes

167

Yo32Leigh

·Apr 30, 2022

I'd also like to source a replacement crystal but not sure where to start as there is no model number on the case.

The case is approx 32mm. Any ideas about where to start with sourcing?



Posts

1,902

Likes

3,523

CaptainWinsor

·Apr 30, 2022

Looks like a 106-50-6. Look under the balance wheel. Often the number there



Posts

188

Likes

167

Yo32Leigh

·Apr 30, 2022

CaptainWinsor

Looks like a 106-50-6. Look under the balance wheel. Often the number there

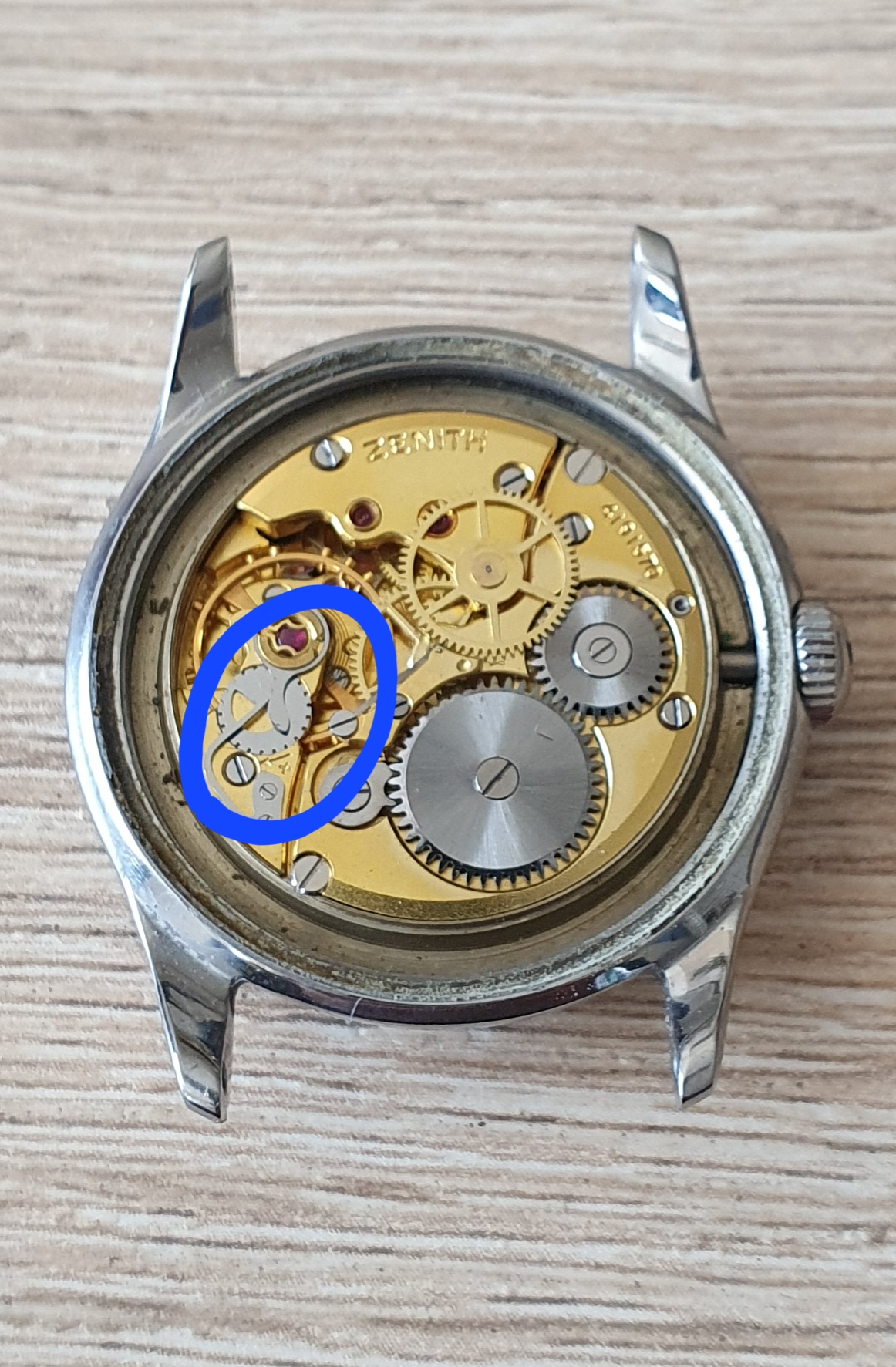

I thought that at first but the parts circled is different?



Posts

1,902

Likes

3,523

CaptainWinsor

·Apr 30, 2022

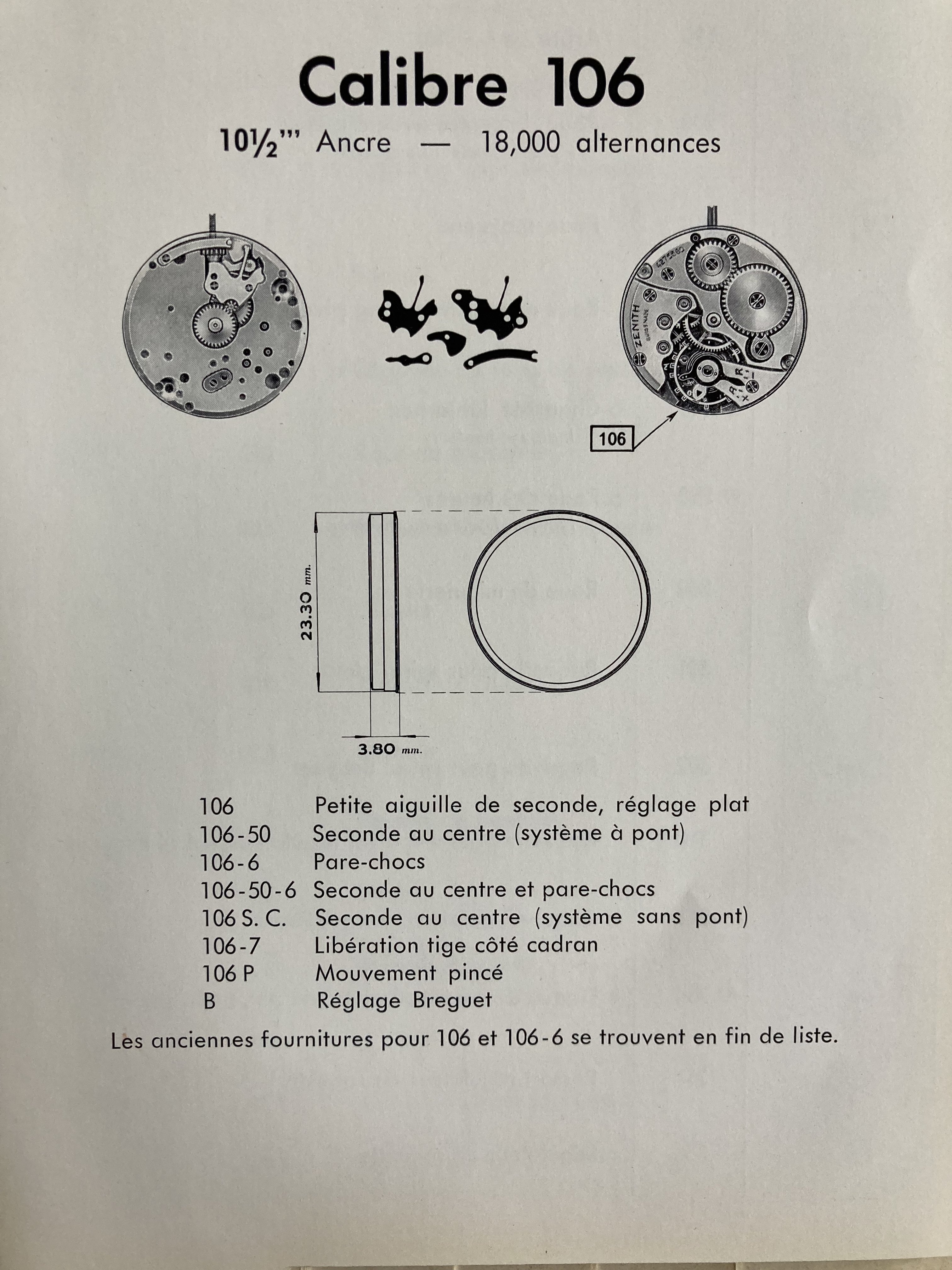

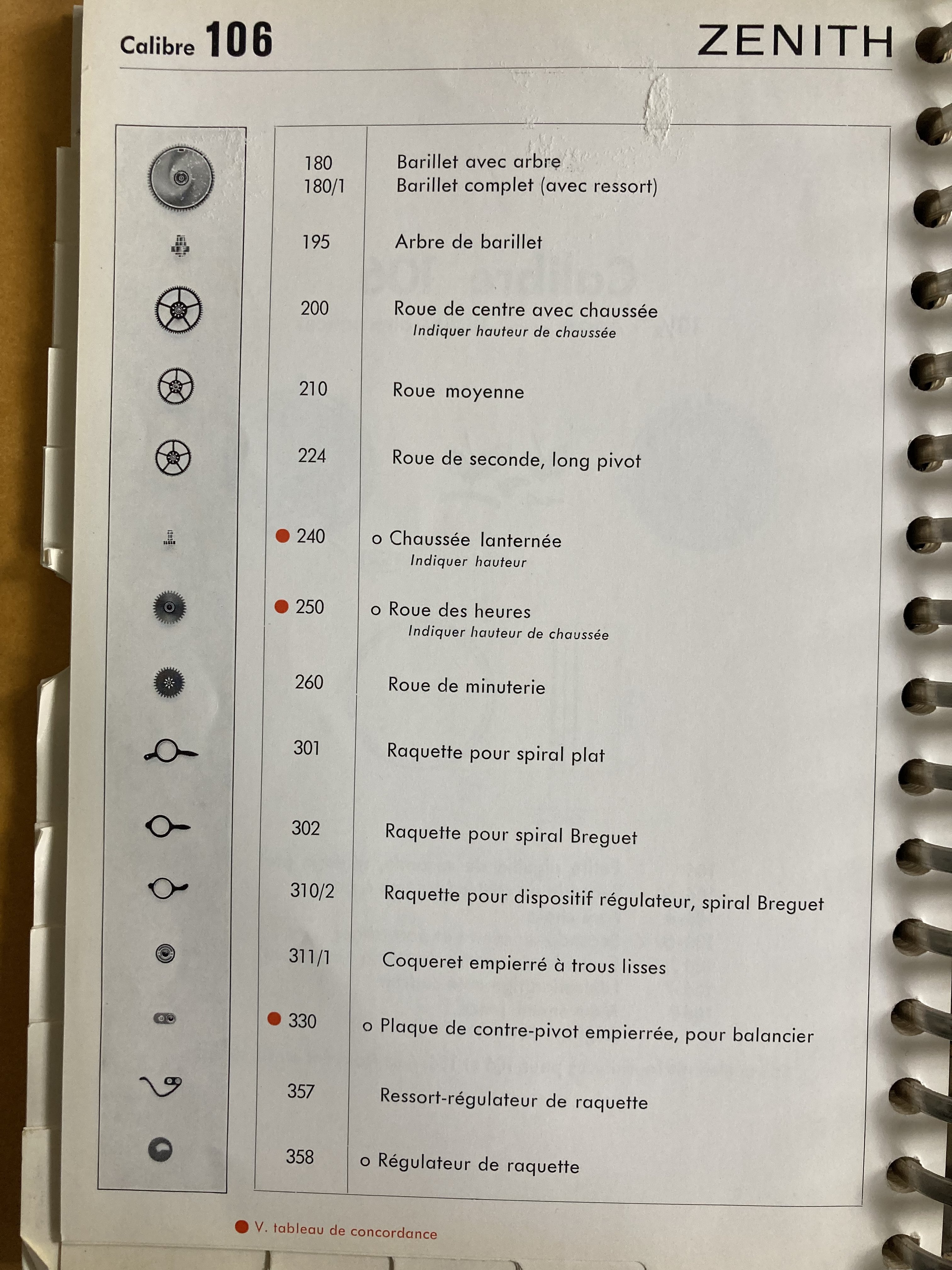

Look at the pics from their parts catalog. Numbers 310/2 and 357 were part of the 106 series



Posts

188

Likes

167

Yo32Leigh

·May 1, 2022

CaptainWinsor

Look at the pics from their parts catalog. Numbers 310/2 and 357 were part of the 106 series

Thanks for taking the time to clarify this for me 👍.



Posts

1,902

Likes

3,523

CaptainWinsor

·May 3, 2022

I see you have this watch listed for sale on eBay



Posts

188

Likes

167

Yo32Leigh

·May 3, 2022

CaptainWinsor

I see you have this watch listed for sale on eBay

I've just listed it as i have the opportunity to purchase a Favre-Leuba Moon Raider so I'm moving some on.



Posts

19,954

Likes

46,522

Dan S

·May 3, 2022

CaptainWinsor

I see you have this watch listed for sale on eBay

Kind of you to help with the OP's sales listing, even taking the time to scan parts lists. 😁



Posts

188

Likes

167

Yo32Leigh

·May 3, 2022

Dan S

Kind of you to help with the OP's sales listing, even taking the time to scan parts lists. 😁

In fairness I've not used any of the info offered by @CaptainWinsor in the sales listing. At the time of asking I was seeking more information about this particular watch, as unlike Omega its not as easy to pin down case or Cal references which in turn makes sourcing spares (crystal) impossible.

Point taken although it was never my intention to monetise anyone's expertise.



Posts

19,954

Likes

46,522

Dan S

·May 3, 2022

Yo32Leigh

In fairness I've not used any of the info offered by @CaptainWinsor in the sales listing.

There's no rule against getting help with a listing, but it goes over better if you're transparent about it.



Posts

1,902

Likes

3,523

CaptainWinsor

·May 3, 2022

Dan S

Kind of you to help with the OP's sales listing, even taking the time to scan parts lists. 😁

sarcasm duly noted
