Moonface moonphase discs

  1. bgrisso

    bgrisso Mar 26, 2020

    Posts
    2,115
    Likes
    4,156
    We've had some discussion before about the type of face used on UG moonface moonphase discs. You mostly see one type, but there's some variation.

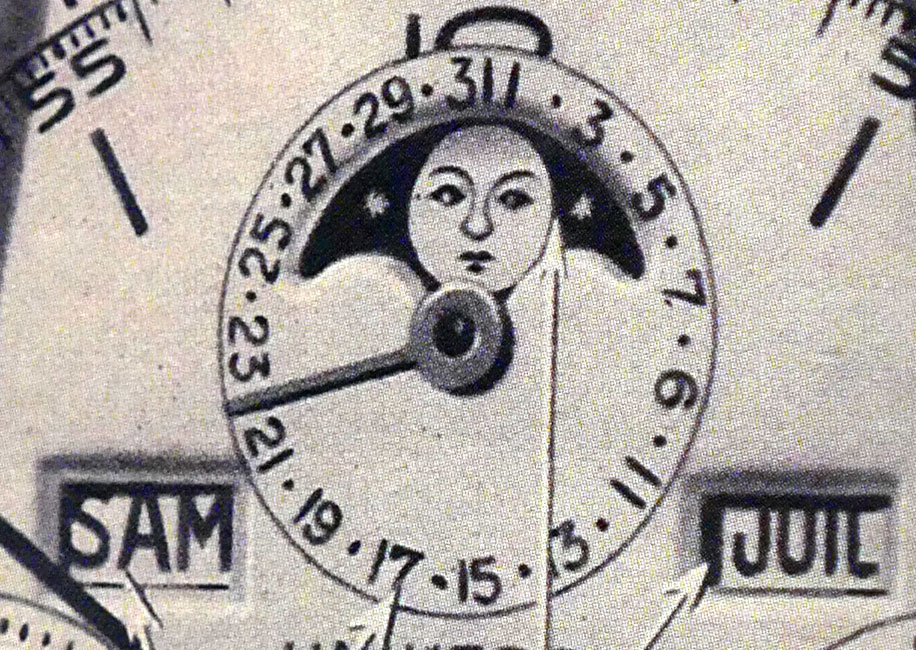

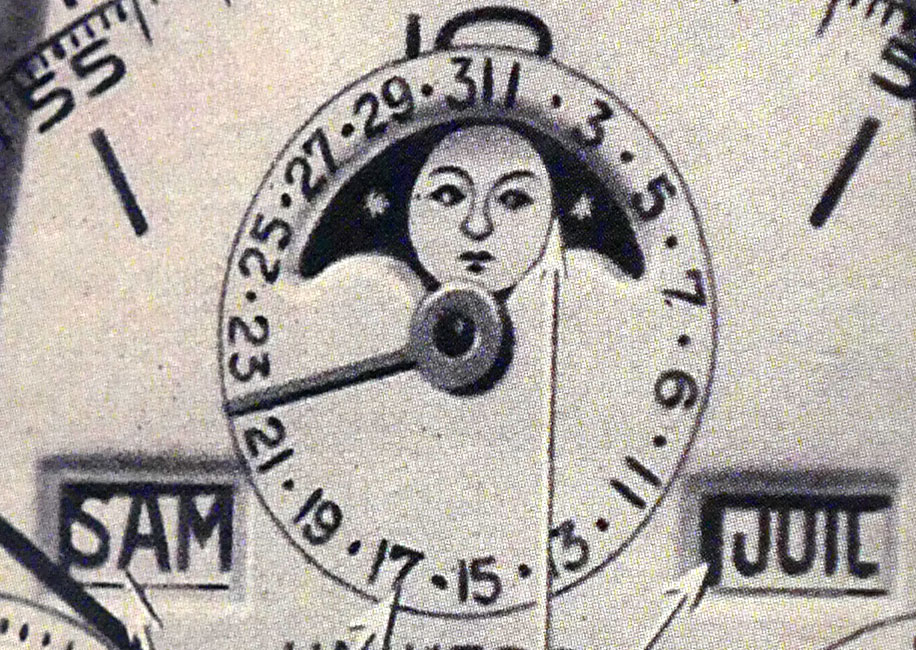

    This is the most common type (connected eyebrow and nose):

    Moon Face Illustration.jpg

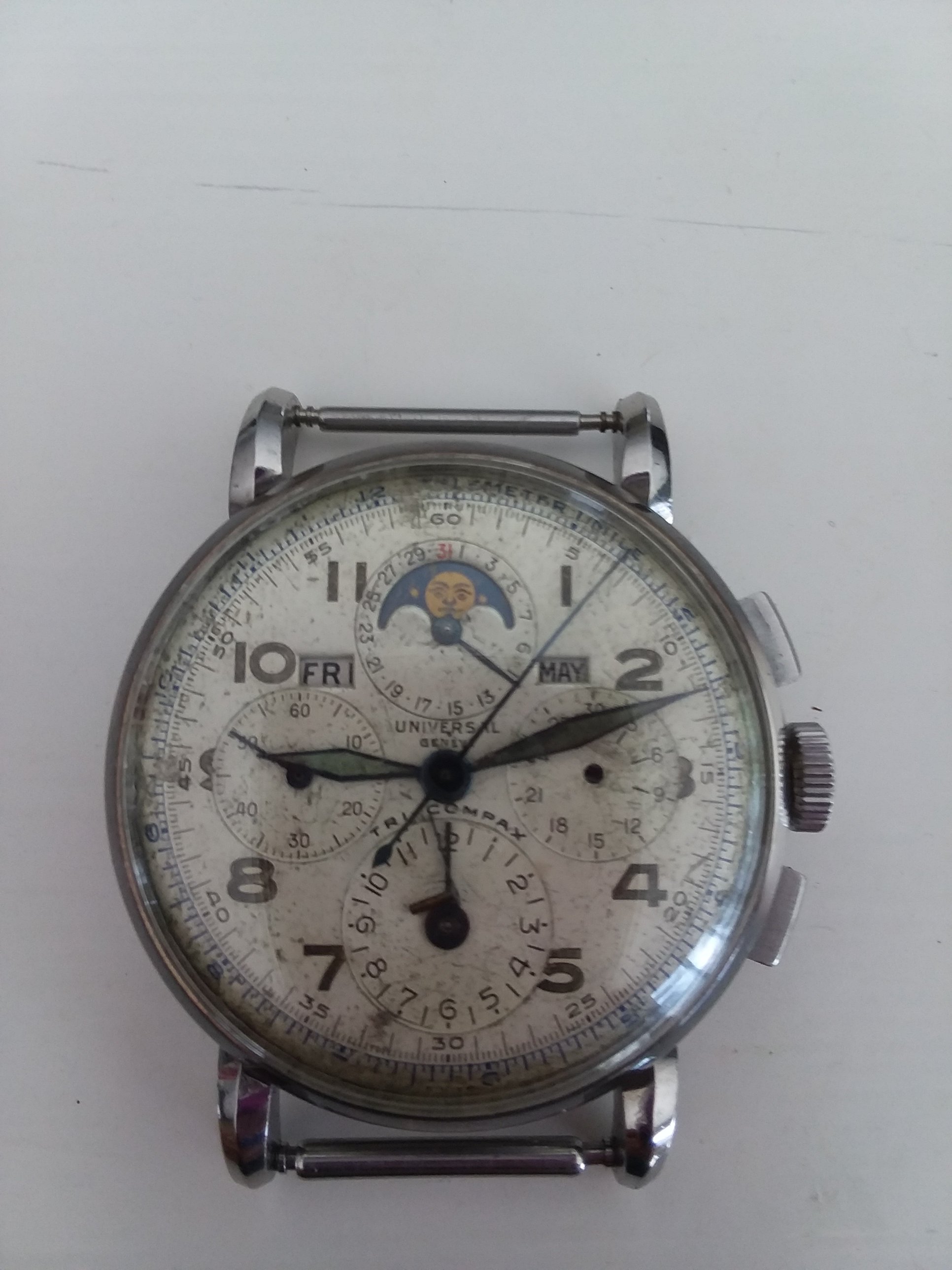

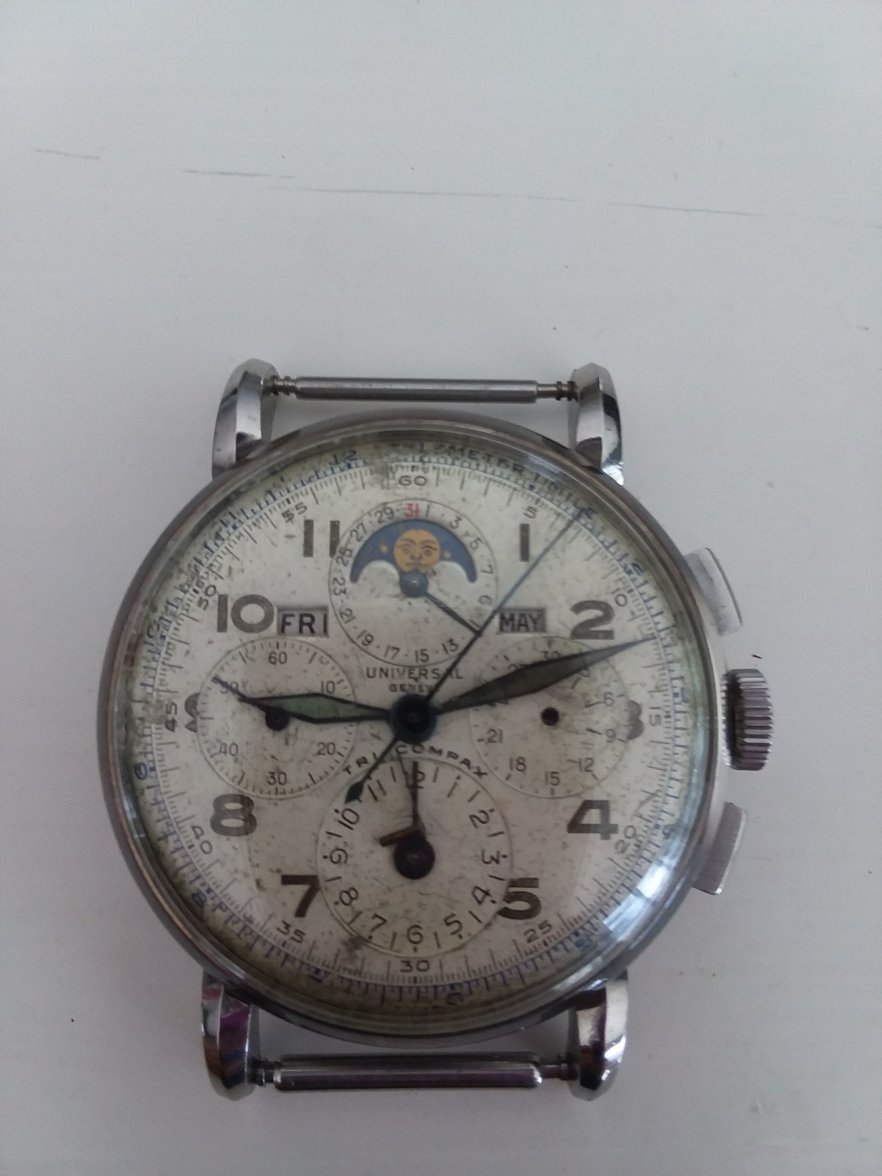

    But there's another variation you see sometimes (disconnected eyebrow and nose) which looks like this:


    That second one belongs to @rolokr

    Anyhow I recently found a similar example in a box of UG parts. Aside from the different face, it's also thinner, and I think a touch larger (need to check with calipers).

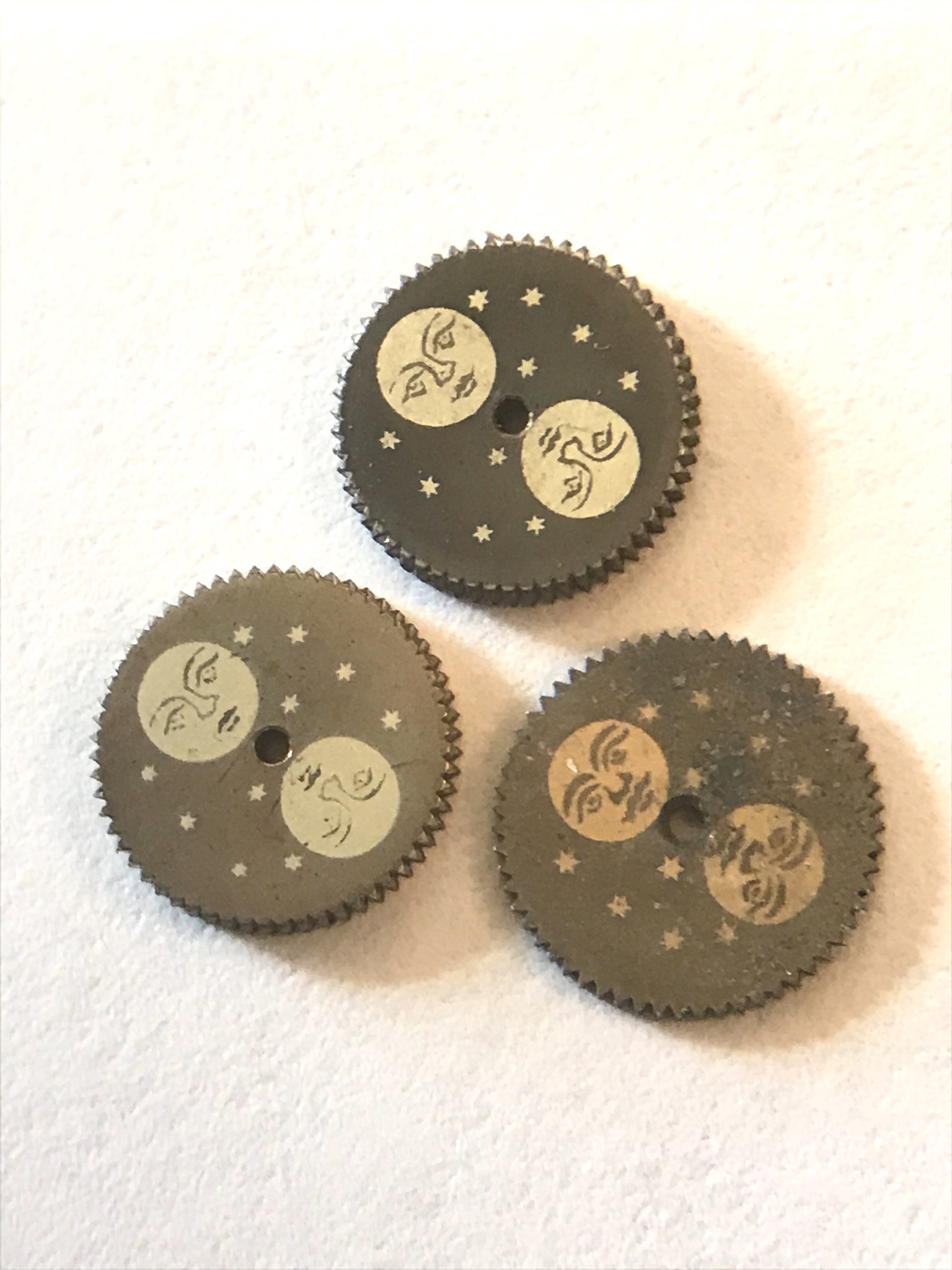

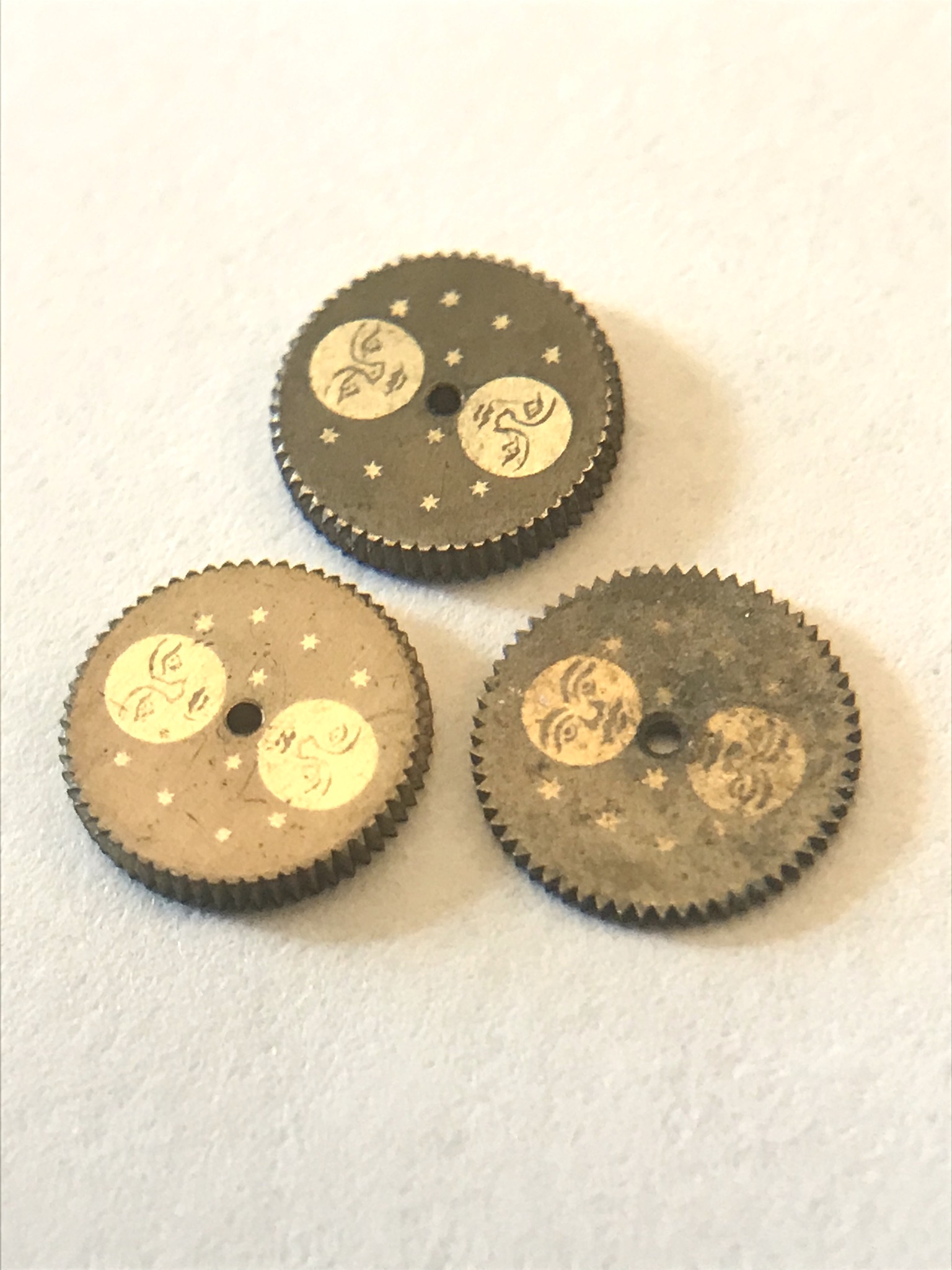

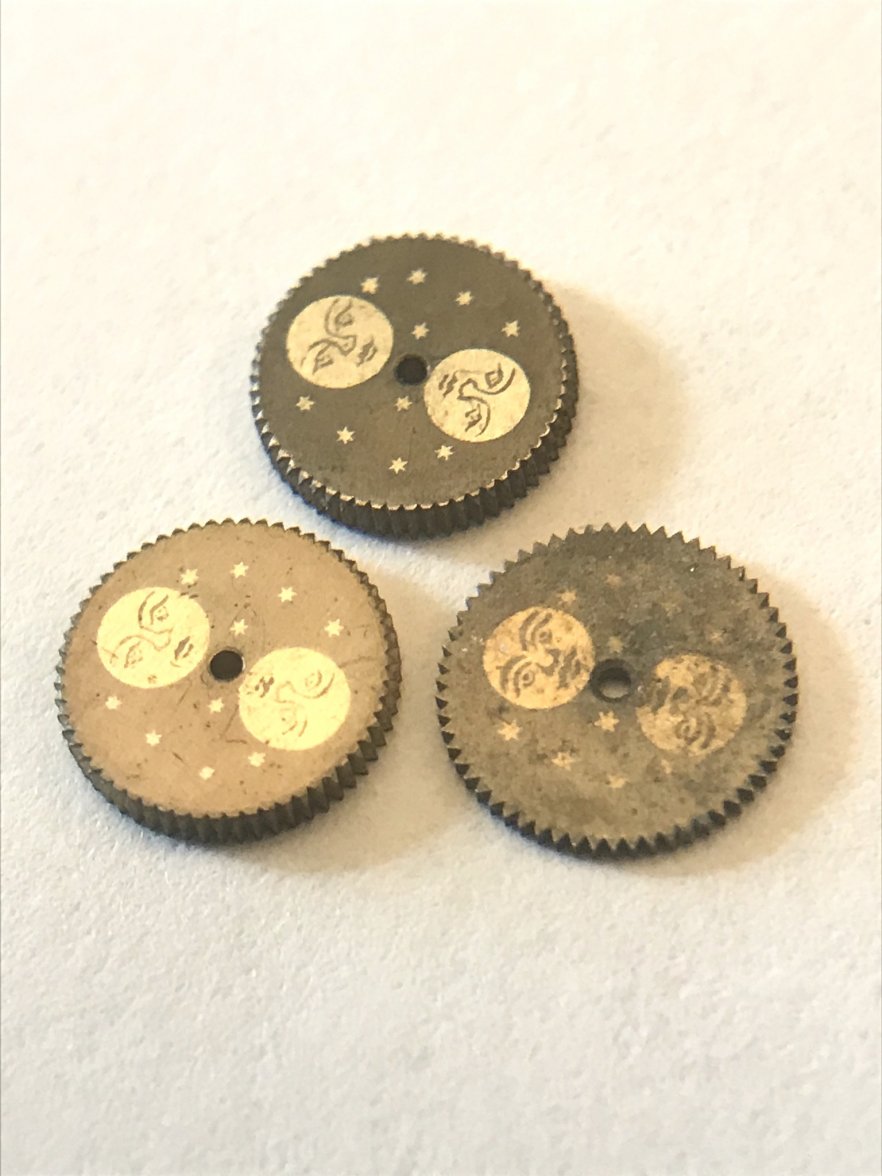

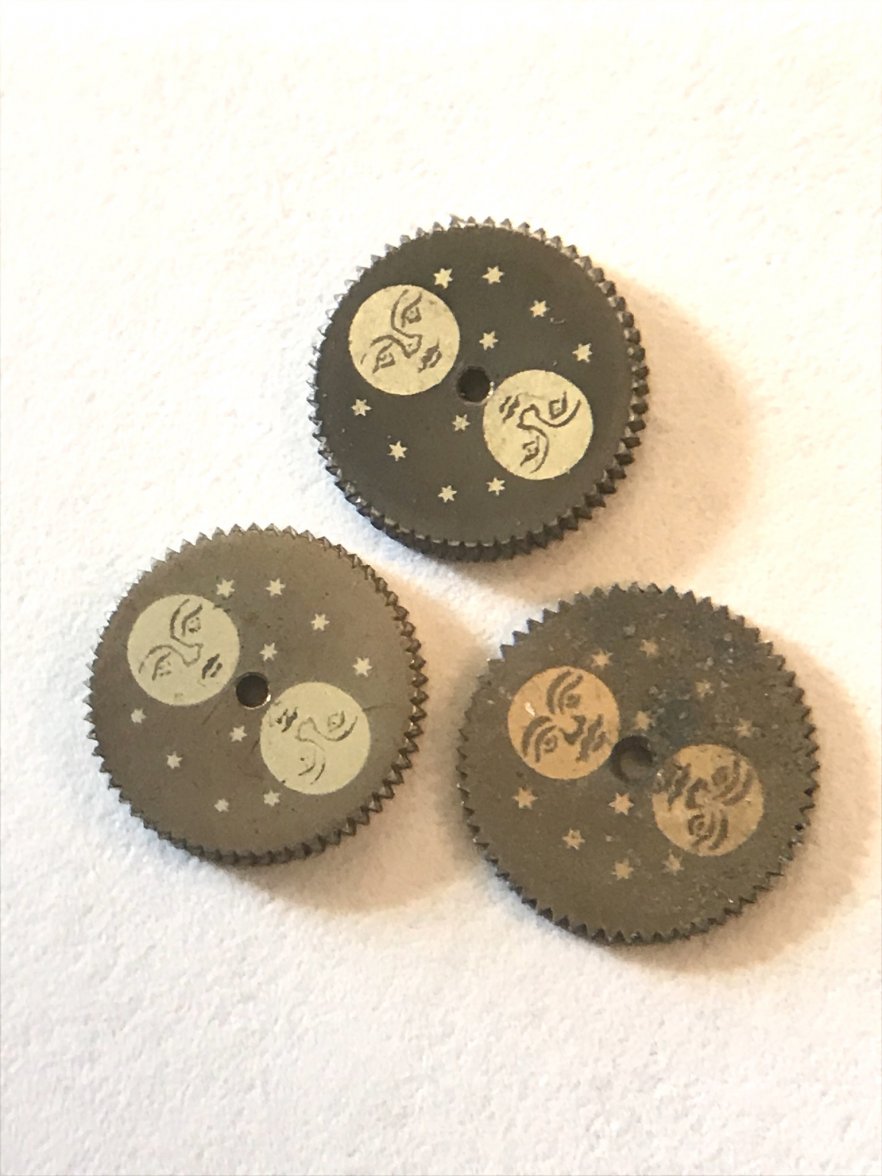

    These pics show the thin one next to two "standard" examples from a cal 287.


    So two questions.....

    1) is this just an acceptable variation on UG moonface (I lean towards yes)

    2) what does the thinner version belong to, is that for a triple date moonphase instead of a chrono? I've never compared the discs side by side before, but I have been told by my watchmaker they are not interchangeable.

    billving, Duracuir1, ELV web and 8 others like this.
  2. bgrisso

    bgrisso Mar 30, 2020

    Posts
    2,115
    Likes
    4,156
    For our records the thicker moonphase disc above (cal 287) is 7.5mm diameter and 1.15mm thick

    the thinner moonphase disc is 7.9mm diameter and 0.6mm thick.

    my watchmaker said he could not be 100% sure without having the disc in hand but felt relatively sure the slightly larger and thinner disc is a UG disc and that it belongs to a cal 291 (triple date moonphase) as suspected.

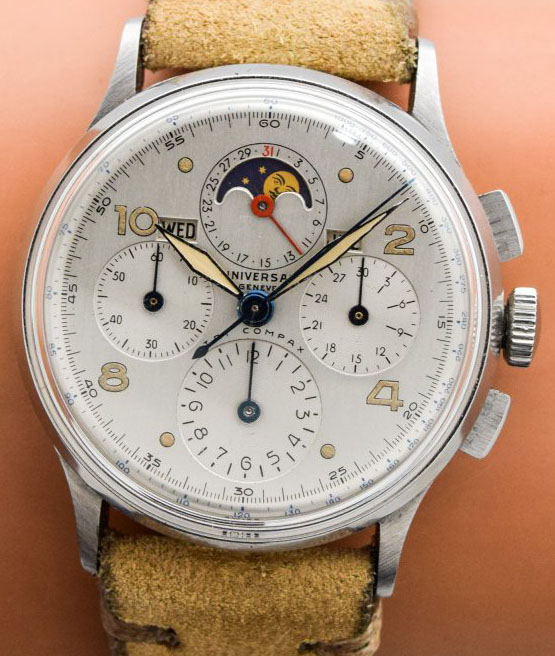

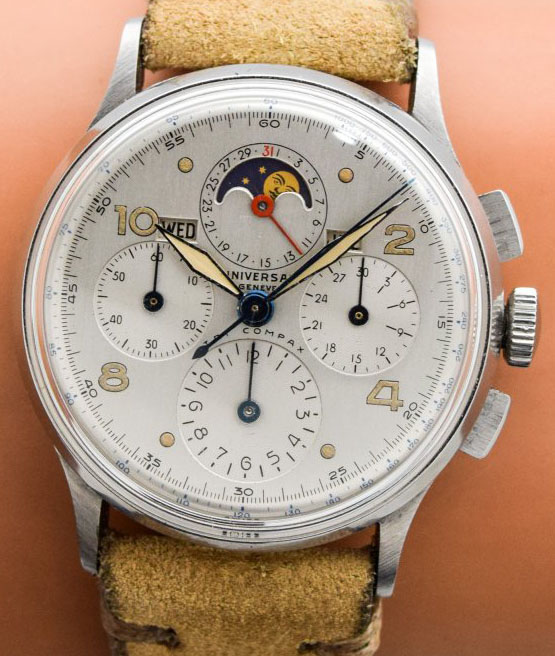

    Interesting that the two examples above are Tri Compax, and not triple date moonphase.

    If this theory is correct then it means this alternate face style is used in multiple calibers.

    Duracuir1 likes this.
  3. sdre

    sdre Mar 31, 2020

    Posts
    2,345
    Likes
    6,929
    they look angry and spooky. cool nonetheless :D

    Duracuir1 likes this.
  4. jsducote

    jsducote Mar 31, 2020

    Posts
    470
    Likes
    438
    I think the variation goes along with what we (think we) already know about UG visually: Differences in dials are not necessarily alarming, so inconsistency among moon faces wouldn't be cause for alarm either. I think it's also generally accepted that the service discs were without face, but the size and thickness should be the same for the same calibres.

    billving likes this.
