Let's see some Eterna cal 852 manual wind watches

  1. minutenrohr Dec 28, 2021

    Posts
    1,563
    Likes
    18,915

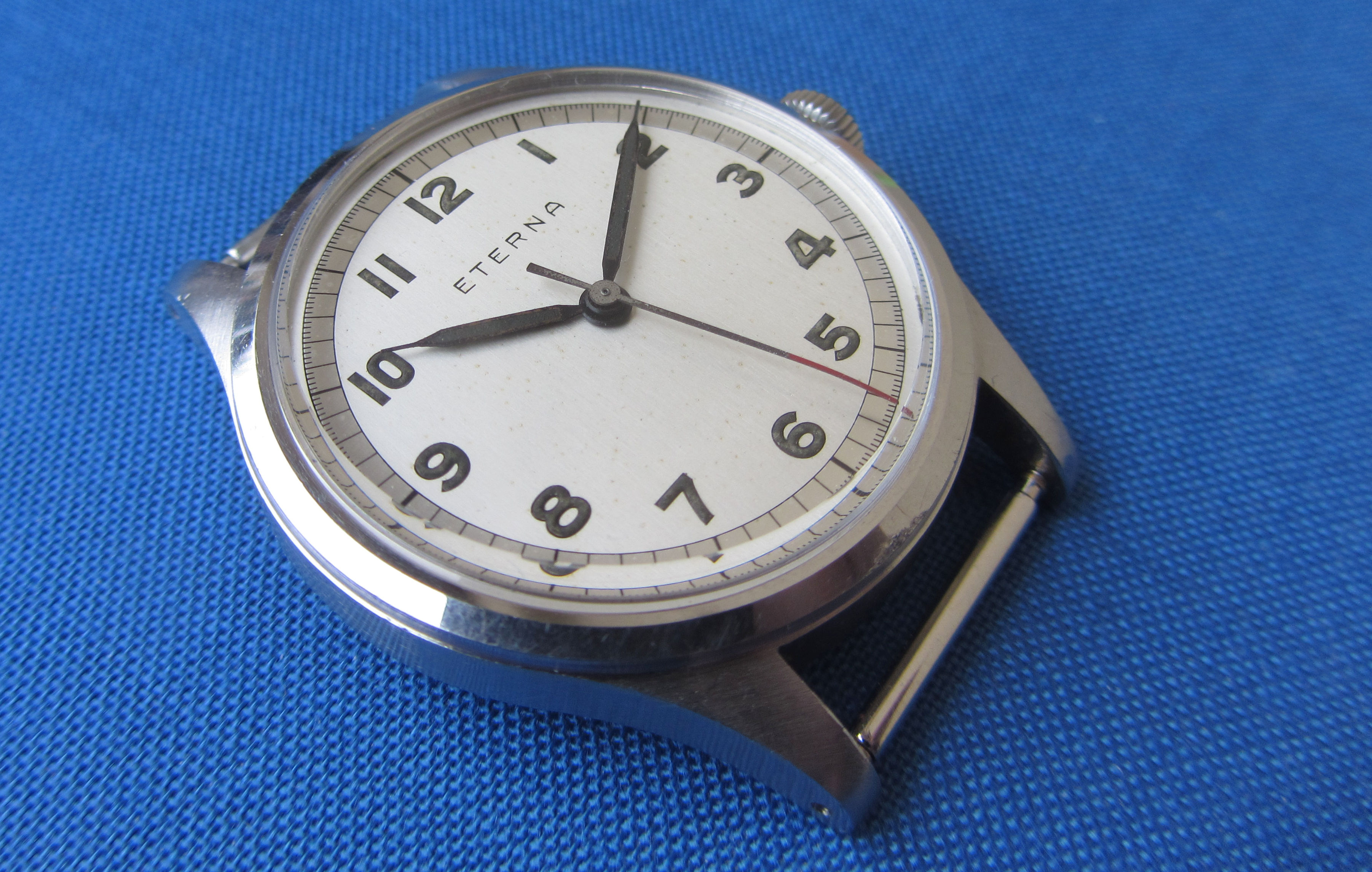

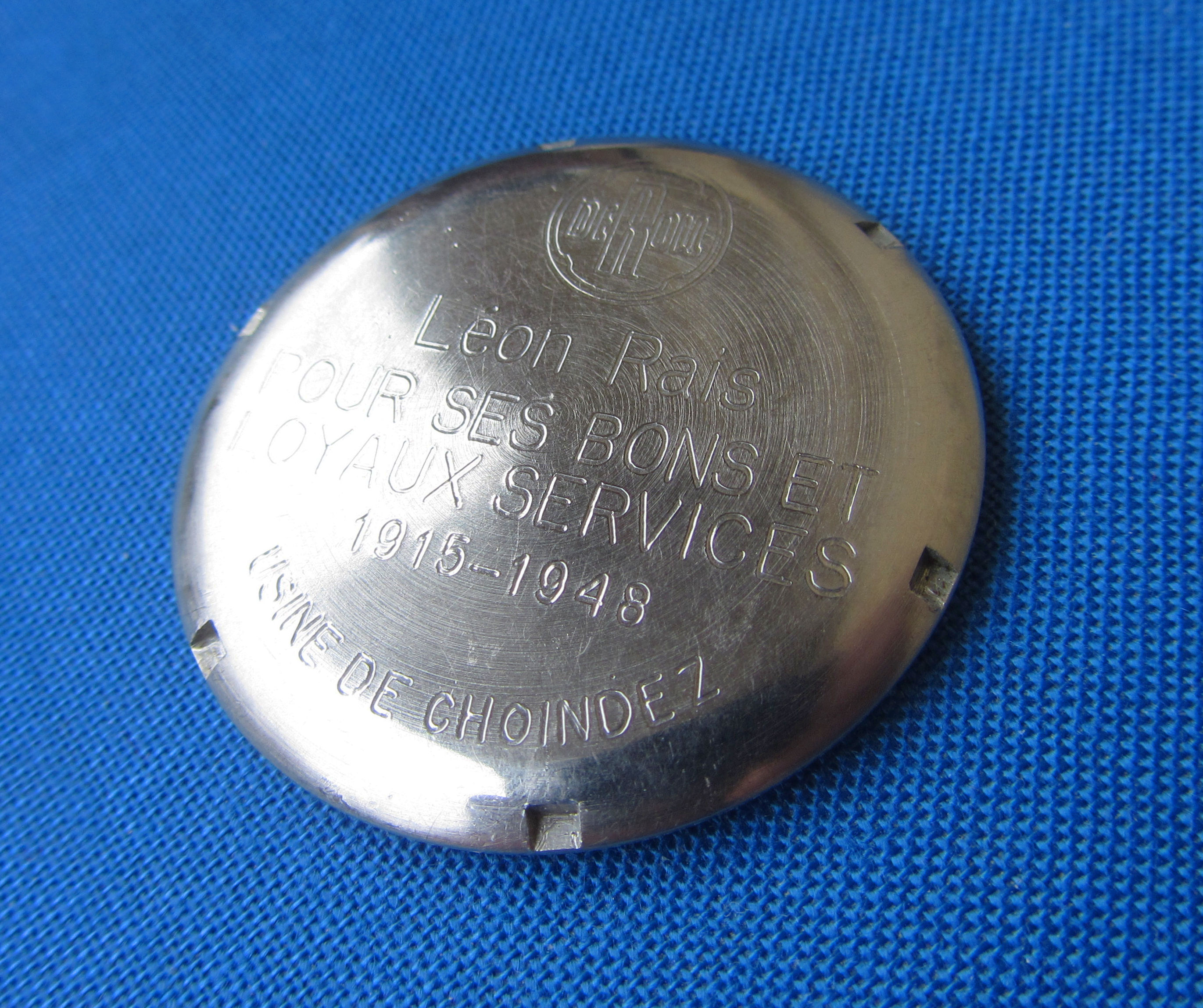

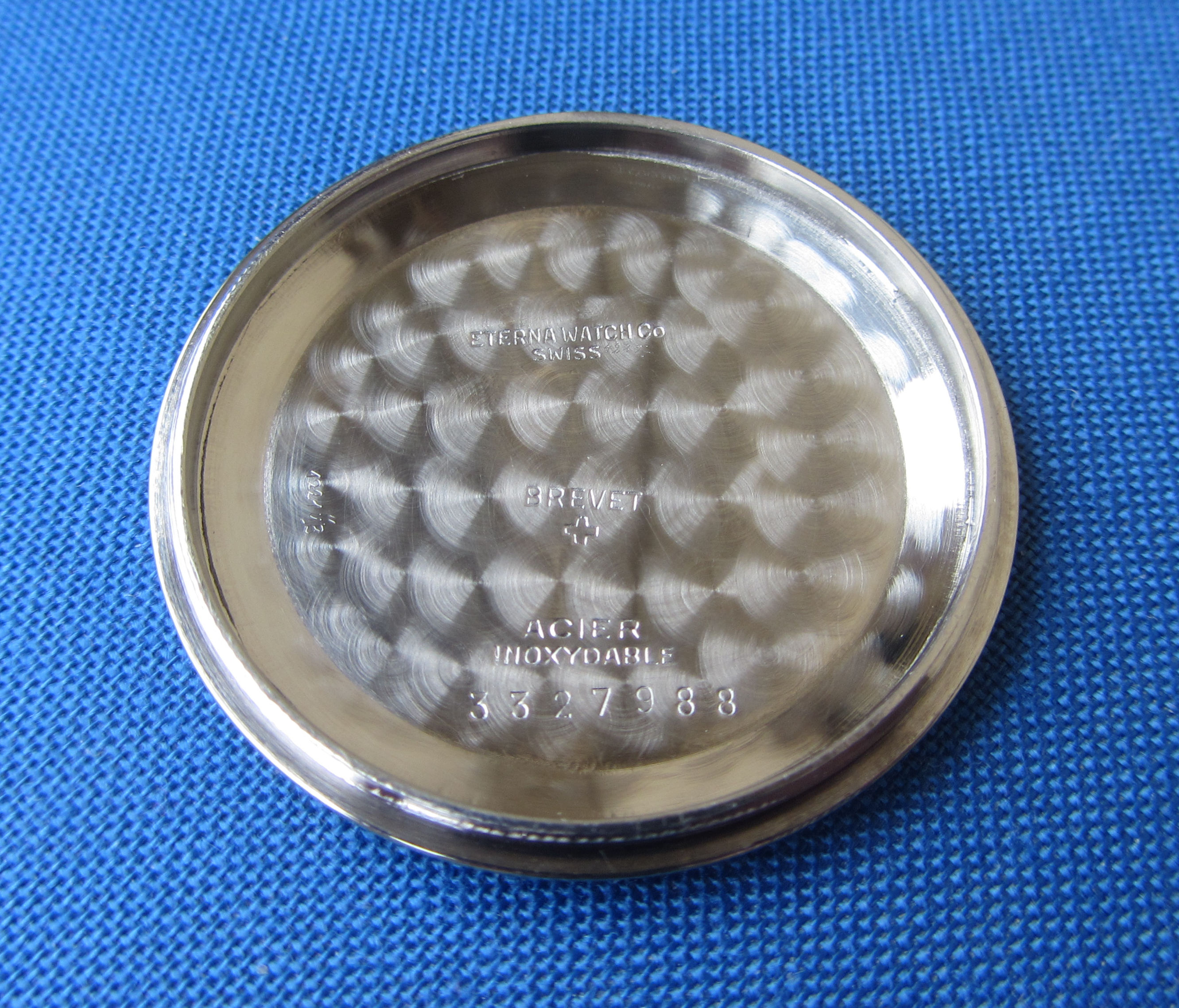

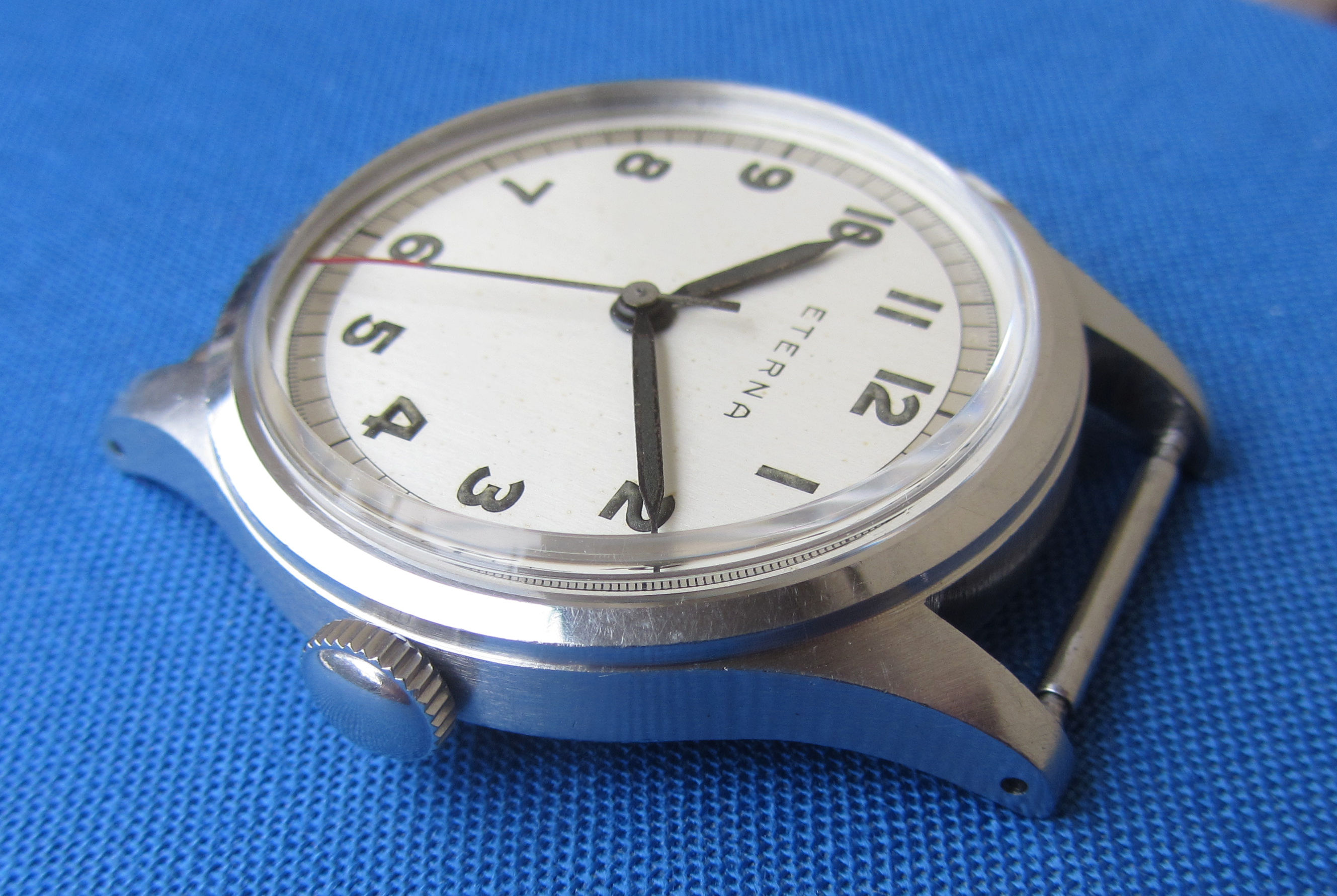

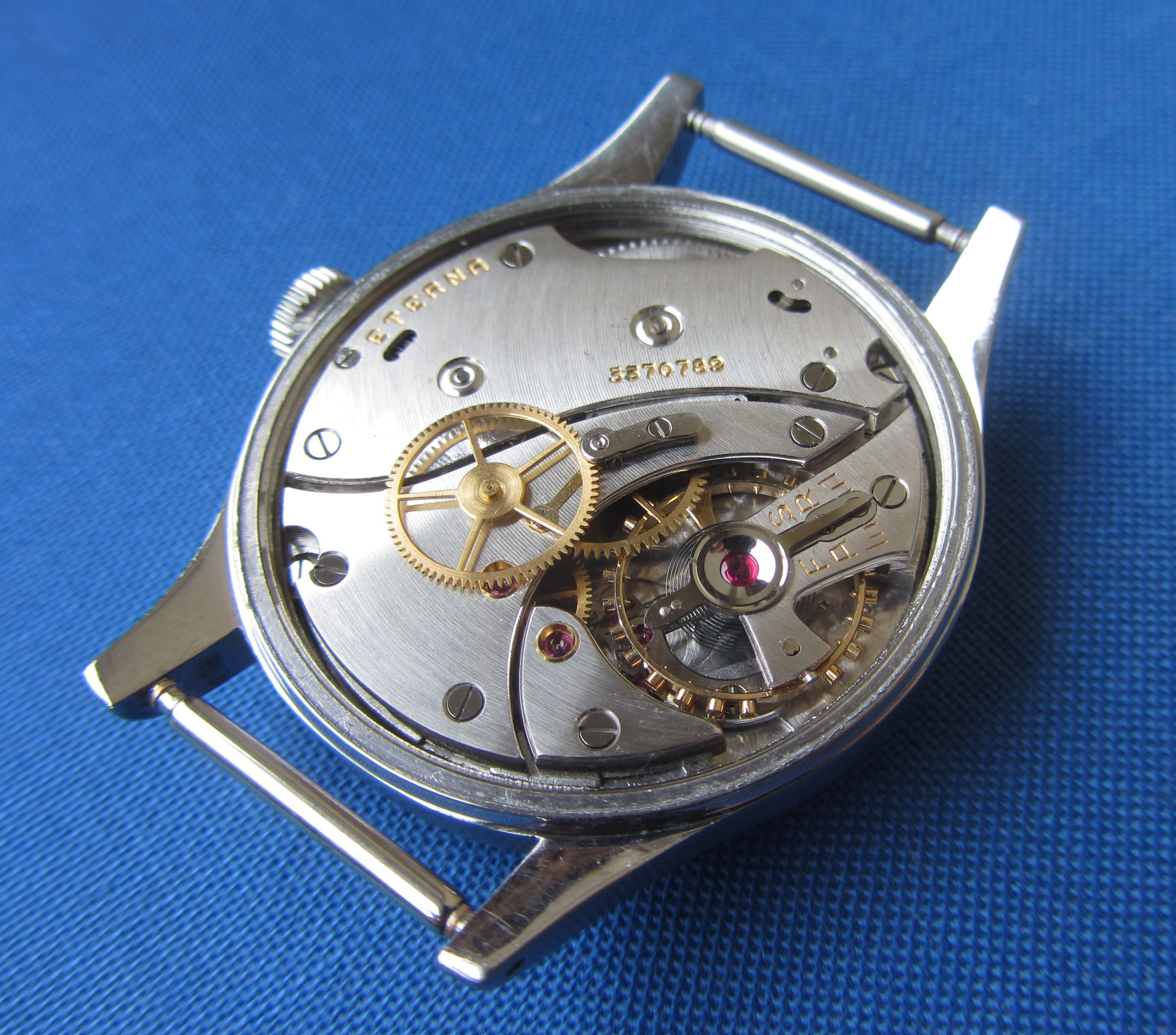

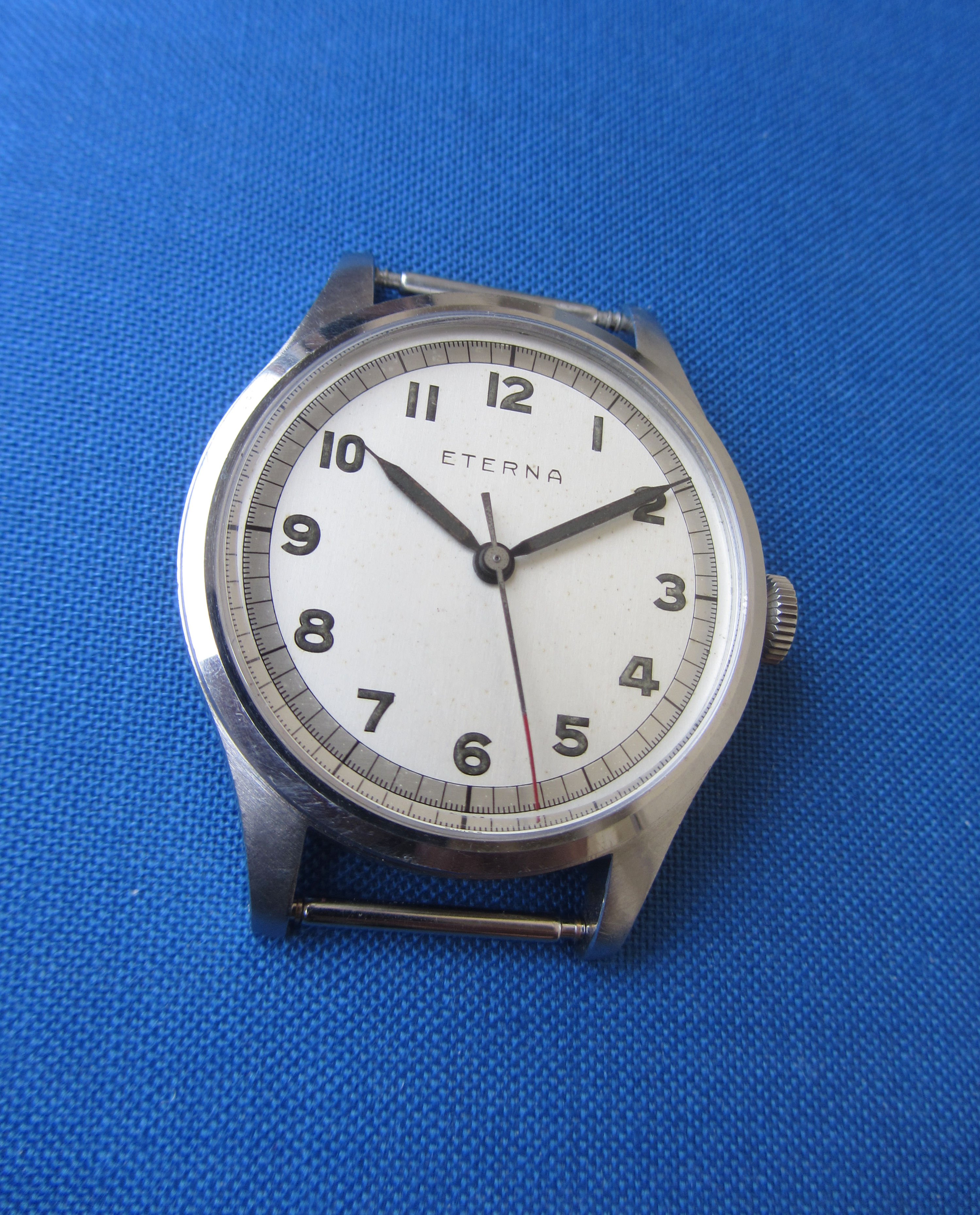

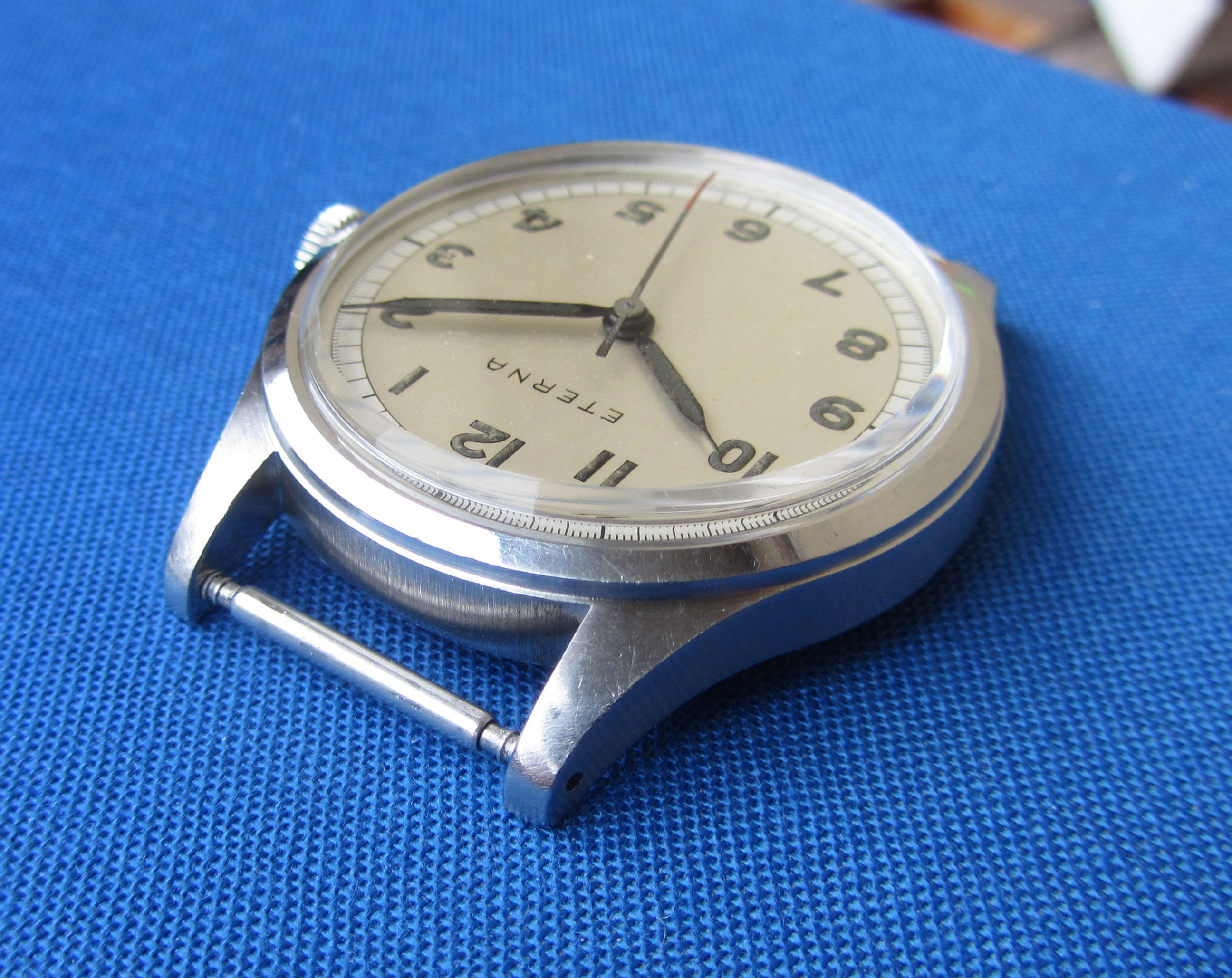

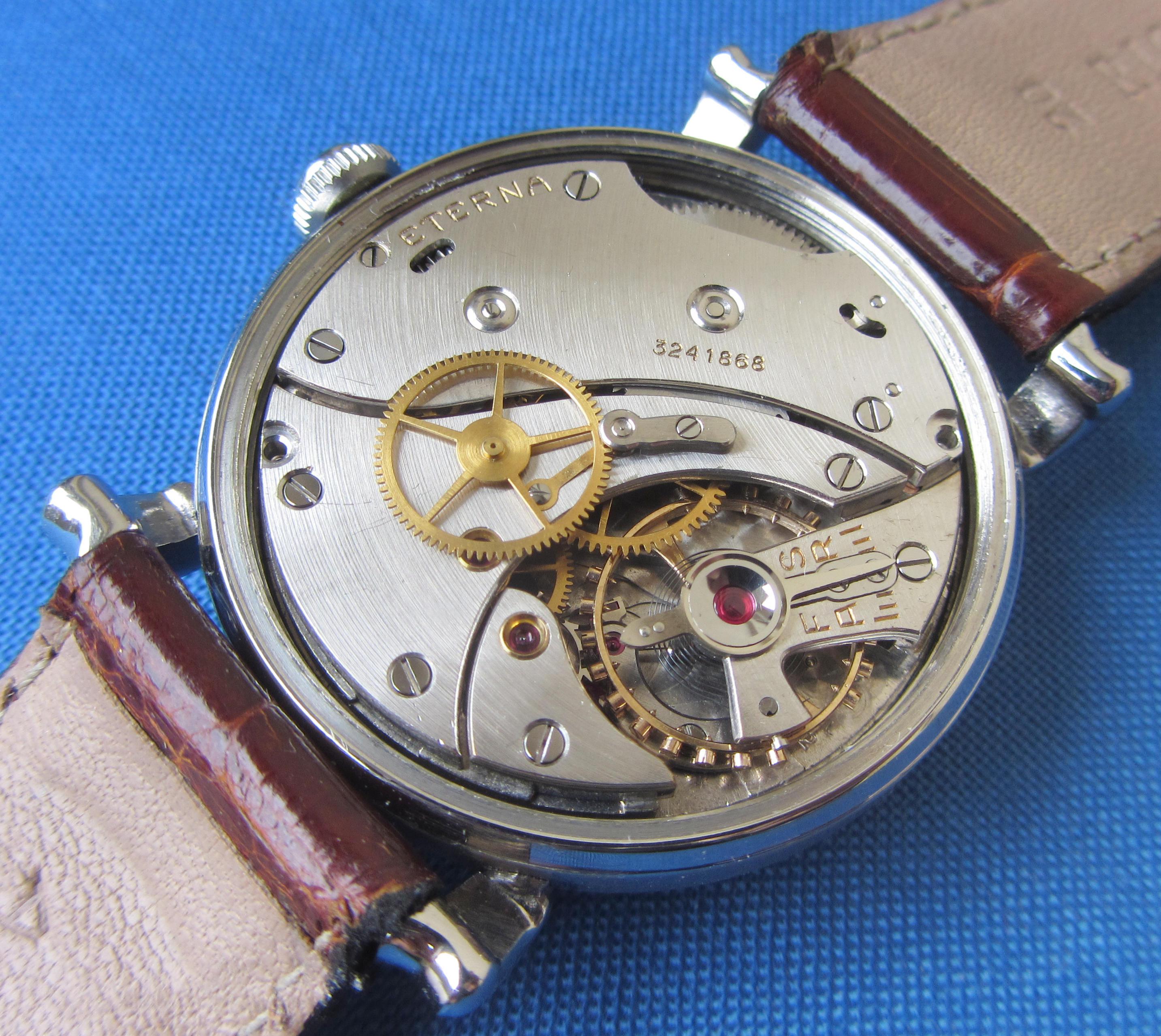

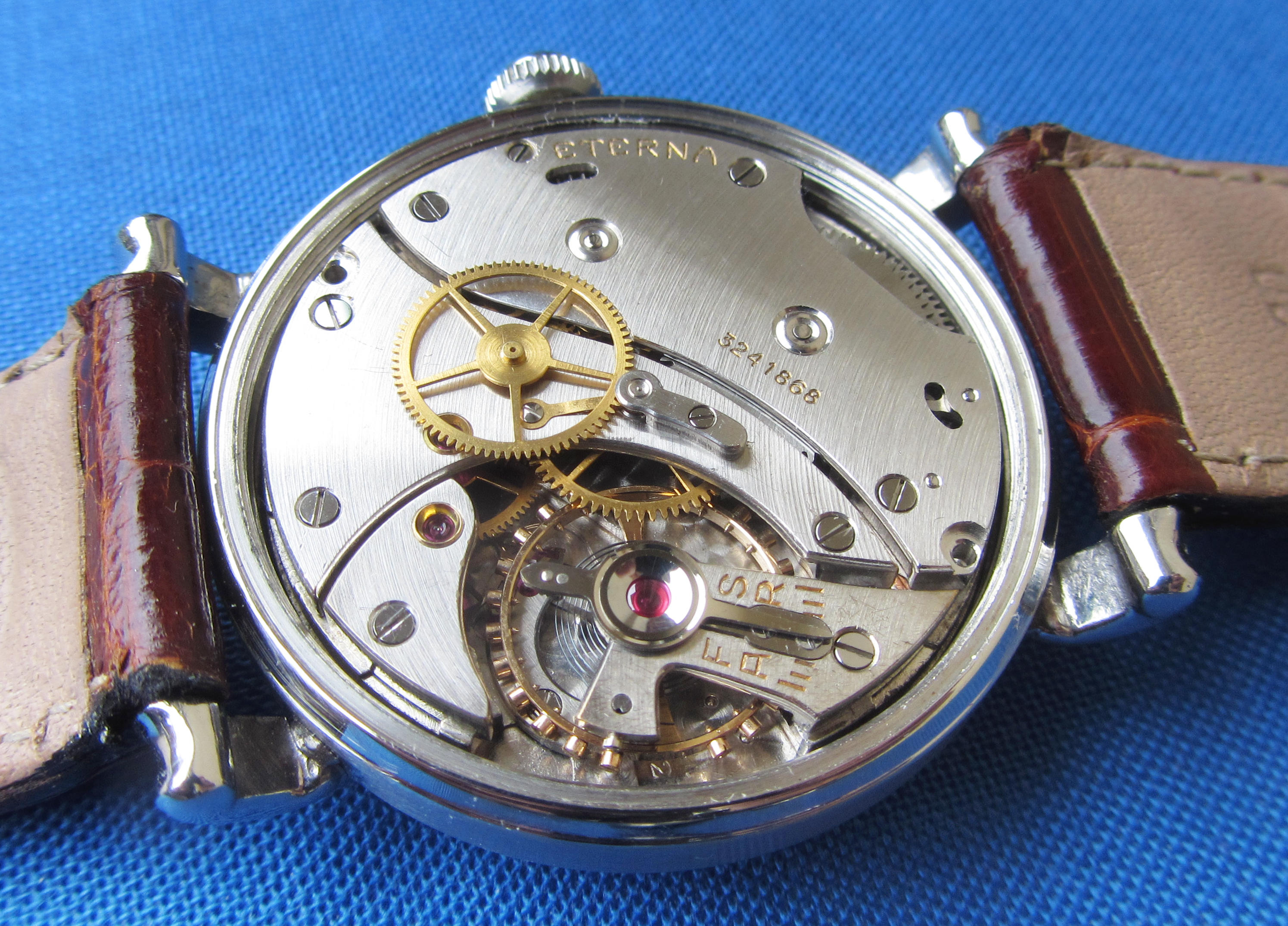

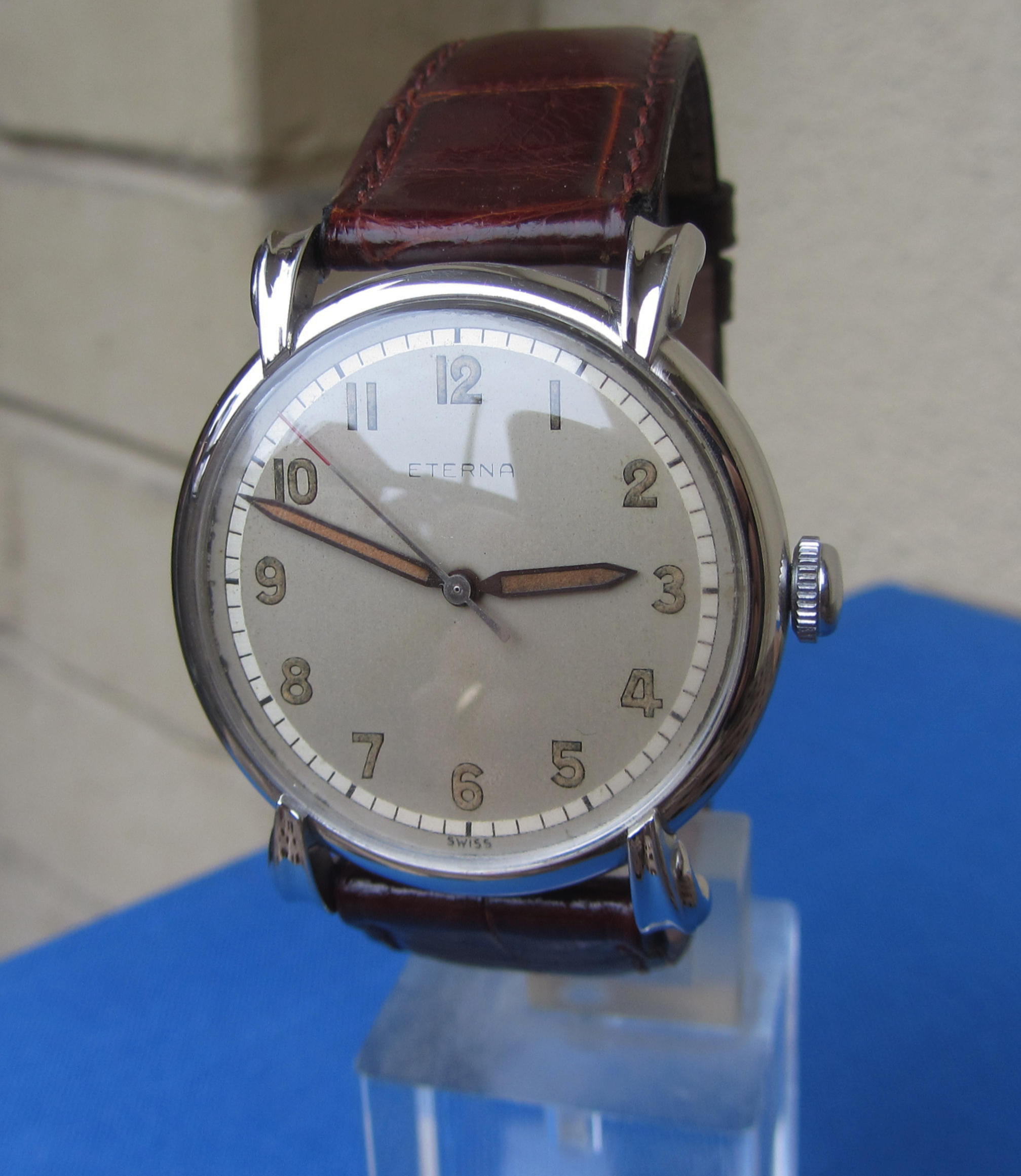

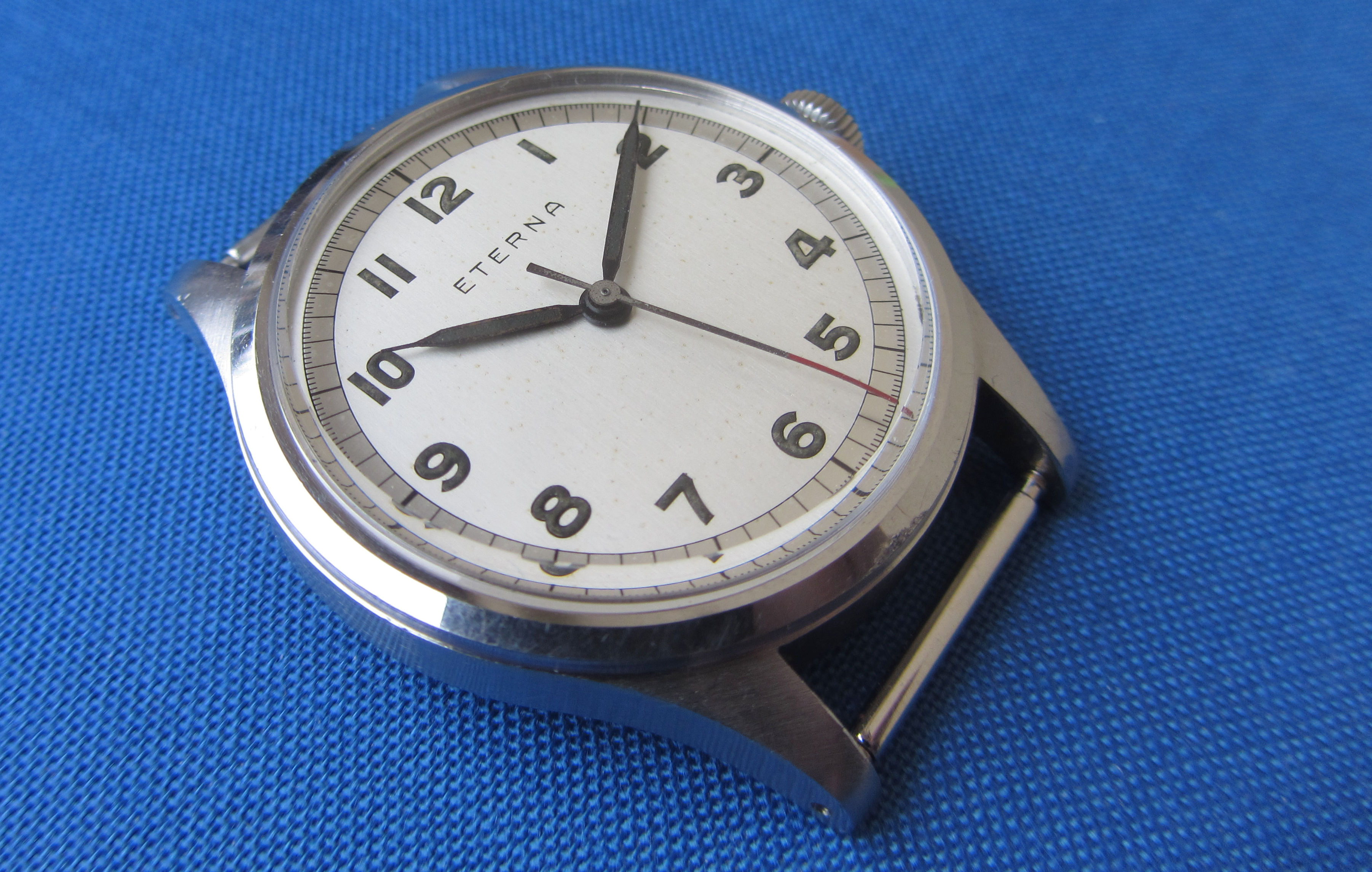

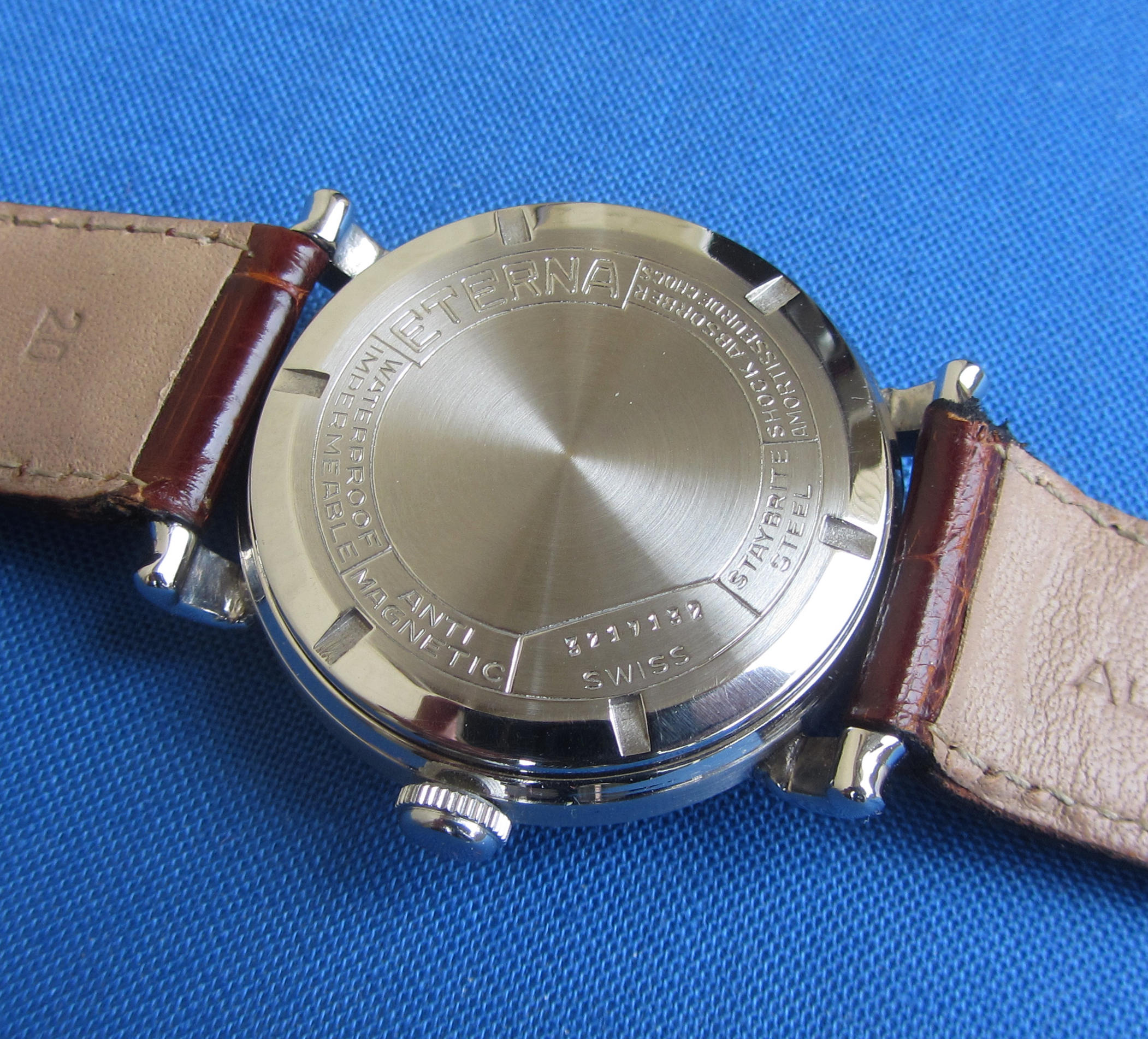

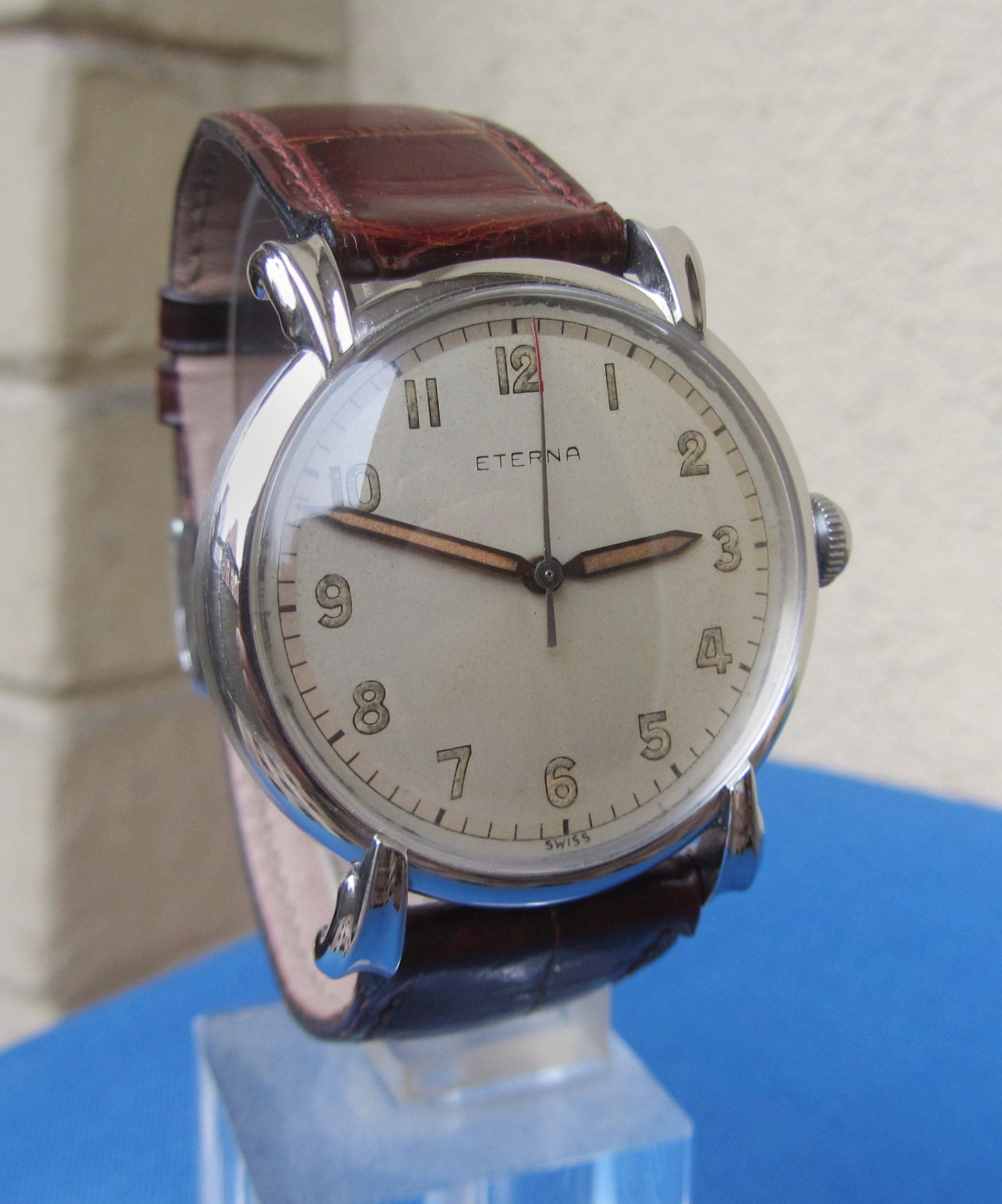

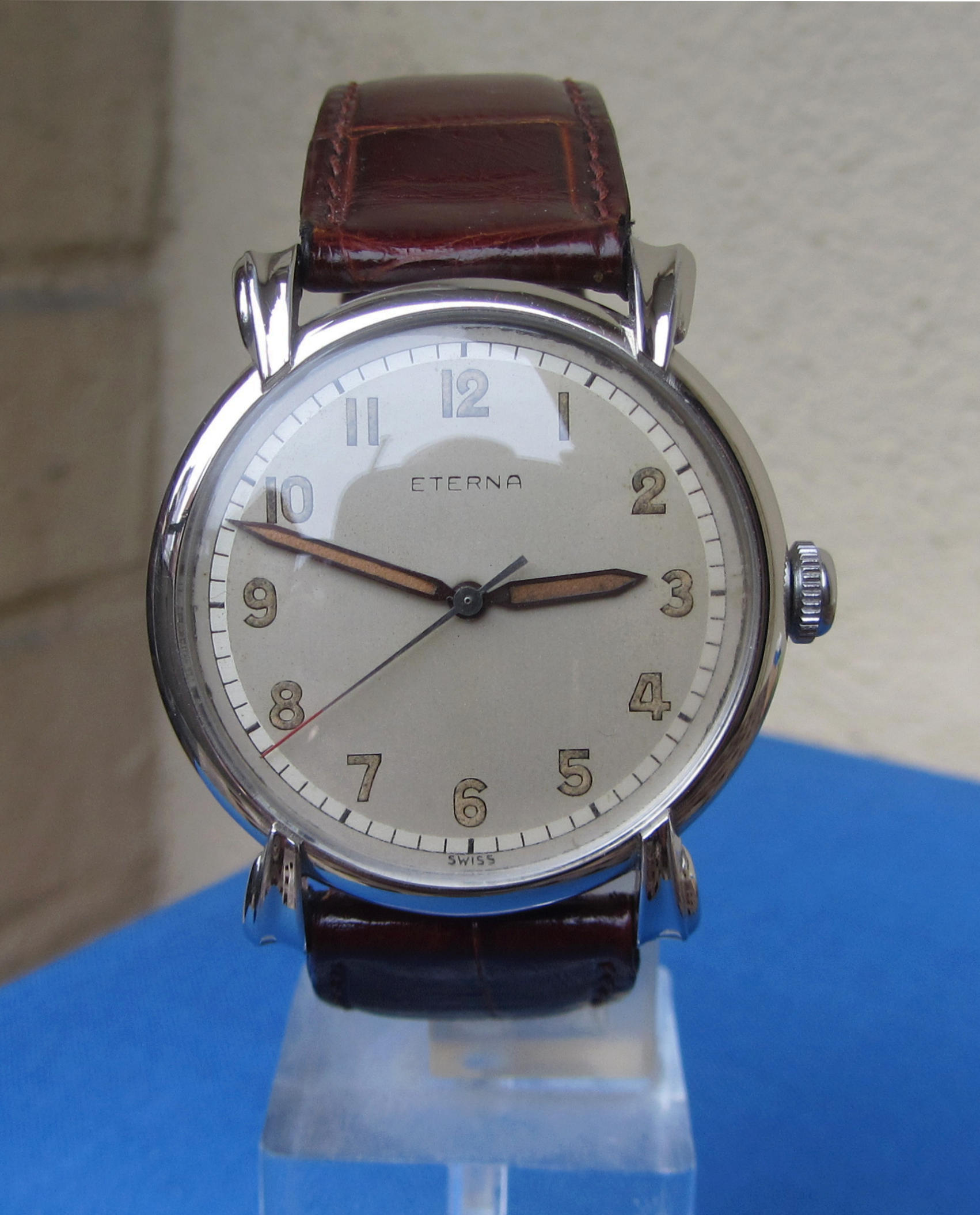

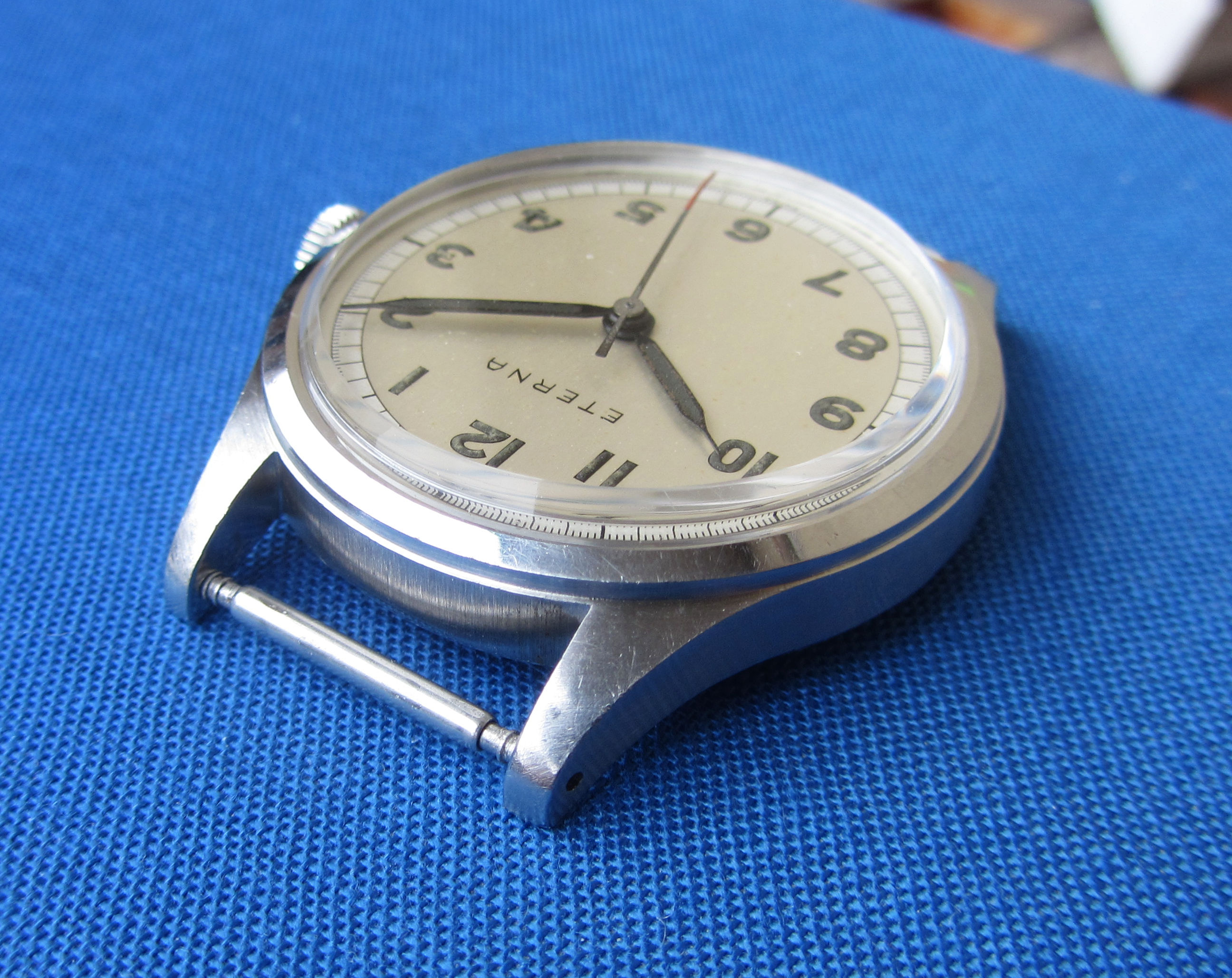

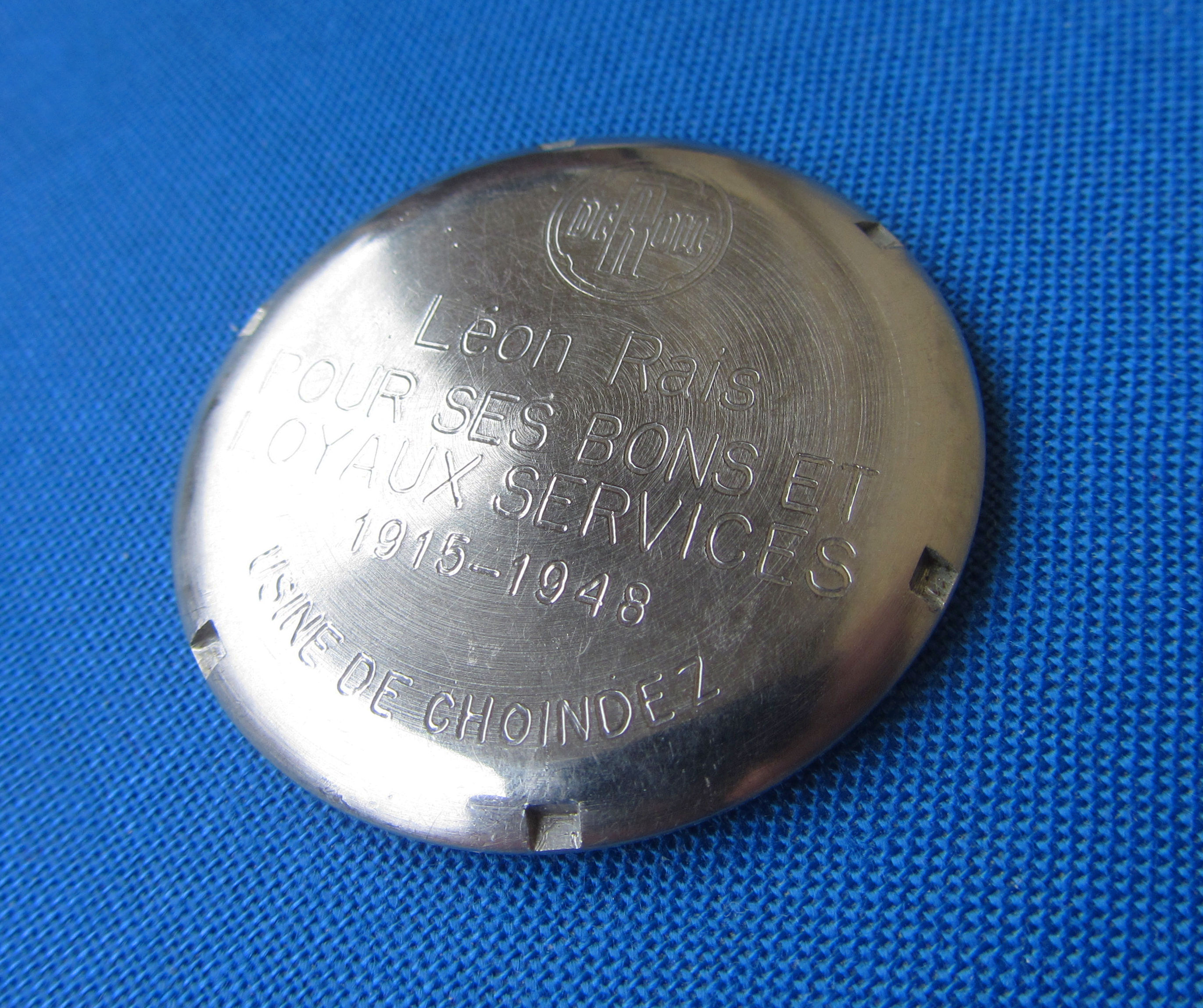

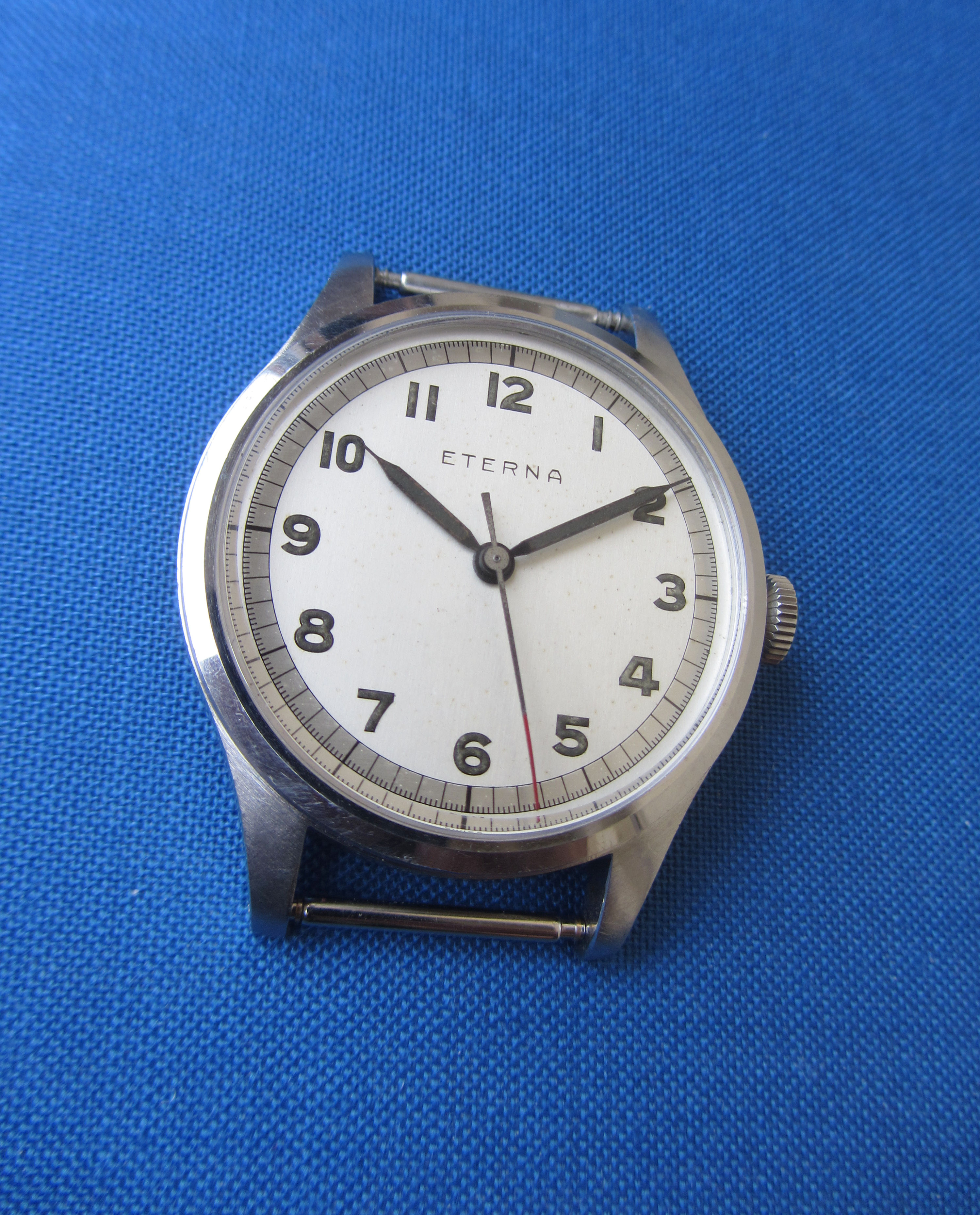

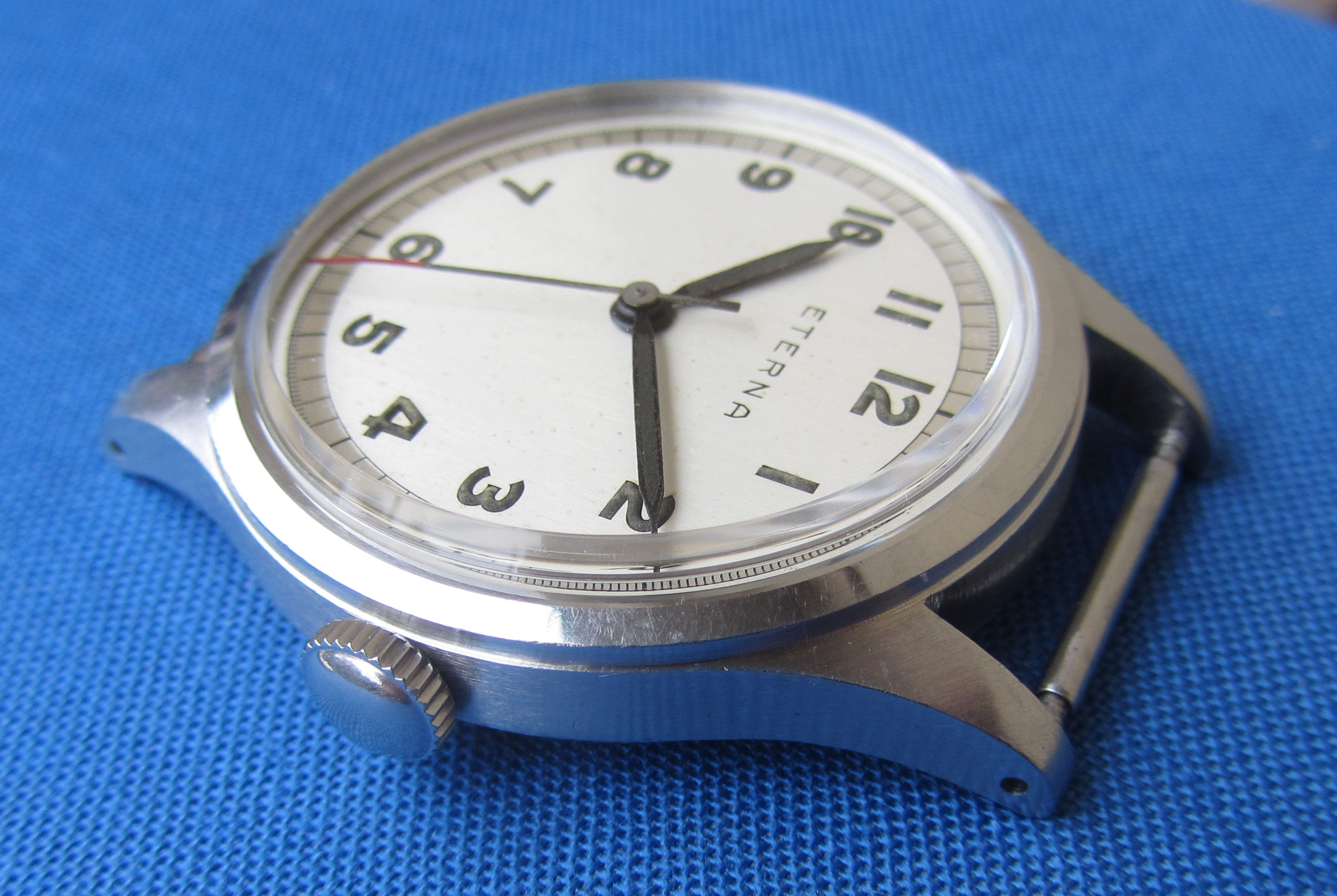

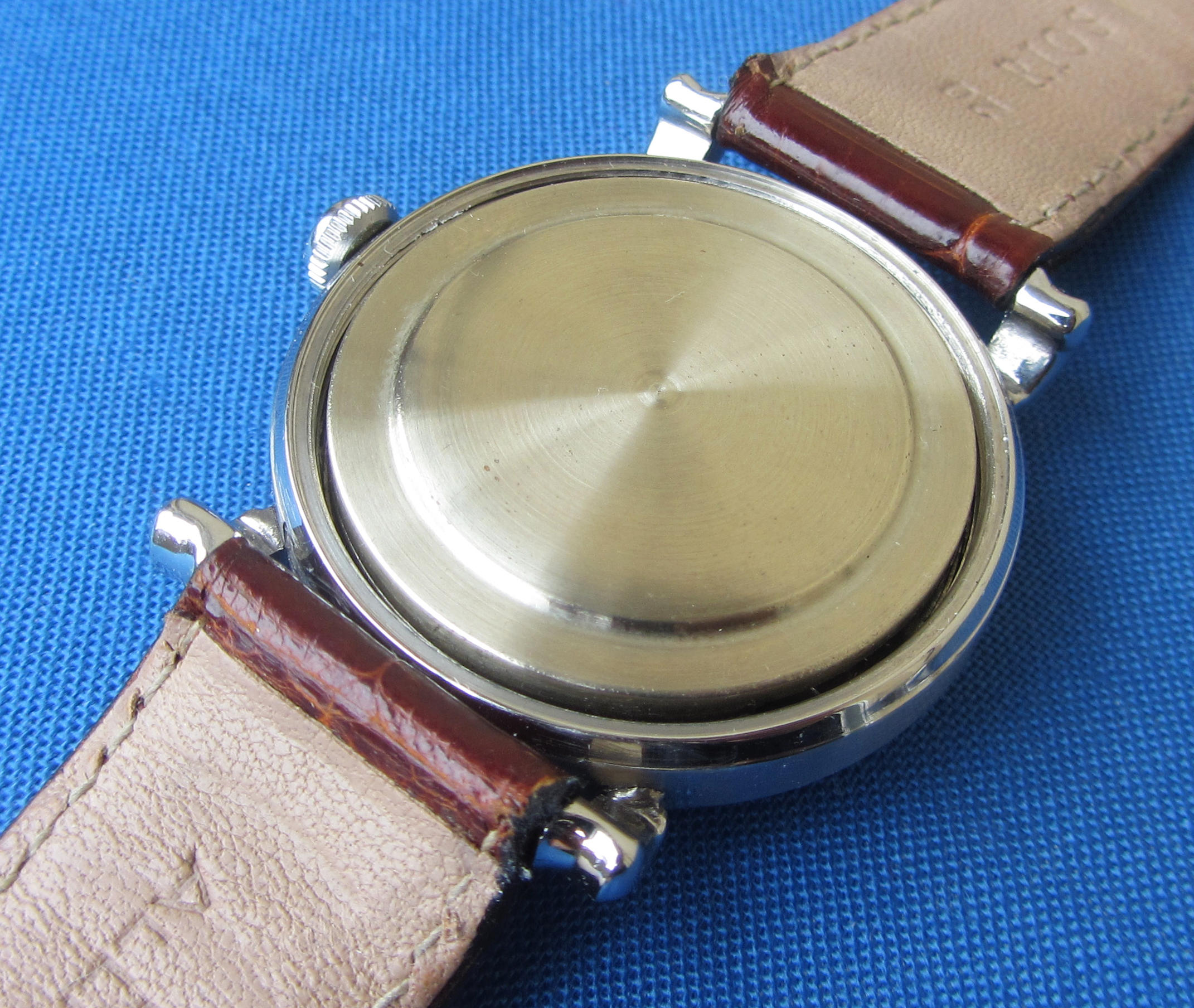

    I thought I could suggest a small but nice thread showing Eterna cal. 852 watches. The occasion is the completion of a repair of one of my current favorites, a 36.5 mm steel watch with the 852S - still without shock protection. The balance staff was broken, as well as the bearing jewel under the balance. In addition, the mainspring was weak. Now everything is like new and I am very happy.

    Best regards - HU

    IMG_9299.JPG IMG_9301.JPG IMG_9302.JPG IMG_9303.JPG IMG_9305.JPG IMG_9306.JPG IMG_9307.JPG IMG_9308.JPG

    __ryan__, Zapatta, bubba48 and 6 others like this.
  2. Tony C. Ωf Jury member Dec 28, 2021

    Posts
    5,708
    Likes
    16,637
    A beauty, HU!

    Congratulations, and all the best for the New Year.

    minutenrohr likes this.
  3. DirtyDozen12 Thanks, mystery donor! Dec 28, 2021

    Posts
    1,893
    Likes
    3,042
    It really is like new. Great photos of a beautiful example.

    minutenrohr likes this.
  4. size11s Can’t bat, can’t bowl Dec 28, 2021

    Posts
    406
    Likes
    551

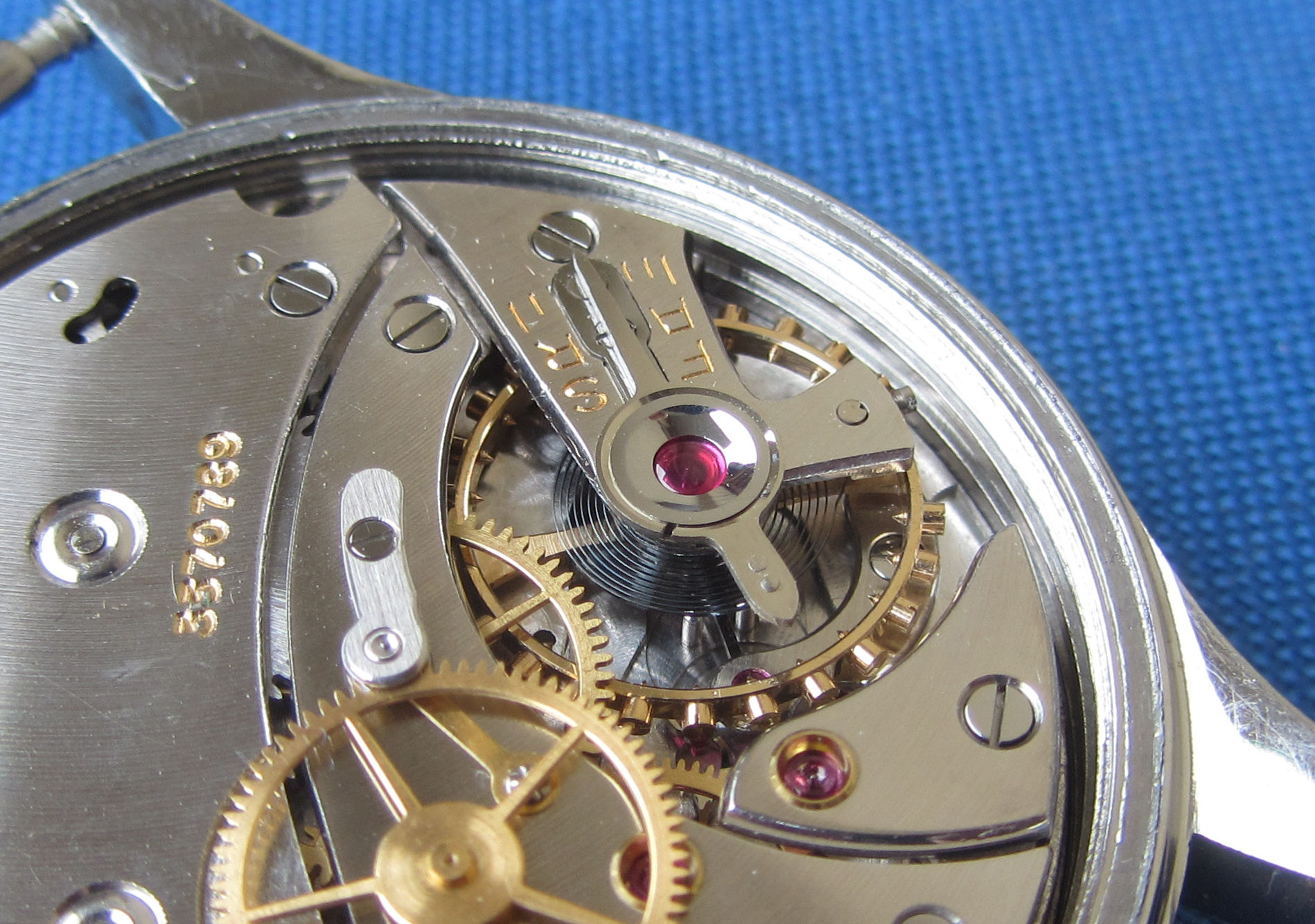

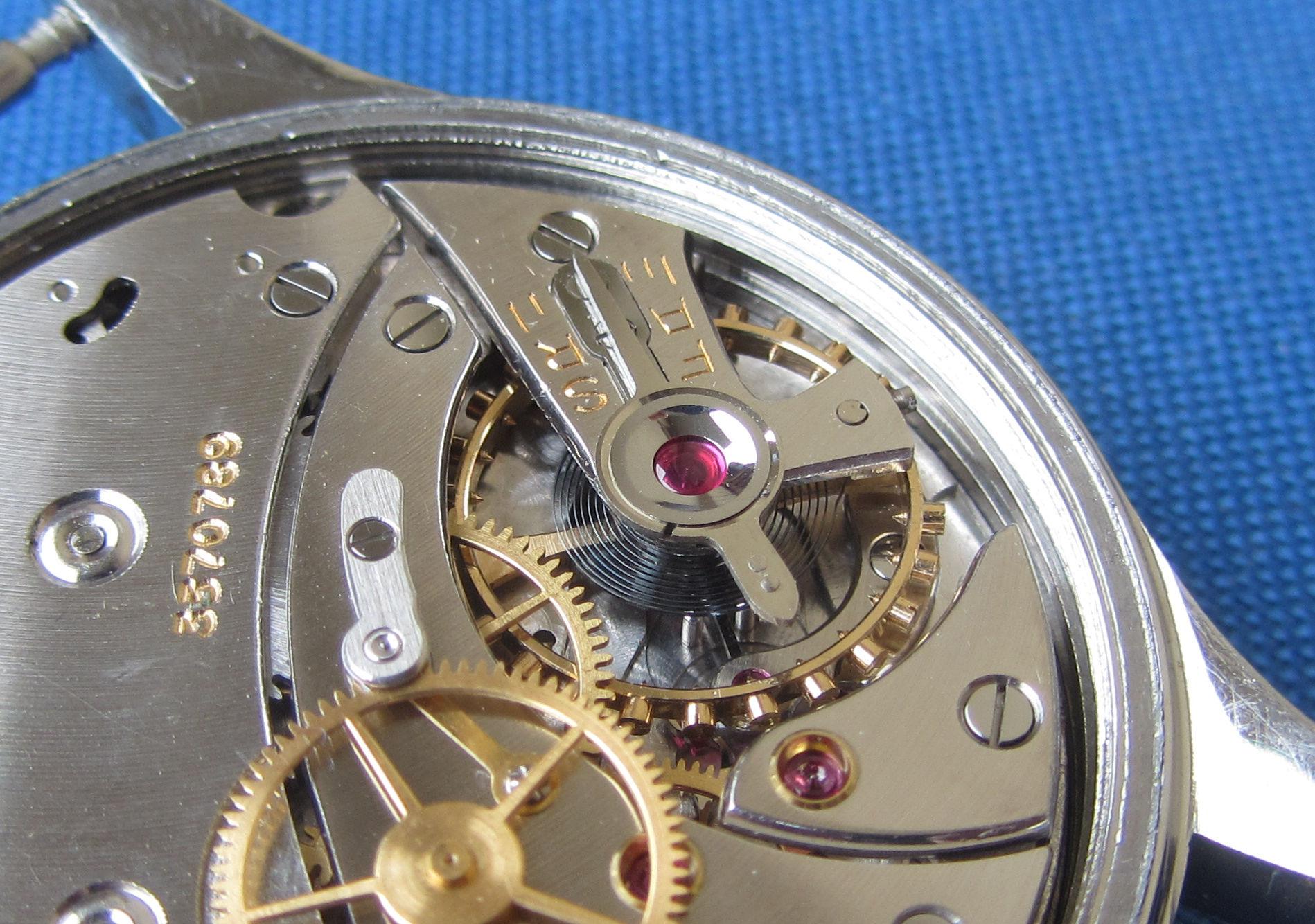

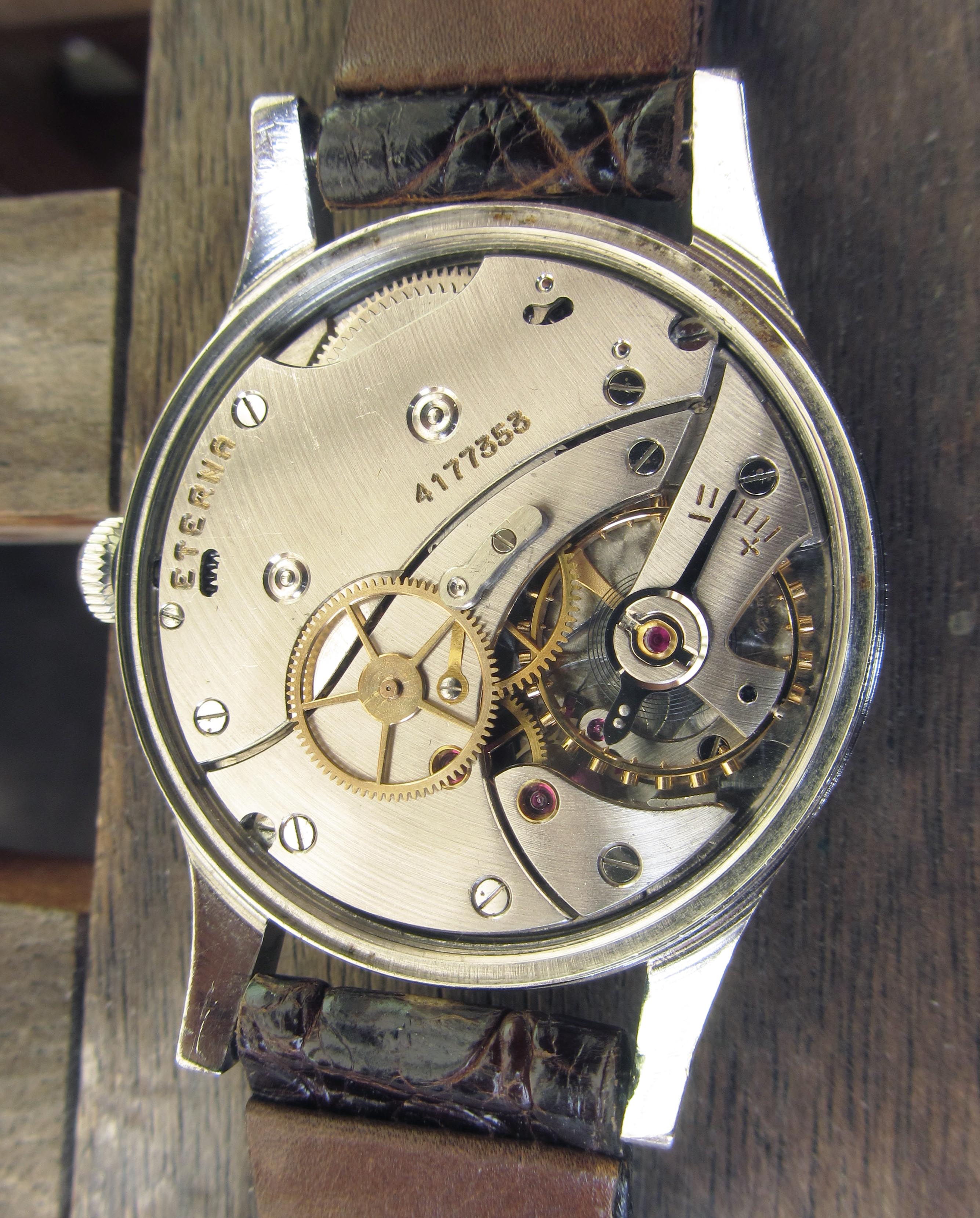

    Fabulous watch, congratulations. I thought that the screwed in element seen under the regulator arm was part of some kind of shock protection on these great movements. No?

    DirtyDozen12 likes this.
  5. minutenrohr Dec 28, 2021

    Posts
    1,563
    Likes
    18,915

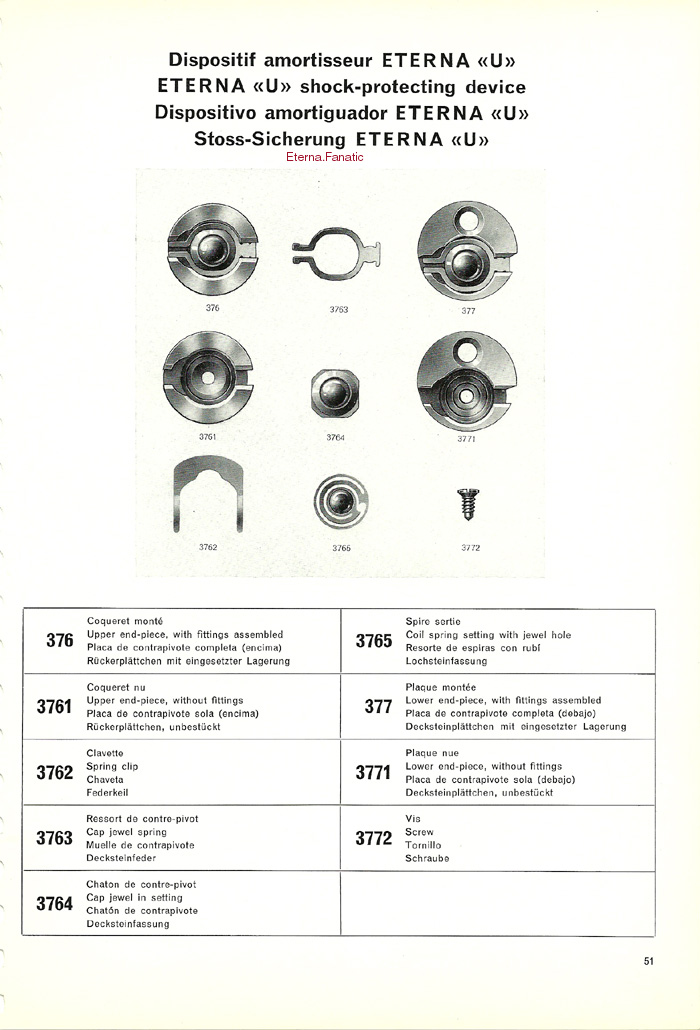

    Correct. I should have written that the watch has an "early" shock protection. My point was to distinguish between the "early" shock protection (which I can't really imagine springing the baring jewels in such a way that the balance staff is halfway secured - especially since a really large balance is mounted) and the later shock protection concepts, where you can recognize from above that a spring is active.

    Thanks Tony and of course the same for you!

    Thanks also to DD12 who helped me a lot with this watch!

    size11s and DirtyDozen12 like this.
  6. minutenrohr Dec 29, 2021

    Posts
    1,563
    Likes
    18,915
    After a restless night with dreams of baring jewels, feathers and staffs, I spoke with my watchmaker on the phone. On my question whether he finds that the watch has a shock protection, he answered spontaneously with "No". On my objection that it must be a "kind" of shock protection (or intended as such) he said that then the steel plate on the balance cock (with the two screws) should be much thinner or softer - e.g. made of brass. But it looked as if someone had thought that construction at least in the direction of shock protection...

    DirtyDozen12 and size11s like this.
  7. minutenrohr Dec 29, 2021

    Posts
    1,563
    Likes
    18,915

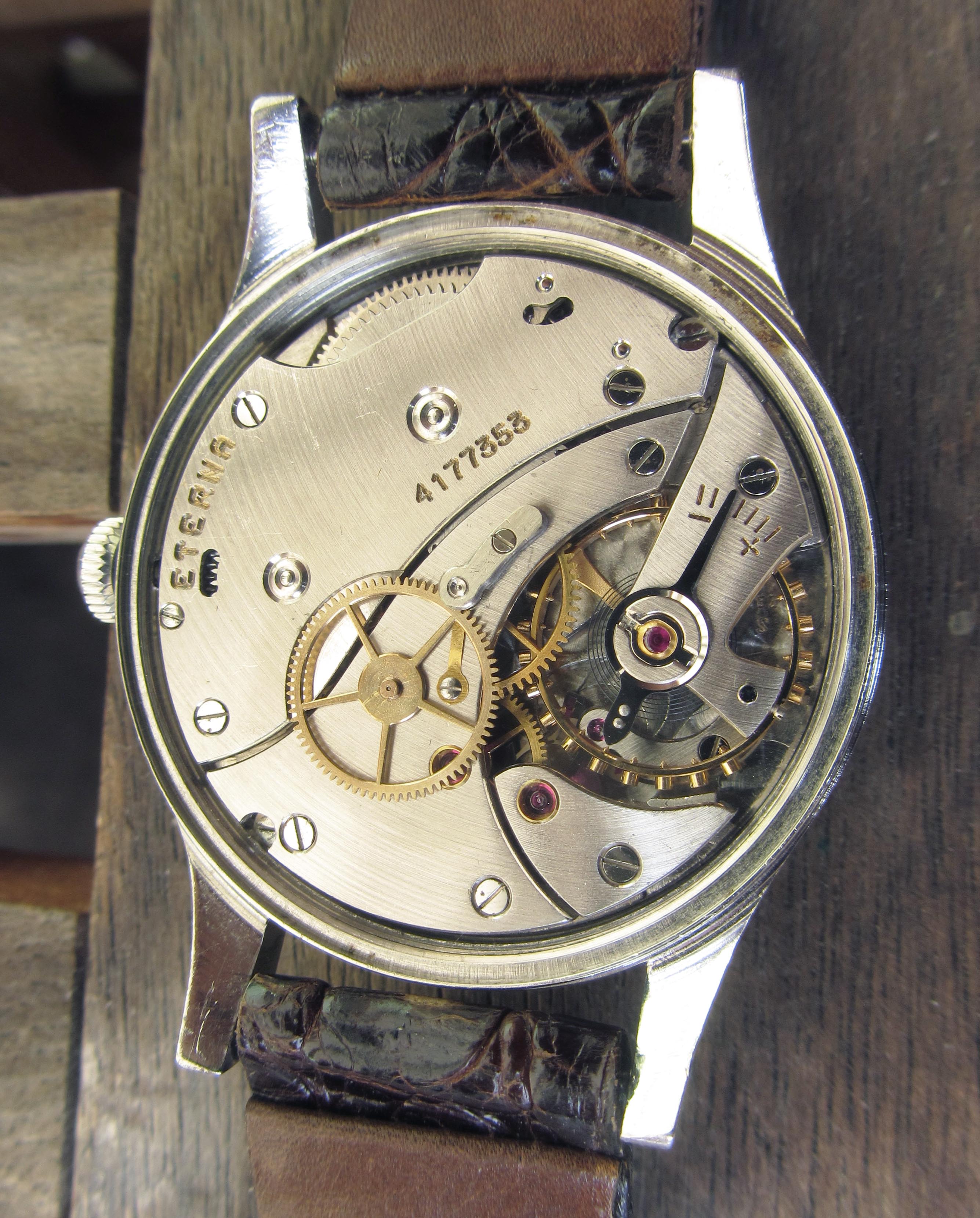

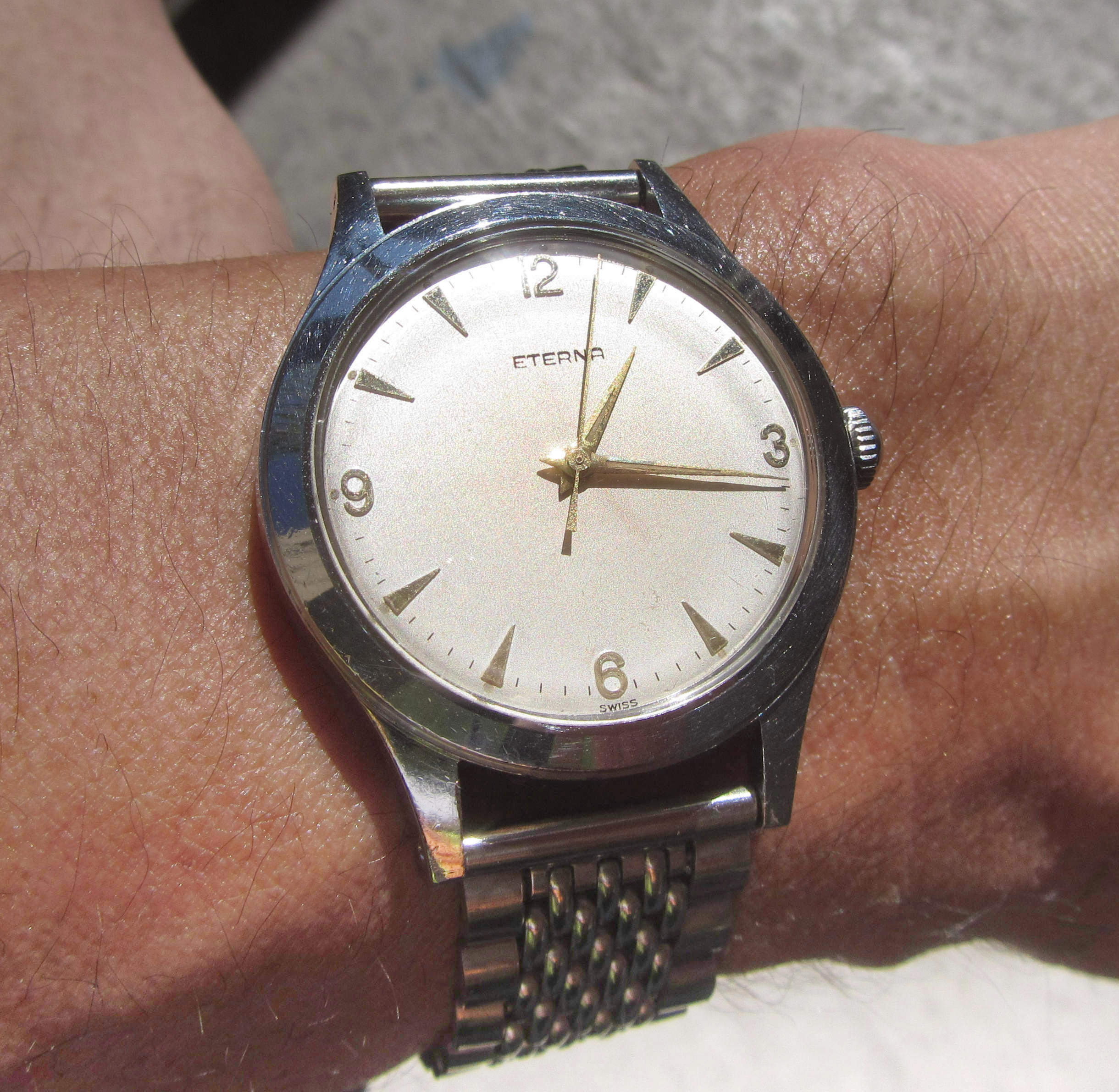

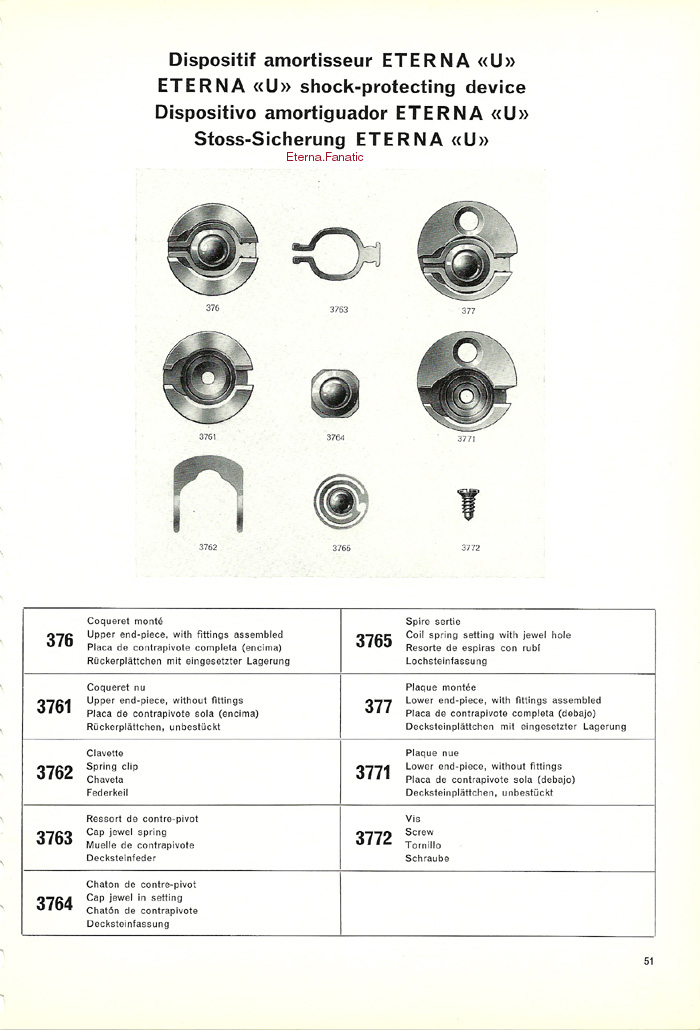

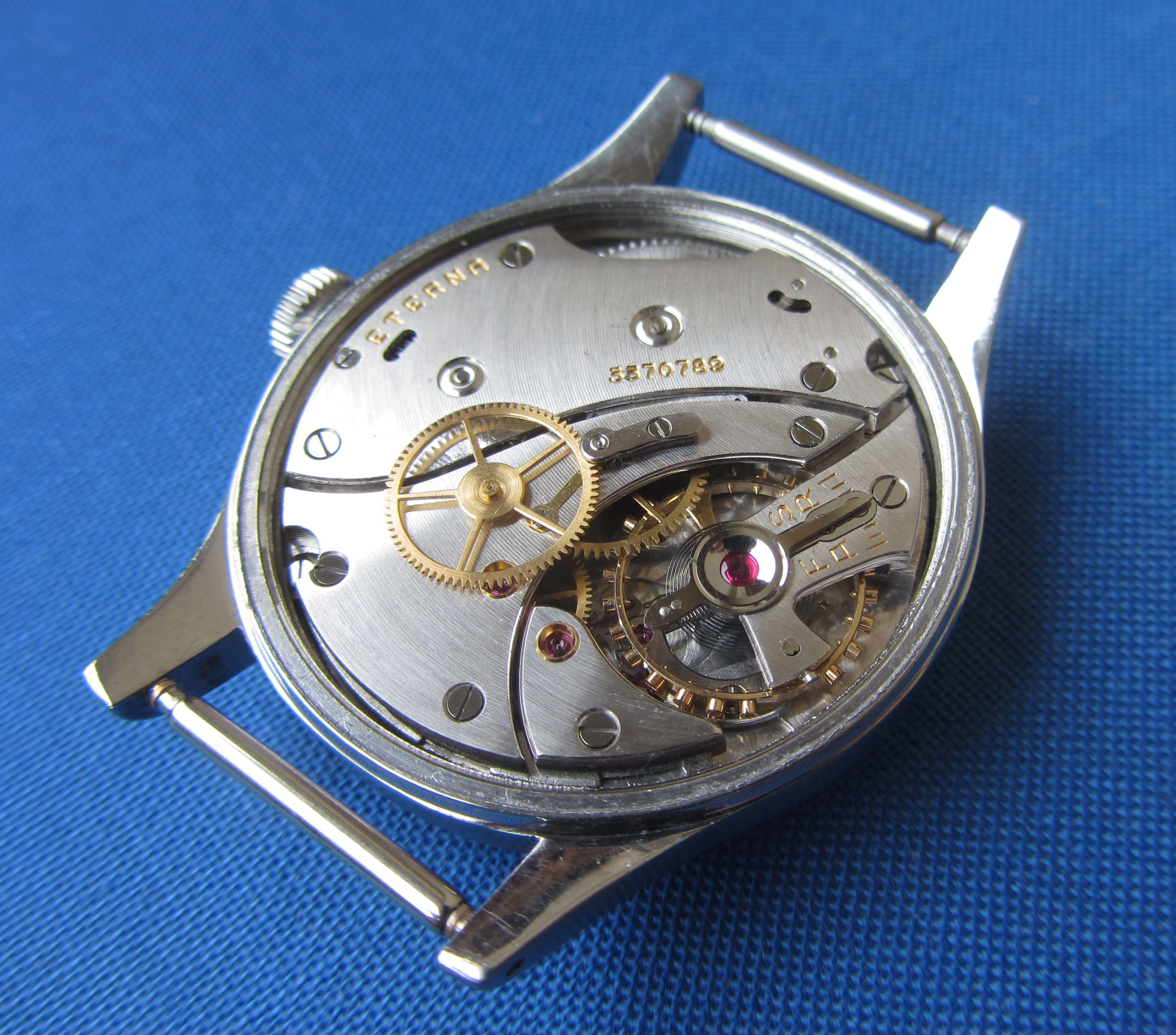

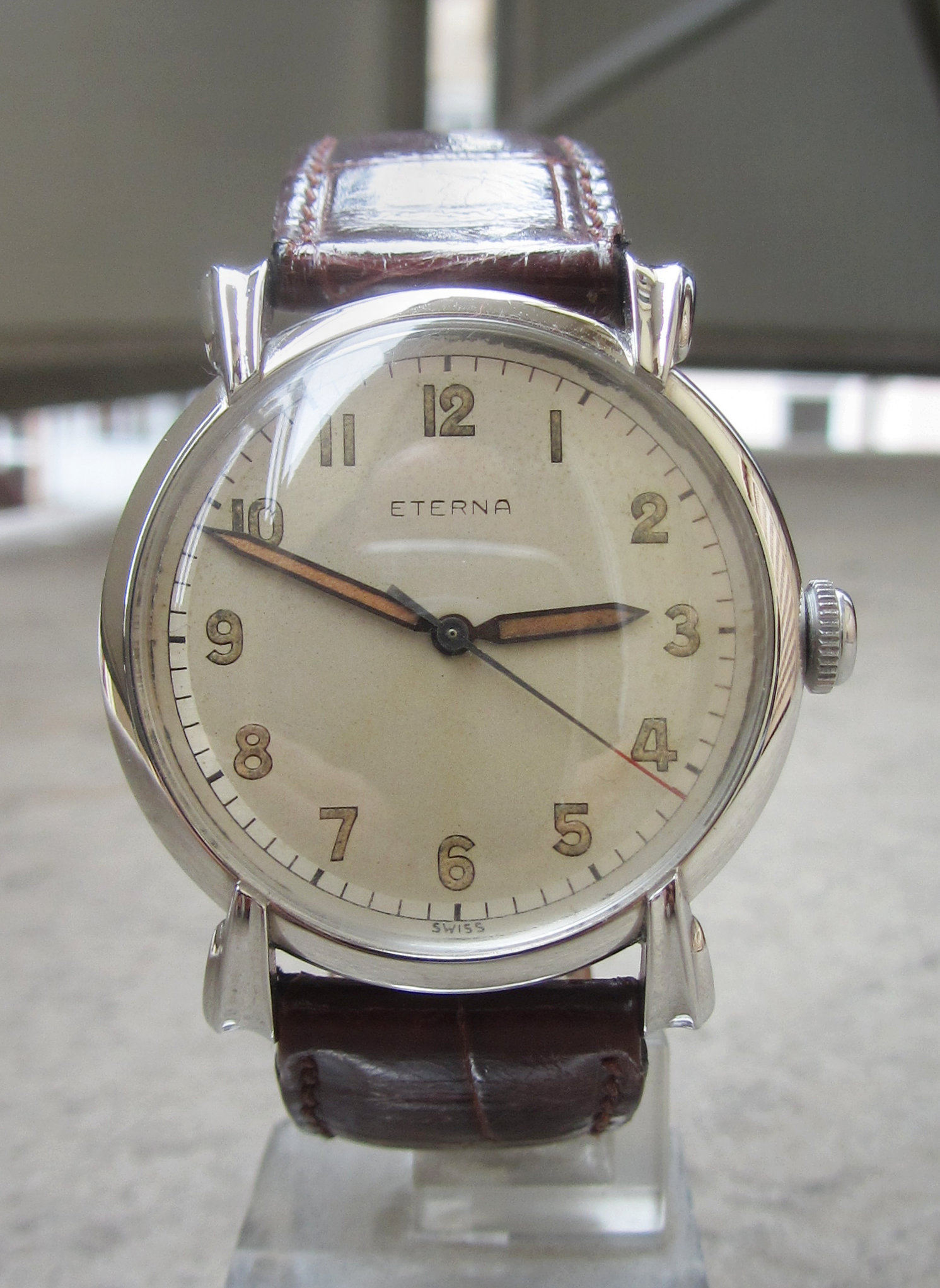

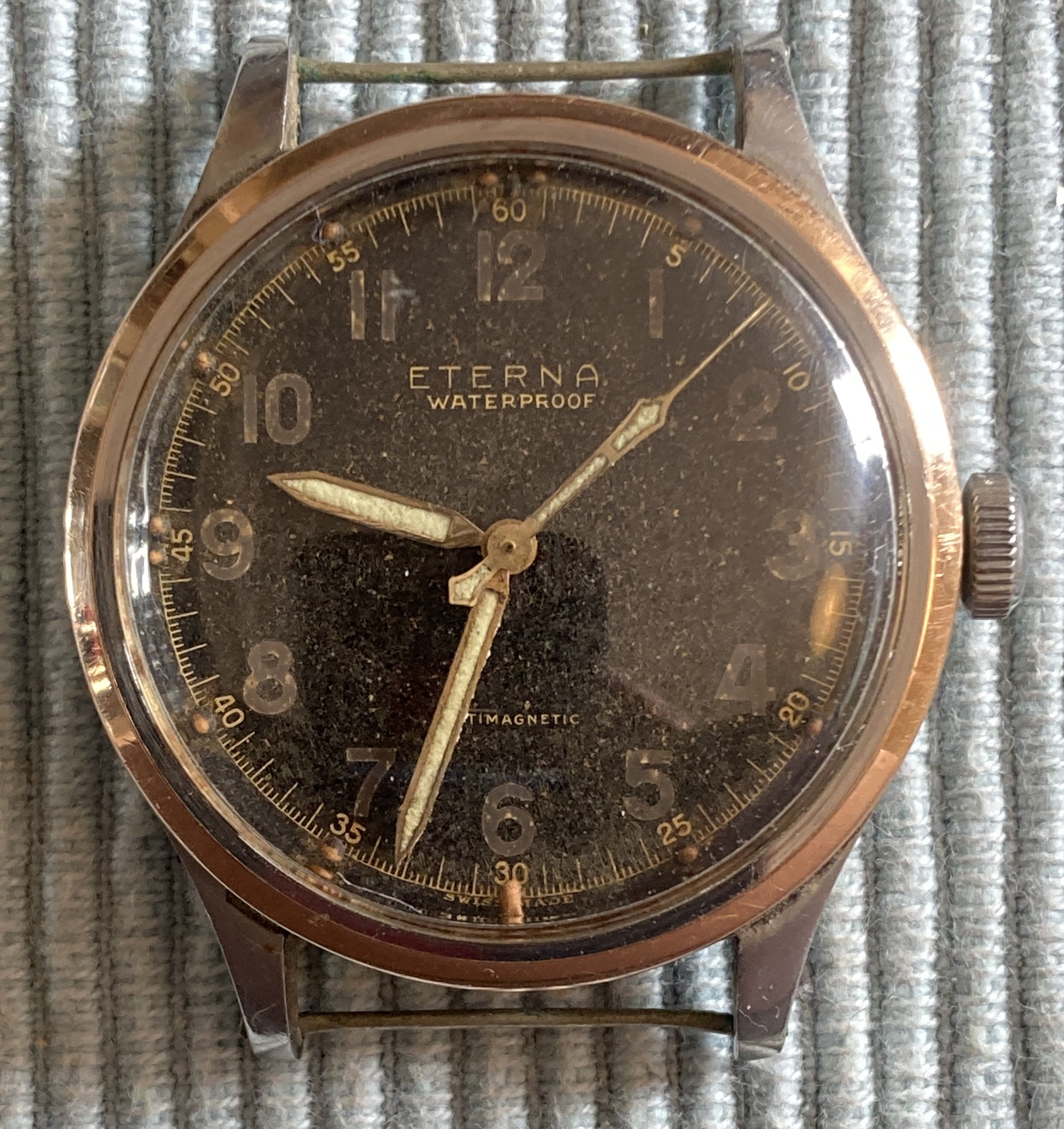

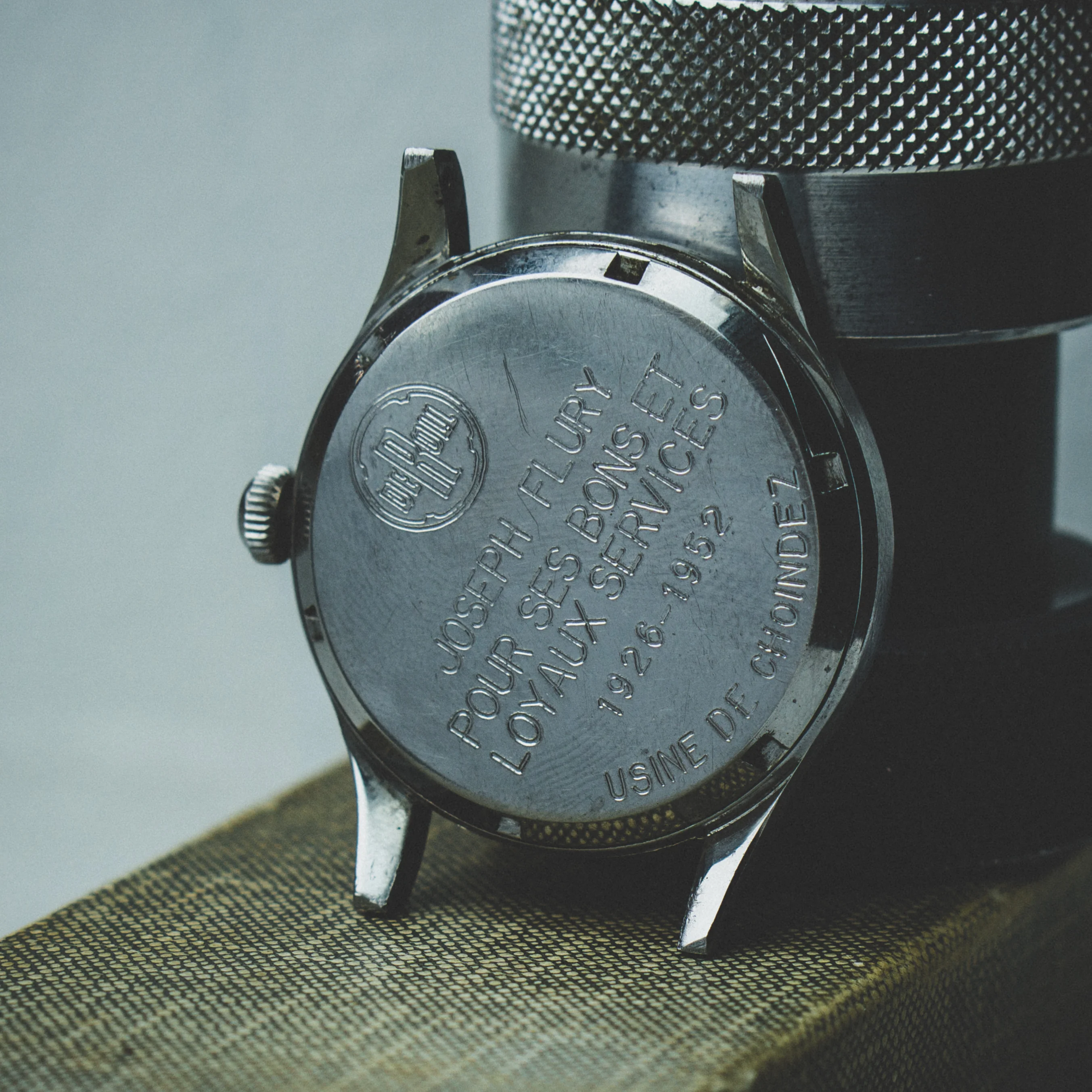

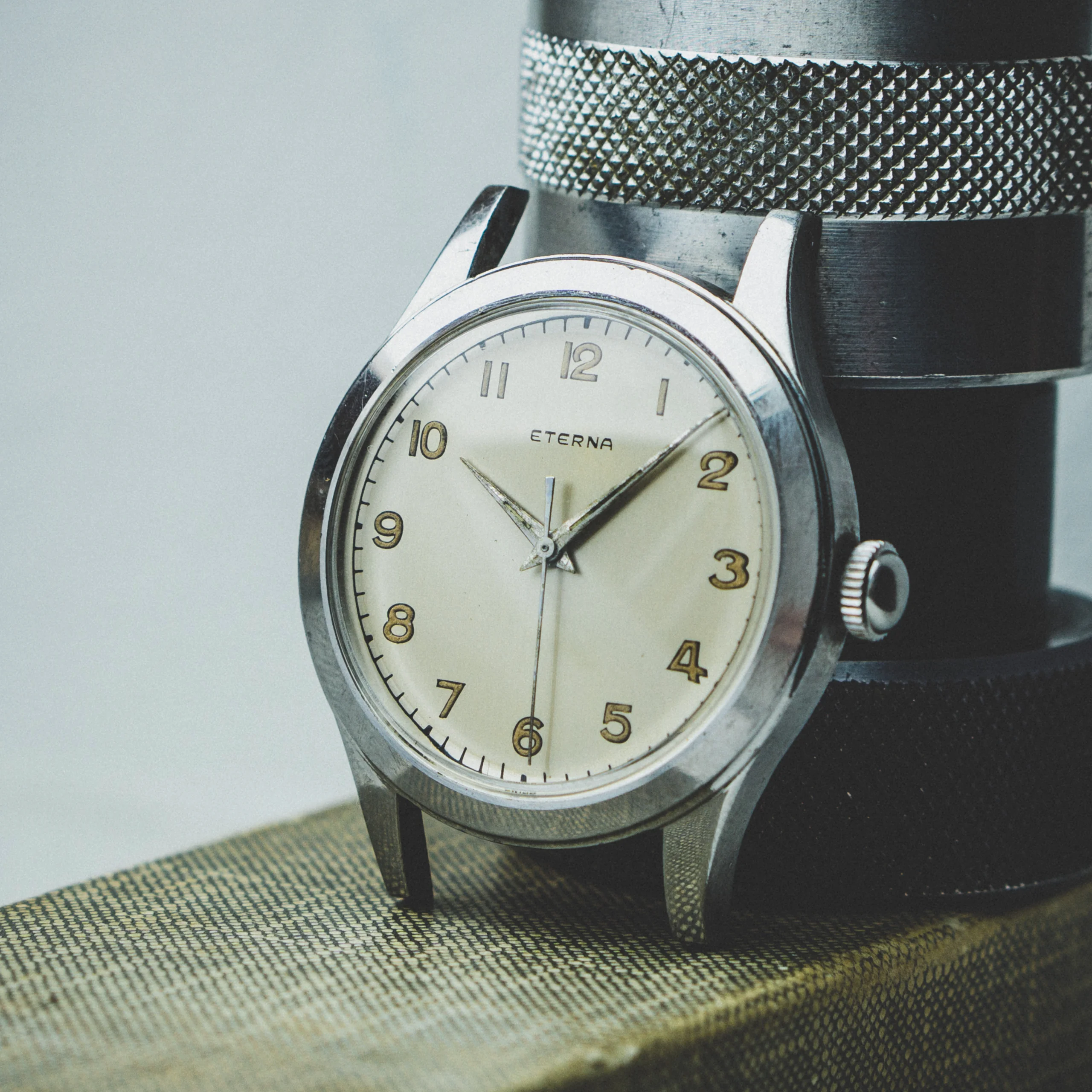

    Here´s my other 852S (better shock protection...)

    IMG_8676.jpg IMG_8673.jpg

    DirtyDozen12 likes this.
  8. Tony C. Ωf Jury member Dec 29, 2021

    Posts
    5,708
    Likes
    16,637
    size11s and minutenrohr like this.
  9. DirtyDozen12 Thanks, mystery donor! Dec 29, 2021

    Posts
    1,893
    Likes
    3,042
    Interesting information about the stiffness of the steel plate, thank you.

    minutenrohr likes this.
  10. minutenrohr Mon. 1:51am

    Posts
    1,563
    Likes
    18,915
    Tony C. and size11s like this.
  11. minutenrohr Mon. 5:41am

    Posts
    1,563
    Likes
    18,915

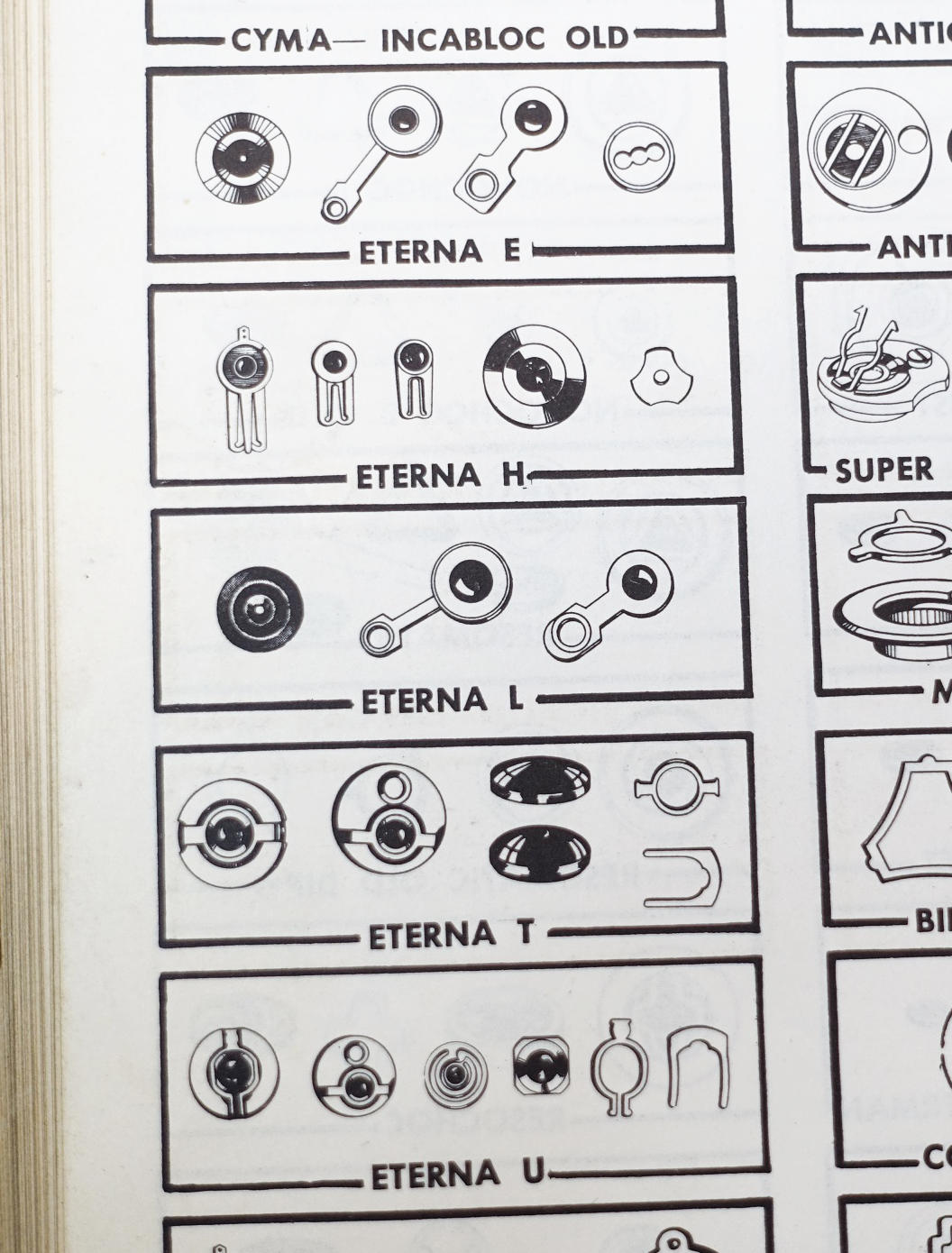

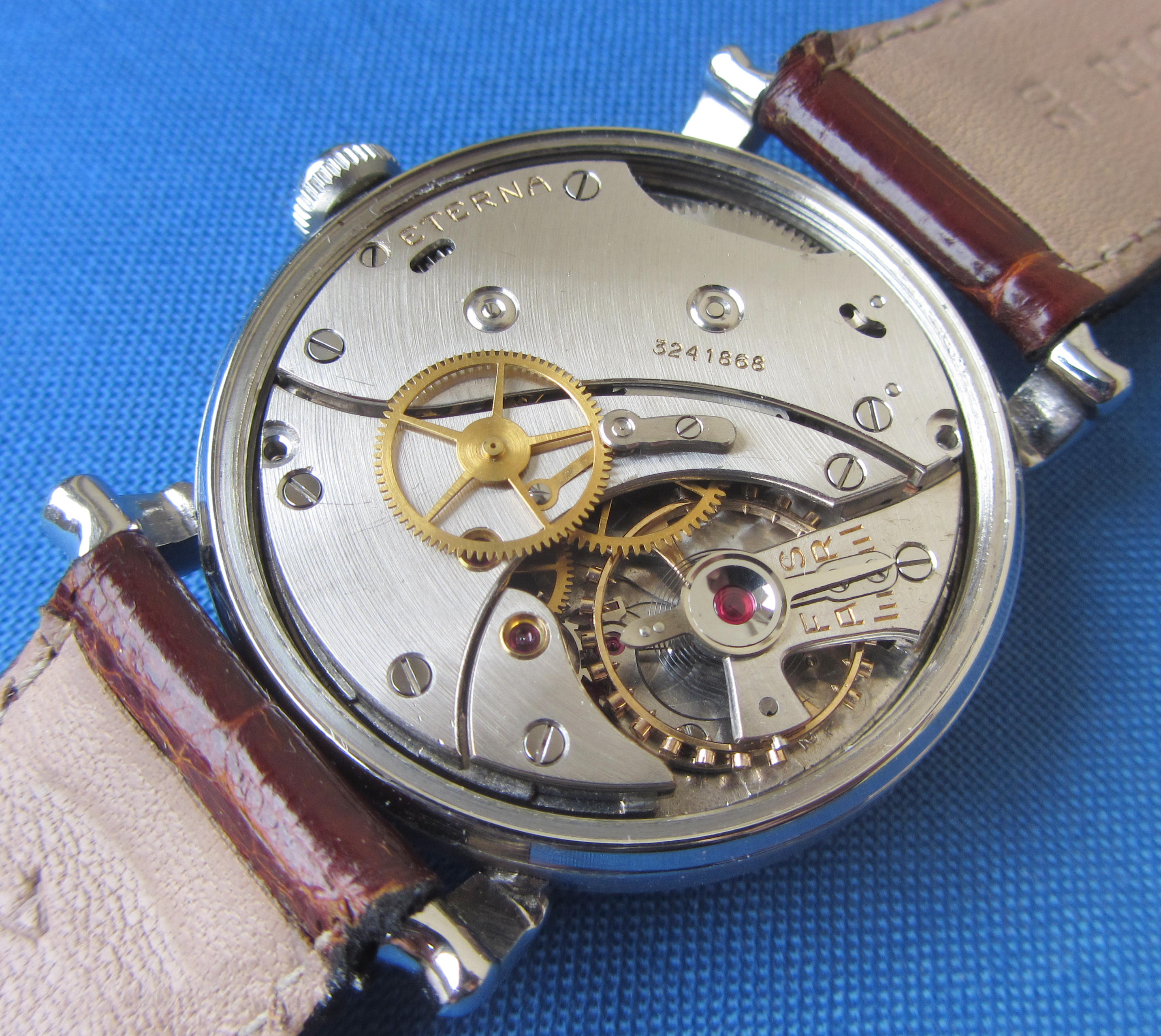

    P.S.:

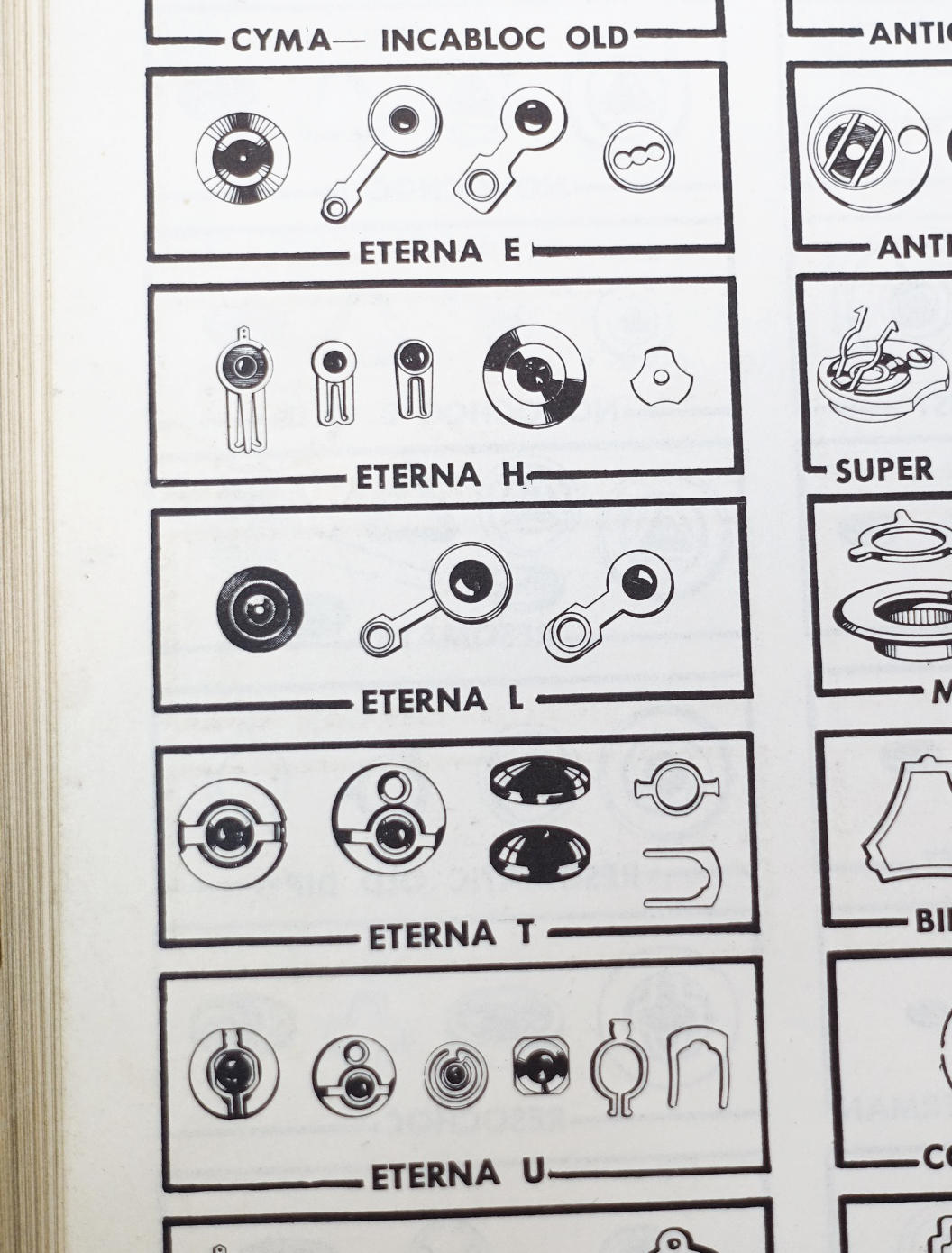

    On the main plate of the watch shown at the top, there`s a "L" in addition to "852S". I had not noticed that before.
