Landeron 51 Question.

Posts

29,668

Likes

76,825

Archer

·May 4, 2023·Omega Qualified Watchmaker

C Cdnwatchmaker

Very good tool to have, over the years I have seen so many of those pivots bent, and the wheels damaged. I will not even talk about the jewels.

Not to mention gouging the crap out of the bridge...



Posts

15,471

Likes

45,796

Canuck

·May 4, 2023

C Cdnwatchmaker

Very good tool to have, over the years I have seen so many of those pivots bent, and the wheels damaged. I will not even talk about the jewels.

+1



C

Posts

49

Likes

34

Cdnwatchmaker

·May 4, 2023

I did a restoration on a 48 last year. It was a real mess when I got it. I polished all the screw heads, removed all the eccentric screws also (using a Horia tool) , polished and refiled all the screw head slots. Had to reapply the graining on the steel parts. It took hours. But when done, wow , these old chrono’s look good.



Posts

2,842

Likes

4,536

sheepdoll

·May 4, 2023

There was a thread on the Bergeon Presto pullers. I finally got one out of the UK. Some of the US suppliers were listing a backorder of over a year.

A lot of the take down instructions has this wheel removed first. I have found removing the minute jumper to be one of the first things removed. Minute jumpers are as delicate as tissue paper.



Posts

17,937

Likes

37,506

JimInOz

·May 5, 2023·Melbourne Australia

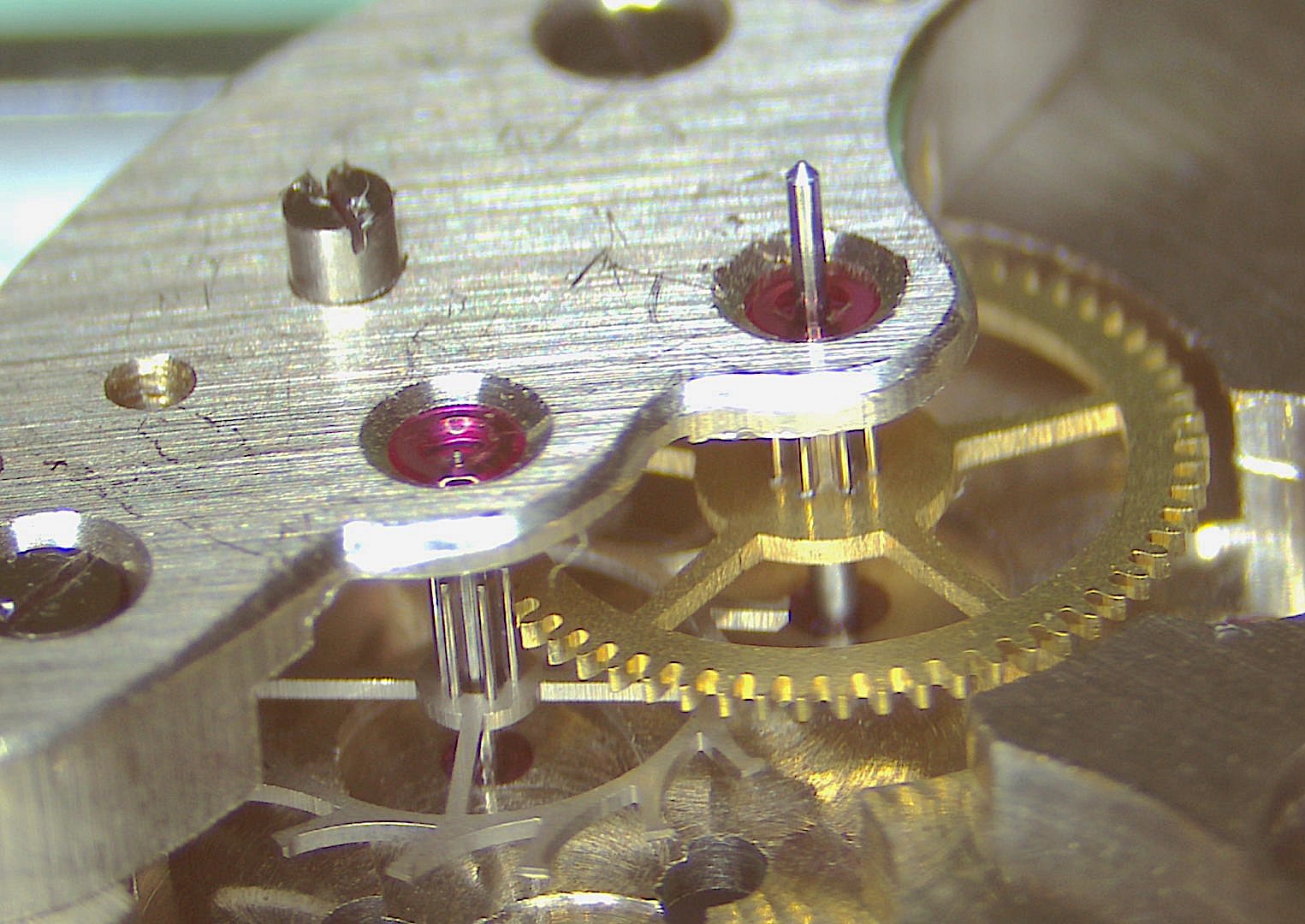

Presto tool arrived this morning.

Amazing how easy a task is when you have the right tool.

Chrono Driving Wheel is off and no damaged jewel, no bent shaft and no damage to the bridge (not that I did anyway). I will have to tidy up that eccentric screw.



Posts

17,937

Likes

37,506

JimInOz

·May 5, 2023·Melbourne Australia

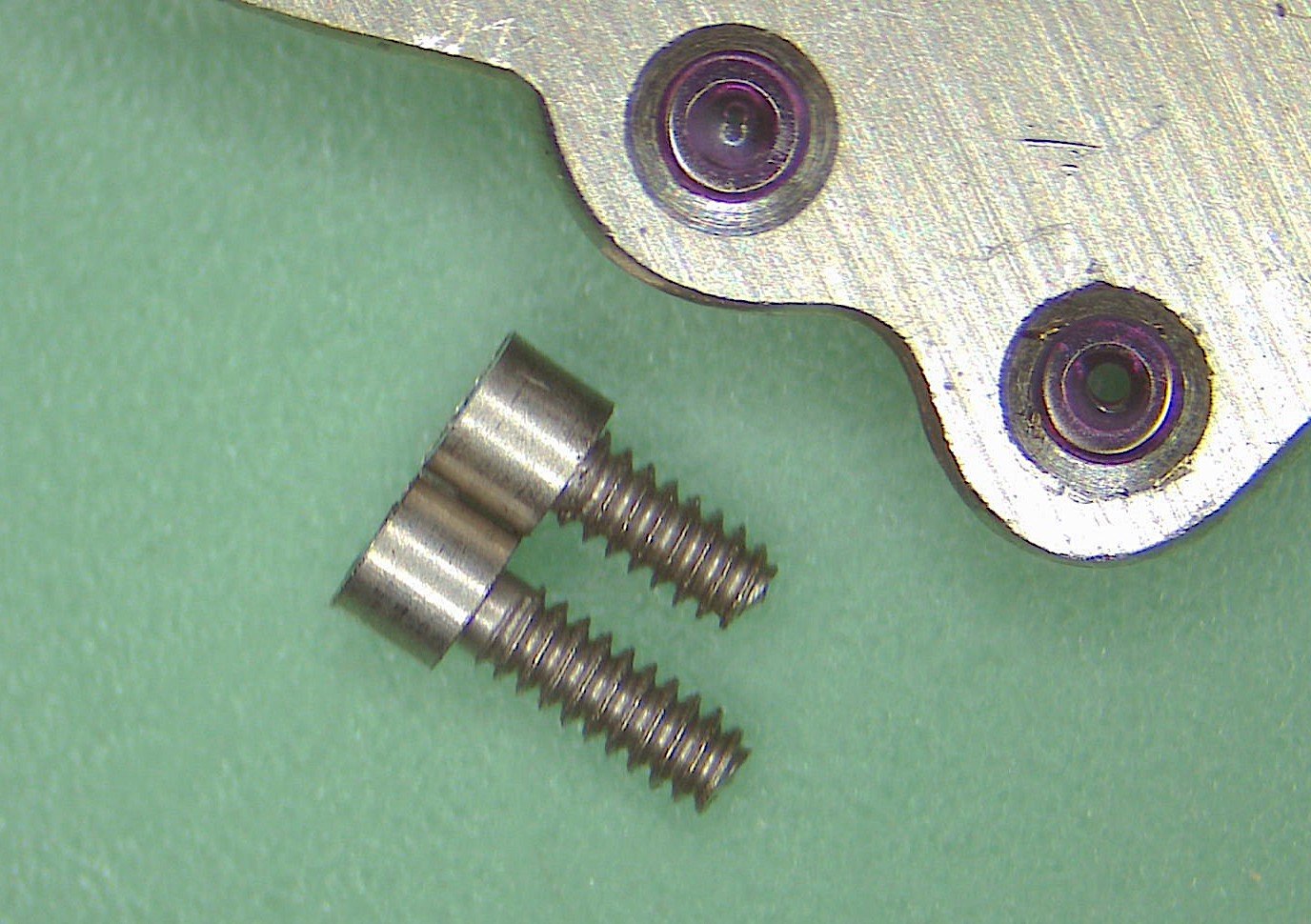

With the driving wheel off I could remove the train bridge. Can anyone spot the issue?
@sheepdoll 😉.



Posts

17,937

Likes

37,506

JimInOz

·May 5, 2023·Melbourne Australia

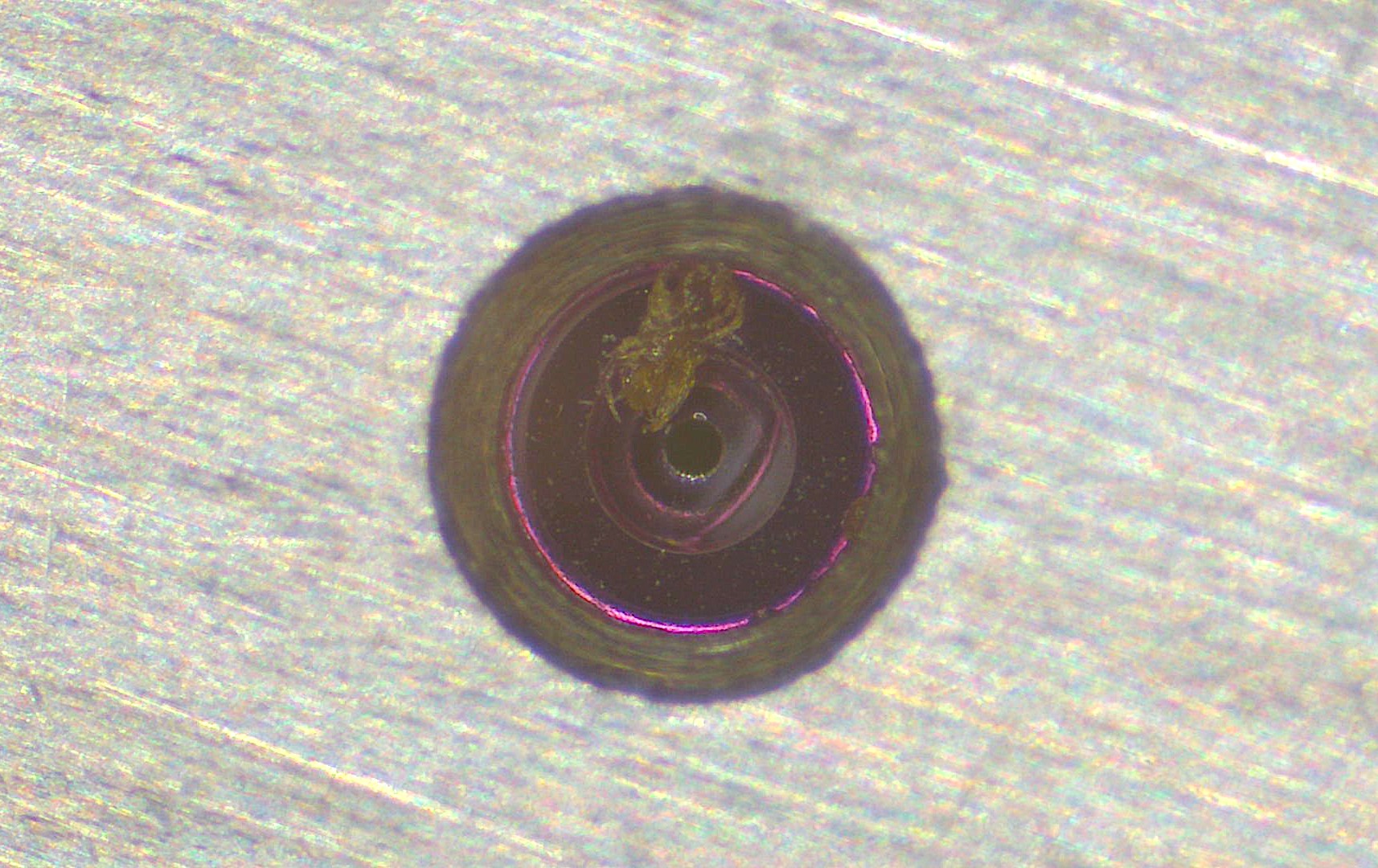

Well, I'm used to finding dried out oil and gunk in jewels when pegging them out, but this is the first time I've seen a bug in the jewel sink.
😲
It looks like some kind of tiny spider, the abdomen fell off when I was trying to lift it out and put it on a slide.



C

Posts

49

Likes

34

Cdnwatchmaker

·May 5, 2023

Hey great work, JimInOz. Have you worked on chrono's before?



Posts

15,471

Likes

45,796

Canuck

·May 5, 2023

JimInOz

Presto tool arrived this morning.

Amazing how easy a task is when you have the right tool.

Chrono Driving Wheel is off and no damaged jewel, no bent shaft and no damage to the bridge (not that I did anyway). I will have to tidy up that eccentric screw.

👍



Posts

17,937

Likes

37,506

JimInOz

·May 5, 2023·Melbourne Australia

C Cdnwatchmaker

Hey great work, JimInOz. Have you worked on chrono's before?

A couple of 7750s and Seiko chronographs (mechanical and quartz).
Still learning though, but learning never stops does it.

https://omegaforums.net/threads/watchmaker-advice-needed.141307/

Edited: May 5, 2023



Posts

2,842

Likes

4,536

sheepdoll

·May 5, 2023

JimInOz

With the driving wheel off I could remove the train bridge. Can anyone spot the issue?
@sheepdoll 😉.

I mentioned this above. The balance bridge screw is the longest plate screw. I see these mixed up all the time.

There is a lot of documentation on these Landeron movements. They are easy to work on. Good starter chronos.

I think I am back to around a dozen or so plates and things. Would that cases and case parts come without the other bits and pieces. I have not had much luck finding empty cases.

I personally have found that it is best to test fit and ajust the chrono levers back on before assembling the train. (Book says remove balance) I also found @Archer suggestion of pressing the eccentrics out is the best way. Turning them can a cause issue. They are not threaded.



Posts

2,074

Likes

4,231

RevZMan123

·May 5, 2023

sheepdoll

I mentioned this above. The balance bridge screw is the longest plate screw. I see these mixed up all the time.

There is a lot of documentation on these Landeron movements. They are easy to work on. Good starter chronos.

I think I am back to around a dozen or so plates and things. Would that cases and case parts come without the other bits and pieces. I have not had much luck finding empty cases.

I personally have found that it is best to test fit and ajust the chrono levers back on before assembling the train. (Book says remove balance) I also found @Archer suggestion of pressing the eccentrics out is the best way. Turning them can a cause issue. They are not threaded.

I still have to get back to these, I kinda lost my confidence after that last round of total failures.



Posts

17,937

Likes

37,506

JimInOz

·May 10, 2023·Melbourne Australia

Dang! 😡🤬

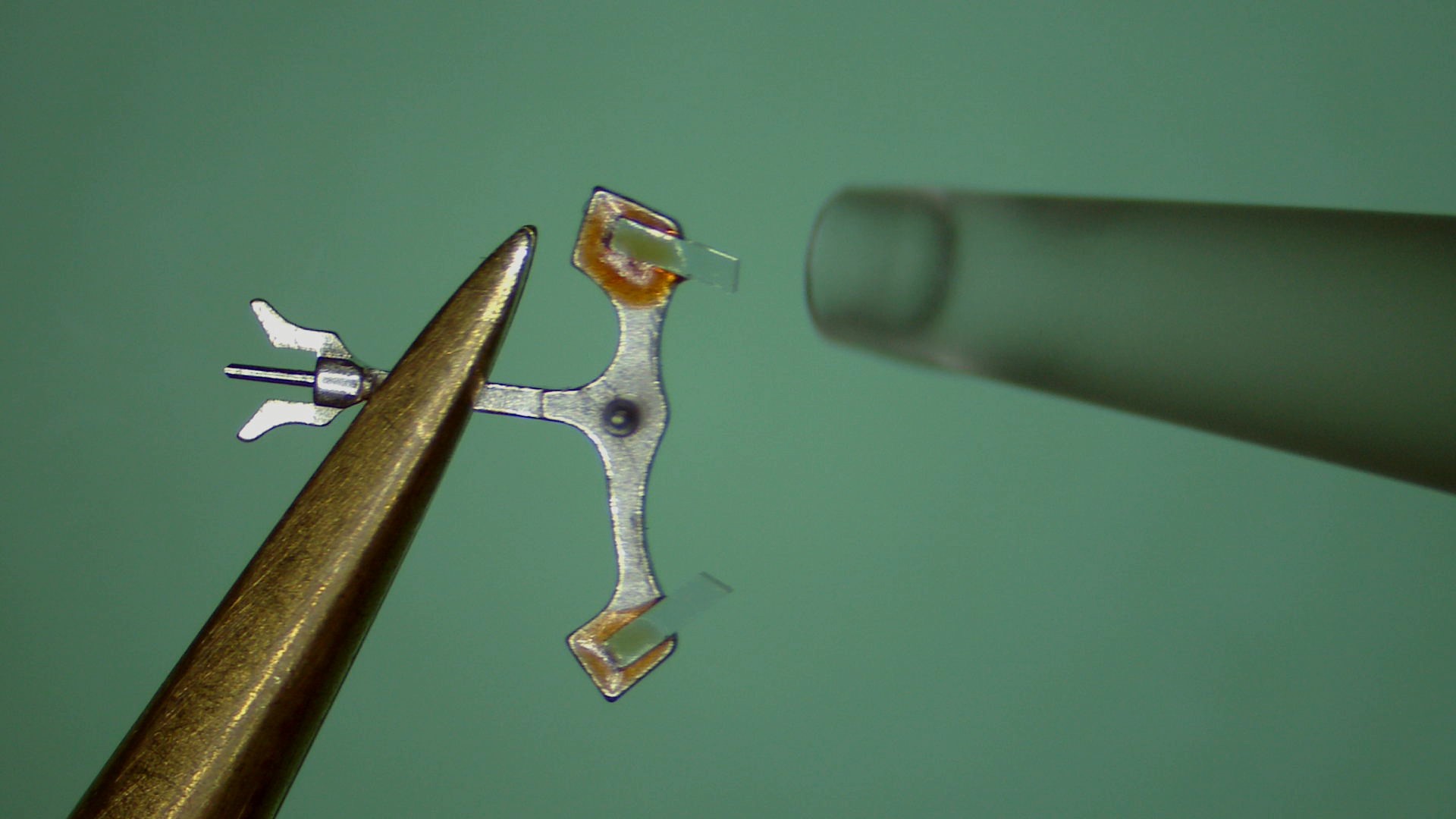

I was so focussed on applying epitome to the pallet stones I completely forgot to do the escape wheel!
Didn't realise until I was watching the movement ticking away to wear the epilame from the pallet stones.
Had to let down the mainspring to prevent the escape/pallet from self destroying and I'll pull it apart tomorrow and do the pallet.

Having a beer now to calm the "inner blame devil" saying "you dumb bugger!" over and over again.

Anyway, here's a pic of when I DID remember to do the right thing.
