I found a wavy spring........

  1. JimInOz Melbourne Australia May 29, 2023

    Posts
    15,550
    Likes
    32,542

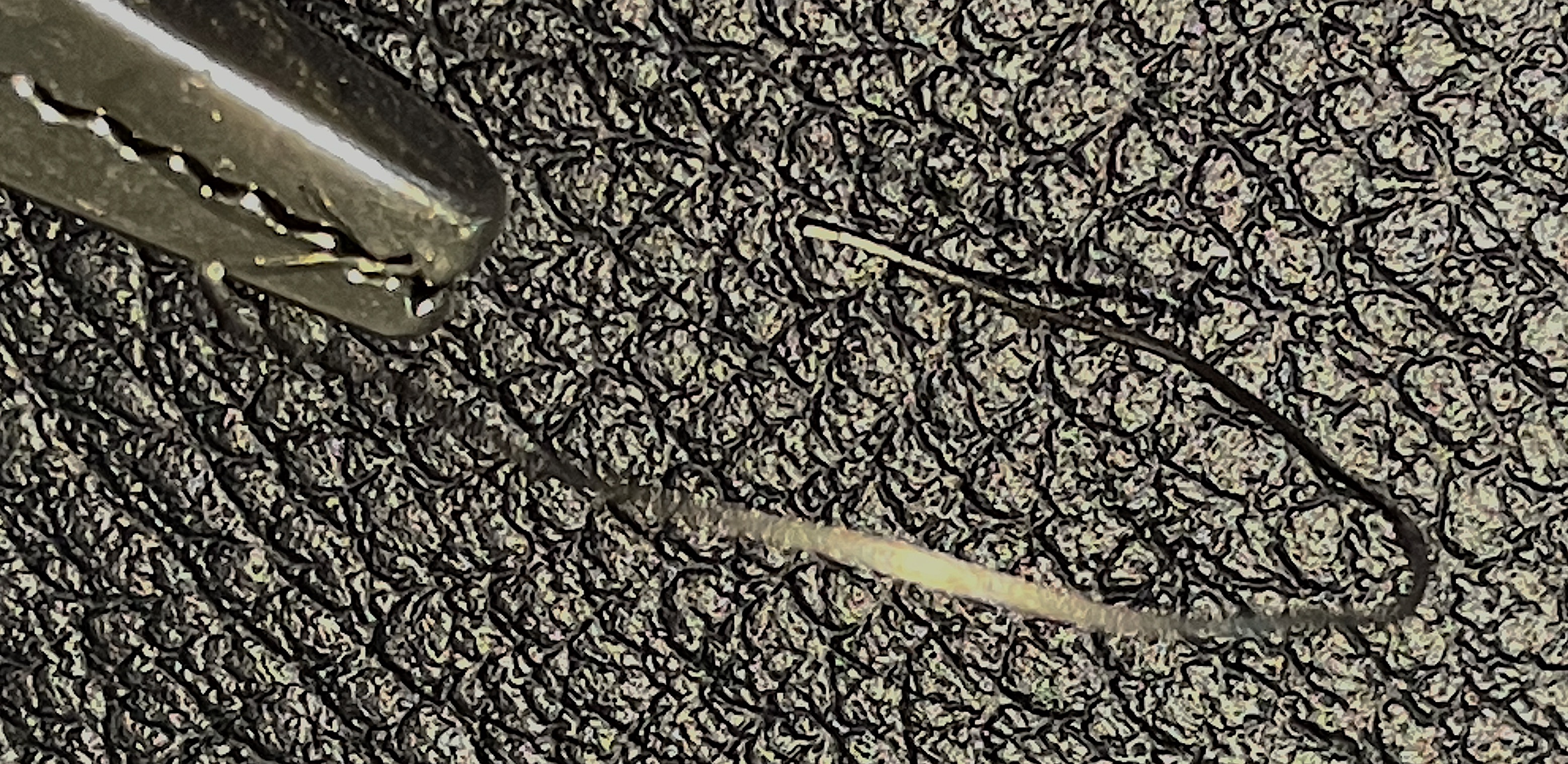

    ......in the bottom of an ultrasonic jar.

    But I have no idea what it is. I remember cleaning a bunch of general movement parts so it could have been then.
    It sort of rings a bell, maybe something Seiko?

    Any ideas?



  2. josiahg52 May 29, 2023

    Posts
    886
    Likes
    1,653
    Bezel retention or click spring upon first glance.

    McKnife and Foo2rama like this.
  3. Eve May 29, 2023

    Posts
    1,499
    Likes
    4,929

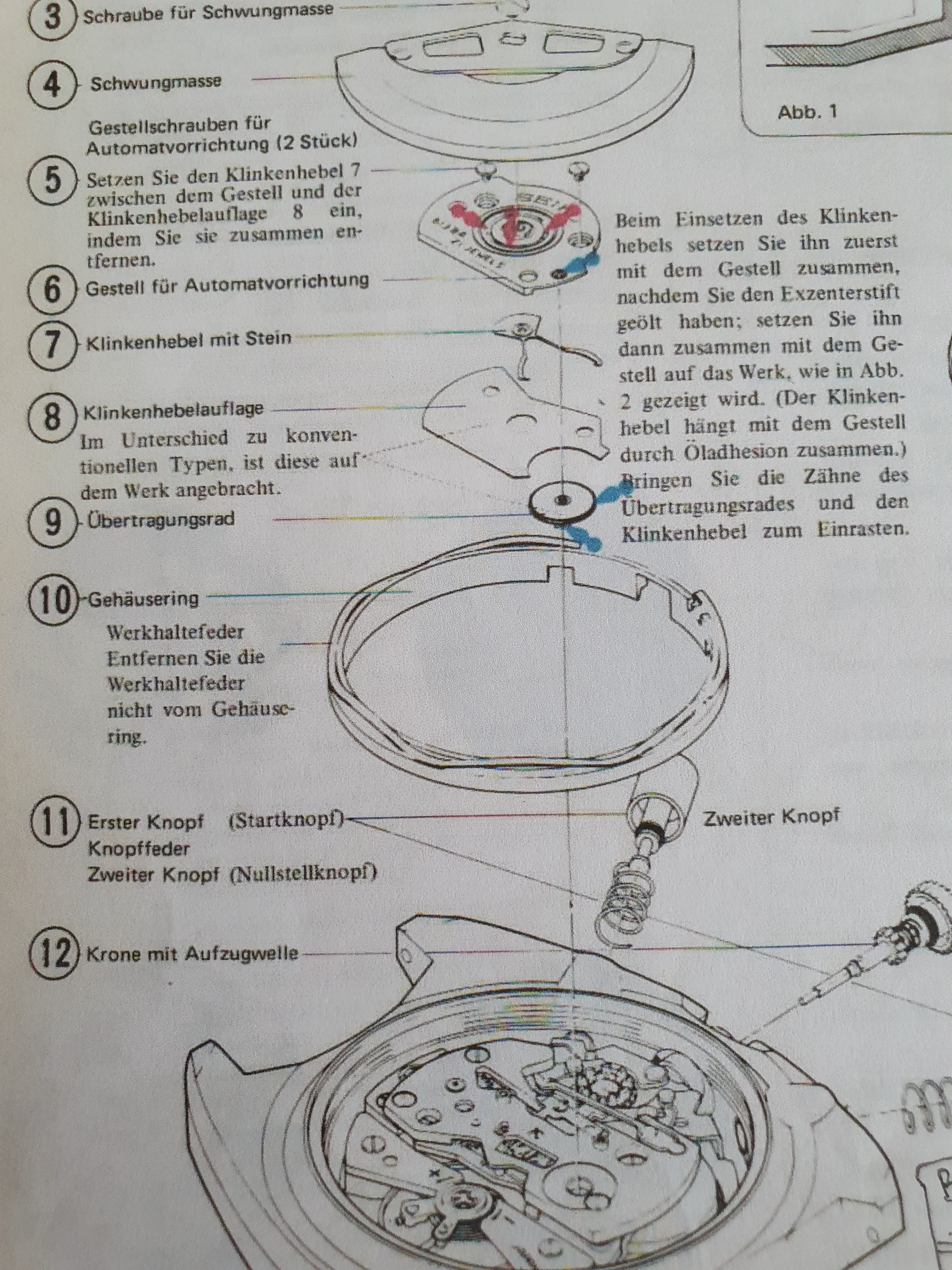

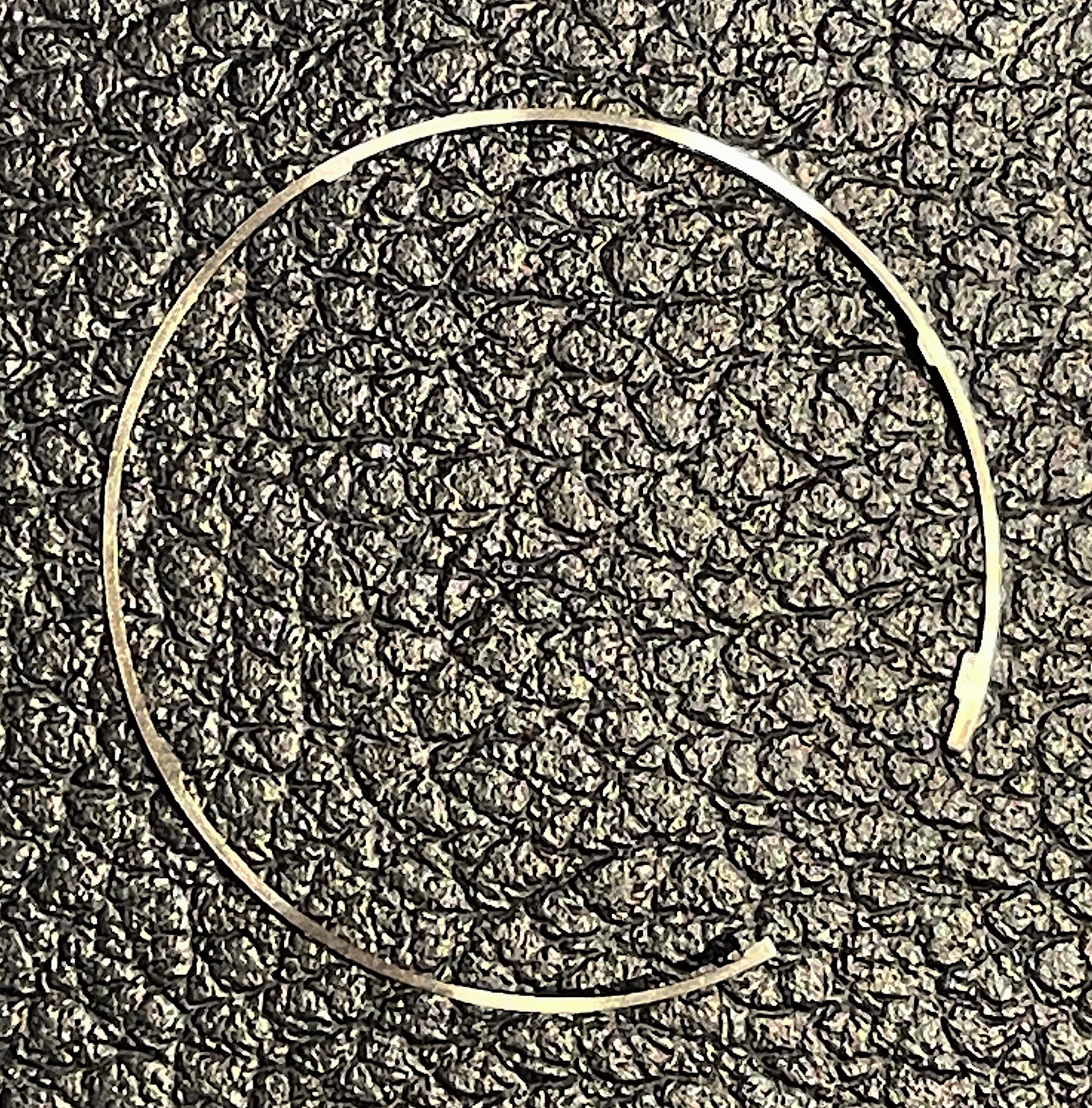

    It is a Seiko movement holder spring.
    Take a look at the movement holder ring, there must be a groove to put it inside.

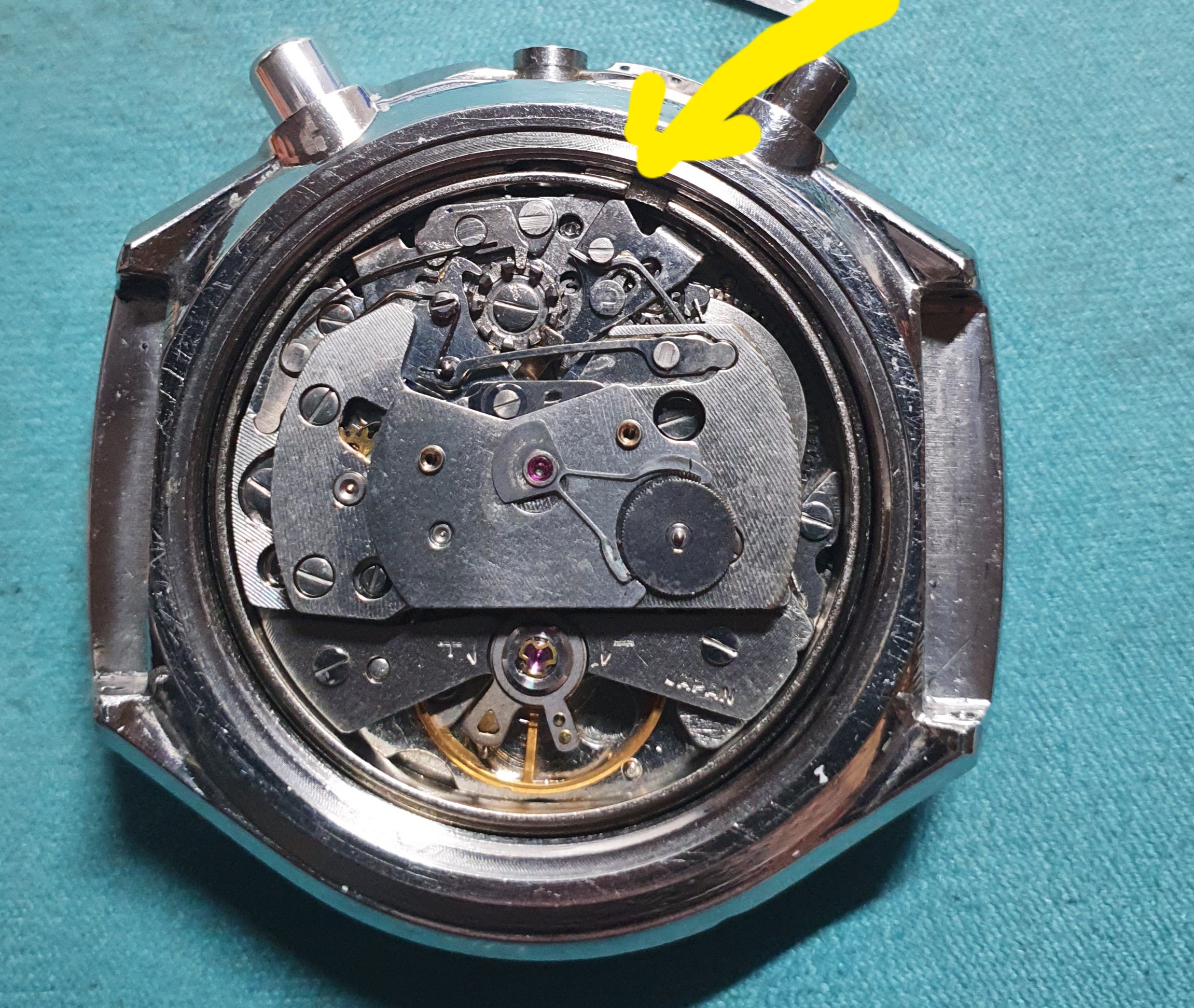

    Thats the notch in the movement holder it holds in place:

    Without this piece the movement shakes a bit inside the case after putting the watch together.

    Edited May 29, 2023
    YY77, Olhenry56, Dan S and 1 other person like this.
  4. JimInOz Melbourne Australia May 29, 2023

    Posts
    15,550
    Likes
    32,542

    Thanks for the memory jog.
    It must have been in that rinse jar for more than 12 months as that's the last time I stripped a 6139.
    Was in the final rinse (denatured alcohol) that I only use after cleaning with water based cleaner (Simple Green solution). I found the water based cleaning to be better than L&R etc when doing cases/bracelets that had a lot of "environmental buildup".

  5. tritto May 29, 2023

    Posts
    342
    Likes
    509
    Definitely a Seiko movement holder wavy spring

  6. Eve May 30, 2023

    Posts
    1,499
    Likes
    4,929
    It is surely very clean now :thumbsup:

    JimInOz likes this.
