Help with UG hour and minutes hands

Posts
2,598
Likes
5,660
I bought some hands and included are an hour and minute hand that surely are Universal Geneve. To my eye they look like space compax ones, but then again there are many models that appear to have near identical hour and minute hands (Nina etc). I tried to find a resource on this but had no luck so far. So can I ask the experts, a) if there is a resource which defines the characteristics of these hands by reference, or b) if there isn’t a resource, whether anyone can help ID them...


Posts
1,195
Likes
1,981
Looks like yes, need to measure hole size and length of hands .

Posts
2,598
Likes
5,660
Looks like yes, need to measure hole size and length of hands .

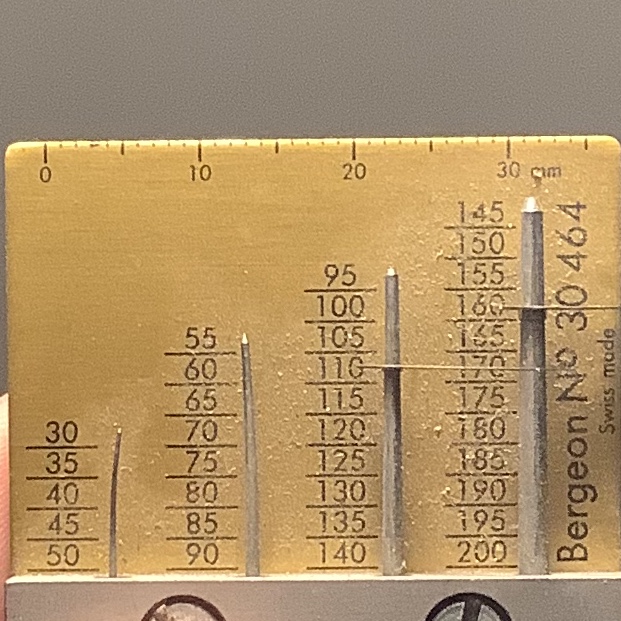

Looks good for Val.72 (1.60 x 1.10)

Where should I check the lengths ?
Hole-Centre to Tip, or total length ?


Posts
2,598
Likes
5,660

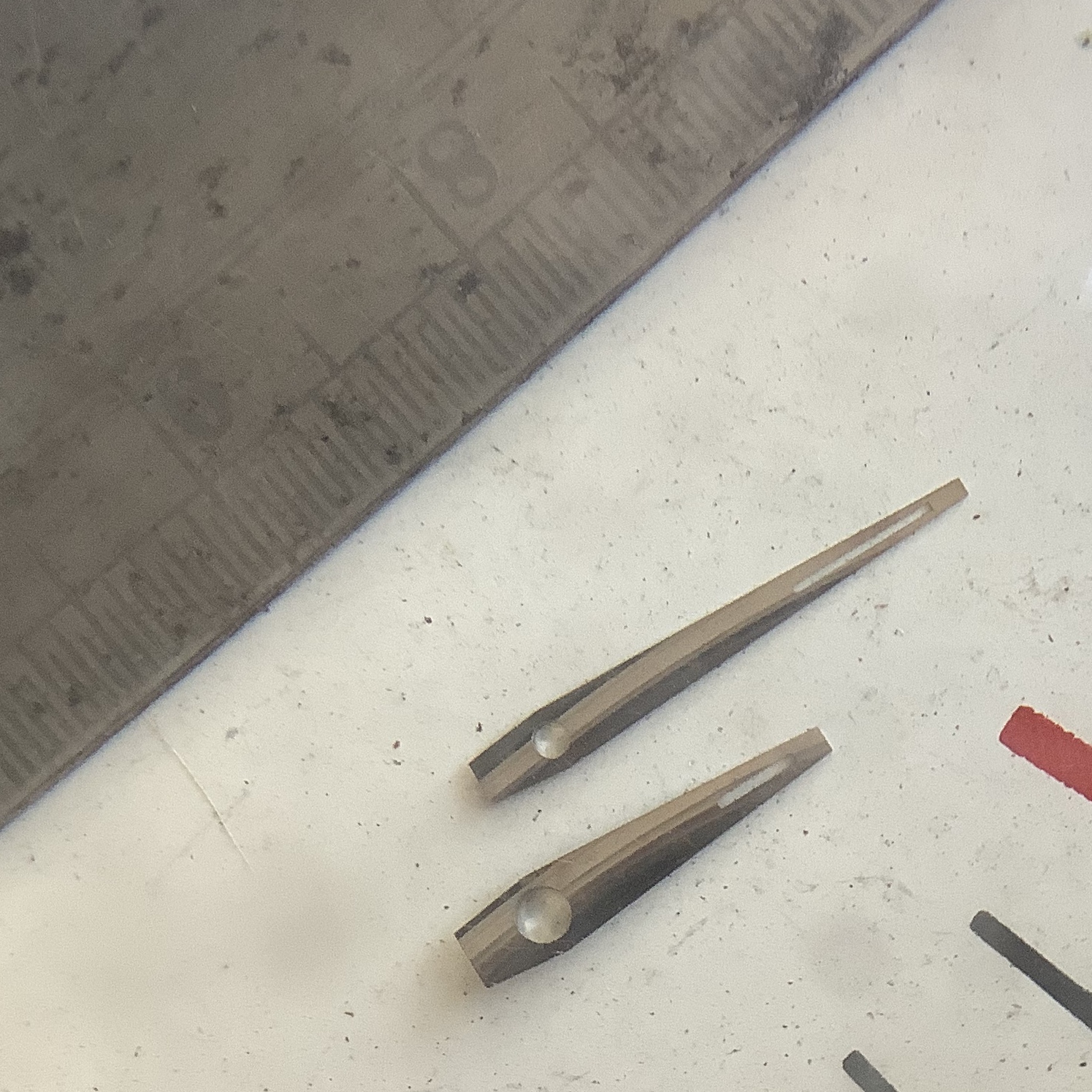

Here are the measured lengths @rolokr

End to end (directly measured)
H: 11.7mm
M: 15.9mm

Centerline to end (estimated from photo using above measurements)
H: 9.3mm
M: 13.6mm

Posts
1,475
Likes
3,067
V72 (UG cal 85, 130)

Space Compax
Evil Nina
Early Nina

The must have cost you a bomb ... 😀

Posts
2,598
Likes
5,660
V72 (UG cal 85, 130)

Space Compax
Evil Nina
Early Nina

The must have cost you a bomb ... 😀

I bought almost 40kg of watchmakers parts. By weight I’d say that 99.9975% of it was utter crap ! The 1g of UG hands should save the day though 😁.
