Help with my Omega Constellation 568.0019

Hello,

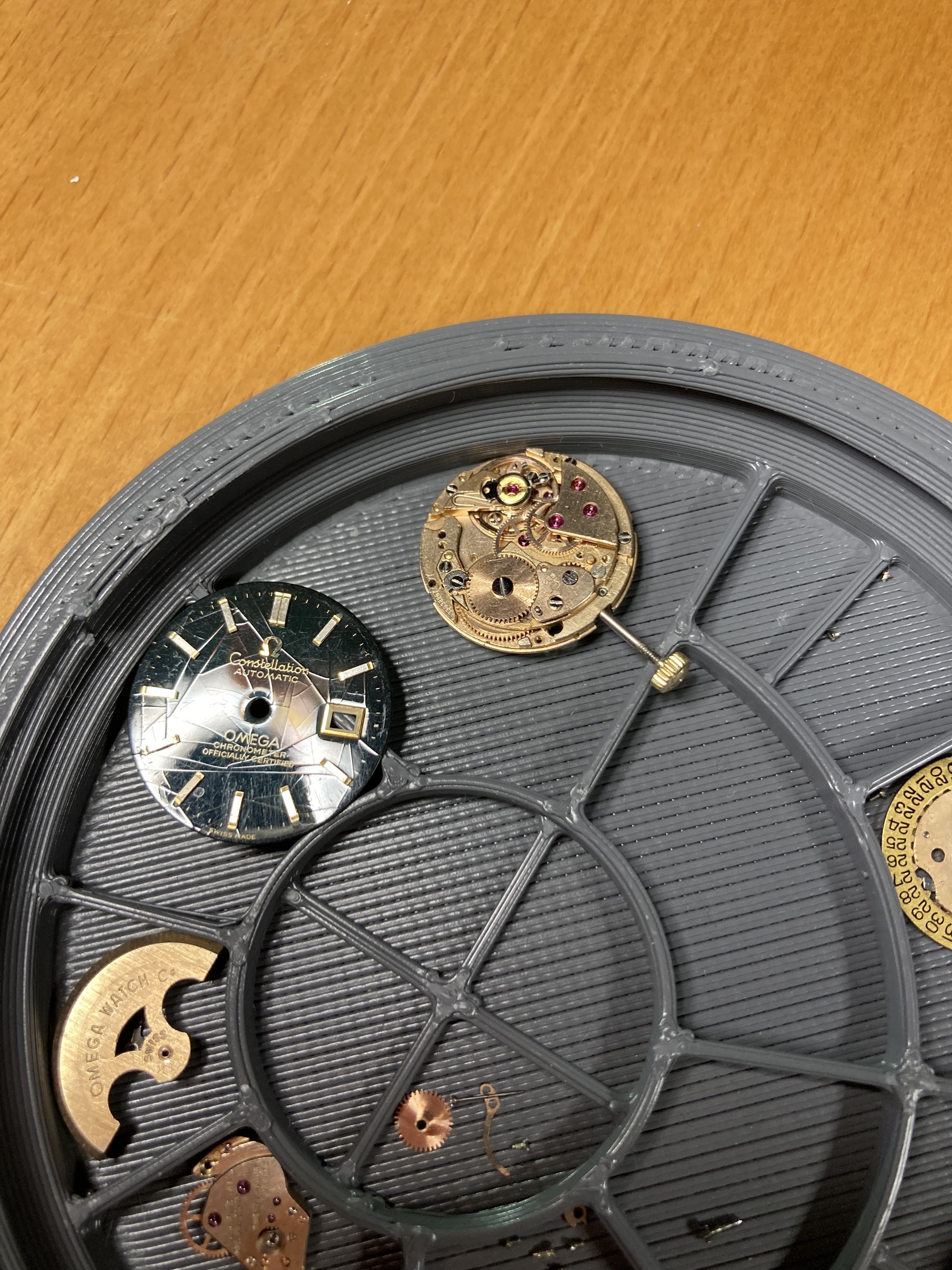

I found a nice case for a 568.0019 constellation ladies watch and then went and sourced the needed Cal. 685 and a fitting dial (At least I think so). I serviced the Movement and it is running very well.

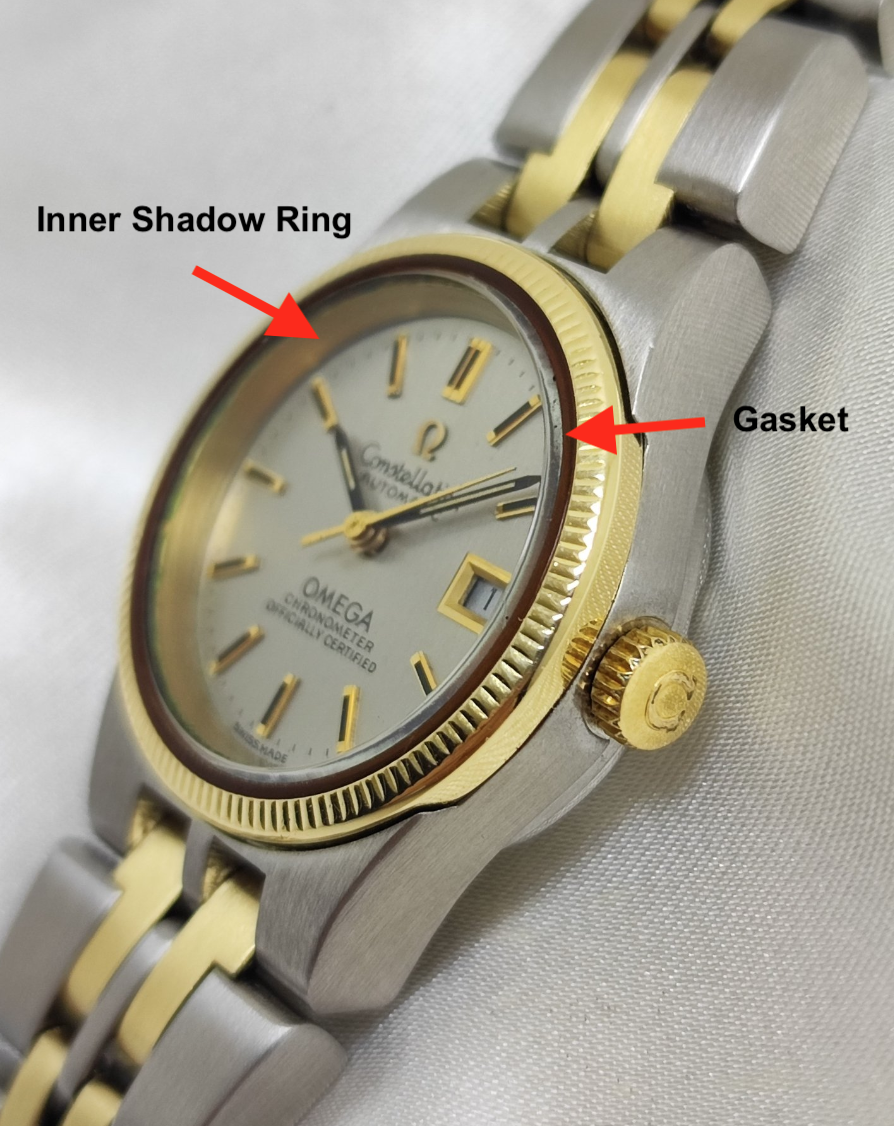

The problem is that I am missing the inner bezel (shadow ring, Lünette, Rehaut) and the crystal gasket (should be 22mm outer diameter). Would anyone be so kind and help me out with the part numbers on that? I am not able to find those at all. The watch over all seems pretty rare to see. Probably super hard to get the parts, but maybe they are used in other watches too and I can somehow get lucky finding them. Or at least I would be able to know the exact dimensions of the crystal gasket.

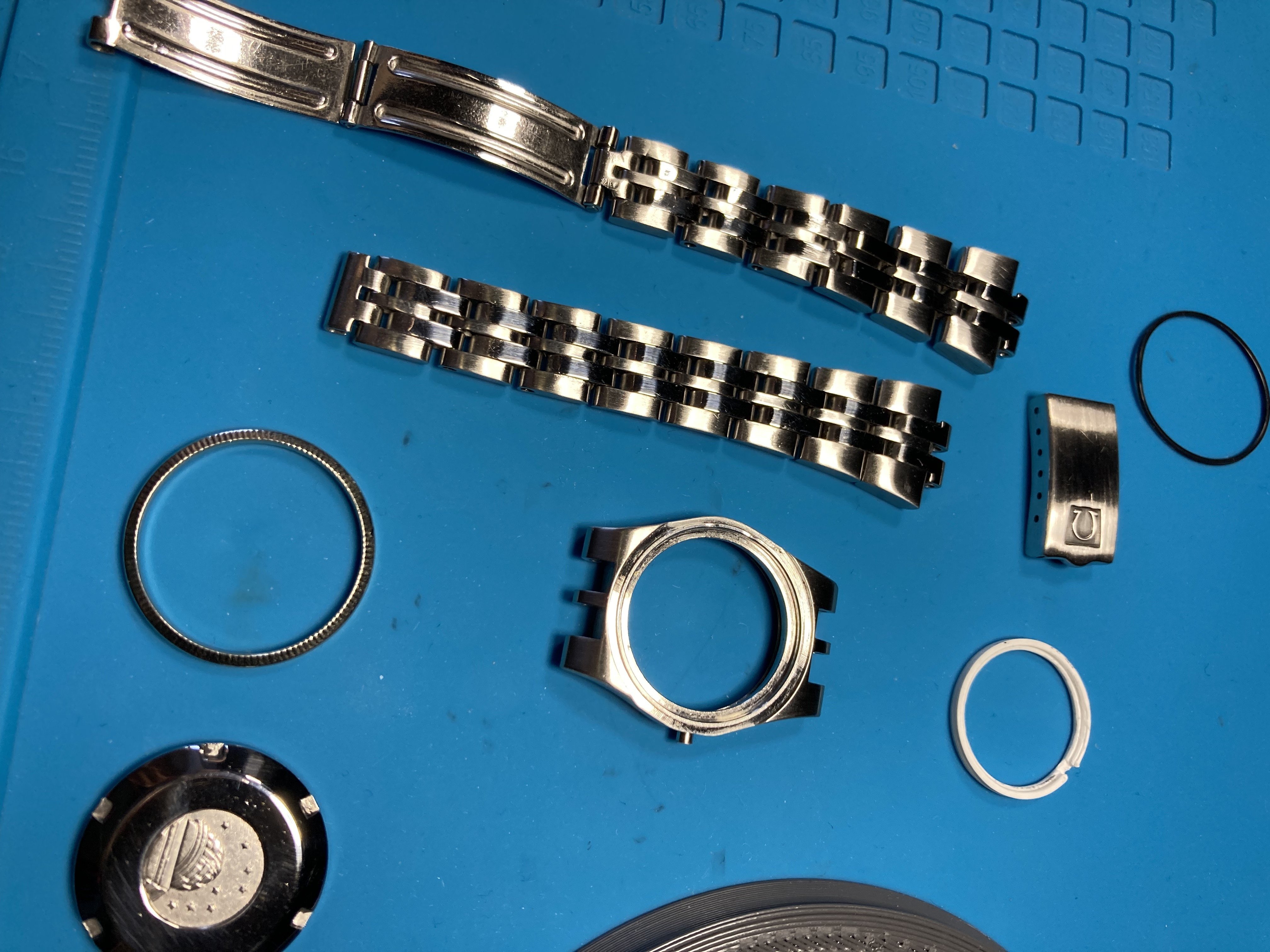

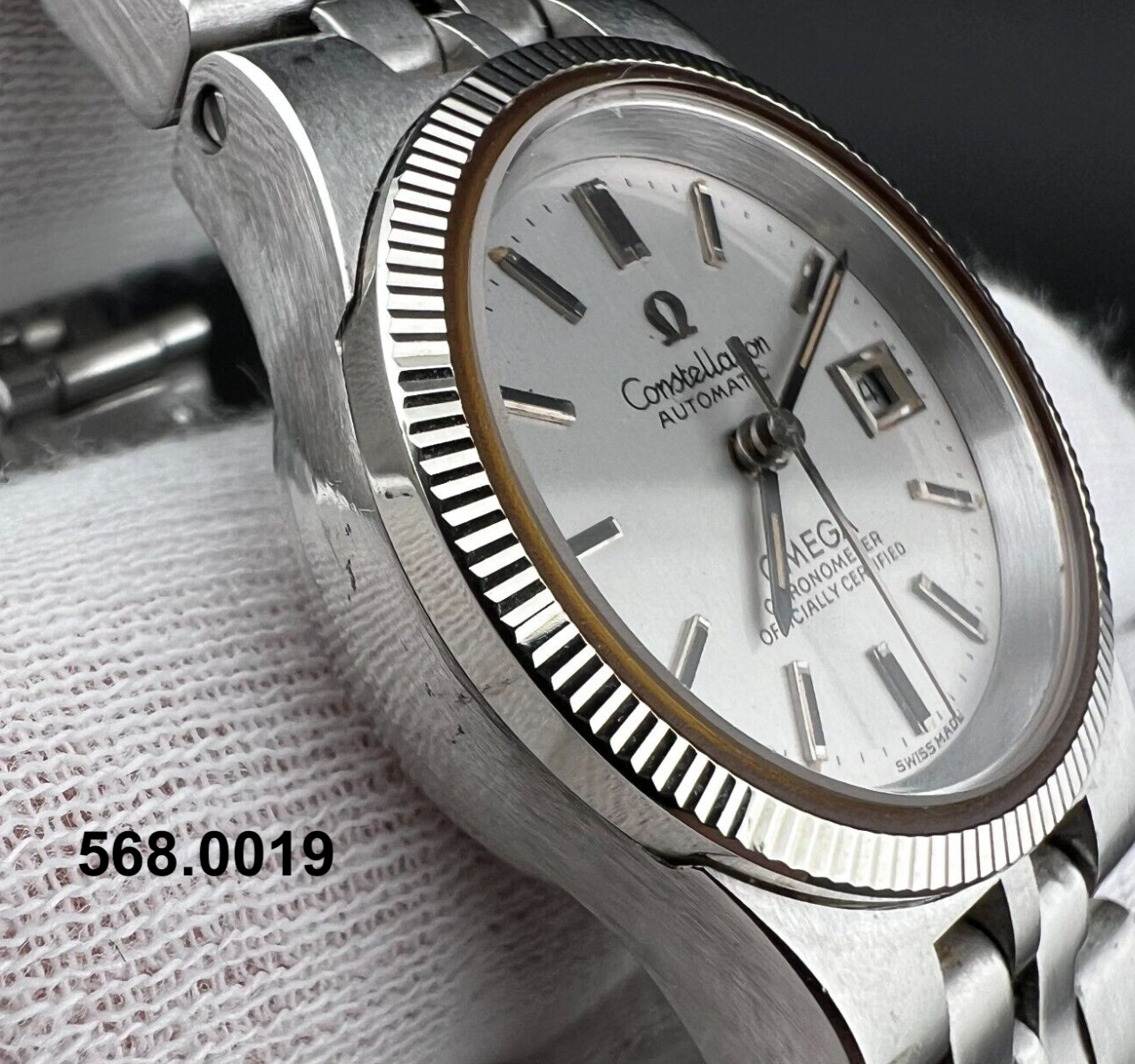

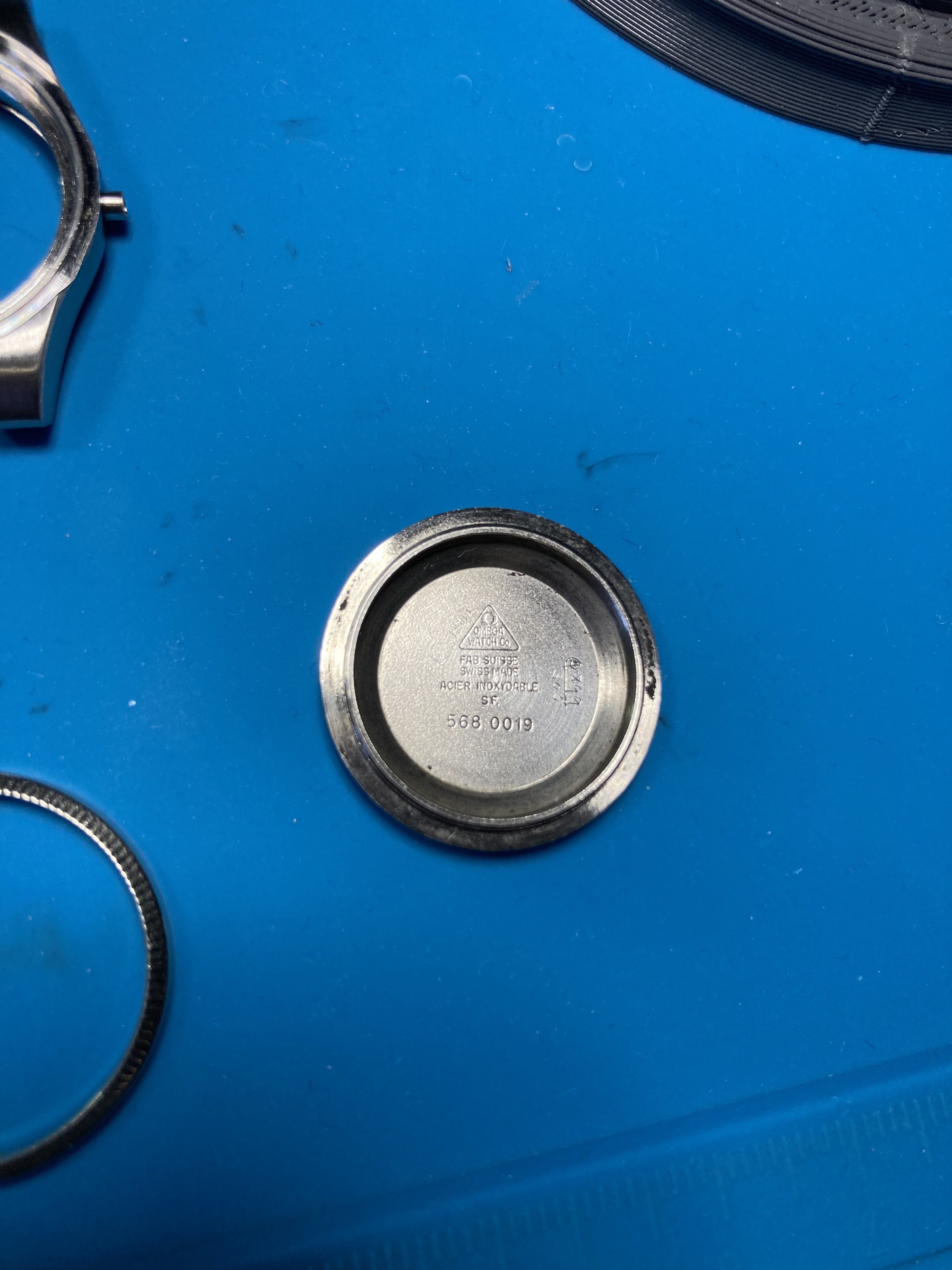

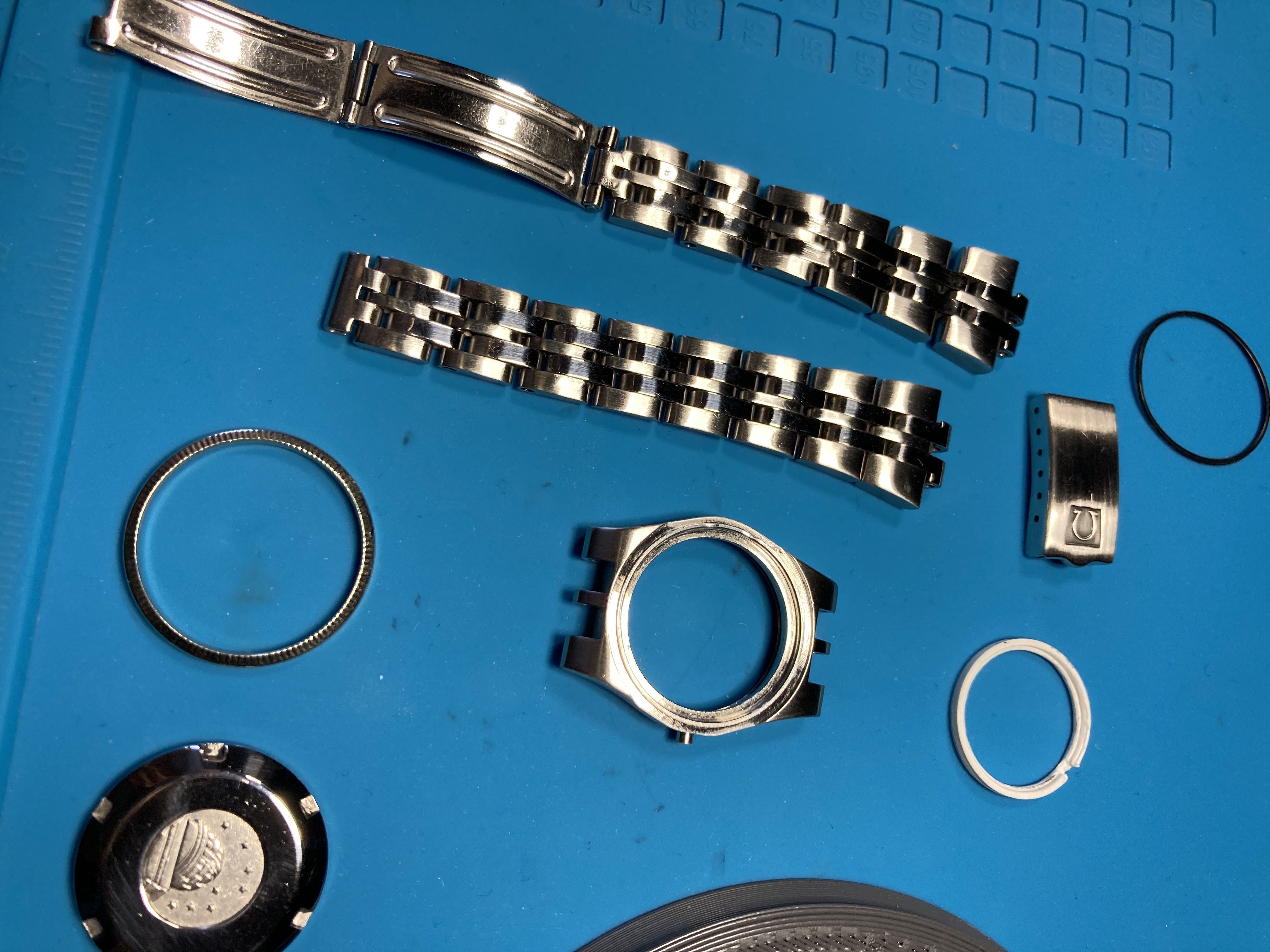

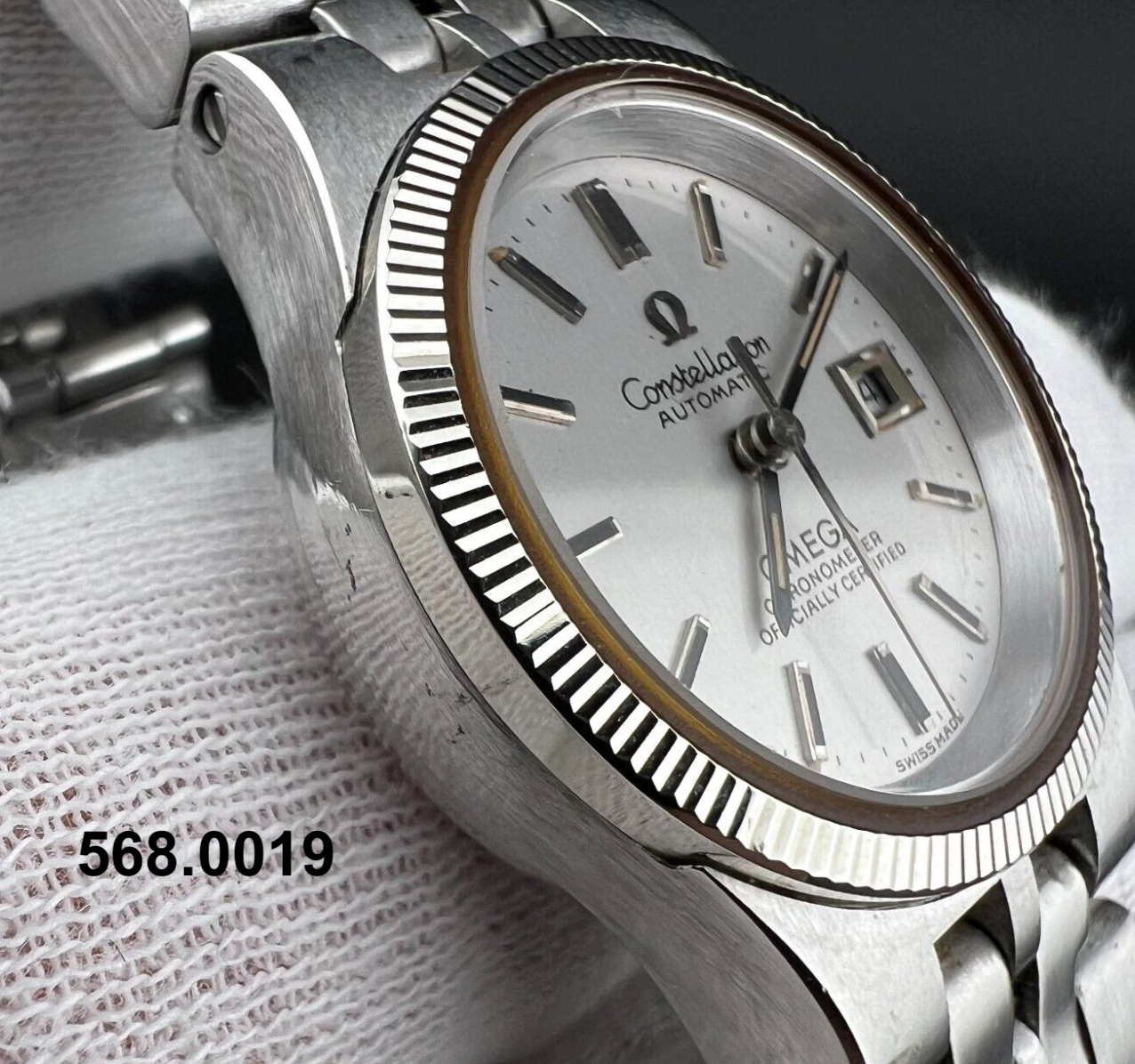

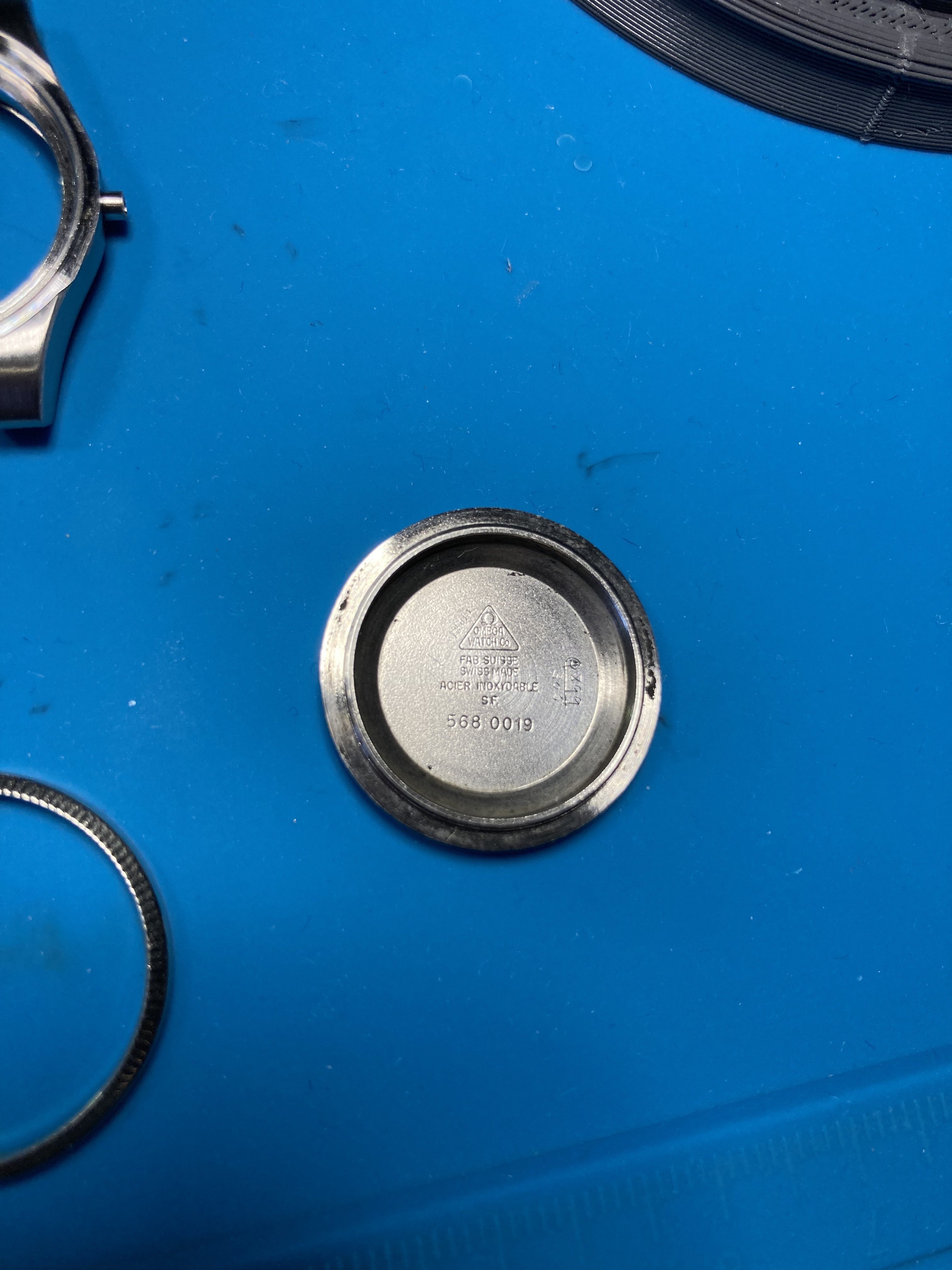

Here some pictures of what I got and one reference picture of what I need:

Could I have any luck with this:

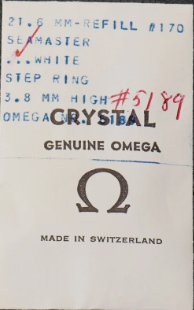

Glass, Steel Ring, Omega PZ5189

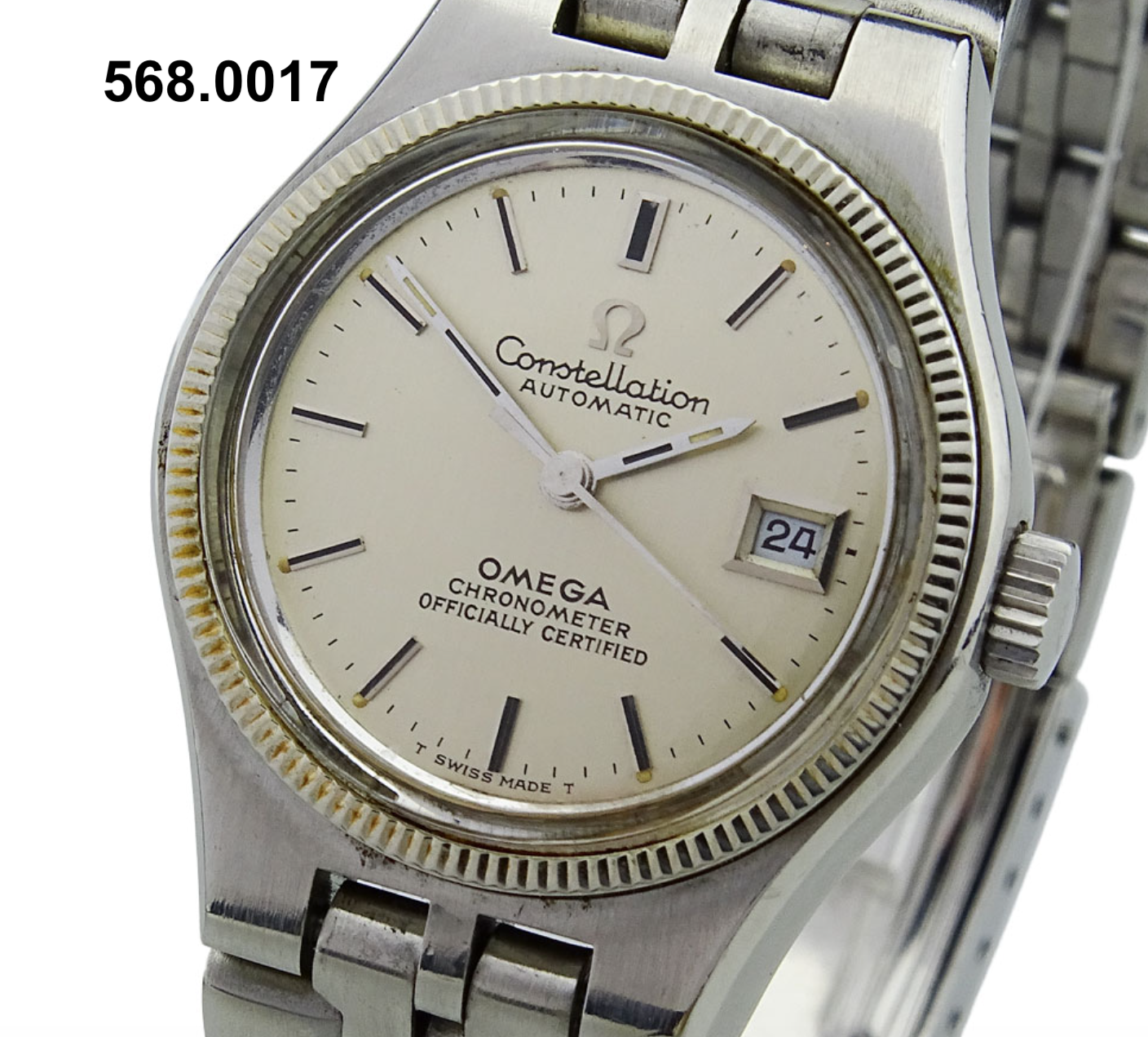

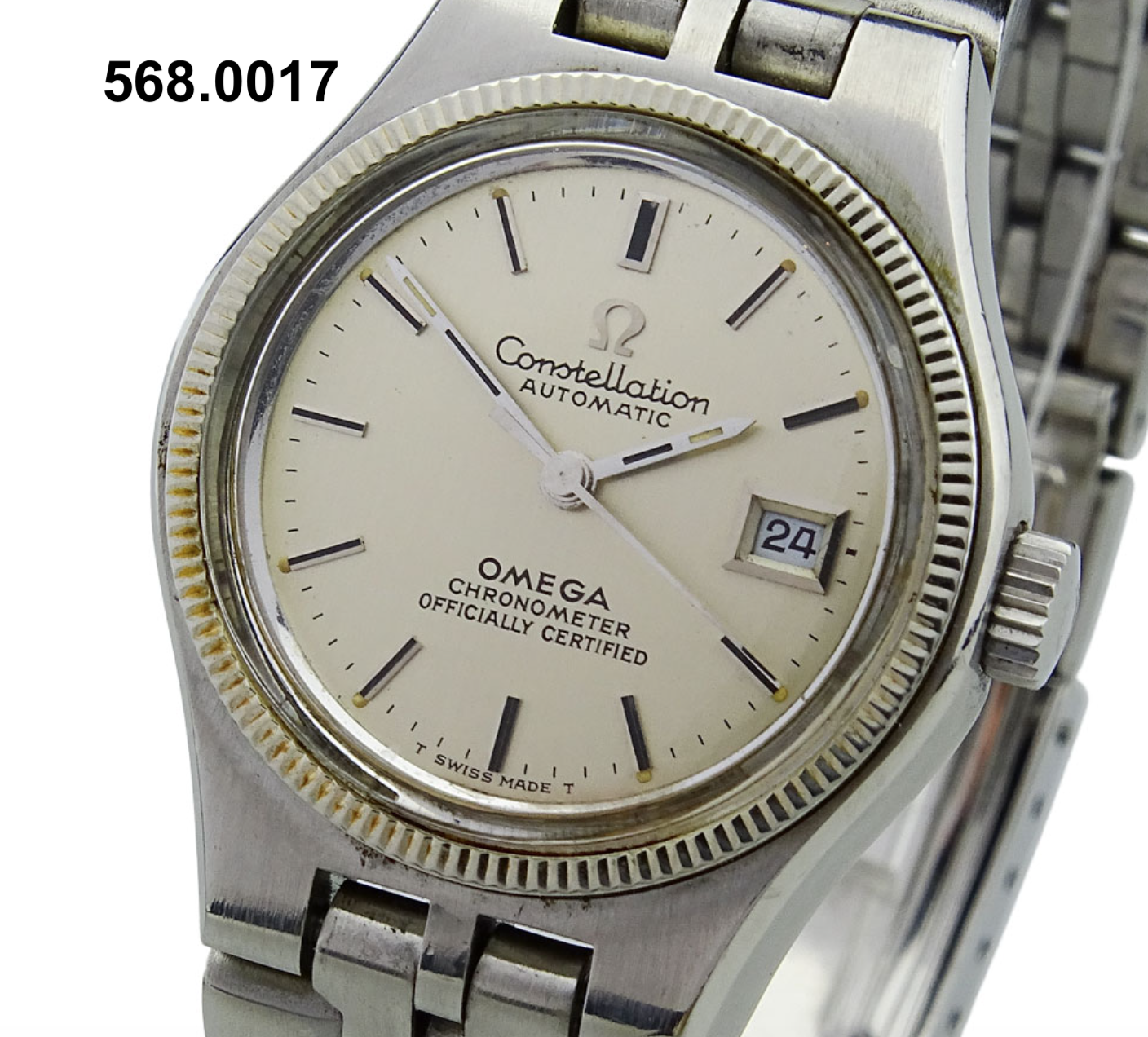

It is for the 568.0017. Maybe this will solve my problem.

Happy for any help!

Hello, thank you for the reply.
I know that I would need a TN5215 from researching cousins as well, but without the right Glas Gasket and the inner bezel, that will not help me.

Since I am not sure if I will be able to aquire those parts or even find out their dimensions, I thought the PZ5189 would at least complete the watch and make it wearable for private use, since it is the right size to fit in the case and house the outer bezel on top.

You are completely right, without knowing the size of PZ5189 I should rather get a generic armoured 22mm one.

I would still be very keen to know the dimensions and part numbers of:

- 568.0019 Crystal Gasket
- 568.0019 Inner Bezel
- Omega PZ5189

Maybe I am able to keep it fully "original" to the ref. number part wise (or at least get the omega crystal that might have a fitting dome height to my case):
If anyone is able to get these infos and would be kind enough to share them with me, I really would appreciate it a lot 😀

The case measures 22mm. Makes sense that the outer diameter of the gasket is the same. But 2.8mm gasket height is pretty crazy, will be hard to find anything generic like that.
Thanks a lot for the info already.
