Dirty Dozen dials authenticity opinions

size11s
Posts
759
Likes
1,307

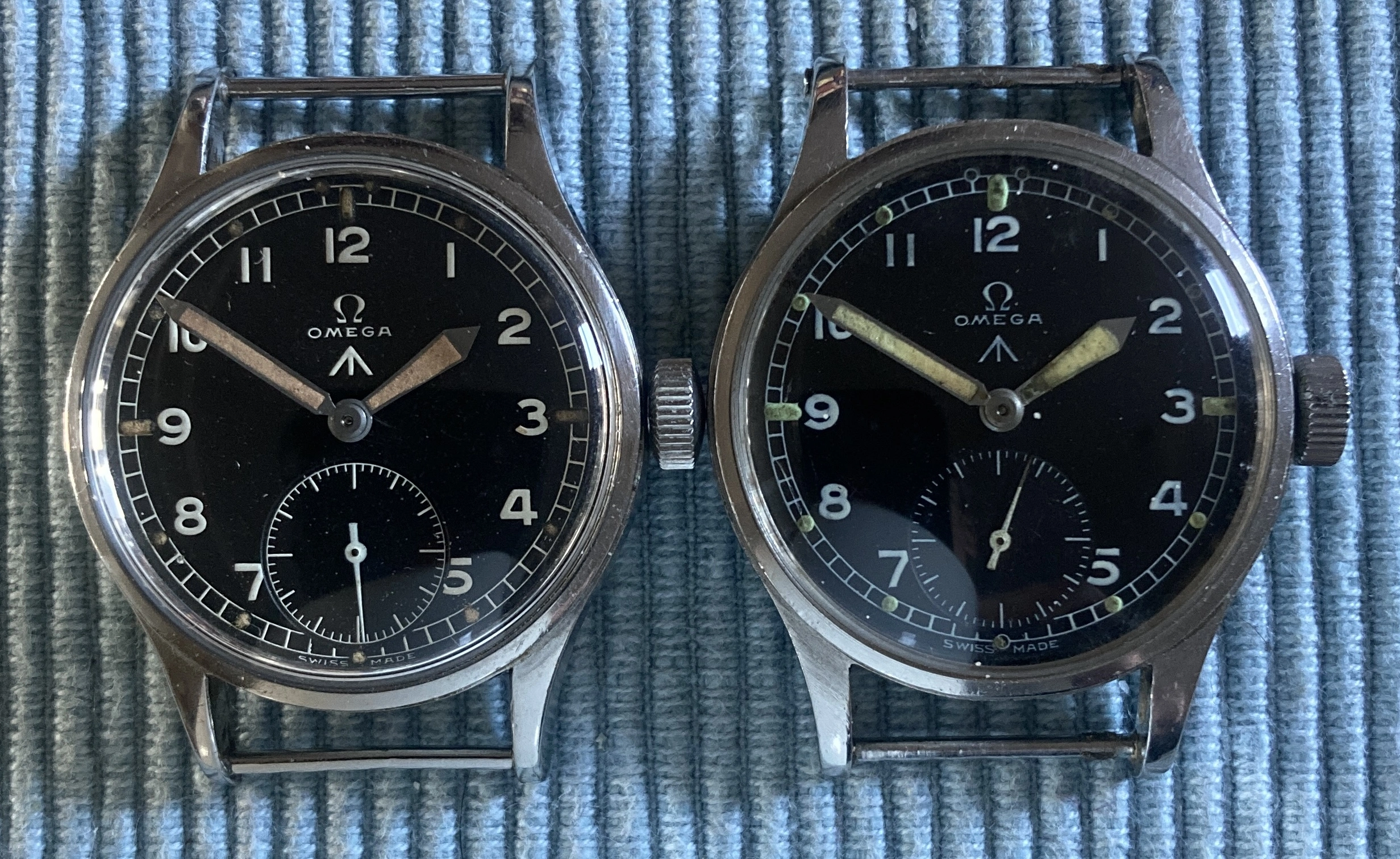

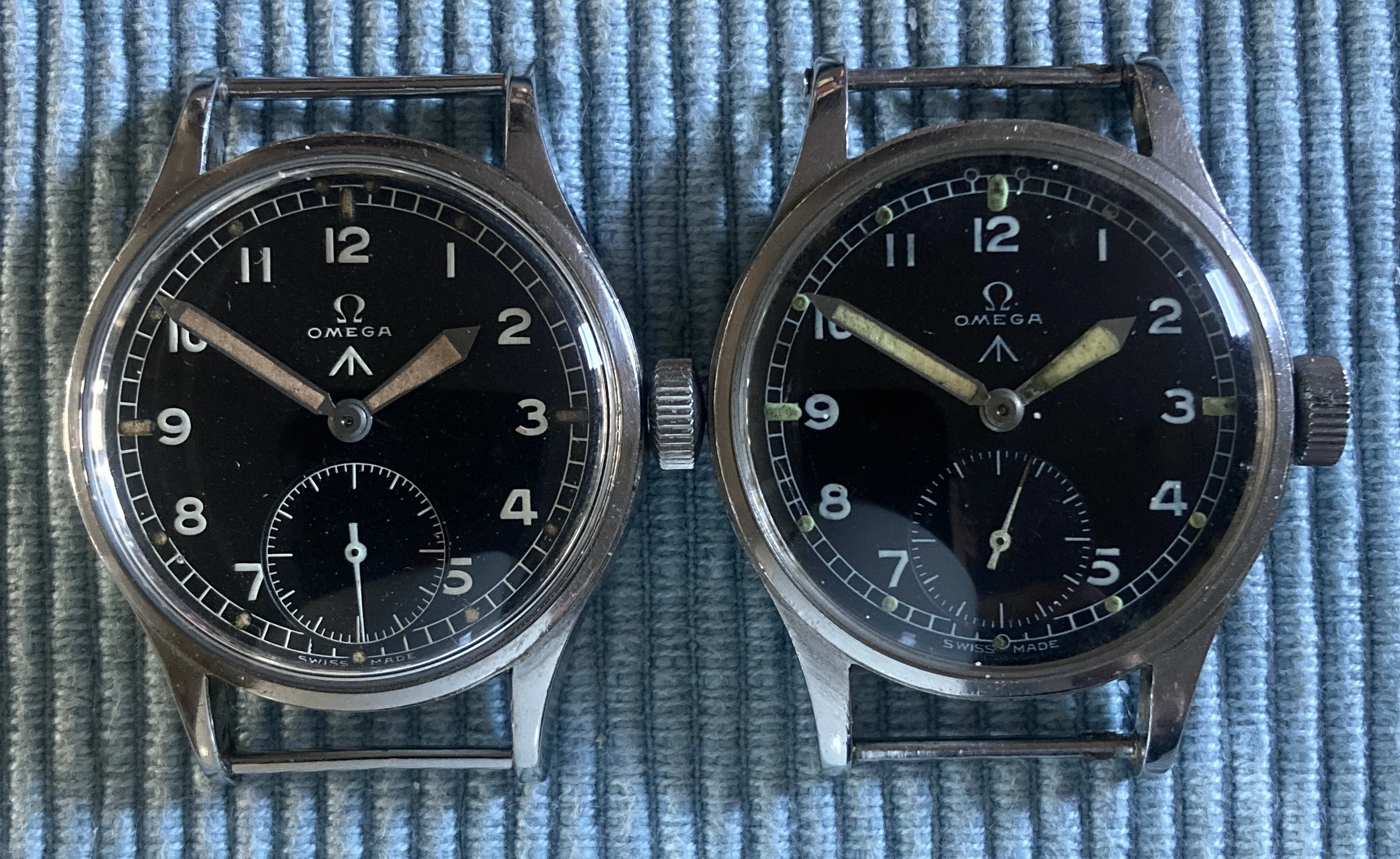

My Omega MoD print on the right, original Omega print on the left. It is the same print as your 2nd dial, the only difference being mine has a sunken sub second as it is (fairly unusually) re-printed on the original dial, yours doesn't appear to have a sunken sub dial, which is the norm for those dials.
2 OMEGA WWW.webp

SerP
Posts
280
Likes
64
Hello to everyone..

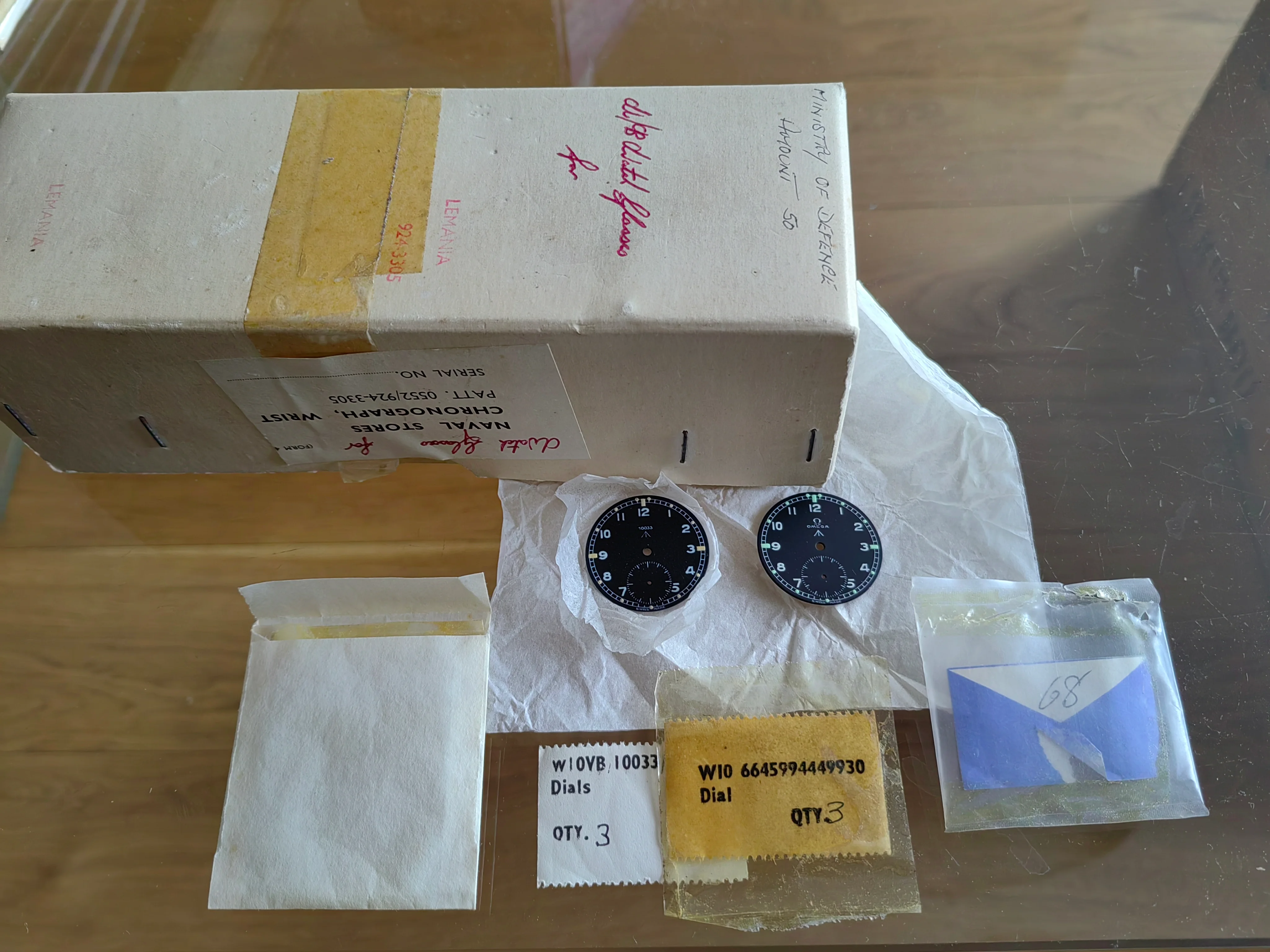

Today I received the dials and here is an update to the thread..

I still don't have the radioactivity meter - still on the way, but we will look at the dials in daylight and under UV, as I got the torch..

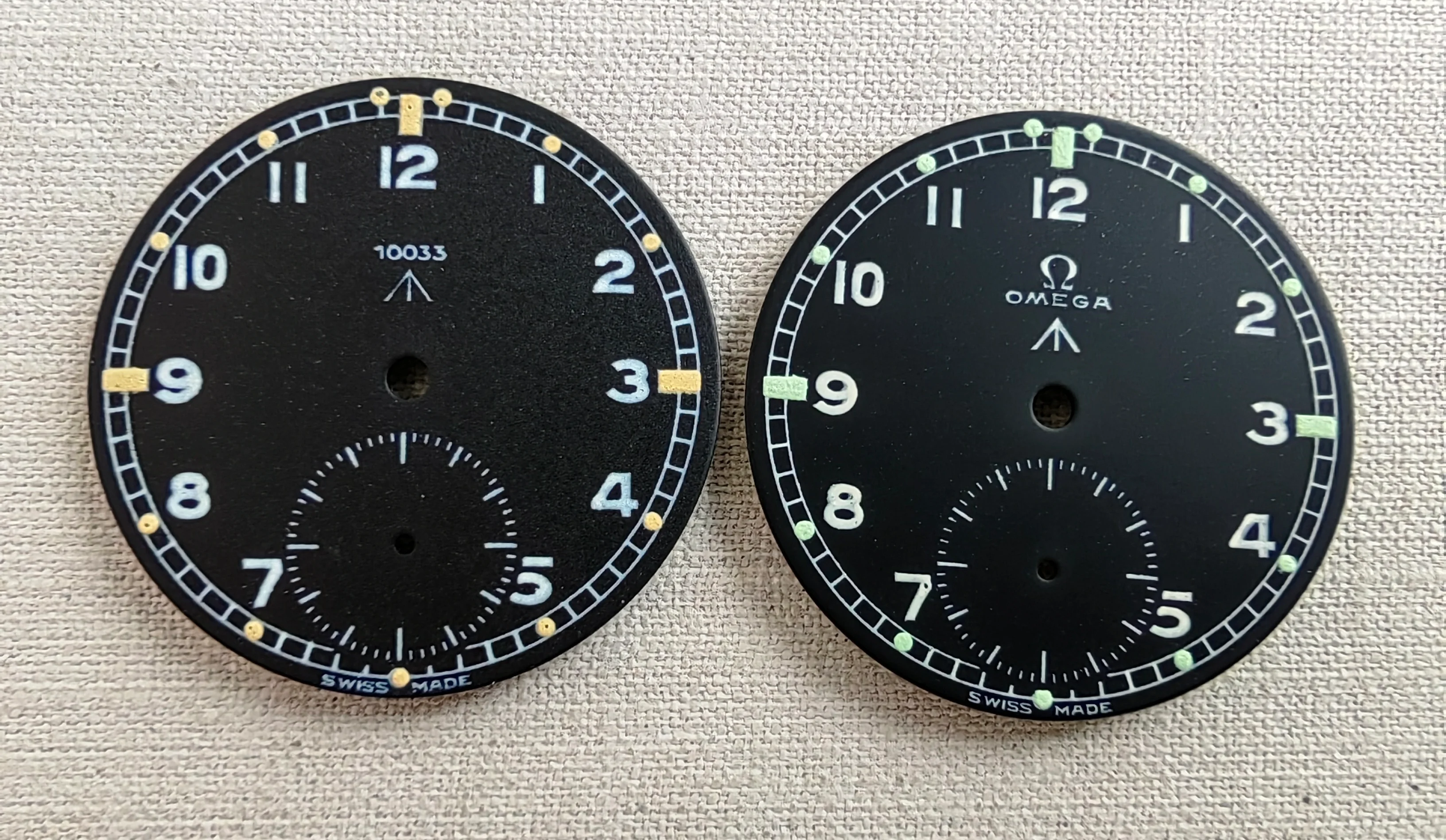

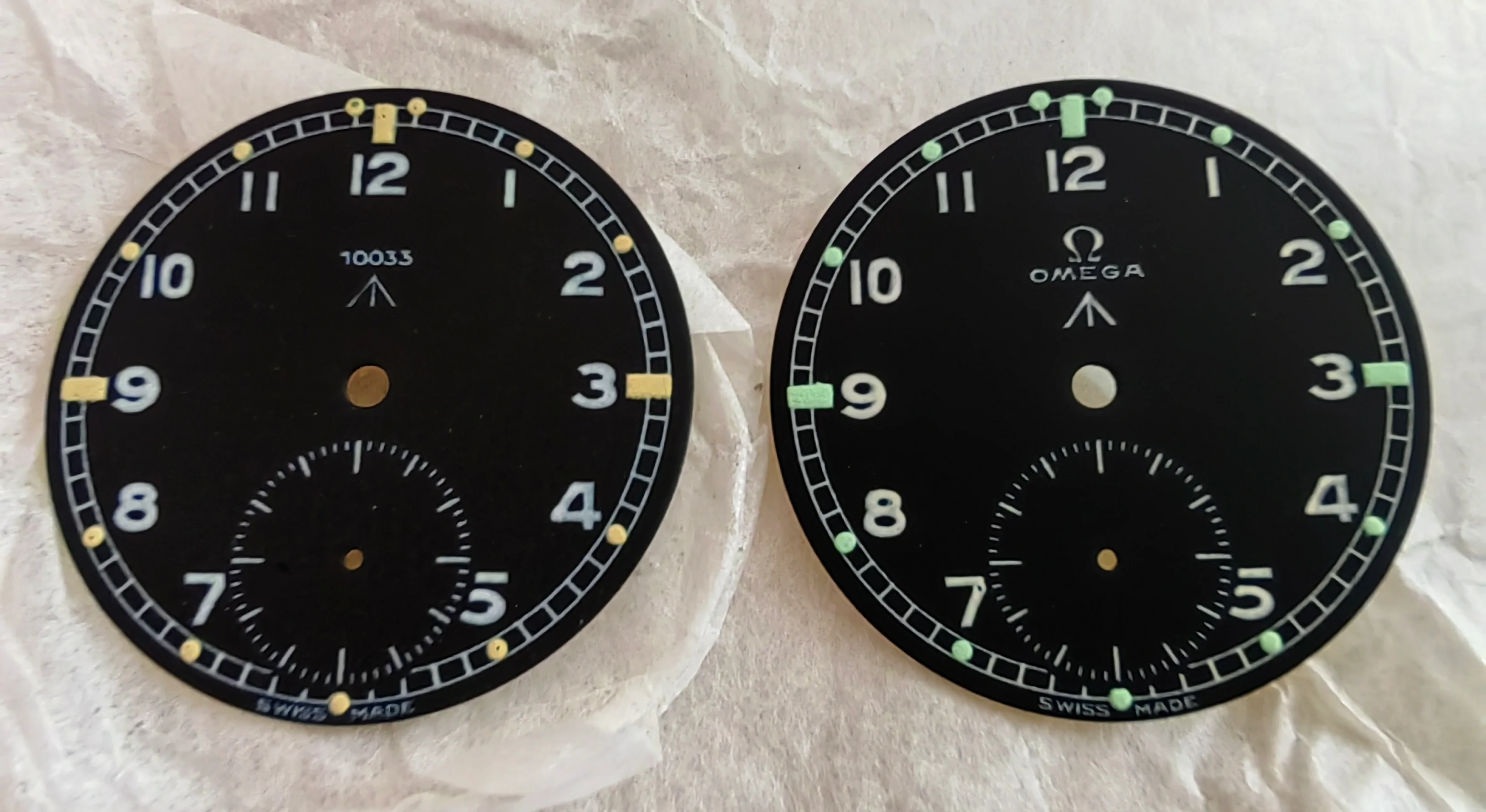

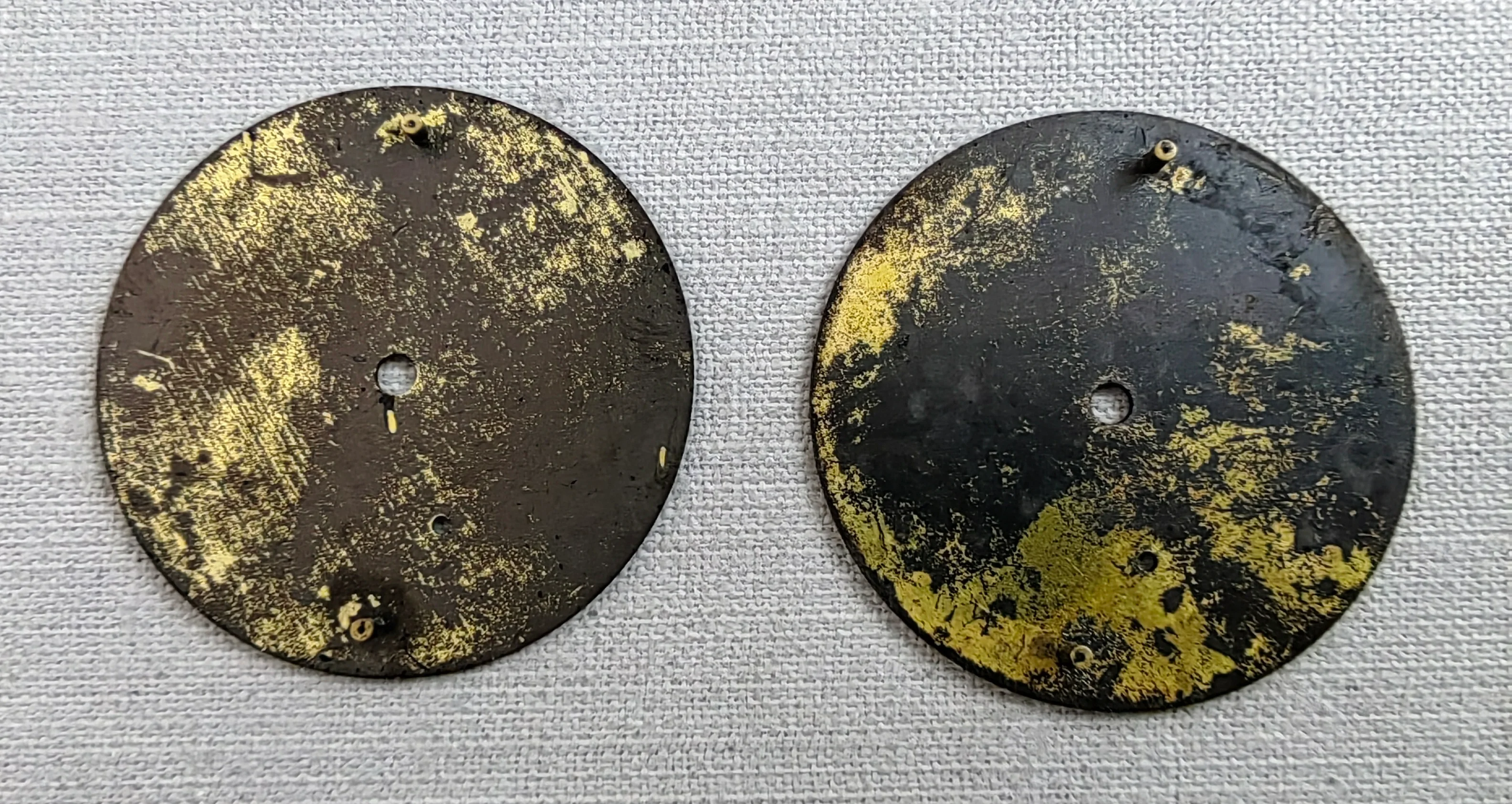

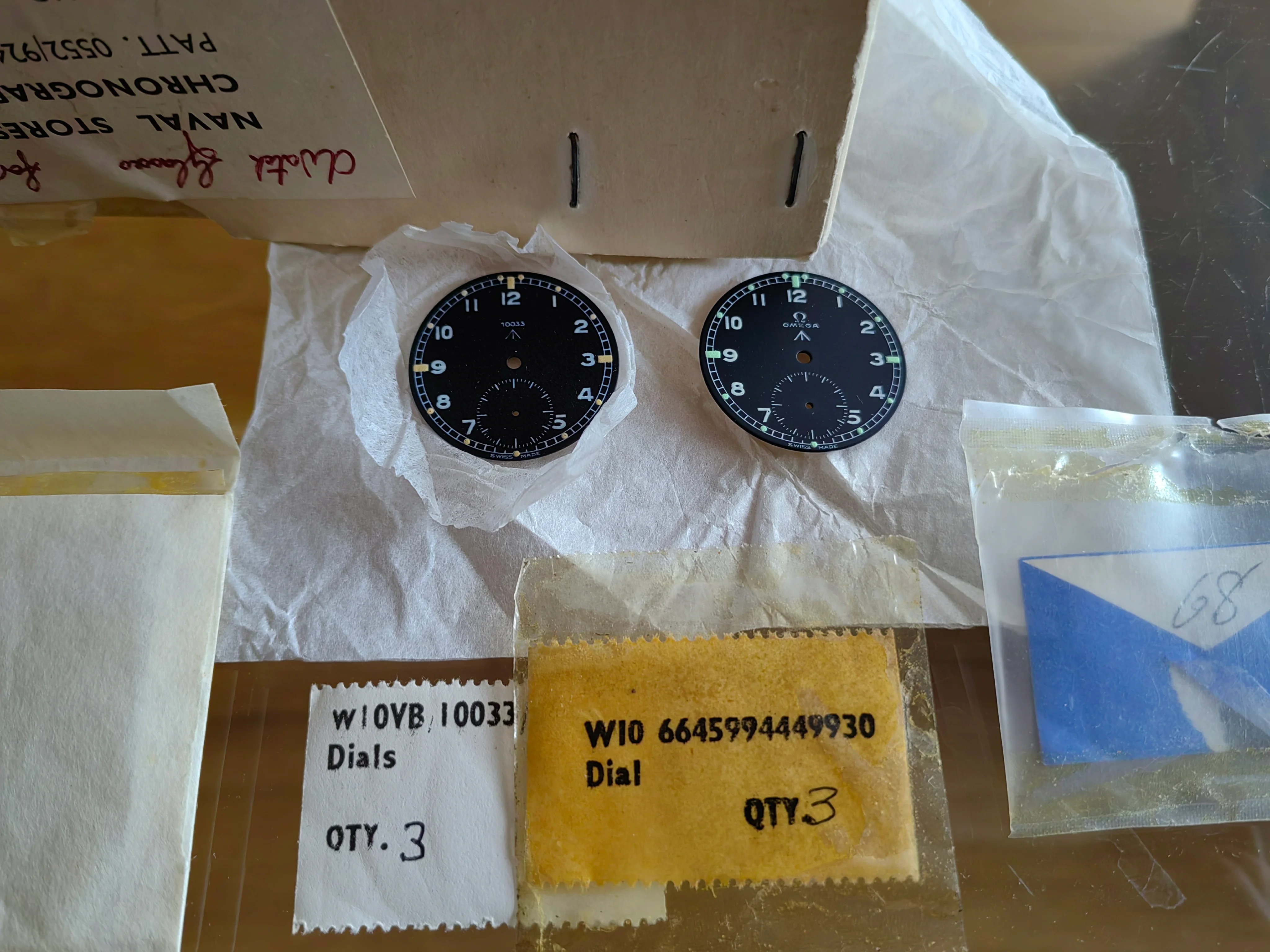

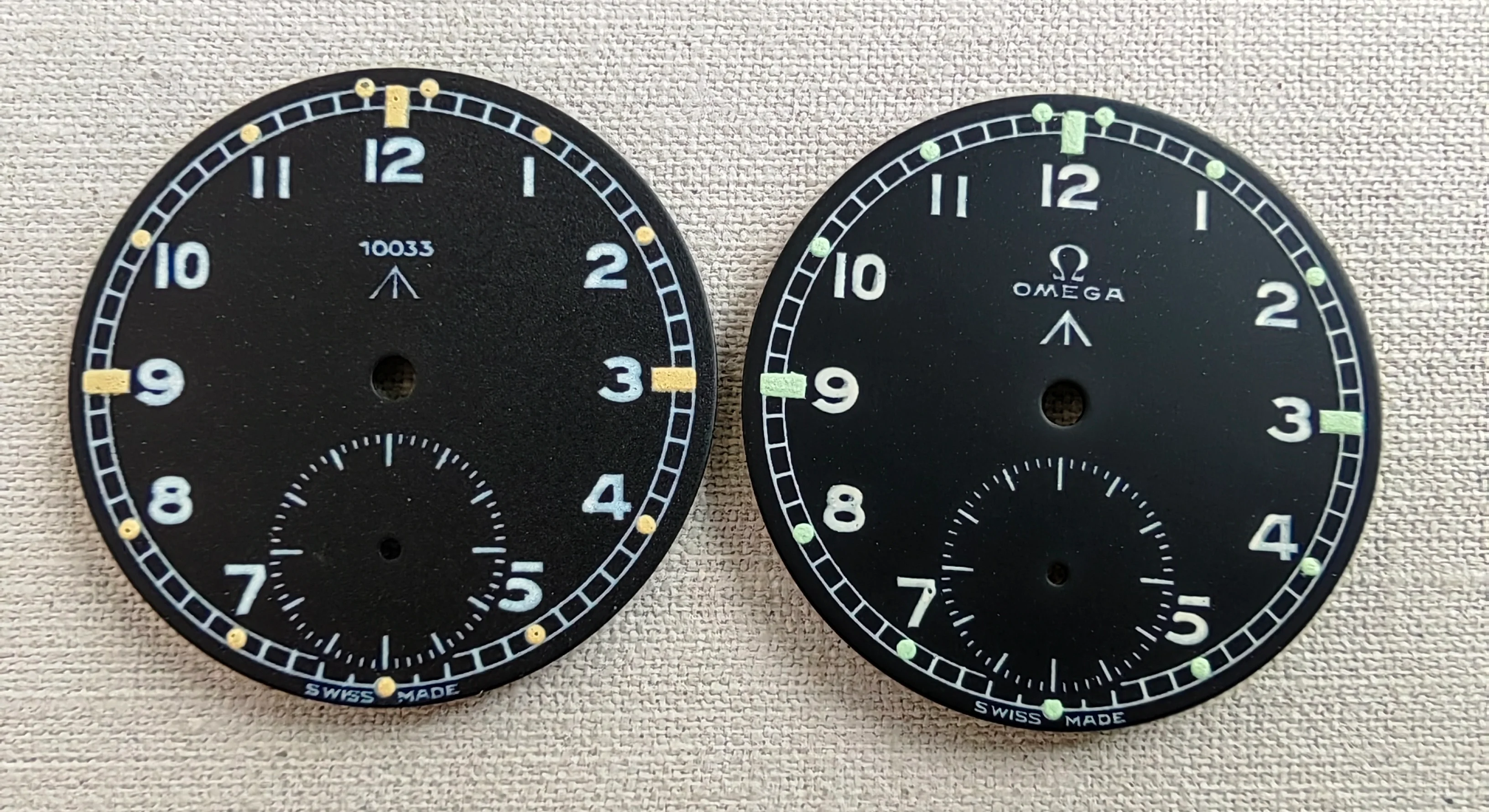

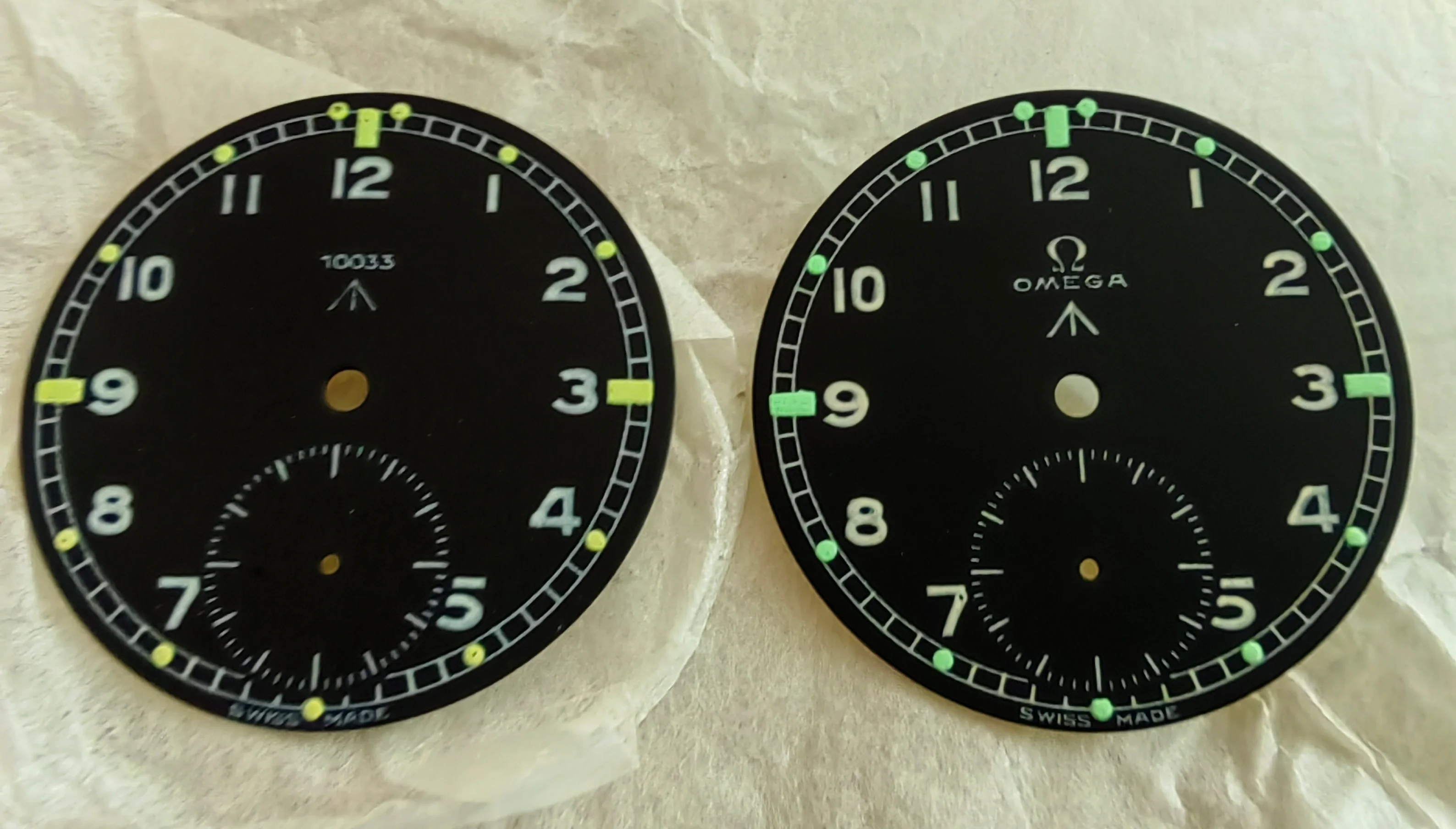

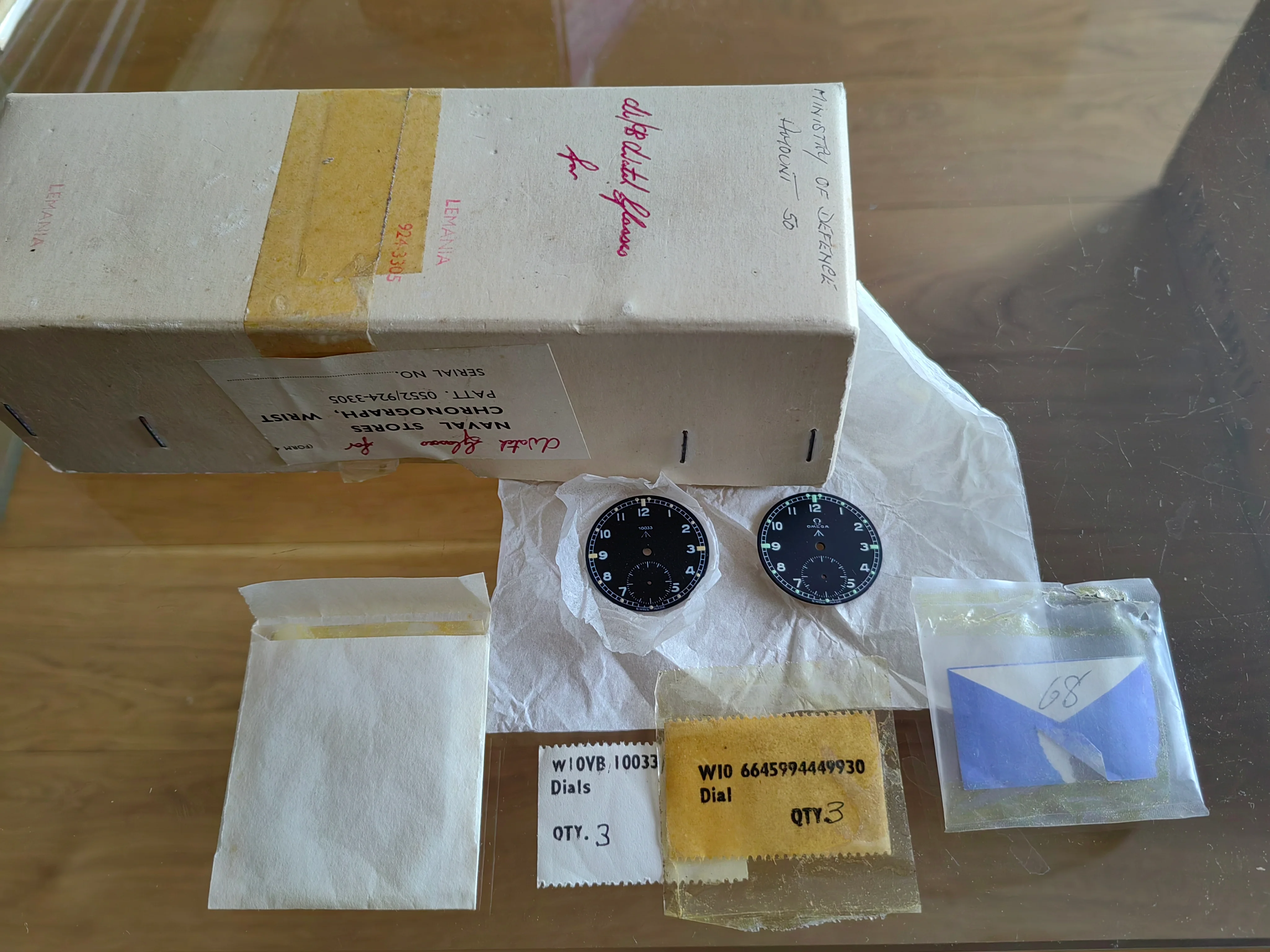

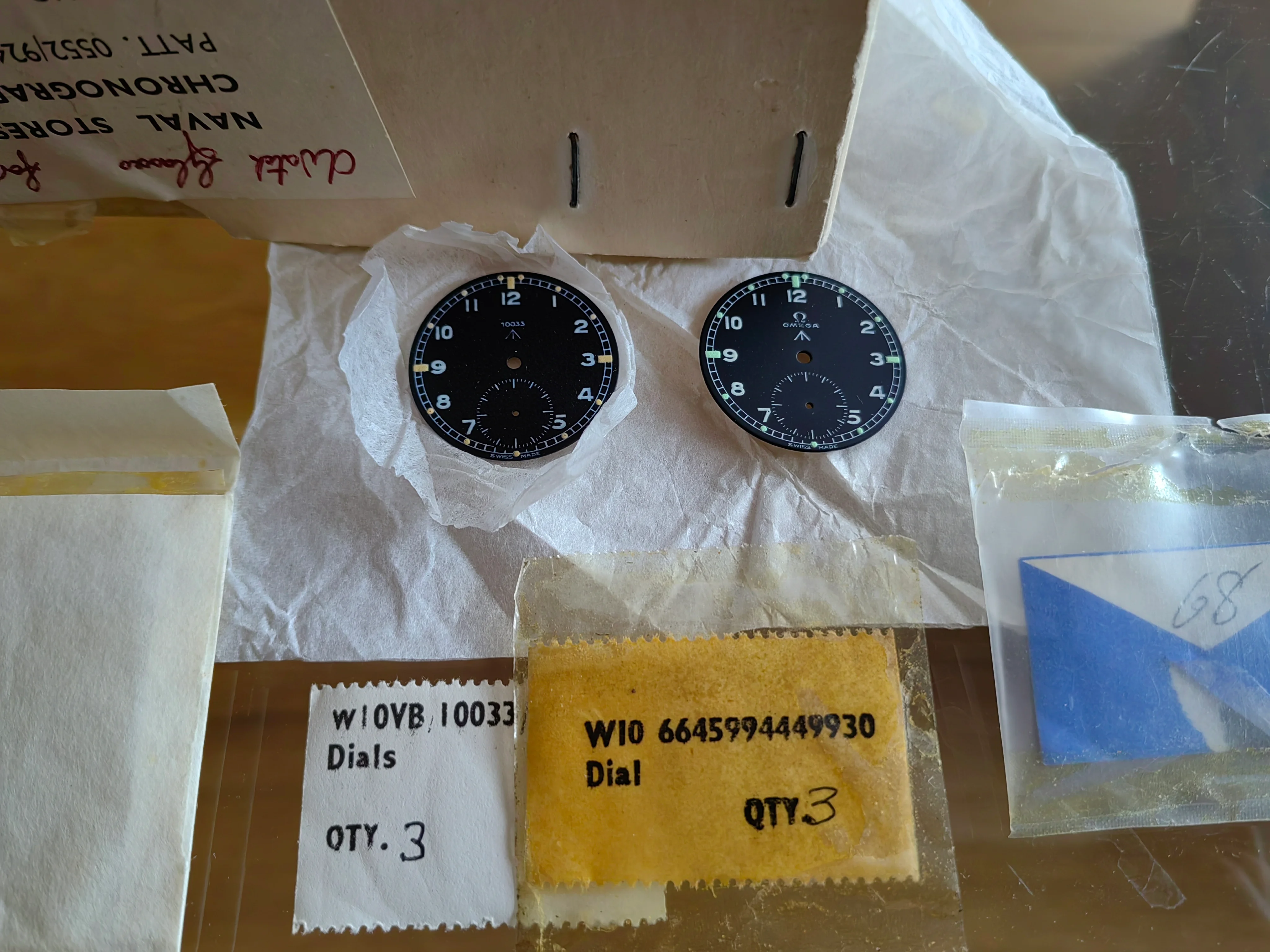

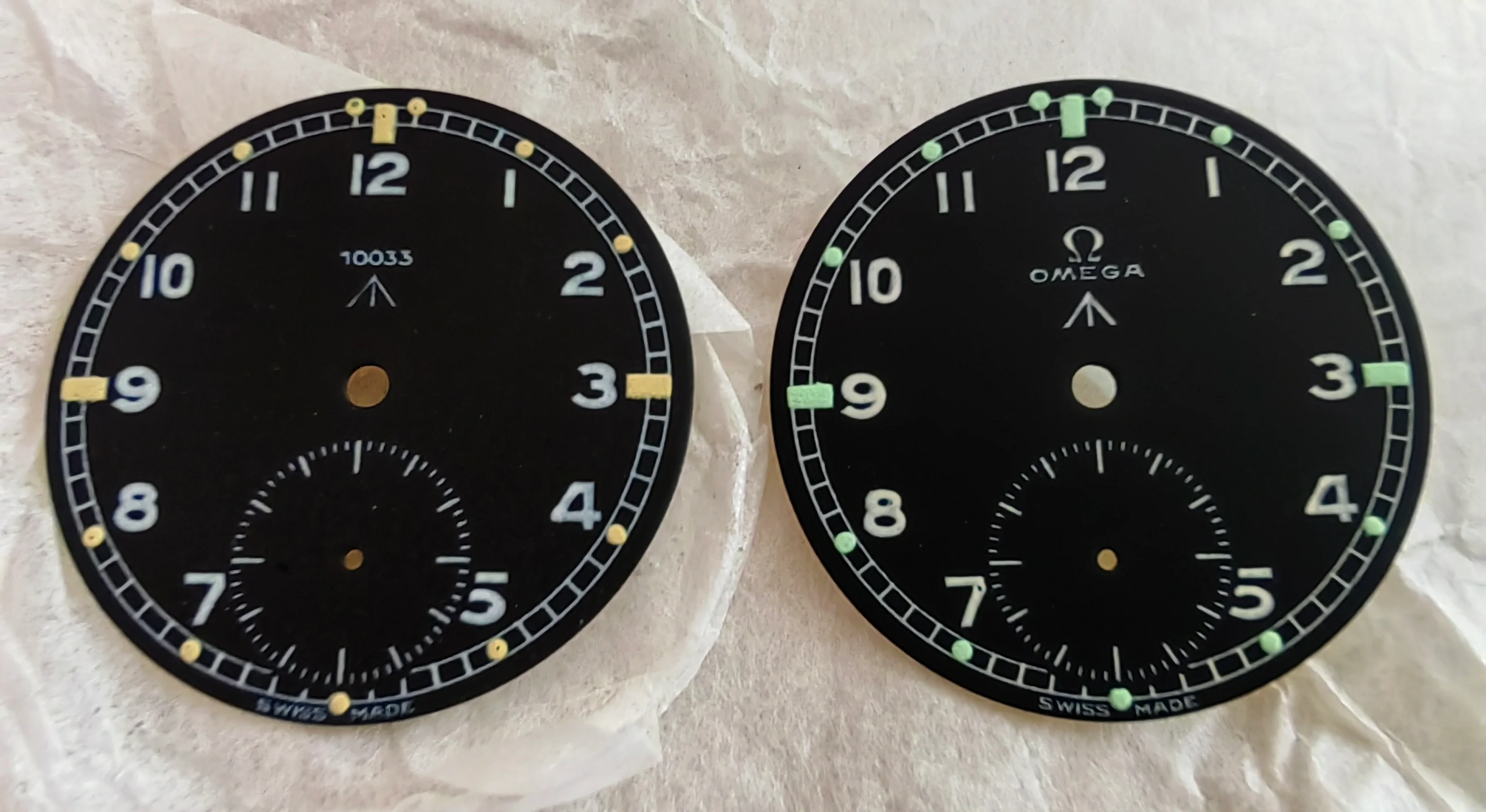

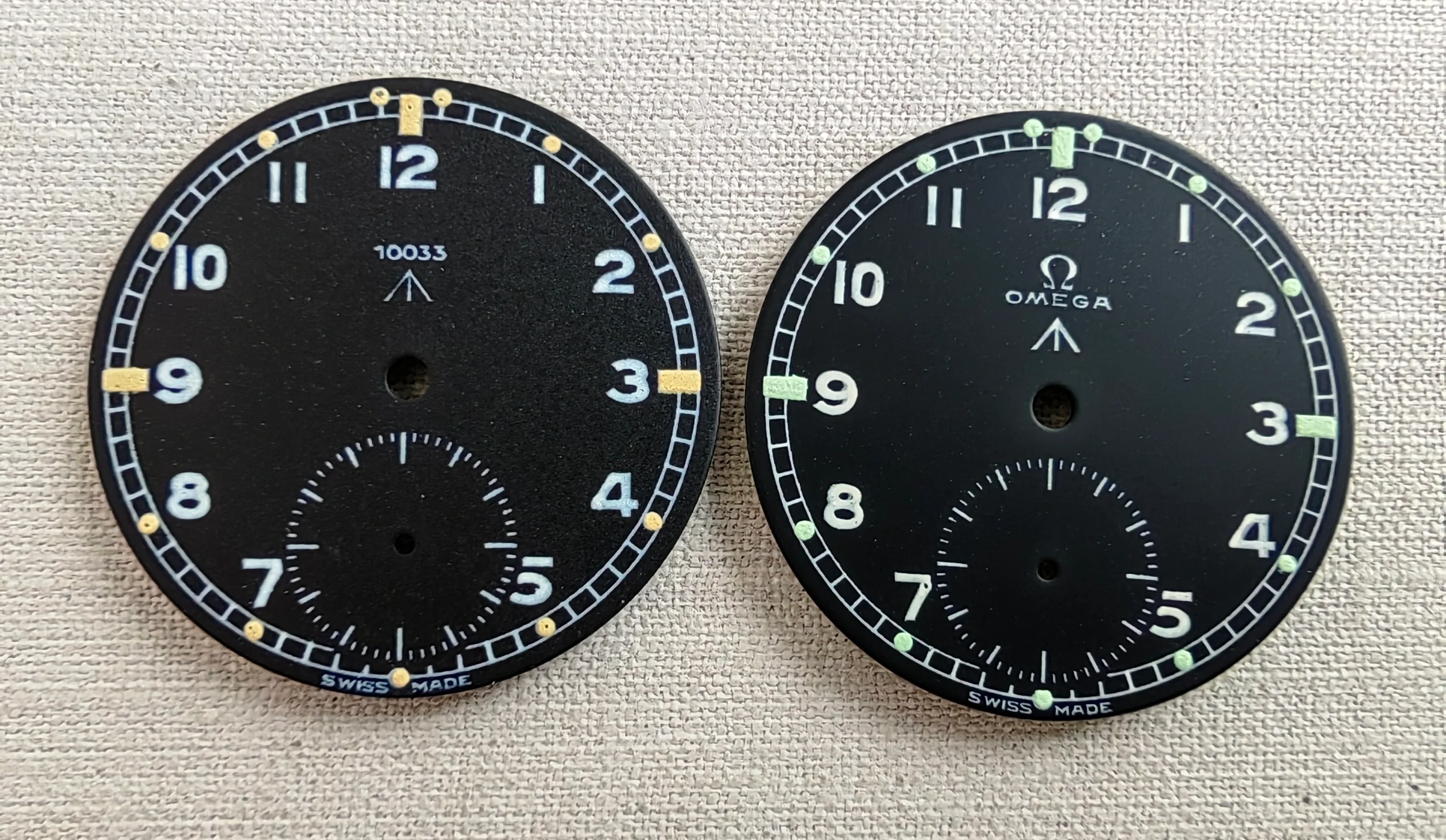

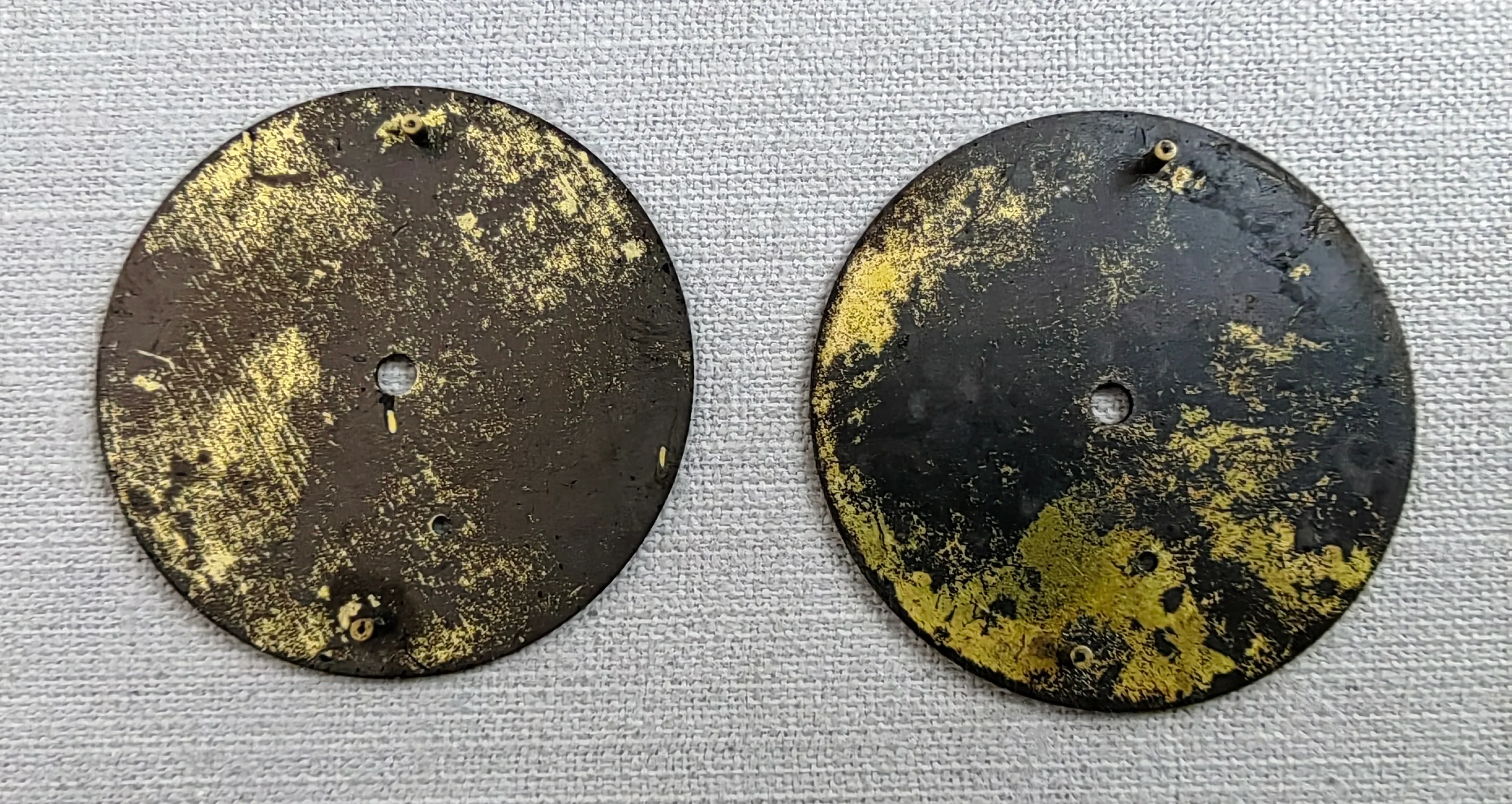

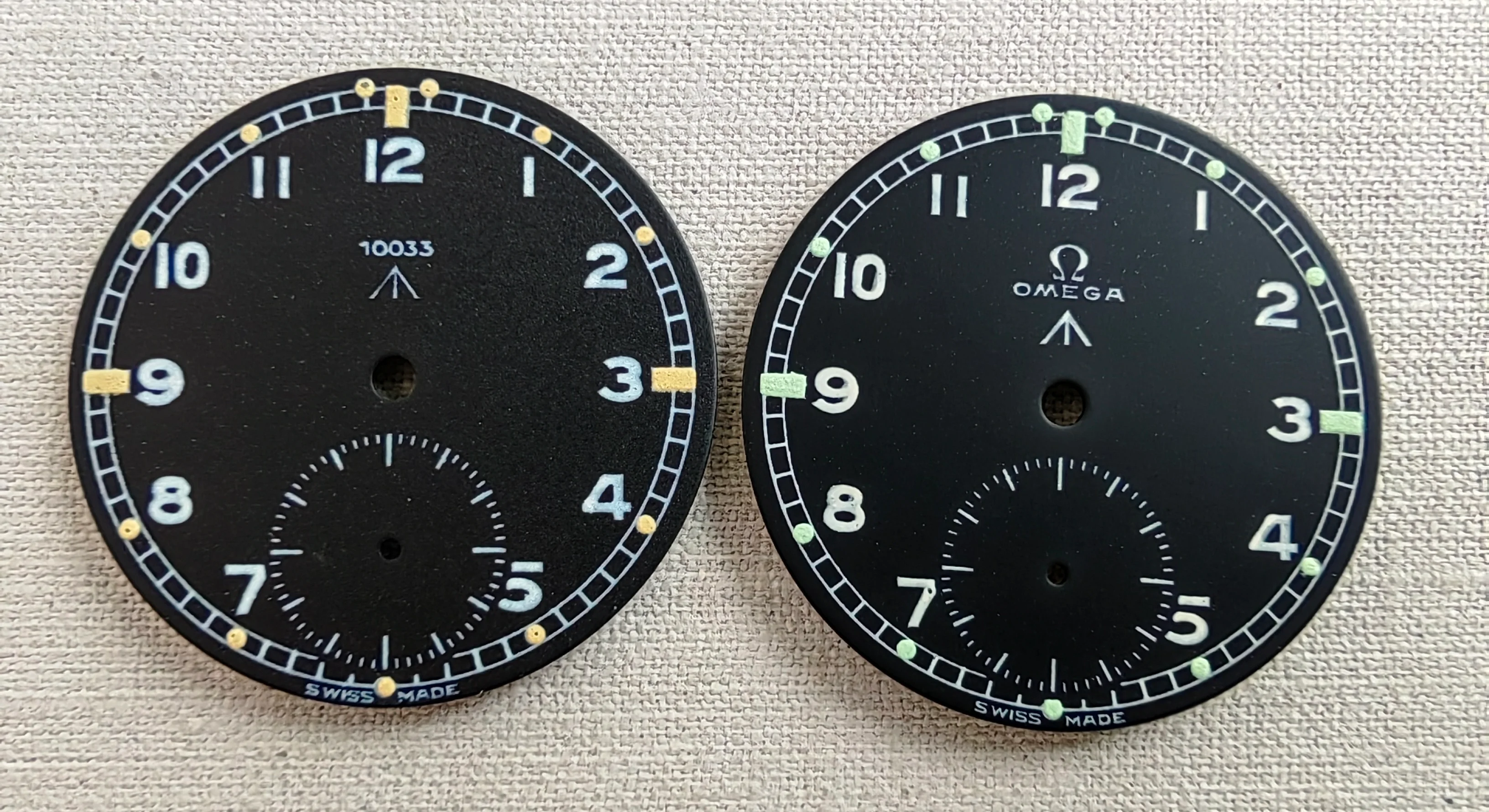

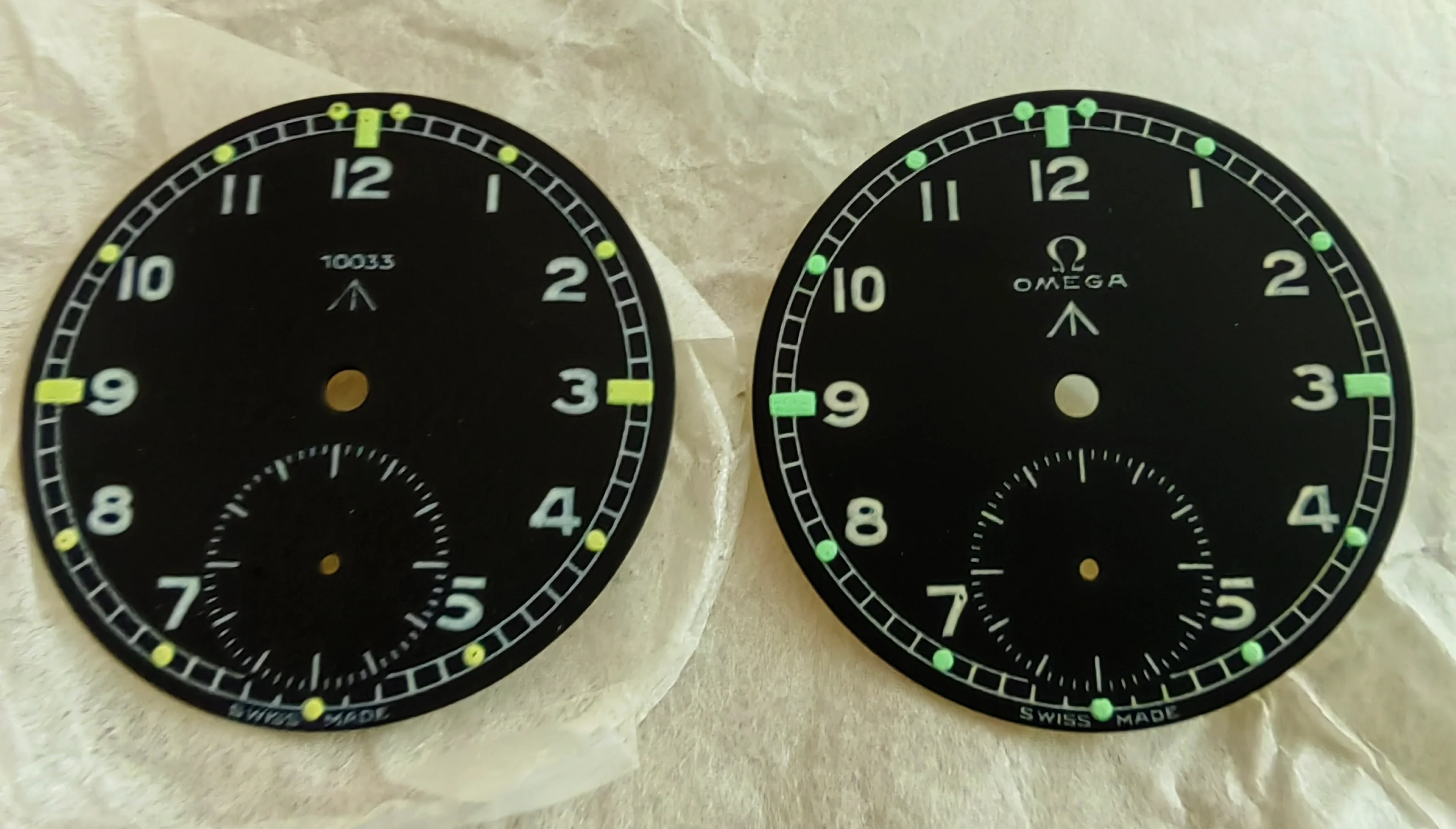

So here are some new pics:

IMG_20250314_124412.webp IMG_20250314_124420.webp IMG_20250314_124759.webp IMG_20250314_124805.webp IMG_20250314_124911.webp IMG_20250314_125107.webp IMG_20250314_125131.webp IMG_20250314_125119.webp

SerP
Posts
280
Likes
64

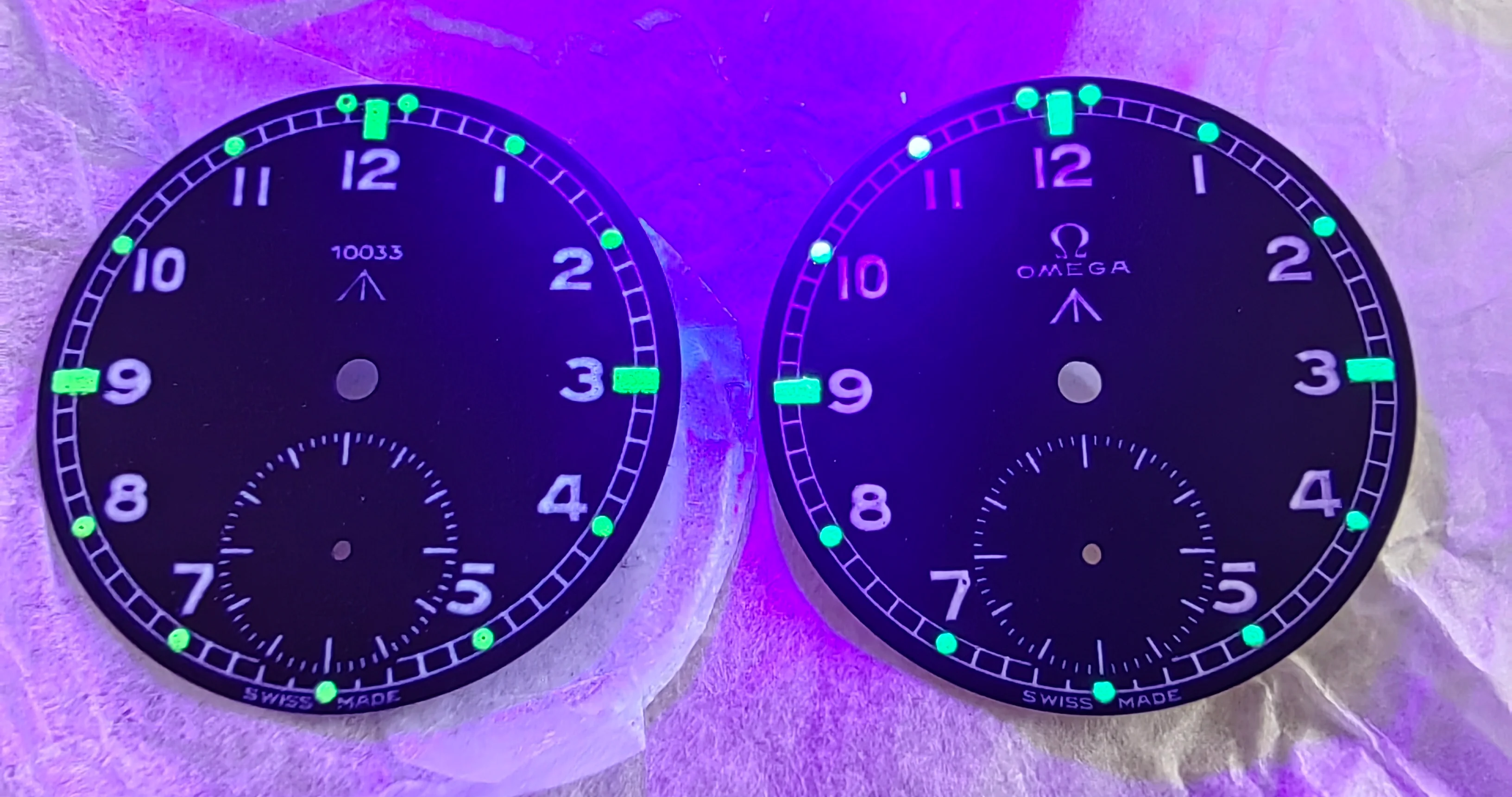

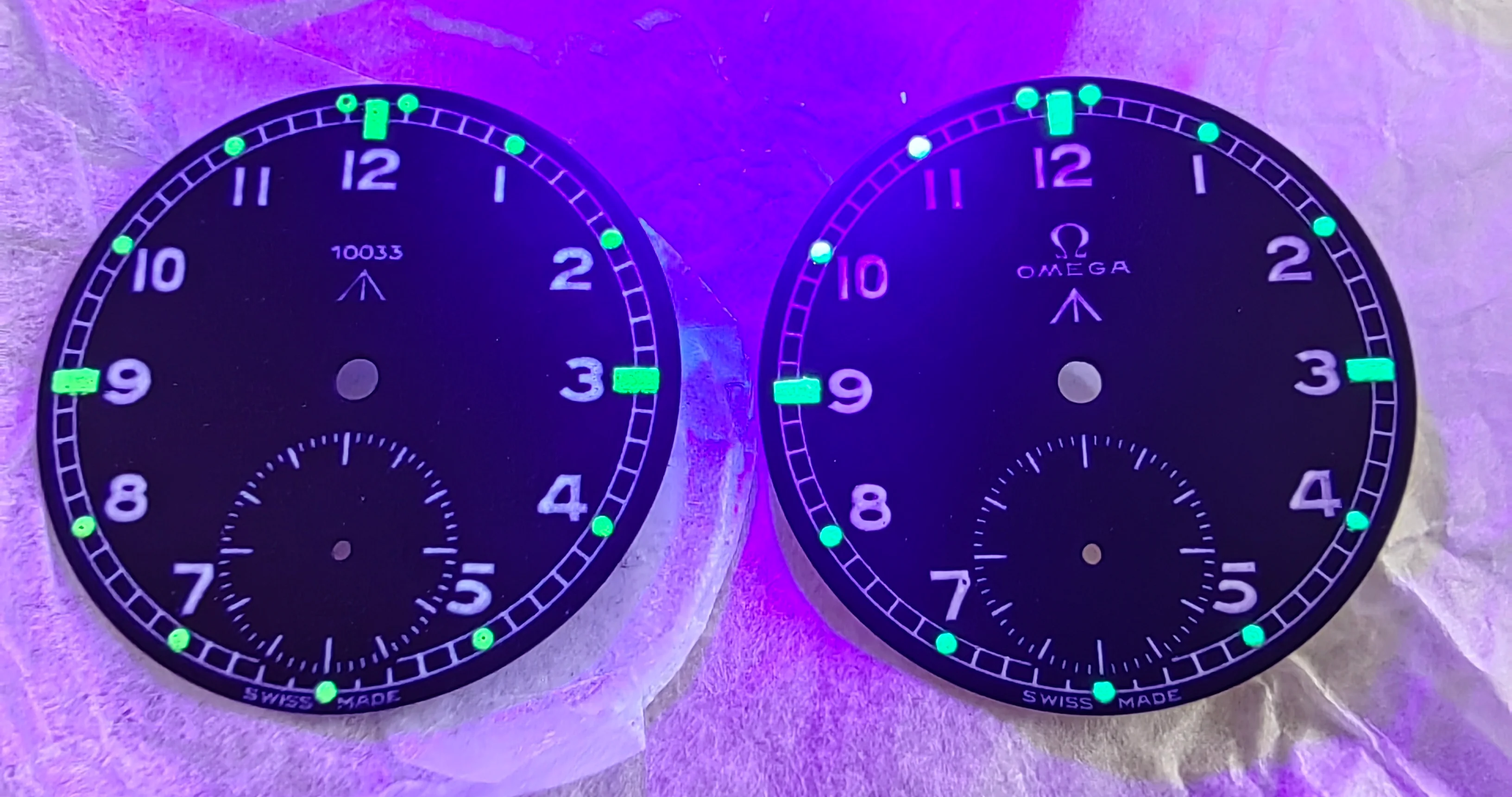

After the UV exposure ends, luminophor glow disappears after three to four seconds, equally on both dials. I will additionally measure the radioactivity level as soon as I receive the control equipment.

Can we make a verdict - do we have enough visual information to judge the authenticity of the dials?
Edited:

SerP
Posts
280
Likes
64
SerP SerP
After the UV exposure ends, luminophor glow disappears after three to four seconds, equally on both dials. I will additionally measure the radioactivity level as soon as I receive the control equipment.

Can we make a verdict - do we have enough visual information to judge the authenticity of the dials?
Dials are not radioactive.

kfranzk
Posts
272
Likes
581
I do not know wether the MoD workshops put off the Radium or Tritium indication and repainted the original base dial or did they take new brass to be printed.
Yes the Stores Ref No 10033 on the dial indicates Omega and later the complete Nato would be 6645-99-445-2031.
You see, originally 13 suppliers were planned, but Enicar seems to have been banned as they supplied the Germans as well, but other Swiss manufacturers did also??

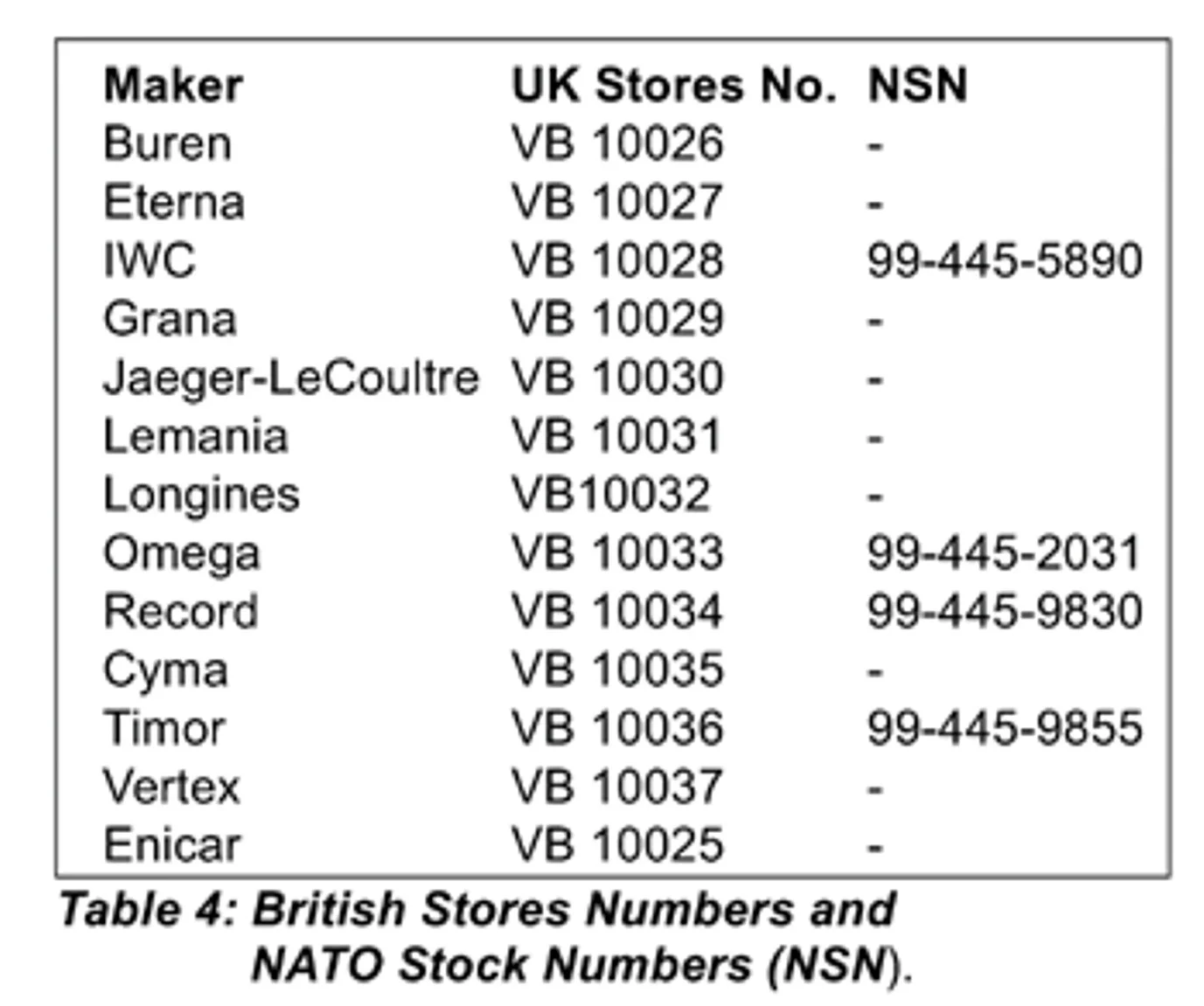

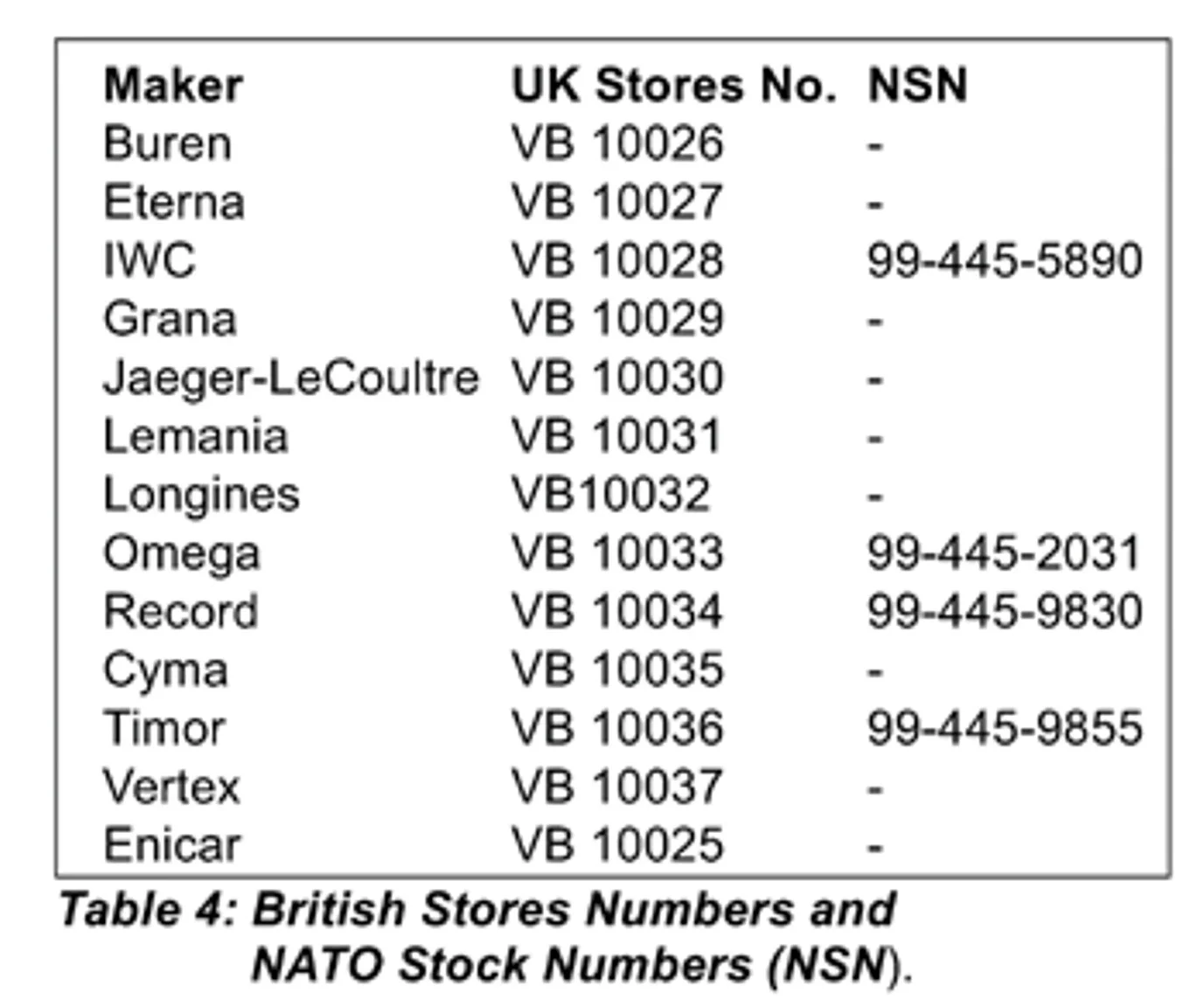

See the chart compiled by Th. König...
(A complete 12-set is just for auction at Crott.)

Dirty Dozen stores NSN.webp
Edited:

watchyouwant
Posts
5,565
Likes
9,380
kfranzk kfranzk
I do not know wether the MoD workshops put off the Radium or Tritium indication and repainted the original base dial or did they take new brass to be printed.
Yes the Stores Ref No 10033 on the dial indicates Omega and later the complete Nato would be 6645-99-445-2031.
You see, originally 13 suppliers were planned, but Enicar seems to have been banned as they supplied the Germans as well, but other Swiss manufacturers did also??
See the chart compiled by Th. König...
(A complete 12-set is just for auction at Crott.)

Dirty Dozen stores NSN.webp

AHH..., forgot about that one ! Thanks, Franz. Kind regards. Achim

kfranzk
Posts
272
Likes
581

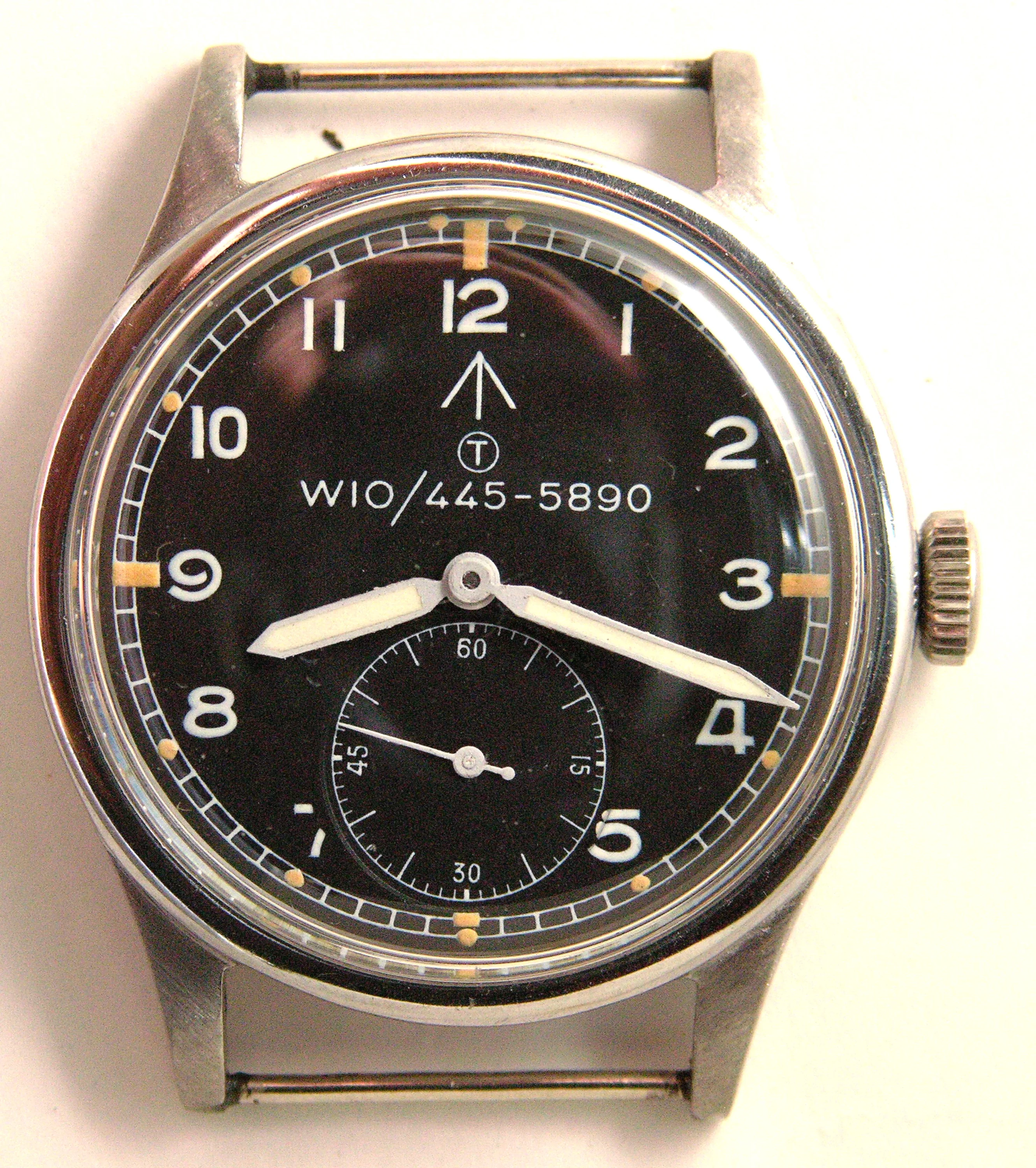

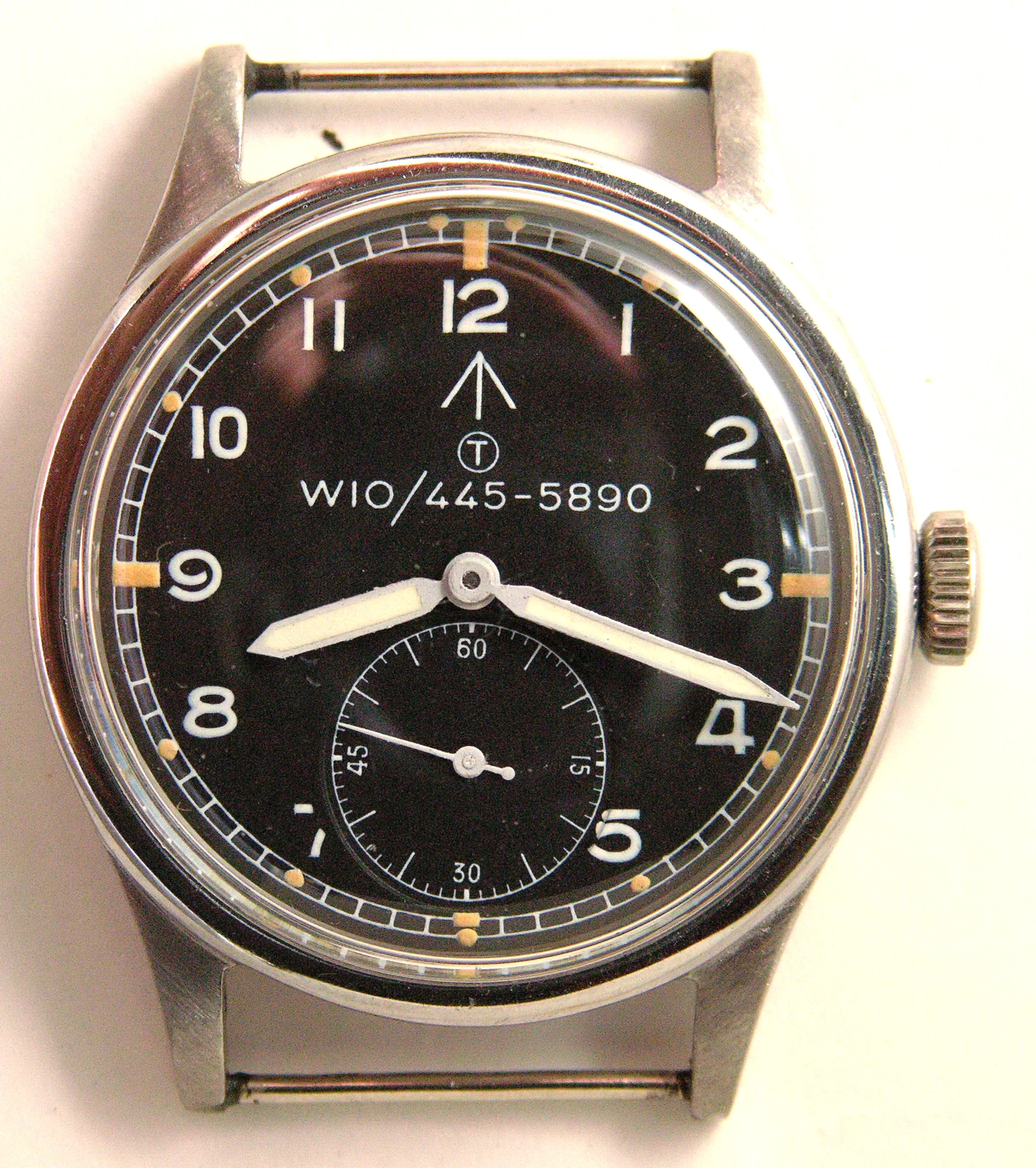

See here a MoD Tritium dial on IWC WWW with reduced NSN (the complete NSN would be 6645-99-445-5890, the W10 stands for the British Army):
IWC WWW NSN.webp
And Record Tritium dial with NSN (6645-99-445-5890):
Record WWW NSN.webp

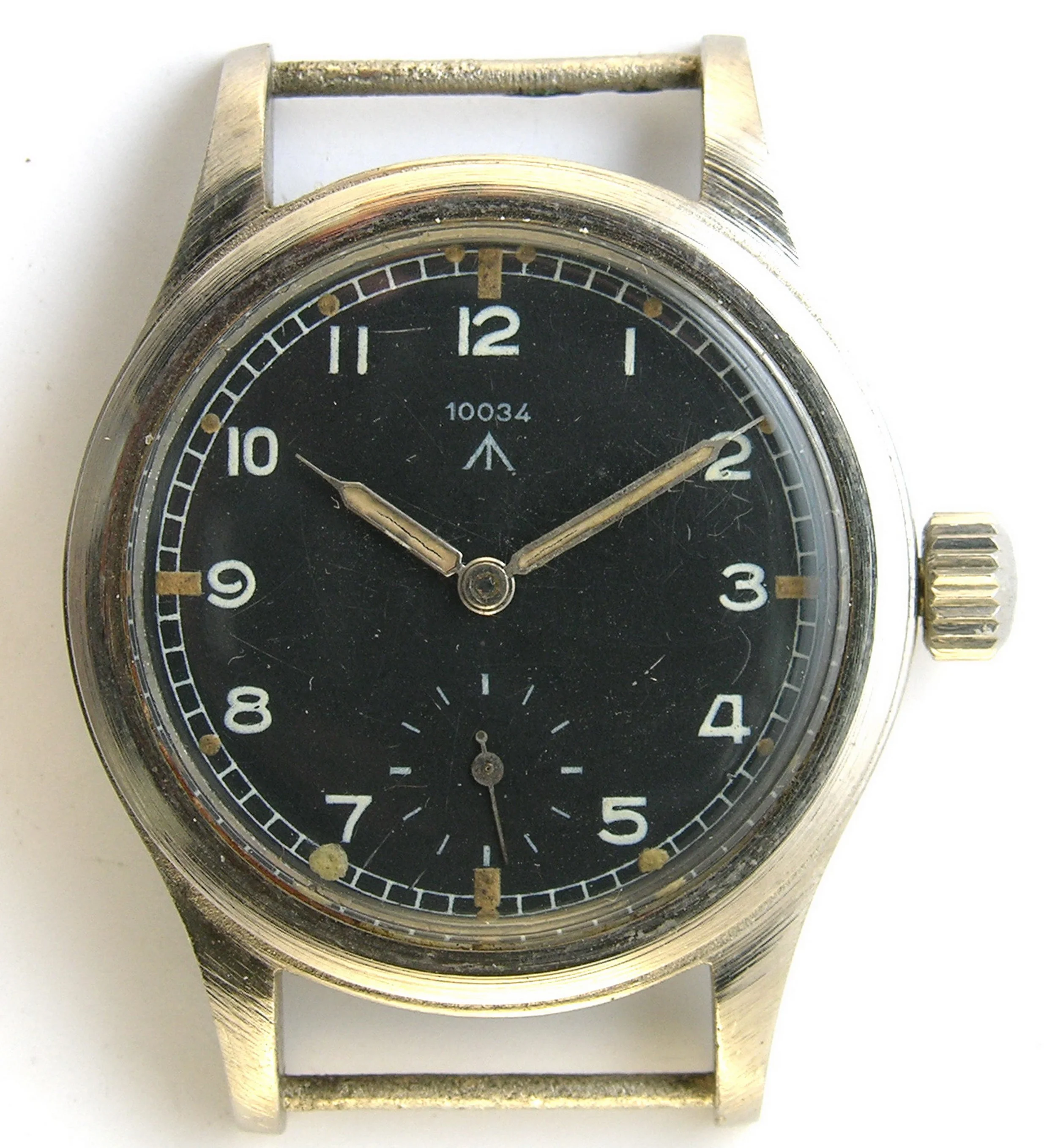

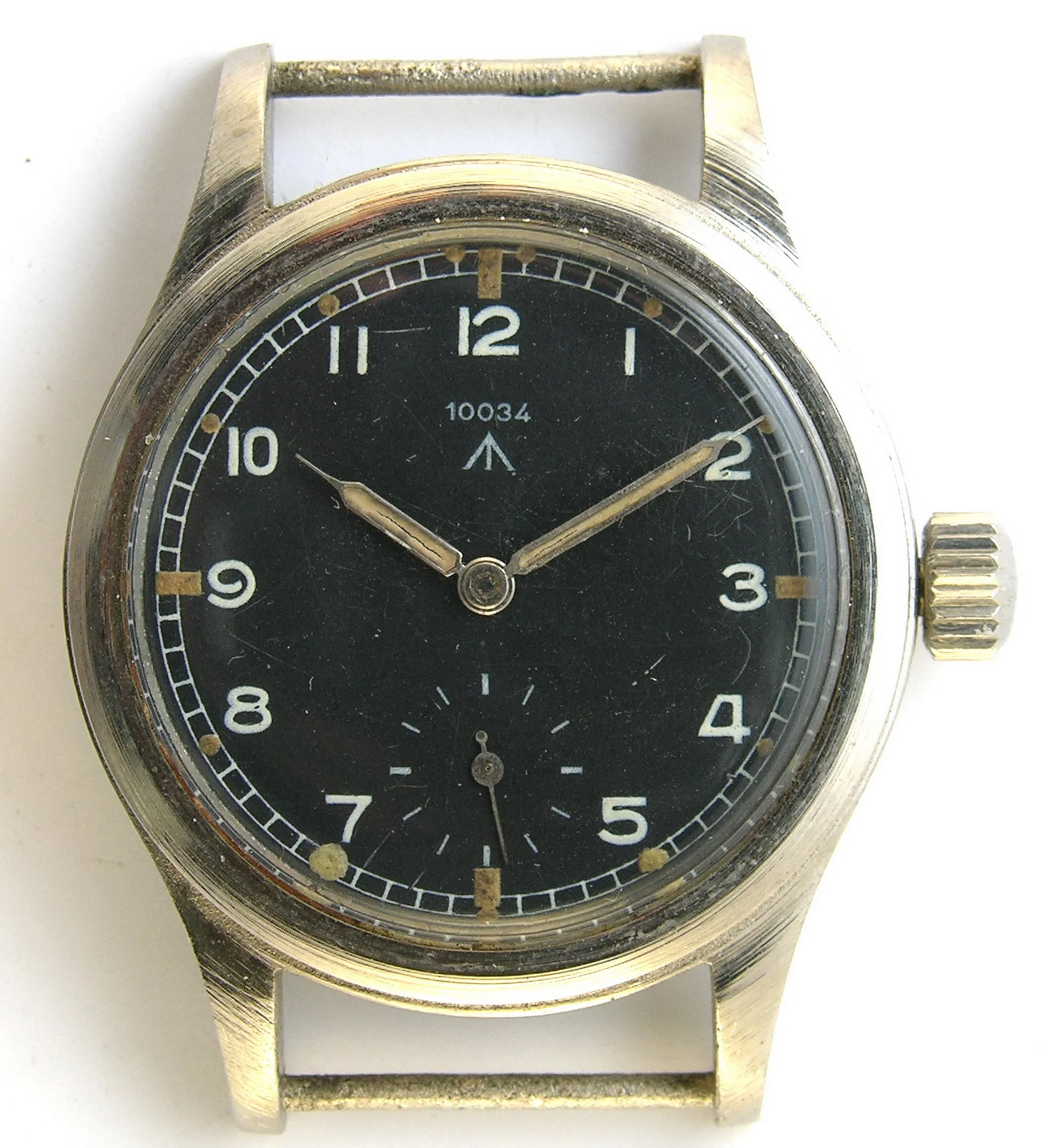

And Record non radioactive dial with stores ref:
Record WWW stores ref.webp
They are all military authentic but not factory authentic, as those had Radium indication.
Edited:
