Damaged clasp - Help!

H

Posts

6

Likes

0

Hez94

·Aug 27, 2020

[Seamaster Professional 300m]

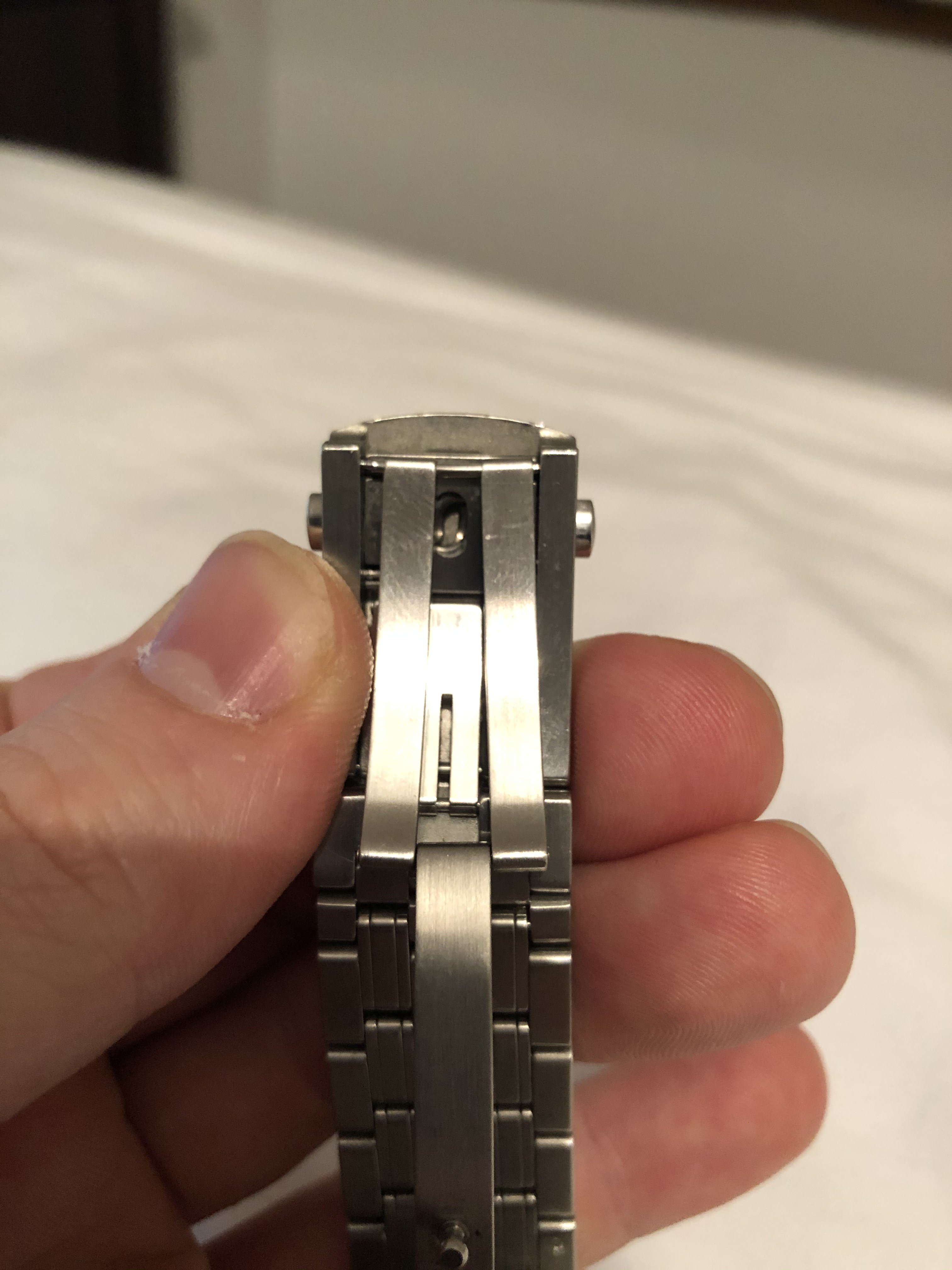

Sorry for the poor description, but I have somehow managed to damage / lose part of my clasp. Its now loose and bends in. Does anyone know what part I'd need to repair this?

The watch can still be worn but I'd like to get it fixed. See image below.

Edited: Aug 27, 2020



Posts

5,991

Likes

28,676

YY77

·Aug 27, 2020

You need to state your watch model to get better info.



H

Posts

6

Likes

0

Hez94

·Aug 27, 2020

Its a Seamaster Professional 300m



Posts

2,476

Likes

3,860

Meme-Dweller

·Aug 27, 2020

What happened to the tube the goes between? How does that happen while the spring bar is still holding on?



H

Posts

6

Likes

0

Hez94

·Aug 27, 2020

Im guessing theres supposed to be a tube that sits between to keep the two bars from bending in?



Posts

408

Likes

355

Bugbait

·Aug 27, 2020

H Hez94

Im guessing theres supposed to be a tube that sits between to keep the two bars from bending in?

Yep. As per @Meme-Dweller 's question, where did the little tube spacer go?



H

Posts

6

Likes

0

Hez94

·Aug 27, 2020

I honestly have no idea whats happened to it. The watch was passed down to me though & was in this state when I received it.

Do you know the name of this specific part / if it is available to order as a spare anywhere?



Posts

362

Likes

564

steelfish

·Aug 27, 2020

I can’t quite see from the pics but there should be a metal collar between the two legs, is it missing? You should be able to buy just the clasp half rather than the full item, I’ve seen them on eBay. Alternatively on my clasp that same pin that goes all the way through the legs, collar and side clasps has screws both sides so likely you can replace just that.

EDIT: Sorry just took a closer look at my clasp. The screws in the side don’t line up with that pin, so I think the clasp top replacement would be the better route,



Posts

986

Likes

3,009

vitriol

·Aug 27, 2020

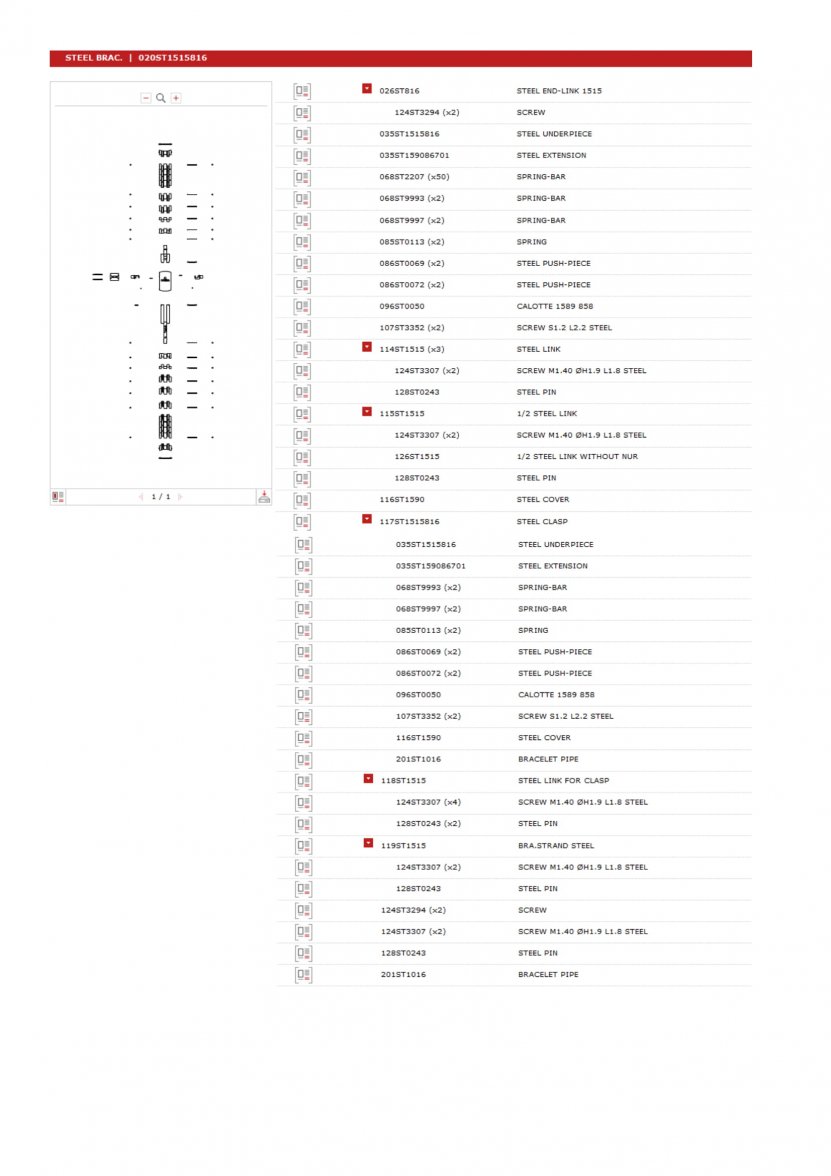

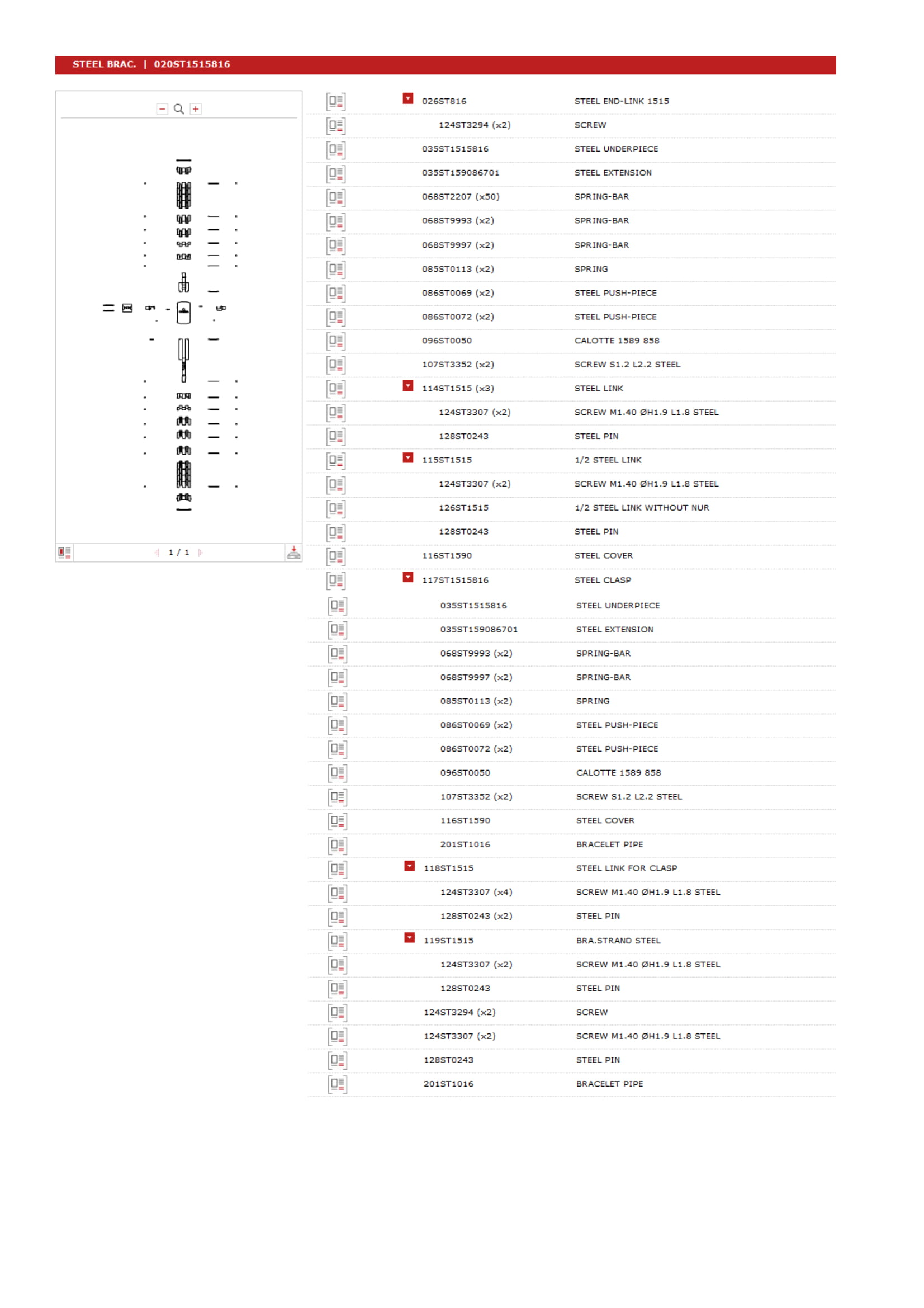

If your watch is not a chronograph, then your bracelet is 1515-816 and I guess you need a new "bracelet pipe".



H

Posts

6

Likes

0

Hez94

·Aug 27, 2020

thank you all for your replies - @vitriol yes its a 1515-816 & thank you so much



H

Posts

6

Likes

0

Hez94

·Aug 27, 2020

@steelfish yes the metal collar is missing. appreciate the help mate



Posts

29,675

Likes

76,836

Archer

·Aug 27, 2020·Omega Qualified Watchmaker

201ST1016 is the pipe you need.



Posts

2,476

Likes

3,860

Meme-Dweller

·Aug 27, 2020

and also replace the whole bar while you're at it since it is clearly bent
