CincyWatchShots x AWCI Build-a-Watch Class, Cincinnati

Posts
533
Likes
2,155
Update 9/28/26

CincyWatchShots is running a special group project "Build-a-Watch" class hosted by @americanwatchmakers AWCI. We have a confirmed date of Oct 17th for the class (class will be at AWCI headquarters in Harrison, OH). Max class size is 12, and we have 2 slots currently open. If you're in the mid-west up up for a road trip to Cincinnati, head on over to the discord and go to the Build-a-Watch channel to get on the list.

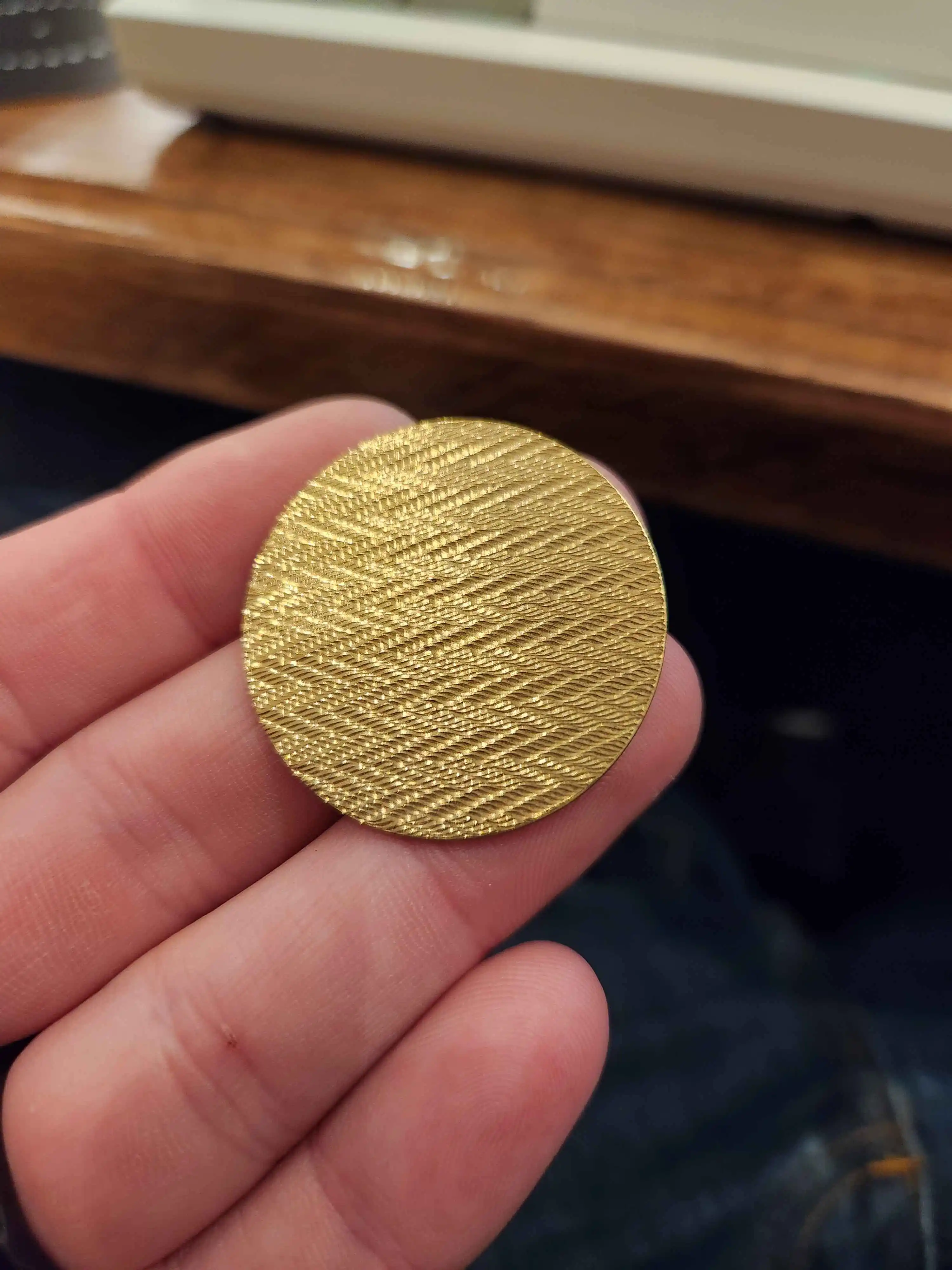

What makes this group project unique is that we are making custom dials for these watches. Let me rephrase that. YOU are making your own dial for your own watch. We are utilizing tool steel pattern plates and forming copper, brass, and fine silver dial blanks into piece-unique dial. The LAST DAY TO MAKE A CUSTOM DIAL IS OCTOBER 10th!!! The process to make a dial is to cut a dial blank from raw 22ga sheet, there is plenty of brass and copper to practice with. We then drill a center hole using a 3d printed drill jig to locate center. Then we press the dial in a 50ton hydraulic press using a pattern plate. The dial is then sanded in a sandwich tool to make the OD to finished size. Then we chemically patina or blacken with darkening agents. Next is to give a vertical or circular brush with scotchbrite to get the bare base material to pop through. Followed up with a clear coat to seal the dial. I will attach dial feet after the dial is made.

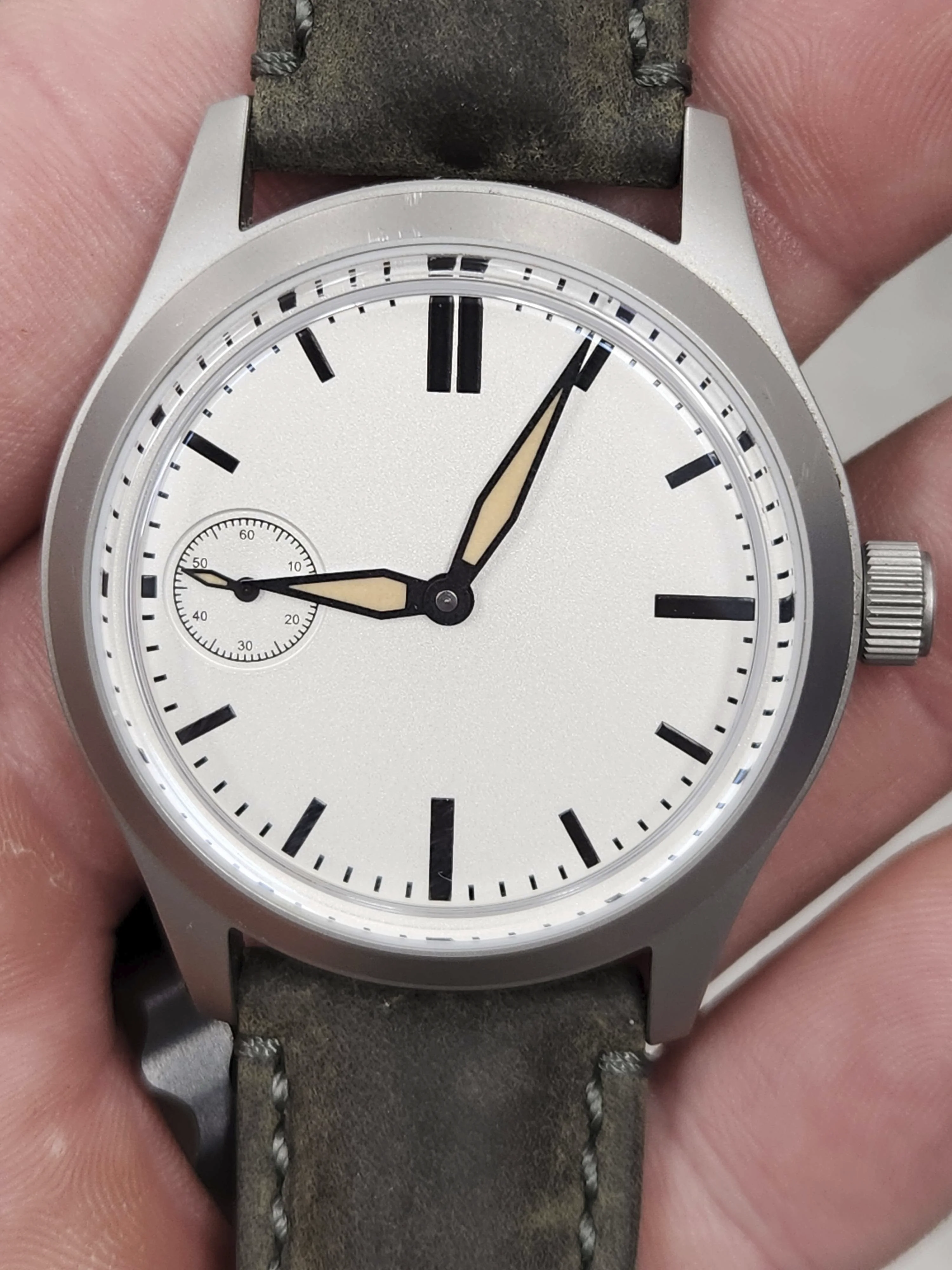

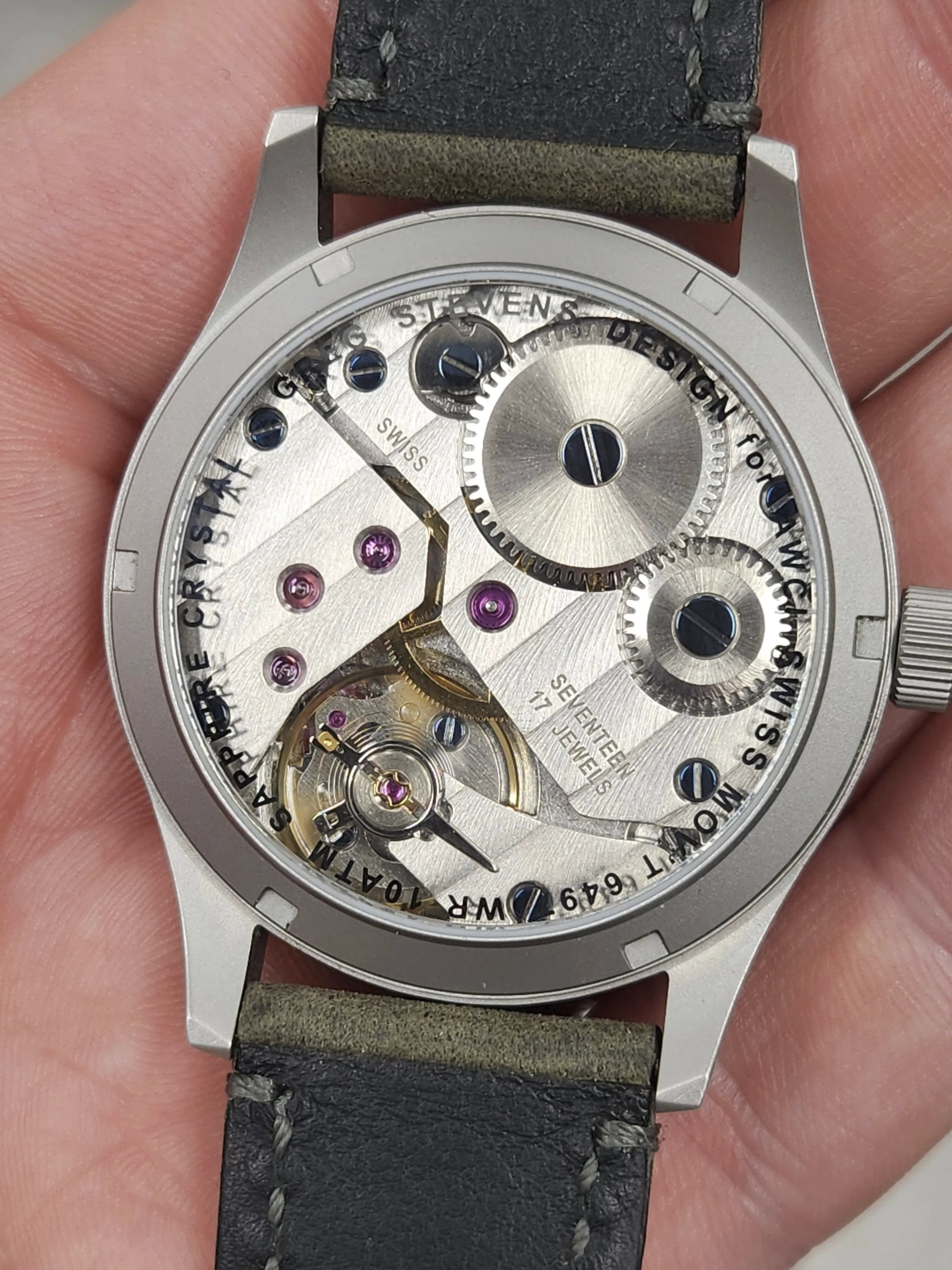

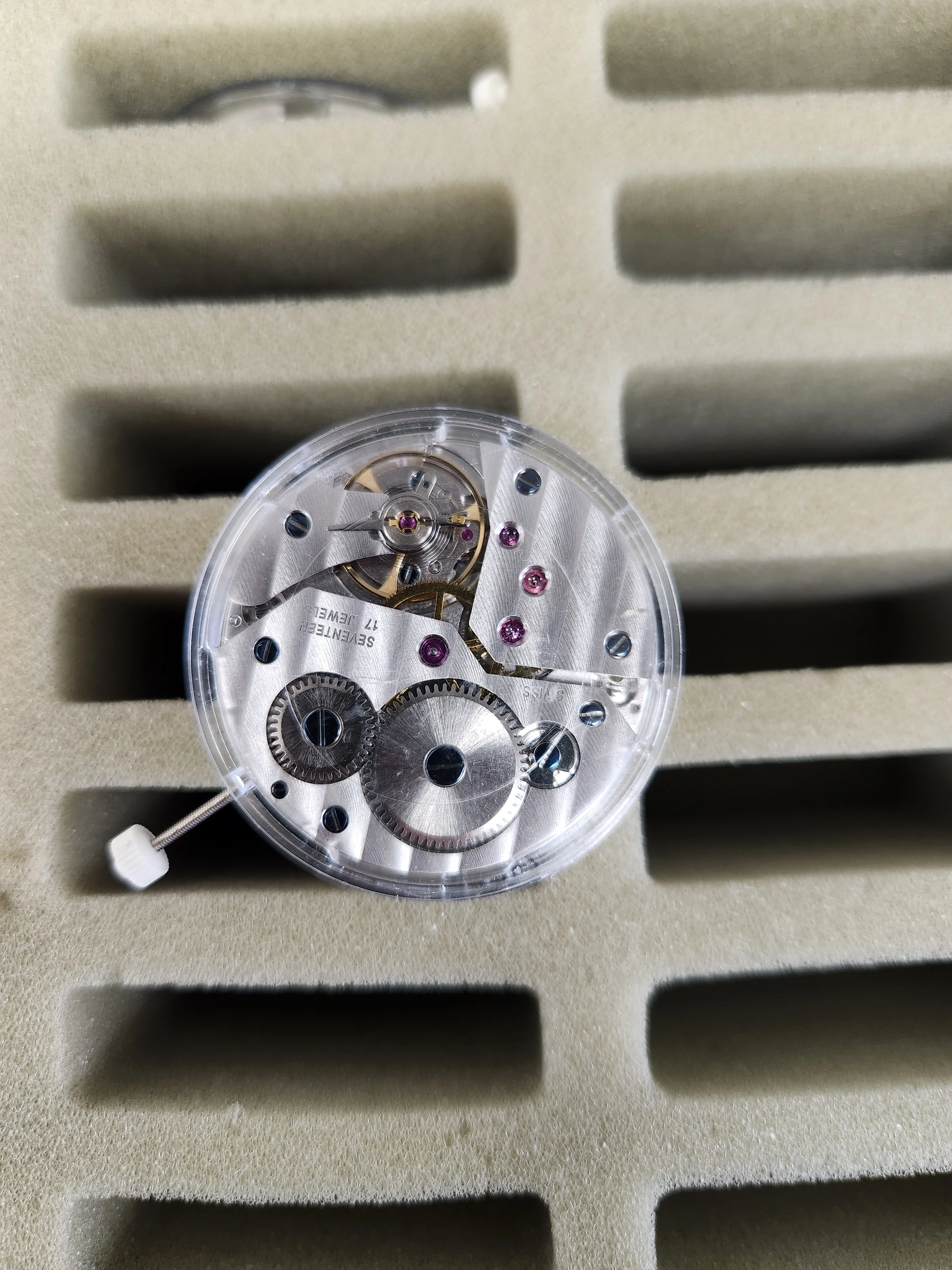

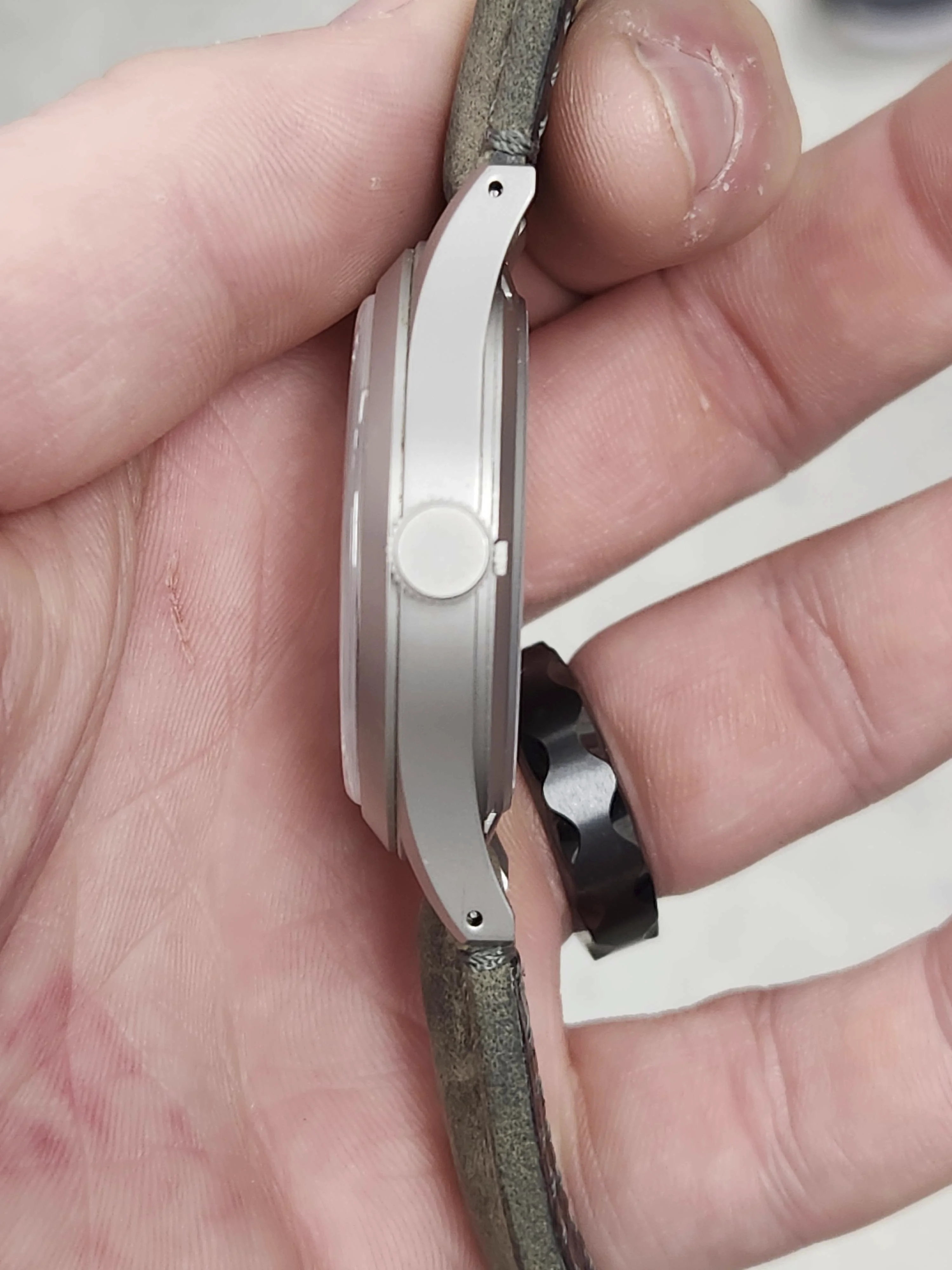

Watch case is 42mm. Movement is a manual wind 6497 from MOT model DB9 (ETA clone, still Swiss made) sapphire sandwich. Group pricing is $1,100 with the custom dial included. Jordan at CincinnatiWatchCompany is laser engraving the wheel train bridges and ratchet wheels for us to have CincyWatchShots 2026 1 of 12 engraved. This movement is also modified by us to delete the sub seconds (4th wheel post is trimmed down), so this is just a big two hander watch to showcase the dial.

The normal AWCI build-a-watch class link for the basic info: buildawatch

Discord link Join the CincyWatchShots Discord Server!

Thanks
-Sam, CincyWatchShots

Edited:

Posts
2,476
Likes
12,000
I'm fairly close by, but my eyes are not good enough for that kind of work. Lasik made me farsighted.

Posts
533
Likes
2,155
I'm fairly close by, but my eyes are not good enough for that kind of work. Lasik made me farsighted.
I also had lasik and am now pretty far sighted, I personally find a 2.5-3x loupe isnt enough and need a 5-7.5x for most things. I completed my "build-a-watch" in 2023 with a 2.5x loupe. This is a large pocket watch movement and I will make sure you have appropriate loupes/magnification at the class. You would also have access to use digital and analog stereoscopes in the classroom for this activity. This class is setup for complete novices and rookies to have a successful experience at the end. You would do just fine.

Posts
92
Likes
142
I live in the Cincy tri-state and I’m seriously interested in this class. I’m also interested in one of the upcoming week long classes. Is the one day event essentially the same as the week long course but more compressed or are they distinctly different in focus? Thanks. Feel free to PM.

Posts
533
Likes
2,155
I live in the Cincy tri-state and I’m seriously interested in this class. I’m also interested in one of the upcoming week long classes. Is the one day event essentially the same as the week long course but more compressed or are they distinctly different in focus? Thanks. Feel free to PM.
Hey buddy! Happy to respond here, it's good info for others to have. First off, HELLO!!! Always awesome connecting with local watch nerds. Please do yourself a favor and go hop on the discord chat with us and say hi. We would love to have you. Most of our discussion and planning happens over there.

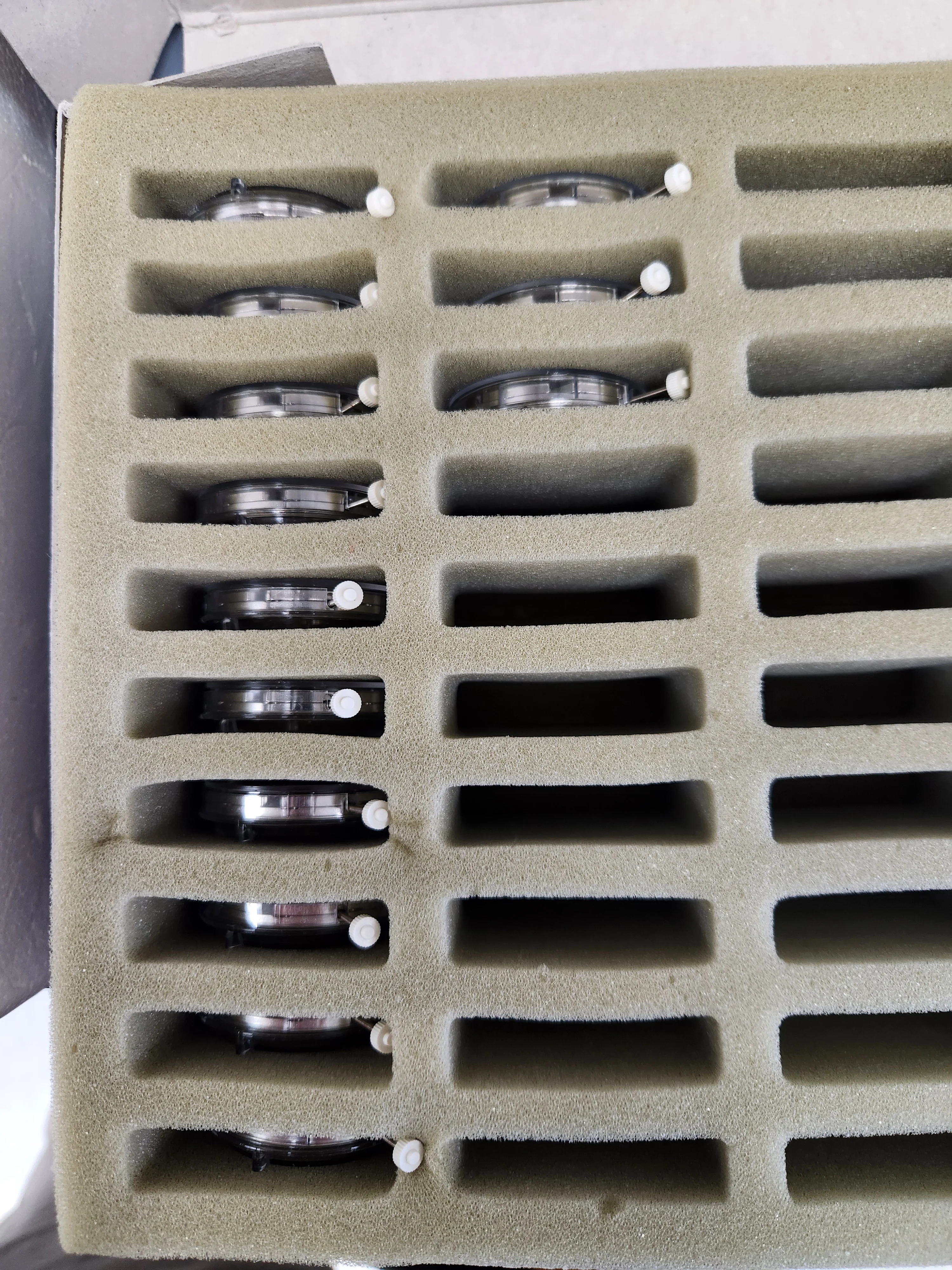

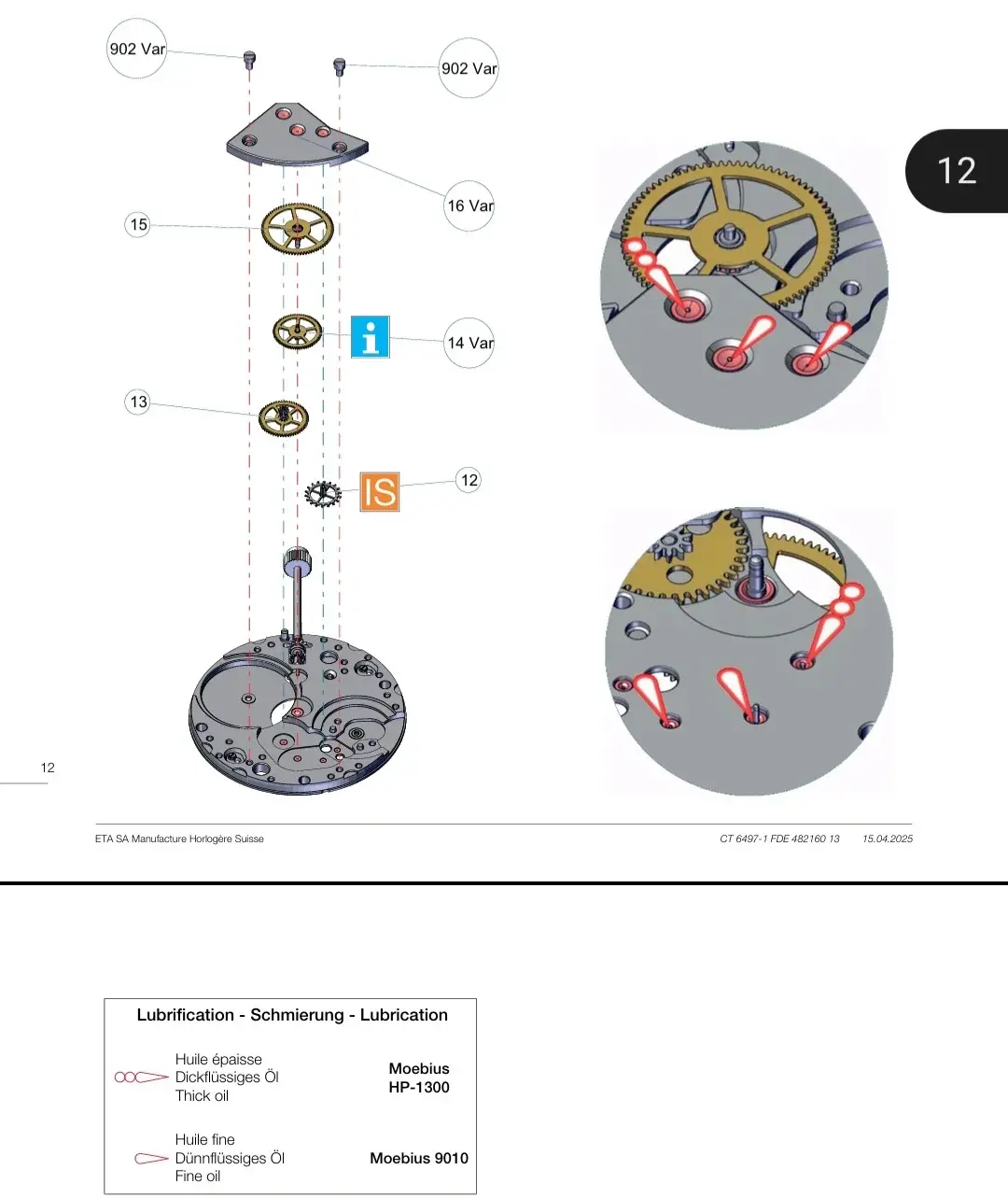

Yes, the one day Build-a-Watch class is a super condensed version of the Watch100: Introduction to Watchmaking. Both cover the ETA 6497 movement but the week long class goes into theory in depth and every single step of disassembly, cleaning, adjustment, assembly, proper oiling, casing up, QC, timing, water resist is covered in full-fat context and practice. The one day Build-a-Watch, for lack of a better phrase, is to give inexperienced people a crash course and a feel good experience stumbling through the motions to leave with a running watch on their wrists and a feeling of accomplishment that they learned something new. The barrels are already complete and lubed, the pallet jewels are lubricated by staff while students take lunch break. I think the motion works are already installed... you get the picture.

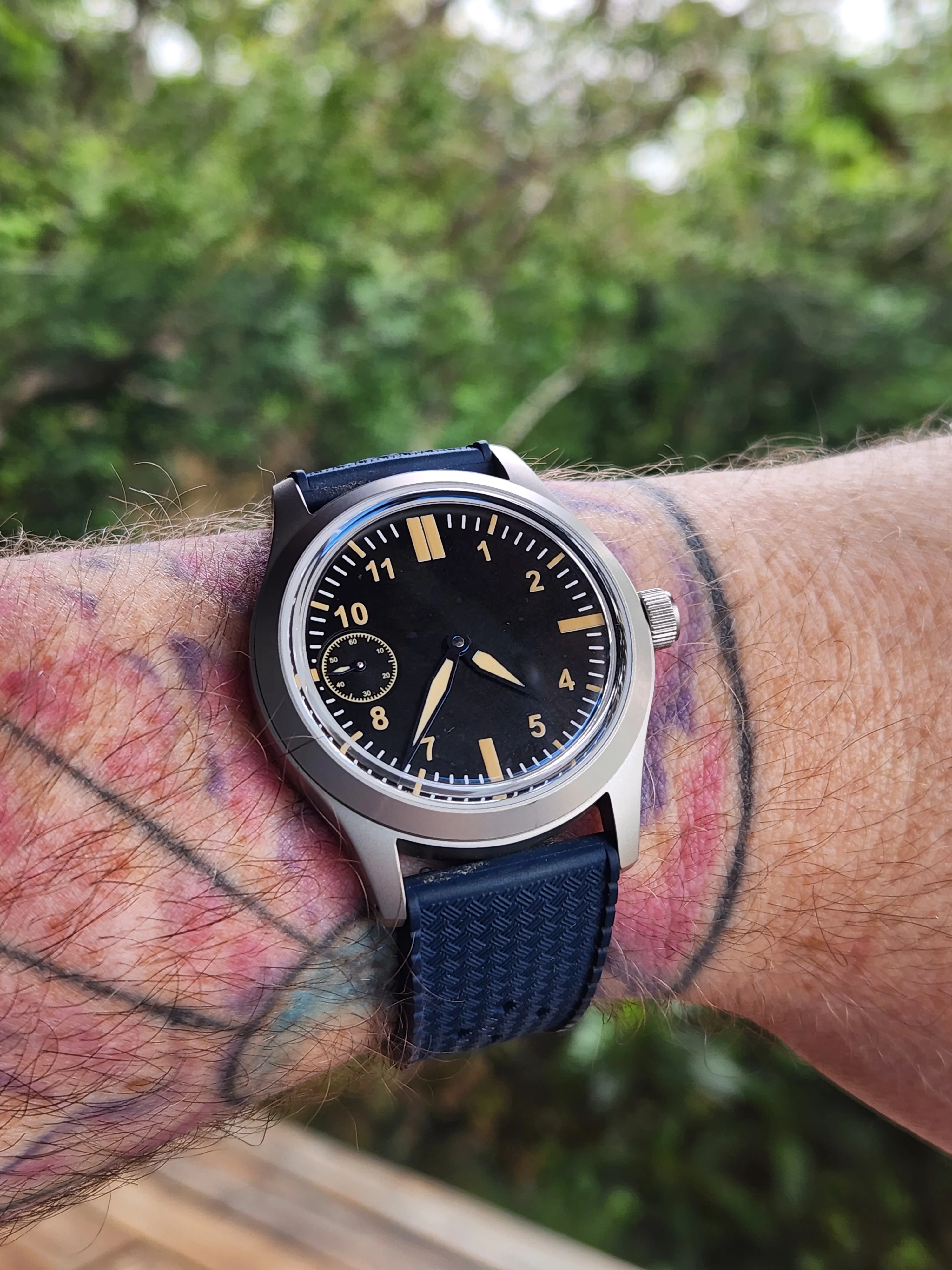

Tl;dr. Do the Build-a-Watch with us if you want to have a fun experience and be part of a social gathering. Take the intro class if you want to get serious about learning watchmaking. Or take both like i did haha. I'm using this project as a very self serving exercise to get a guilloche dial to swap into my Build-a-Watch from 2023. (Pictured above: black dial, blue FKM strap)

Hope to see you around!
Sam

Posts
533
Likes
2,155
Sounds good buddy, you'll learn a lot. Feel free to join us for the August meetup, we'll be in NKY at a private club. If you're not in the discord yet, thats where the event details are shared. Cheers

Posts
533
Likes
2,155
We still have 1 seat open. We are doing dial fabrication on 9/27 in NKY. Go to the discord if you want to join us.

Posts
533
Likes
2,155
update 9/28/26. Uploaded a ton of photos from our dial fab day. There is one more dial fab day to get everyone an opportunity, that is OCTOBER 10th. Class is October 17th. Time is running out!

Posts
533
Likes
2,155
We have 1 out of towner joining us and is unable to travel to make his dial so I will be fabbing one for him. If you are a far drive from us, I can extend this offer to you as well that way you ojnly have to travel for the class date of 10/17.

Posts
533
Likes
2,155
I'm fairly close by, but my eyes are not good enough for that kind of work. Lasik made me farsighted.
You going to take this class with us? We got a seat left. And you can use a microscope with everything.

Posts
533
Likes
2,155
Thanks Sam. I believe I’m going to do the week long course.
Were you able to get a seat in Watch100? If not, we have a seat left in our build-a-watch.

Posts
533
Likes
2,155
We had a late cancellation and have an open seat available if anyone can make it. Class is this Saturday at AWCI in Harrison OH. (Cincinnati)

Posts
92
Likes
142
Were you able to get a seat in Watch100? If not, we have a seat left in our build-a-watch.
No. Scheduling conflict. It's early muzzleloader season this weekend in KY and I can't eat a watch.
