Caseback tool for this type of caseback?

Posts
419
Likes
1,169
Hi all,

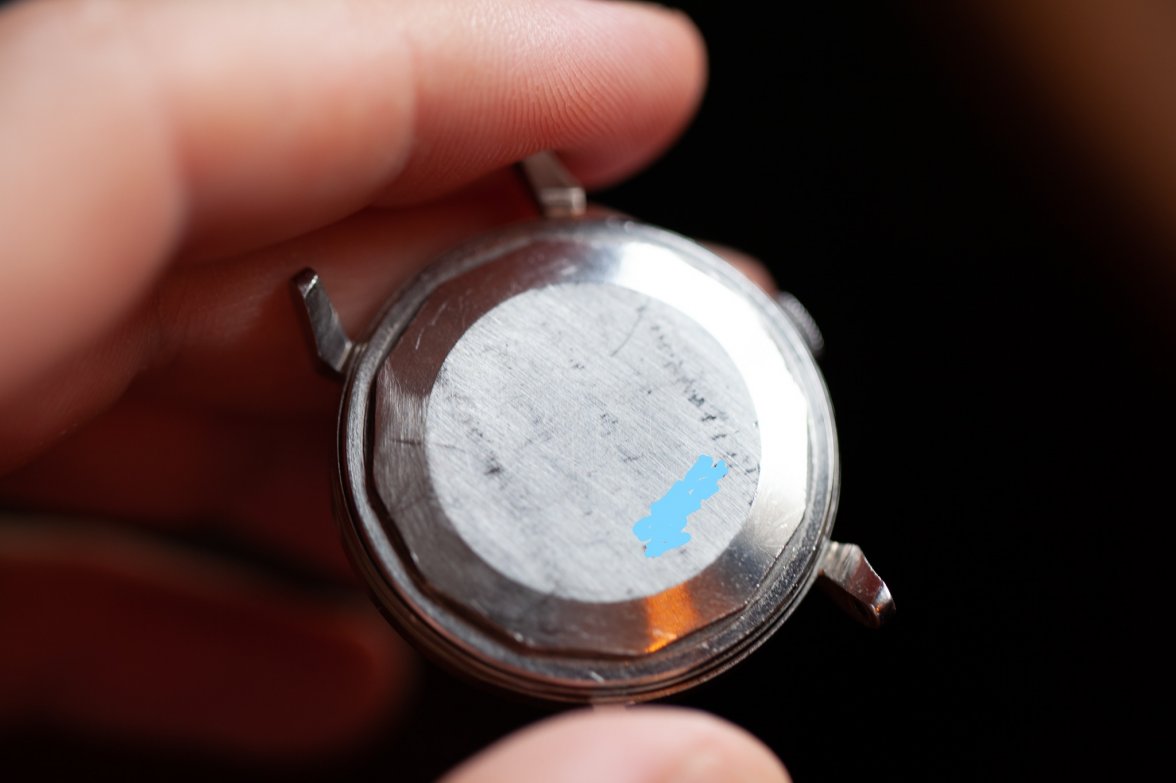

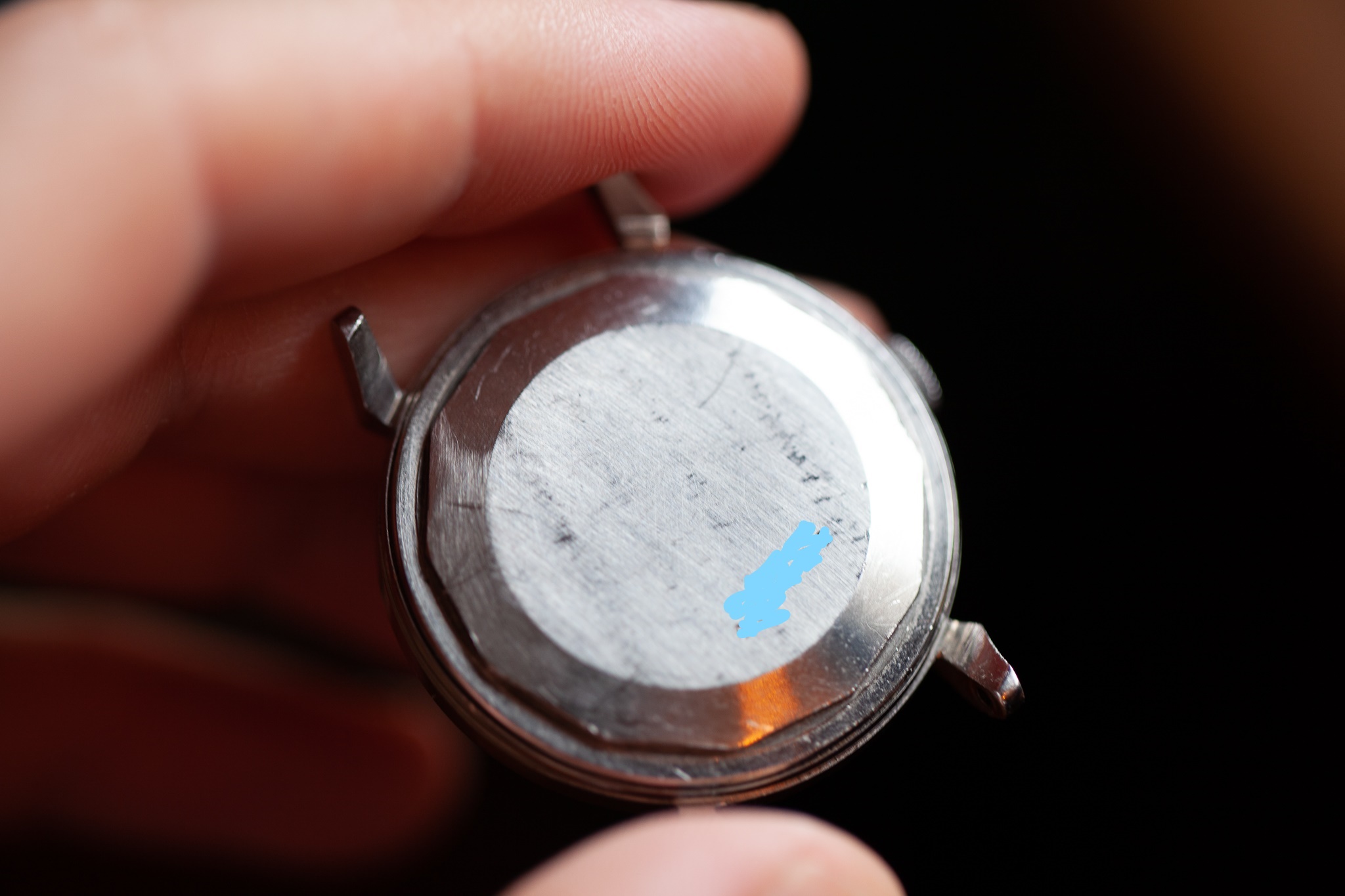

What is the type of tool called to get a caseback like this off (I can picture the tool in my head, just don't know what the name of it is)! Thank you!!

-J.


Posts
973
Likes
1,508
Have you tried the sticky balls? They seem to work well pretty often.

Posts
419
Likes
1,169
Thanks @X350 XJR, been trying to use this at home. Maybe I'm being too gentle, but haven't managed to get it off yet. The position of the lugs makes it challenging. I'll try again later

Posts
419
Likes
1,169
Have you tried the sticky balls? They seem to work well pretty often.
Have not, will look into it!

Posts
2,327
Likes
2,542
There are Breitling branded case back wrenches advertised on Ebay. They come in various sizes with differing numbers of facets.

Posts
907
Likes
1,294
If it’s tight it’s not enough.

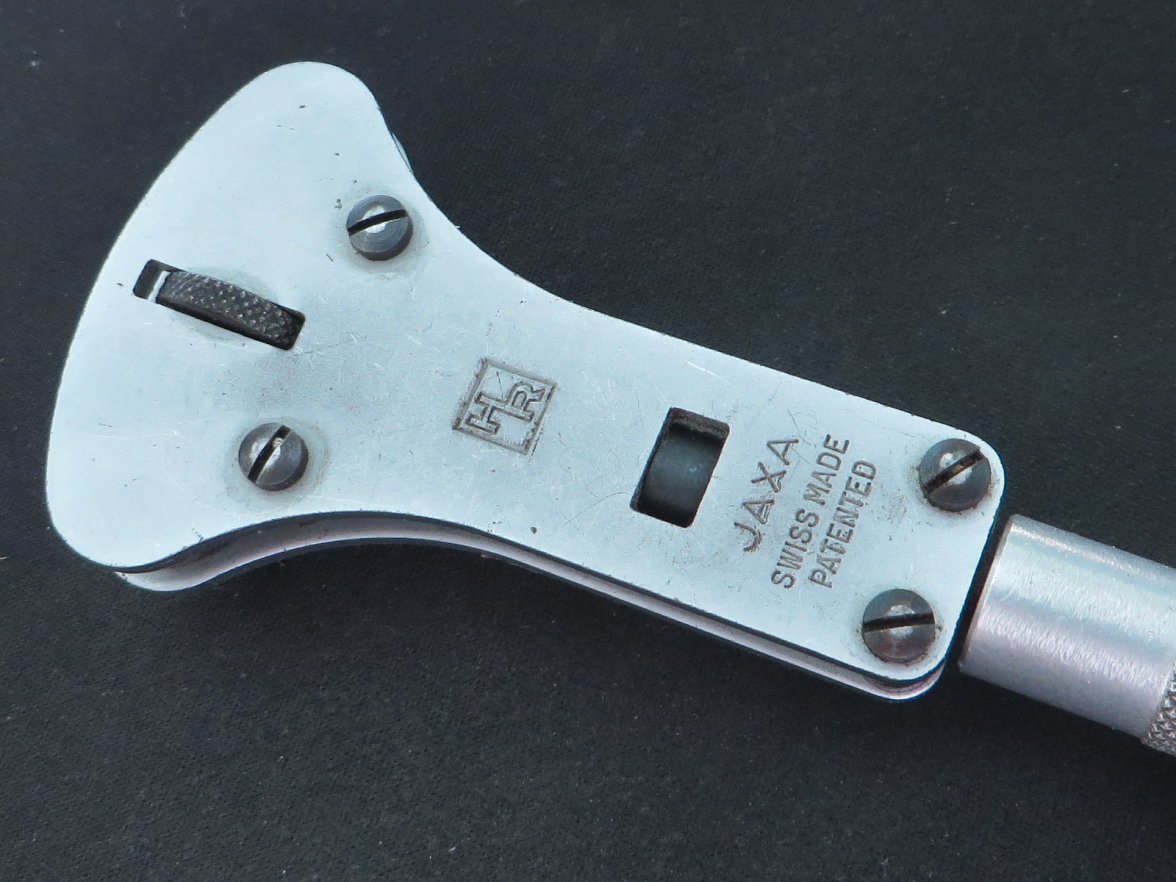

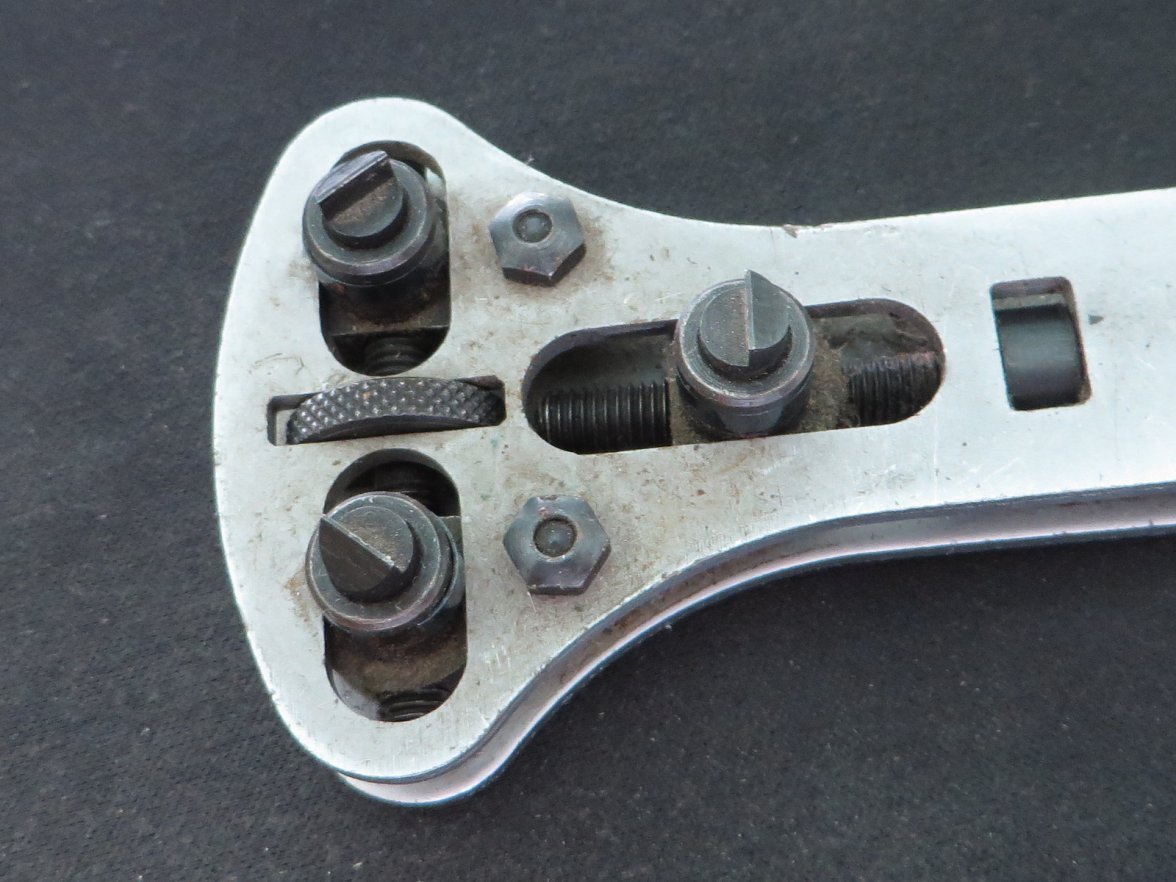

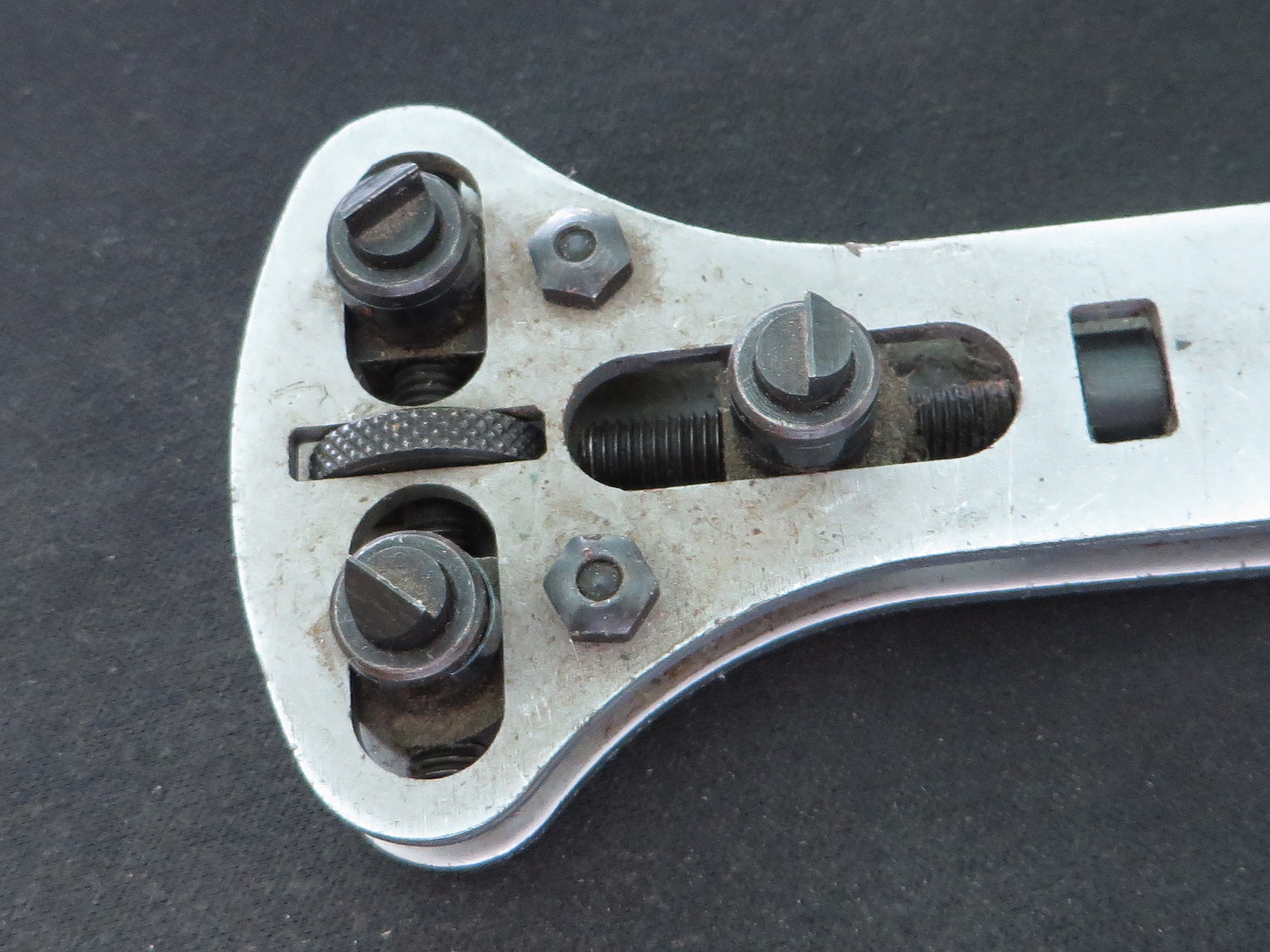

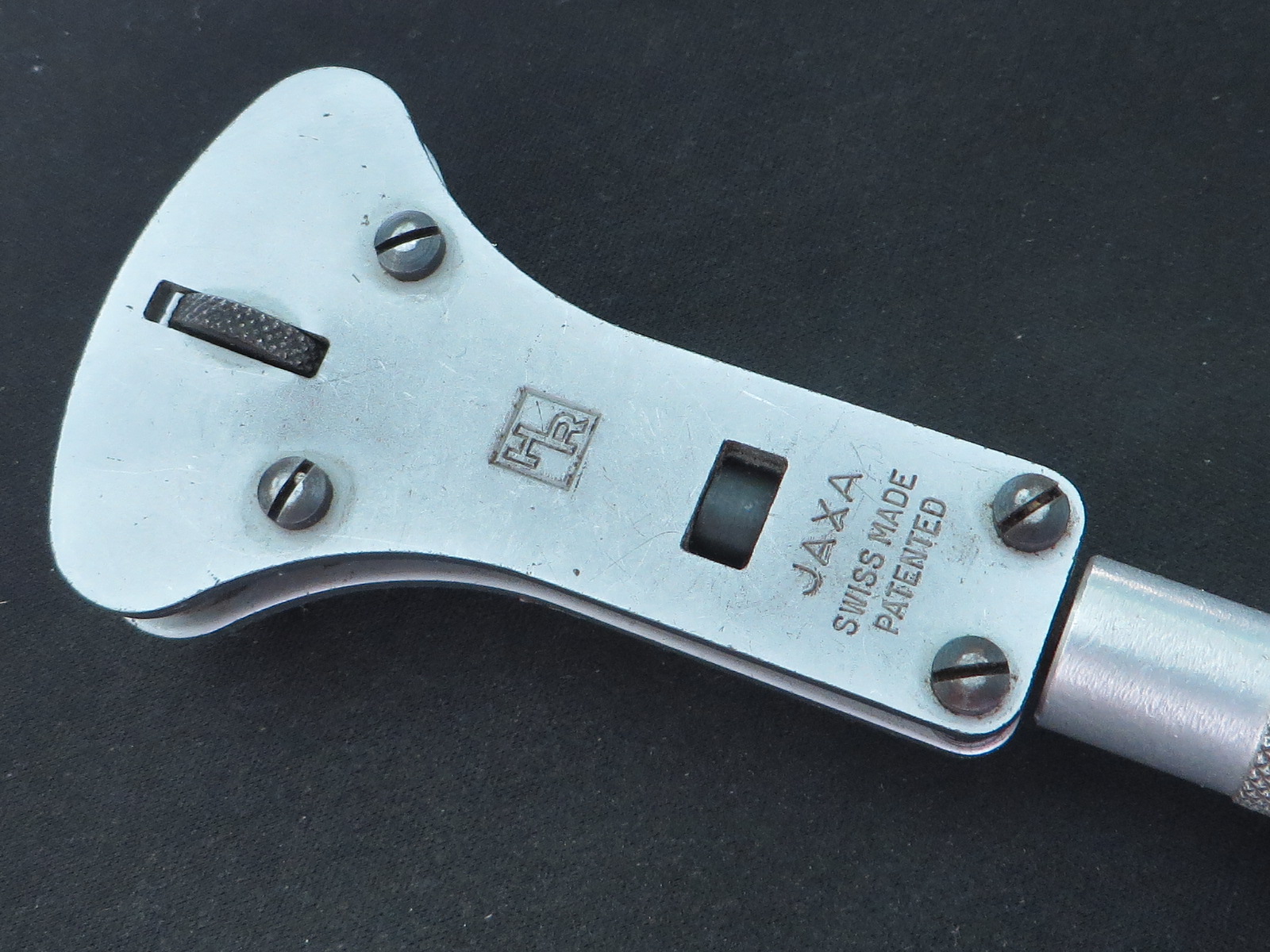

I have the same tool but I don’t have a base that can hold the case nicely and safer than my hand and I had problems opening a caseback.
My advice would be that tool in conjunction with something that can hold the case for best results.

Posts
419
Likes
1,169
KK I was holding it with my hand but I'll try using a case clamp

Posts
17,932
Likes
37,493
Get a short bolt. Clean the head flat with wet and dry on a flat surface.
Clean the bolt and the watch case with isopropyl alcohol.
Bond the bolt to the case with a drop of superglue.
Allow to cure.
Use a spanner to remove the case.
Soak the caseback in acetone to remove the bolt.


Posts
1,076
Likes
1,787

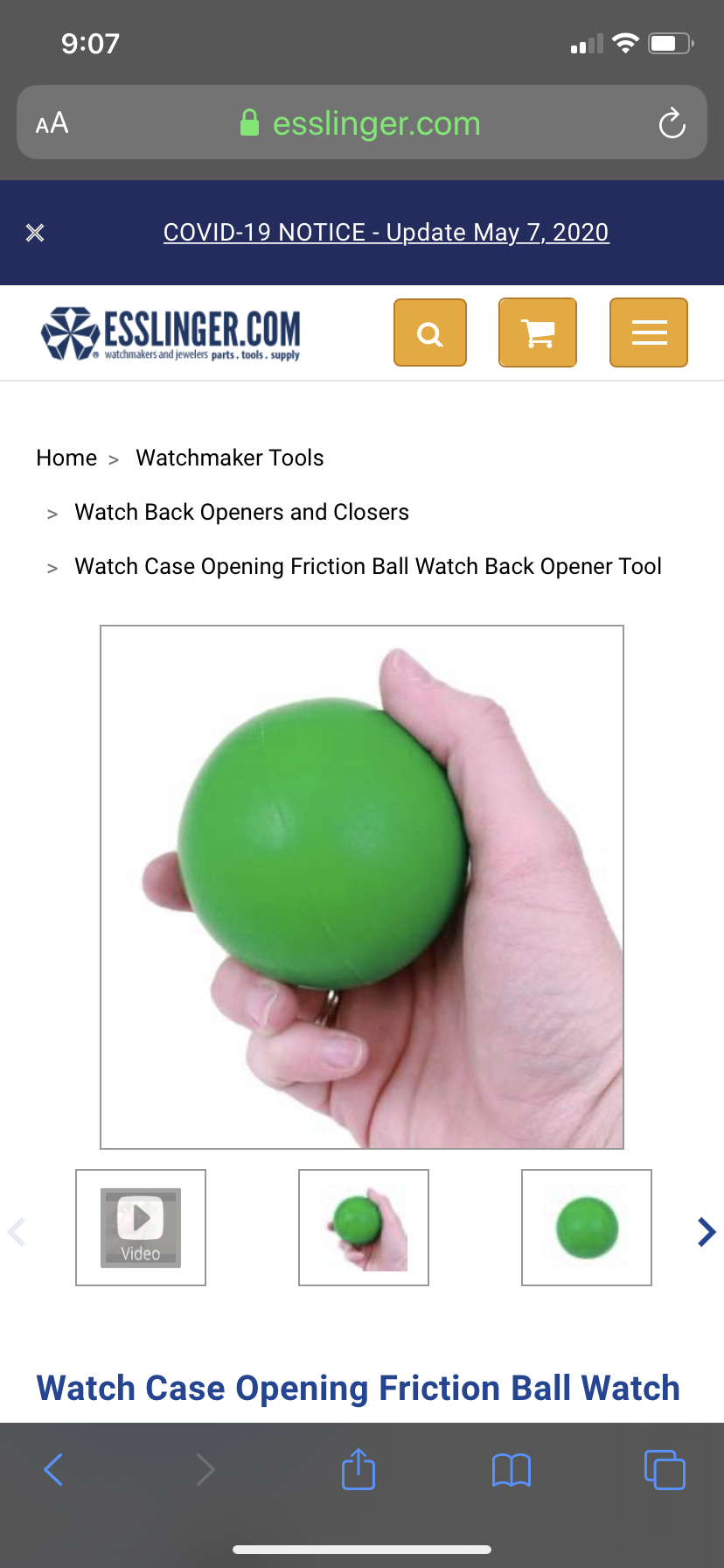

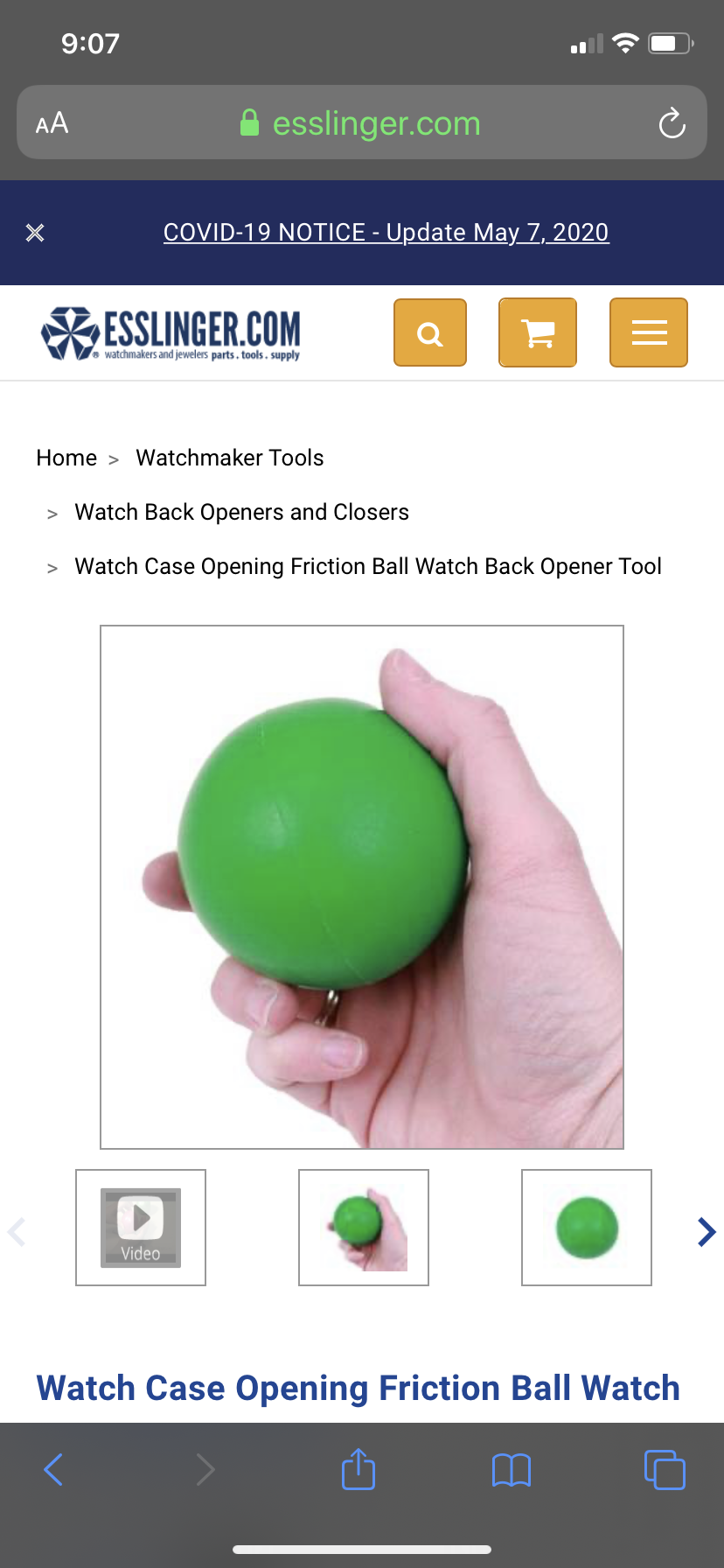

This balls are amazing and safe to use. The work about 85% of the time with my watches:

Posts
24,231
Likes
53,963
If it’s tight it’s not enough.
I have the same tool but I don’t have a base that can hold the case nicely and safer than my hand and I had problems opening a caseback.
My advice would be that tool in conjunction with something that can hold the case for best results.

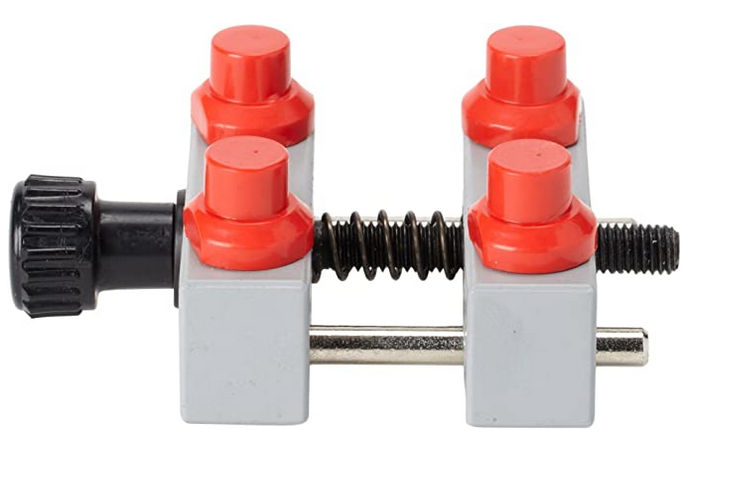

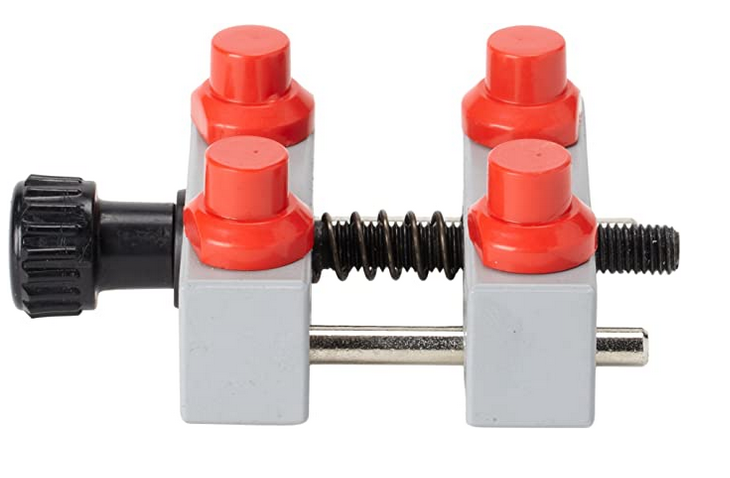

Yes, a case holder (with nylon pins) is very helpful. Put the watch in it, and then mount it in your bench vise. That way you can use both hands to keep the tool engaged. They really aren't too expensive and they come in pretty handy.

Someday perhaps I will invest in one of those $1000 sets with a press and lots of different dies from Bergeon or Horotec.

Edited:

Posts
907
Likes
1,294
Yes, a case holder (with nylon pins) is very helpful. Put the watch in it, and then mount it in your bench vise. That way you can use both hands to keep the tool engaged. They really aren't too expensive and they come in pretty handy.

Someday perhaps I will invest in one of those $1000 sets with a press and lots of different dies from Bergeon or Horotec.

That Press is overkill, unless you need to open rolex case.

Posts
24,231
Likes
53,963
That Press is overkill, unless you need to open rolex case.

I have an LG press and dies for Rolex cases already, but it's not as nice as that one. I also think that press would work really well with the polyurethane dies.

I don't open cases often enough to justify the cost, but it looks like a great tool.

@Archer has mentioned the Bergeon 5700, which is functionally similar, but probably more professional-grade.
