Balance Cap Jewels for Omega watches

  1. Elendili Sep 3, 2023

    Posts
    2
    Likes
    1
    Hi Everyone !
    I am amateur watchmakeur and am becoming better after servicing now nearly 100 watches. I have started to work on some Omega models, with succes until now.
    And i have a question about the cap jewels.
    I lost a lower cap jewel for an Omega 1012 movement. (it was sattelized when cleaning and oiling it..never found it back, haha :( I paid more attention, to the incabloc spring and..lost the jewel).
    When looking for a replacement one, the official omega reference (1010-1343) seems difficults to find and expensive. As those are quite simple cap jewels, does someone has a corresdance list/size list from the Omega references so i can look for one that will fit ? or have an advice to source them ? thanks !
    Thierry

  2. sheepdoll Sep 3, 2023

    Posts
    1,989
    Likes
    3,264

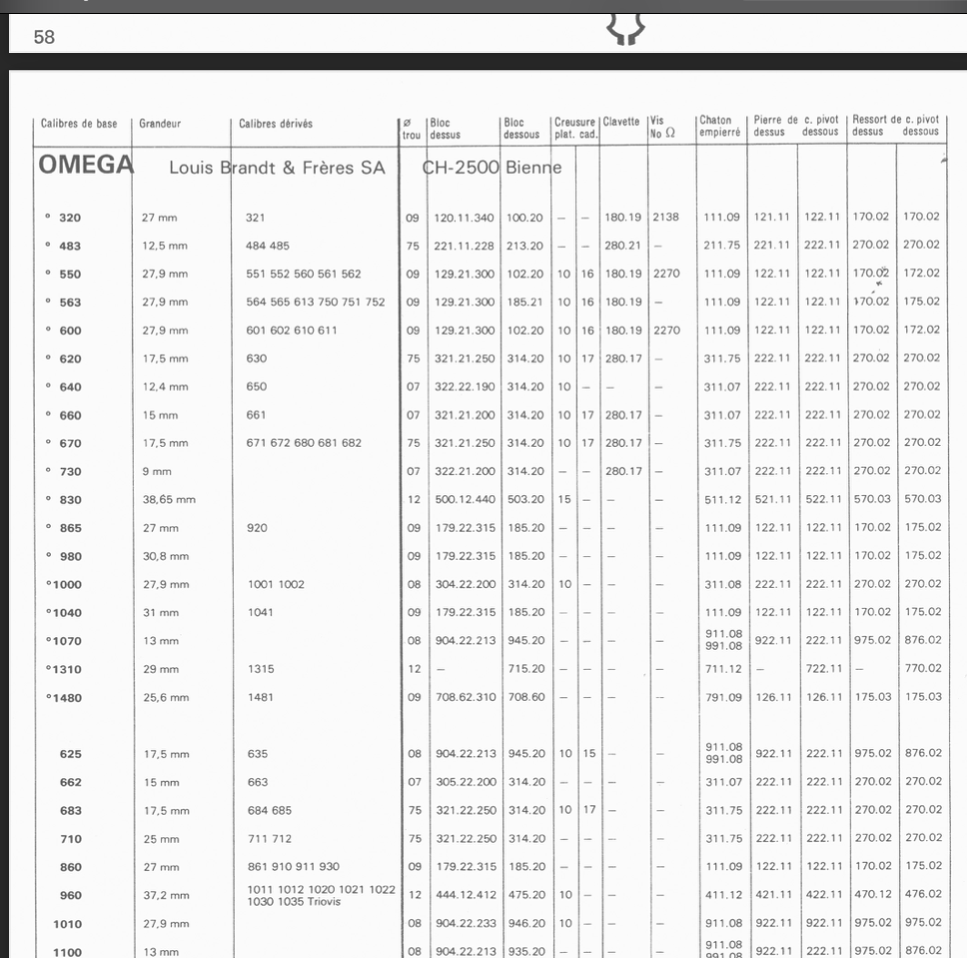

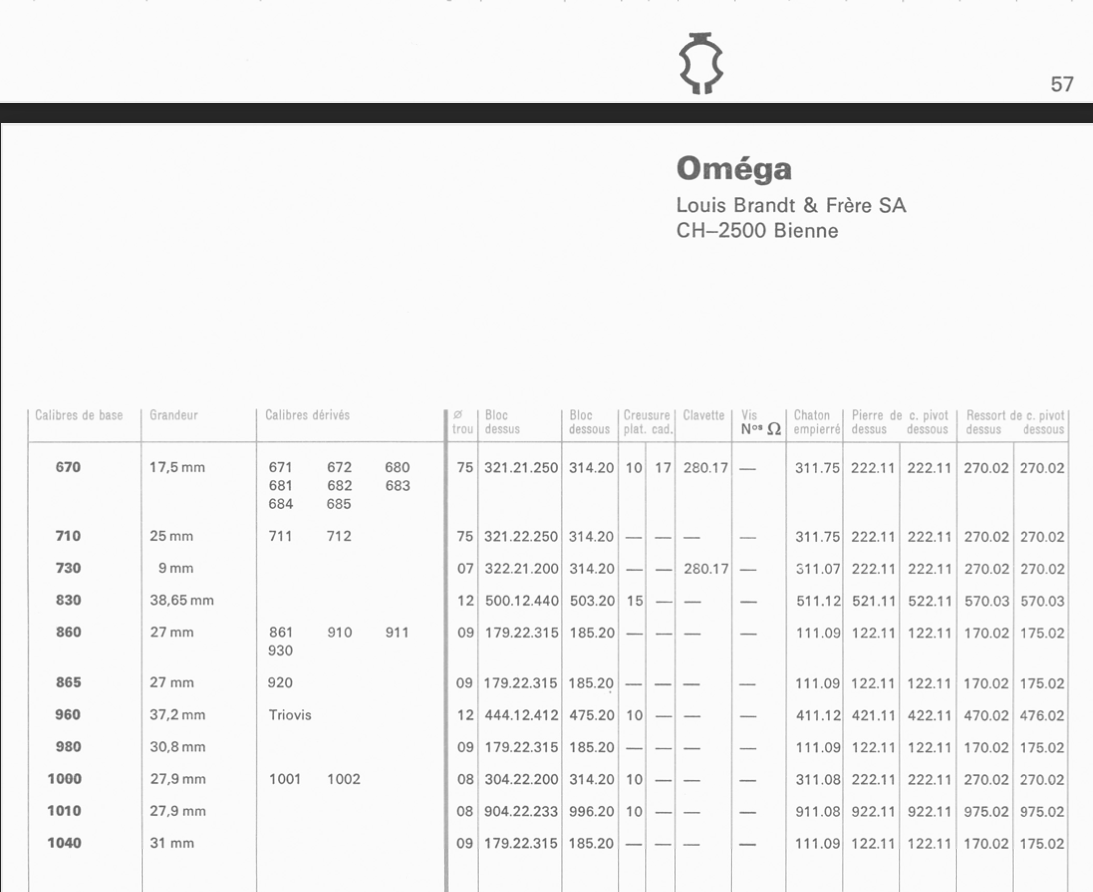

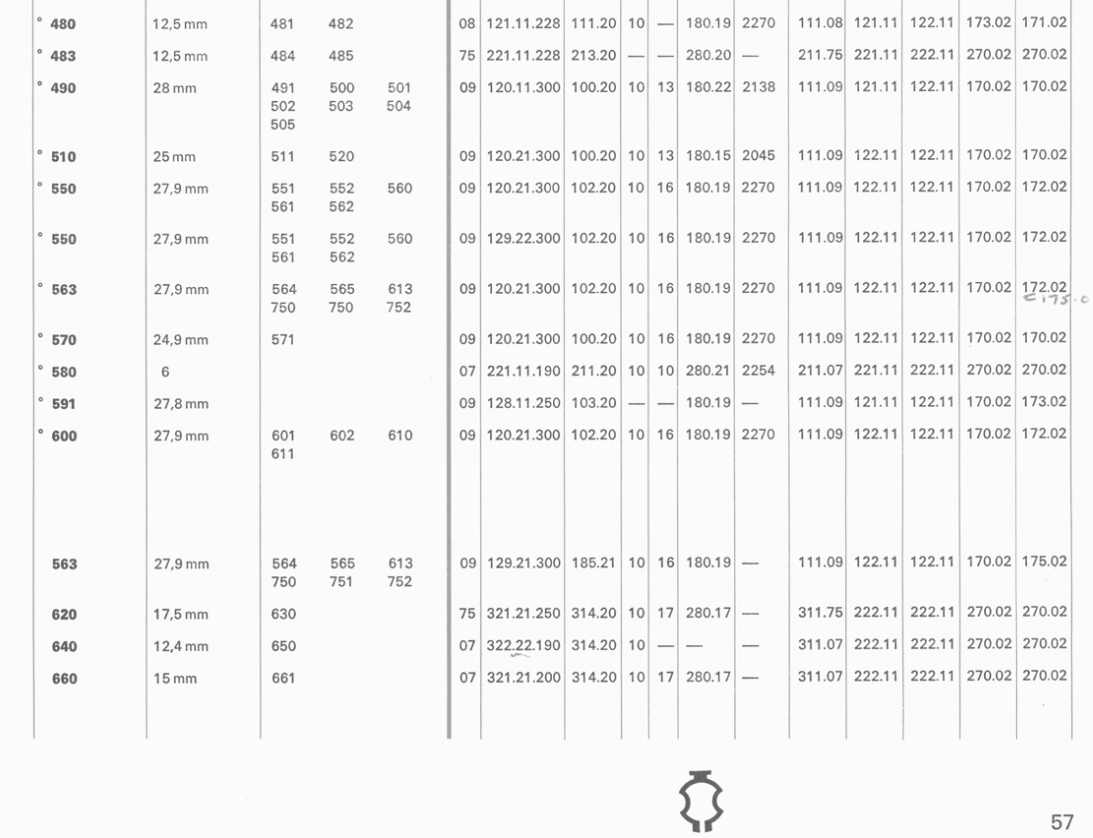

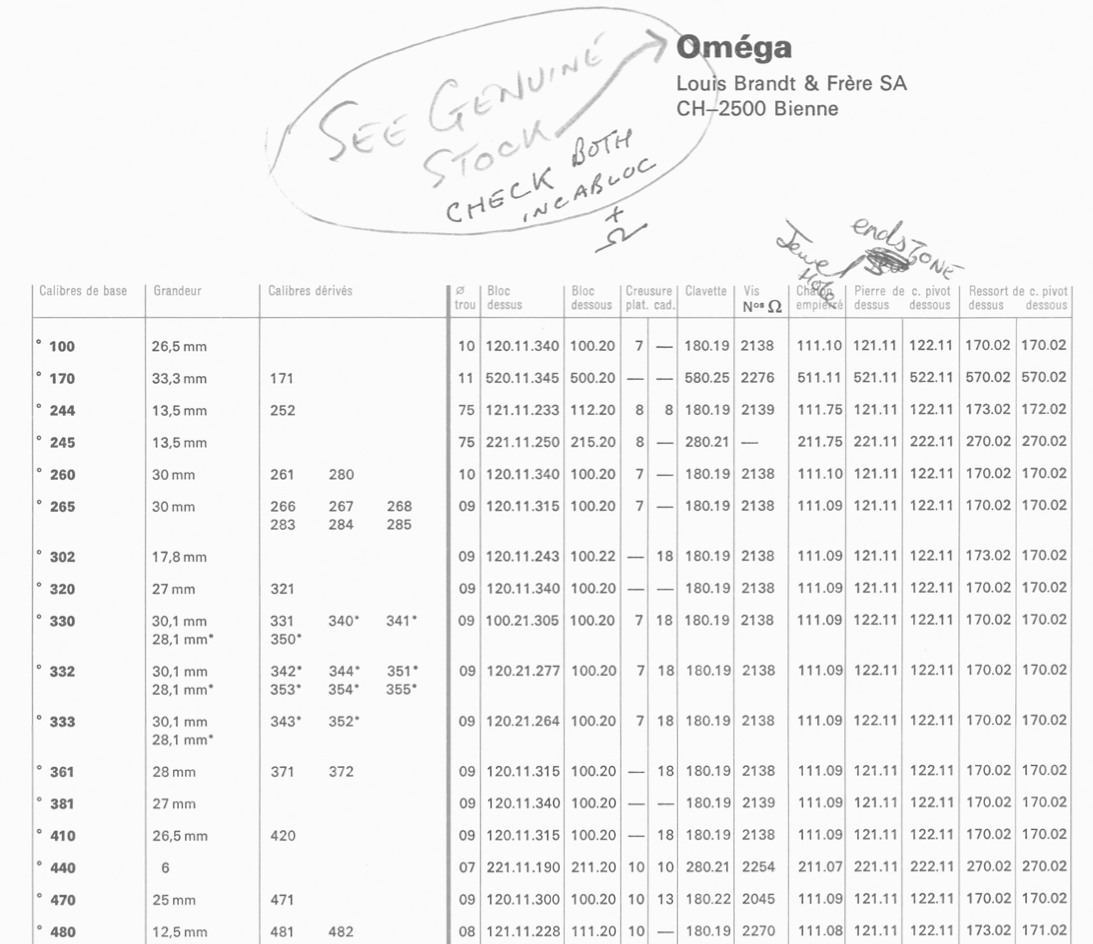

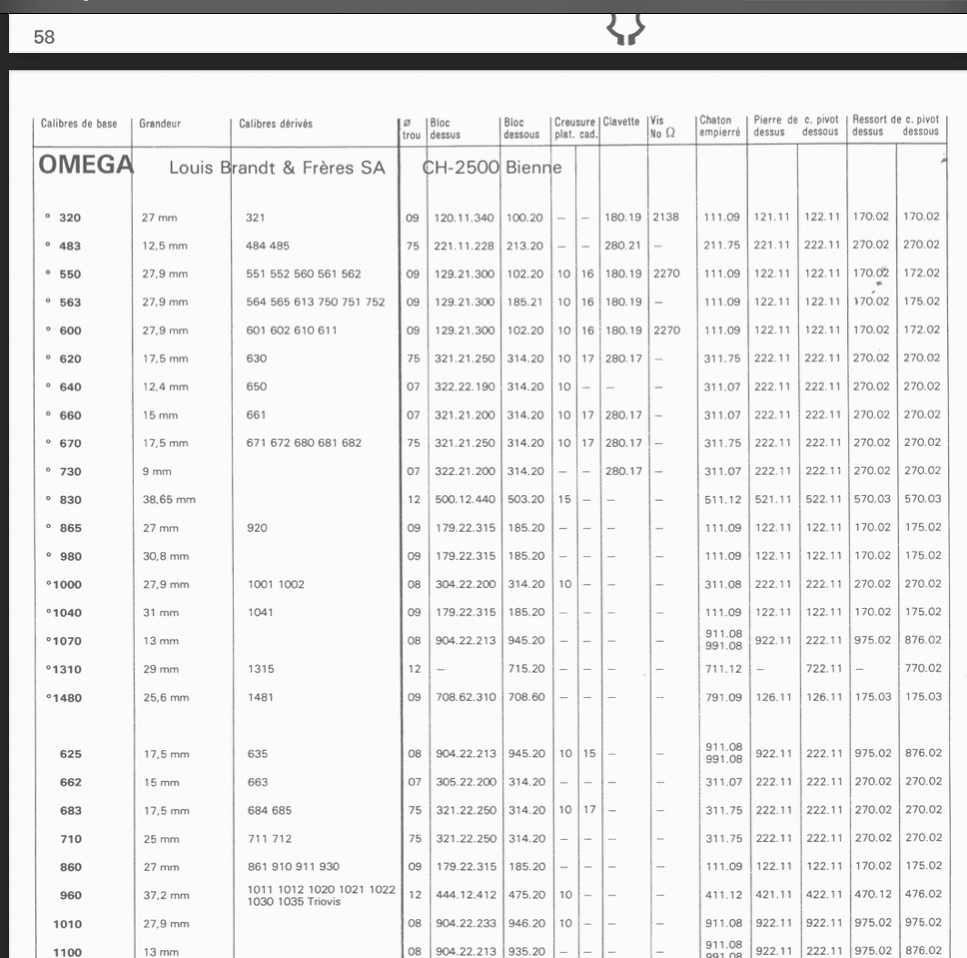

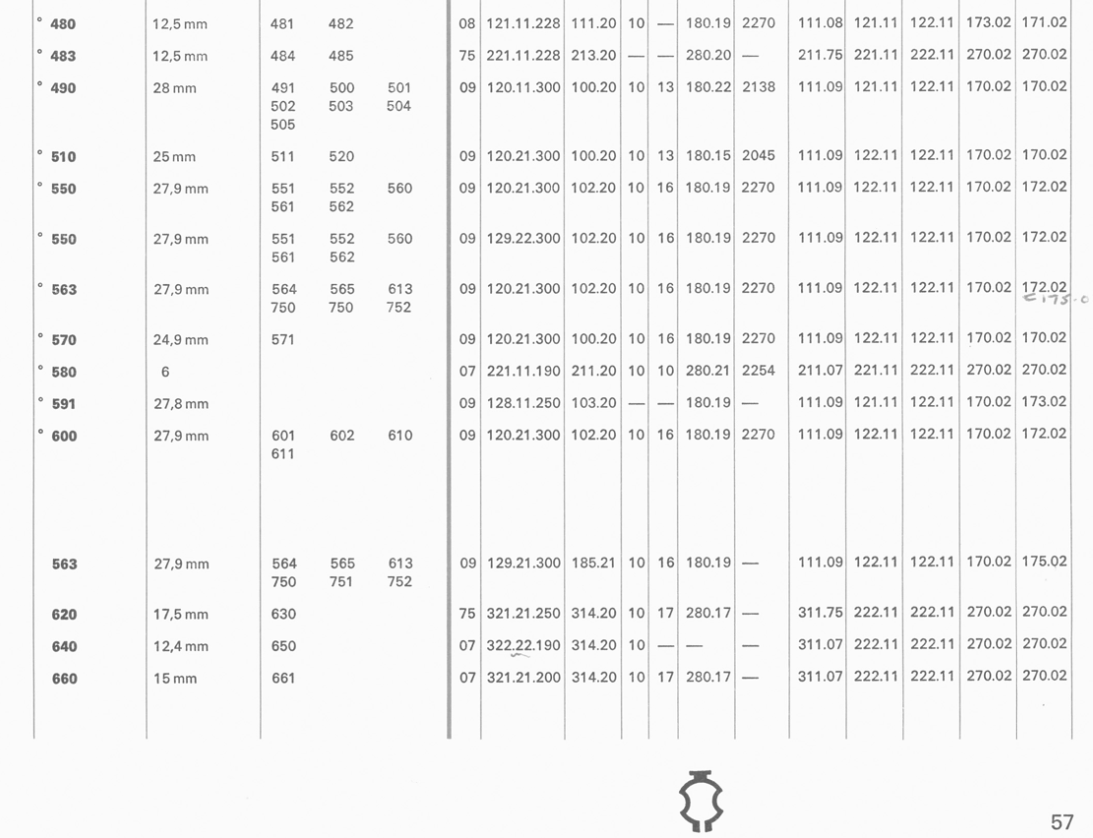

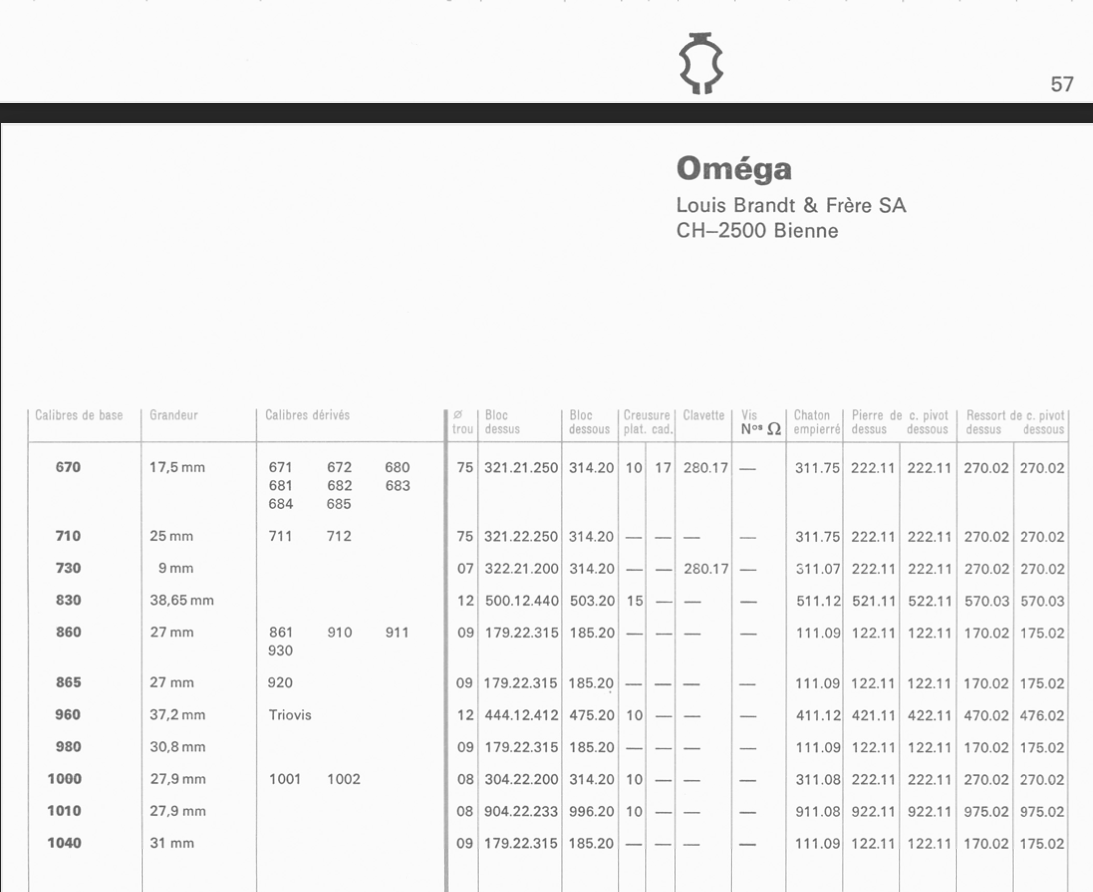

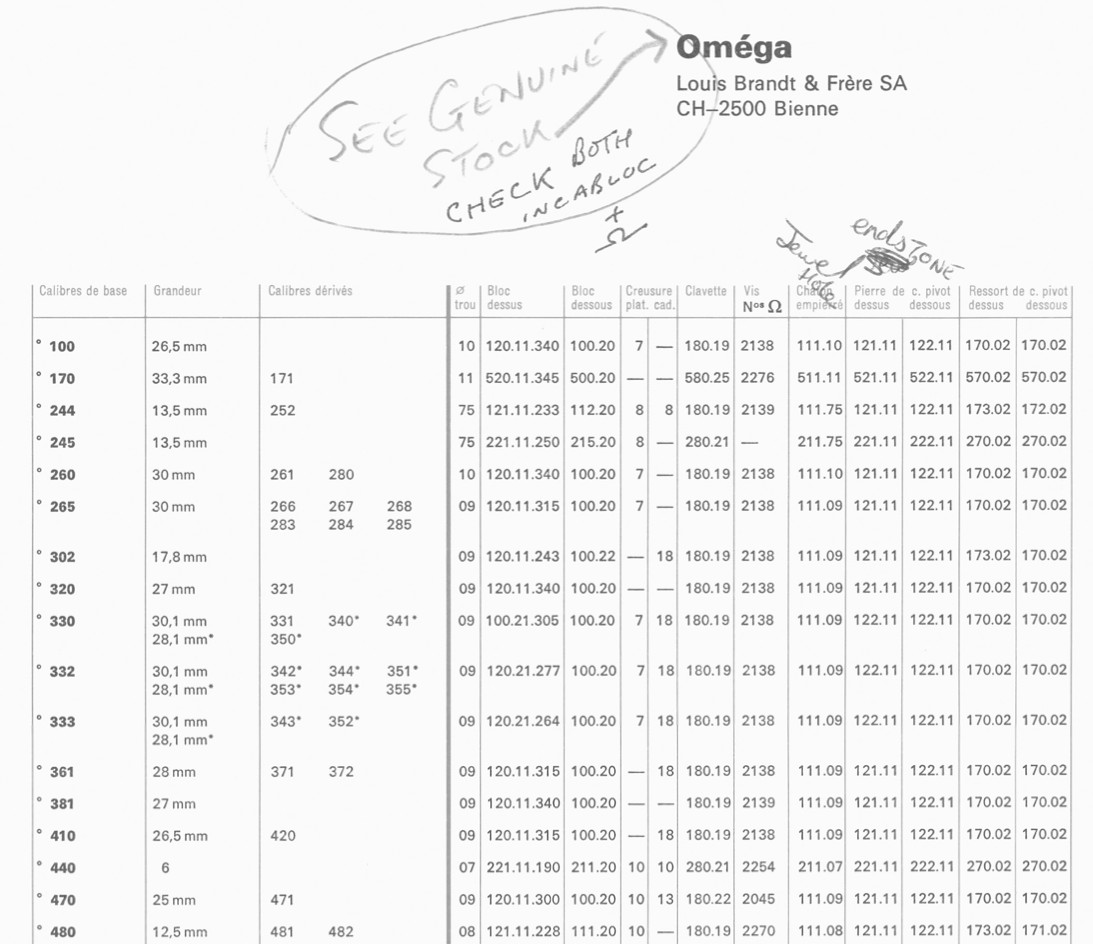

    Screen Shot 2023-09-03 at 3.20.29 PM.png Screen Shot 2023-09-03 at 3.19.33 PM.png Screen Shot 2023-09-03 at 3.19.10 PM.png Screen Shot 2023-09-03 at 3.18.46 PM.png
    Loosing the cap jewel is not unheard of. Most of the Omegas I have worked on use fairly standard incabloc setting. Often these are the same across a wide range of similar sized watches.

    I found a PDF cross reference table. Not sure what site I downloaded it from. Probably the Esslinger blog.
    The file is called "1287_Incabloc By Factory - Omega.pdf"
    An online search should find it.

  3. Archer Omega Qualified Watchmaker Sep 3, 2023

    Posts
    26,706
    Likes
    66,315
    The 1010 information shown near the bottom will be correct for the OP’s 1012 movement.

    WestCoastTime and sheepdoll like this.
  4. Elendili Sep 16, 2023

    Posts
    2
    Likes
    1
    Thanks to both of you :)

    sheepdoll likes this.
