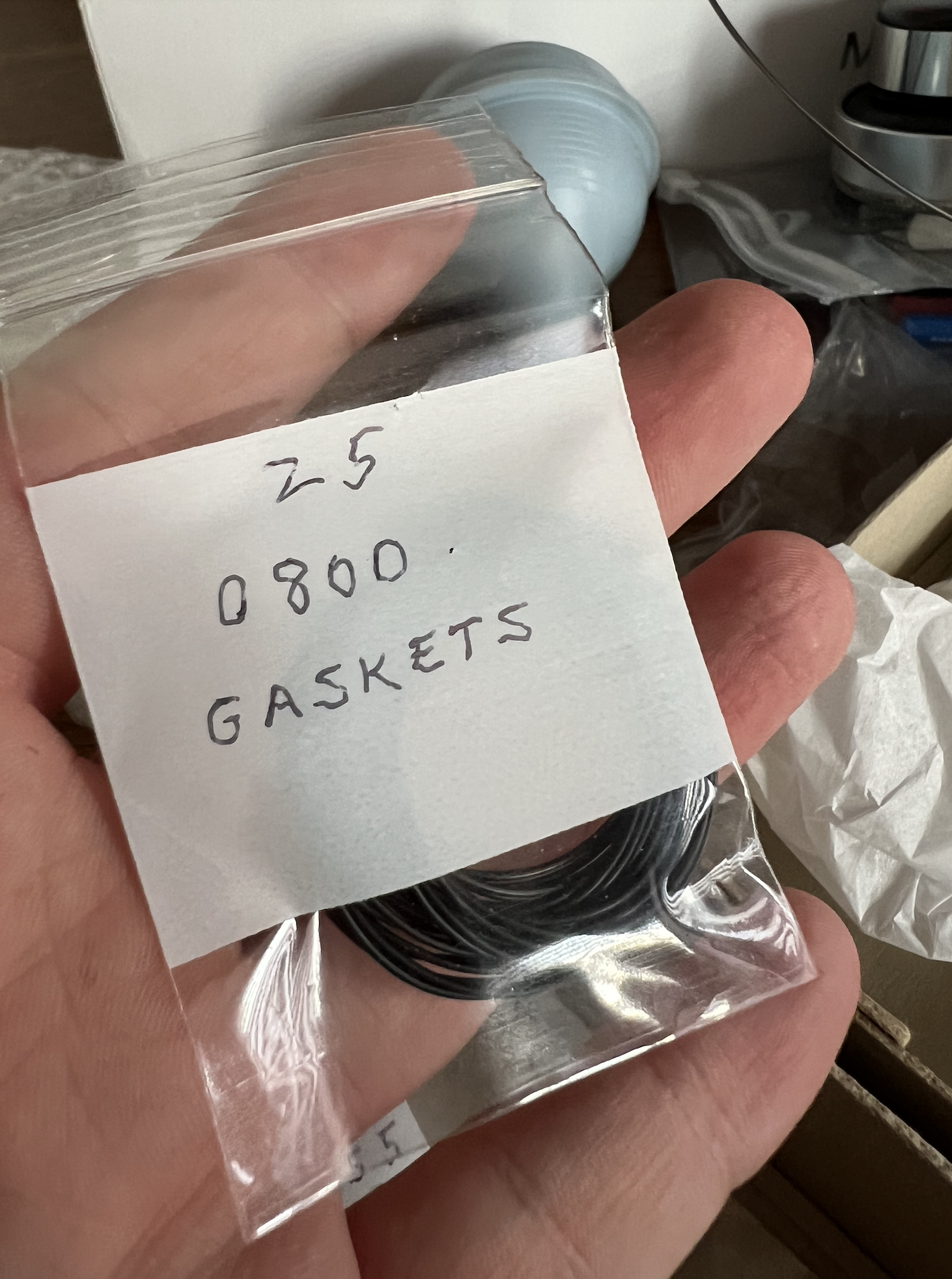

Are these 088-0800 gaskets?

Posts

2,648

Likes

3,105

kaplan

·Jun 18, 2023

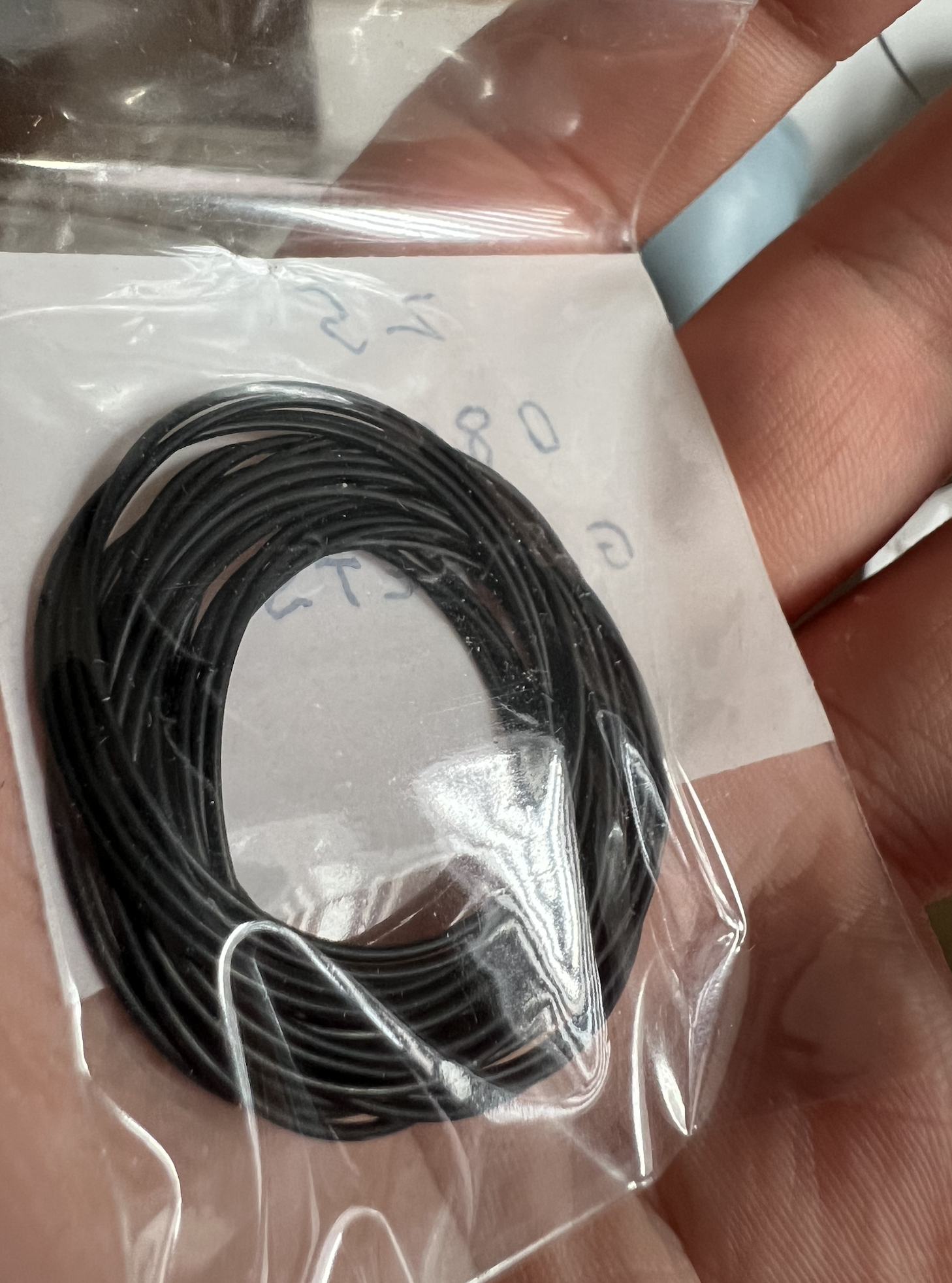

They seemed like regular generic o-rings to me

I was expecting a 3D gasket that would just fit the case slot



Posts

29,815

Likes

77,157

Archer

·Jun 19, 2023·Omega Qualified Watchmaker

Stating what brand and watch you are referring to might help...



Posts

2,648

Likes

3,105

kaplan

·Jun 19, 2023

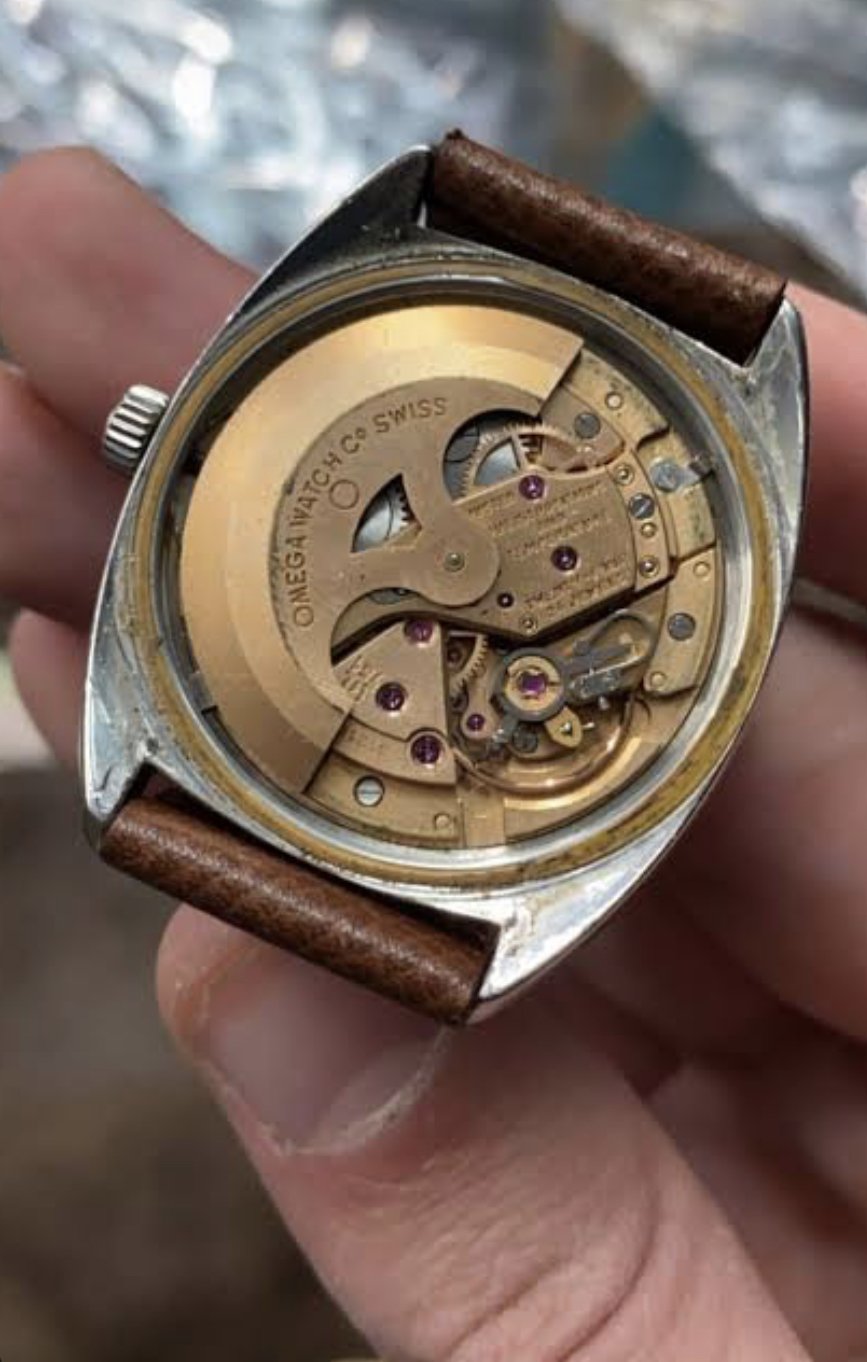

Omega 168.017



Posts

29,815

Likes

77,157

Archer

·Jun 19, 2023·Omega Qualified Watchmaker

kaplan

Omega 168.017

That case number comes up with "no results found" on the Omega extranet...are you sure that's the number?



Posts

2,648

Likes

3,105

kaplan

·Jun 19, 2023

Yes it’s a very common C-Case Constellation

For reference vintage watches usually have these yellow gaskets, I was expecting something similar



Posts

29,815

Likes

77,157

Archer

·Jun 19, 2023·Omega Qualified Watchmaker

kaplan

Yes it’s a very common C-Case Constellation

For reference vintage watches usually have these yellow gaskets, I was expecting something similar

Strange - I entered that case number 3X with no results - just did it again and now it comes up...

The yellow seal you see is a very old compressed yellow O-ring...the new ones aren't yellow, but are certainly 3D. 😉



Posts

2,648

Likes

3,105

kaplan

·Jun 19, 2023

Thanks 😀

I always assumed they were rectangular gaskets



Posts

29,815

Likes

77,157

Archer

·Jun 19, 2023·Omega Qualified Watchmaker

kaplan

Thanks 😀

I always assumed they were rectangular gaskets

Only after they have deformed.



Posts

195

Likes

493

Deafcon

·Jun 20, 2023·Omega Certified Watchmaker

I come up 088NS5081 for the part number and these dimensions:
31.60 MM OD
0.80 MM DIAMETER
SHAPE :CIRCULAR



Posts

29,815

Likes

77,157

Archer

·Jun 21, 2023·Omega Qualified Watchmaker

Deafcon

I come up 088NS5081 for the part number and these dimensions:
31.60 MM OD
0.80 MM DIAMETER
SHAPE :CIRCULAR

Yes, that's correct. Not sure what the OP has bought and where he got the number from, but if it's meant to be 088NS0800, that again comes up as "no results found" for me.



Posts

2,648

Likes

3,105

kaplan

·Jun 22, 2023

088-0800 is the old format, 088NS5081 is the new format part number as far as I gather for the same part
