5513 and hacking problem?

  1. blubarb May 26, 2021

    Posts
    2,912
    Likes
    5,799
    I have a 5513 (c. 1987) with the cal.1520. Should it be equiped with a hack device? When I pull out the crown to its furthest reach I can change the hands but the seconds hand continues, but winding the crown in a reverse direction moves the seconds hand back and I can even stop it by manually hacking it. The watch has a 9 million serial.

    I thought that all of the late 5513s were made to hack, but maybe not all?

    Edited May 26, 2021
  2. Archer Omega Qualified Watchmaker May 26, 2021

    Posts
    23,261
    Likes
    54,478
    Yes, it should hack when the crown is pulled out. Regarding why it won't, well that would just be guessing, but it's possible that the balance stop spring is missing, bent, or somehow out of position.

    [​IMG]

    Cheers, Al

    FrenchBigCrown and blubarb like this.
  3. Canuck May 26, 2021

    Posts
    10,798
    Likes
    28,376
    A caliber 1520 with a hacking mechanism? Maybe, but I don’t recall ever having seen one so equipped. Including my own 1520.

  4. blubarb May 26, 2021

    Posts
    2,912
    Likes
    5,799
    "Yes, it should hack when the crown is pulled out. Regarding why it won't, well that would just be guessing, but it's possible that the balance stop spring is missing, bent, or somehow out of position."

    Yes, my first thought as that the balance stop spring was the problem, but then I recall reading somewhere that not all 1520s had a hacking mechanism and then I heard that newer 1500 series movements were equipped with hacking devices.

  5. blubarb May 26, 2021

    Posts
    2,912
    Likes
    5,799
    From a newer 1500 series, Canuck?

  6. mr_yossarian May 26, 2021

    Posts
    2,369
    Likes
    4,366
    My 5513, Caliber 1520 does hack. It's a early 9xx Serial.

  7. Canuck May 26, 2021

    Posts
    10,798
    Likes
    28,376
    You could be right! My 1520 is 50 years old!

  8. blubarb May 26, 2021

    Posts
    2,912
    Likes
    5,799
    Same as mine then. Looks like I am off to the repair guy :D

    One concern was that the movement had been swapped out, but the movement serial matches that between the lugs.

  9. Archer Omega Qualified Watchmaker May 26, 2021

    Posts
    23,261
    Likes
    54,478

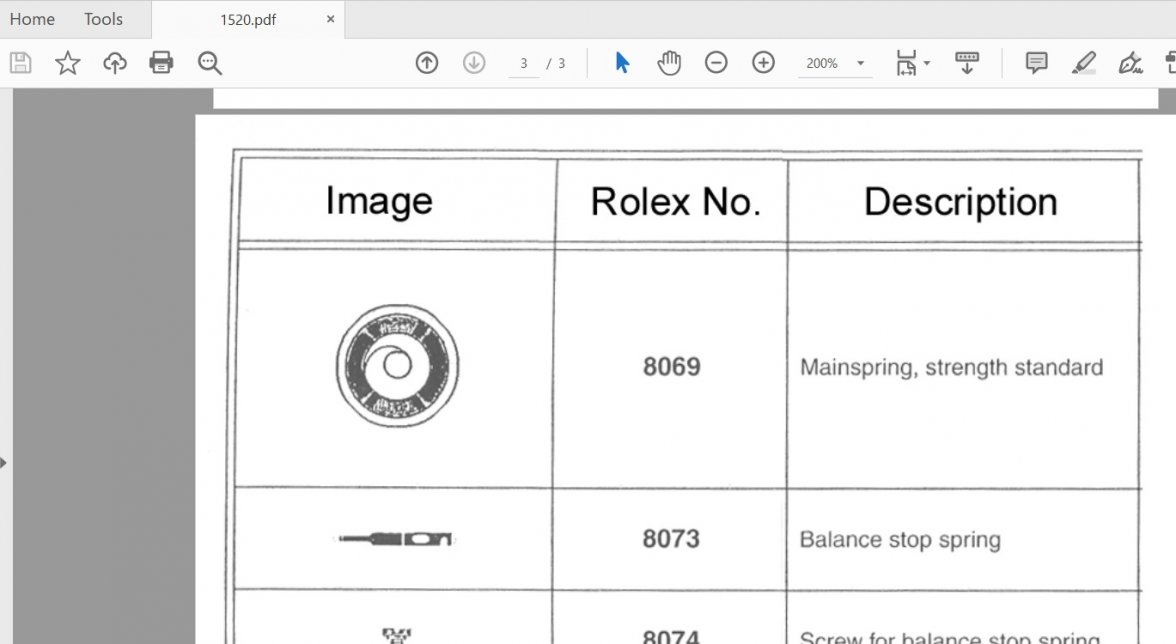

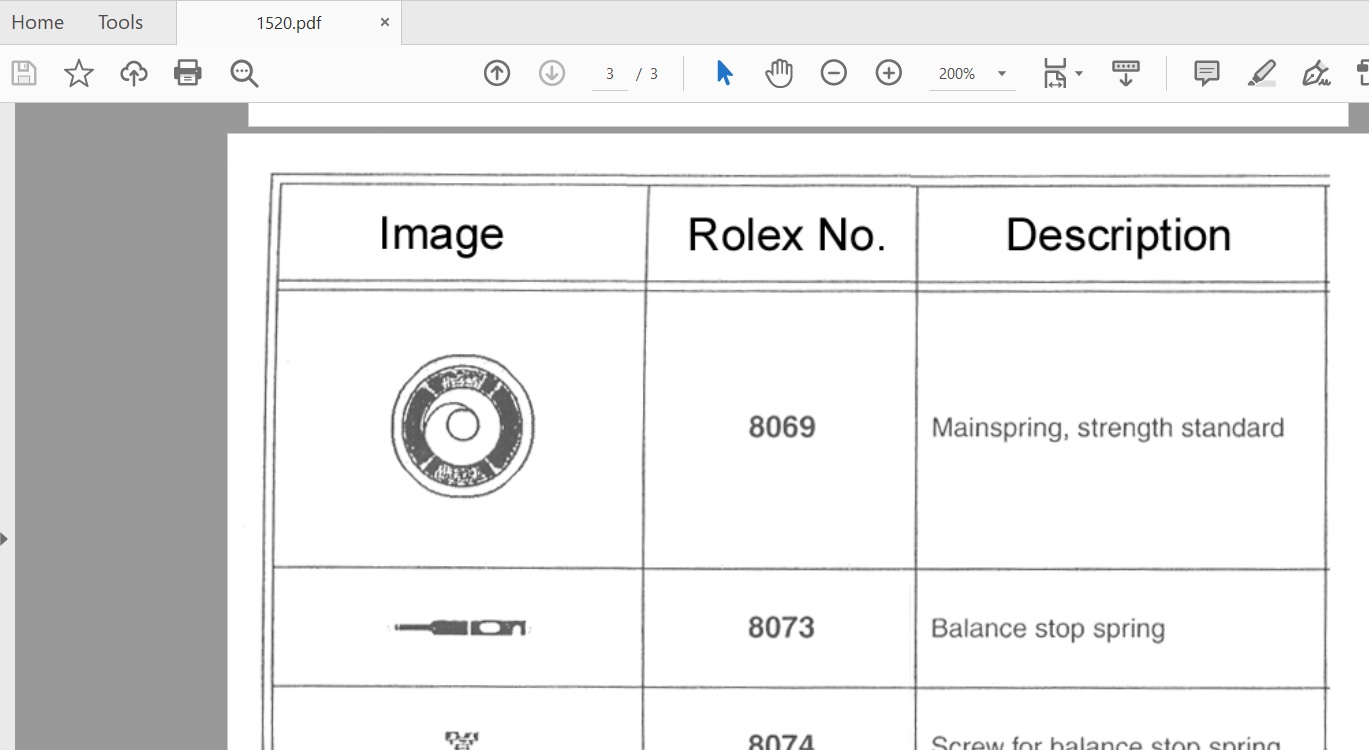

    From the Cal. 1520 parts list...clearly shown...


  10. Canuck May 26, 2021

    Posts
    10,798
    Likes
    28,376
    As I stated, my calibre 1520 is 50 years old. Never was equipped with a hack. I’ll check my parts listing when I return home. However, my parts list is much newer than my 1520.

    Dan S likes this.
  11. Dan S May 26, 2021

    Posts
    13,070
    Likes
    30,027
    Several of the Rolex calibers added a hacking feature in the early 70s.

    airansun and wsfarrell like this.
  12. blubarb May 26, 2021

    Posts
    2,912
    Likes
    5,799
    Yep

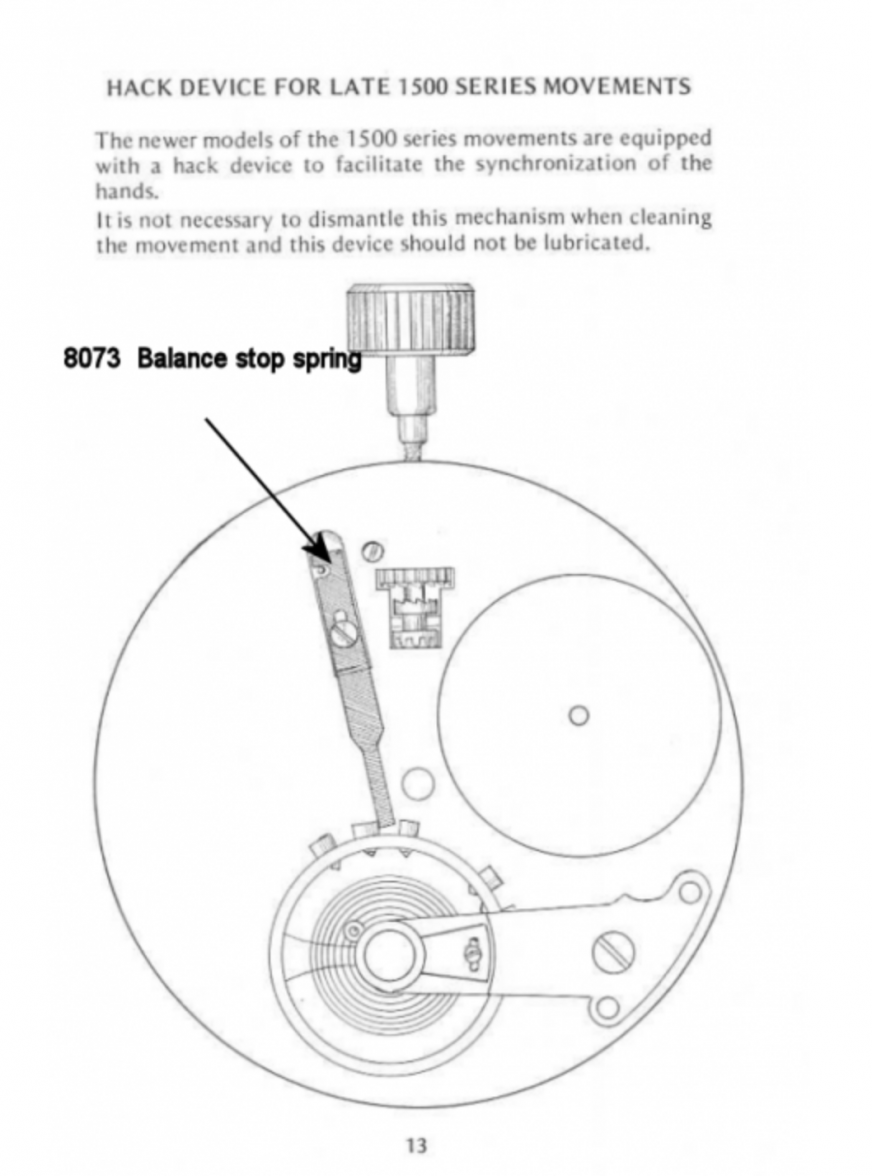

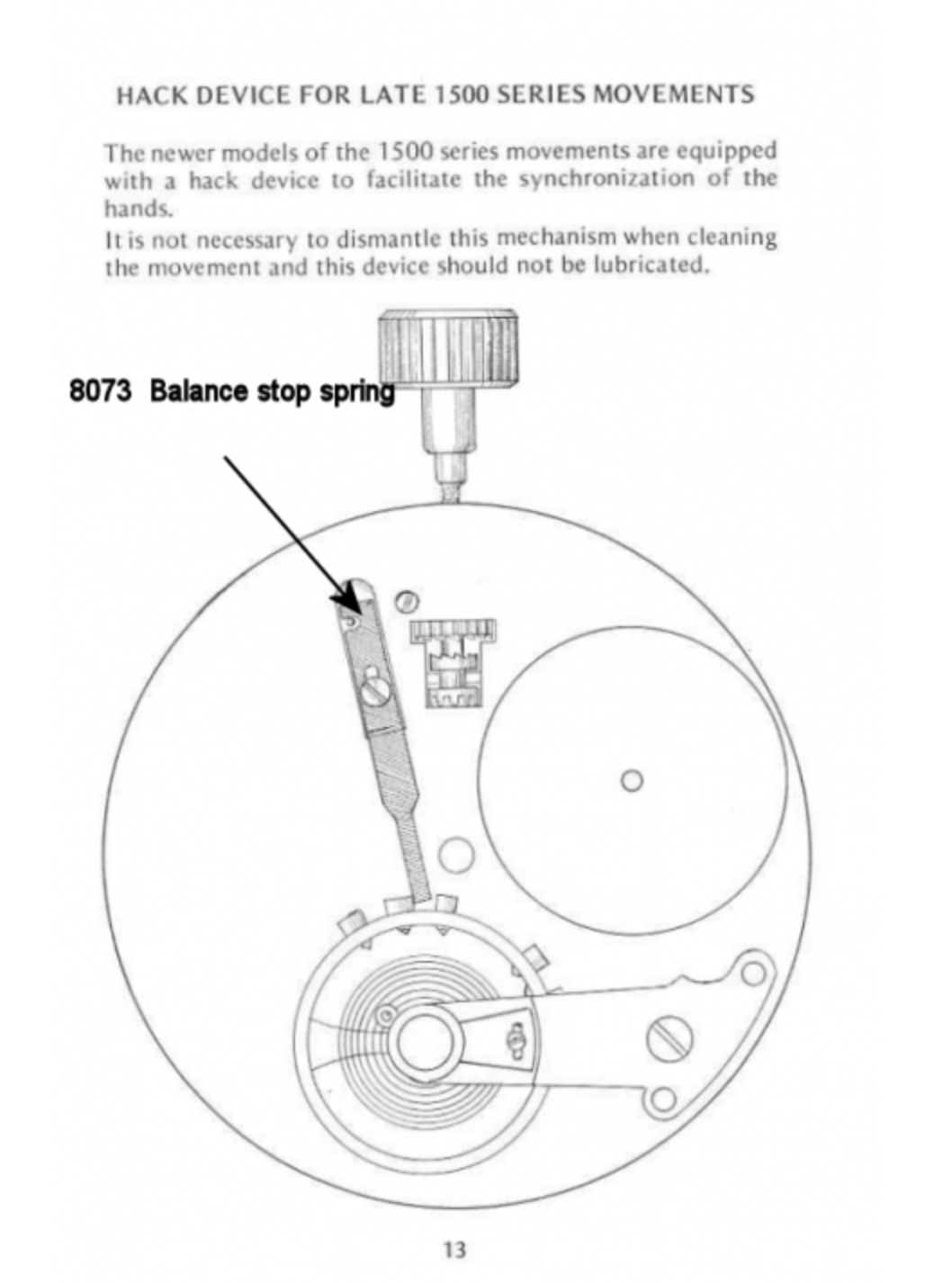

    Screen Shot 2021-05-27 at 8.21.56 am.png

    wsfarrell likes this.
