As some of us here are watchmakers, budding watchmakers and tinkerers, I thought I'd post some information about my new timegrapher, the Witschi Watch Expert IV, which I'll be using for my course. Here's a link to the Witschi brochure. I know this is a bit detailed but might be of interest to some.

Up to now, I've used a cheap (€150) timegrapher and it's served me fairly well but it has a lot of limitations. It will be clear below that it cannot do 10% of what this can do and this is a significant upgrade. Only arrived today but have spent a few hours with it.

Virtually all the professionals use Witschi who offer a few options including a combined mechanical/quartz tester (saving bench space) or a couple of different machines with scope options. I've spent a long time looking at those but am not convinced I need the scope option (would be nice) so, opted for the watch expert. Until very recently, this was the Watch Expert III and looked very similar to my cheap machine but, the model IV appears to be very new - mine has serial number 40 so, I suspect they were only announced a few months ago. It has a host of new features which are the ones I want. I have only seen this for sale at Cousins and everyone else still sells the model III.

Here's the enormous box it comes in:


Open and there are instructions, guarantee and the calibration certificate.


Well packaged as this is a delicate instrument.

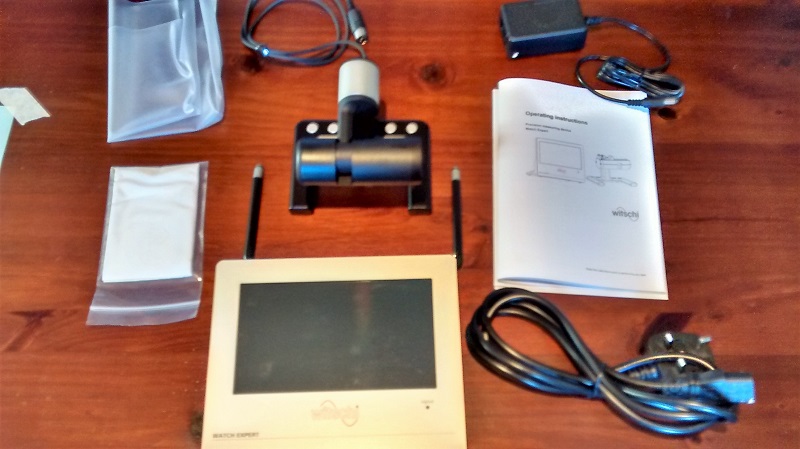

All the pieces on my computer desk.


I chose an Oris ETA 2892-2 to try it out. I serviced this a while ago, nothing special, a nice watch but, not the best grade of calibre 2892. These have 4 grades: standard; elabore; top; chronometer and this appears to be elabore which means it is not expected to meet COSC standard but should be within 20 seconds a day. Anyway, still a nice movement and formed the base for the Omega 1120 so will run pretty well. I re-used the mainspring as that's something the BHI teach but, I usually just replace them. It's a perfectly good spring anyway.


Here it is at full wind plus 30 minutes on my cheap timegrapher in position CH and it has a little beat error but in spec.


That picture represents 25 seconds on the horizontal scale for this 28800 train and that's the most you can see on this and then the screen repeats.

First thing about the Watch expert is you don't need the camera, you can print the screen to a printer (Witschi thermal) or to a USB stick. So, I'm using the USB stick to dump the screen and pasting the pictures here. There are two USB ports plus an Ethernet port and mention of a bluetooth dongle but I don't know why you'd need the latter two. The microphone sound is fed directly to speaker if you want so, you're hearing the movement rather than the tick-tock generated sound from the cheap timegrapher.

Here's the same screen on the Watch Expert IV just covering 25 seconds:

+7.7 secs/day, beat error of 0.4 ms and 304 degree amplitude so, the values are basically the same but the screen will show 90 seconds for this train and 144 seconds for an 18000 train. This is much more useful for spotting oscillations due to out of round wheel running as both the escape wheel and fourth wheel have completed a rotation in this time.

Other things on this screen of interest are the magnification factor of 4 on the right and the integration period of 30 seconds as well as the data for the lift angle and train beat number. Integration period can be up to 60 seconds and zoom can be up to 16x. When zoomed, the vertical scale changes but not the horizontal so you can zoom in to see details better. It's a touch screen so any of these values are changed that way or by the 4 programmable buttons on the microphone - this is very useful as often the microphone is close by on the bench and the screen further away. You can see the 4 silver buttons on the microphone below - included a view of my cheap Asus notebook to give some scale (not my E-Type, unfortunately)


More interesting is what goes in the the little boxes along the bottom labelled CH, CB, 9H... It's a smart microphone so, when you turn it to the various positions, it realizes what position the watch is in and shows it on the big area of the screen as well as filling in the little screen. If you want it back on the big screen, just click on the little picture and it appears. This is really useful as it means you can easily see how the watch runs in all six positions.

Here some pictures after running the full test and recalling each position as noted at the top left so, you see the averages for each position as well as the graph.

CH is dial up - test position for all wrist watches as it suits hand resting on a desk.


CB is dial down- test position for chronometers equal to CH for people who wear their watch on the inside of the wrist.


9H is vertical with 9 at the top - test position for all wrist watches and would be (left wrist) stood up with the hand in a pocket.


6H is vertical with 6 at the top - test position for all wrist watches and would be on the left wrist when holding a steering wheel at "ten to two".


3H is vertical with 3 at the top - test position for chronometers only.


12H is vertical with 12 at the top - this is not a watch test position but is useful for watchmakers.


The lines are not dead straight which, of course, I couldn't see before but even zoomed in to 8x some time later, there looks to be no real issue to me. However, I need to read up on what is a good line with this sort of zoom. Looks to be every sixty seconds so likely the 4th wheel is slightly out.



At any time, you can change between the screen above and this screen to see the results over the whole test. This was only running for 1 minute 26 seconds but shows how the rate and amplitude vary. This variation might be a little high and is probably due to the slight wobble above.



Here's an unserviced 565 and shows the zoom facility: 1x on the left, then 4x, then 16x and back through 4x and 1x. The rate is fairly constant as it's the zoom that is changing the slope of the curve but when zoomed in, it's clear that the numerous inconsistent points means not all is well.


Here's a better, serviced 565 from a couple of years ago.


Good things so far:
Properly calibrated and professional tool.
Will do standard, co-axial and the recent AP escapement.
You can hear the escapement properly.
Results are far easier to read and understand than the cheap timegrapher.
Like the ability to see all the positions in one go and return to them.
Like the screen shots.
The microphone recognizes all positions, the six normal and the four halfway positions for dynamic poising (see below for 7:30H) plus "7:30H/45degrees" which is new for me.


Not so good things so far:
Doesn't store the dynamic poise positions for recall.
The USB ports are on the back, which is annoying, but I found a little USB extension cable so I am not trying to reach around the machine when plugging in a stick.

Well, for those with cheap timegraphers looking to improve their equipment, I'd heartily recommend this. It has virtually everything I need and I can't see why Witschi couldn't upgrade the software to store the extra positions. I'll write to them and see what they think.

Cheers, Chris



Very interesting Chris.

I guess like all tool upgrades you'll soon be saying, "I don't know how I ever coped before."



I'm happy to see some corroboration that the basic stuff on my cheap timegrapher is probably accurate.



Two concerns with regards to accuracy are the quality of the time base (quartz crystal) and how they drift over time (calibration). In addition to cheaper construction and fewer features, the cheap machines tend to use crystals that are not as aged, and they do tend to drift more than those in the better machines. Calibration is required for both periodically.

Cheers, Al



I just buy a new one every six months or so and avoid those issues.



LOL! Great answer...



I'm already saying that Stewart....

I'm very happy with this and thought that having it would not make a huge difference to the way I work but, it will. Certainly, the information now available gives more confidence that everything is fine (or not). I am more than pleased, as you can probably tell.

Here's a watch that has an issue:



Looks not too bad, good amplitude, no beat error but running a little slow. This is on 1x zoom. But, zooming in to 8x and repeating the test:


Rate, beat and amplitude are the same but there is distinct wobble. 18000 train so each division is 24 seconds and it looks like an escape wheel issue to me. In fact, I already believed that but this has confirmed it for me.

Here's a better watch (Omega cal 865) at 1x:


And at 8x which looks fine to me. I haven't found anything to read about how to interpret these zoomed views so am going through all my watches...


Cheers, Chris



Hi Chris,

On the subject of the zoom feature, I think you have to be a little careful not to go down the rabbit hole on stuff like this. It may take some time to understand what sort of variations are a significant detriment to the performance of the watch, and what are just normal variation. Keep in mind these are mass produced mid-level brand watches, and they will have variations. When I look at modern watch parts, knowing what goes into making them, it astonishes me they can bang out a new train wheel for as little as $15 (retail) on a modern movement. Having designed and had many things made in machine shops if I paid a shop to make one from a drawing, it would cost hundreds in shop time, but I'll bet these companies are banging them out in significant quantities per minute.

Even if you identify the wheel that is causing that slight wave, you then will need to figure out what is causing the wheel to make that wave. Is it some debris in the leaves of the pinion maybe? If so clean it all again and see if that solves it. Is it a bent wheel? If so, then you can try to straighten it or replace the wheel. Is the wheel slightly out of round? If so unless you have a rounding up tool and a depthing tool, and want to take the time to do all the wheels, not sure there's much you can do but replace it again. Now if they are $15 wheels then so be it, but when they become $50 or $60 wheels, you have to decide just how far you want to go.

Certainly not saying to ignore it, but at some point going further provides no real benefit in a practical sense.

Cheers, Al



Great post Chris! And thanks Al for your comments!

Well, I will certainly remember Al ´s last post, because bothering about little things (for me!) that I cannot easyly fix (or cannot fix at all at the moment) is one of my fault - or quality, depending on the success or the failure! It is interesting to know there is an issue, but more to understand what you would have to do to fix it and why you may not want to do it in a particular case. Clearly a field where I can improve!

Thanks Chris. But now I am starting to think about improving my timegrapher ! I already think about a microscope... Maybe I should stop reading your posts!

By the way, I have a question concerning the comparison between you cheap TG and your new one.

One the limitation of the cheap TG - I guess we have the same - concerns the low amplitudes. Servicing old watches, I do not always find the lift angle online. So I use the 180 degrees technic - I have seen you did that too with your Omega pocket wach. But my cheap TG does not always give me clear data for this kind of amplitude. Cannot complain as it is part of the deal. Have you found your new TG get these law amplitudes better?



Thanks Al, you're right about the delving deeper and deeper. I have an initial feel now (having run 30 watches through the test) and it's clear that the 16x zoom can be quite severe in showing variations which are probably normal for this sort of watch. So, at 8x, I'd be happy with the Oris (ETA 2892-2) in the first post and the 865 in my last post as these curves look fine across all my watches. Likely, 4x is the best resolution for work unless there is a problem.

The wobbly one above it is a 1963 Smiths and wheels are not available - that is another level down in terms of quality but, it averages out pretty well for something that probably cost buttons to produce. The pivot has a little wear, as I remember, and I won't be trying to do anything about that at the moment.

You're right Francois that it's difficult to know where to stop especially with the cheaper watches. Al's point about dirty leaves above needs the microscope to properly identify it so, that's a good step forward. The Witschi seems to have better damping than the cheap timegrapher, at least it gives small variations over time so, yes, easier to work out a lift angle. I think they have one now that is optical as well and calculates the lift angle from that - impressive. I have to admit that the option to do something else while reaching across every few minutes to rotate the microphone is a big advantage for me - as it remembers the microphone position, the six position test is very easy while working on another watch. Then just review the results later.

Cheers, Chris



Very informative post...Thx for sharing i was thinking about going one of those witshi...But still looking at the cheaper version timegraph..Let s see...
