Universal Watch monopusher chronograph, with 36.000 bph

  1. nicola1960 Nov 22, 2021

    Posts
    114
    Likes
    356

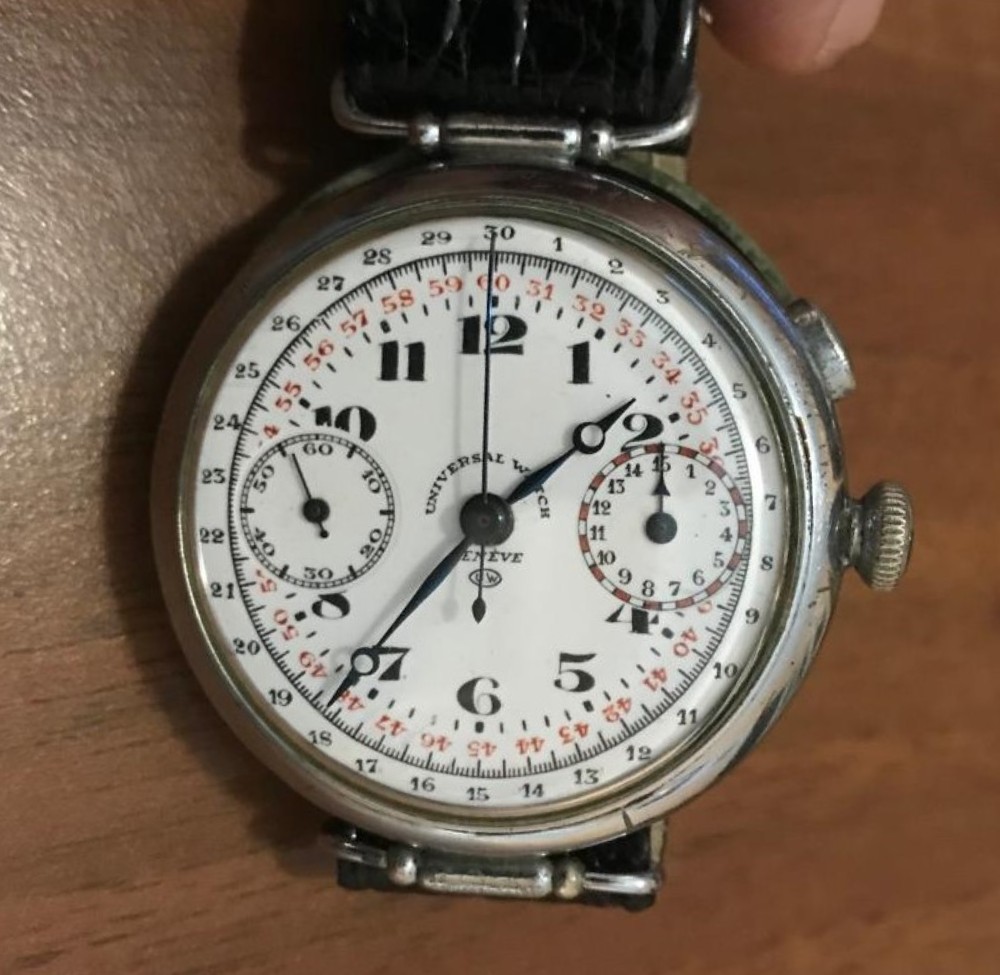

    Sul forum italiano Orologi e Passioni, un amico ha presentato questo cronografo mono-pulsante Univeral Watch, con pulsante al 2, con calibro 14 ½, “’, numero seiale 500.XXX, che ha la particolarità, più unica che rara, di poter cronometrare i 30 secondi con una risoluzione al 1/10° di secondo.
    Lo avevate mai visto ?

    On the Italian forum Orologi e Passioni, a friend has presented this Univeral Watch mono-pusher chronograph, with a push-button at 2 o'clock, with calibre 14 ½, "', serial number 500.XXX, which has the peculiarity, more unique than rare, of being able to time the 30 seconds with a resolution of 1/10th of a second.
    Have you ever seen it?

    https://orologi.forumfree.it/?t=78814015

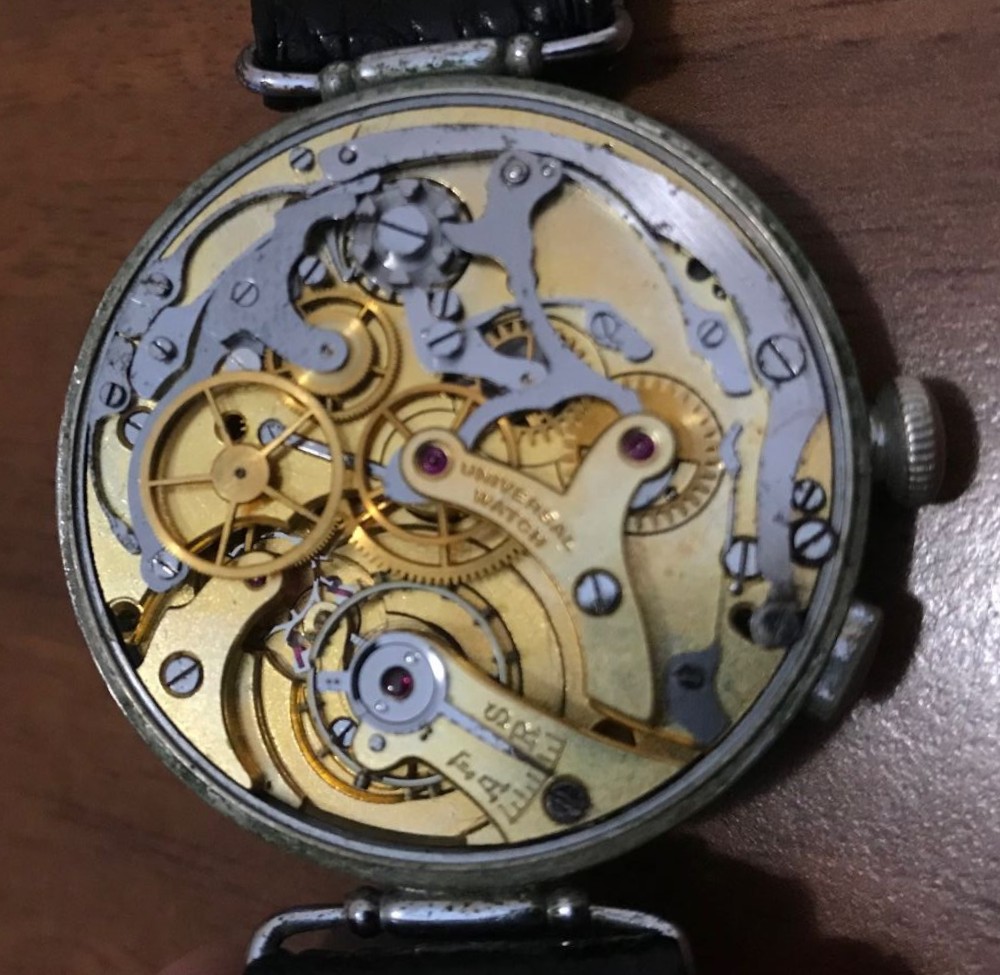

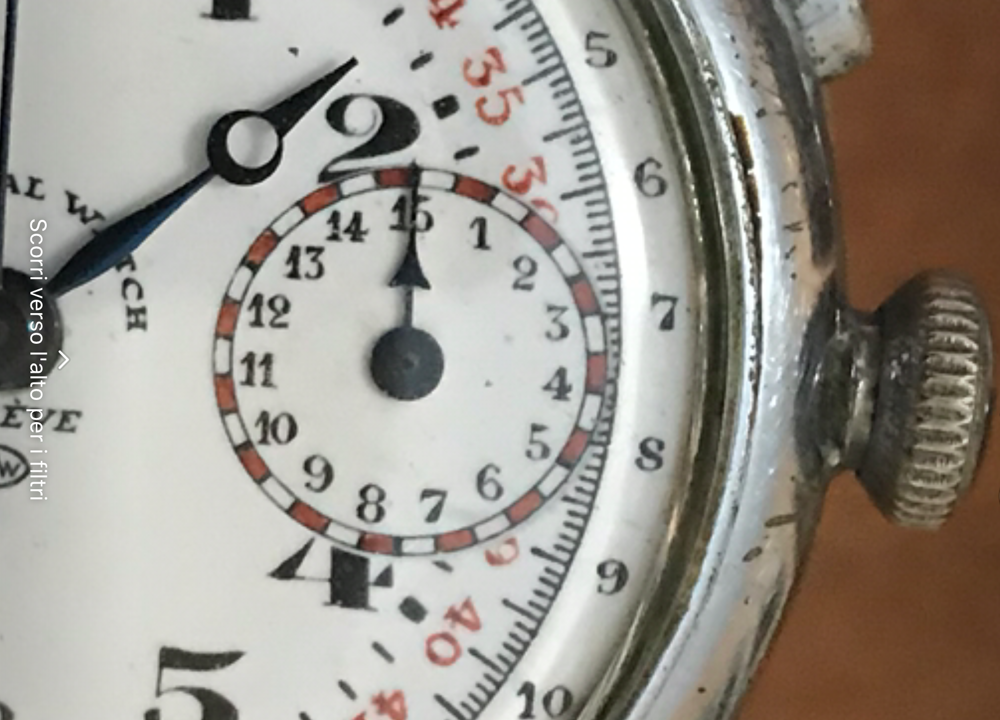

    Universal a 30 secondi (1).jpg
    Universal a 30 secondi (1).png
    Universal a 30 secondi (4).jpg
    Universal a 30 secondi (2).jpg

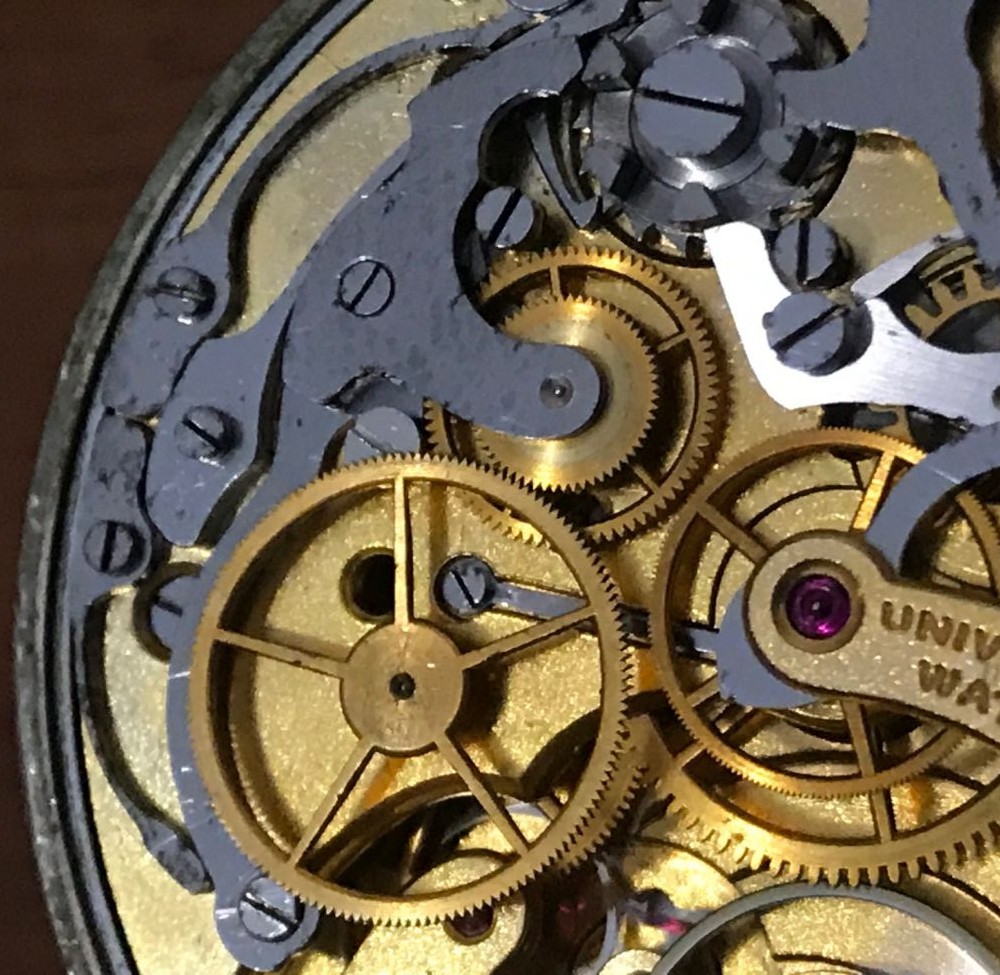

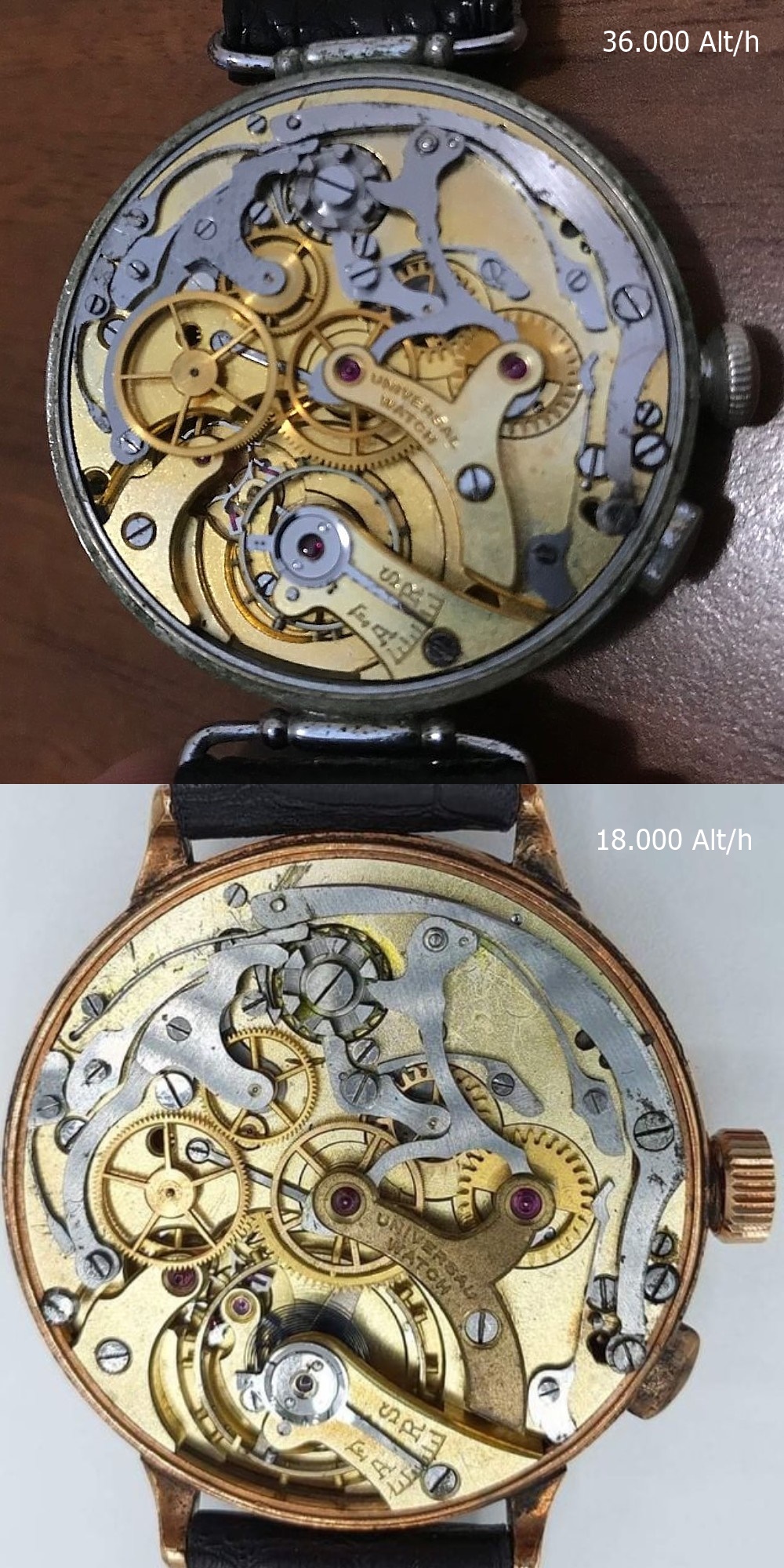

    E' interessante osservare come per raggiungere le 36.000 Alt/h, il bilanciere sia stato notevolmente ridotto nel suo diametro, rispetto a quello di un movimento con 18.000 Alt/h; inoltre, anche la ruota folle della bascula di rinvio è stata sostituita da una doppia ruota coassiale.
    It is interesting to note that, in order to achieve 36,000 bph, the diameter of the balance wheel has been considerably reduced compared to that of a movement with 18,000 bph; in addition, the idler wheel of the return pulley has also been replaced by a double coaxial wheel.

    Mark020, Woops, ELV web and 3 others like this.
  2. JayBe Nov 22, 2021

    Posts
    395
    Likes
    2,366
    This is highly interesting, thank you very much for sharing with us and I look forward to to hearing more about it from the local knowledgeable members.
    I'm not entirely clear on the concept of the double coaxial wheel here, so I would be grateful if someone would elaborate. [edit: now I got it]

    Edited Nov 22, 2021
    Larry S and Mark020 like this.
  3. nicola1960 Nov 22, 2021

    Posts
    114
    Likes
    356
    JayBe likes this.
  4. bubba48 Nov 22, 2021

    Posts
    1,539
    Likes
    7,833
    Hi Nicola :)

  5. Modest_Proposal Trying too hard to be one of the cool kids Nov 25, 2021

    Posts
    2,890
    Likes
    5,960
    Interesting. I've never seen one of these before, but I can't argue with it.

  6. DirtyDozen12 Thanks, mystery donor! Nov 25, 2021

    Posts
    2,677
    Likes
    4,591
    Very intriguing watch and movement. Thank you for sharing it here.

  7. cvalue13 Nov 25, 2021

    Posts
    3,979
    Likes
    8,393

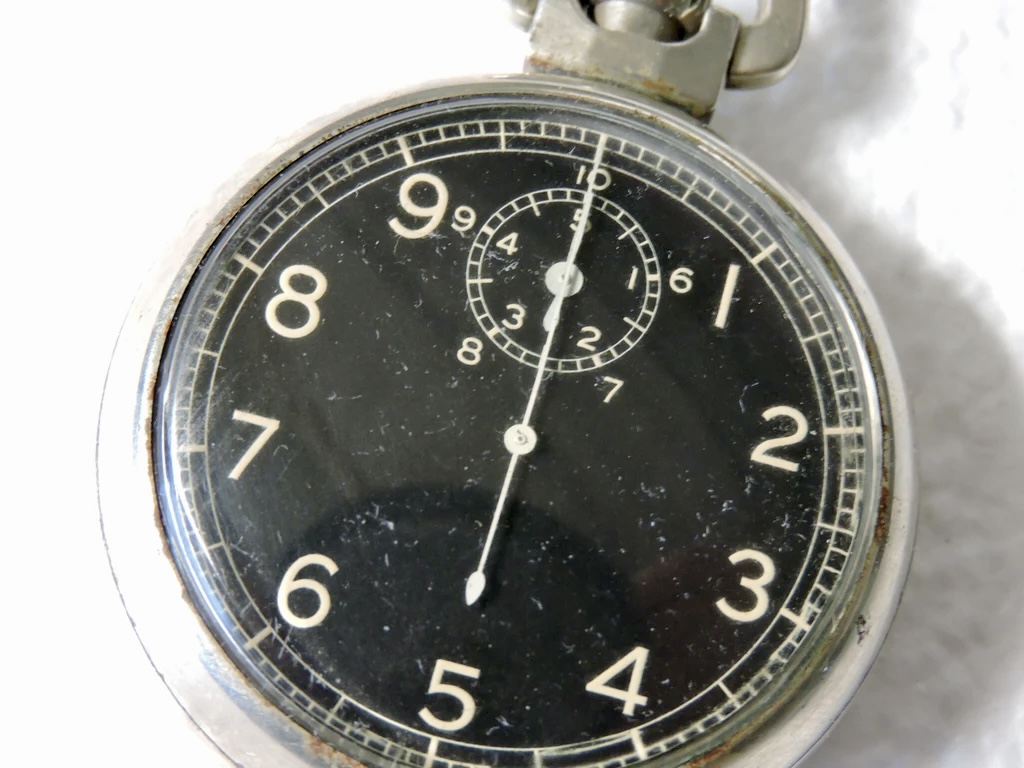

    Given the 15 minute counter at 3 o’clock, and the resolution down to 1/10th of a second, reminds me of navigator’s stopwatches like the “jitterbug” (144,000 beats per hour)


  8. nicola1960 Nov 25, 2021

    Posts
    114
    Likes
    356
    Grazie a tutti gli intervenuti ! :)

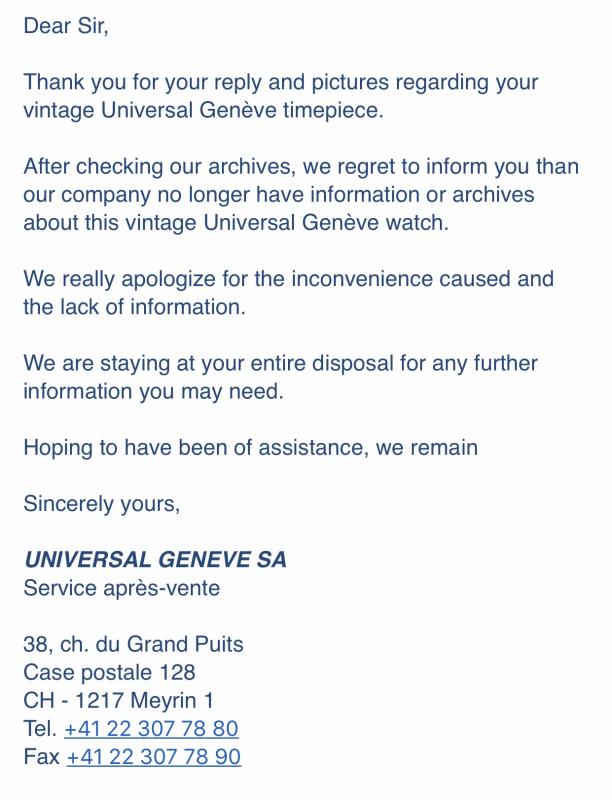

    Risposta Universal.jpg

    loniscup, JayBe and DirtyDozen12 like this.
