Tudor 75090 Bezel Repair (Insert does not fit or stay in?)

streetmedic · May 28, 2025

Hi folks,

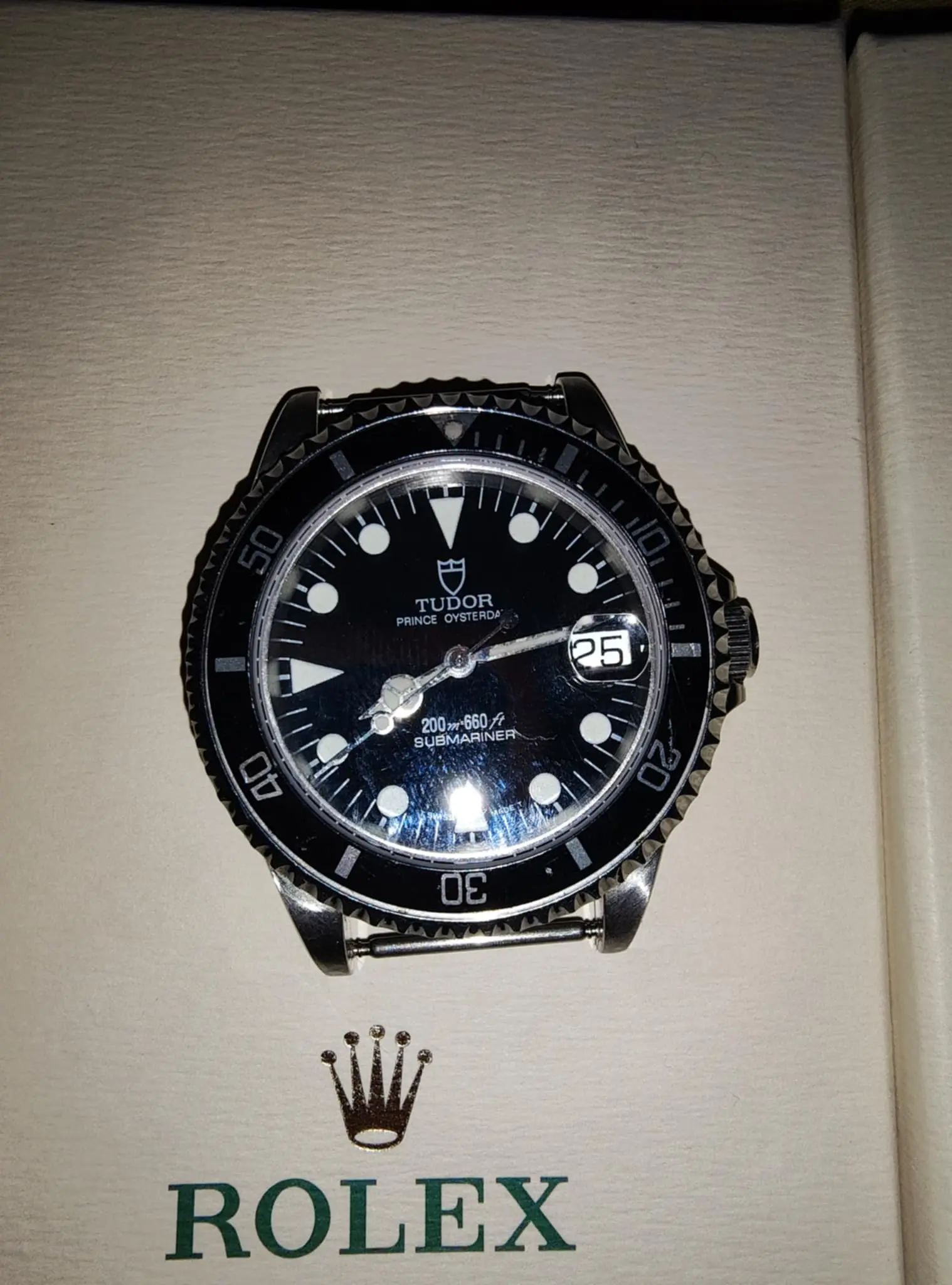

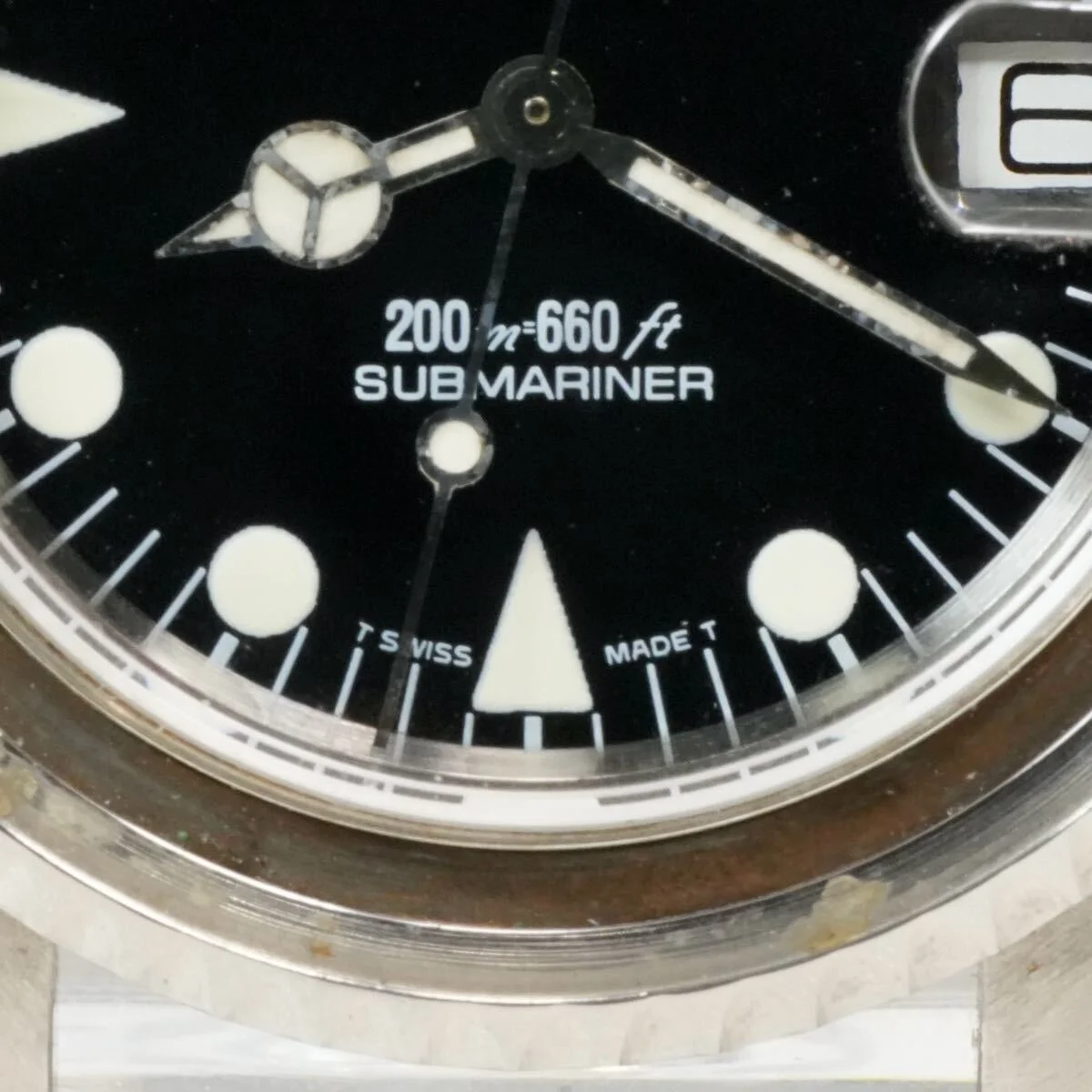

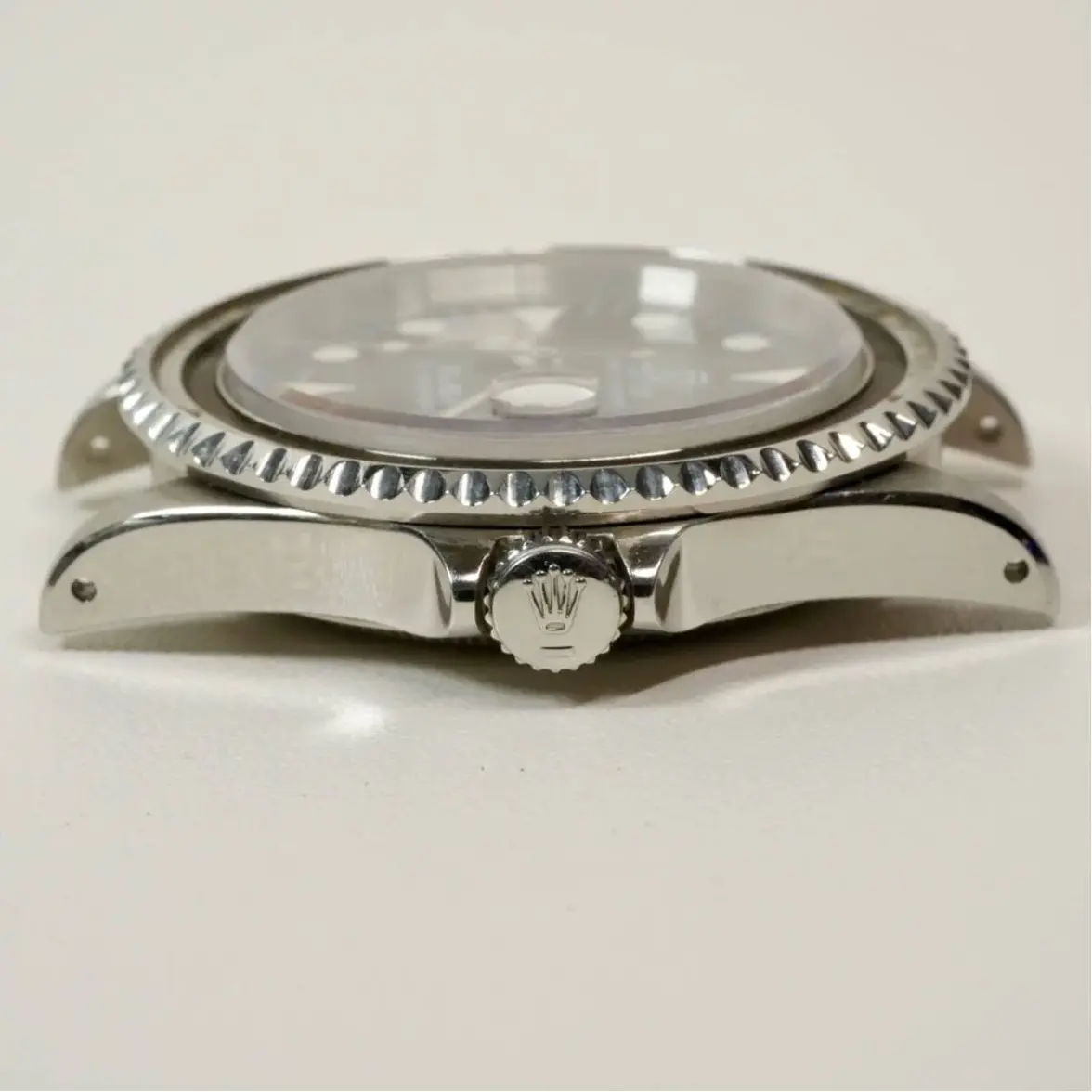

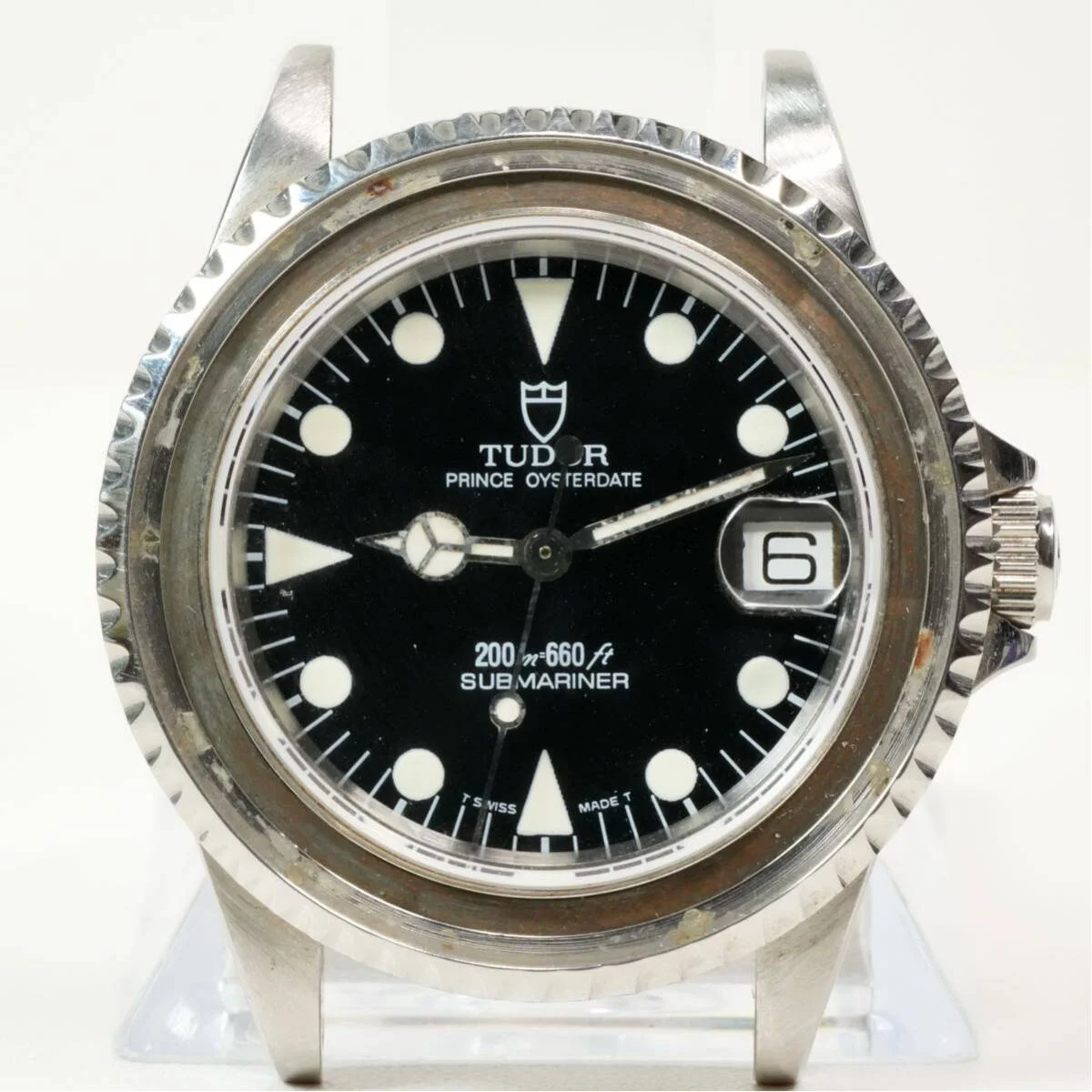

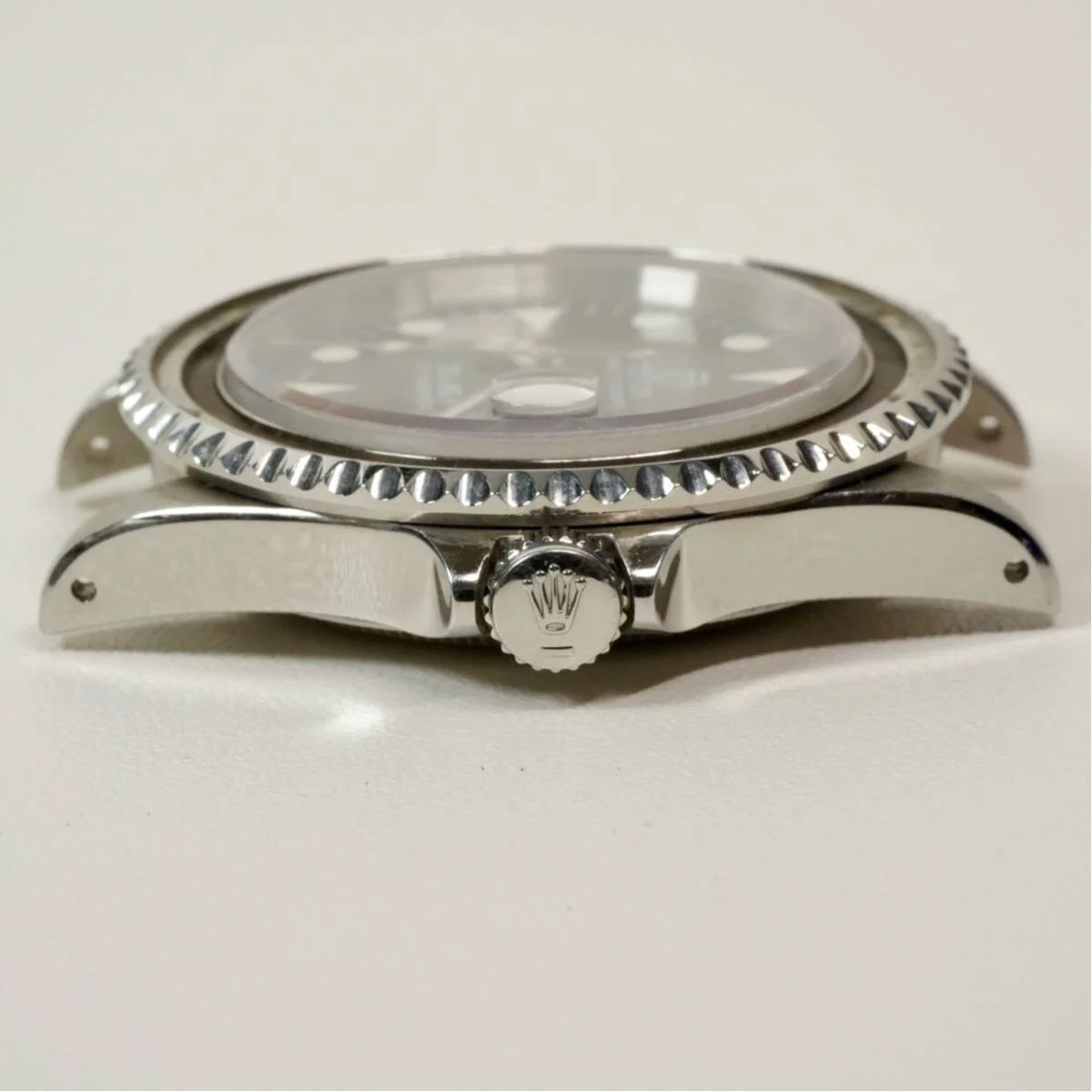

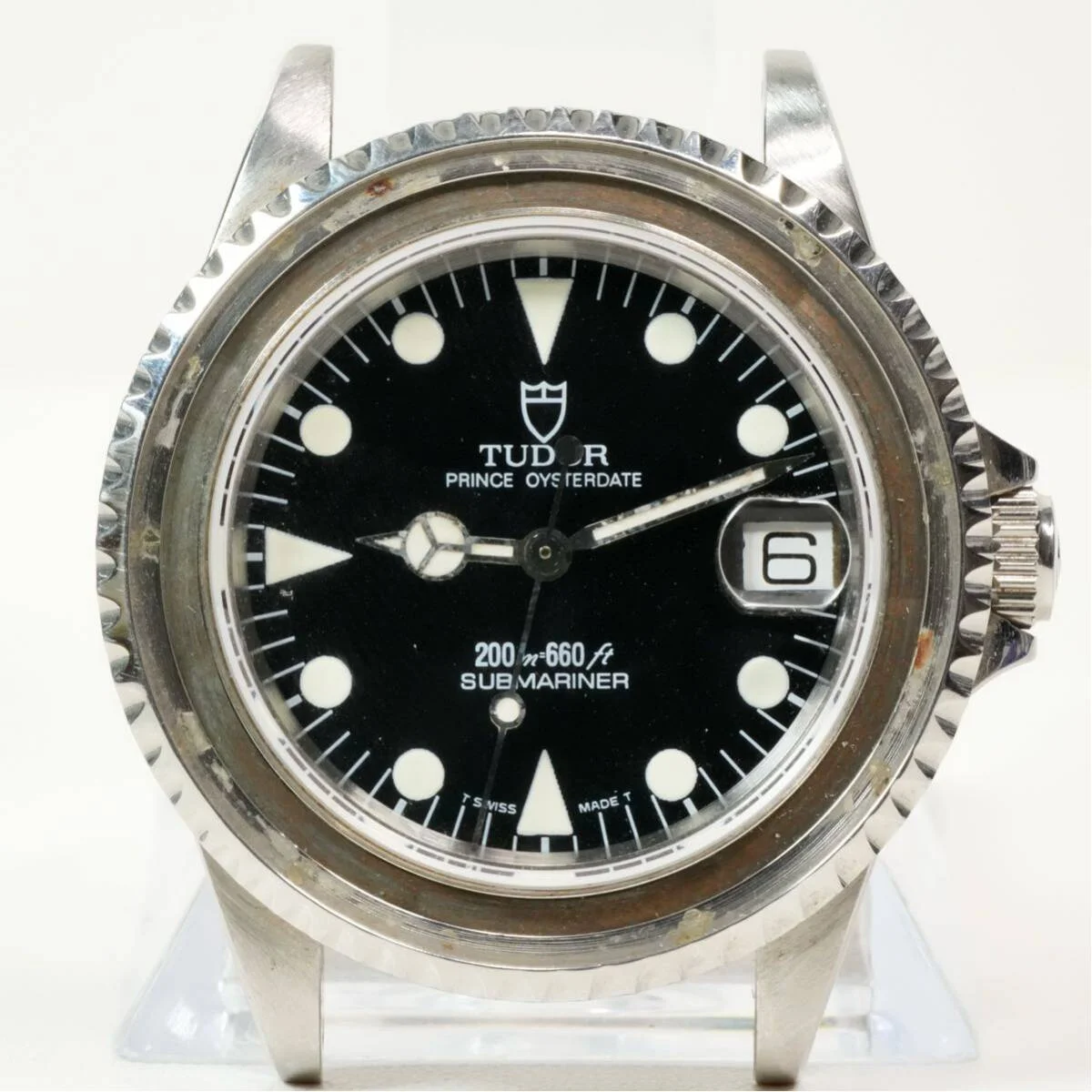

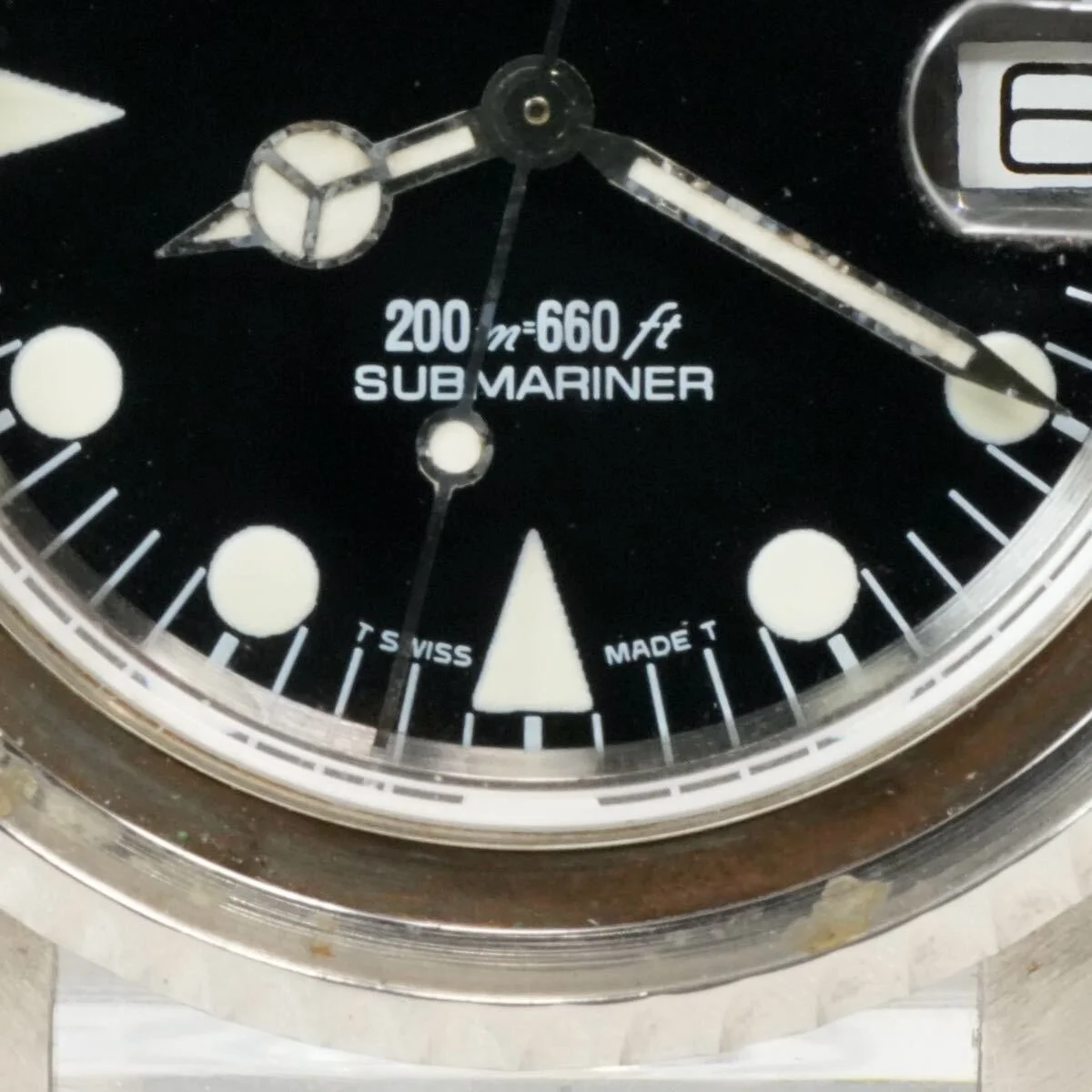

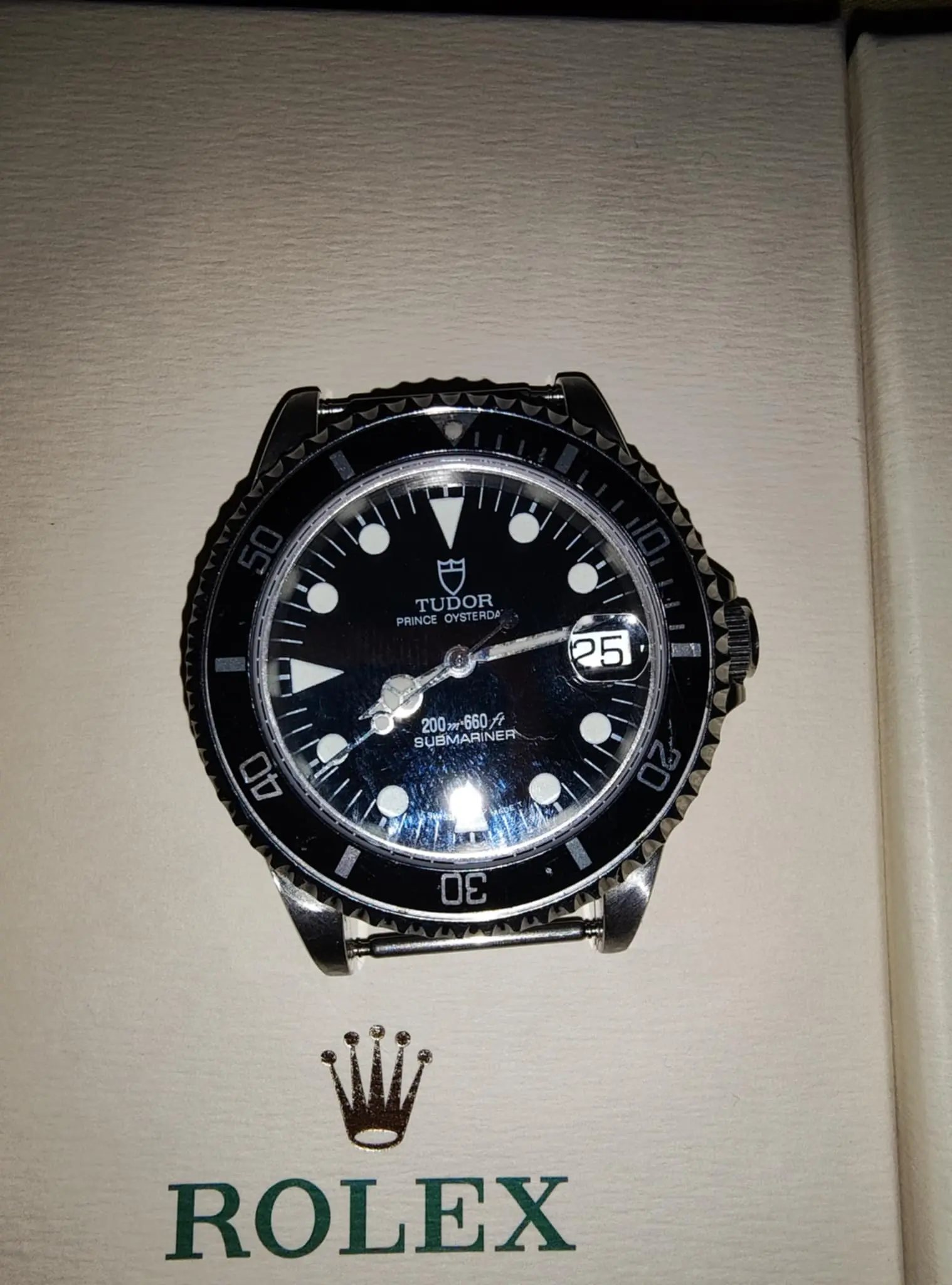

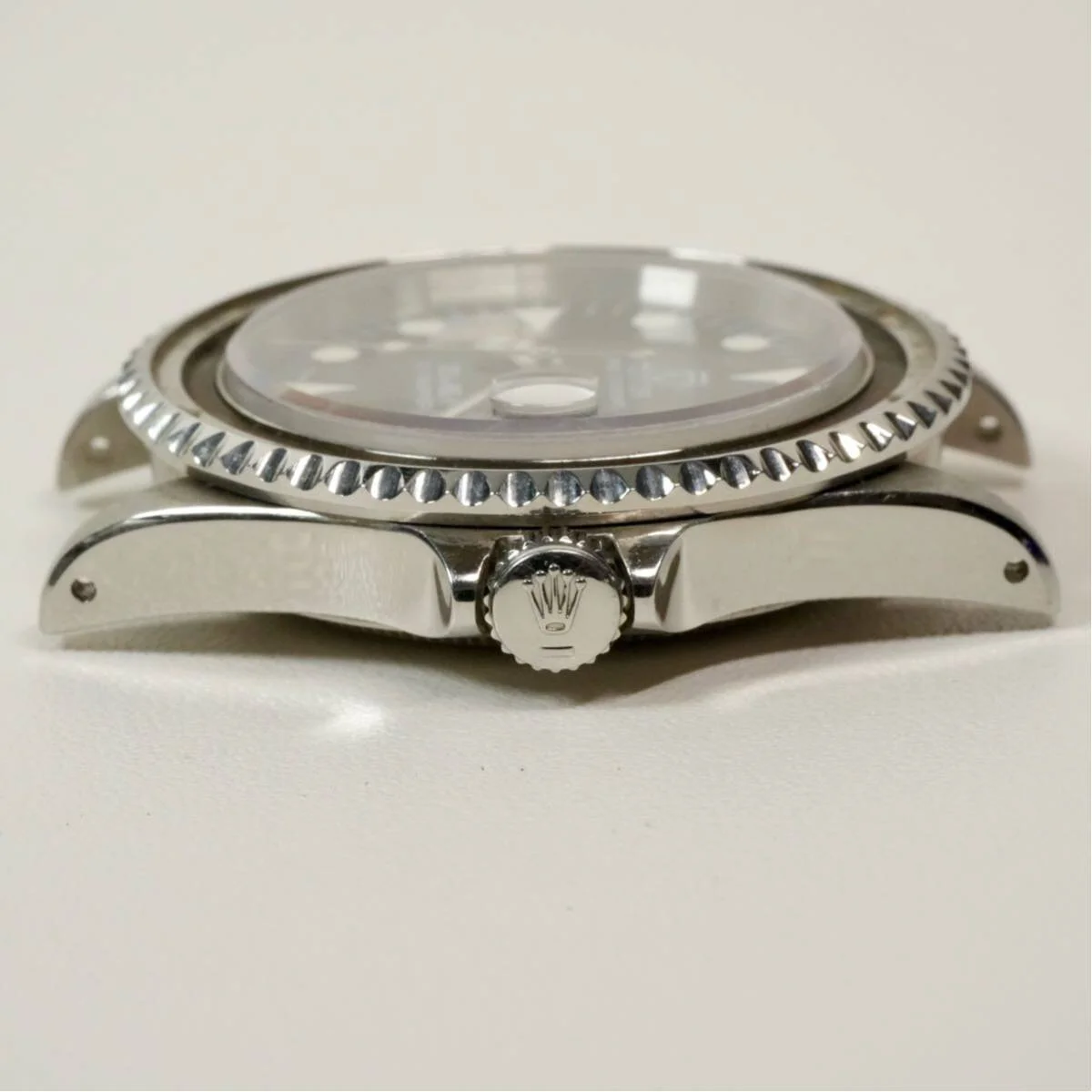

I'm trying to repair the bezel (or replace it) on my Tudor 75090. I picked up a supposedly correct insert, which fits, but it does not click in or stay in. I feel like there is something missing in the Bezel assembly or the Bezel might be incorrect.

Does anyone have any ideas why the Bezel will not stay in? Does anyone have a diagram of how the Bezel is assembled?

Any help would be appreciated, thanks!

Similar threads:
[1] https://omegaforums.net/threads/missing-or-faded-bezel-insert-tudor-75090.106874/
[2] https://www.watchuseek.com/threads/help-tudor-submariner-bezel-ref-75090.5495042/

southtexas · May 28, 2025

Please post a better photo of the insert. And also sometimes the bezels themselves have to be manipulated as they can stretch/deform. If the insert is original, this will probably be your solution.

edit to add: when installing an insert, I like to use a pencil with a hard eraser. I insert the bezel into place, then work my way around the insert pushing down with the eraser to fit it into the bezel. I like to start near the pearl so that I don't have to put much pressure at/near it. It's rudimentary, but it's always worked well for me.
