Speedmaster Mark II (145.014) dial question

Posts

14

Likes

9

bunthit

·Nov 20, 2019

Hi everyone,

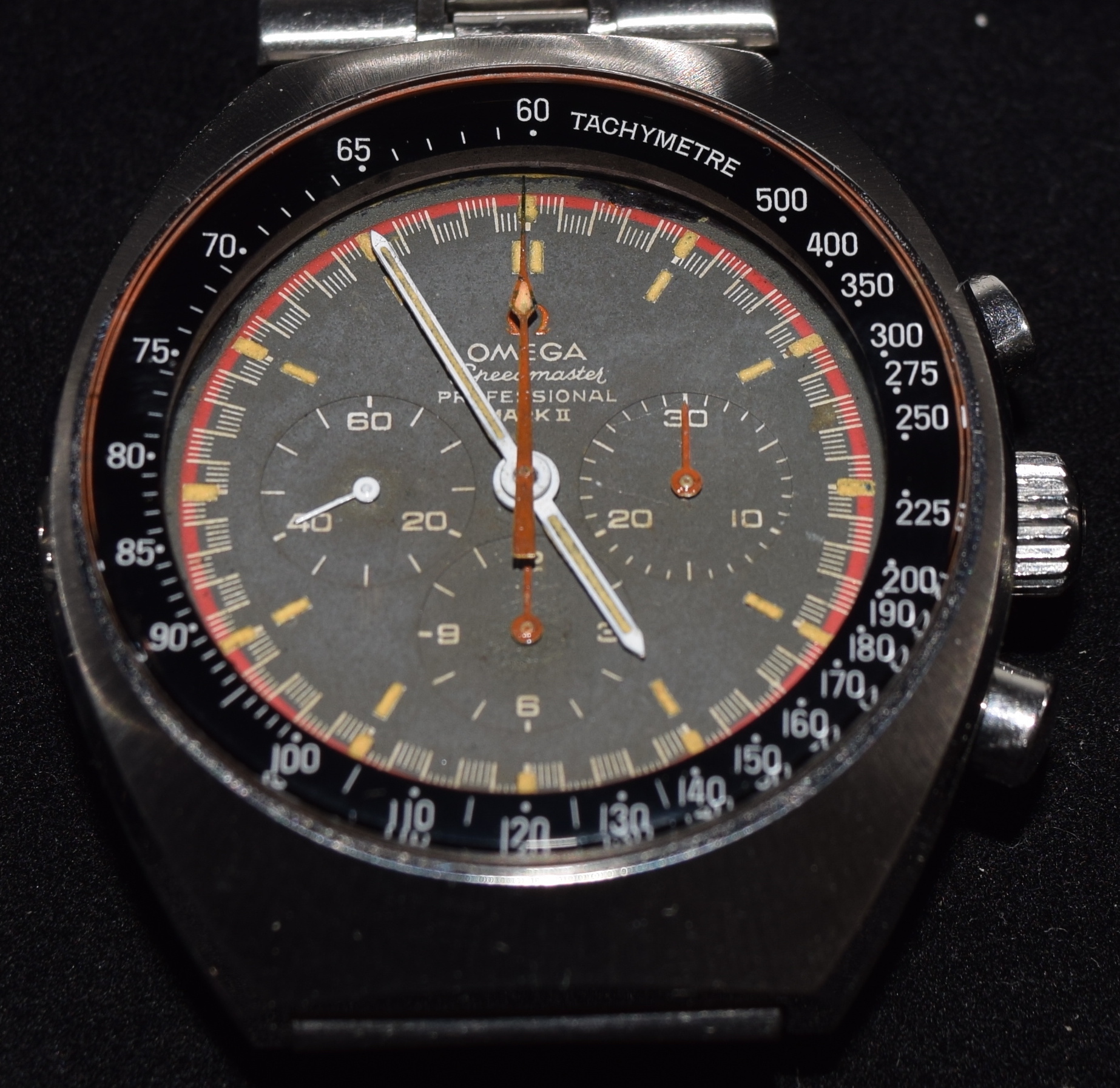

I added this MKII to the collection recently and noticed some black mark (maybe oil?) around the far edges of the dial.

(Between 12 and 1, and by the 10 hand)

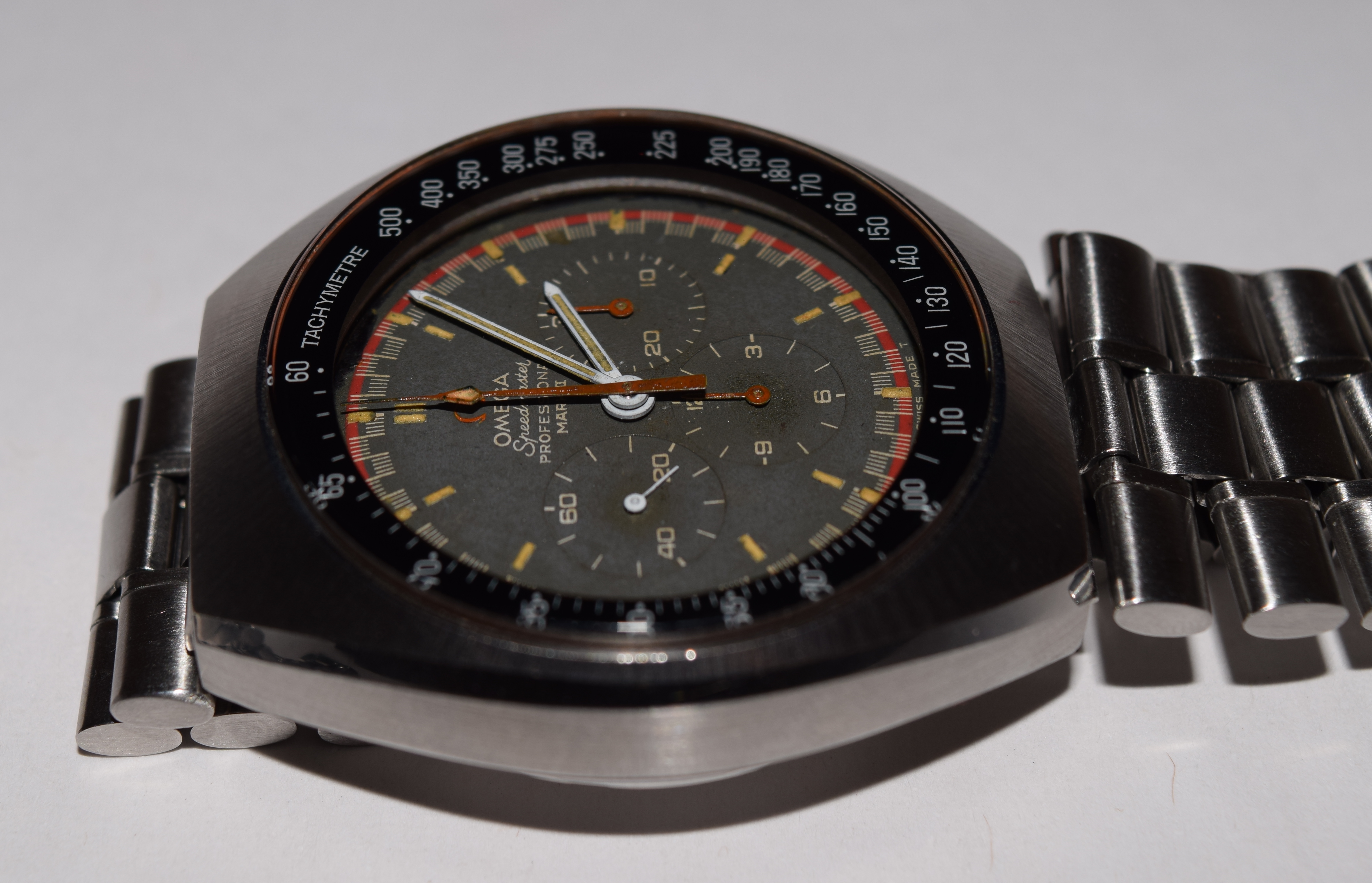

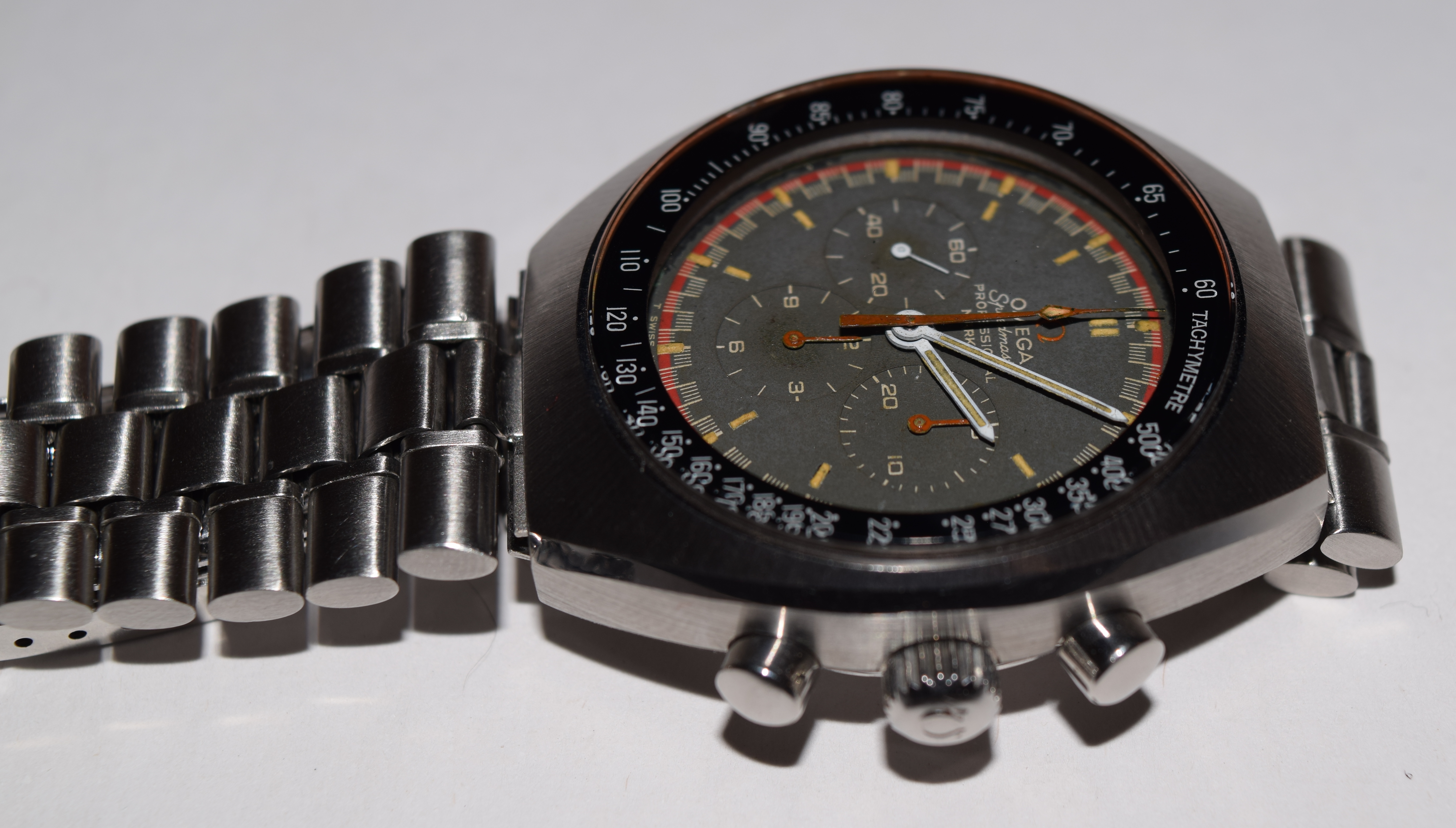

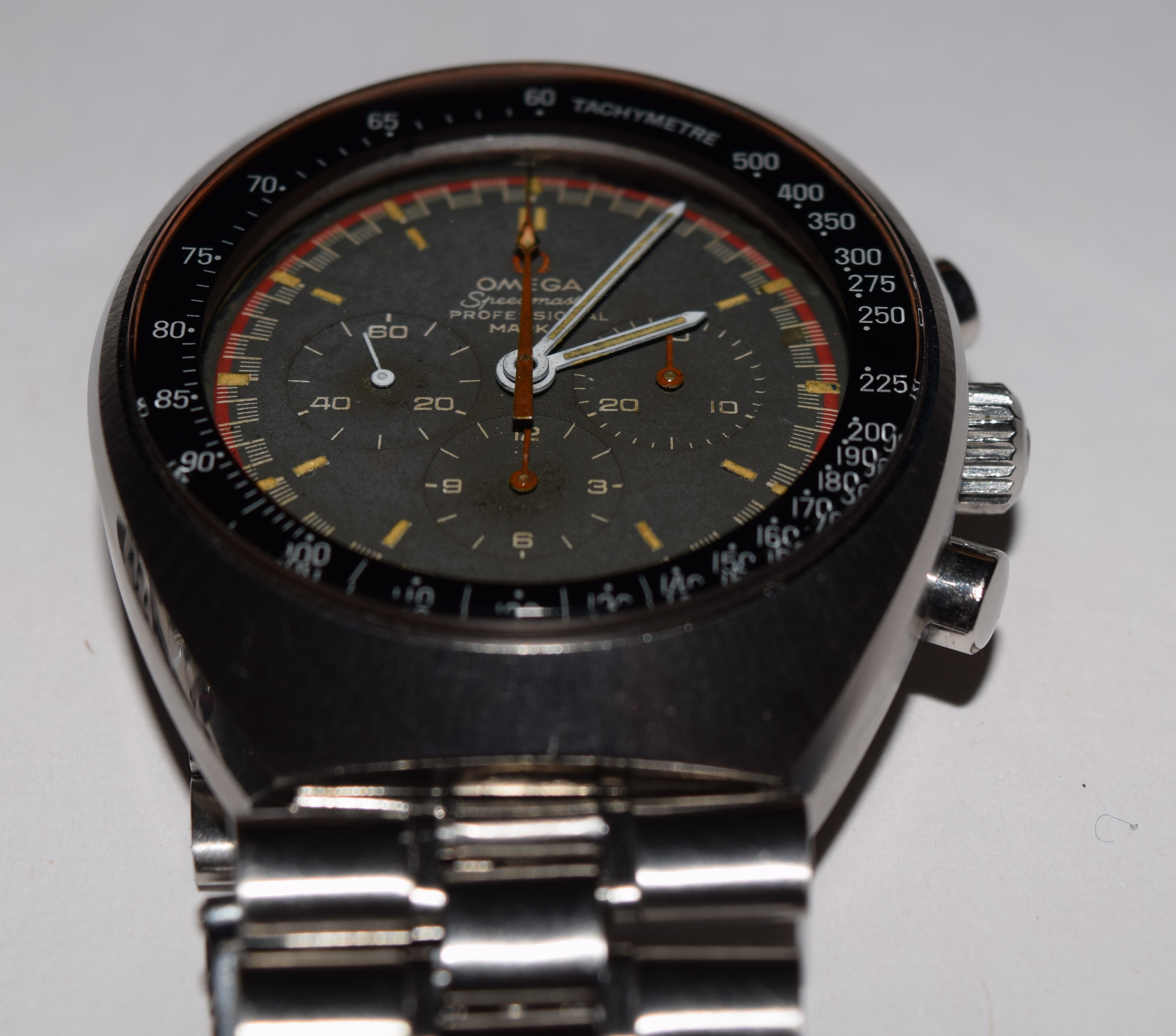

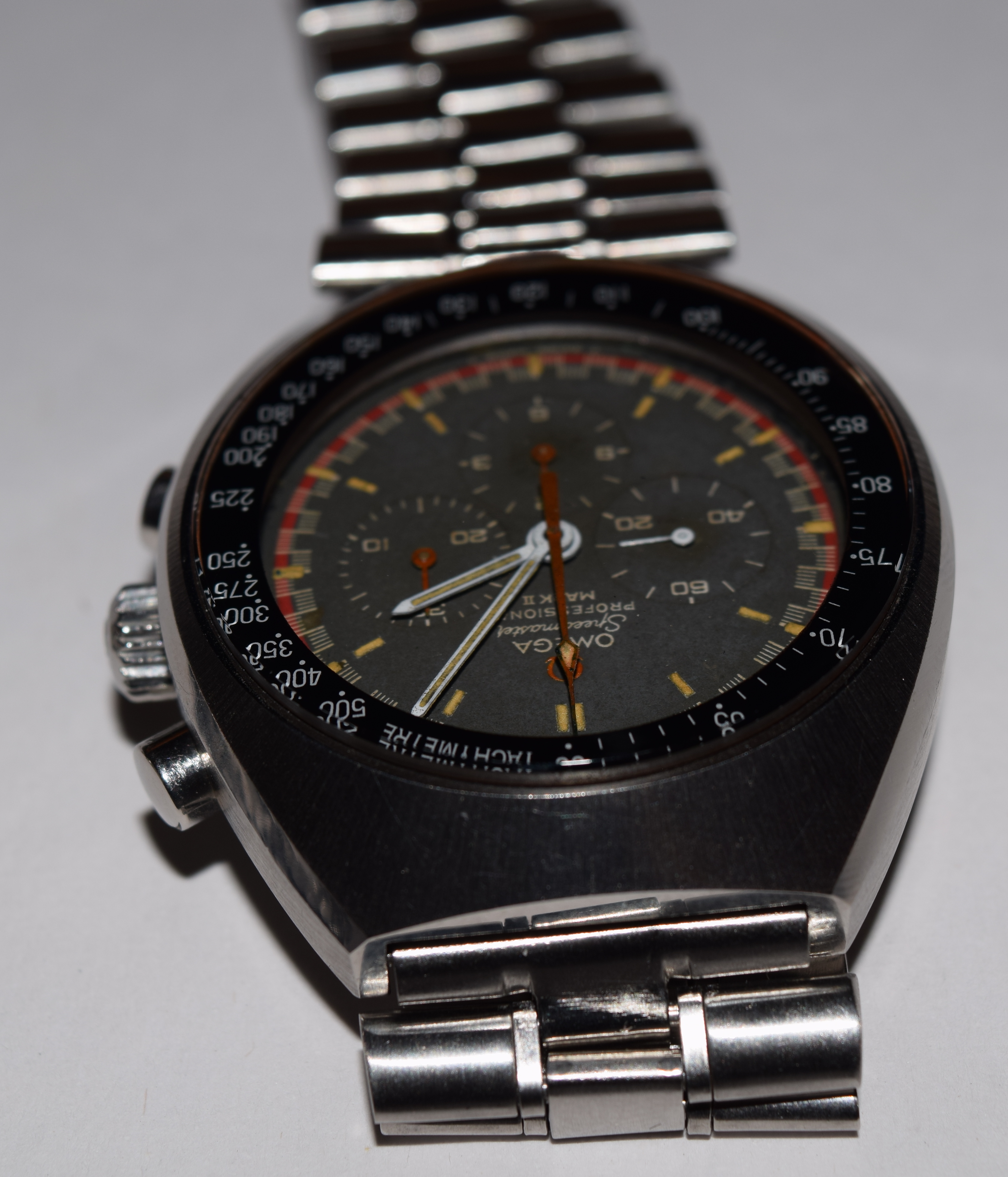

Additional photos:

Does anyone know what that is? I generally like how faded this dial has become so I wouldn't want to change it otherwise.

Thank you



Posts

586

Likes

1,371

omegaswisst

·Nov 20, 2019

Hi @bunthit

The rubber gasket for the crystal can disintegrate and turn to a sticky goo.

To me it looks like it has run down and come into contact with the dial.

I'm not sure whether it can be cleaned off without damaging the dial.

Also, you may already know this, but the hands appear to have been changed and are not correct for this watch.

Edited: Nov 20, 2019



Posts

4,879

Likes

31,866

Taddyangle

·Nov 20, 2019

This looks to be too much of a project watch. What is asking price?



Posts

14

Likes

9

bunthit

·Nov 20, 2019

@omegaswisst thank you for the quick reply! I thought of that as an option too. So most likely that. And roger on the hands I do think that style fits slightly better with the redness on this one’s dial but if it goes to service I’ll probably make sure they source the original style.

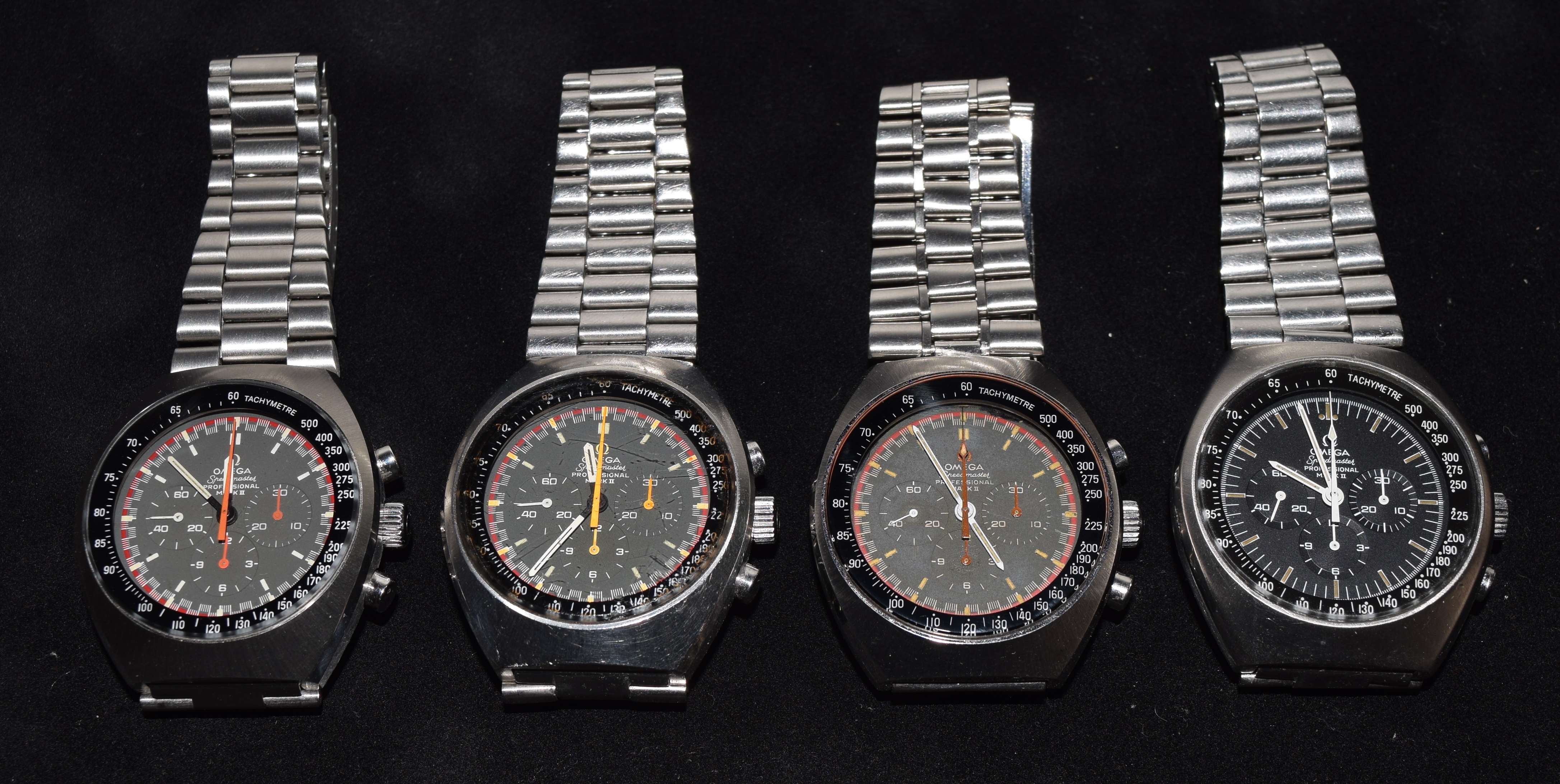

@Taddyangle already added to the stable ;-):

I actually like how beat up it has become and his dial does have a nice ghost like quality to it. The case is ok too at this point.



Posts

4,879

Likes

31,866

Taddyangle

·Nov 21, 2019

There is something about a Mark II.

I love the racing dial too



P

Posts

188

Likes

729

percymon

·Nov 21, 2019

Taddyangle

There is something about a Mark II.

Indeed - much under rated, but having recently joined the club i was bound to say that



Posts

2,720

Likes

5,552

kingsrider

·Nov 21, 2019

I think the dial has been touched up. The rust color on the hands is suspicious. The watch may have had moisture issues, or the movement was moving in the case, causing wear on the dial surface. There are issues at the sub-dials that are clues. In my opinion it is not a melting gasket issue. The "rubber gasket for the crystal" is not rubber or a material that turns to goo.



Posts

29,705

Likes

76,893

Archer

·Nov 21, 2019·Omega Qualified Watchmaker

kingsrider

In my opinion it is not a melting gasket issue. The "rubber gasket for the crystal" is not rubber or a material that turns to goo.

Why do you say this? The seal for the crystal (and the one that is directly below the crystal) are made of the same Buna-N (nitrile) that most definitely turns to black goop...

Here's the last 145.014 I serviced, and you can see that the back side of the crystal is covered in black goop:



The groove in the case also:



I use 99% alcohol to remove it - it is the best solvent I've found for this, but of course will remove the painting on the underside of the crystal also, and I don't think it would be kind to the OP's dial:



Posts

2,720

Likes

5,552

kingsrider

·Nov 21, 2019

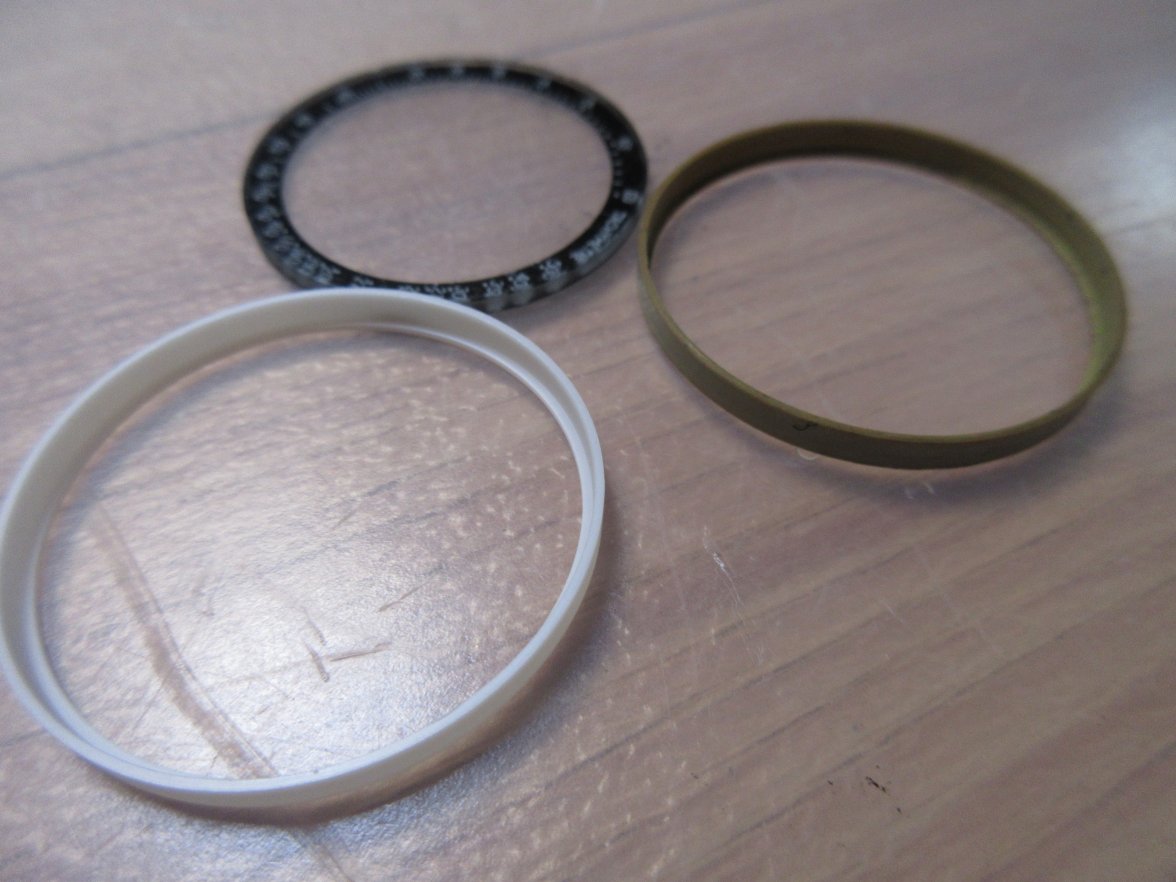

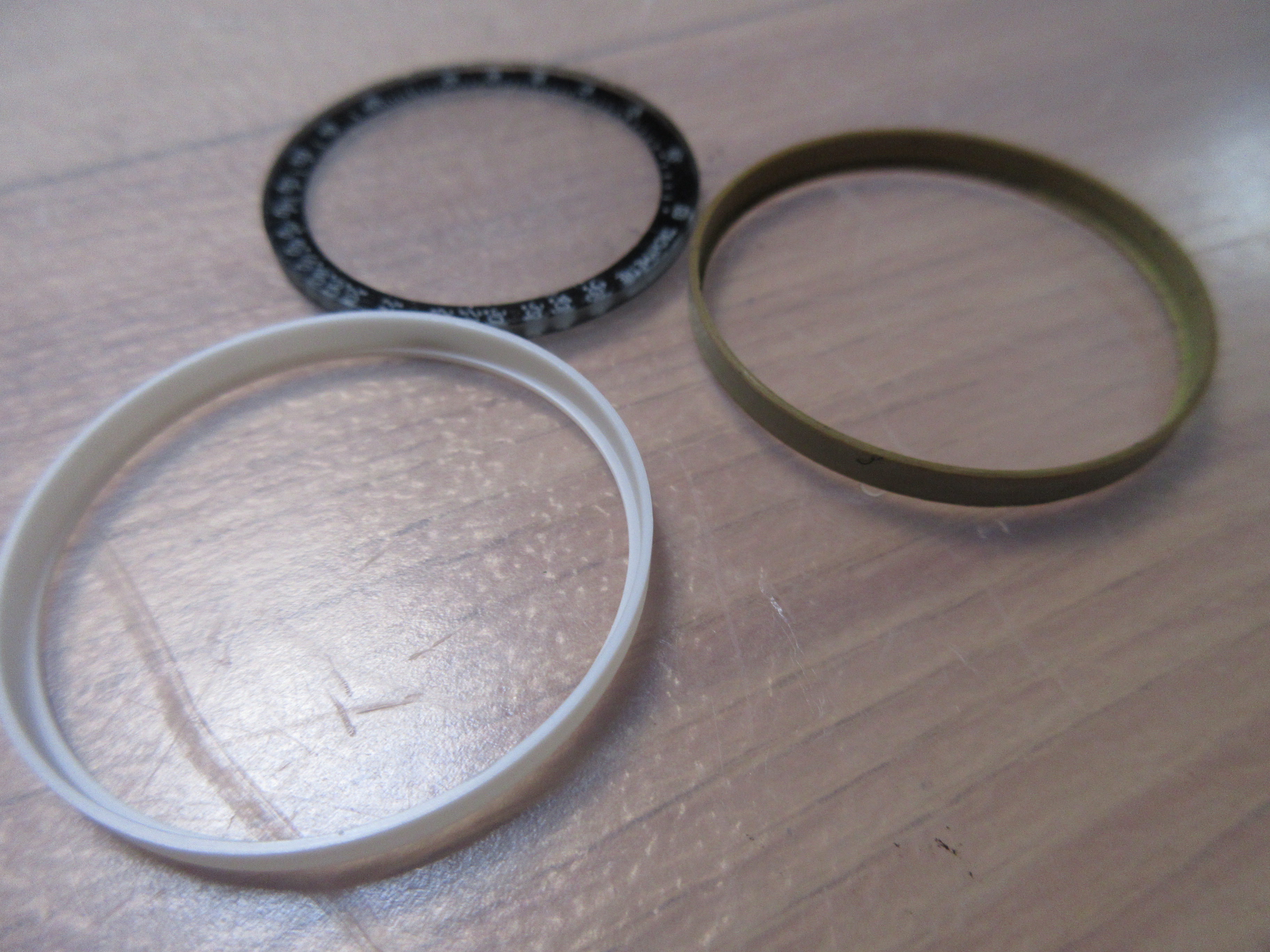

My assessment was based on what I believed the gasket material is made of. A flexible plastic material possibly nylon?.

If there is a secondary sealing gasket under this ring I was unaware of that.



Posts

2,720

Likes

5,552

kingsrider

·Nov 21, 2019

Al, what would cause the dis-colorization around the sub-dial center points?.
In your melted gasket example, did the gasket cause dial damage?



Posts

29,705

Likes

76,893

Archer

·Nov 21, 2019·Omega Qualified Watchmaker

kingsrider

My assessment was based on what I believed the gasket material is made of. A flexible plastic material possibly nylon?.

If there is a secondary sealing gasket under this ring I was unaware of that.

Perhaps you didn't note the case reference of the OP's watch? You appear to be looking at the parts for a 145.034, rather than a 145.014 that the OP's watch is...

kingsrider

Al, what would cause the dis-colorization around the sub-dial center points?.
In your melted gasket example, did the gasket cause dial damage?

I see this discolouration often, but I am unsure what it's from. Sometimes there is an obvious residue on the dial, and sometimes it's just more of a stain. People will assume it's excess oil, but then there's no oil on the back of the dials, so if it is it must have been from some past service. Could also be water damage.

On the melted nitrile gasket I showed above, the goop had not yet reached the dial, so no damage done. It had actually not gone fully fluid tar yet...unlike this Speedy Pro that arrived this week:





Cheers, Al
