Speedmaster 105.002-62 with baton hands

[ortope]

I was reading a post about a ref. 105.002-62 with baton hands published recently.
A few questions arose.

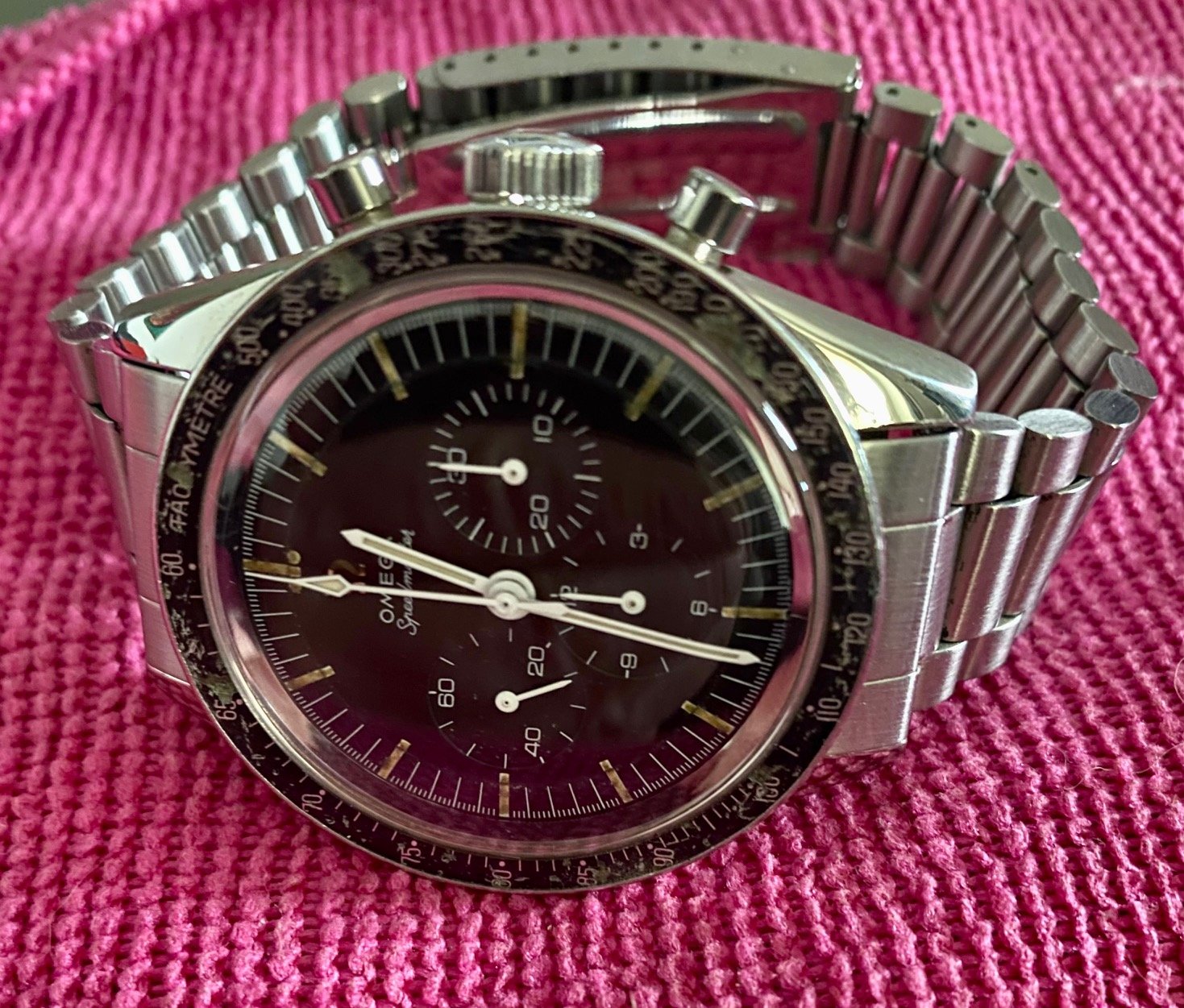

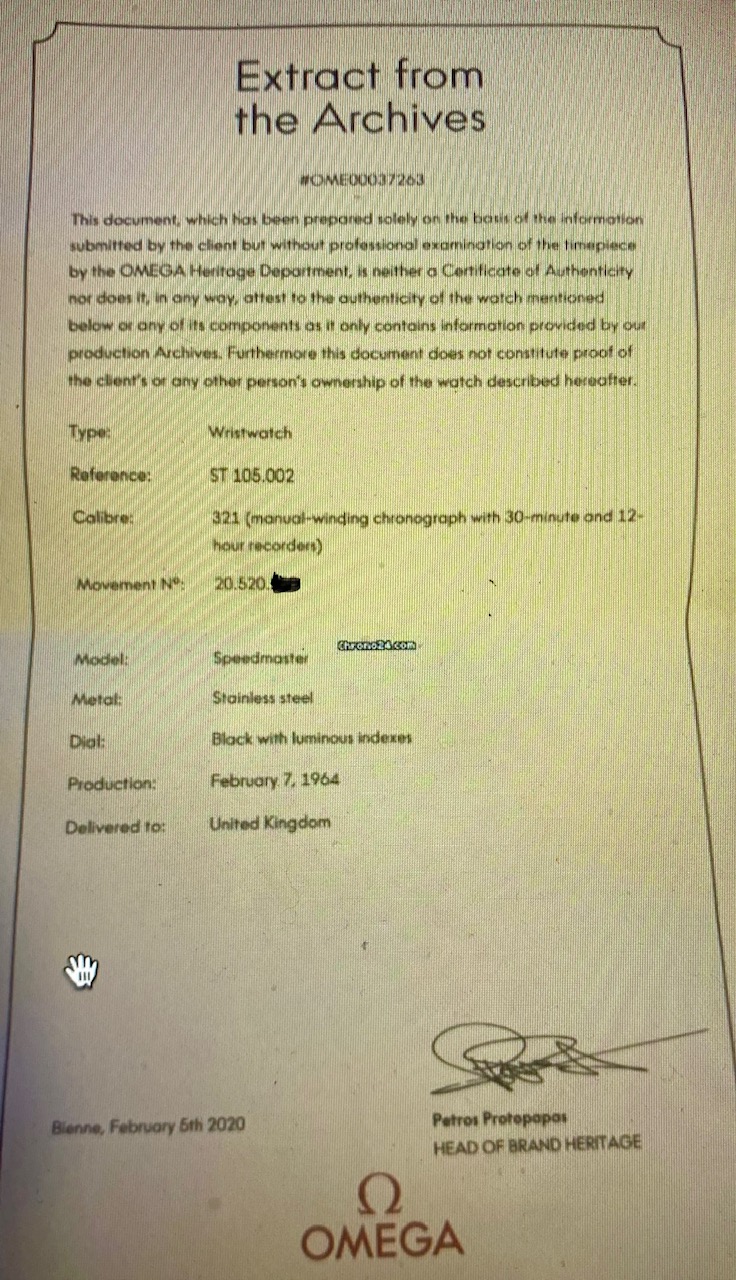

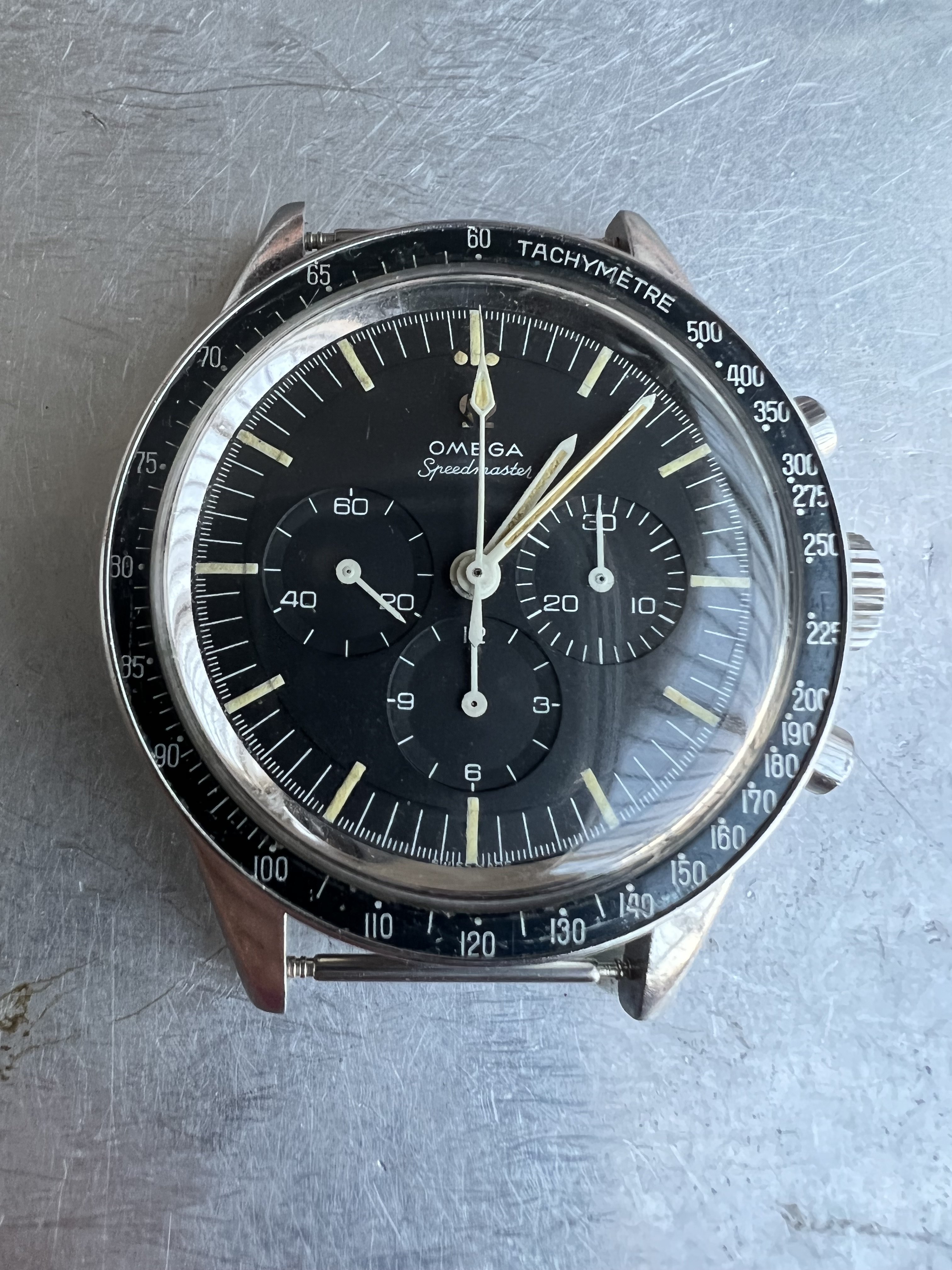

Unfortunately, before I bought my 105.002-62 from 1964 as documented on the abstract, during a service at Omega they changed the hands, the crown, the crystal and put a brand new band on it.

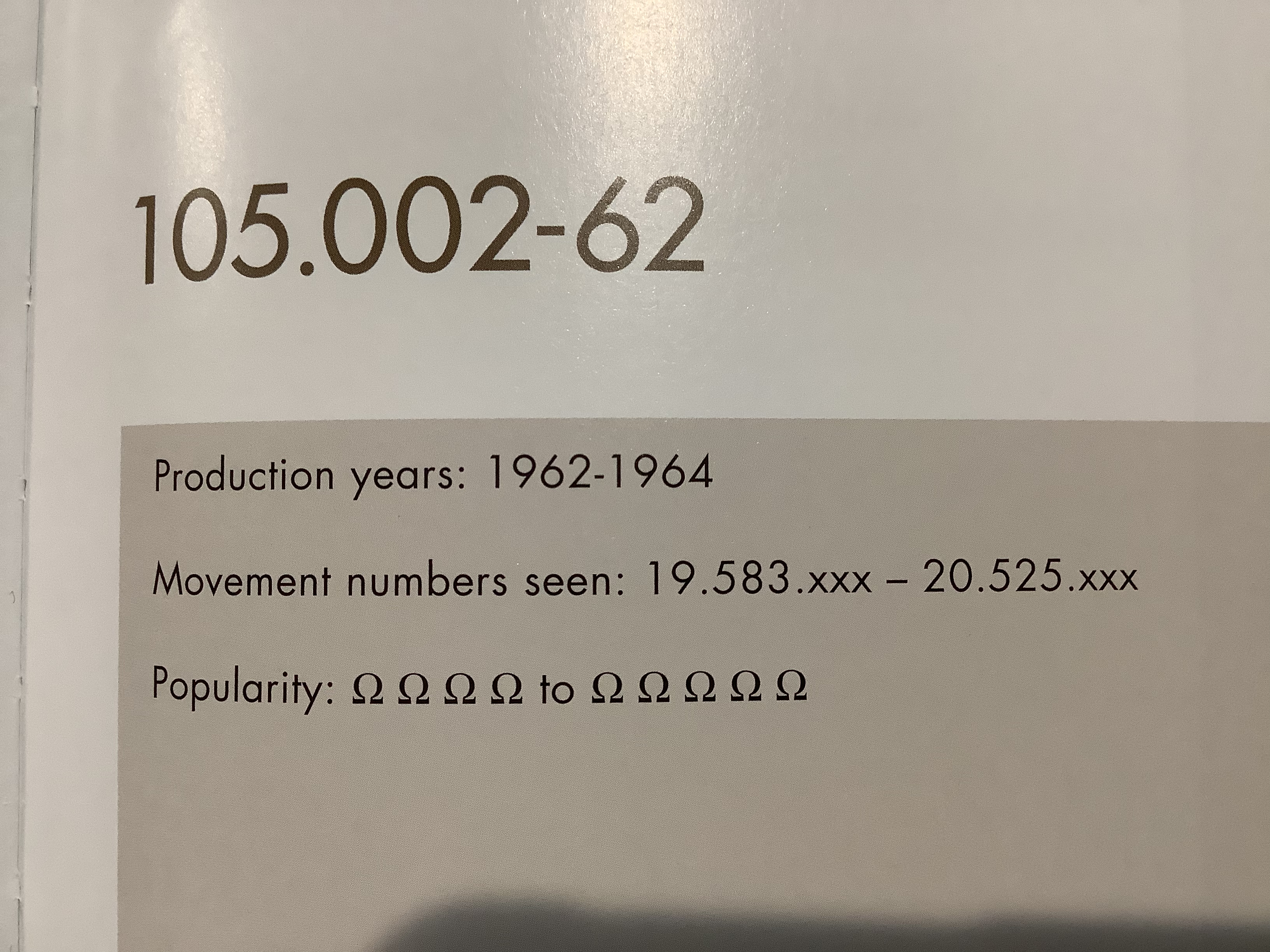

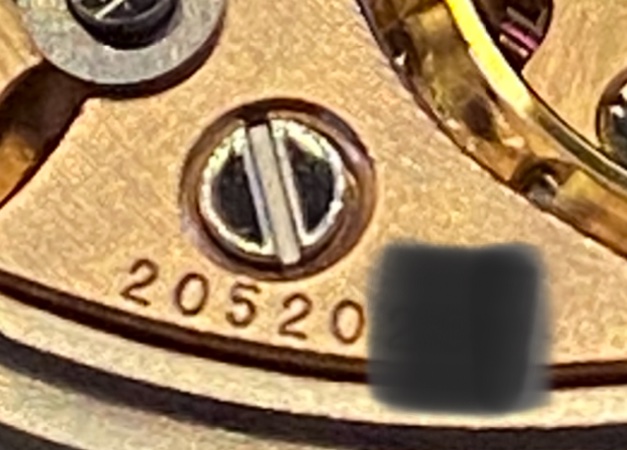

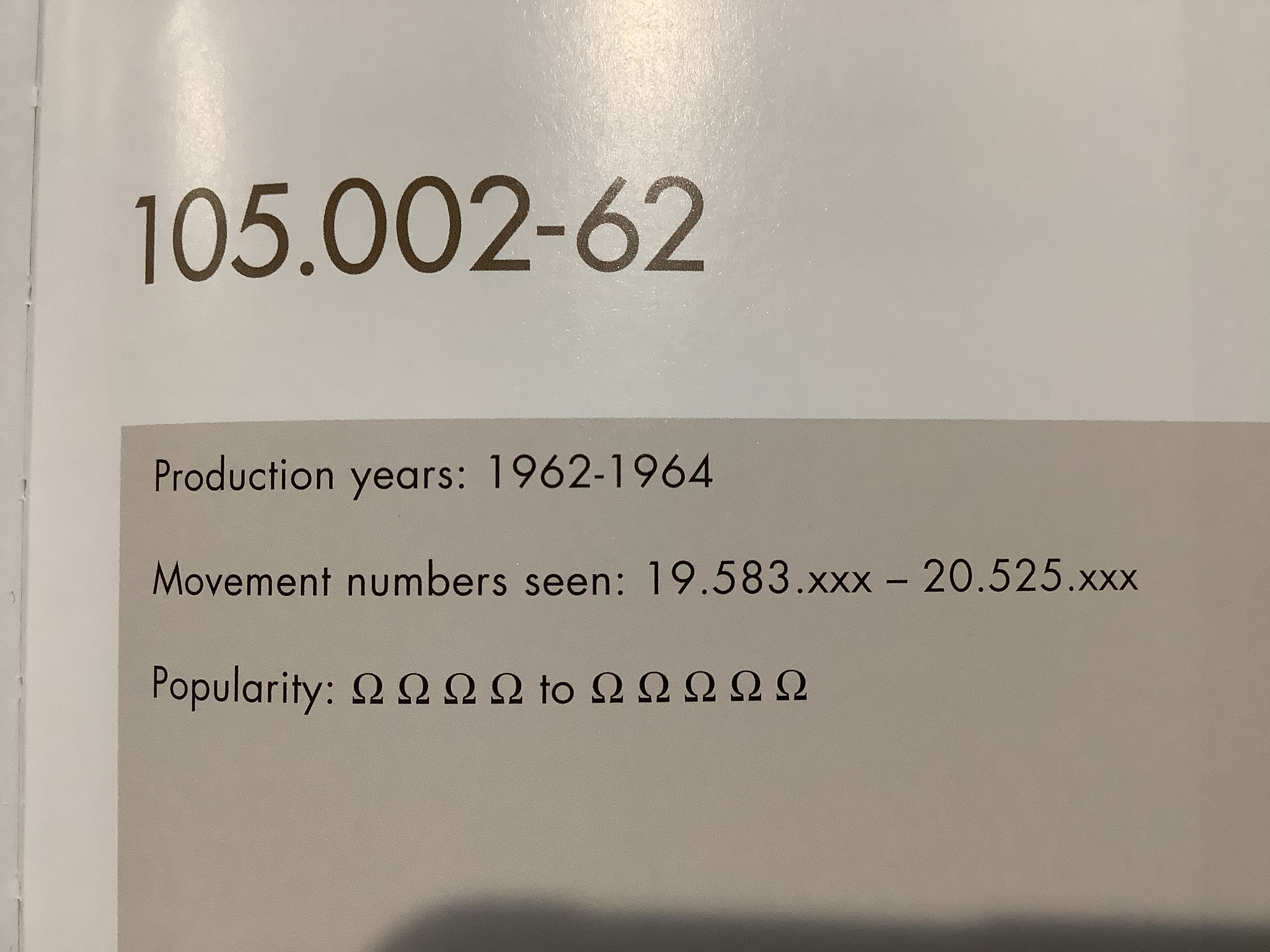

For this rare dial/hands configuration the serial number should be 20.520.XXX as stated on the MWO book:

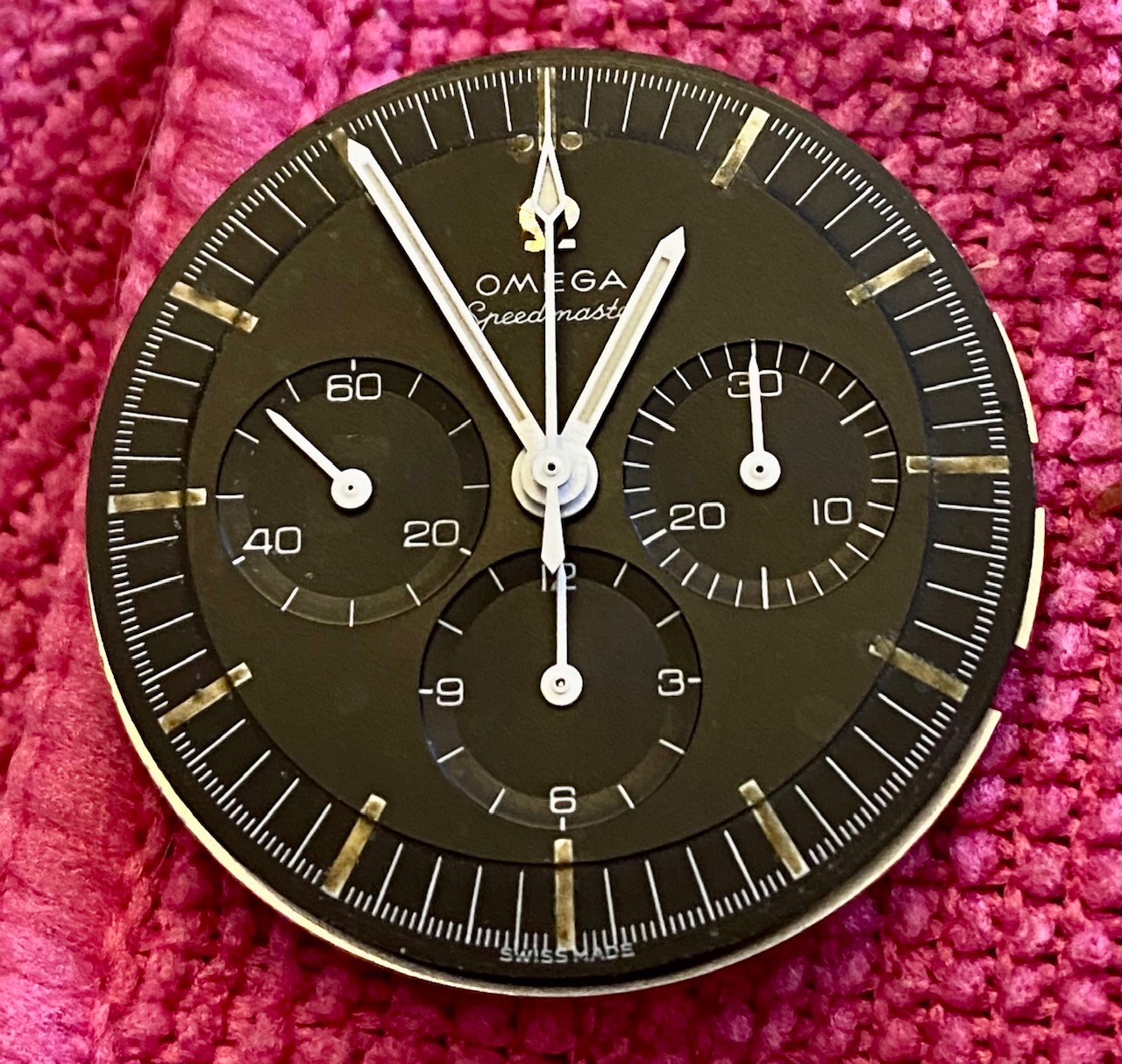

Furthermore I noted that the "SWISS MADE" writing should be closer to the minute markers on this specification:

otherwise it should have the leaf hands mounted!?

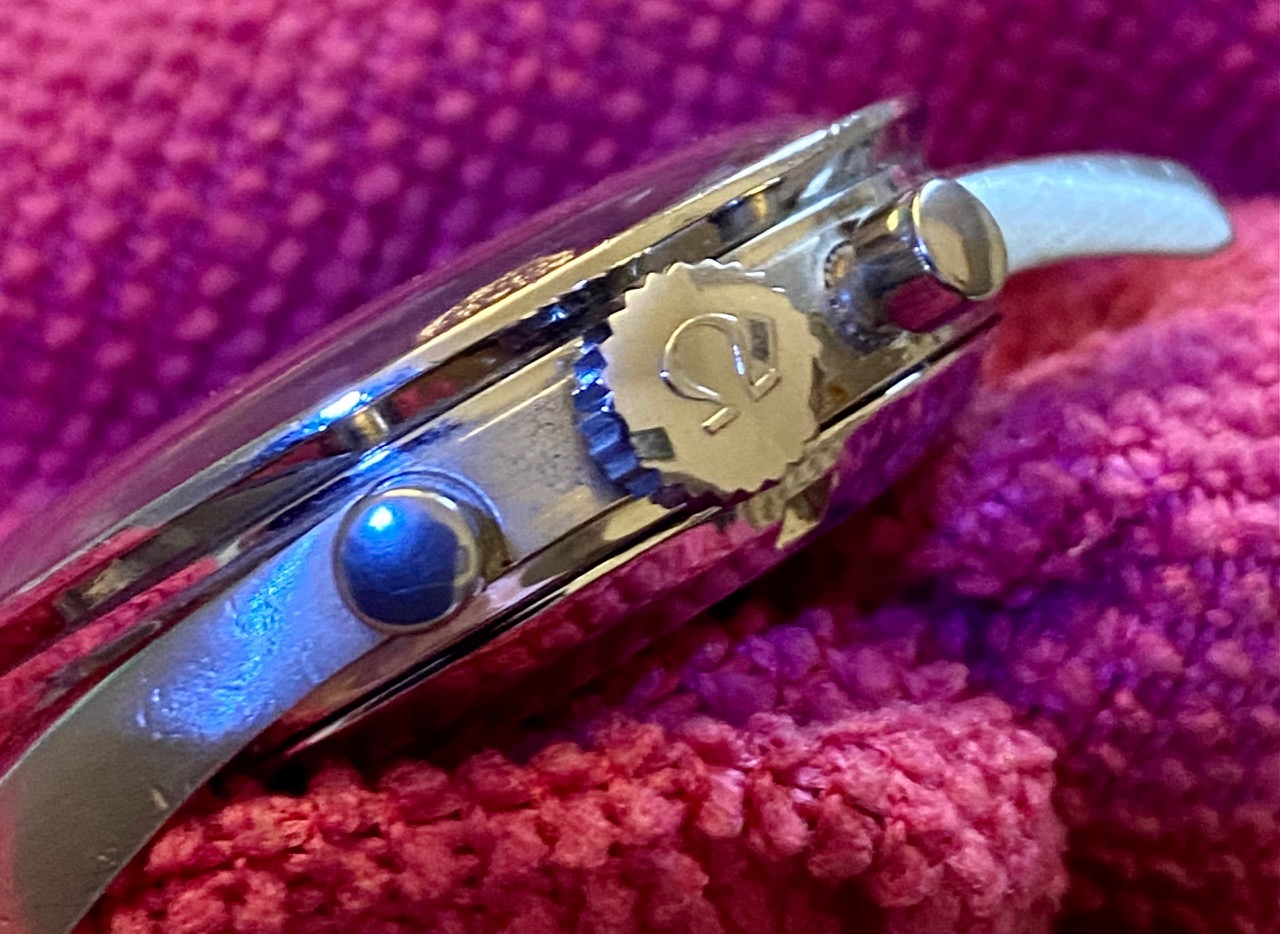

In the meanwhile I found an original vintage crystal, an original A1 crown and a band with the right reference and date + #6 end links.
I already changed the crown, by myself, but now I send the watch to my watch maker for a complete overhaul of the watch:

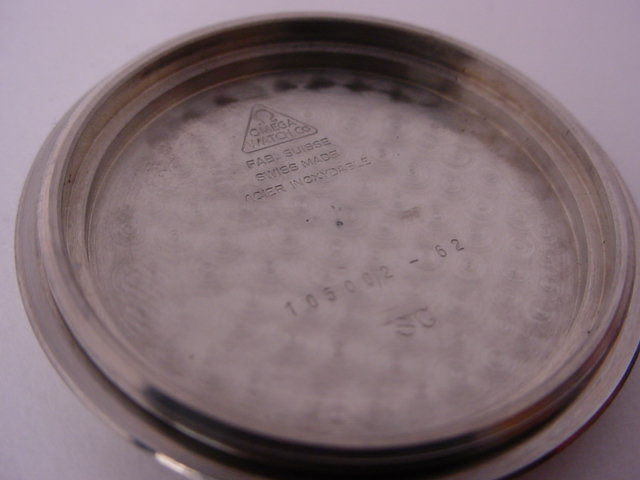

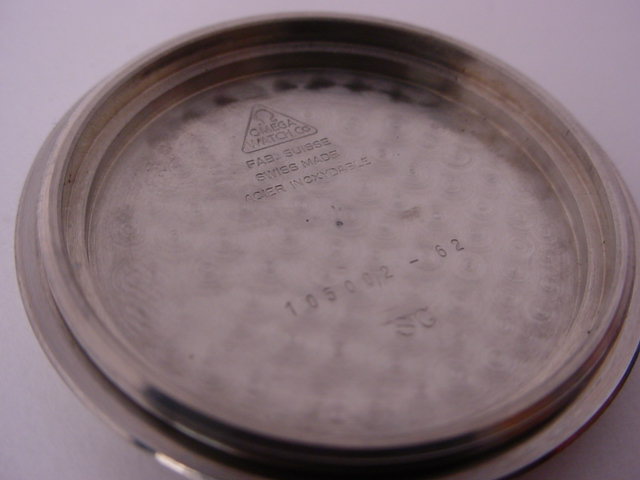

Could eventually the owner of this rare Speedmaster share the movement number, a picture of the case back's inside and show what type of hands are mounted.

Cheers

Edited: Apr 30, 2023



[eugeneandresson]

Also worth noting: those second ticks do not come right up to the step. For 2998/105002, they do, and from 105003/105012 they do no longer…with some exceptions being that very few 105003-63s did get 105002 dials…perhaps it worked the other way round on the tail end of 105002s produced, but i cant say I have seen that yet (disclaimer : i am no expert and there is a lot i havent seen).



[gemini4]

I believe the dial shown above is a “High Swiss” variety.
Seldom seen. Most 105.002-62 do not have this particular dial.

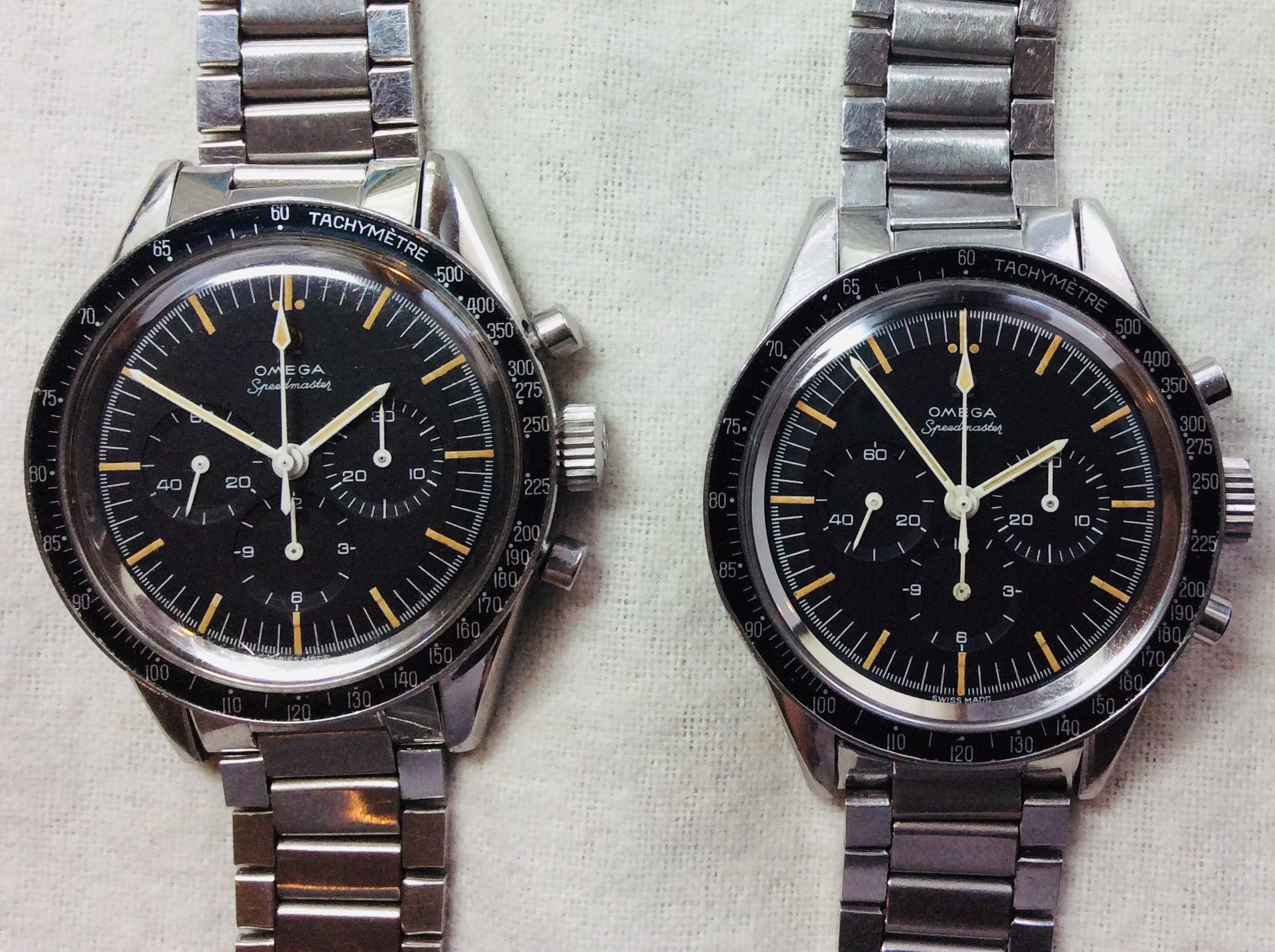

Here is a pic of 105.002-62 “twins” for reference.



[ortope]

gemini4

I believe the dial shown above is a “High Swiss” variety.
Seldom seen. Most 105.002-62 do not have this particular dial.
Here is a pic of 105.002-62 “twins” for reference.

Nice watches indeed.
Could you share the movement's serial of them.
MWO states that the 105.002-62 with baton hands should have a movement # 20.520.XXX.

Thank you



[gemini4]

ortope

Nice watches indeed.
Could you share the movement's serial of them.
MWO states that the 105.002-62 with baton hands should have a movement # 20.520.XXX.

Thank you

20525xxx



[ortope]

gemini4

20525xxx

Do you also have an extract of the archive for your Speedmaster?



[gemini4]

Yes, and within MWO parameters. Speedmaster101.com as well.

Edited: Apr 30, 2023



[ortope]

gemini4

Yes, and within MWO parameters. Speedmaster101.com as well.

A question remains unanswered: How many were built with this specs?

Cheers



[calalum]

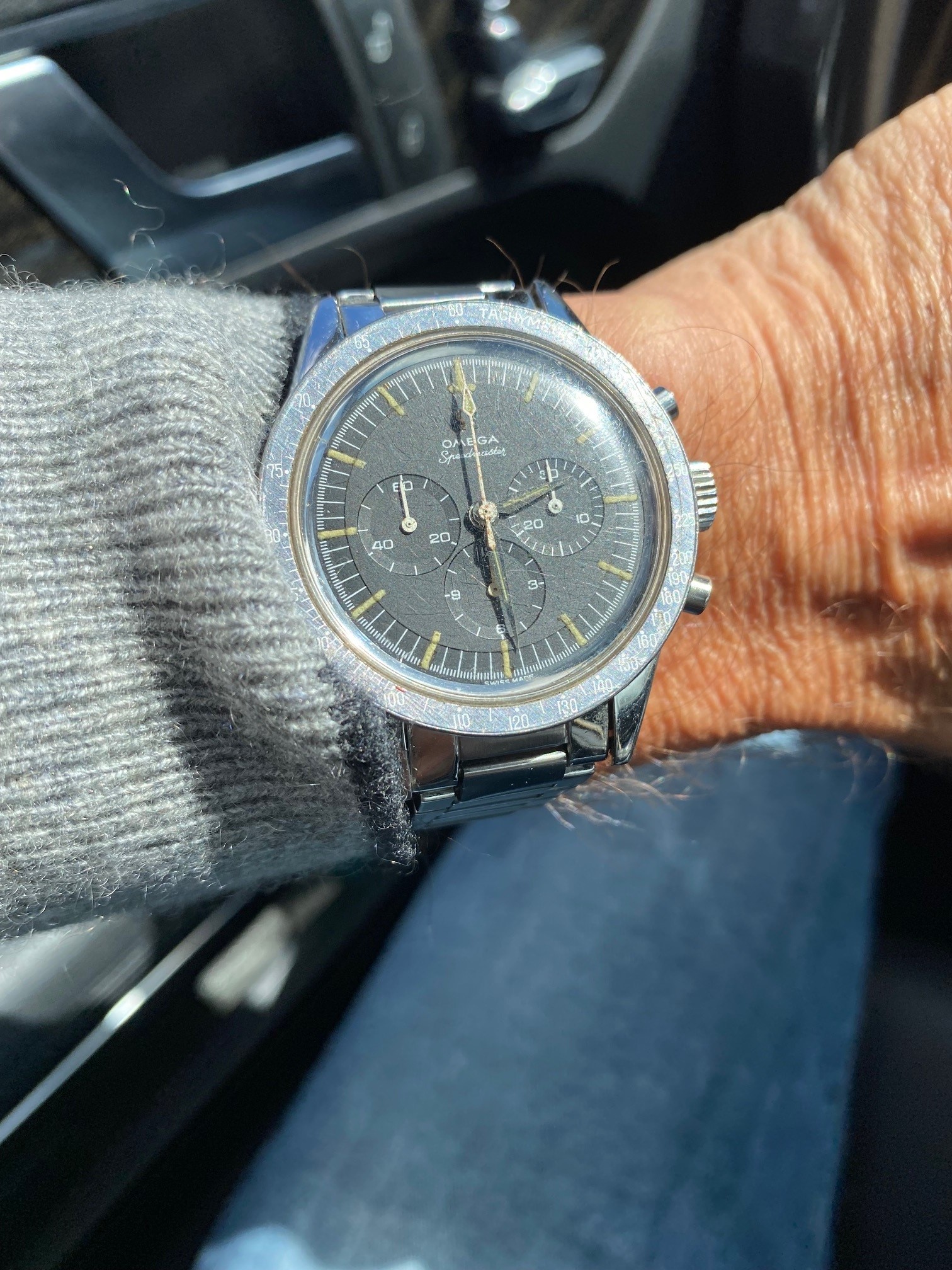

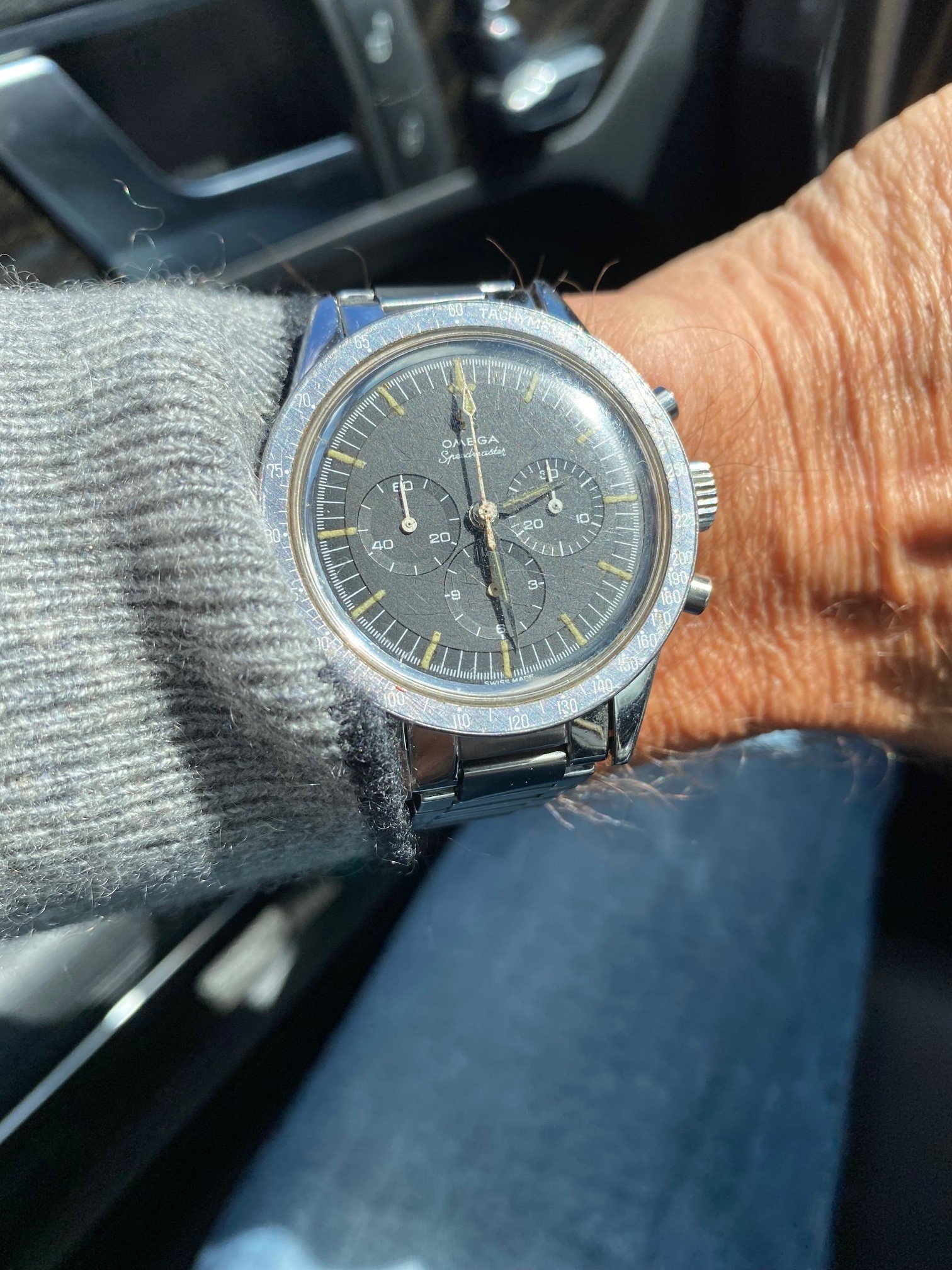

My -62. Sorry, but I don't have the SN handy.



[Dash1]

eugeneandresson

Also worth noting: those second ticks do not come right up to the step. For 2998/105002, they do, and from 105003/105012 they do no longer…with some exceptions being that very few 105003-63s did get 105002 dials…perhaps it worked the other way round on the tail end of 105002s produced, but i cant say I have seen that yet (disclaimer : i am no expert and there is a lot i havent seen).

I have noted a few ‘high Swiss’ dials with minute markers that don’t reach the step on 105.002’s. Definitely rare though.



[jaegodylan]

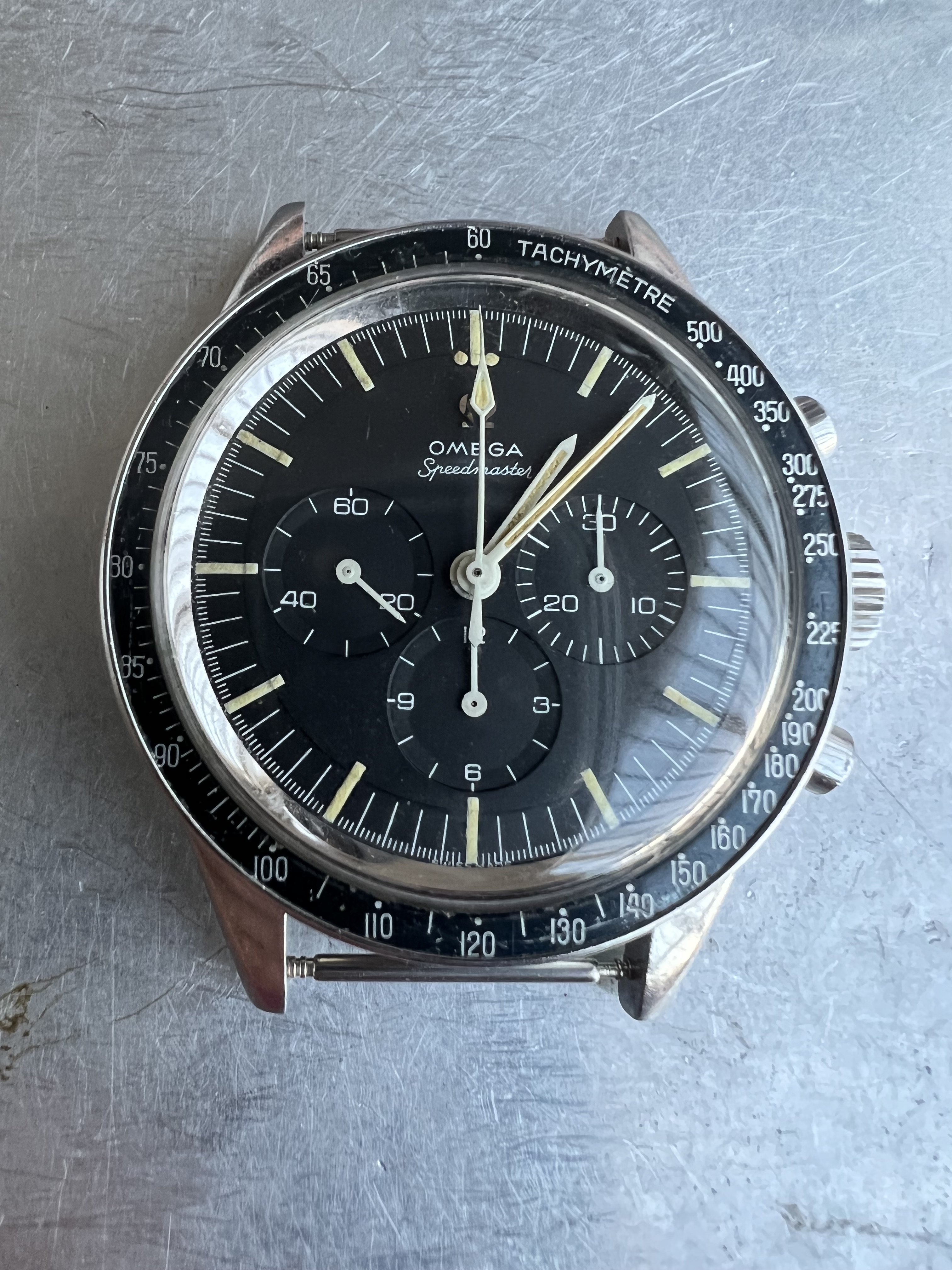

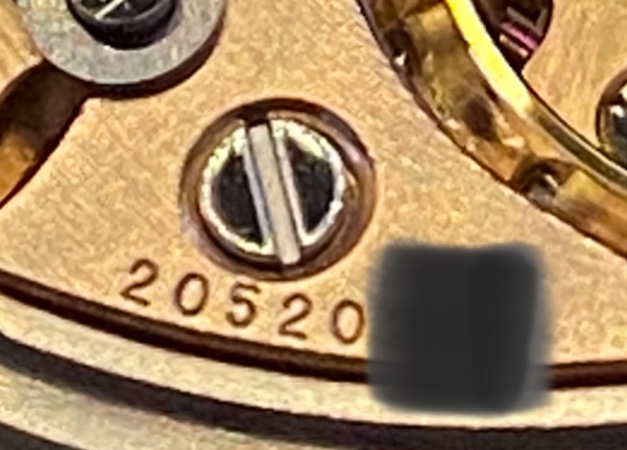

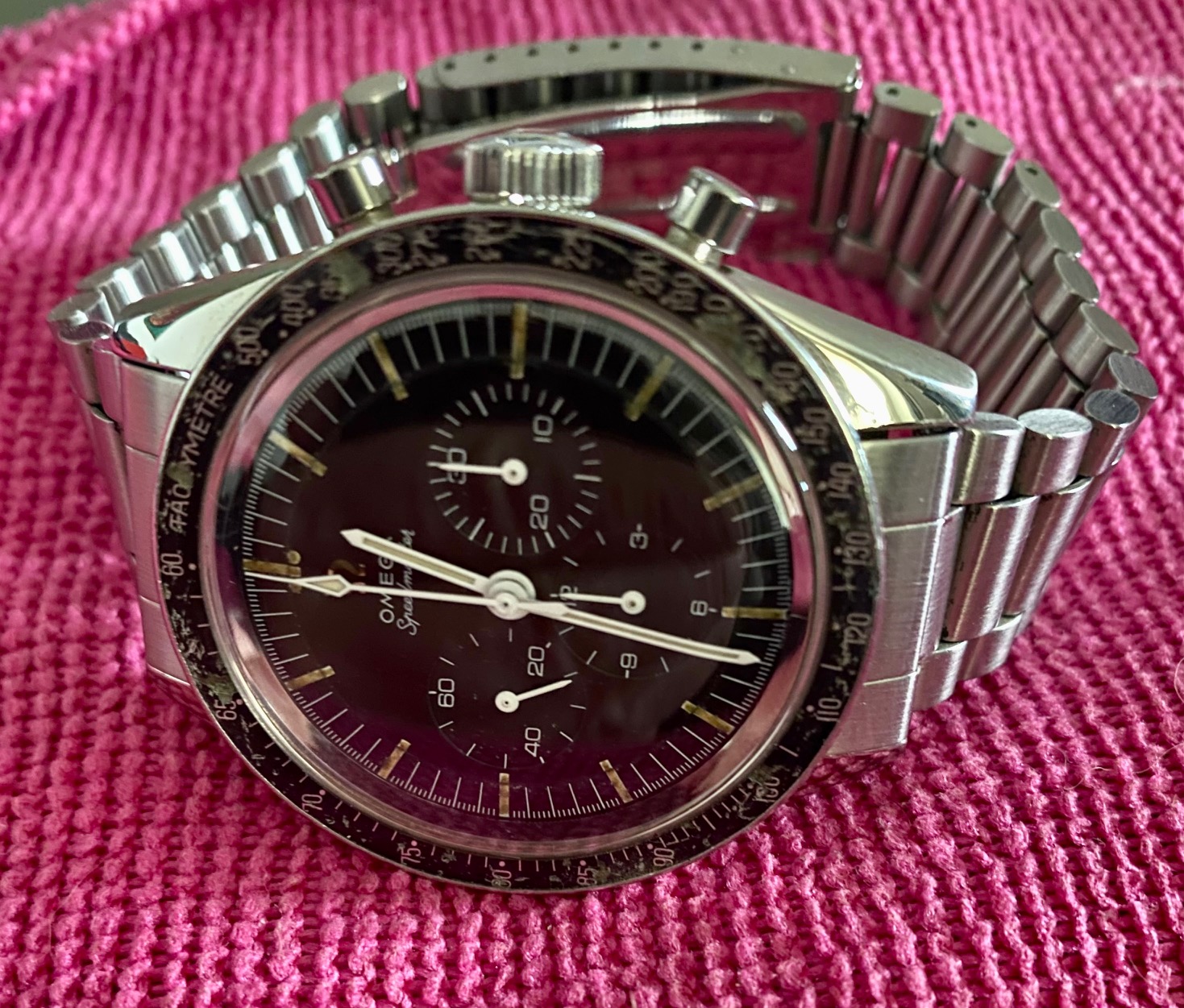

My baton hands 105.002-62 from 64 is 20.520.2XX



[ortope]

jaegodylan

My baton hands 105.002-62 from 64 is 20.520.2XX

Nice watch, looks to be a close relative to mine 20.520.2XX
Furthermore the dial is a "high" Swiss Made one, like described on the MWO book.

Cheers



[jaegodylan]

ortope

Nice watch, looks to be a close relative to mine 20.520.2XX
Furthermore the dial is a "high" Swiss Made one, like described on the MWO book.

Cheers

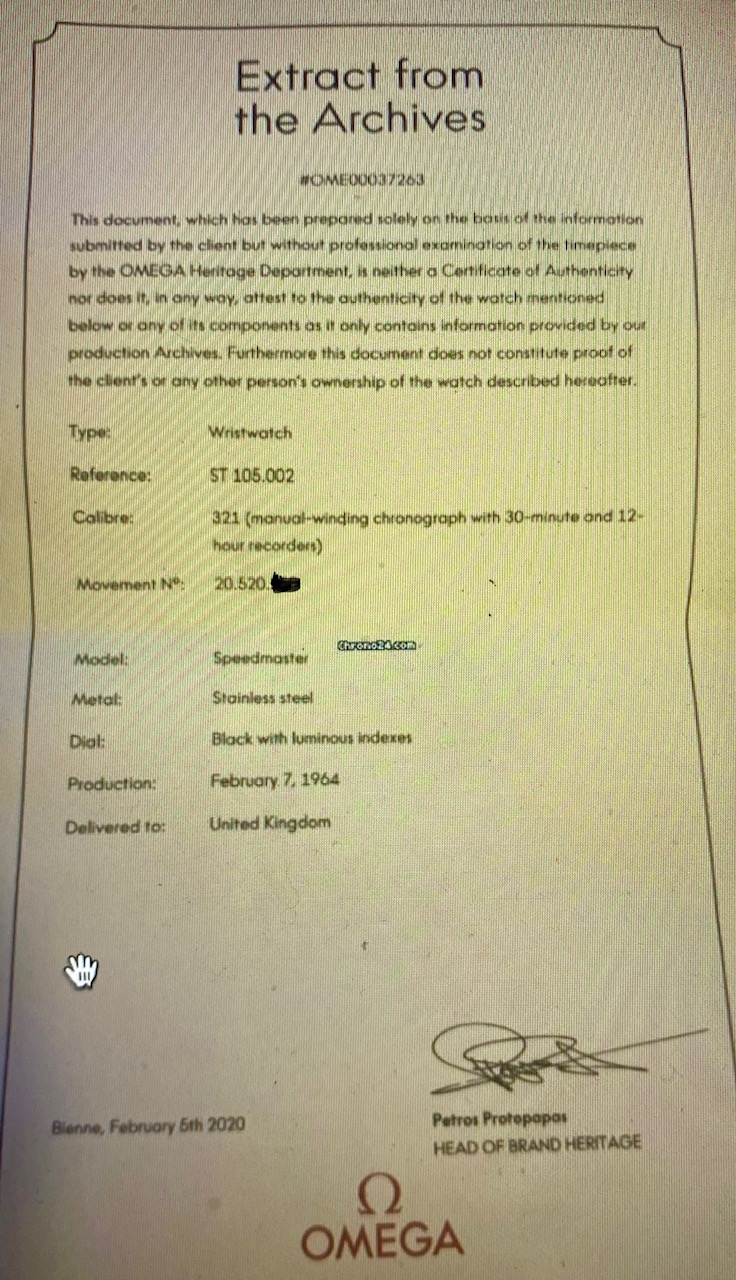

Mine is also UK and the extract says Feb 28 64
