Should the Omega and helium crown both align horizontally or is it random?

Goseki
Posts
61
Likes
27

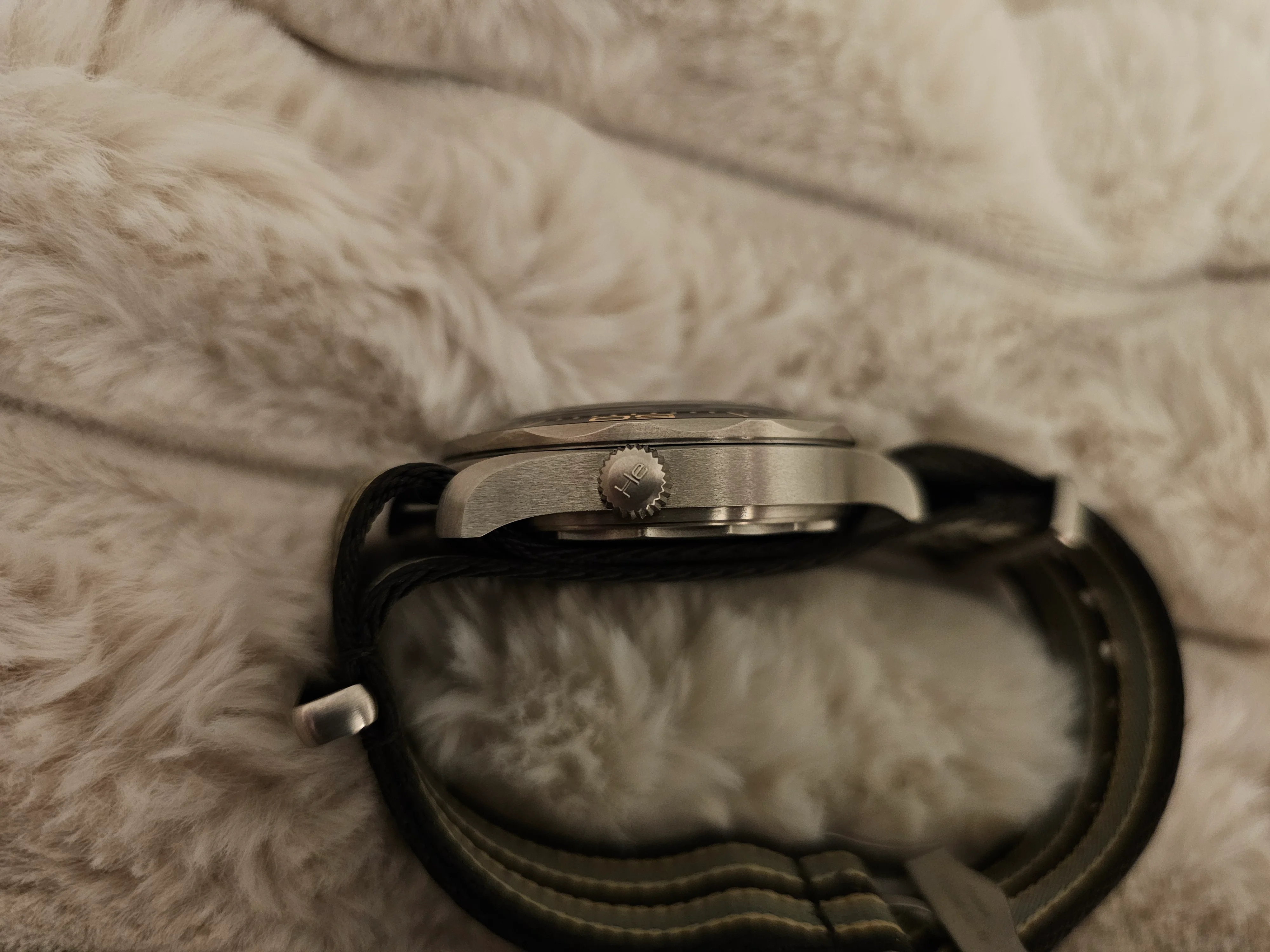

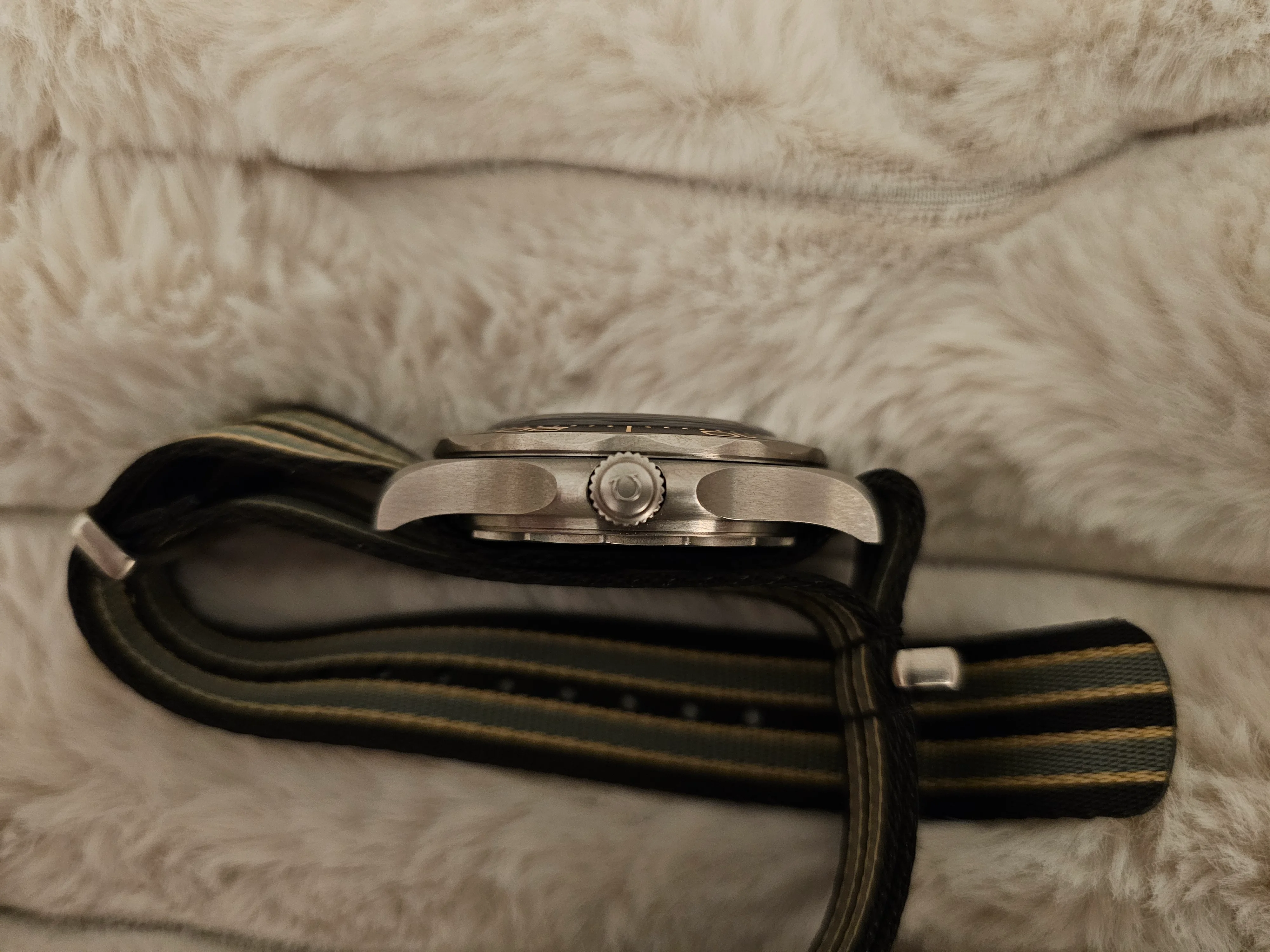

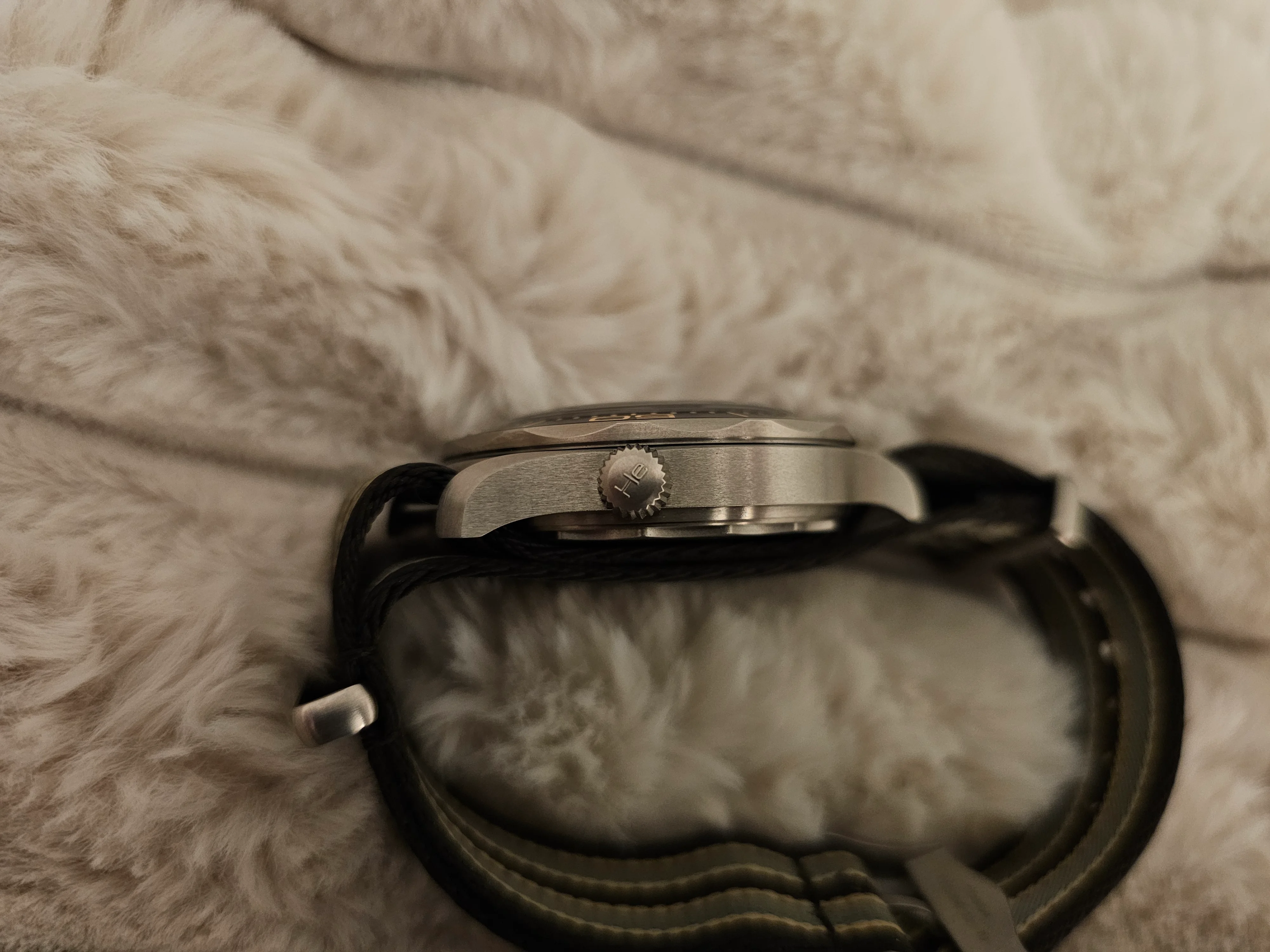

New here, so sorry if the answer is obvious, but I couldn't find an answer with the forum search. Just got my NTTD seamaster and was wondering if the omega and the HE crown is supposed to align horizontally with the watch case once screwed down.

20250203_221839.webp 20250203_221855.webp

JimInOz
Posts
18,843
Likes
39,190
No. Positions will be random, depending on finger torque, case tube/crown wear and manufacturing tolerances.

hen
Posts
3,432
Likes
10,389
Thats a thing I have never given a taught, mine are random too, but with my eyes (and the angle) I dont see them at all.

p4ul
Posts
1,853
Likes
4,466
hen hen
Thats a thing I have never given a taught, mine are random too, but with my eyes (and the angle) I dont see them at all.
Me too, or the date!

YY77
Posts
6,487
Likes
31,959
Check this postwhy it can't be 100% horizontal:

https://omegaforums.net/posts/1967087/ Archer
Archer ·
TDBK TDBK
Just as an example, if we take M1 fine thread as a example, it has 0.2mm pitch; so getting 1° accuracy in slot angle would require 0.5 µm positioning of the thread, which is Very Precise. I'm not sure if a CNC lathe could accomplish it with positive control of spindle angle and single-point threading, but it would be expensive. (Relevant YouTube video, where this operation uses a threading tool, not single-point:
)

Indeed, and you would have to position the start of the thread in the case just as closely.

If we are talking about a screw down crown, you have a...

Goseki
Posts
61
Likes
27
YY77 YY77
Check this postwhy it can't be 100% horizontal:

https://omegaforums.net/posts/1967087/ Archer
Archer ·
TDBK TDBK
Just as an example, if we take M1 fine thread as a example, it has 0.2mm pitch; so getting 1° accuracy in slot angle would require 0.5 µm positioning of the thread, which is Very Precise. I'm not sure if a CNC lathe could accomplish it with positive control of spindle angle and single-point threading, but it would be expensive. (Relevant YouTube video, where this operation uses a threading tool, not single-point:
)

Indeed, and you would have to position the start of the thread in the case just as closely.

If we are talking about a screw down crown, you have a...
That makes perfect sense. I had never thought about it much before since my previous seikos had the S aligned perfectly, but I guess it is a luck of the draw.

scapa
Posts
1,444
Likes
2,222
Goseki Goseki
That makes perfect sense. I had never thought about it much before since my previous seikos had the S aligned perfectly, but I guess it is a luck of the draw.
In my experience of (too many) Seikos, getting any sort of alignment of any aspect of the watch, from chapter ring to bezel to movement, below a Marinemaster is little short of miraculous. I love 'em, but it's very much an "adjust expectations" arrangement.

Can always cheat by screwing/ unscrewing to the point at which each lines up, I guess.

Anecdotally, my 300 Heritage lines up, for now, whilst my SMP 300 white dial doesn't. So it goes. Upthread vid a very helpful explainer.

Dan S
Posts
24,837
Likes
55,260
Terrible. I think this requires a repair under warranty. Yet another QC issue for this entry-level watch. 🙄

hen
Posts
3,432
Likes
10,389
Dan S Dan S
Terrible. I think this requires a repair under warranty. Yet another QC issue for this entry-level watch. 🙄
Hush, Kevin!

hen
Posts
3,432
Likes
10,389
scapa scapa
Can always cheat by screwing/ unscrewing to the point at which each lines up, I guess.
I tried that, and now my crown is stuck forever and the He valve broke. Wasn`t pliers and a wise the right tools?
