Seiko 6309-7040 dial originality?

  1. Yo32Leigh Sep 5, 2022

    Posts
    188
    Likes
    166
    Hi all,
    I've managed to aquire this 'Turtle' which I'm currently in the process of repairing. It came with a 'stuck' bezel, which turned out to be a cheap crystal replacement which was not fitted correctly, jamming up the bezel.
    The addition of a better quality crystal has resolved the bezel issue and it now works a treat. I'm now turning my eye to the rest of the watch.
    I've done some research on the dial and it seems to be consistent with the 1977 date of this watch. Specifically the Suwa logo (used for pre 81 watches produced in Japan I believe), and the pronounced bevel around the day/date window.
    My only real concern is it looks too clean if I'm honest. The lume on the dial and hands appears consistent.
    Can anyone offer any other opinions or telltales I might be missing?
    Cheers

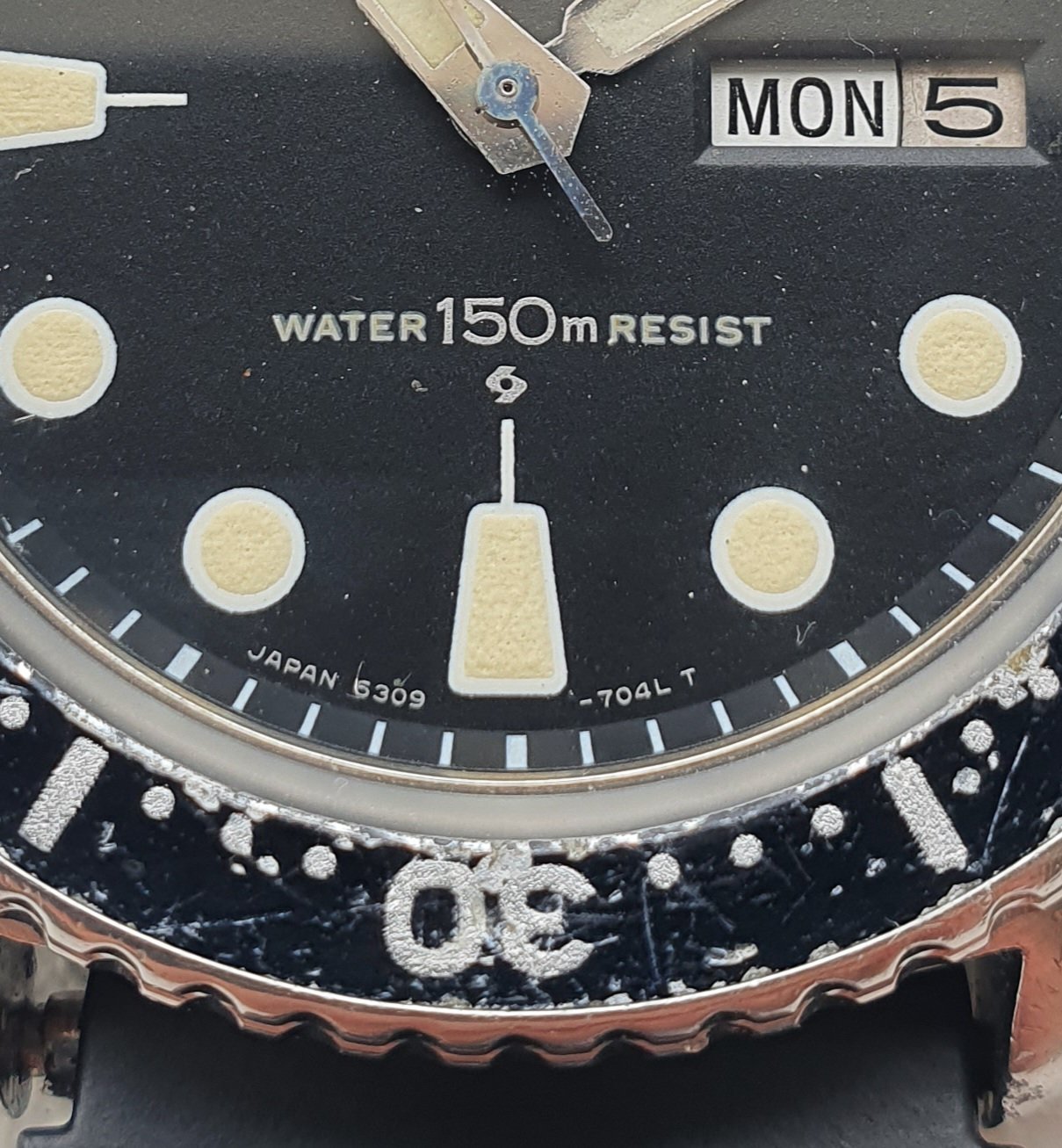

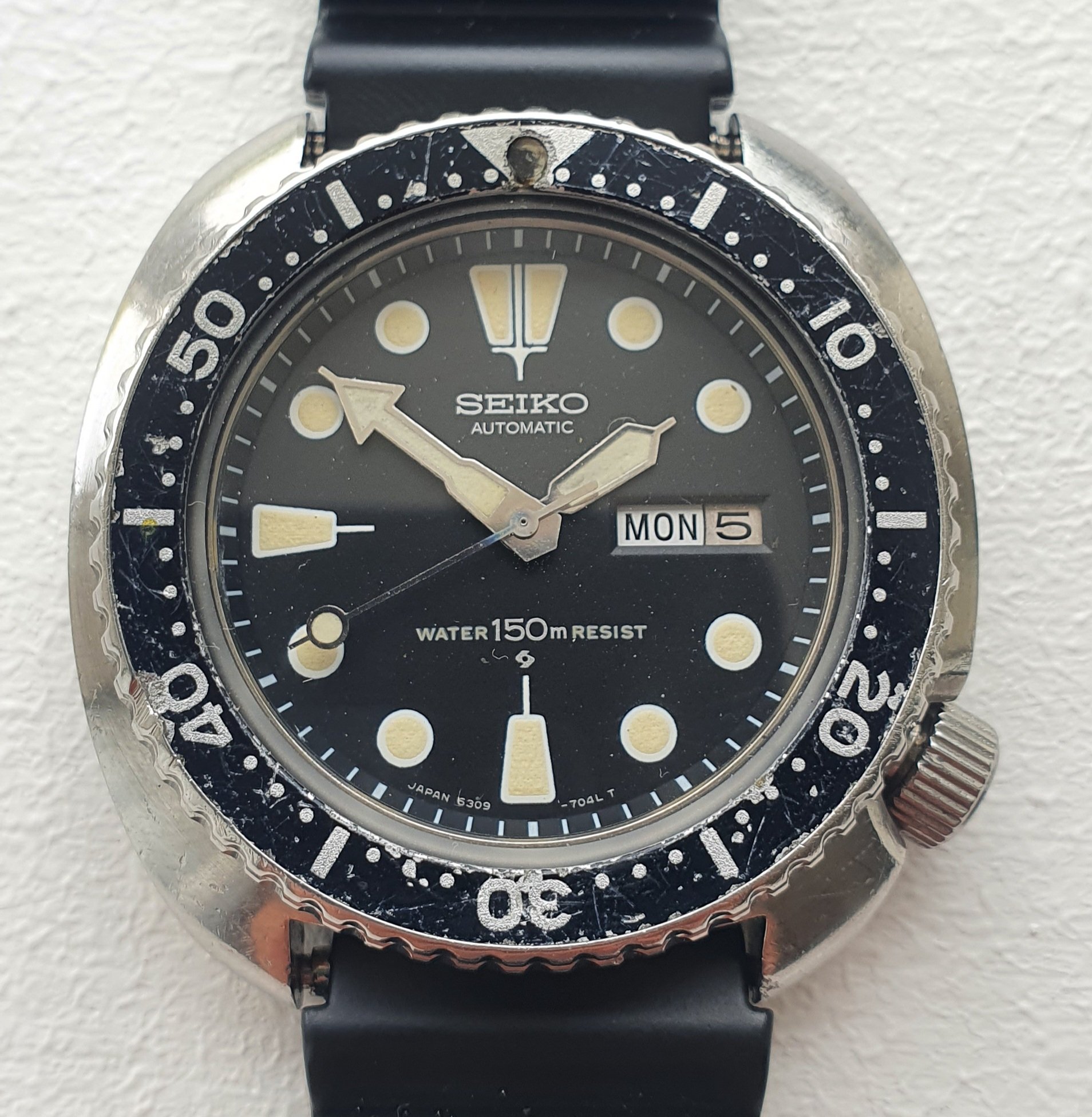

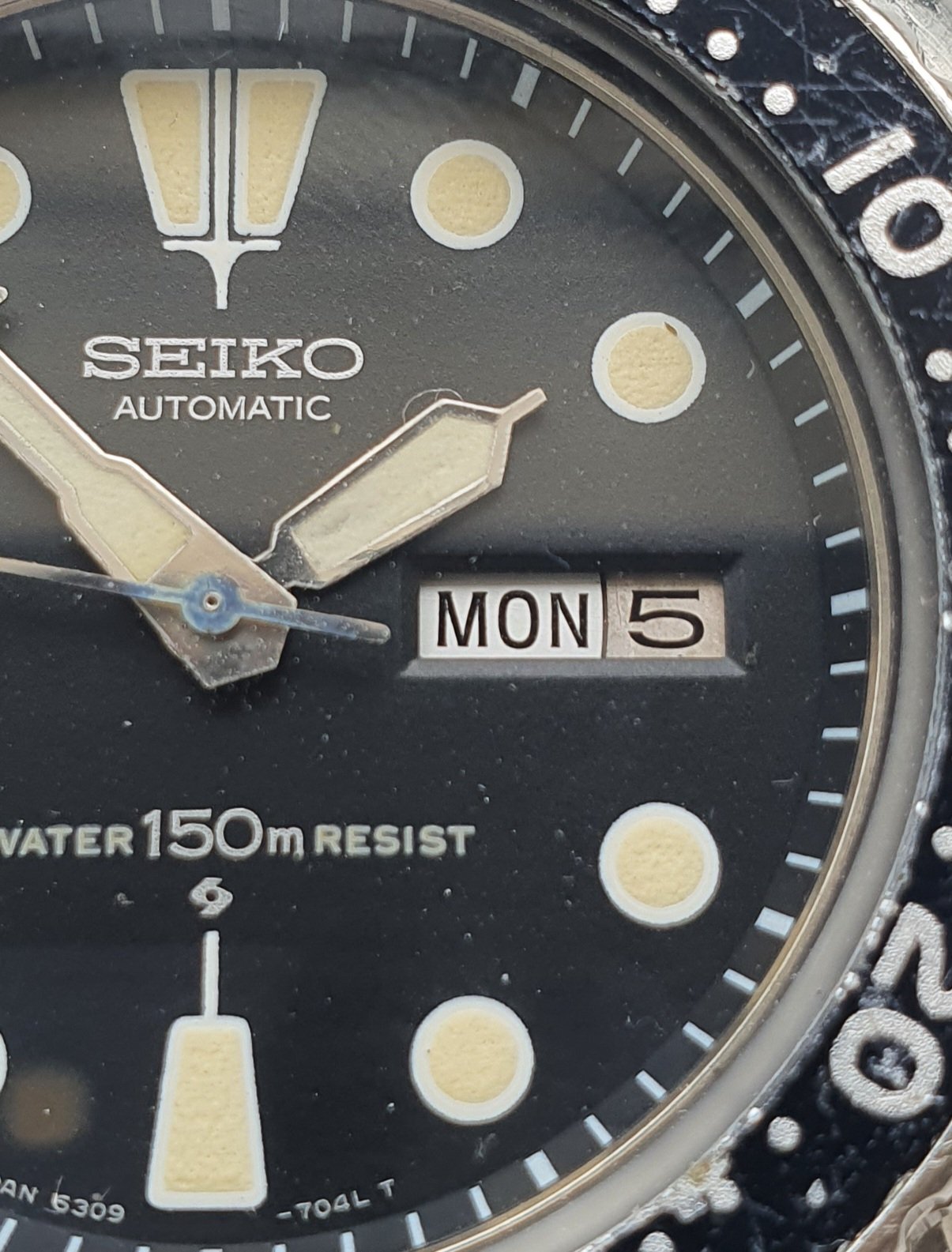

    20220905_135543.jpg 20220905_135658.jpg 20220905_135650.jpg
    CPRwatch and Davidt like this.
  2. mountainunder Sep 5, 2022

    Posts
    437
    Likes
    759

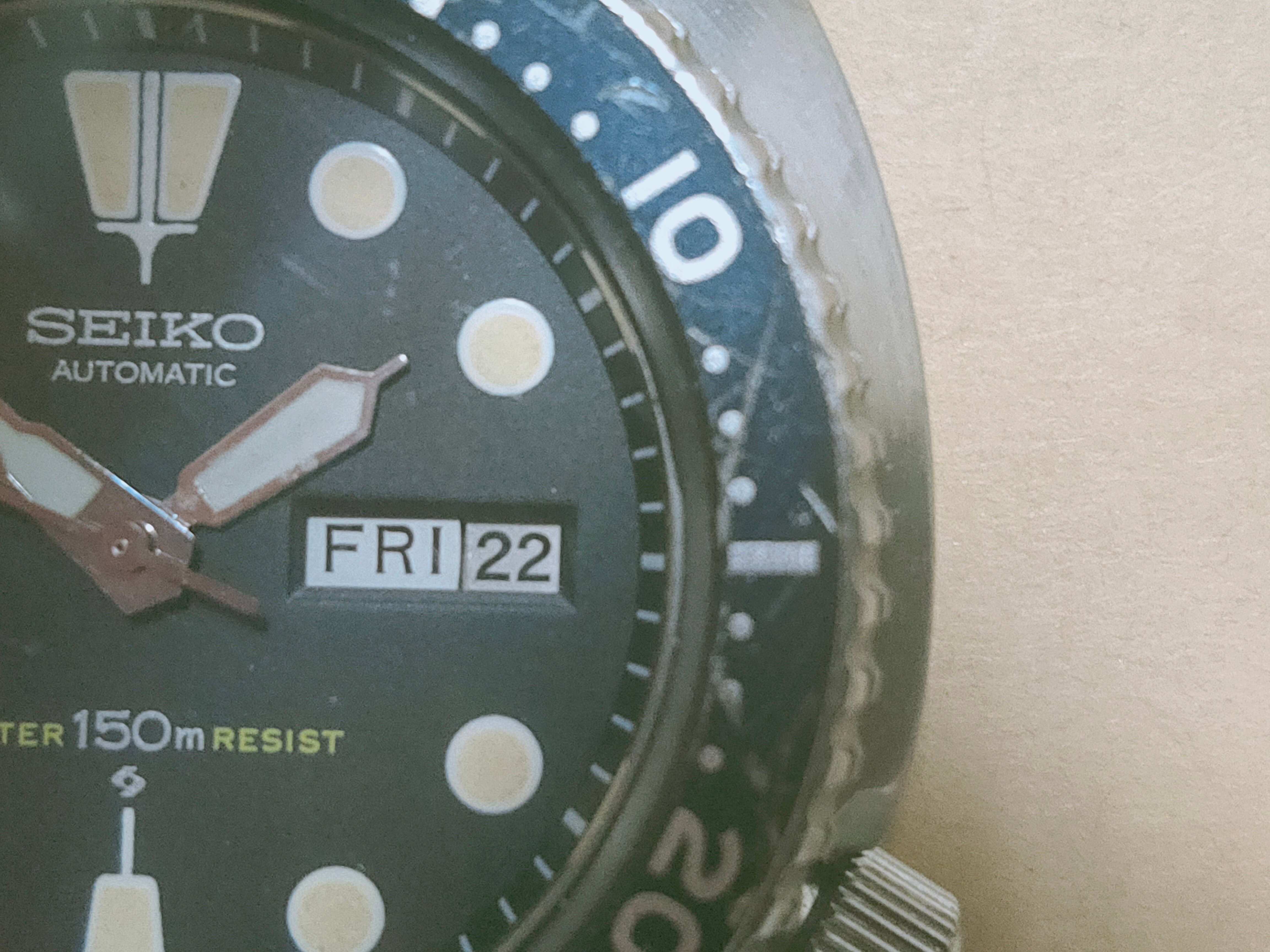

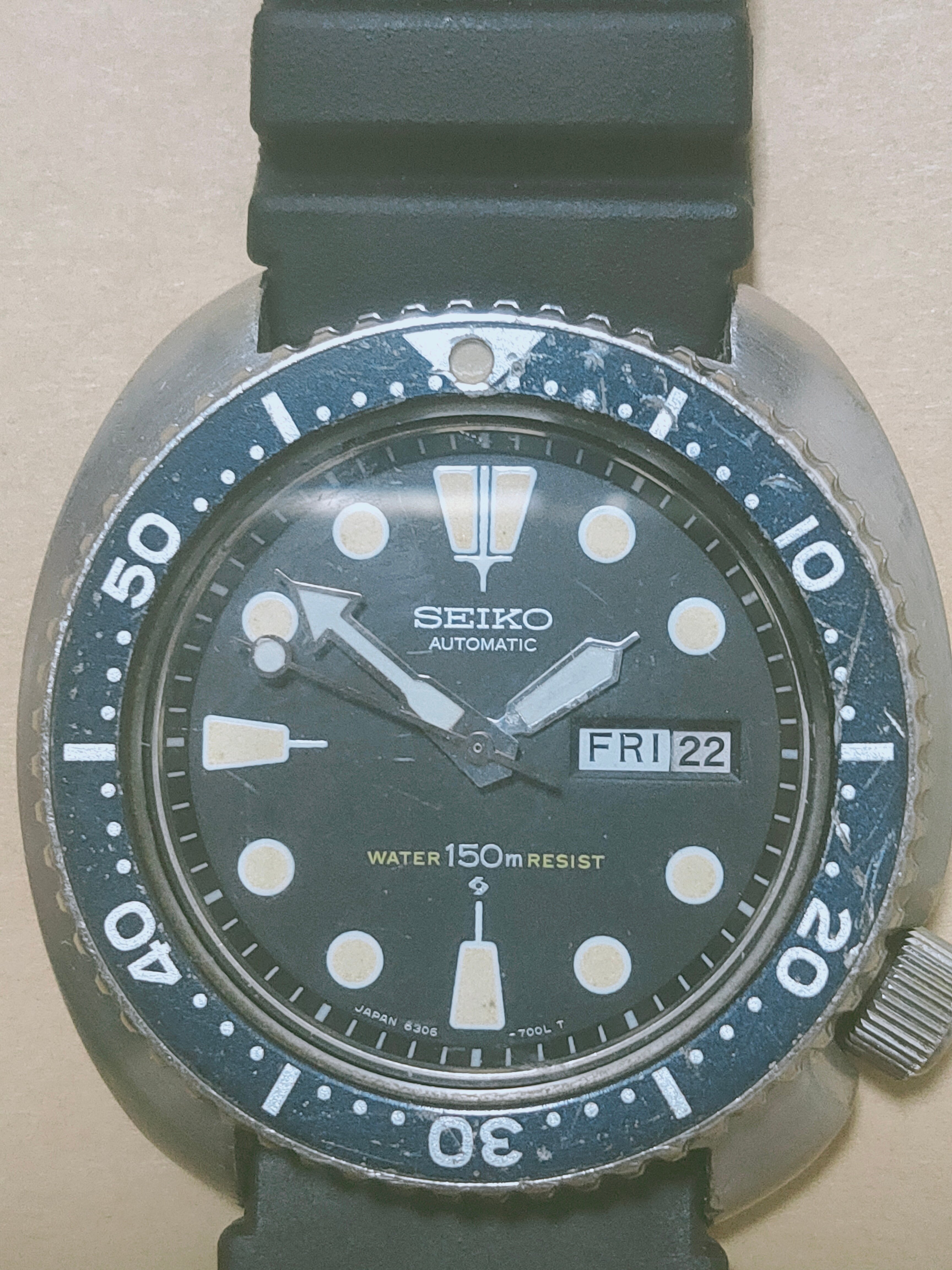

    I don't know if this will be helpful, but I'll leave a picture of my 6306-7000.
    IMG20220905232853.jpg IMG20220905233052.jpg IMG20220905233035.jpg

    Yo32Leigh likes this.
  3. bardamu Sep 23, 2022

    Posts
    1,313
    Likes
    4,977
    Looks original and nice to me.

    Foo2rama likes this.
  4. janice&fred Sep 23, 2022

    Posts
    4,593
    Likes
    10,445
    My opinion is original as well, and I seen millions of 'em in the south pacific so I should be able to spot an imitation.

  5. Arancio601 Sep 28, 2022

    Posts
    261
    Likes
    415
    Dial looks original to me too. The lume on the repro’s is often finer. My birth year. Not a September by any chance?

  6. ekallus Oct 2, 2022

    Posts
    56
    Likes
    101
    It looks original to me.
    On repro dials, the small print at 6 is never as fine as this and in most cases, incorrectly spaced.

    Foo2rama likes this.
  7. mostlywabisabi Oct 2, 2022

    Posts
    15
    Likes
    37
    Looks original to me too! It's been awhile since I researched these so the reproductions might have got better, but the usual telltale signs of a fake were the lack of a beveled day/date window. I also noticed the original dials have marker lume plots there are not perfectly centered, whereas the aftermarket ones were bang on centered.

  8. Yo32Leigh Oct 8, 2022

    Posts
    188
    Likes
    166
    Unfortunately it's a June '77' watch :thumbsup:

    Arancio601 likes this.
  9. morethan1 Nov 3, 2022

    Posts
    297
    Likes
    906
    Looks fine. Giveaways are the day date window cutout, the printing & pattern on the lume.

  10. WarrenEllis Dec 24, 2022

    Posts
    71
    Likes
    190
    ...and the lume pip on the bezel being too small, and the bottom marker going too low towards the insert. As mentioned above though, AM parts might have become "better" (i.e harder to spot) in the last few years.

    Tuna Cowboy likes this.
  11. bigsom Dec 24, 2022

    Posts
    1,313
    Likes
    10,539
    This one is original

  12. WarrenEllis Dec 25, 2022

    Posts
    71
    Likes
    190
    Agreed, just wanted to add some relevant info if someone finds this thread later and wants a rundown on how to spot a fake "Turtle"!

  13. SOG53 Jan 12, 2023

    Posts
    1,391
    Likes
    2,816

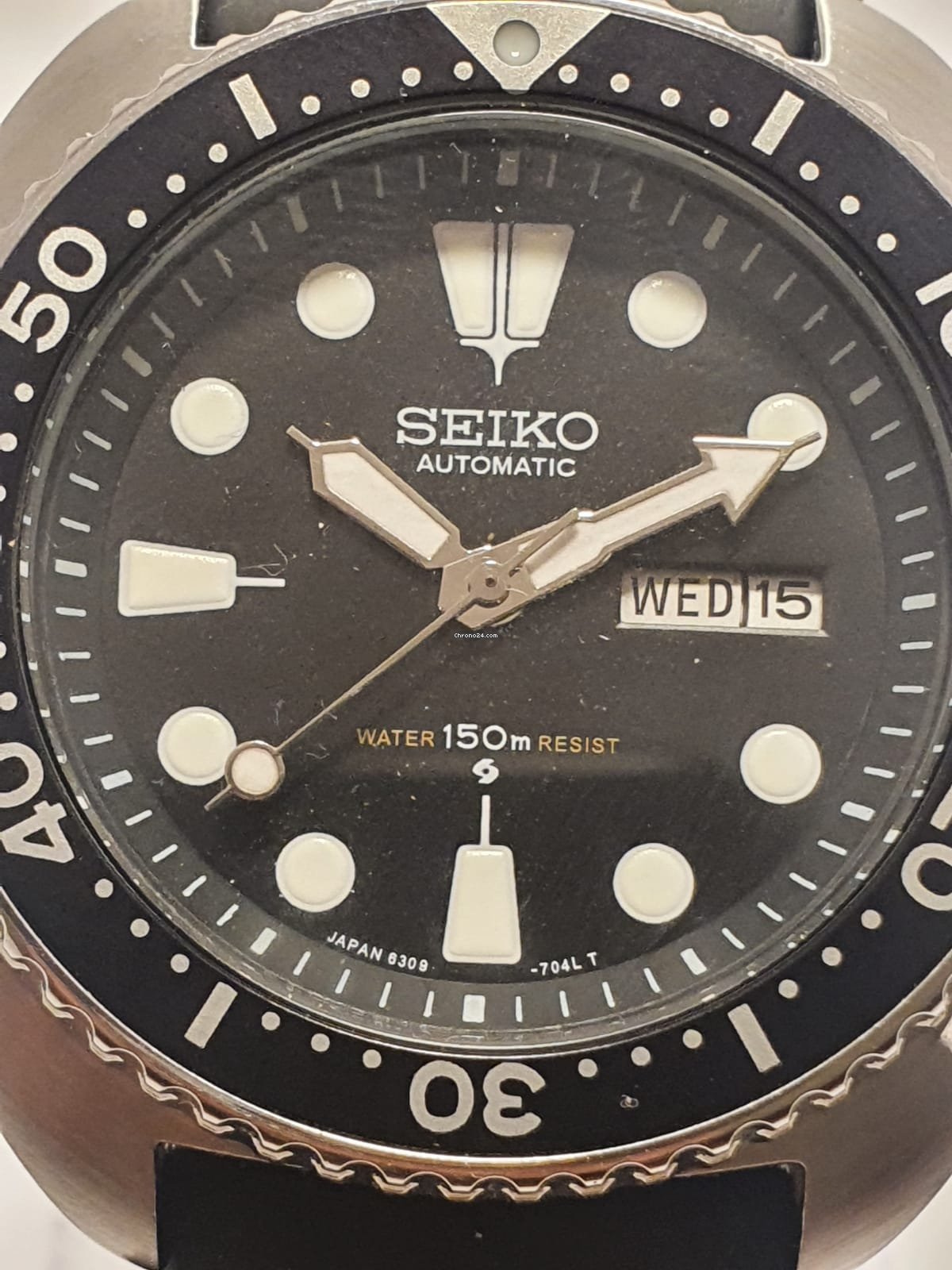

    This one is AM dial
    SEIKO text is off and not in typical shimmery silver paint
    Lume is very raised and shiny and look how it glows!!
    Hand steel edges are more rounded, not sharp
    Date window is a little beveled but not enough
    Bezel is also AM small shiny lume pip

    6309 AM dial 1.jpg 6309 AM dial lume.jpeg

  14. bardamu Jan 16, 2023

    Posts
    1,313
    Likes
    4,977
    ...and "A" at six are pointy and not flat as they should be.

  15. SOG53 Jan 18, 2023

    Posts
    1,391
    Likes
    2,816
    Good point!!
