Seiko 5740C Lift Angle?

JimInOz · Dec 4, 2024

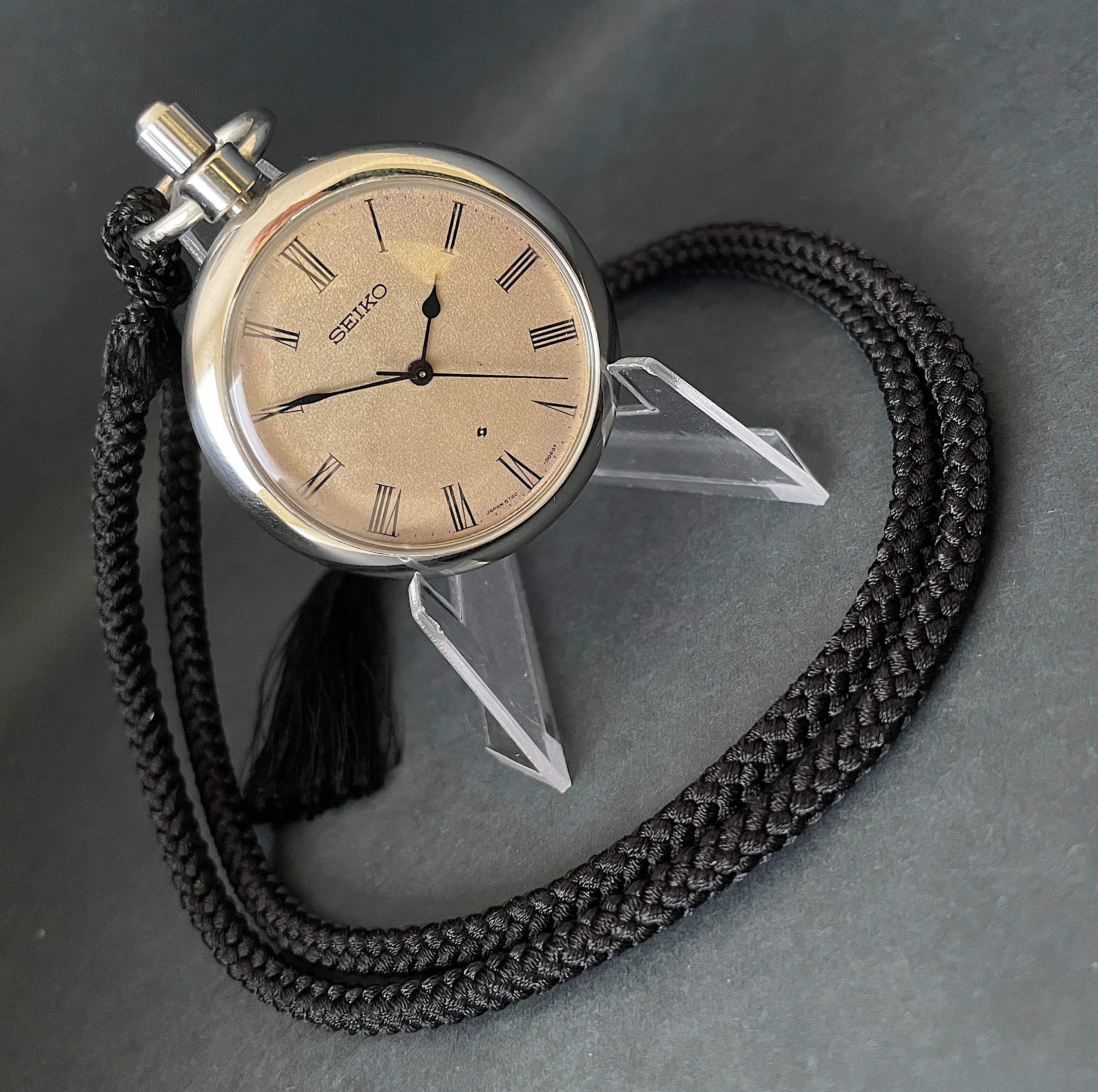

Has anybody been able to track down the lift angle for the Seiko hi-beat 5740C movement.
Using the default 52º shows me an amplitude of 190º which is low, even for a Seiko.
The low amplitude doesn't seem to affect timing, +1spd, 0º beat error.
However, buzzing along at 36000bph the change of direction of the balance/lever/escape may require a lesser amplitude.

👂👂👂

Deafboy · Dec 4, 2024

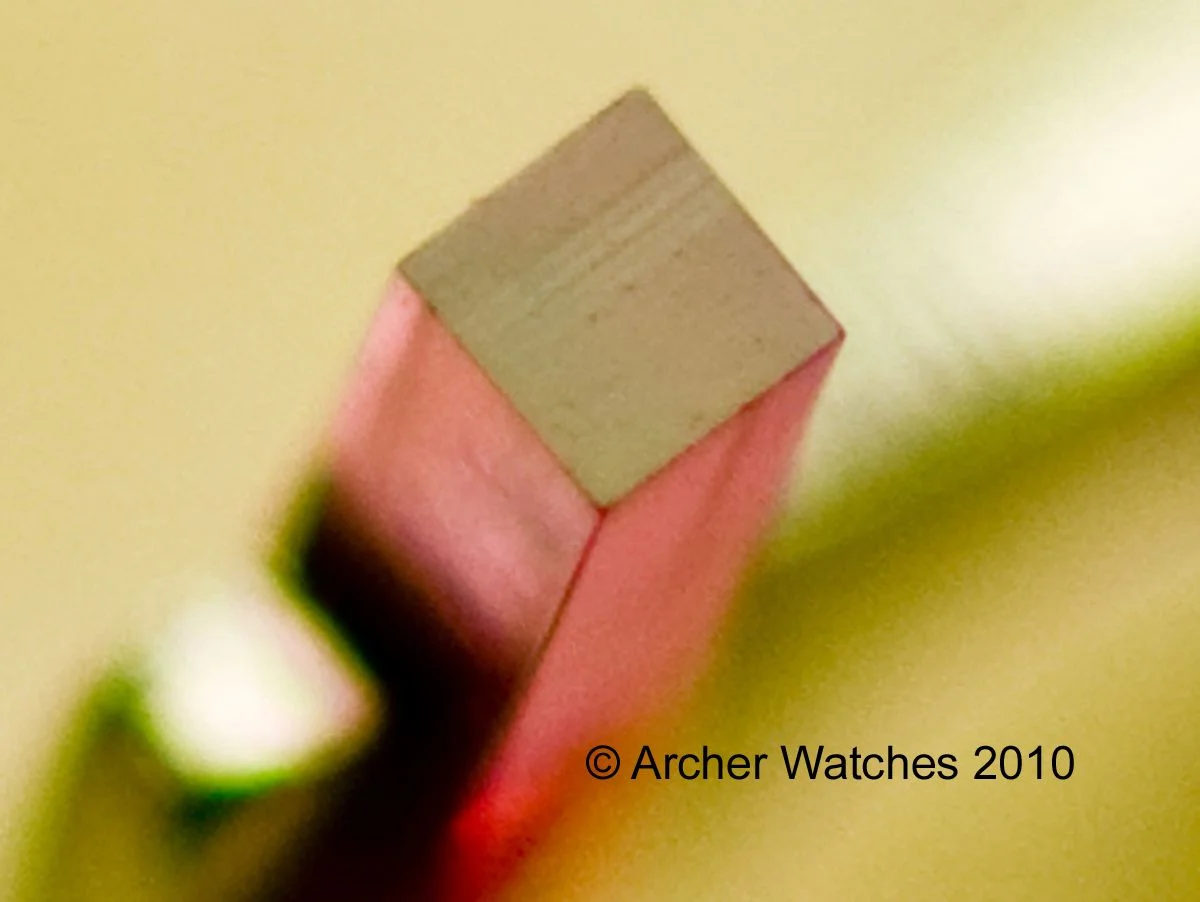

I've serviced two hi-beat 4520A movements. I determined the lift angle to be 52 degrees. Both had amplitudes of 210-220 in the horizontal positions and about 10 degrees less in the vertical at full wind. Some parts showed wear. Here's a video showing the impulse facet of a pallet jewel. Lots of torque involved to go at 36000 bph. 😀Despite this, they are excellent timekeepers.

JimInOz · Dec 4, 2024

Deafboy
I determined the lift angle to be 52 degrees.

Thanks for that. I haven't serviced this one yet, just checking things out after receiving it. The roller jewel had jumped out of the horns, probably due to a bump during shipping.
I expect it will look better after a proper service..

Archer · Dec 5, 2024

Deafboy
I've serviced two hi-beat 4520A movements. I determined the lift angle to be 52 degrees. Both had amplitudes of 210-220 in the horizontal positions and about 10 degrees less in the vertical at full wind. Some parts showed wear. Here's a video showing the impulse facet of a pallet jewel. Lots of torque involved to go at 36000 bph. 😀Despite this, they are excellent timekeepers.

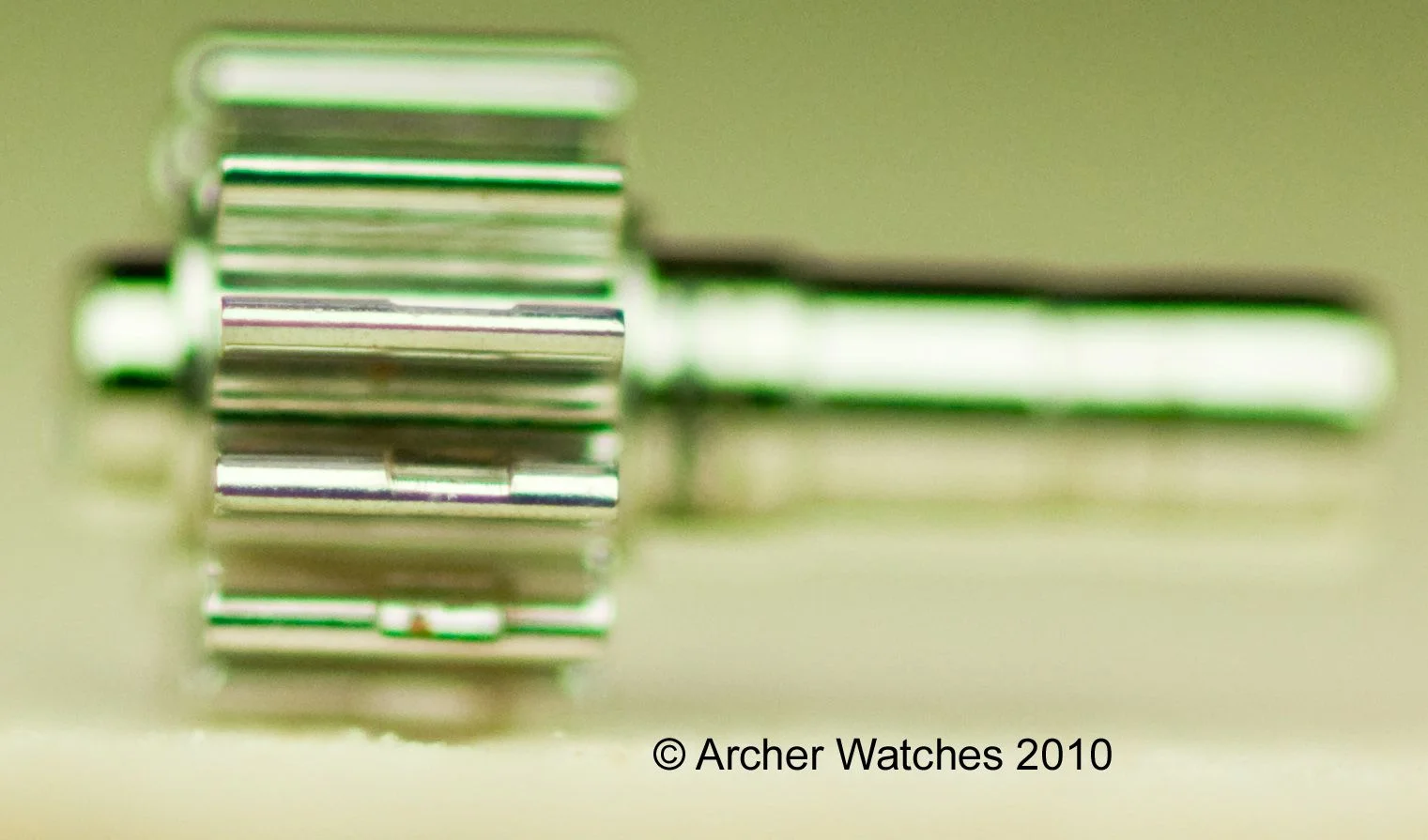

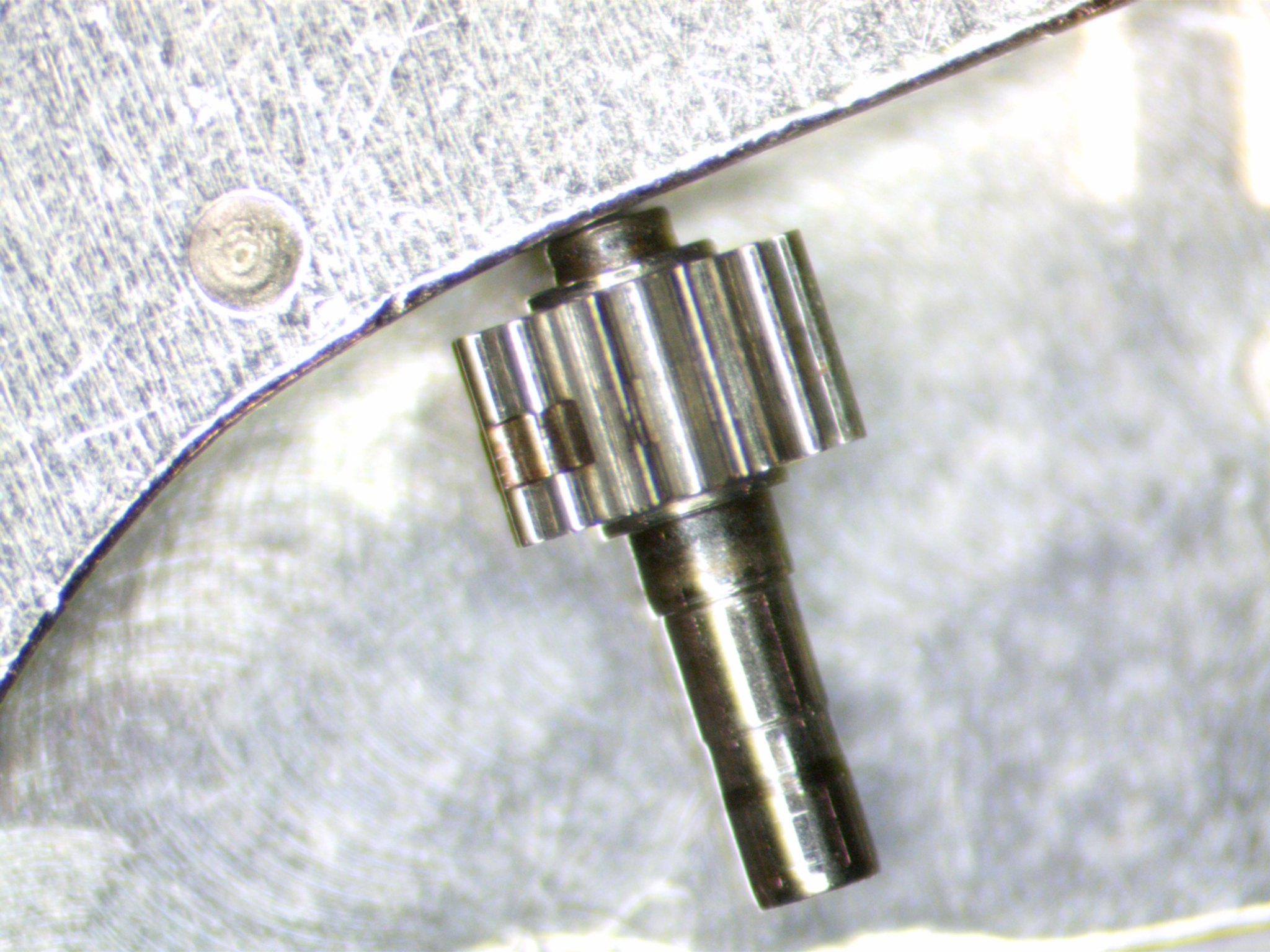

Been there, done that on these...parts were difficult to find, even in 2010. Probably much harder now...

Spent a lot of time chasing amplitude, only to realize it was never there to begin with. If your amplitude is hanging around the 200 -220 area, and you have the basics right, timekeeping will be easier as that is the range where poise errors sort of go away...
