Planet Ocean 8500 45mm bezel removal tool

Posts
59
Likes
99
Hi has anyone tried the Horotec Swiss Watch Hand Operated Rubber Bezel Remover from esslinger or any recommendations/suggestions? Thanks.

Posts
648
Likes
798
You get what you pay for. A real one is about 10x that cost.

I've no experience with that particular one, but I've heard bad reviews.

Posts
21,057
Likes
48,089
This style seems to be pretty good in general and you can get a no-name version for a lot less. I'm not familiar the bezel of that particular watch.


Posts
27,679
Likes
70,336
This style seems to be pretty good in general and you can get a no-name version for a lot less. I'm not familiar the bezel of that particular watch.


That's for removing fixed (press fitted) bezels, not dive watch bezels that rotate...

Posts
195
Likes
492
That's for removing fixed (press fitted) bezels, not dive watch bezels that rotate...
Archer is correct. It would be a disaster if you used that.

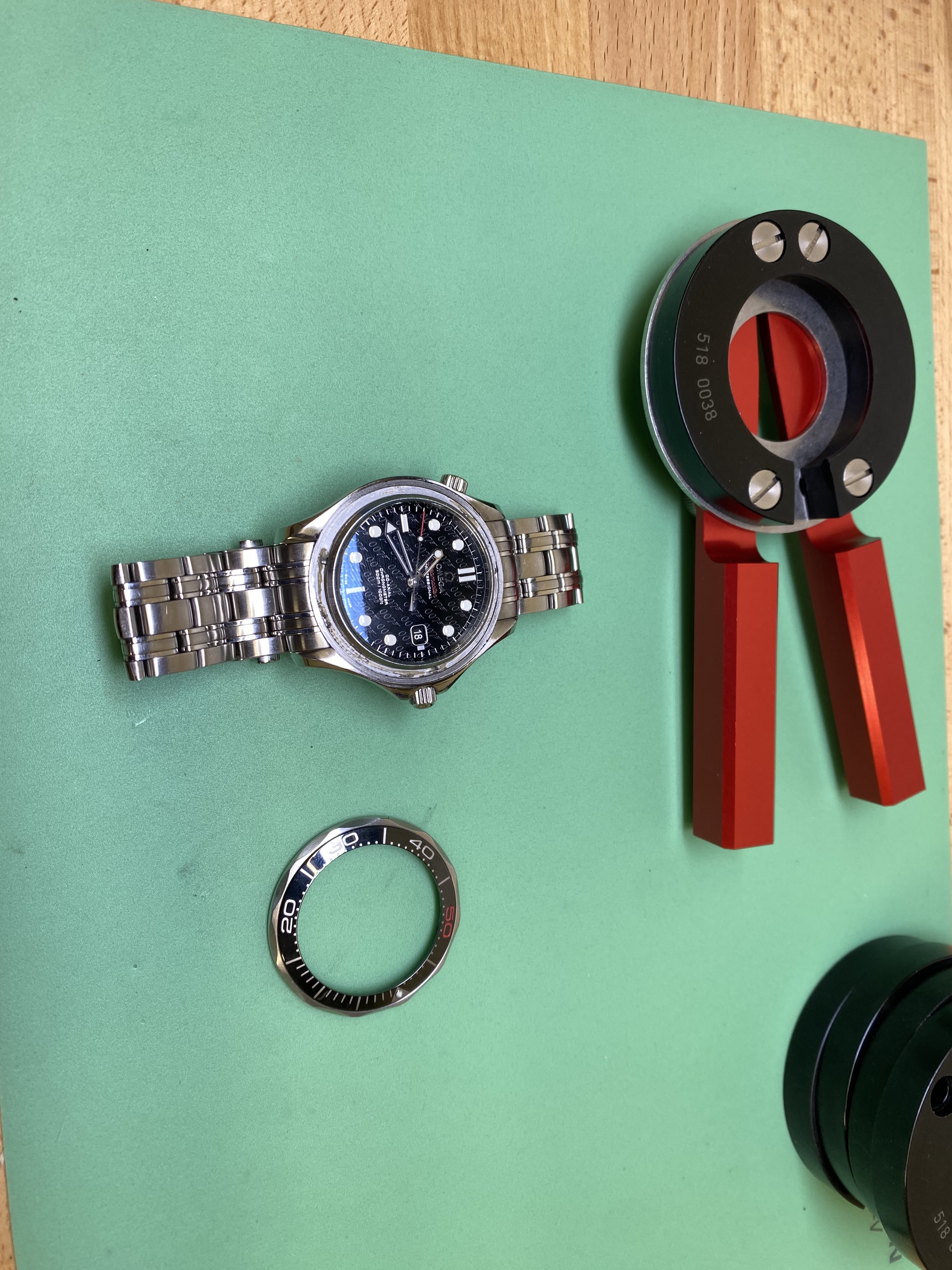

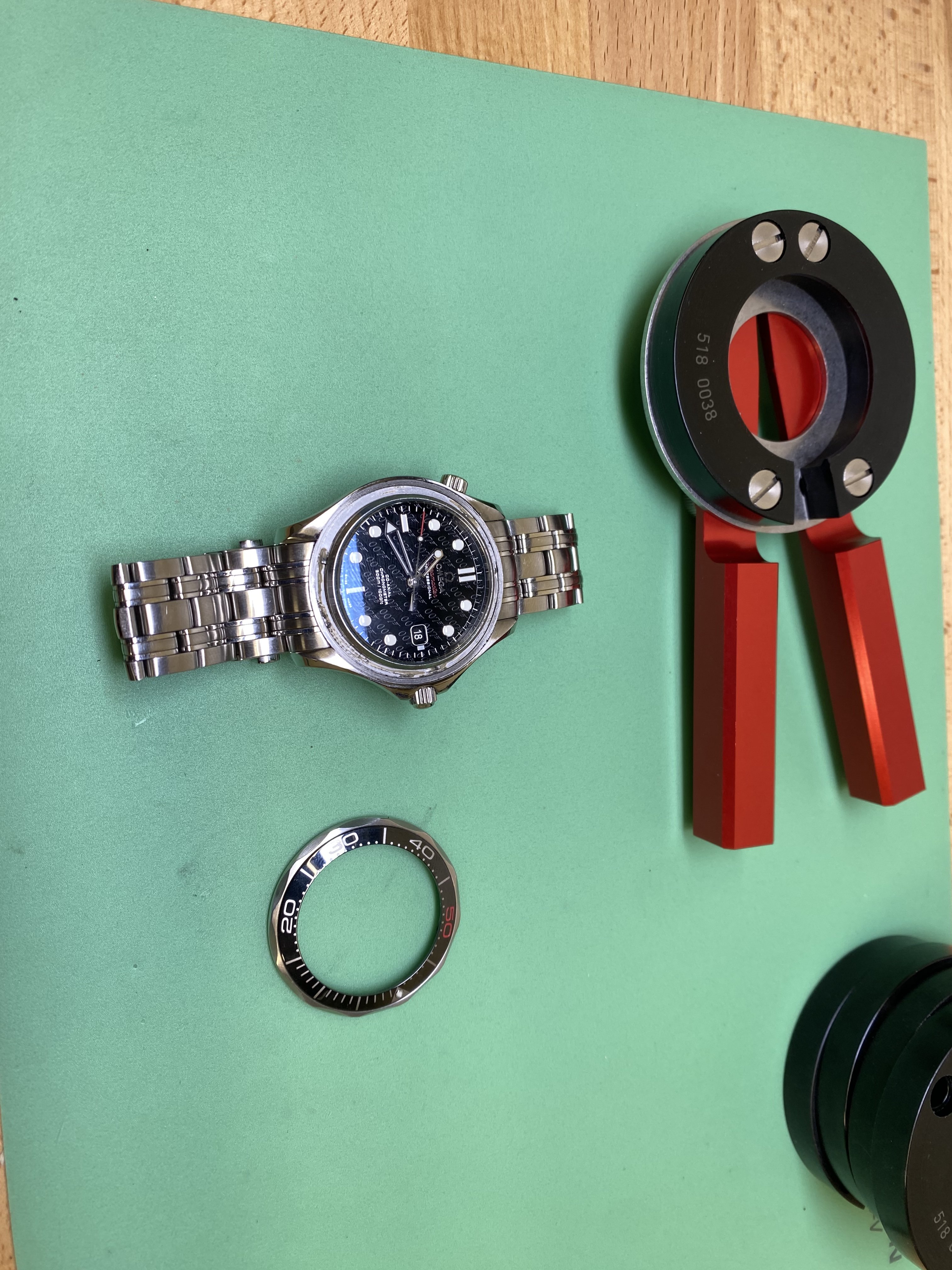

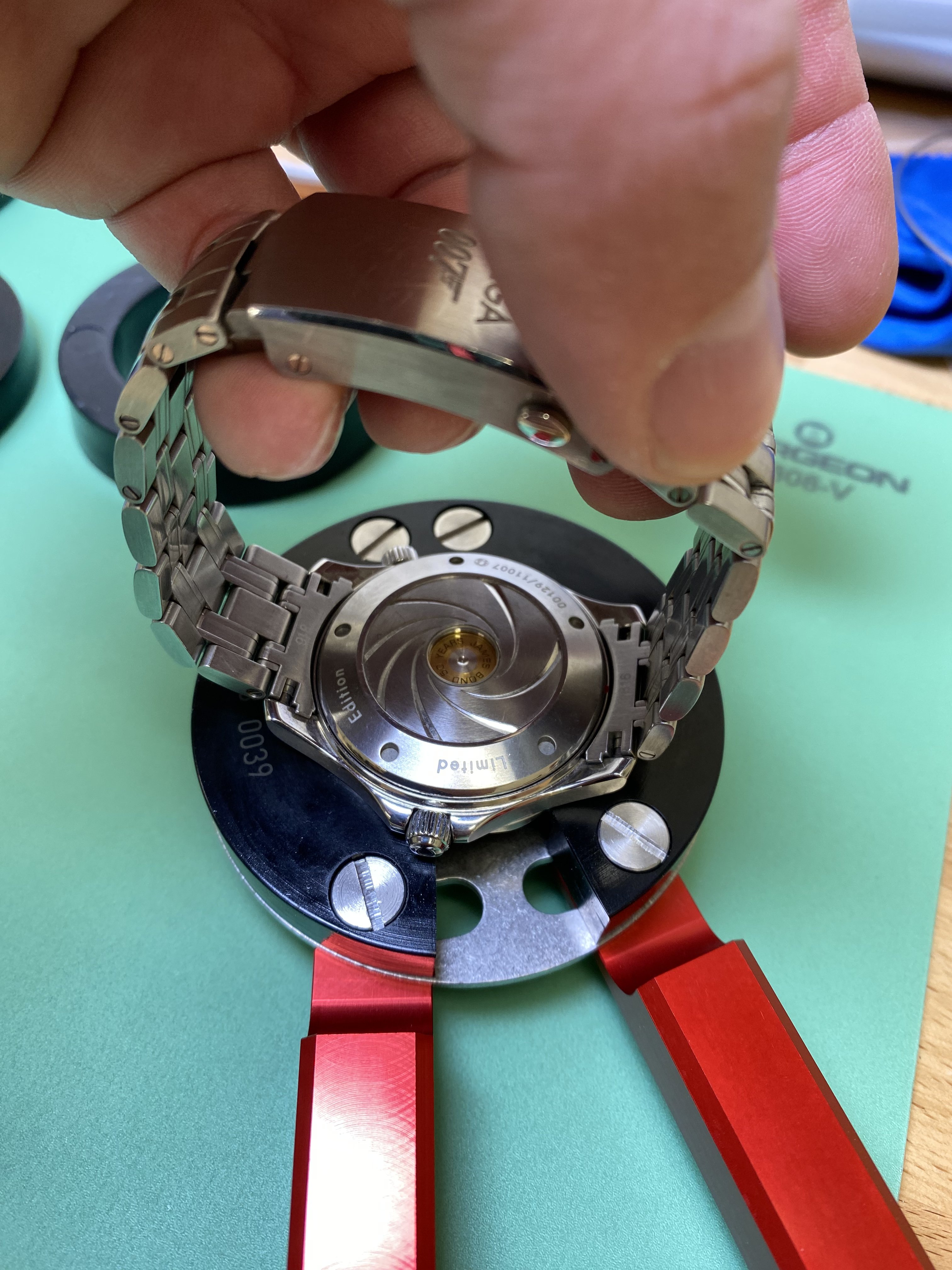

The correct tool looks like this:

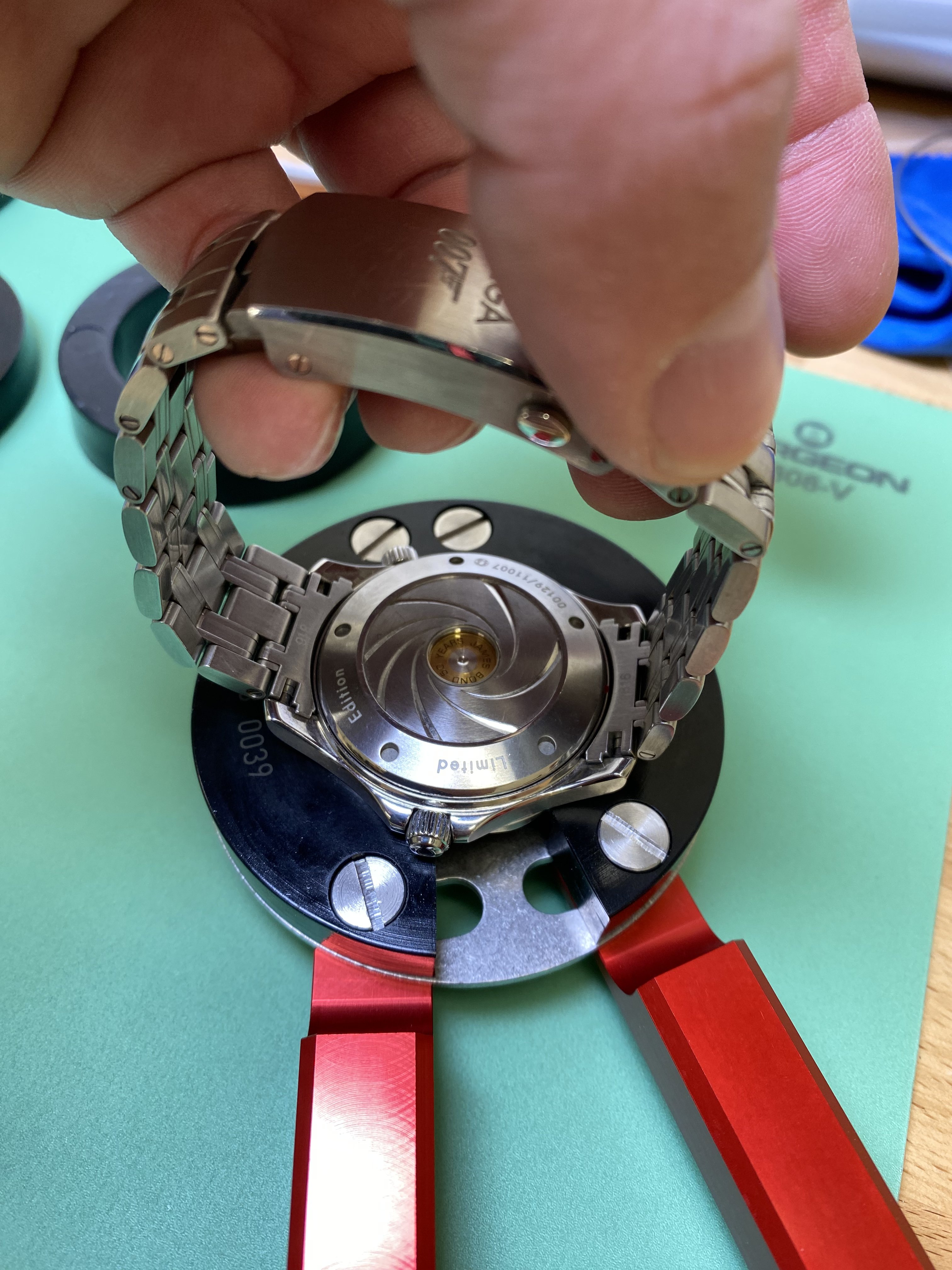

you install the correct size inner die, then squeeze and twist in the direction of bezel rotation.

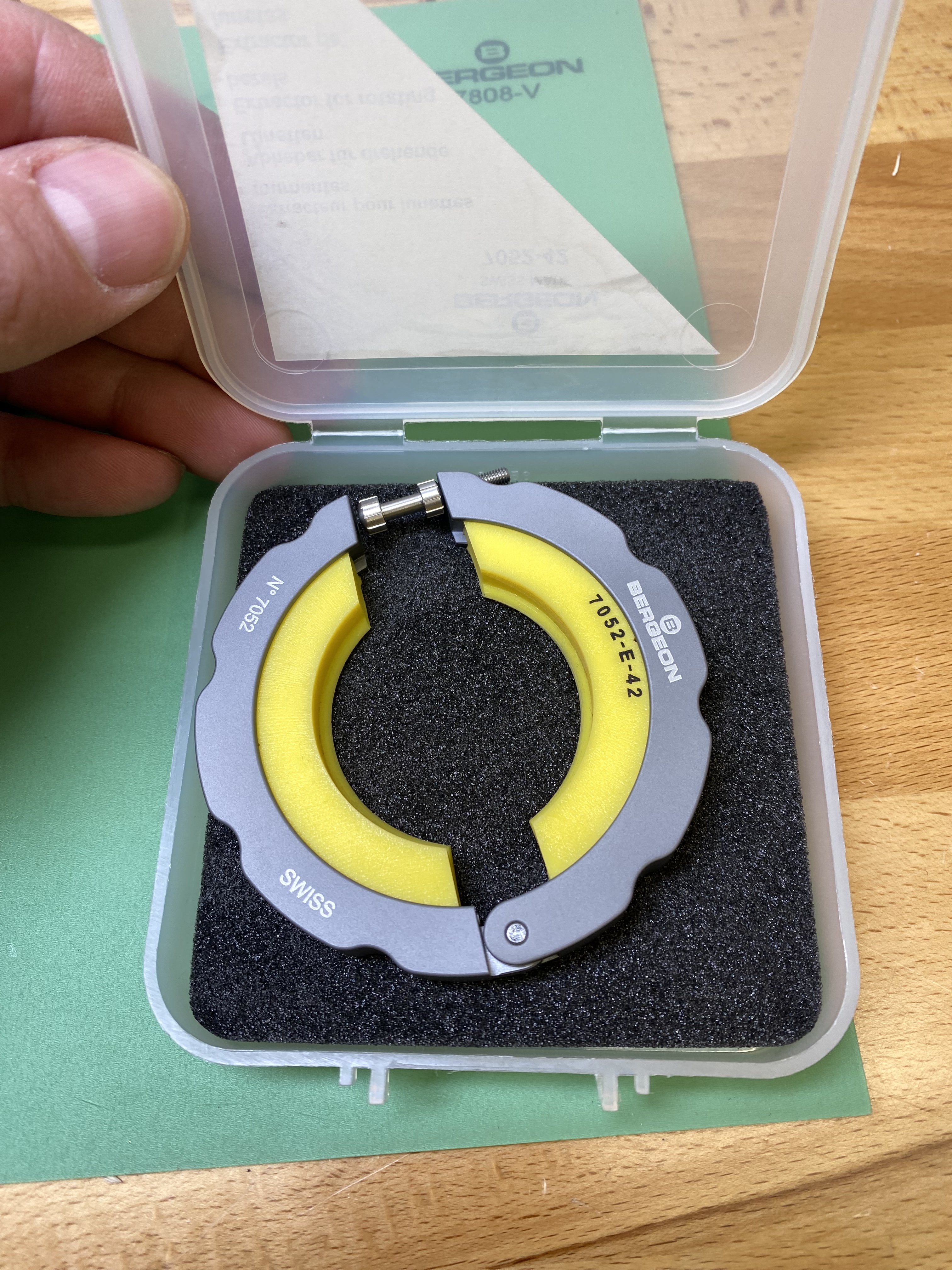

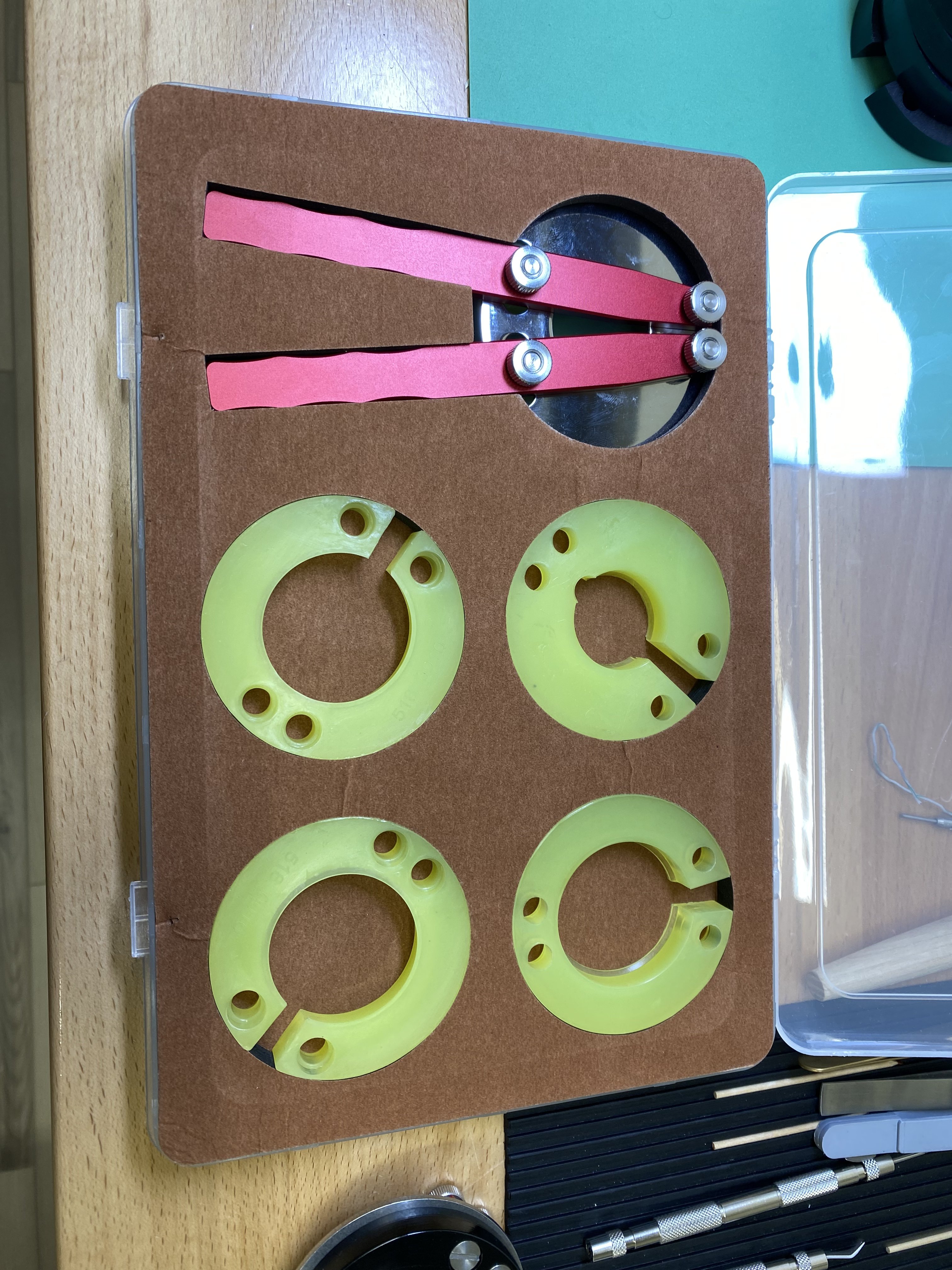

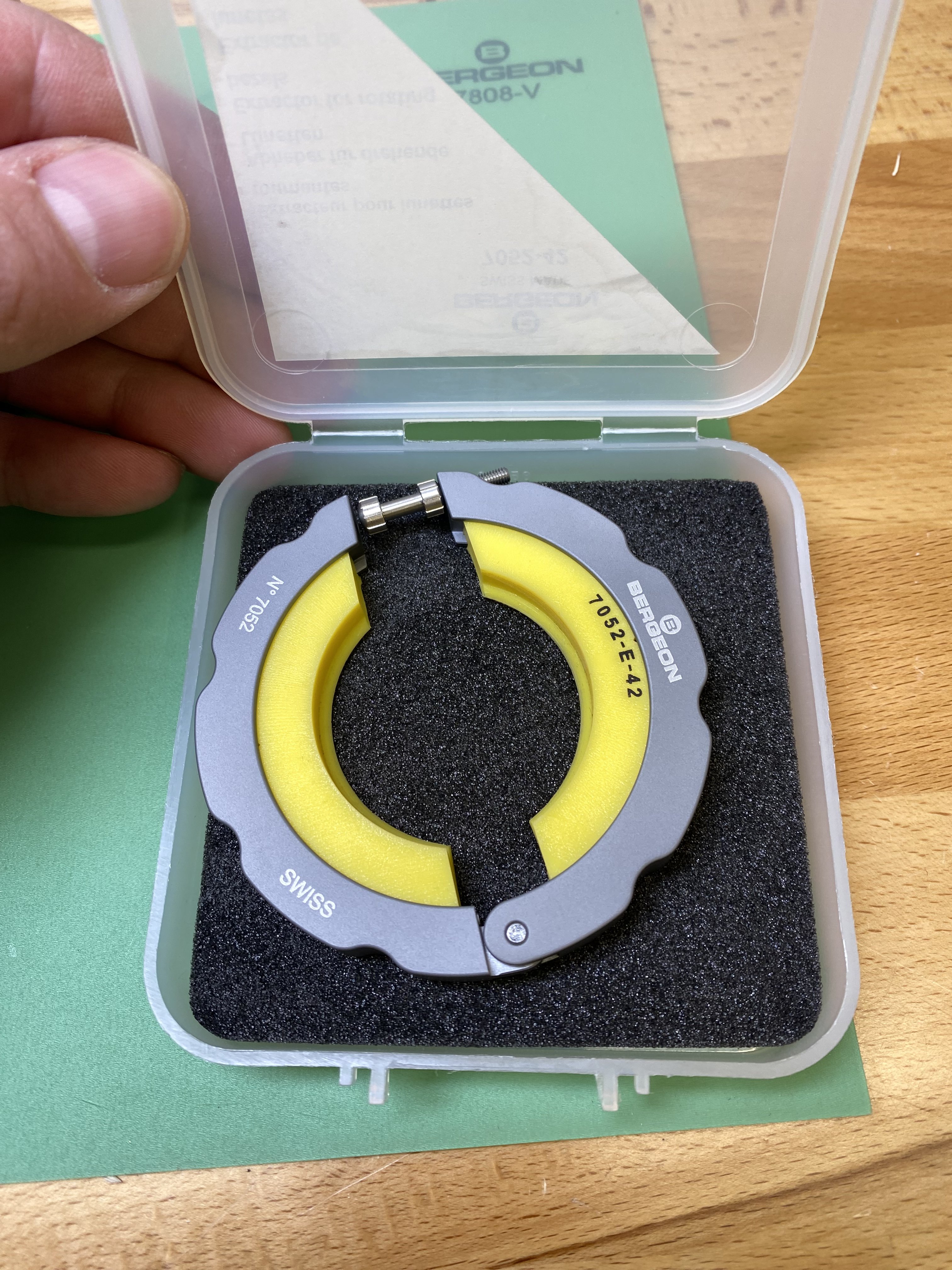

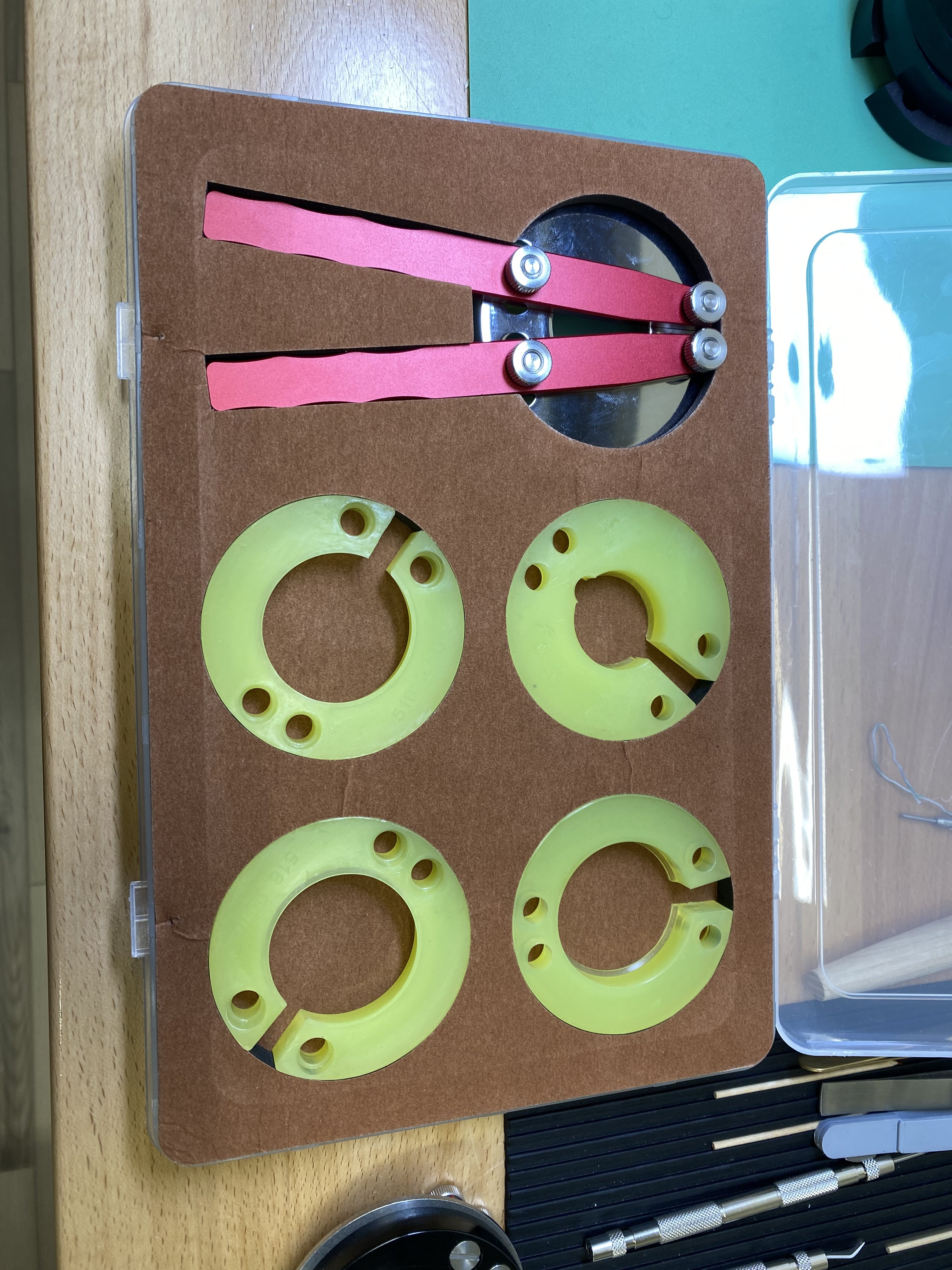

before I obtained my Omega parts/tool account I used some aftermarket options that worked ok:

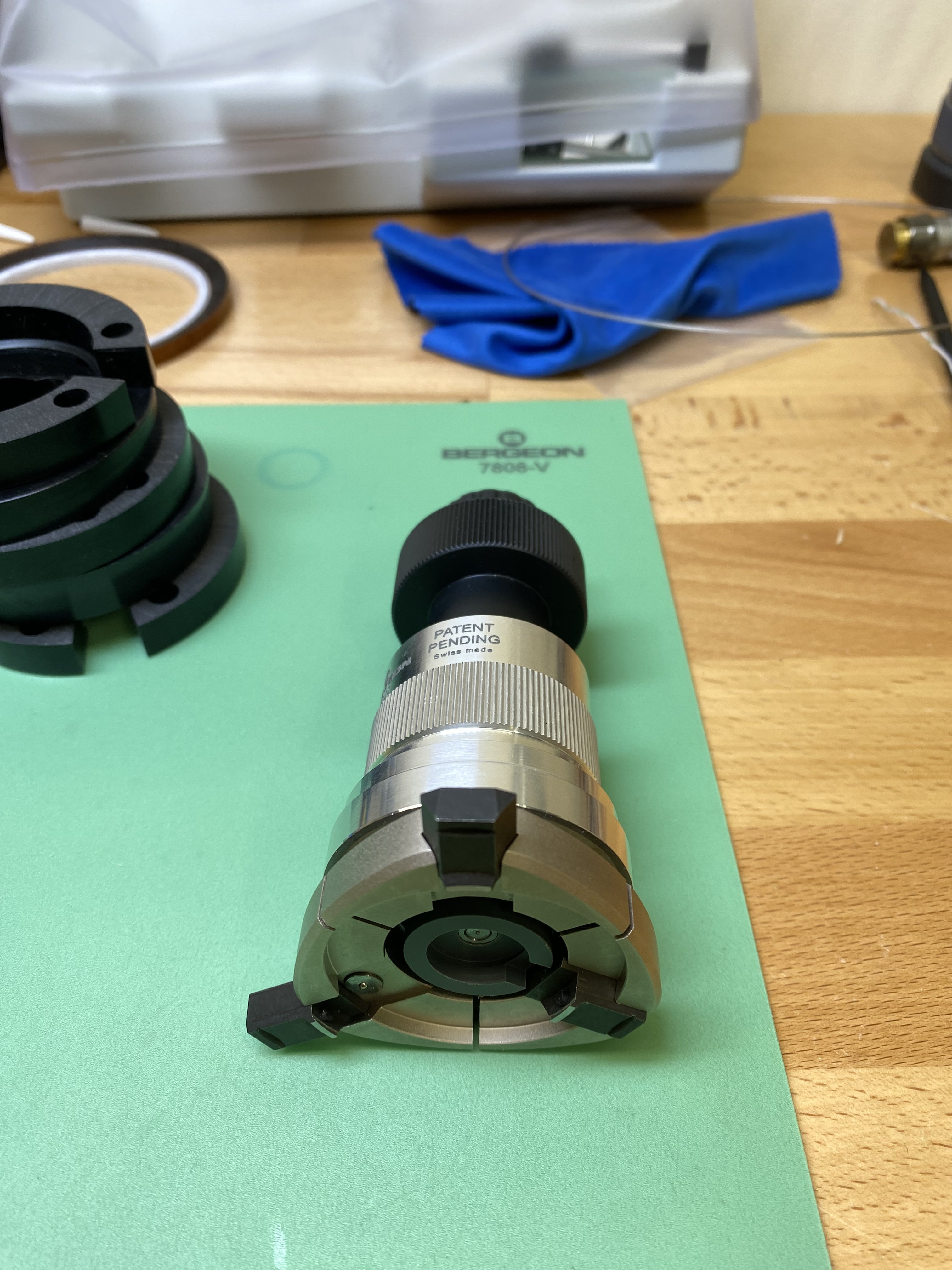

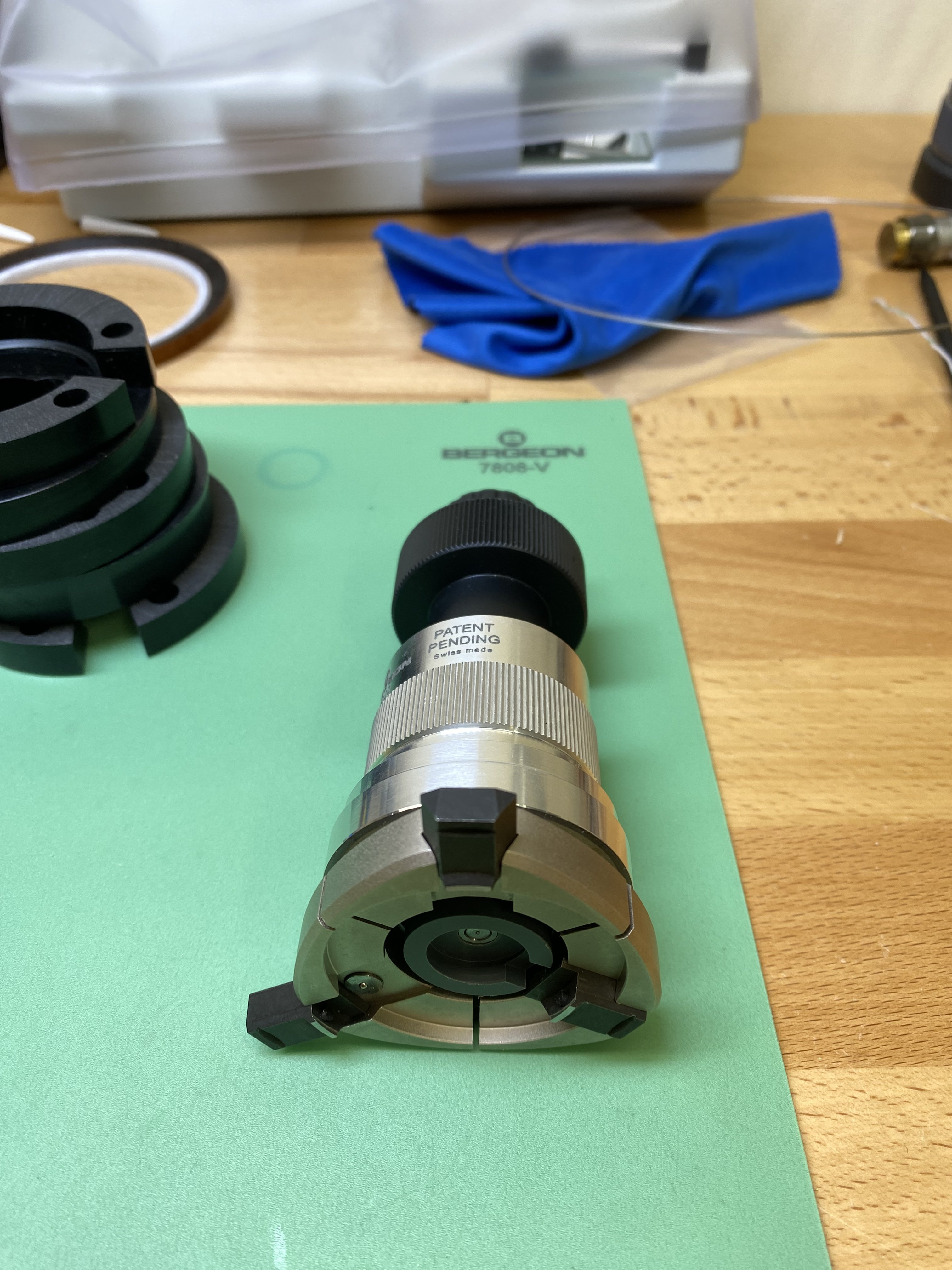

This tool is also meant for rotating bezels, but I tend to not use it as it has metal clamping jaws. If it slips you cause damage:
Edited:

Posts
21,057
Likes
48,089
Archer is correct. It would be a disaster if you used that.
I am not familiar with the particular bezel on the OP watch, so I'm sure you are right. But on many occasions, I have used the four-blade tool to remove certain styles of rotating bezels (notably on some of my vintage Seiko and Citizen divers) and it worked perfectly. Perhaps it is not the canonical tool, but it worked very well to open a gap between the bezel and case. Not a disaster, fortunately. I sometimes use a razor blade for the same purpose, but that always feels a bit unsafe.
Edited:

Posts
195
Likes
492
I am not familiar with the particular bezel on the OP watch, so I'm sure you are right. But on many occasions, I have used the four-blade tool to remove certain styles of rotating bezels (notably on some of my vintage Seiko and Citizen divers) and it worked perfectly. Perhaps it is not the canonical tool, but it worked very well to open a gap between the bezel and case. Not a disaster, fortunately. I sometimes use a razor blade for the same purpose, but that always feels a bit unsafe.
Maybe disaster was a harsh word. I have had watches come in with notable damage from failed attempts to remove the bezel. The Omega or aftermarket equivalent tools are nice as they can’t cause damage.

Posts
27,679
Likes
70,336

Ah yes, the 6820...that was actually the first rotating dive watch bezel remover I ever used I think. Like you I had great concerns over the possibility for scratching things with it. I was fortunate to try one at school before I went out and spent the money on one - saved me many hundreds of dollars. As soon as I saw the Omega tool, that was it - bought one and I use it all the time.

This is the thing that trips up some new watchmakers or hobbyists - just because a tool has been made for a purpose, doesn't mean it's good at that purpose, even when it's made and marketed by the king of watch tools...

Posts
648
Likes
798
^^^If it was any good, you'd think they'd have been awarded the patent by now 😒

Posts
16,430
Likes
34,629
@Archer Can you let me know the reference/model number of the omega tool you use? Thanks.

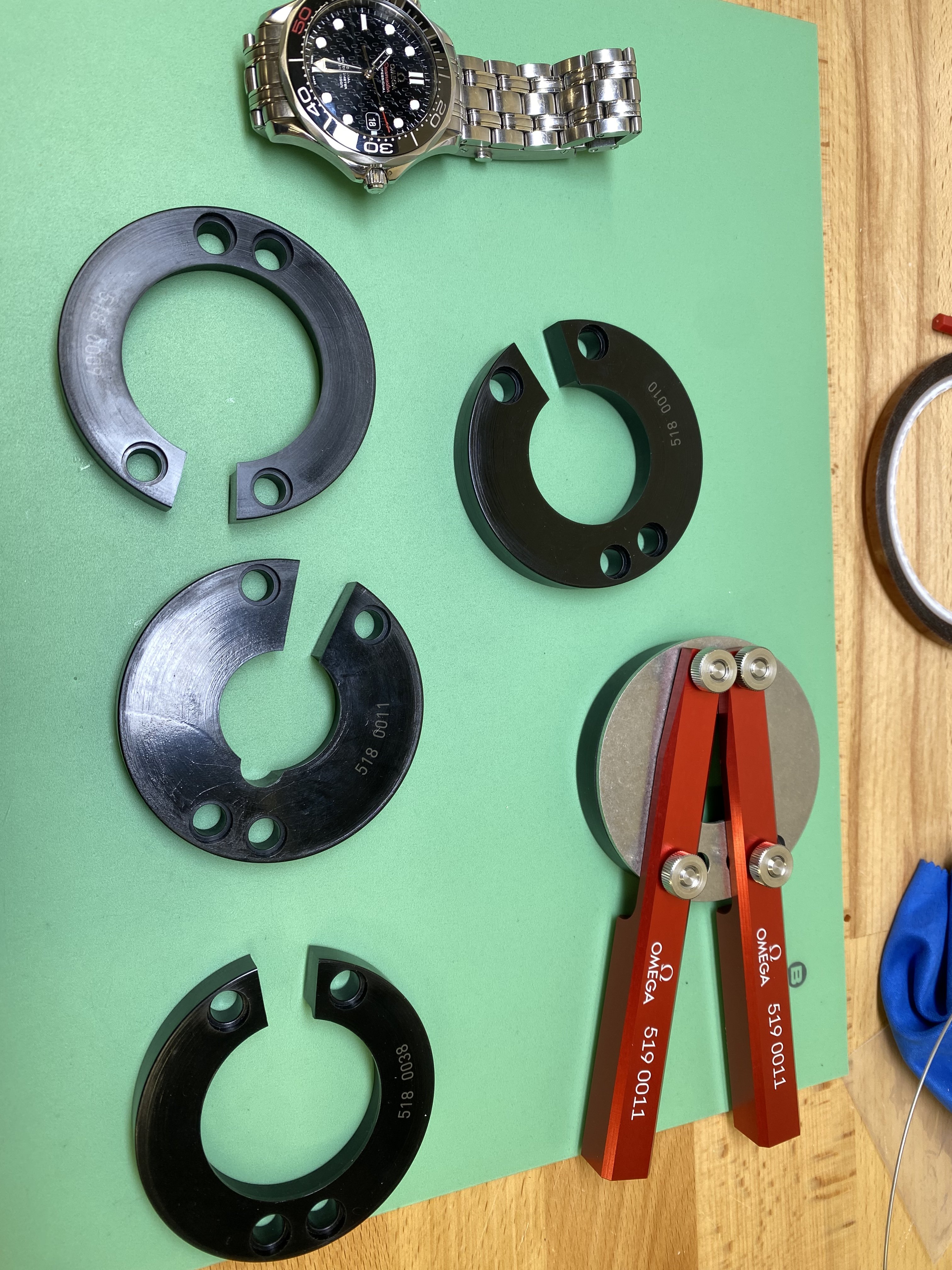

Part number is 519 0011, but I don't know if they are readily available and the cost is likely to be scary.

There are hundreds of generic examples of the Omega tool on eBay, AliExpress etc.

Posts
59
Likes
99
Part number is 519 0011, but I don't know if they are readily available and the cost is likely to be scary.

There are hundreds of generic examples of the Omega tool on eBay, AliExpress etc.
Have you tried any? I’m afraid they might damage the bezel/click spring.

Posts
16,430
Likes
34,629
Have you tried any? I’m afraid they might damage the bezel/click spring.
How would they do that?
(if used correctly)

Posts
59
Likes
99
How would they do that?
(if used correctly)
As per several reviews the rings don’t grip on to the bezel tight or as they should.
