Community Stories

Peter Blake Seamaster Bracelet Link Parts

SubSea
Posts
2
Likes
0
Hi can any tell me the Omega part numbers for the standard link (114ST1998) pins and tubes on the stainless bracelet 1610/930, I've looked at the documents on Cousins etc. but there are a lot of different variations (of pins and tubes) it's impossible to know what the correct combination is, and I'll just end up ordering the wrong parts (again) and Cousins only sell them in packs of 1 so they aren't cheap. Thanks.

Archer
Posts
29,073
Likes
75,122
For the 1610930 bracelet, the pins for the regular link is 128ST2000, and the tube is 201ST0055.

Note that pins and tubes for attachment to the clasp are often different, and they are sometimes for attaching the end links, depending on the bracelet.

YY77
Posts
5,718
Likes
26,962
Archer Archer
For the 1610930 bracelet, the pins for the regular link is 128ST2000, and the tube is 201ST0055.

Note that pins and tubes for attachment to the clasp are often different, and they are sometimes for attaching the end links, depending on the bracelet.

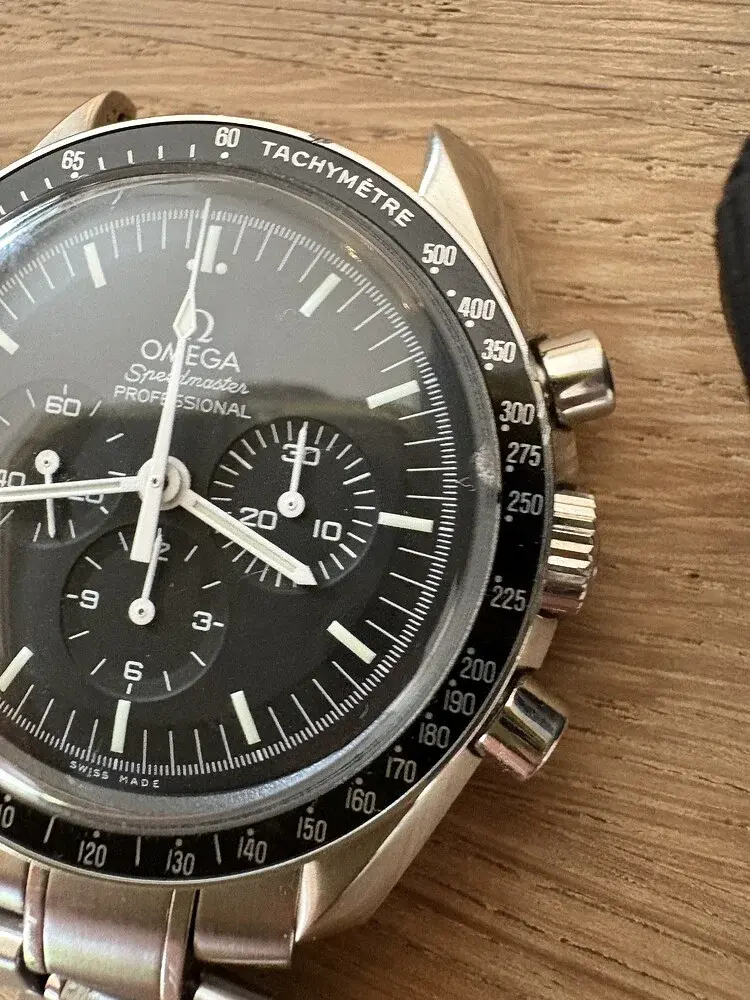

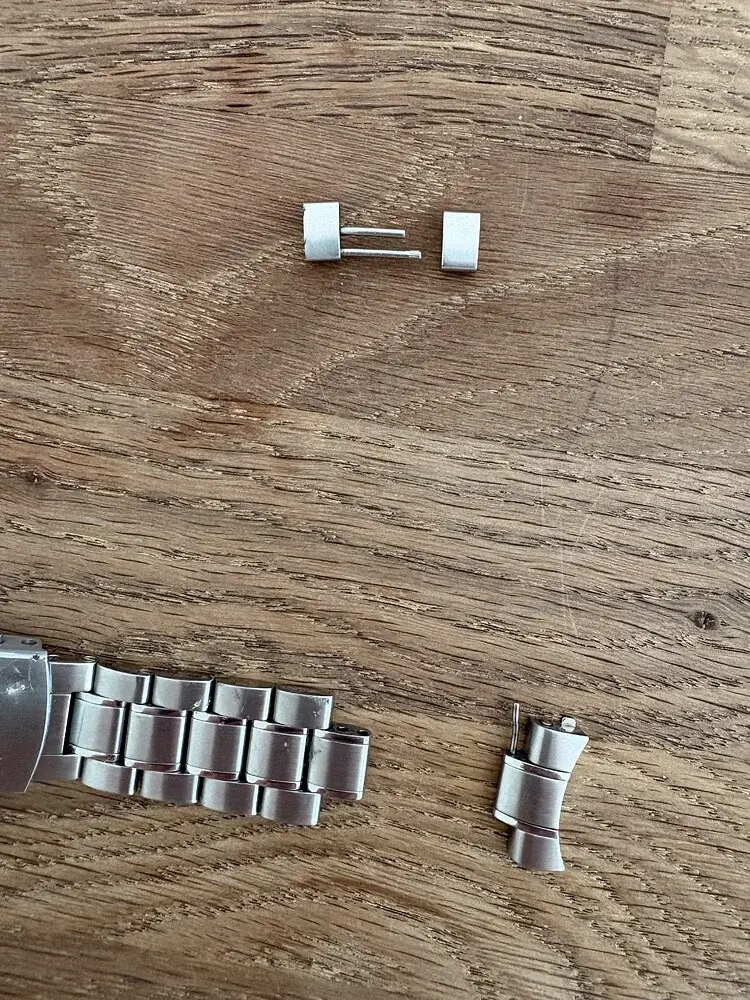

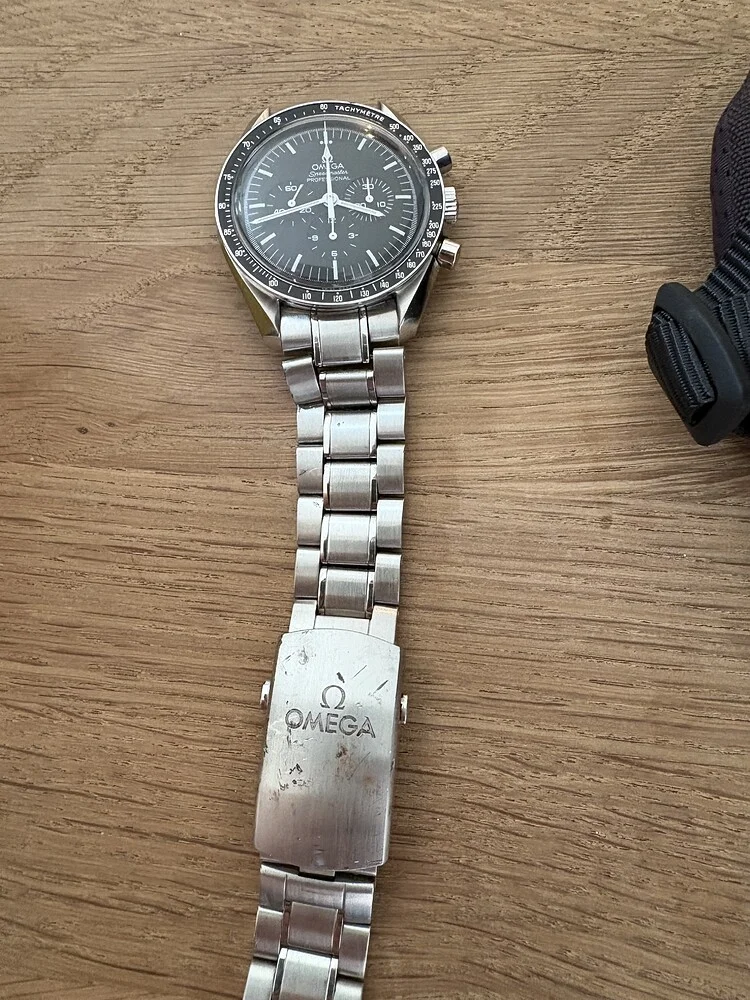

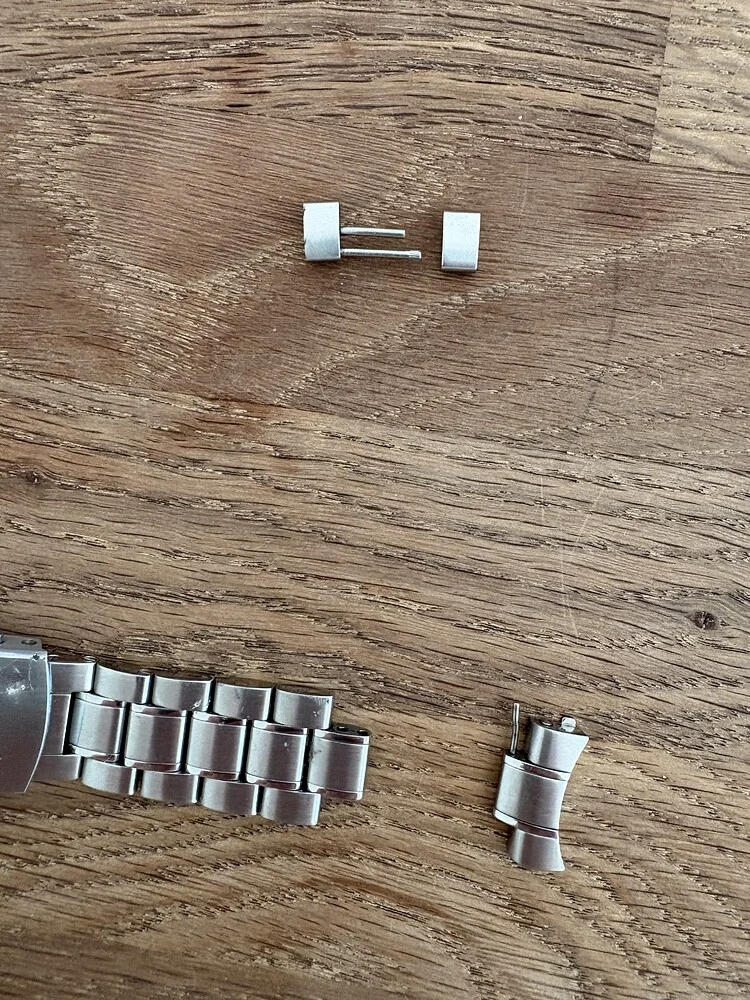

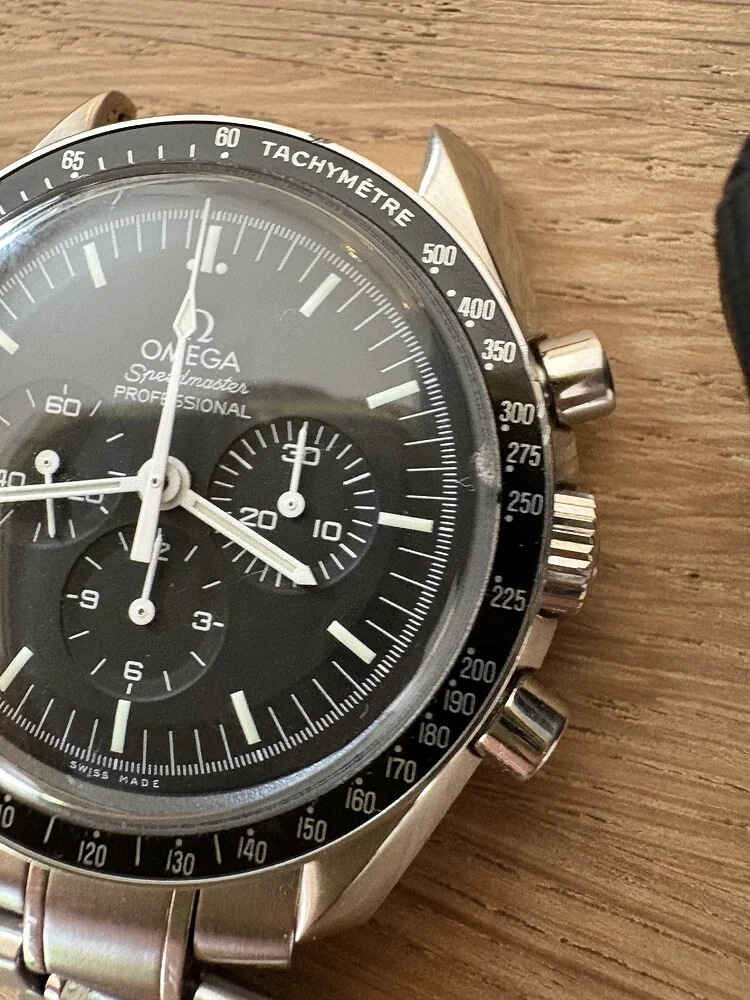

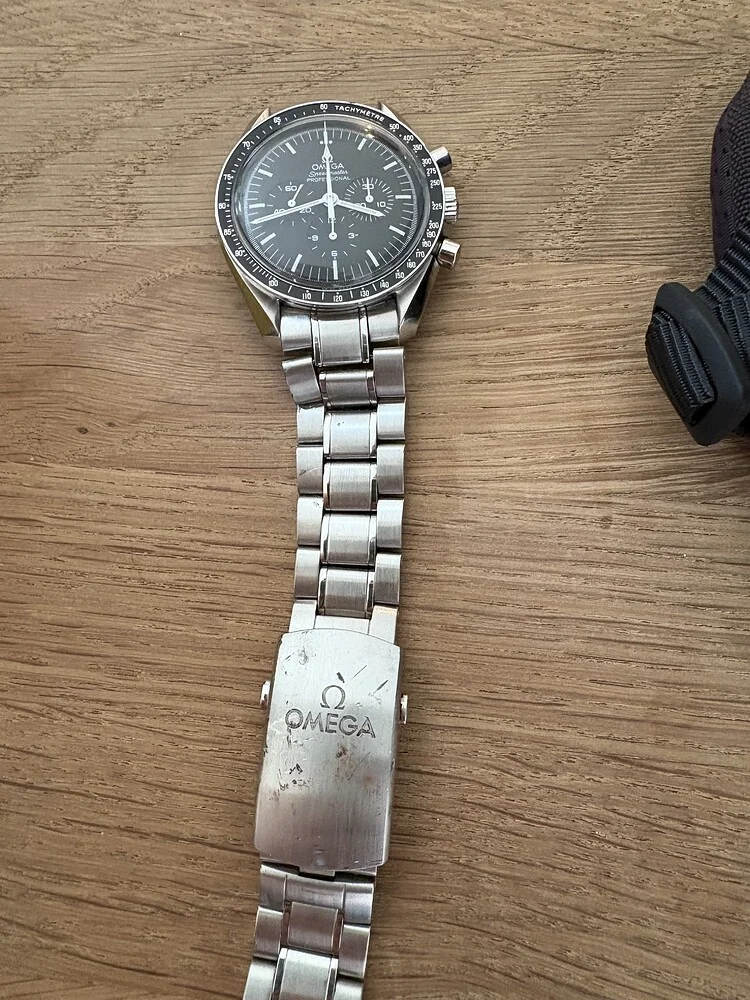

Al, can you tell what needs to be ordered from this pic (Speedmaster 1861), is it the same partsno's you mentioned;


Archer
Posts
29,073
Likes
75,122
Is this a 1998849?

That is a fixed link that has come apart somehow. Those are not meant to be disassembled...

Omega used to sell a "strand" of links that went from the last link near the end link, towards the clasp to the first removeable link - the part number for that is 119ST1998, but that part is discontinued.

Possibly the link could be put back together using a press and some Loctite, but someone's made a mess of it...

YY77
Posts
5,718
Likes
26,962
Archer Archer
Is this a 1998849?

That is a fixed link that has come apart somehow. Those are not meant to be disassembled...

Omega used to sell a "strand" of links that went from the last link near the end link, towards the clasp to the first removeable link - the part number for that is 119ST1998, but that part is discontinued.

Possibly the link could be put back together using a press and some Loctite, but someone's made a mess of it...
I'm told a 1958.

Someone on a local watchforum had an accident on his pedelec

f848409c85e74053bf83d8e215caca5945bfc30d_2_750x1000.webp e1534e793b821a66f56b3dc1e70cd9602b0e0b5e_2_750x1000.webp 53e7c8f7bcd85fe16ed06d423b6acd15103018d4_2_750x1000.webp
Edited:

SubSea
Posts
2
Likes
0
Archer Archer
For the 1610930 bracelet, the pins for the regular link is 128ST2000, and the tube is 201ST0055.

Note that pins and tubes for attachment to the clasp are often different, and they are sometimes for attaching the end links, depending on the bracelet.
Ok thanks for that.
