Omega waffle dial

konung39
Posts
158
Likes
30
Hello everyone!

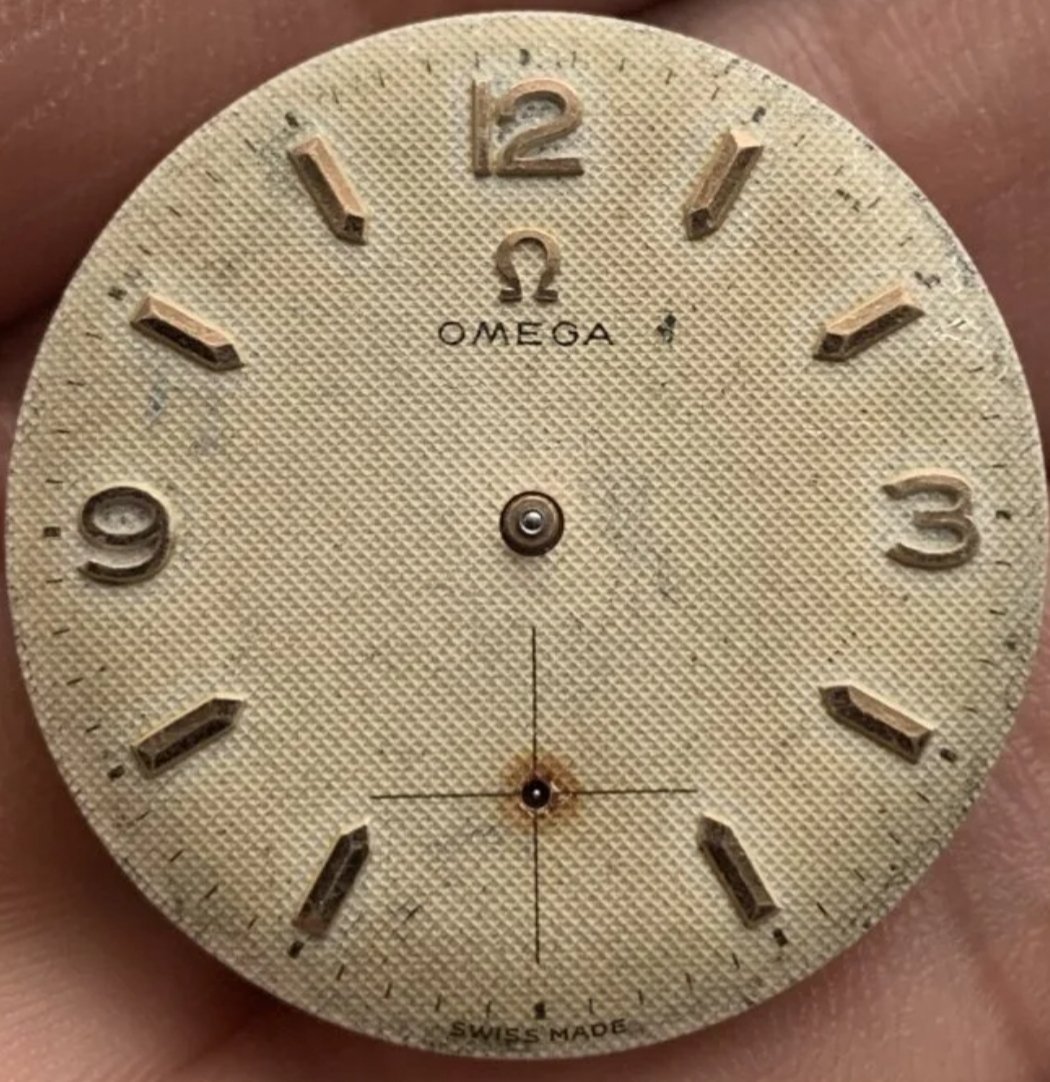

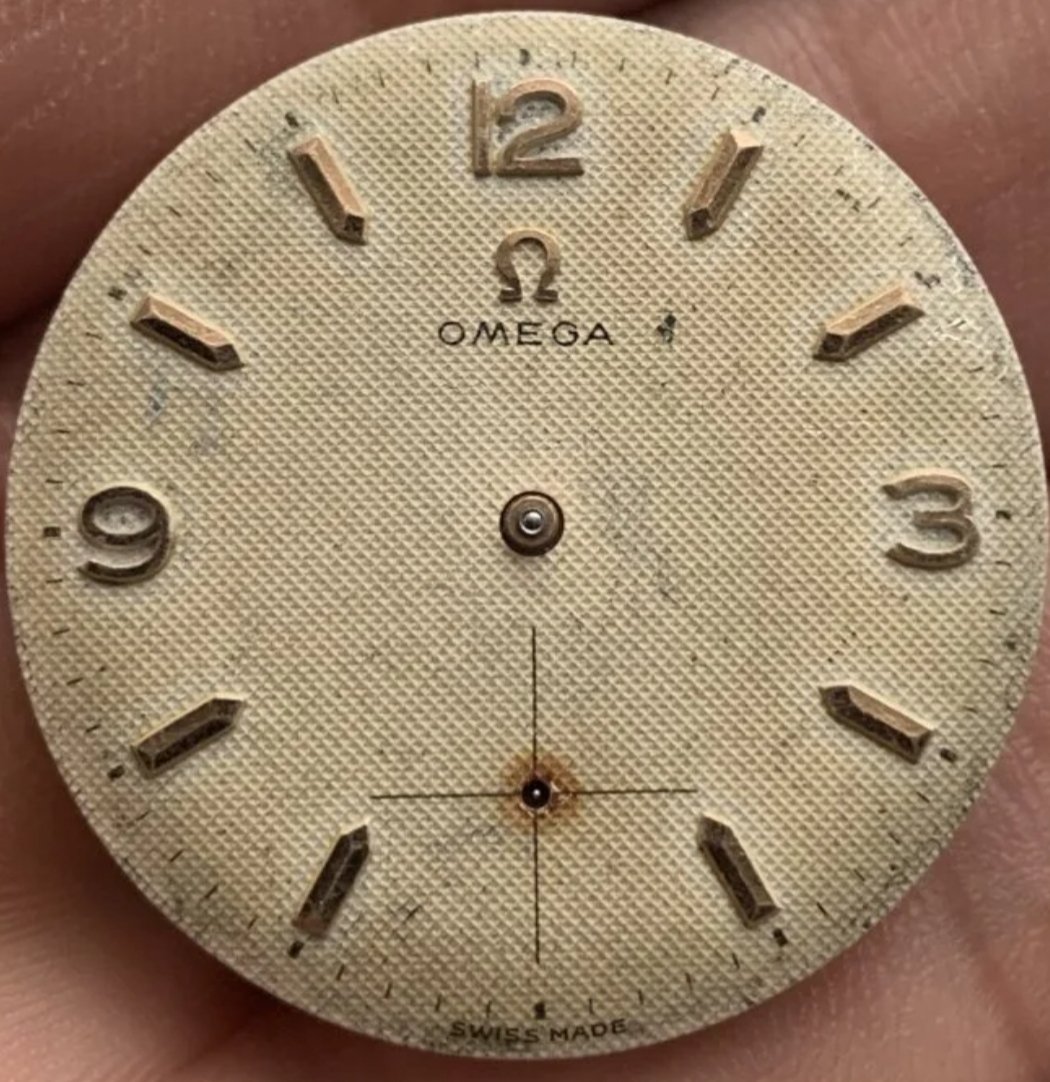

Tell me what model or ref this dial could be.
The movement attached to it is cal267 with serial number 16835117

gbesq
Posts
9,732
Likes
54,417
The serial number would indicate a 1958 reference and caliber 267 in a manual winder. Probably a “no name” Seamaster (a Seamaster without the “Seamaster” text on the dial), but it’s difficult to determine the reference number without seeing the case.

MacoLR
Posts
20
Likes
4
quite impossible to define the reference of the watch this dial was made for.

gbesq
Posts
9,732
Likes
54,417
Those pencil type markers were used on some “Seachero” models which would be a CK2990 case.

MtV
Posts
3,401
Likes
13,196
How about a “please” and/or a “thank you”, maybe a word or two what your own research has shown?

MtV
Posts
3,401
Likes
13,196
Would certainly help to know the diameter of the dial…

konung39
Posts
158
Likes
30
gbesq gbesq
Those pencil type markers were used on some “Seachero” models which would be a CK2990 case.
Hi!

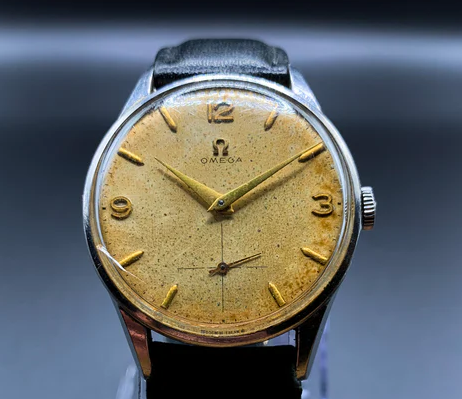

I have not found any Seamaster (Seachero) model on the Internet with the same set of numbers, markings and texture.
The font of the numbers is the same as on the Ranchero, but the numbers themselves are stamped and not drawn.
All Ranchero, Seachero, Seamaster have triangular markers on the dial. Later Seamasters have pencil-shaped markers, but these are models with an automatic caliber.

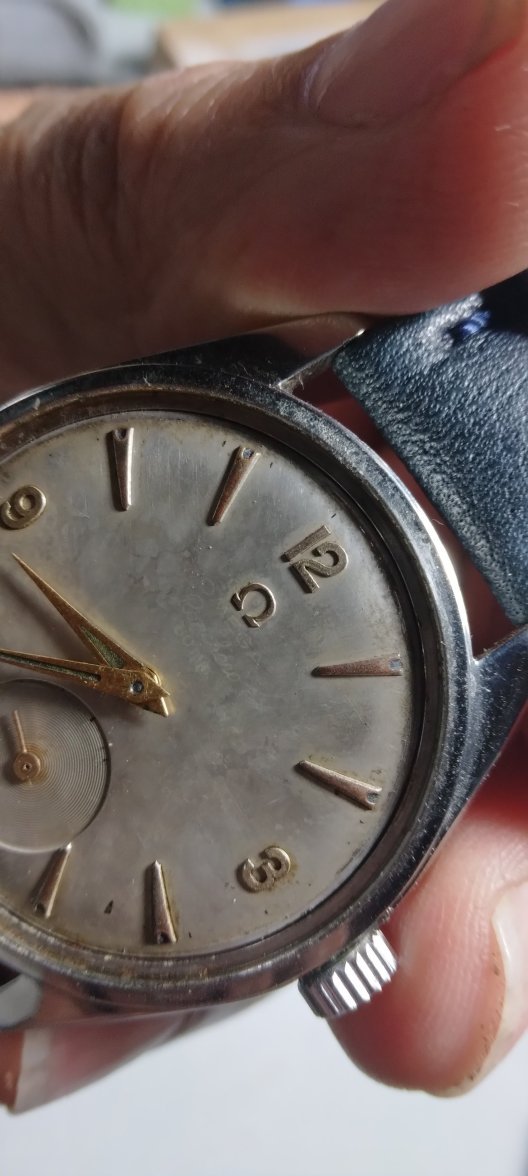

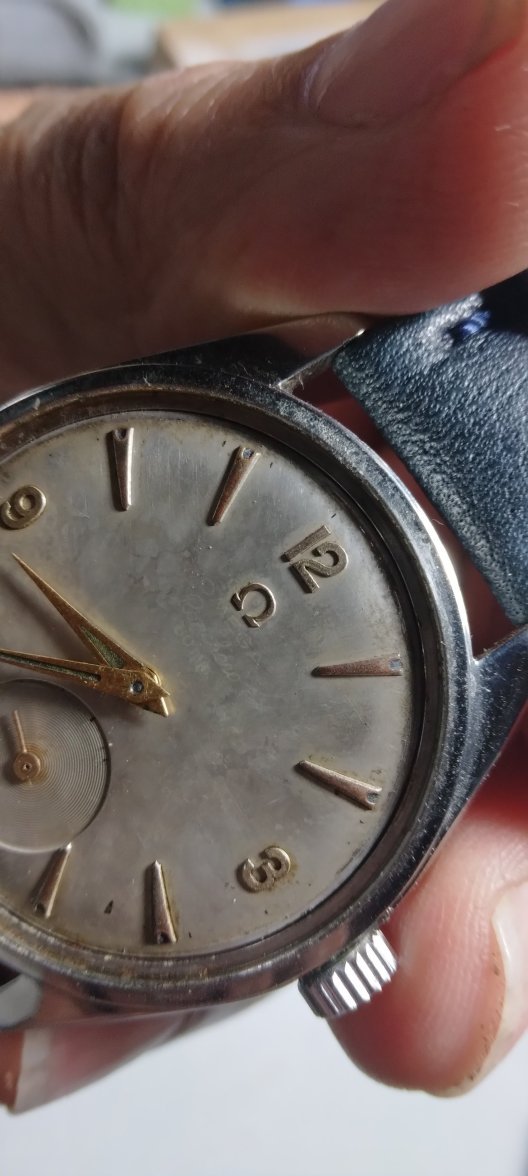

The only thing I found similar was your wonderful Seachero, it also has pencil marks.
I haven’t found dials with honeycomb texture in such models, only in automatic ones.

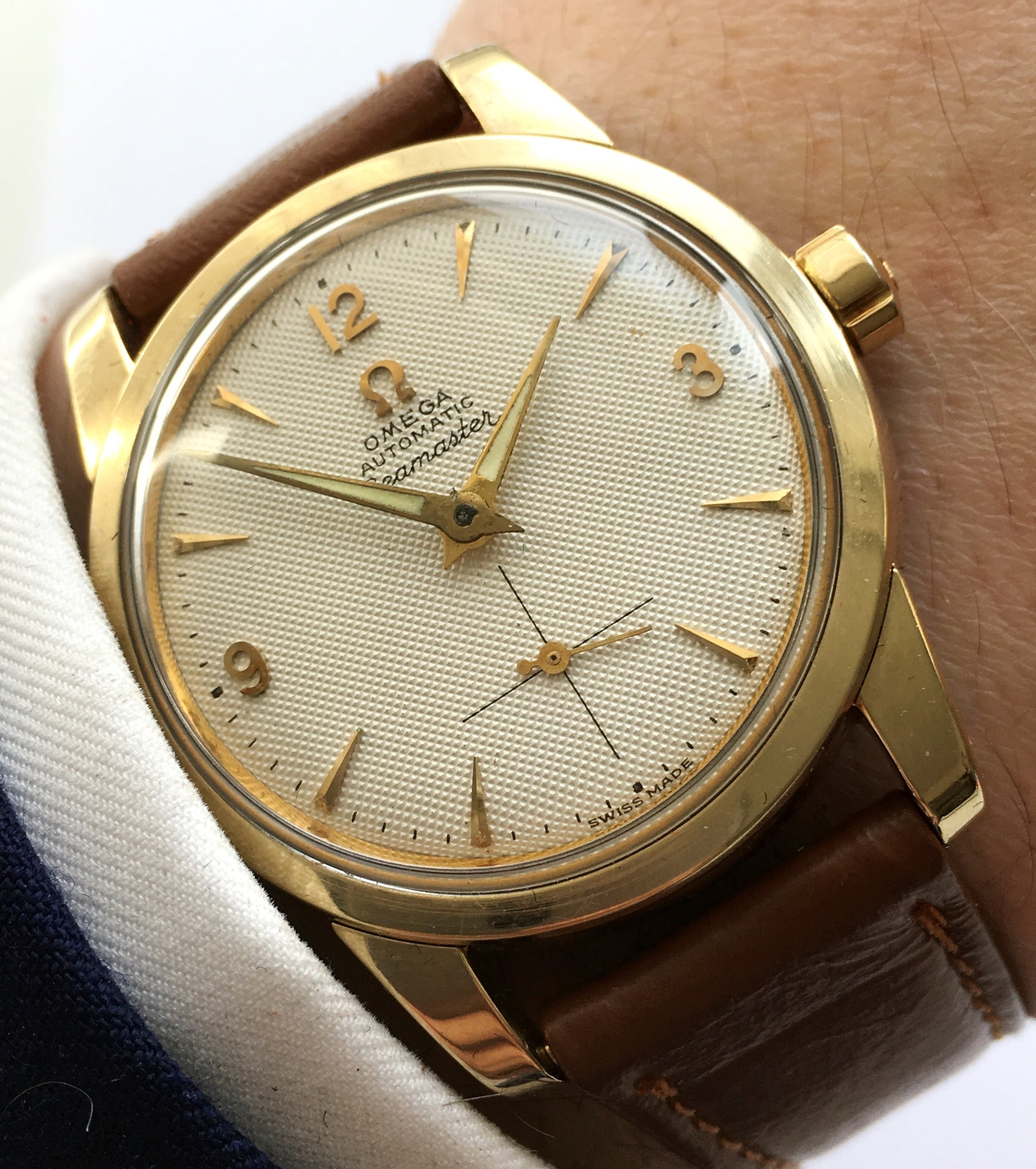

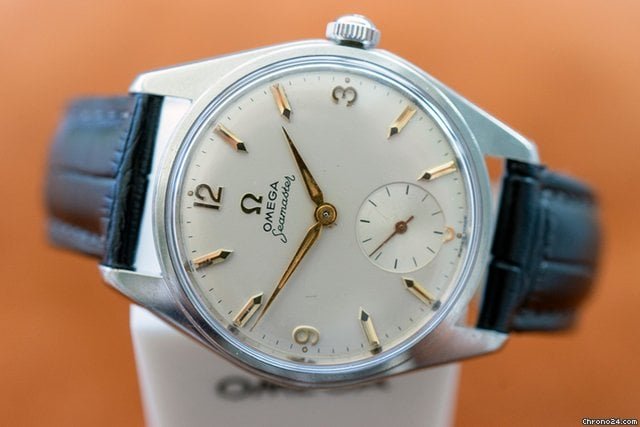

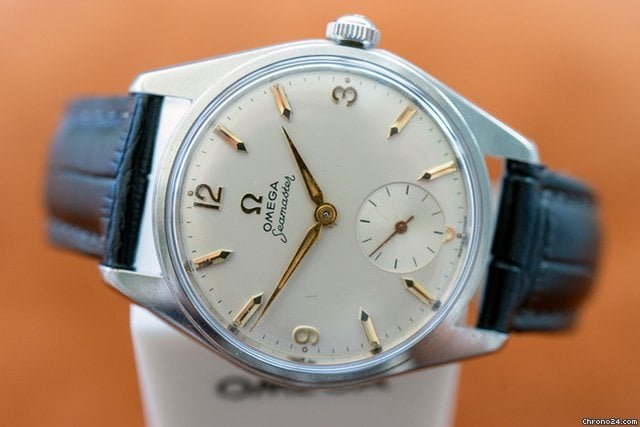

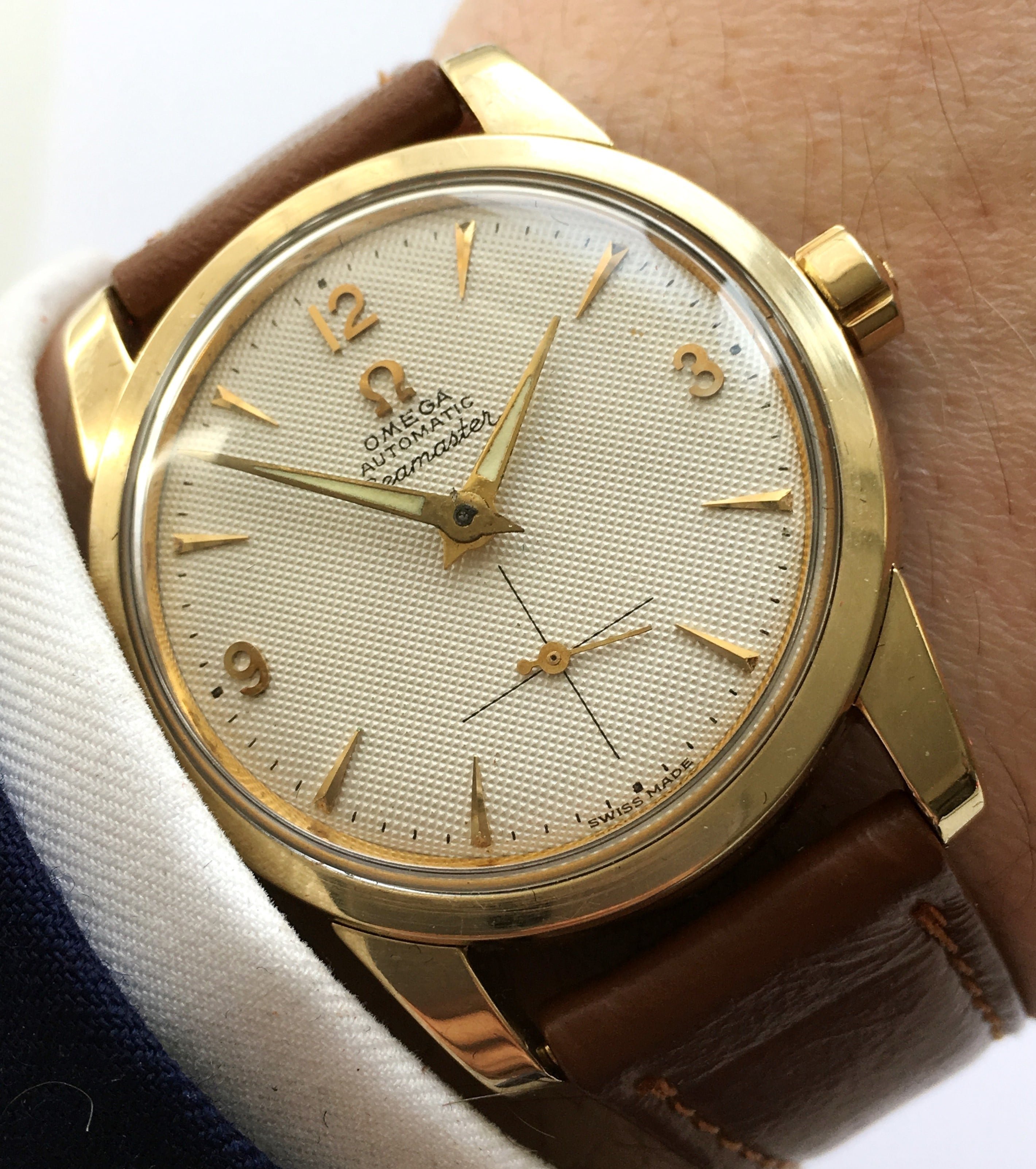

1644698-b5ef36227c54a4cd0b800b4471ee1a57.jpg 30761790-w4zfgqutaqmhwbbf47eezog0-Large.jpg a1718-omega-seamaster-honey-1.jpg

konung39
Posts
158
Likes
30

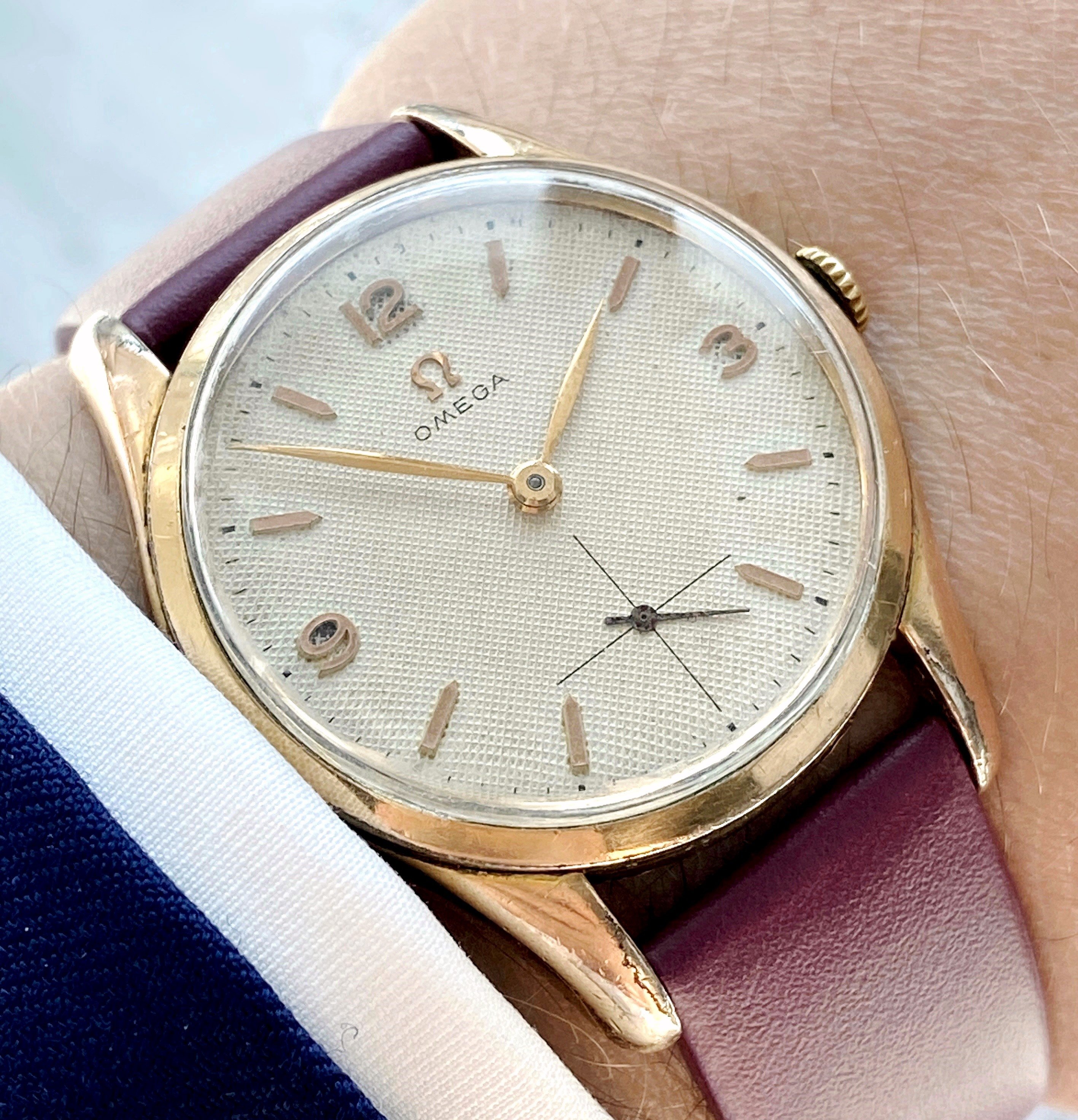

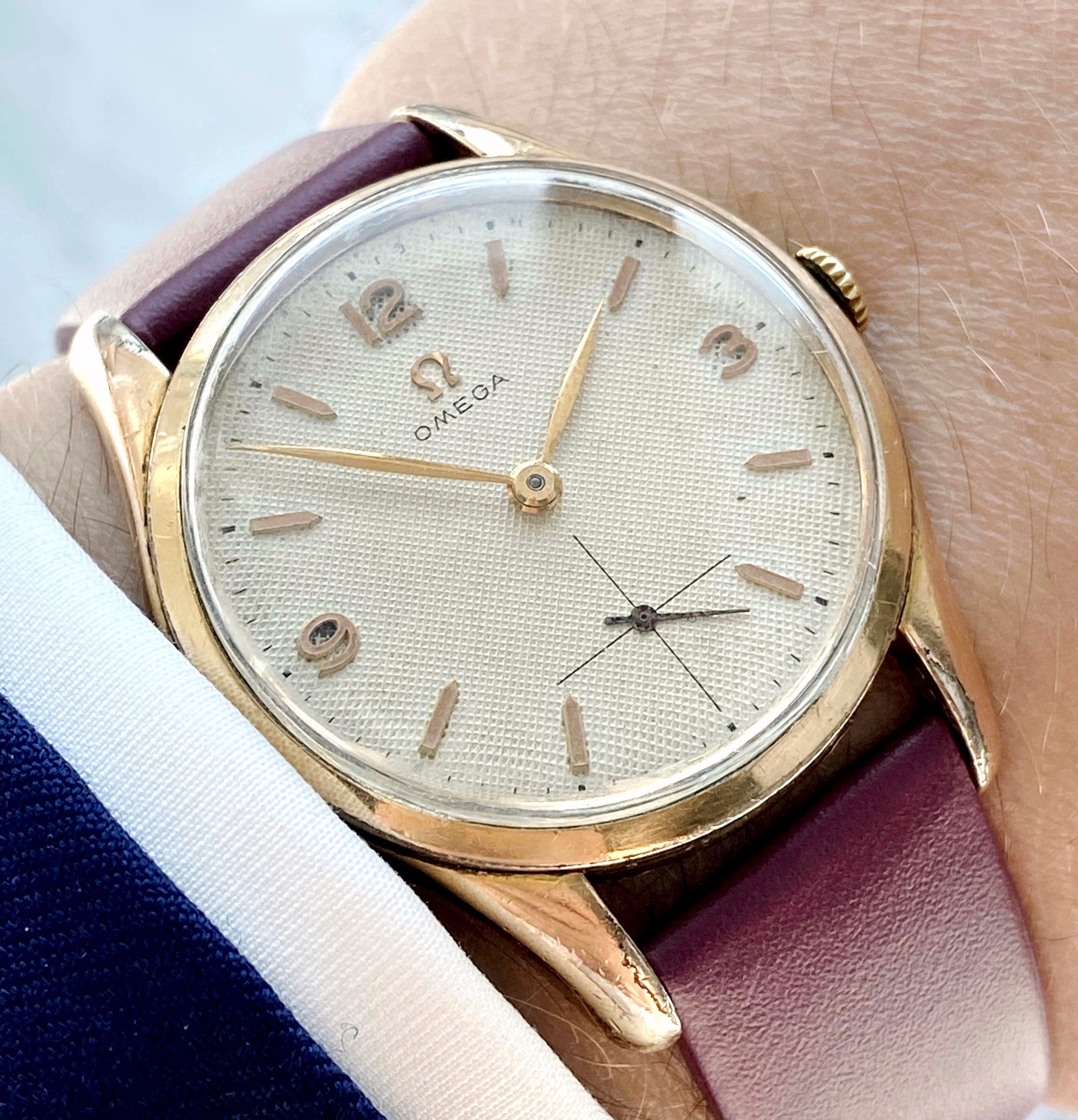

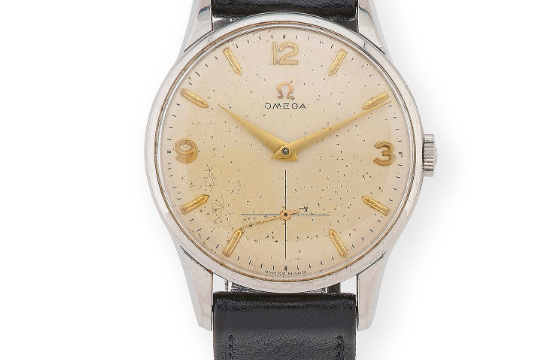

Here is the most similar option. But the marks are flat and (like the numbers) applied and not stamped
gm674-omega-honeycomb-handwind-1 (1).jpg

Ref 2503-13
Edited:

konung39
Posts
158
Likes
30
gbesq gbesq
Probably a “no name” Seamaster (a Seamaster without the “Seamaster” text on the dial)
Were there such models?
I saw some sellers on ebay post: preSeamaster model. I think they themselves came up with such a term.
The design is indeed similar to the 2990, but what is the dial diameter of the 2990?

konung39
Posts
158
Likes
30

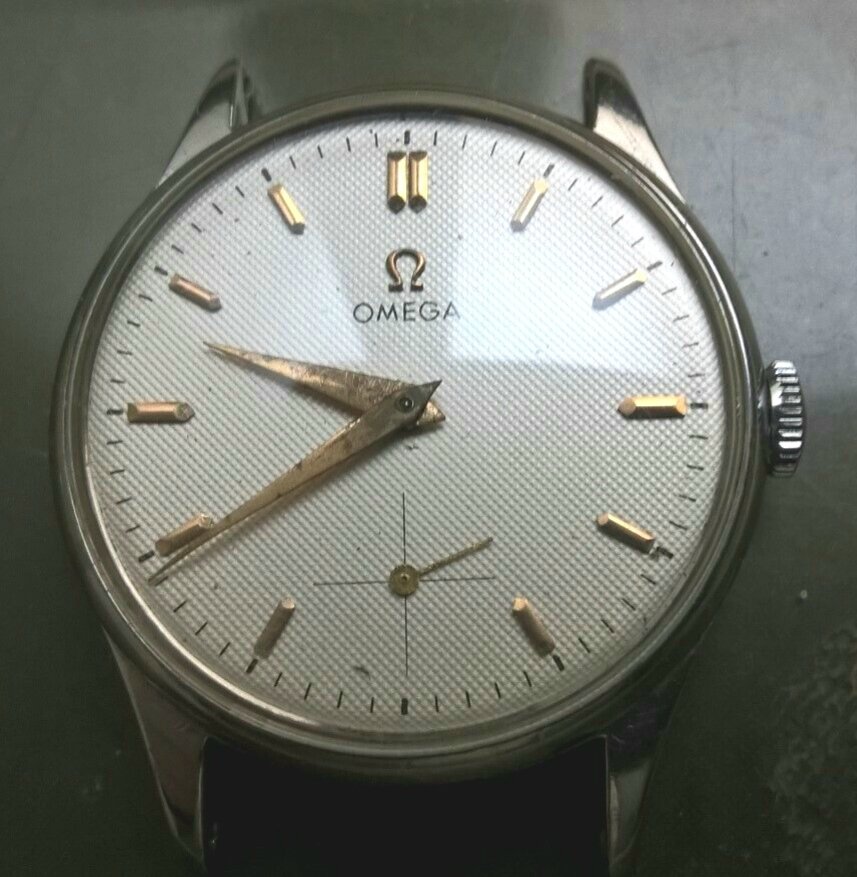

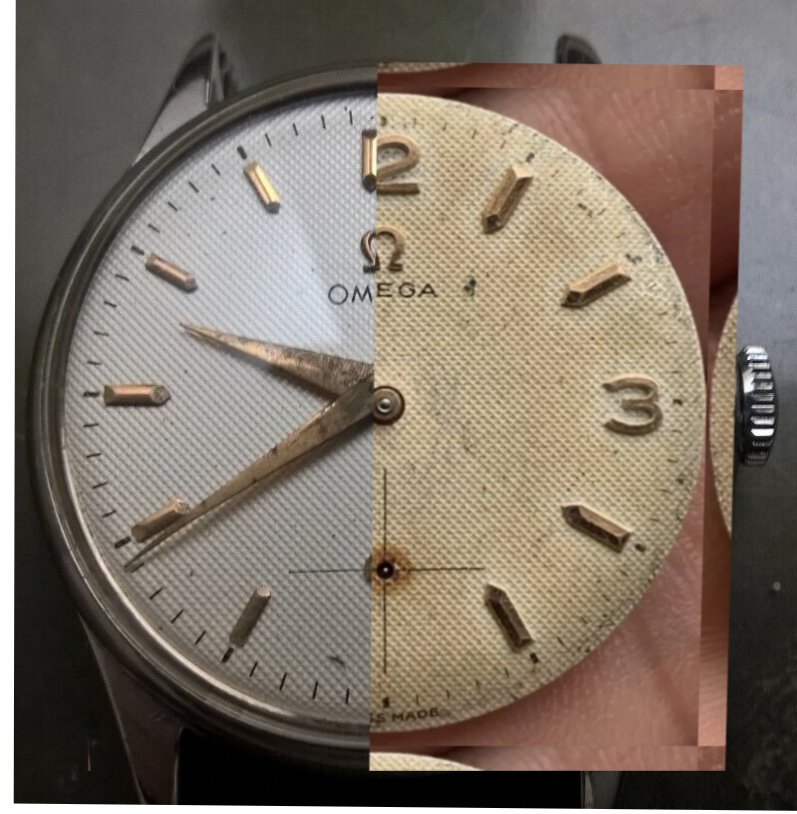

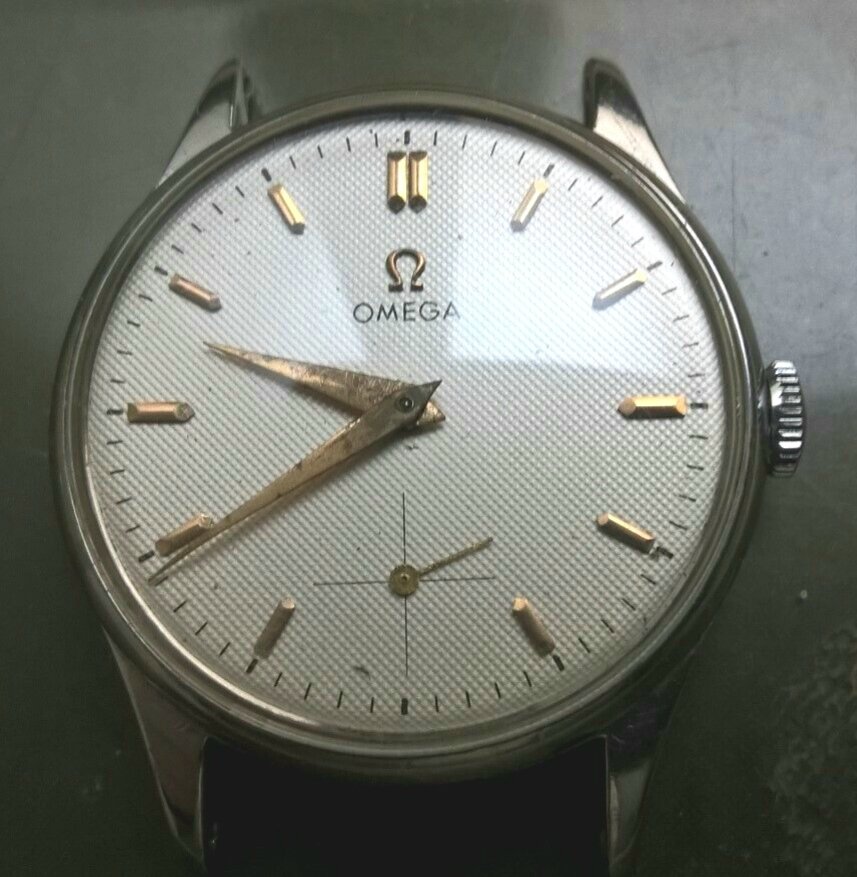

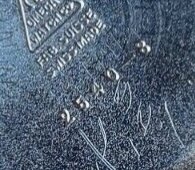

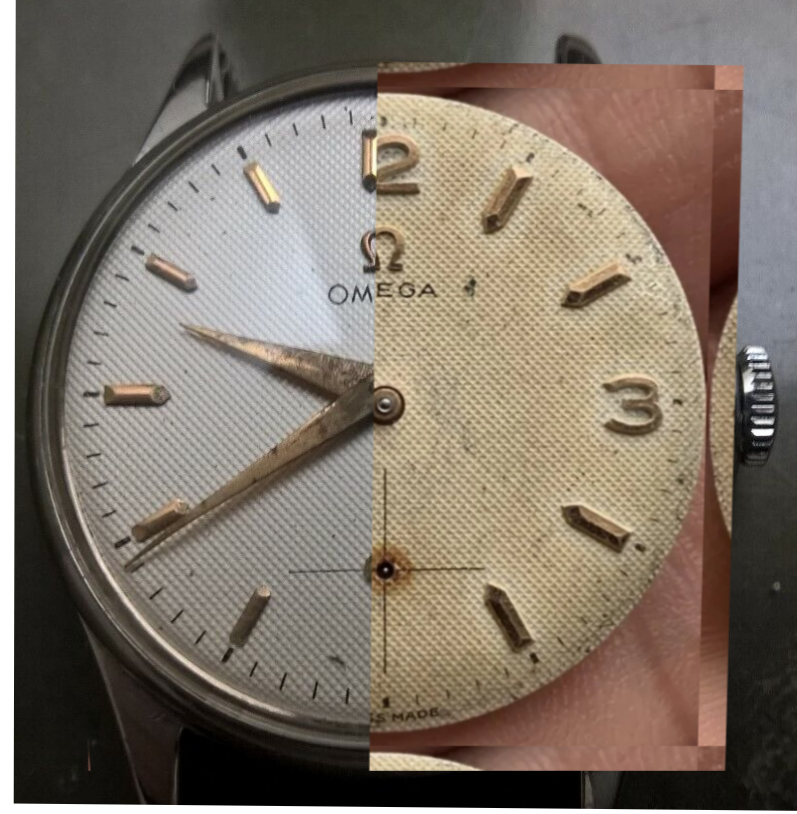

the most similar reference so far, 2540-8, 34mm case.
There are marks instead of numbers, but otherwise a complete match.

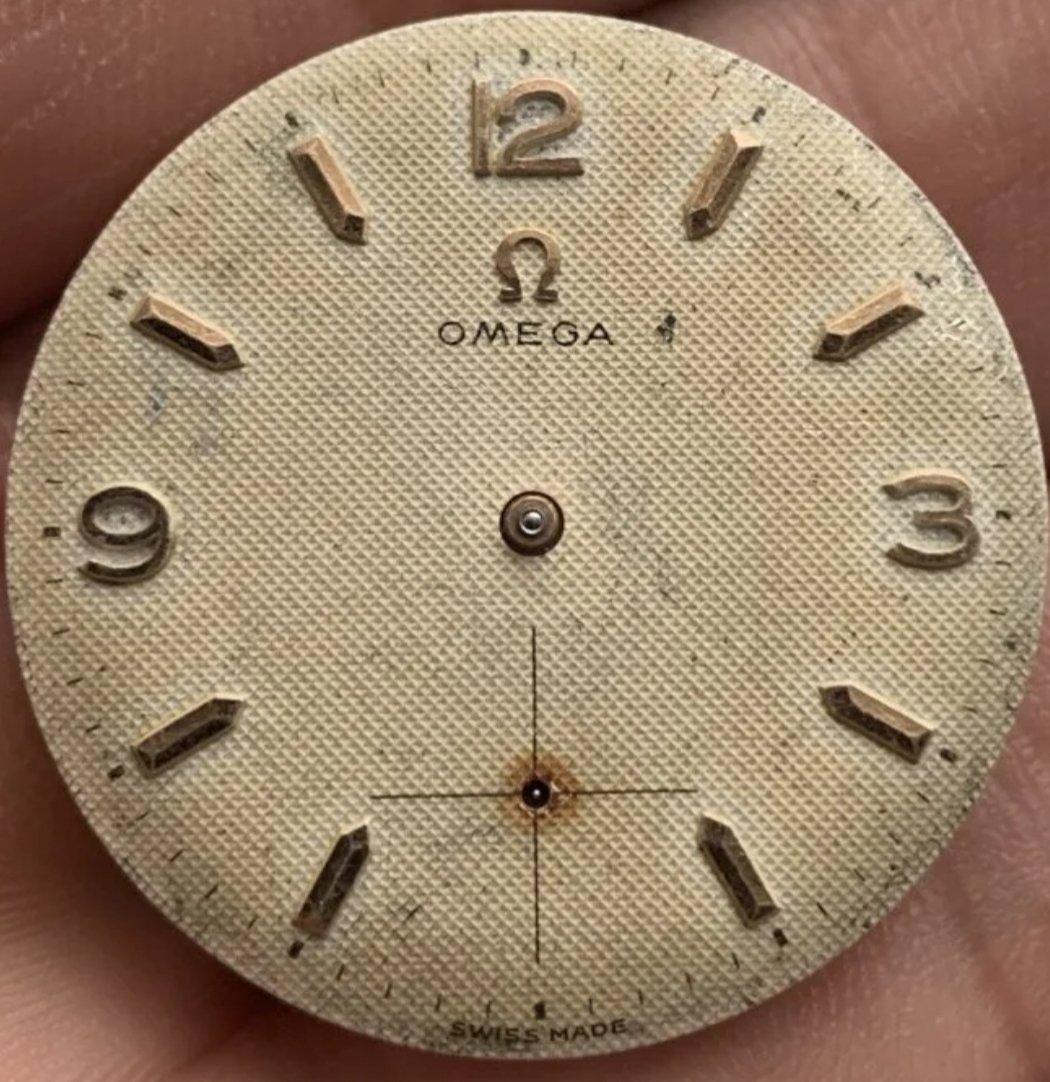

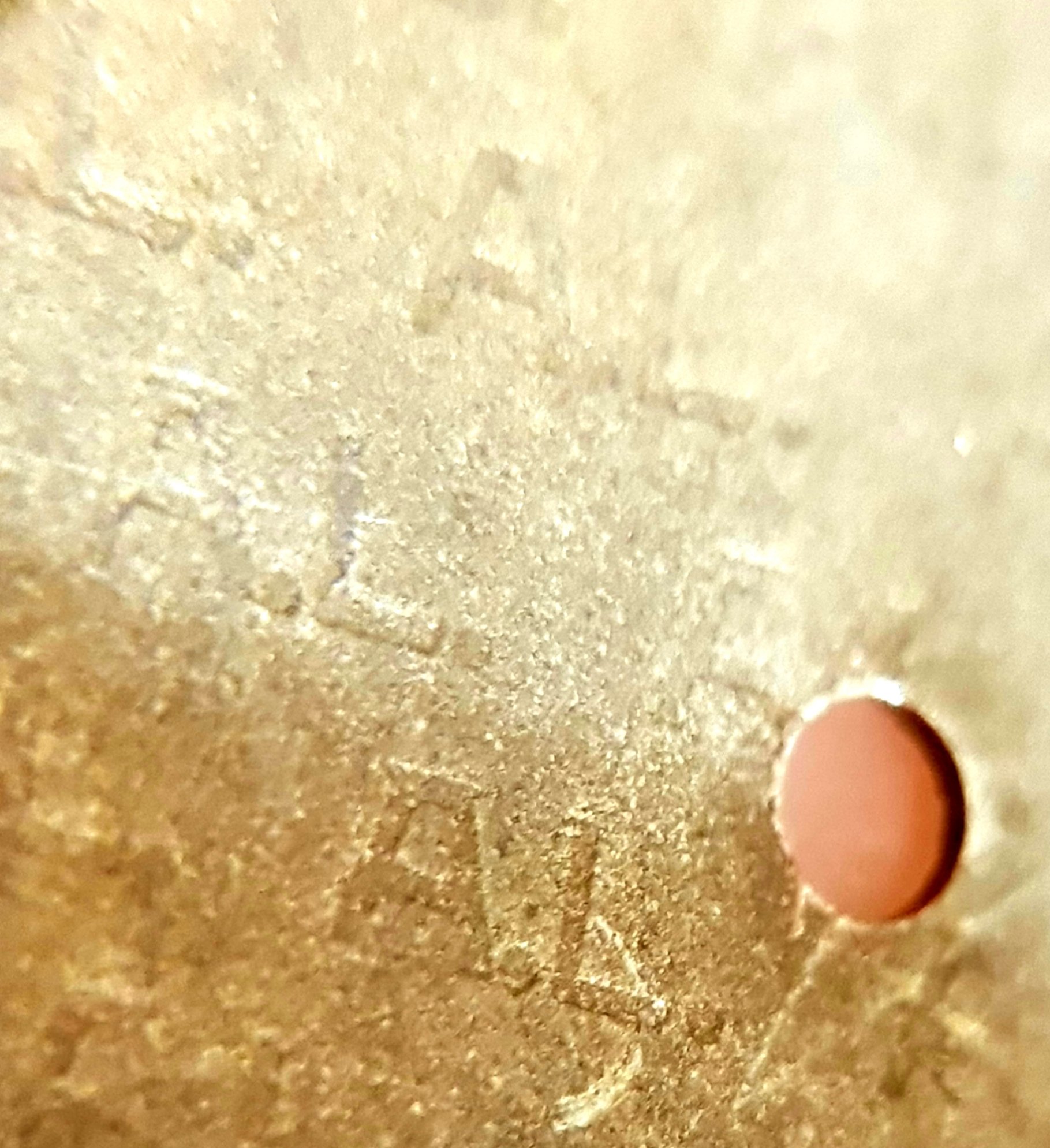

20240123_232721.jpg 20240123_232600.jpg Screenshot_20231206-181926_Chrome.jpg 1706045122002.png
Edited:

konung39
Posts
158
Likes
30
same style, but seamaster automatic:
https://omegaforums.net/threads/reduced-again-1954-jumbo-omega-seamaster-bumper-w-waffle-dial-rose-gold-markers.107938/ Cover Image
Thread '[Reduced again!] 1954 Jumbo Omega Seamaster Bumper w/ Waffle Dial & Rose Gold Markers' ·
Up for sale or trade is a very uncommon jumbo 36mm 2765/2764/2771 reference Omega Seamaster bumper with a two-tone waffle dial and rose gold dial furniture. The original dial is in nice condition...
SOLD
seekingseaquest ·

konung39
Posts
158
Likes
30
konung39 konung39
Were there such models?
I saw some sellers on ebay post: preSeamaster model. I think they themselves came up with such a term.
The design is indeed similar to the 2990, but what is the dial diameter of the 2990?
Yes, may be 2990, same diameter
