Omega Seamaster - Which wrench for case back

  1. dlee1964 Dec 22, 2013

    Posts
    7
    Likes
    3
    I need to replace the battery on my mens Omega Seamaster model OMG0111458 2541 circa 2004. I measured the face and it was roughly 42mm so that's the wrench that I bought. That wrench is WAY too big. Horotec makes the following sizes: 20, 30, 33, 42. Appreciate the help!

  2. ulackfocus Dec 22, 2013

    Posts
    25,983
    Likes
    26,968
    Caseback wrenches should be adjustable. Pictures are needed to help us understand what the problem is.

  3. X350 XJR Vintage Omega Aficionado Dec 22, 2013

    Posts
    12,426
    Likes
    29,482
    I think OP is talking about one of these.


    dlee1964 likes this.
  4. Archer Omega Qualified Watchmaker Dec 23, 2013

    Posts
    26,341
    Likes
    65,043
    Not only are there different diameters of the centerline of the 5 pins, but the pins themselves come in different diameters. The OP needs to measure the diameter of the 5 holes in the case back, and then the centerline of the 5 pins to determine which case back key is correct for the watch...

    Should be 2mm diameter pins, and 33 mm centerline diameter...at least the Omega tool for this is measured this way, but not sure if the aftermarket tools use the same references for measuring the pattern of the pins...

    Cheers, Al

    Patent guy and Spy like this.
  5. dlee1964 Dec 26, 2013

    Posts
    7
    Likes
    3

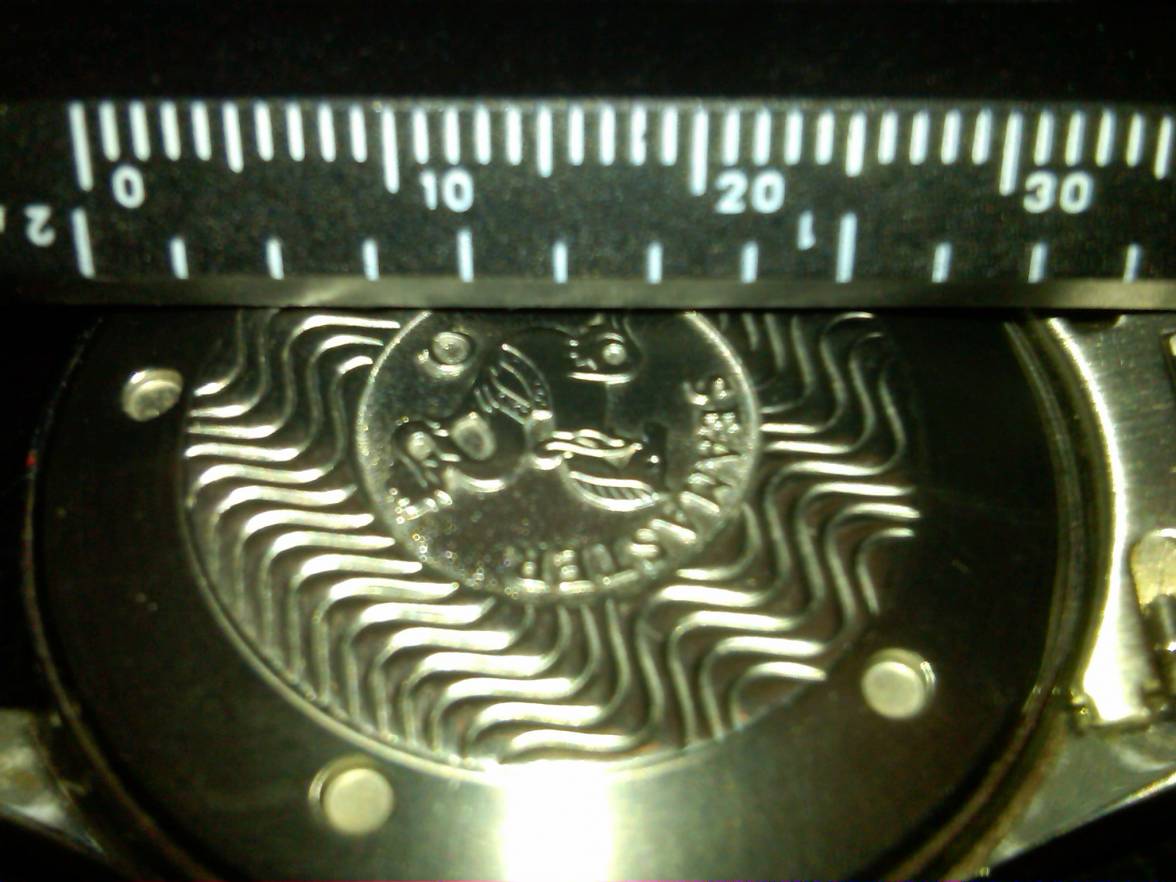

    Roswell-Alpharetta-20131226-00198.jpg I figured it out. I measured the wrench that I received to determine how the 42mm was being measured. 42 is the diameter of the tool. So I measured the diameter of the holes on the back of my watch and I see 30mm. So off to RMA the 42 and order a 30.

  6. dlee1964 Dec 31, 2013

    Posts
    7
    Likes
    3

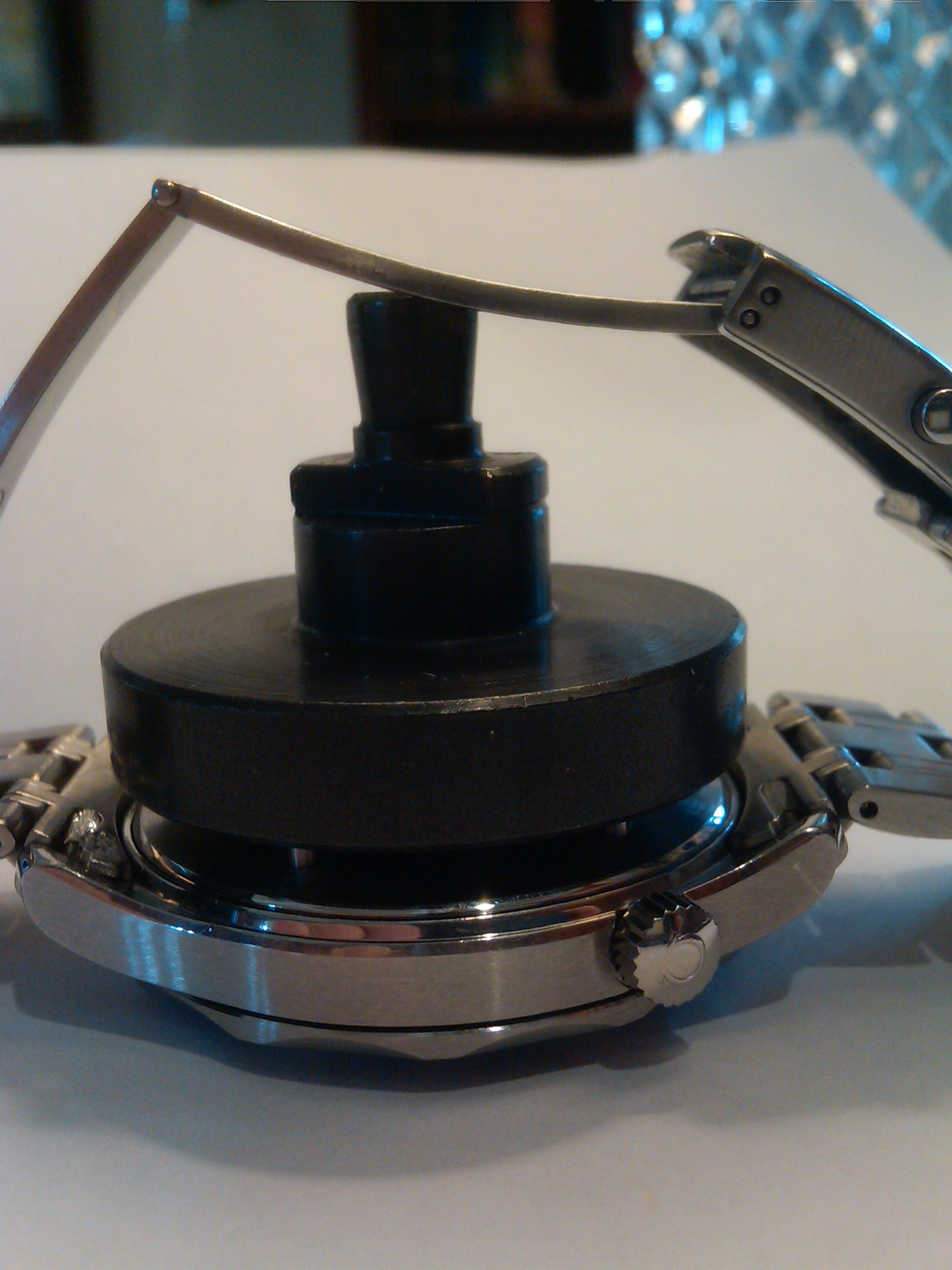

    Thought I should post a pic to close this out for others who find this thread useful. I reinstalled the bracelet before I thought to take the pic but should still be helpful. For my 2004 Omega Seamaster the correct tool is the 30mm. You will also want to buy the handle that this mounts in - Horotec Universal Die Key Watch tool 64.0748

    Omega with 30mm tool.jpg
    Patent guy and SpikiSpikester like this.
