Hello, I'd greatly appreciate some help with a, perhaps ambitious, restoration project. I dove into the hobby close to 6 months ago but have been consuming servicing and restoration content for a few years.

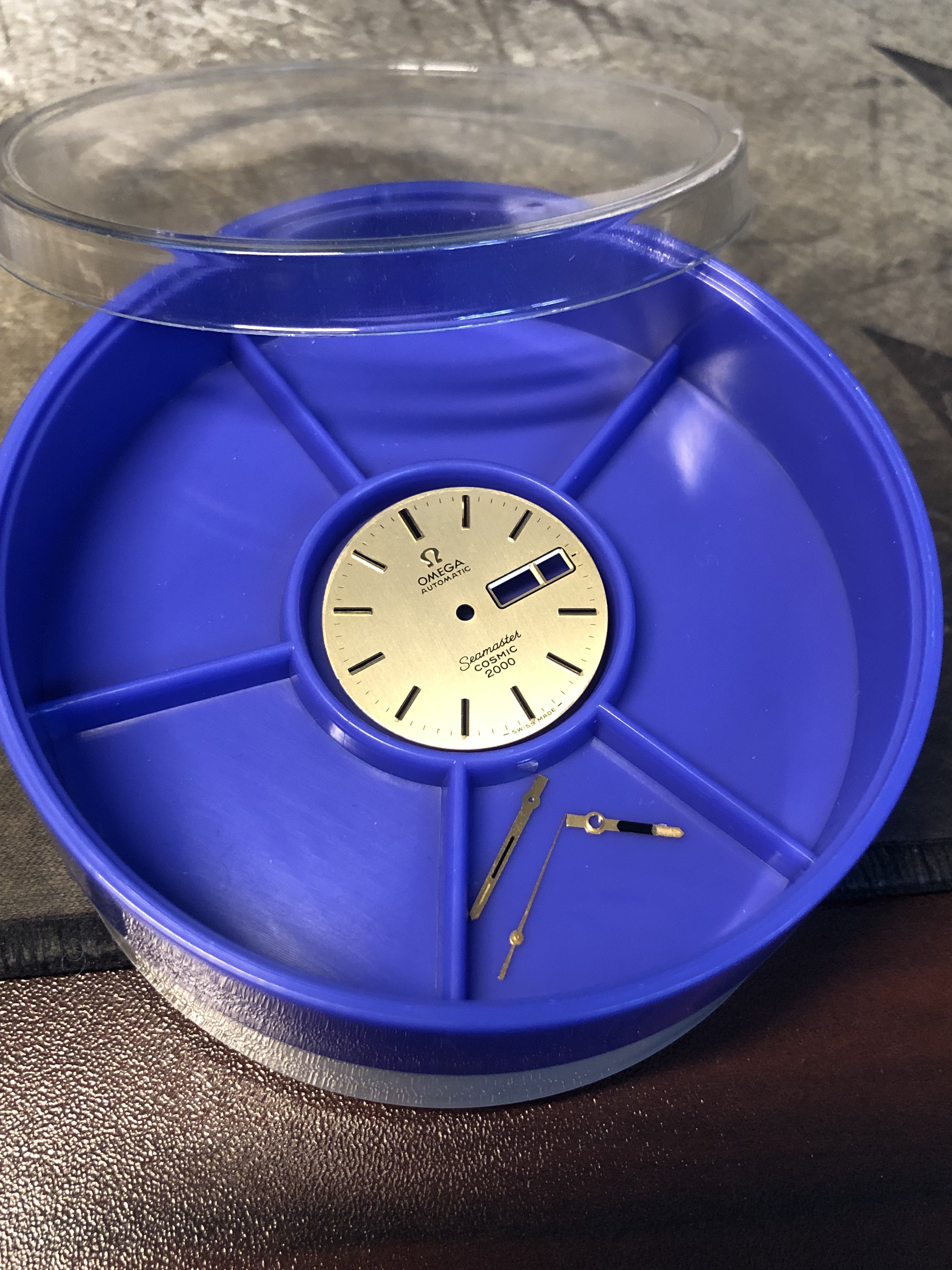

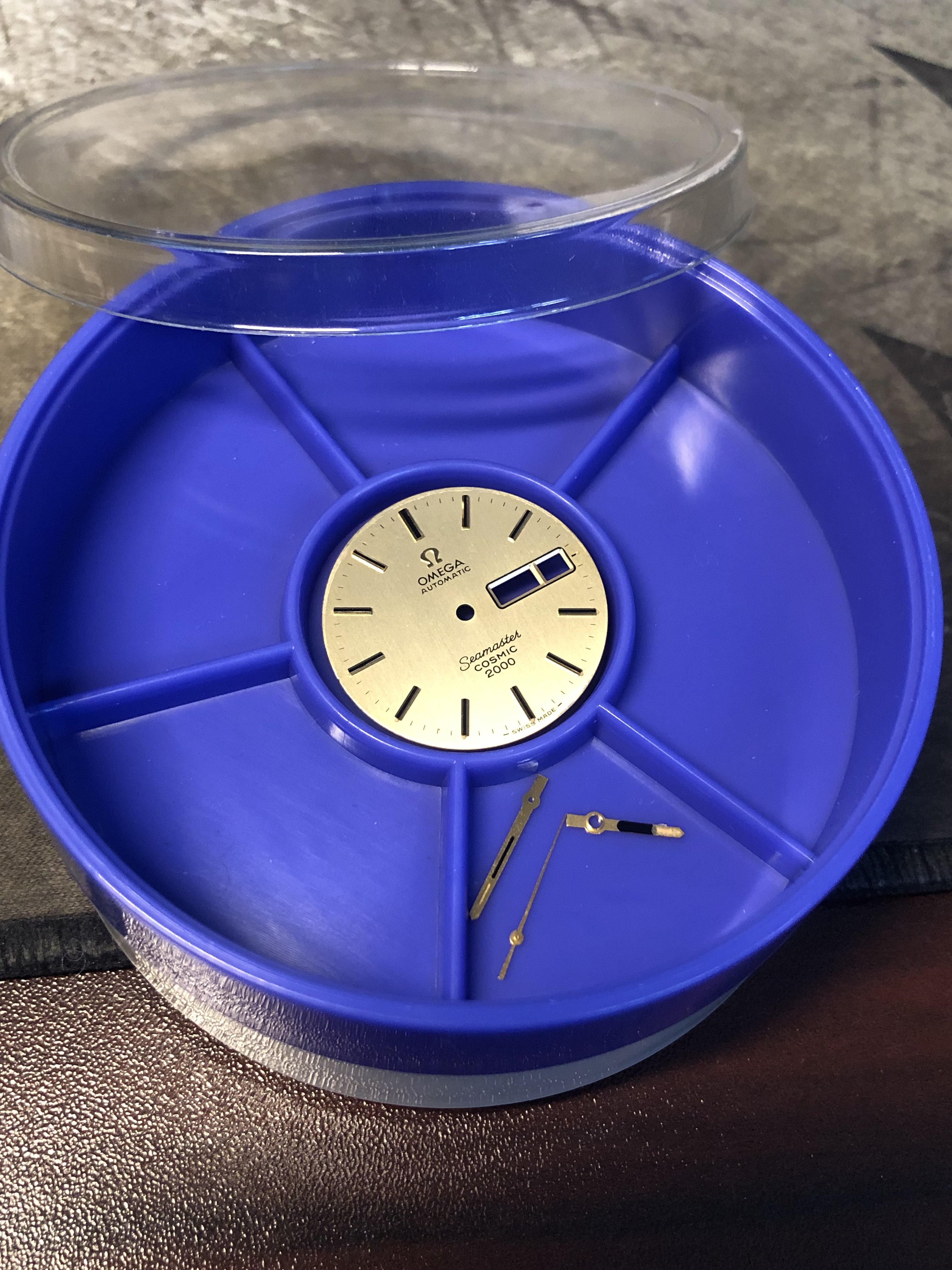

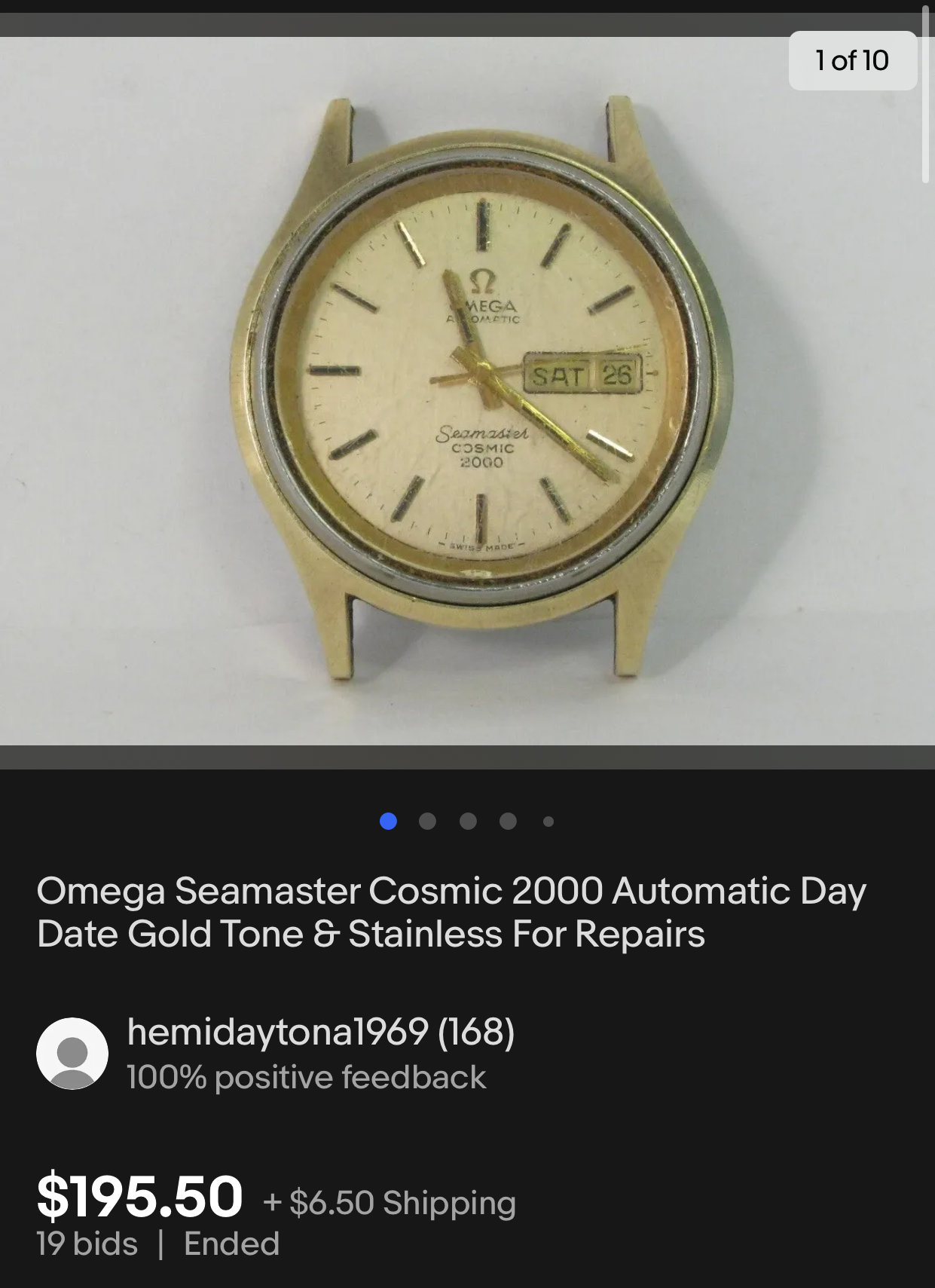

I purchased the watch (non-running, missing crown) from an eBay auction for what I believed to be a reasonable price. I received the watch and went through the frightening process of opening it, but was pleasantly surprise with an immaculate dial!

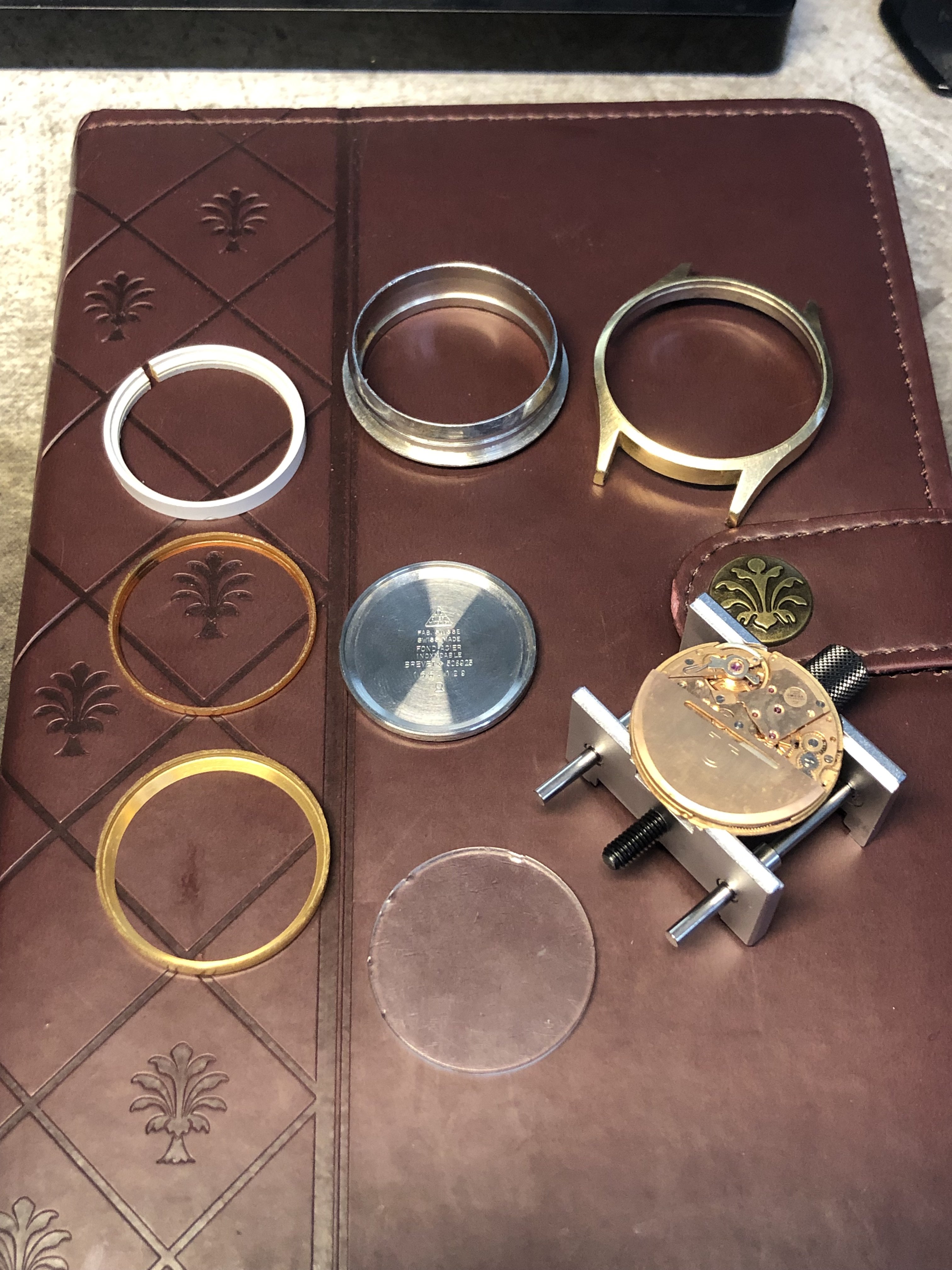

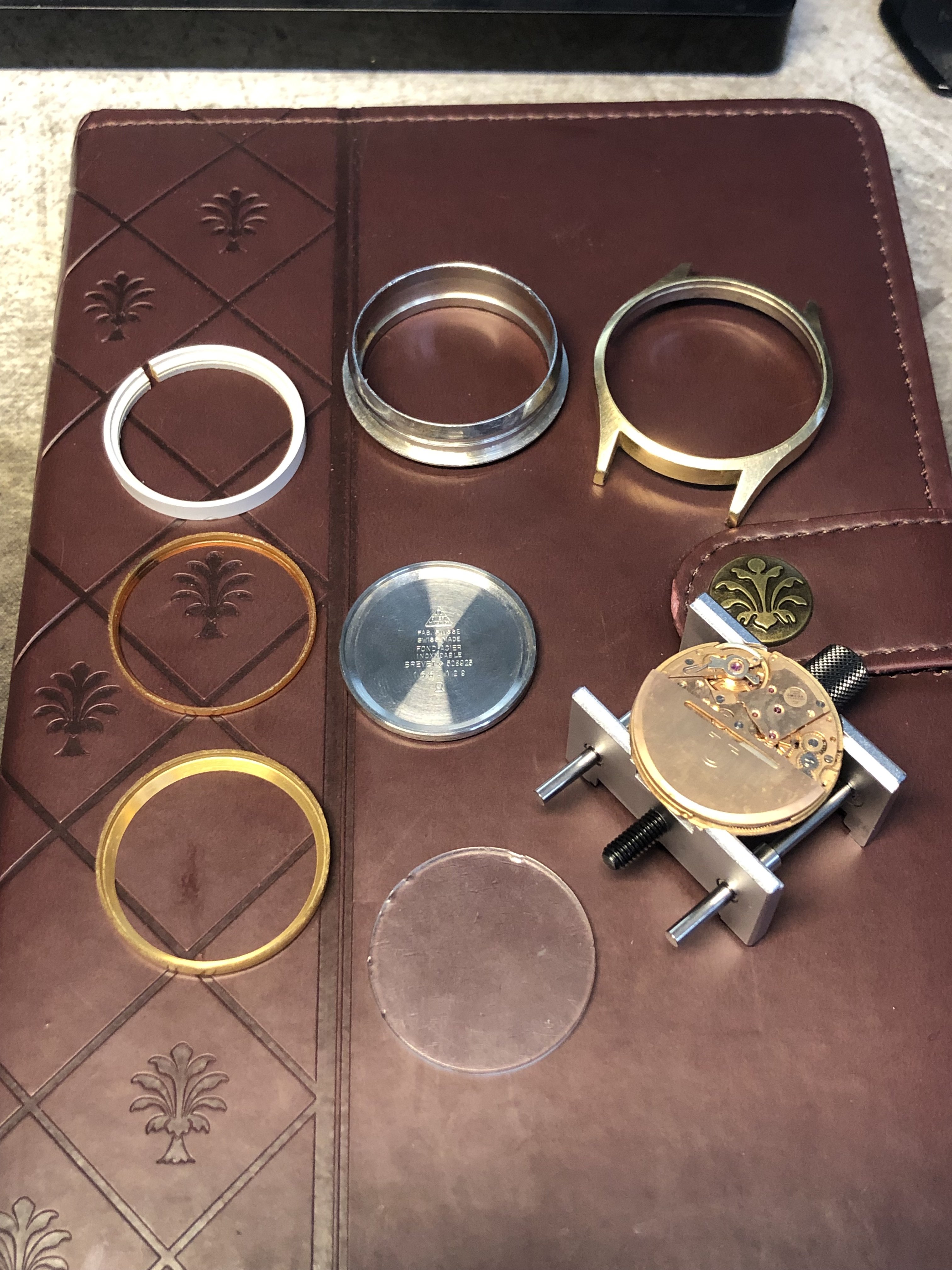

There is some debris and rust on the movement, but most seems to be superficial/surface and only the case tube was nearly fully eaten away. The movement (cal. 1020) does run! As helpful as these forums have been for other projects and information, I've had trouble to find much of anything about this specific piece. Ref#166.129
A parts list would be phenomenal. The case tube and seal o-ring is the minimum I need.

Thanks for any info you can share!


Posts
29,672
Likes
76,830
Case tube is 090ST4065.

Crown would be 069SX42528.

O-ring seal is 088NS5083 (31 mm X 31.6 mm X 0.8 mm cross section).

Crystal seal is 098EW0006.

Crystal is 063TN5190 (31 mm X 2 mm thick mineral glass).

Back case seal is 198ZT0008.

Posts
2
Likes
1
Case tube is 090ST4065.

Crown would be 069SX42528.

O-ring seal is 088NS5083 (31 mm X 31.6 mm X 0.8 mm cross section).

Crystal seal is 098EW0006.

Crystal is 063TN5190 (31 mm X 2 mm thick mineral glass).

Back case seal is 198ZT0008.
Thanks a ton Archer!

Posts
1
Likes
1
How did you get on with the restoration? I’ve got a similar stainless steel watch would be interested in finding out.

Posts
1
Likes
0
Case tube is 090ST4065.

Crown would be 069SX42528.

O-ring seal is 088NS5083 (31 mm X 31.6 mm X 0.8 mm cross section).

Crystal seal is 098EW0006.

Crystal is 063TN5190 (31 mm X 2 mm thick mineral glass).

Back case seal is 198ZT0008.
Hi sorry to bump this thread, I'm looking for the same crown but in steel and also the crown side of the split stem. Do you have any part numbers or information that would be much appreciated. Many Thanks in advance

Posts
29,672
Likes
76,830
Hi sorry to bump this thread, I'm looking for the same crown but in steel and also the crown side of the split stem. Do you have any part numbers or information that would be much appreciated. Many Thanks in advance
Crown is 069ST42528

Crown side of stem - 081ST9992
