Hello Everyone,

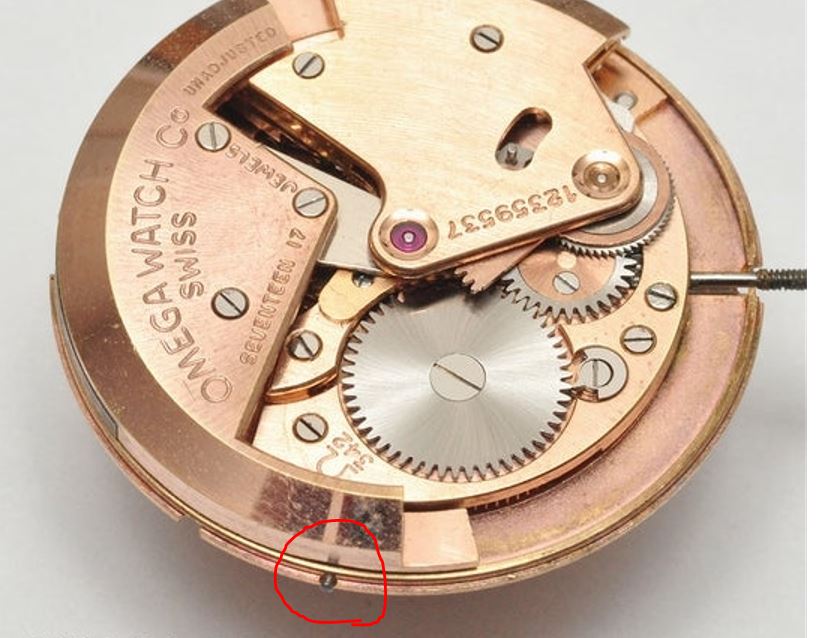

I have a 342 movement out of a 2576 that I bought disassembled. The part circled is missing on my 342, I just have a hole. It may have had threads at one time. Does anyone know if this is a screw or dowel?

Thank you

Archer
Posts
30,168
Likes
77,895
72203301022 | PLATE-FASTENER

This is a discontinued part...

Cheers, Al

G
Posts
12
Likes
0
Archer Archer
72203301022 | PLATE-FASTENER

This is a discontinued part...

Cheers, Al

Thank you Al,

Do you recall if the plate fastener was threaded into place or was it a press fit? I guess I will need to make something

watchyouwant
Posts
5,659
Likes
9,496
You will find a screw that fits in there. Threaded or not. The opposite case cut out will accommodate that.

DON
Posts
2,327
Likes
1,450
It's a press fit pin. Most watchmakers will either make one or most of the time will take a long thin screw, screw it into the hole and cut to needed length.

DON
