Omega 3330 Lift Angle

loaswa · Feb 4, 2026

Hi everybody!

Does anybody know the correct lift angle for the Omega 3330?
On the web, I found people telling it to be 38, 49, 50 or 52.
Only one can be correct ;-)

Thanks in advance for any help lifting the fog here!

JimInOz · Feb 4, 2026

https://omegaforums.net/threads/lift-angles-for-new-coaxial-calibres.98306/

Thread 'Lift Angles for New Coaxial Calibres' ·

Anyone have data for the lift angles on the various newer coaxial movements? I found info on the older 2500 (38degrees) but nothing on the newer 8XXX calibres.

Any help is much appreciated!

bama2141 · Jul 10, 2019

Archer · Feb 4, 2026

Please note that unless your timing machine has a specific setting for co-axial escapements, it will not measure the balance amplitude correctly. This will be a setting that you have to select through a menu setting.

502 to right · Feb 4, 2026

Archer
Please note that unless your timing machine has a specific setting for co-axial escapements, it will not measure the balance amplitude correctly. This will be a setting that you have to select through a menu setting.

Piggybacking on Archer's comment, some of the Chinese made timegraphers claim to be able to read co-axial movements. This is misleading. They can accurately measure rate and beat error but not amplitude. I don't know of any Weishi 1000 or 1900 timegraphers that can accurately measure the amplitude of a co-axial movement.

loaswa · Thurs. 11:49am

JimInOz

https://omegaforums.net/threads/lift-angles-for-new-coaxial-calibres.98306/

Thread 'Lift Angles for New Coaxial Calibres' ·
Anyone have data for the lift angles on the various newer coaxial movements? I found info on the older 2500 (38degrees) but nothing on the newer 8XXX calibres.

Any help is much appreciated!

bama2141 · Jul 10, 2019

Thanks, but that thread unfortunately only mentions 8xxx movements, not the older 3330 for which I'm trying to find out the lift angle.

Archer · Thurs. 11:53am

L loaswa
Thanks, but that thread unfortunately only mentions 8xxx movements, not the older 3330 for which I'm trying to find out the lift angle.

38

loaswa · Thurs. 11:56am

Archer
Please note that unless your timing machine has a specific setting for co-axial escapements, it will not measure the balance amplitude correctly. This will be a setting that you have to select through a menu setting.

Thanks Archer!

I'll be measuring with a Witschi Chronomaster Pro. The Software allows to select a coaxial measuring mode

loaswa · Sat. 3:08am

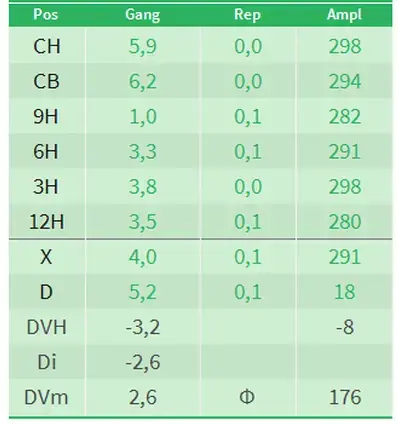

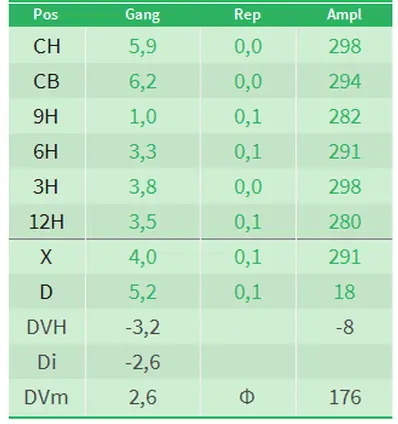

It seems Omega also adjusts their non-master chronometers quite nicely. That's what I measured for the 3330:

Omega 3330 Lift Angle

loaswa

JimInOz

Archer

502 to right

loaswa

Archer

loaswa

loaswa
