Measurements for Omega f300 caseback gasket?

  1. OmegaP99

    OmegaP99 Jul 31, 2020

    Posts
    295
    Likes
    388

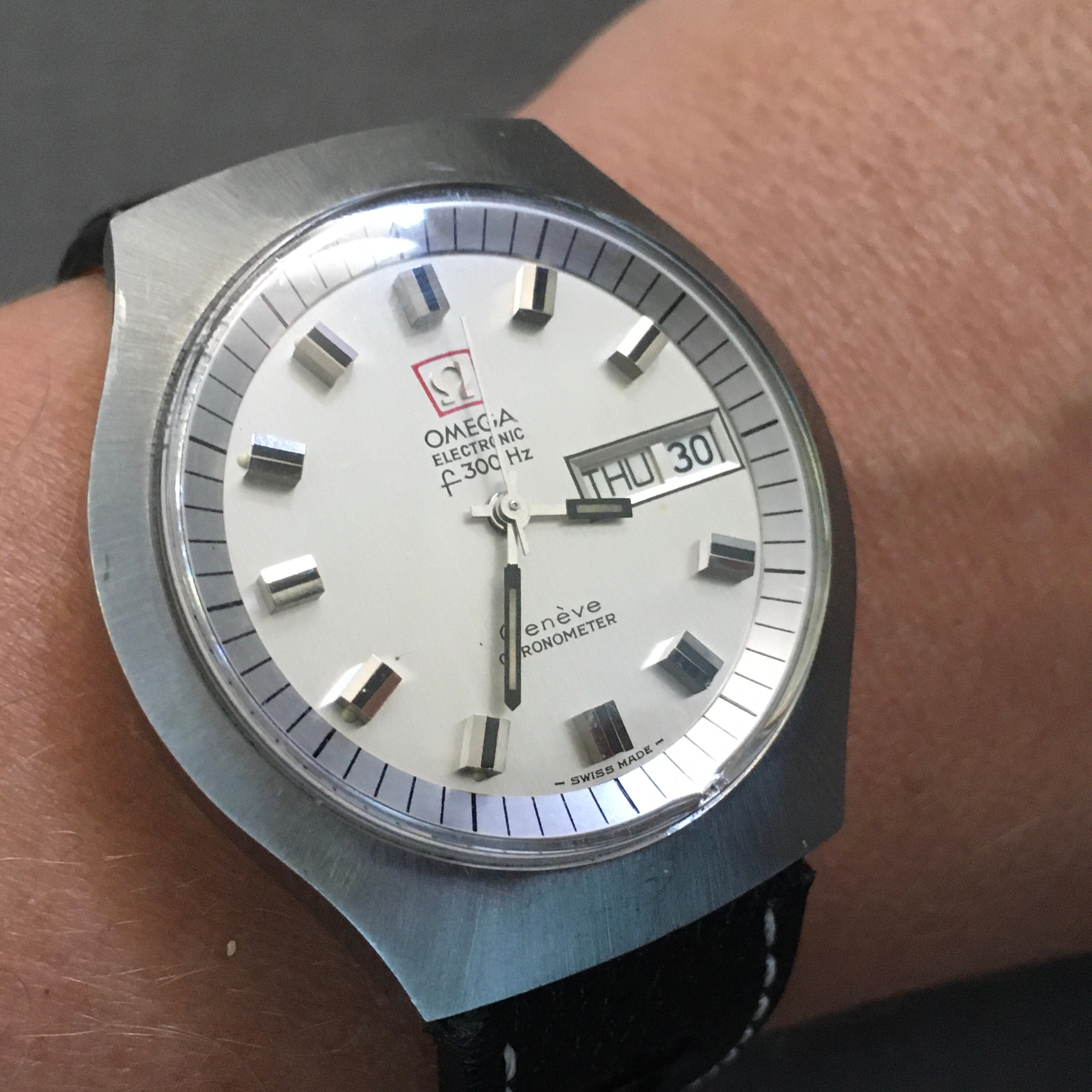

    I've now assisted my second friend within a month in getting their first Omegas (YAY!). The most recent one is this f300, ref 198.020 and it is missing the caseback gasket. I have part number 088.0607 for the gasket but it's proving difficult to source. I'm curious if anybody has the dimensions for this gasket instead, inside diameter and cross section (ex. 30mm ID x 1mm) so I may source a generic piece? Thank you!

    Yes, I know, pic or it didn't happen.


  2. X350 XJR

    X350 XJR Vintage Omega Aficionado Jul 31, 2020

    Posts
    9,289
    Likes
    19,308
    I measure 31.7mm od x.80mm.

    OmegaP99 likes this.
  3. padders

    padders Jul 31, 2020

    Posts
    5,722
    Likes
    8,345
    Generic will be fine. Guess how I know?

    OmegaP99 likes this.
  4. OmegaP99

    OmegaP99 Jul 31, 2020

    Posts
    295
    Likes
    388
    Ha! I think there may be a small clue. :cool:
    BTW I love this thing, have never had an f300 personally so they are now on my list after seeing that sweet second hand movement and that (to me) lovely whine it makes up close. Not to mention the applied logo and those chunky indices. Waiting to see if this one "sticks" with my friend or not, but if not, it's mine.

  5. padders

    padders Jul 31, 2020

    Posts
    5,722
    Likes
    8,345
    The whine gets old eventually I'll be honest. I had at one point about 10 different hummers inc an Accutron Astronaut and a few different Omega styles (I had the silver dial 020 like you too) but they are all now with new owners. I keep the one on the left to remind me who I am when I come on here. A hummer on the night stand isn't a good idea but that aside they are great!

  6. OmegaP99

    OmegaP99 Jul 31, 2020

    Posts
    295
    Likes
    388
    I'll have this in my possession until the gasket arrives, so will see if these really work for me too or not. I'm enthralled by the story behind the movement, but prefer an Omega to the Bulova iterations, so would be a fun addition.
    I will add that my friend who picked this up has tinnitus, and I was worried a bit about his response, but he wasn't bothered at all to the whine. I will advise him not to keep on the bedside however.
    Is the chap in the UK still the best bet for servicing these when the time comes? I read up on the potential faults before this was purchased and he seems like the man for the job.

  7. OmegaP99

    OmegaP99 Aug 3, 2020 3:27pm

    Posts
    295
    Likes
    388
    I was ready to buy the black gasket that fits in the caseback channel but then realized there's also already a yellow gasket on the case side. When I searched images online for the 198.020 I can't find another with the yellow gasket, but they all have the black one on the caseback. It seems clear I should still install the black one, but is the yellow gasket correct, and should there be anything there at all?
    Somewhat confusingly it feels like it is snugging down against the yellow gasket, rather than metal to metal as I would have expected without the black caseback one in place. If I add the black one would it be wrong since it might then double up gaskets, something that's generally avoided in most situations?

    Also, I did ask the seller about the gasket and he said, "We installed a new yellow gasket in watch, its possible case back ring, got loose in shipping, we only snug on accutron movements, as you can damage them if too tight, just snug it up, and you should be good thanks."

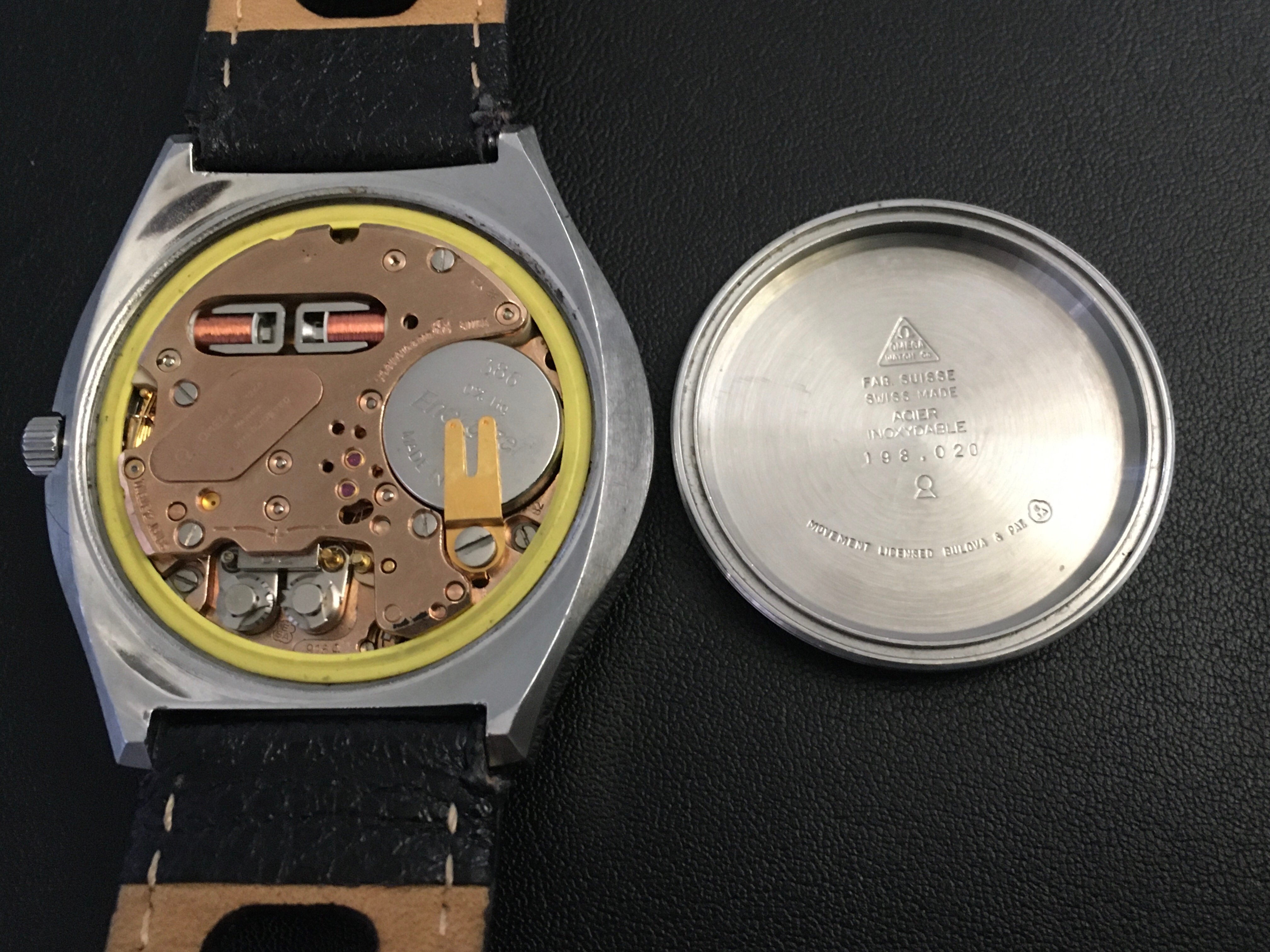

    Here's the full view of what I'm working with:

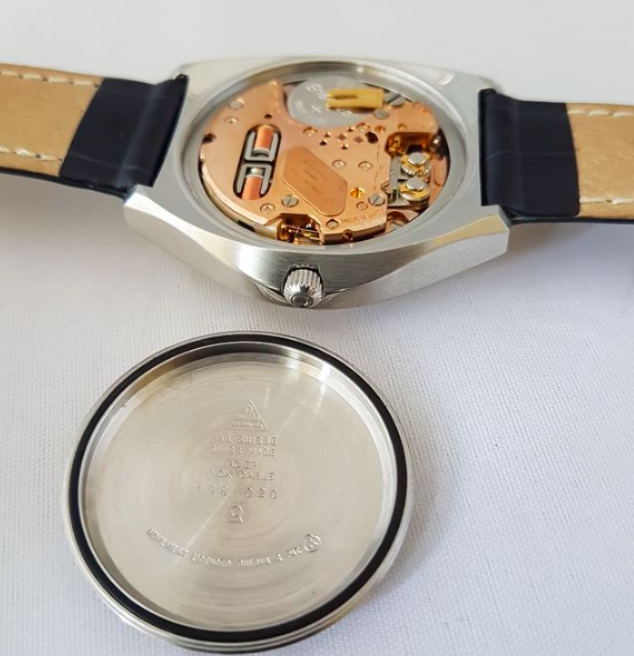

    However, this seems more typical of what I'm finding with online pics, no gasket on the case side:
    Screen Shot 2020-08-03 at 1.15.12 PM.png

  8. X350 XJR

    X350 XJR Vintage Omega Aficionado Aug 3, 2020 4:09pm

    Posts
    9,289
    Likes
    19,308
    Should be only the o-ring fitted to the case back.

    Looks like someone who didn't have access to the correct part bodged it with the yellow thing.

    Archer and OmegaP99 like this.
  9. OmegaP99

    OmegaP99 Aug 3, 2020 4:16pm

    Posts
    295
    Likes
    388
    Thank you, I will remove it once the correct seal arrives and toss that yellow bit in the "may need this never" drawer.

  10. Archer

    Archer Omega Qualified Watchmaker Aug 4, 2020 8:53am

    Posts
    17,891
    Likes
    37,824
    088NS5081 | SEAL O-RING D30 D31.6 Ø0.8

    OmegaP99 likes this.
