Looking for Universal Geneve signed crown tap 10 (0.9mm stem) for polerouter

Posts
8
Likes
16
Hello all!

Trying to track down a UG signed crown for my polerouter 215. Tap 10 (0.9mm stem). Can anyone point me in the right direction?

Thank you!!

Posts
68
Likes
119
I am looking for a original crown for my Polerouter 20360 - 2 (also Cal. 215) too.
Which one should match it and how can I be sure to pick up the right one?

king regards,

Timo

Posts
8
Likes
16
It will have the vintage style U logo with a shield around the U. I believe it's approximately 4.5mm x 2.5mm, sits flush against the body and has a gasket inside the crown. The most important thing is the tap size, it's tap 10 (meaning takes a 0.9mm stem).

Honestly I'd be happy with any UG crown with the right tap size.

Lemme know if you find anything!

Posts
388
Likes
1,033

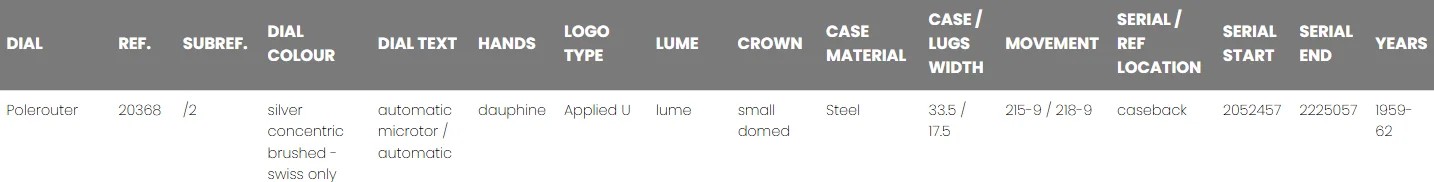

The correct crown for a Polerouter/Polarouter is specific to the model reference number.
https://universalgenevepolerouter.com/guide-to-locating-model-reference-and-serial-numbers/
All stems are the same thread for most (if not all) Polerouters (and UG perhaps) from this era.

Emily - what is the model reference of your Polerouter?
Timo - a 20360 should have the larger domed style, one that fits over the case tube of the 20360 and is 5.20-5.25mm diameter.

There are some crowns that look very similar on the outside, but are not interchangeable between references due to the internals and different sized case tubes for different references. They will fit the stem of course, but will not fit over the case tube... Ive run into problems a couple of times but have not yet gotten to the bottom of it (the differences are very small).

EDIT: Here are a couple of examples of what I believe to be the correct 20360 reference crown.
They wear down and become more rounded around the edges, but the two here look quite sharp/new:
https://shop.hodinkee.com/products/a-1950s-universal-geneve-polerouter-automatic?variant=31678302468
http://claremontvintage.com/shop/watches/ug_44/

Hope this helps...
Edited:

Posts
8
Likes
16
Thank you CafeRacer. I'm not sure of the exact reference of my polerouter, but it's a cal 215 first gen (post patent pending but not a 215-1), also a no date. Guessing 1959-1960 vintage.

I actually had the original crown for my watch, it is domed and like the ones you've linked, but unfortunately the stem broke flush in the crown and it can't be salvaged. I don't have calipers but it seems to be around 4.5-5mm in diameter.

Posts
388
Likes
1,033
Thank you CafeRacer. I'm not sure of the exact reference of my polerouter, but it's a cal 215 first gen (post patent pending but not a 215-1), also a no date. Guessing 1959-1960 vintage.

I actually had the original crown for my watch, it is domed and like the ones you've linked, but unfortunately the stem broke flush in the crown and it can't be salvaged. I don't have calipers but it seems to be around 4.5-5mm in diameter.

The crown can definitely be salvaged! Don't throw it away...
The stem is made of a different alloy of iron that can be selectively oxidised out of the crown.
There are many methods people swear by, but i've succeeded in removing a broken stem from a Polerouter crown by soaking it in concentrated bleach for about 6-8 hours, and periodically scratching out the rusted stem remnants with a pin (every hour or so...).

Posts
8
Likes
16
The crown can definitely be salvaged! Don't throw it away...
The stem is made of a different alloy of iron that can be selectively oxidised out of the crown.
There are many methods people swear by, but i've succeeded in removing a broken stem from a Polerouter crown by soaking it in concentrated bleach for about 6-8 hours, and periodically scratching out the rusted stem remnants with a pin (every hour or so...).

Oh wow, thanks for the tip. I will give it a try!

Posts
388
Likes
1,033
Oh wow, thanks for the tip. I will give it a try!
...And if your Polerouter case diameter is 33.5 mm diameter, it is probably a 20357-x, if it is 35.5 mm then probably a 20360-x.
Or even easier, in this case, you can discern between the two by the lug width (18 mm for 20357, and 19 mm for 20360).

Posts
8
Likes
16
...And if your Polerouter case diameter is 33.5 mm diameter, it is probably a 20357-x, if it is 35.5 mm then probably a 20360-x.
Or even easier, in this case, you can discern between the two by the lug width (18 mm for 20357, and 19 mm for 20360).

I believe it's 33.5mm, I measure 34mm by measuring tape. Also I have a 18mm strap on it now and it fits well, so I'm guessing it's a 20357.

Crown is soaking in bleach now hoping this works

Posts
1,237
Likes
4,718
I believe it's 33.5mm, I measure 34mm by measuring tape. Also I have a 18mm strap on it now and it fits well, so I'm guessing it's a 20357.

Crown is soaking in bleach now hoping this works
Doesn't alum play into the formula somehow? Or perhaps another method employs alum?

have fun
kfw

Posts
8
Likes
16
Half the stem is gone from the crown!! The bleach is definitely working. Hopefully the threads are good after this. Thank you so much CafeRacer!

Posts
3,839
Likes
8,638
Concentrated bleach sounds very aggressive (and stinky). I use Alum. You can buy it in the spice section at your local grocery store. I fill a shot glass with water and add about 1/2 tsp of alum, stir and simply drop in the crown. (cover the glass with a lid to keep evaporation down). It takes days but safe. The steel stem slowly bubbles away to the point where it looks like it was never there. Many others on the list do the same. Never failed for me.


Posts
388
Likes
1,033
Concentrated bleach sounds very aggressive (and stinky). I use Alum. You can buy it in the spice section at your local grocery store. I fill a shot glass with water and add about 1/2 tsp of alum, stir and simply drop in the crown. (cover the glass with a lid to keep evaporation down). It takes days but safe. The steel stem slowly bubbles away to the point where it looks like it was never there. Many others on the list do the same. Never failed for me.
Bleach is not a problem on steel crowns - it has a better reduction potential than than alum and is much faster, and the bleach will not oxidise the steel whilst there is any stem left in the solution.
The odour can be strong (leave it to soak in the bathroom?) and be sure to rinse/soak in tap water afterwards to make sure there is no residue left on the crown.

Posts
742
Likes
2,139
You should rinse in a mild acid solution after the bleach. Vinegar or citric works.

Posts
388
Likes
1,033
You should rinse in a mild acid solution after the bleach. Vinegar or citric works.
thorough rinsing with tap water is more than enough

Posts
3,839
Likes
8,638
What about the bleach's effect on the rubber gasket inside the crown? Chlorine attacks rubber.

Posts
388
Likes
1,033
What about the bleach's effect on the rubber gasket inside the crown? Chlorine attacks rubber.
...remove the rubber gasket. 👍

Posts
8
Likes
16
A polerouter crown is saved! Yes, I took out the rubber gasket as CafeRacer said. Worked very well! Thank you so much!
