Hello

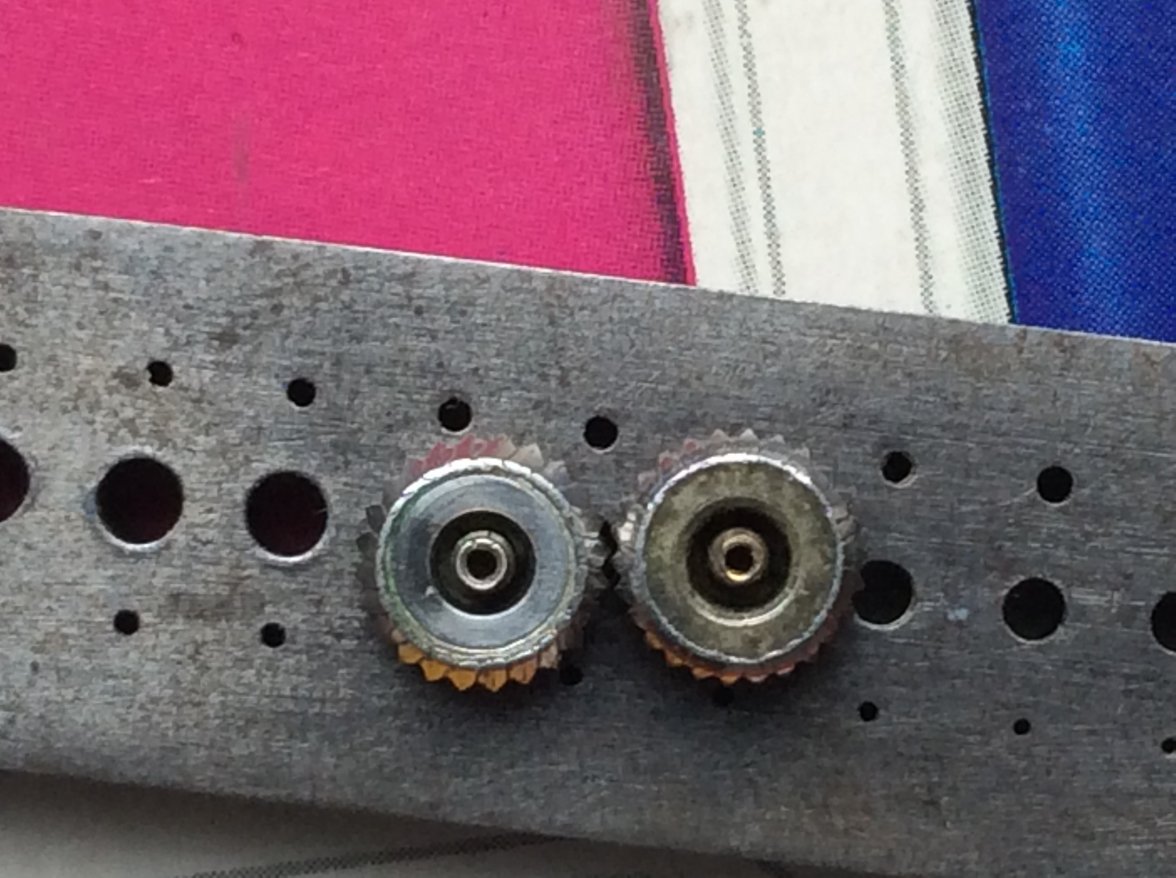

I was sorting out some stuff and came acrosse this crown from an old stock. Do you think it'as a rare crown? for speedy? it has a 6,7mm diamter (or so)

Posts
1,867
Likes
2,274
thanks, that's what I thought. what model do you think it can be?

Posts
1,867
Likes
2,274
😀 sh... would it be a 2915?
Edited:

Posts
1,853
Likes
5,396
😀 sh... would it be a 2915?

No, a 2915 crown would have the naïad Mercedes sign and 26 teeth.

Posts
628
Likes
1,166
No, a 2915 crown would have the naïad Mercedes sign and 26 teeth.
Do the naiad crown differ ? Seamaster vs Speedmaster? I understand both models used the Mercedes naiad. Are they universal in width/diameter?

Posts
9,217
Likes
24,051
Outwardly, they all look very similar. I believe the speedmaster crowns are a bit thicker, and the stem size for each of the masters is different.

@gemini4 has a sticky note somewhere with the tap sizes...

Edit:

Many available Flat Foot crowns need to be adjusted to fit a 321 movement as they might be a Railmaster (2914) or Seamaster300 (2913) crown. The pertinent stem sizes are

Speedmaster, 321 caliber, 1.0mm
Seamaster300 (2913), 501 caliber, 0.9mm
Railmaster (2914), caliber 284, 1.2mm
Edited:

Posts
628
Likes
1,166
Outwardly, they all look very similar. I believe the speedmaster crowns are a bit thicker, and the stem size for each of the masters is different.

@gemini4 has a sticky note somewhere with the tap sizes...

Edit:
Superb! Thank you my friend.

Posts
5,859
Likes
16,774
The stem sizes are:
2913 0.9mm, caliber 501
2915 1.0mm, caliber 321
2914 1.2mm, caliber 284

Additionally, most research (including MWO) and examples indicate that the 24 point, 6.7mm Flat Foot crown was the OEM crown on the 2915 Speedmaster.

The Naiad Mercedes type is more prevalent on the 2913 SM300 and the 2914 Railmaster.
As the Naiad was thought to be more water resistant it would have made little sense to install on a 2915 with leaky pushers.

Posts
628
Likes
1,166
The stem sizes are:
2913 0.9mm, caliber 501
2915 1.0mm, caliber 321
2914 1.2mm, caliber 284

Additionally, most research (including MWO) and examples indicate that the 24 point, 6.7mm Flat Foot crown was the OEM crown on the 2915 Speedmaster.

The Naiad Mercedes type is more prevalent on the 2913 SM300 and the 2915 Railmaster.
As the Naiad was thought to be more water resistant it would have made little sense to install on a 2915 with leaky pushers.
What a great write up! Thank you my friend. In your opinion did the earlier 14755’s have the Mercedes naiad crown? Or the flat foot all the way?

Posts
5,859
Likes
16,774
I believe only the 2913s had Naiad crowns (and lollipops).
Possible perhaps on the 14755-1 and 2. Not really seen, imho, on the more common 14755-61.

Posts
5,859
Likes
16,774
Search @kox posts regarding the straight lug SM 2913, 14755 and 165014. He is a Big Boss on these matters

Posts
628
Likes
1,166
Search @kox posts regarding the straight lug SM 2913, 14755 and 165014. He is a Big Boss on these matters
Will do! Thanks again!

Posts
1,867
Likes
2,274
Hi all

thanks for all these informations. What do you mean by mercedes? 😗

Posts
1,867
Likes
2,274
I never heard about this car brand ::facepalm1::
Thanks for the pic of the crown, I had never seen it before
