Hi OF'ers,

I recently bought a lovely LNOS record watch co moonphase triple date watch. I was previously informed the moonphase did not work but I figured this would be repairable. Unfortunately my watchmaker inspected the movement and he cannot recognise it, and thus not find any replacement parts.

My question to you would be if anybody can recognise the movement, or perhaps knows a watchmaker / collector specialized in these type of things. (Or if anybody knows the spare part, that would be great too of course).

It would be a waste of a lovely watch to have it without the moonphase working.

Here are movement pictures:




Thanks for any help!

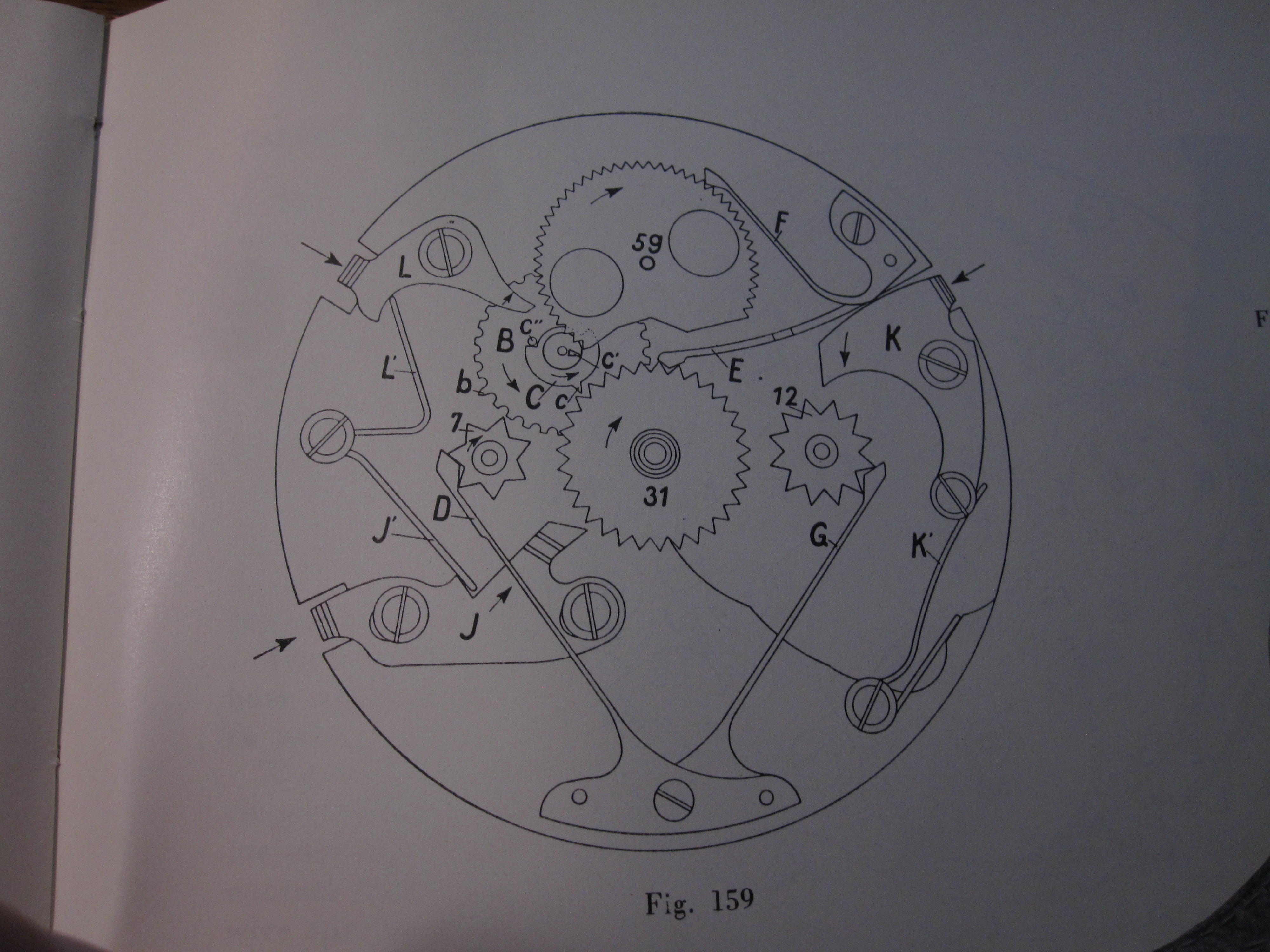

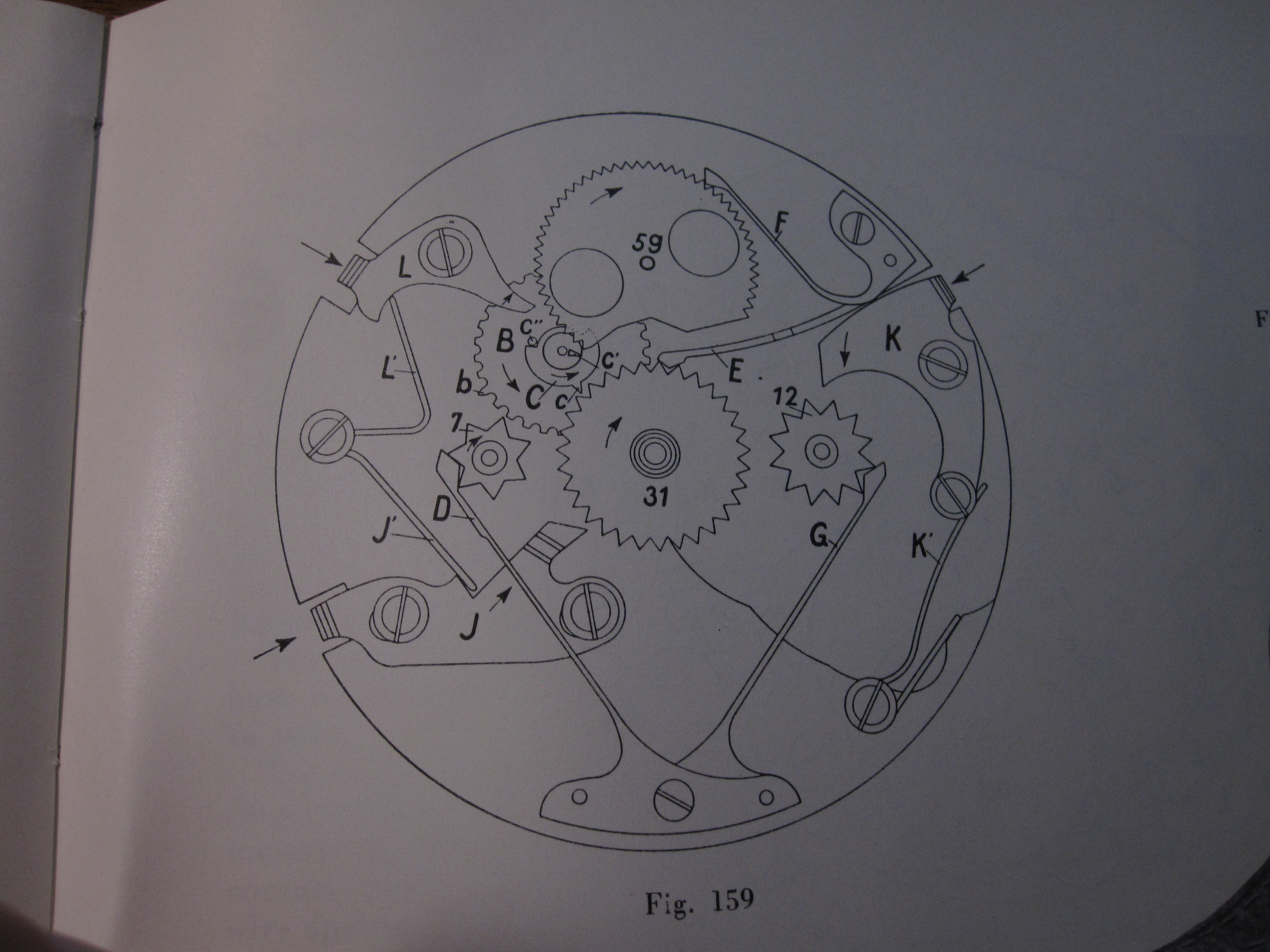

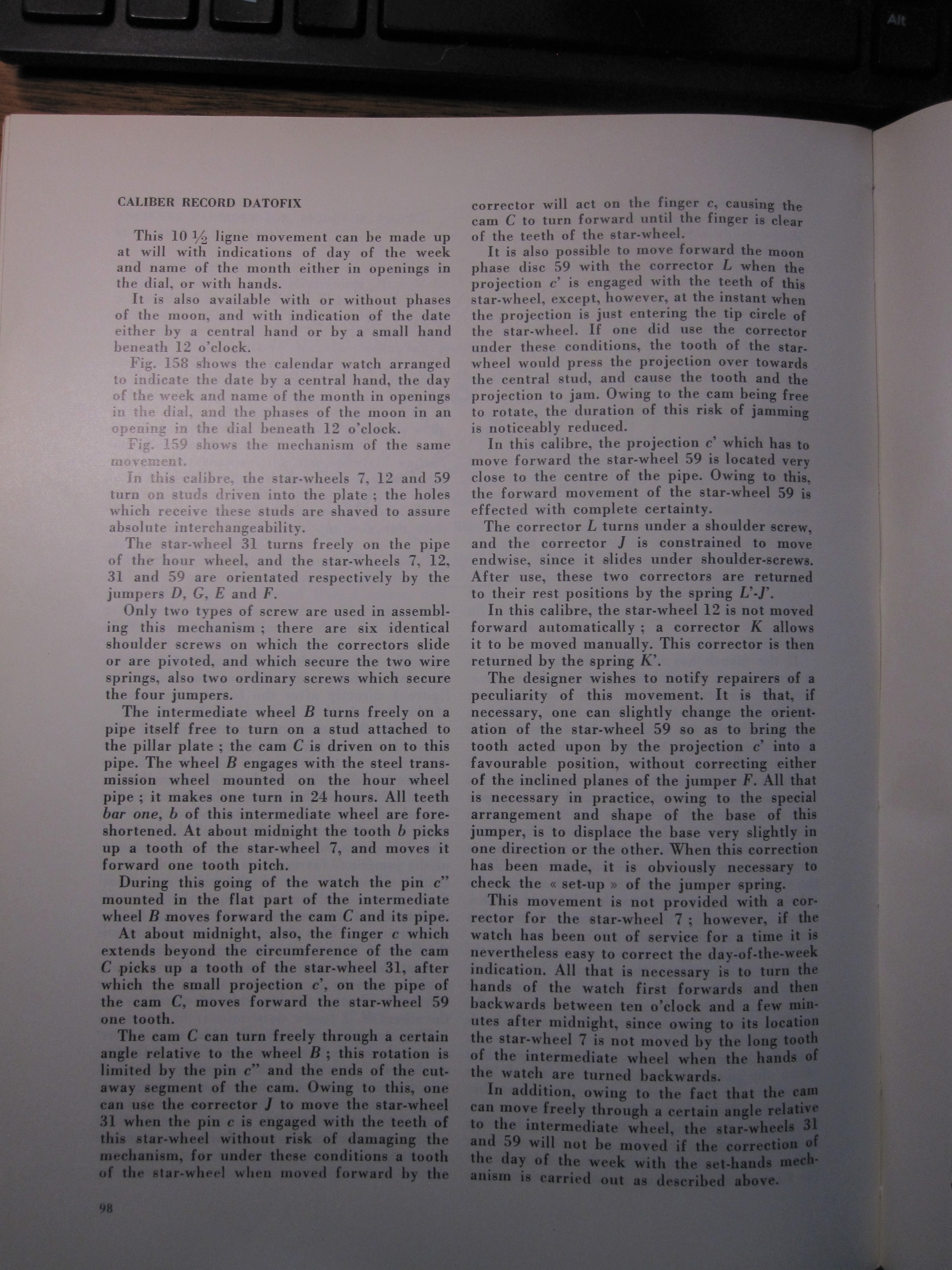

I looked through my trusty copy of Modern Calendar Watches printed in 1954. Your module looks like the diagram attached. It's a 'Record Datofix' calendar, no model number is given. It appears the lever 'L' has the tip broken off making adjustment of your moonphase impossible although it should still work while the watch is in operation, it is just not adjustable to be in sync with the proper moonphase. I've also attached the technical notes on this movement.

Hope this helps.



I have been reading my copy of this book. Seems I have a Venus 203 moonphase that was disassembled. Looks like the mainspring was broken. I found a you tube vid, and they refer to these sort of things as "Textbook examples."

-j



That does seem to be the right part, and I think I found a movement on ebay! Incredibly overpriced, but at least I know what I am looking for now.

Thanks!
