Help needed! Correct day disc for my Connie.

Vintage8509
Posts
250
Likes
1,093
Hi all,

my (unmoralic) but rare N.Korea constellation c-shape
https://omegaforums.net/threads/the-c-cased-constellation-thread.72308/page-17#post-1648712
undergoes a desperately needed service at the moment. It has a caliber 1022 produced in 1978.

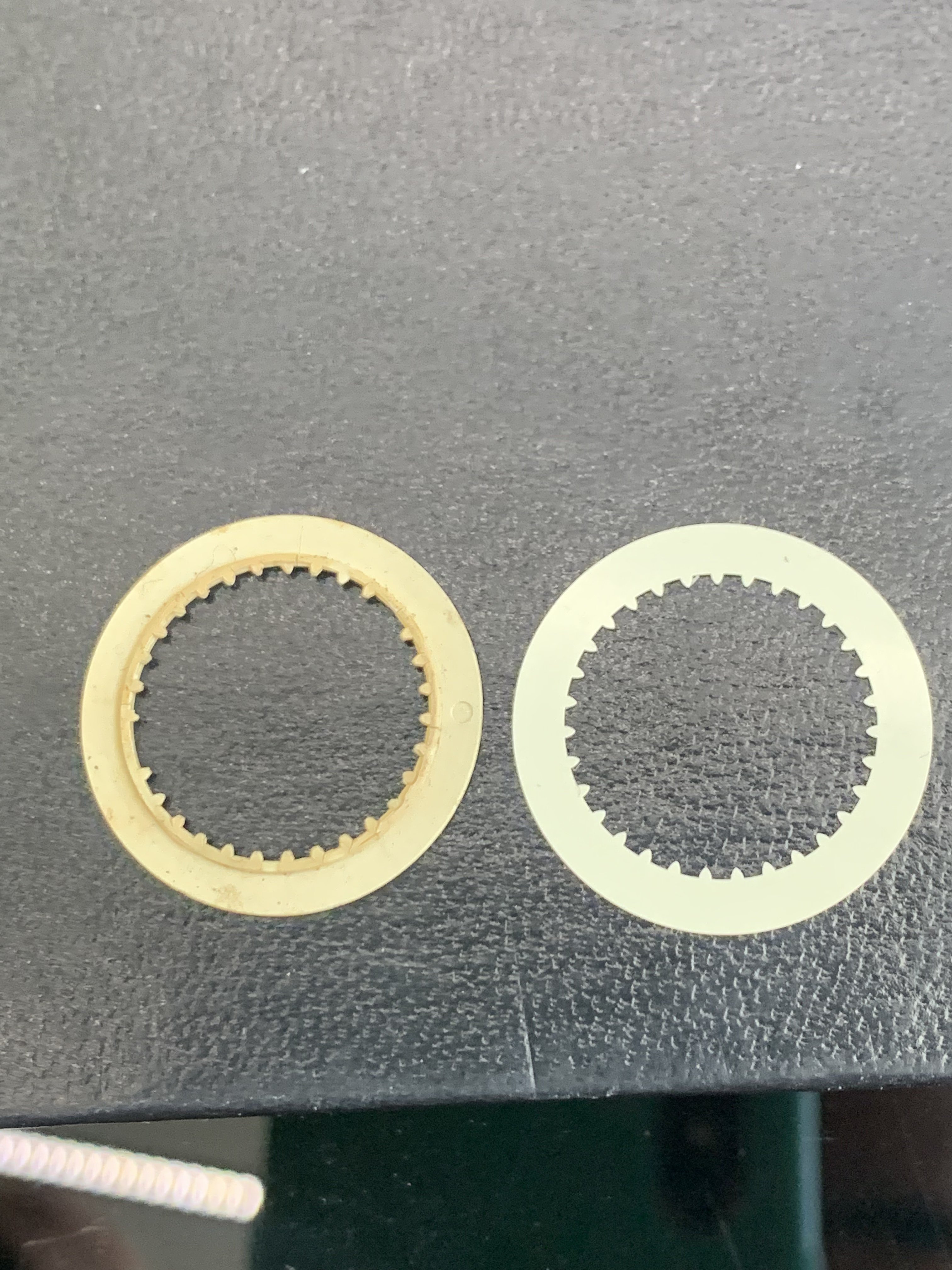

The plastic date disc needs to be replaced, but obviously I ordered the wrong one. The day disc is (luckily) fine.
I thought it were the part 1010-1580 BL, but my watchmaker says it misses a elevated ring on the back. I think the corrrect part may be 1020-1580 BL but they are only available with in steel not plastic. Anybody knows more?

Archer
Posts
29,750
Likes
77,012
Vintage8509 DrSpock
Hi all,

my (unmoralic) but rare N.Korea constellation c-shape
https://omegaforums.net/threads/the-c-cased-constellation-thread.72308/page-17#post-1648712
undergoes a desperately needed service at the moment. It has a caliber 1022 produced in 1978.
The plastic date disc needs to be replaced, but obviously I ordered the wrong one. The day disc is (luckily) fine.
I thought it were the part 1010-1580 BL, but my watchmaker says it misses a elevated ring on the back. I think the corrrect part may be 1020-1580 BL but they are only available with in steel not plastic. Anybody knows more?

Yes, the 1010 and 1020 date indicators are not the same, because of the day function on the 1022.

72210201580BL is the correct part number. It is not steel - it's made of brass.

Cheers, Al

PS - why are you ordering the parts instead of the watchmaker?

Vintage8509
Posts
250
Likes
1,093
He offered me to do so, but I made some good experience on searching on my own for old stock parts. He would order a new one, but I try to avoid this (if possible)

precisionhrlgy
Posts
250
Likes
713
72210201516A is the correct Omega part number for the white disk. There are several colour options, however. The bae caliber goes back to 1020, not 1010.

Archer
Posts
29,750
Likes
77,012
precisionhrlgy ATracyWatches
72210201516A is the correct Omega part number for the white disk. There are several colour options, however. The bae caliber goes back to 1020, not 1010.

He's after the date disk, not the day disk.

Vintage8509
Posts
250
Likes
1,093
Archer Archer
72210201580BL is the correct part number. It is not steel - it's made of brass.
The one I am after is made out of plastic and obviously not easy to find

Archer
Posts
29,750
Likes
77,012
Vintage8509 DrSpock
The one I am after is made out of plastic and obviously not easy to find

Why do you want the one made of plastic? Omega made the change to brass for a reason.

Vintage8509
Posts
250
Likes
1,093
Ah, so they made a change: that’s a good info.
Because I thought it would be more authentic to have the same disc inside again

SkunkPrince
Posts
5,636
Likes
5,811
Vintage8509 DrSpock
Because I thought it would be more authentic to have the same disc inside again
That's like driving a car without applying the recalls. 😀

Vintage8509
Posts
250
Likes
1,093
Archer Archer
Why do you want the one made of plastic? Omega made the change to brass for a reason.

One more question: So if there weren’t any more plastic date discs out there (I found one, hopefully the right one this time) would I be able to operate the brass date disc with the plastic day disc?!
Because the day disc is Korean and, I think, non-replaceable.
Thanks for your thoughts

Archer
Posts
29,750
Likes
77,012
Vintage8509 DrSpock
One more question: So if there weren’t any more plastic date discs out there (I found one, hopefully the right one this time) would I be able to operate the brass date disc with the plastic day disc?!
Because the day disc is Korean and, I think, non-replaceable.
Thanks for your thoughts

Omega always recommends replacing both at the same time. I suspect though this is more for appearances (in case of fading or discolouration) than for function. However the assumption that the white Korean day disk is not available is incorrect:

72210201516T | DAY INDICATOR WHITE KOREAN

SkunkPrince
Posts
5,636
Likes
5,811
Vintage8509 DrSpock
I have to admit, you are well informed 👍, didn’t knew that
He literally has access to Omega's complete catalog of parts.

wilderbeast
Posts
911
Likes
4,393
SkunkPrince SkunkPrince
He literally has access to Omega's complete catalog of parts.
The three words below his name on the avatar are quite telling, too!
