Fire damage ebay find. American ref Ross GF case rebuild thread. FRANKENSTEIN BUILD

samweldspoorly
Posts
505
Likes
2,070

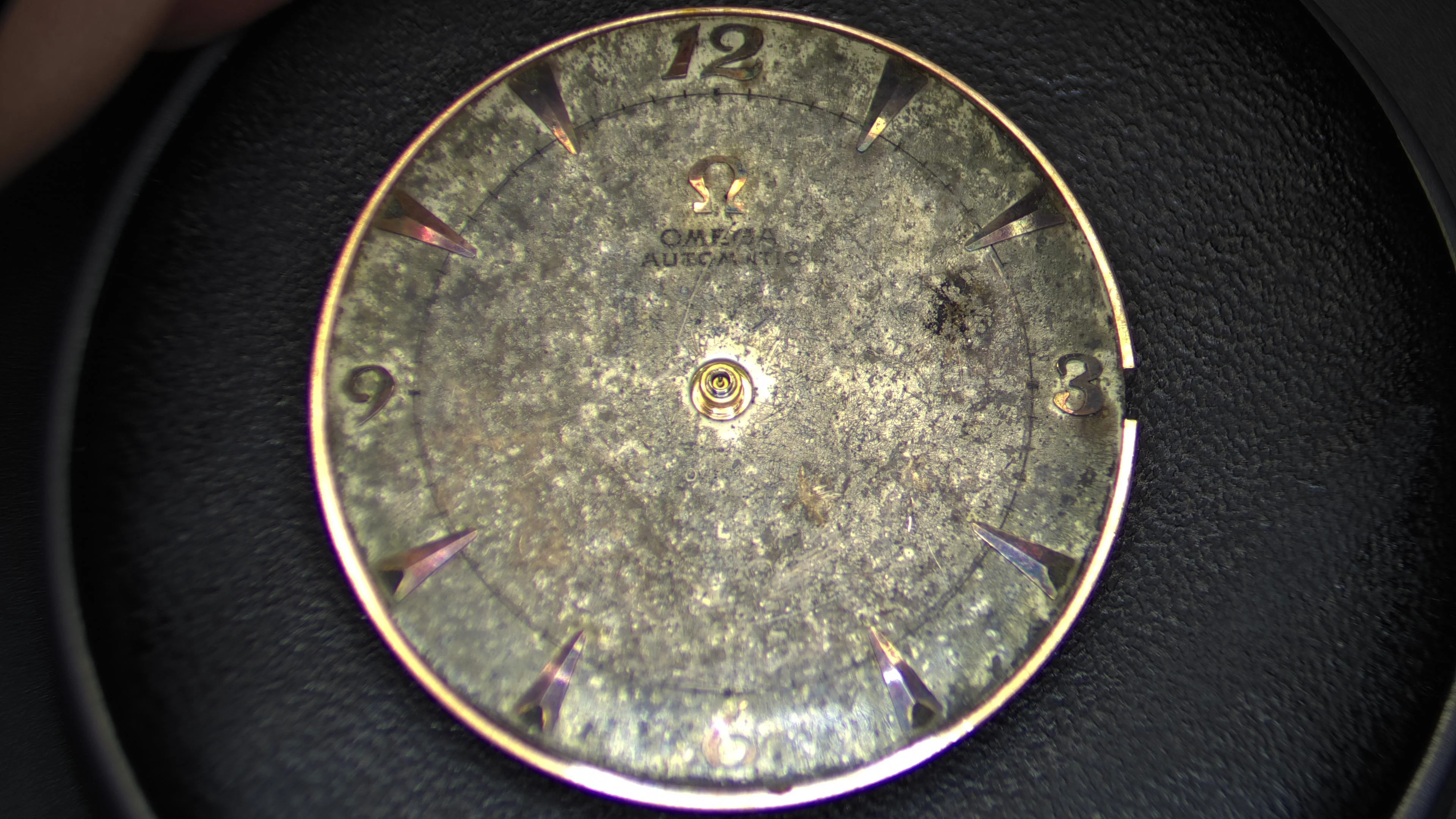

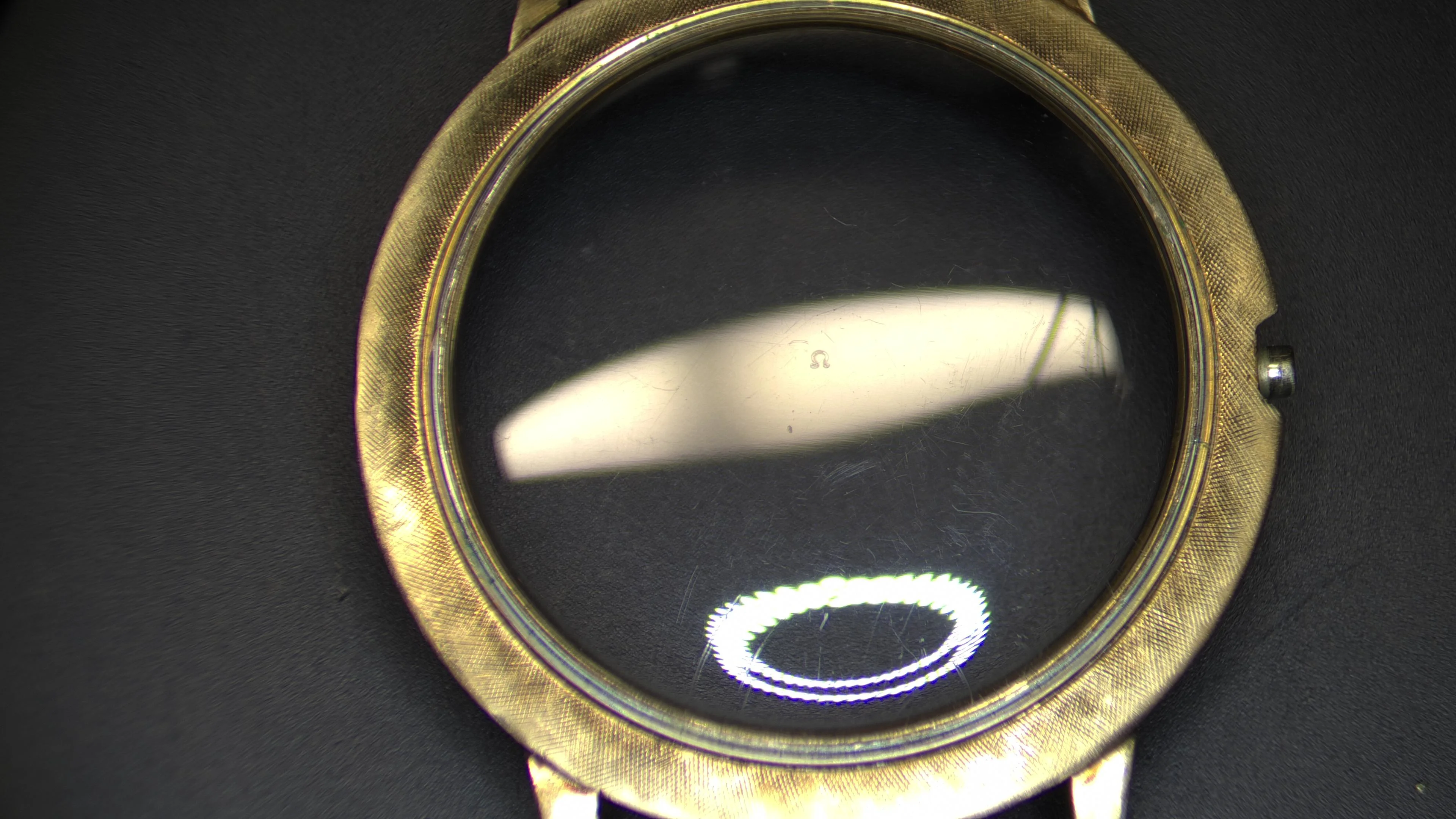

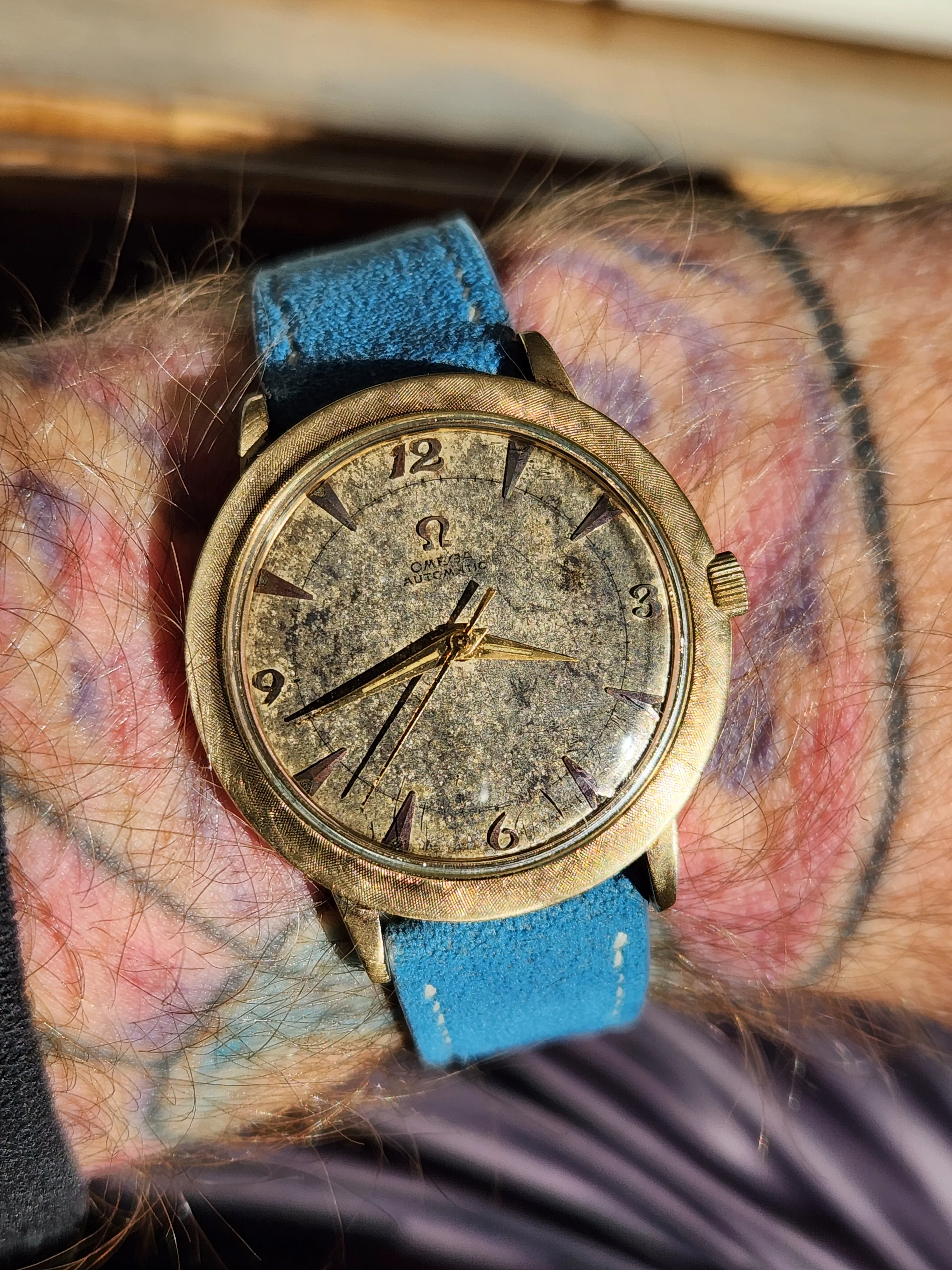

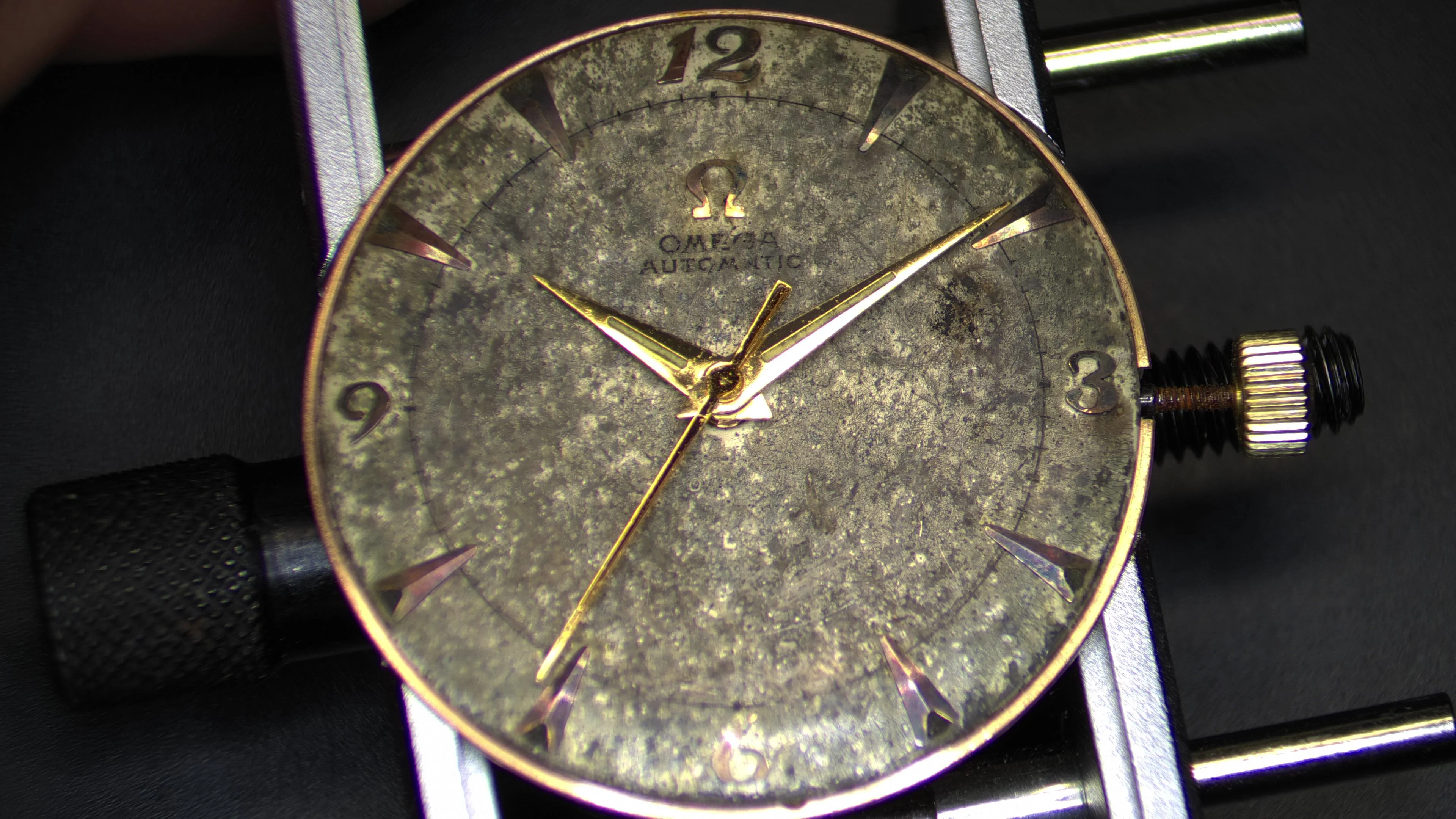

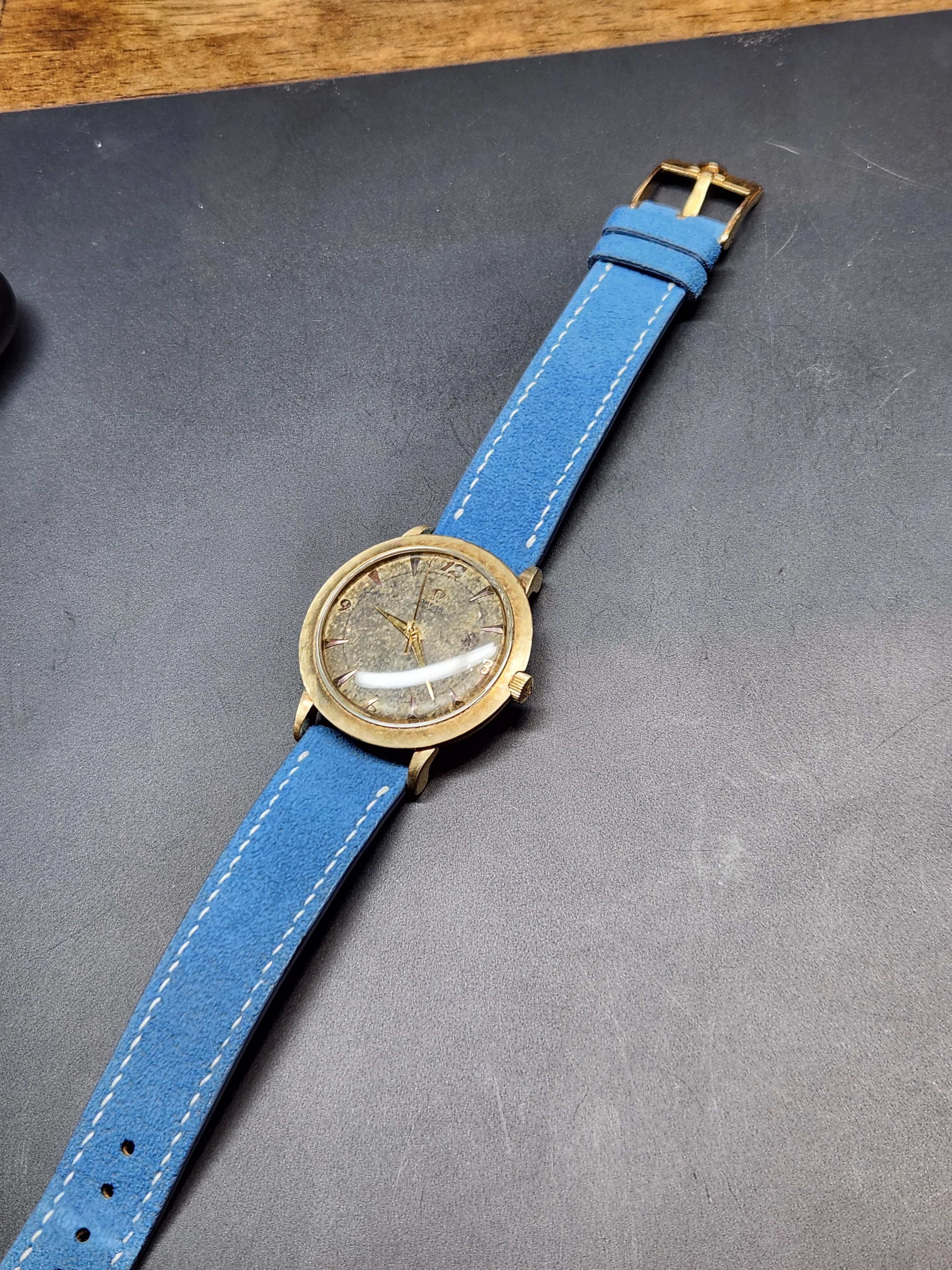

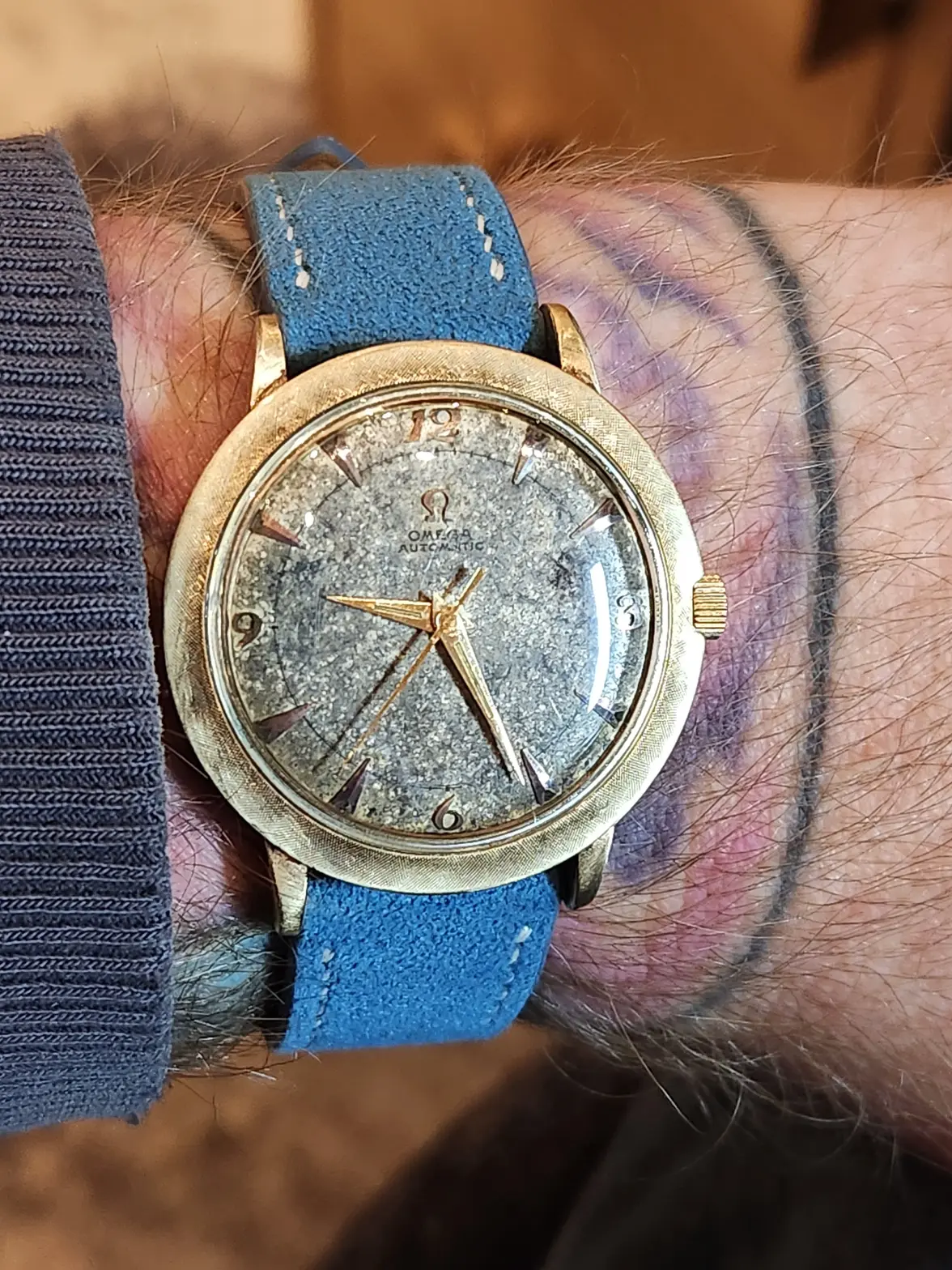

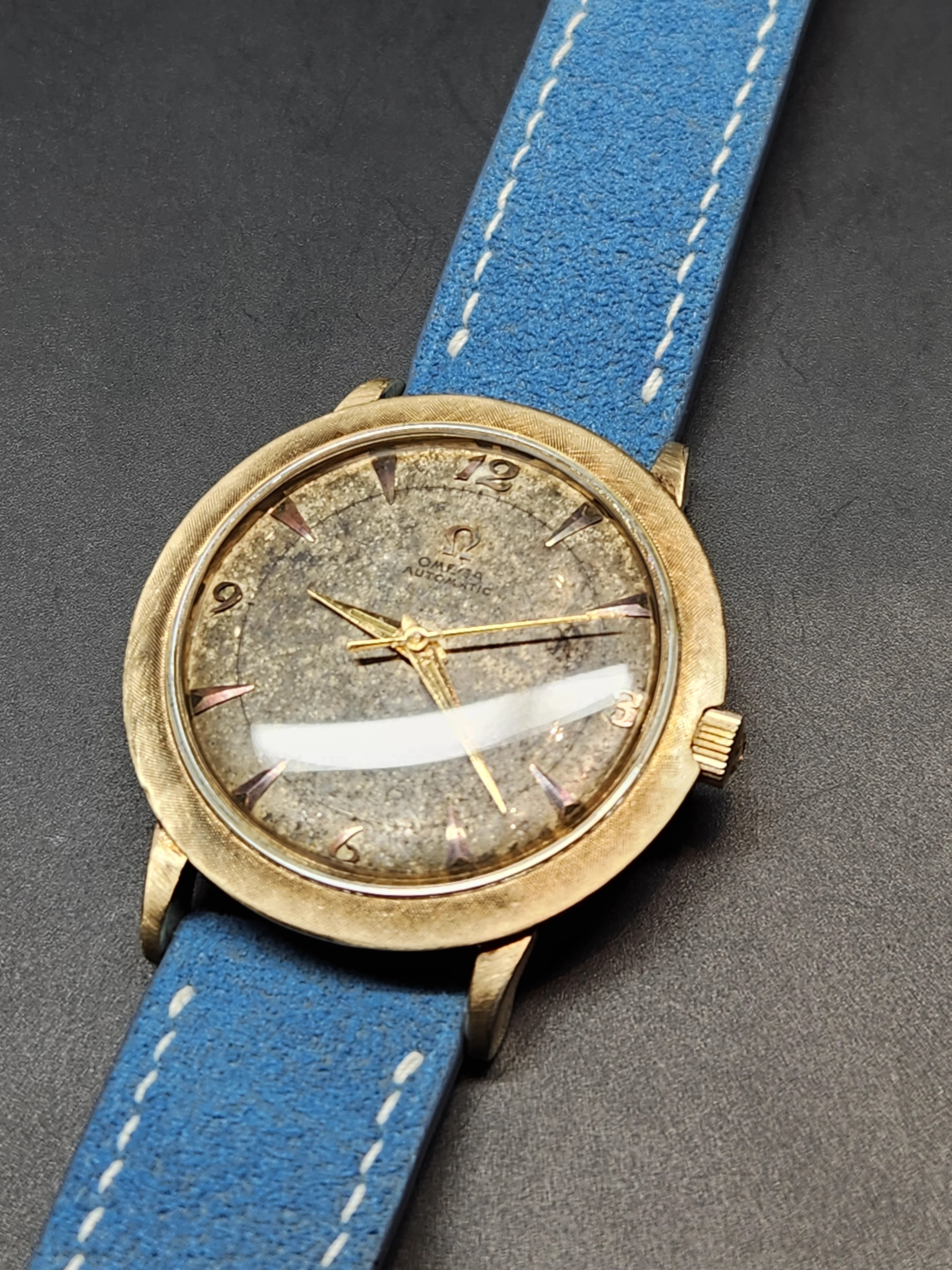

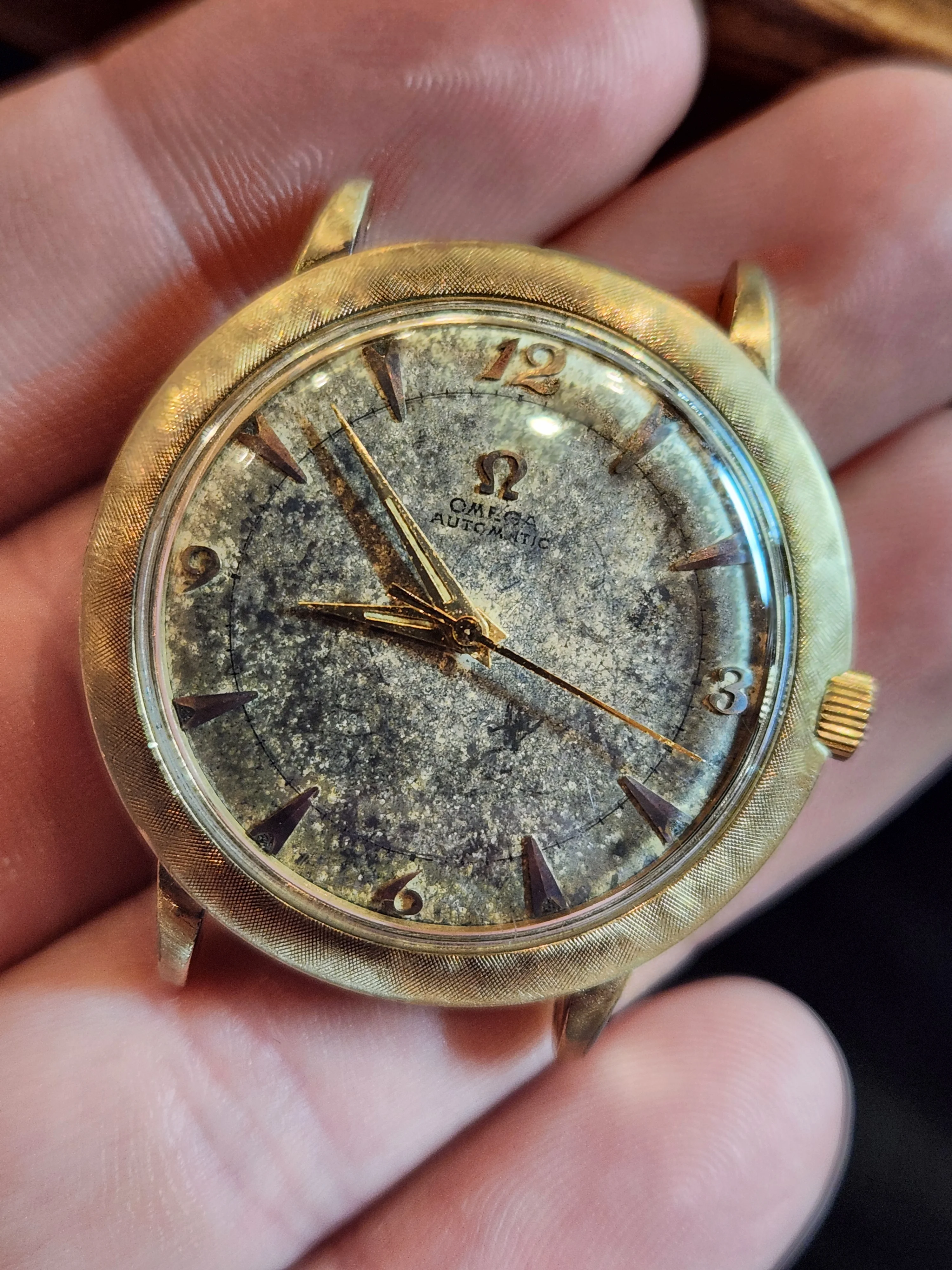

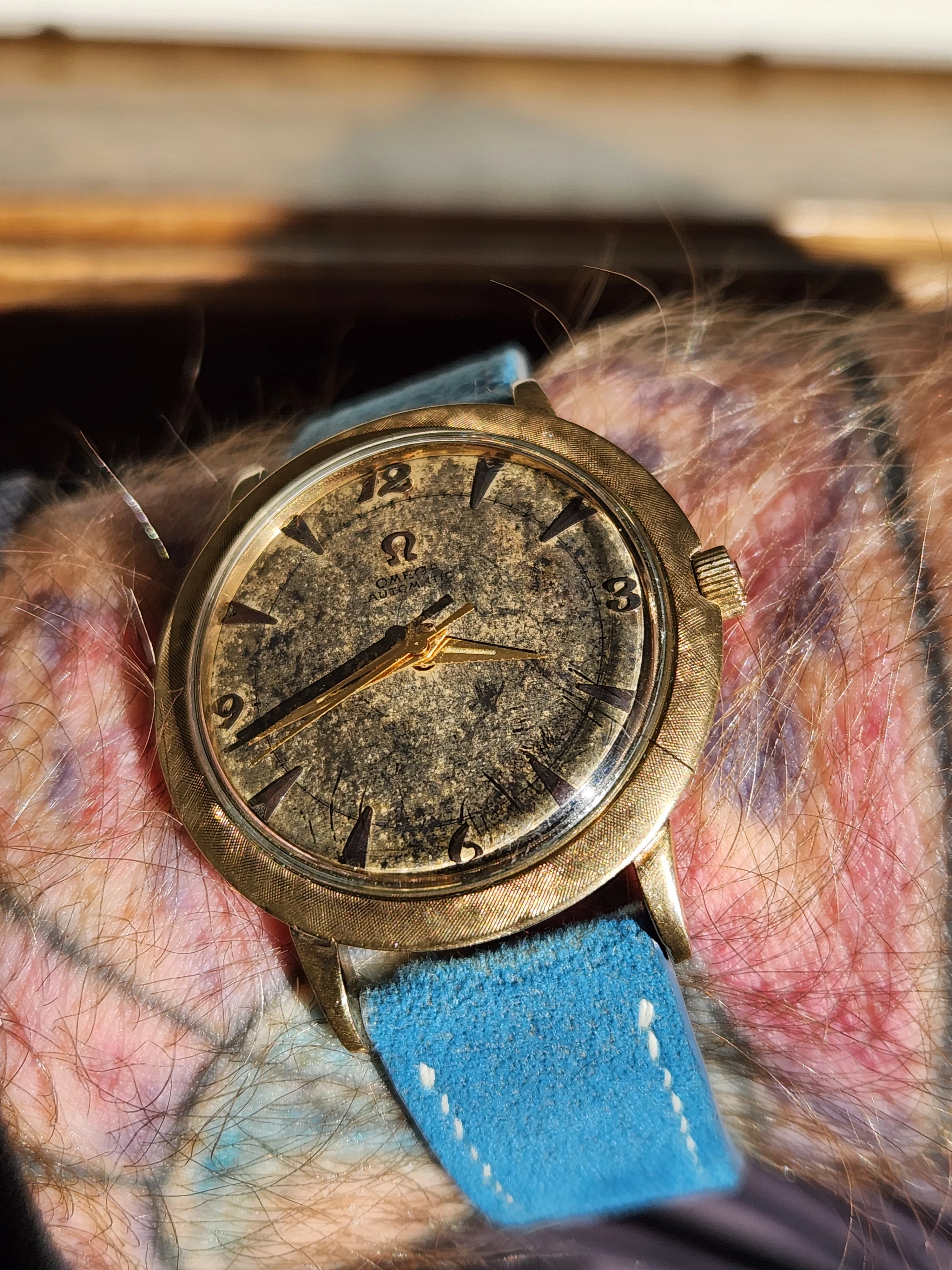

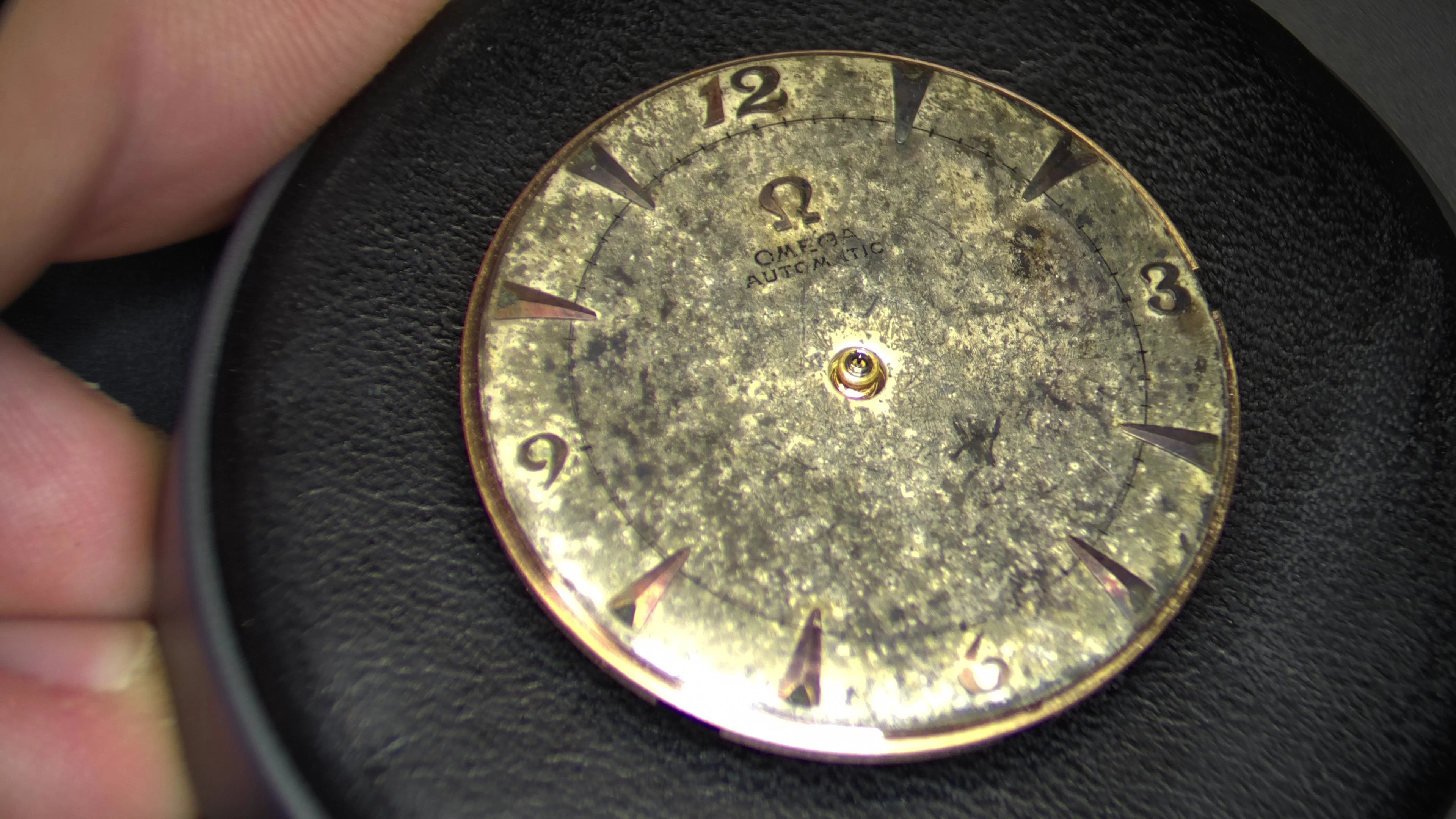

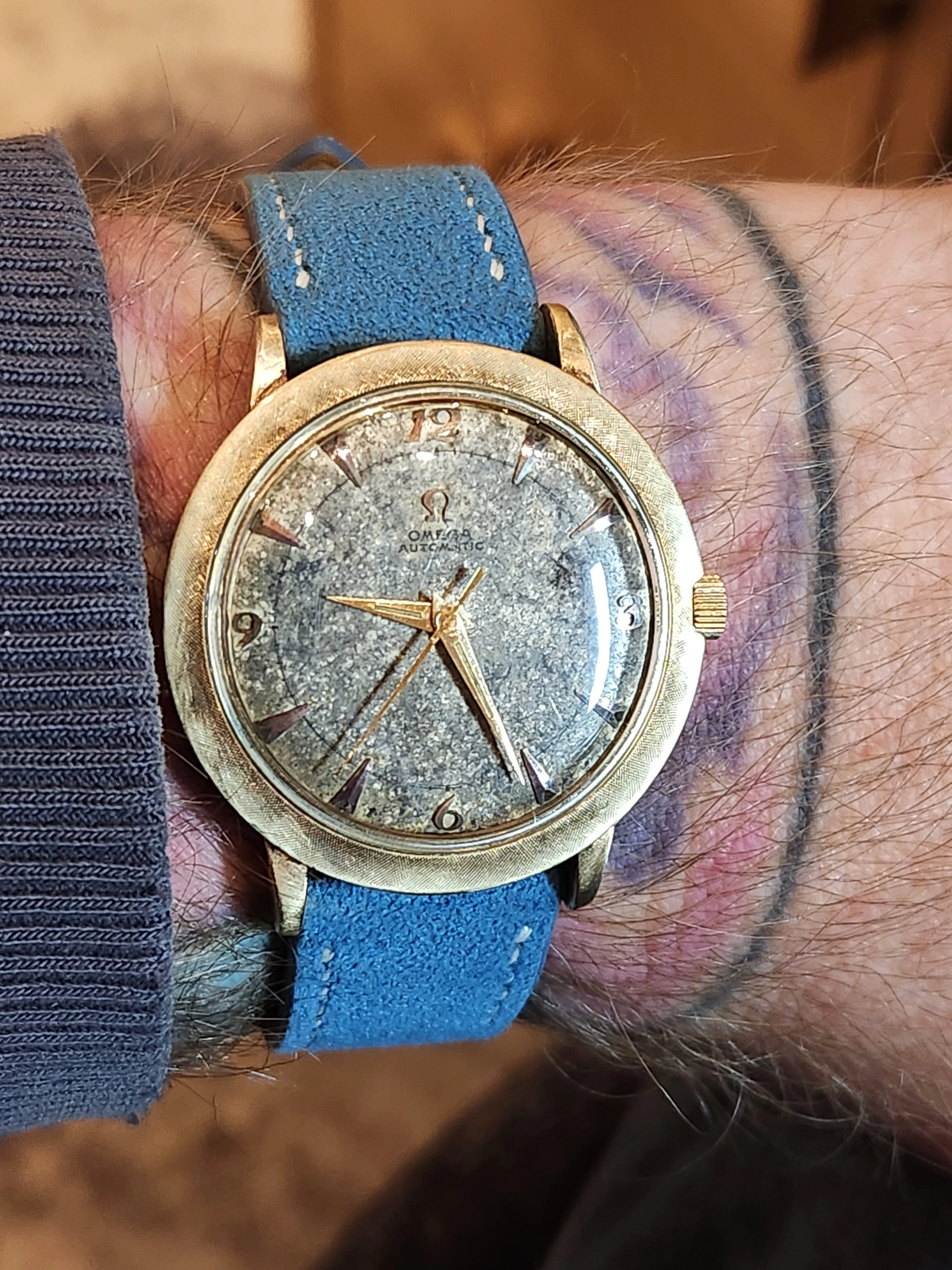

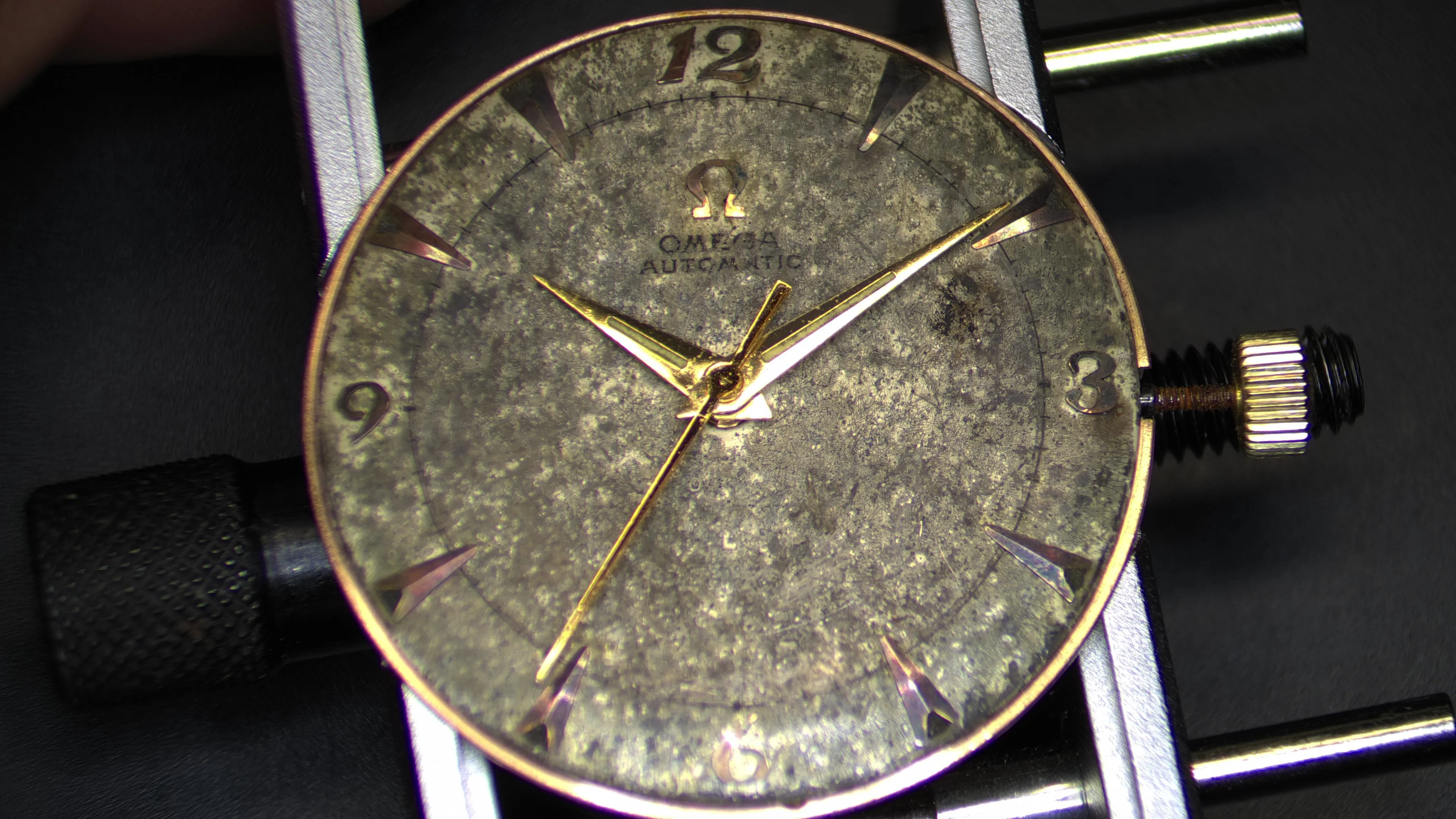

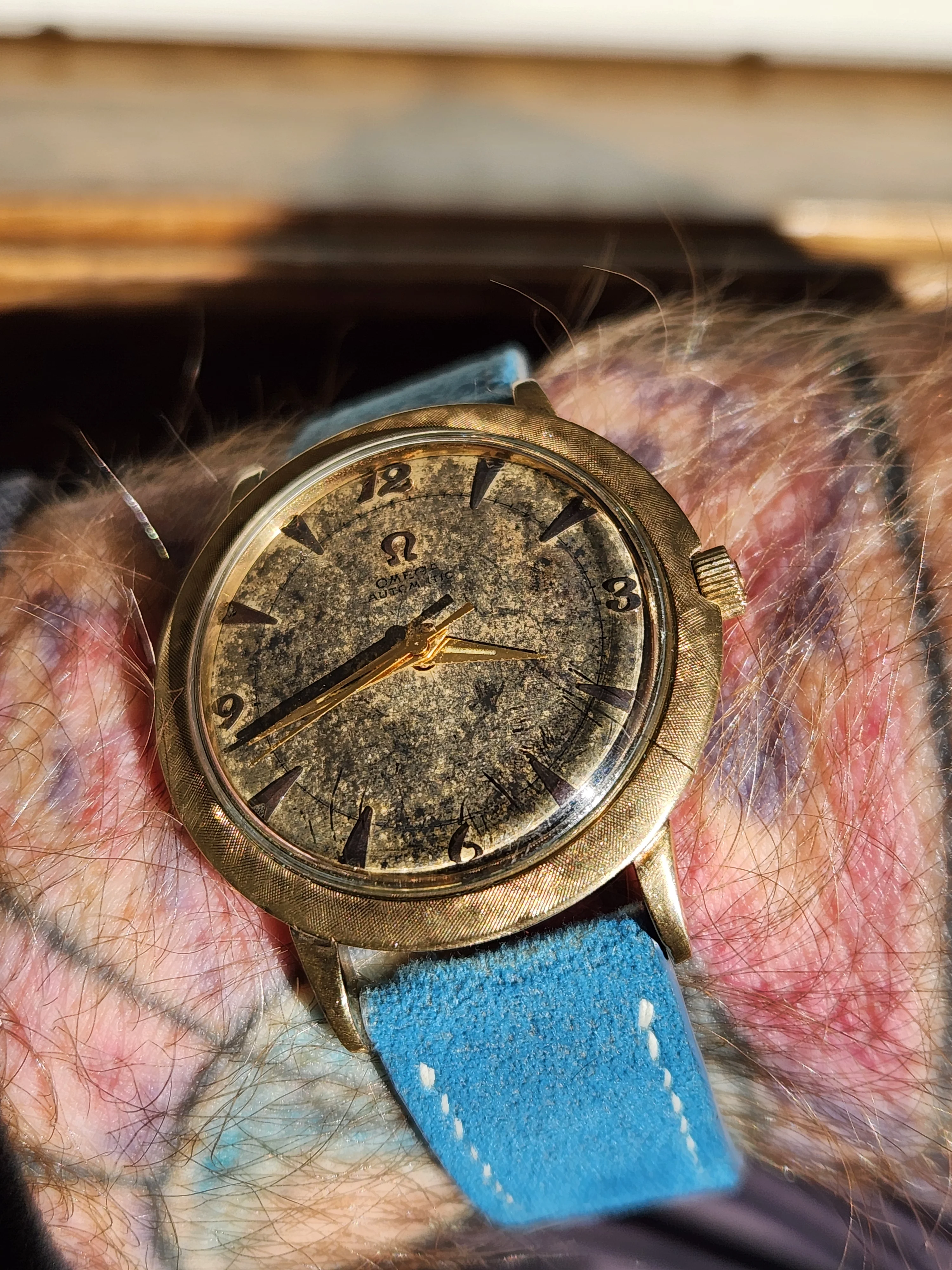

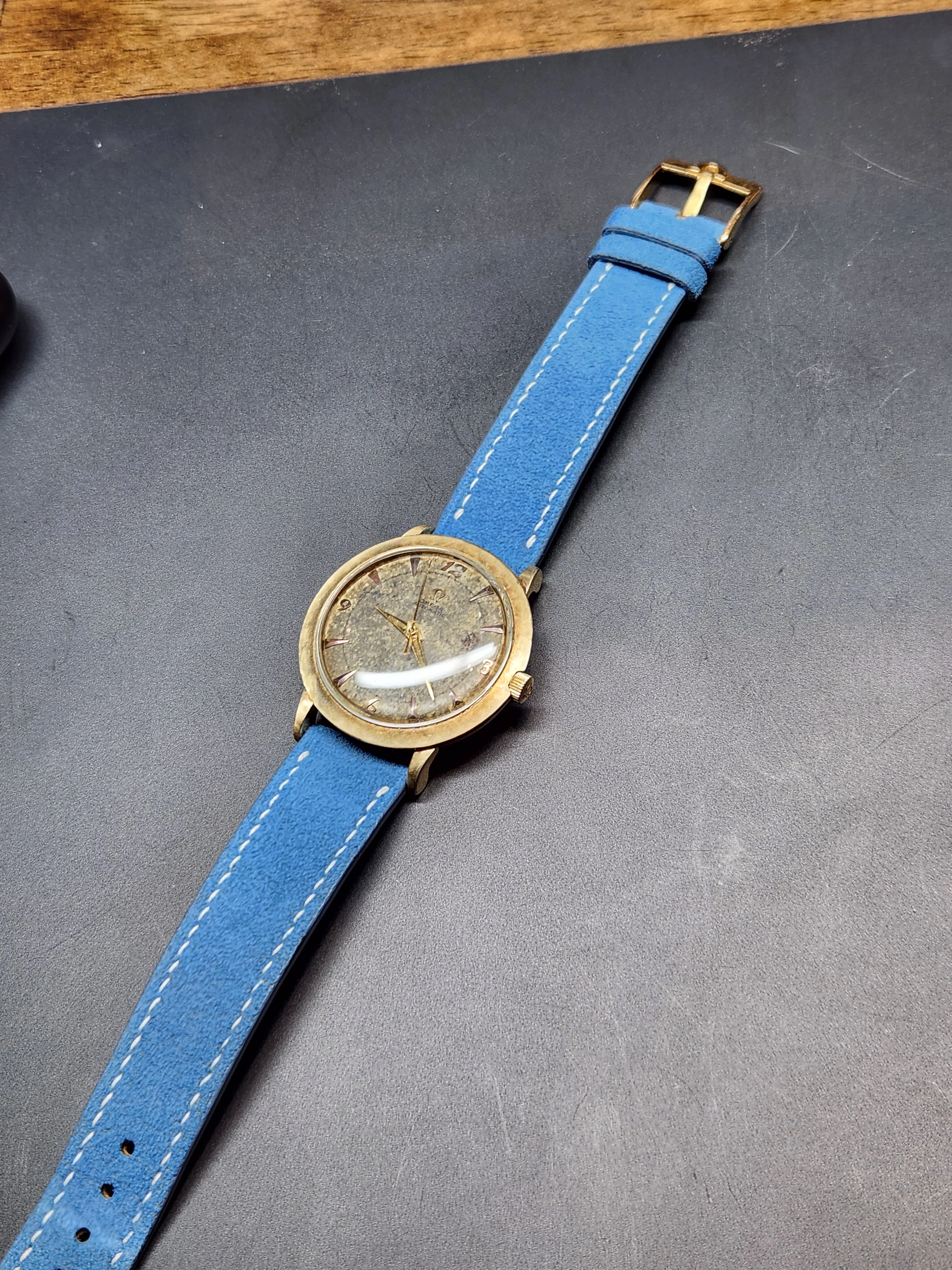

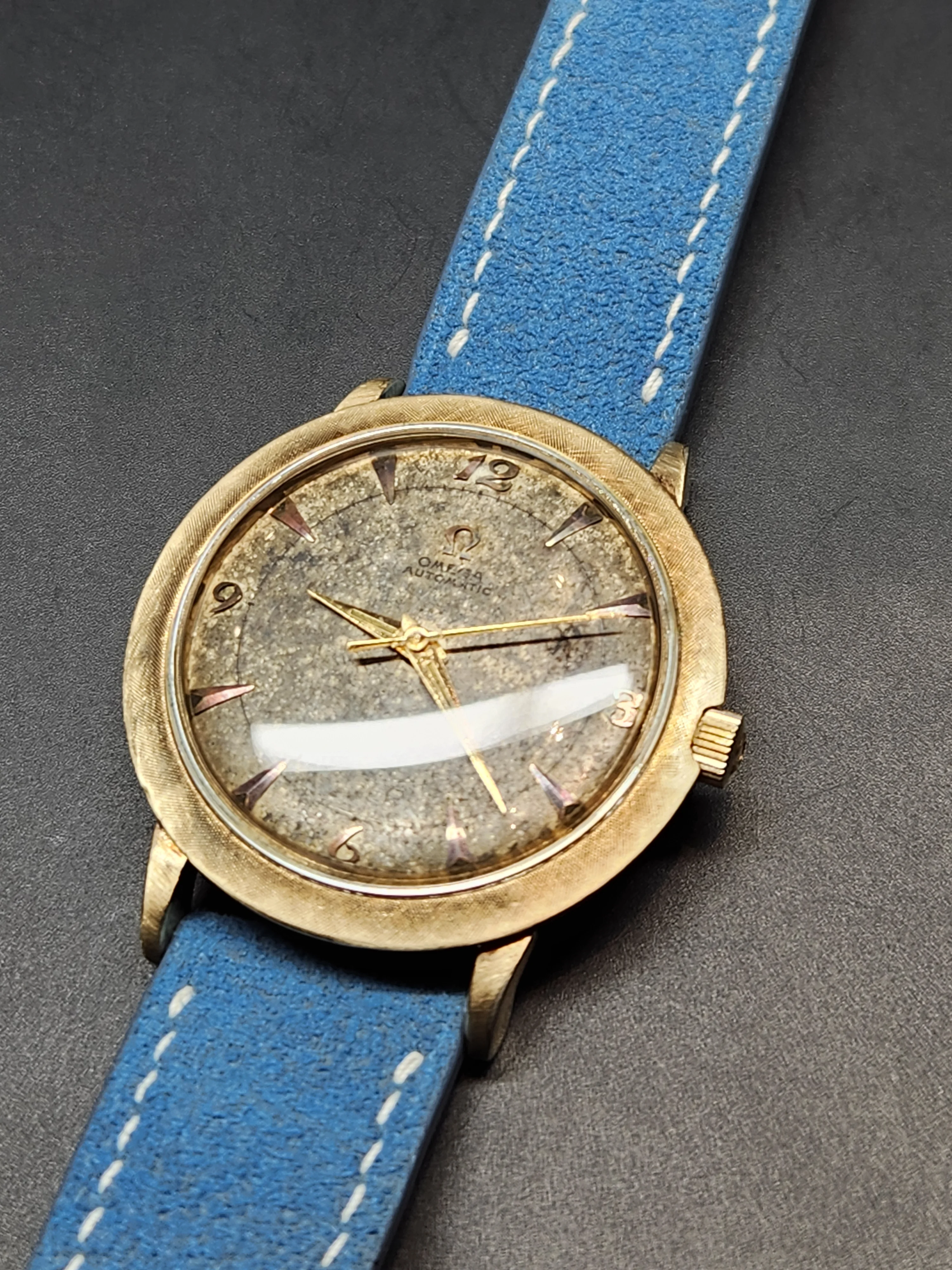

An update. Ended up with this GX6279 with a super cool engraved 14k bezel. It has a low mileage 500 in it, so it got a full service and I swapped the fire damaged dial over. Got it running in tip top shape (for as good as a 500 can be anyway). I have been wearing this all weekend its been great. The dial gives Jurassic fossil vibes.

20260205_205239.webp 20260205_212218.webp 20260205_212232.webp 20260205_212558.webp 20260207_154236.webp 20260207_154240.webp 20260207_155252.webp

samweldspoorly
Posts
505
Likes
2,070

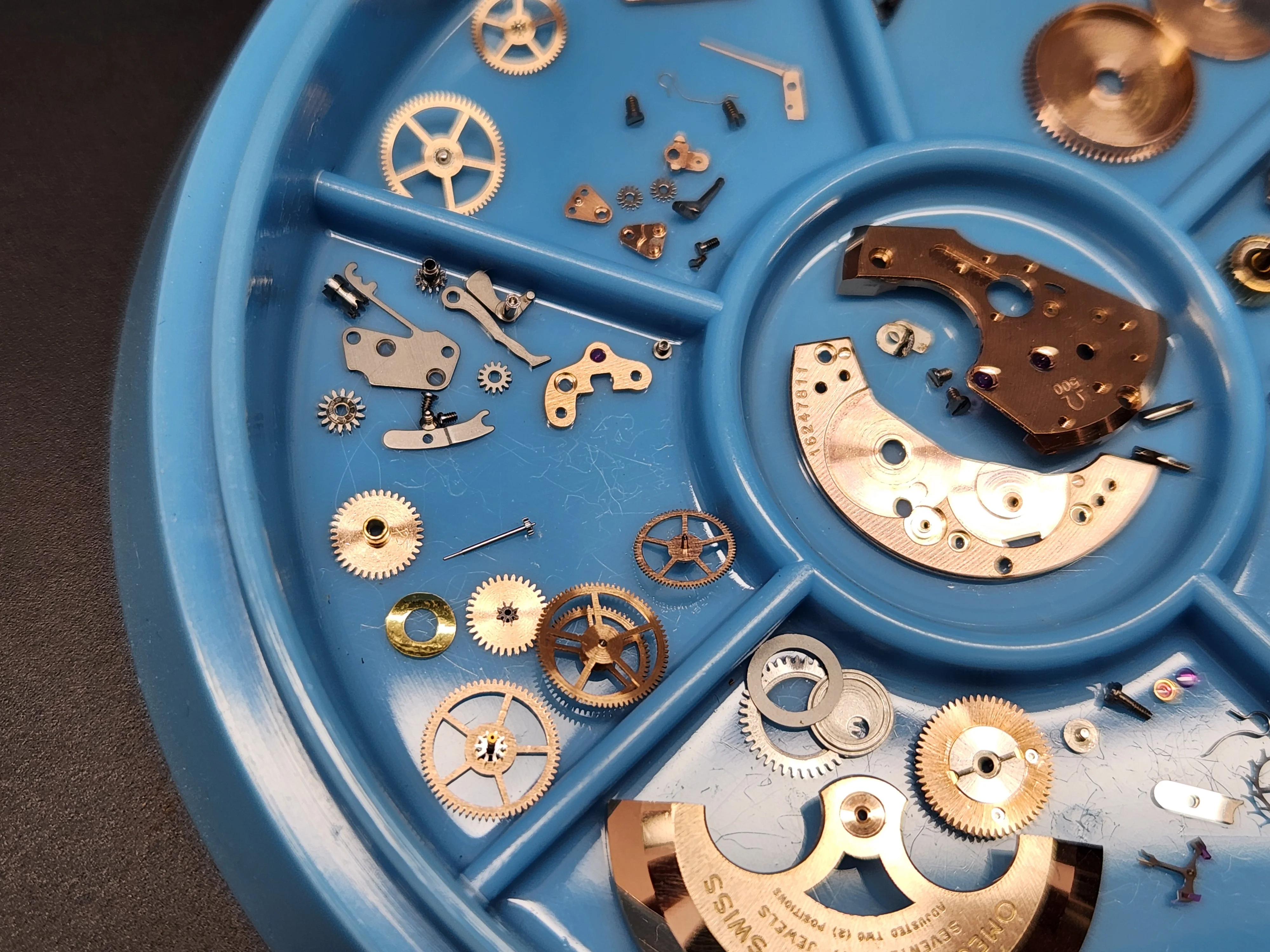

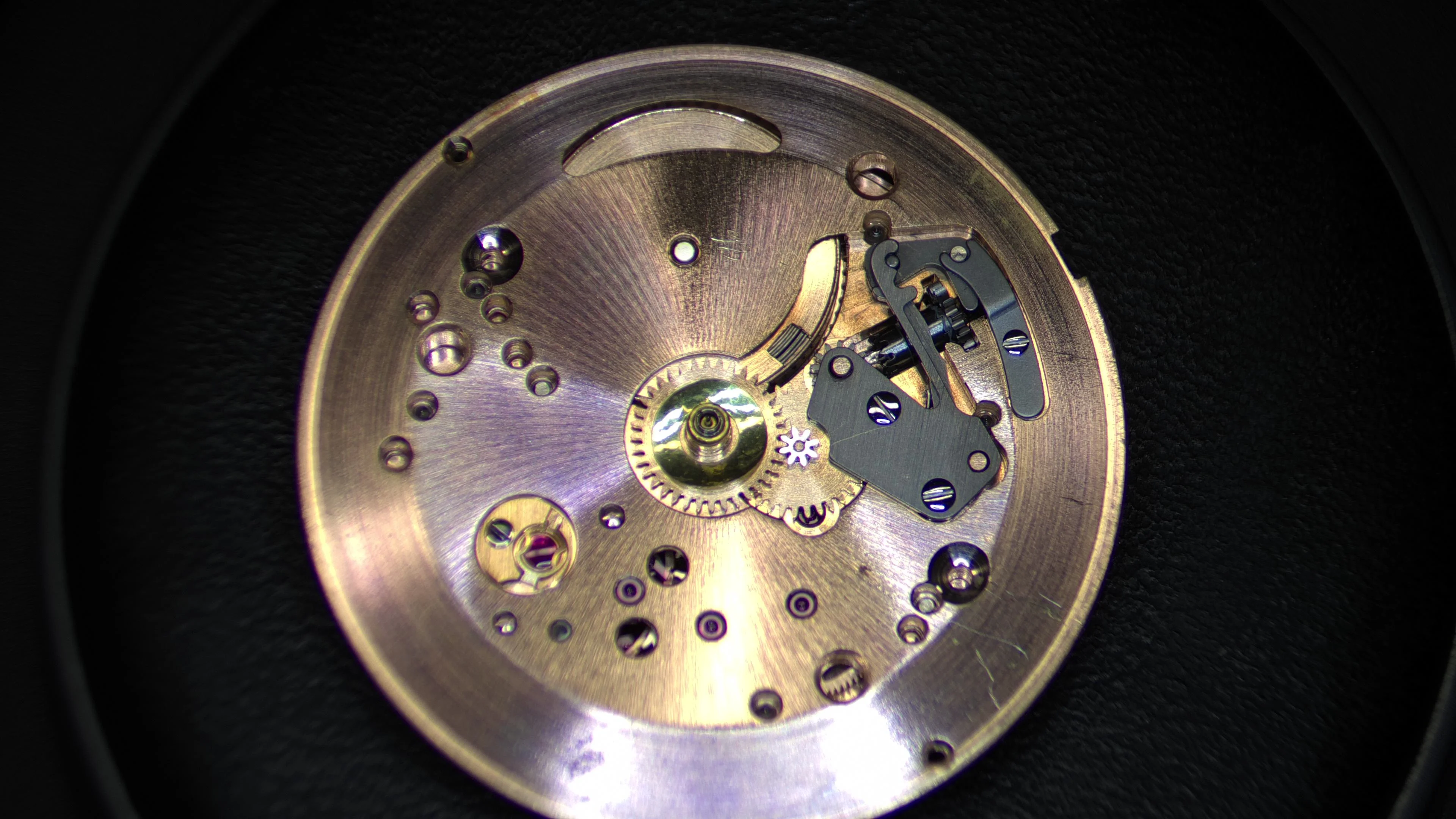

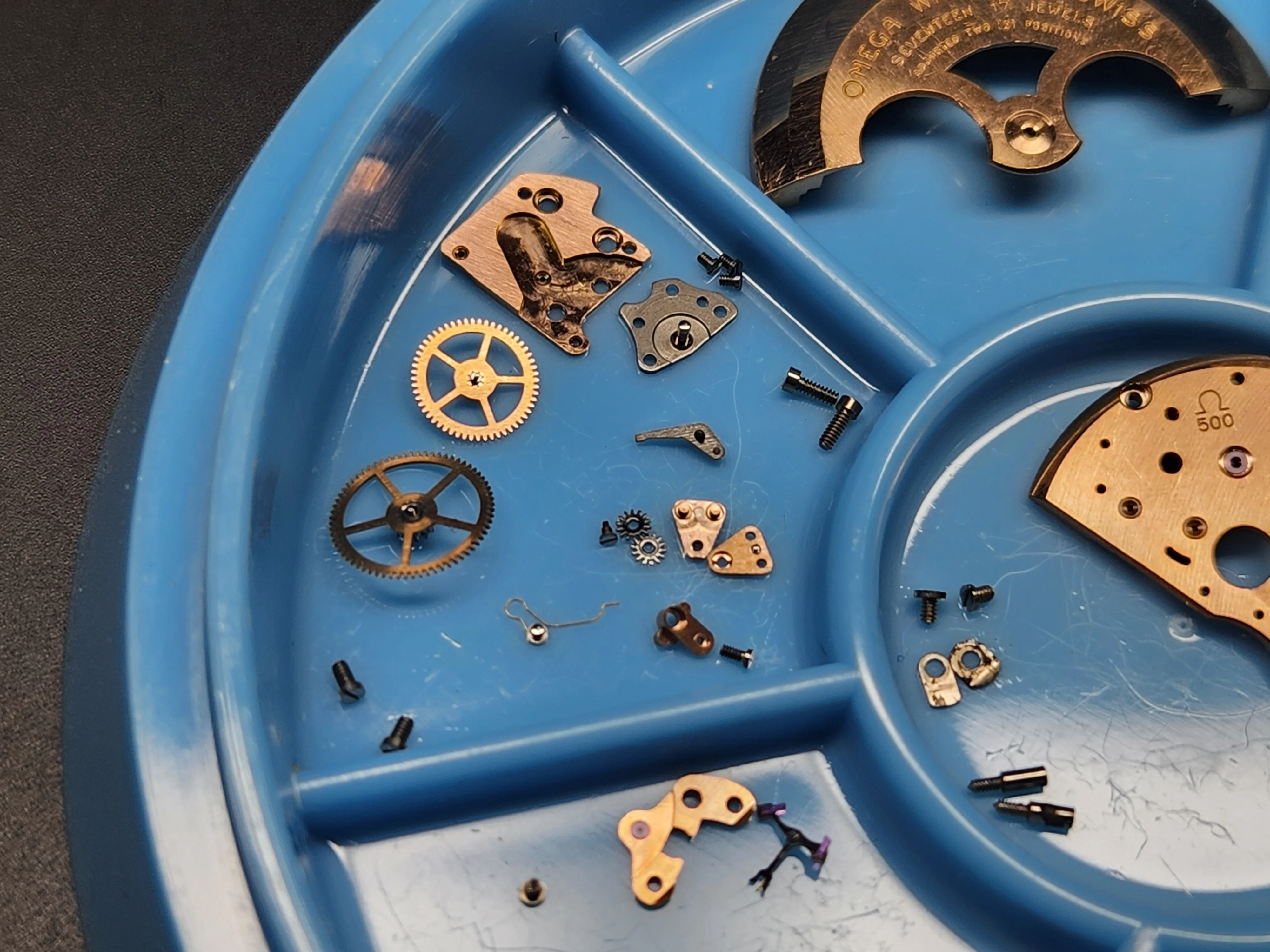

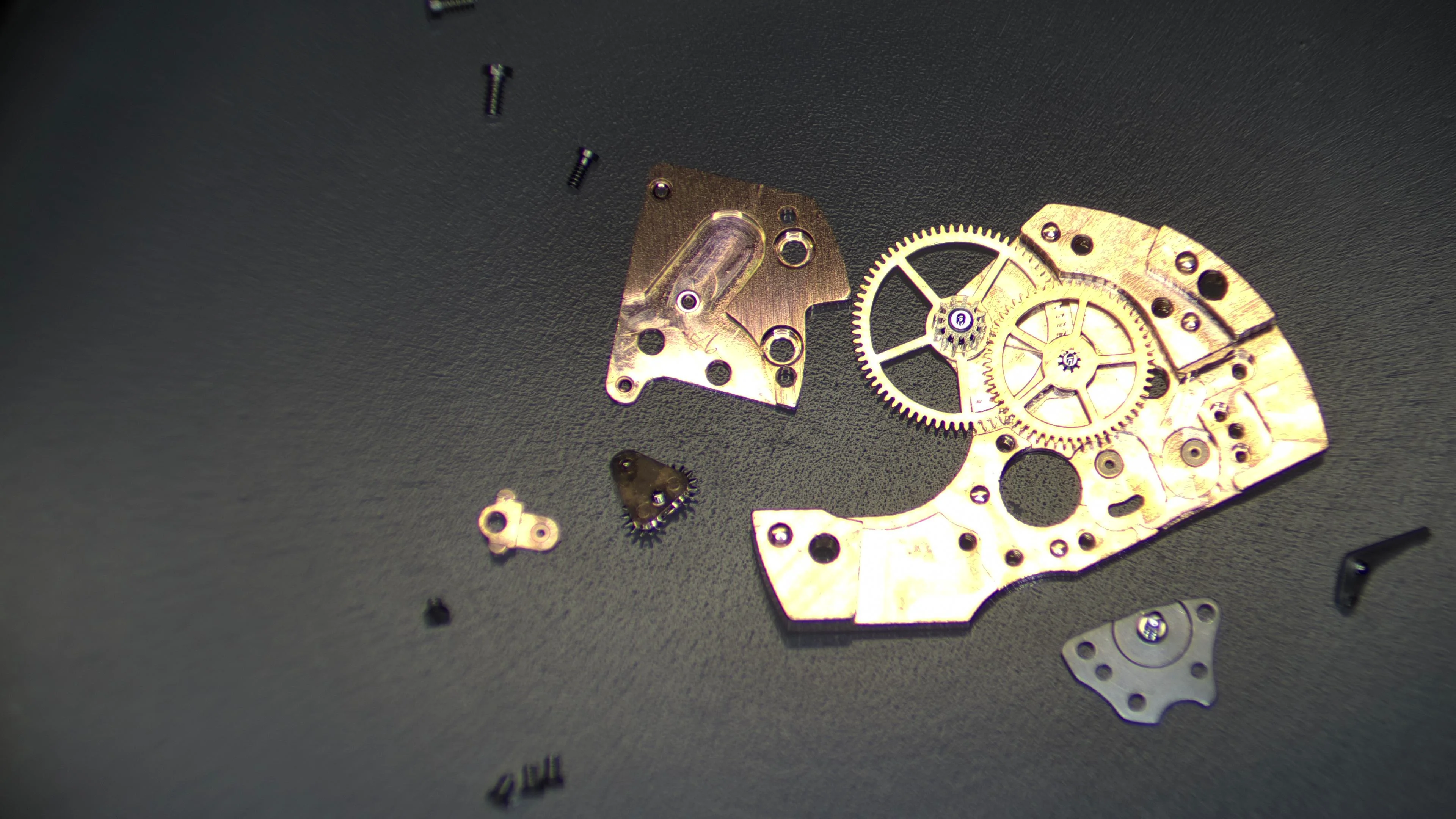

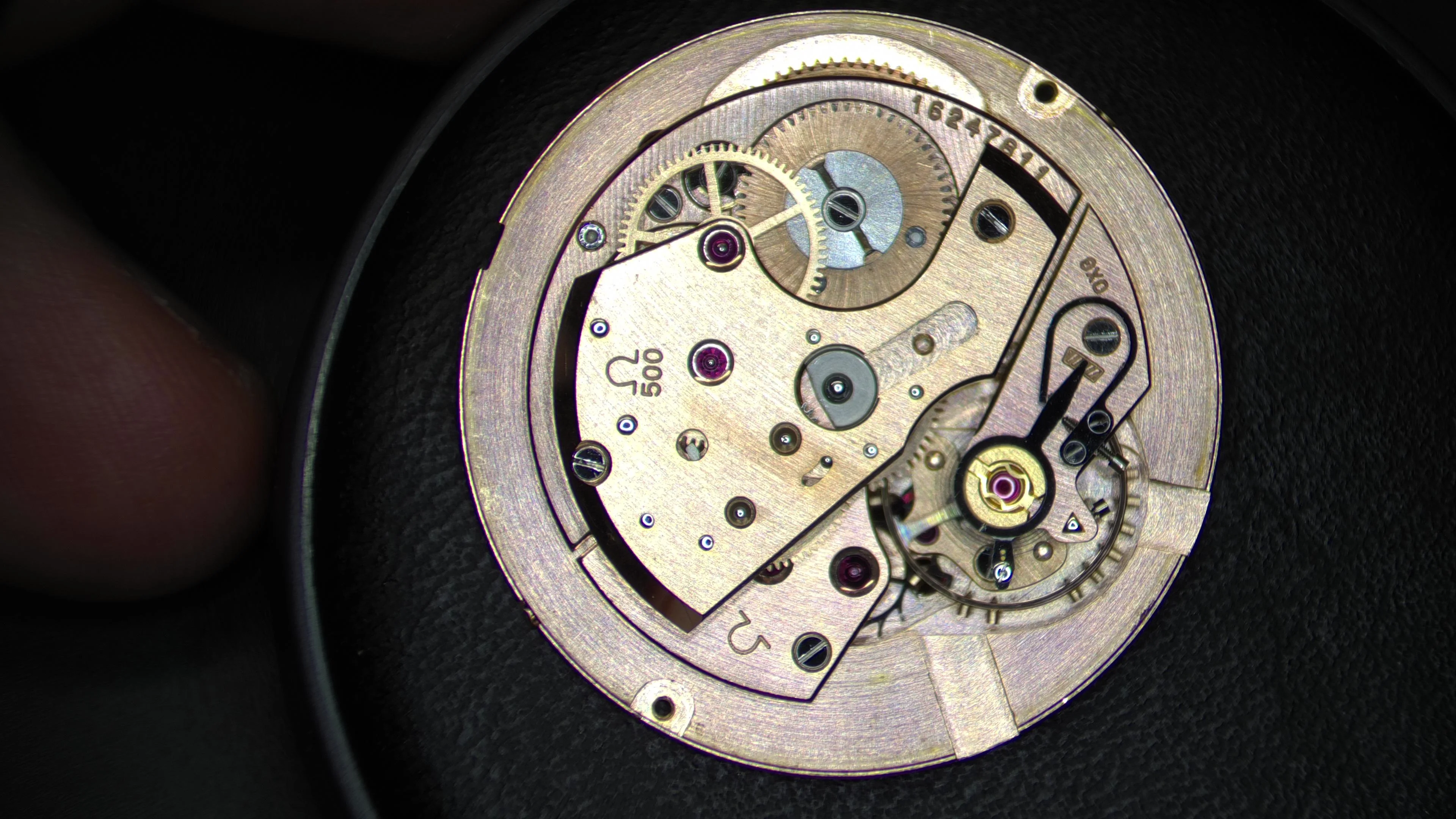

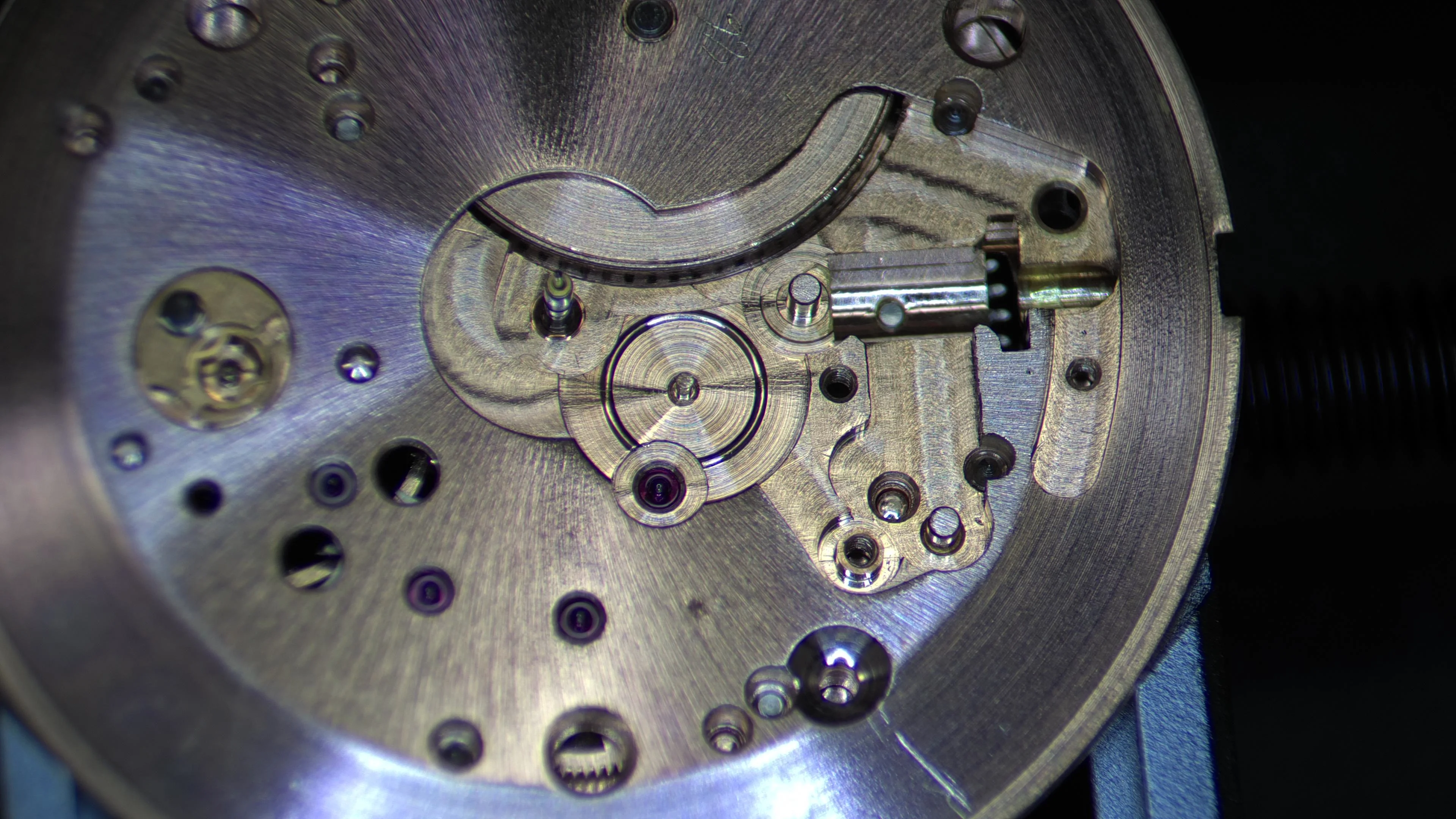

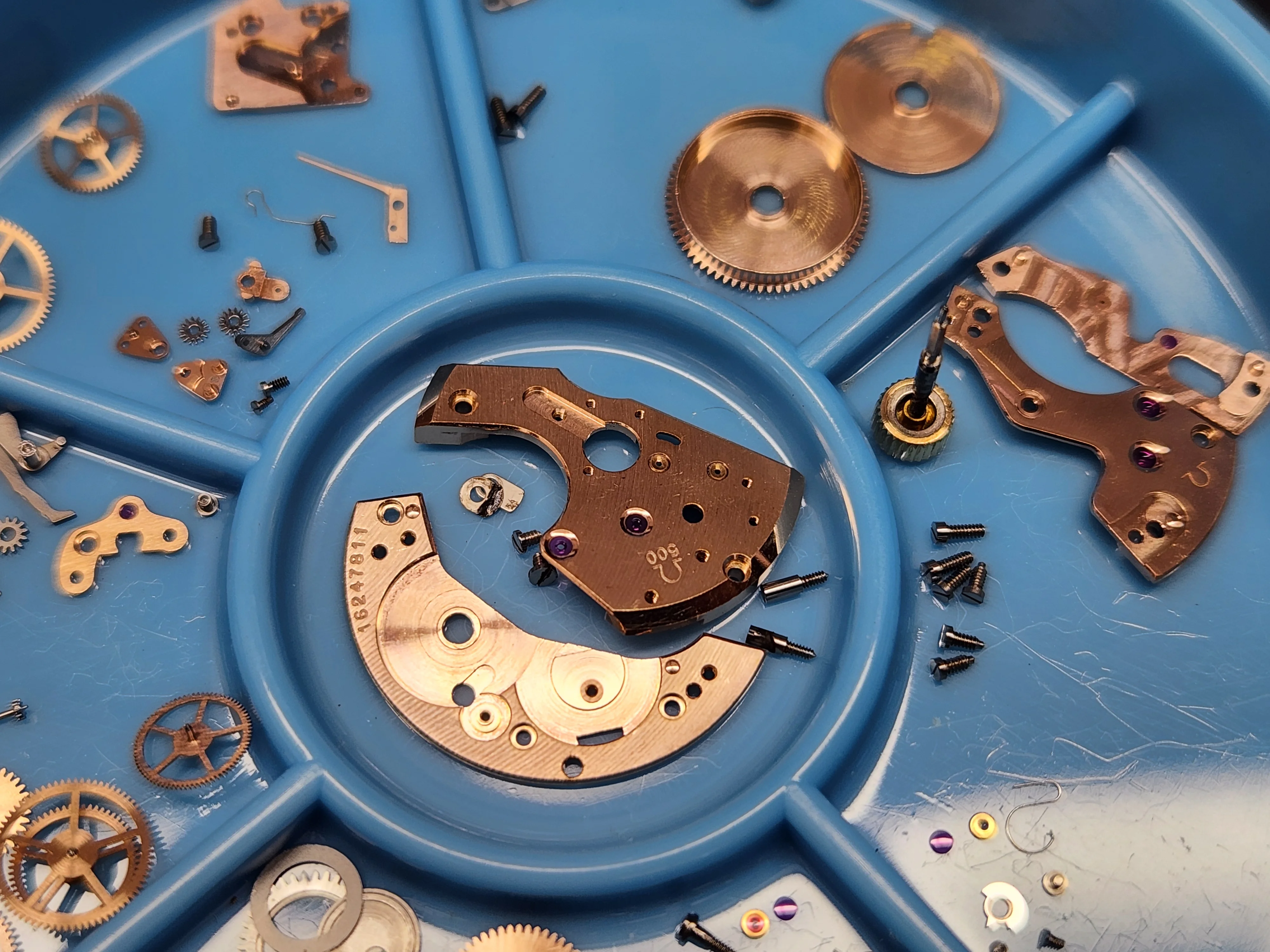

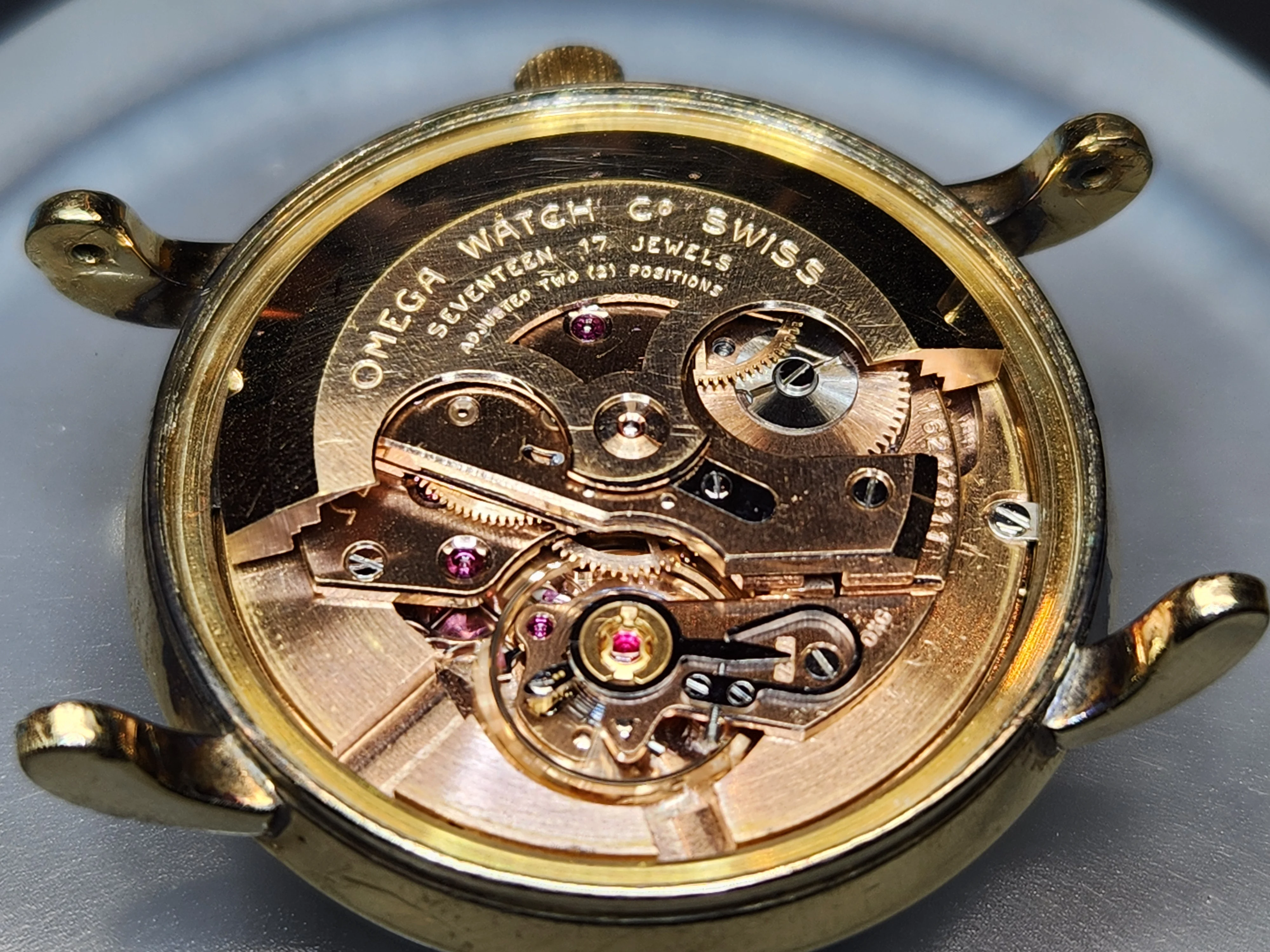

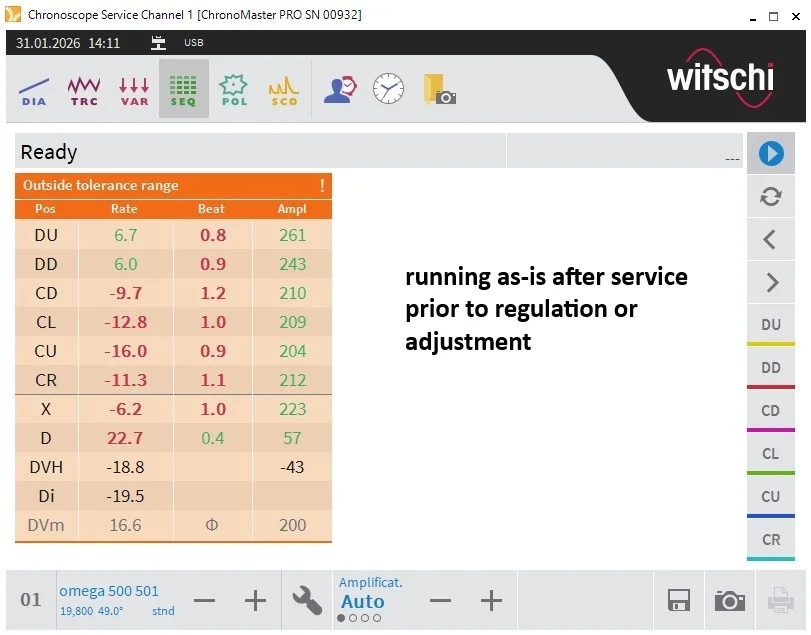

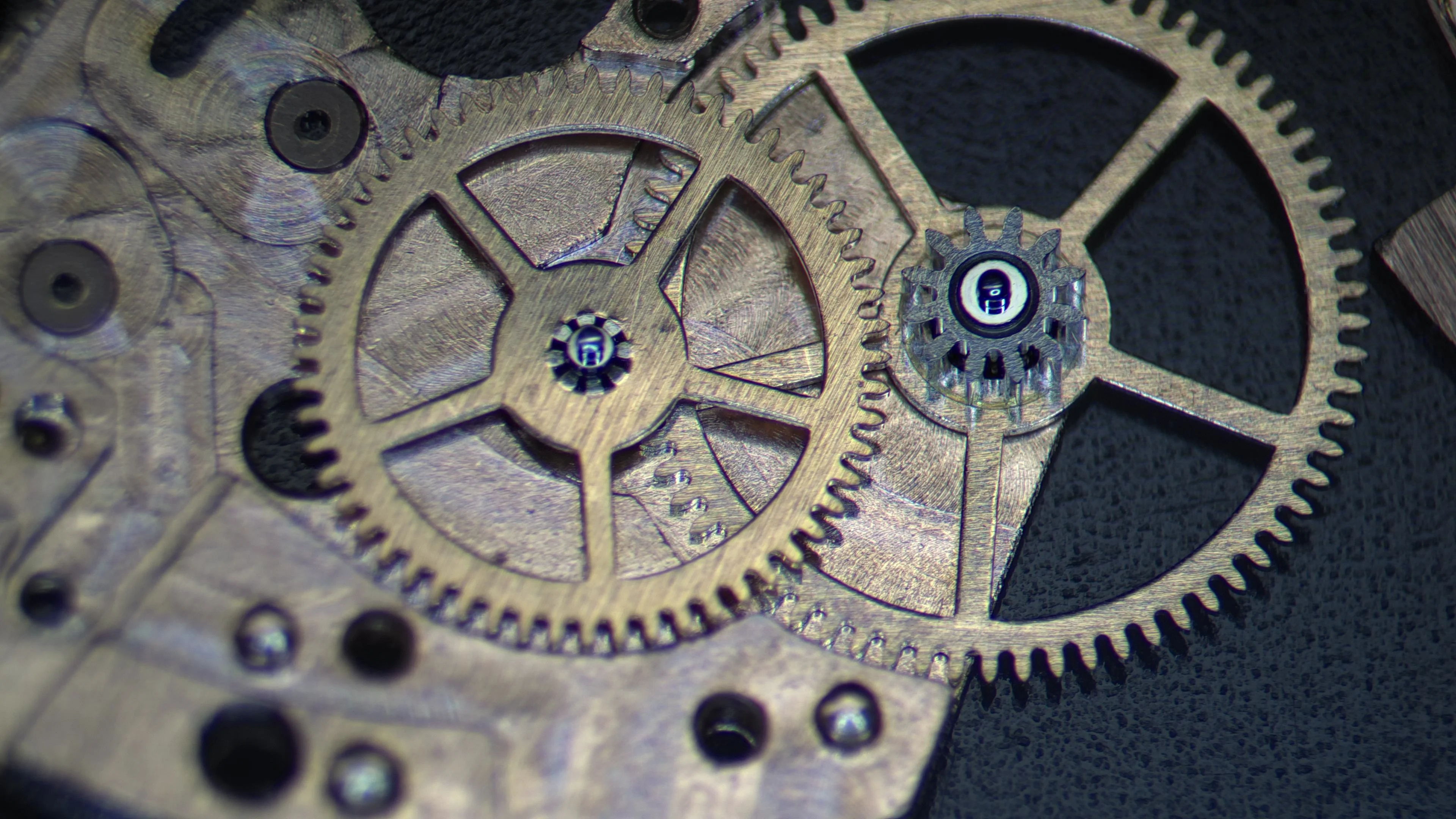

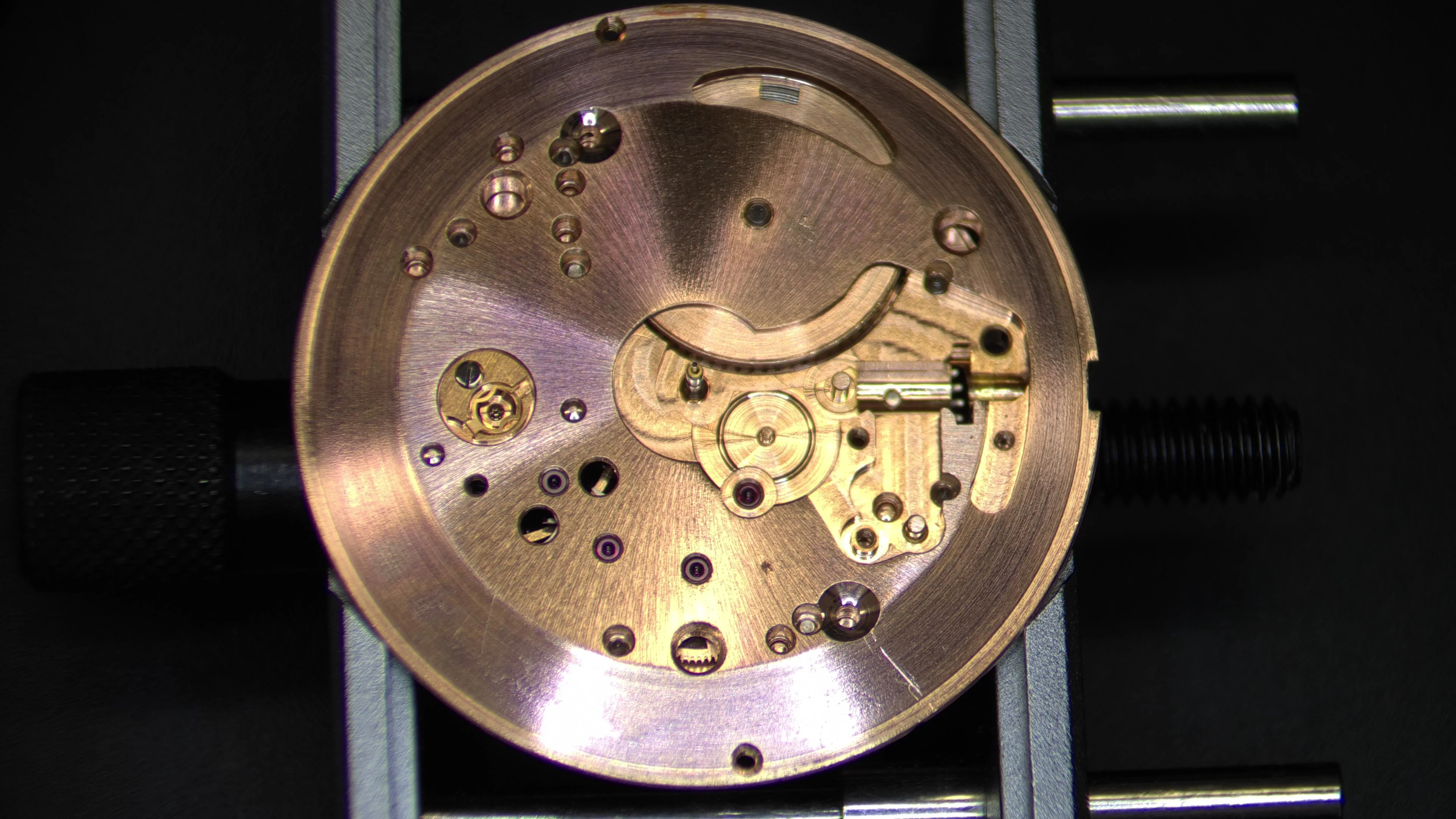

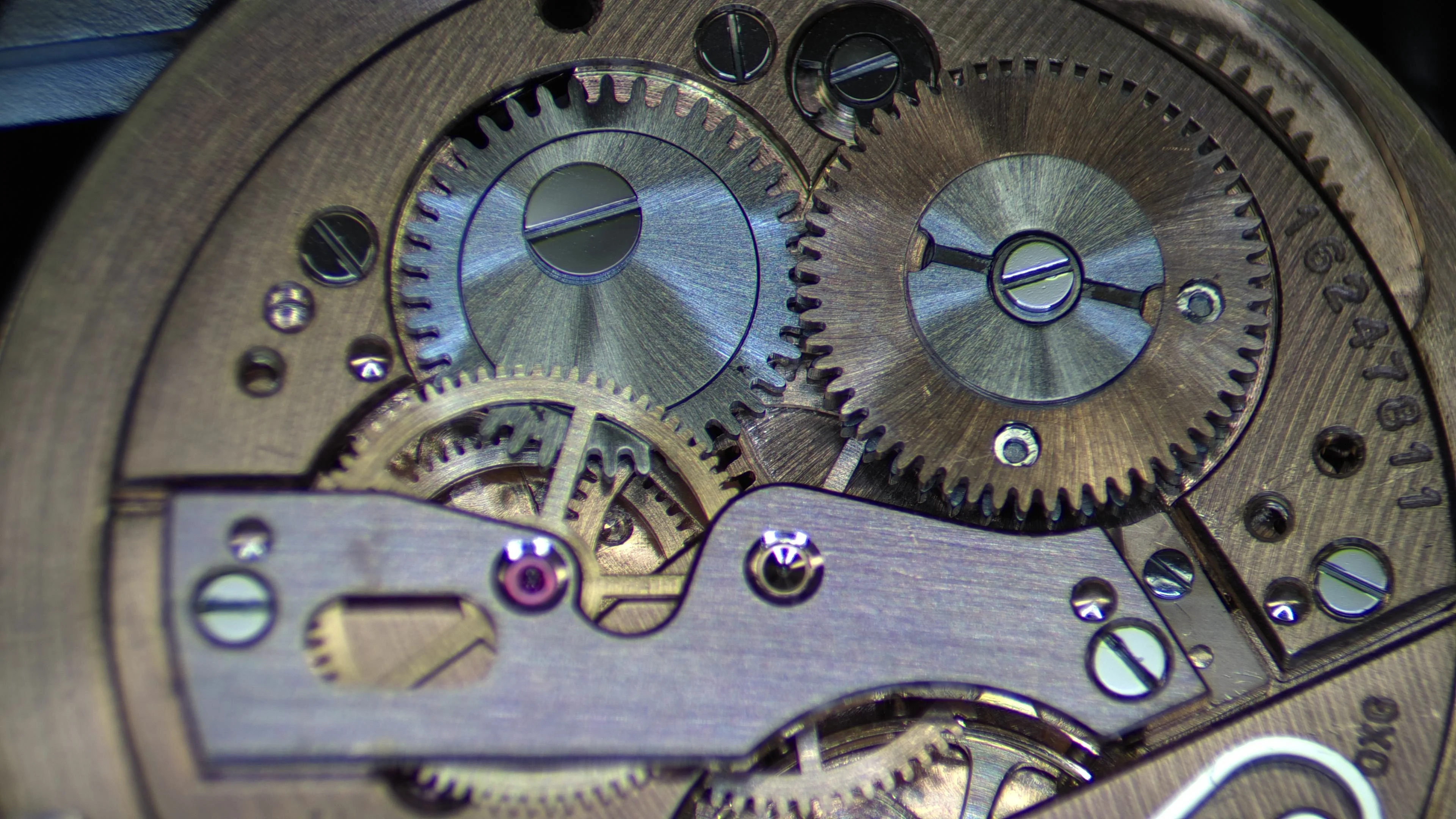

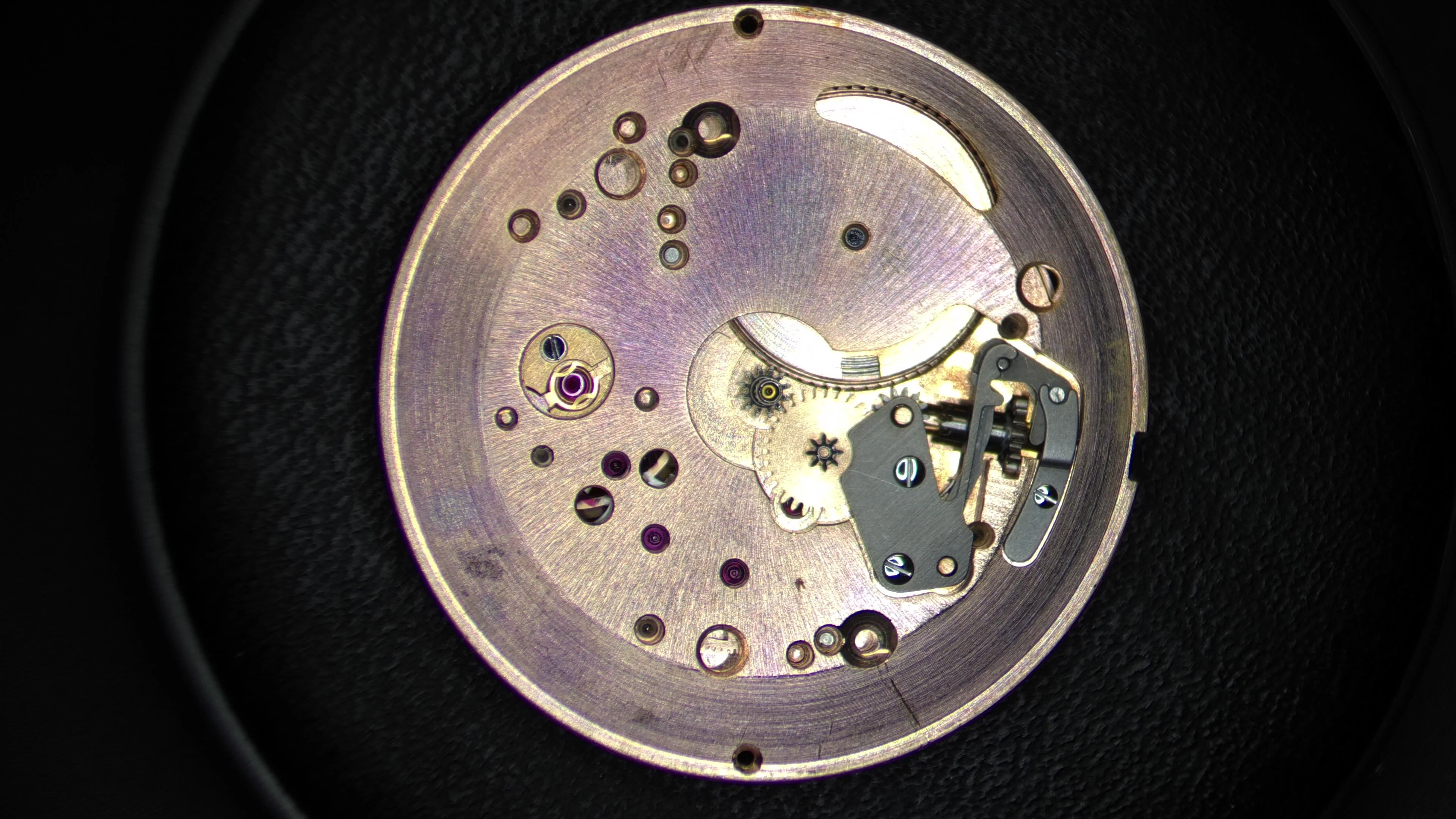

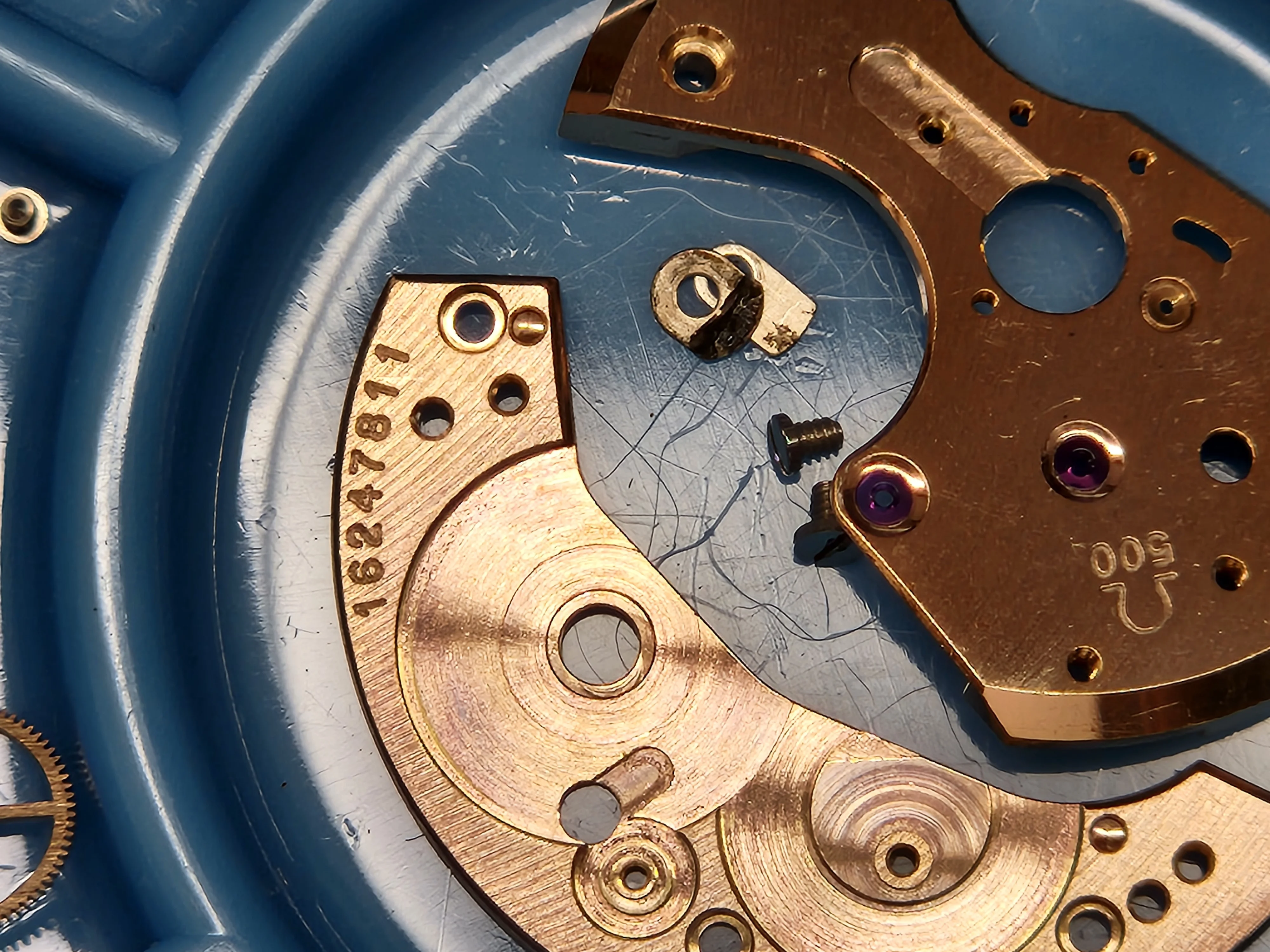

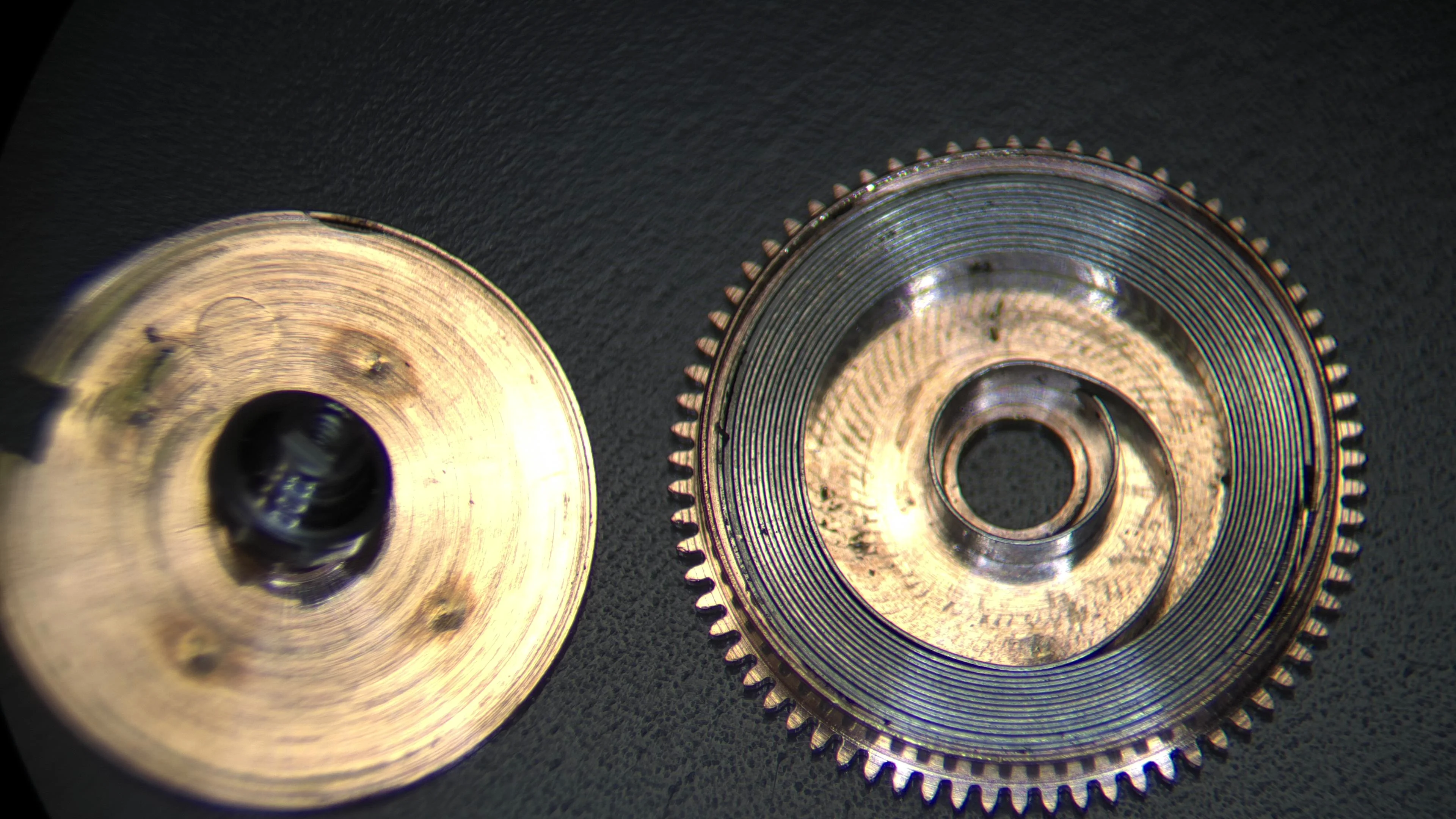

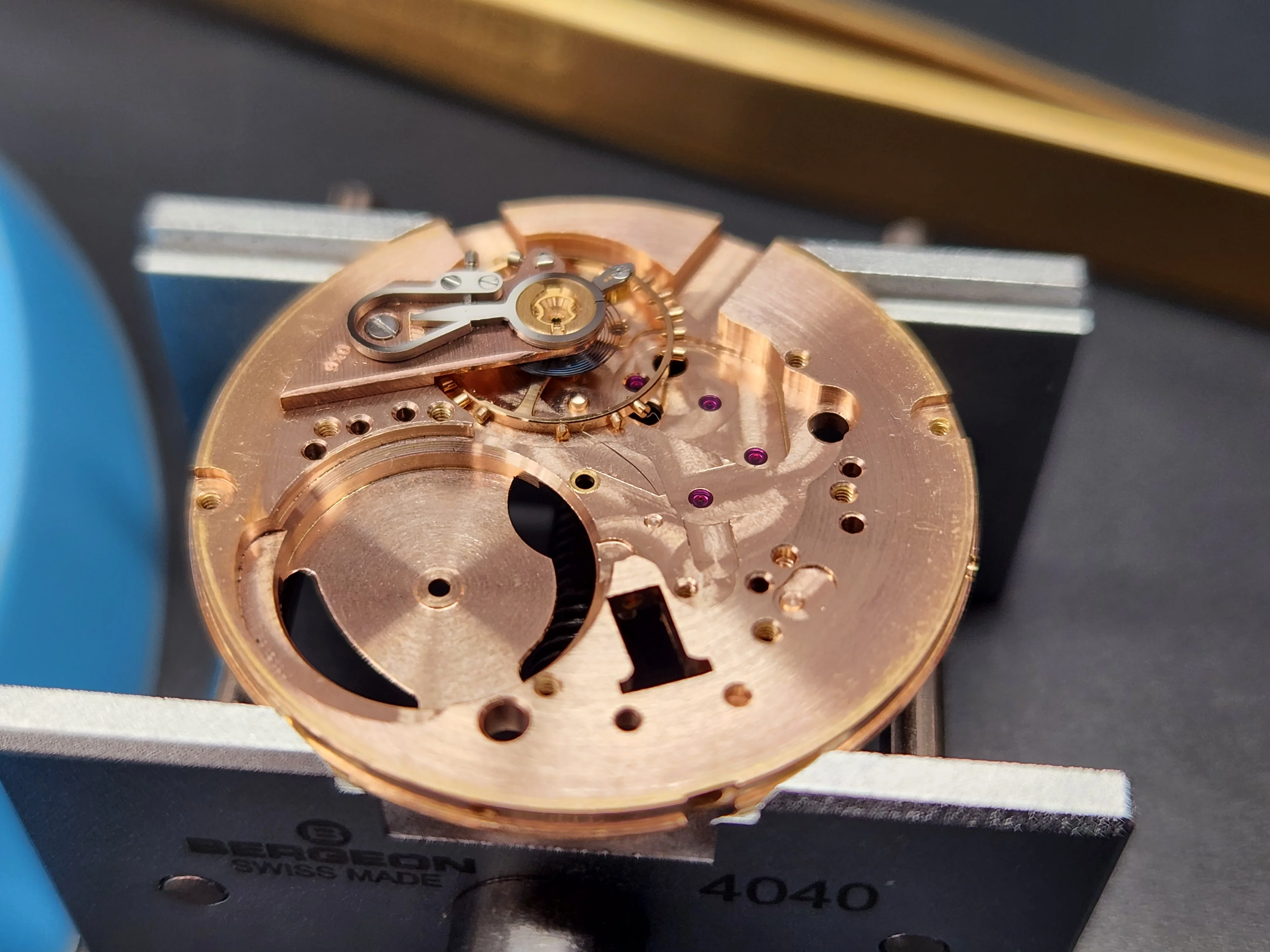

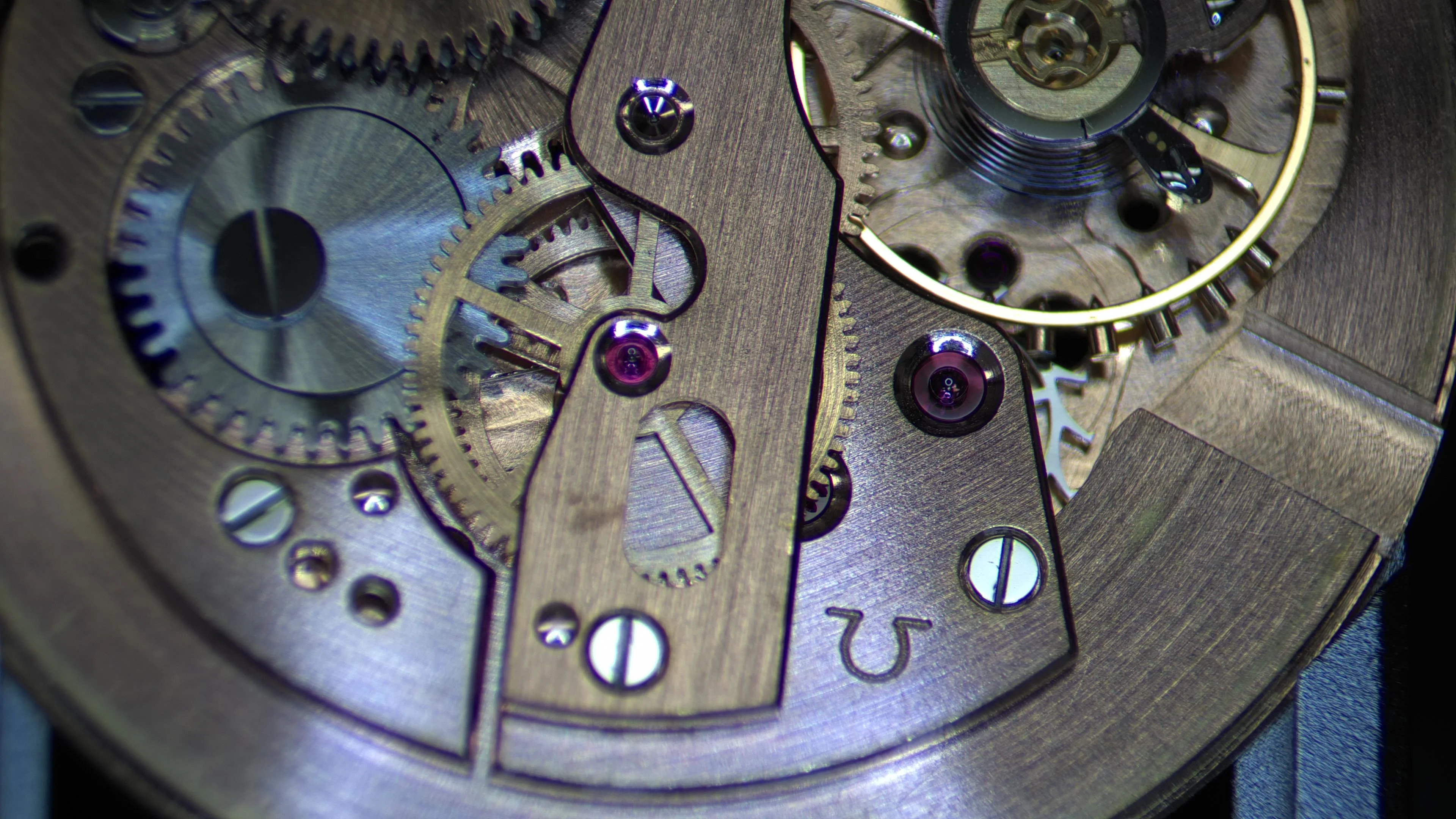

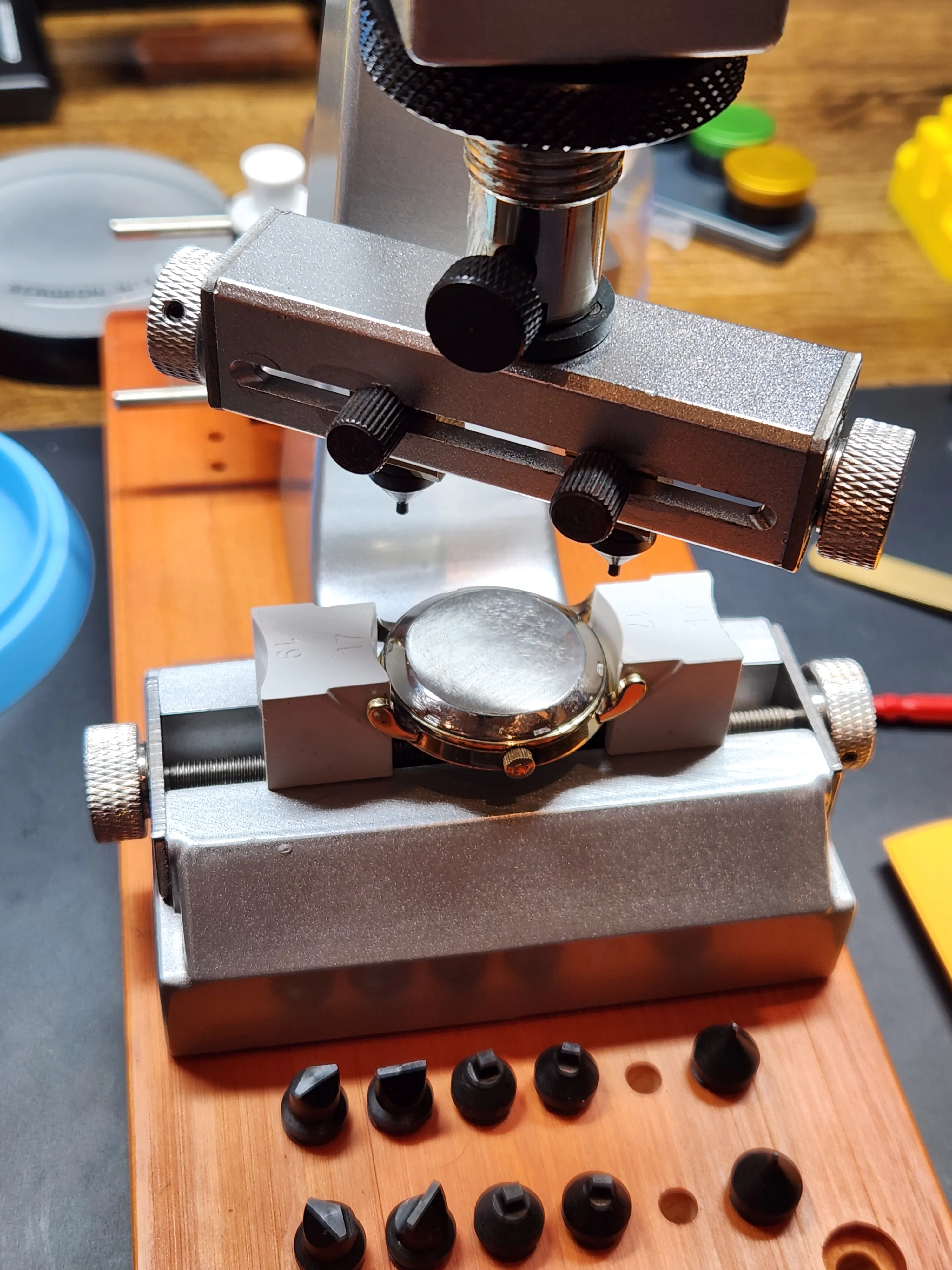

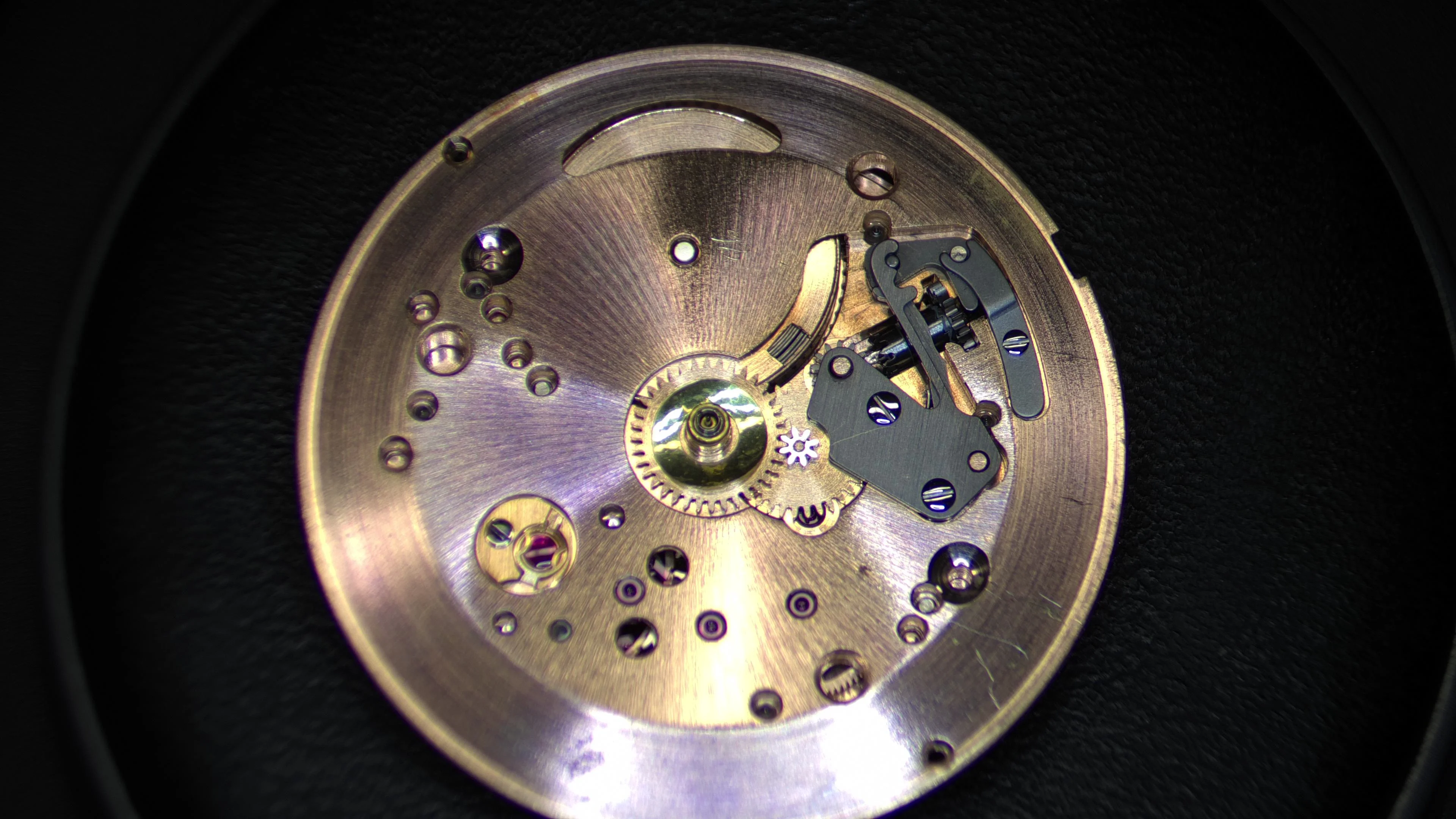

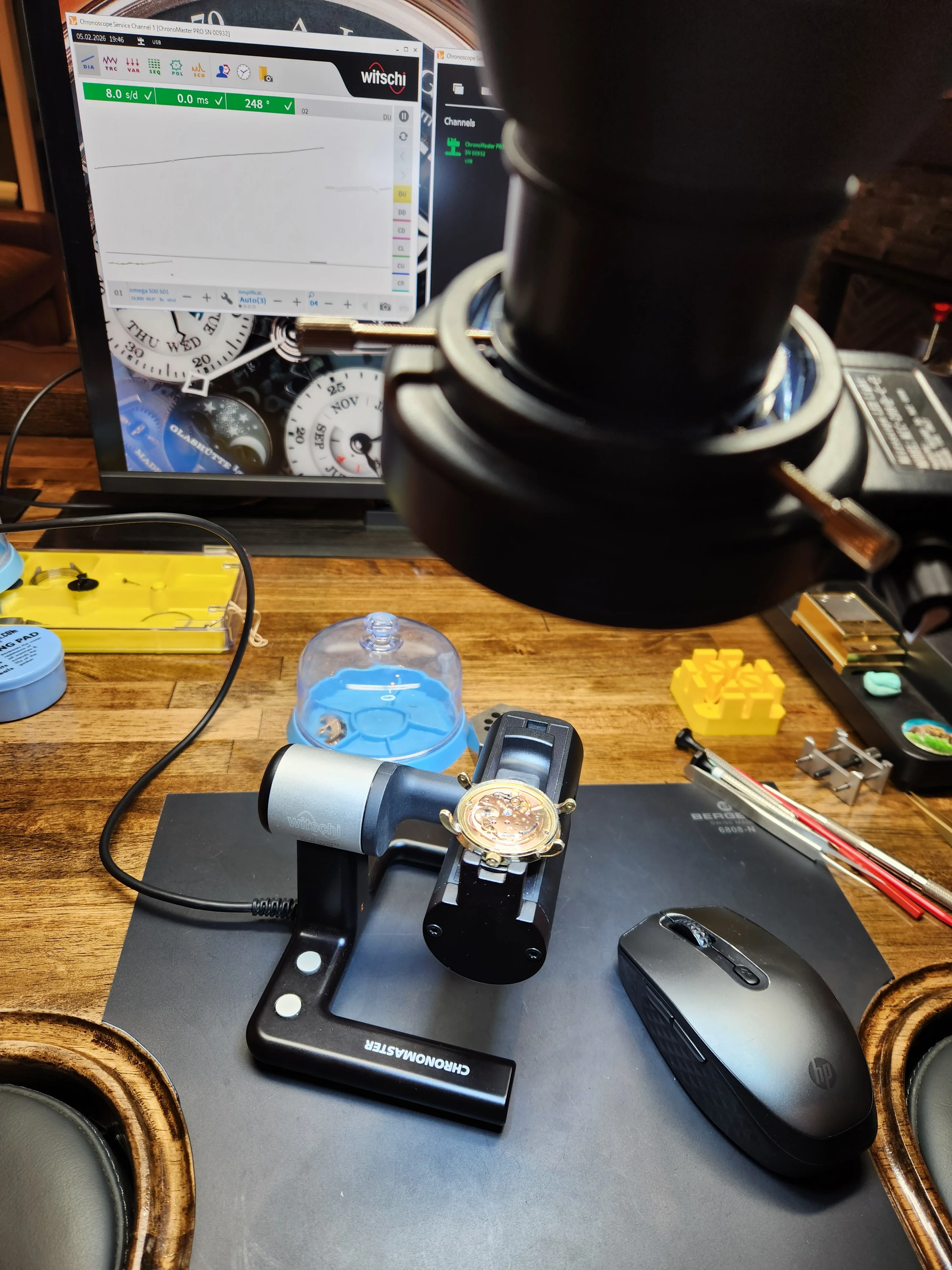

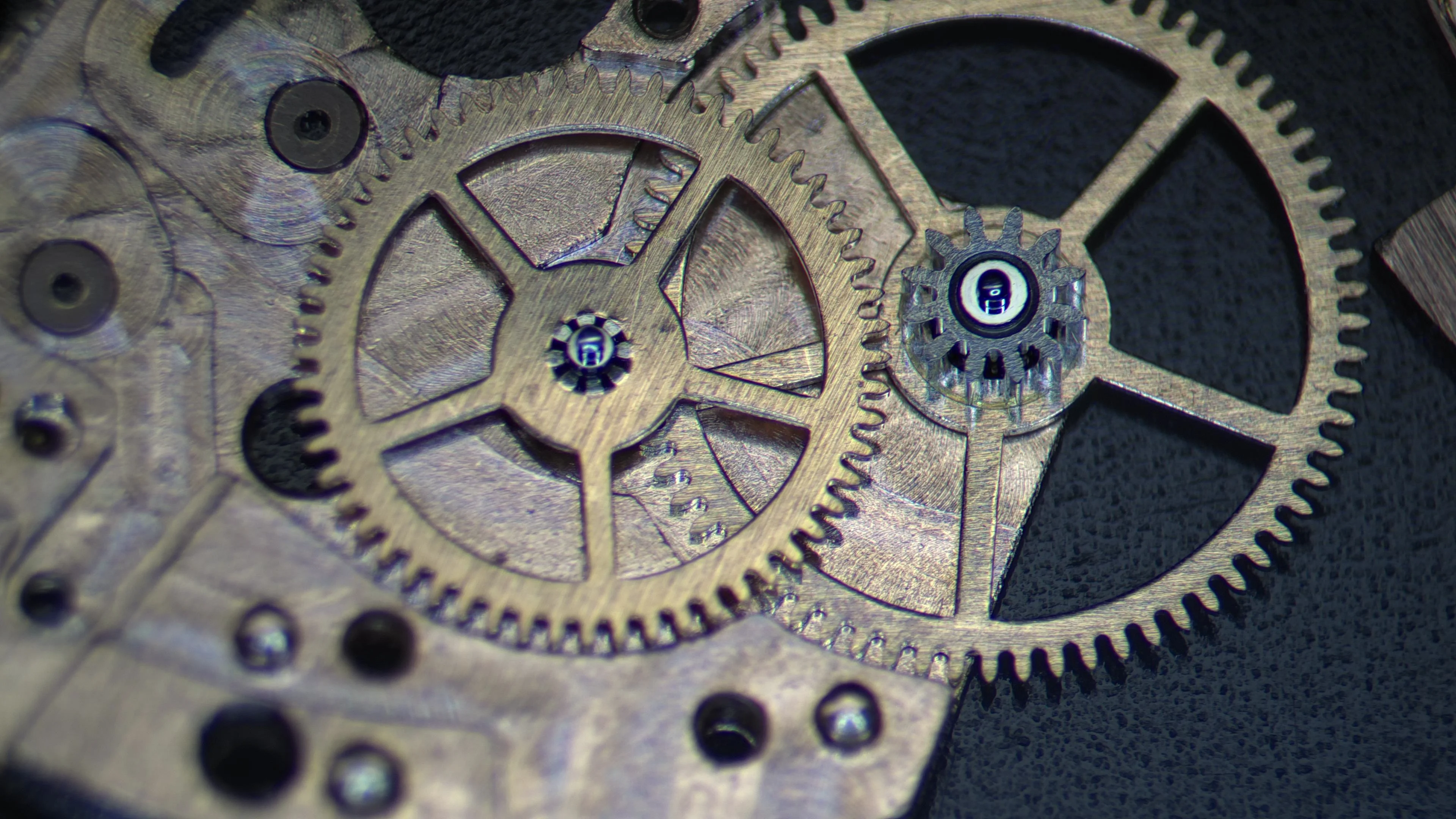

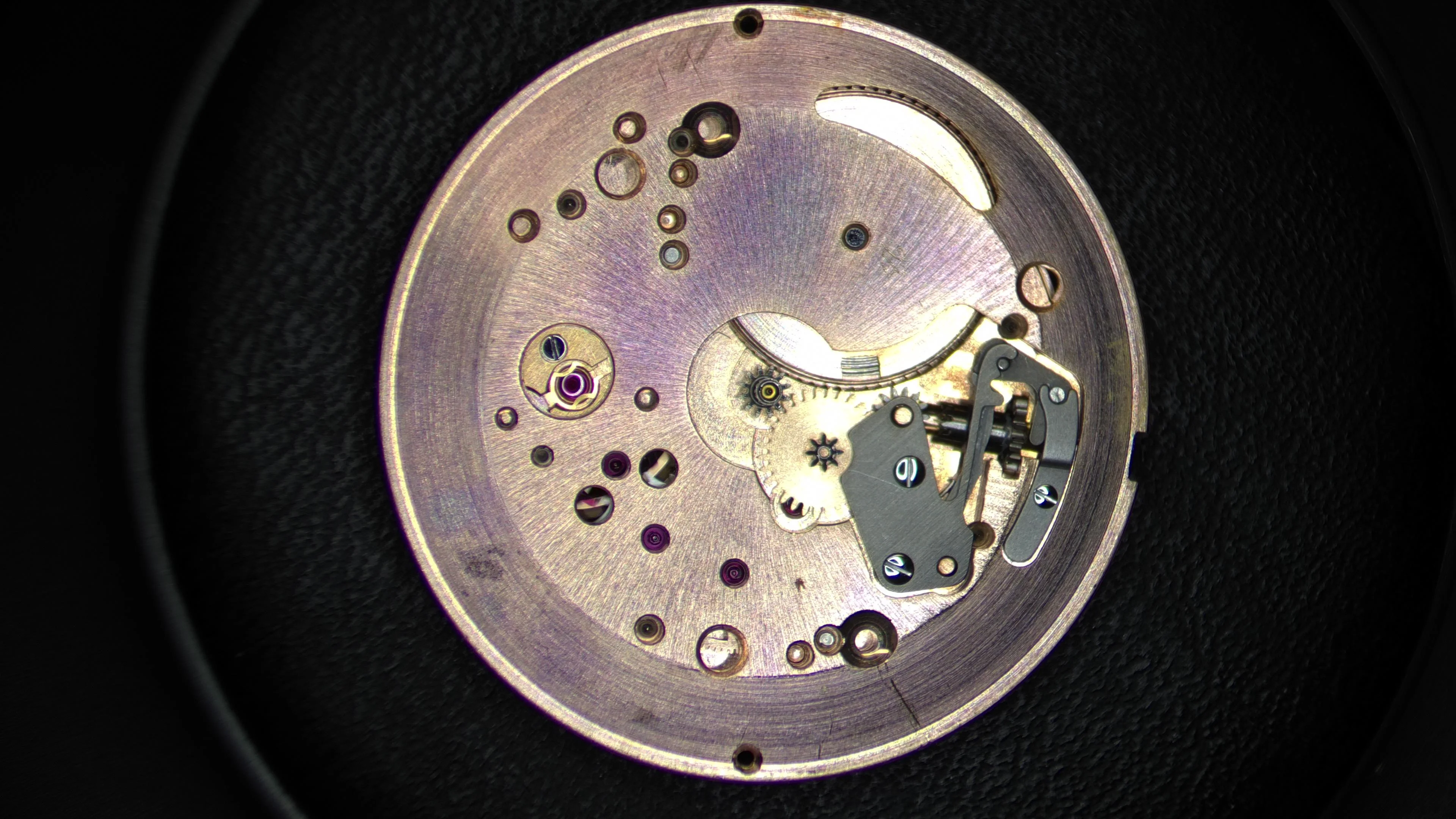

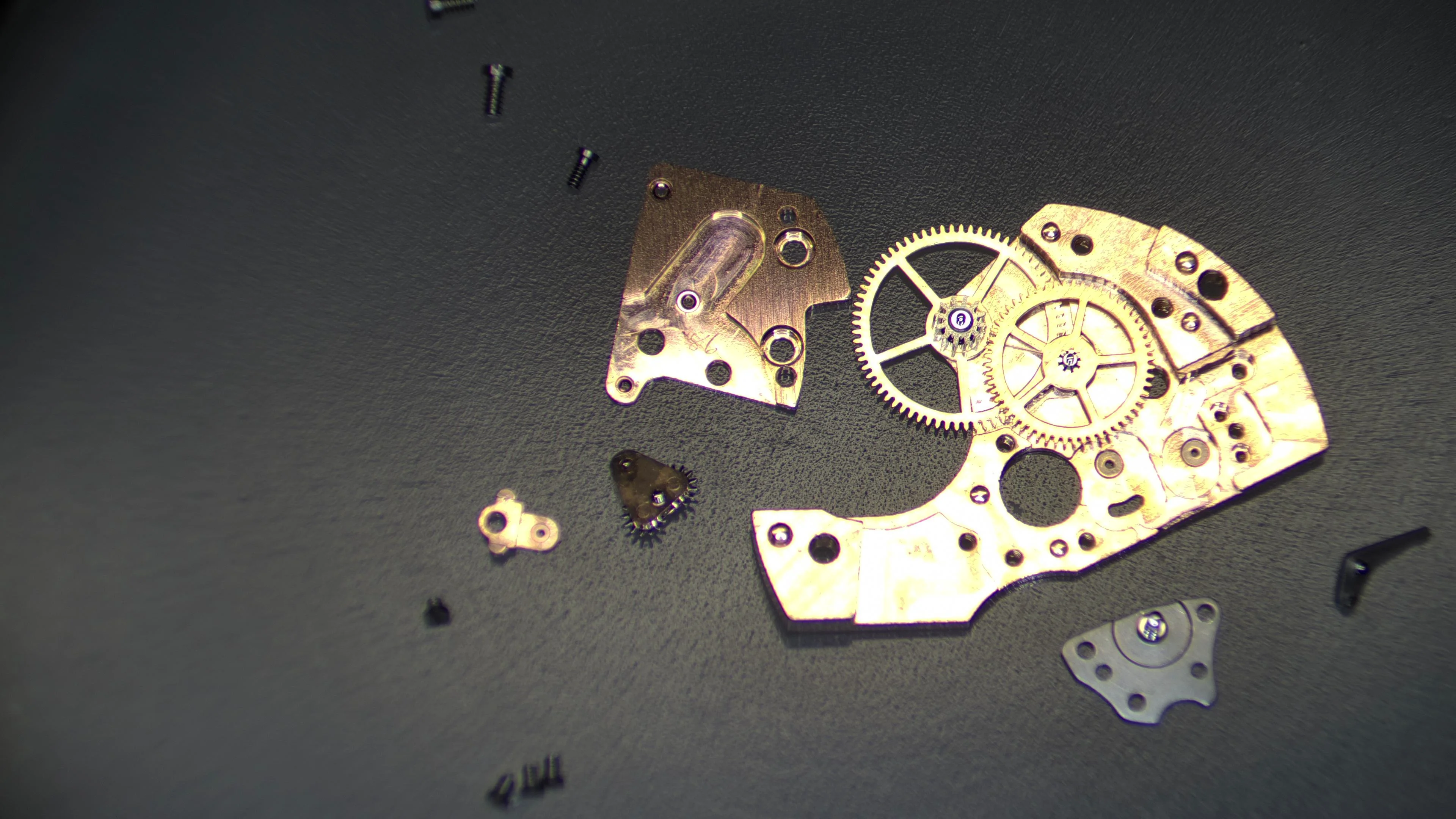

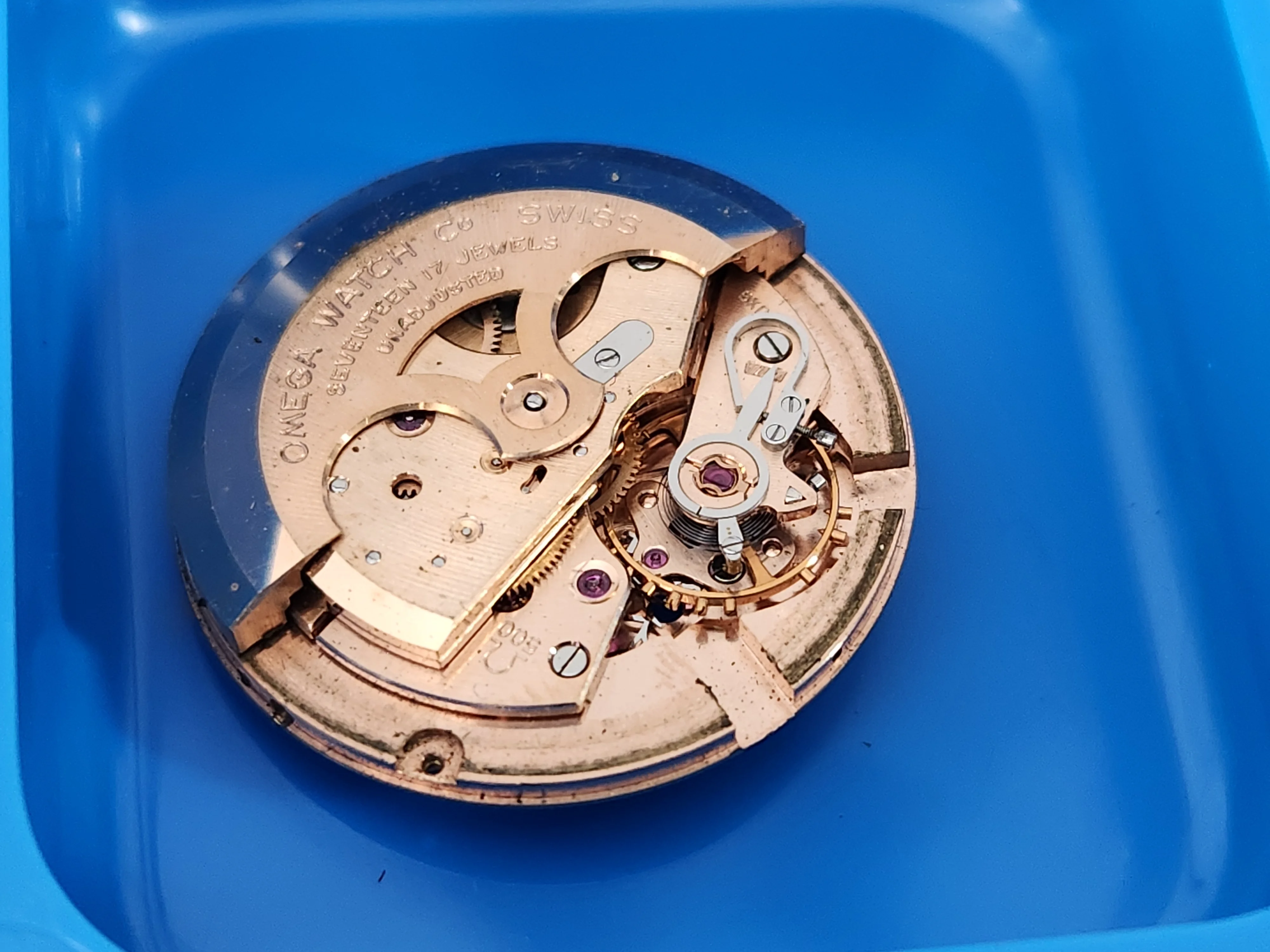

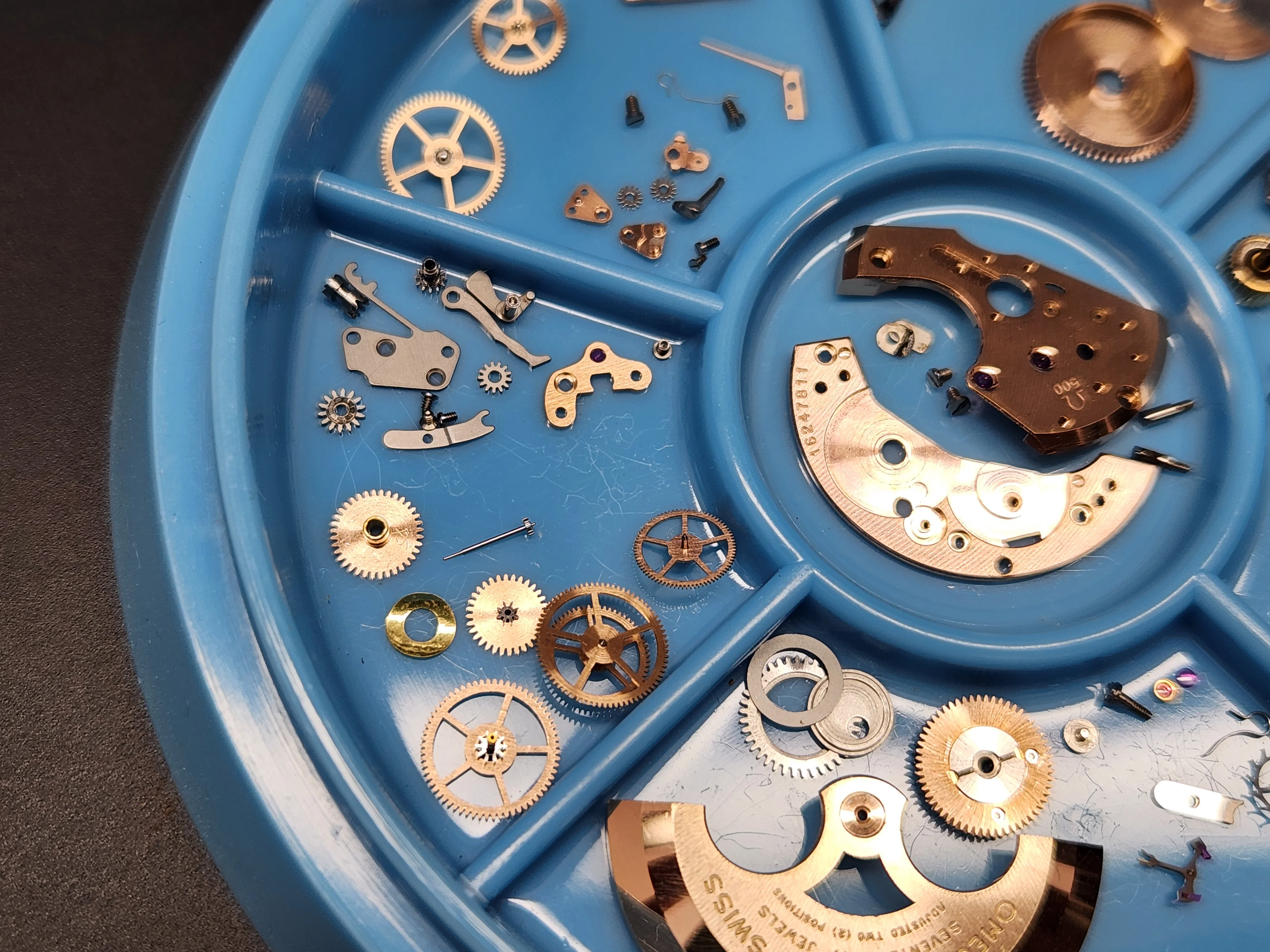

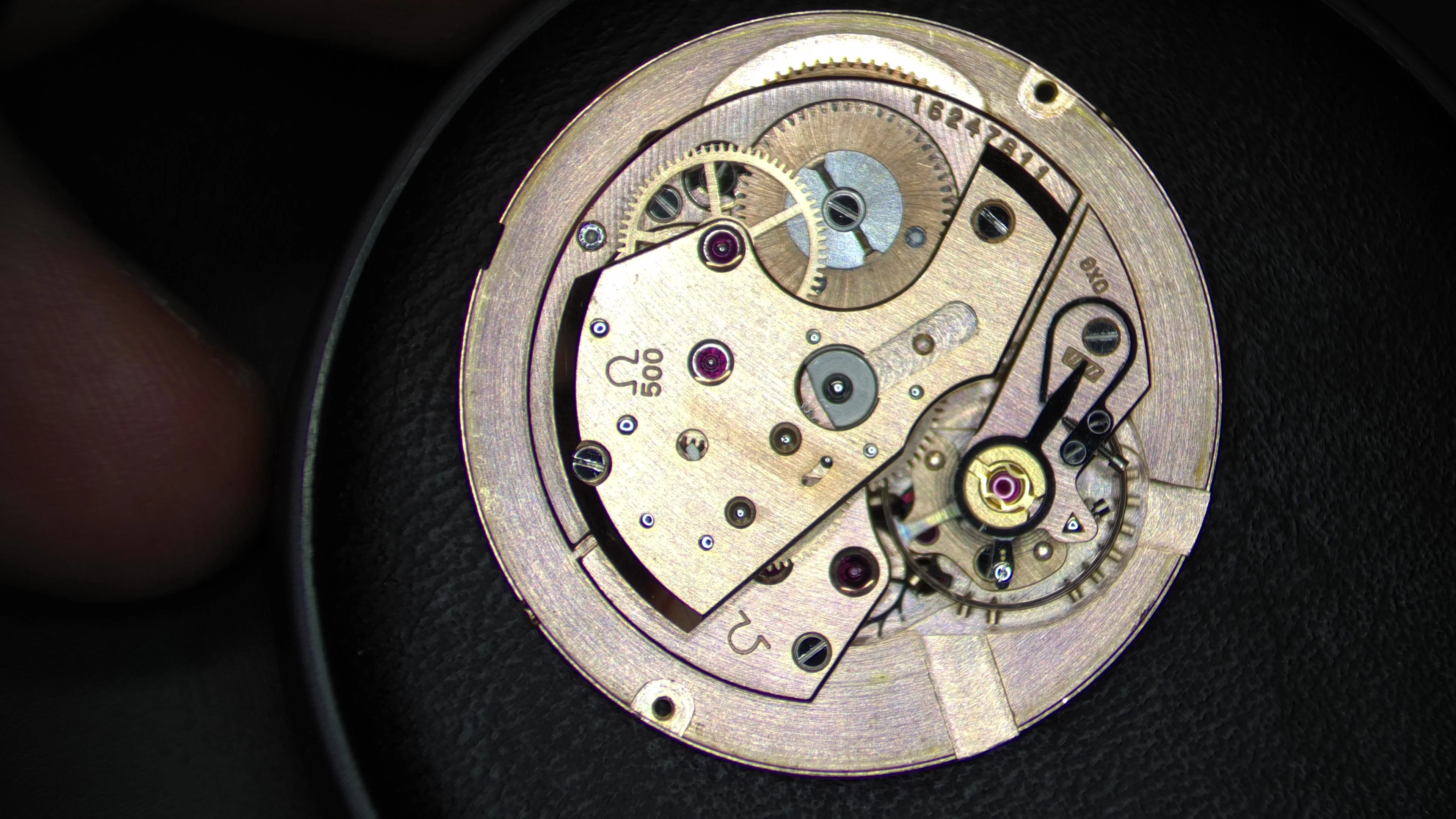

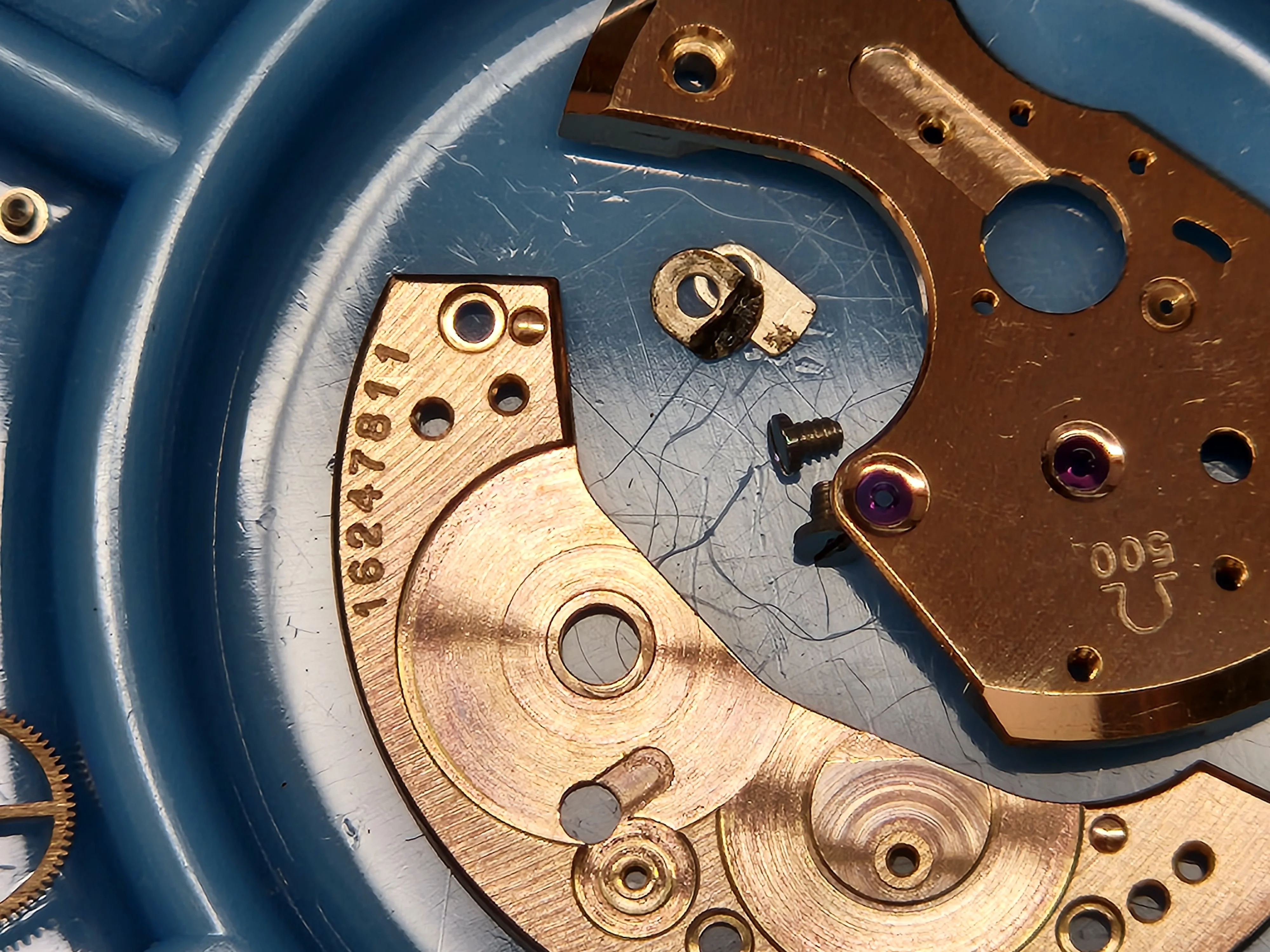

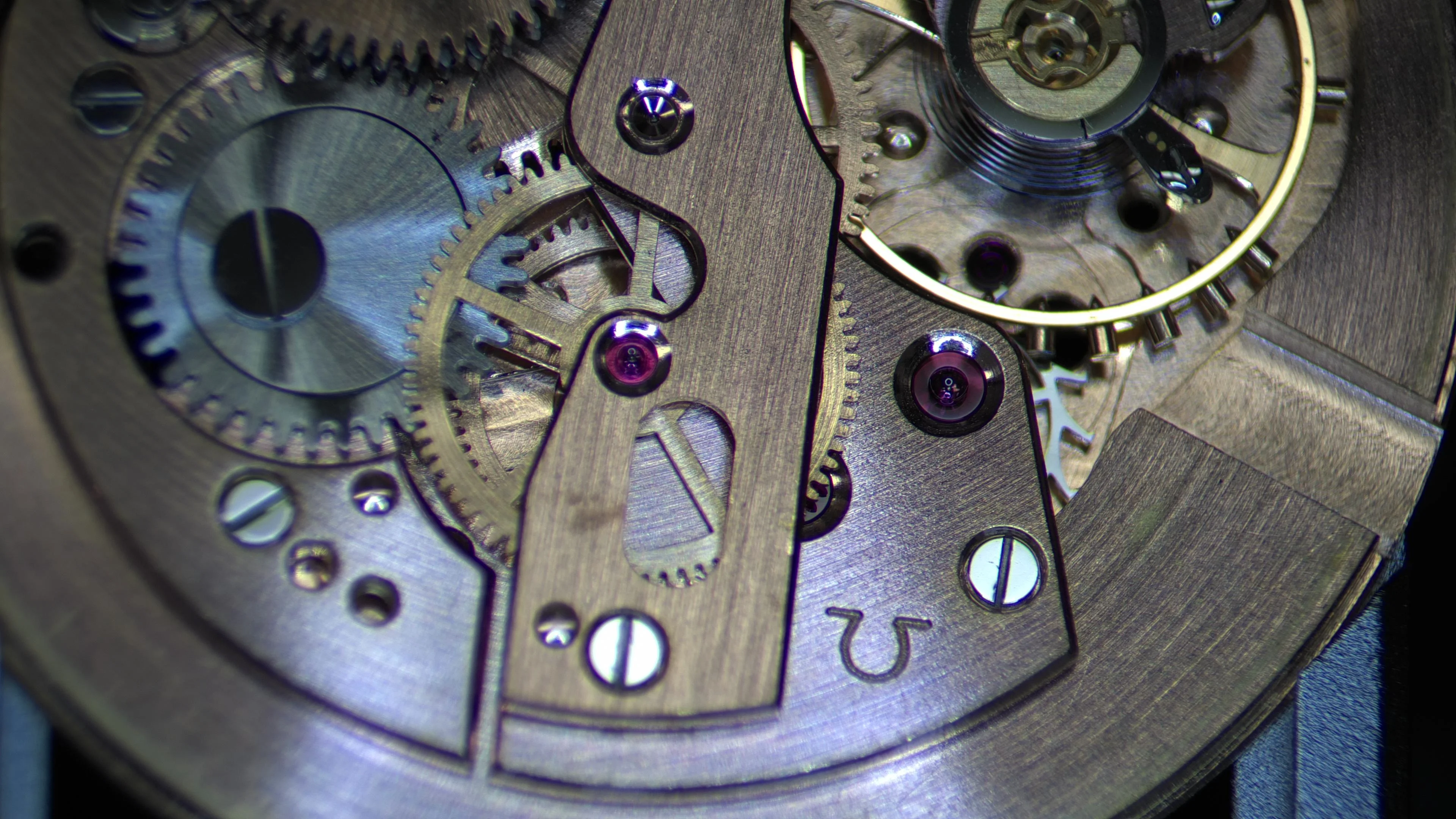

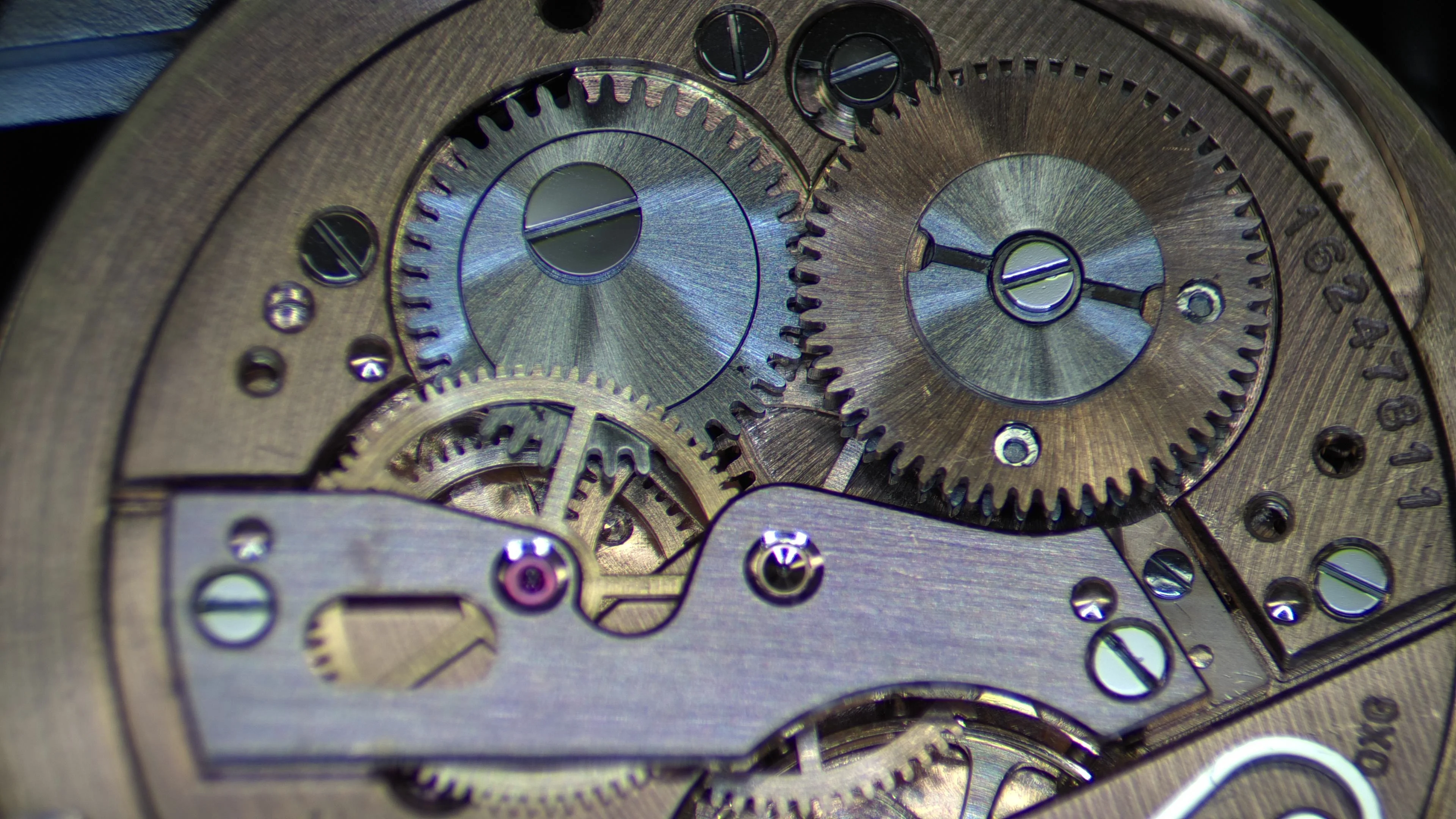

service shots
20251228_112227.webp 20260126_140025.webp 20260126_140030.webp 20260126_140042.webp 20260126_140056.webp 20260126_140109.webp

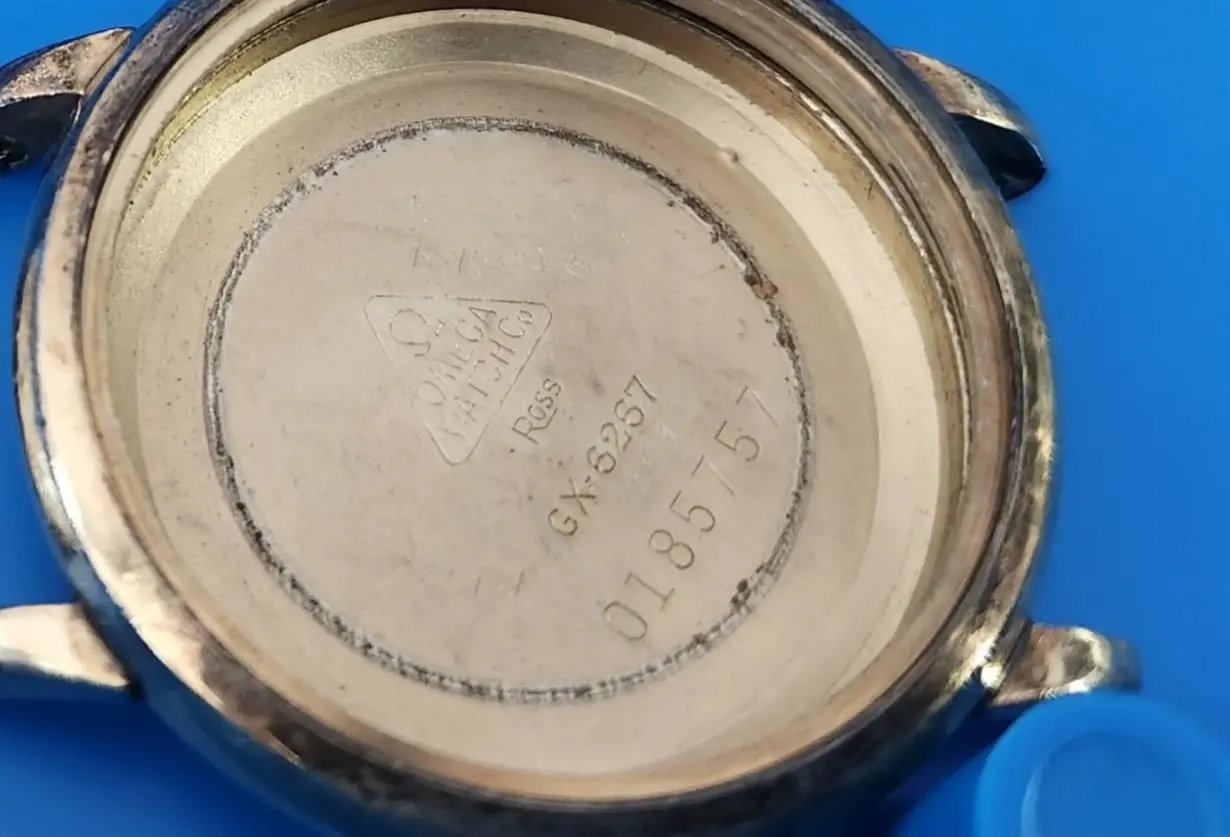

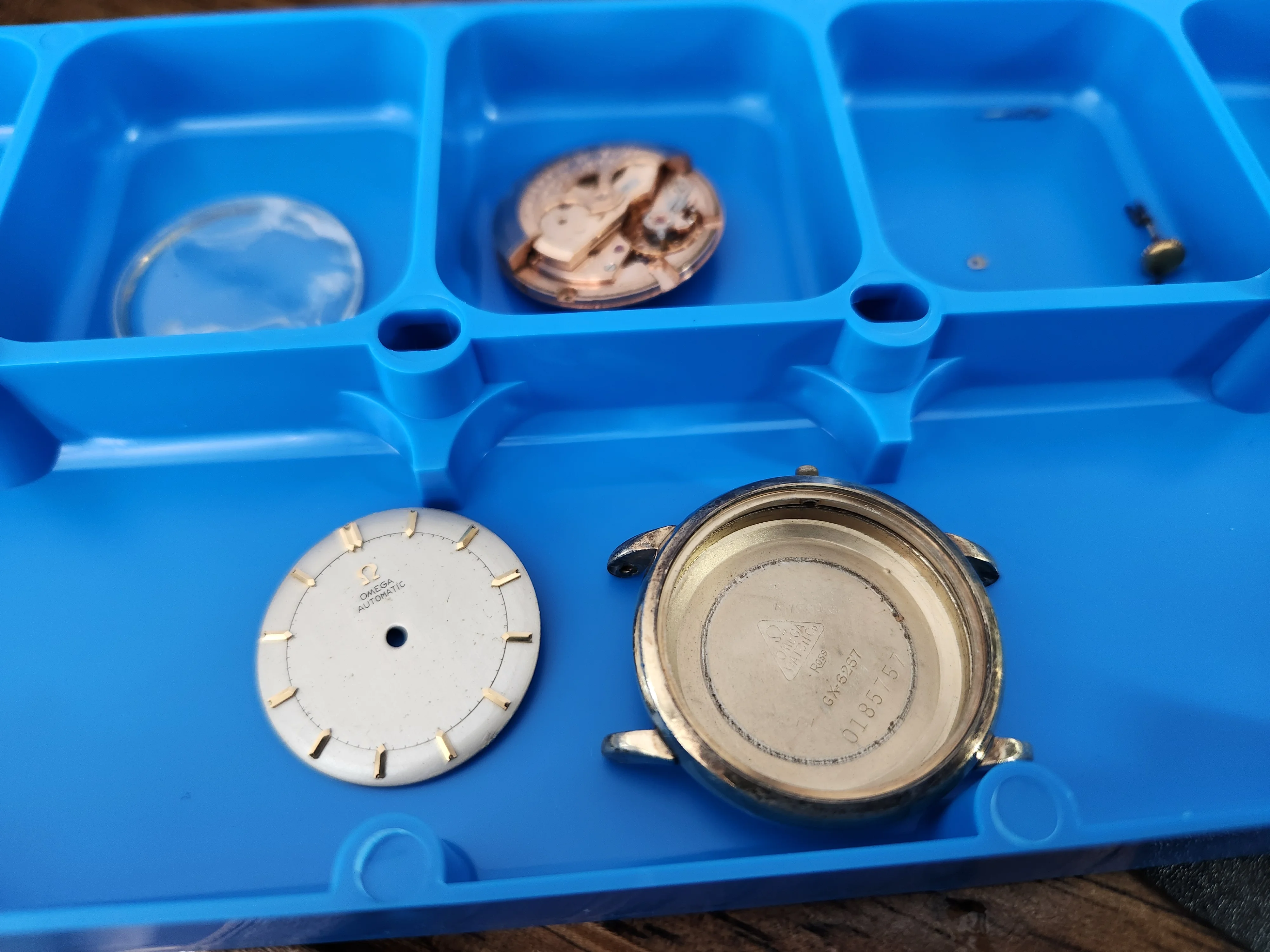

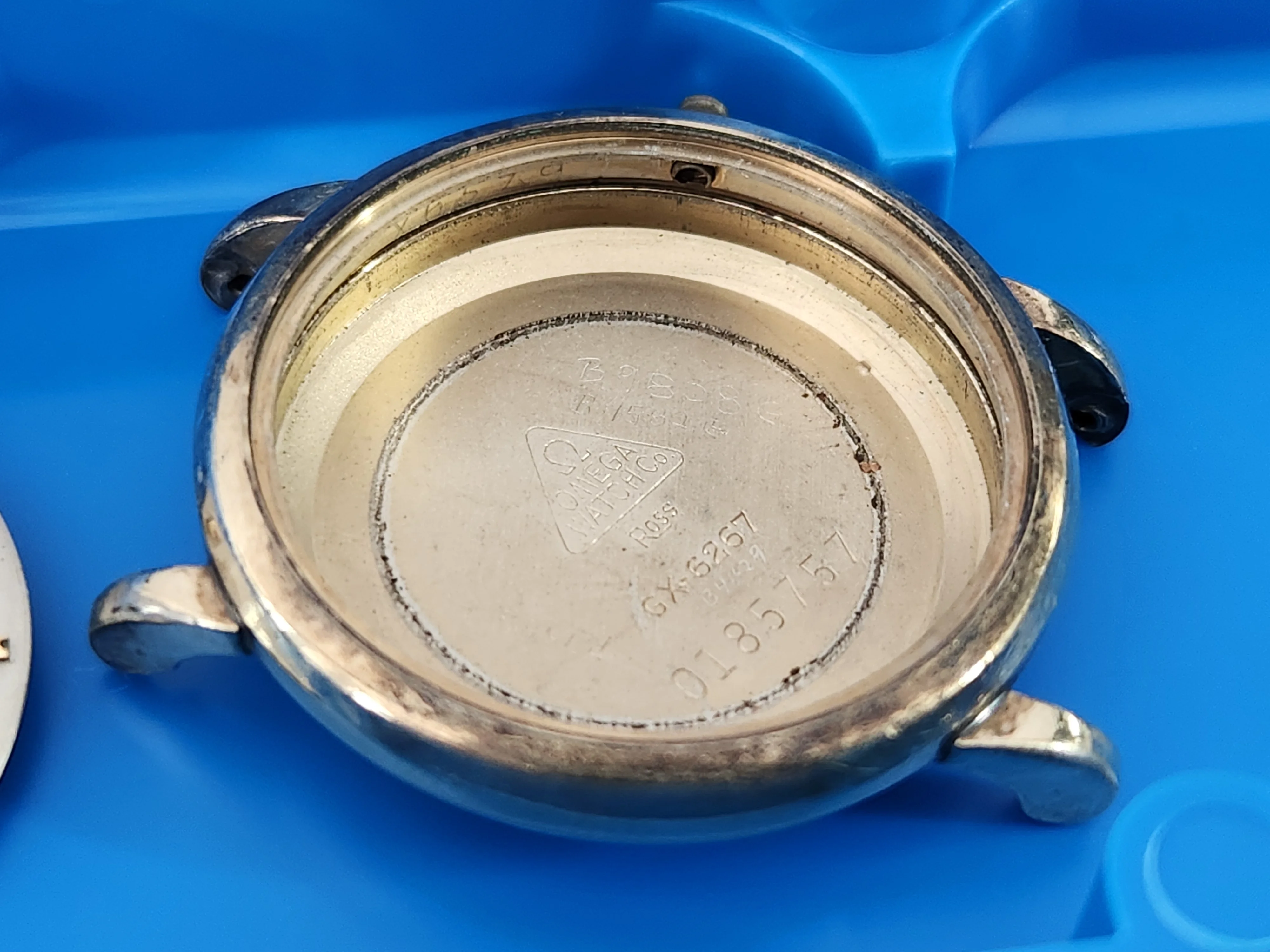

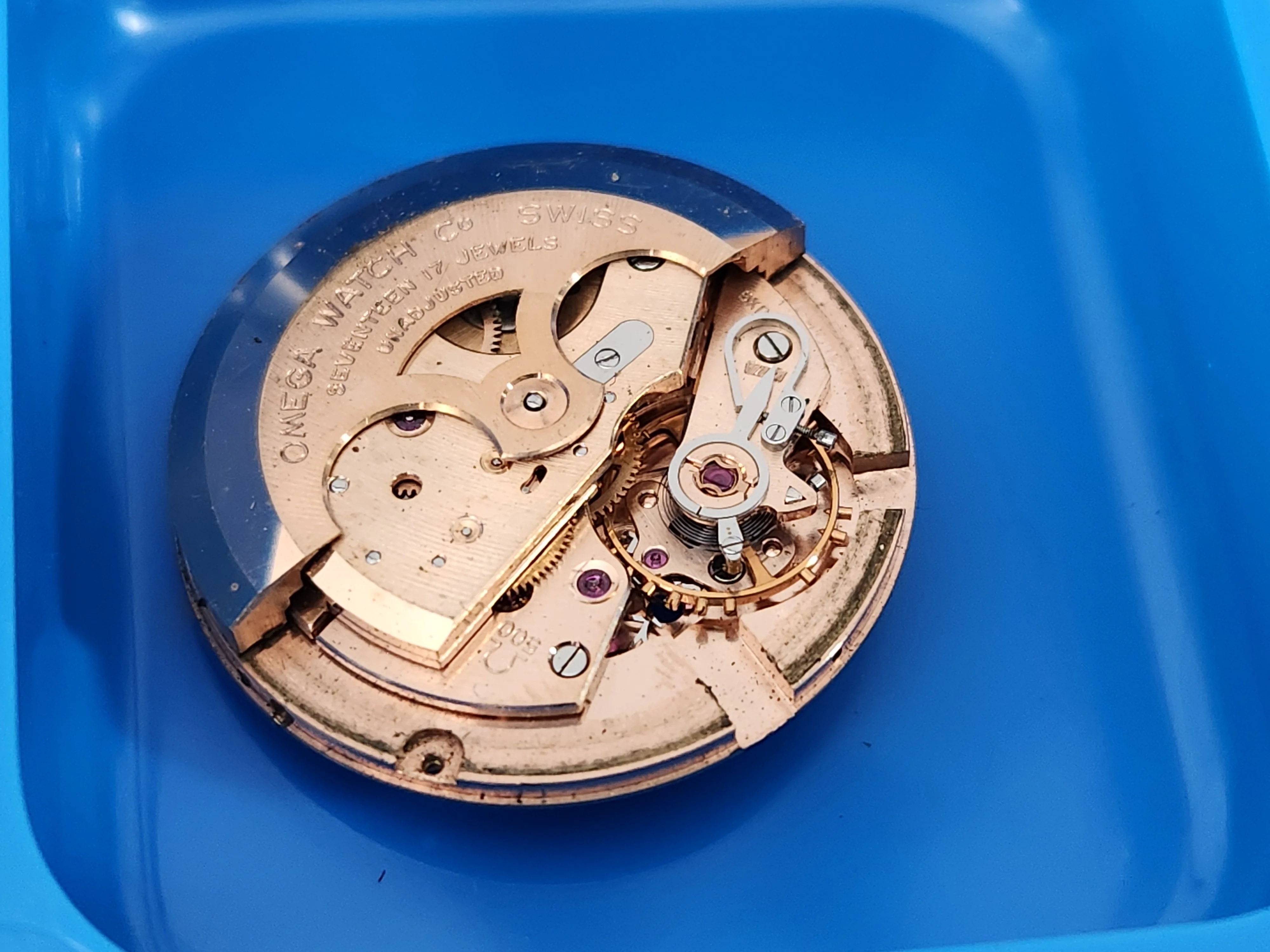

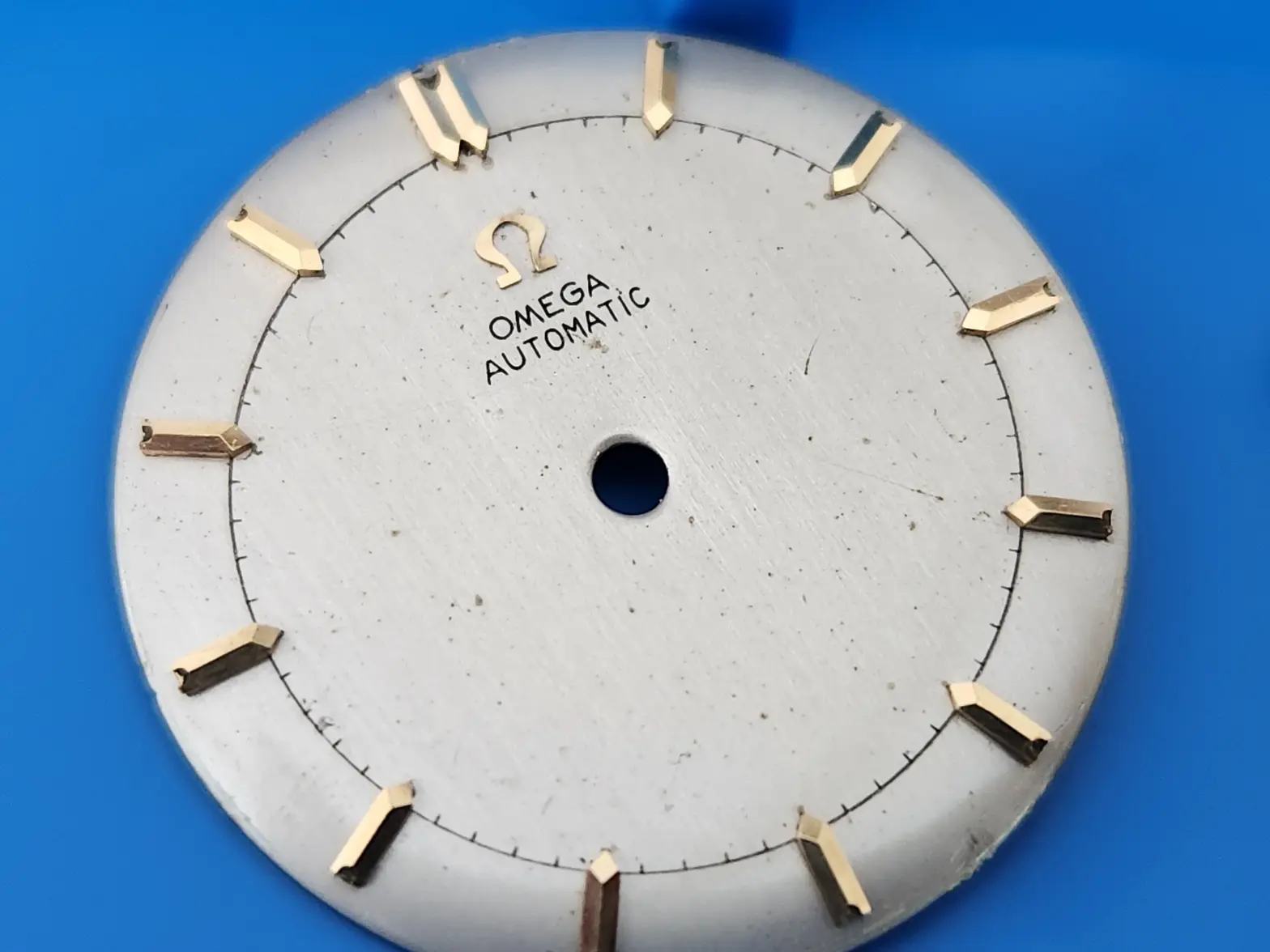

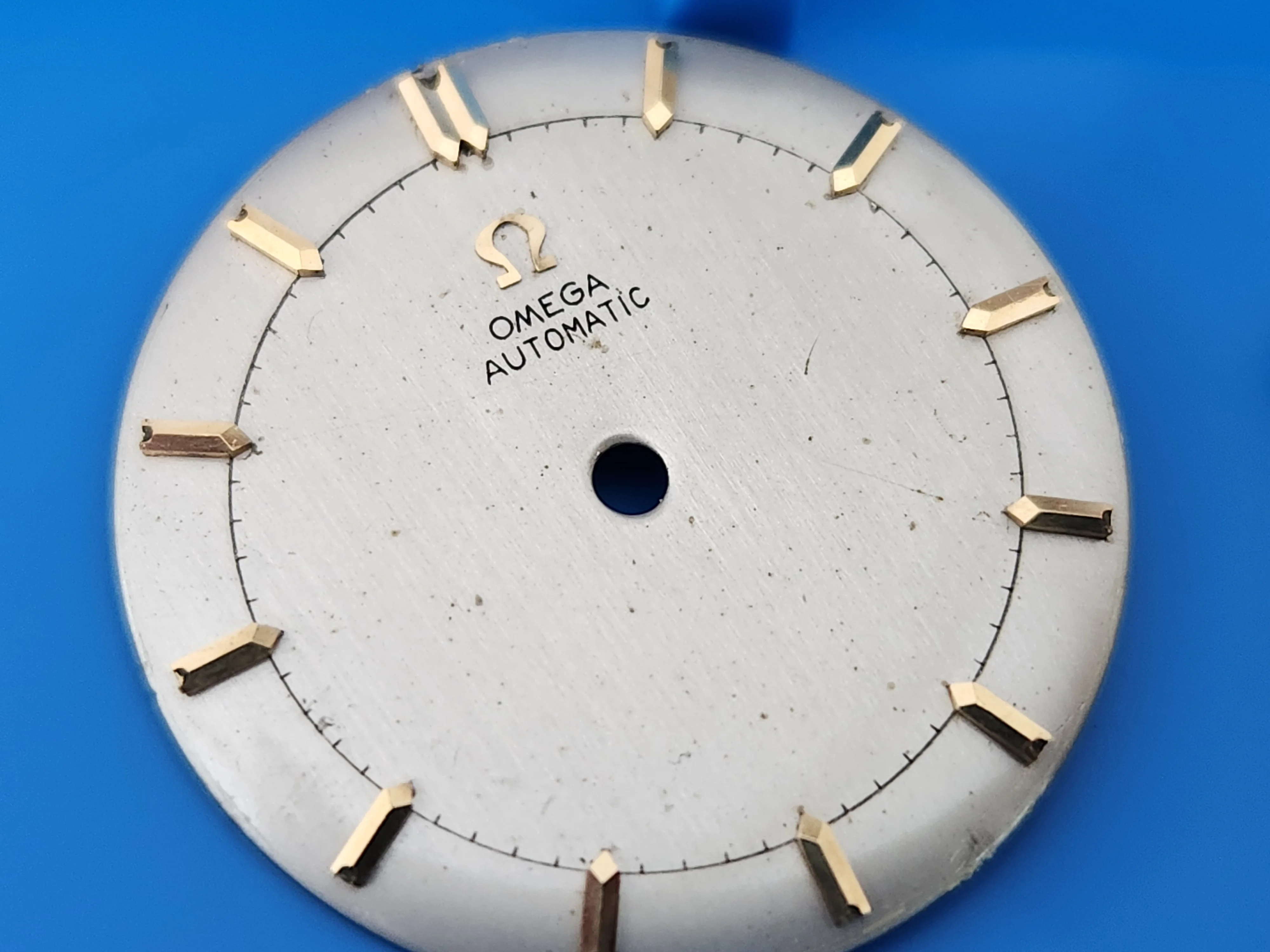

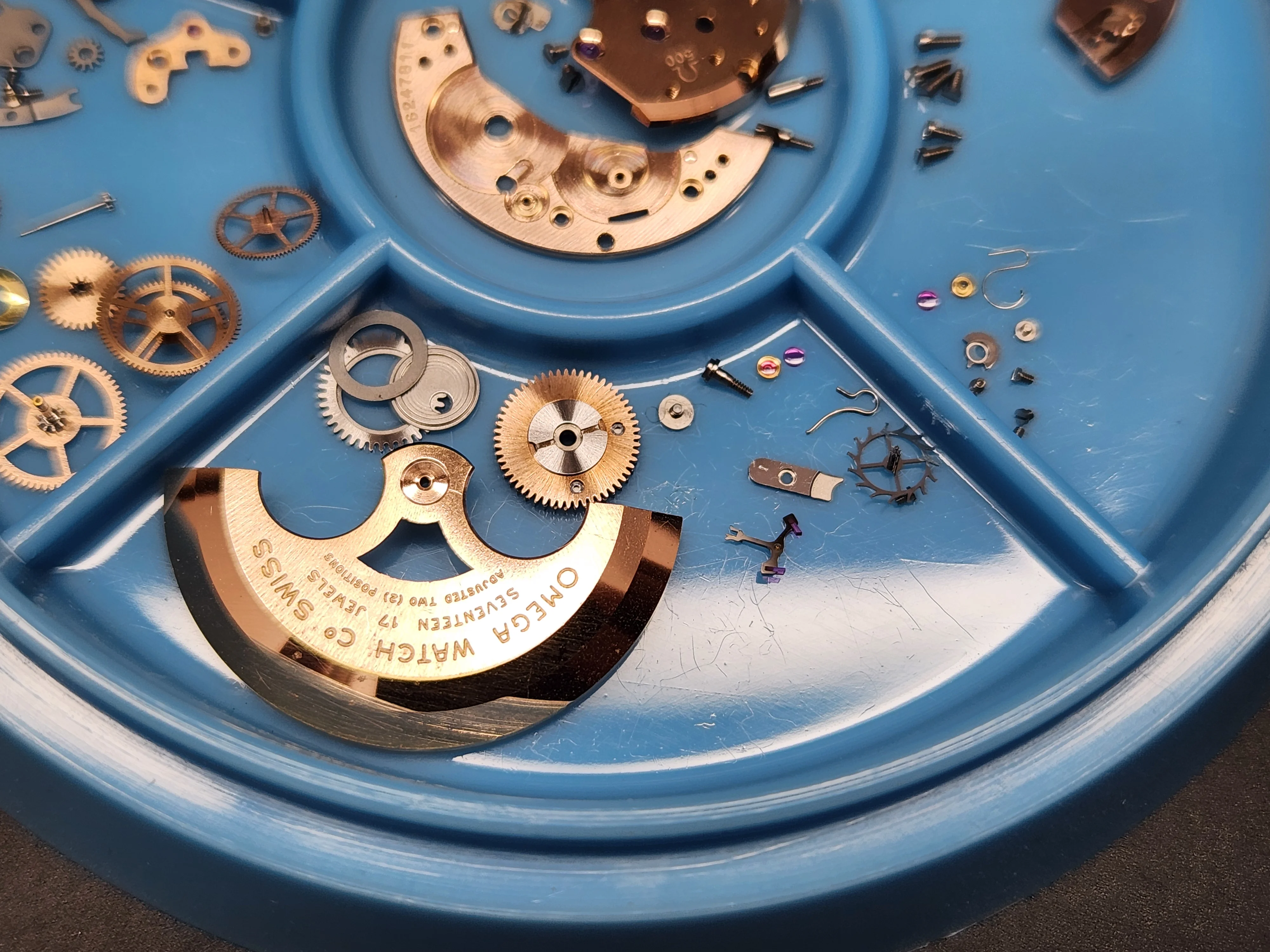

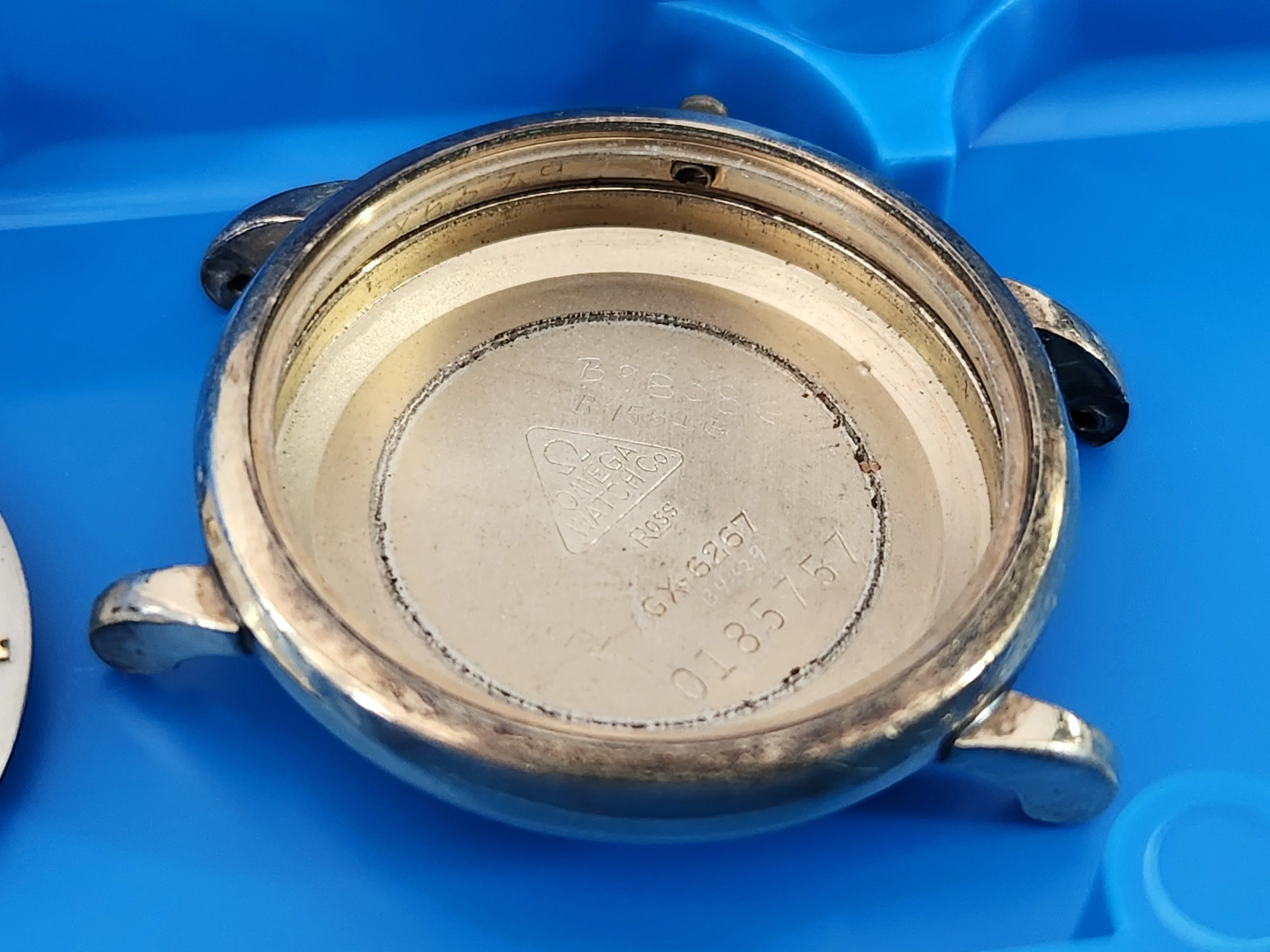

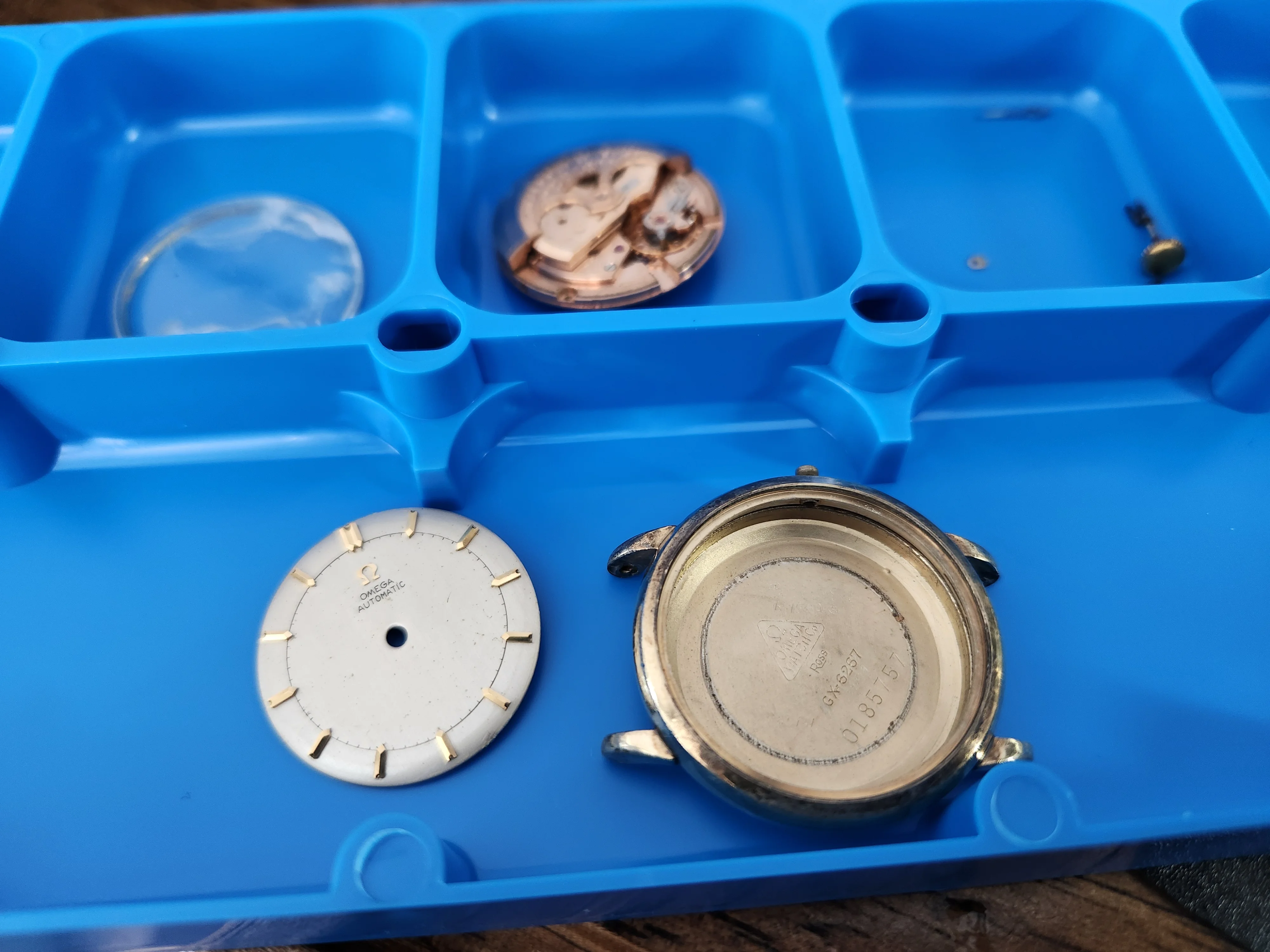

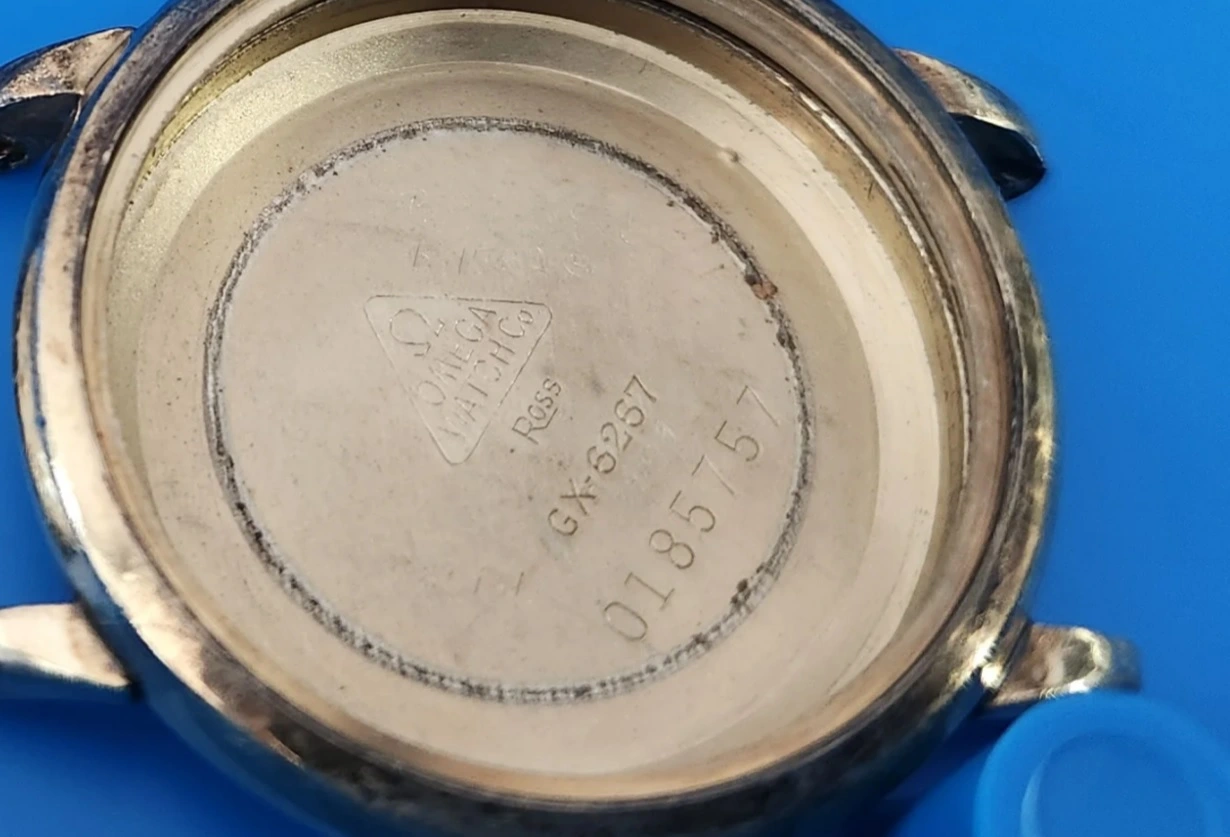

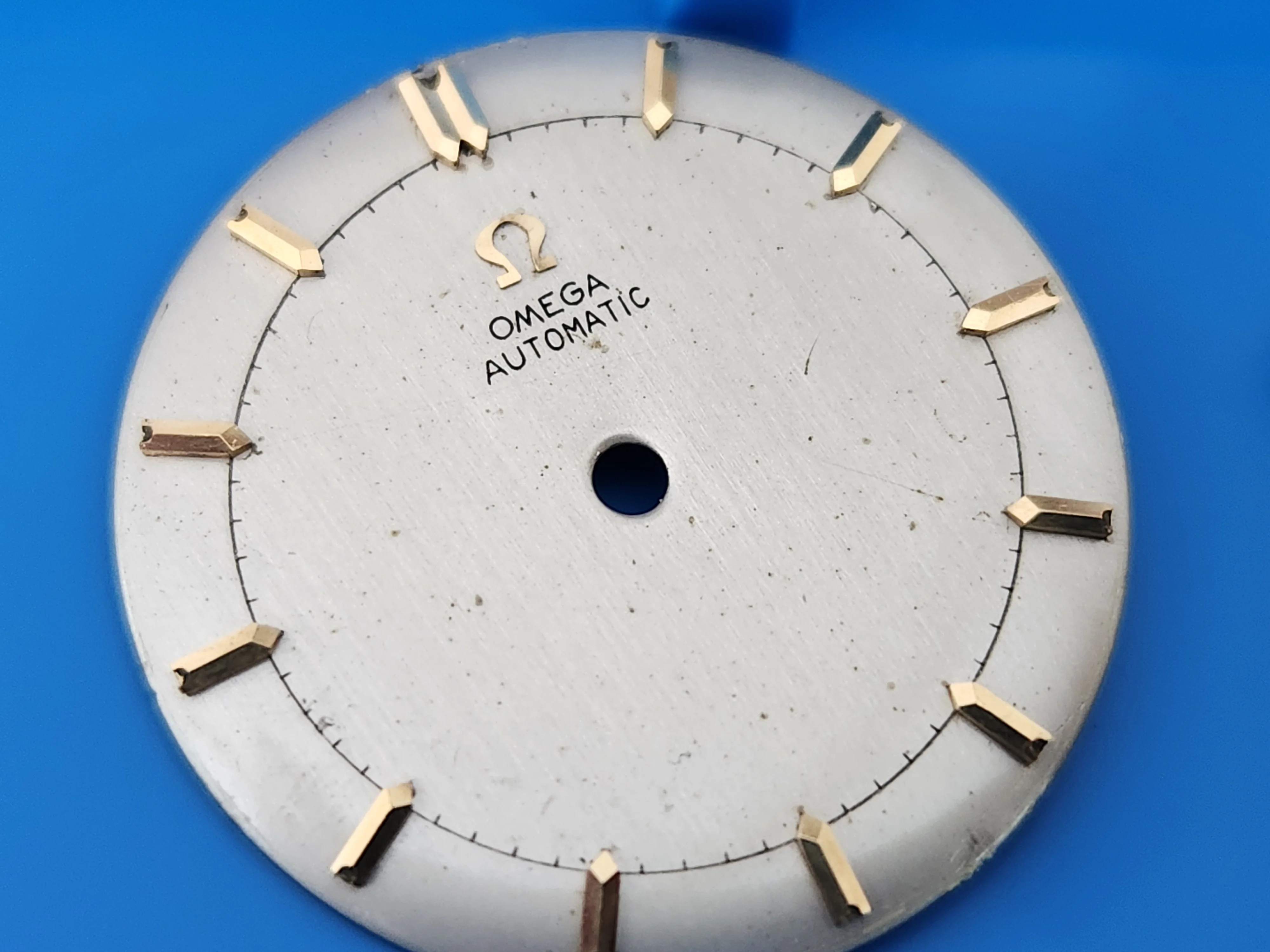

The left over parts. The bad redial from the GX6279. as well as the junk case, and worn out 500 from the fire damage dial's GX6267 watch. These will likely end up on ebay.

20260131_144742.webp 20260131_144748.webp 20260131_144802.webp 20260131_144807.webp 20260126_140022.webp

samweldspoorly
Posts
505
Likes
2,070

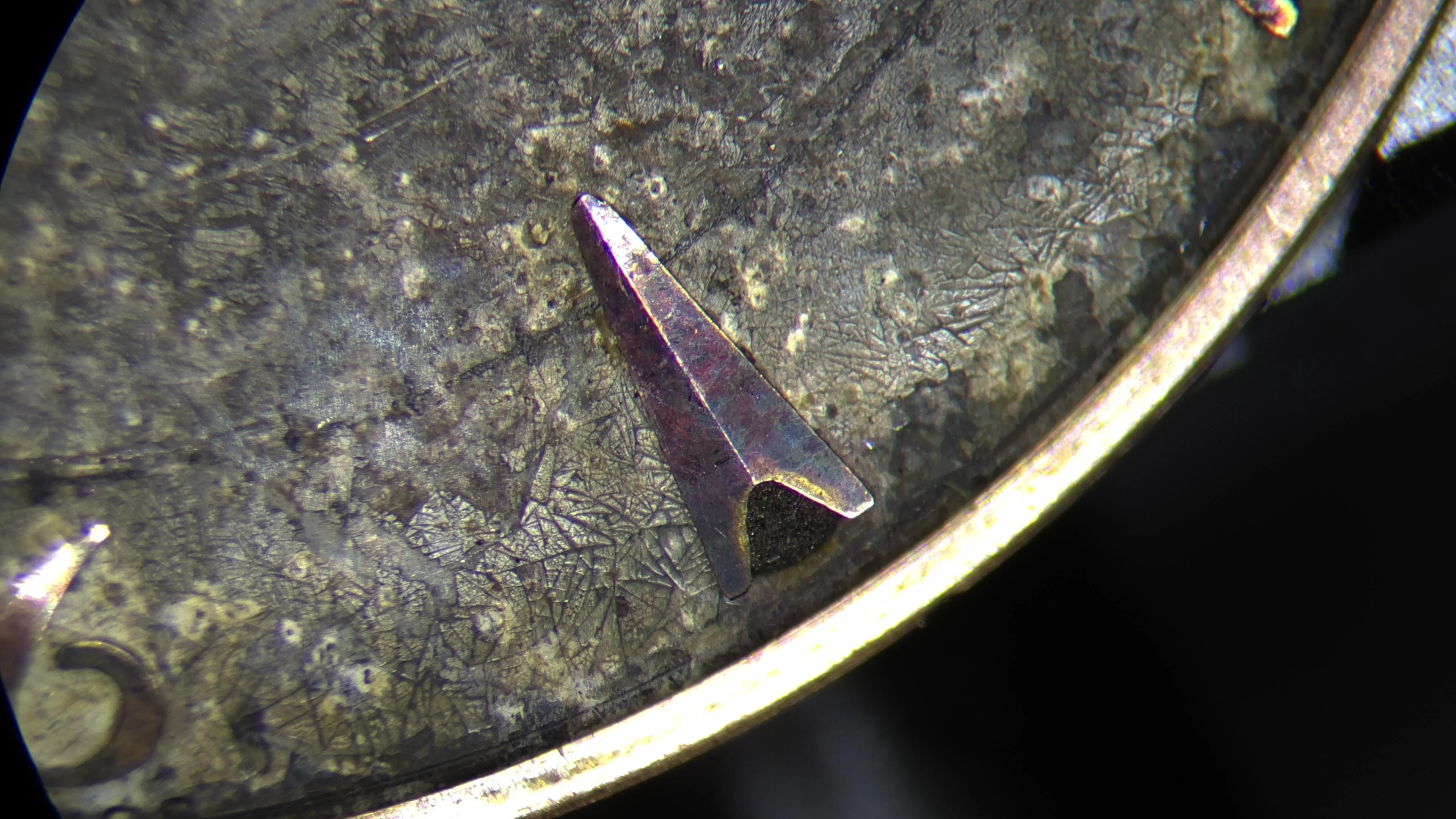

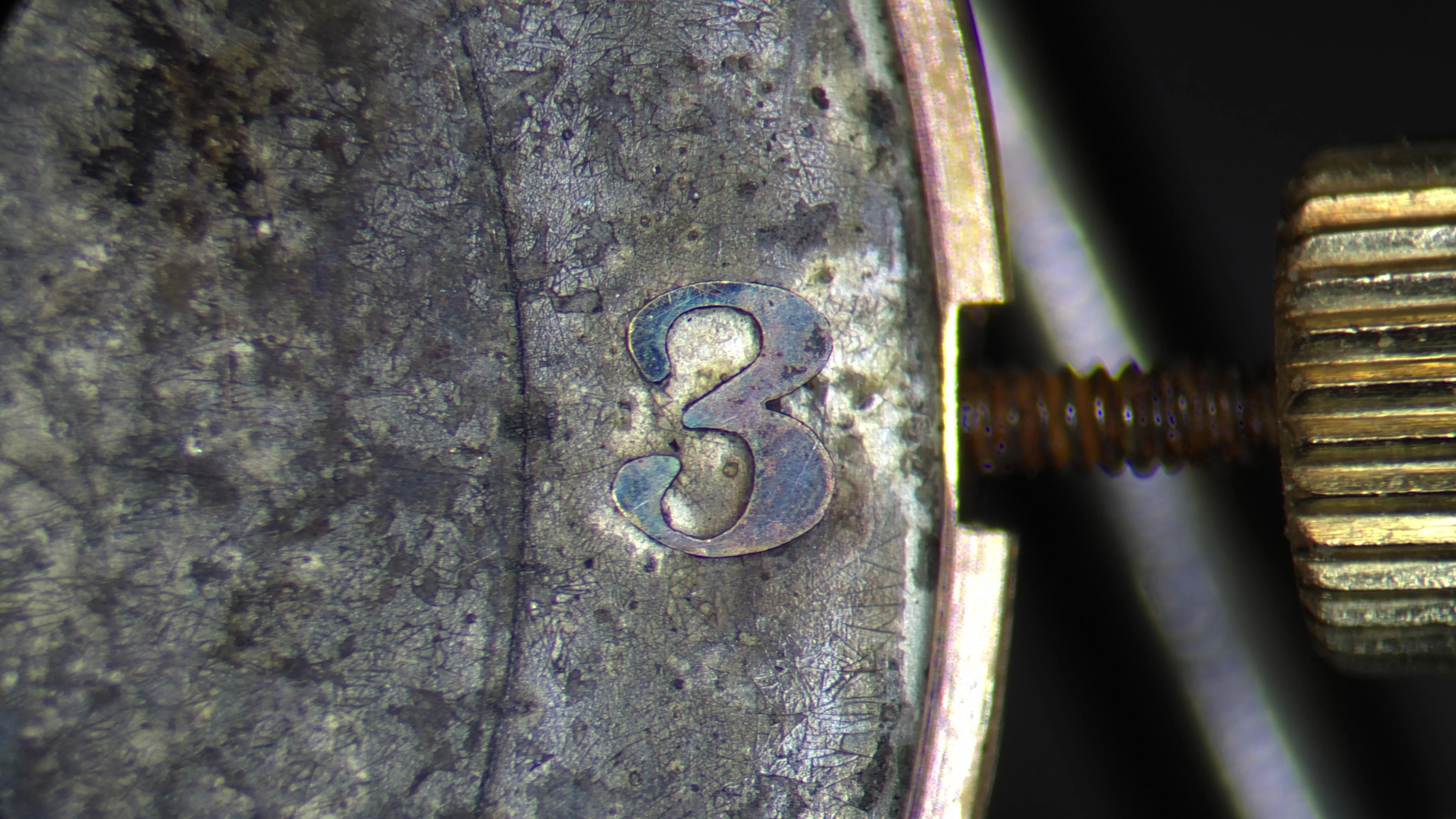

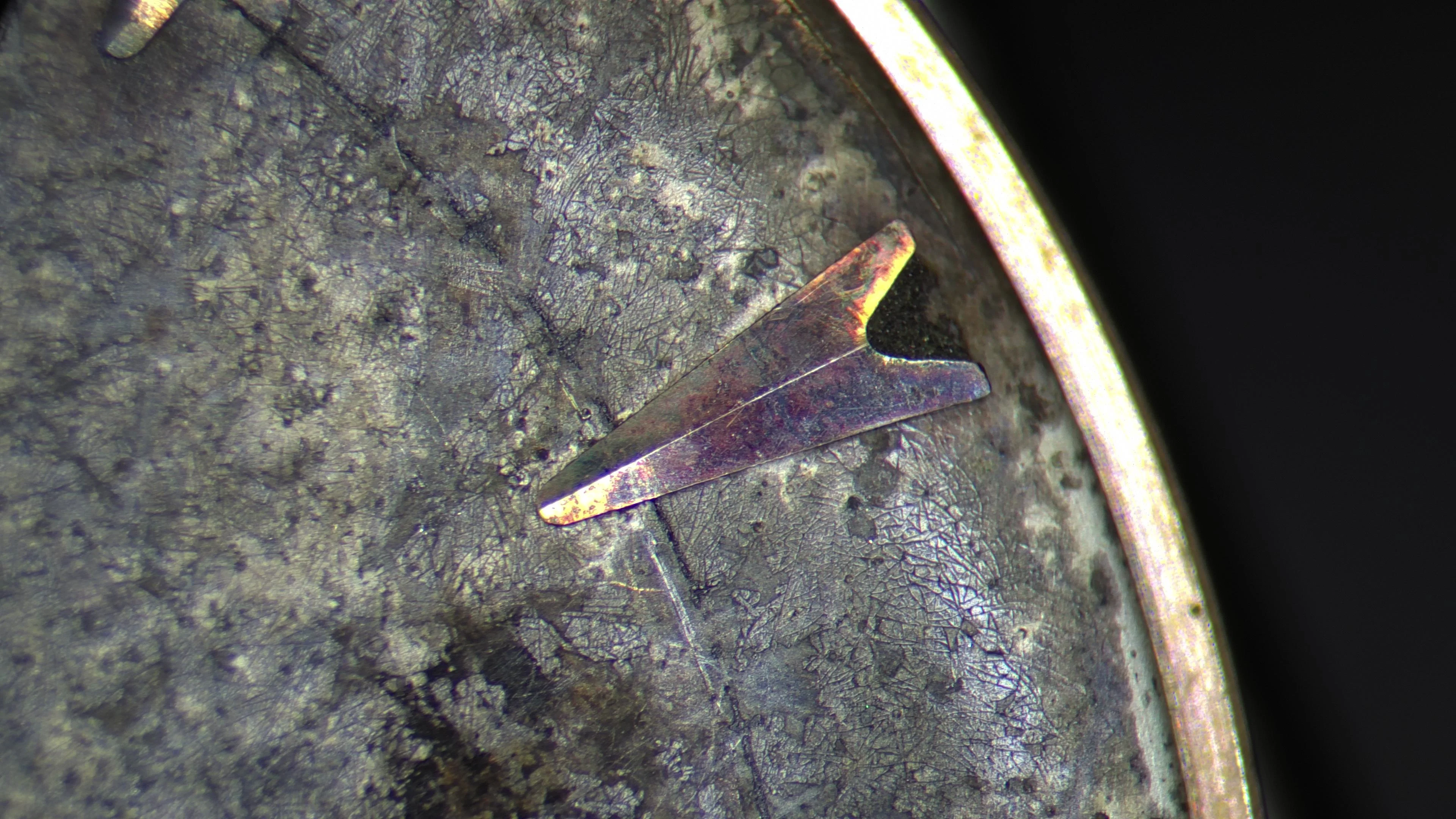

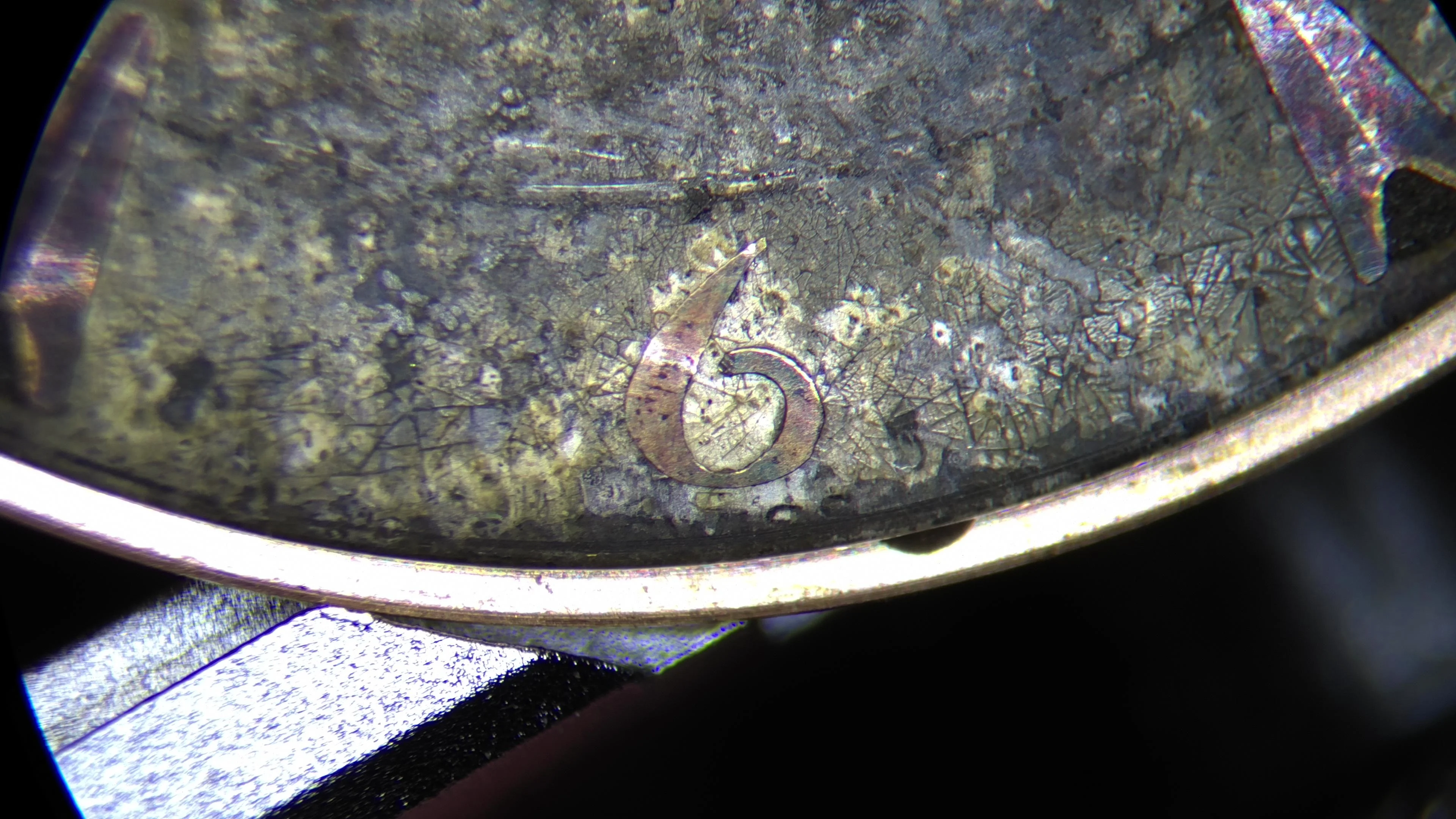

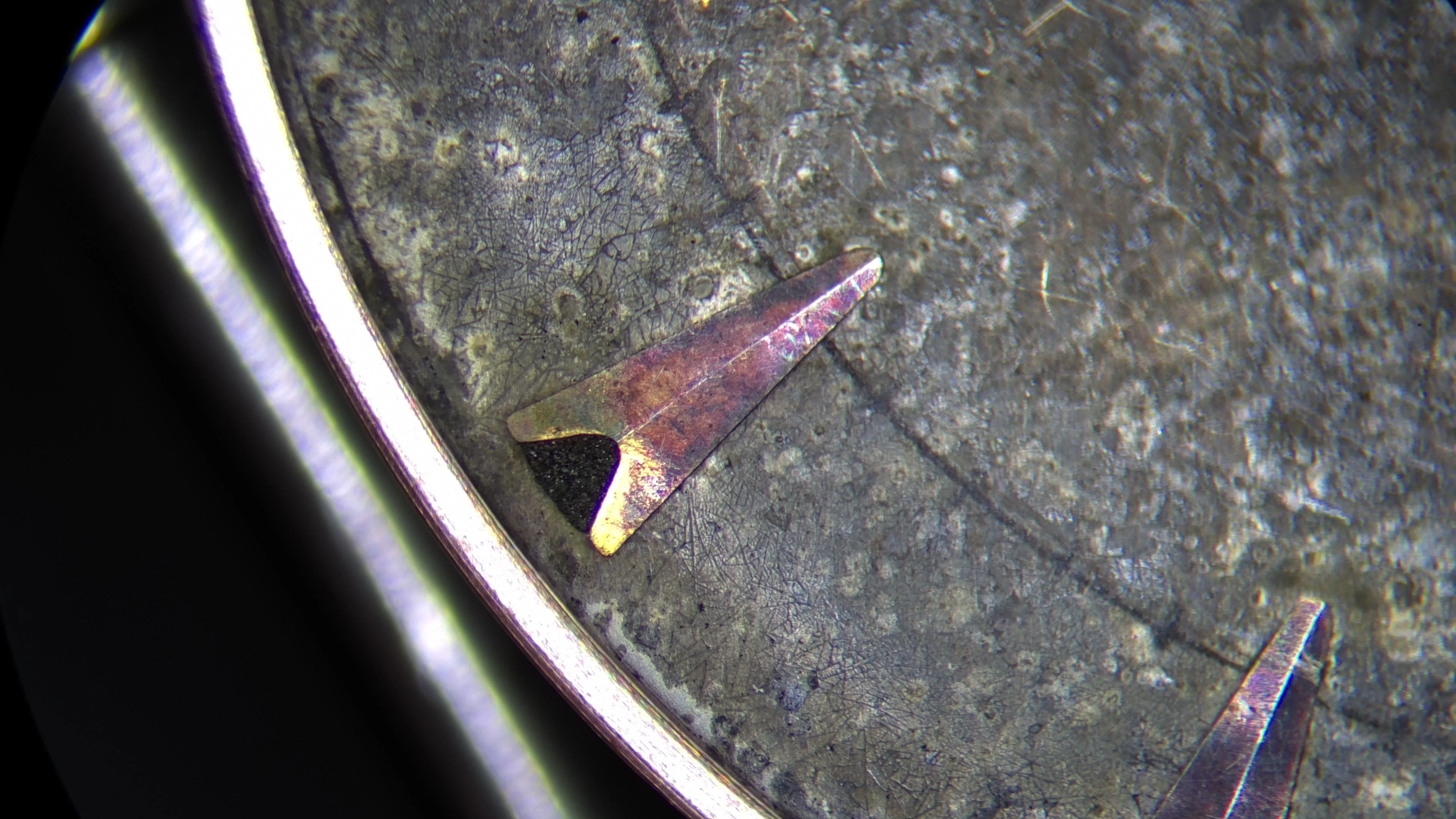

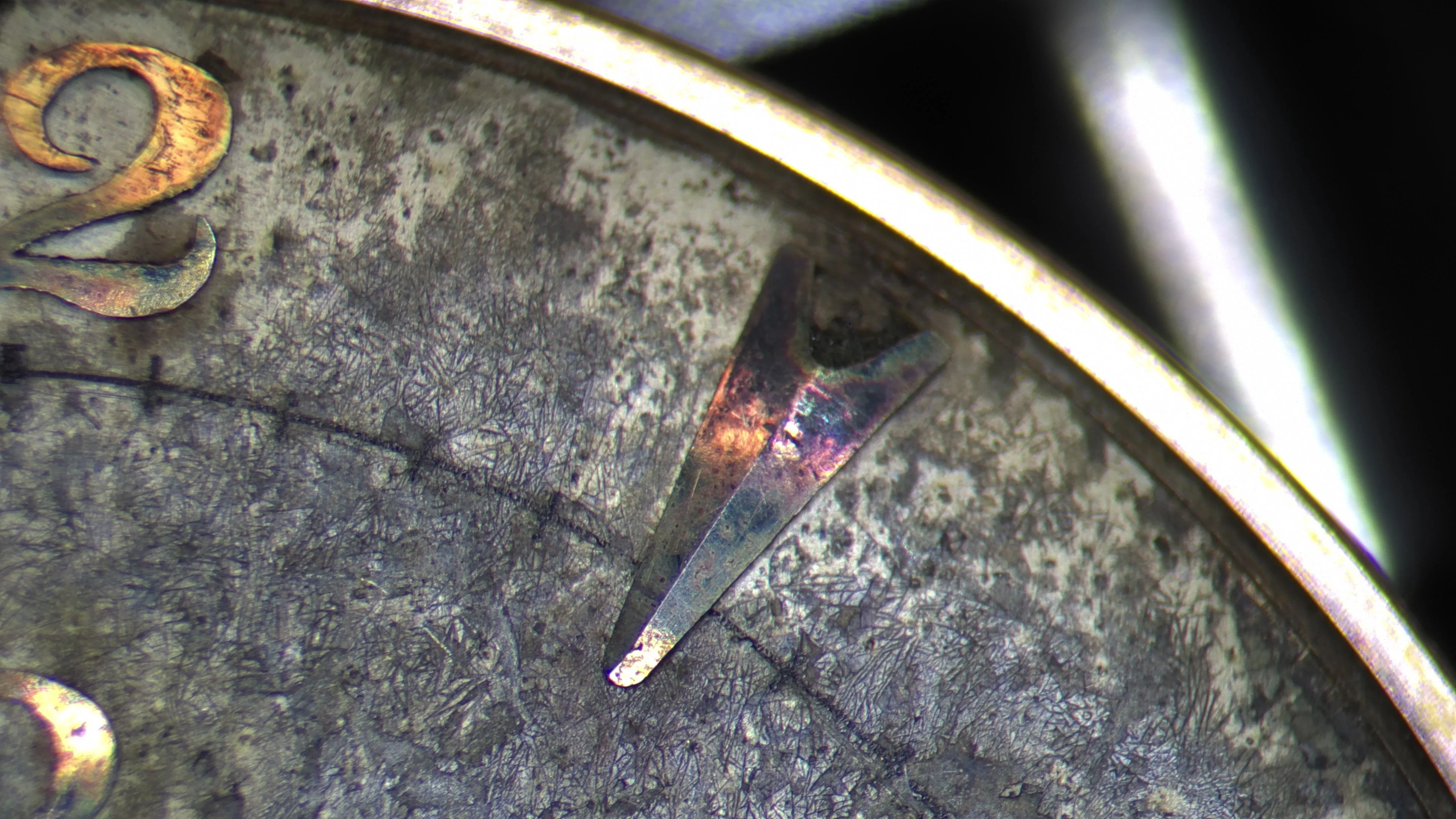

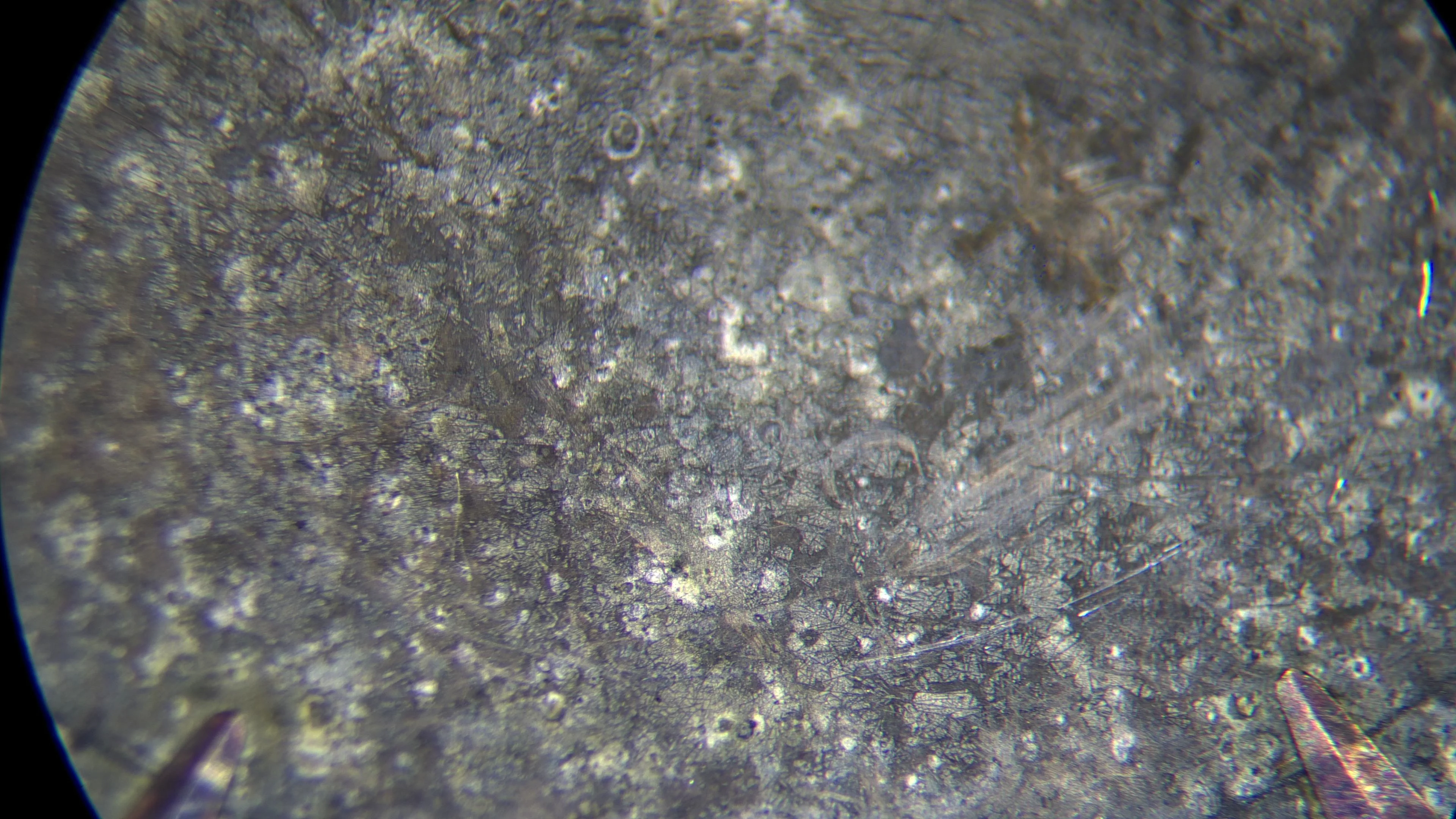

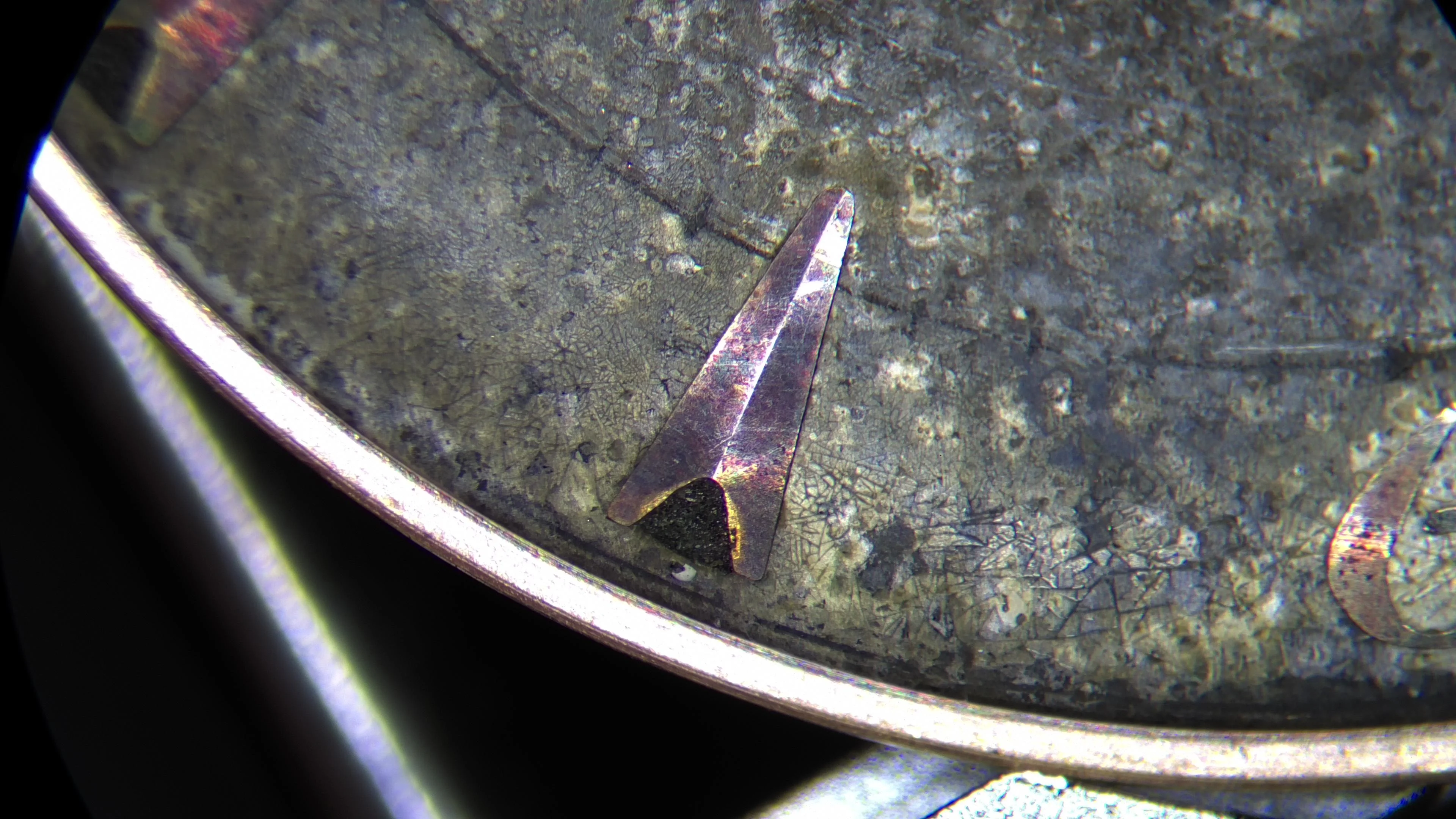

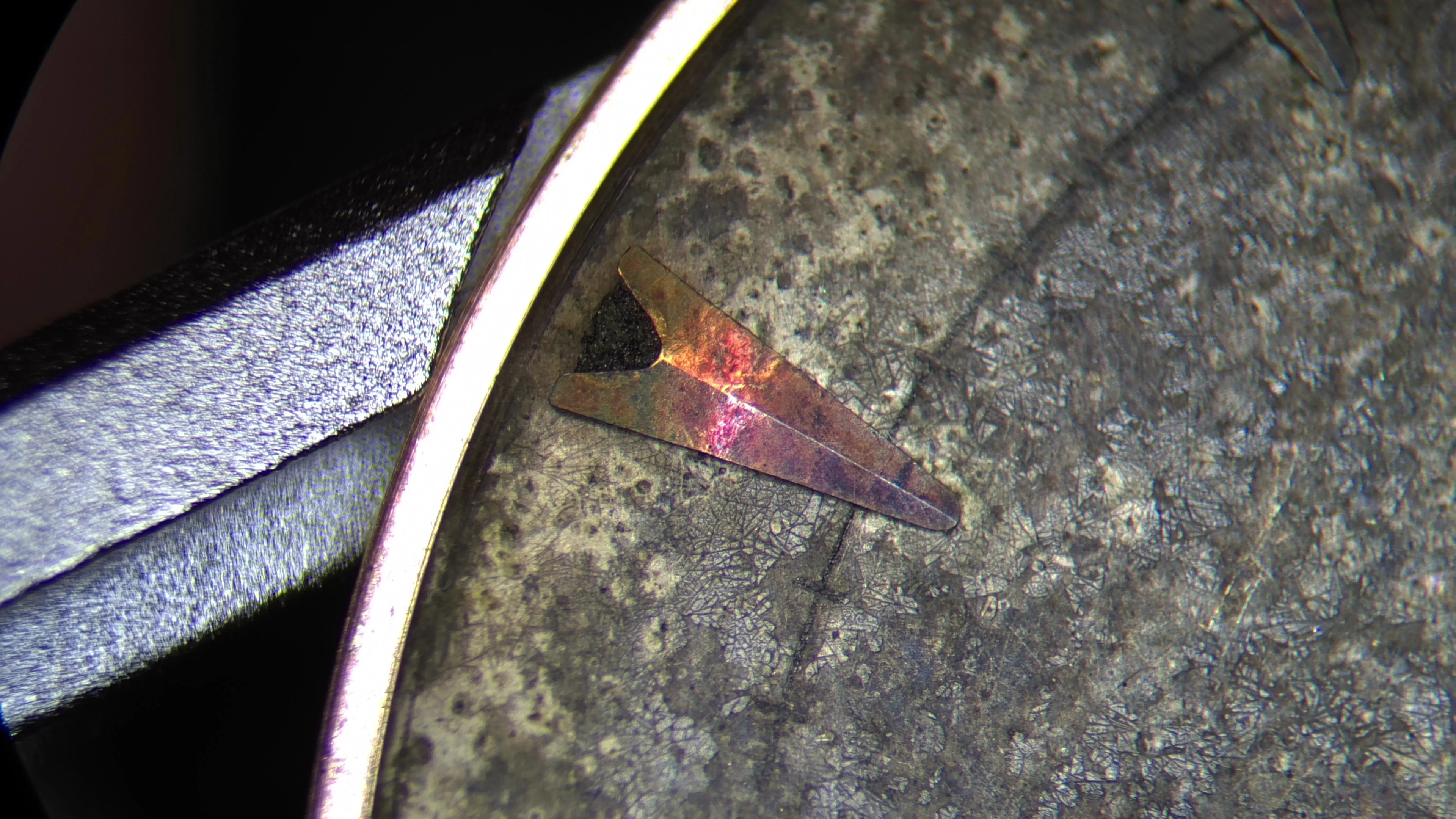

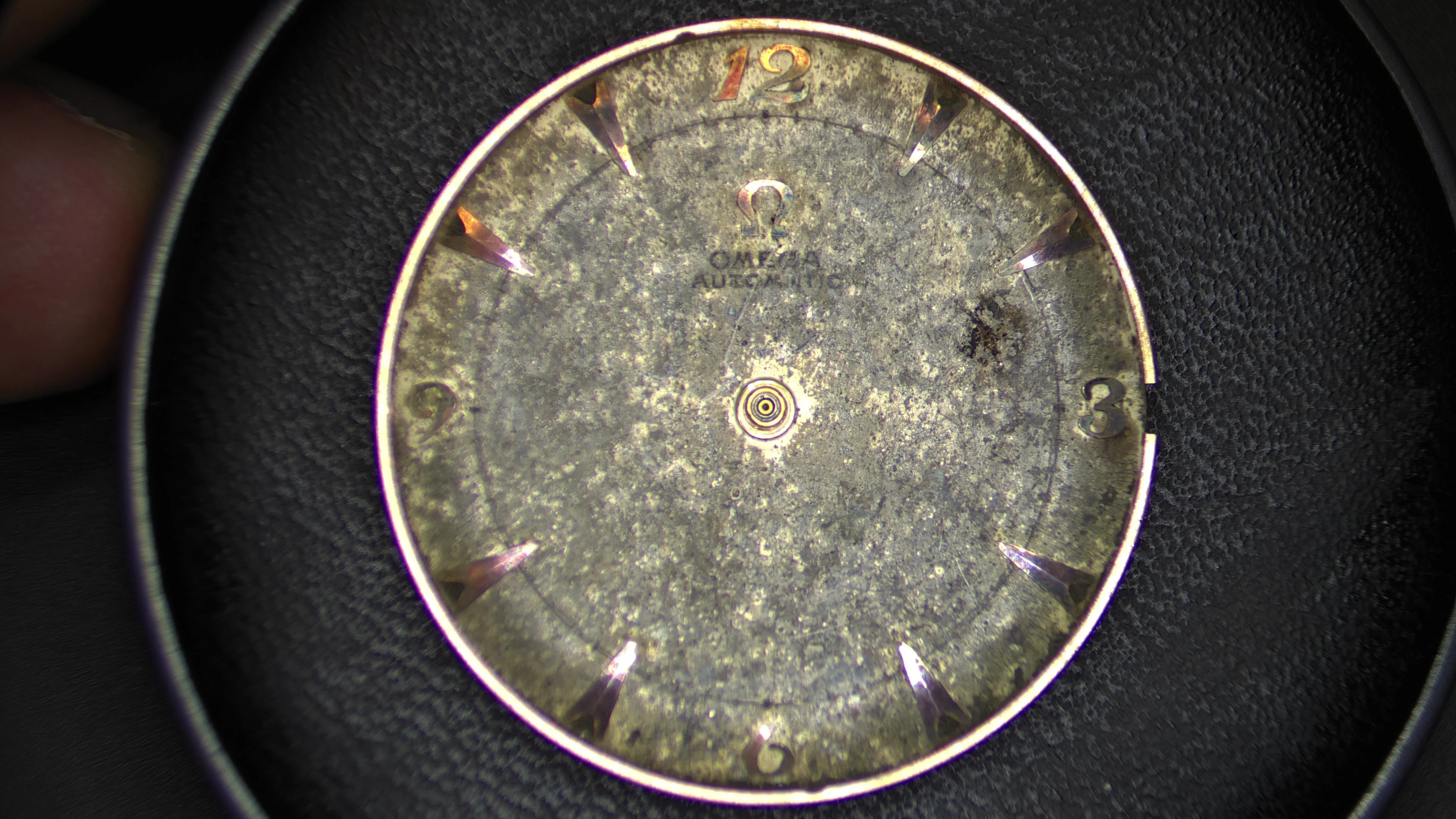

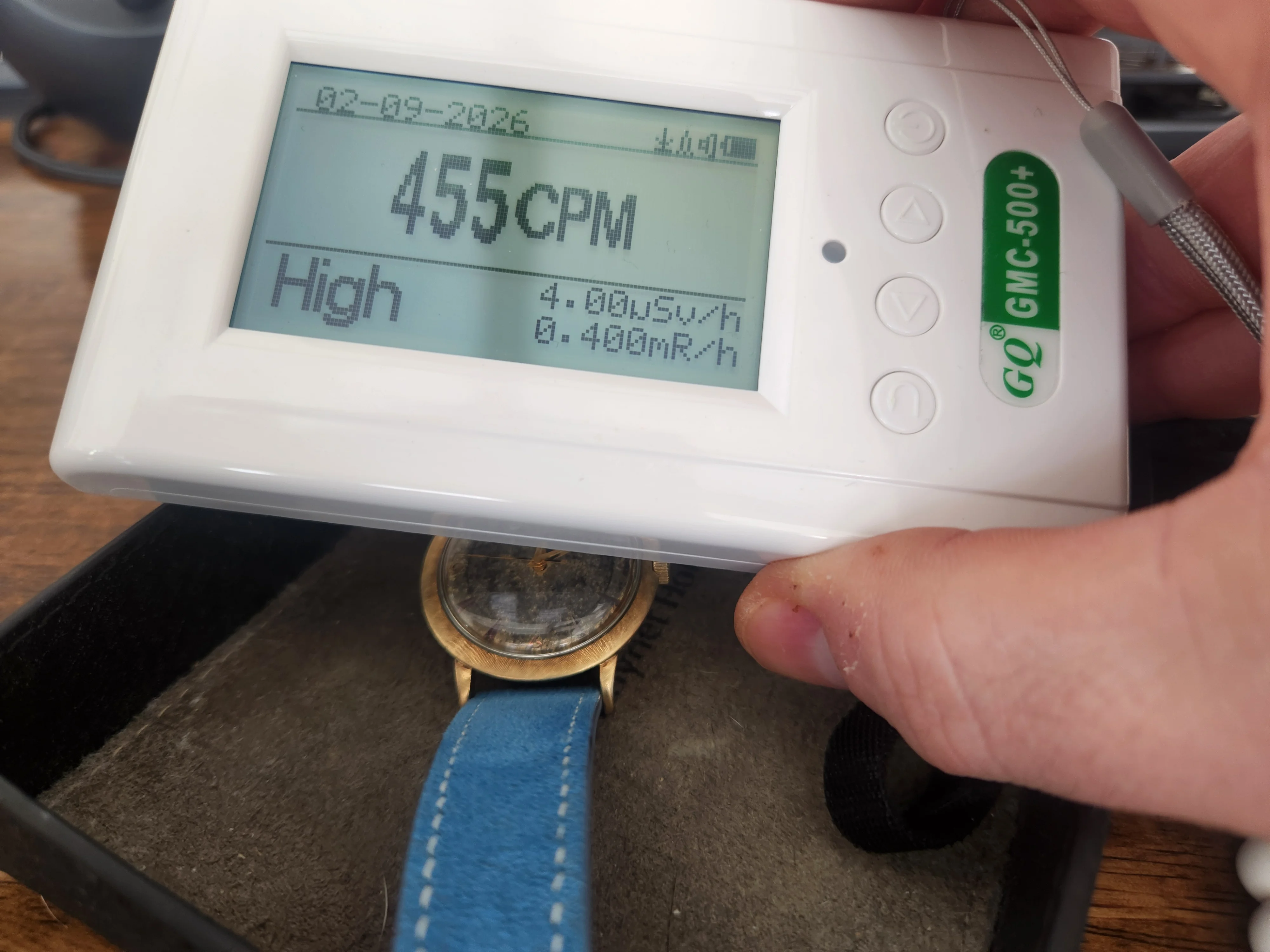

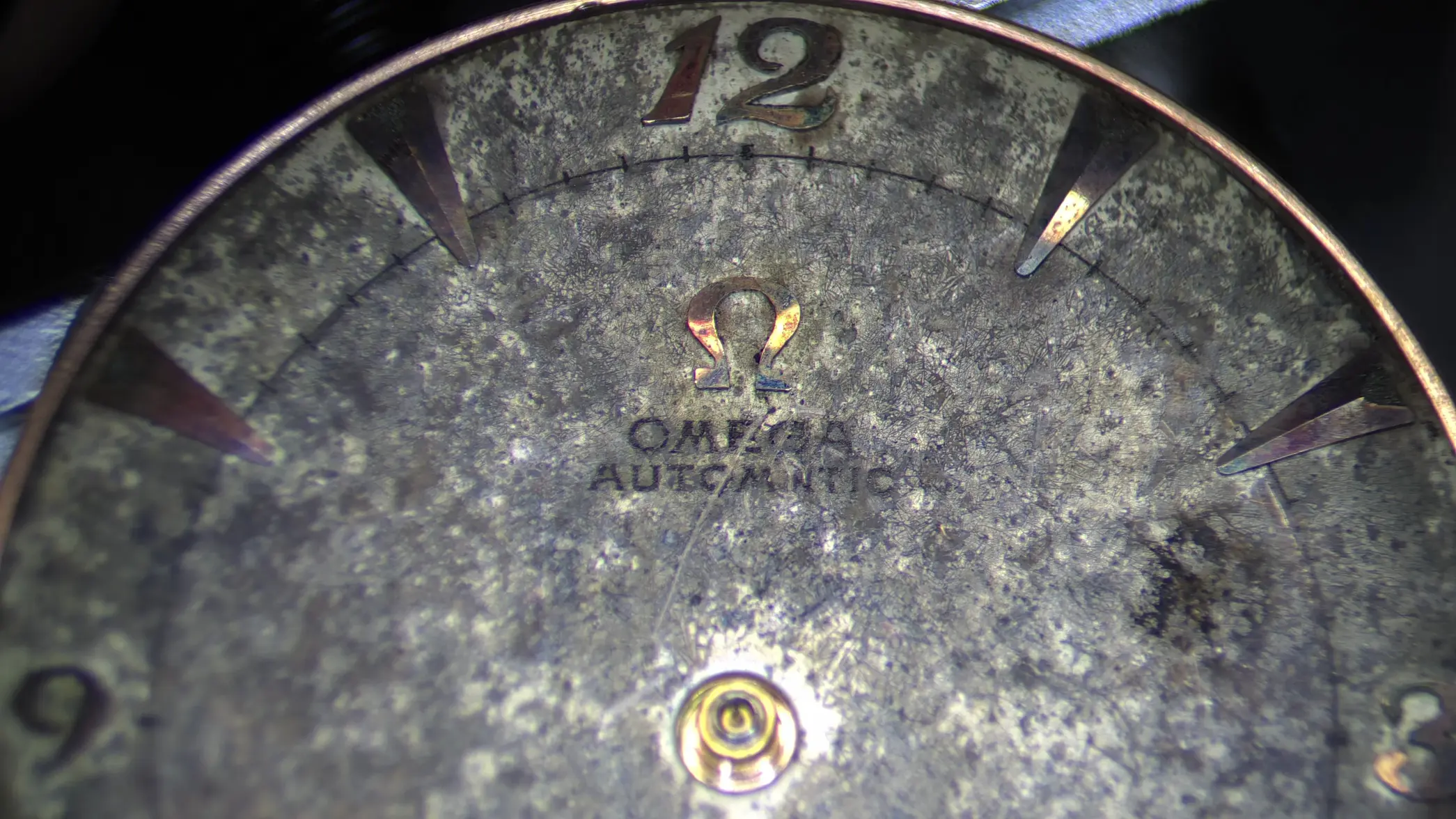

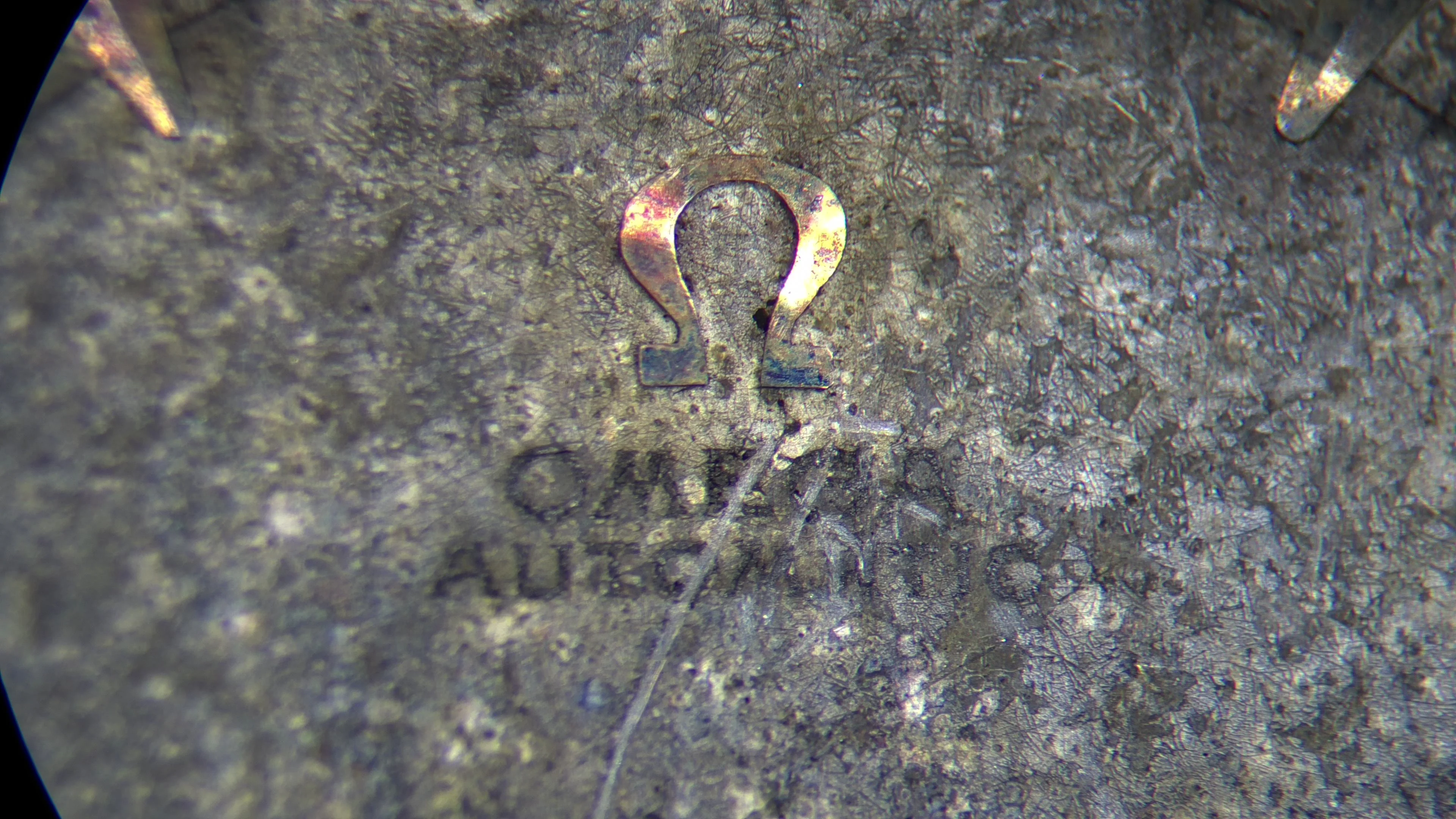

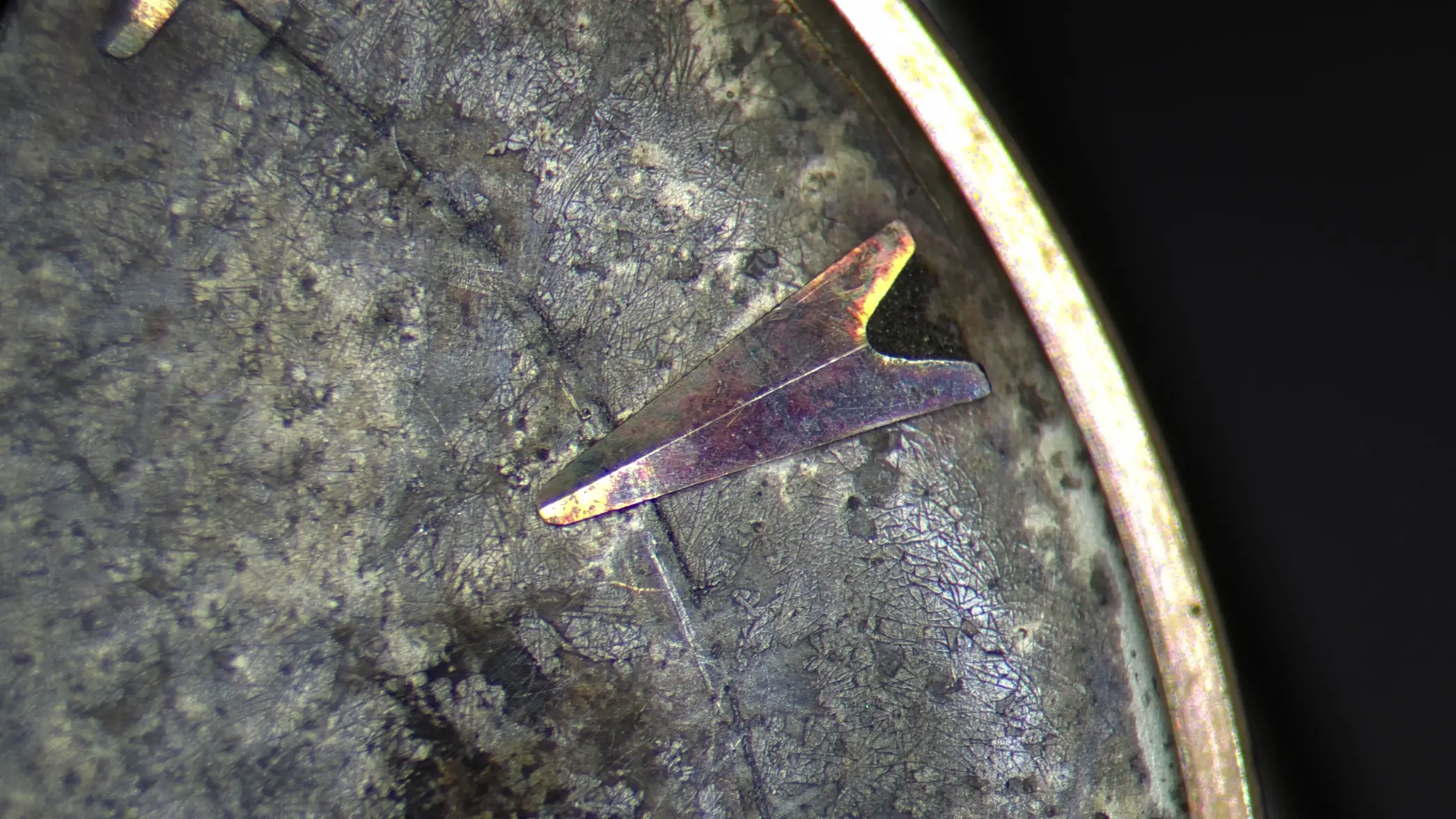

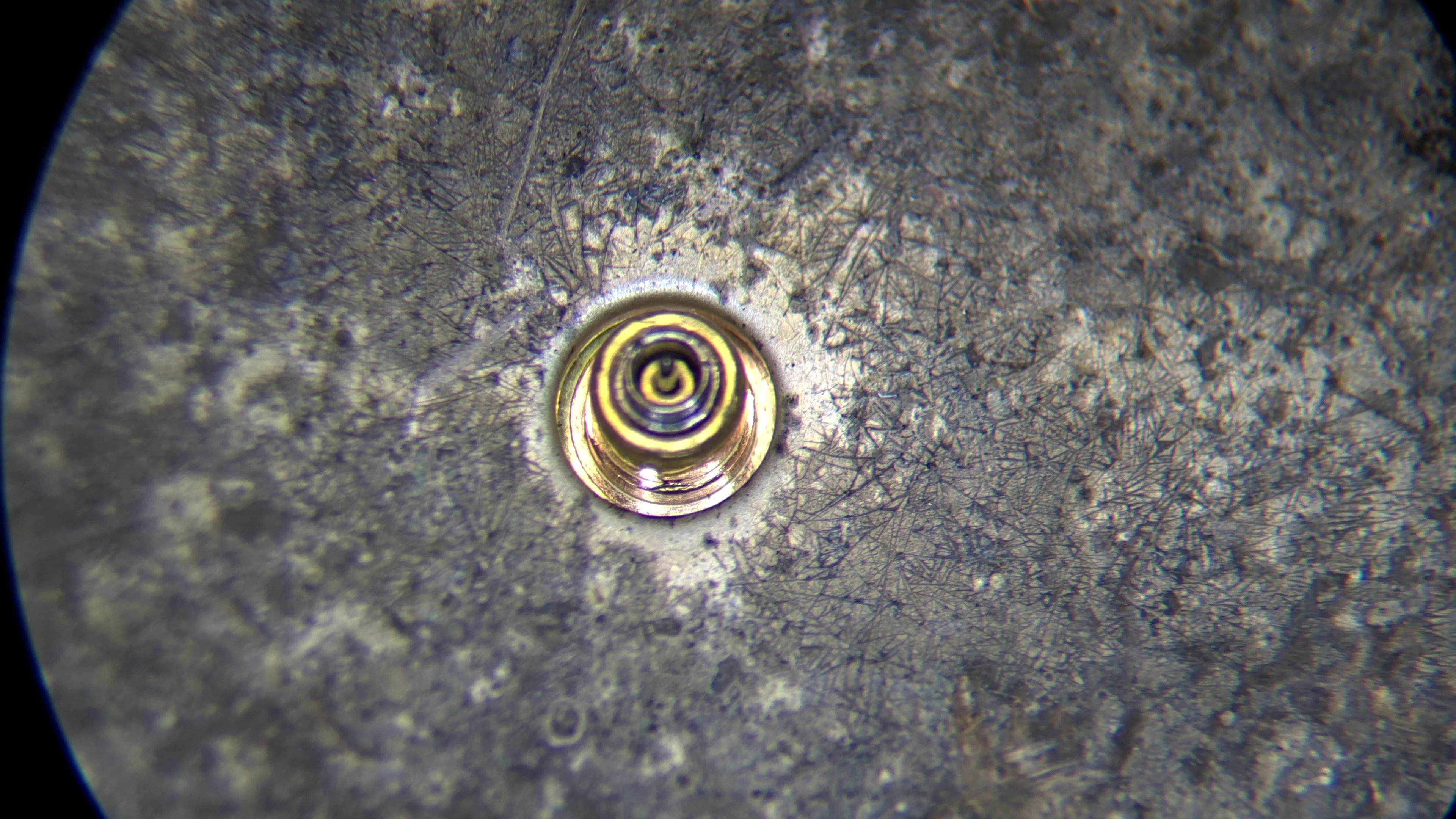

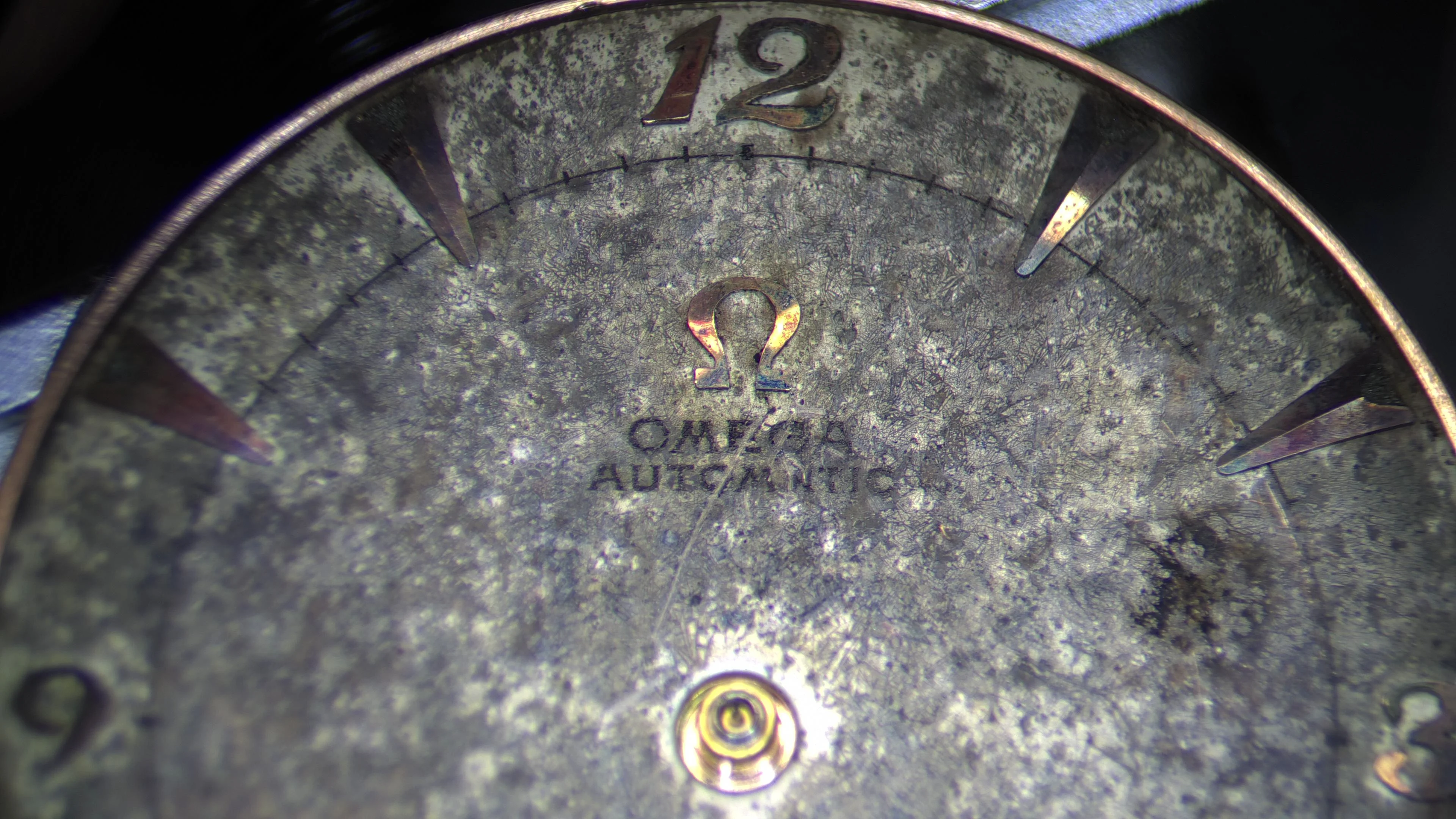

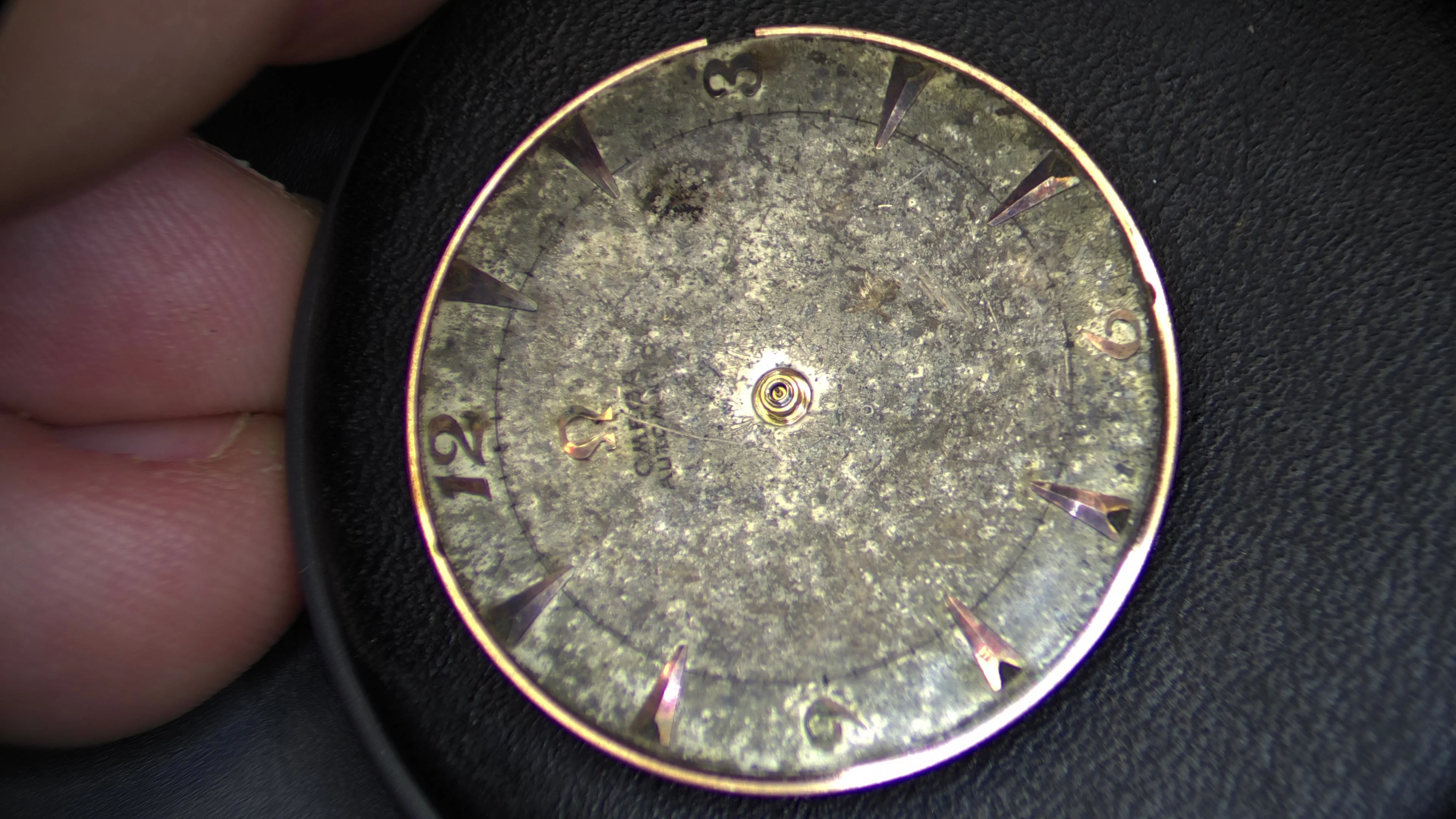

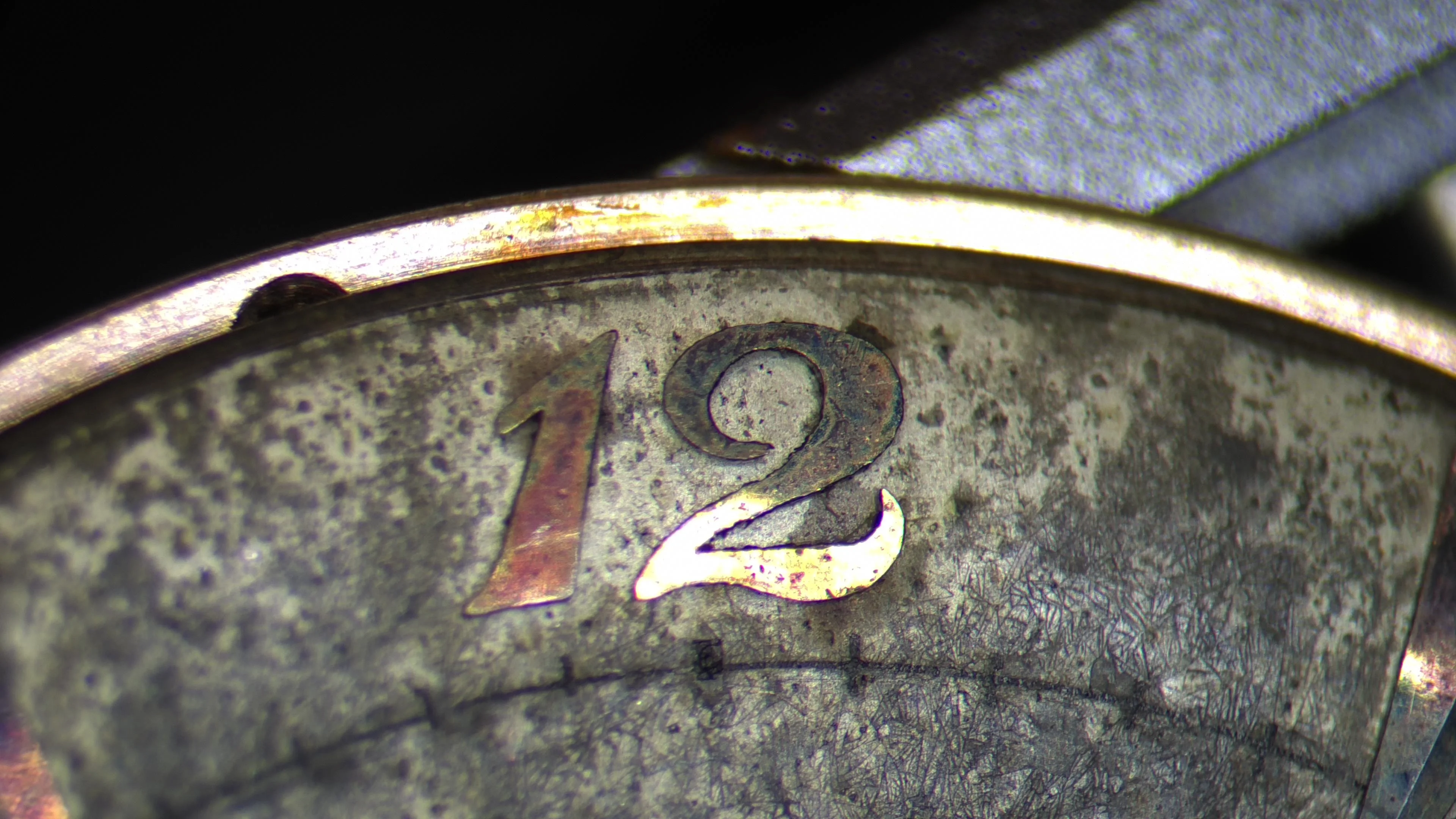

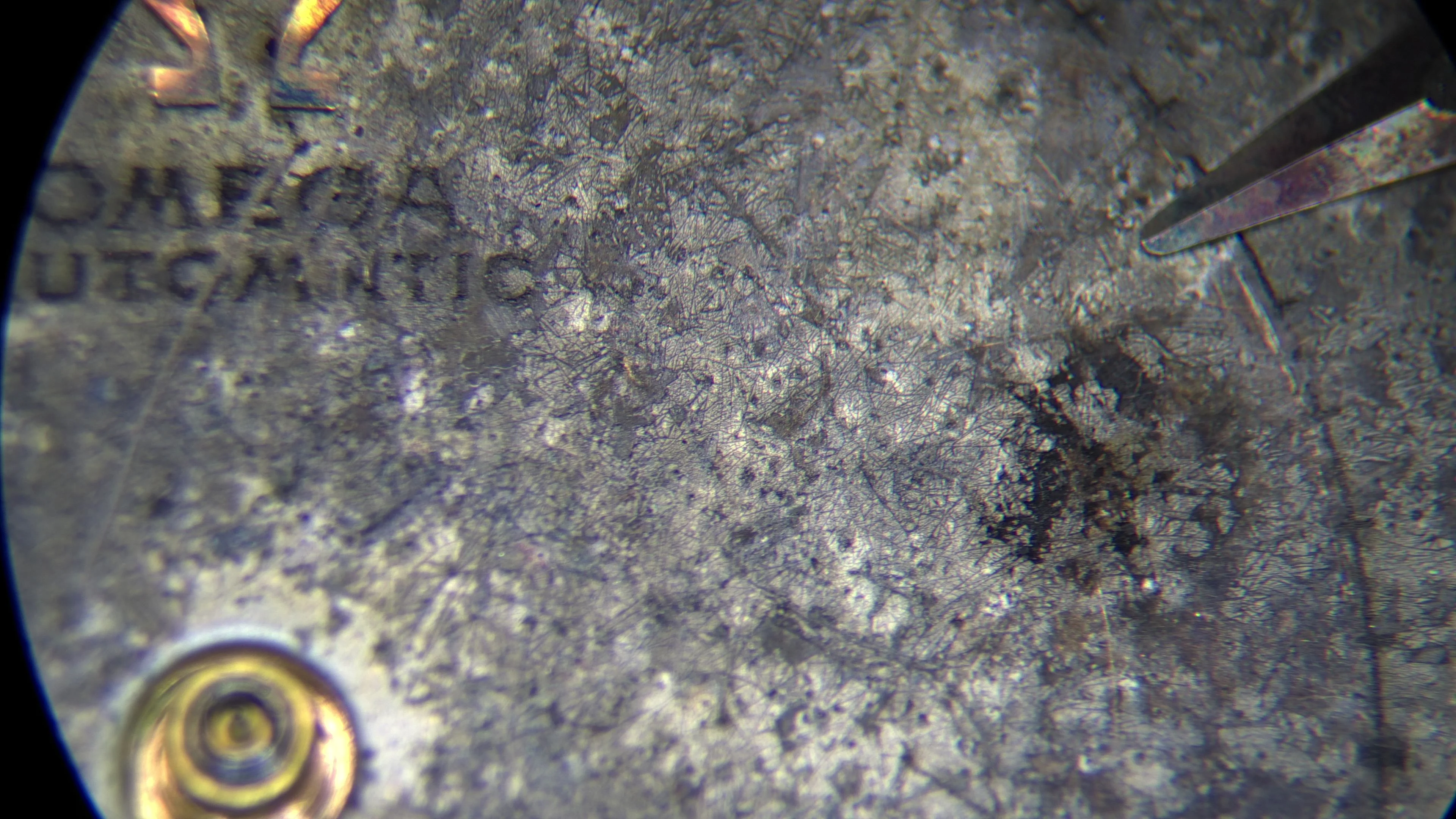

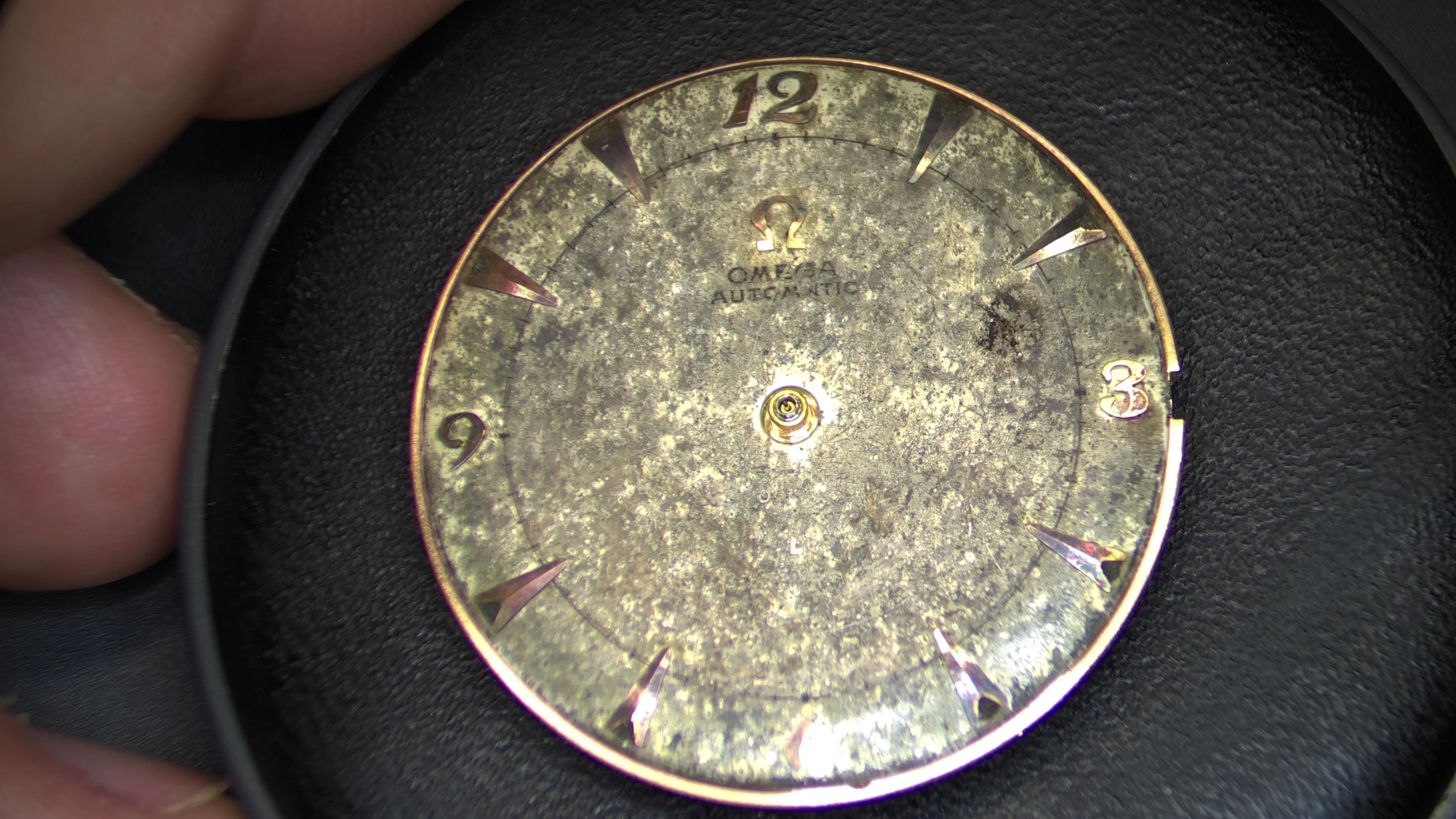

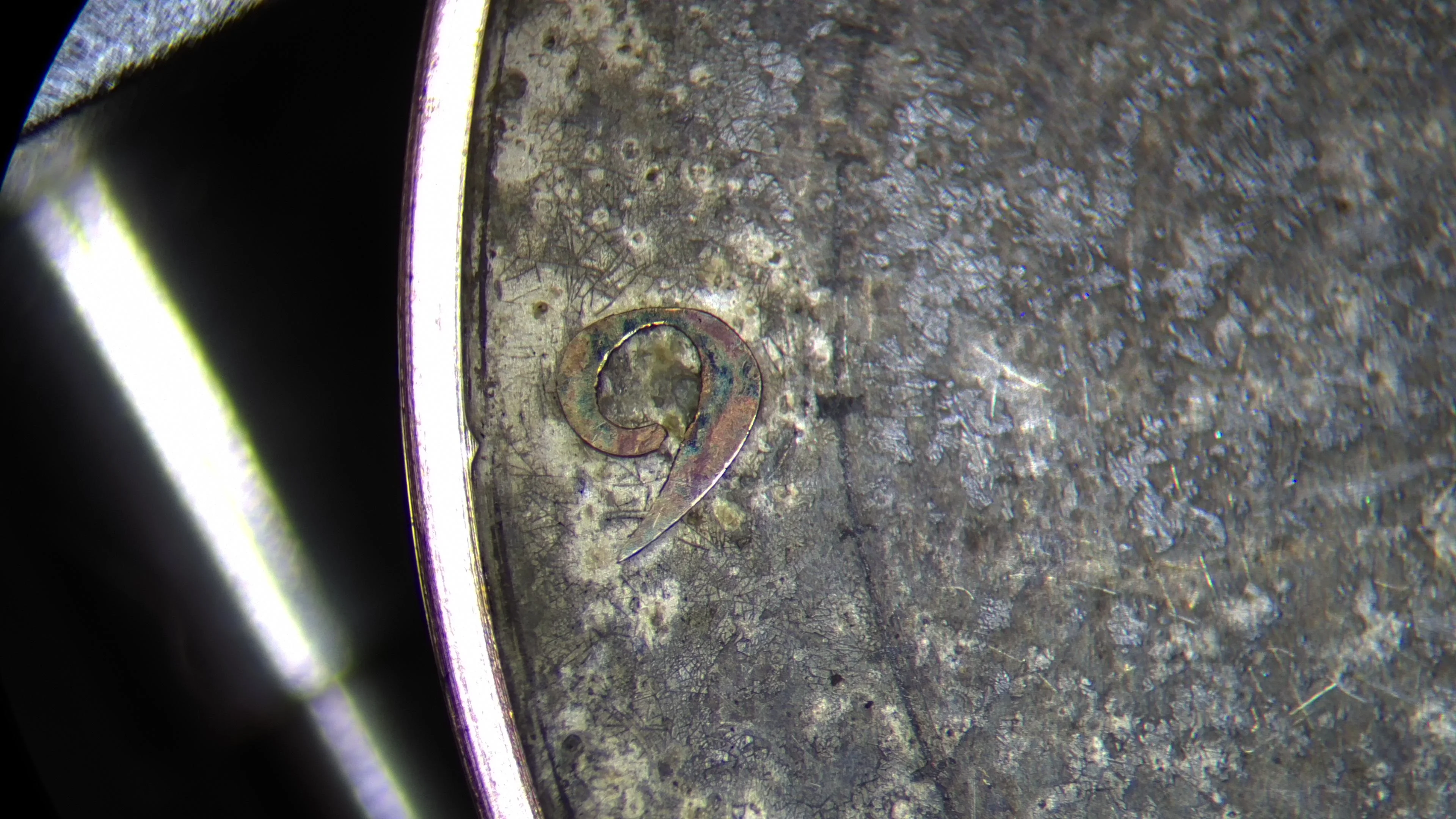

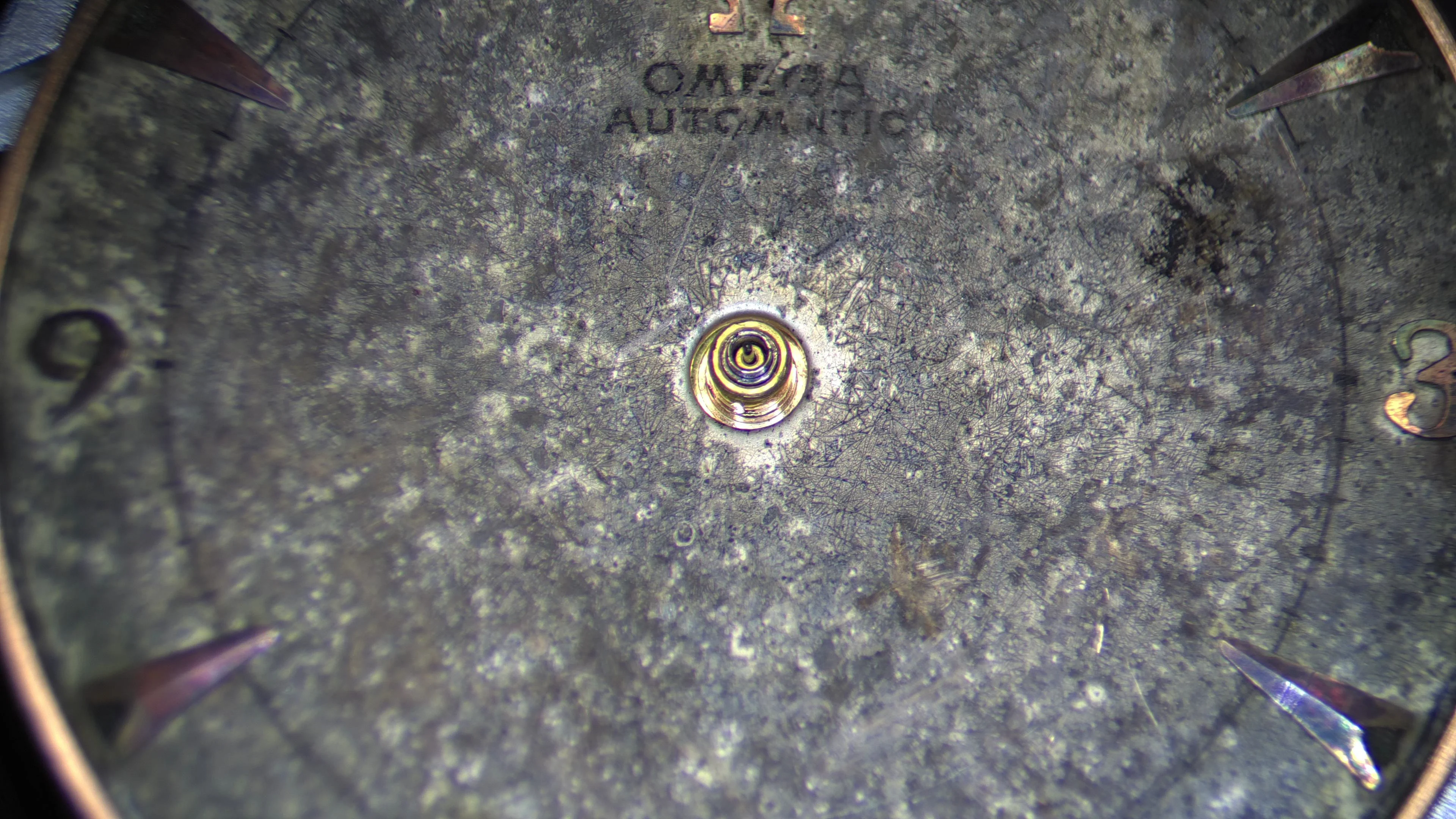

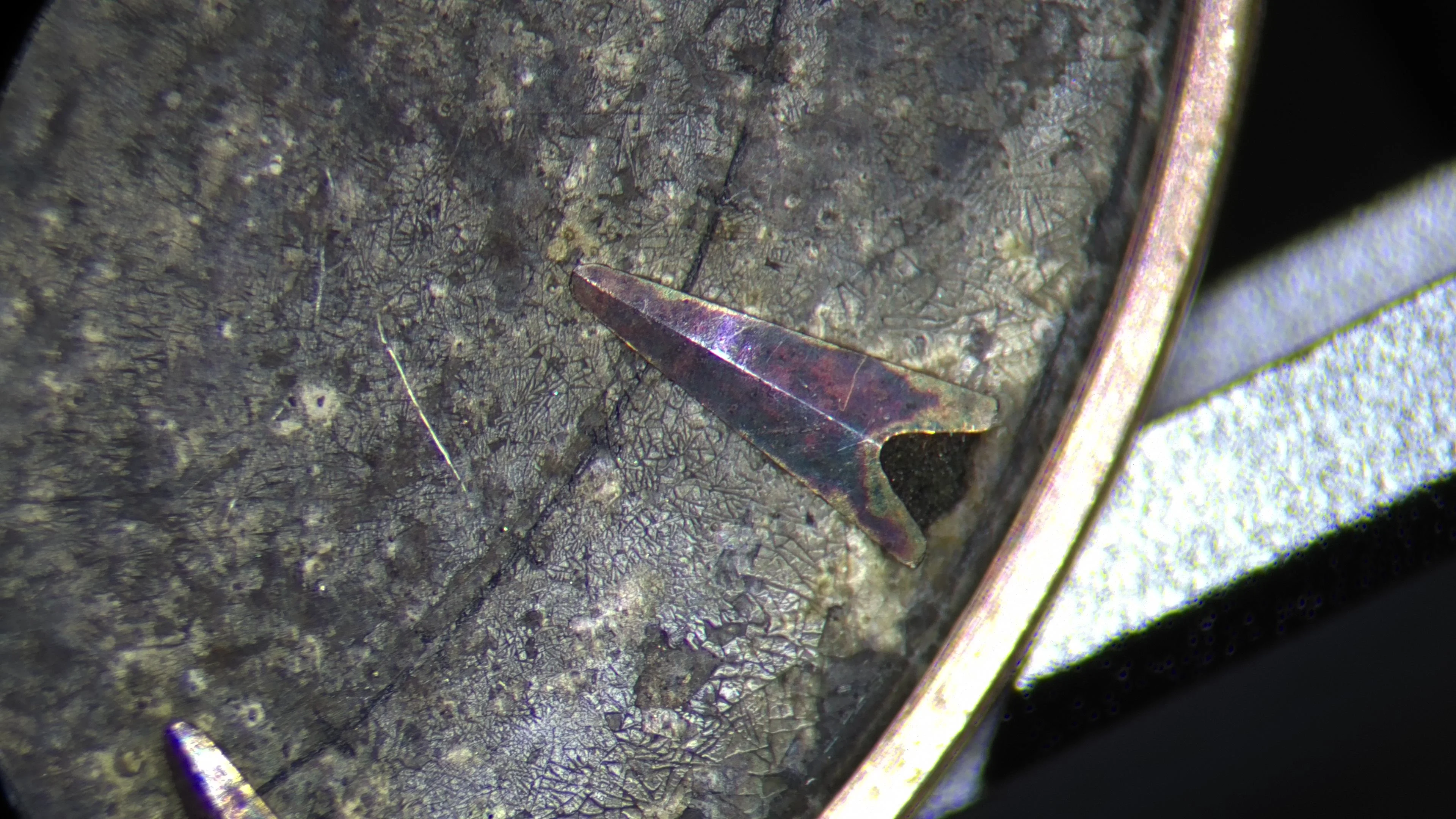

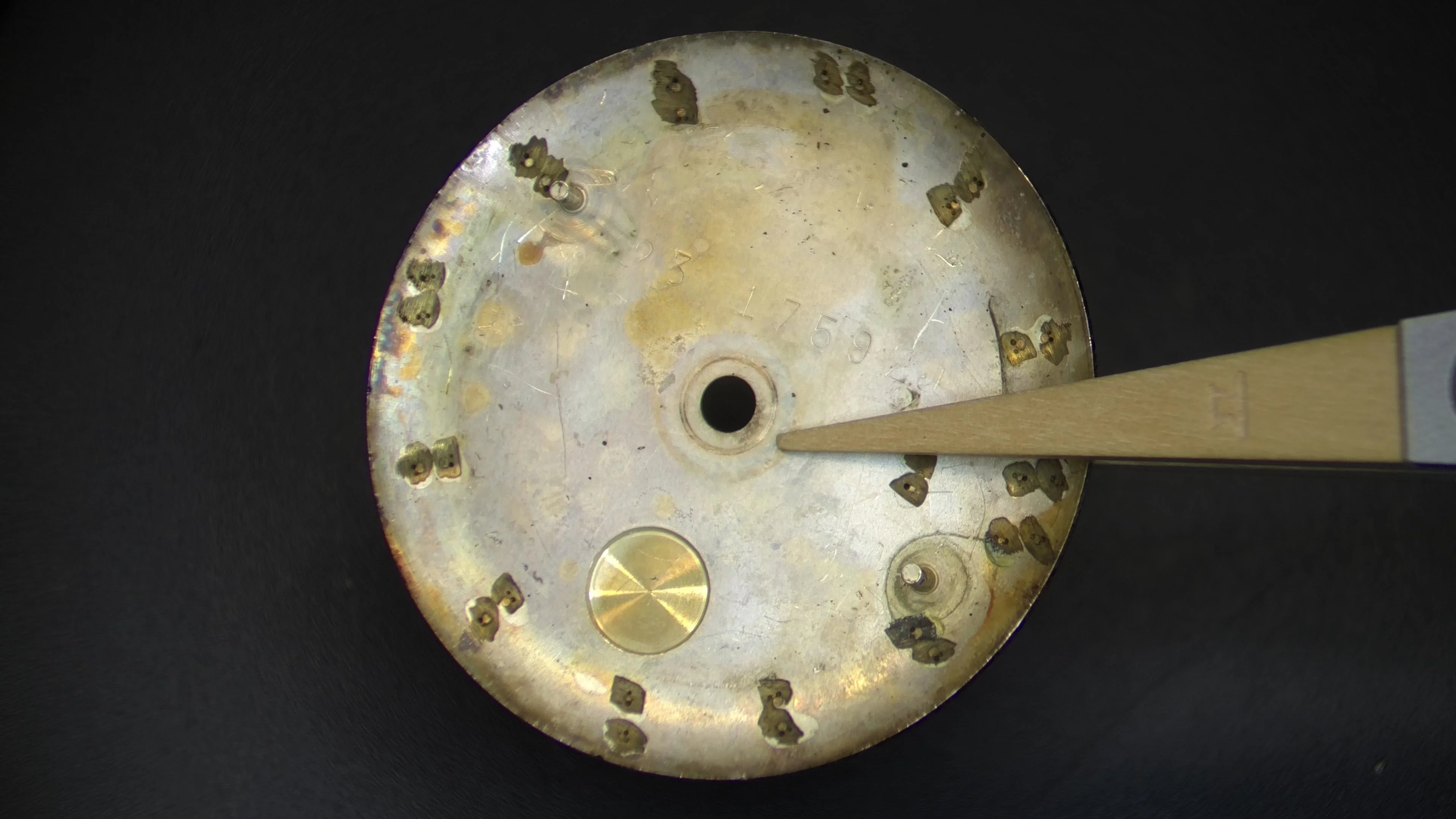

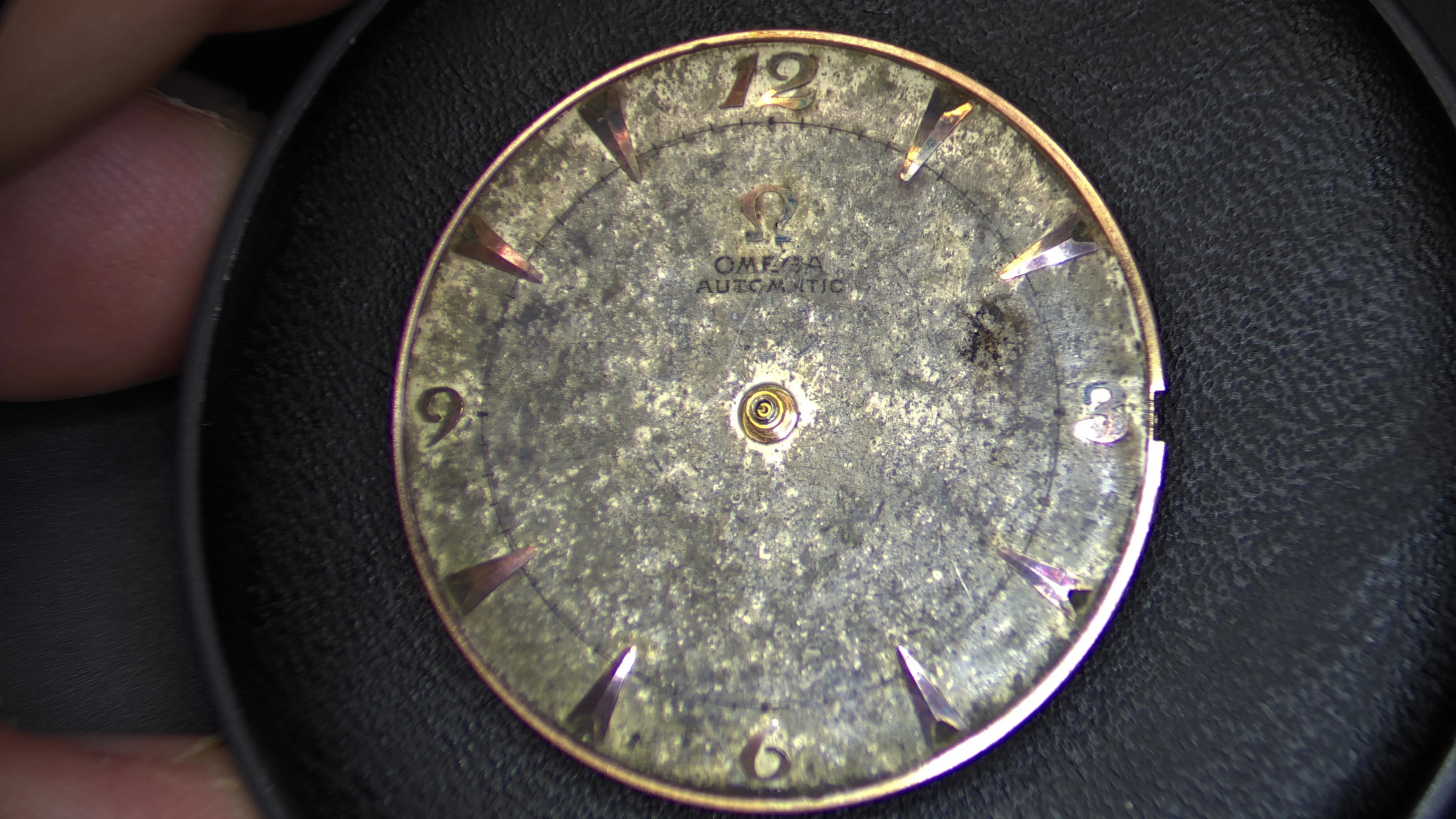

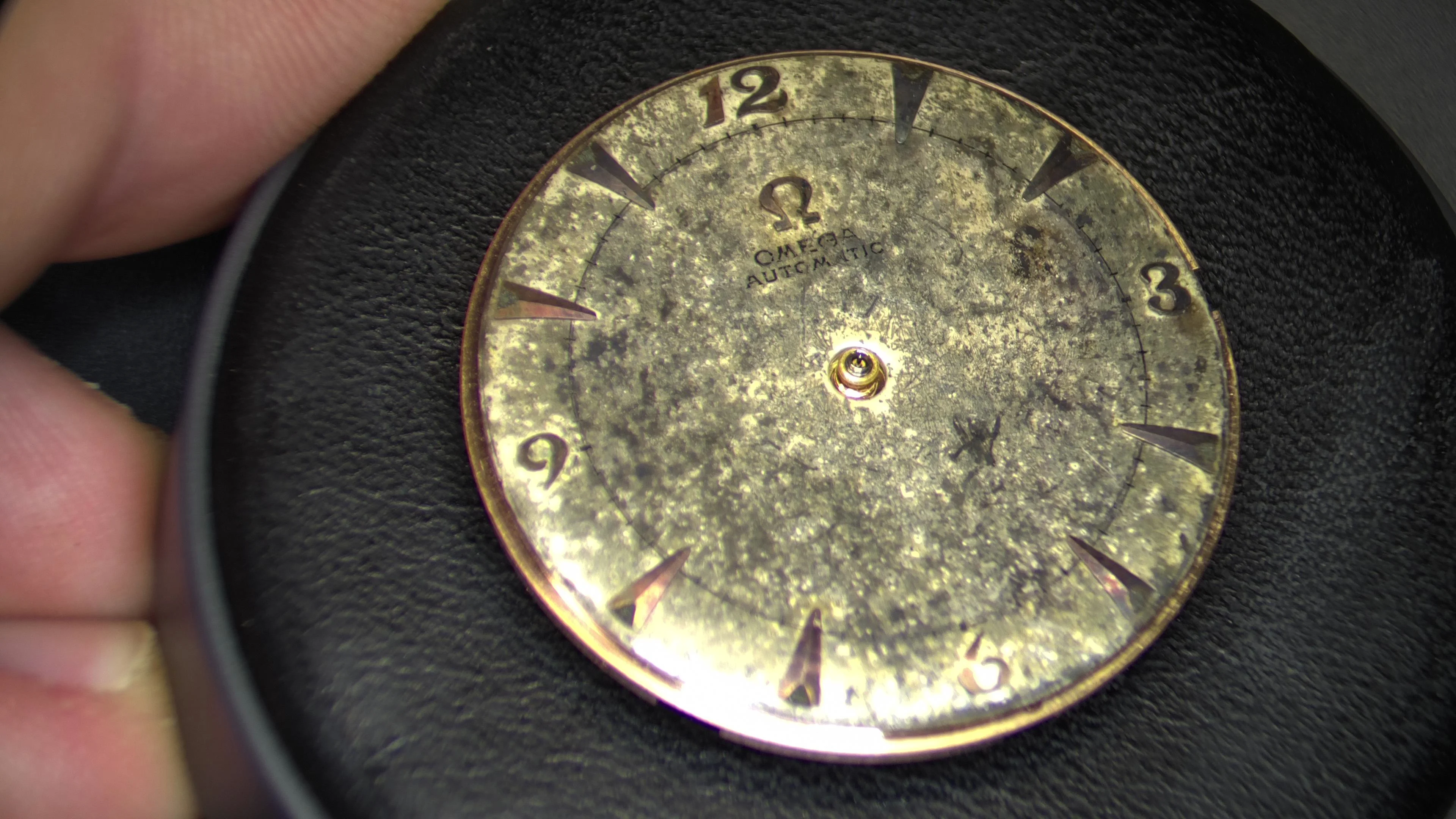

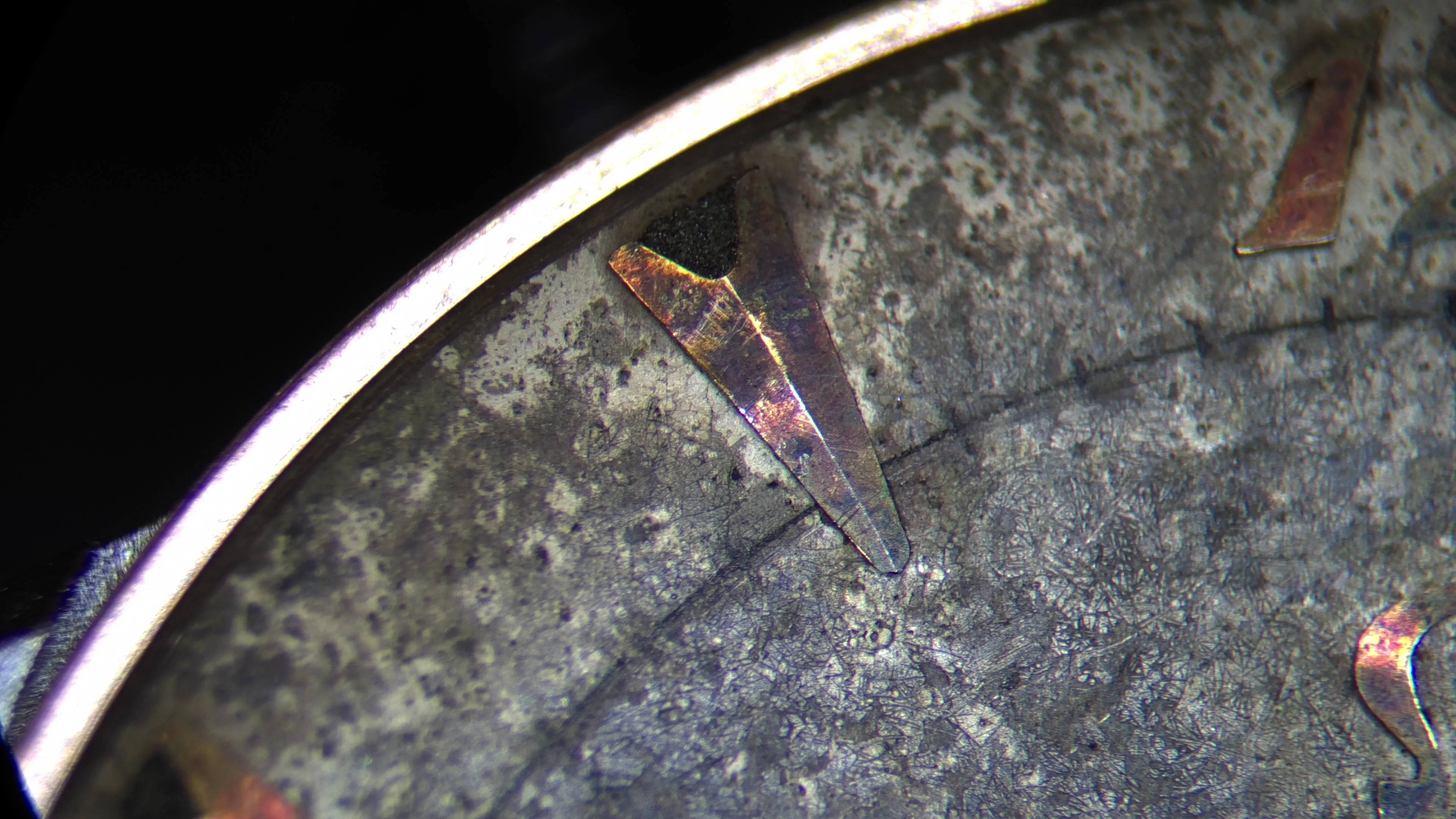

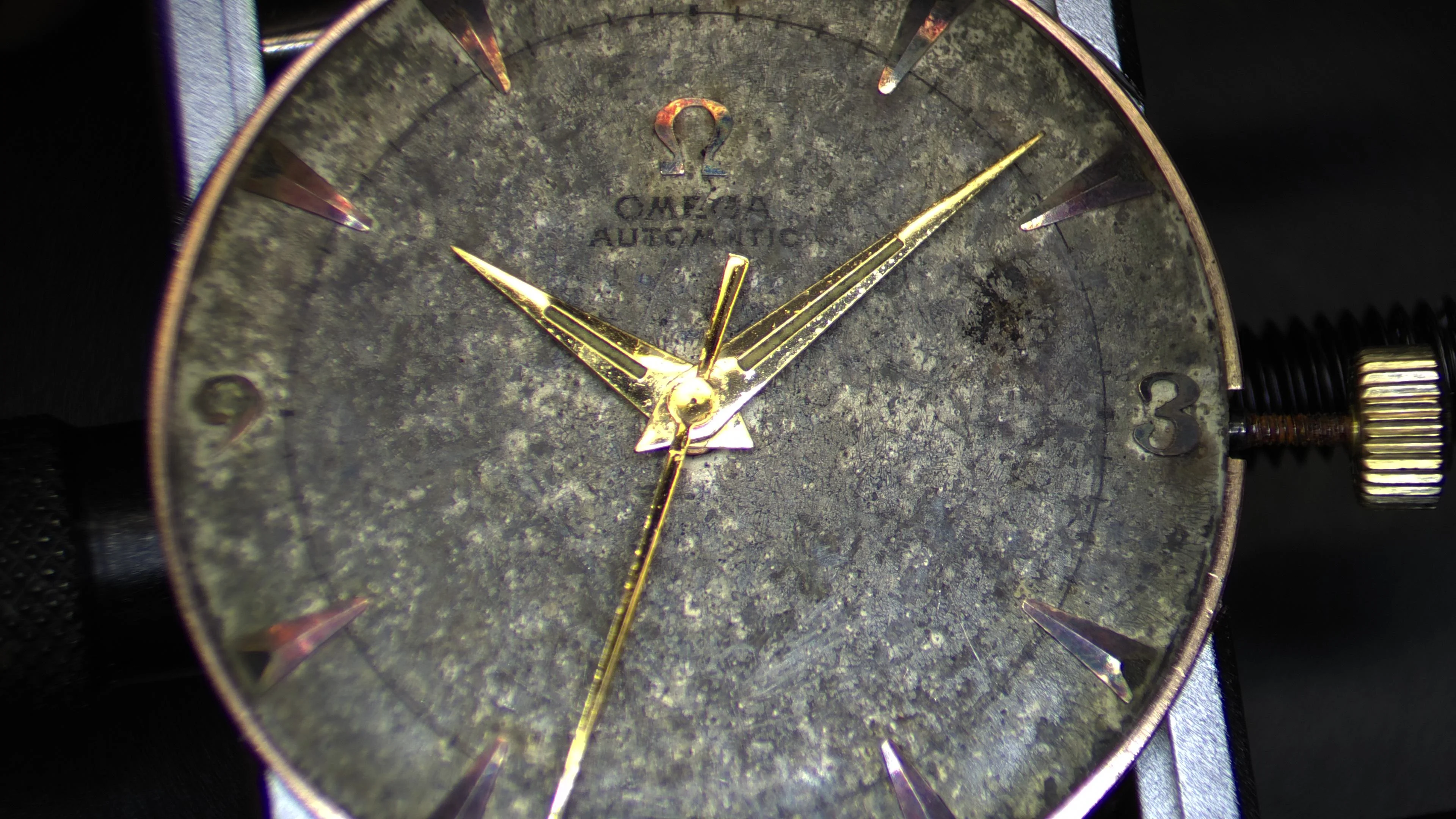

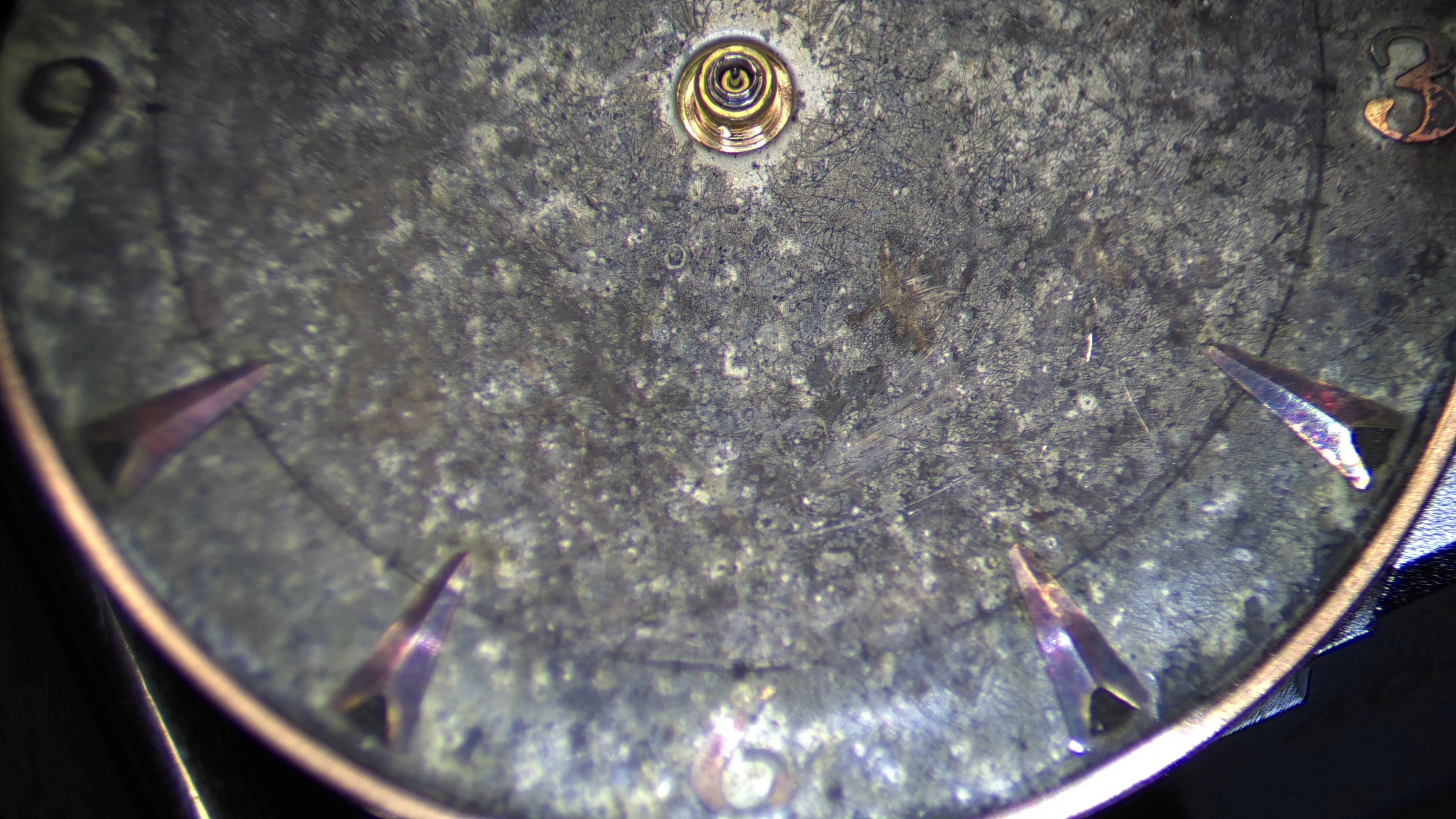

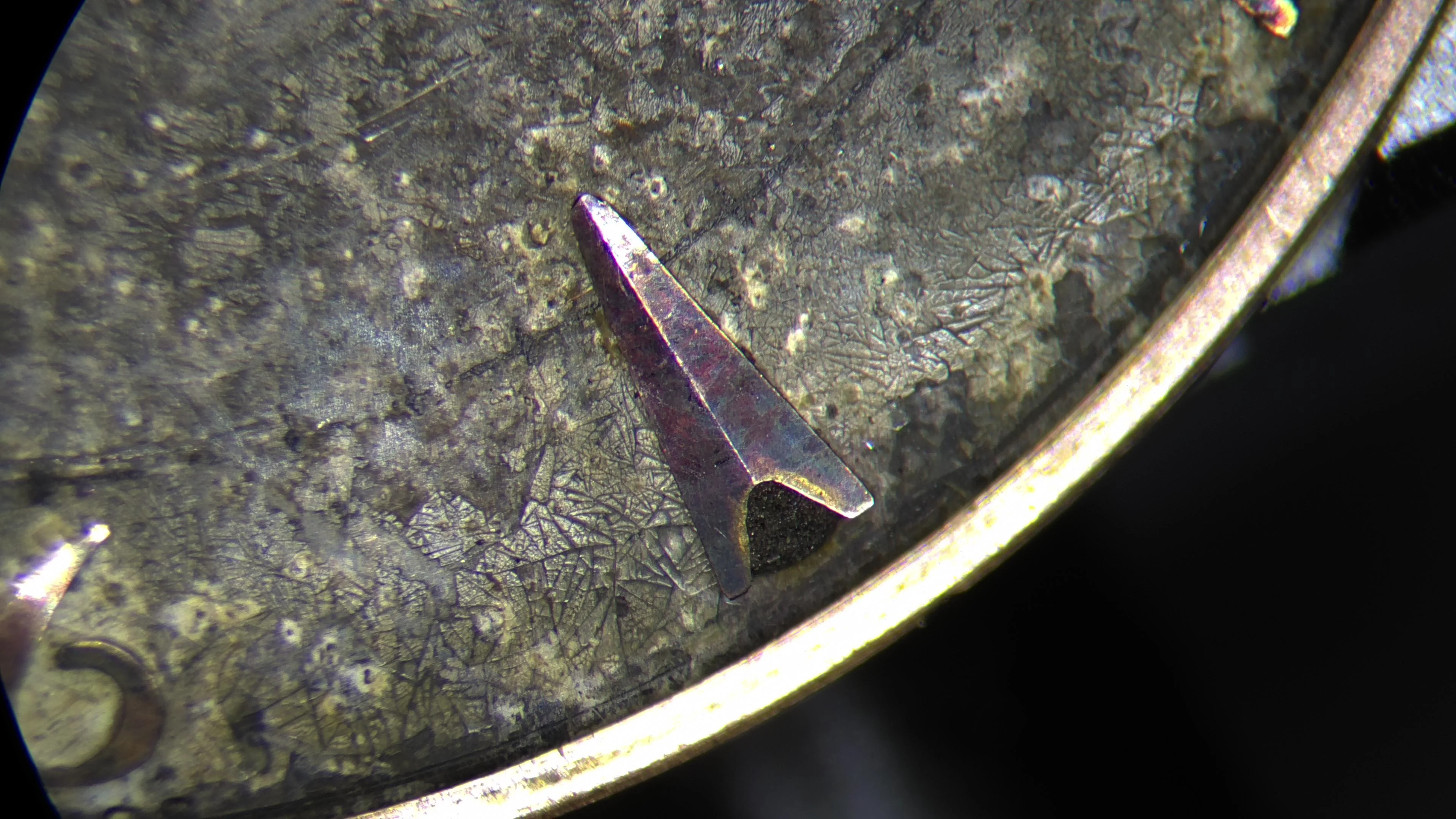

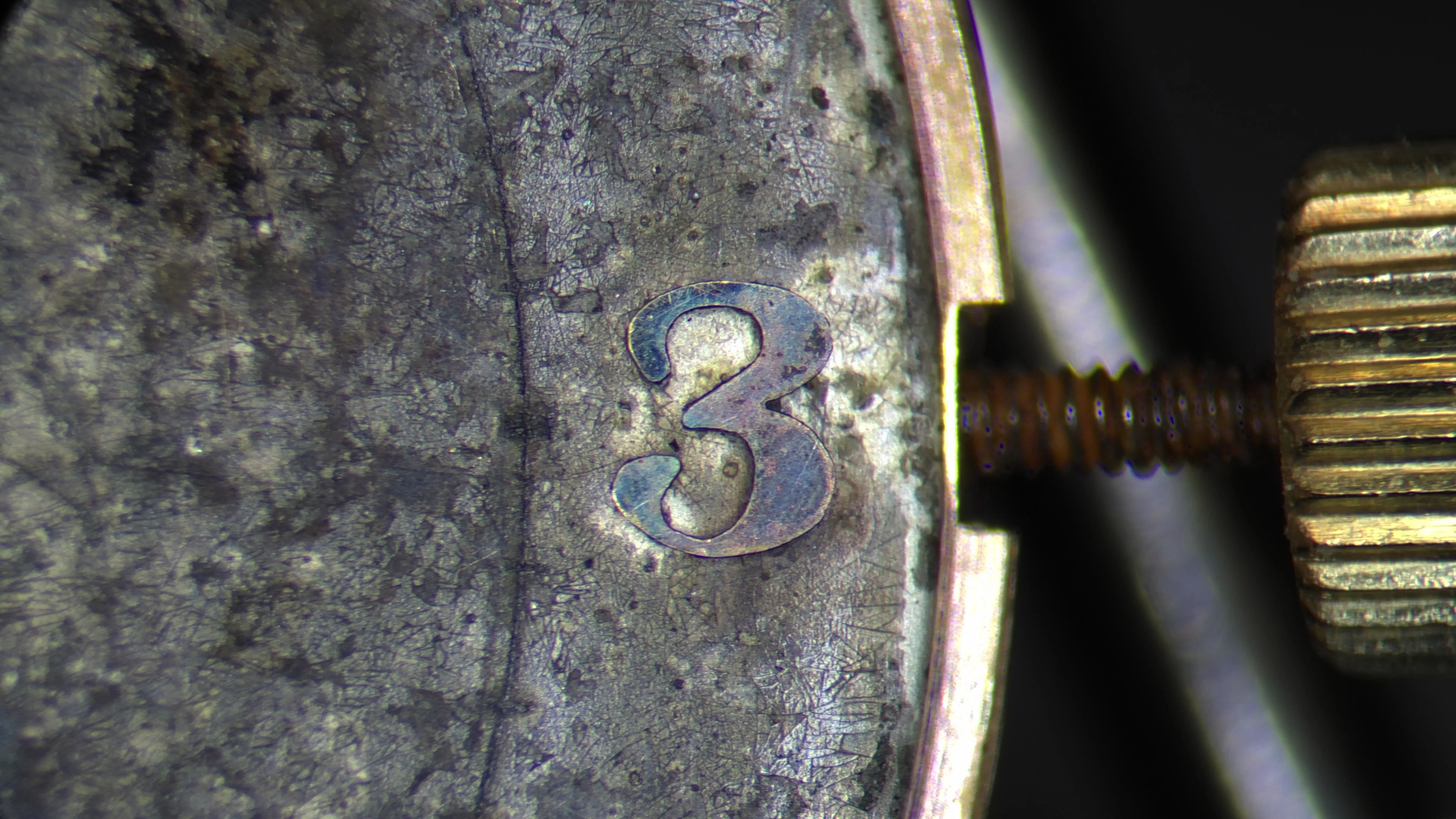

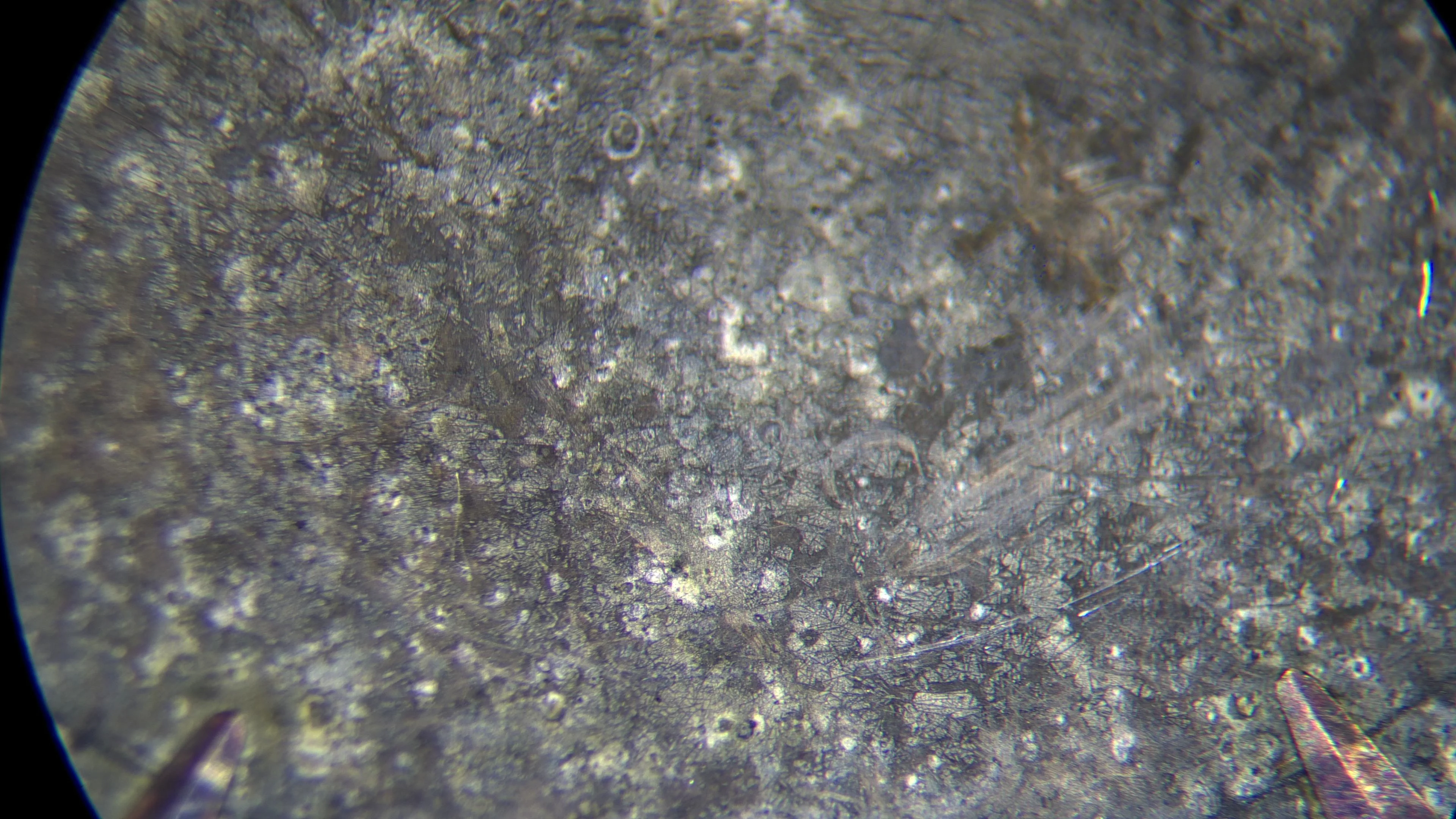

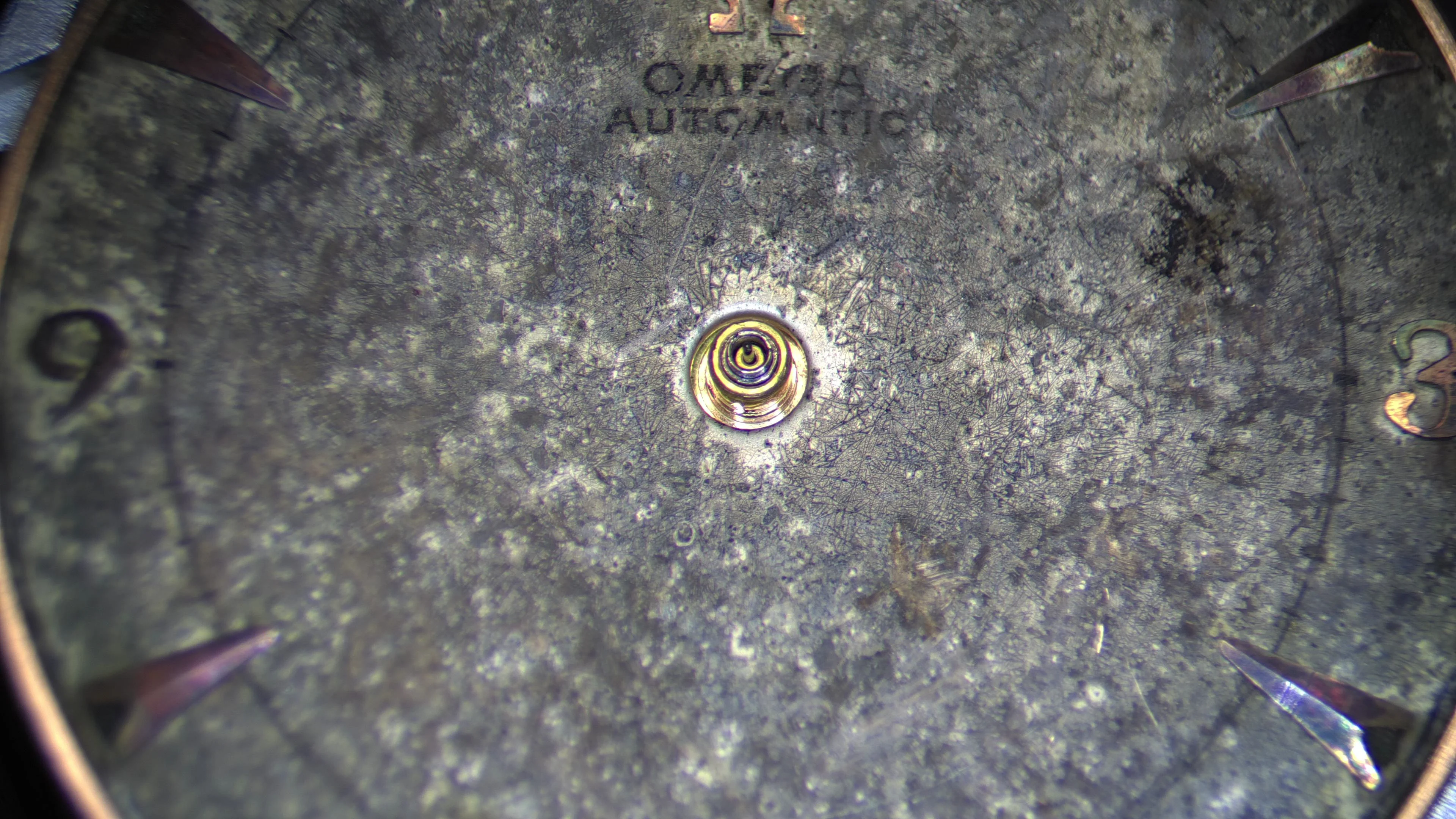

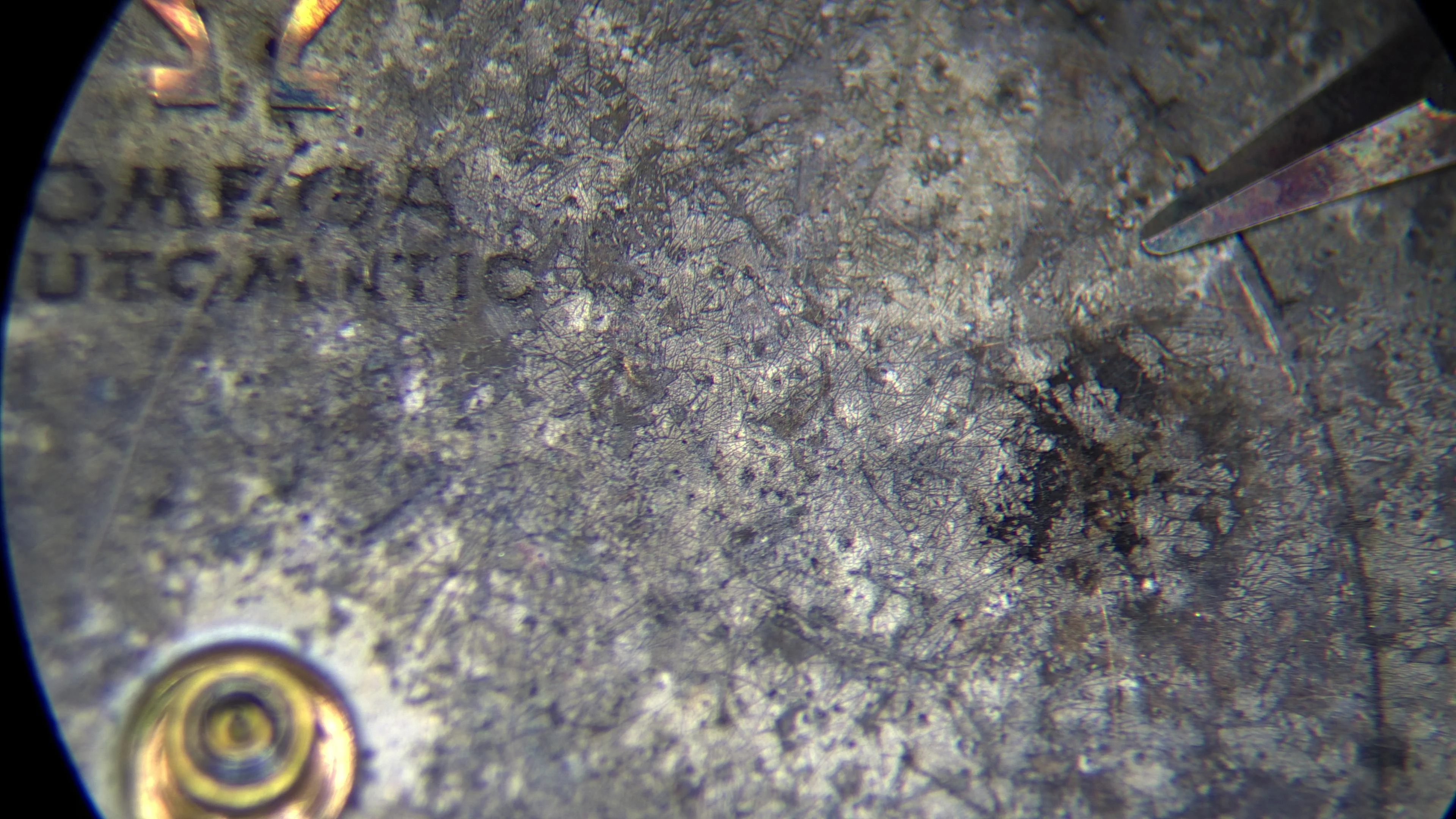

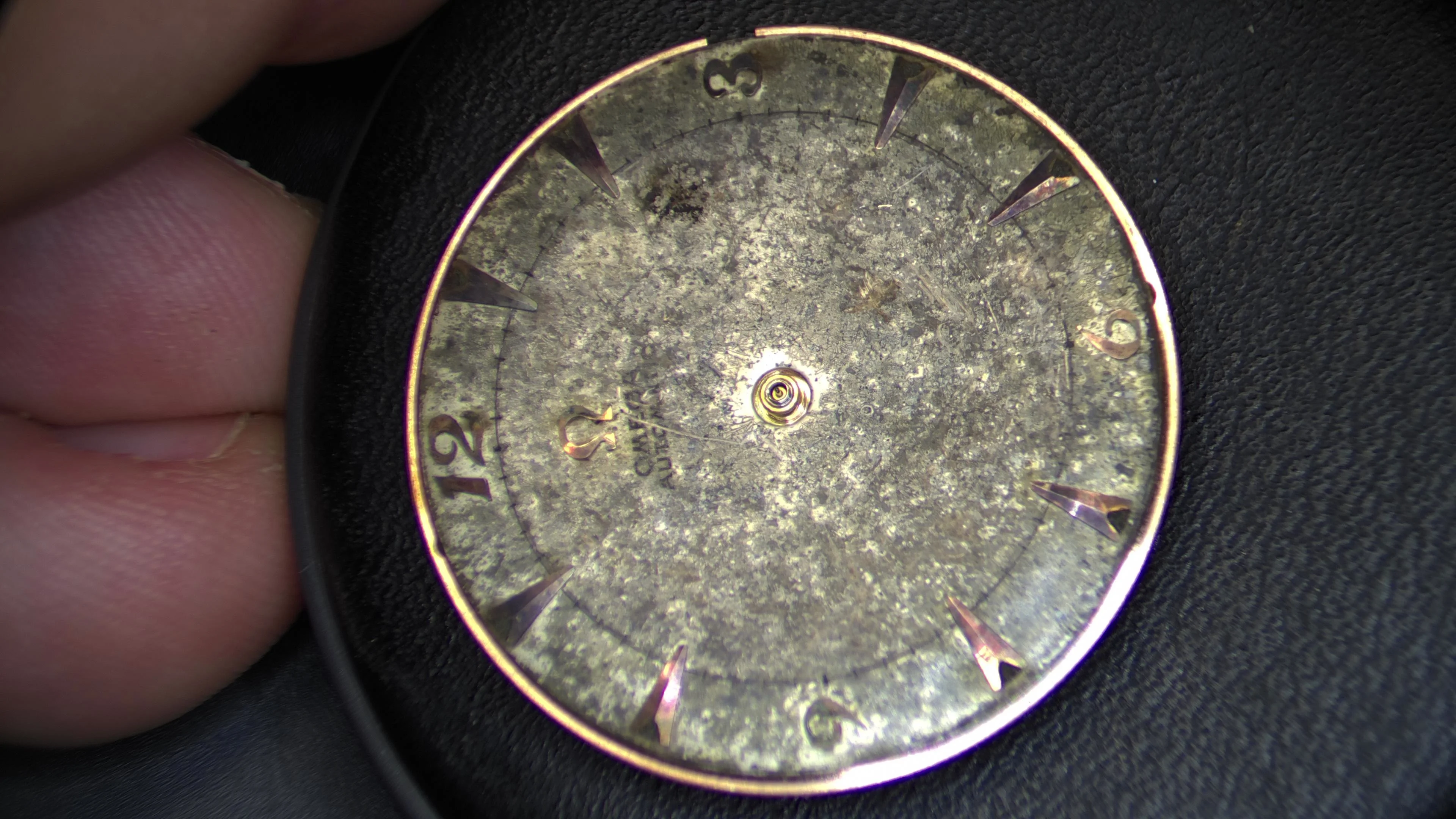

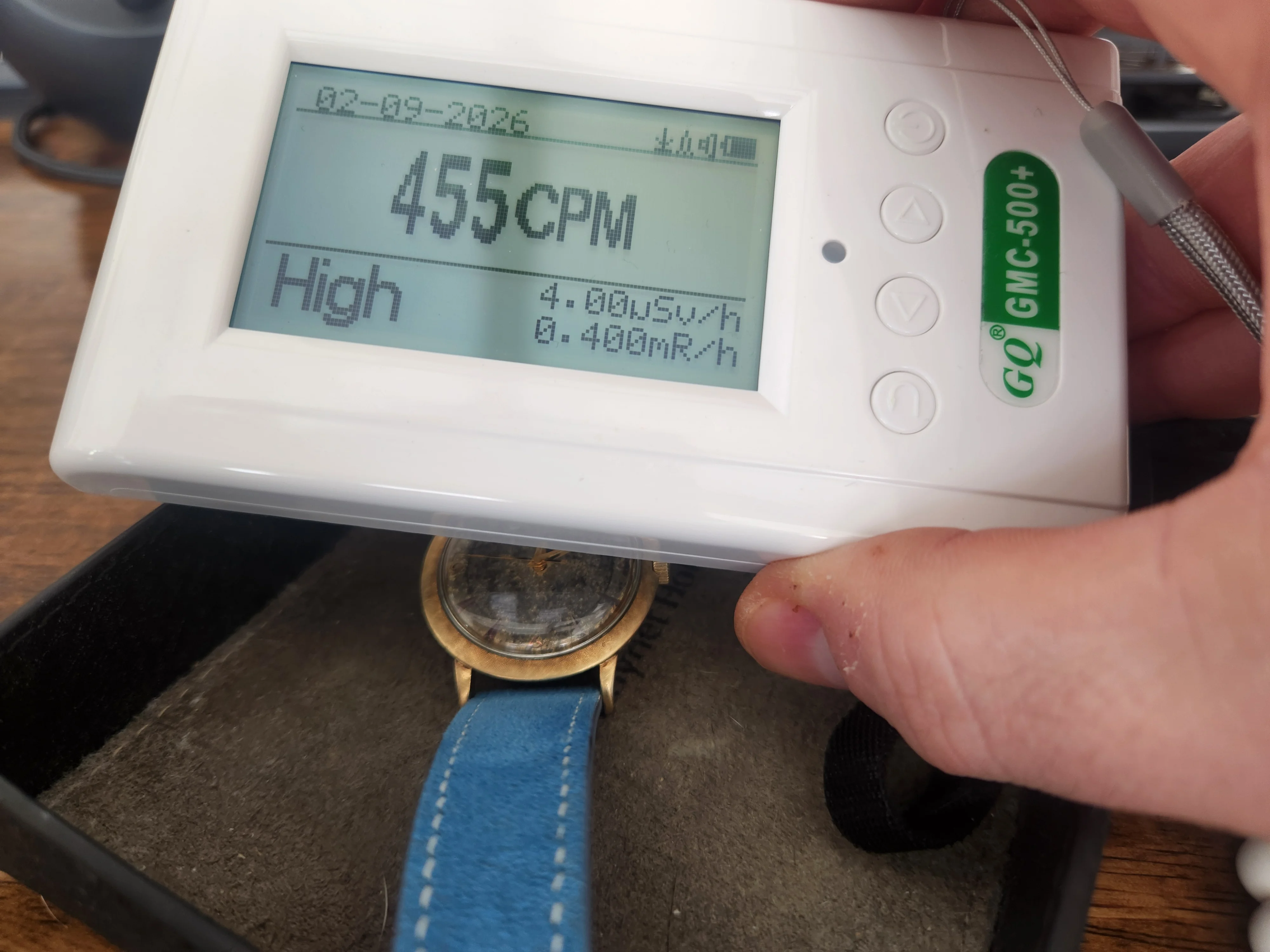

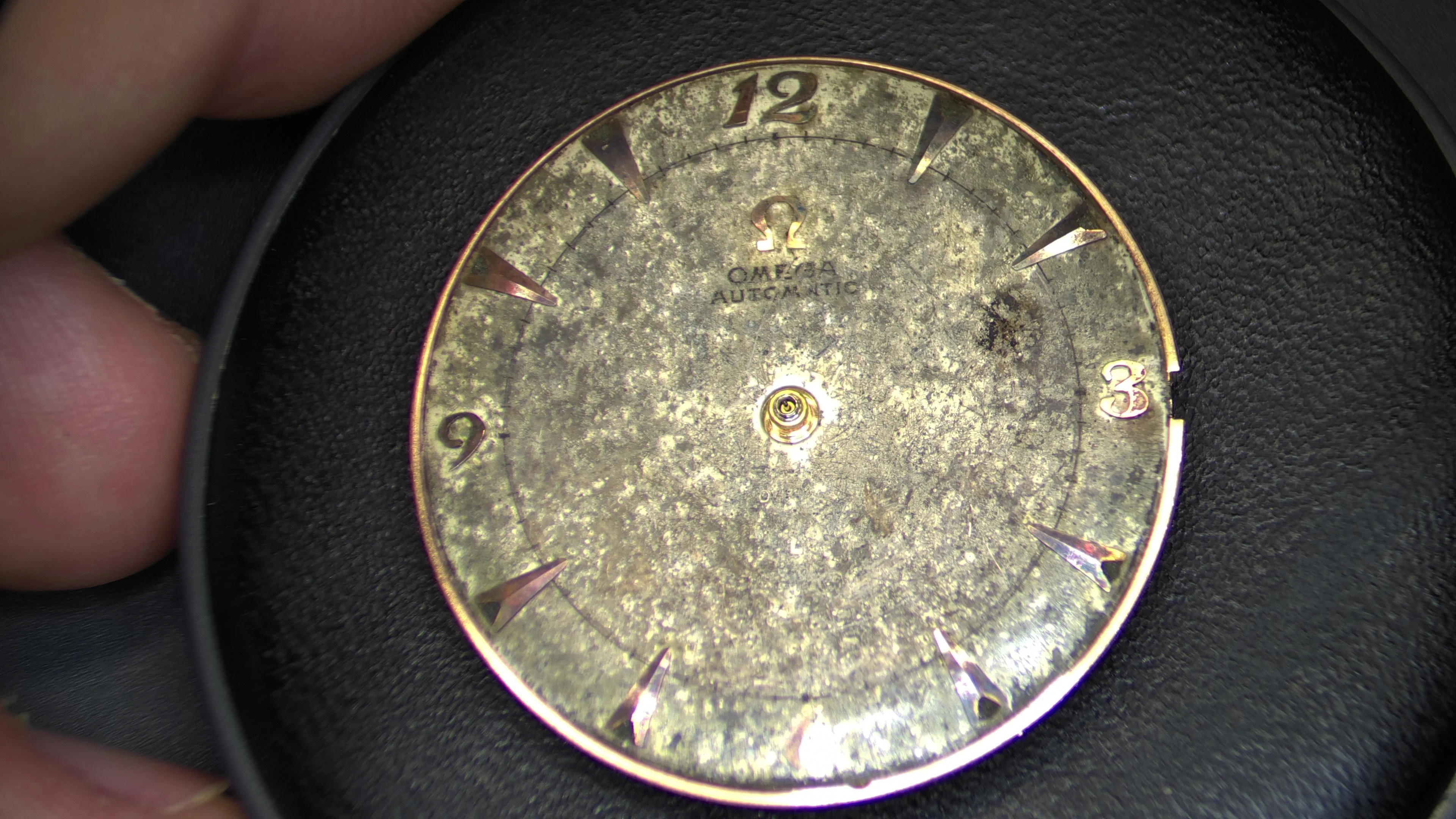

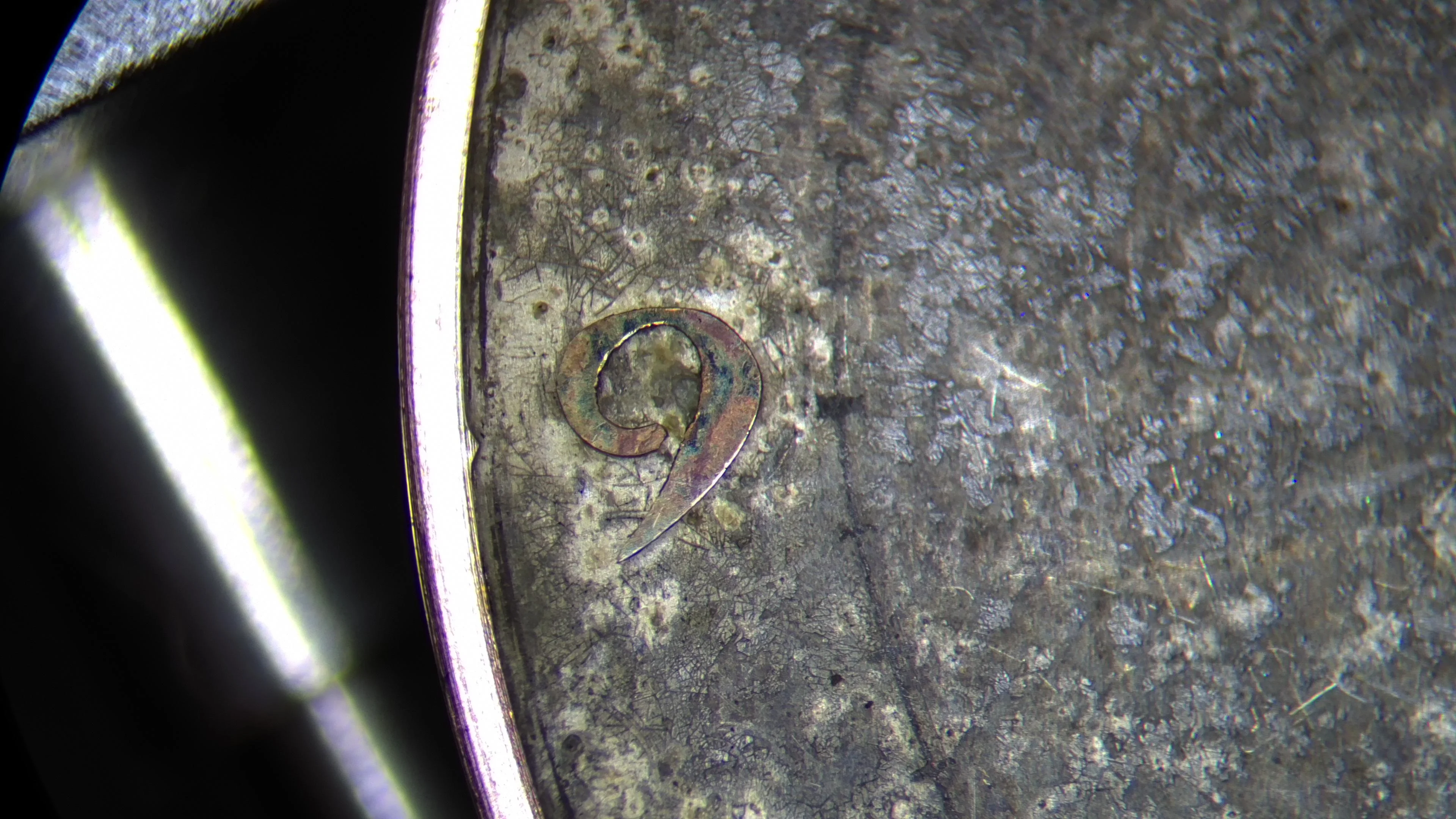

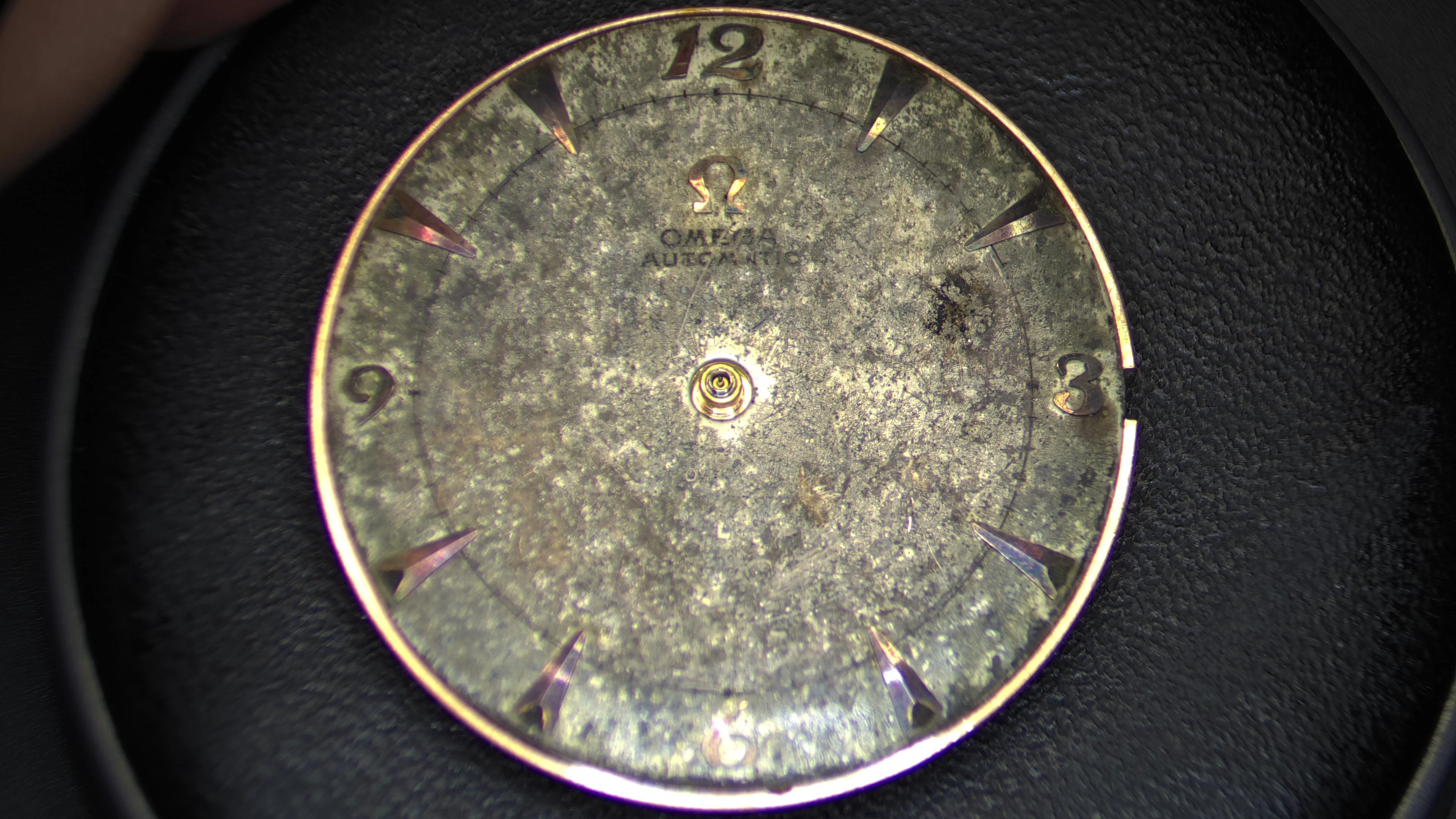

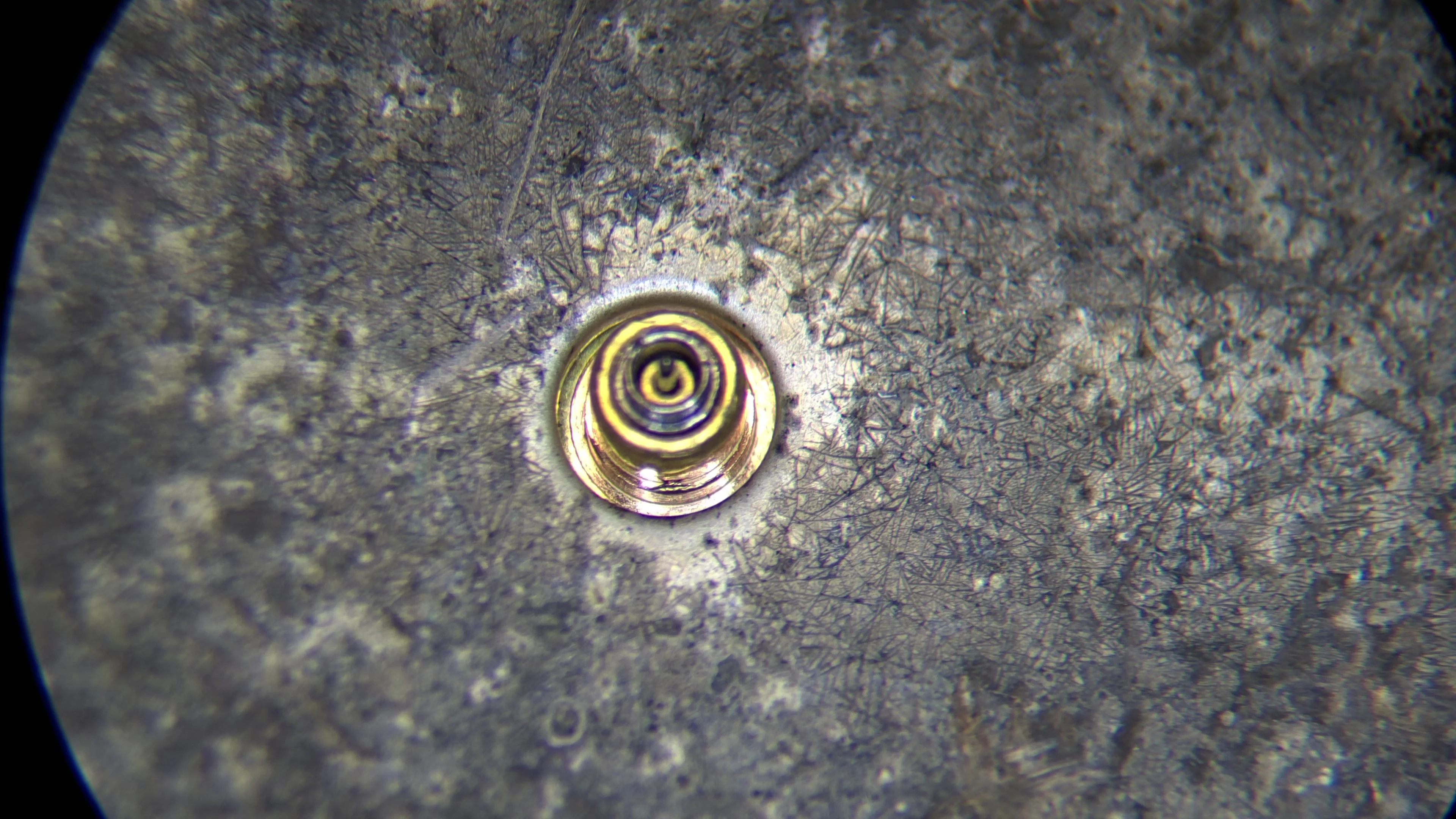

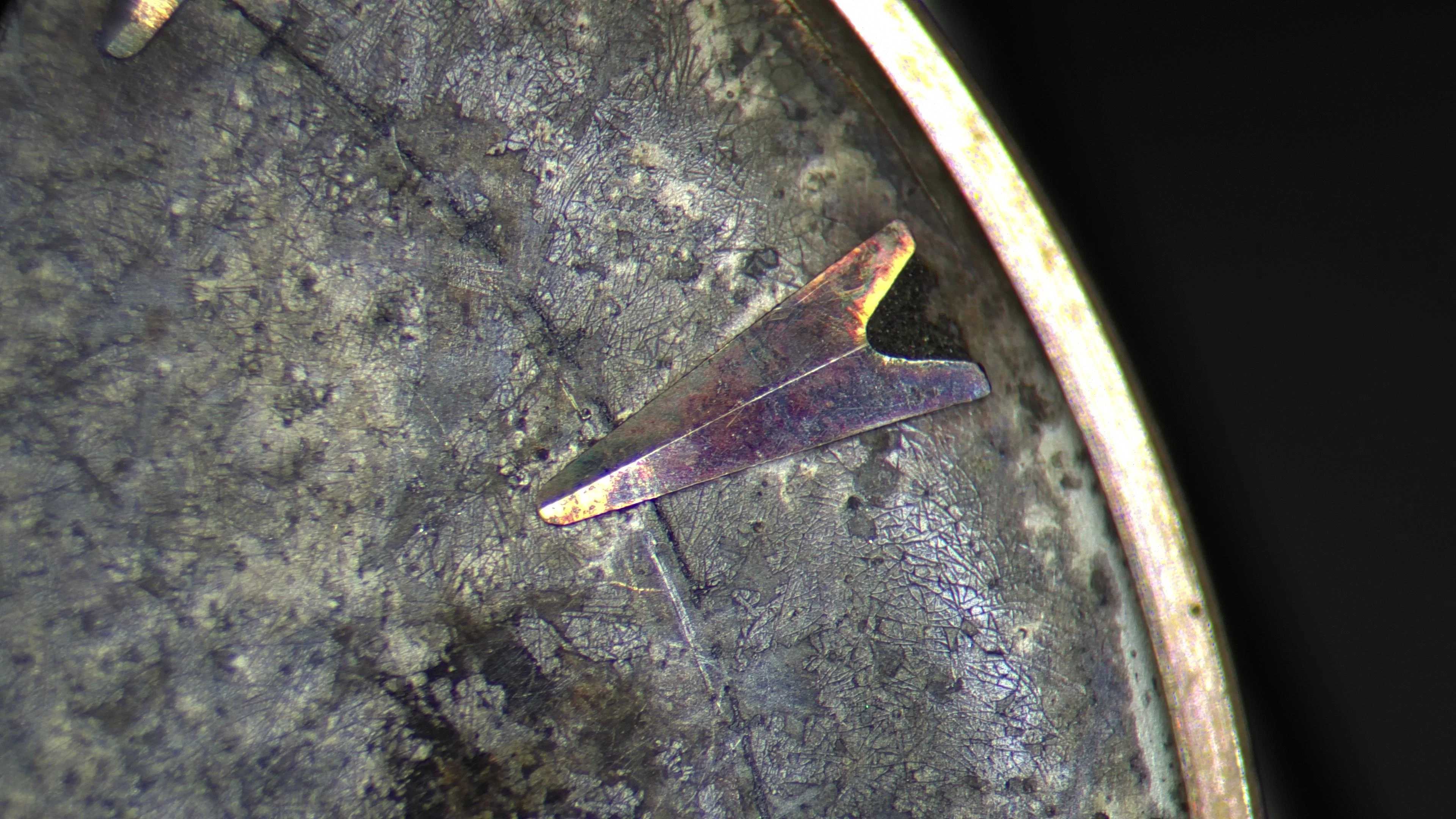

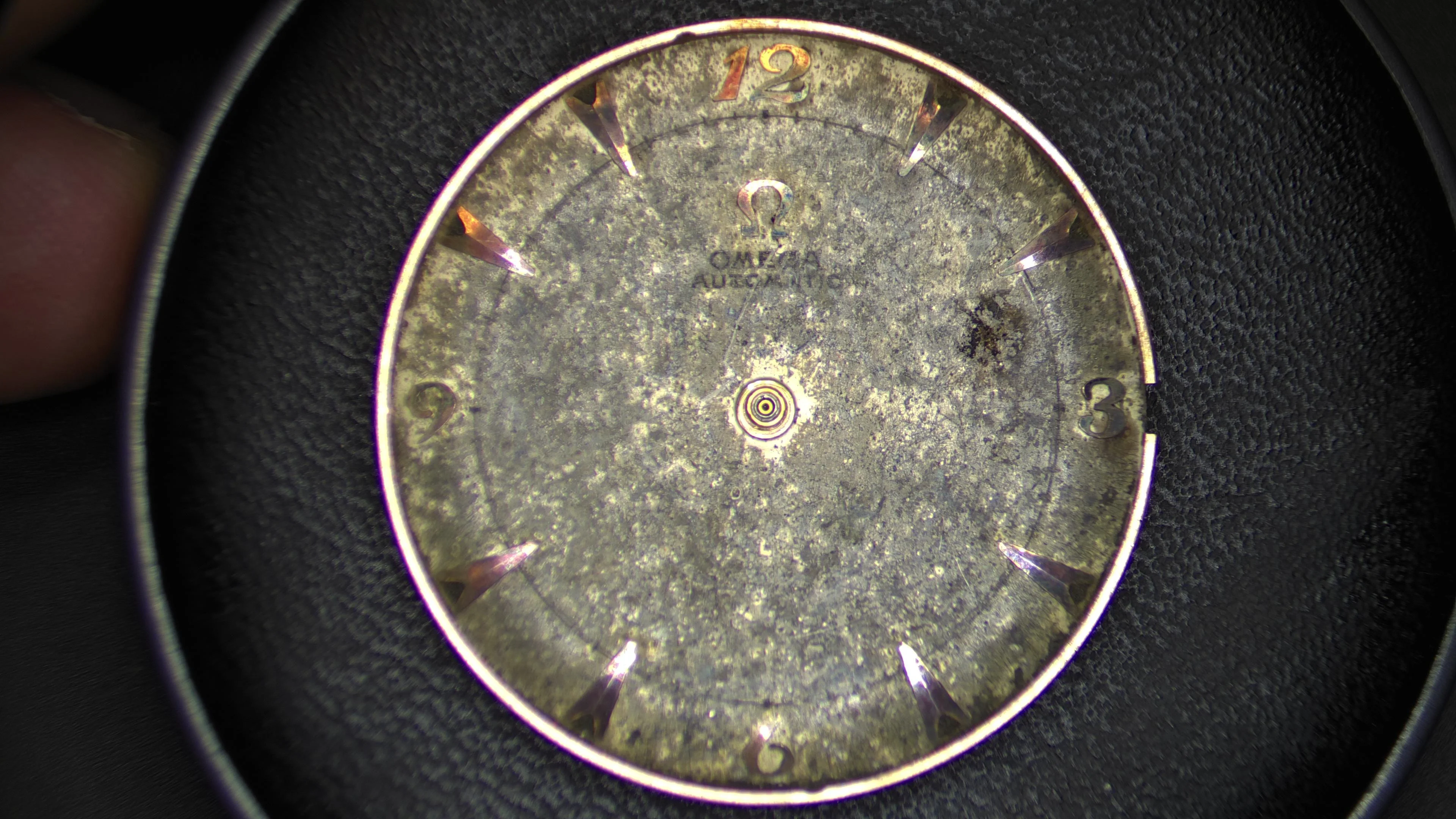

More dial macros. There is such lovely patina on the gold arabics and arrow indices. Original radium lume plots are still there and yes they are quite warm according to my geiger counter.
20260130181931691.webp 20260130181944609.webp 20260130181949713.webp 20260130181956259.webp 20260130182002849.webp 20260130182009181.webp 20260130182014522.webp 20260130182020495.webp 20260130182026055.webp 20260130182031300.webp

samweldspoorly
Posts
505
Likes
2,070

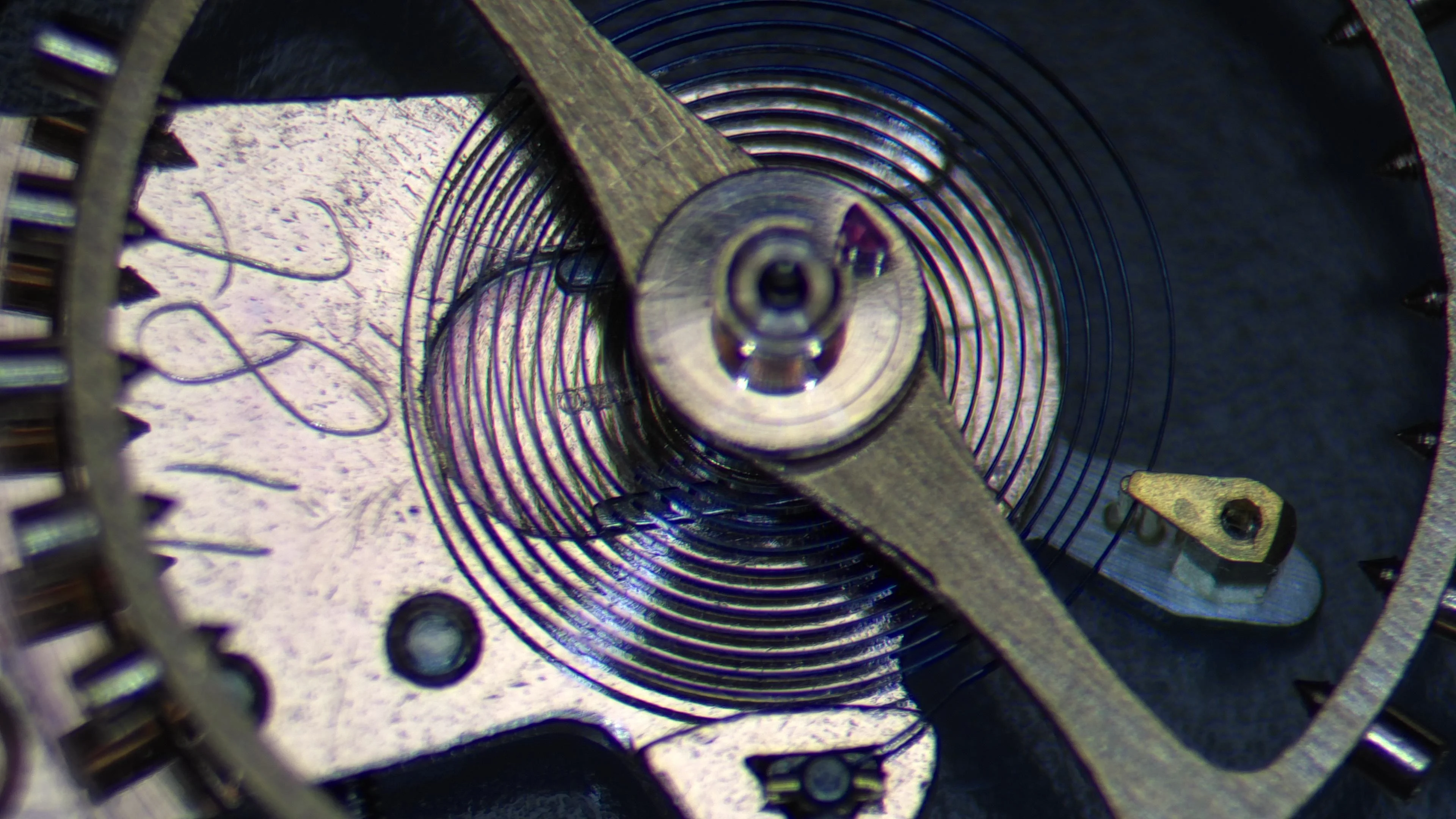

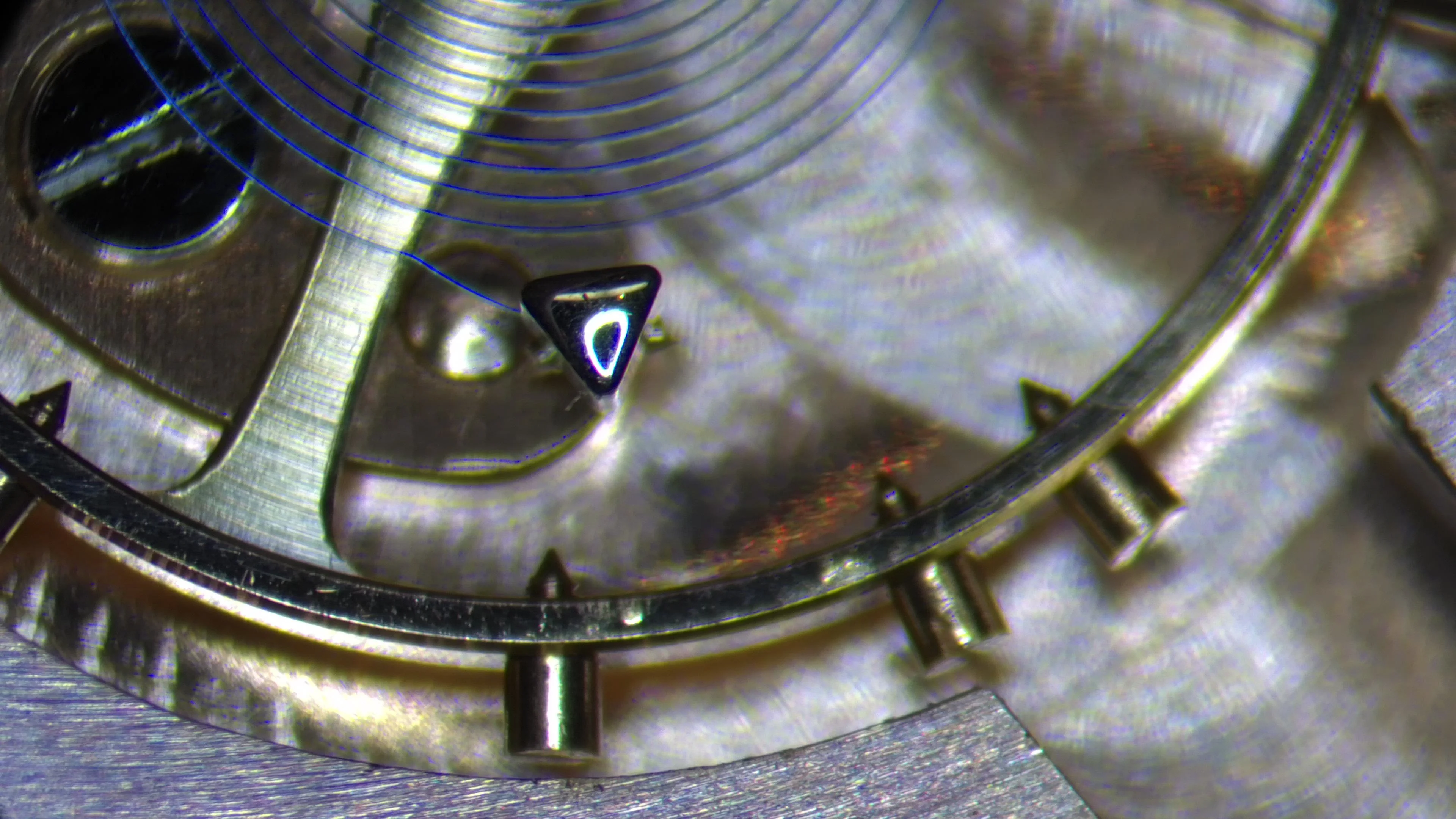

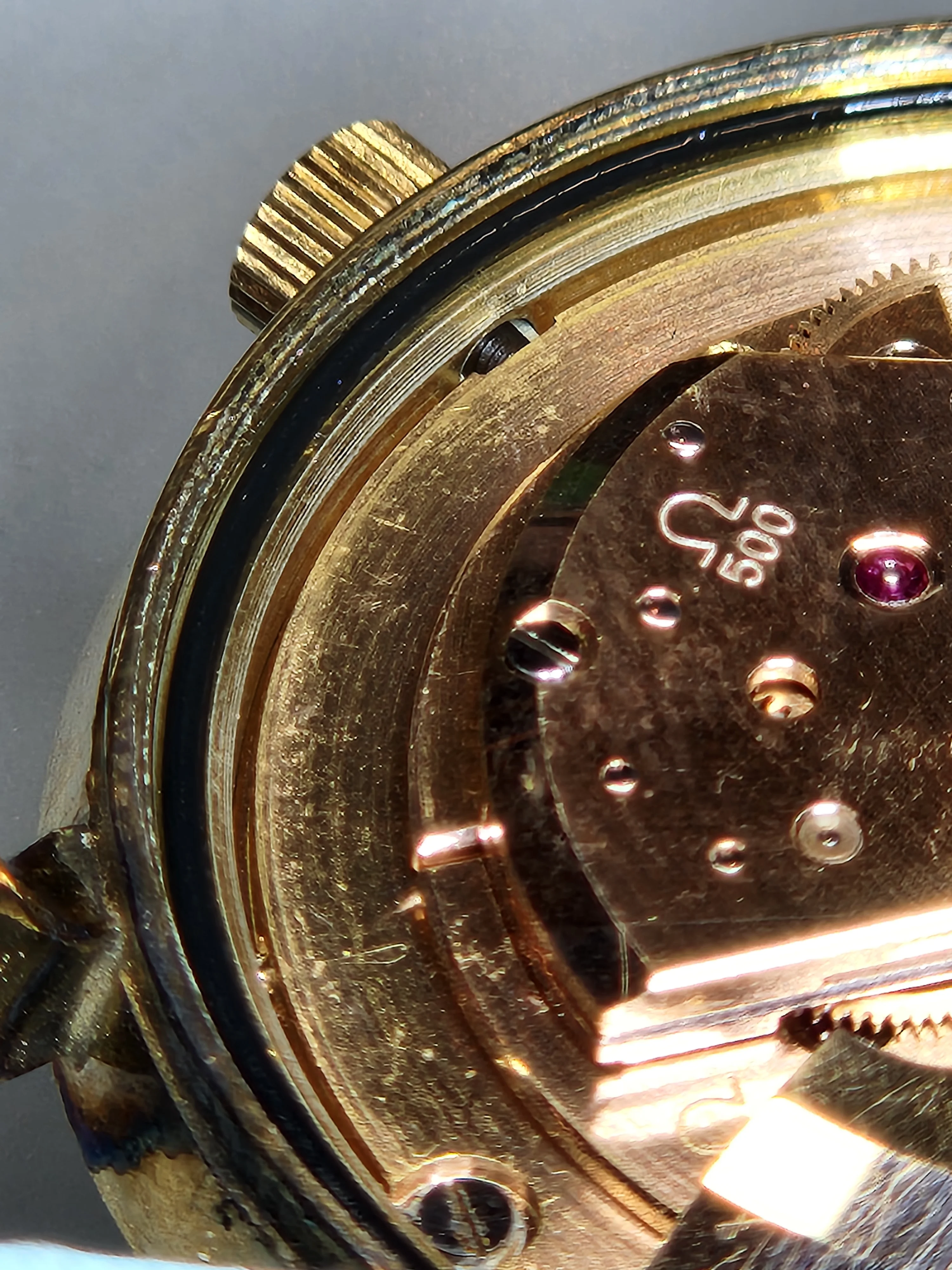

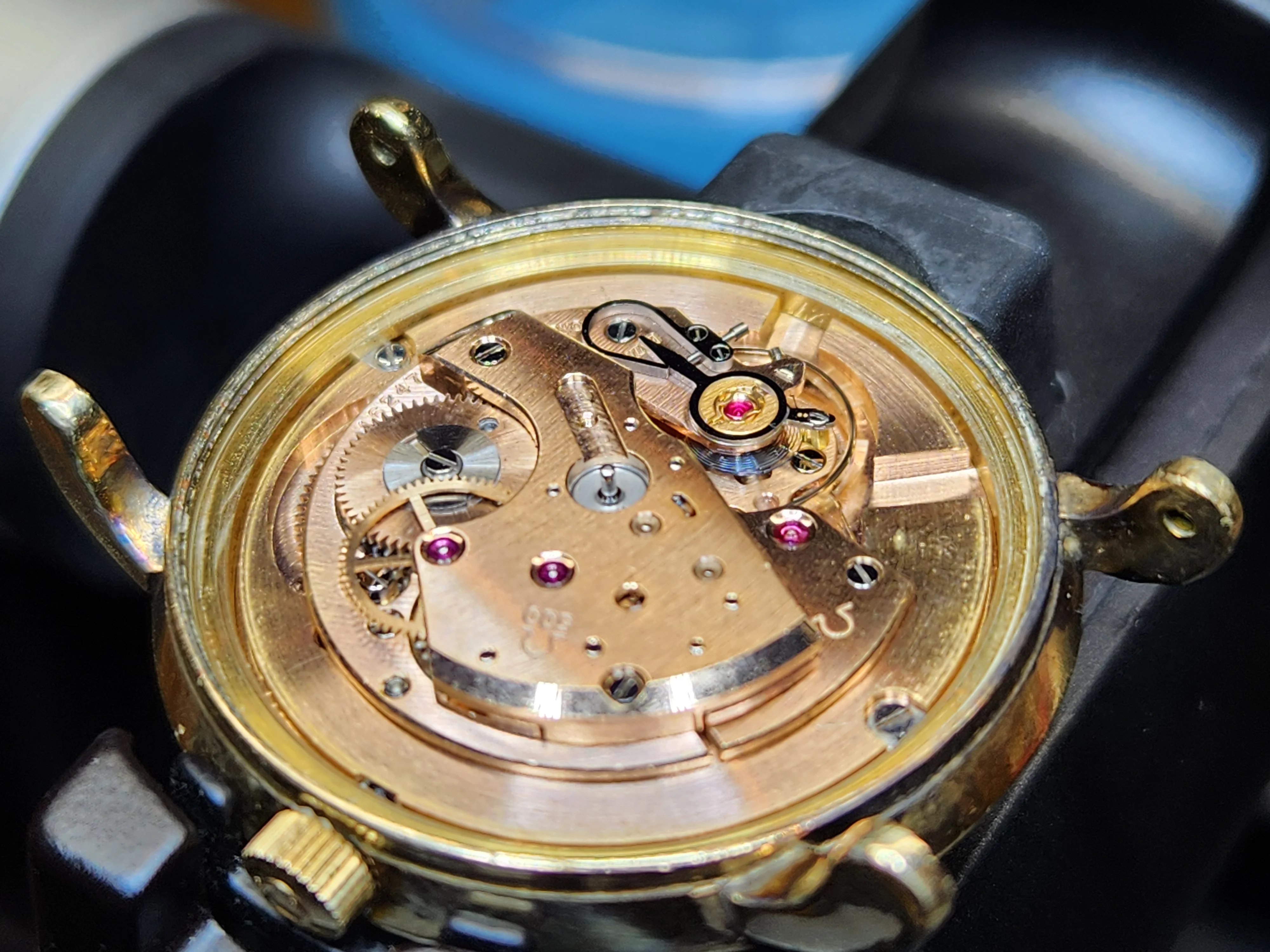

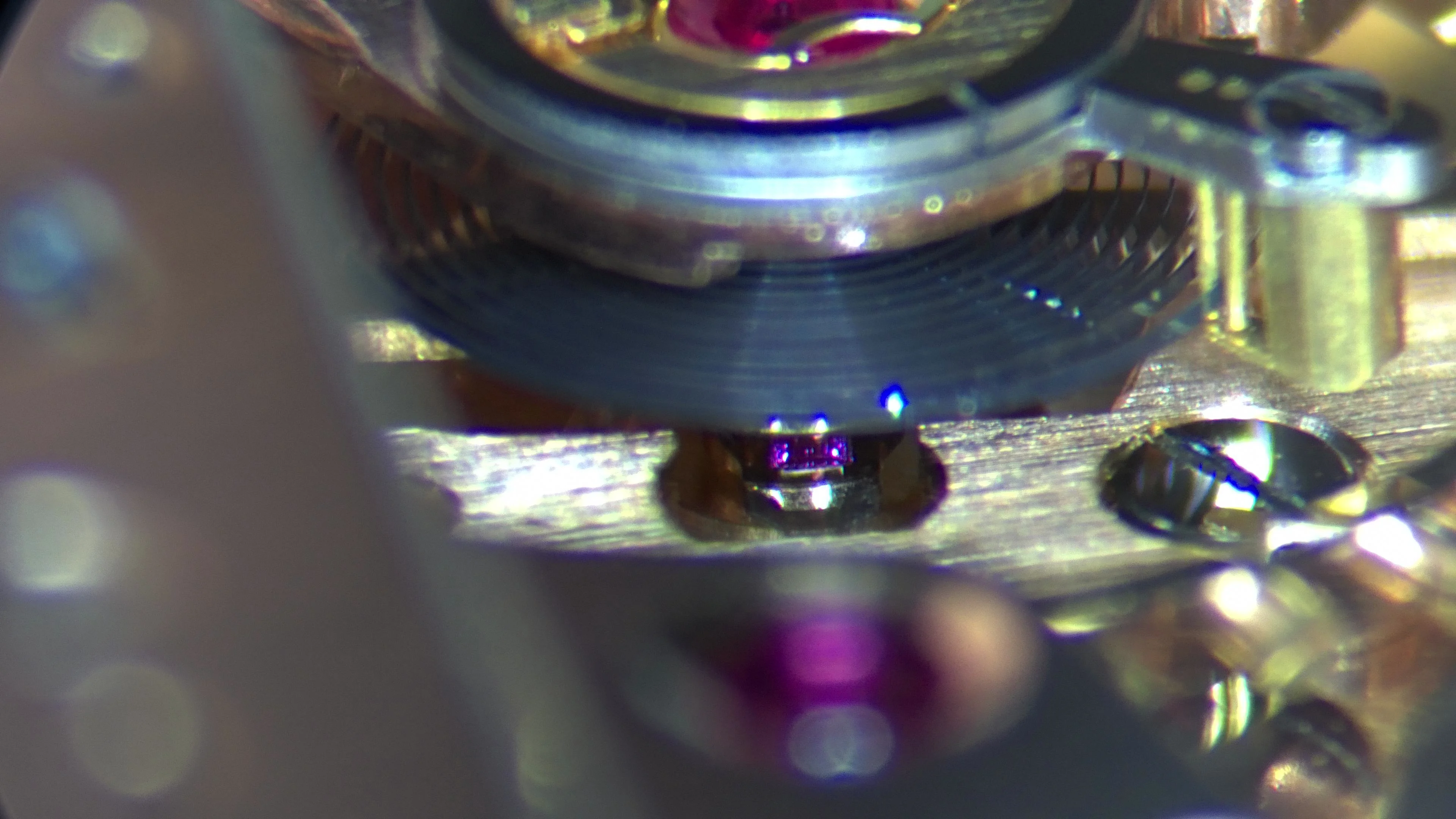

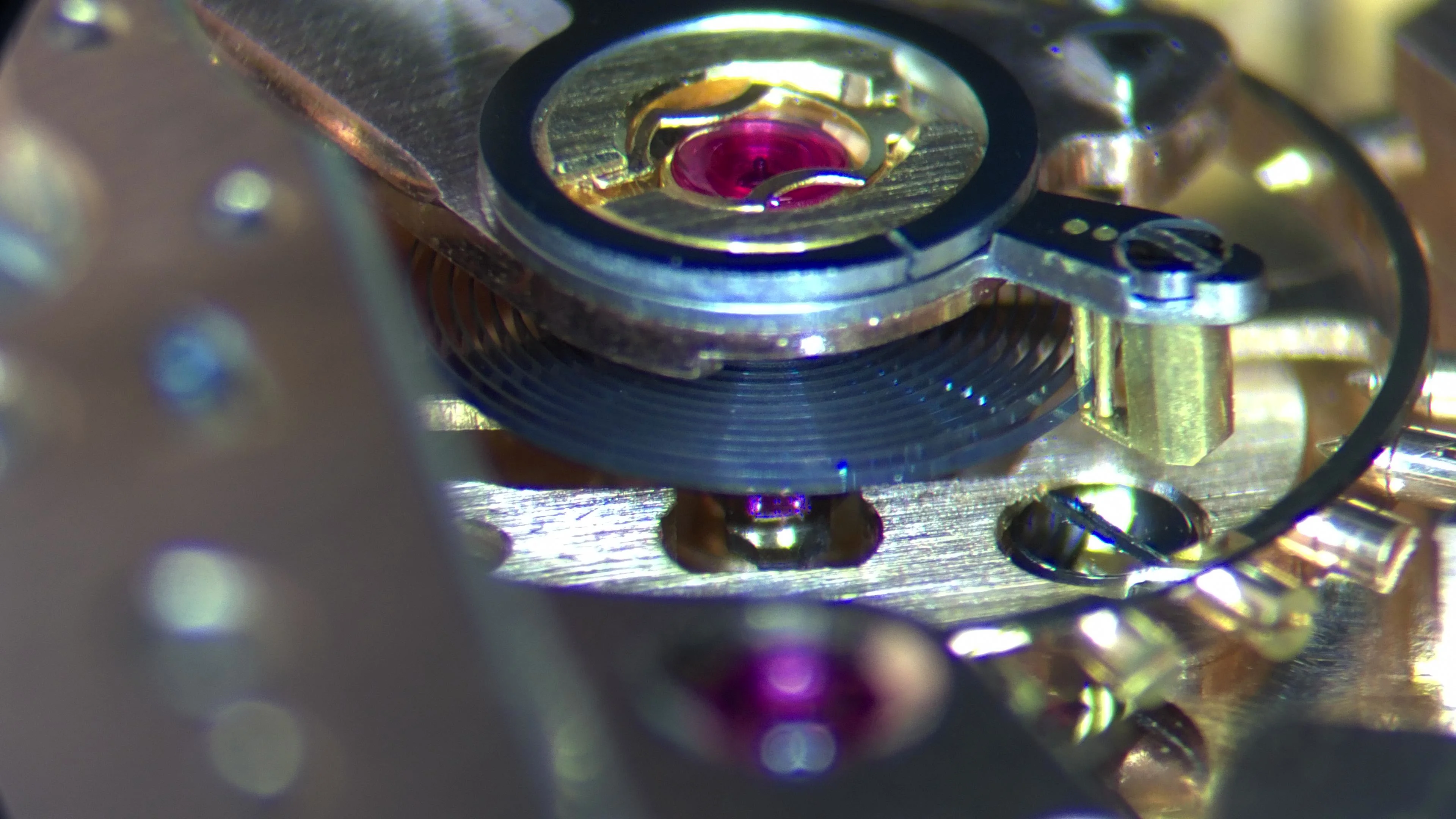

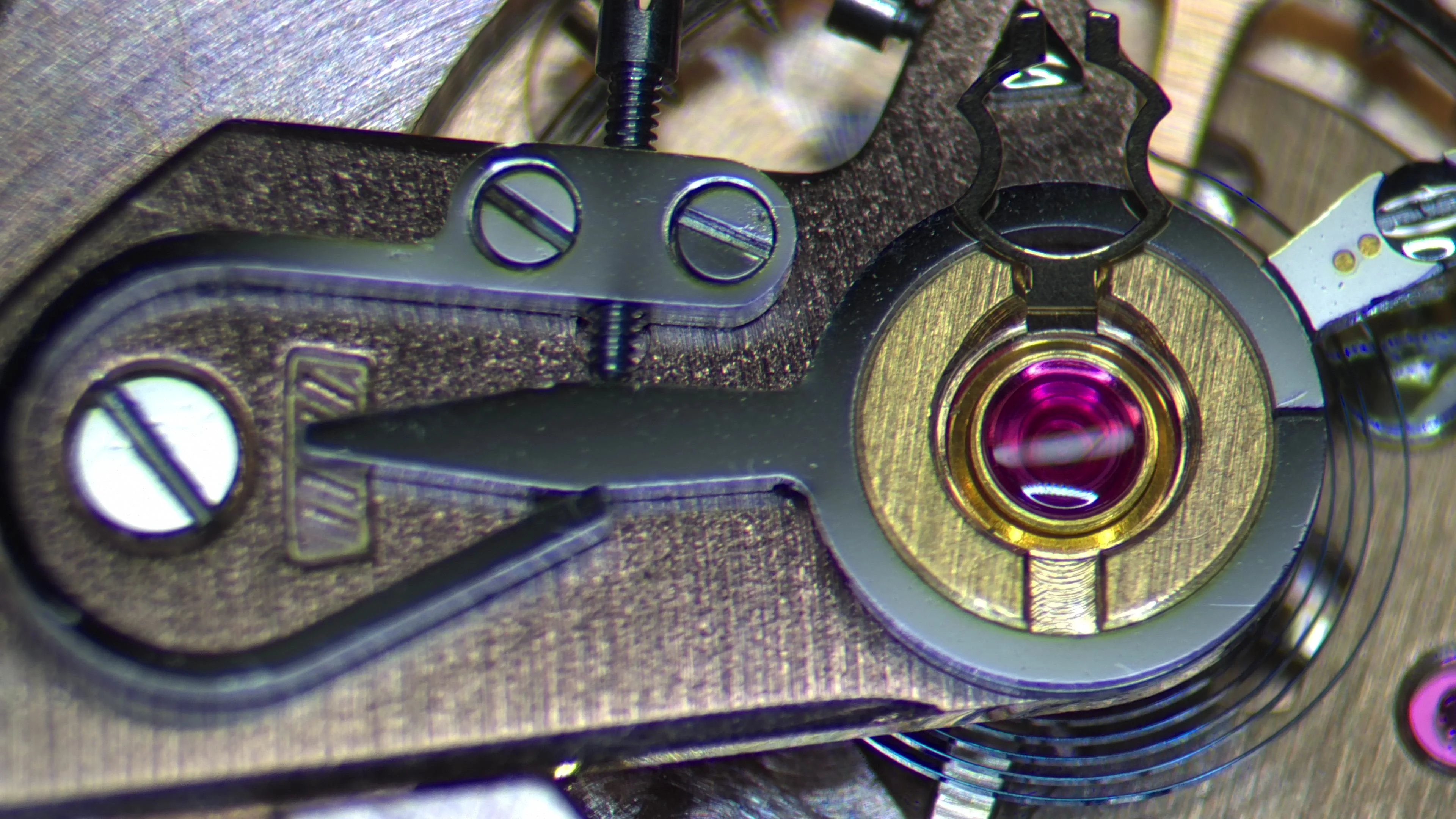

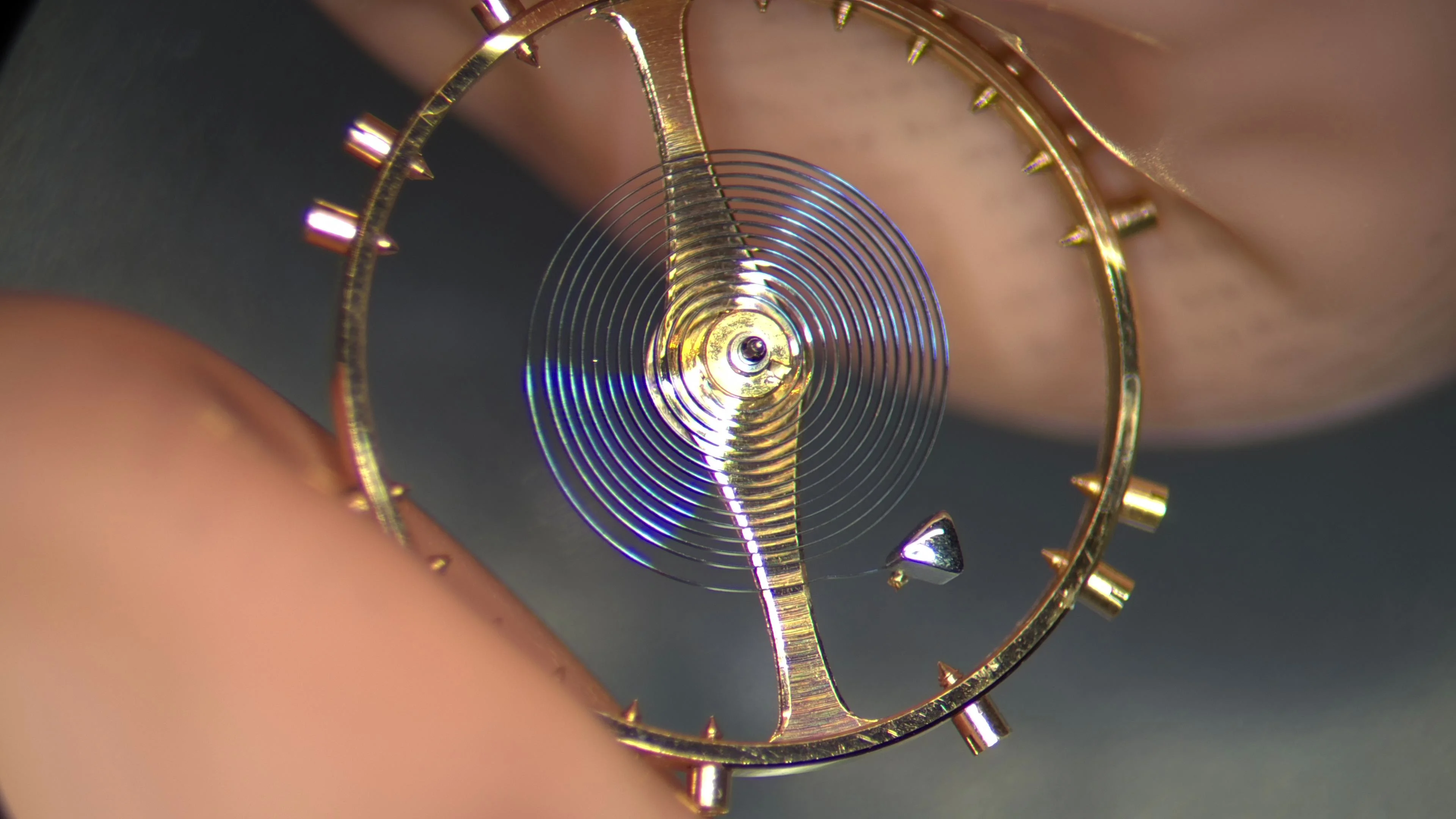

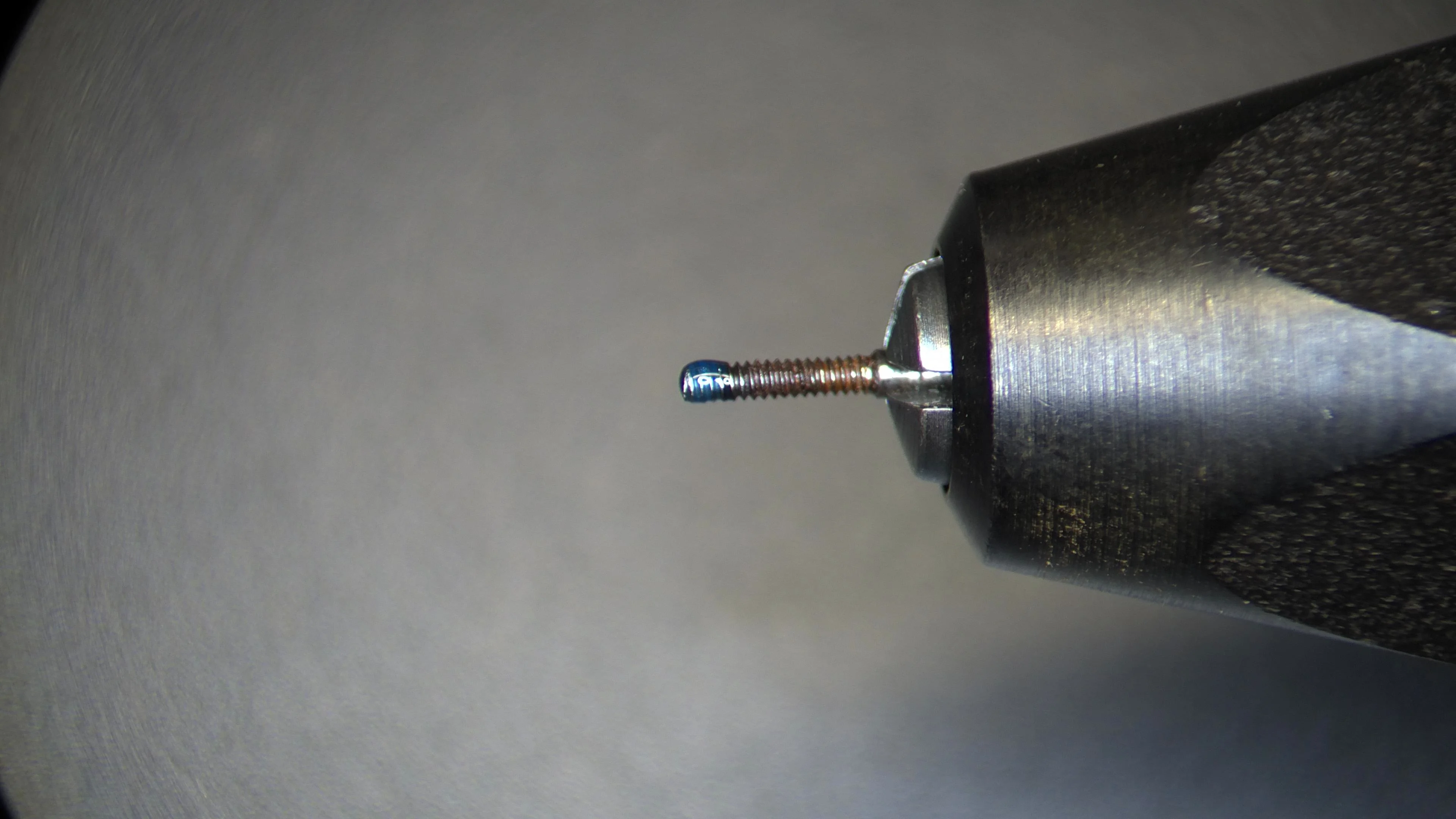

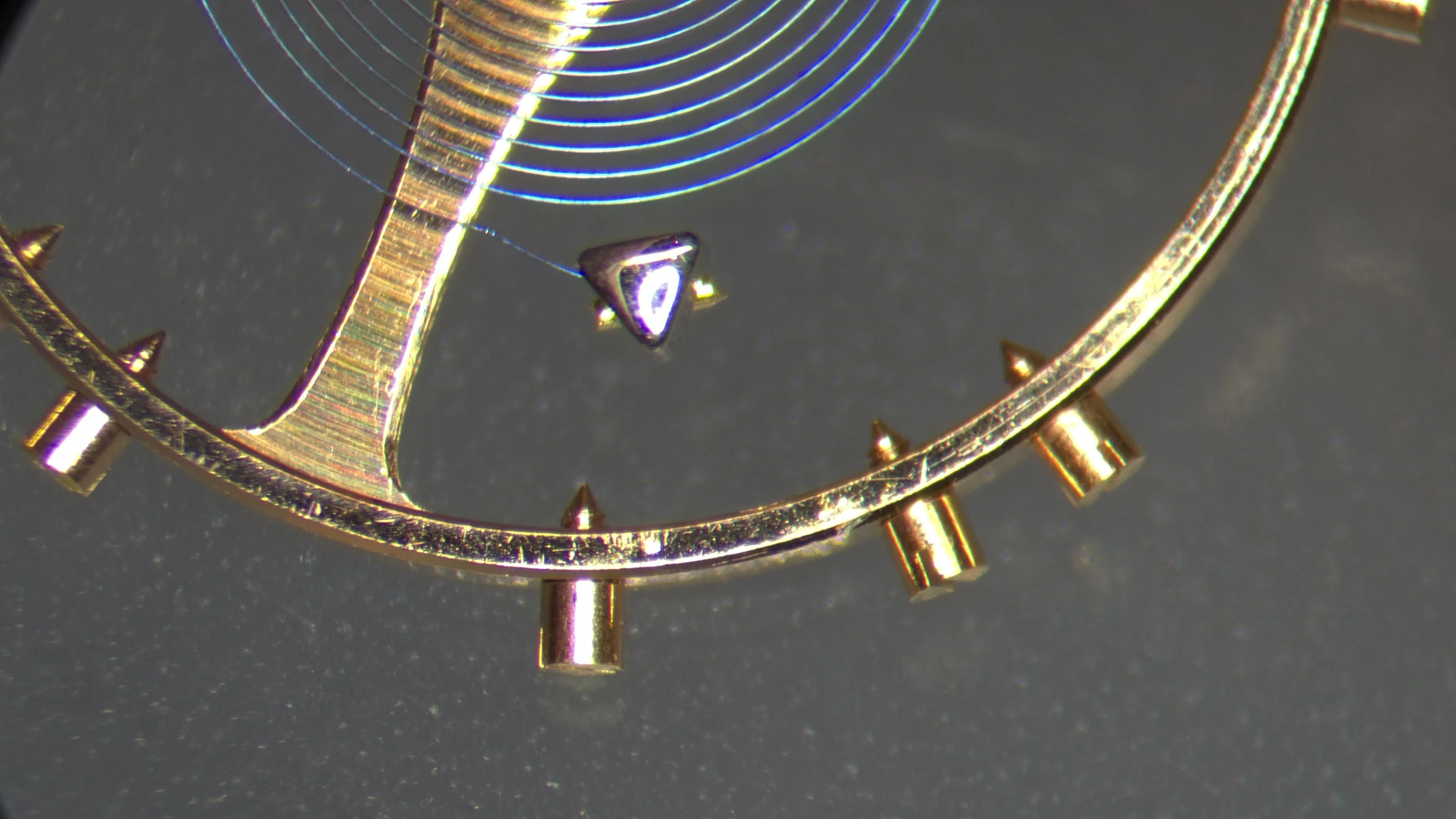

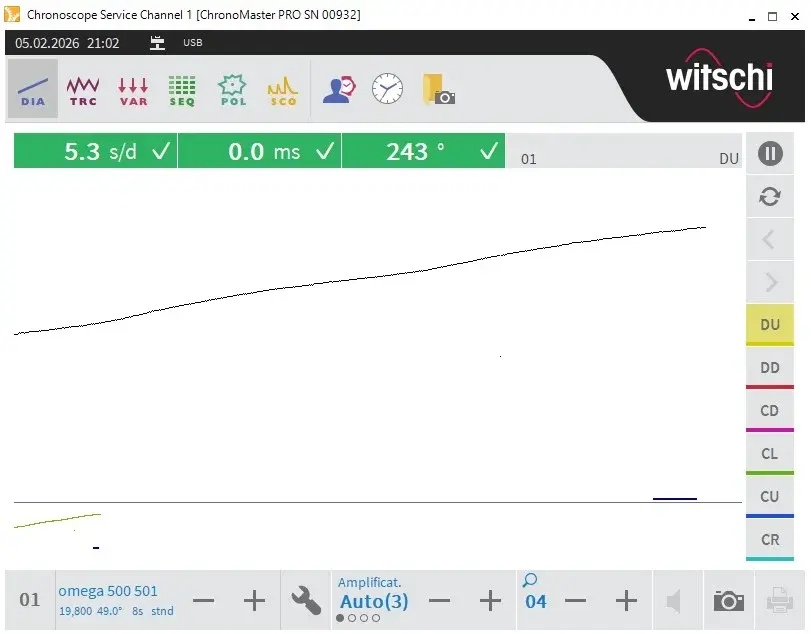

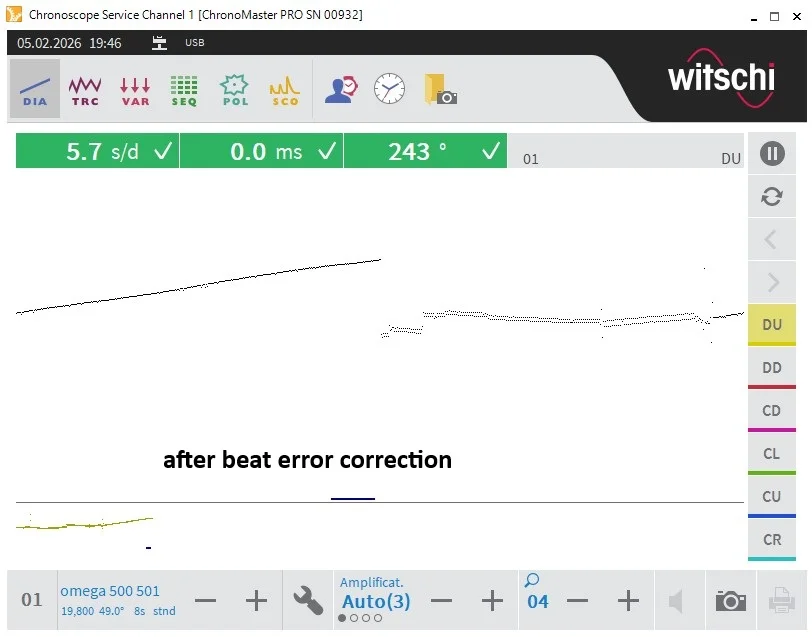

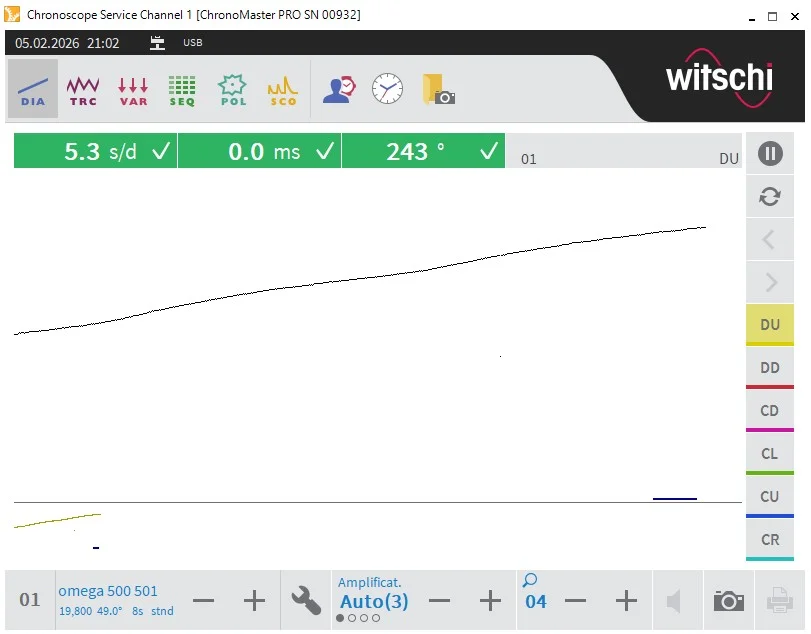

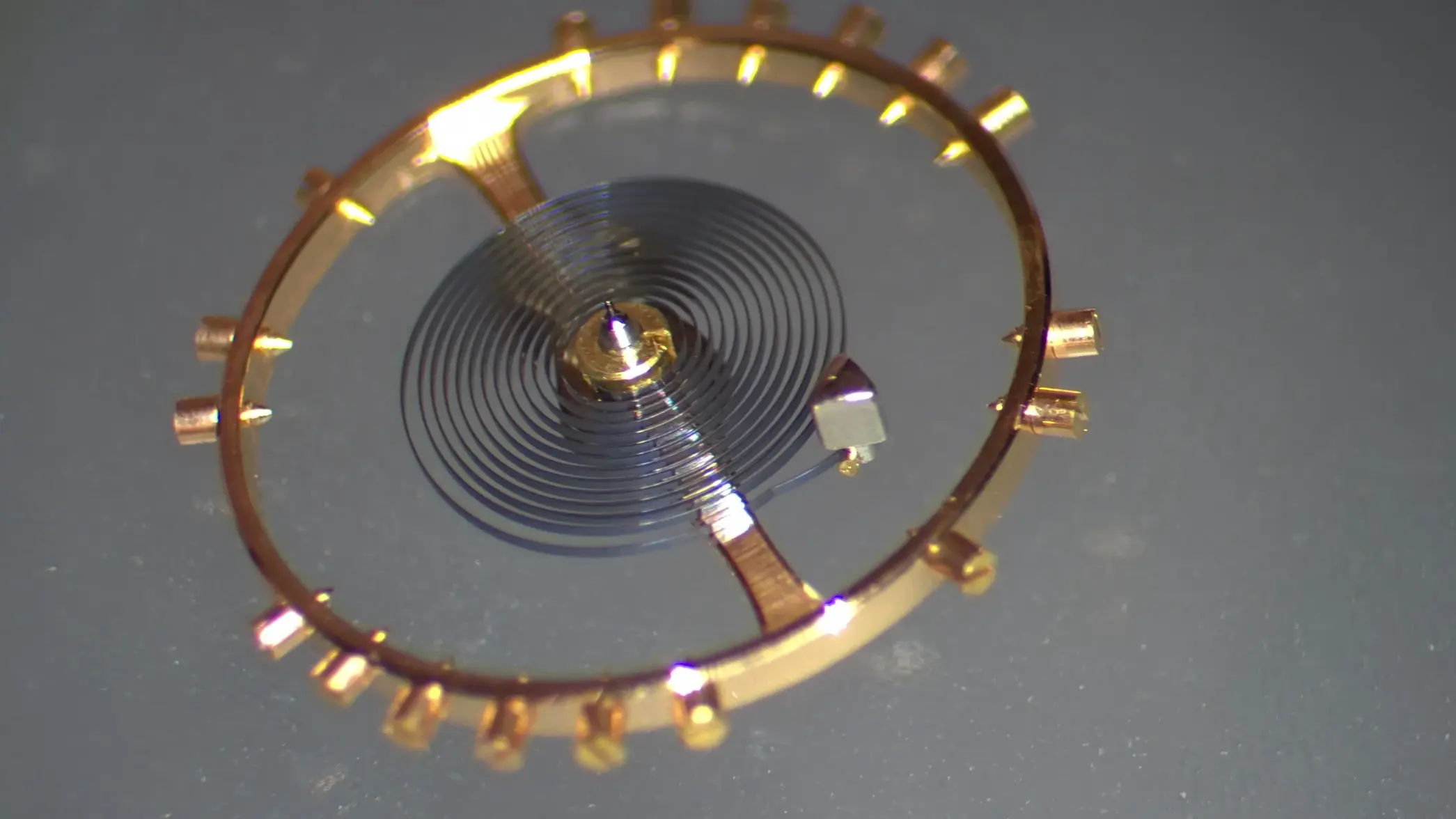

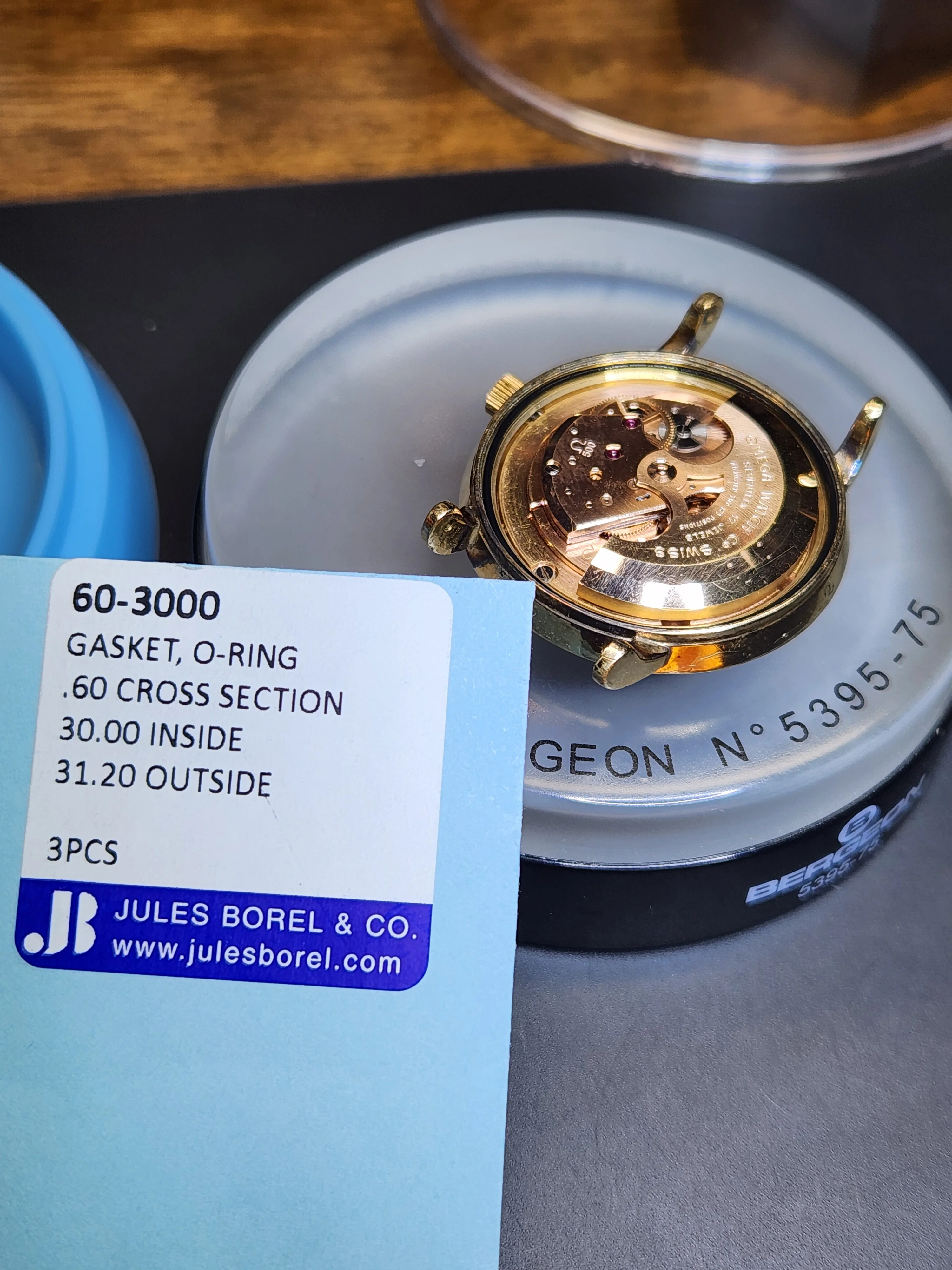

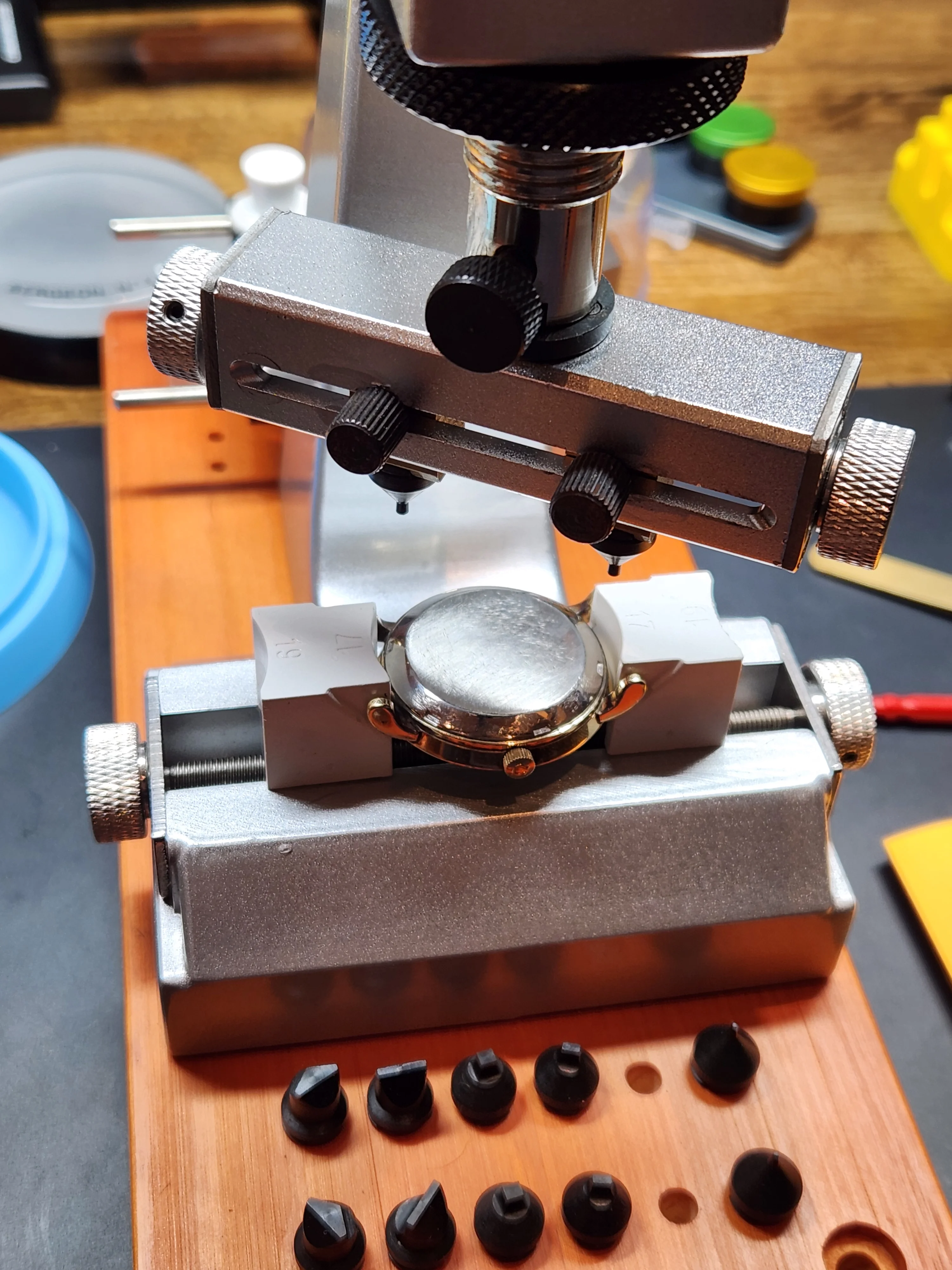

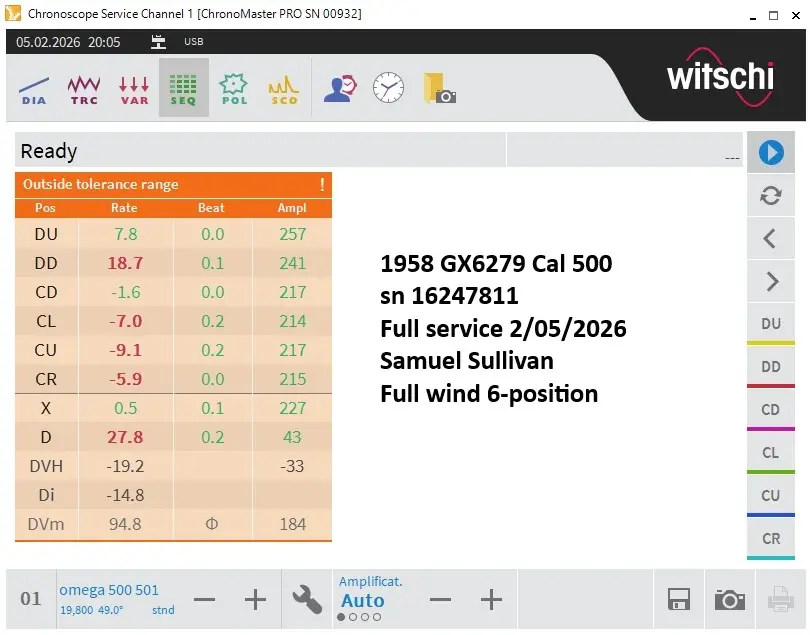

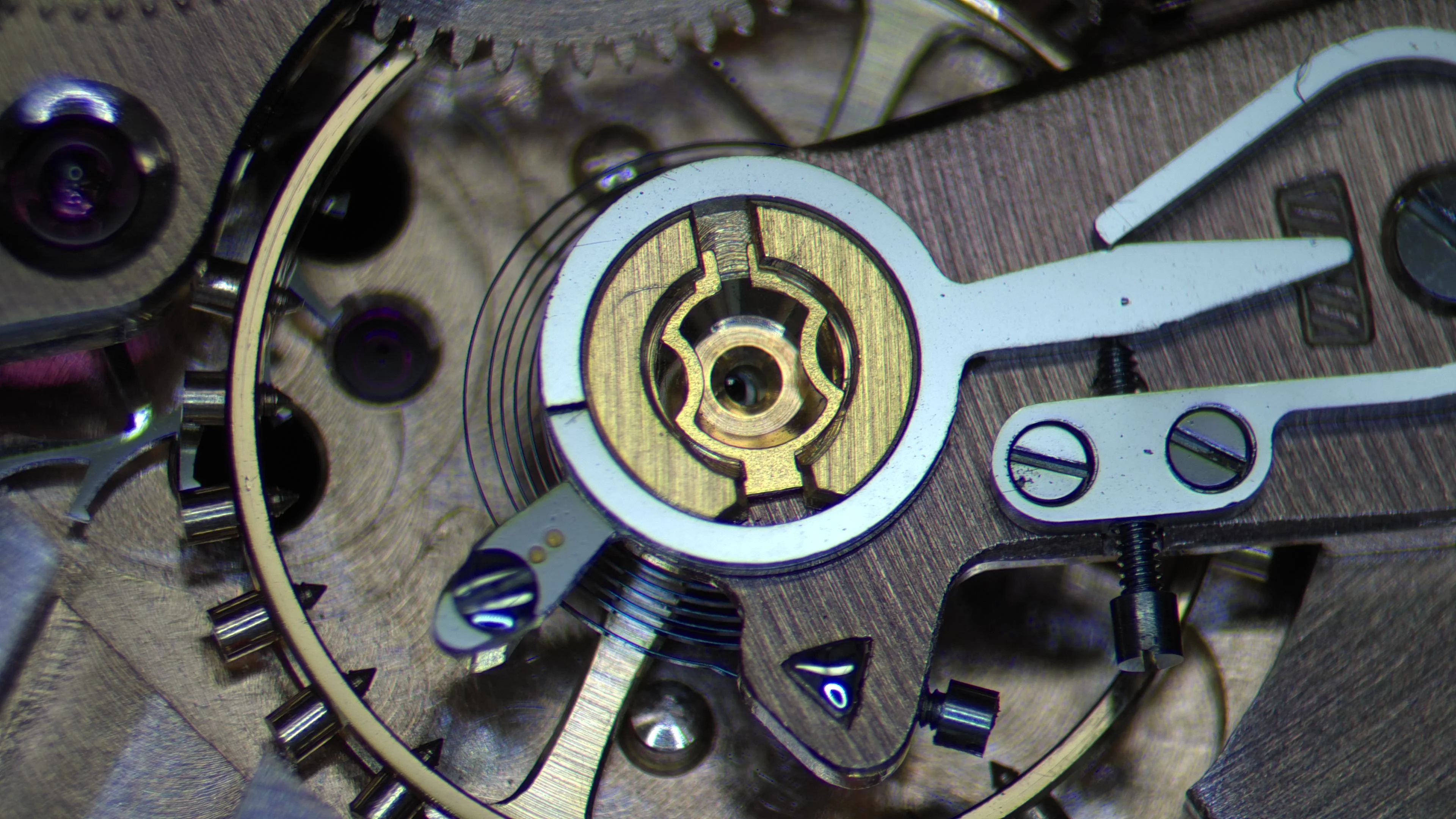

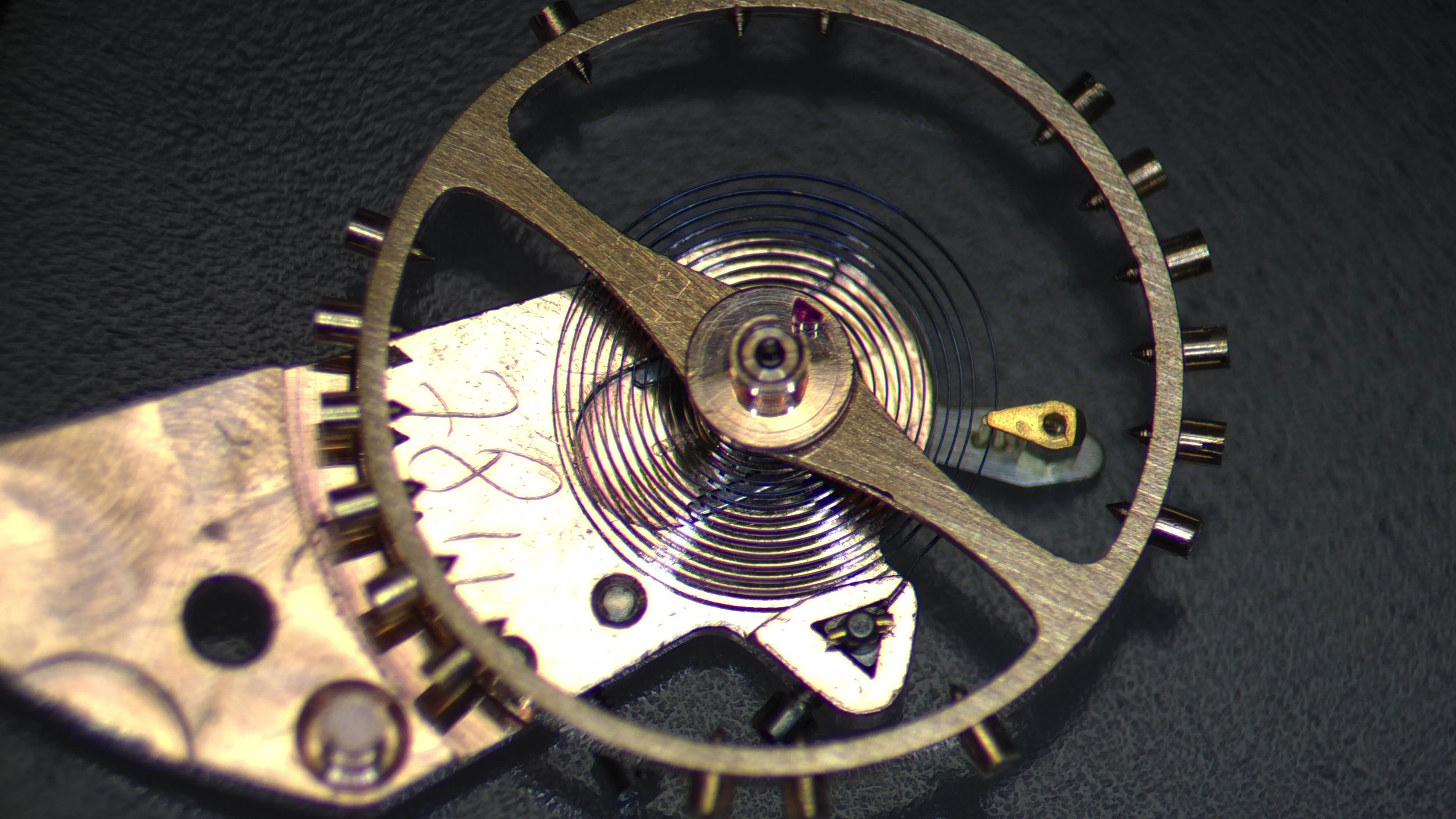

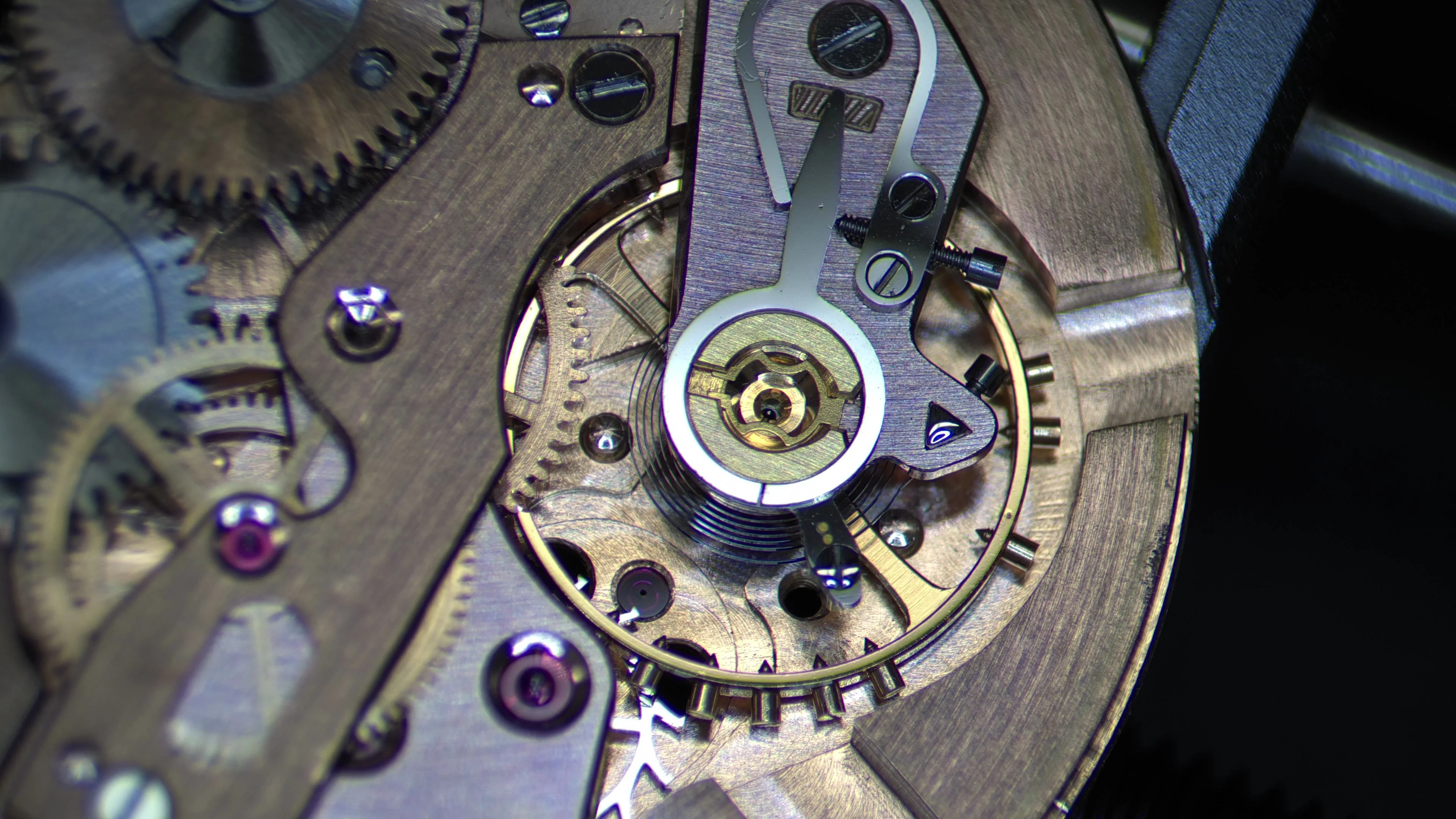

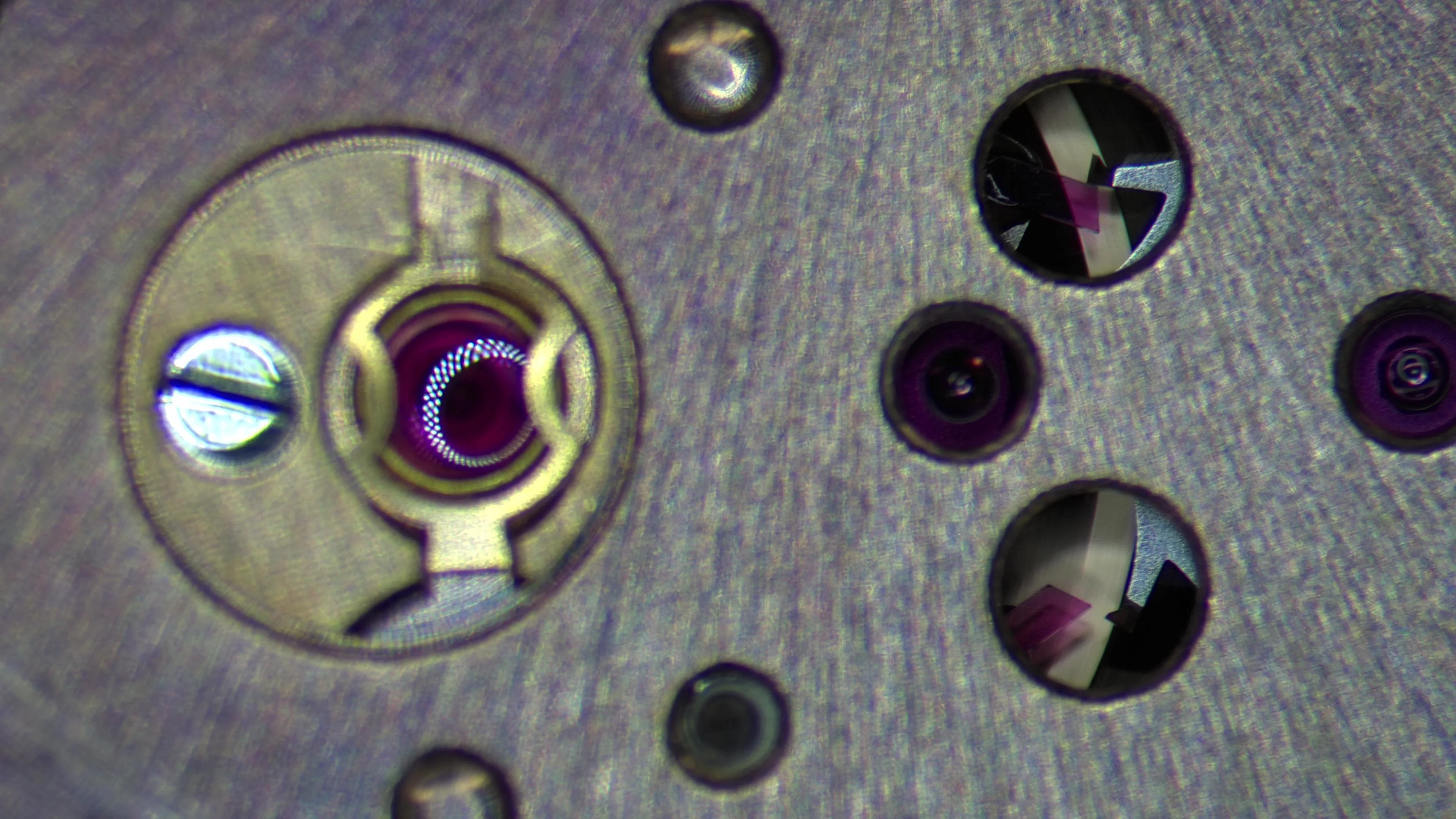

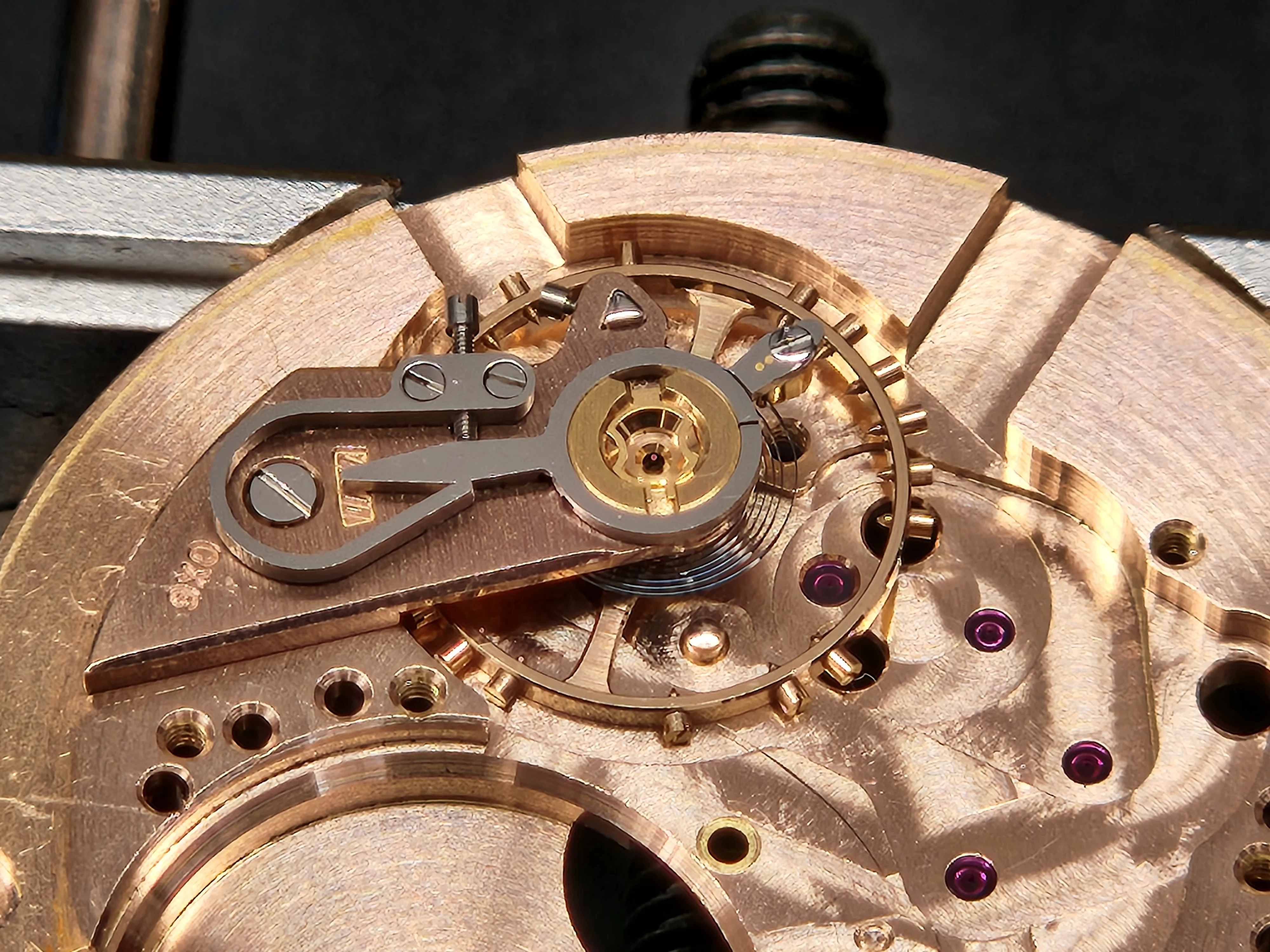

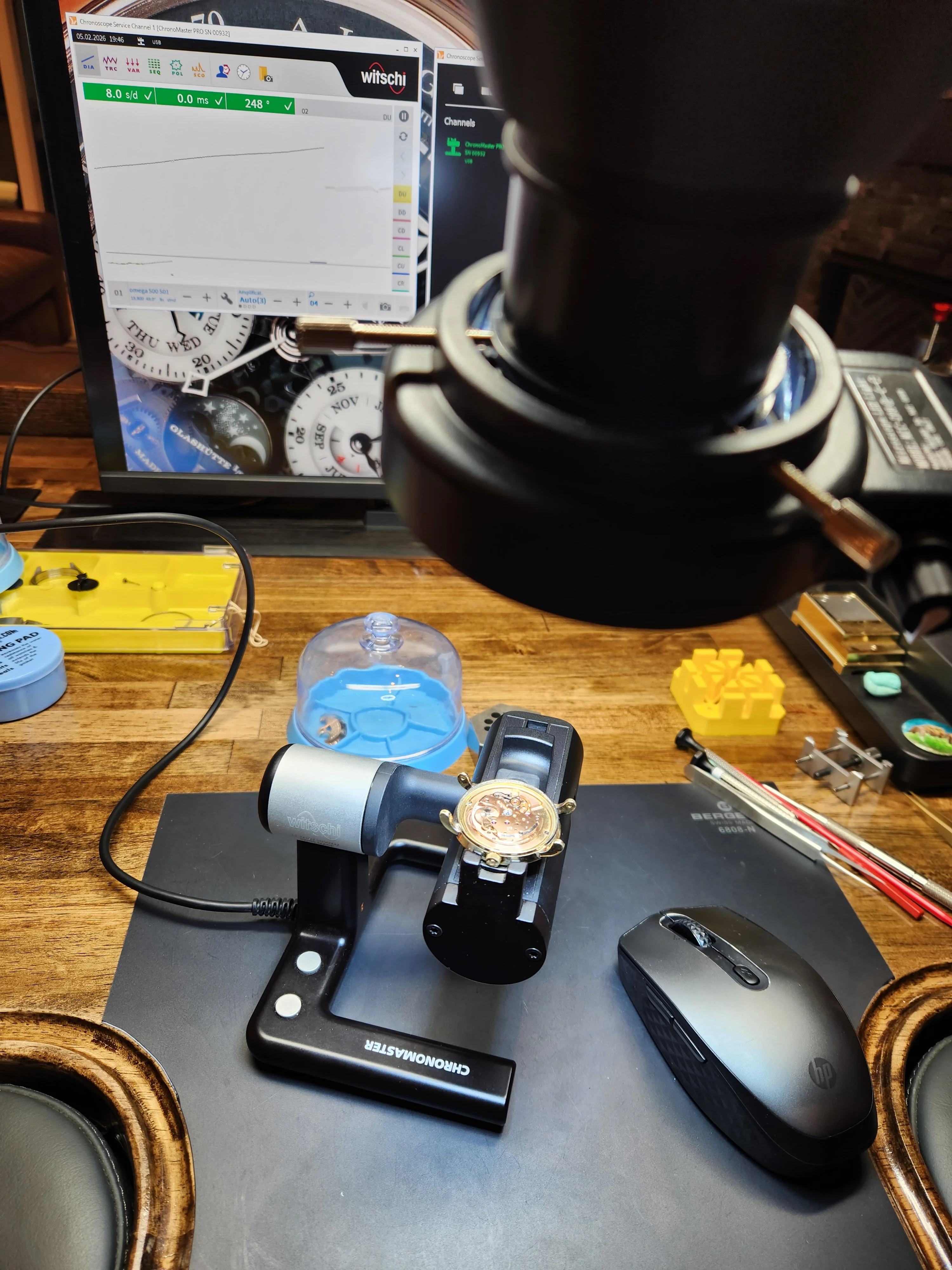

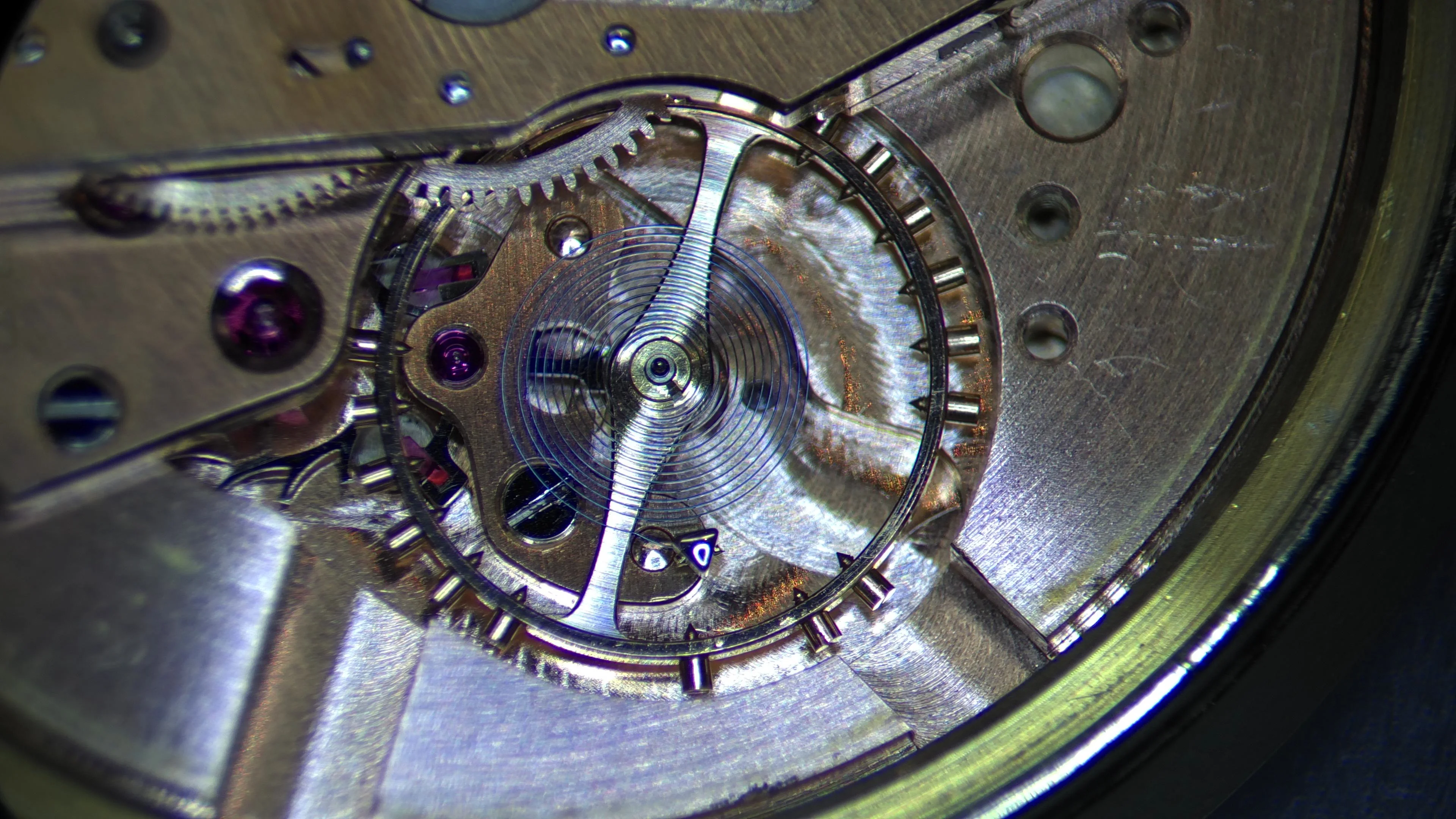

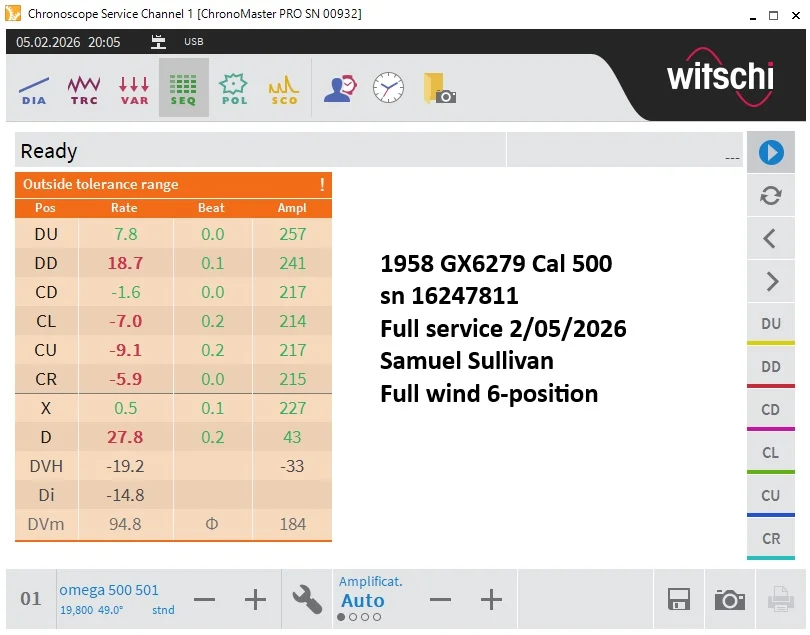

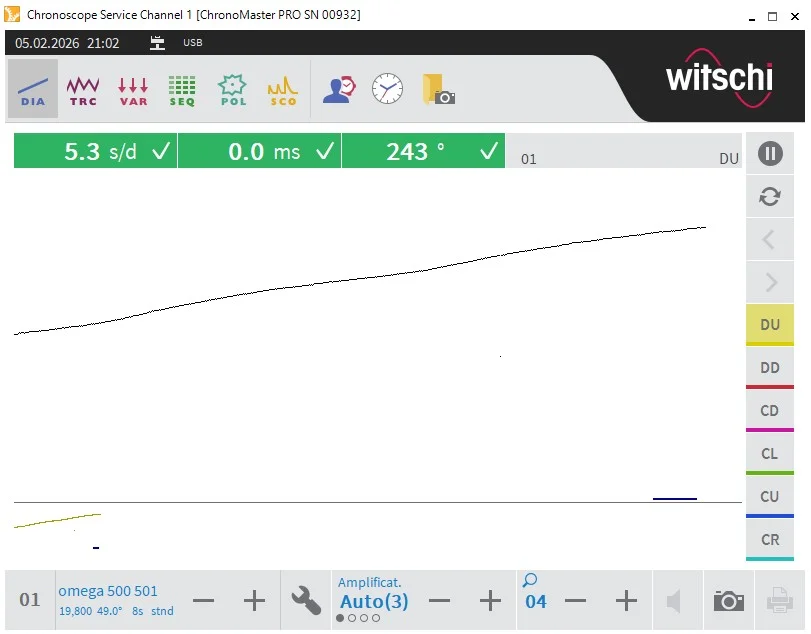

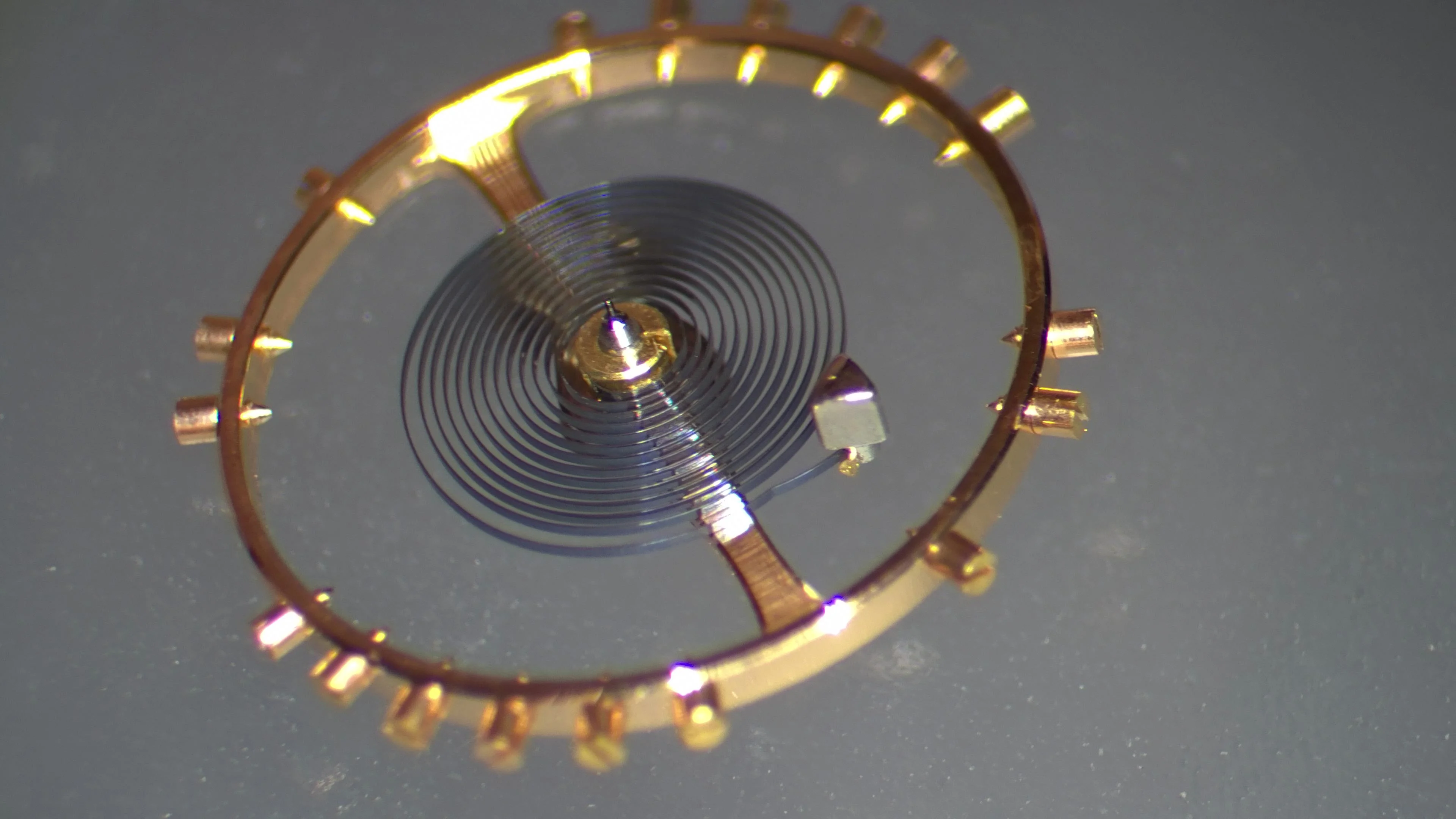

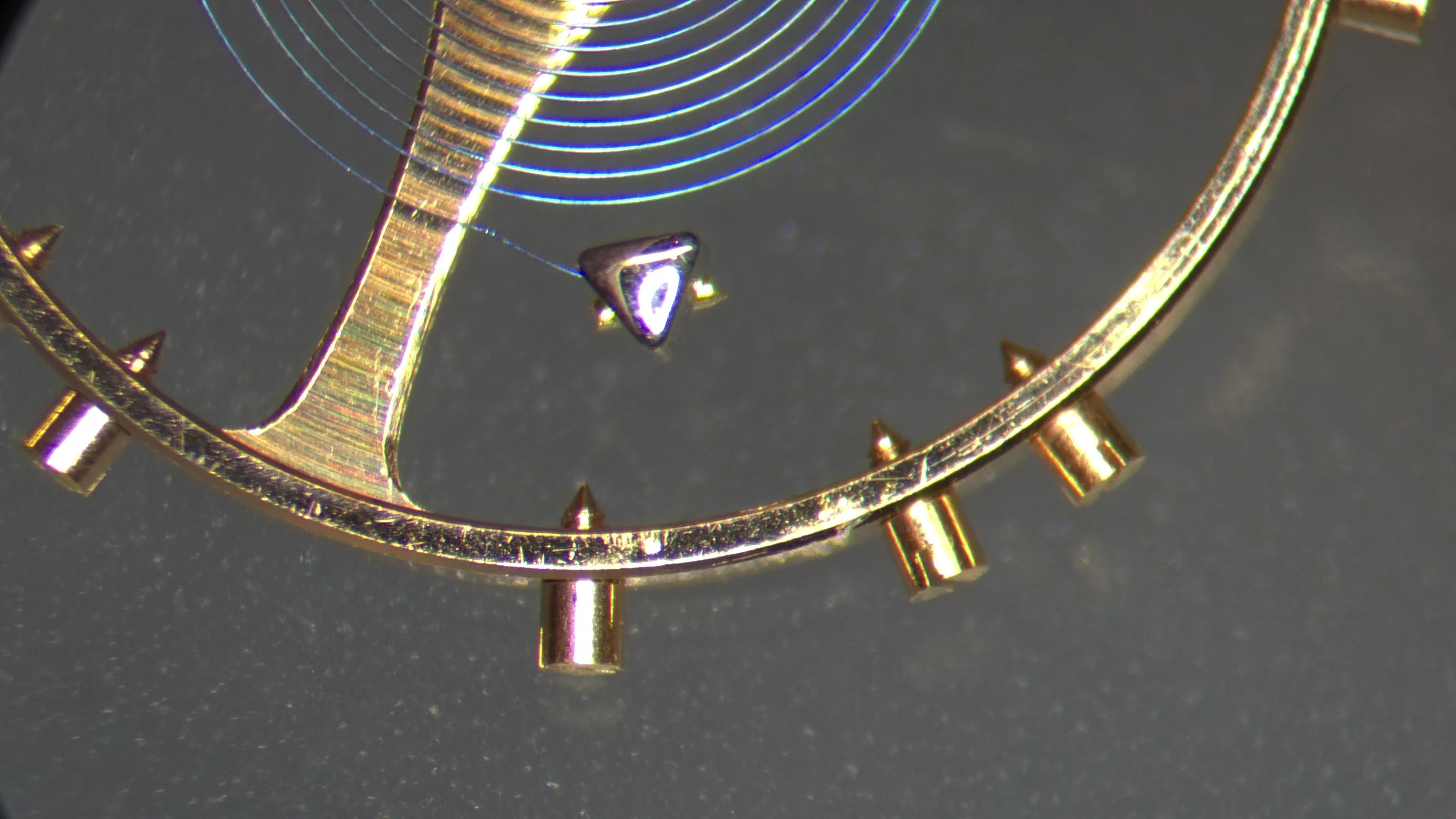

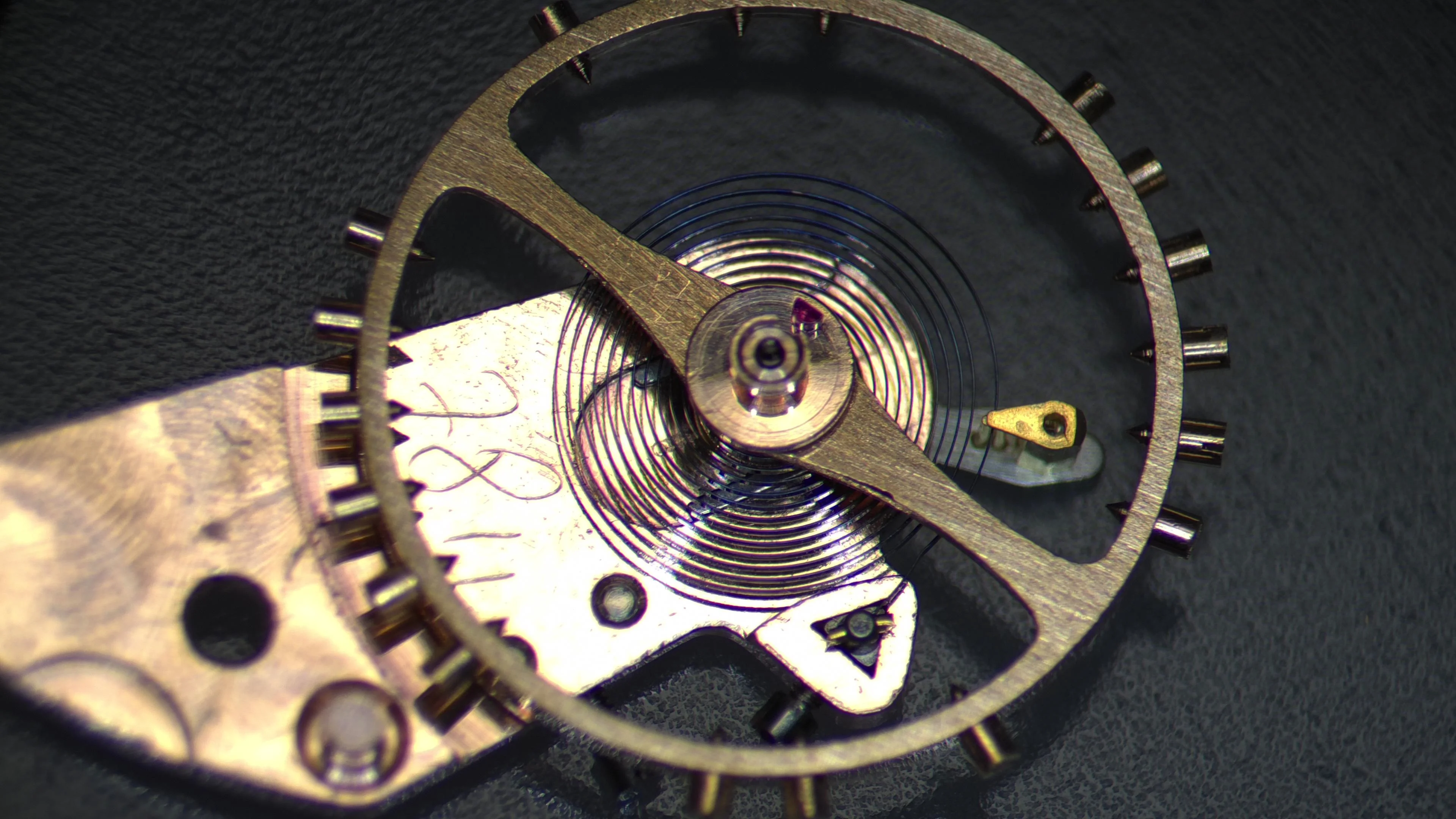

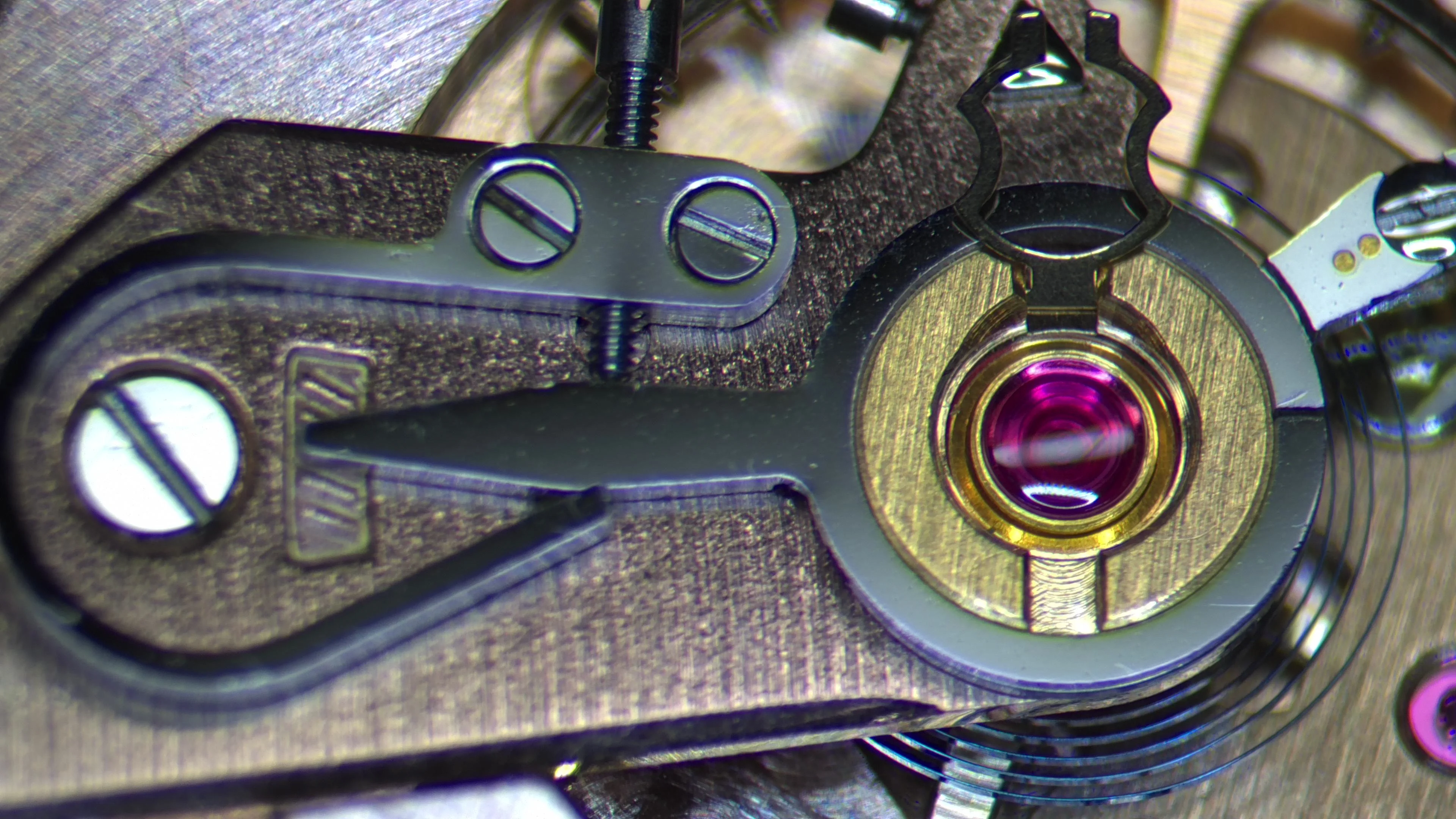

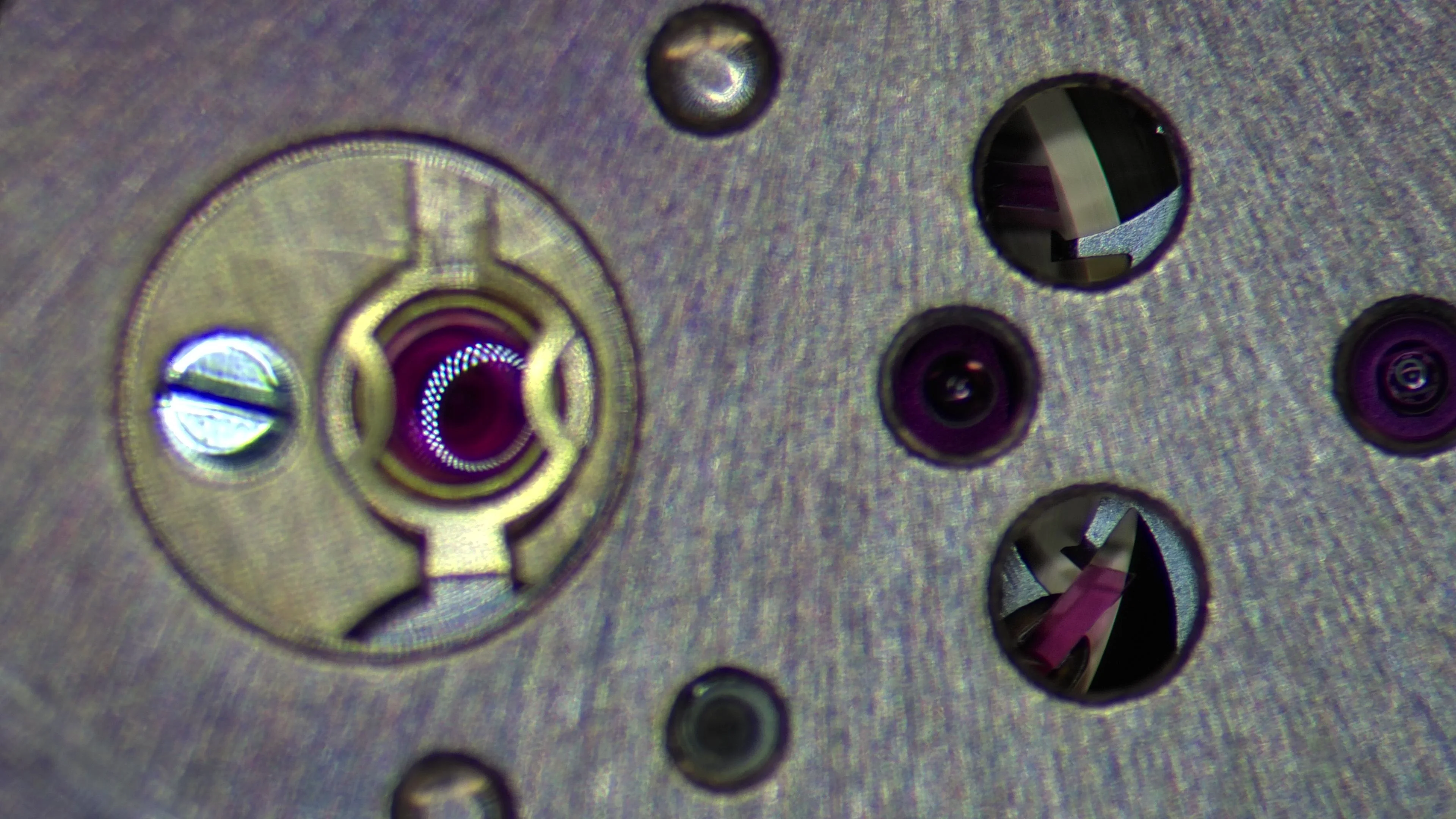

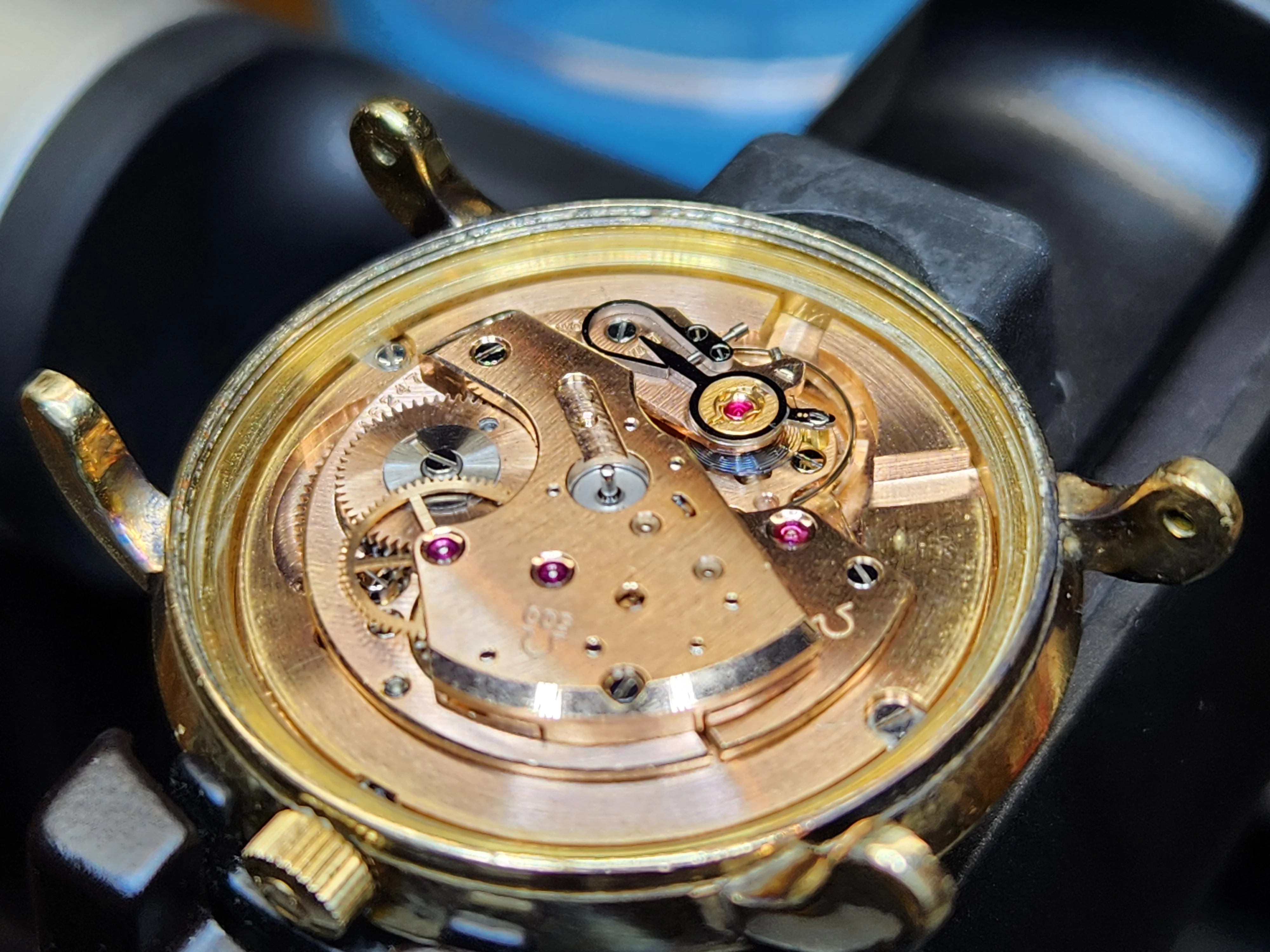

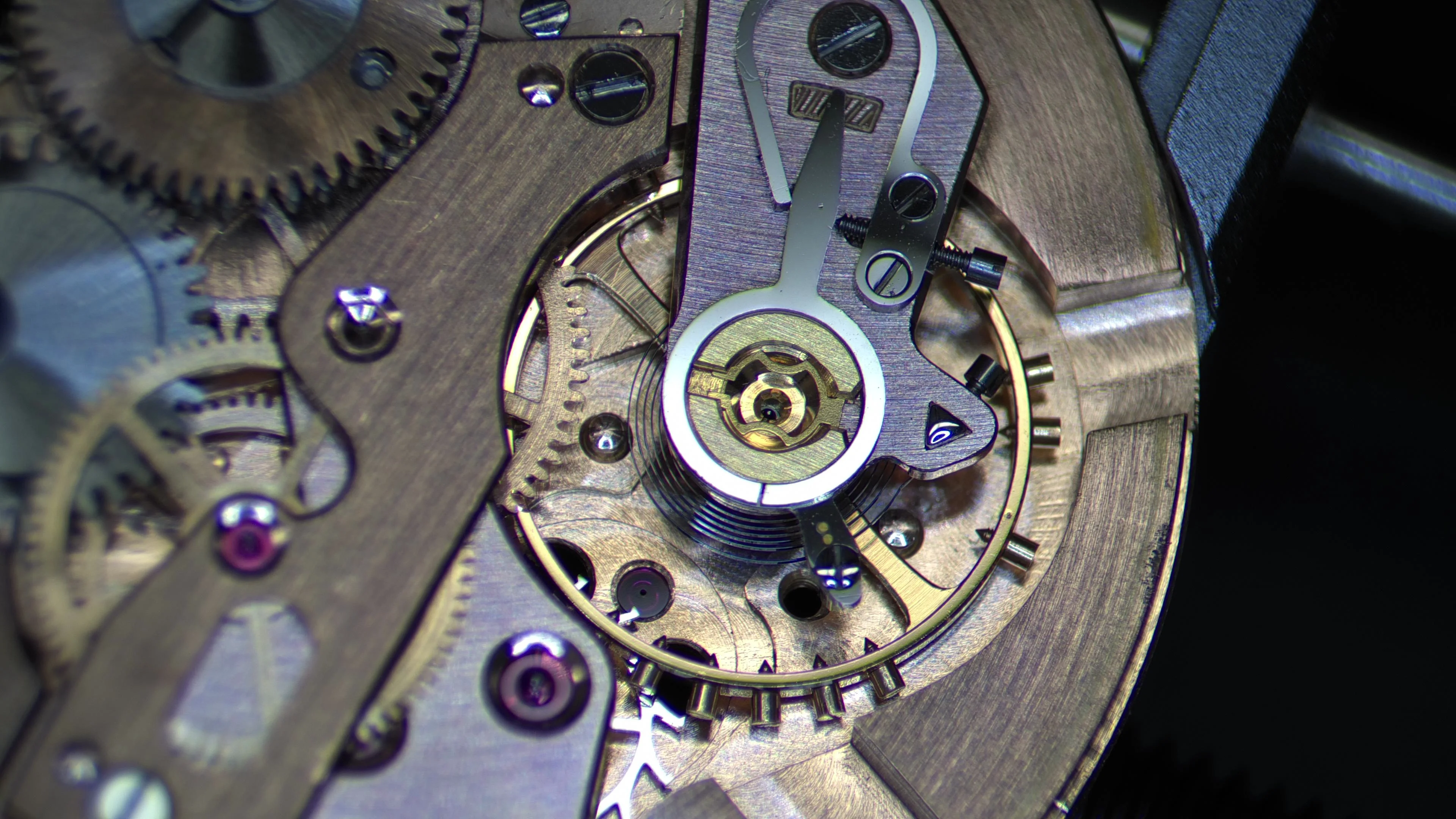

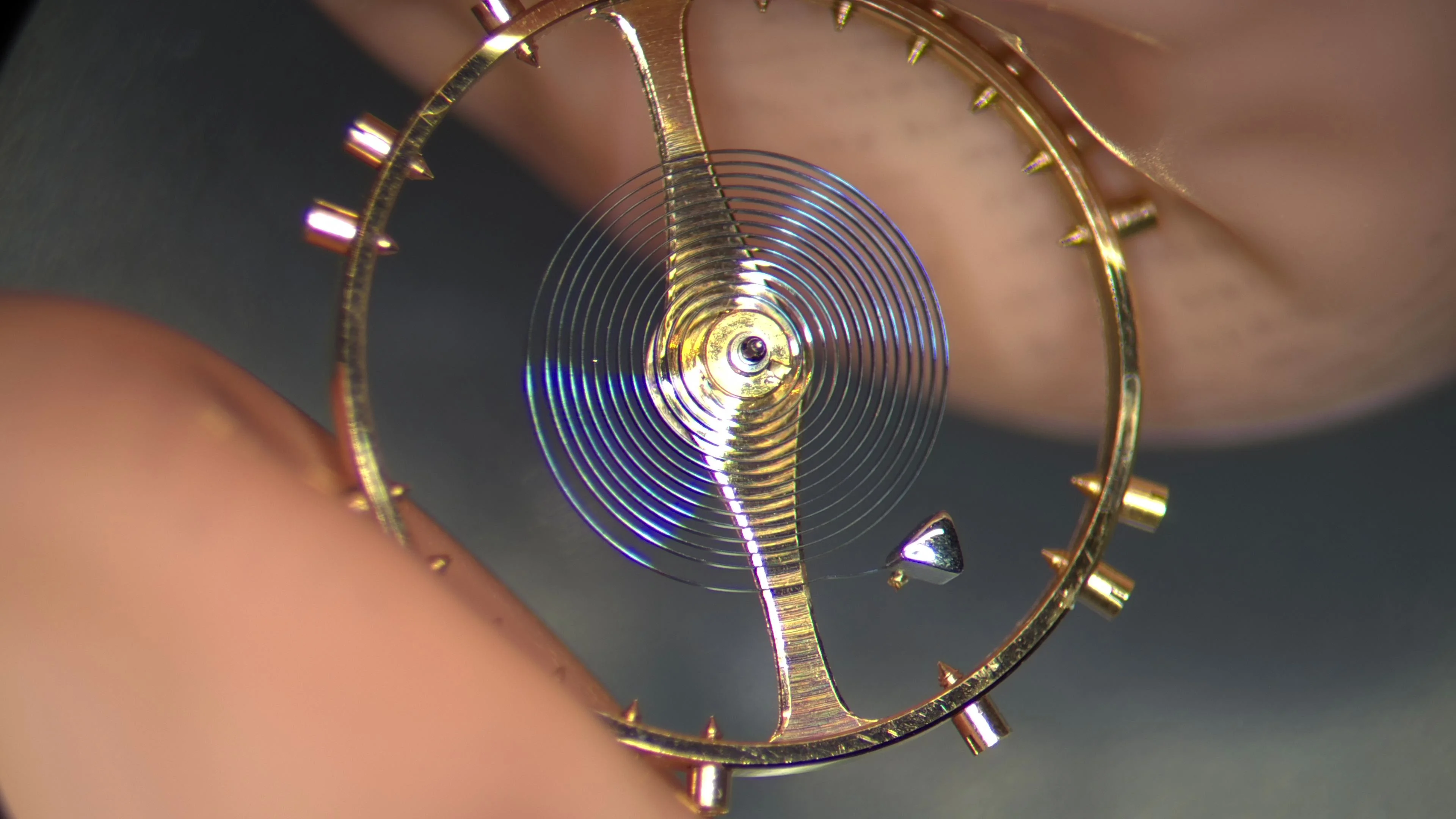

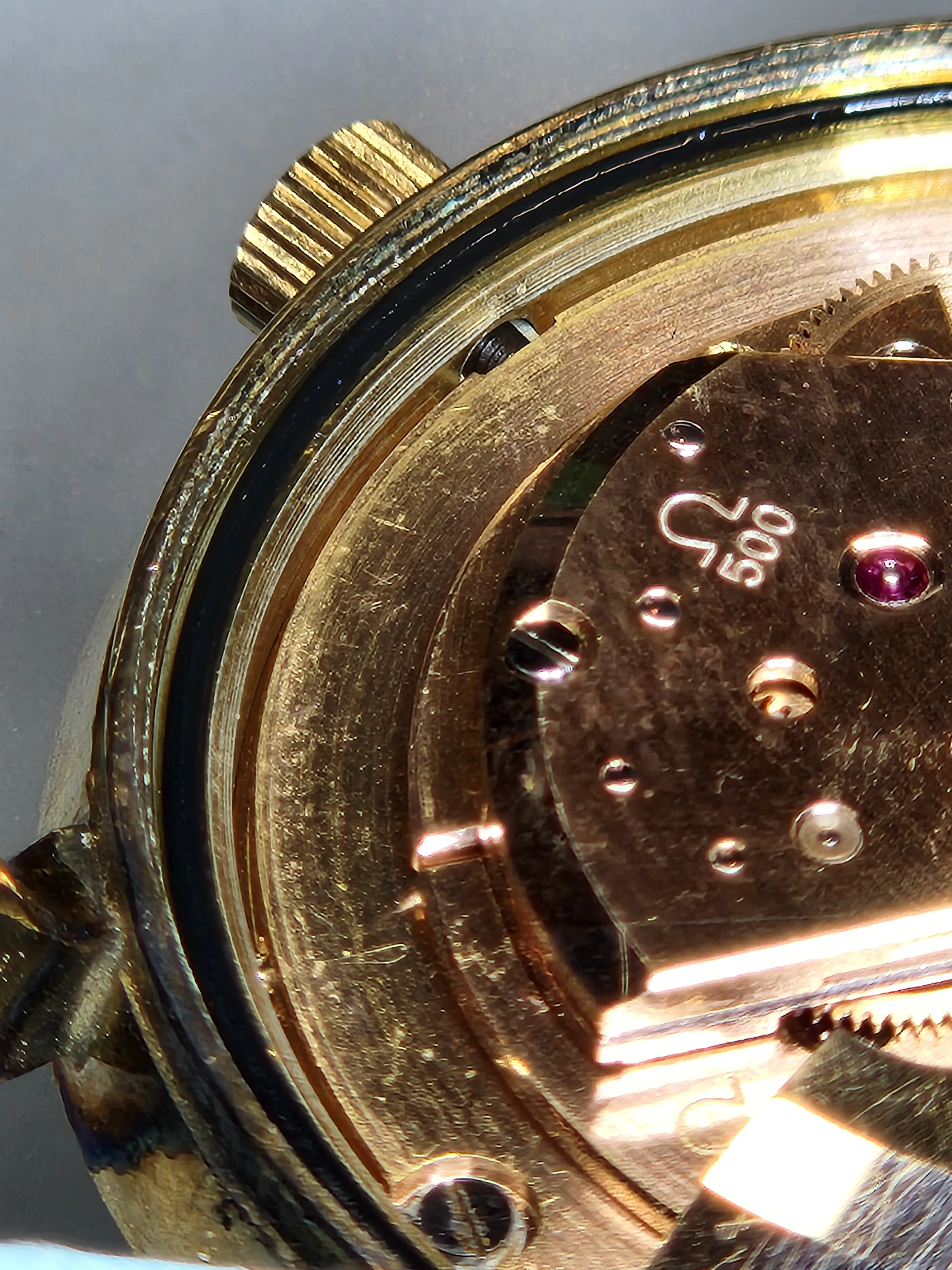

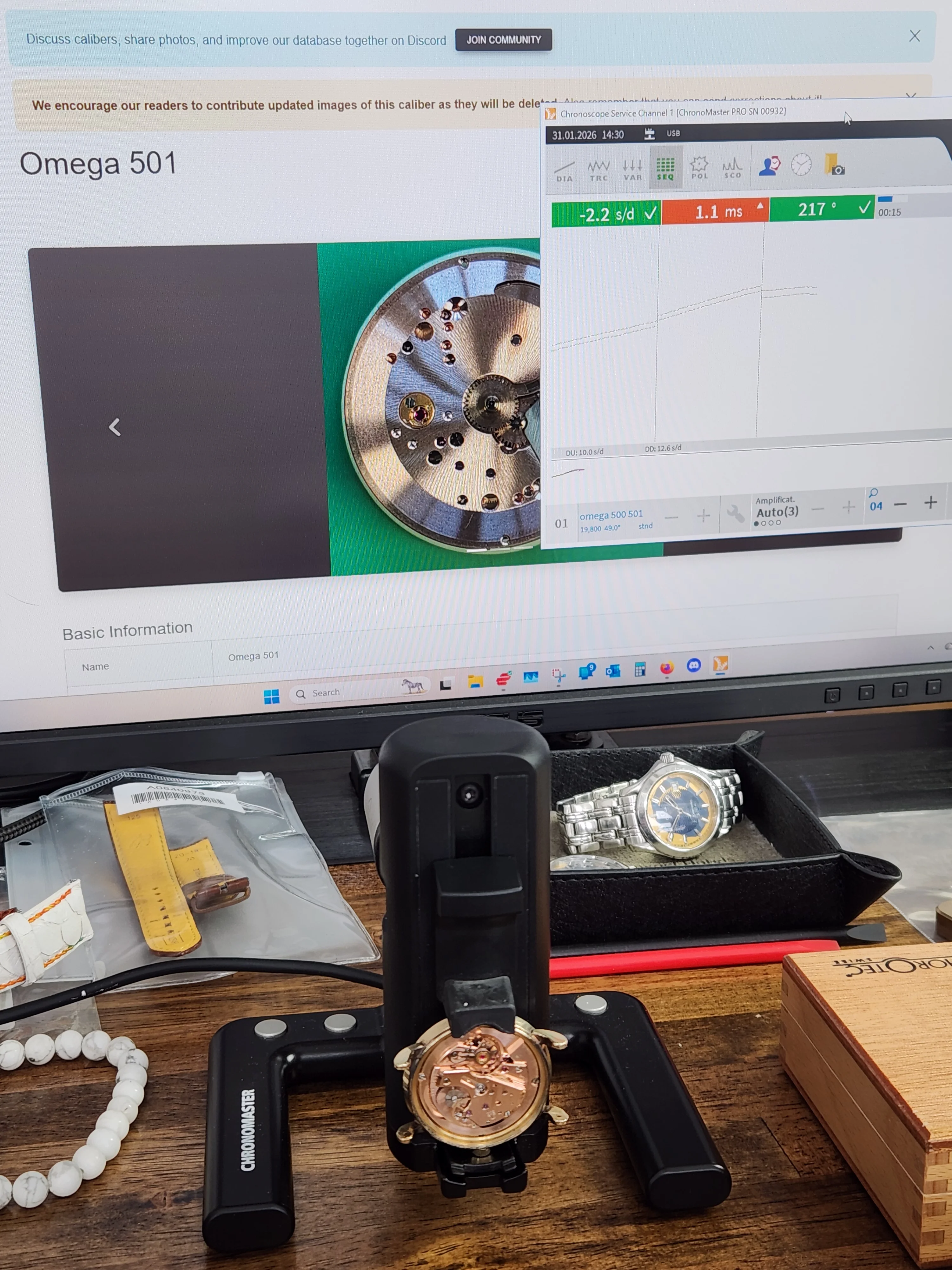

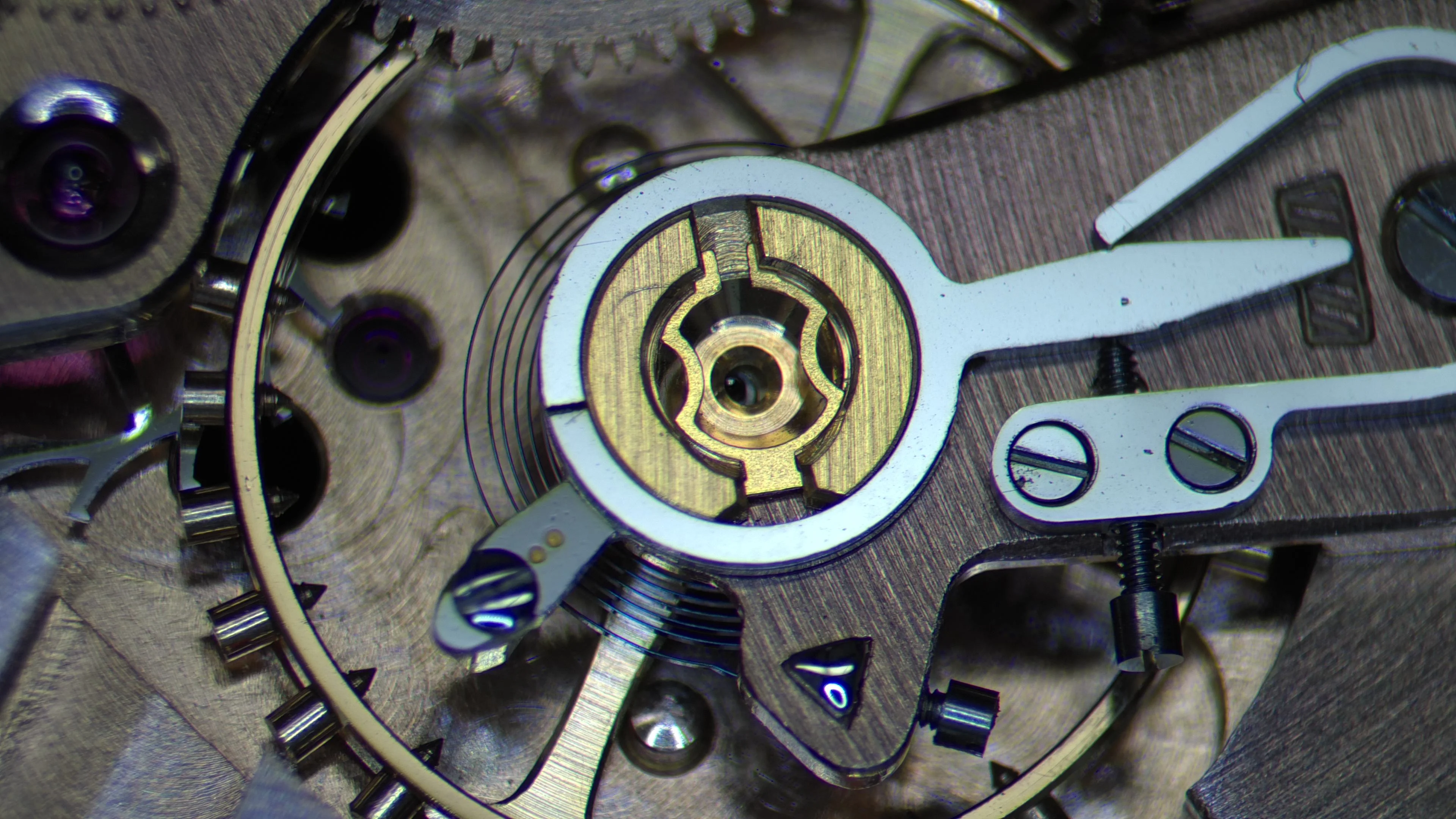

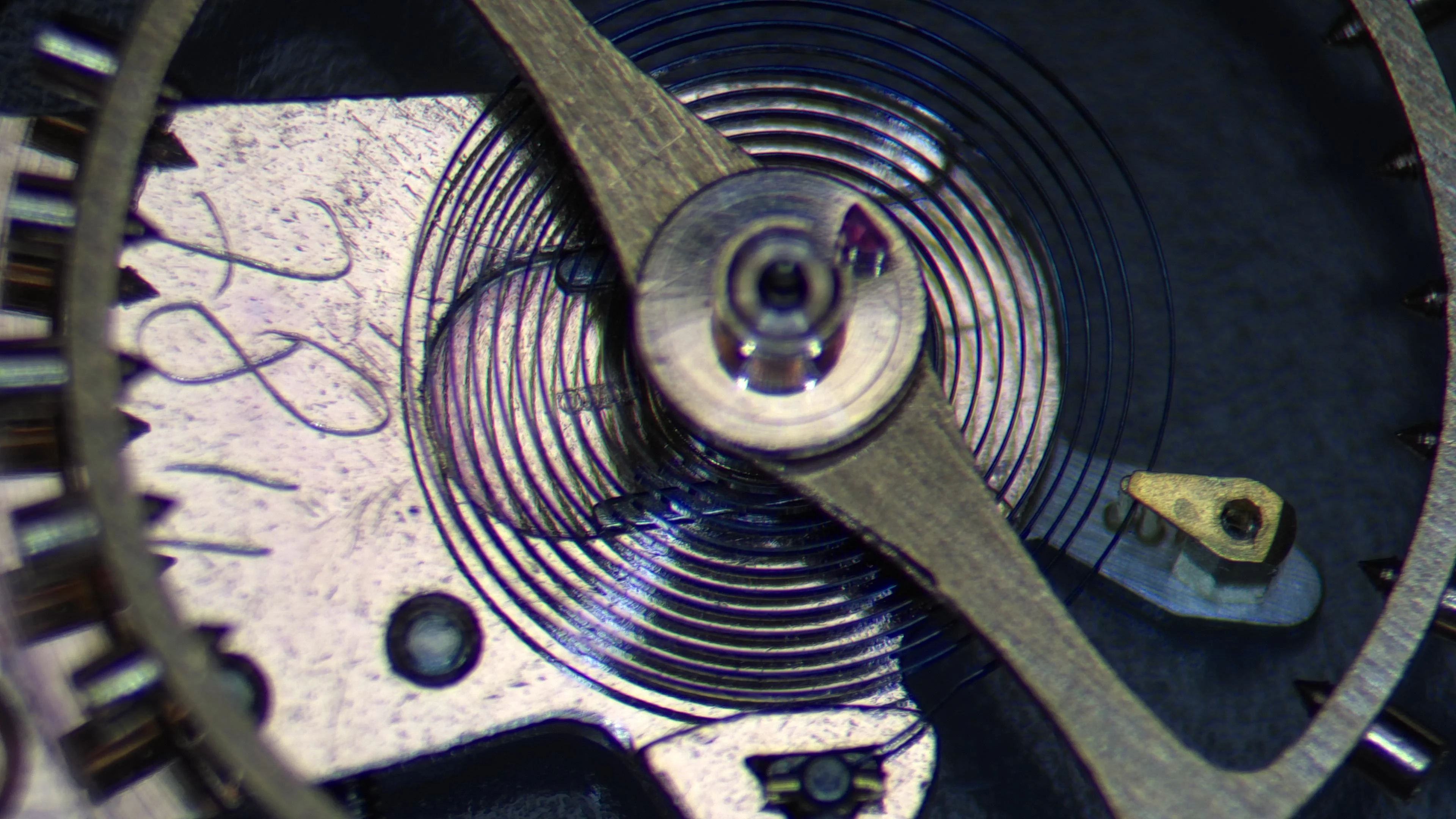

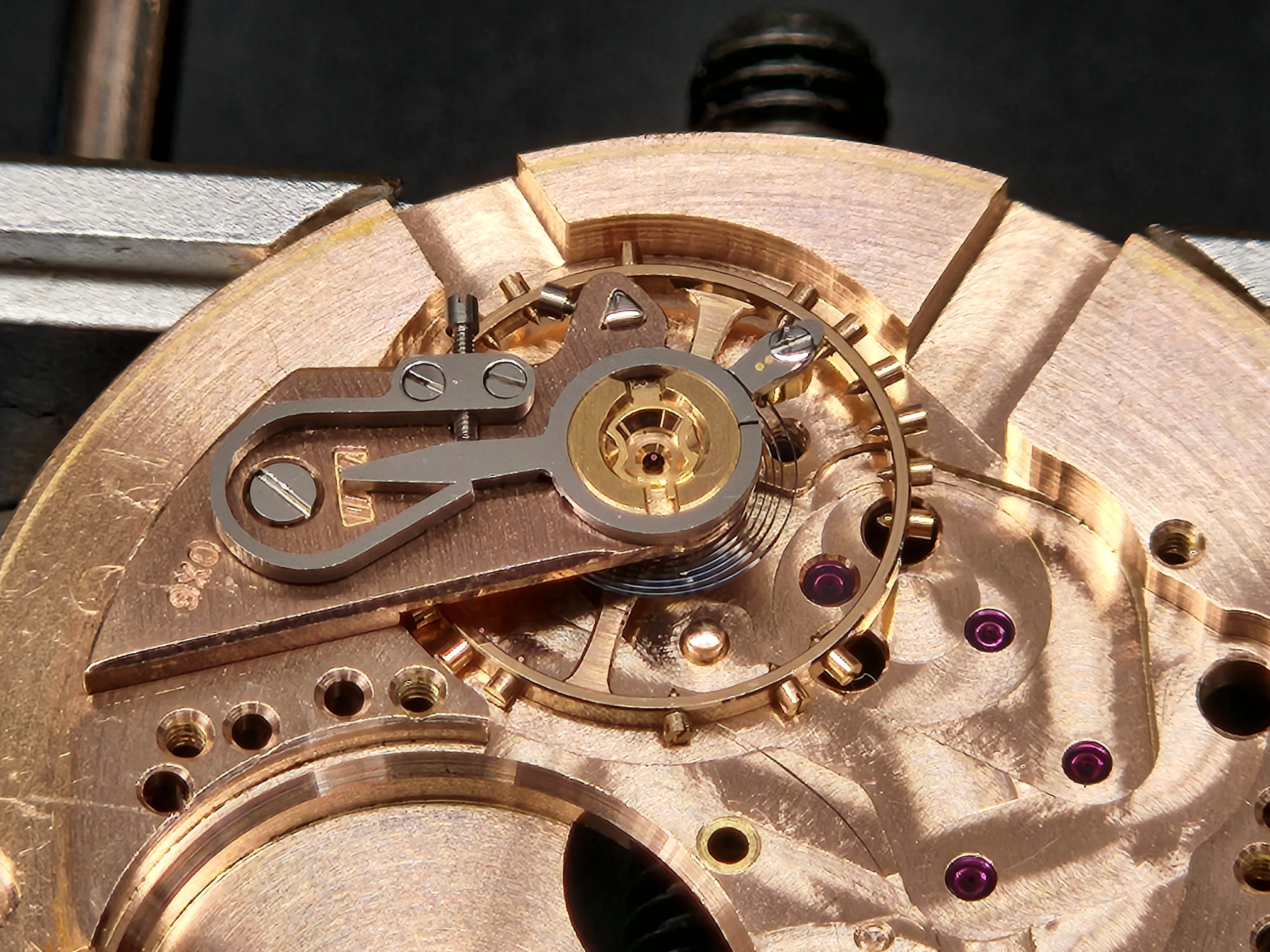

Crown got a new rubber gasket and was loctite blue'd back. Original blue hairspring is in great shape. Beat error corrected by rotating the hairspring collet on the staff about one degree.

20260130190319412.webp 20260205190010069.webp 20260205190112725.webp 20260205190400965.webp 20260205190706459.webp 20260205190726339.webp 20260205191231487.webp 20260205191246549.webp
Edited:

sheepdoll
Posts
2,842
Likes
4,536
Nice to see someone else who loves rat watches.

I need to find a case and dial for my 501 sometime.

Archer
Posts
29,669
Likes
76,828

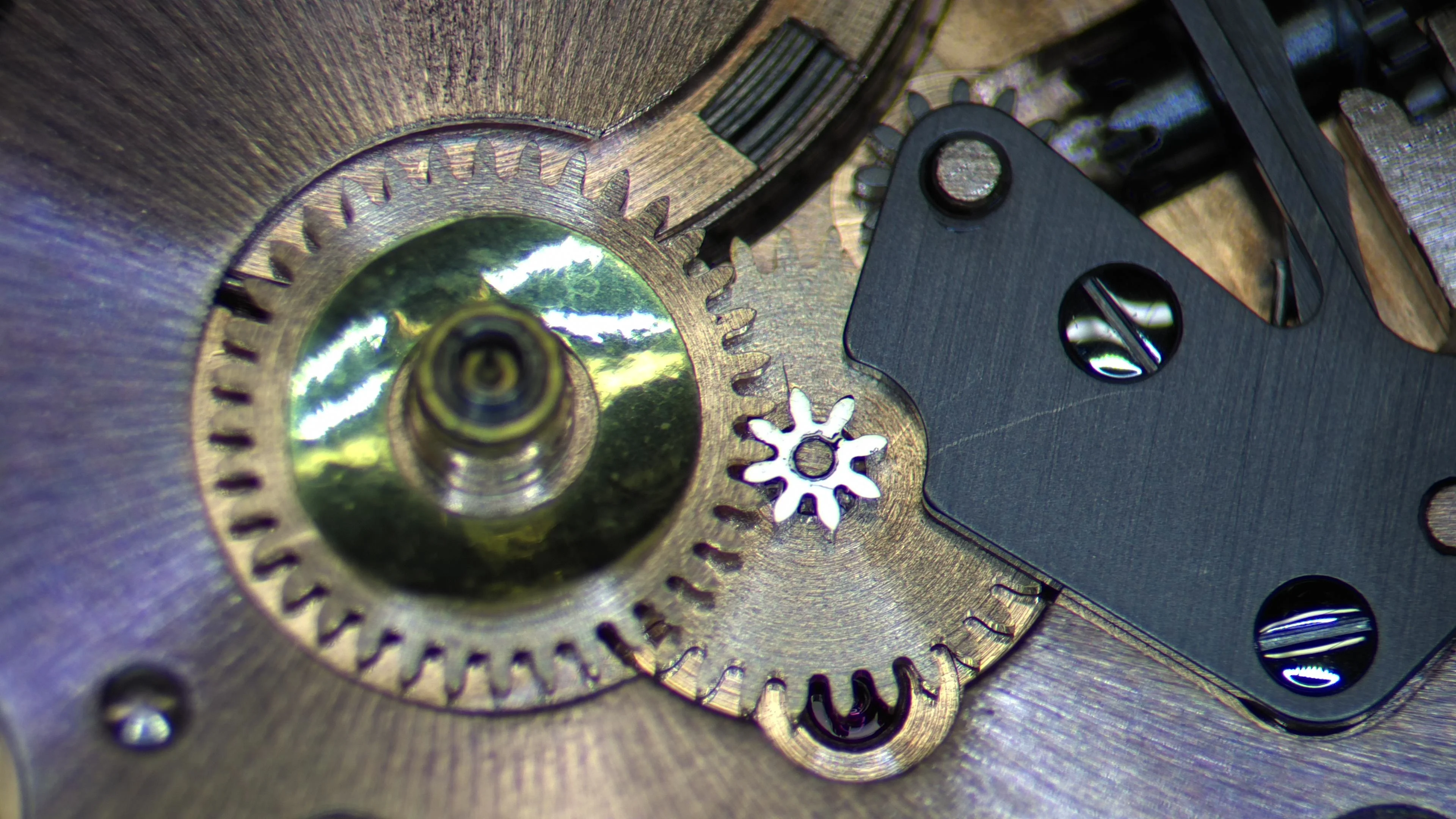

Did you change the rotor pinion?

samweldspoorly
Posts
505
Likes
2,070
Archer Archer
Did you change the rotor pinion?

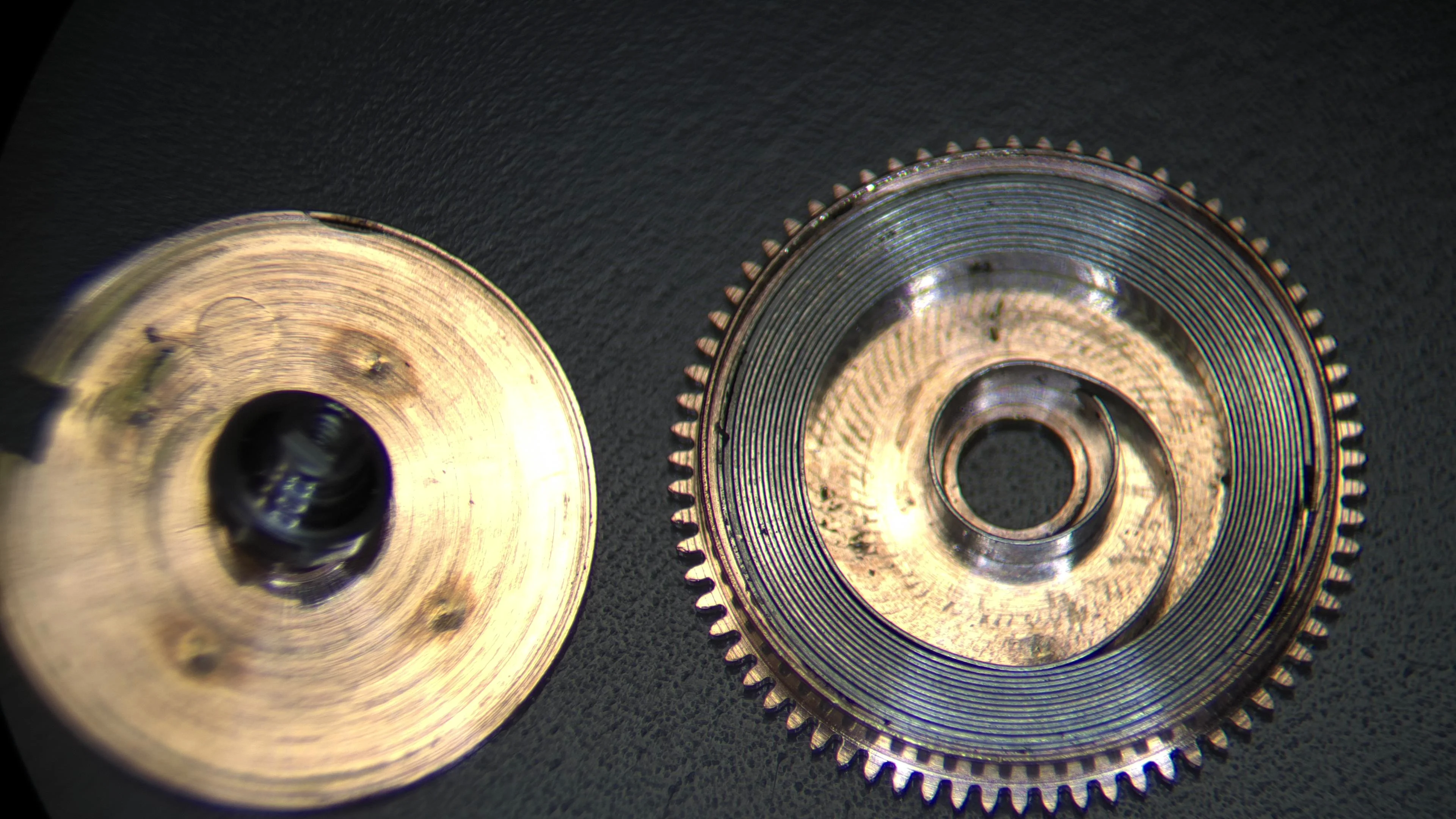

I didnt! This rotor pinion is super tight with no noticeable deflection. The only corrections i made was slightly closing up the mainplate barrel arbor hole with a staking set. Still plenty of meat there before a bushing would be warranted. Bridge side had acceptable sideshake.

Archer
Posts
29,669
Likes
76,828
samweldspoorly samweldspoorly
I didnt! This rotor pinion is super tight with no noticeable deflection. The only corrections i made was slightly closing up the mainplate barrel arbor hole with a staking set. Still plenty of meat there before a bushing would be warranted. Bridge side had acceptable sideshake.

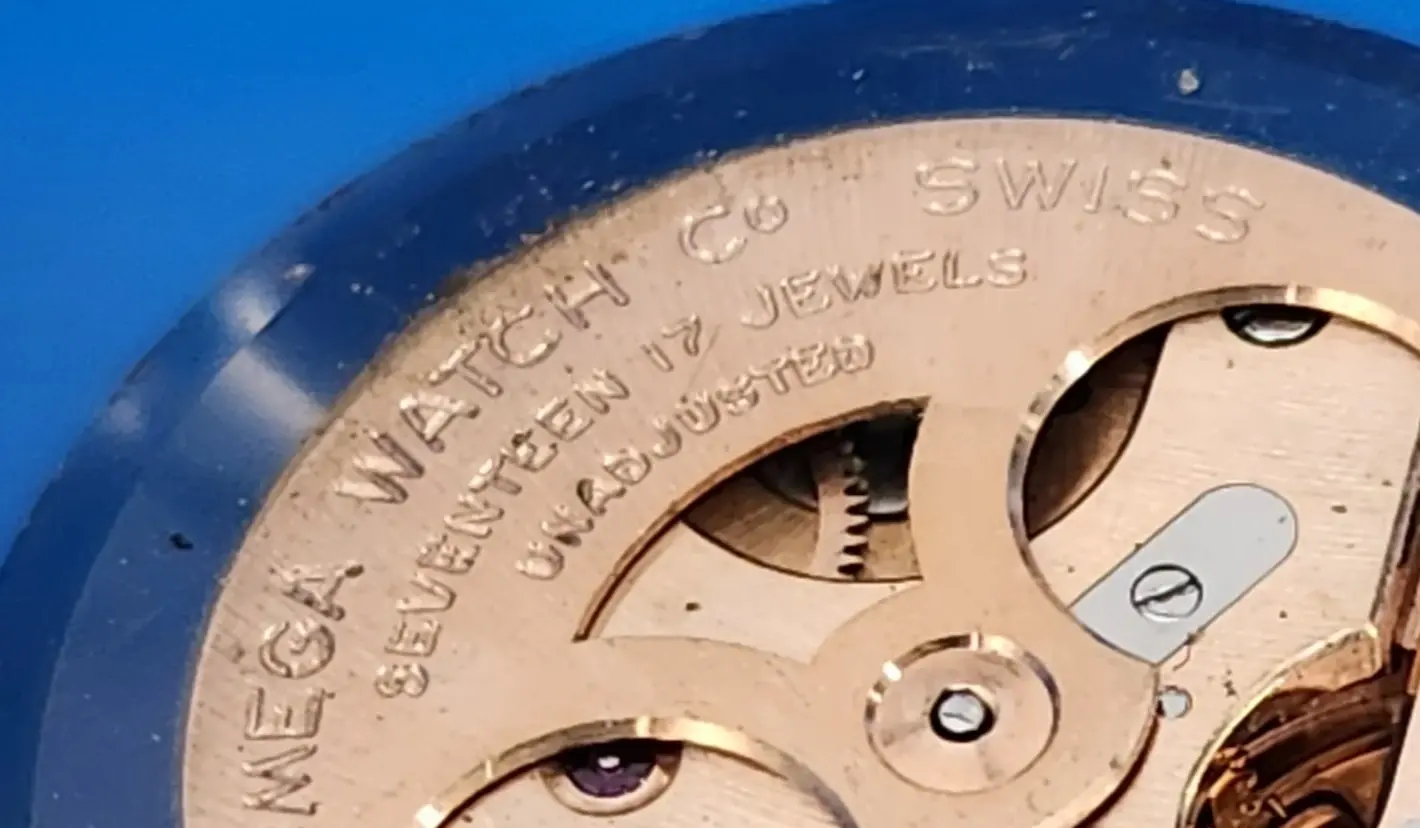

Interesting - this looks like very "fresh" wear...
Rotor wear1.webp Rotor wear2.webp

samweldspoorly
Posts
505
Likes
2,070
Archer Archer
Interesting - this looks like very "fresh" wear...
Rotor wear1.webp Rotor wear2.webp
This is from the fire damaged dial. I didnt use these parts. That rotor is VERY loose and would need one for sure. Ill be sure to add that note to the description when I sell the movement on ebay. Arbor holes are also worn.
