ETA 2894-2 question to watchmakers.

afinewatch
Posts
1,138
Likes
322
I have recently purchased a chronograph with this movement. The watch function is working good, the chronograph is running and all chrono registers working. The stop start button does not work. When watch stops the chrono hands can be reset to zero.
So one watchmaker tells me that I need to get the whole new chrono module while another tells me that someone used some adhesive under the dial in the past and that lever which operates the start stop could be just stuck. He does not want to service the watch because the sub dials are mother of pearl and he is afraid he may damage them in process. Can you opine?
Thanks in advance.

Canuck
Posts
14,275
Likes
41,130
Take advantage of your warranty………if you got one. Adhesive tape behind the dial? No warranty. You are on your own, it appears!

Dan S
Posts
20,819
Likes
47,725
Seems like there will be a lot of uncertainty until the watch is actually disassembled and the movement can be carefully inspected. You definitely need to be sure that any watchmaker who takes on this project has a current Omega parts account, and TBH, you might want to consider just sending it to the Swatch Group service center. If the watch has been tampered with, it might need a lot of parts replaced.

Archer
Posts
27,604
Likes
70,226
Not clear that this is an Omega, but the module can be serviced if you can find someone willing to do it. Whoever you take it to, make sure they have worked with MOP dials before, because they do require some special handling. The dial can be cracked very easily for example during hand removal (in particular on a chronograph where the hands are on very tightly).

The fact that adhesive has been used is not a good sign. The manufacturer may be your best bet...

afinewatch
Posts
1,138
Likes
322
Only the sub dials are mother of pearl. Does the lever which operates the start stop sit under the dial?
The only reason that I have seen before for use of some adhesive was dial feet being off. And only saw a double sided tape which is not very strong usually.


Archer Archer
Not clear that this is an Omega, but the module can be serviced if you can find someone willing to do it. Whoever you take it to, make sure they have worked with MOP dials before, because they do require some special handling. The dial can be cracked very easily for example during hand removal (in particular on a chronograph where the hands are on very tightly).

The fact that adhesive has been used is not a good sign. The manufacturer may be your best bet...

Archer
Posts
27,604
Likes
70,226
afinewatch afinewatch
Only the sub dials are mother of pearl. Does the lever which operates the start stop sit under the dial?
The only reason that I have seen before for use of some adhesive was dial feet being off. And only saw a double sided tape which is not very strong usually.

Yes, the chronograph functions are all in the module under the dial. If it is adhesive to fasten the dial, it could be as simple as dial dots - these actually hold on very well depending on how many are used. I have seen dials literally glued to movements before, so hopefully whatever has been done isn't too severe...

Can you show us a photo of the watch in questions please?

afinewatch
Posts
1,138
Likes
322

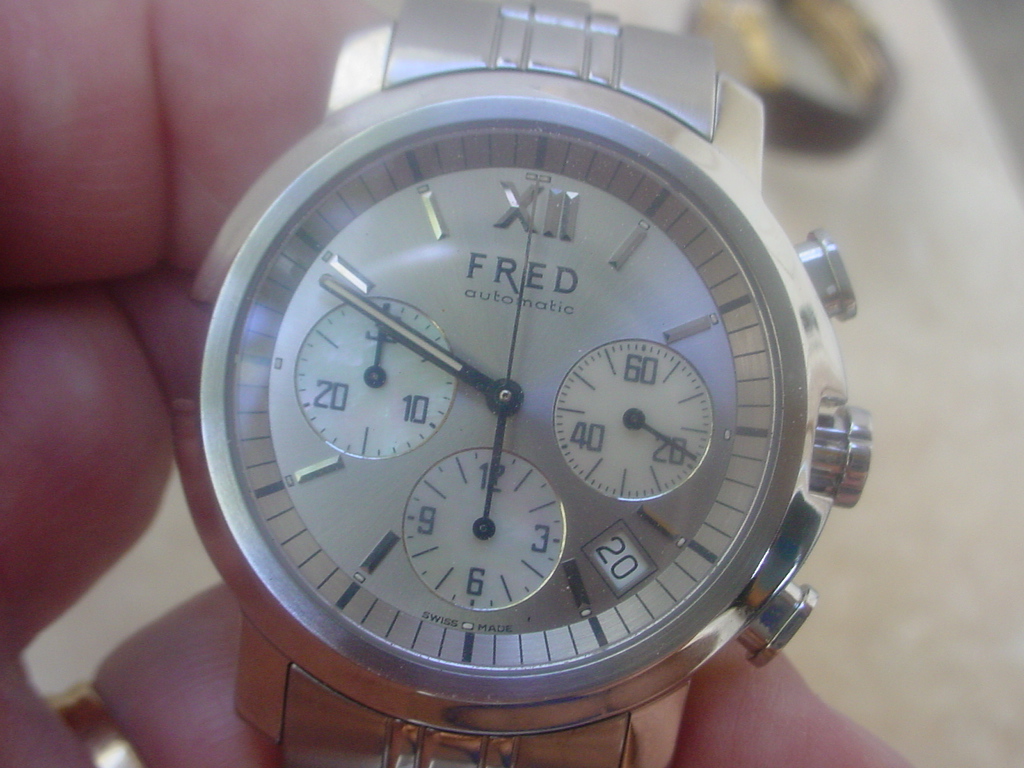

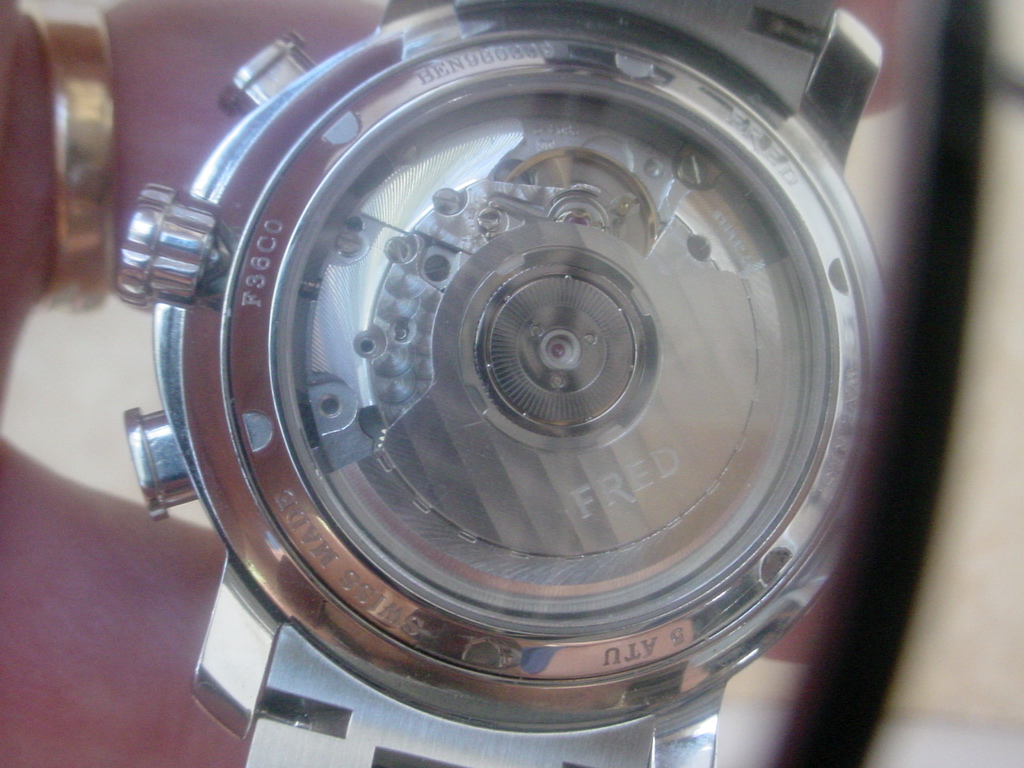

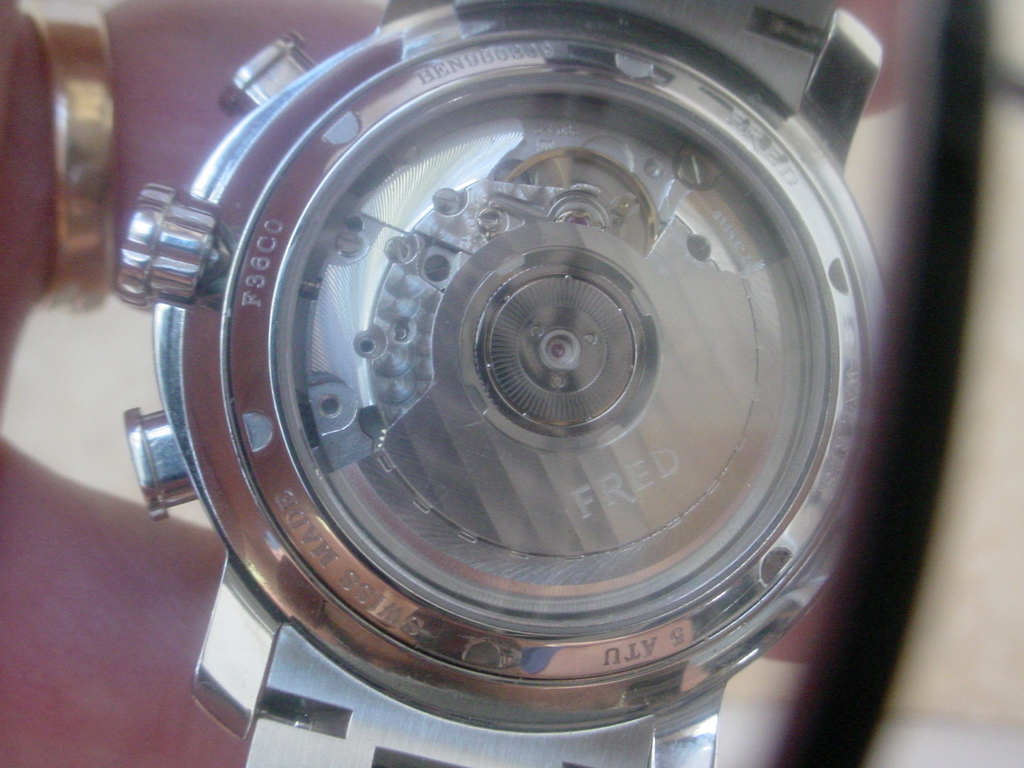

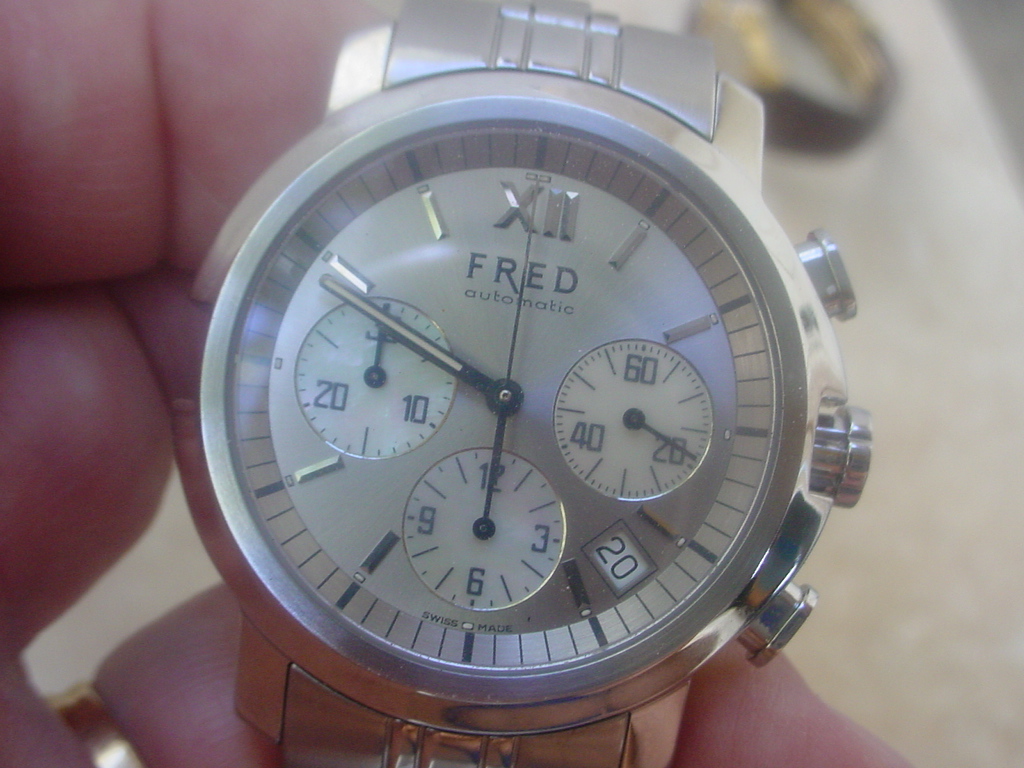

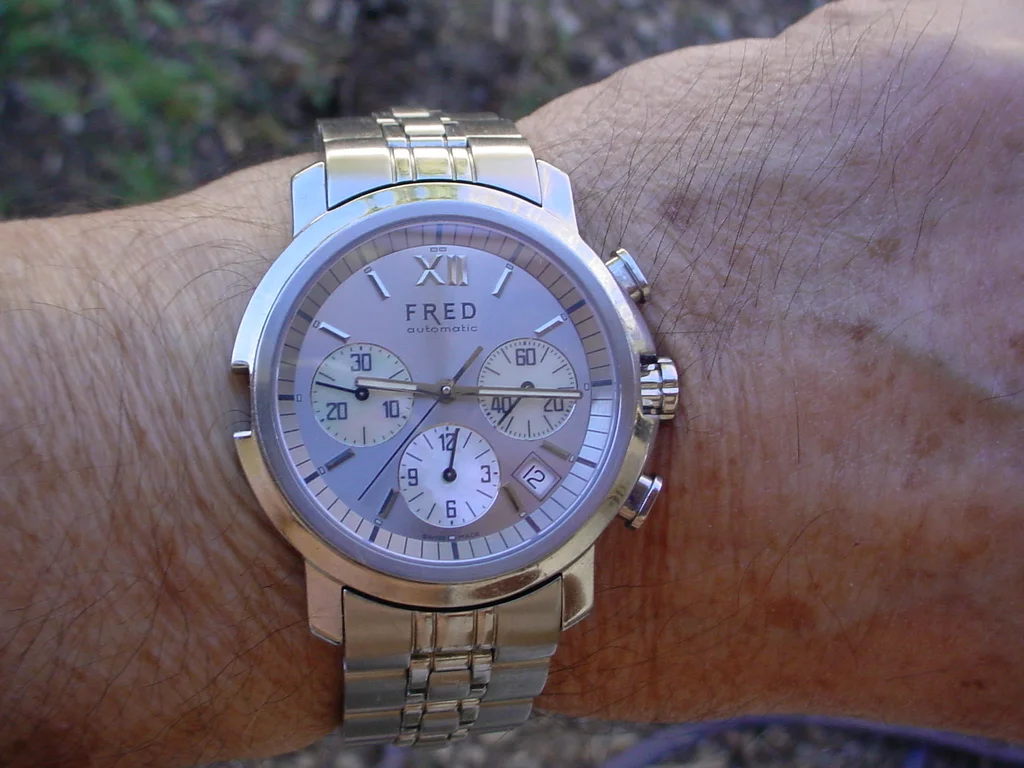

Here is the watch pic.
FredGntsAuto10.JPG FredGntsAuto3.JPG


Archer Archer
Yes, the chronograph functions are all in the module under the dial. If it is adhesive to fasten the dial, it could be as simple as dial dots - these actually hold on very well depending on how many are used. I have seen dials literally glued to movements before, so hopefully whatever has been done isn't too severe...

Can you show us a photo of the watch in questions please?

Archer
Posts
27,604
Likes
70,226
Not a brand I am familiar with...

janice&fred
Posts
4,593
Likes
10,791
Archer Archer
Not a brand I am familiar with...

But surely you get that warm fuzzy feeling with the name!

Seriously OP, FRED OF PARIS is the official company name and they are big jewelry retailers. Surely they have a service dept.

Archer
Posts
27,604
Likes
70,226
janice&fred janice&fred
But surely you get that warm fuzzy feeling with the name!

Yes, that's my brother in law's name, and he's a great guy...

Canuck
Posts
14,275
Likes
41,130
It might be a challenge to find anybody to work on this. Does anybody other than Omega/Breitling/or anybody else who has ever used that chronograph module, have access to a either a serviced module, or parts for the module? Mikrolisk shows a number of possibilities re: the firms that use the FRED name. Perhaps there is help there?

Deafcon
Posts
195
Likes
492
afinewatch afinewatch
Only the sub dials are mother of pearl. Does the lever which operates the start stop sit under the dial?
The only reason that I have seen before for use of some adhesive was dial feet being off. And only saw a double sided tape which is not very strong usually.

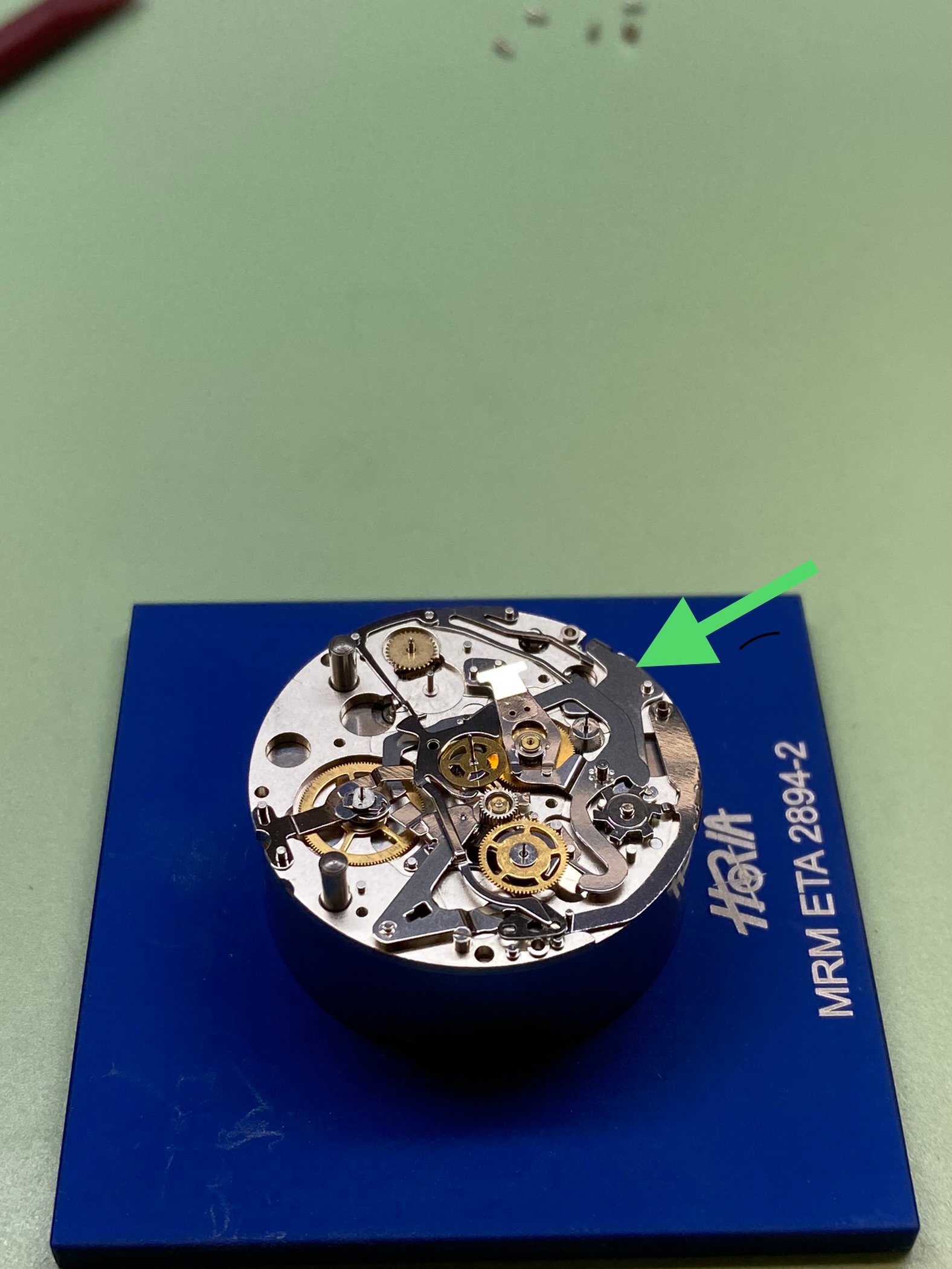

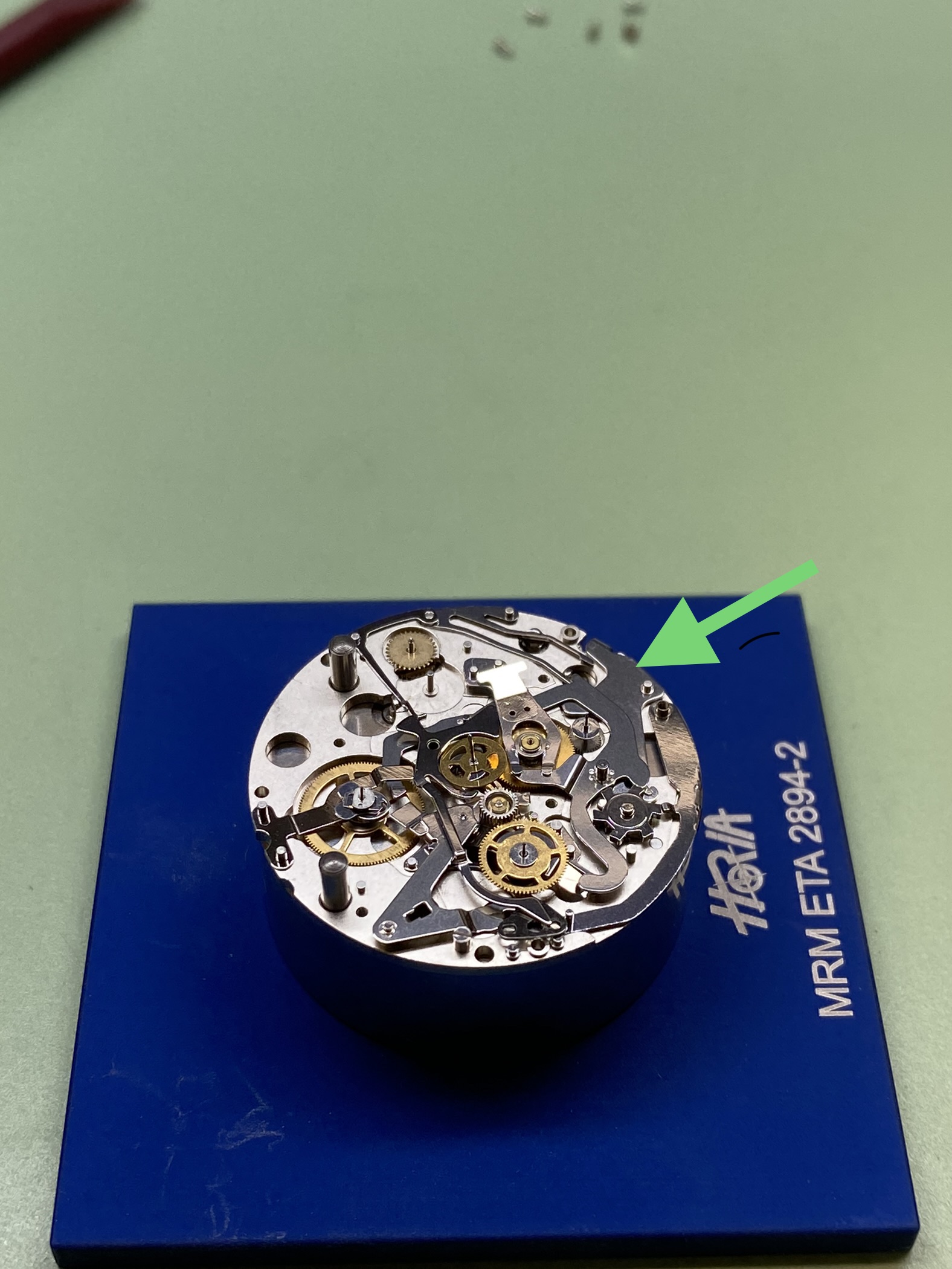

The 2894-2 requires a special holder for the module. There are three springs(technically 2, but one spring has two legs) that have to be unloaded with the tool for disassembly and reassembly. I don’t have many pictures from the last one I worked on. The arrow points to the stop/start lever. With the tools and training the 2894-2 isn’t too hard to work on.

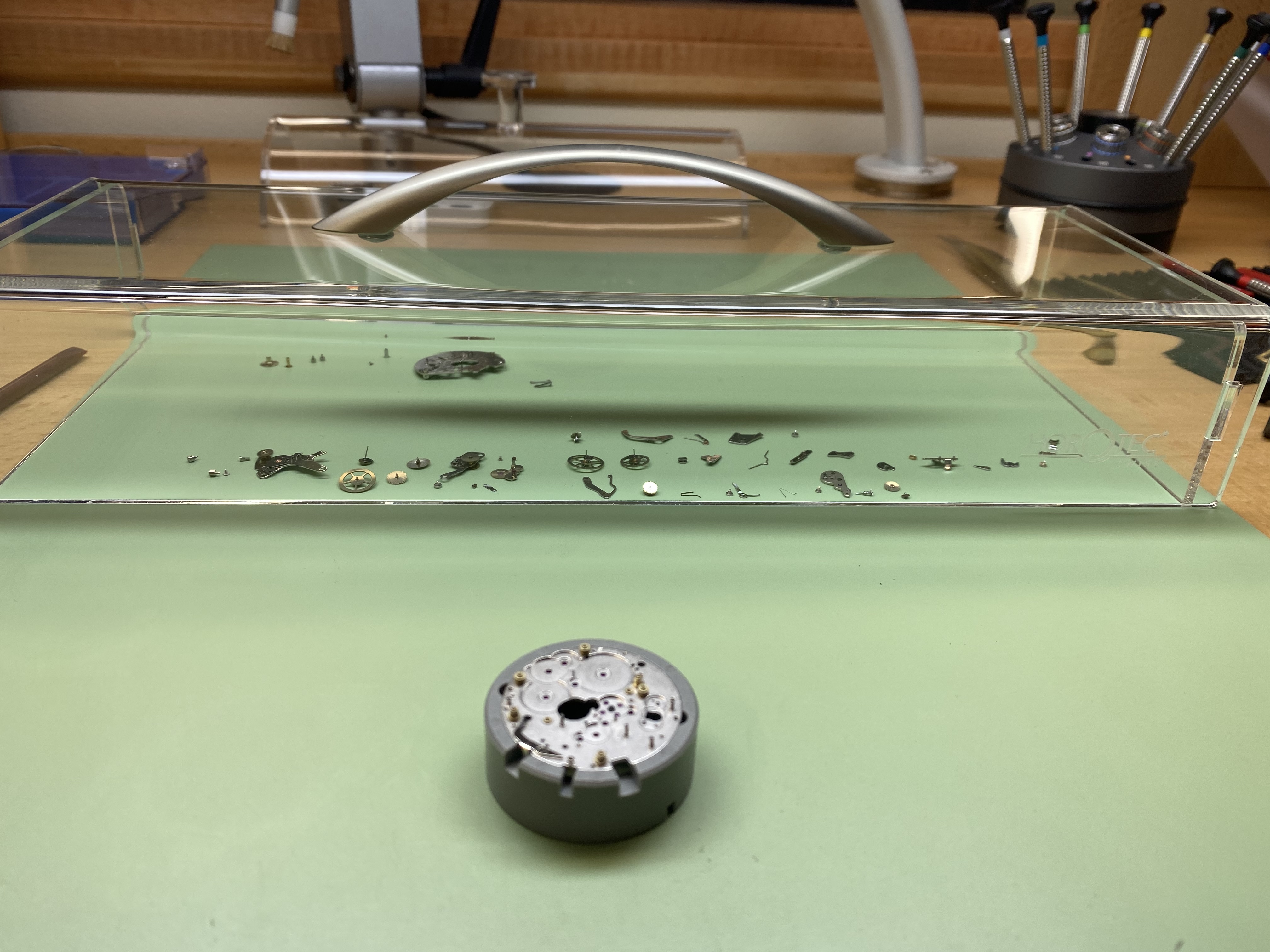

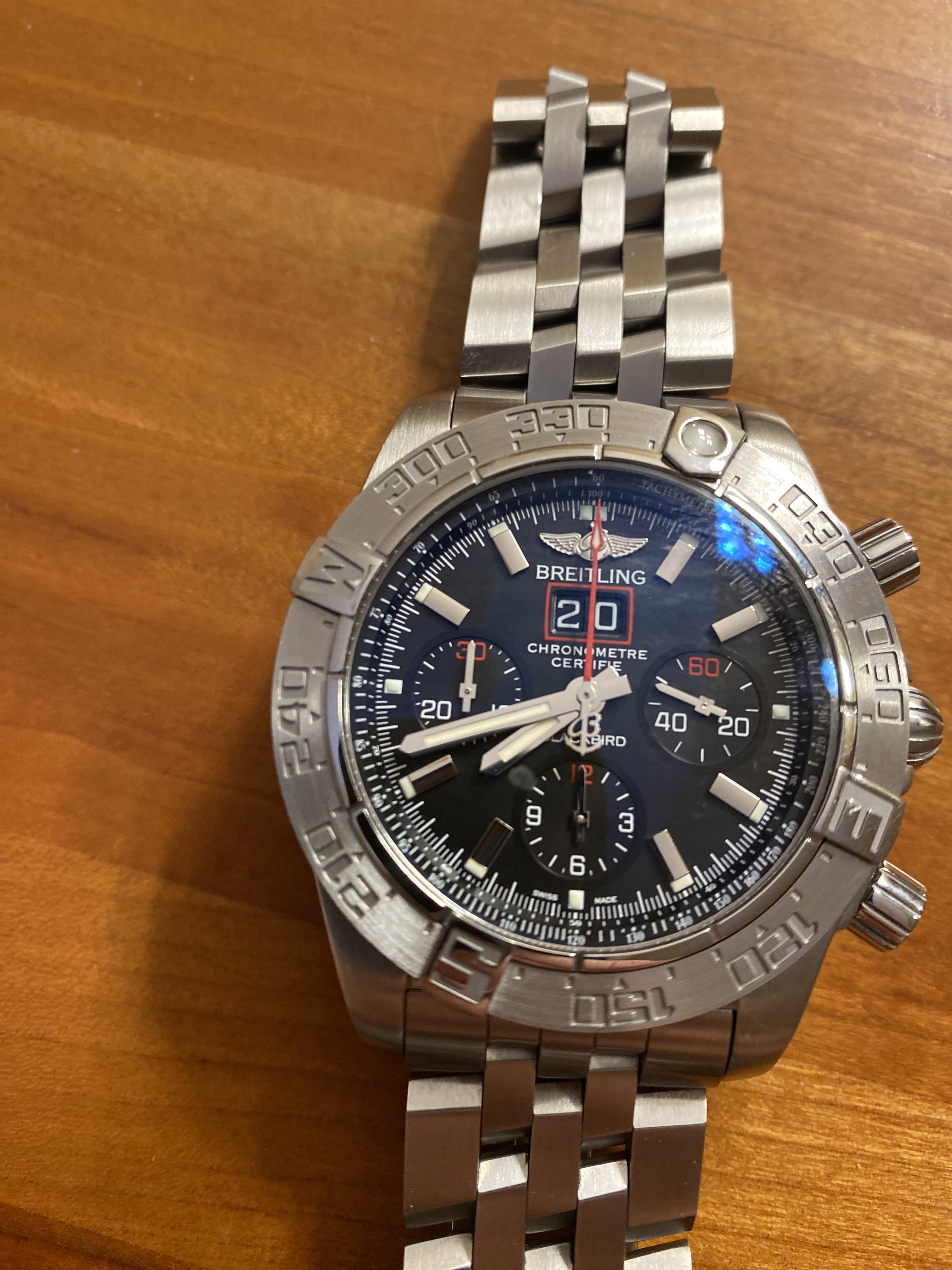

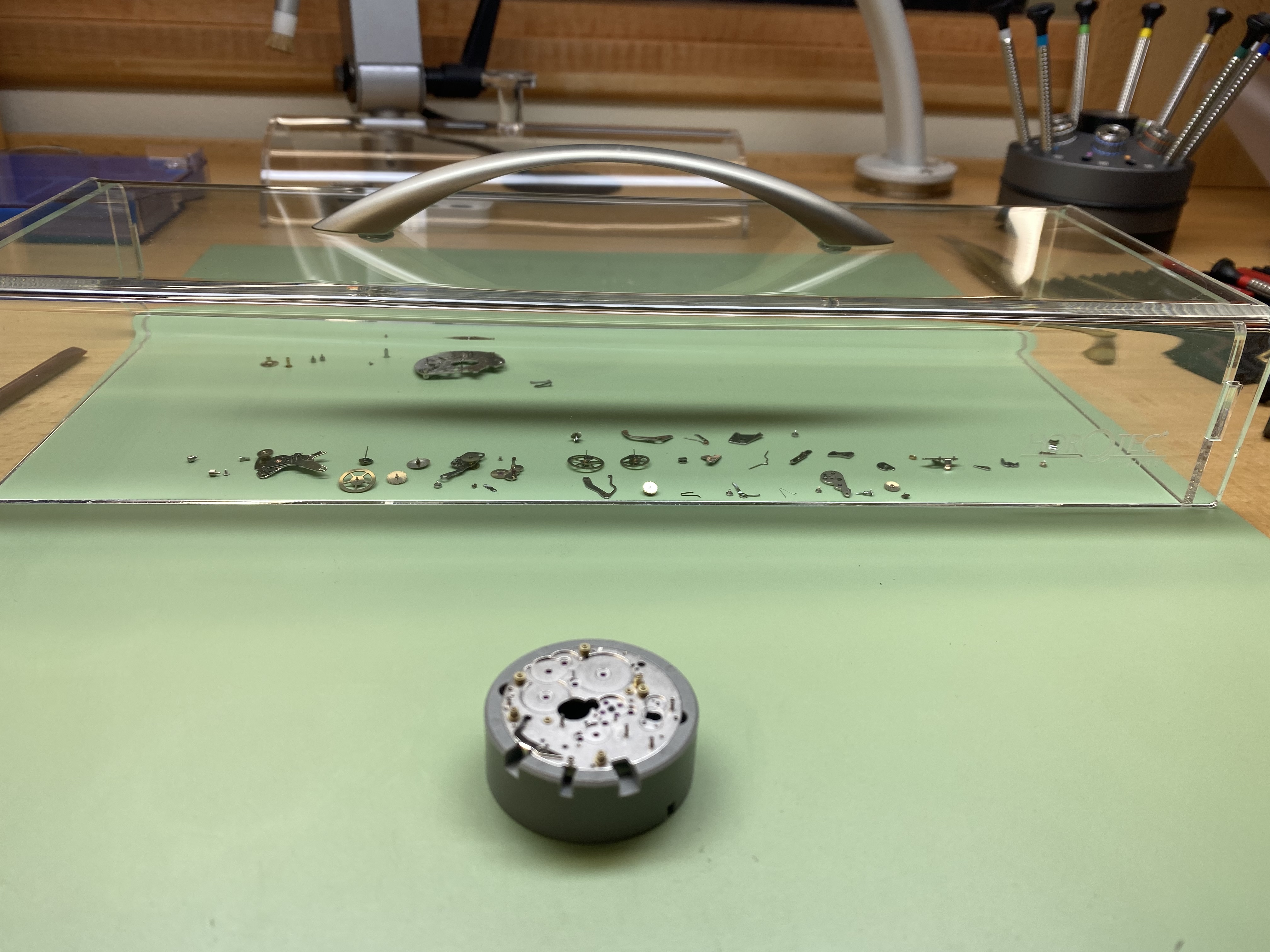

It’s simpler than the Dubois Depraz 2000 module that Omega uses. Below is a pictures of a 4500 module from a Breitling. It’s mostly the same as the 2000 with a big date:
55D38853-AFF3-45E5-A500-C0F4CCA93BCB.jpeg 3E94D6E4-5397-4302-ACB9-F3687C502366.jpeg


afinewatch
Posts
1,138
Likes
322
So the watchmaker who did not want to service the watch for fear of damaging the dial ( claiming it was glued )was able to start the chronograph.
It is running and sub dials registering the elapsed time. Does this fact pinpoint the issue?
