Did you noticed that joint? Where is it at your watch?

Posts
1,205
Likes
7,101
Hey,

I have this tiny little joint in the ring above the dial, why is this join necessary, and where is it at your watch?

For example on two of my watches:

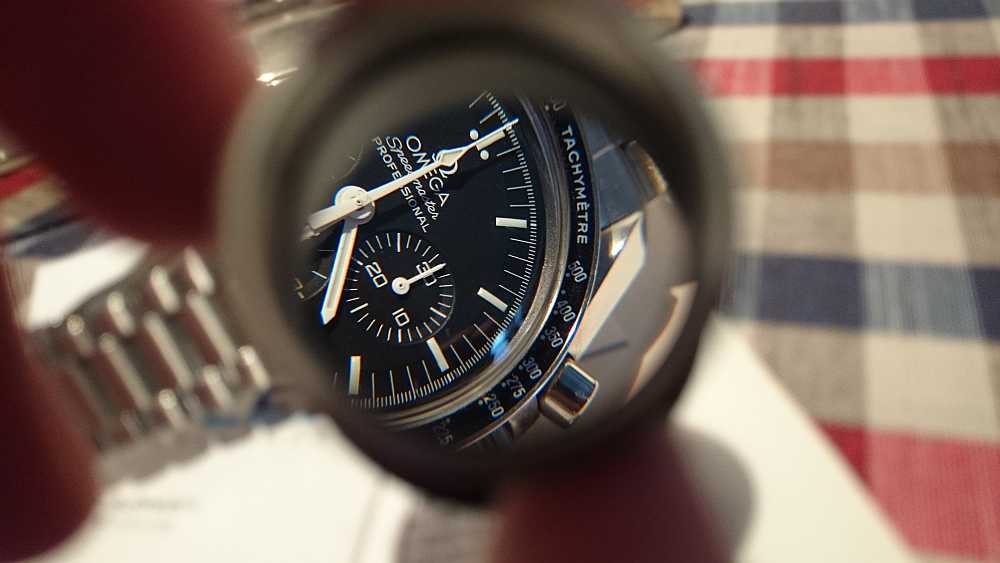

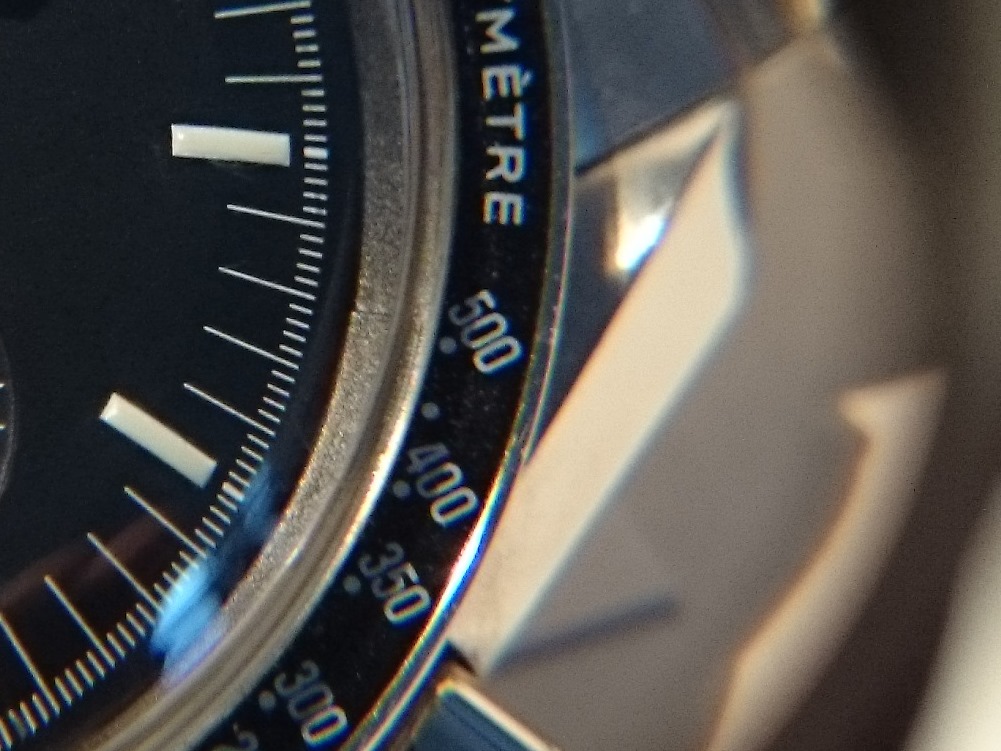

Speedy Pro (2014): At 7 seconds

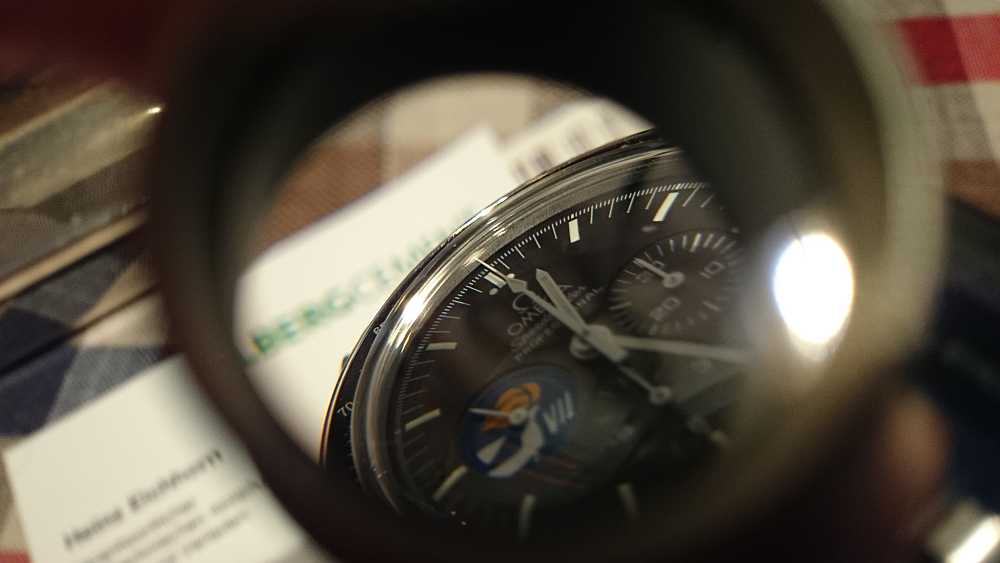

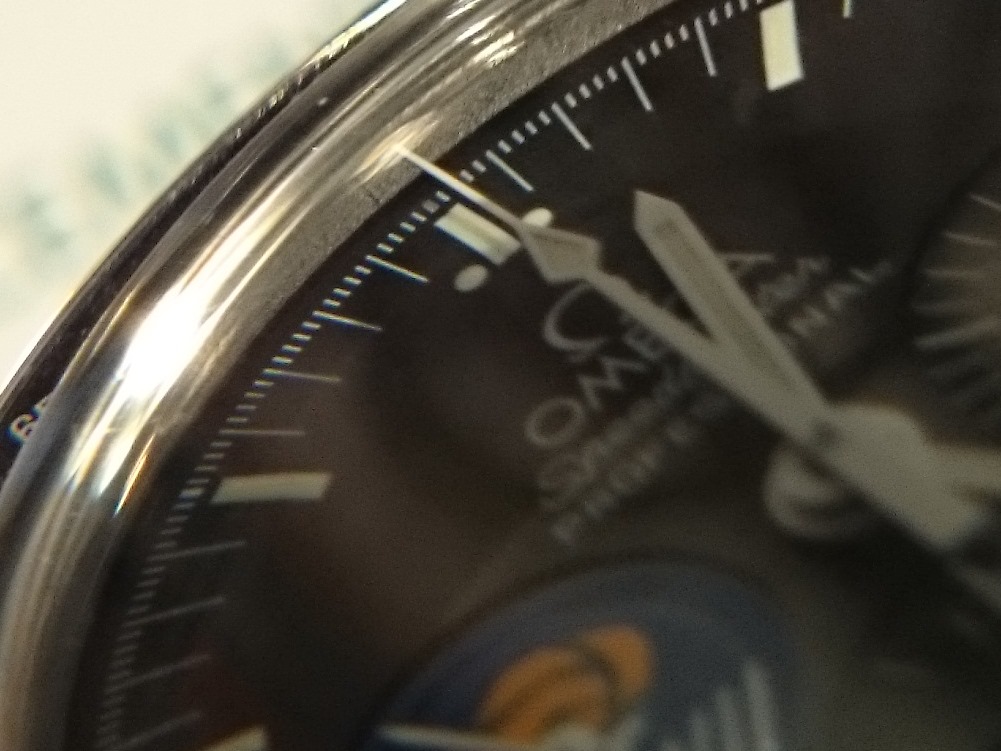

My Gemini VII Mission Patch (1998): At 58 seconds


Best Regards,
Hans

Posts
29,236
Likes
75,589
It's normal - the tension rings are split. Orientation is random...

Cheers, Al

Posts
15,243
Likes
44,774
These watches probably have acrylic crystals with internal reflector rings. These rings have a split in them which is typically open until the crystal is pressed into the case. As this happens, the crystal compresses, and the gap in the ring closes. These rings are called a "reflector" ring,mbut their more important purpose is to force the crystal to remain tight, and sealed, as the acrylic hardens over years. The fact that this splits are in different locations on individual watches is just the way it is.

Posts
6,574
Likes
78,067
Spiff-o-matic information...thank you. 👍

Also, most excellent attention to detail, Hans. 👍
