Hi

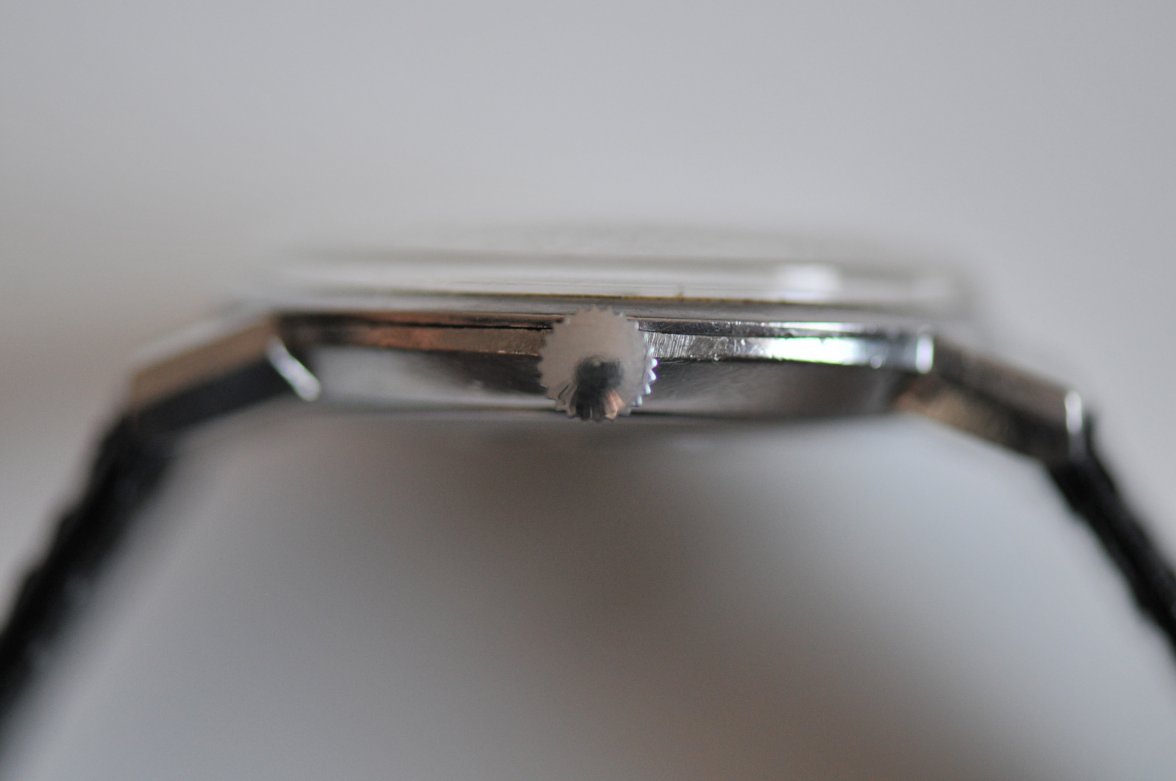

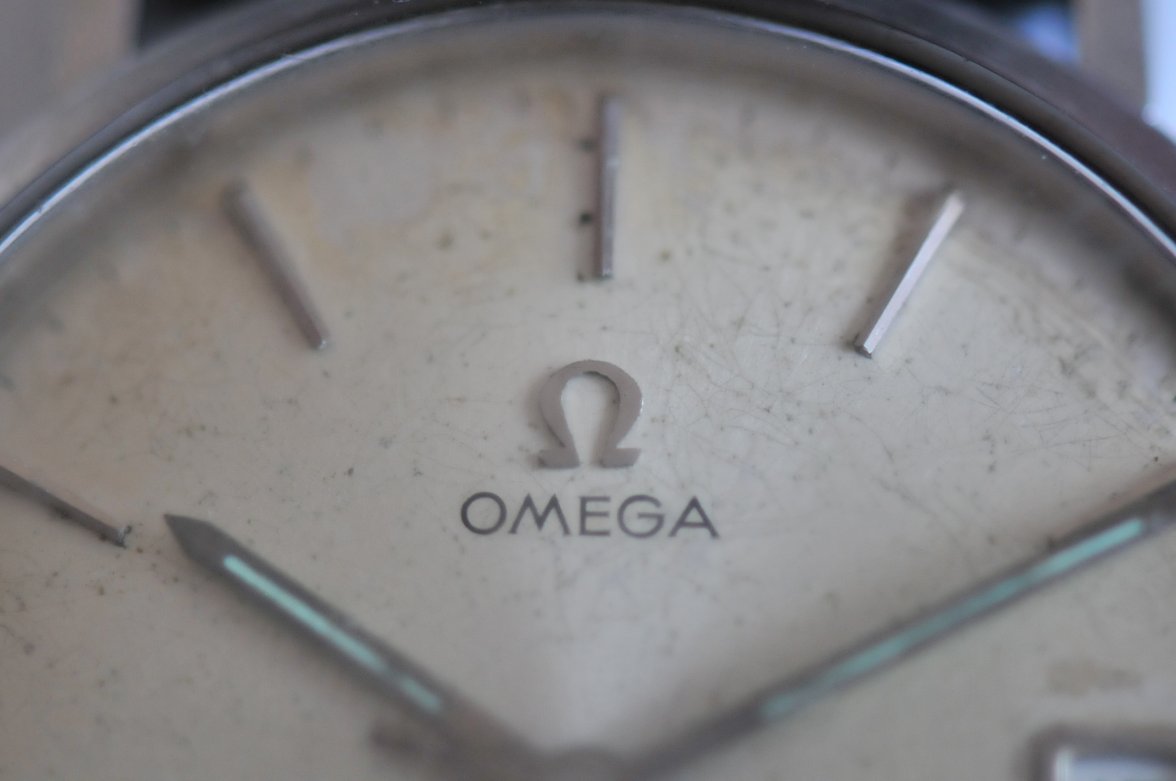

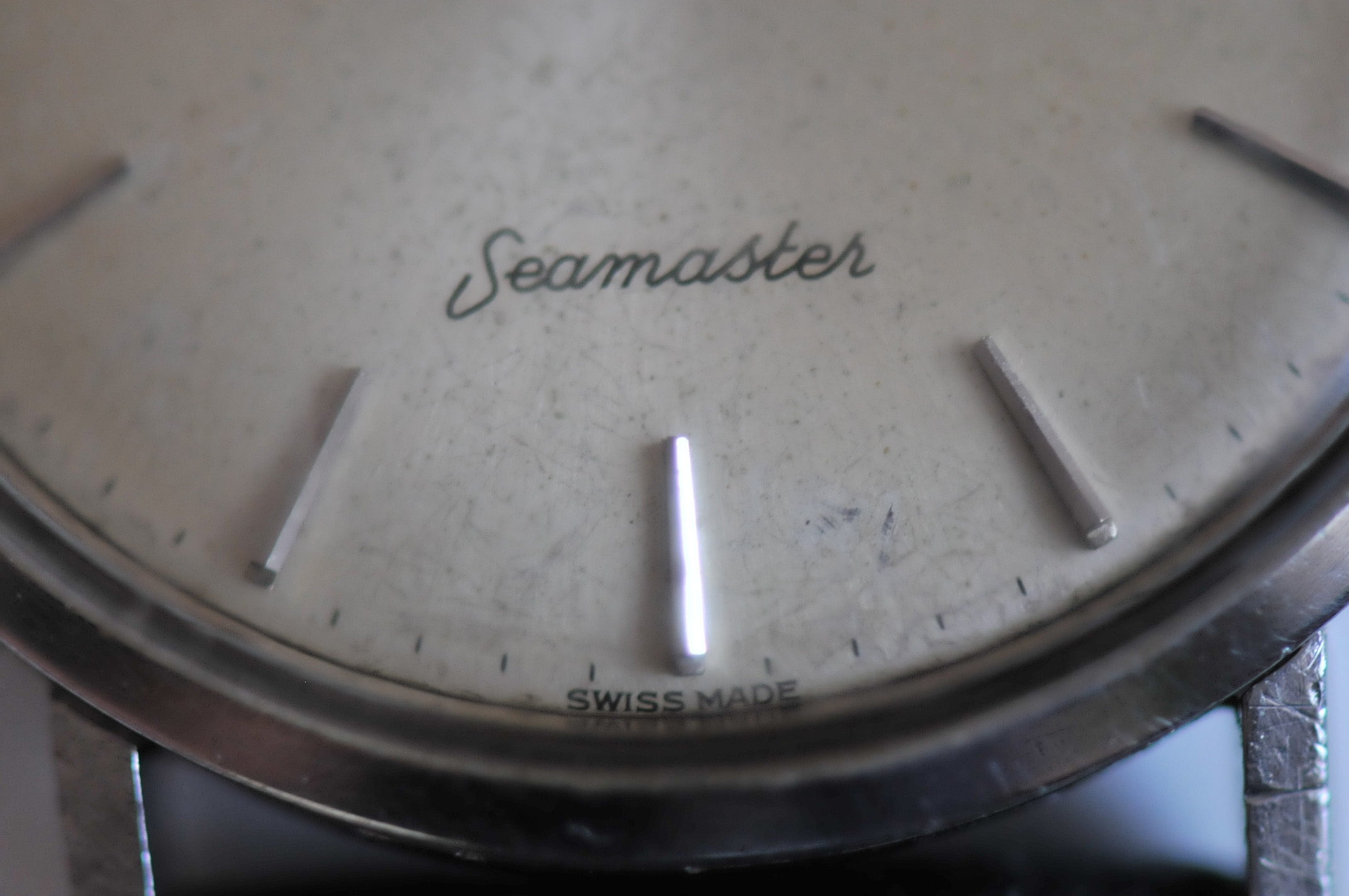

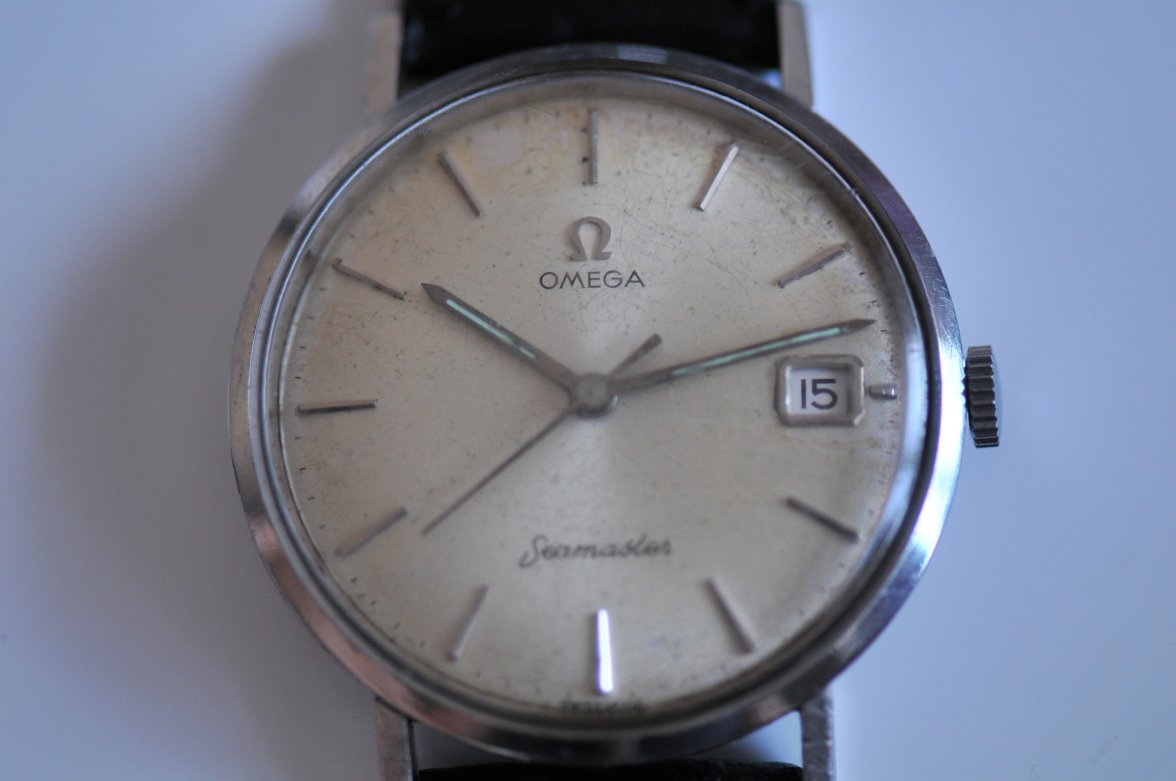

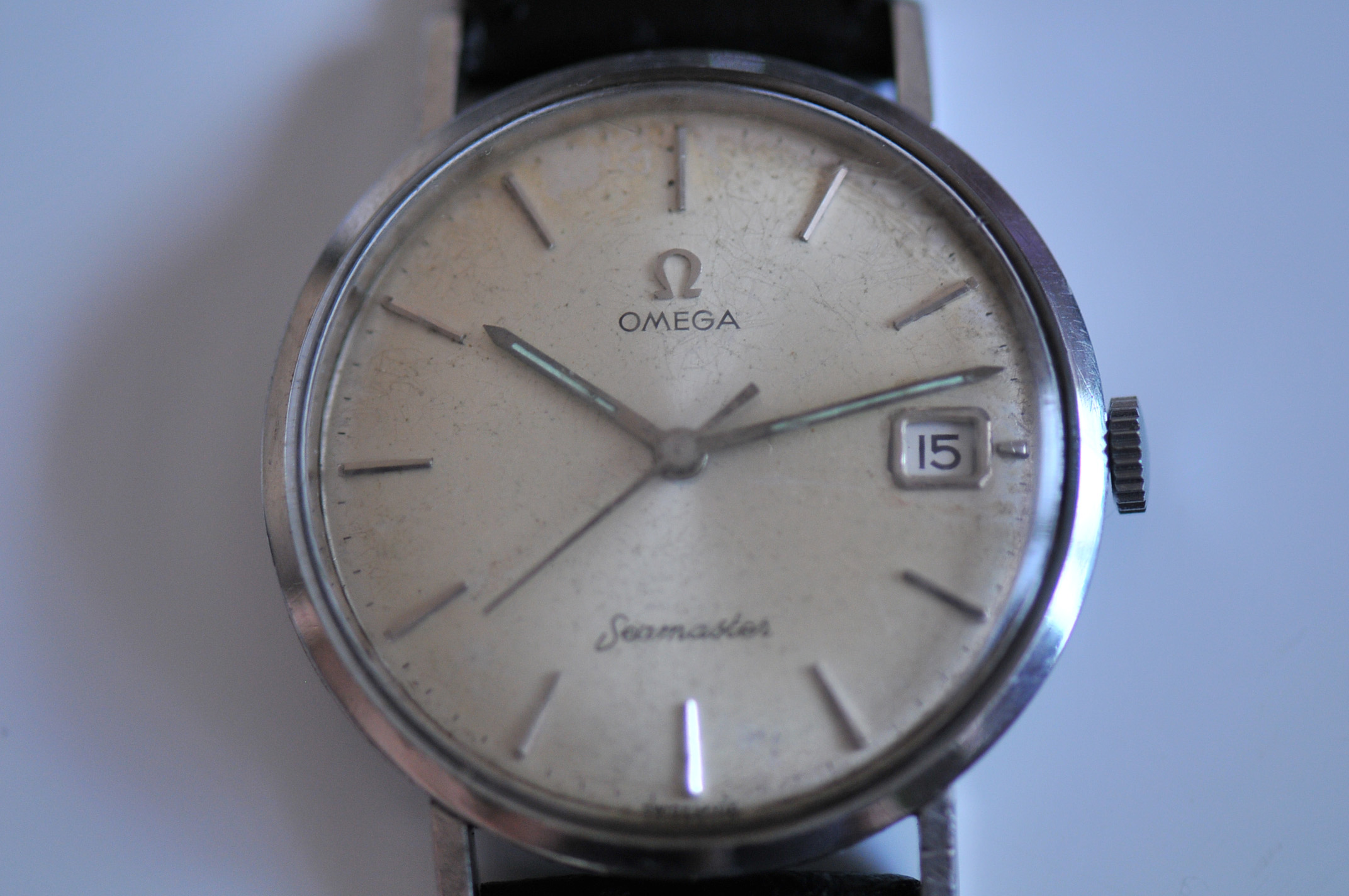

I recently purchase this watch but I am not able to see the mechanism because the movement has to be removed from the front..I removed the glass but I don't know what to do next...so could you tell me the reference number of the case, caliber, etc from the pictures..?

Thank you in advance



Ref 14775 caliber 610. I guess.



I think there is a case back you can open.

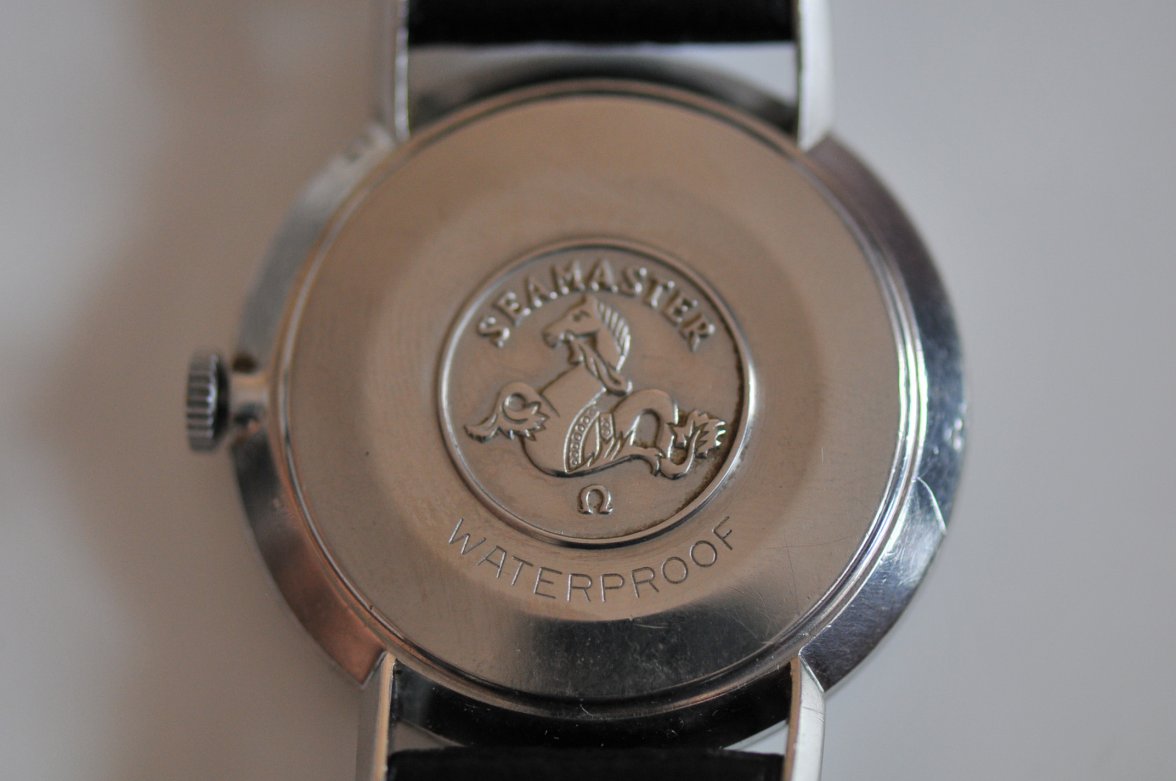

I think it is monobloc , you can not open the case back , 610 or 613 probably ...



Take it to someone who does know what to do next.



Yes, probably. I thought there were a spot to open the back on some picture, but the case definitely looks like a monocoque.



It's definitely a monoblock..I removed the glass but I didn't knew what to do next..thank you for all the answers.



Usually, with a monocoque like that, you have to pull out the crown - the stem should split as it is made of two parts - turn the movement a little bit in the case and let it fall on a cushion.

But do not try yourself if you do not know what you are doing!



There's no such thing as "monobloc" Omega case.

It's either a "Monocoque" case where the movement is accessed by removing the bezel/crystal assembly with a case knife after removing the crown/stem assembly.

The somewhat similar "Unicoc" style is the one where the removal of the crystal with a crystal lift is used and then the movement can be accessed.

You can usually spot a Monocoque case by the small gap between the bezel and the case (under the crown if it's been correctly assembled).
